Product Family Overview


Gas Powered All Terrain Pallet Trucks & Stackers
SERIES: ALL-T-GPT

An all-terrain pallet truck with a gas powered drive system is the perfect solution when moving items over uneven surfaces. This pallet truck is great for use at construction sites and landscaping areas. With the use of a tilting fork feature, the products can be positioned to better fit the users' needs. The robust steel construction and wide set outriggers enable the transference of items, both large and small. Steering handle includes multiple controls for user safety. PT units have Powered Tilt.

  • Electric start
  • Adjustable fork width
  • Gas powered for consistent daily use
  • Foam filled tires for added support
  • Liquid painted finish

Complies with ASME B56.1-2004


An all-terrain pallet truck with a gas powered drive system is the perfect solution when moving items over uneven surfaces. This pallet truck is great for use at construction sites and landscaping areas. With the use of a tilting fork feature, the products can be positioned to better fit the users' needs. The robust steel construction and wide set outriggers enable the transference of items, both large and small. Steering handle includes multiple controls for user safety. PT units have Powered Tilt.

  • Electric start
  • Adjustable fork width
  • Gas powered for consistent daily use
  • Foam filled tires for added support
  • Liquid painted finish

Complies with ASME B56.1-2004


Additional Models In This Family

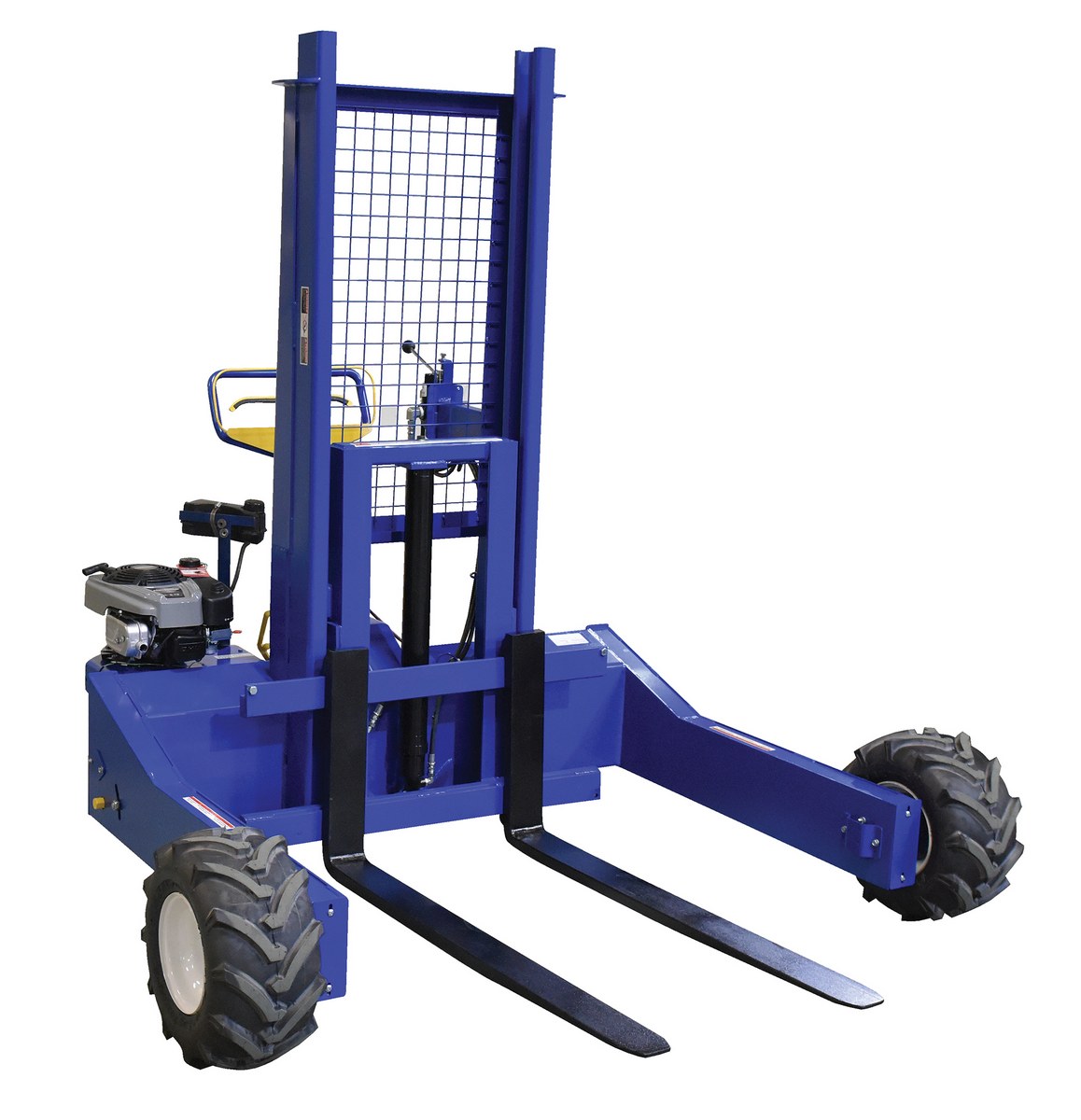

ALL-T-1-GPT-ST-L

model ALL-T-1-GPT-ST-L

ALL-T-4-GPT

model ALL-T-4-GPT

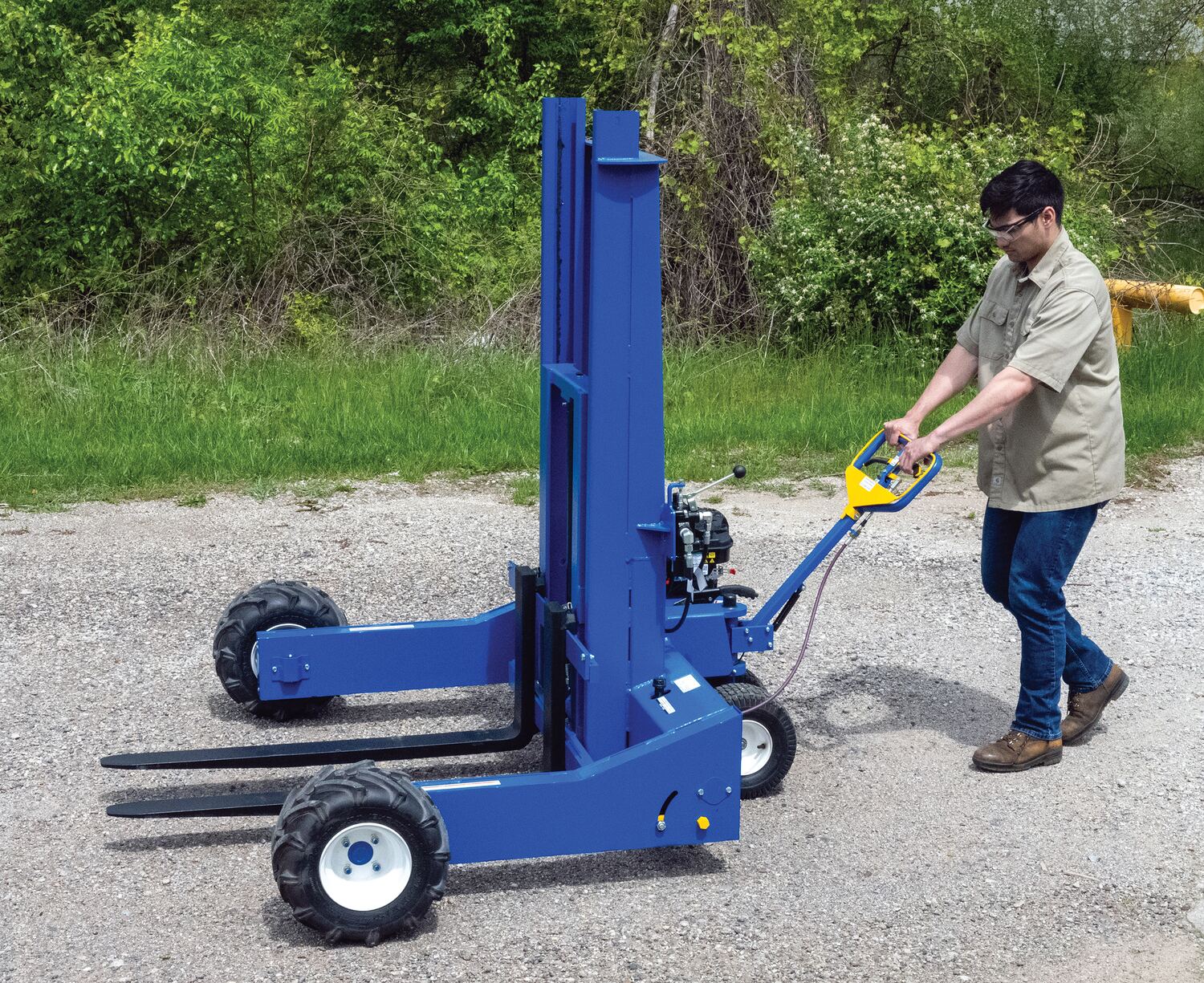

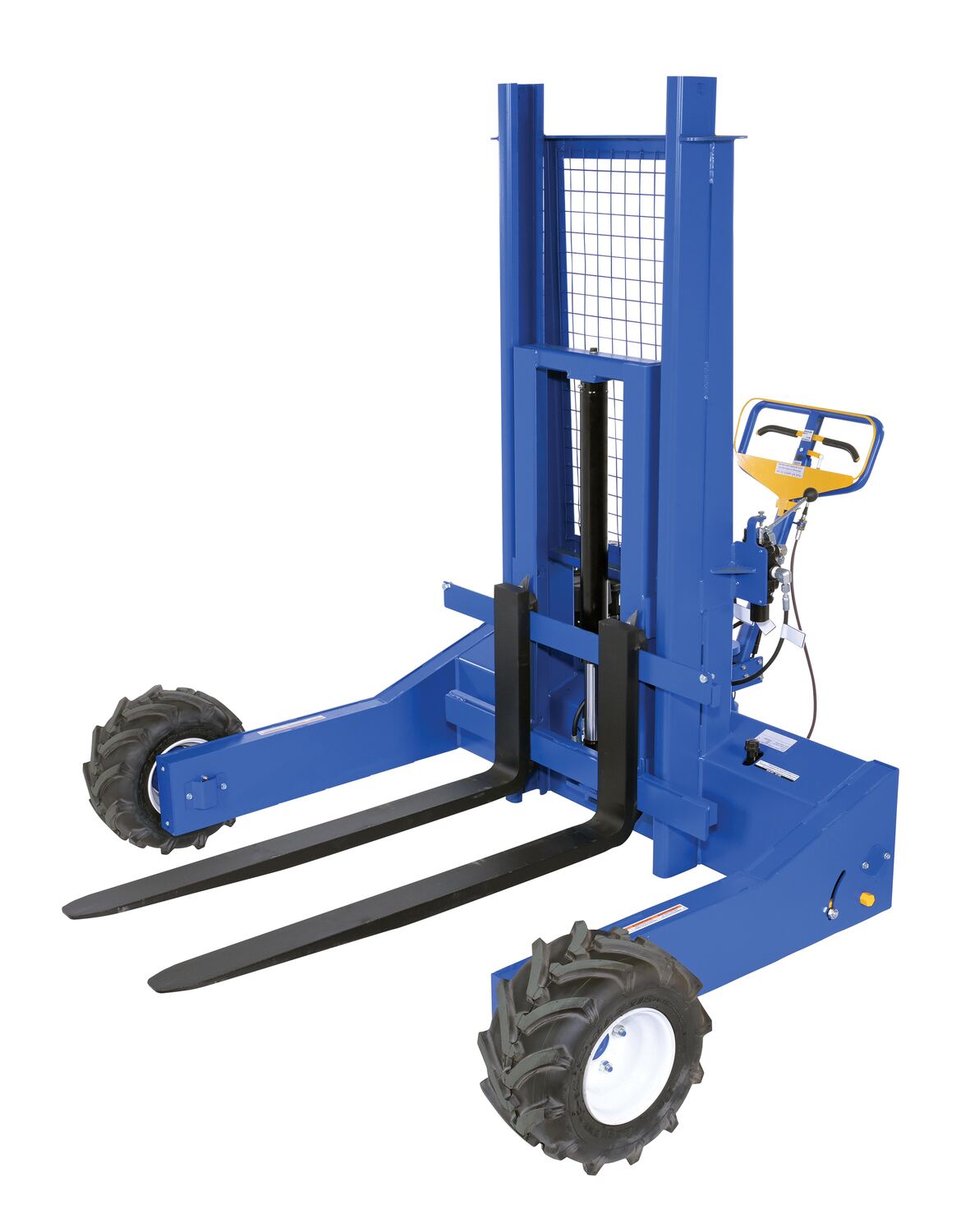

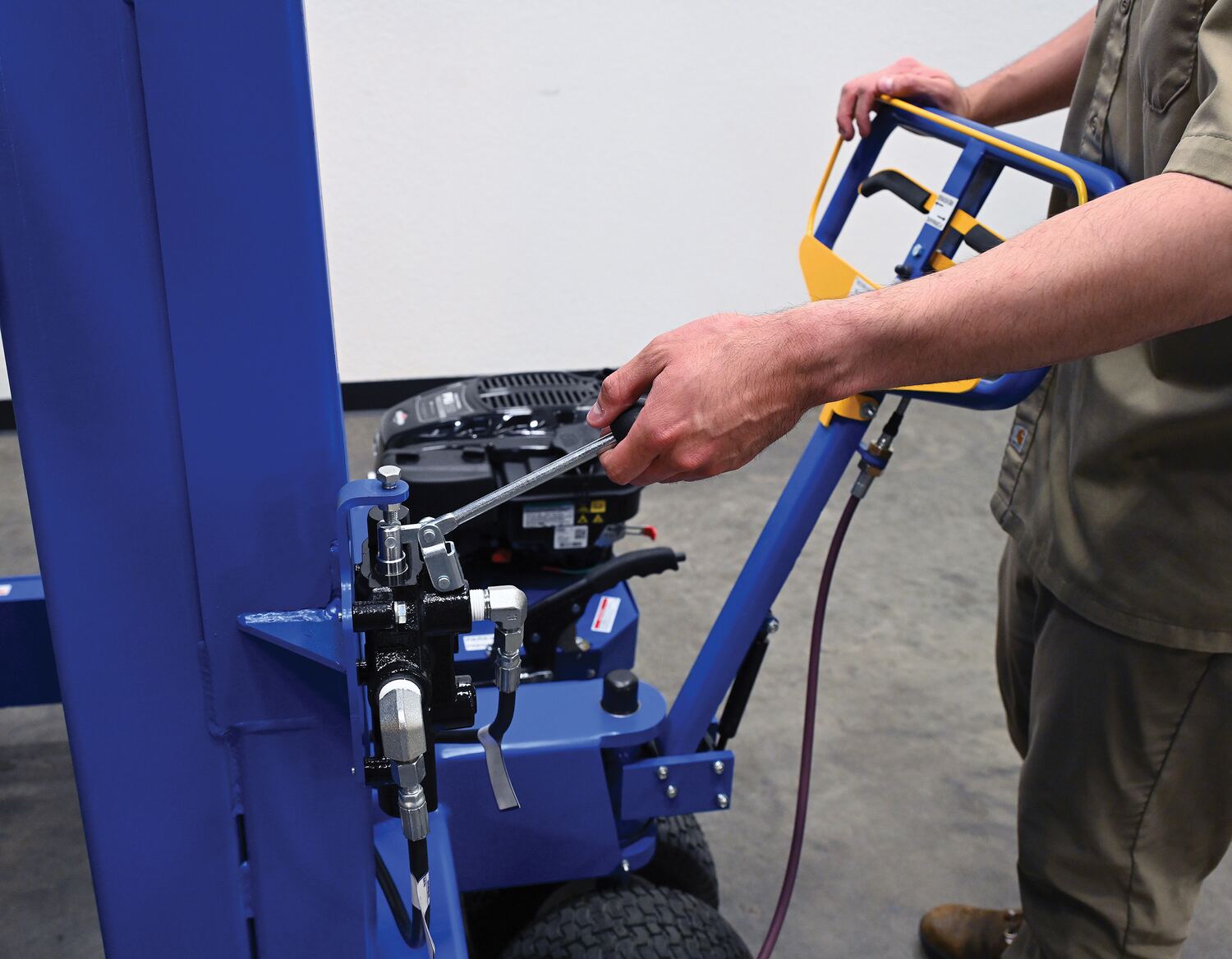

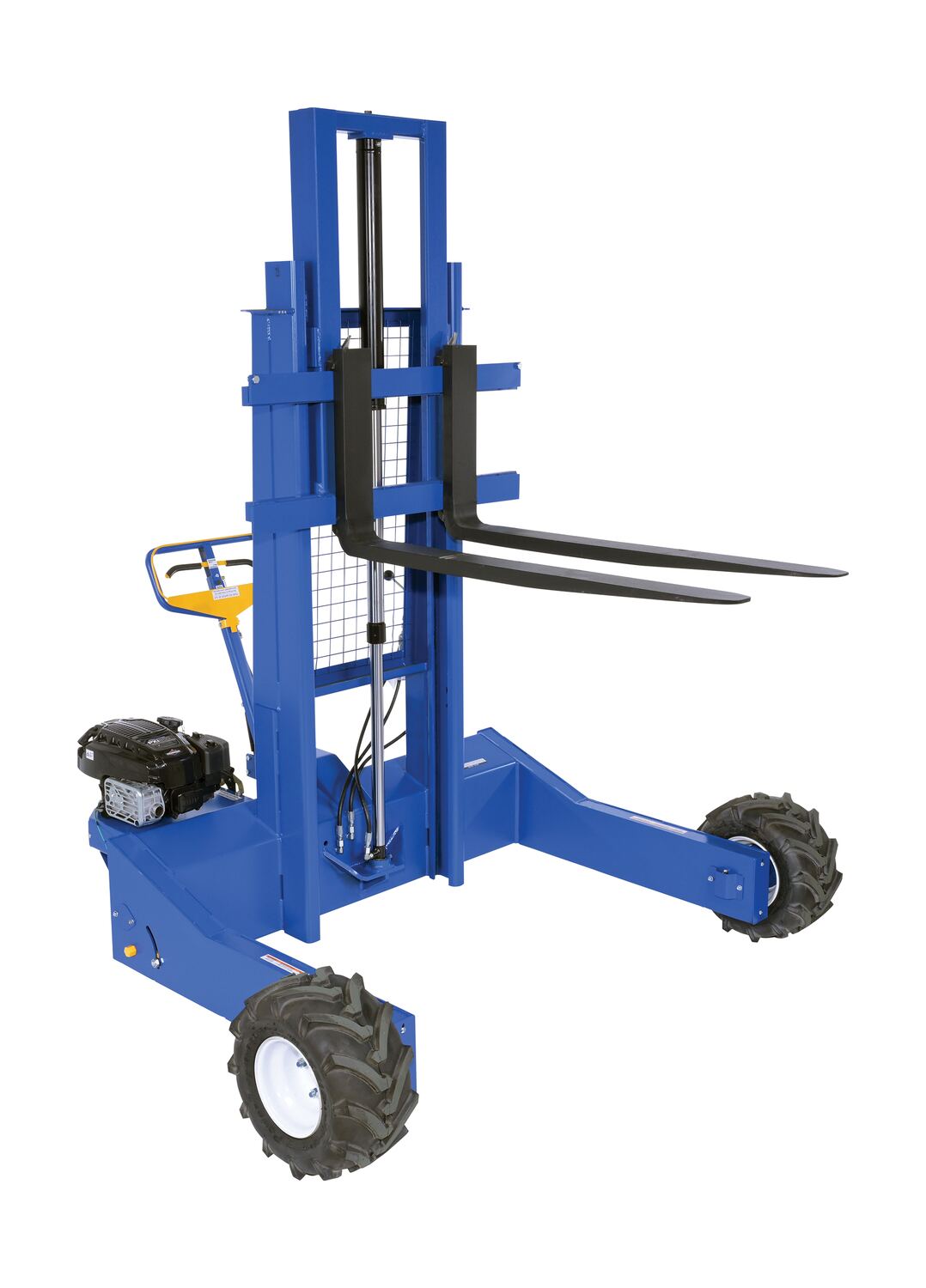

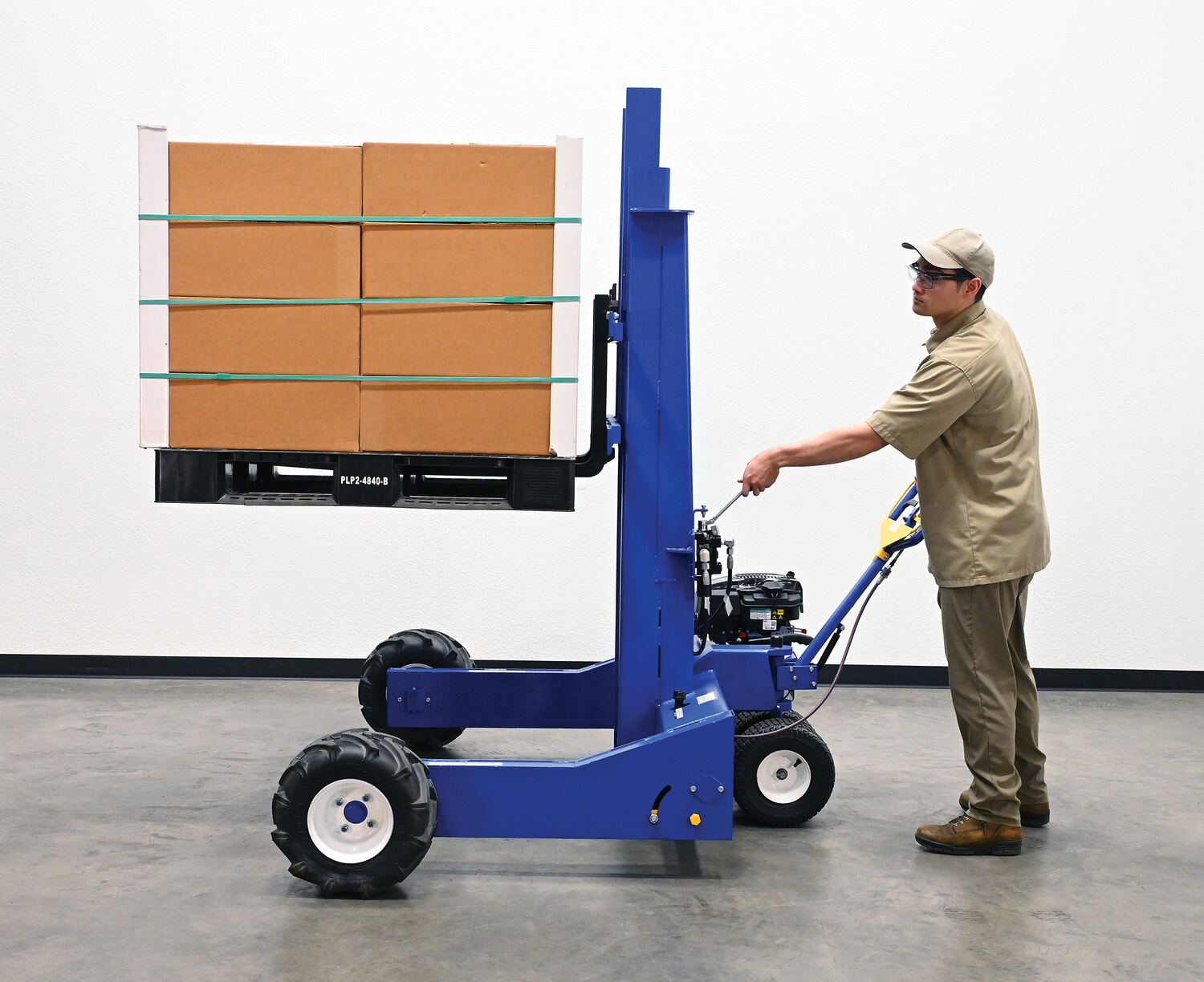

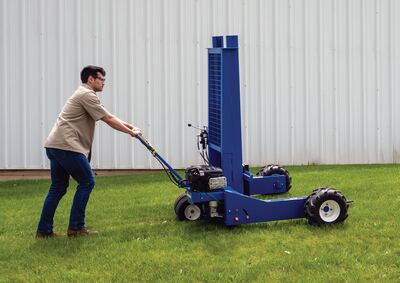

ALL-T-35-GPT-ST-L

model ALL-T-35-GPT-ST-L

Applications



Construction Projects

Farming and Agriculture

Municipalities

Warehouses

Warehouses

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ALL-T-1-GPT-ST-L
ALL-T-1-GPT-ST-L1 Year Limited WarrantySteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck With 48 In. Long Adjustable Width Forks 1,000 Lb. Capacity BlueUniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 1,000
Fork Width (in.): 4
1346
ALL-T-2-GPT
ALL-T-2-GPT1 Year Limited WarrantySteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.) at 18 (in.) Load Center: 2,000
Fork Width (in.): 4
1316

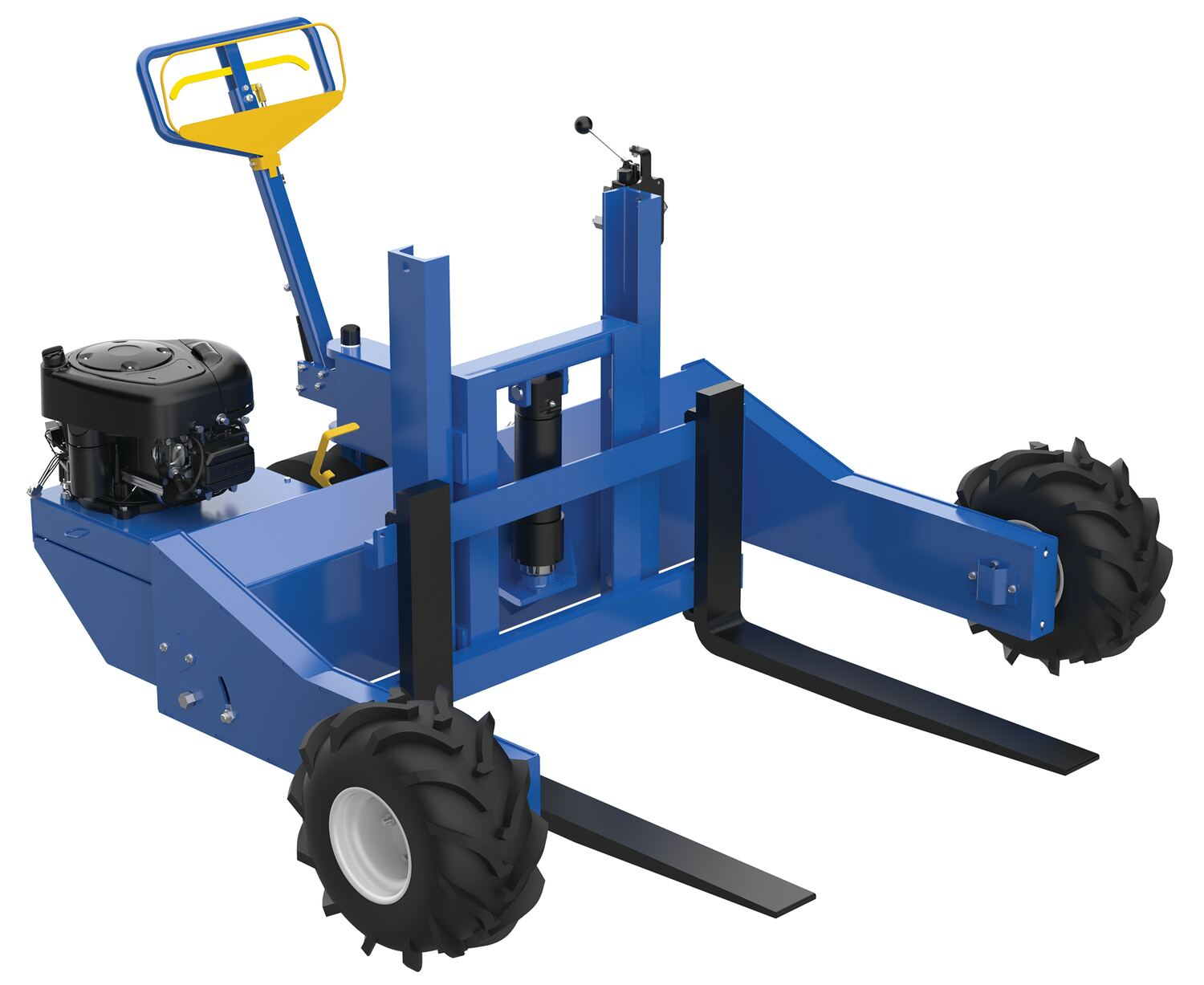

ALL-T-2-GPT-HD
ALL-T-2-GPT-HD1 Year Limited WarrantySteel Heavy Duty 344CC Gas Powered Drive and Lift All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1380

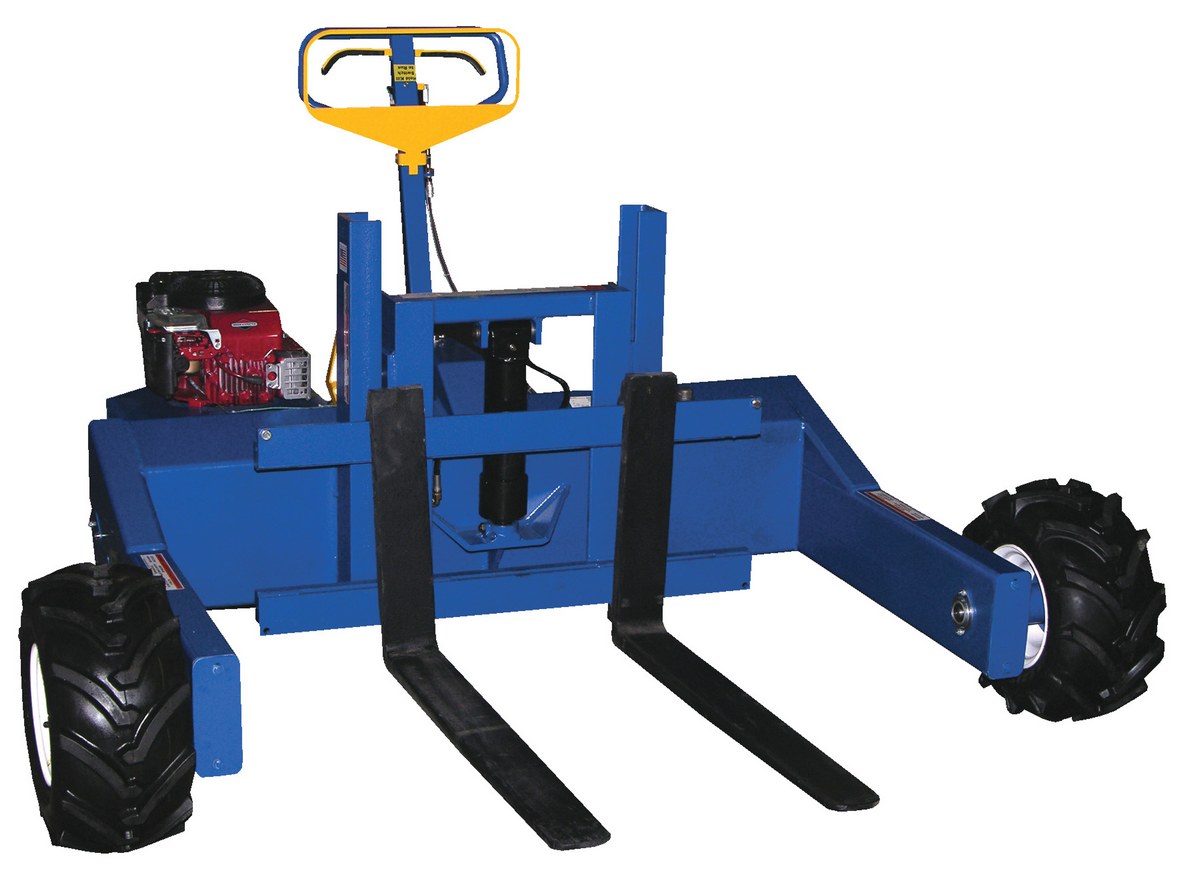

ALL-T-2-GPT-L
ALL-T-2-GPT-L1 Year Limited WarrantySteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.) at 24 (in.) Load Center: 2,000
Fork Width (in.): 4
1346
ALL-T-2-GPT-L-HD
ALL-T-2-GPT-L-HD1 Year Limited WarrantySteel Heavy Duty 344CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1423
ALL-T-2-GPT-L-PT
ALL-T-2-GPT-L-PT1 Year Limited WarrantySteel 190CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1652

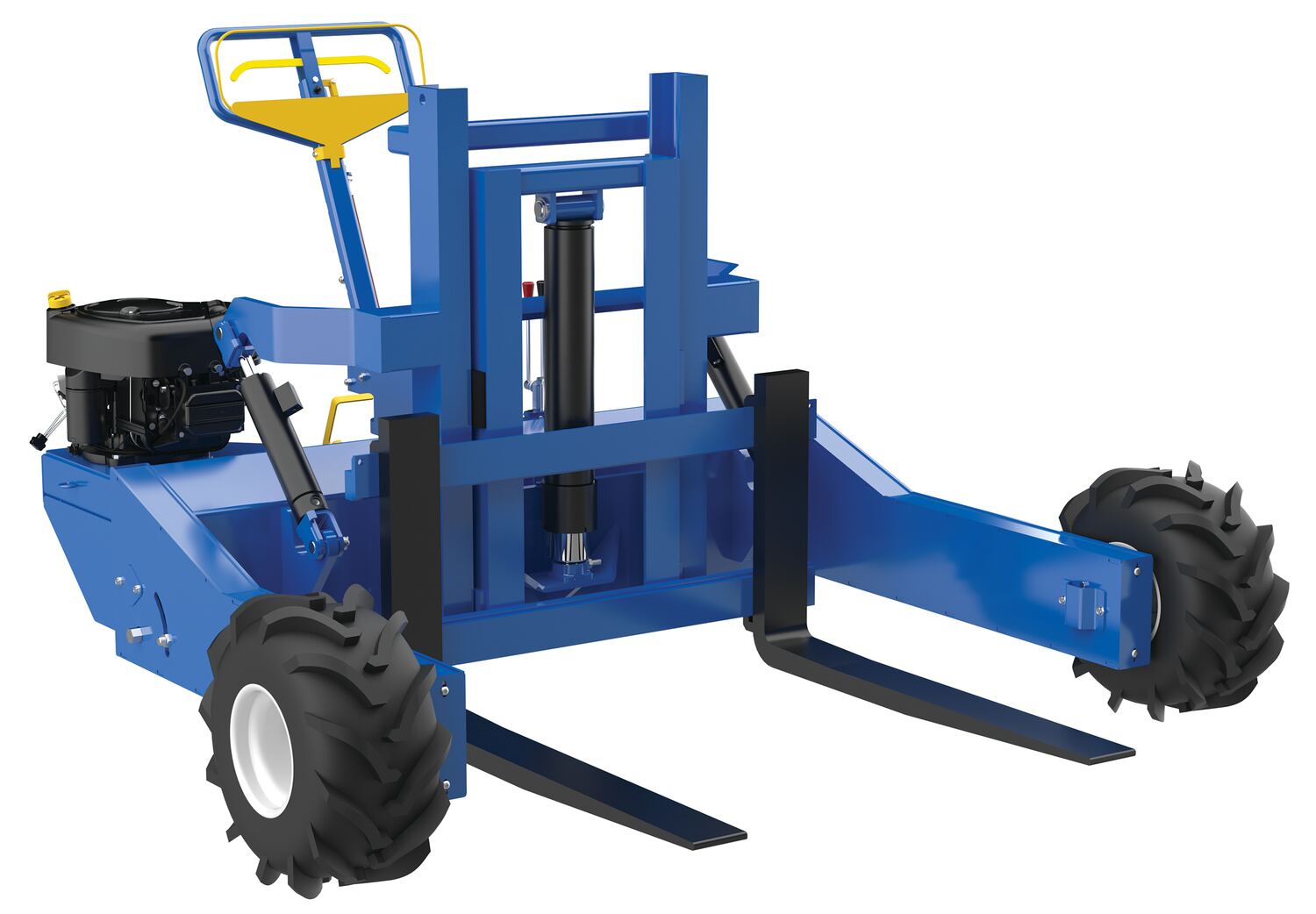

ALL-T-2-GPT-L-PT-HD
ALL-T-2-GPT-L-PT-HD1 Year Limited WarrantySteel Heavy Duty 344CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1686
ALL-T-2-GPT-PT
ALL-T-2-GPT-PT1 Year Limited WarrantySteel 190CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1628
ALL-T-2-GPT-PT-HD
ALL-T-2-GPT-PT-HD1 Year Limited WarrantySteel Heavy Duty 344CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1663

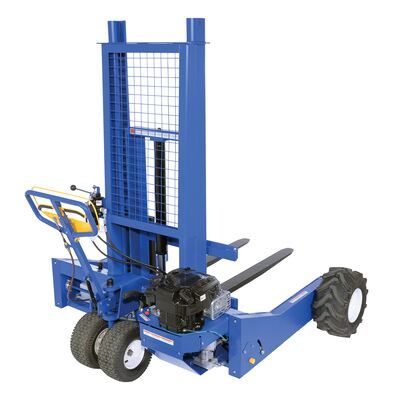

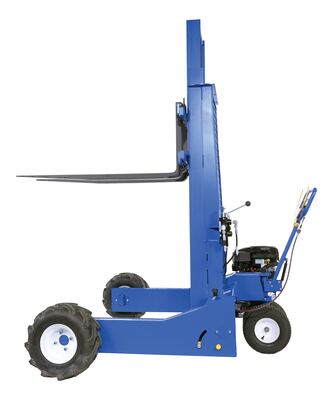

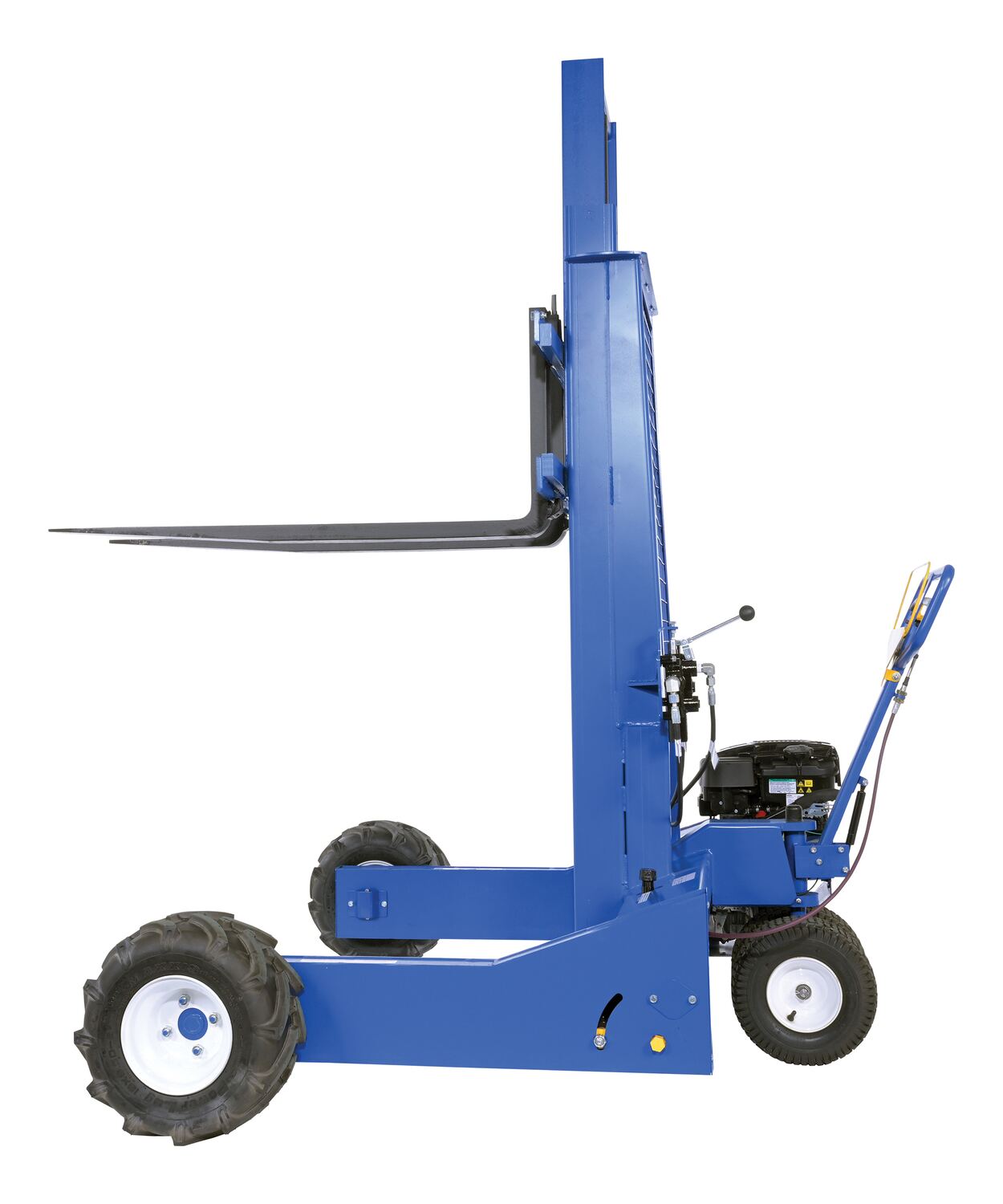

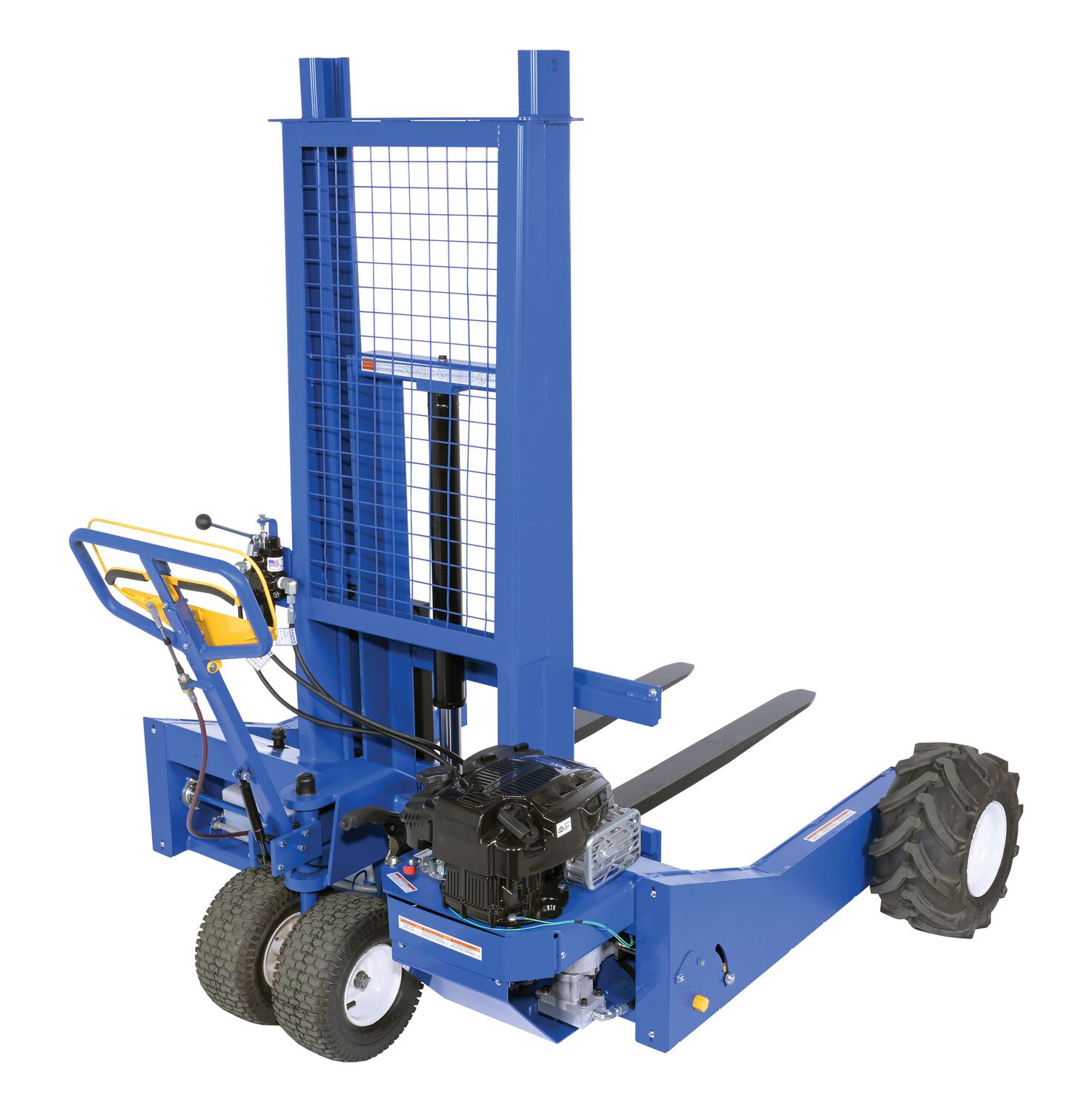

ALL-T-35-GPT-ST-L NEW ALL-T-35-GPT-ST-L1 Year Limited WarrantySteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 3,500 Lb. Capacity BlueUniform Capacity (Lbs.): 3500
Engine Size (cc.): 1900
1346
ALL-T-4-GPT

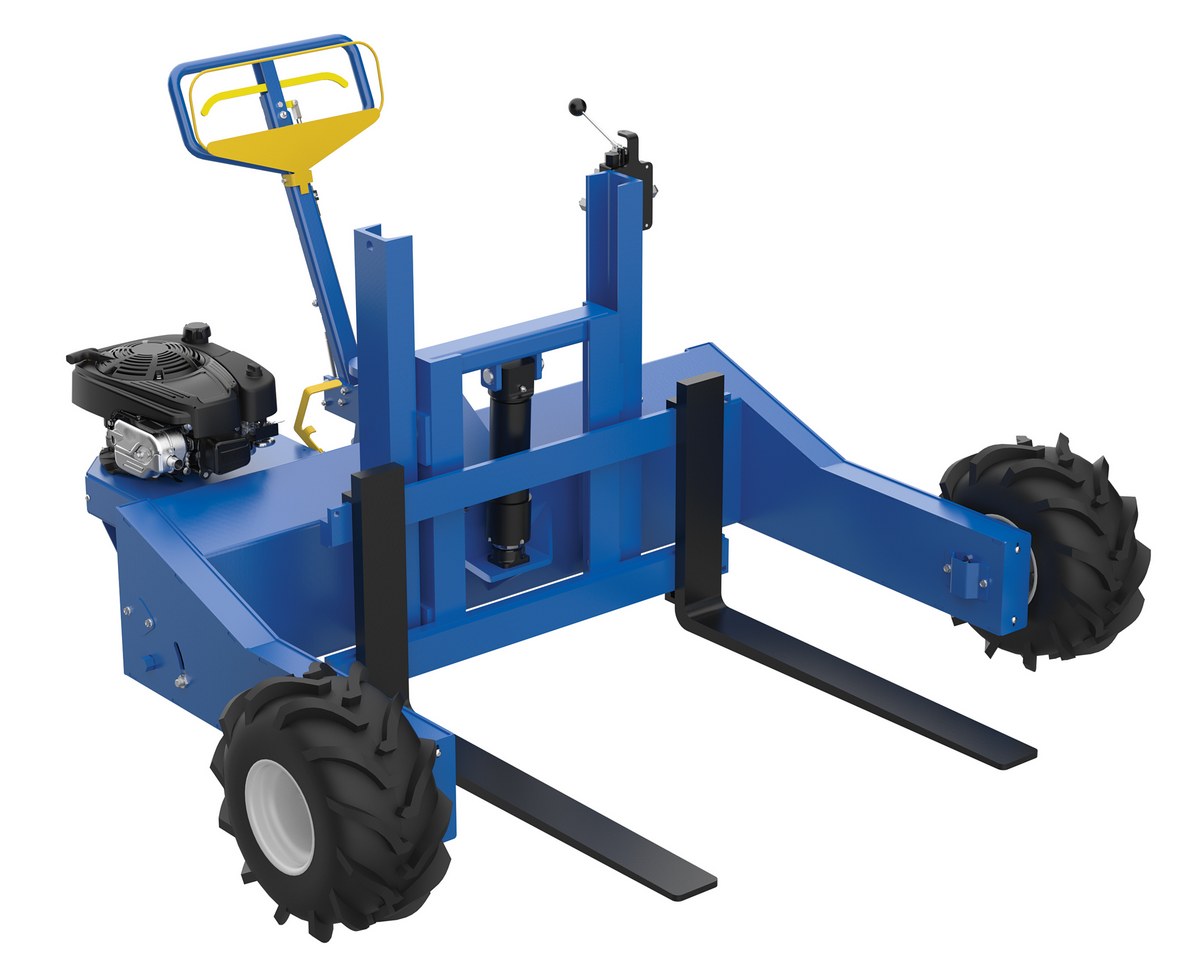

ALL-T-4-GPT1 Year Limited WarrantySteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.) at 18 (in.) Load Center: 4,000
Fork Width (in.): 4
1385
ALL-T-4-GPT-HD
ALL-T-4-GPT-HD1 Year Limited WarrantySteel Heavy Duty 344CC Gas Powered Drive and Lift All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1386
ALL-T-4-GPT-L

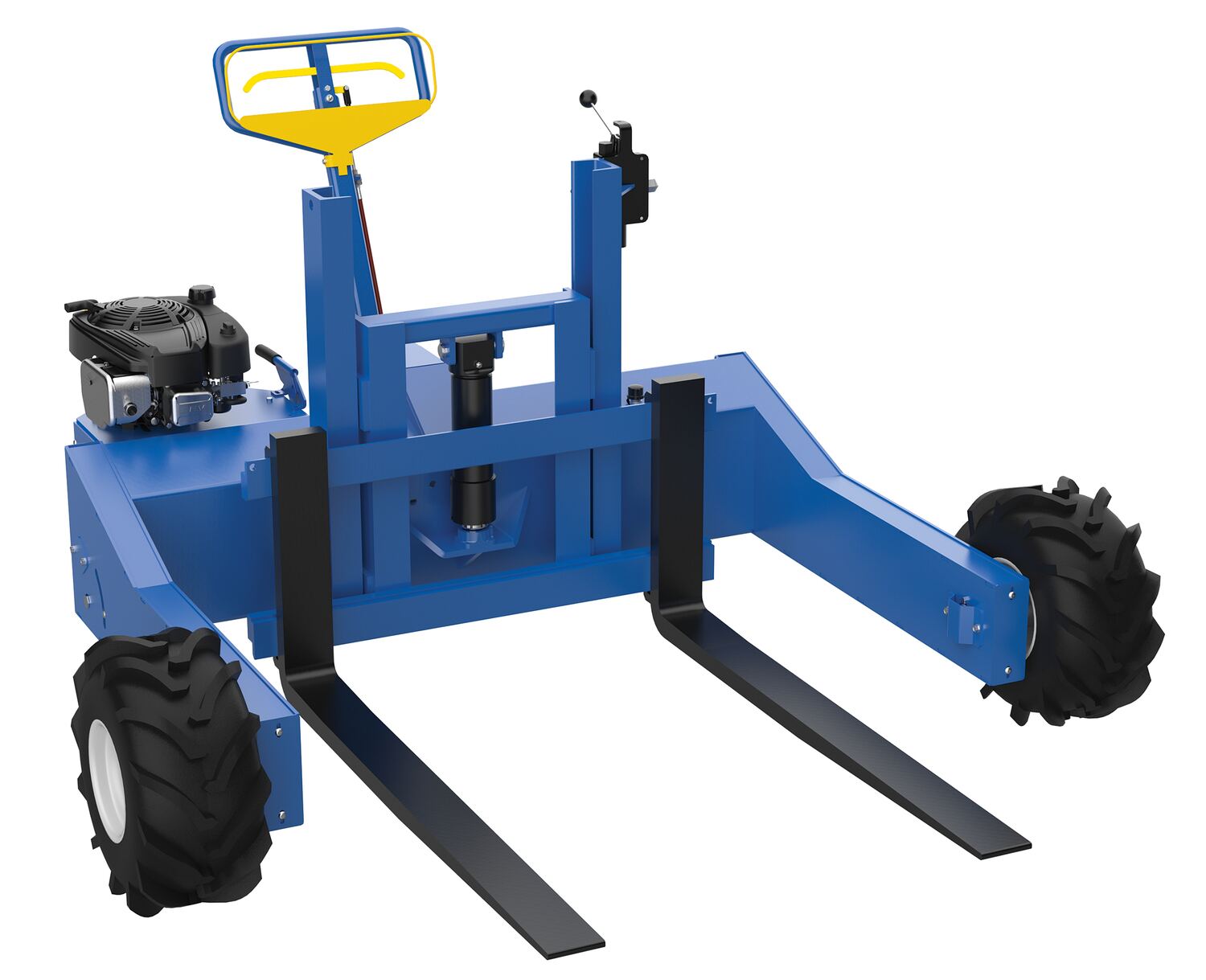

ALL-T-4-GPT-L1 Year Limited WarrantySteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.) at 24 (in.) Load Center: 4,000
Fork Width (in.): 4
1418
ALL-T-4-GPT-L-HD
ALL-T-4-GPT-L-HD1 Year Limited WarrantySteel Heavy Duty 344CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1492
ALL-T-4-GPT-L-PT

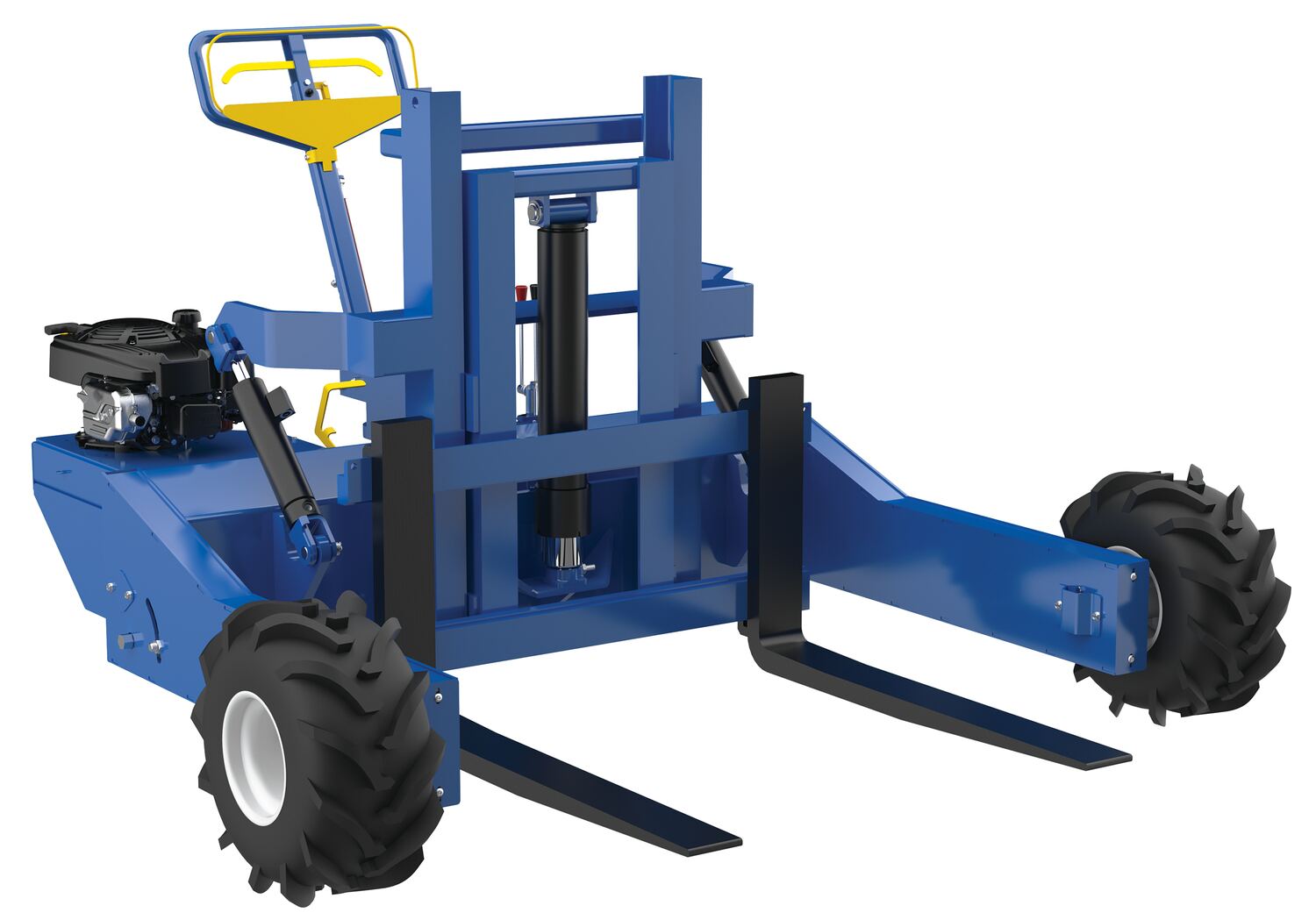

ALL-T-4-GPT-L-PT1 Year Limited WarrantySteel 190CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1729
ALL-T-4-GPT-L-PT-HD
ALL-T-4-GPT-L-PT-HD1 Year Limited WarrantySteel Heavy Duty 344CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1763
ALL-T-4-GPT-PT
ALL-T-4-GPT-PT1 Year Limited WarrantySteel 190CC Gas Powered With Power Tilt All-Terrain Pallet Truck 36 In. Fork Length 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1695
ALL-T-4-GPT-PT-HD
ALL-T-4-GPT-PT-HD1 Year Limited WarrantySteel Heavy Duty 344CC Gas Power With Powered Tilt All-Terrain Pallet Truck 36 In. Fork Length 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1729

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ALL-T-1-GPT-ST-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 1,000
Fork Width (in.): 4
Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 1,000
Fork Width (in.): 4

ALL-T-2-GPT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 18 (in.) Load Center: 2,000
Fork Width (in.): 4
Uniform Capacity (lb.) at 18 (in.) Load Center: 2,000
Fork Width (in.): 4

ALL-T-2-GPT-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4

ALL-T-2-GPT-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 24 (in.) Load Center: 2,000
Fork Width (in.): 4
Uniform Capacity (lb.) at 24 (in.) Load Center: 2,000
Fork Width (in.): 4

ALL-T-2-GPT-L-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4

ALL-T-2-GPT-L-PT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4

ALL-T-2-GPT-L-PT-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4

ALL-T-2-GPT-PT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4

ALL-T-2-GPT-PT-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4
Uniform Capacity (lb.): 2,000
Fork Width (in.): 4

ALL-T-4-GPT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 18 (in.) Load Center: 4,000
Fork Width (in.): 4
Uniform Capacity (lb.) at 18 (in.) Load Center: 4,000
Fork Width (in.): 4

ALL-T-4-GPT-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4

ALL-T-4-GPT-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 24 (in.) Load Center: 4,000
Fork Width (in.): 4
Uniform Capacity (lb.) at 24 (in.) Load Center: 4,000
Fork Width (in.): 4

ALL-T-4-GPT-L-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4

ALL-T-4-GPT-L-PT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4

ALL-T-4-GPT-L-PT-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4

ALL-T-4-GPT-PT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4

ALL-T-4-GPT-PT-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4
Uniform Capacity (lb.): 4,000
Fork Width (in.): 4

ALL-T-35-GPT-ST-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (Lbs.): 3500
Engine Size (cc.): 1900
Uniform Capacity (Lbs.): 3500
Engine Size (cc.): 1900

Gas Powered All Terrain Pallet Trucks & Stackers PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


ALL-T-1-GPT-ST-L

ALL-T-2-GPT

ALL-T-2-GPT-HD

ALL-T-2-GPT-L

ALL-T-2-GPT-L-HD

ALL-T-2-GPT-L-PT

ALL-T-2-GPT-L-PT-HD

ALL-T-2-GPT-PT

ALL-T-2-GPT-PT-HD

ALL-T-35-GPT-ST-L

ALL-T-4-GPT

ALL-T-4-GPT-HD

ALL-T-4-GPT-L

ALL-T-4-GPT-L-HD

ALL-T-4-GPT-L-PT

ALL-T-4-GPT-L-PT-HD

ALL-T-4-GPT-PT

ALL-T-4-GPT-PT-HD

SDS Sheets

Hydraulic Oil SDS Sheet for: ALL-T-2-GPT
Hydraulic Oil SDS Sheet for: ALL-T-2-GPT-HD
Hydraulic Oil SDS Sheet for: ALL-T-2-GPT-L
Hydraulic Oil SDS Sheet for: ALL-T-2-GPT-L-HD
Hydraulic Oil SDS Sheet for: ALL-T-2-GPT-L-PT
Hydraulic Oil SDS Sheet for: ALL-T-2-GPT-L-PT-HD
Hydraulic Oil SDS Sheet for: ALL-T-2-GPT-PT
Hydraulic Oil SDS Sheet for: ALL-T-2-GPT-PT-HD
Hydraulic Oil SDS Sheet for: ALL-T-4-GPT
Hydraulic Oil SDS Sheet for: ALL-T-4-GPT-HD
Hydraulic Oil SDS Sheet for: ALL-T-4-GPT-L
Hydraulic Oil SDS Sheet for: ALL-T-4-GPT-L-HD
Hydraulic Oil SDS Sheet for: ALL-T-4-GPT-L-PT
Hydraulic Oil SDS Sheet for: ALL-T-4-GPT-L-PT-HD
Hydraulic Oil SDS Sheet for: ALL-T-4-GPT-PT
Hydraulic Oil SDS Sheet for: ALL-T-4-GPT-PT-HD
Hydraulic Oil SDS Sheet for: ALL-T-35-GPT-ST-L

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What grade can the pallet truck be climbed with 2,000 lbs.?

A: The standard 2,000 lb. capacity unit will climb a 21% grade or a maximum of 12 degrees.


Q: What grade can the ALL-T-1-GPT-ST-L climb when loaded?

A: The pallet truck will climb a 12 degree incline.


Q: What is the clearance height of the frame to the floor for the ALL-T-4-GPT-L?

A: The clearance height of the frame to the floor is 5"






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Gas Powered All Terrain Pallet...




An all-terrain pallet truck with a gas powered drive system is the perfect solution when moving items over uneven surfaces. This pallet truck is great for use at construction sites and landscaping areas. With the use of a tilting fork feature, the products can be positioned to better fit the users' needs. The robust steel construction and wide set outriggers enable the transference of items, both large and small. Steering handle includes multiple controls for user safety. PT units have Powered Tilt.

  • Electric start
  • Adjustable fork width
  • Gas powered for consistent daily use
  • Foam filled tires for added support
  • Liquid painted finish

Complies with ASME B56.1-2004




Model # Description Attributes Net Wt.
(lbs)
ALL-T-1-GPT-ST-L ALL-T-1-GPT-ST-LSteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck With 48 In. Long Adjustable Width Forks 1,000 Lb. Capacity BlueUniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 1,000
Fork Width (in.): 4
1346
ALL-T-2-GPT ALL-T-2-GPTSteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.) at 18 (in.) Load Center: 2,000
Fork Width (in.): 4
1316
ALL-T-2-GPT-HD ALL-T-2-GPT-HDSteel Heavy Duty 344CC Gas Powered Drive and Lift All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1380
ALL-T-2-GPT-L ALL-T-2-GPT-LSteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.) at 24 (in.) Load Center: 2,000
Fork Width (in.): 4
1346
ALL-T-2-GPT-L-HD ALL-T-2-GPT-L-HDSteel Heavy Duty 344CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1423
ALL-T-2-GPT-L-PT ALL-T-2-GPT-L-PTSteel 190CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1652
ALL-T-2-GPT-L-PT-HD ALL-T-2-GPT-L-PT-HDSteel Heavy Duty 344CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1686
ALL-T-2-GPT-PT ALL-T-2-GPT-PTSteel 190CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1628
ALL-T-2-GPT-PT-HD ALL-T-2-GPT-PT-HDSteel Heavy Duty 344CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Width (in.): 4
1663
ALL-T-35-GPT-ST-L ALL-T-35-GPT-ST-LSteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 3,500 Lb. Capacity BlueUniform Capacity (Lbs.): 3500
Engine Size (cc.): 1900
1346
ALL-T-4-GPT ALL-T-4-GPTSteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.) at 18 (in.) Load Center: 4,000
Fork Width (in.): 4
1385
ALL-T-4-GPT-HD ALL-T-4-GPT-HDSteel Heavy Duty 344CC Gas Powered Drive and Lift All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1386
ALL-T-4-GPT-L ALL-T-4-GPT-LSteel 190CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.) at 24 (in.) Load Center: 4,000
Fork Width (in.): 4
1418
ALL-T-4-GPT-L-HD ALL-T-4-GPT-L-HDSteel Heavy Duty 344CC Gas Powered Drive and Lift All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1492
ALL-T-4-GPT-L-PT ALL-T-4-GPT-L-PTSteel 190CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1729
ALL-T-4-GPT-L-PT-HD ALL-T-4-GPT-L-PT-HDSteel Heavy Duty 344CC Gas Powered Drive Lift and Tilt All-Terrain Pallet Truck 36 In. Long Adjustable Width Forks 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1763
ALL-T-4-GPT-PT ALL-T-4-GPT-PTSteel 190CC Gas Powered With Power Tilt All-Terrain Pallet Truck 36 In. Fork Length 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1695
ALL-T-4-GPT-PT-HD ALL-T-4-GPT-PT-HDSteel Heavy Duty 344CC Gas Power With Powered Tilt All-Terrain Pallet Truck 36 In. Fork Length 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Width (in.): 4
1729


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
