Stacker with Powered Lift
Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Manual push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (1) 12V battery.
Check Out Vestil's Other Stackers:
Stackers with Powered Drive and Powered Lift | Specialty Stackers | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)
Stackers with Lithium Ion Battery
Fully Powered Bale Clamp & Lift StackersAdditional Models In This Family
SL-137-AA
SL-63-FF
AGM-UPG-1-12V
SL3-36-AA
SL-118-AA
SL-118-AA
SL3-36-AA
SL3-36-AA
SL-DK
AGM-UPG-SL-2-12V
AGM-UPG-SL
AGM-UPG-SL
SL-63-AA
SL3-36-AA
SL-63-AA
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

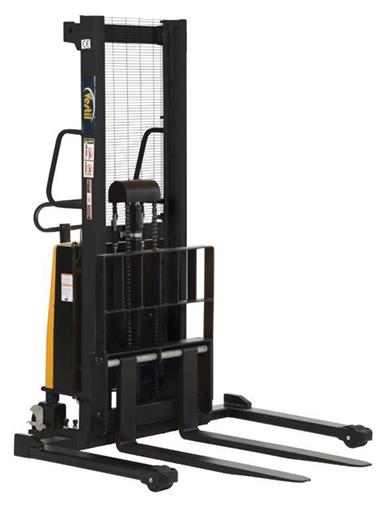

| SL3-63-AA |  | 1 Year Limited Warranty | Steel Adjustable Stacker with Powered Lift 63 In. Raised Height 3,000 Lb. Capacity Black | Uniform Capacity (lb.): 3000 Lowered Height (in.): 2.125" | 786 | ||

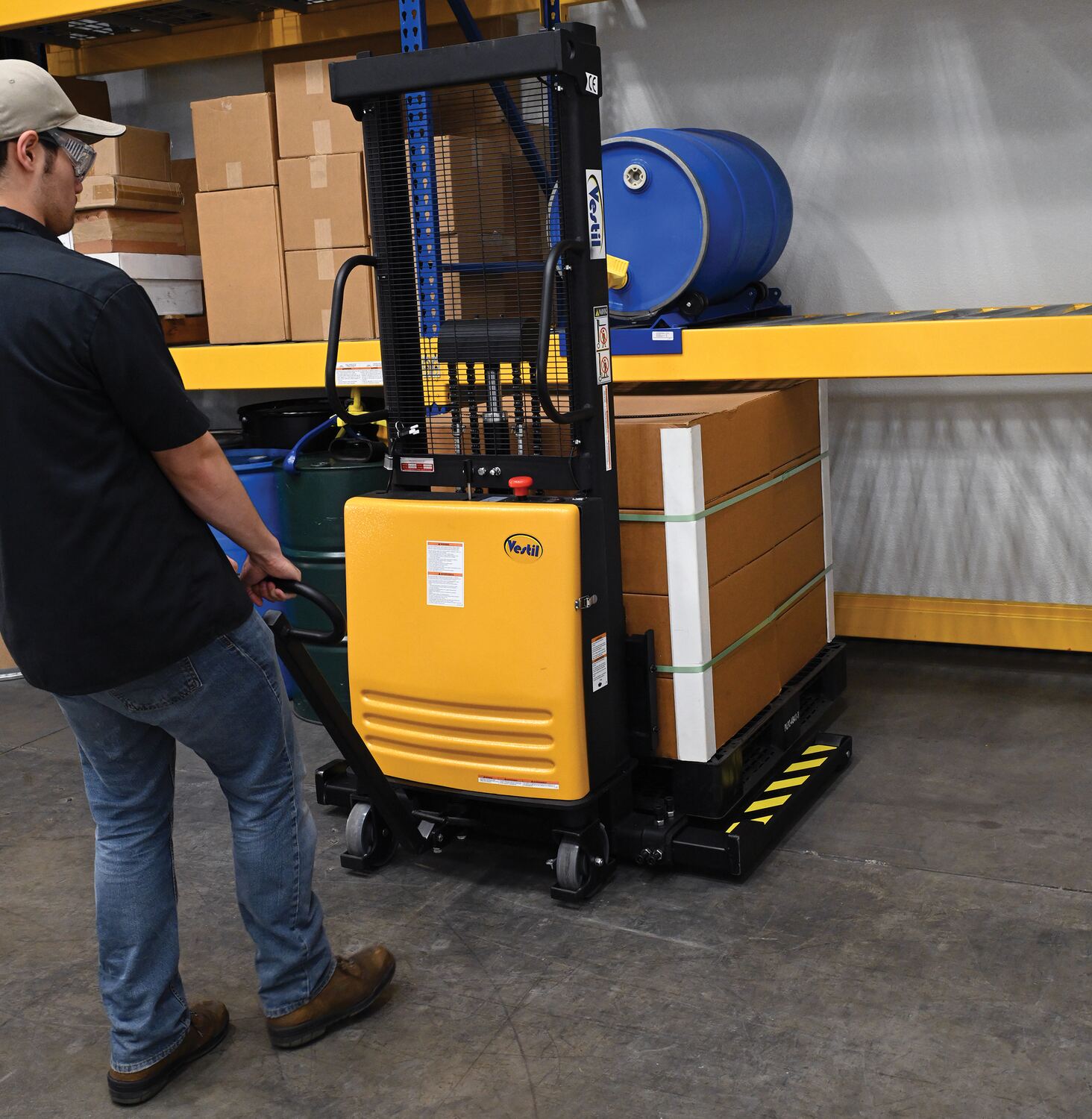

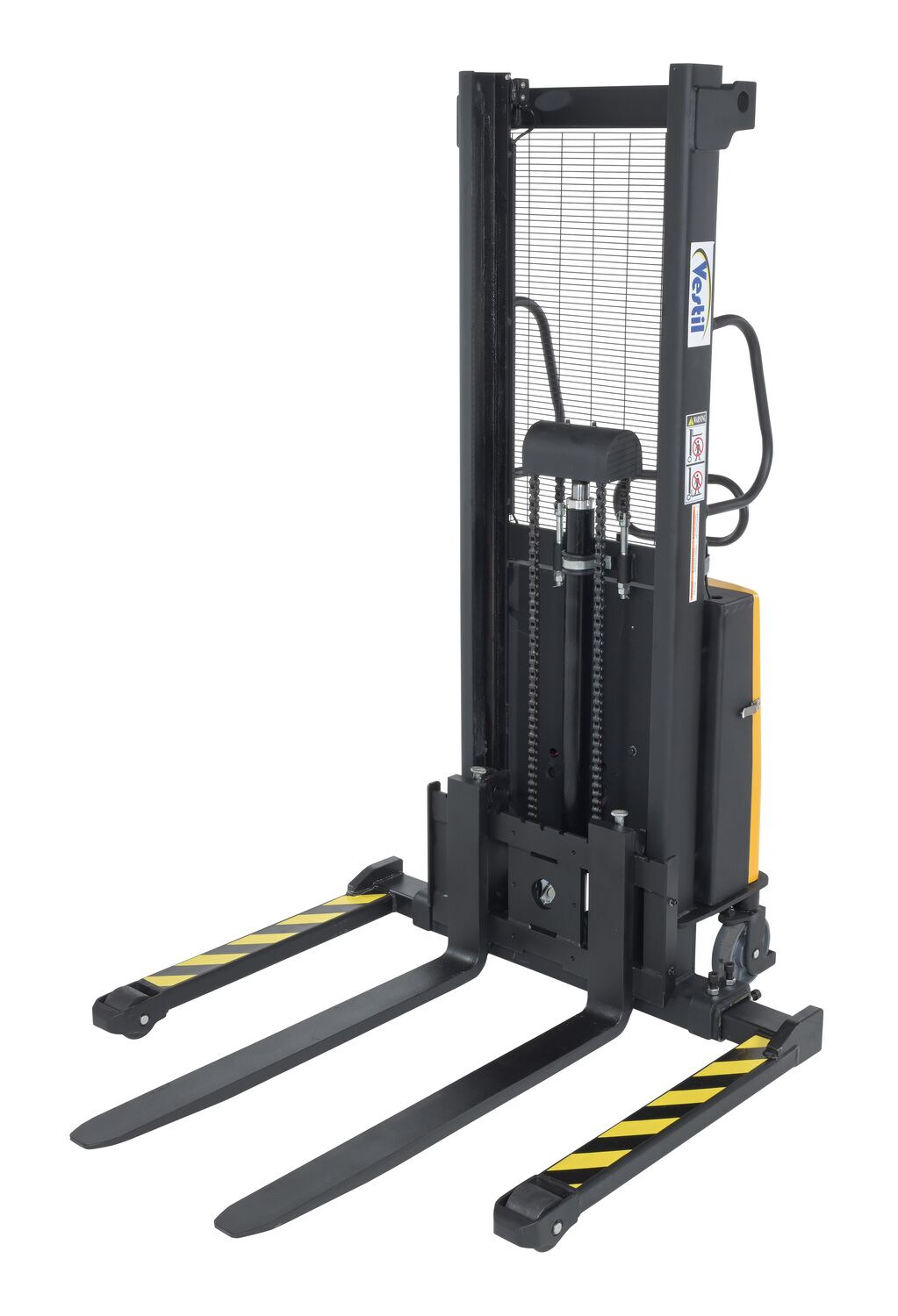

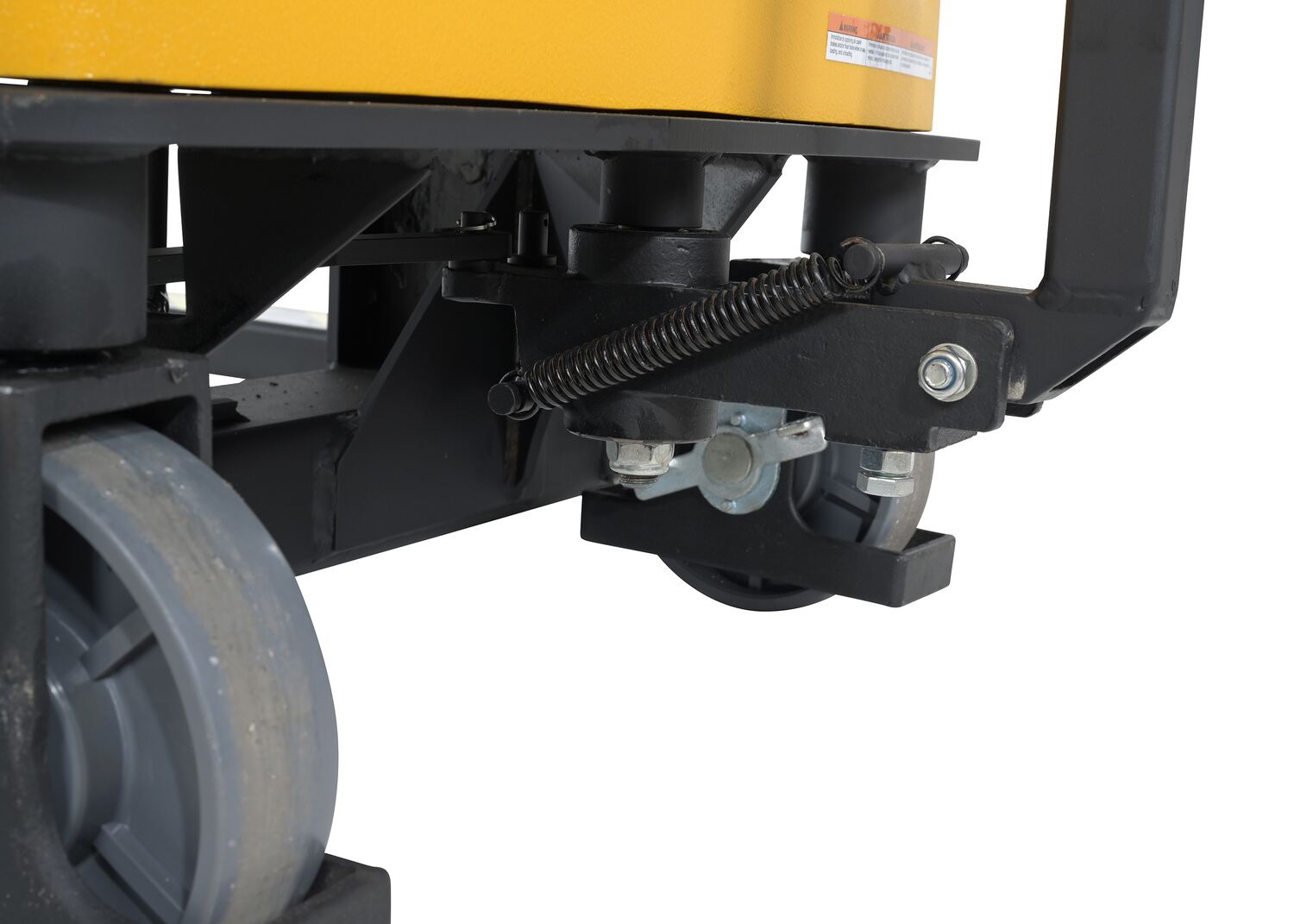

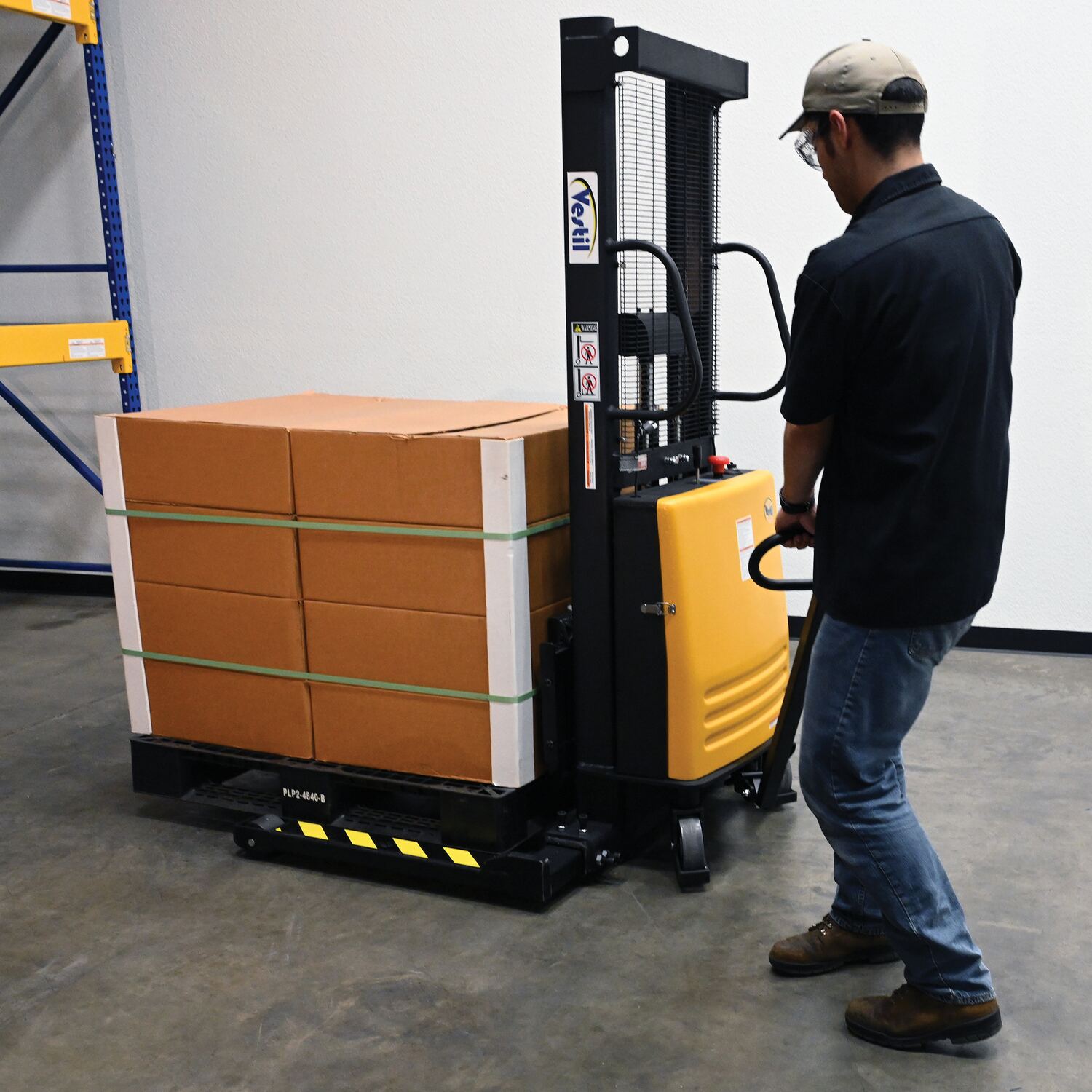

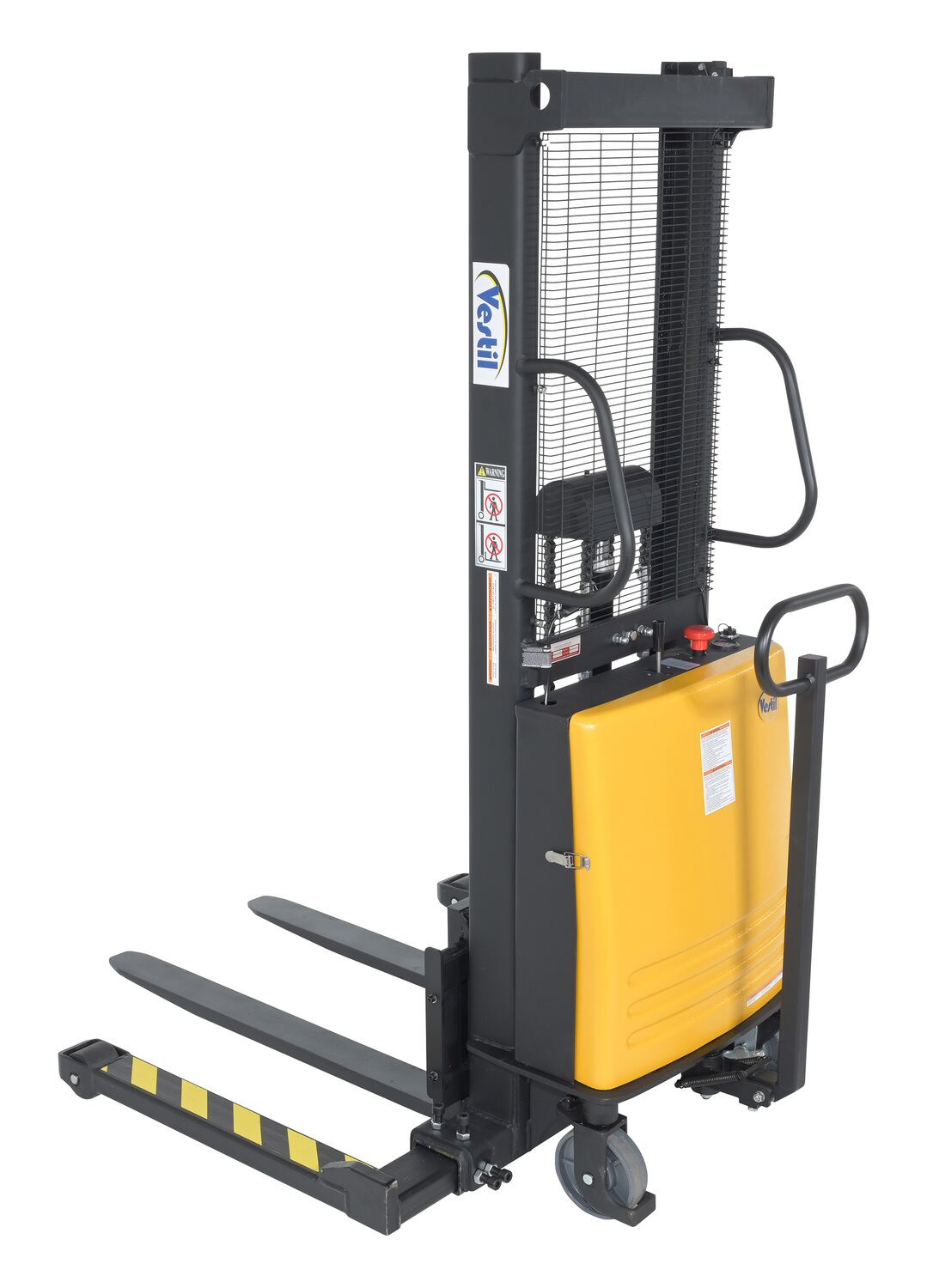

| SL-63-AA |  | 1 Year Limited Warranty | Steel Adjustable Stacker with Powered Lift 63 In. Raised Height 2,000 Lb. Capacity Black/Yellow | Uniform Capacity (lb.) at 0-63 (in.): 2,000 Raised Height (in.): 63 | 990 | ||

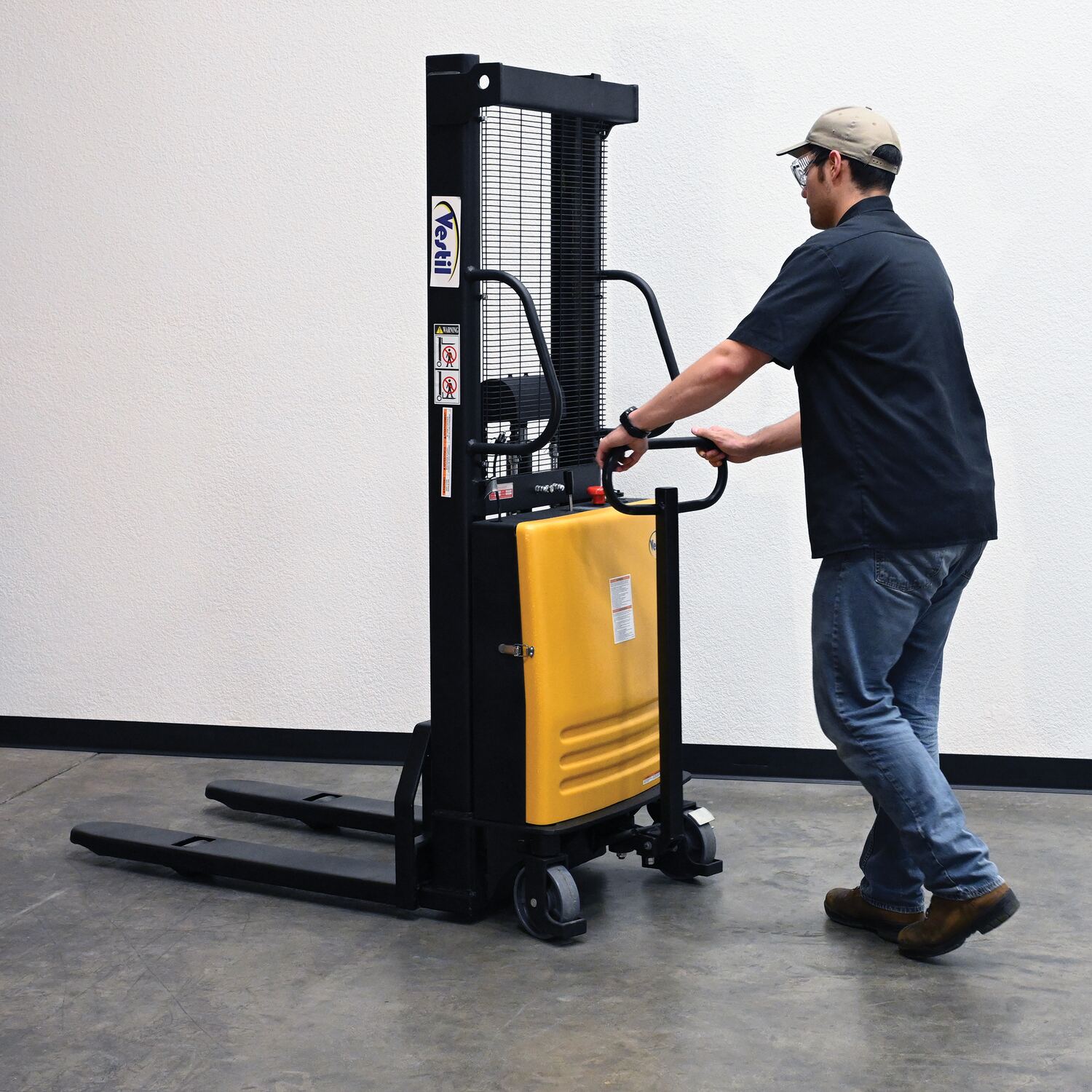

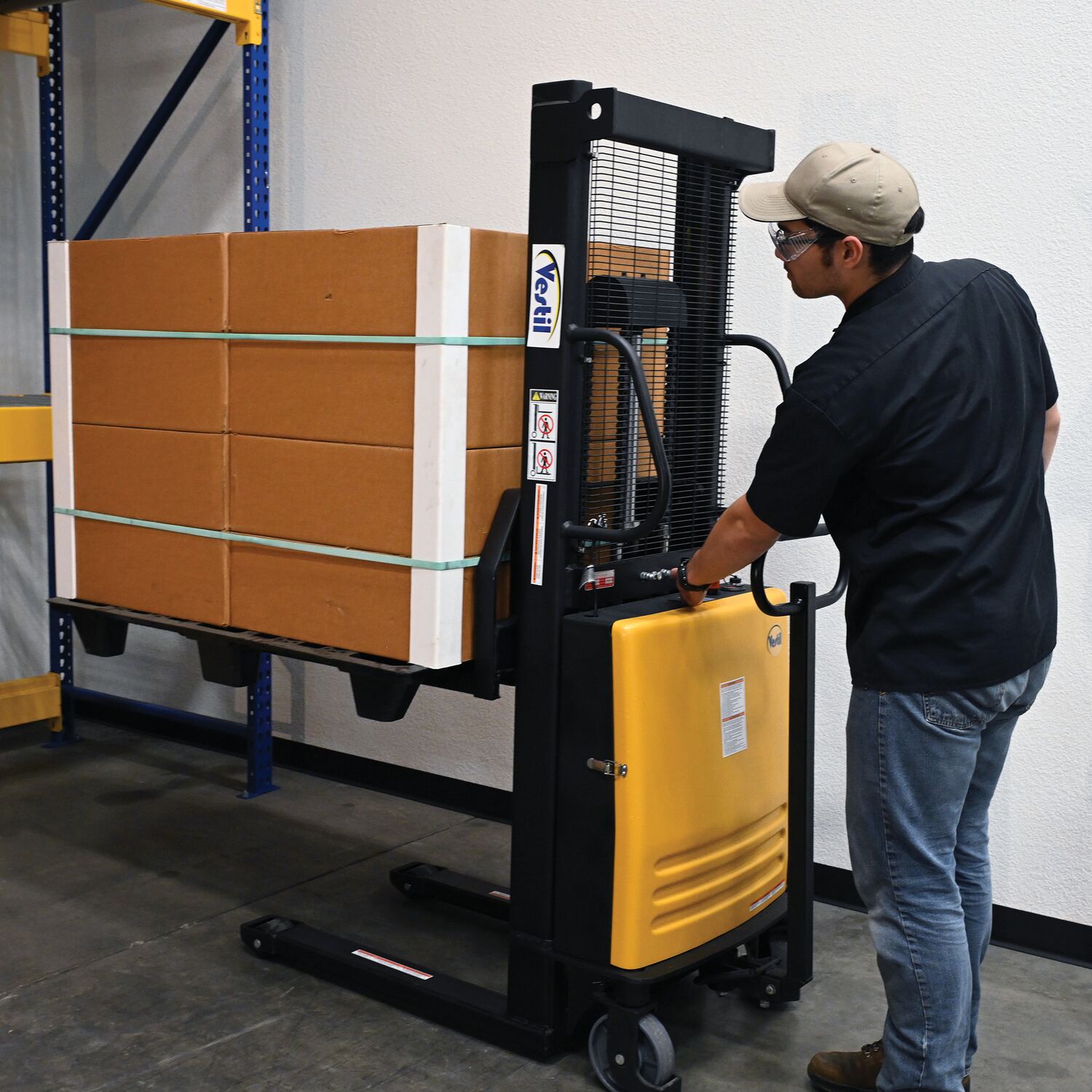

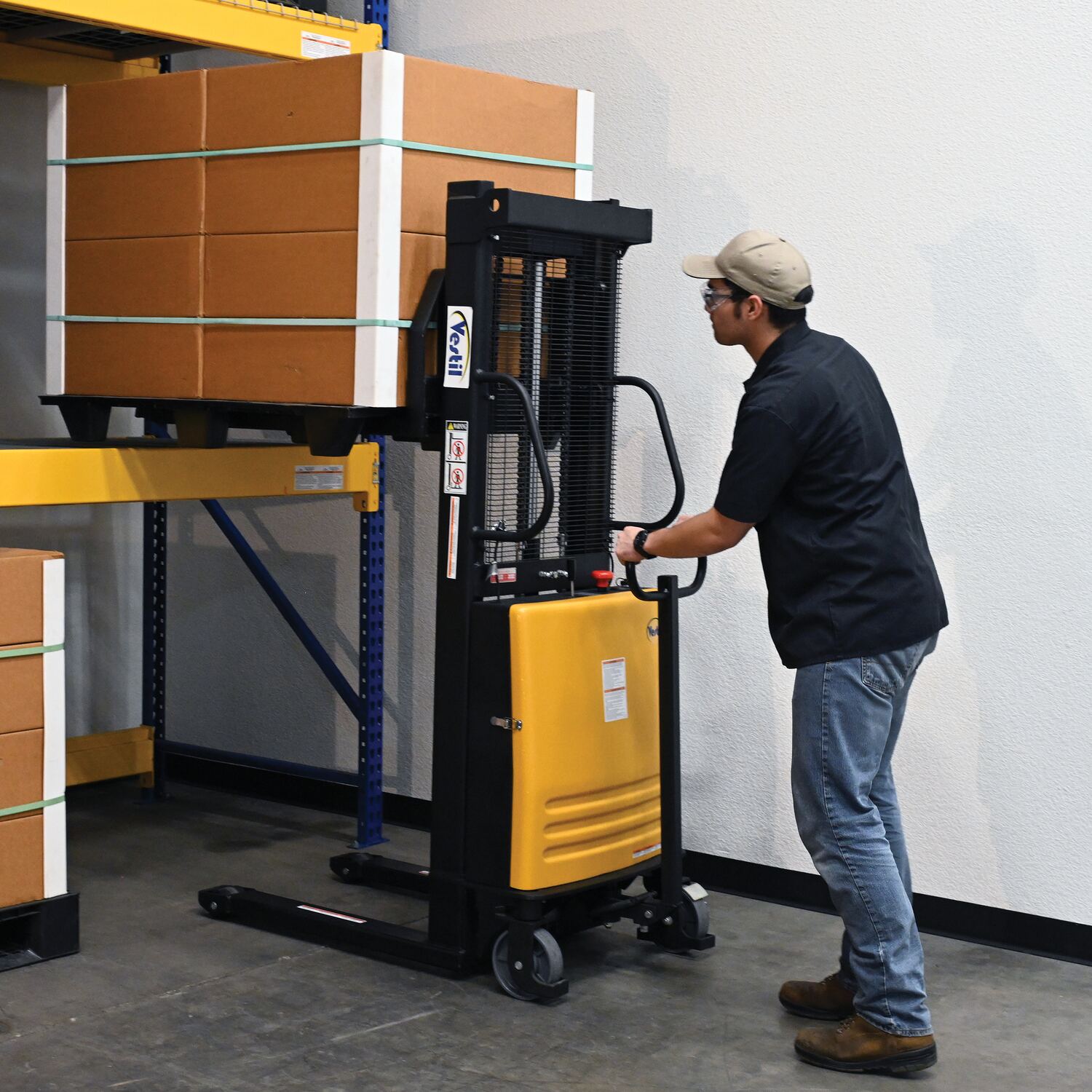

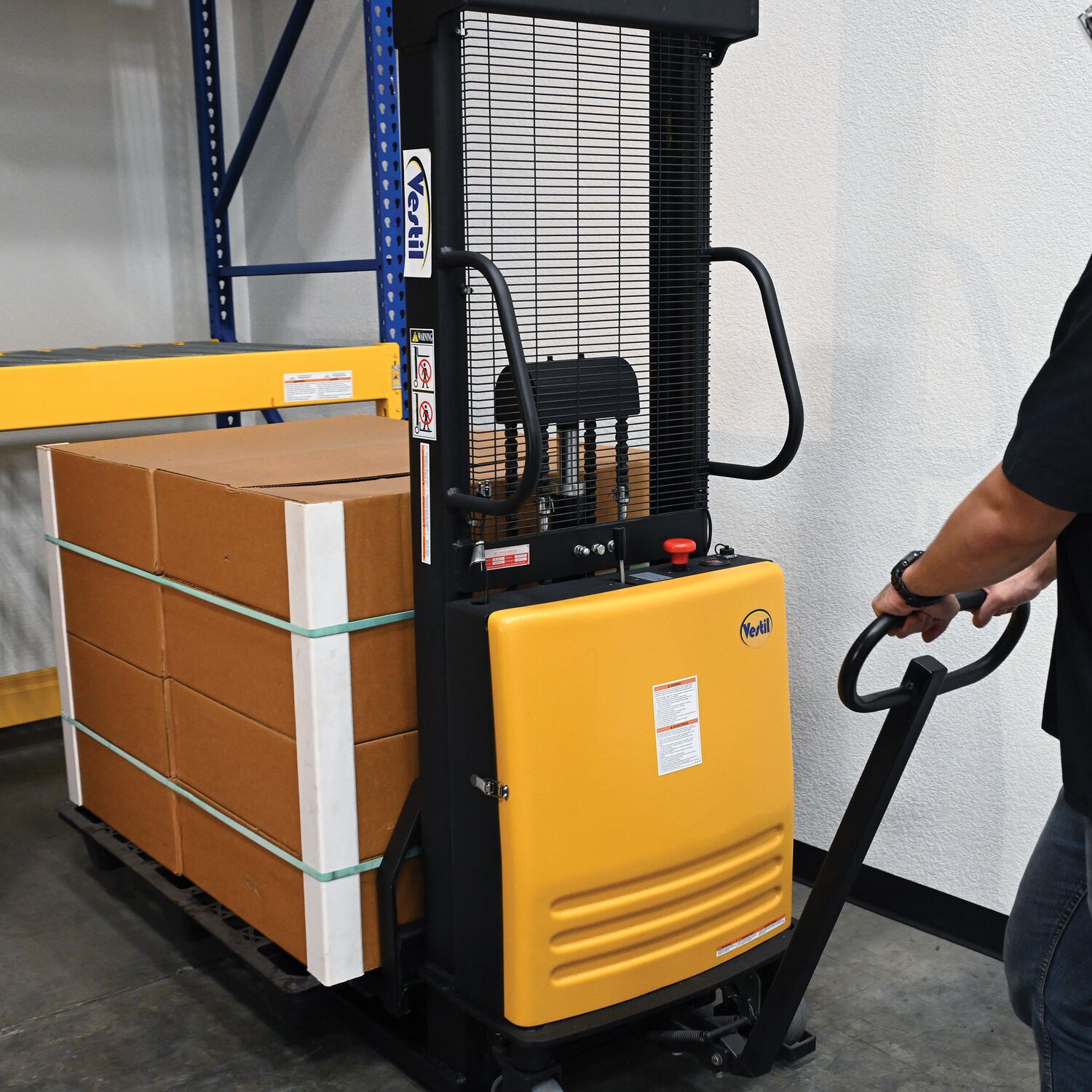

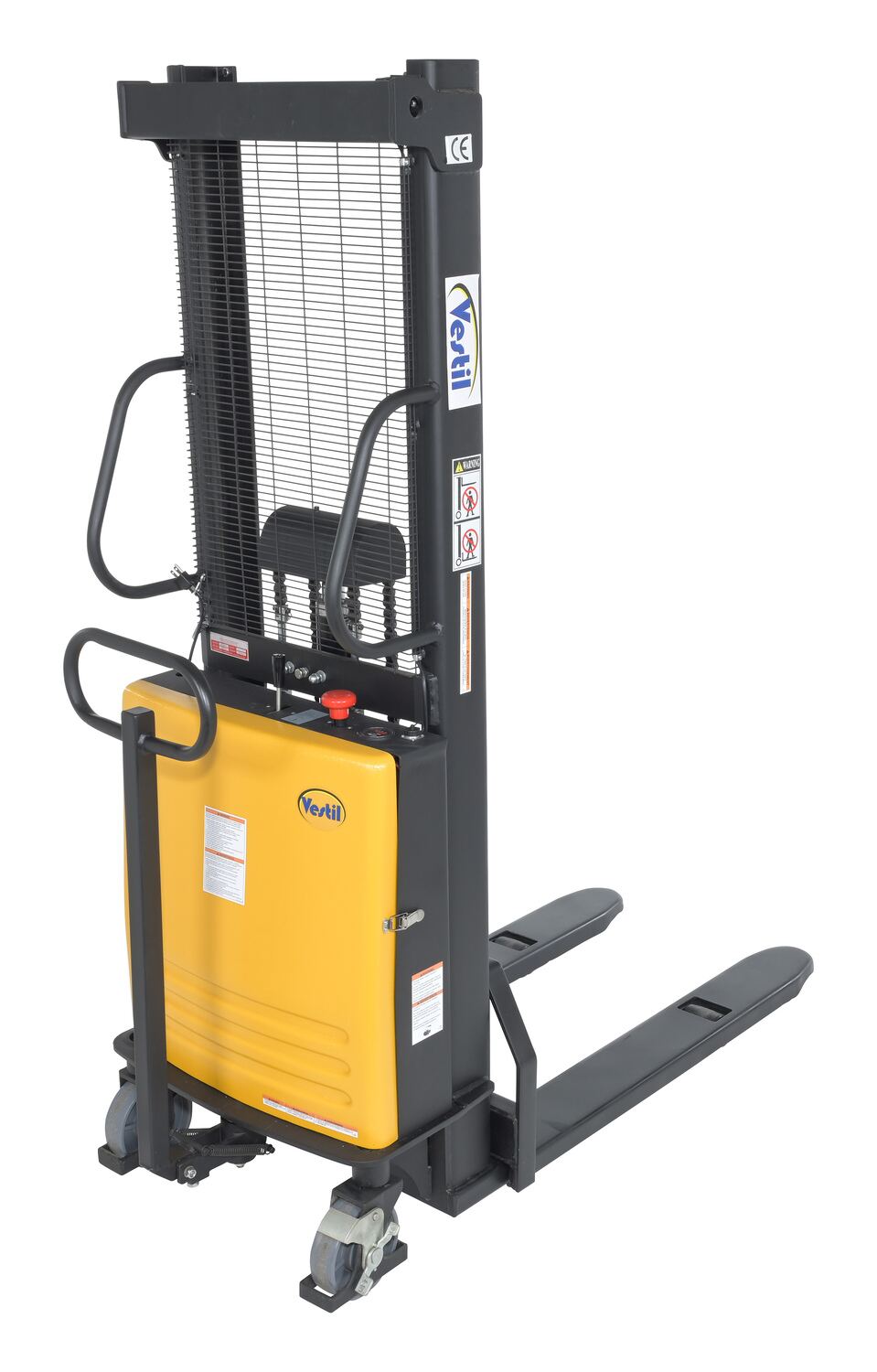

| SL-63-FF | |  | 1 Year Limited Warranty | Steel Fixed Stacker with Powered Lift 63 In. Raised Height 2,000 Lb. Capacity Yellow | Uniform Capacity (lb.) at 0-63 (in.): 2,000 Raised Height (in.): 63 | 668 | |

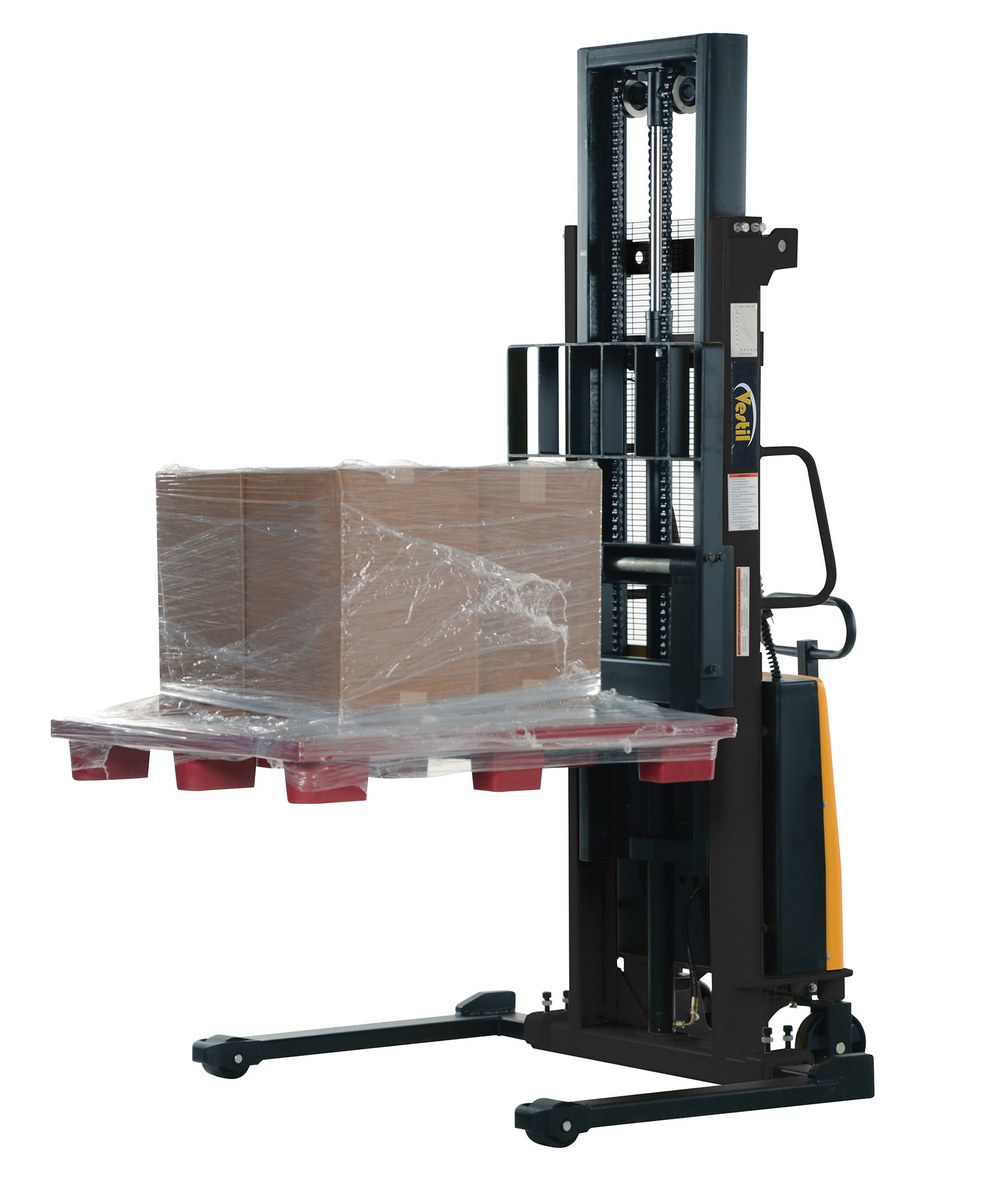

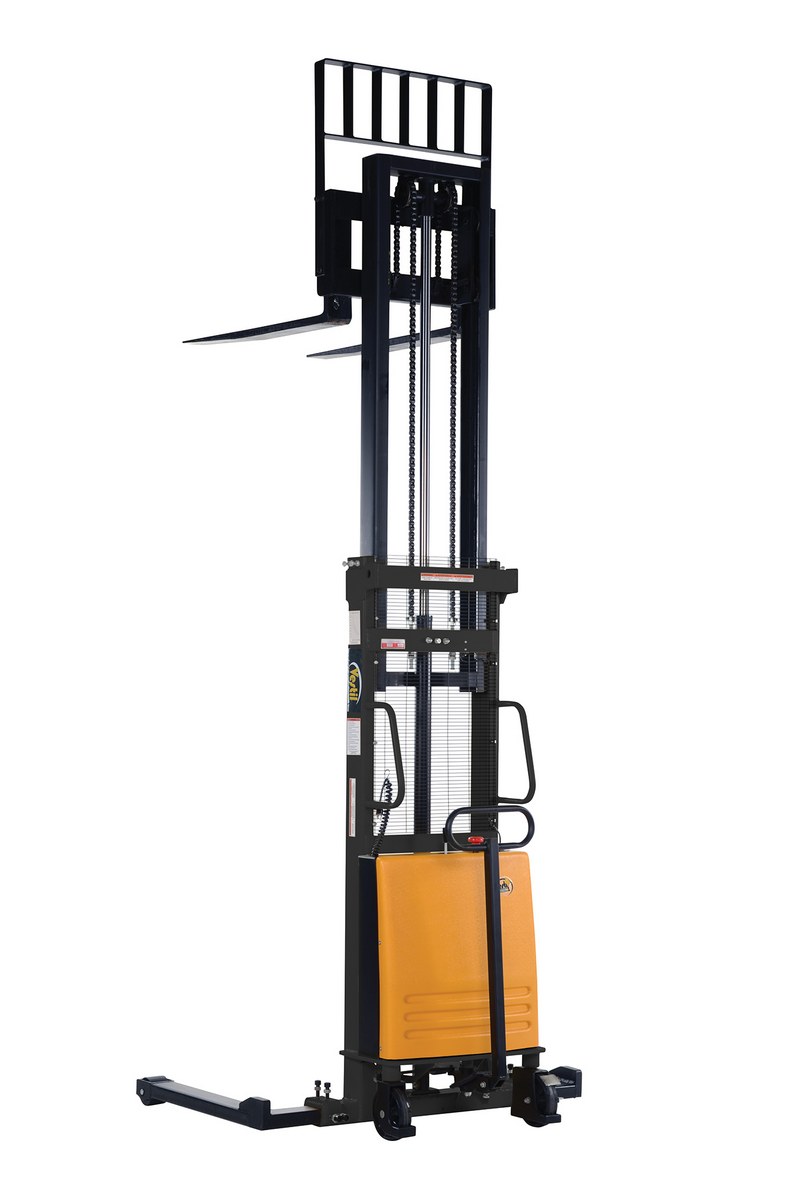

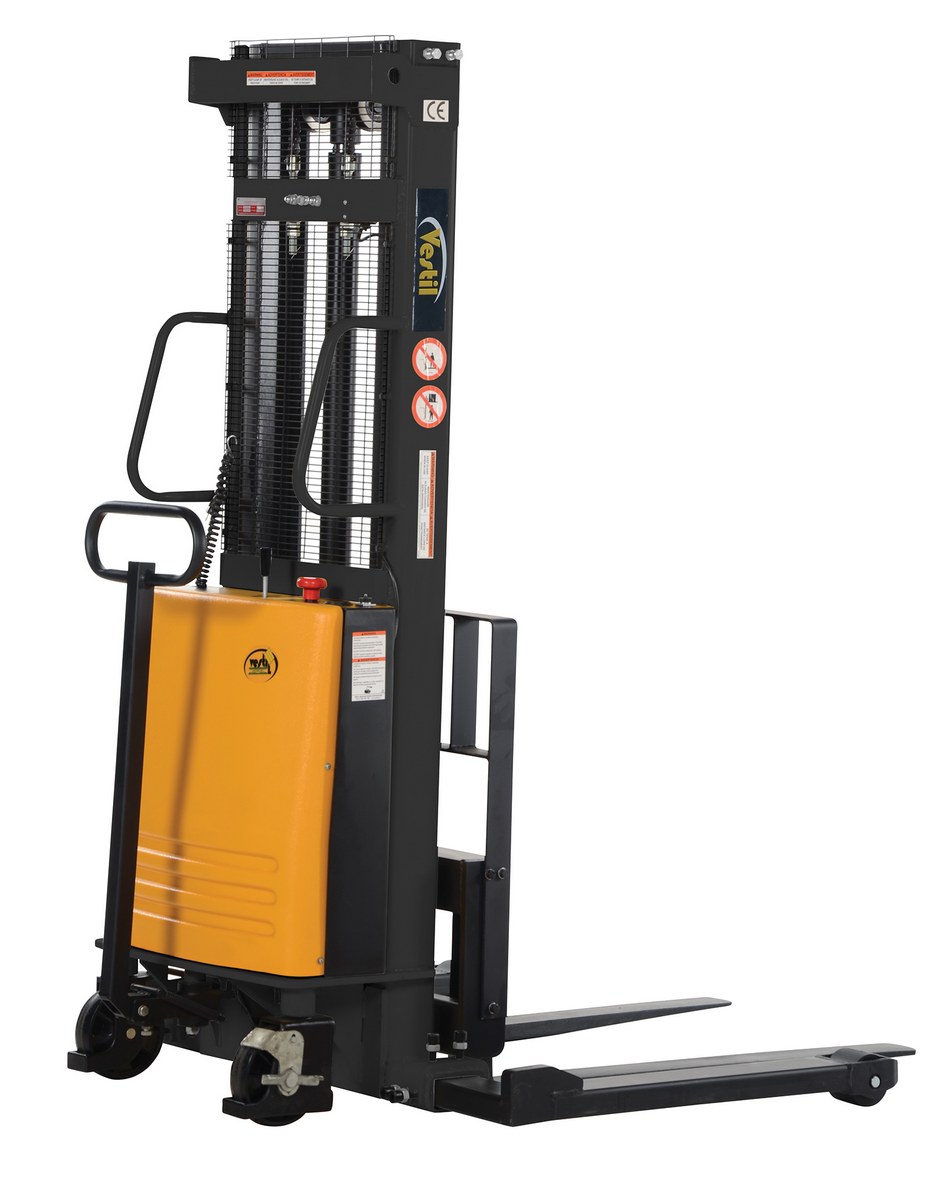

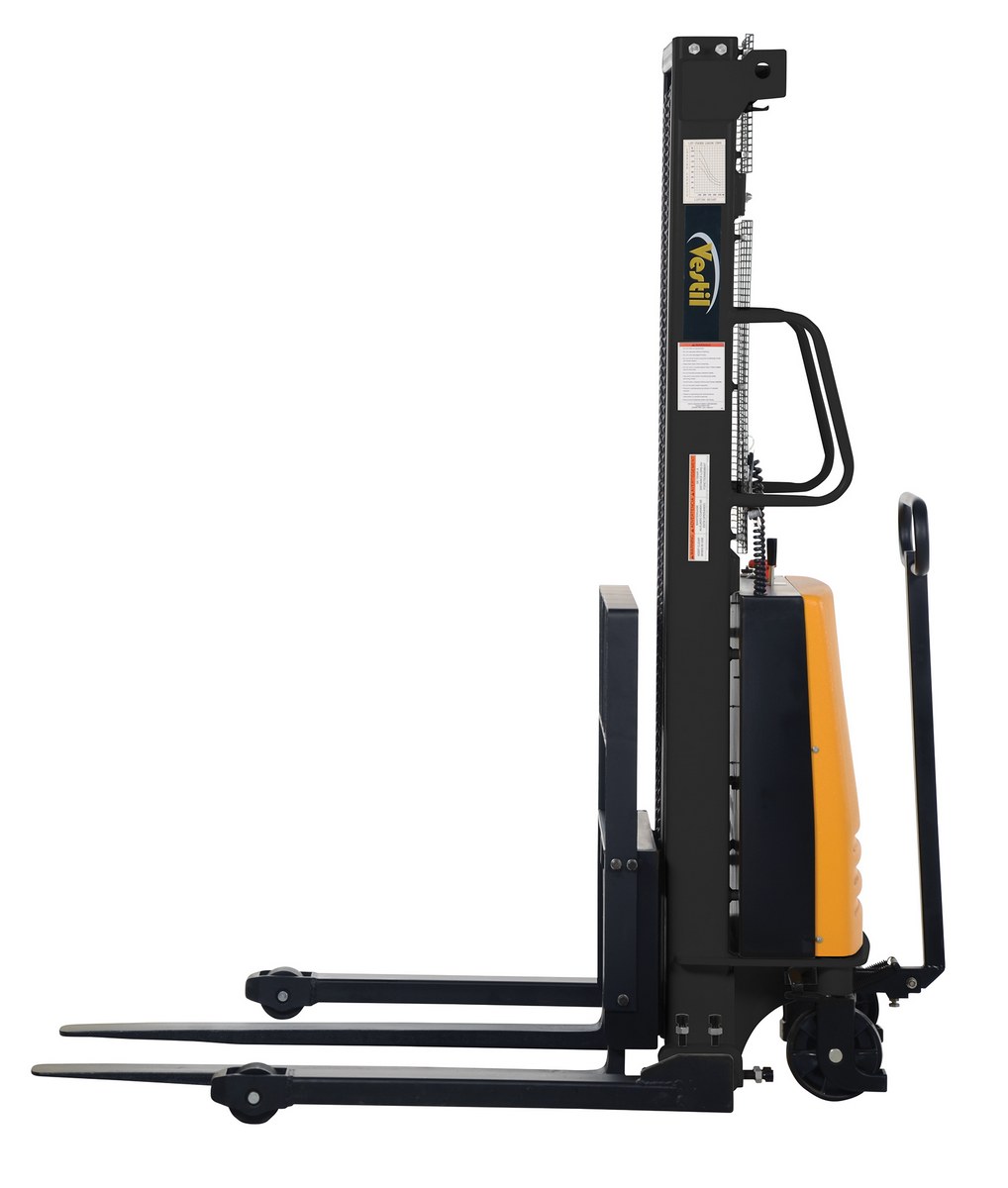

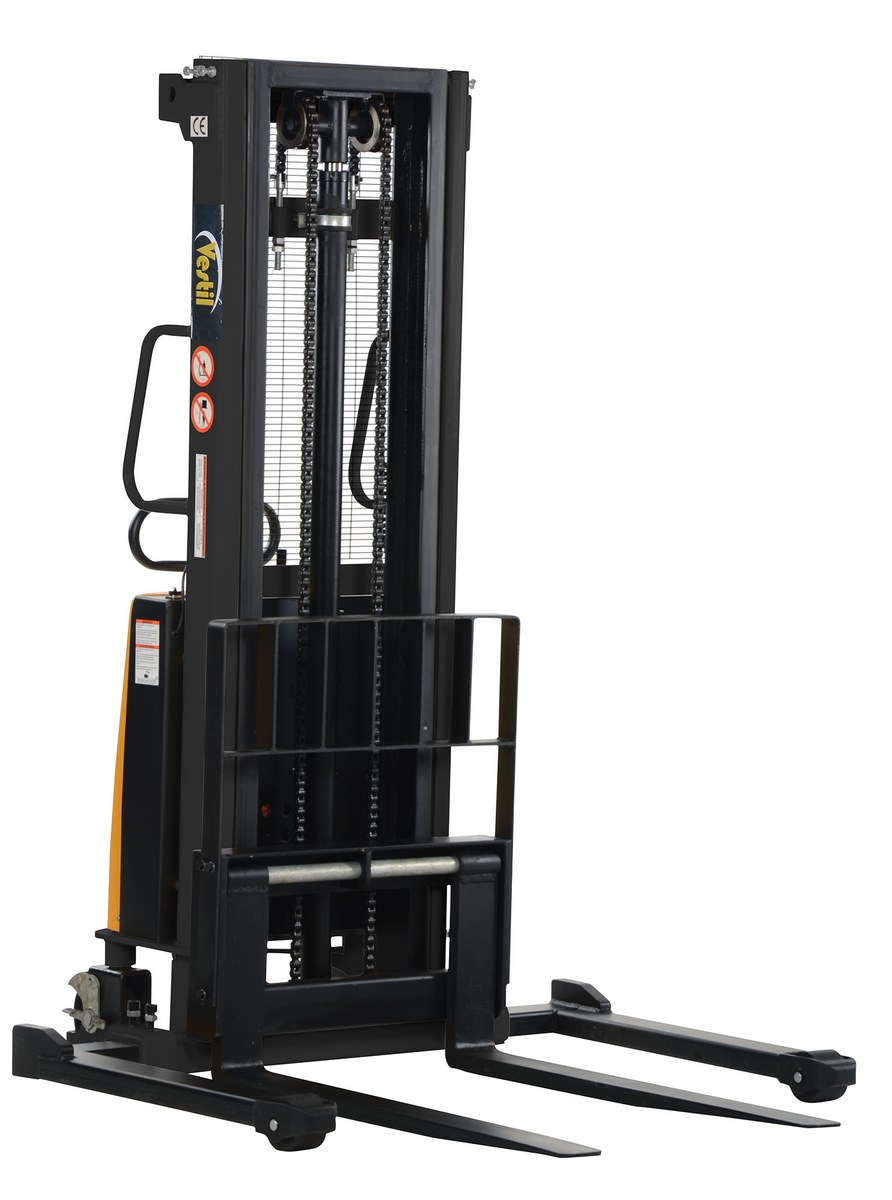

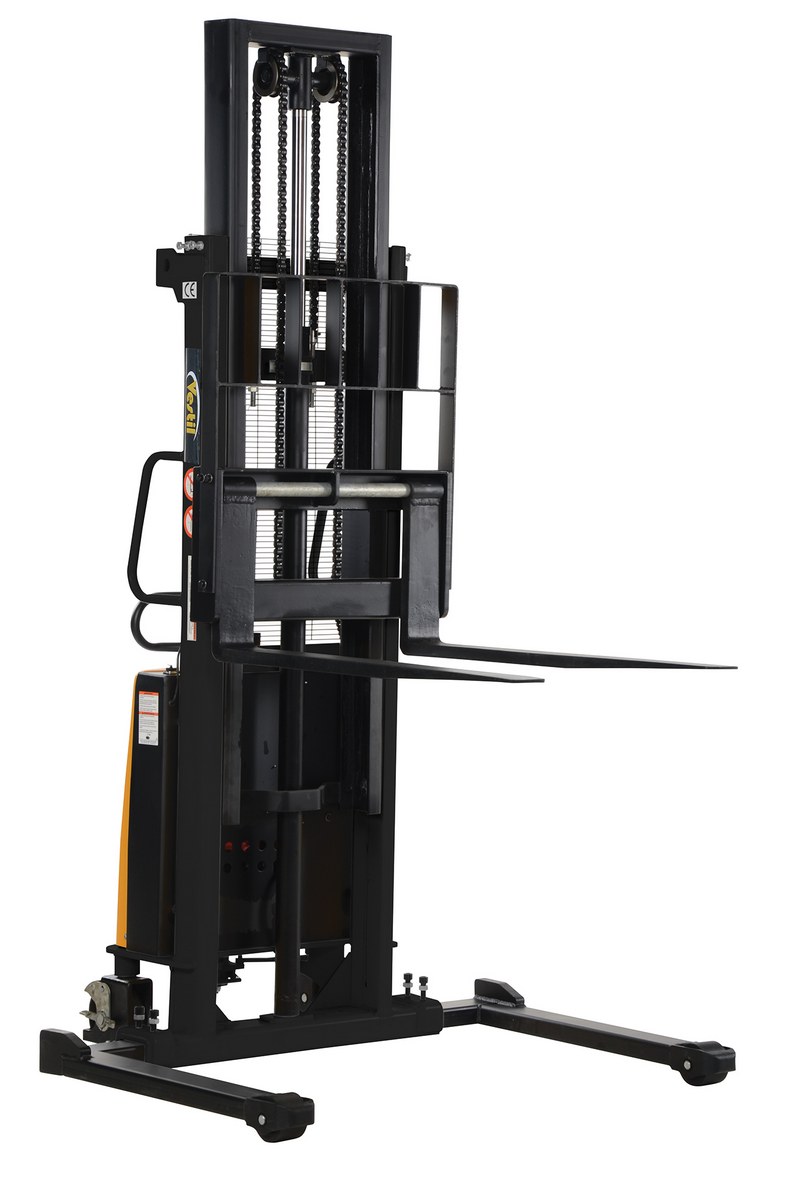

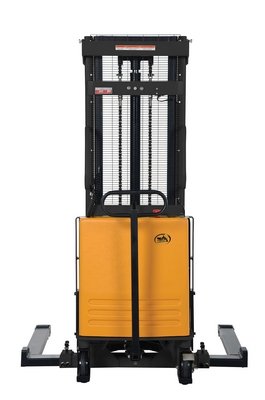

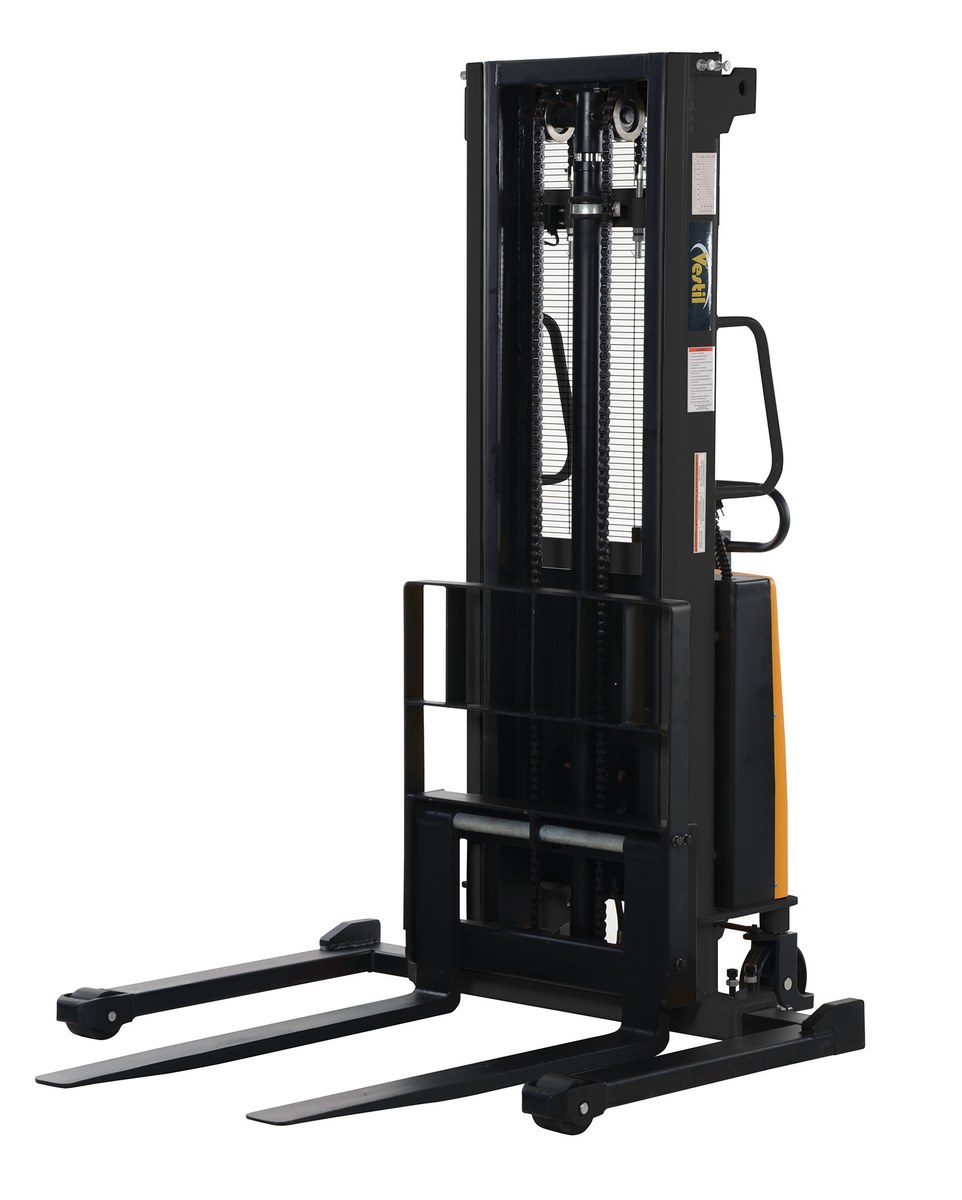

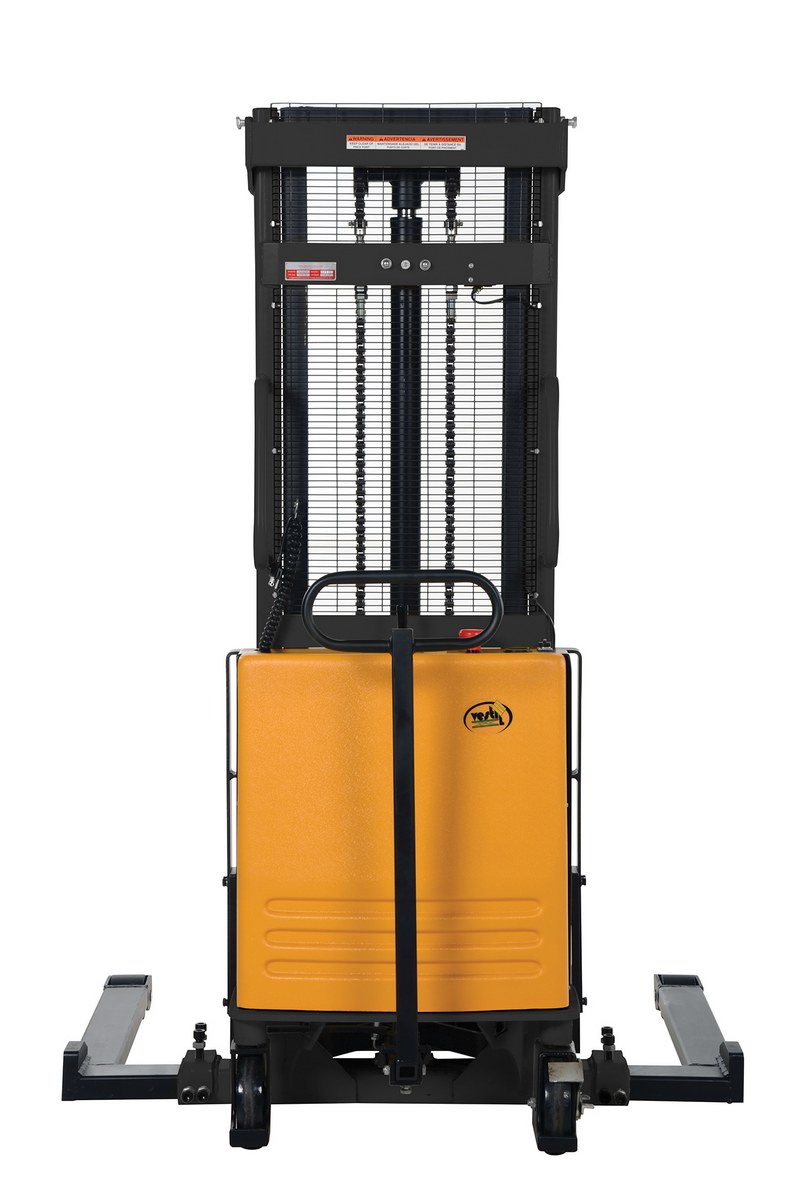

| SL-118-AA | POPULAR |  | 1 Year Limited Warranty | Steel Adjustable Stacker with Powered Lift 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.) at 0-63 (in.): 2,000 Uniform Capacity (lb.) at 63-118 (in.): 1,500 | 1174 | |

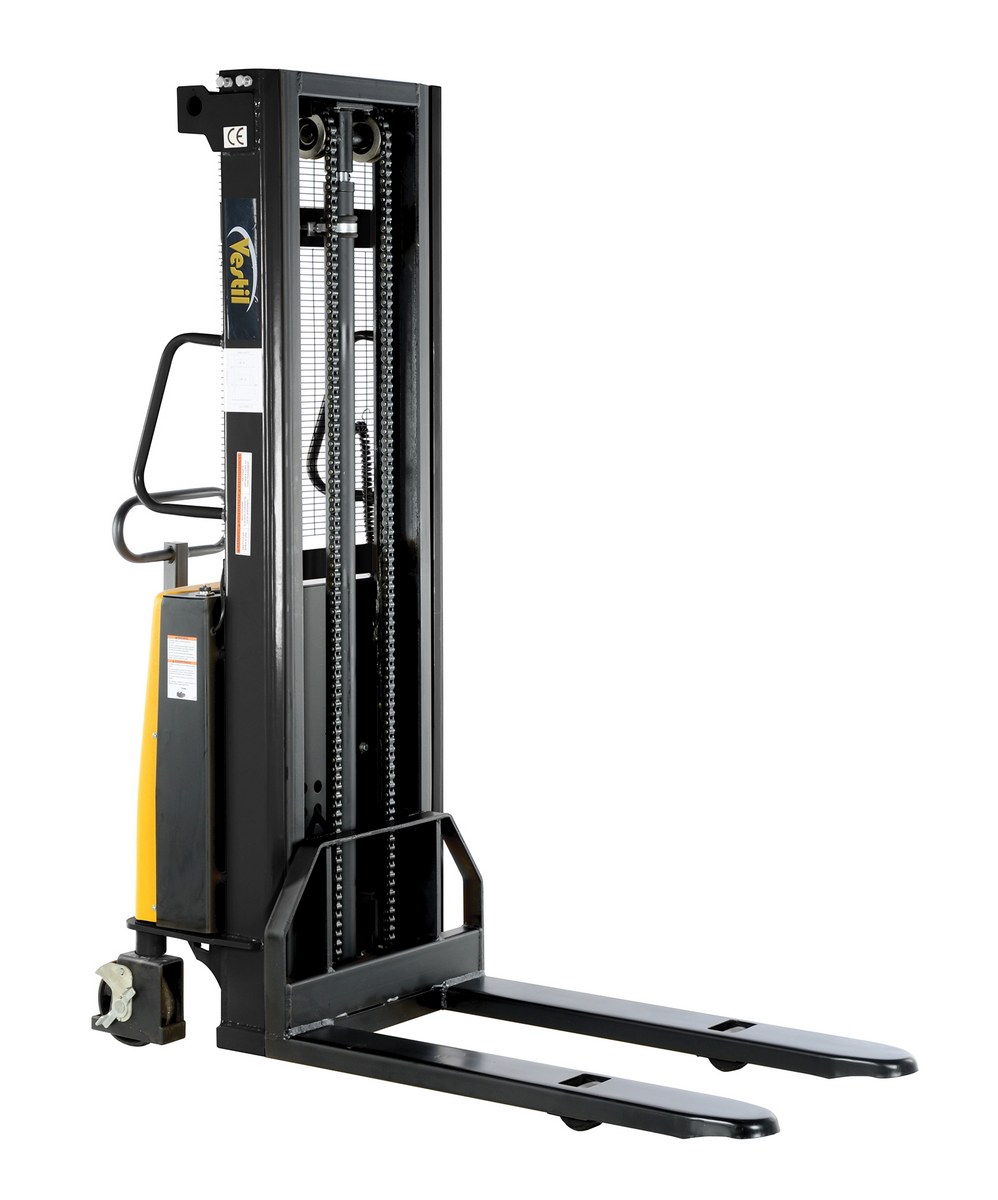

| SL-118-FF | |  | 1 Year Limited Warranty | Steel Fixed Stacker with Powered Lift 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.) at 0-63 (in.): 2,000 Uniform Capacity (lb.) at 63-118 (in.): 1,500 | 954 | |

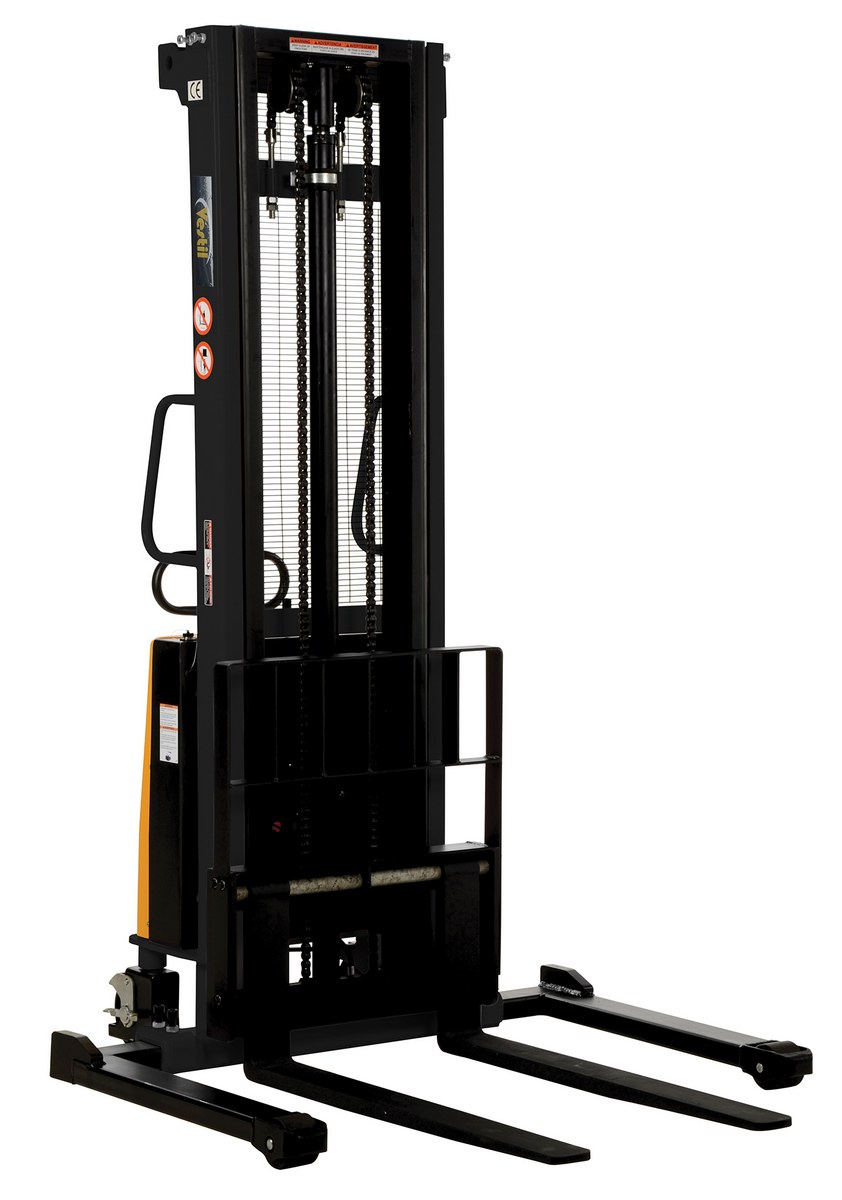

| SL-137-AA |  | 1 Year Limited Warranty | Steel Adjustable Stacker with Powered Lift 137 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.) at 0-62 (in.): 2,000 Uniform Capacity (lb.) at 63-118 (in.): 1,500 | 1265 | ||

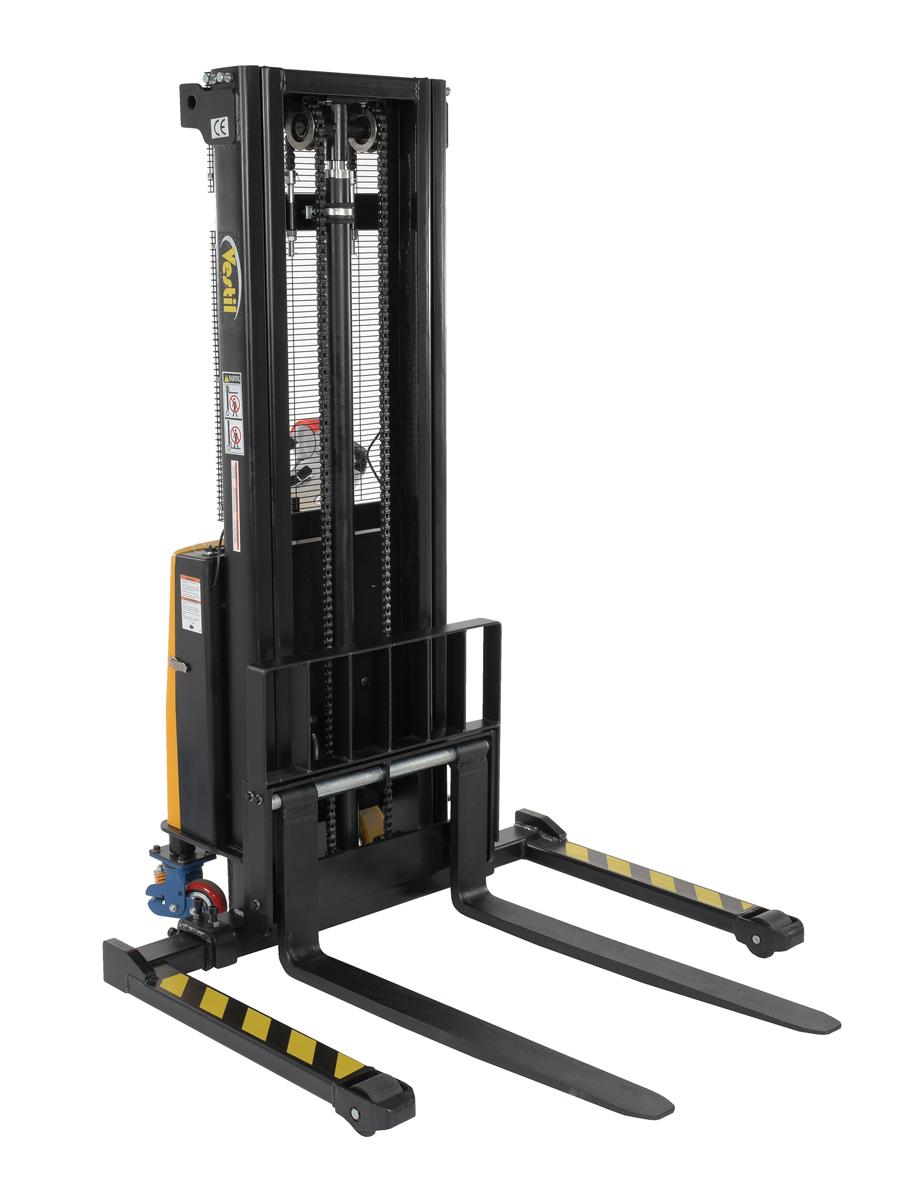

| SL-137-AA-PTDS | |  | 90 days Limited Warranty | Steel Adjustable Stacker with Power Traction Drive System 137 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Power Source: Electric - Corded Weight Capacity (lbs): 2000 | 1378 | |

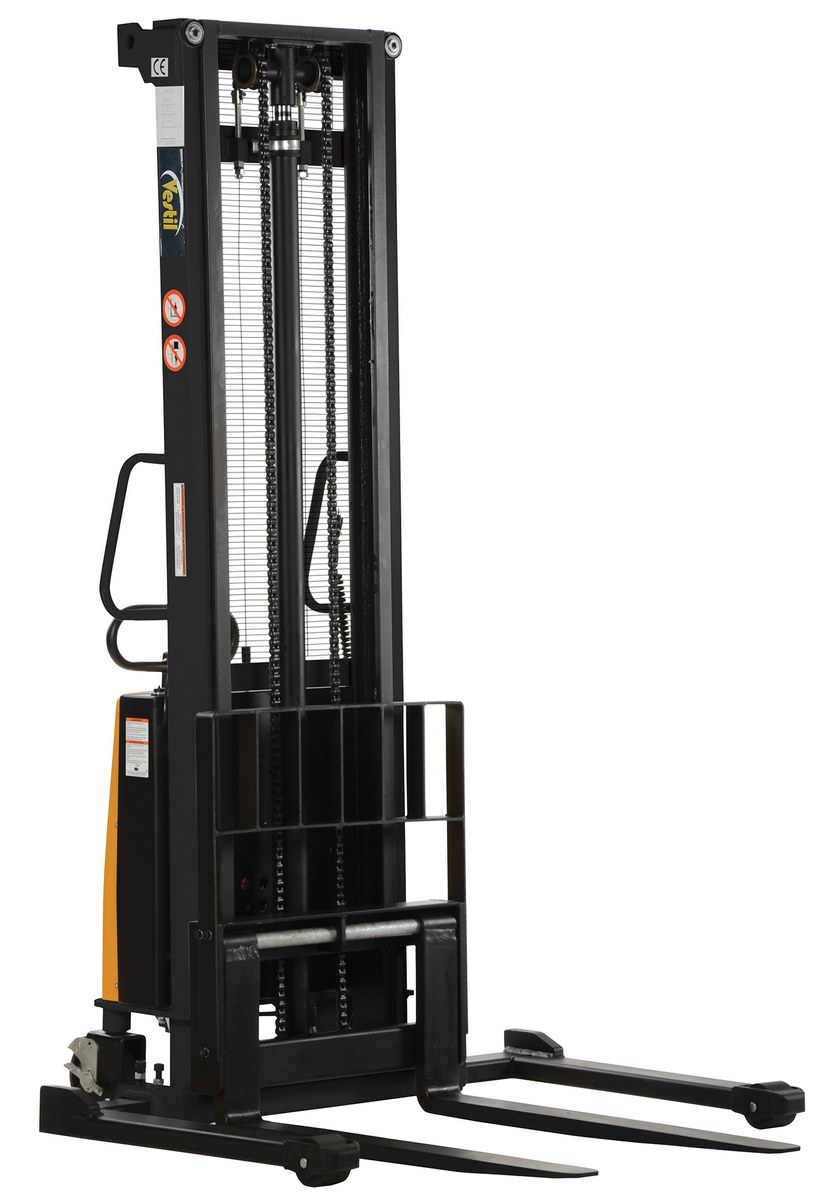

| SL-150-AA |  | 1 Year Limited Warranty | Steel Adjustable Stacker with Powered Lift 150 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.) at 0-63 (in.): 2,000 Uniform Capacity (lb.) at 63-118 (in.): 1,500 | 1266 | ||

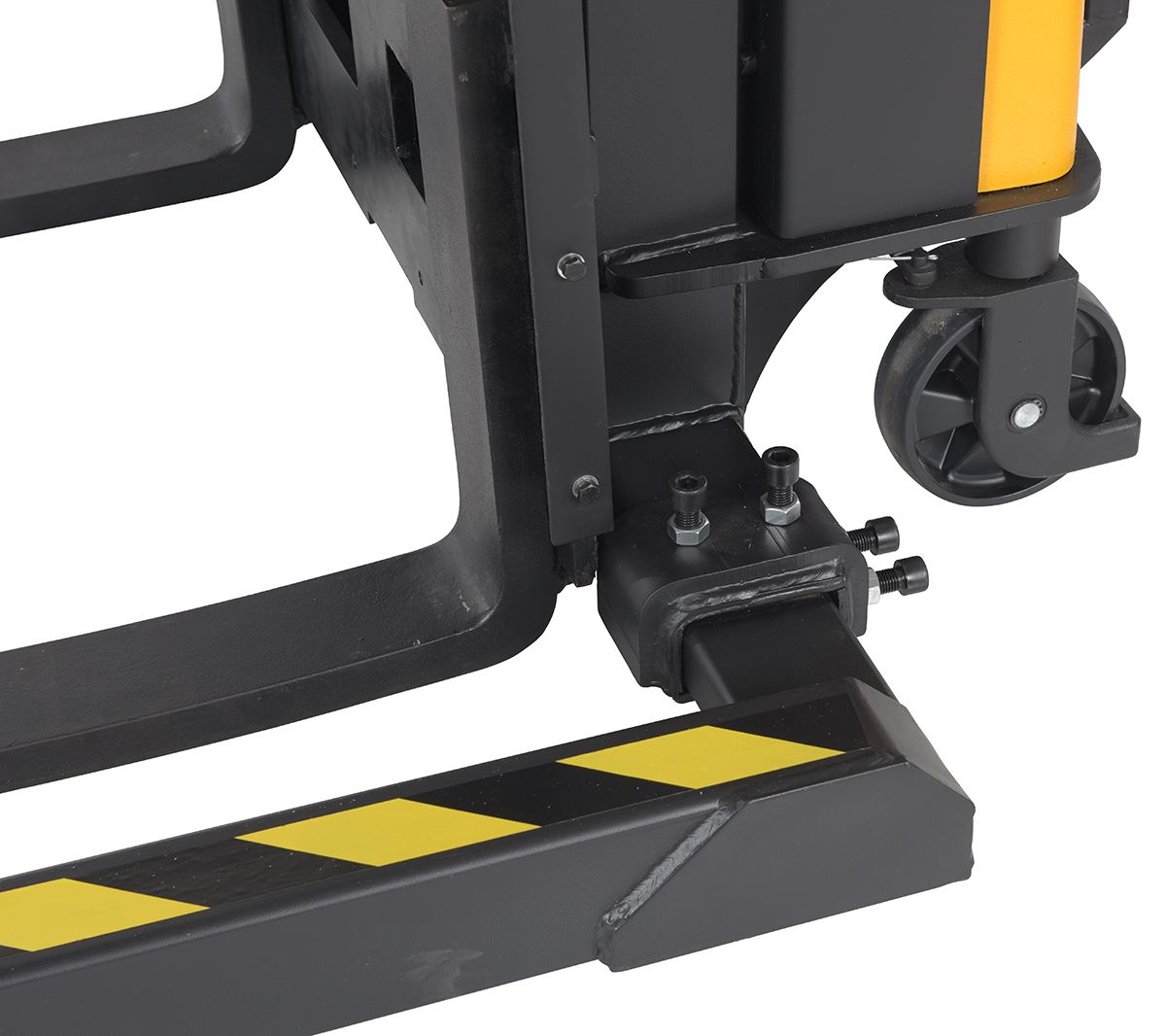

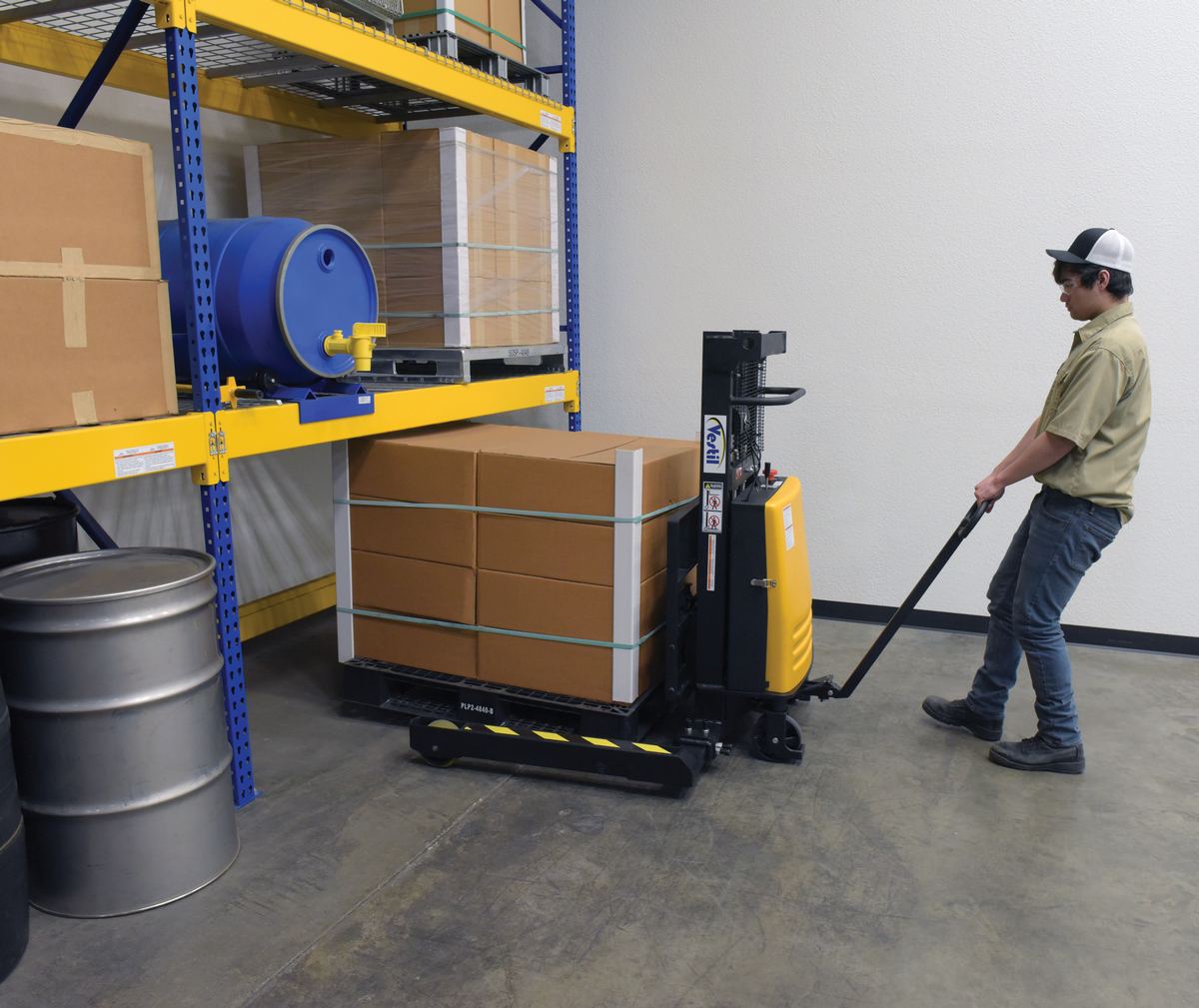

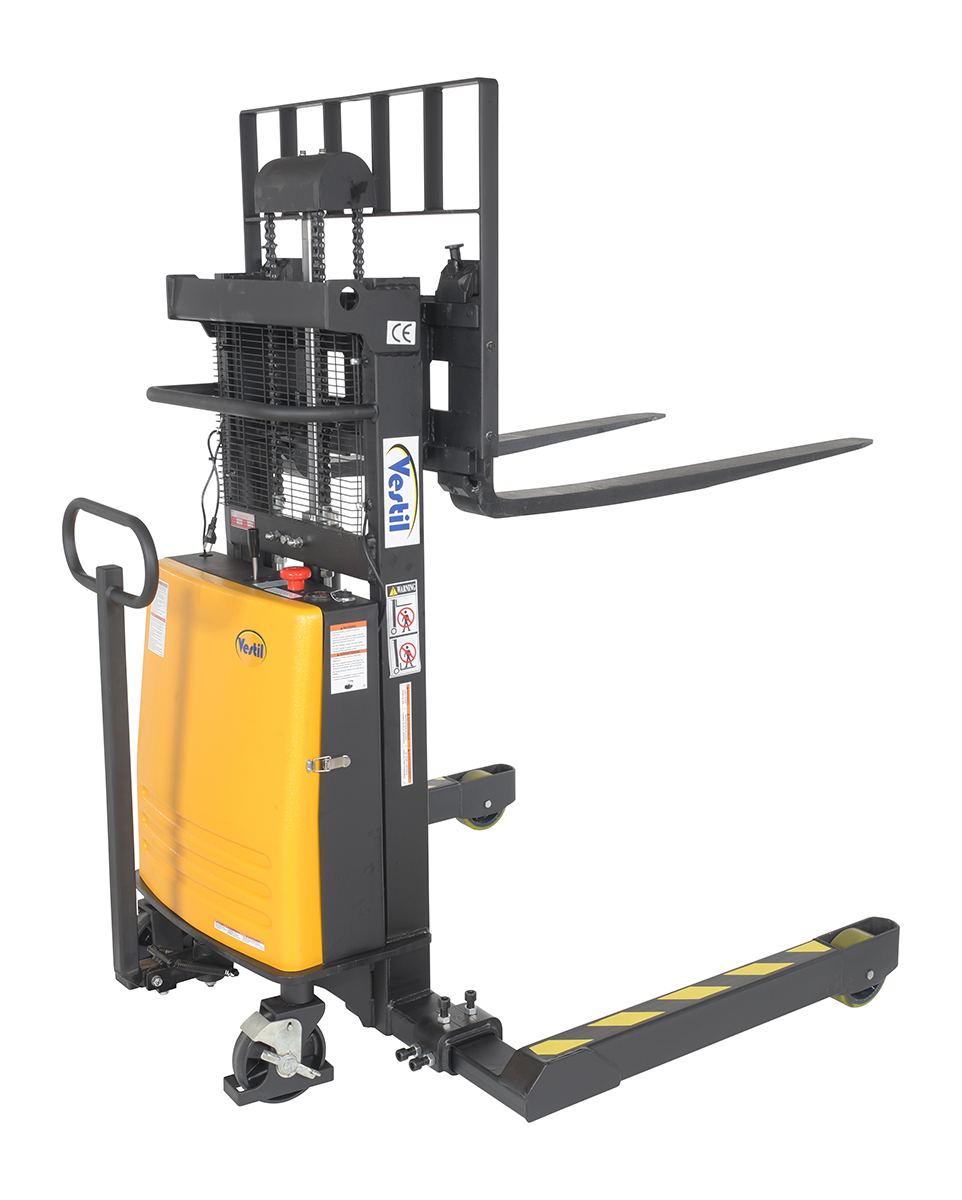

| SL3-36-AA |  | 1 Year Limited Warranty | Steel Adjustable Stacker with Powered Lift 36 In. Raised Height 3,000 Lb. Capacity Black | Uniform Capacity (lb.): 3000 Lowered Height (in.): 2.125" | 1090 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-62 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-62 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Weight Capacity (lbs): 2000
Power Source: Electric - Corded
Weight Capacity (lbs): 2000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
For More Details of the Option Click the Red Model Button

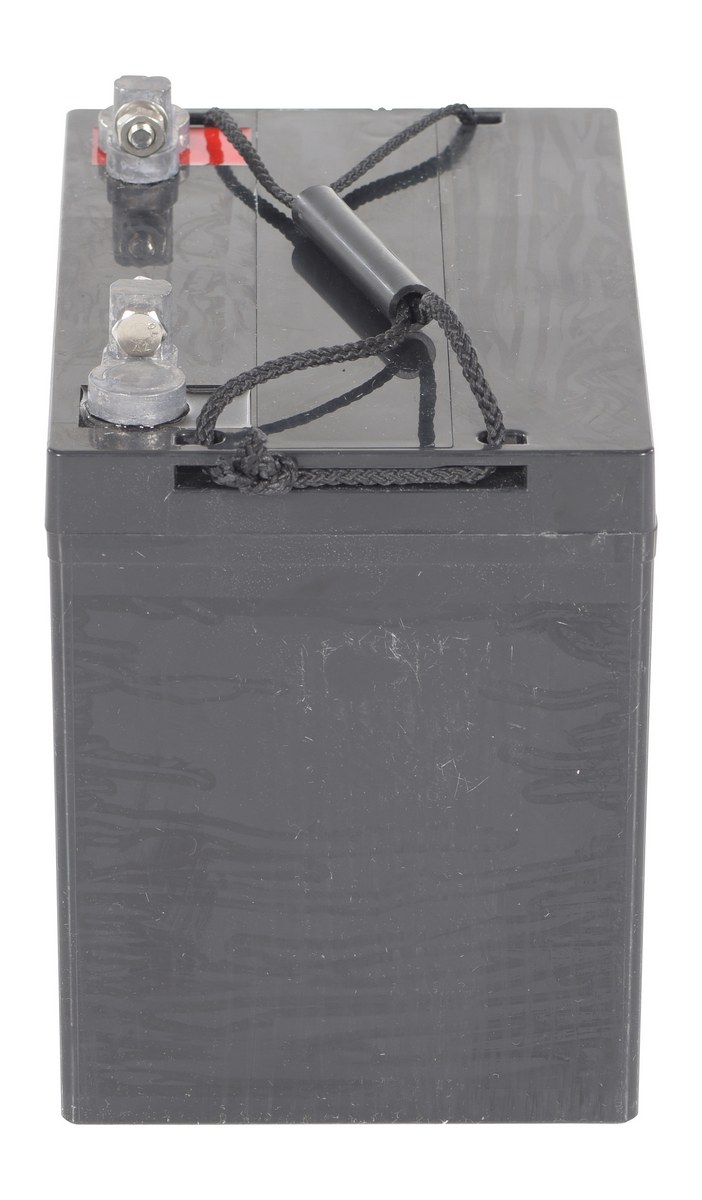

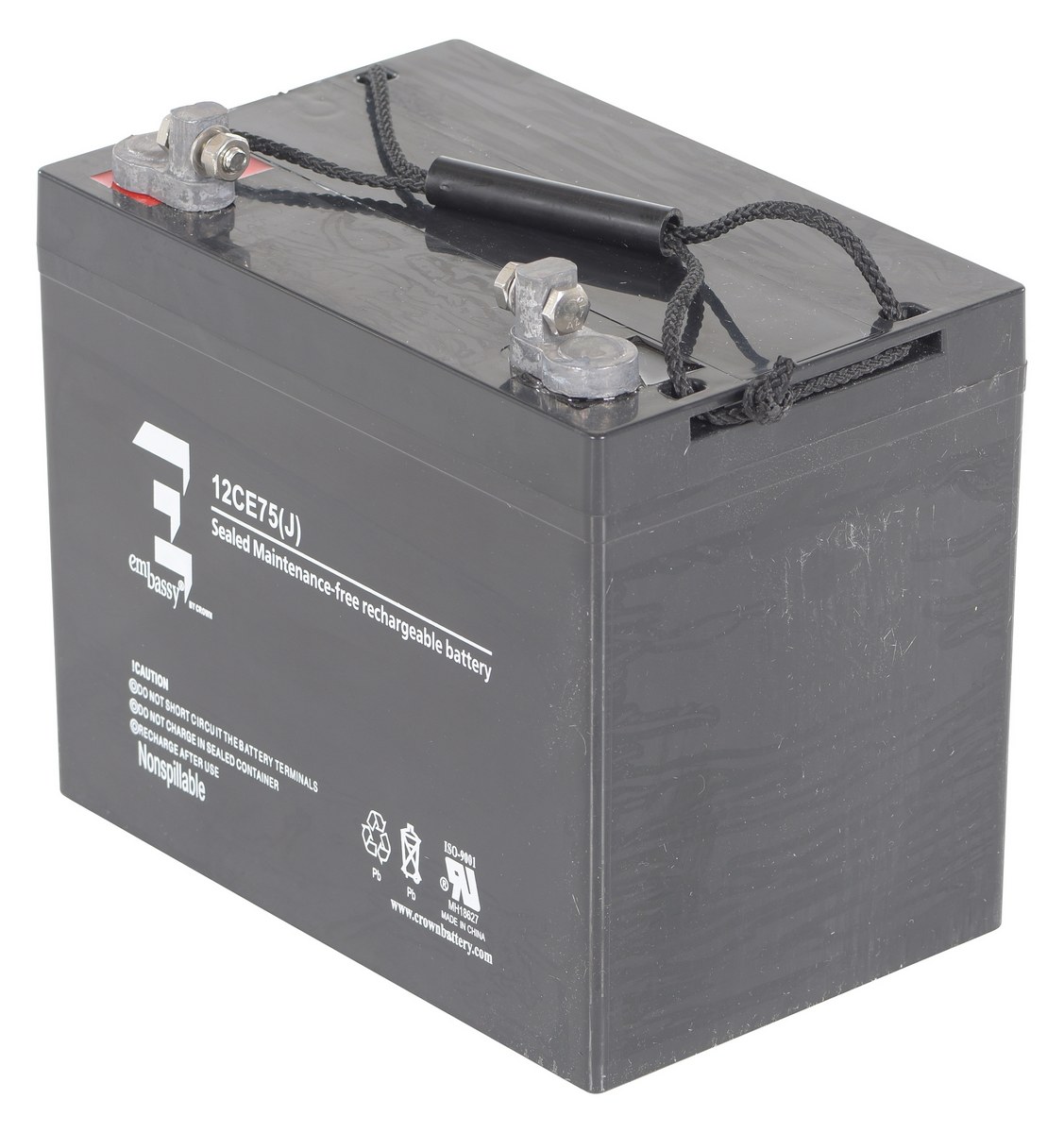

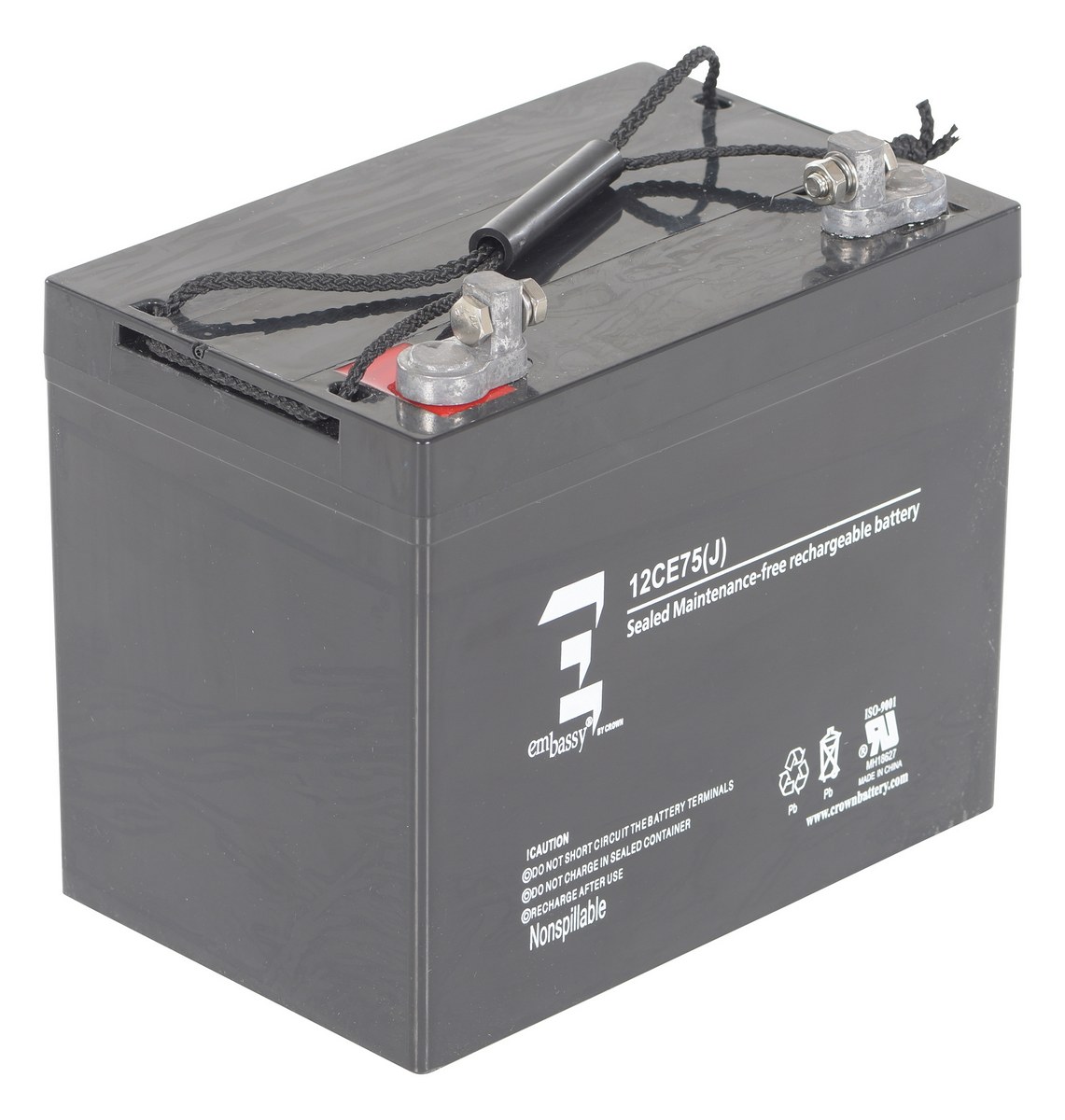

| AGM-UPG-1-12V |  | 90 Days Limited Warranty | Factory Installed Lead Acid Absorbed Glass Mat (AGM) Upgrade 12 Volt 75Ah Battery Quantity 1 | Battery Quantity: 1 Volts: 12 | 60 | |

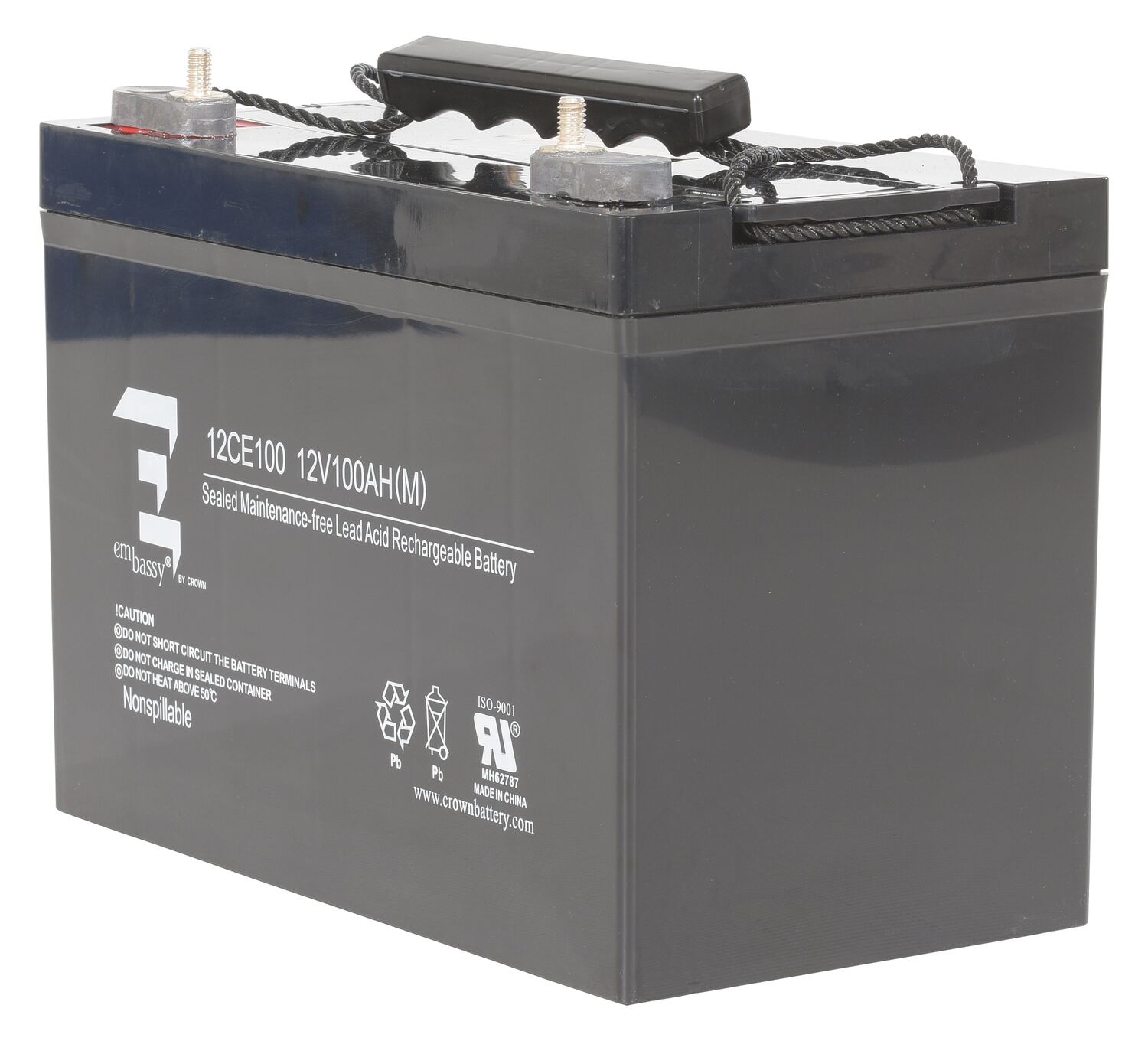

| AGM-UPG-SL |  | 90 Days Limited Warranty | Factory Installed Lead Acid Absorbed Glass Mat (AGM) Upgrade 12 Volt 100Ah Battery Quantity 1 | Battery Quantity: 1 Volts: 12 | 68 | |

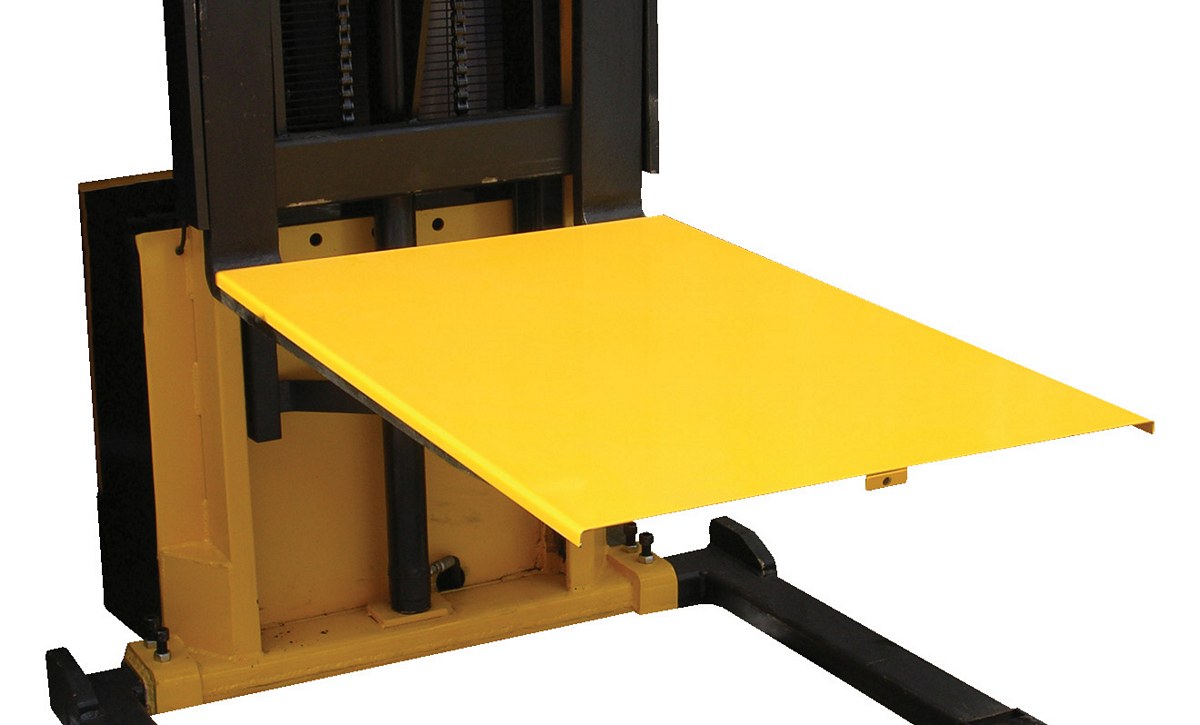

| SL-DK | | 30 Days Limited Warranty | Steel Solid Platform 45 In. x 27-3/4 In. x 3-3/4 In. 2000 Lb. Capacity For SNM Models Yellow | Maximum Capacity when Installed on Forks (lb.): 2,000 | 46 | |

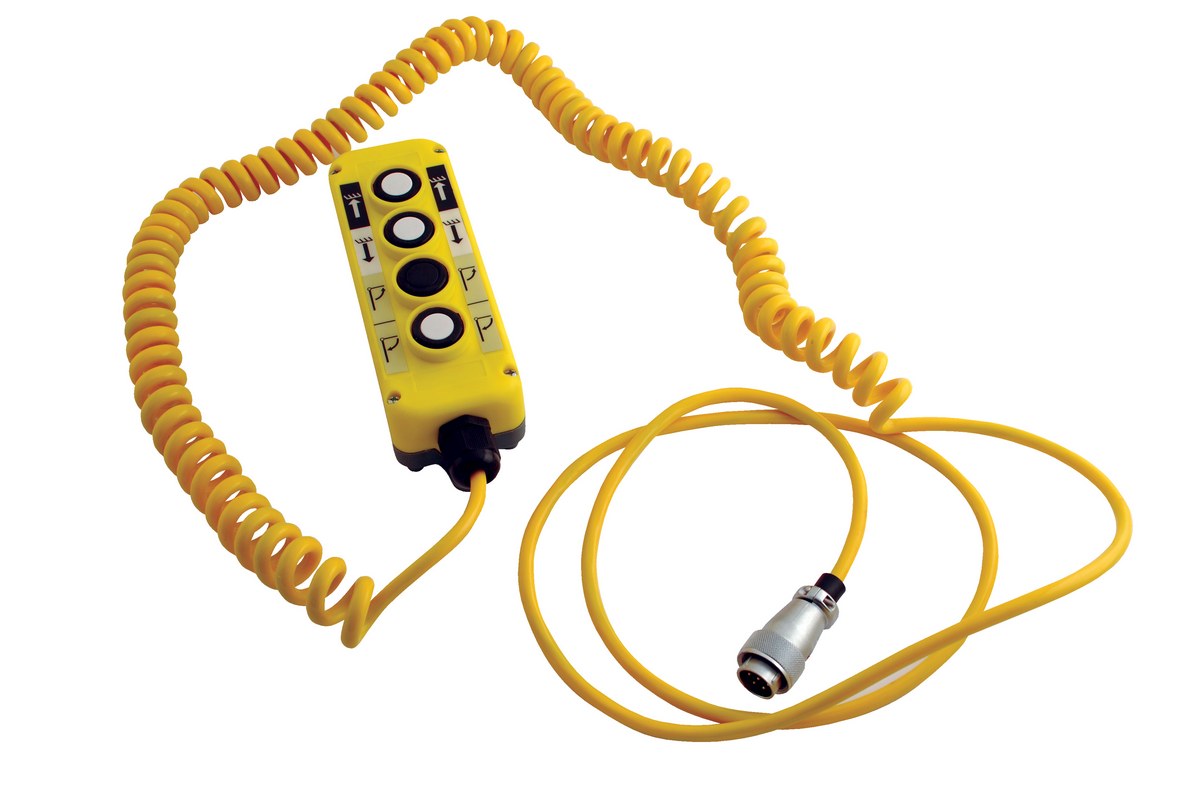

| SL-HC |  | 90 Days Limited Warranty | Hand Control Pendant For Stacker Powered Lift Models | Cable Length (ft): 8 Number of Buttons: 4 | 3 |
| Model | Image | Description | Capacity | Wt (lbs.) | ||
| SL-AA-DRR-FK |  |
Drum/Roll/Reel Forks | 1200 | 140 | ||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-AA
Hydraulic Oil SDS Sheet for: SL-118-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-FF
Hydraulic Oil SDS Sheet for: SL-118-FF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-PDGR
Hydraulic Oil SDS Sheet for: SL-118-PDGR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-137-AA
Hydraulic Oil SDS Sheet for: SL-137-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-137-AA-PTDS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-150-AA
Hydraulic Oil SDS Sheet for: SL-150-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL3-36-AA
Hydraulic Oil SDS Sheet for: SL3-36-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL3-63-AA
Hydraulic Oil SDS Sheet for: SL3-63-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-63-AA
Hydraulic Oil SDS Sheet for: SL-63-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-63-FF
Hydraulic Oil SDS Sheet for: SL-63-FF
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Can the forks on this unit be adjusted to move odd size pallets?
A: The SL-137-AA has adjust able forks from 8 in wide to 26 3/4 in wide.
Q: What is the 24" load center rating on the SL-63-AA?
A: 1,300 lbs. at 24" load center.
Q: What is the turning radius for model SL-150-AA?
A: You will need 50 inches of clearance to turn around.
