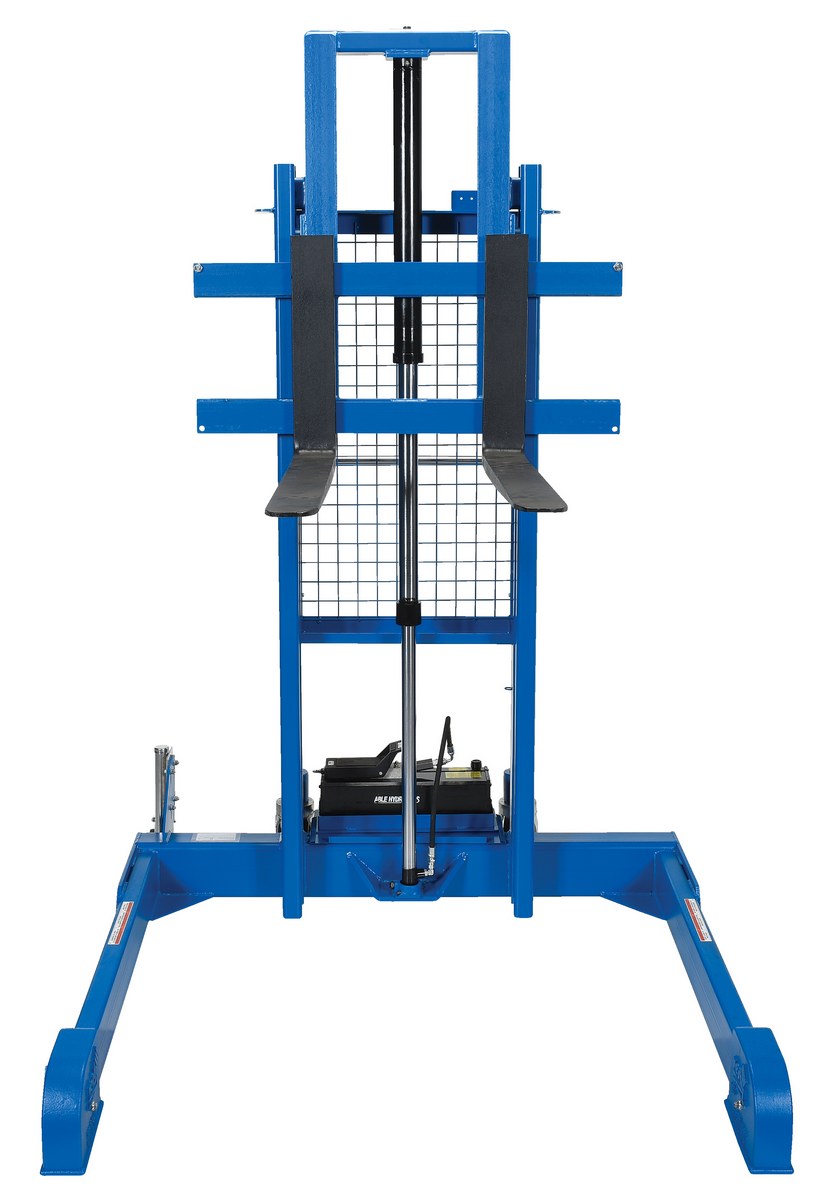

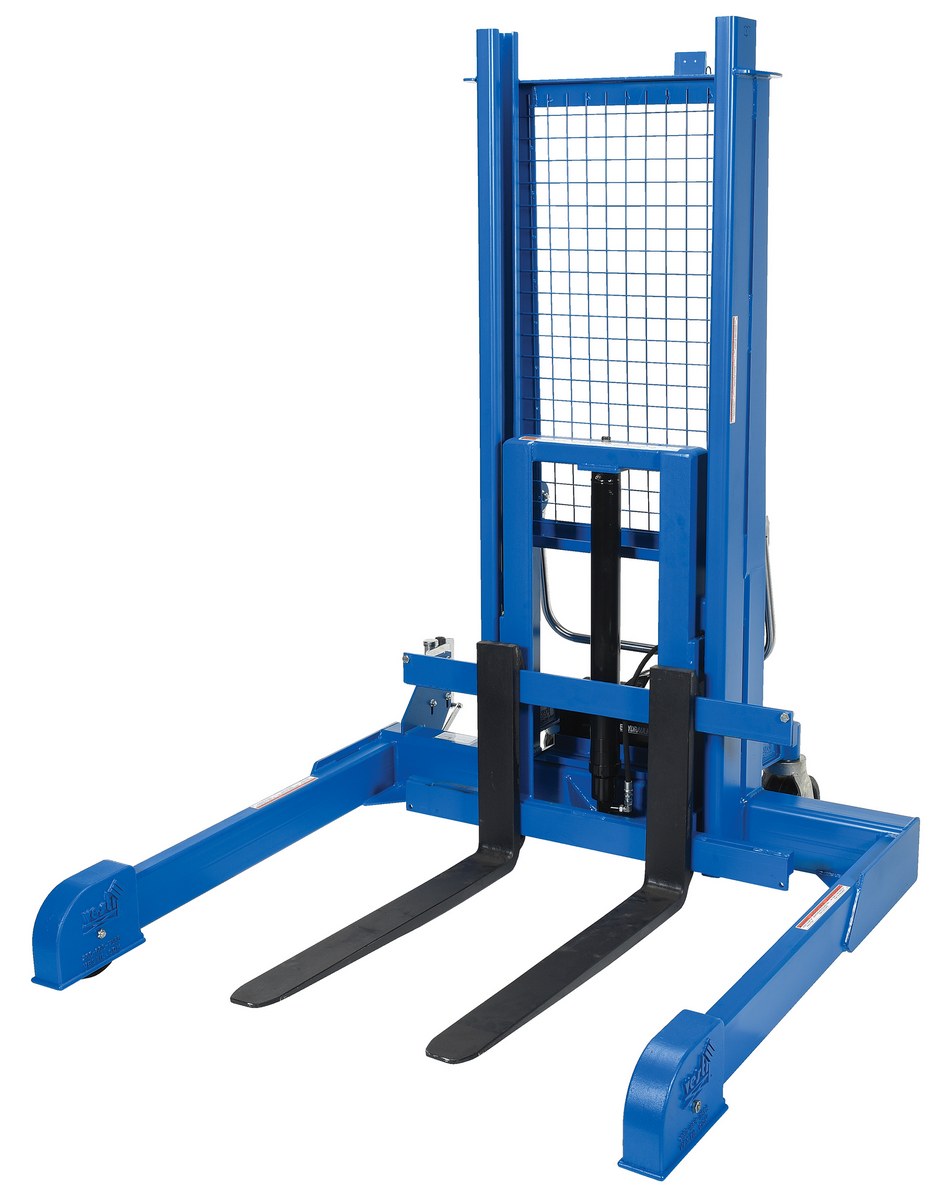

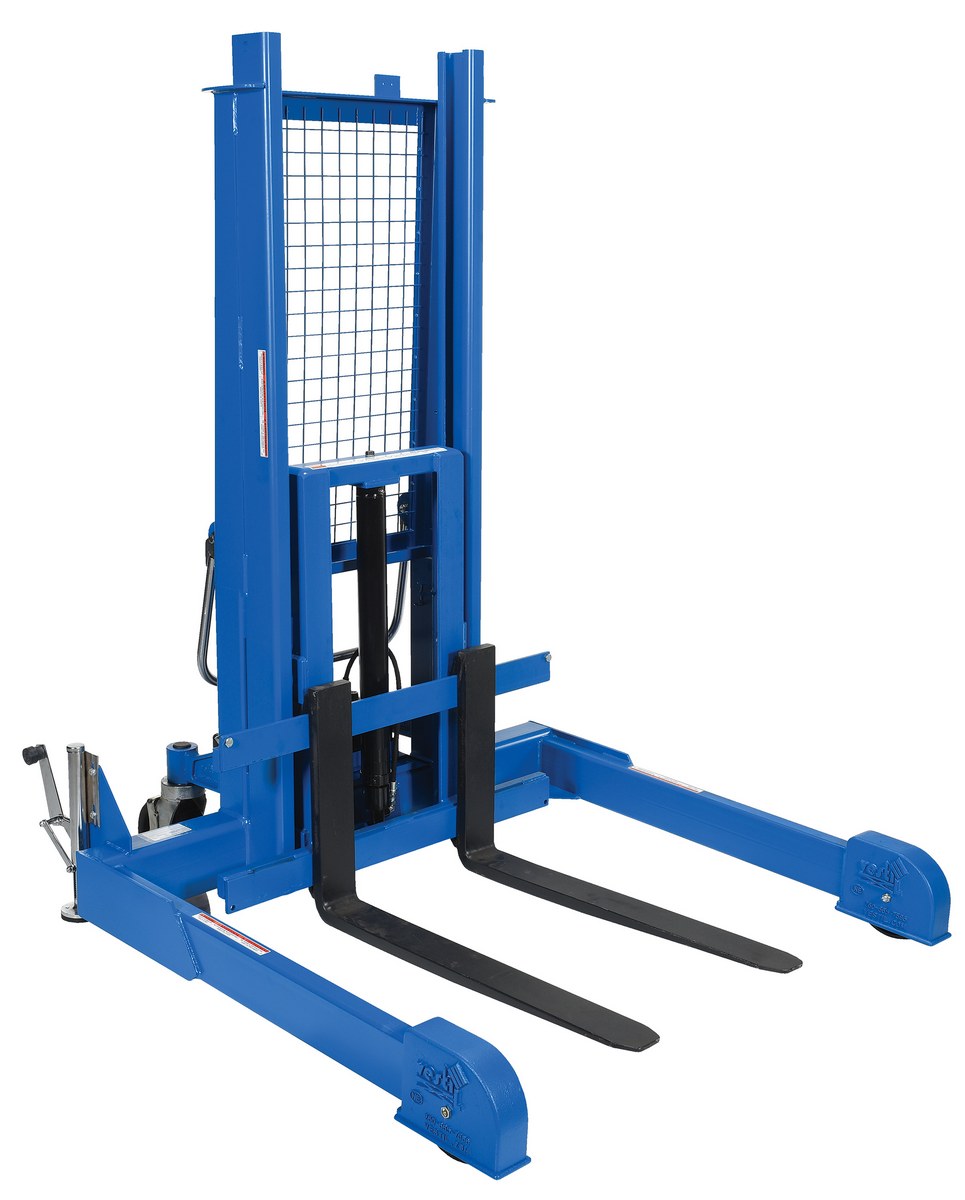

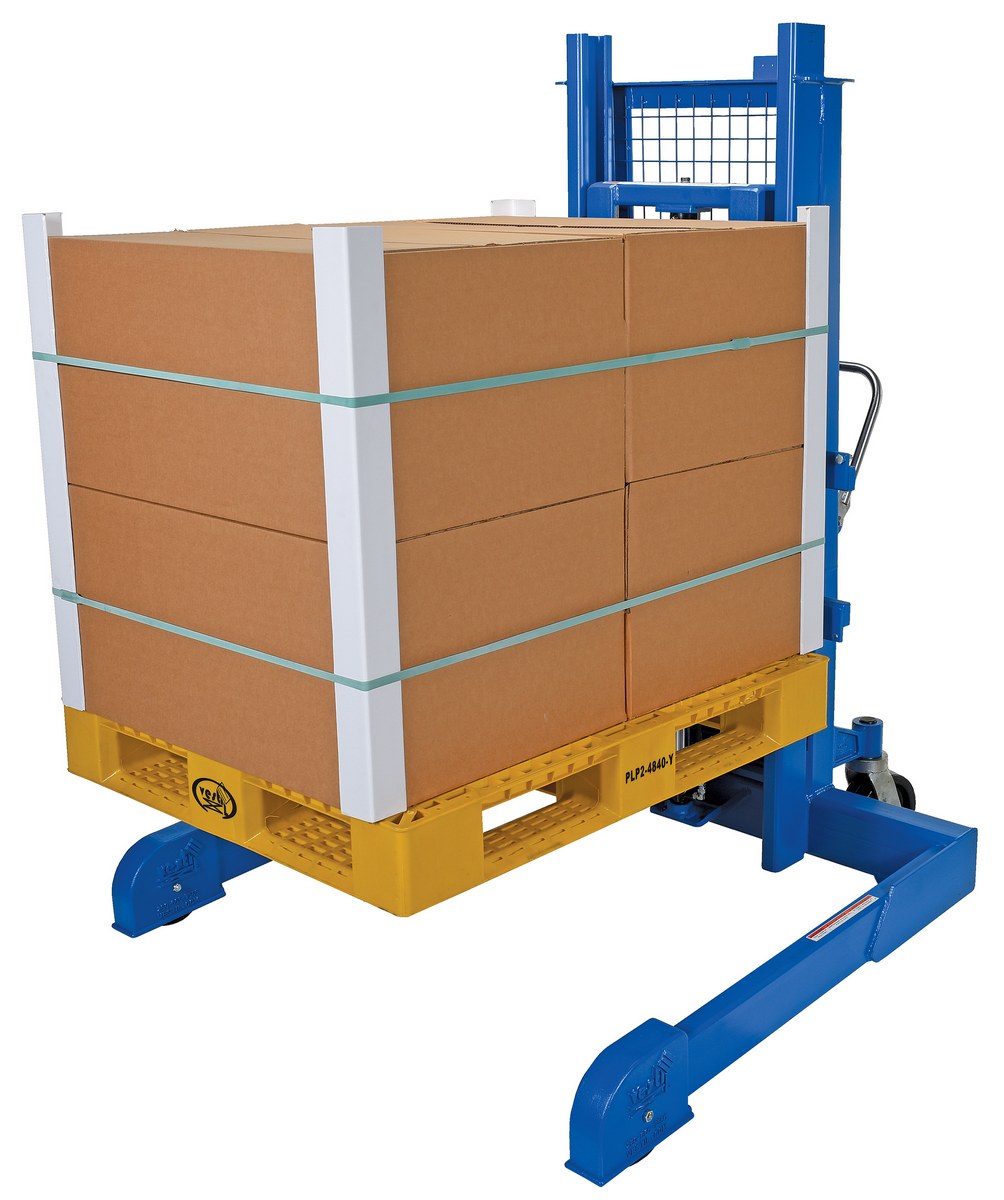

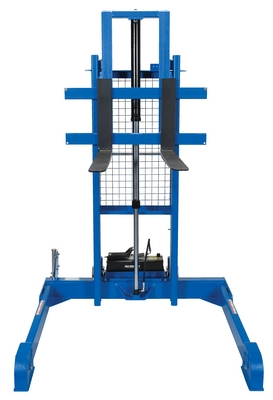

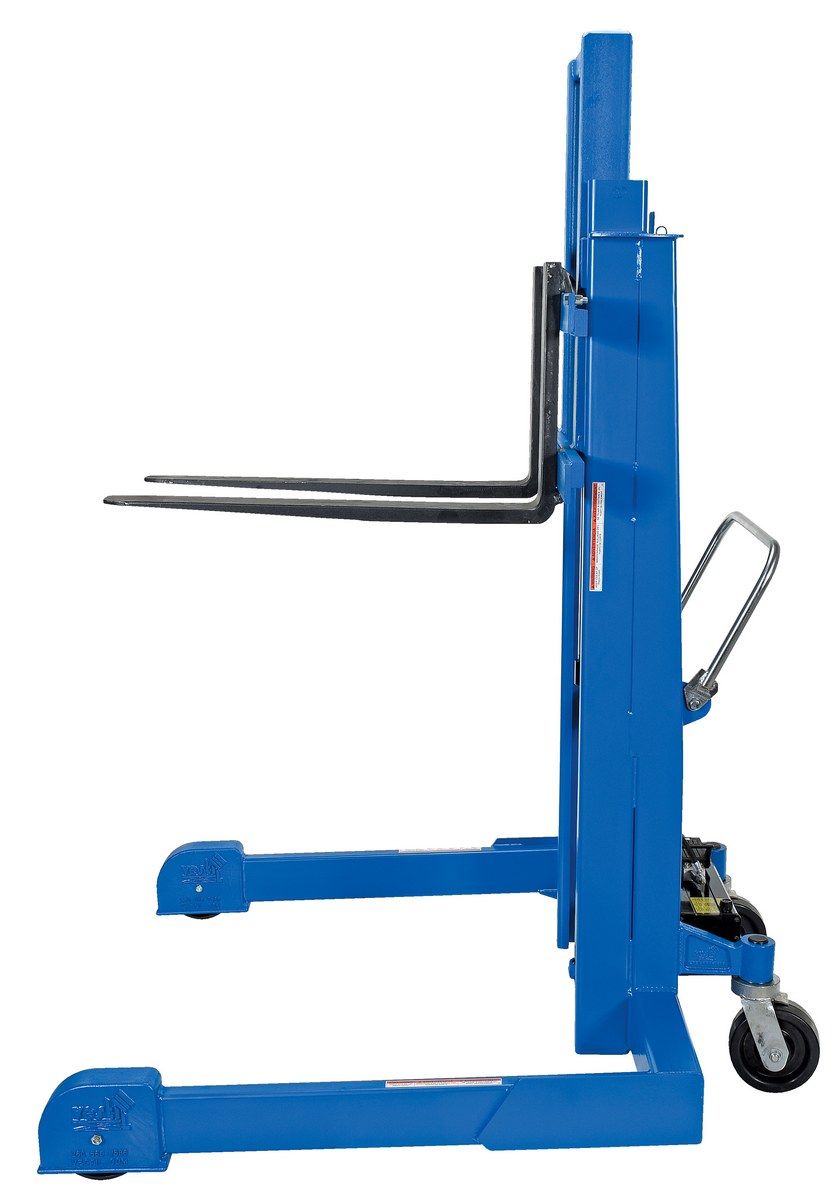

Pallet Master/ServersThe Pallet Master/Servers, are designed to be used when a fork truck is not available. The Pallet Master/Servers can handle pallets and skids both with and without an understructure. Capacity rated is at 18" regardless of fork length. The forks are 36" long for handling a wide variety of pallet sizes. Move the unit around easily on 8" x 3" phenolic swivel rear casters Floor lock standard on PMPS series. Handle height is 36".

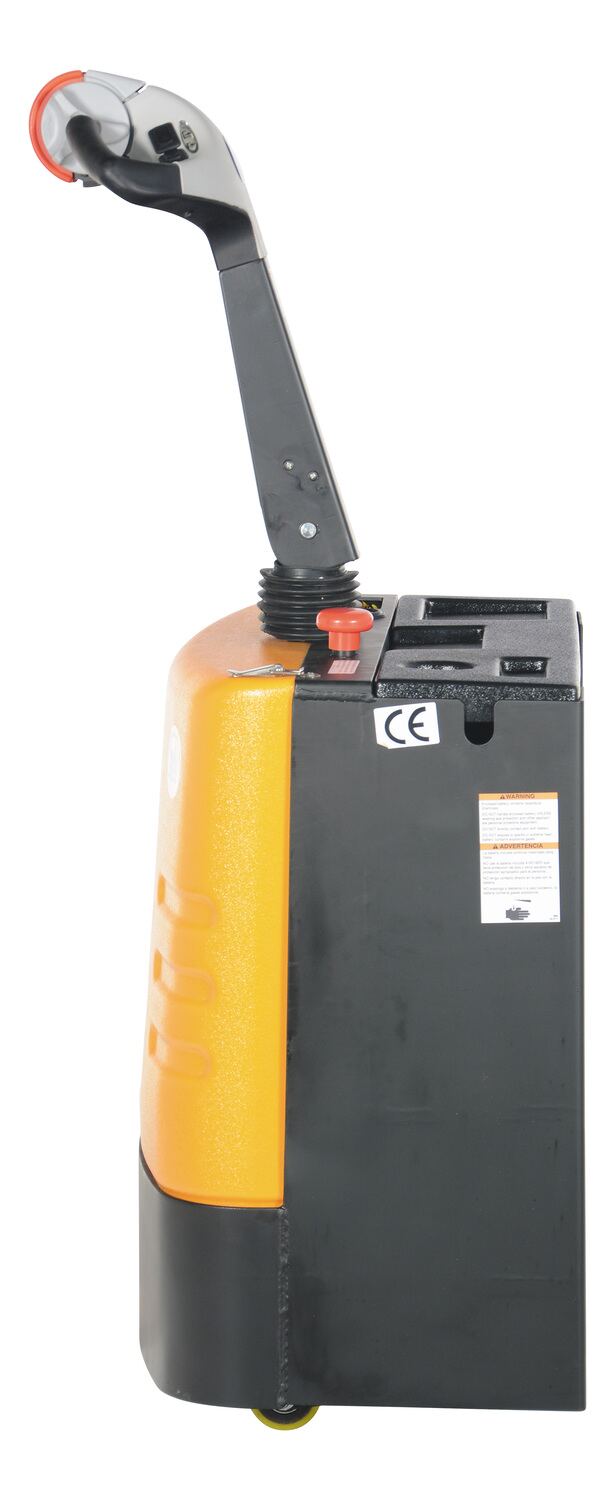

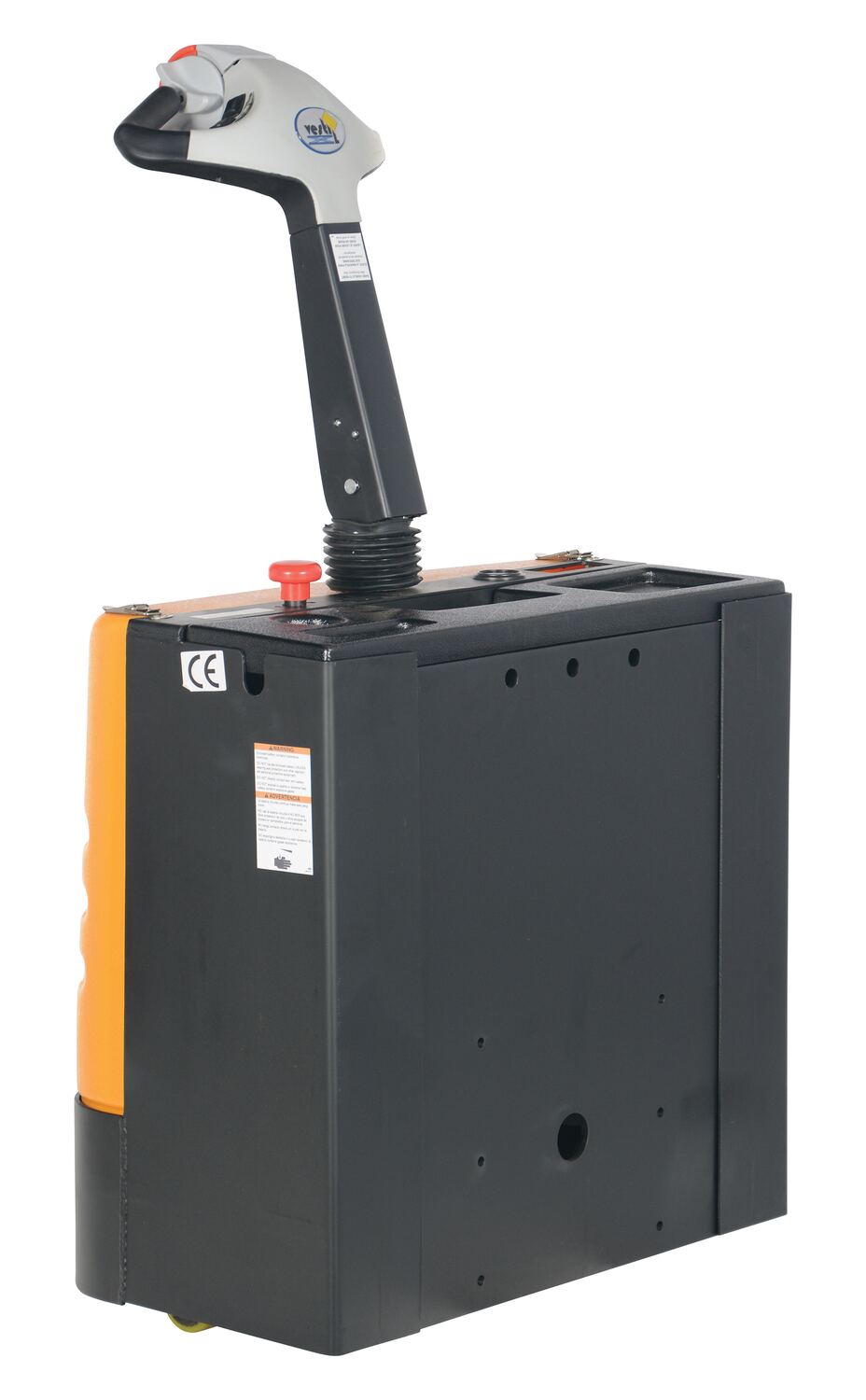

PTDS-E -- Power Traction Drive option reduce worker fatigue and injury. An alternative to costly fork trucks, the PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.
Three Power Options to choose from:
- Suffix-AC is 115V 1 phase power with a push-button hand control

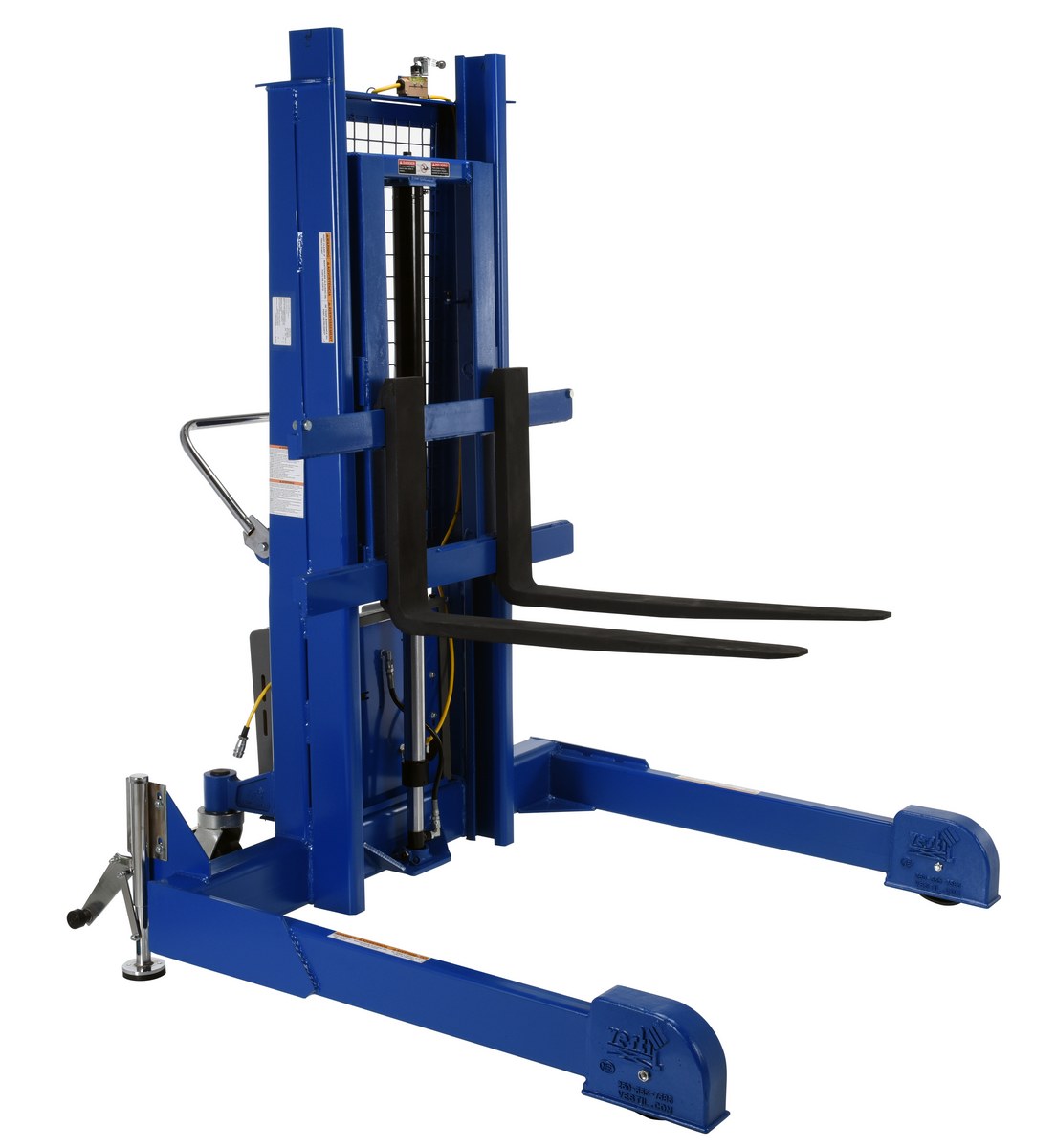

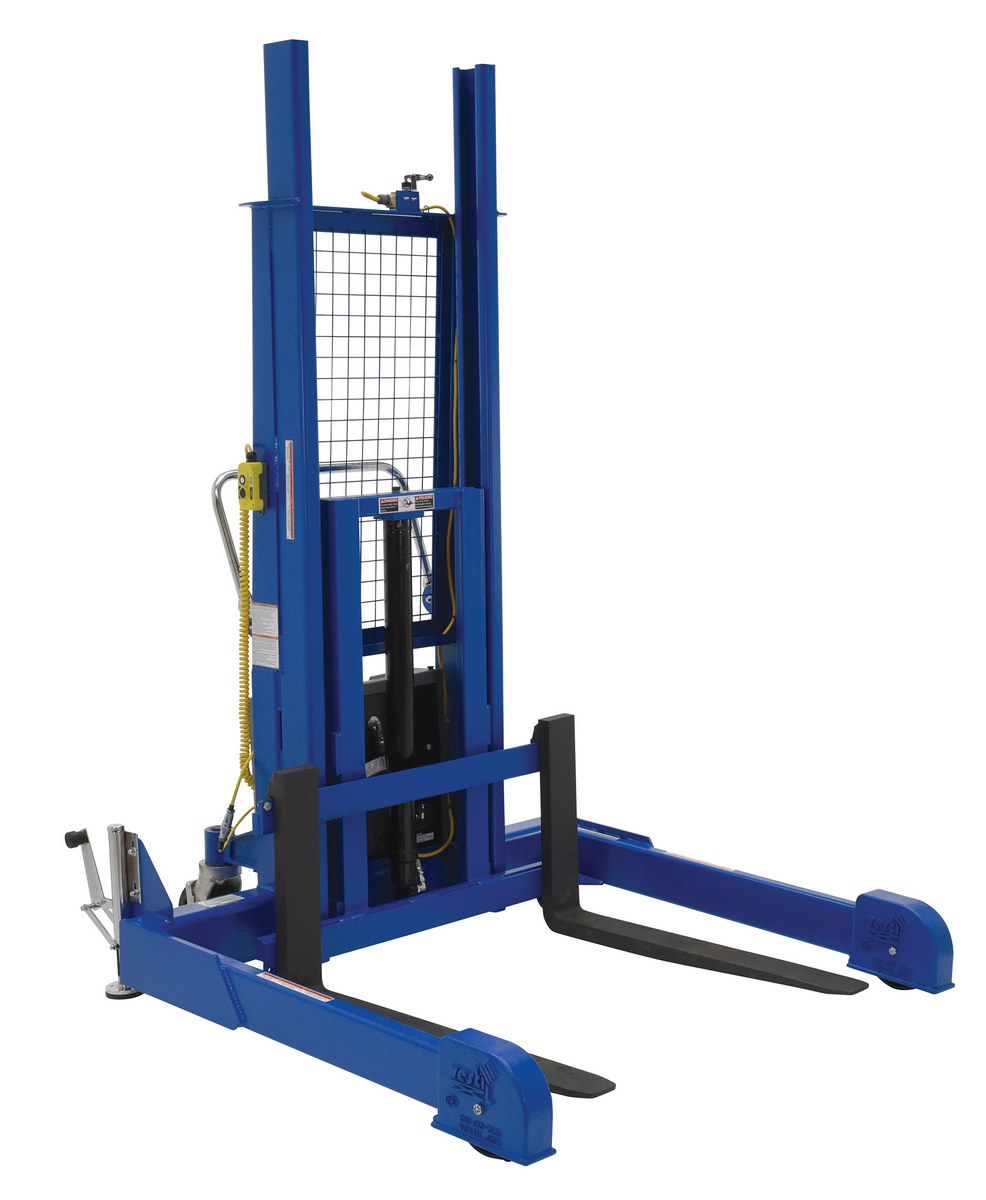

- Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charege indicator gauge.

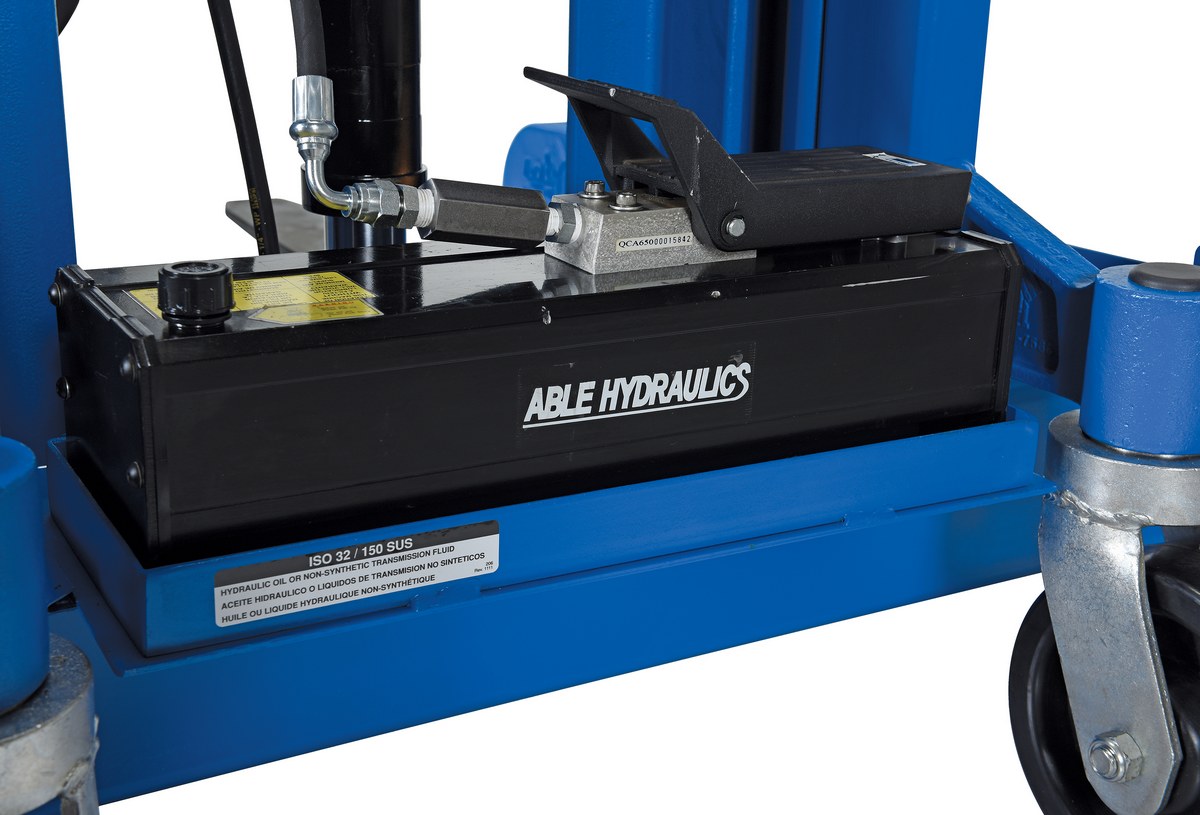

- Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control/
Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)
Manual & Electric Stackers (Pramac)
Counter-Balanced Powered Drive Lifts
Counter-Balanced Stackers
Stackers with Powered Drive and Powered LiftAdditional Models In This Family
PMPS-PTDS-E
PMPS-50-AIR
PMPS-50-AIR
PMPS-60-AIR
PMPS-50-AC
PMPS-60-DC
PMPS-60-DC
PMPS-50-DC
PMPS-PTDS-E
PMPS-50-AIR
PMPS-50-DC
PMPS-50-DC
PMPS-50-AC
PMPS-50-AIR
PMPS-PTDS-E
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

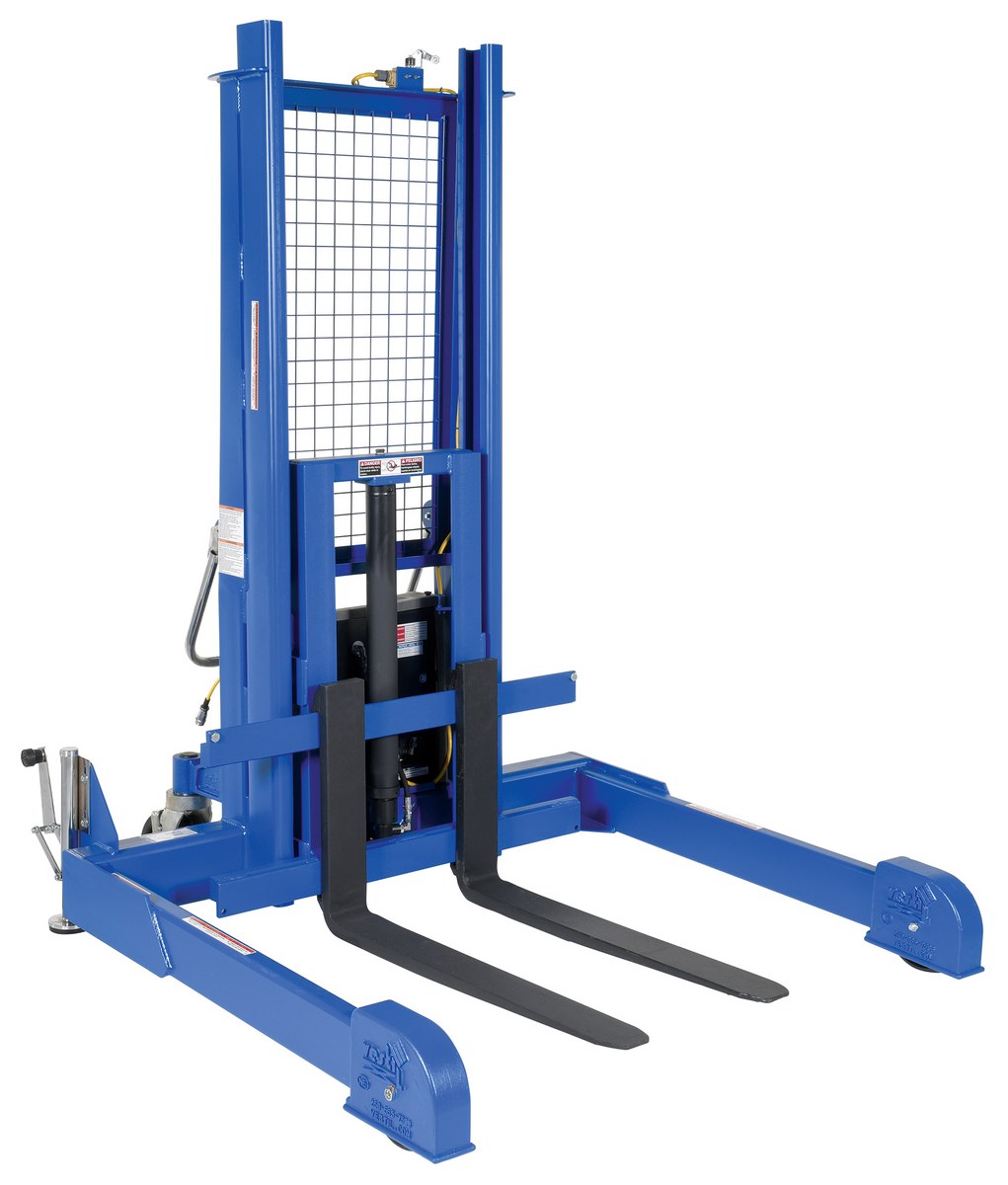

| PMPS-50-AC | |  | 1 Year Limited Warranty | Steel Pallet Master/Server Stacker 115 Volt AC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Operation: 115V AC | 1055 | |

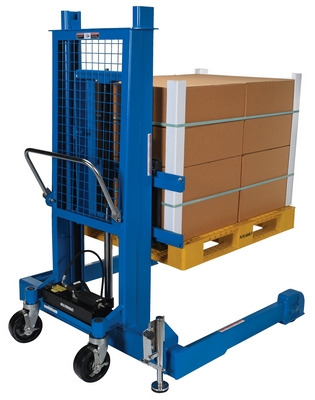

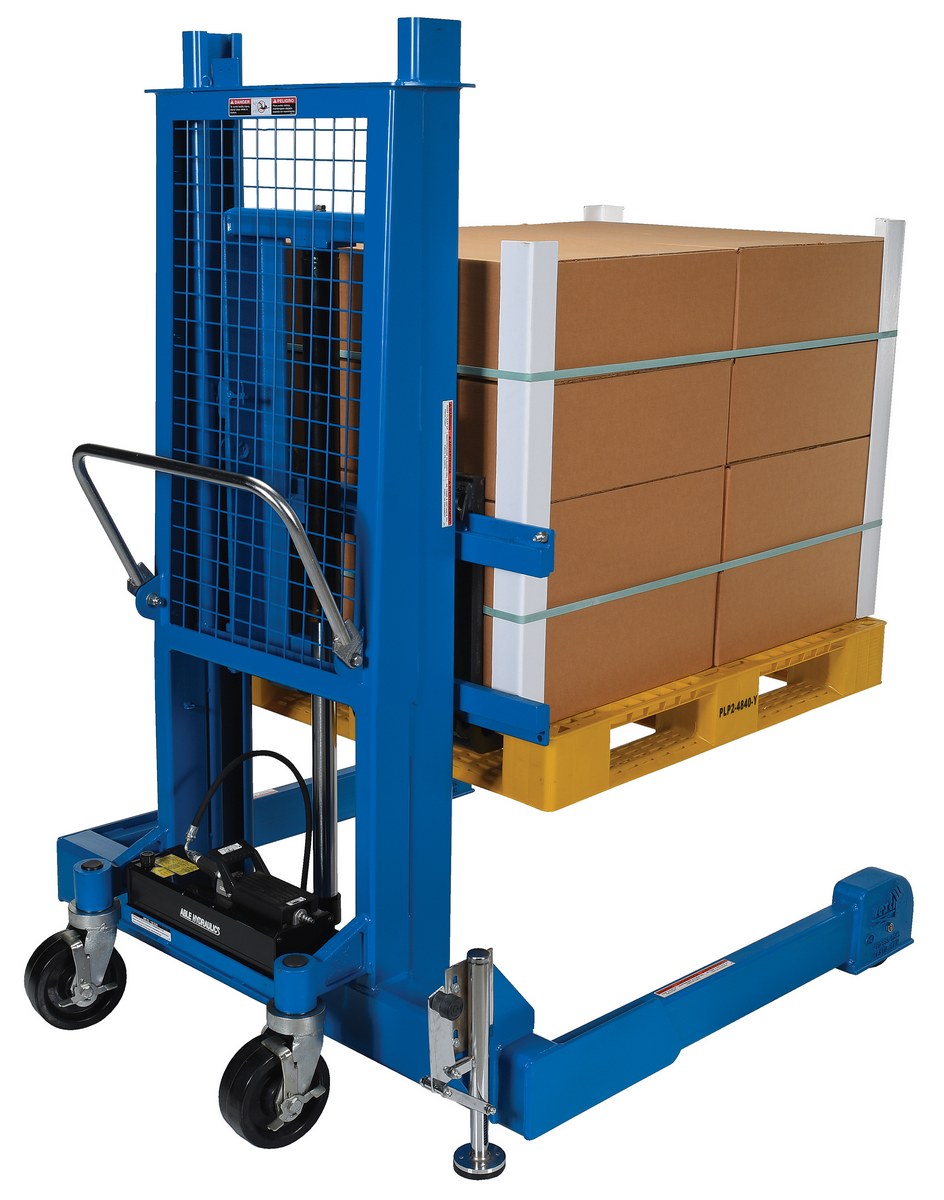

| PMPS-50-AIR | |  | 1 Year Limited Warranty | Steel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 50 In. Raised Height 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Operation: Reciprocating Air/Oil | 962 | |
| PMPS-50-DC | | 1 Year Limited Warranty | Steel Pallet Master/Server Stacker 12 Volt DC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Operation: (1) 12V DC | 1173 | ||

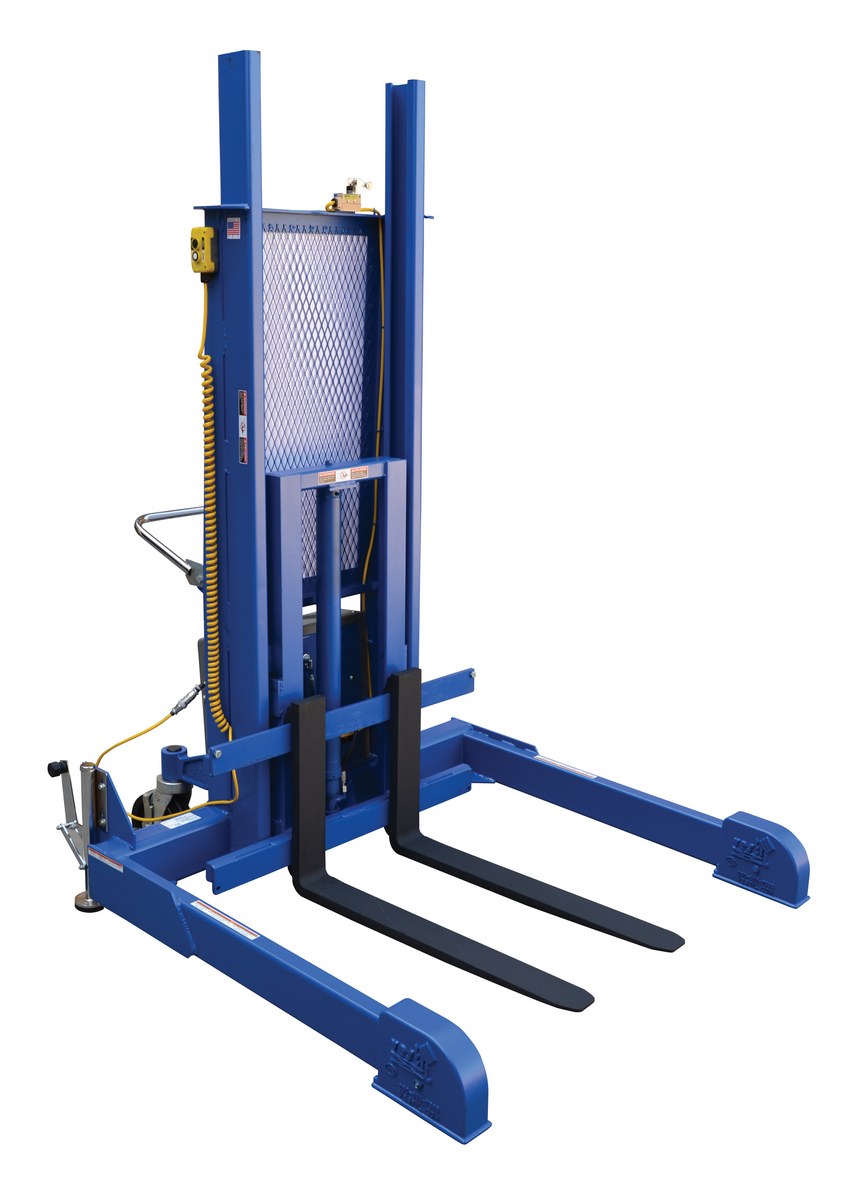

| PMPS-60-AC | |  | 1 Year Limited Warranty | Steel Pallet Master/Server Stacker 115 Volt AC Powered 60 In. Raised Height 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Operation: 115V AC | 1065 | |
| PMPS-60-AIR | | | 1 Year Limited Warranty | Steel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Operation: Reciprocating Air/Oil | 1029 | |
| PMPS-60-DC | | 1 Year Limited Warranty | Steel Pallet Master/Server Stacker 12 Volt DC Powered 60 In. Raised Height 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Operation: (1) 12V DC | 1060 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: 115V AC
Uniform Capacity (lb.): 4000
Operation: 115V AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil
Uniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: (1) 12V DC
Uniform Capacity (lb.): 4000
Operation: (1) 12V DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: 115V AC
Uniform Capacity (lb.): 4000
Operation: 115V AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil
Uniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: (1) 12V DC
Uniform Capacity (lb.): 4000
Operation: (1) 12V DC
For More Details of the Option Click the Red Model Button
| PMPS-48FORK |  | 90 Days Limited Warranty | Steel 48 In. Length Forks For PMPS Models Black | Uniform Capacity at 24 In. Load Center (lb.): 3200 Sizes: Based on Customer Use (Heavy, Medium, Light) | 200 | |
| PMPS-DCR | | 1 Year Limited Warranty | Factory Installed Steel Drum Carrier/Rotator 800 Lb. Capacity For Pallet Master/Server Stacker Units | Size: Fabricated to Fit Unit Uniform Capacity (lb.): 800 | 239 | |
| PMPS-PTDS-E |  | 1 Year Limited Warranty | Factory Installed Power Traction Drive System For Pallet Master/Server Stacker Units Black / Yellow | Maximum Speed (mph.): 2.5 Power: 24V DC | 517 |
| HCP-2642 |  |
Optional Hand Control Pedestal |
