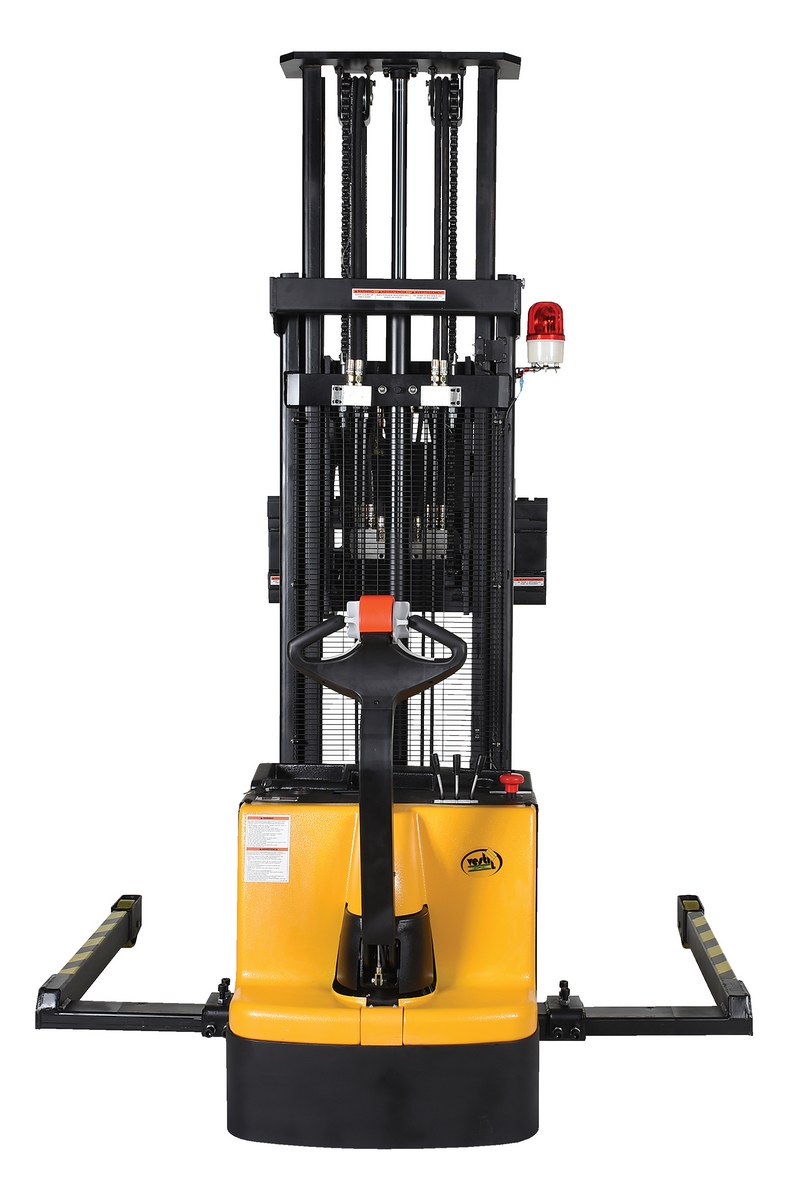

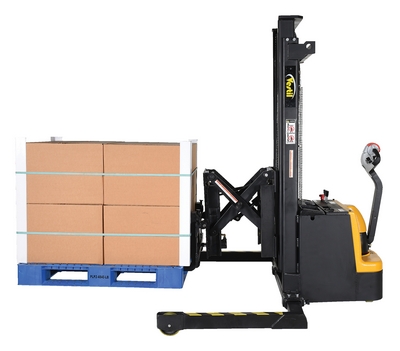

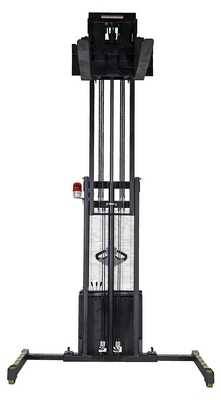

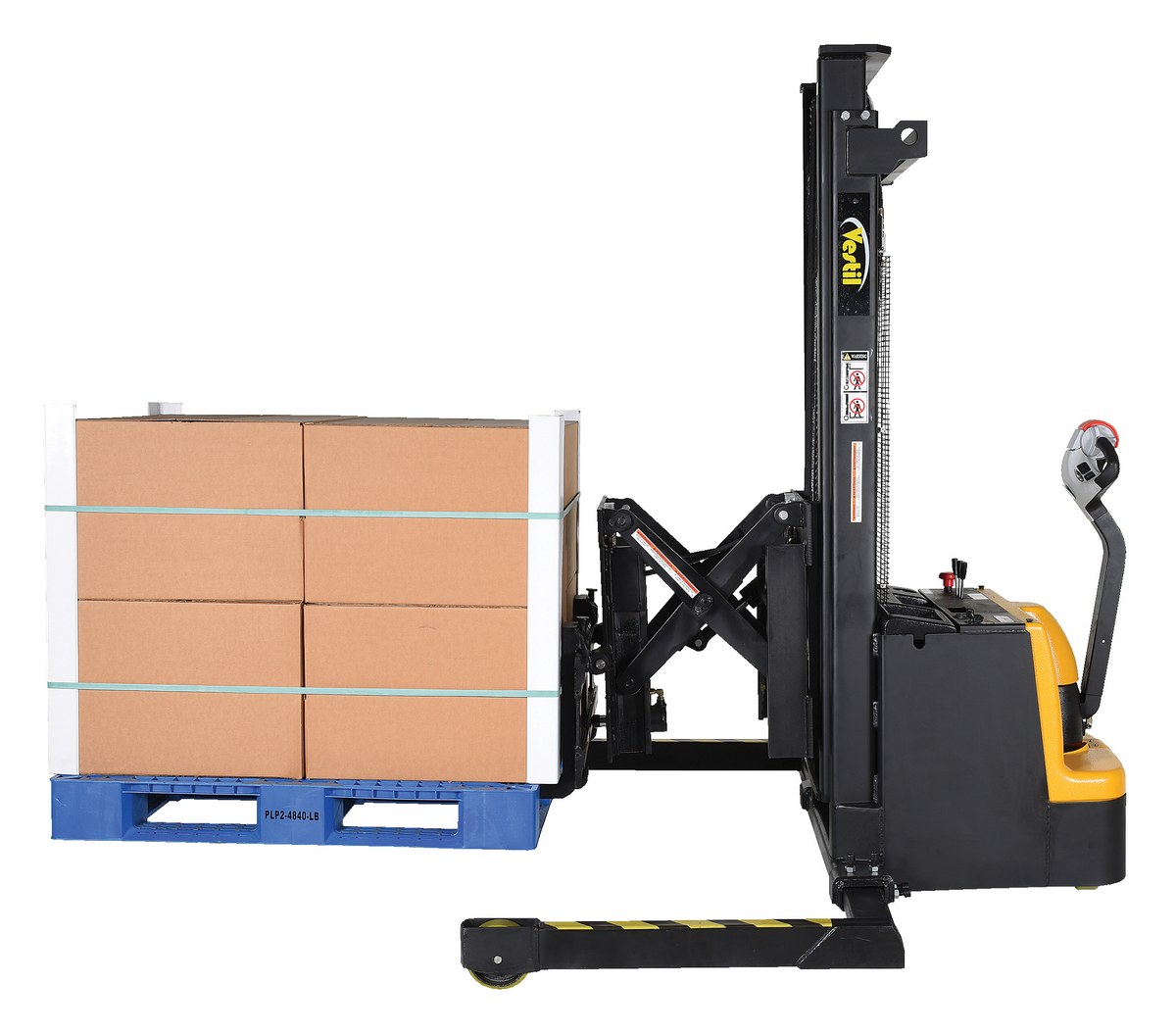

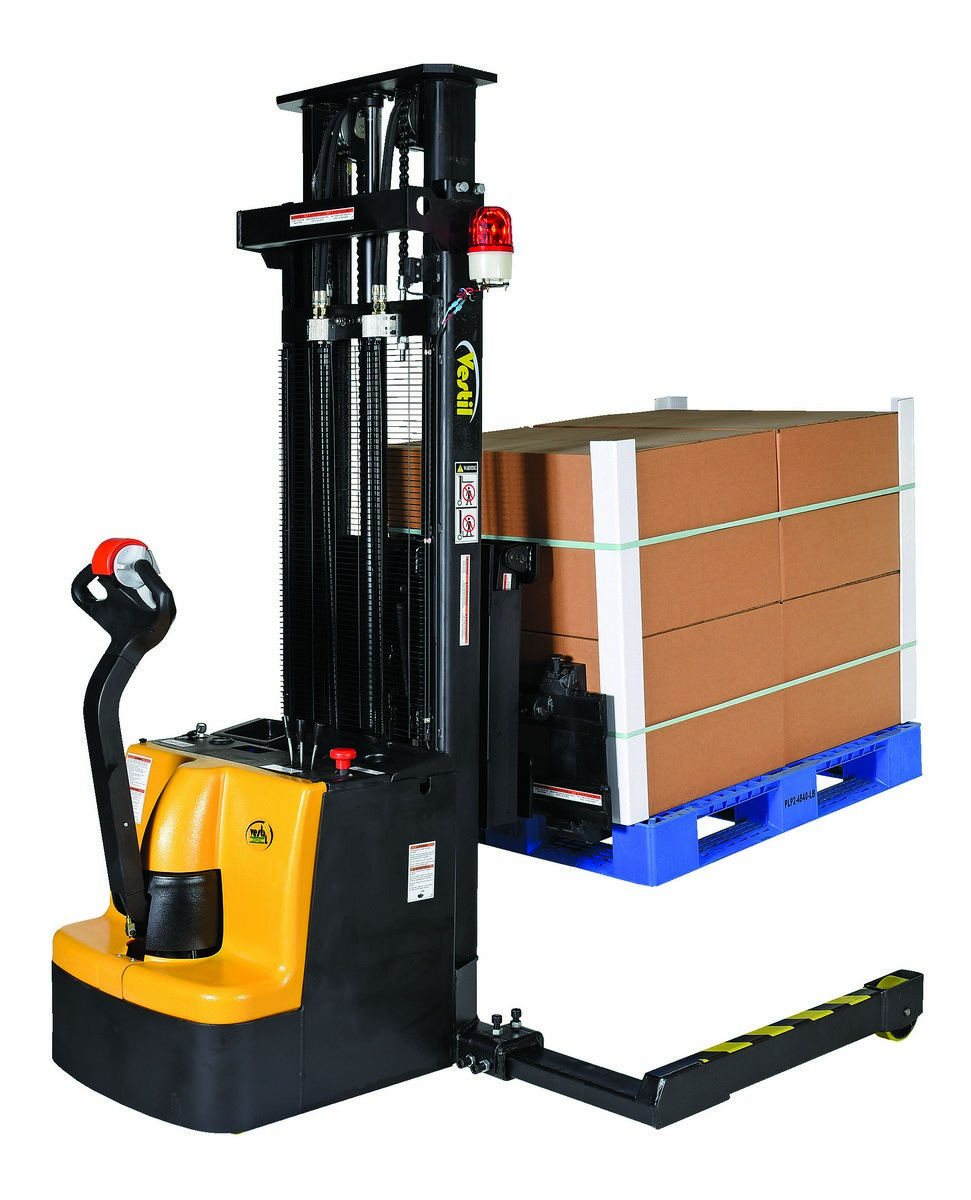

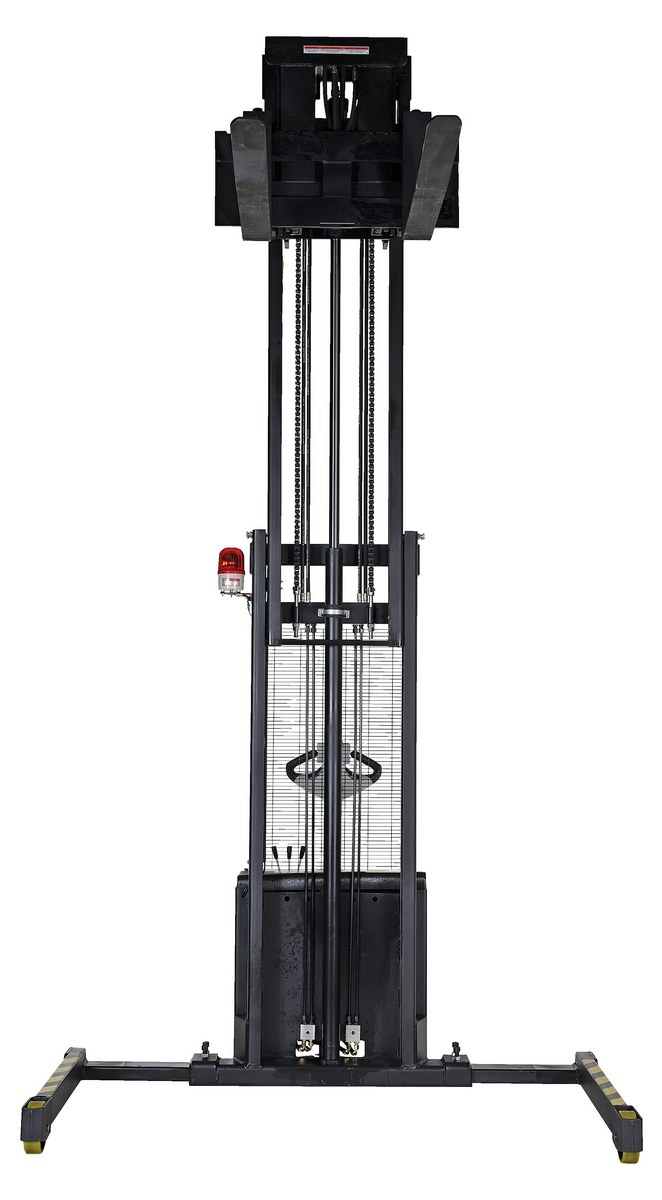

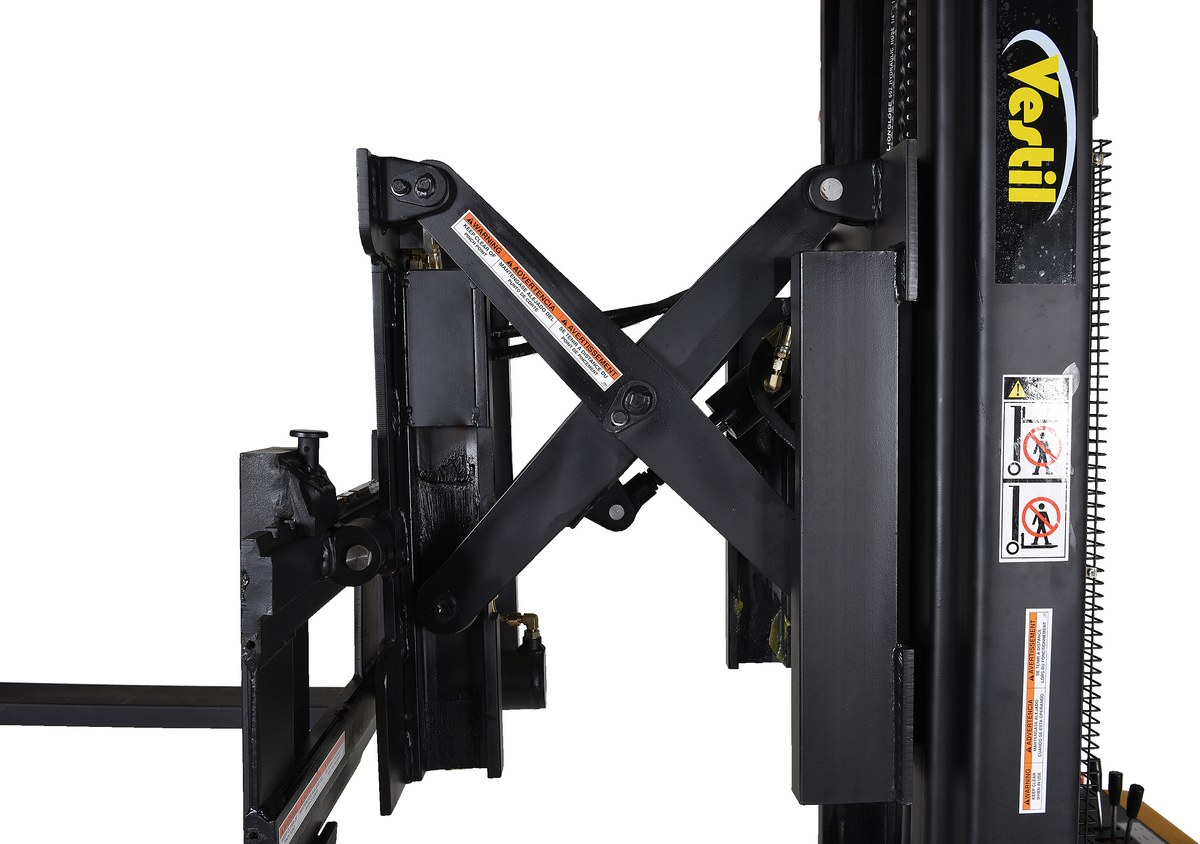

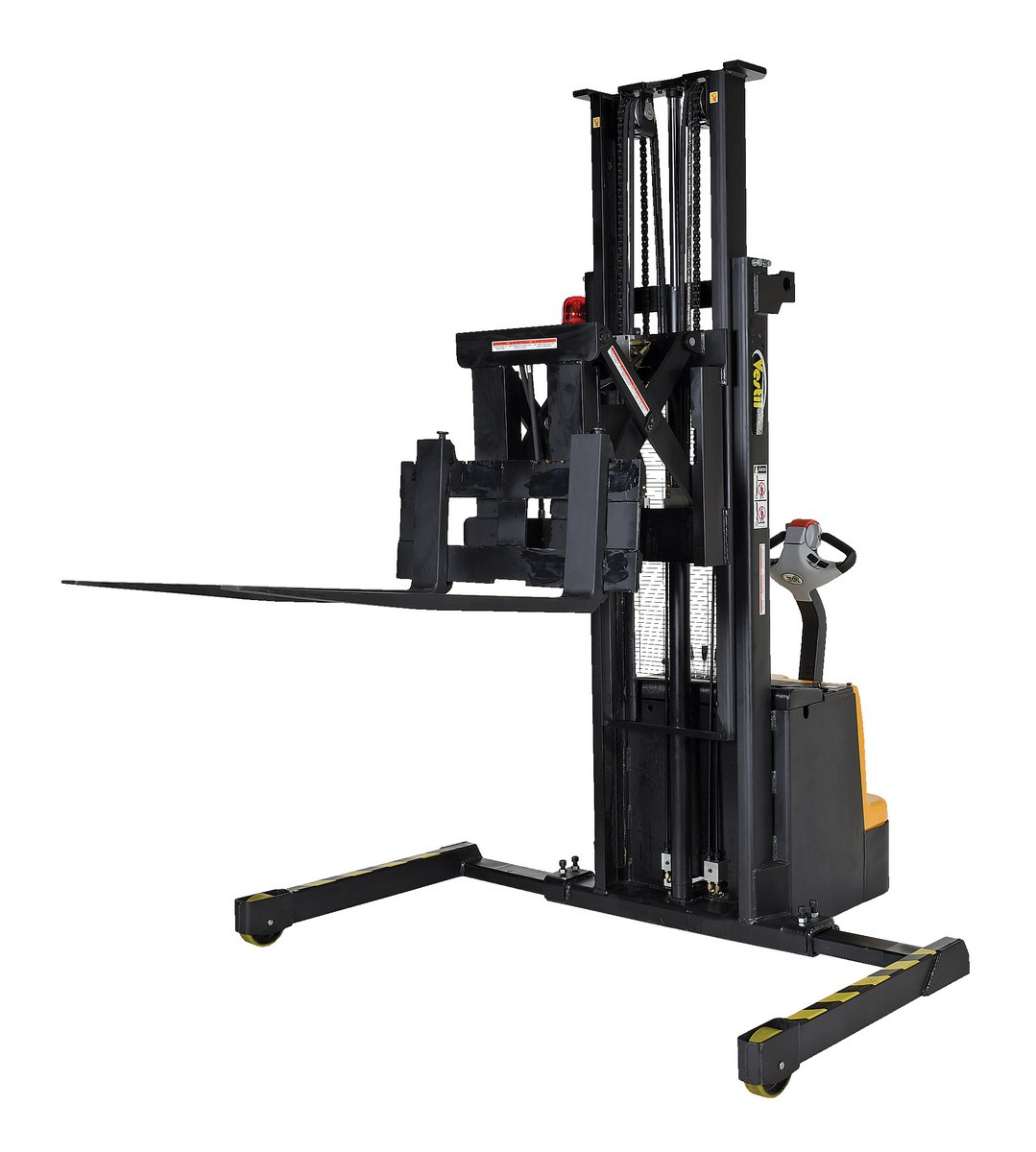

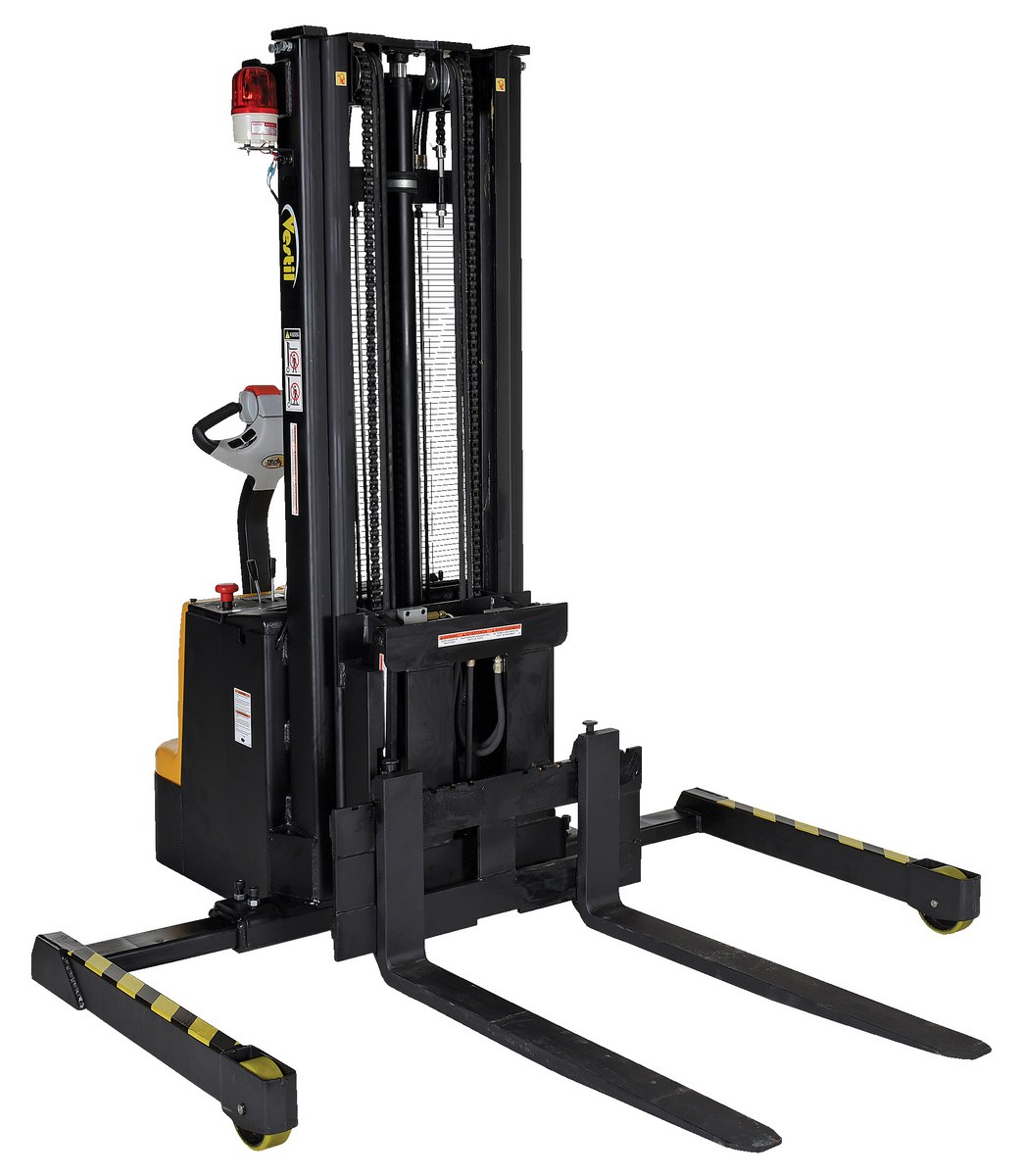

Powered Stacker with Power Drive, Power Lift, & Power Fork ReachPowered Stacker with Power Drive, Power Lift, and Power Fork Reach is ideal for distribution and shipping facilities. The stacker is equipped with extendable forks, which can be utilized to reach 25" and lift objects in a condensed area where room to maneuver is limited. The stacker is power driven with simple controls that allow for precise positioning of products. Features two (2) 12V batteries with on-board charger. To use, align forks in the desired position and extend the forks to reach the product safely. Once the unit is in place and the product is secured, the stacker can be driven to the preferred workspace.
- Utilize in both big and small loads
- Powered unit to minimize manual labor
- Diminishes amount of bending and twisting
- Simple movement controls
Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)
Narrow Mast Stackers with Powered Lift
Stackers with Lithium Ion Battery
Manual & Electric Stackers (Pramac)
Pallet Master/Servers
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| S-118-AA-FR | POPULAR |  | 1 Year Limited Warranty | Steel Adjustable Extendable Fork Stacker 118 In. Raised Height 1500 Lb. Capacity Black / Yellow | Uniform Capacity Forks Retracted at 2" to 62" Raised Height (lb.): 1500 Uniform Capacity Forks Extended at 2" to 62" Raised Height (lb.): 800 | 1816 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Forks Retracted at 2" to 62" Raised Height (lb.): 1500
Uniform Capacity Forks Extended at 2" to 62" Raised Height (lb.): 800
Uniform Capacity Forks Retracted at 2" to 62" Raised Height (lb.): 1500
Uniform Capacity Forks Extended at 2" to 62" Raised Height (lb.): 800
For More Details of the Option Click the Red Model Button
|
Options |
||||||||||
| Model | Image | Description | Wt (lbs.) | |||||||
| AGM-UPG-2-12V |  |
AGM Battery Upgrade (2x12V) must be purchased with new unit | 80 lbs | |||||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-AA-FR
Hydraulic Oil SDS Sheet for: S-118-AA-FR
Other PDF's
Directory Links Of Available PDF's For All Products
Q: On the drawing for the S-118-AA-FR what does "UDL" stand for?
A: UDL stands for Uniform Distributed Load - even load across the forks.
Q: What is the height of the load guard back rest?
A: The load guard back rest is 30" high.
Q: What is the distance from the floor to the fork?
A: The lowered height from the top of the fork to the floor is 2". The raised height from the top of the fork to the floor is 118". The 3.3" is the height of the outrigger.
Q: What is the lifting speed?
A: Lifting speed for the S-118-AA-FR is 18 seconds unloaded. When loaded lifting speed is 21 seconds.
