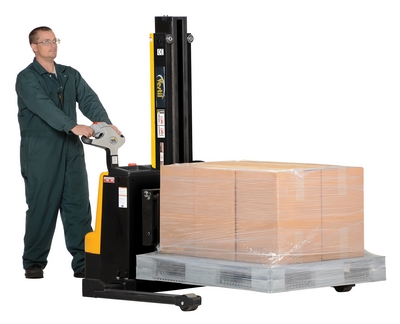

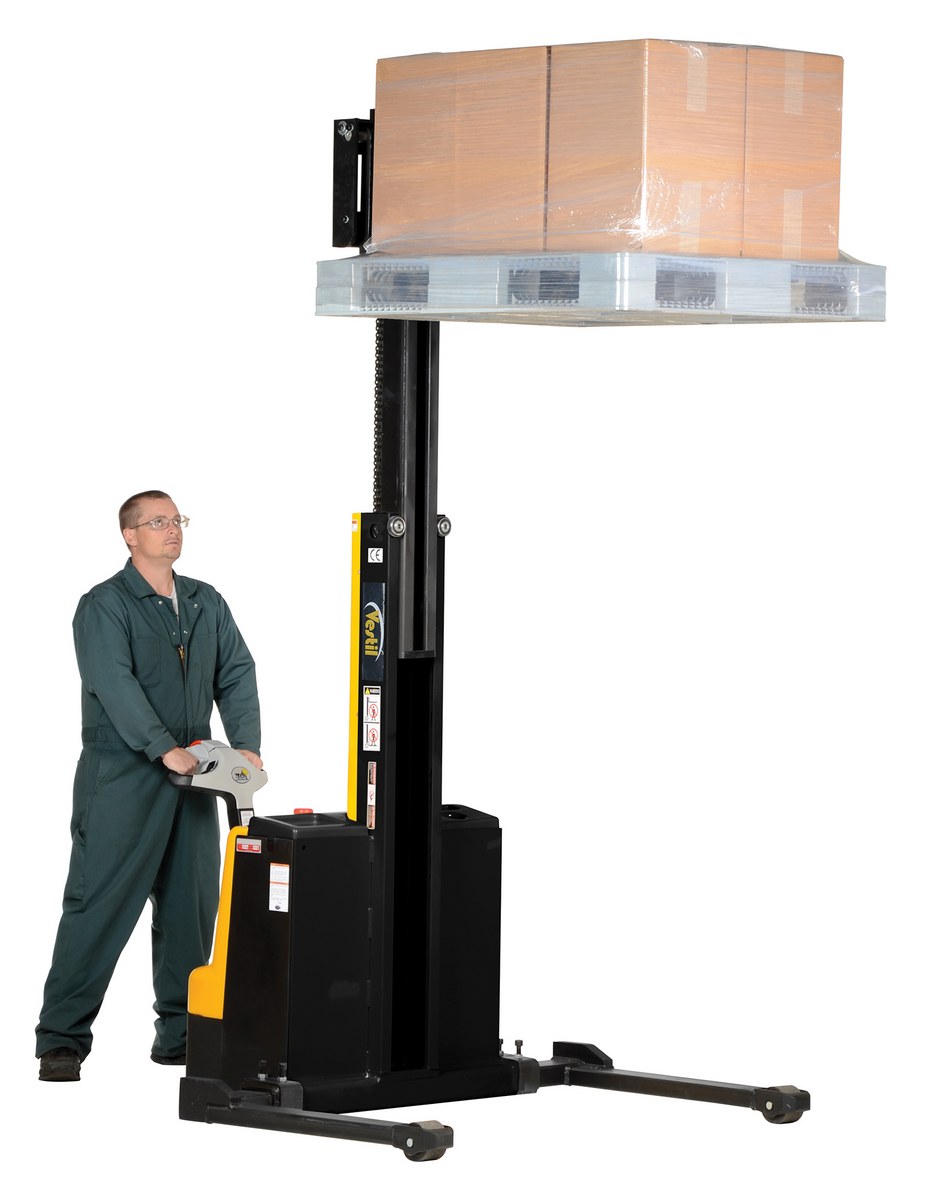

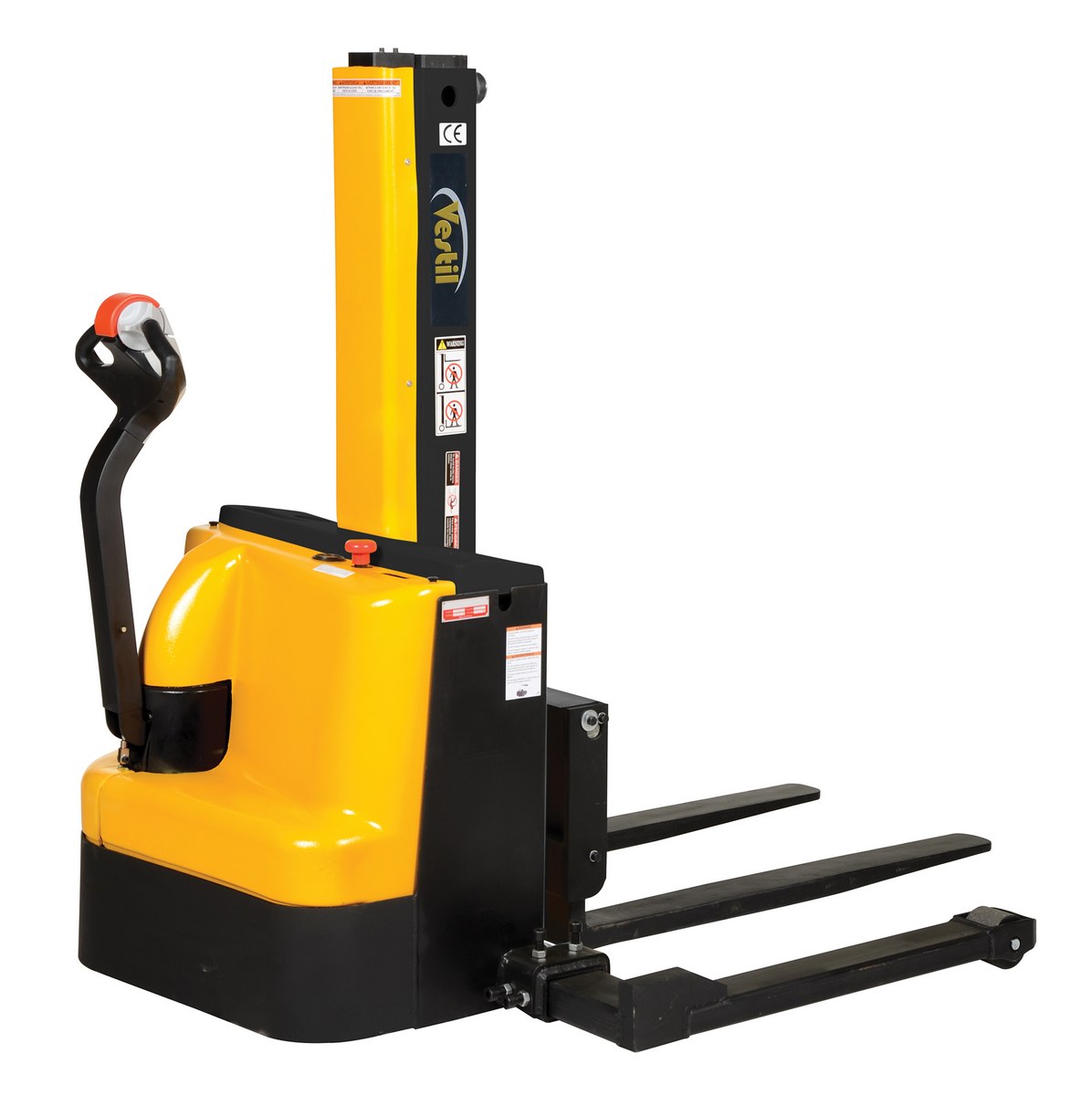

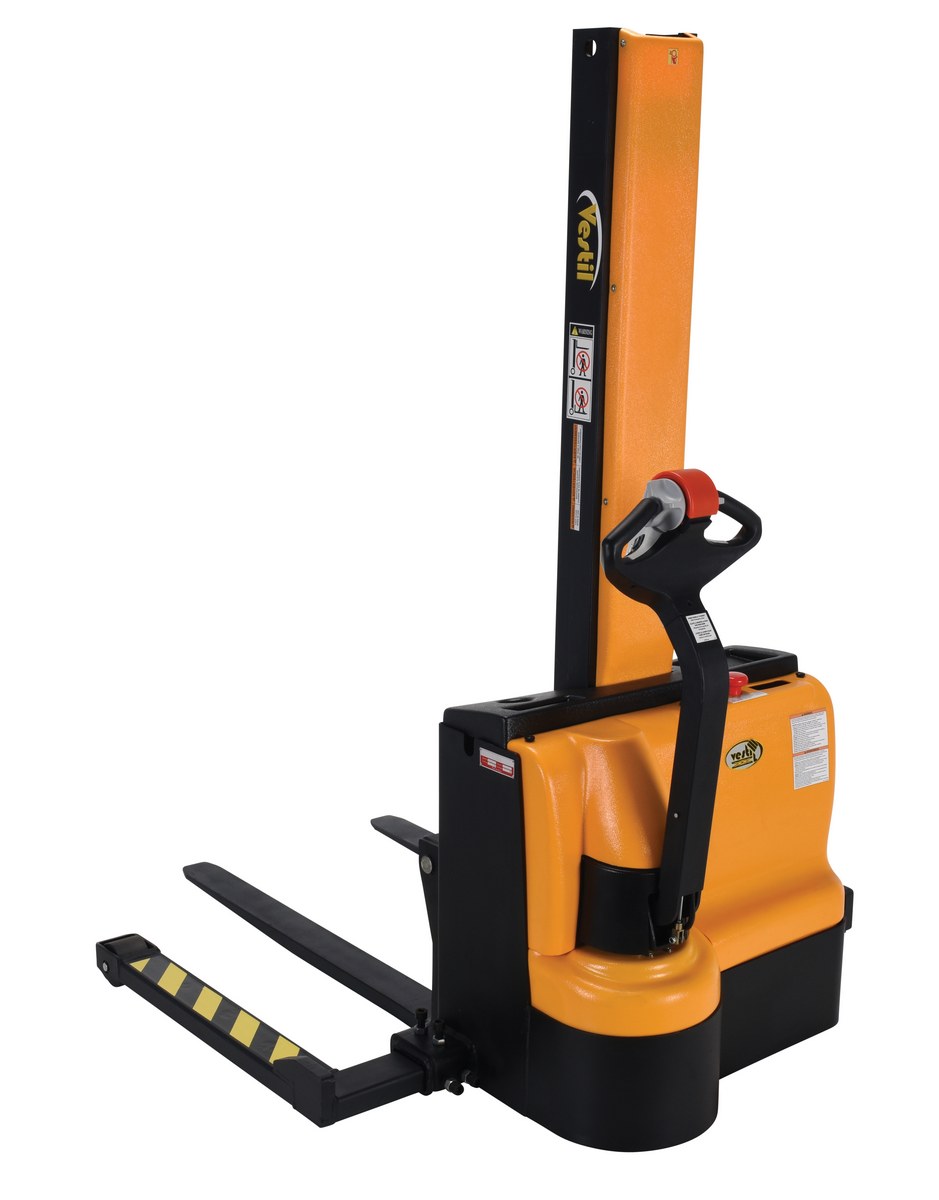

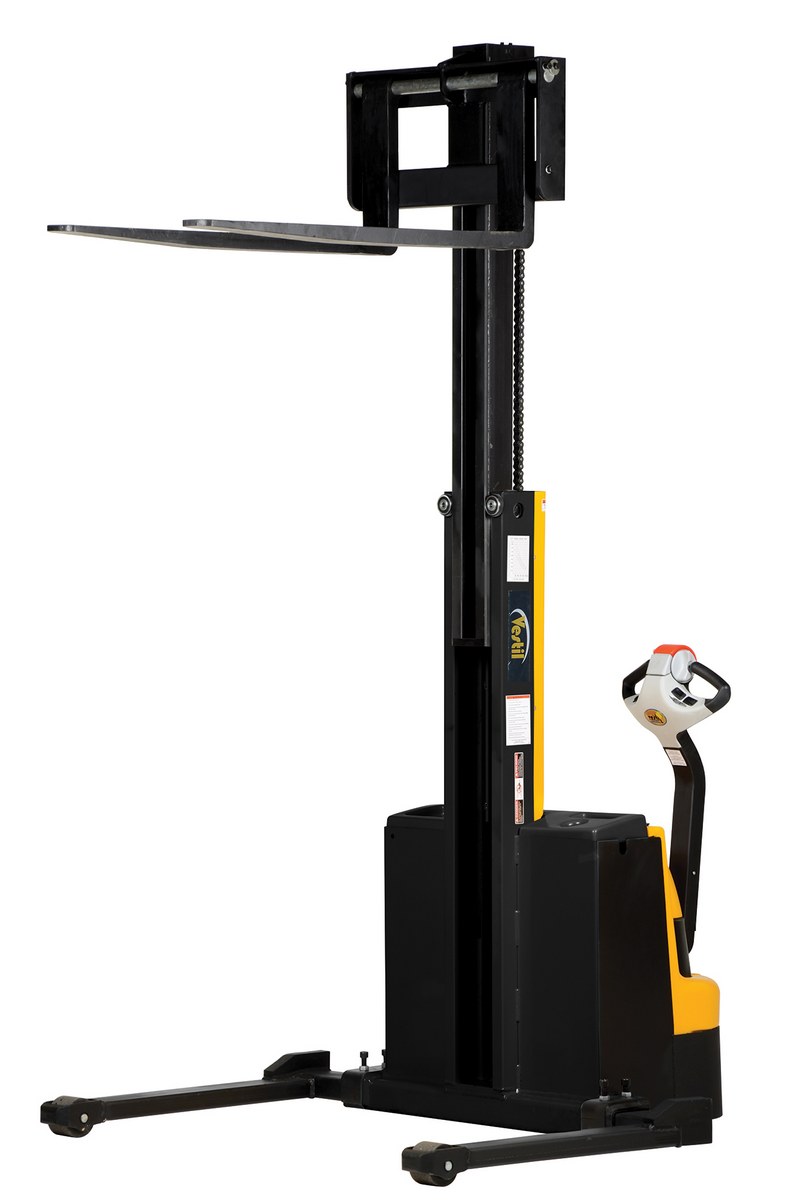

Narrow Mast Stackers with Powered Drive and Powered Lift24V DC STANDARD

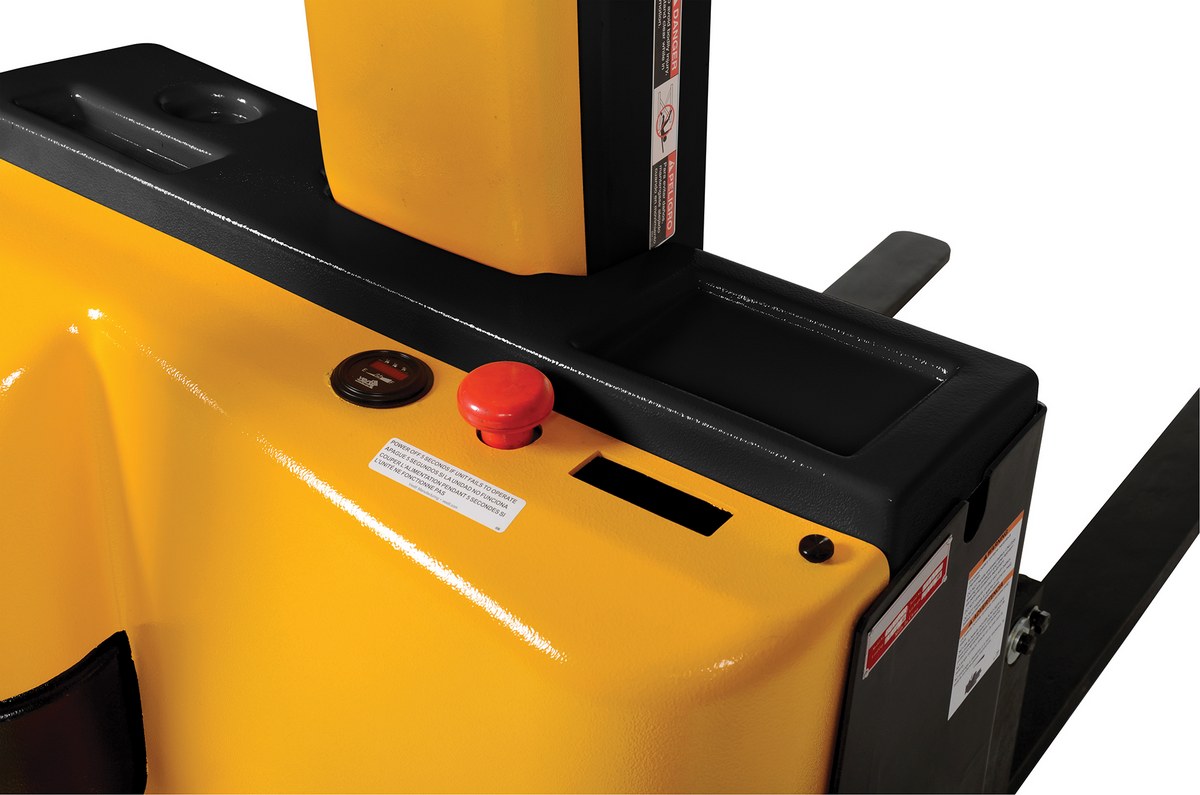

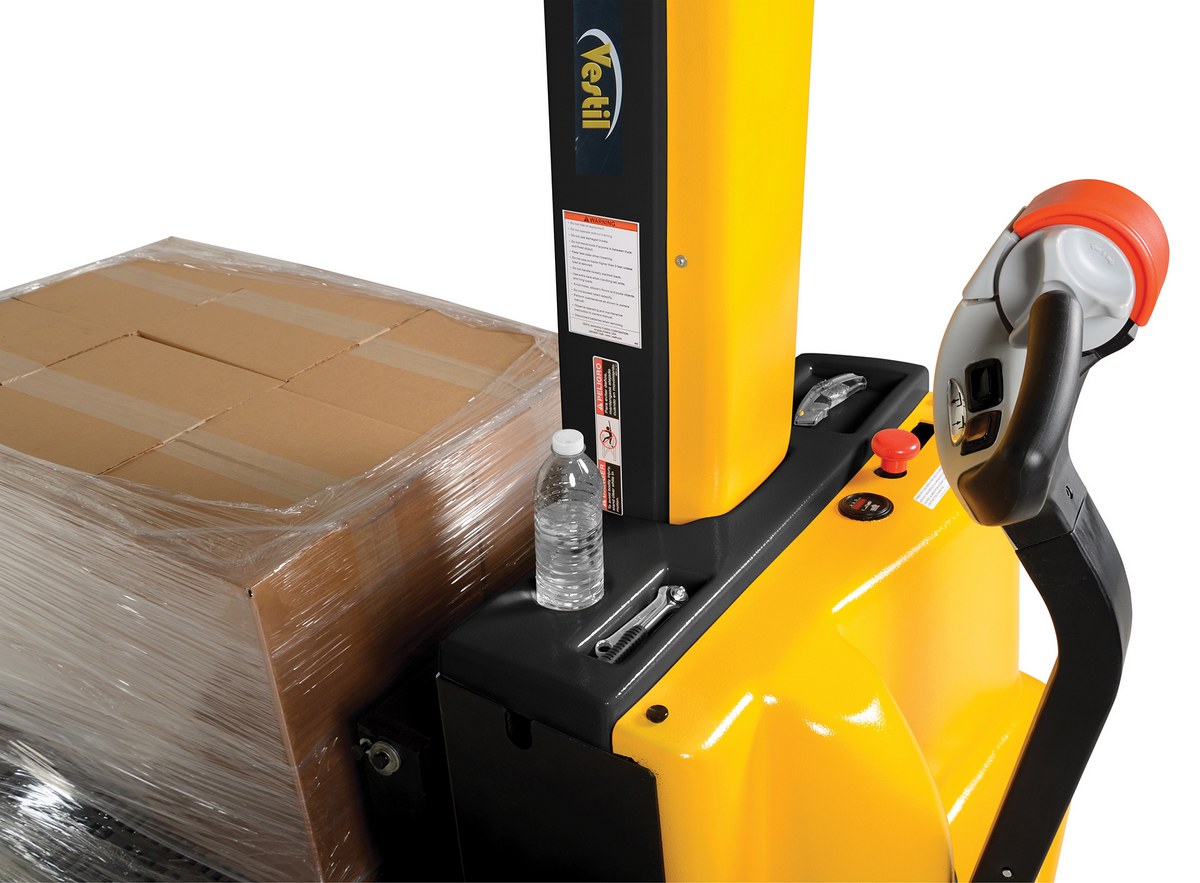

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.
- Narrow mast stacker is ideal for shipping and manufacturing facilities
- Stacker is an efficient solution to loading and unloading in closely confined areas
- Throttle design lifts and controls speed adjustments for ideal operation and optimal results

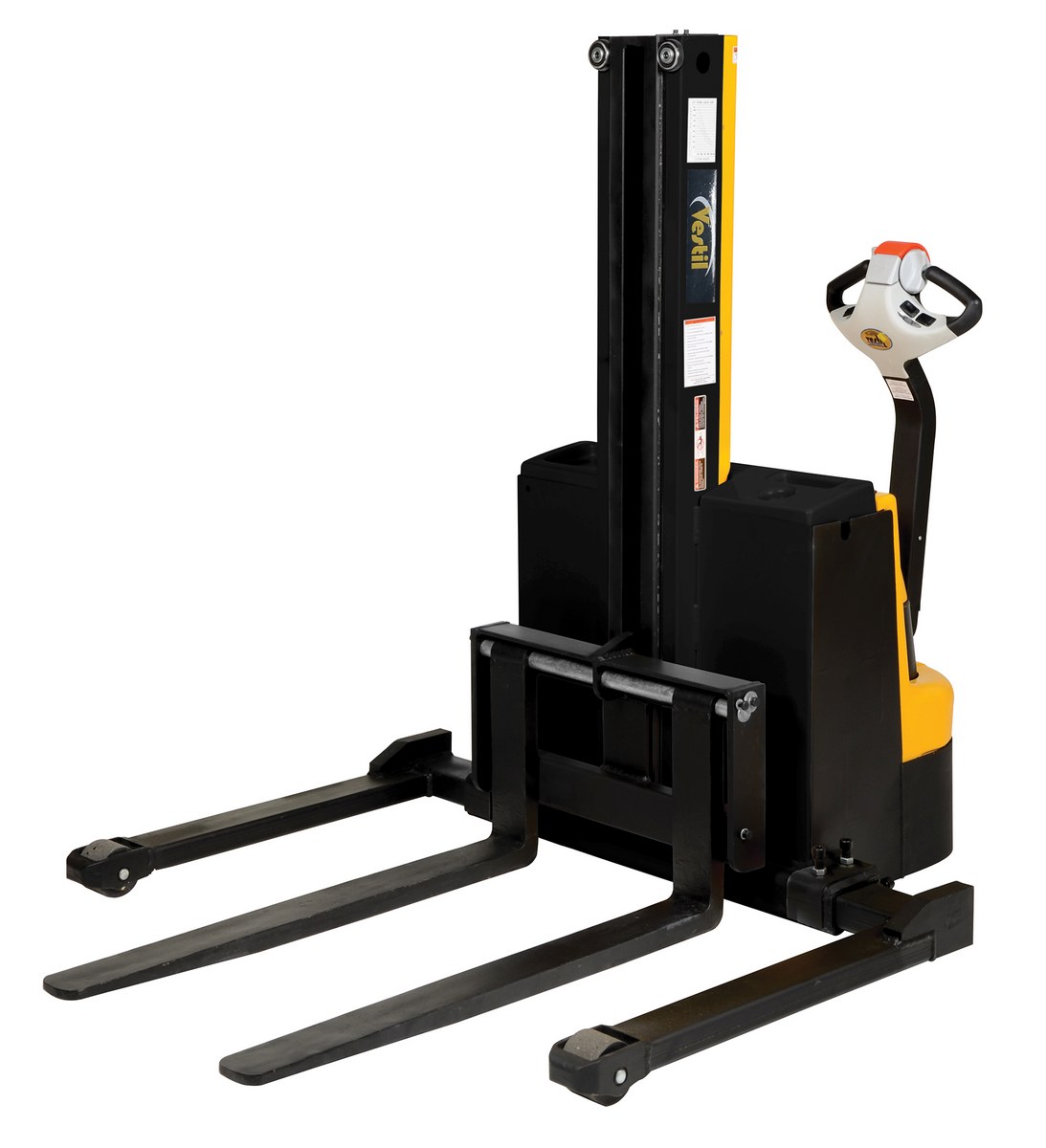

- Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency
Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)
Rough Terrain Stacker
Variable Speed Drive Double Mast Fully Powered Stacker
Stainless Steel Manual Load StackerAdditional Models In This Family
SNM-90-AA
SNM3-43-AA
SNM-62-FF-21
SNM-62-FF-27
SNM-90-AA
SNM-90-FF-27
SNM-90-FF-27
SNM-62-AA
SNM3-43-FF-21
SNM-62-FF-21
SNM-62-FF-27
SNM-90-FF-27
SNM3-43-FF-27
SNM-90-AA
SNM-90-FF-27
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

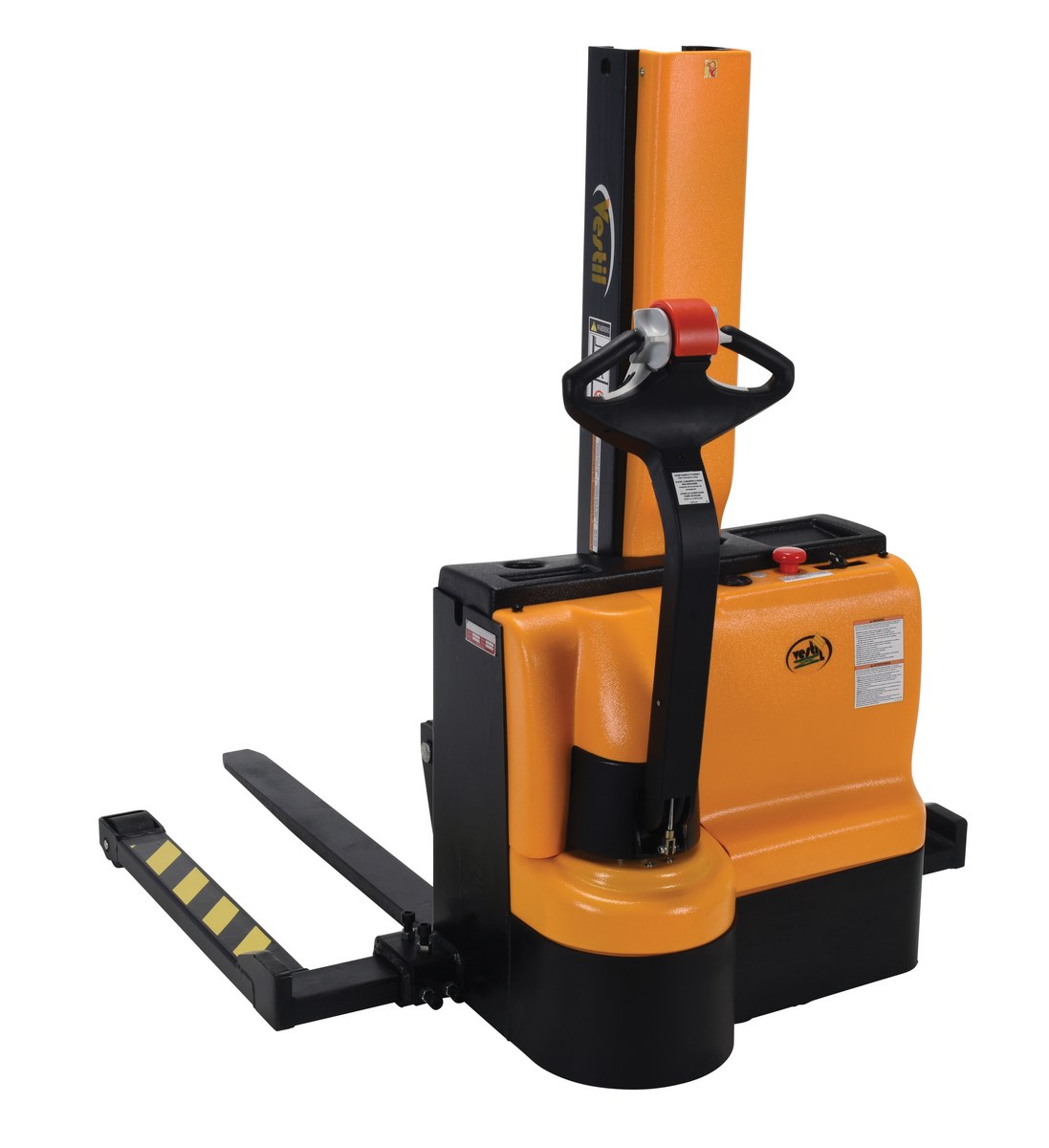

| SNM3-43-AA |  | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Adjustable Forks and Support Legs 3,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 3,000 Fork Width (in.): 8.3 to 26-3/4 | 1121 | ||

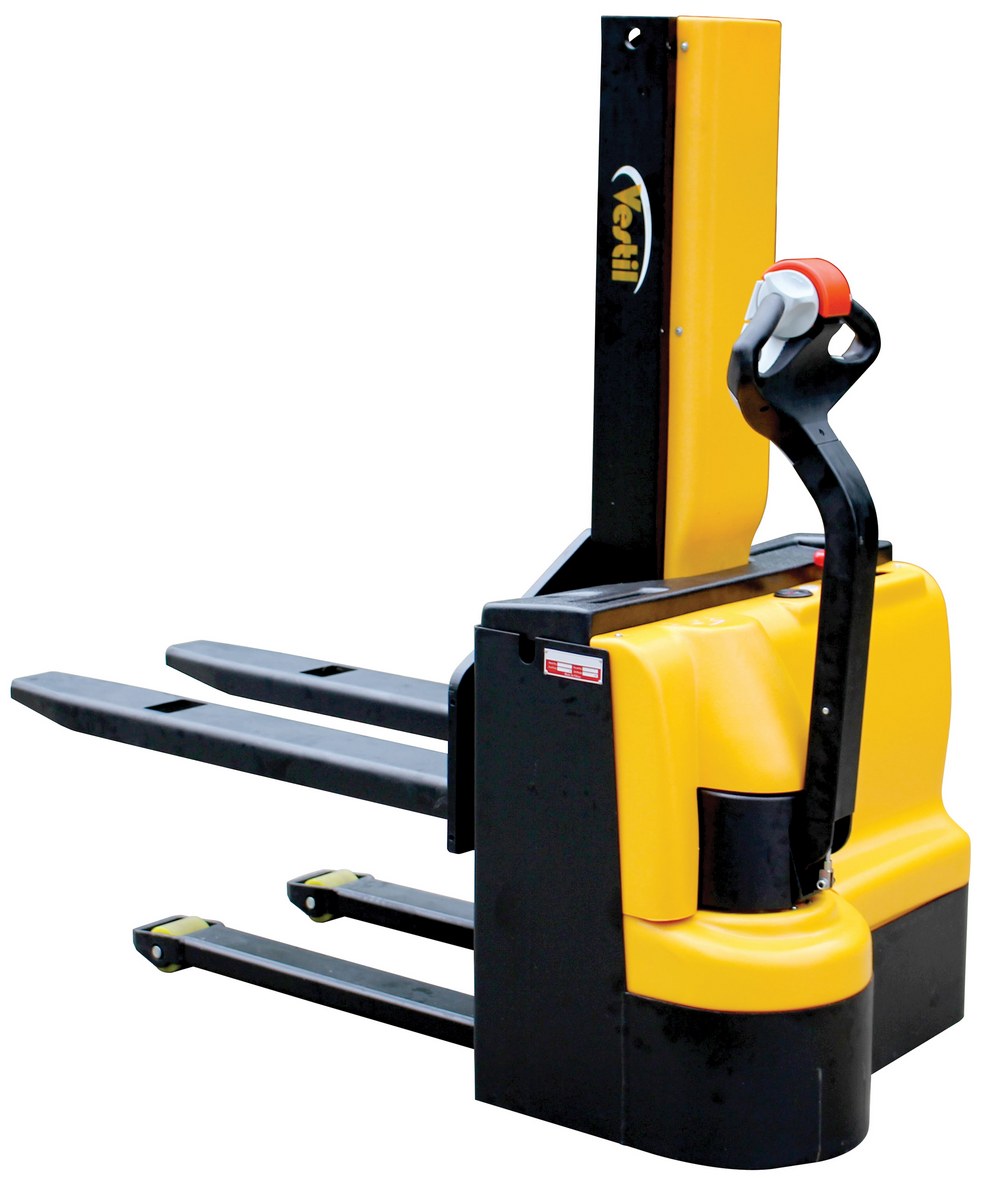

| SNM3-43-FF-21 | | | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 21 In. Fork Width 3,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 3,000 Fork Width (in.): 21 | 969 | |

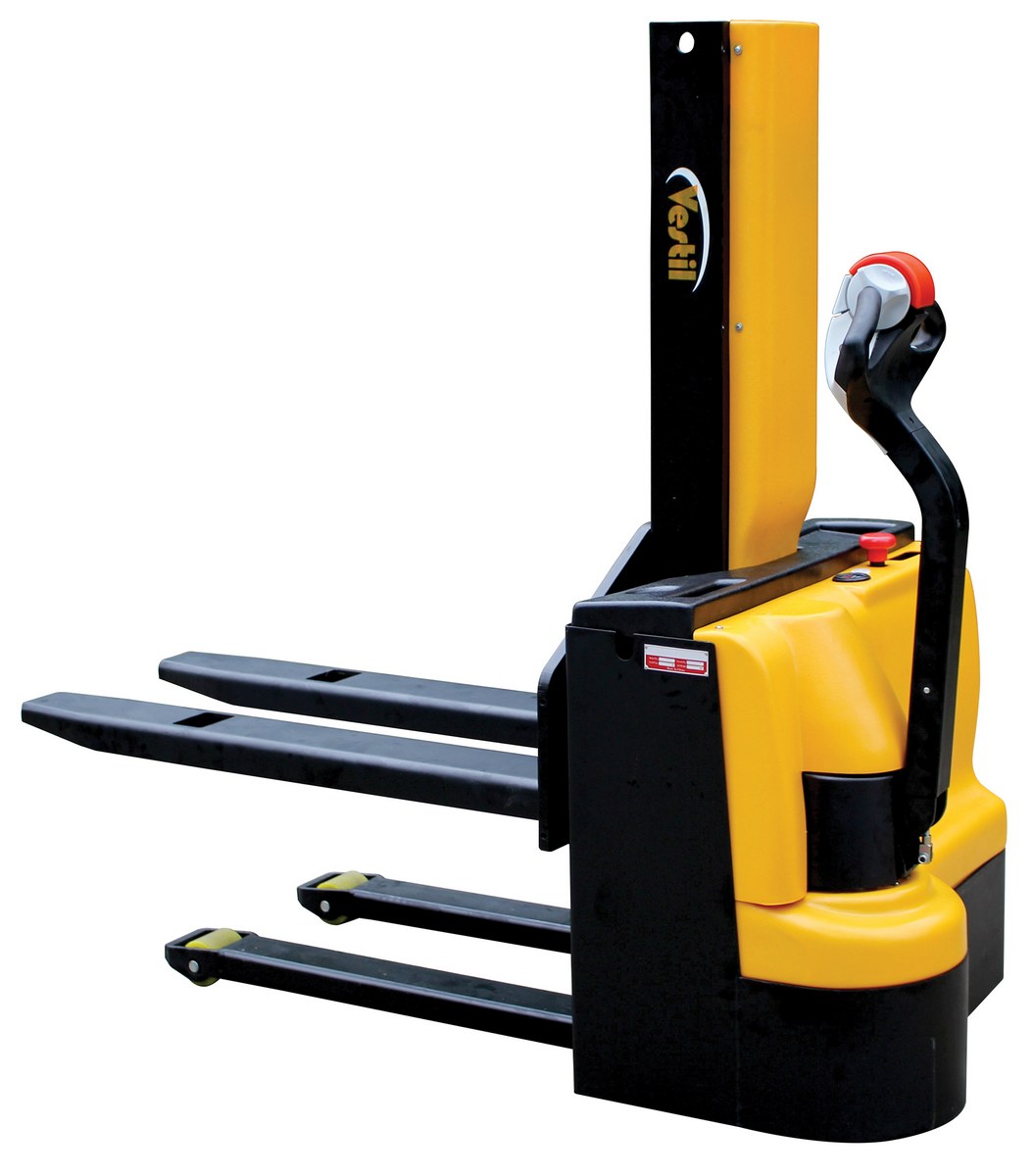

| SNM3-43-FF-27 | | | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 27 In. Fork Width 3,000 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 3,000 Fork Width (in.): 26-3/4 | 1014 | |

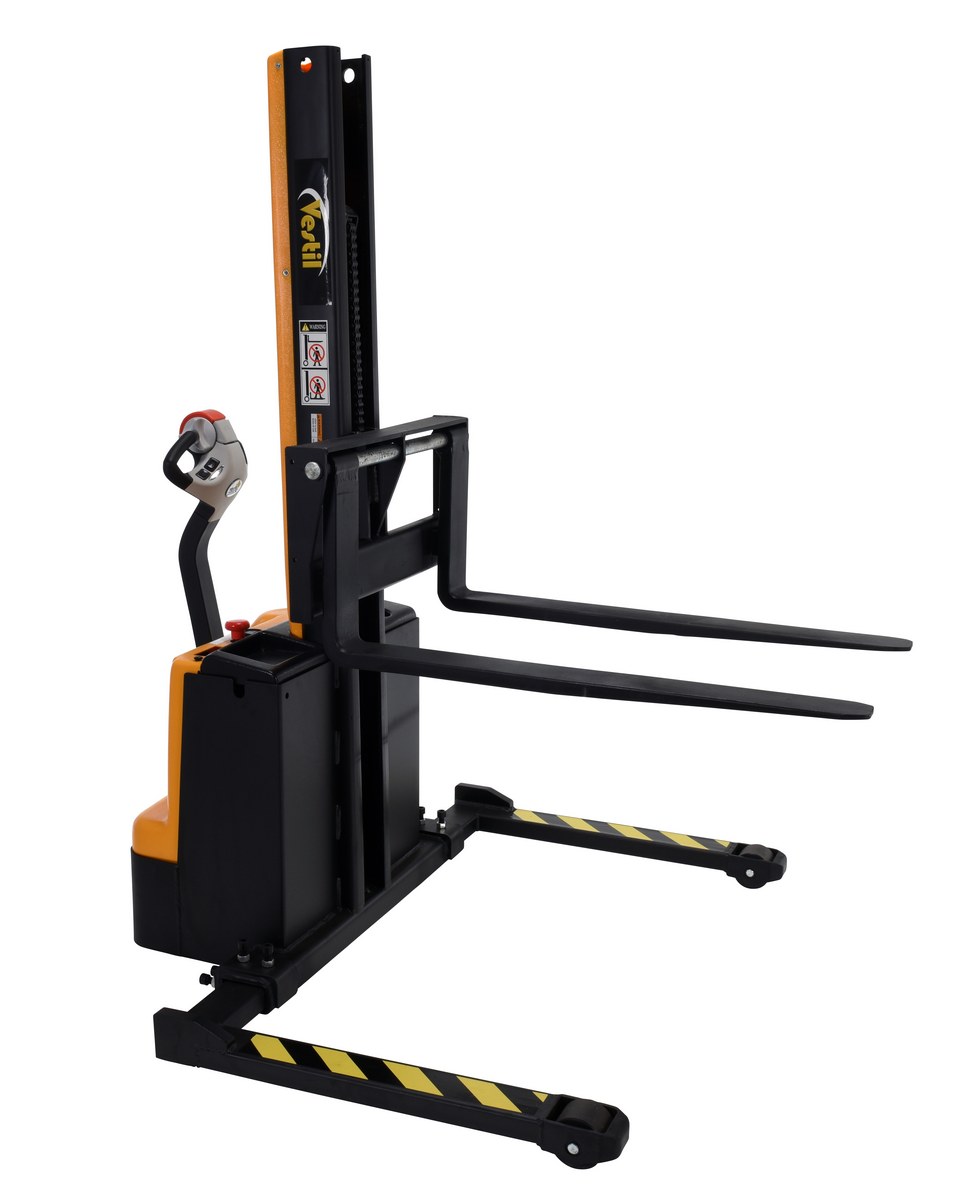

| SNM15-62-AA |  | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 1,500 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 1,500 Fork Width (in.): 8.3 to 26-3/4 | 1054 | ||

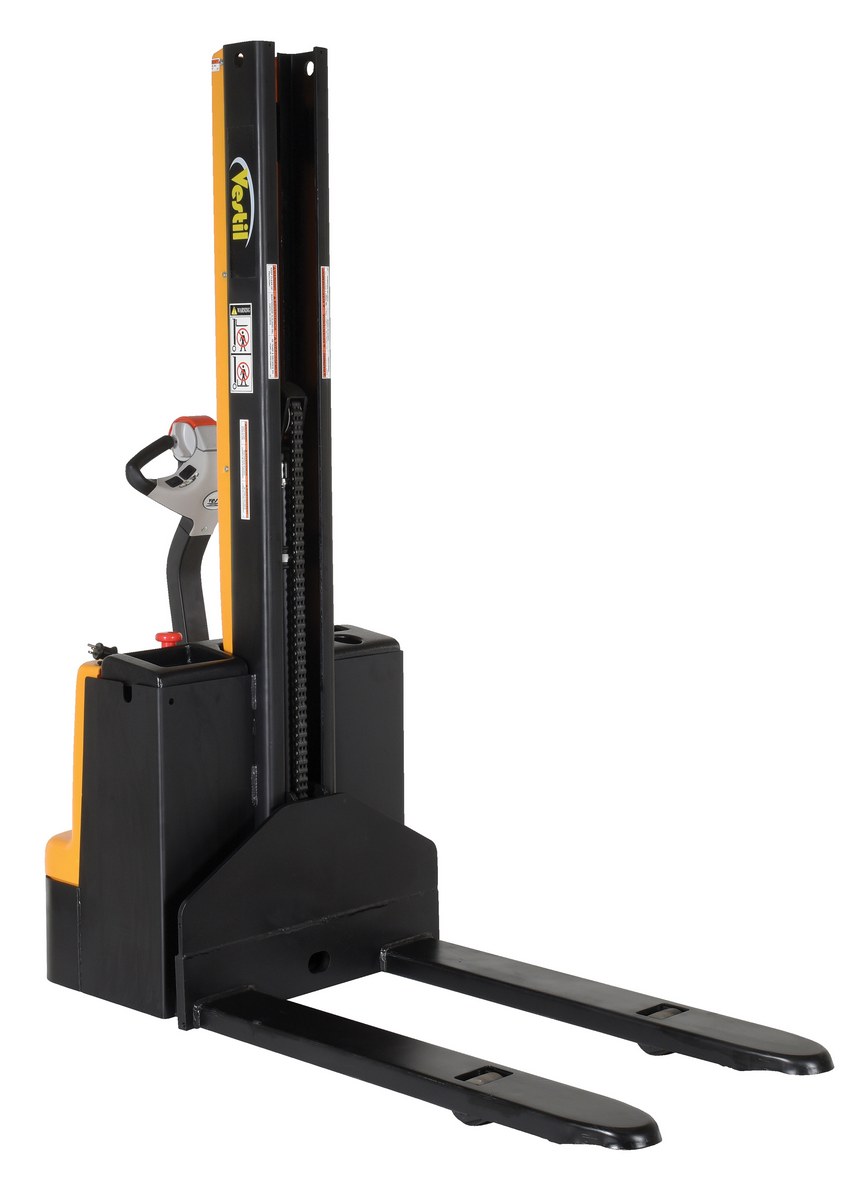

| SNM15-62-FF-27 | |  | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 27 In. Fork Width 1,500 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 1,500 Fork Width (in.): 26-3/4 | 772 | |
| SNM-62-AA |  | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 2,200 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 2,200 Fork Width (in.): 8.3 to 26-3/4 | 1172 | ||

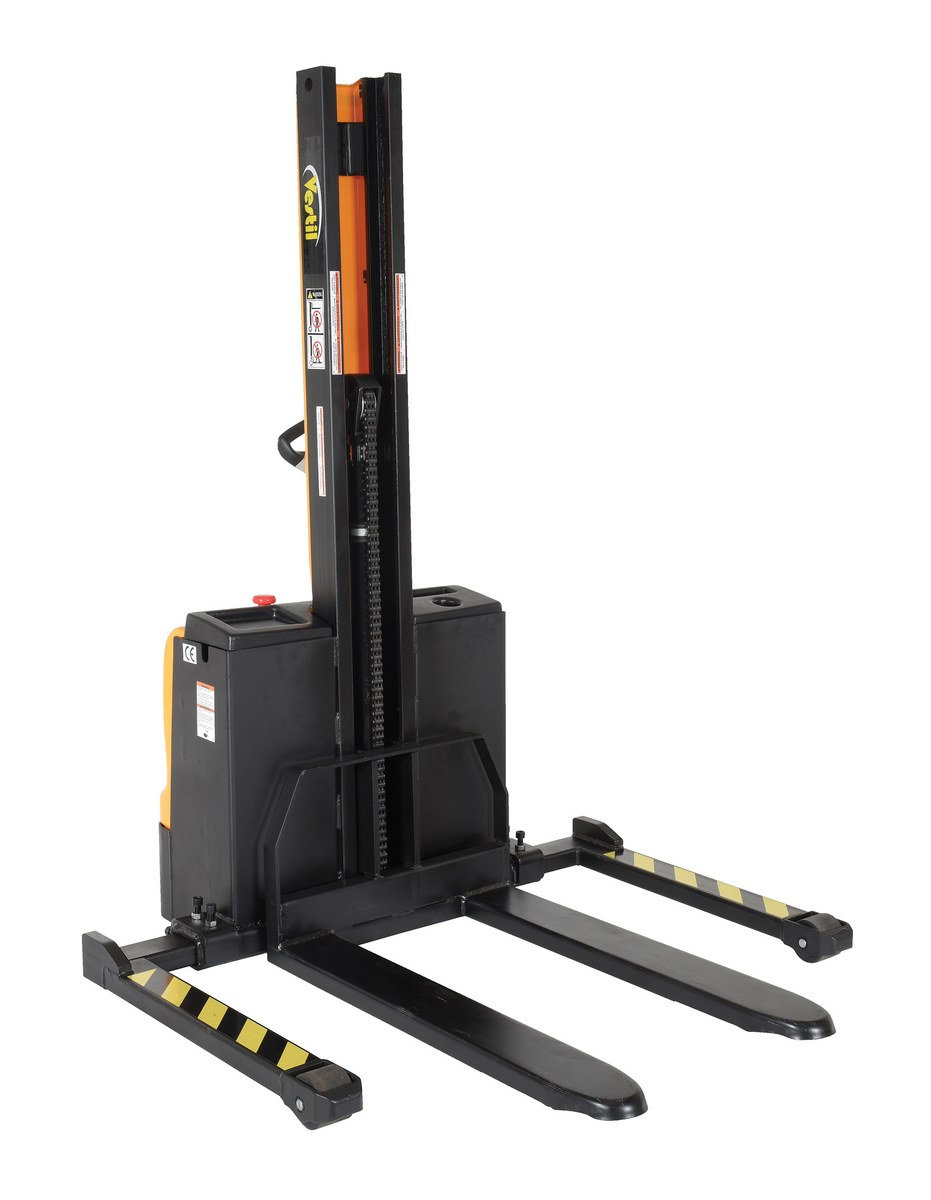

| SNM-62-FA |  | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork Adjustable Support Legs 2,200 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 2,200 Fork Width (in.): 26-3/4 | 1139 | ||

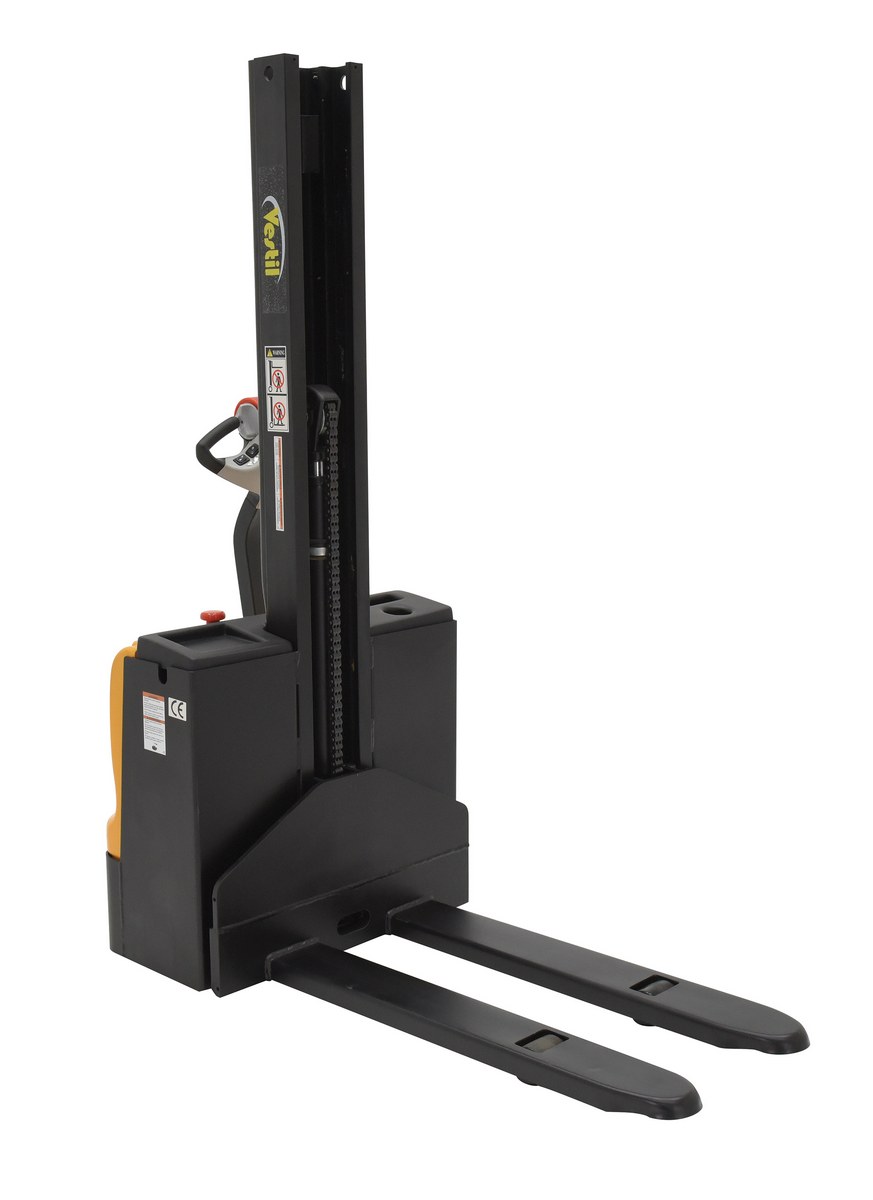

| SNM-62-FF-21 | |  | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 21 In. Fork Width 2,200 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 2,200 Fork Width (in.): 21 | 899 | |

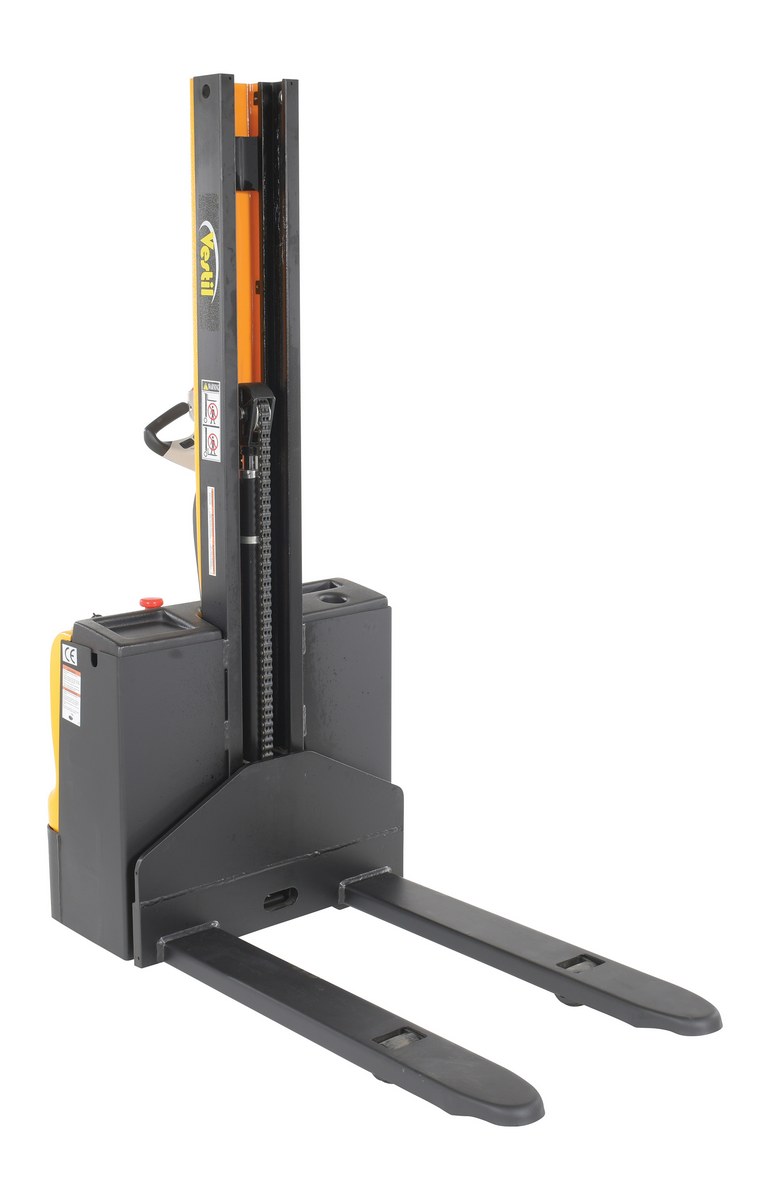

| SNM-62-FF-27 | |  | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 27 In. Fork Width 2,200 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 2,200 Fork Width (in.): 26-3/4 | 915 | |

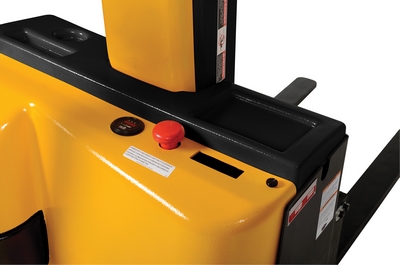

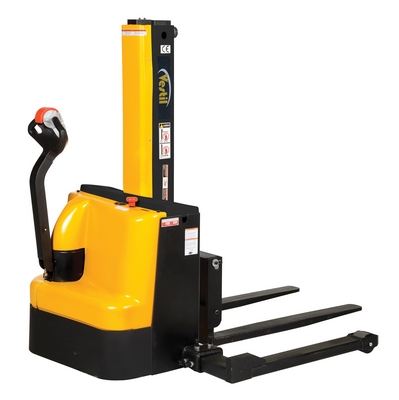

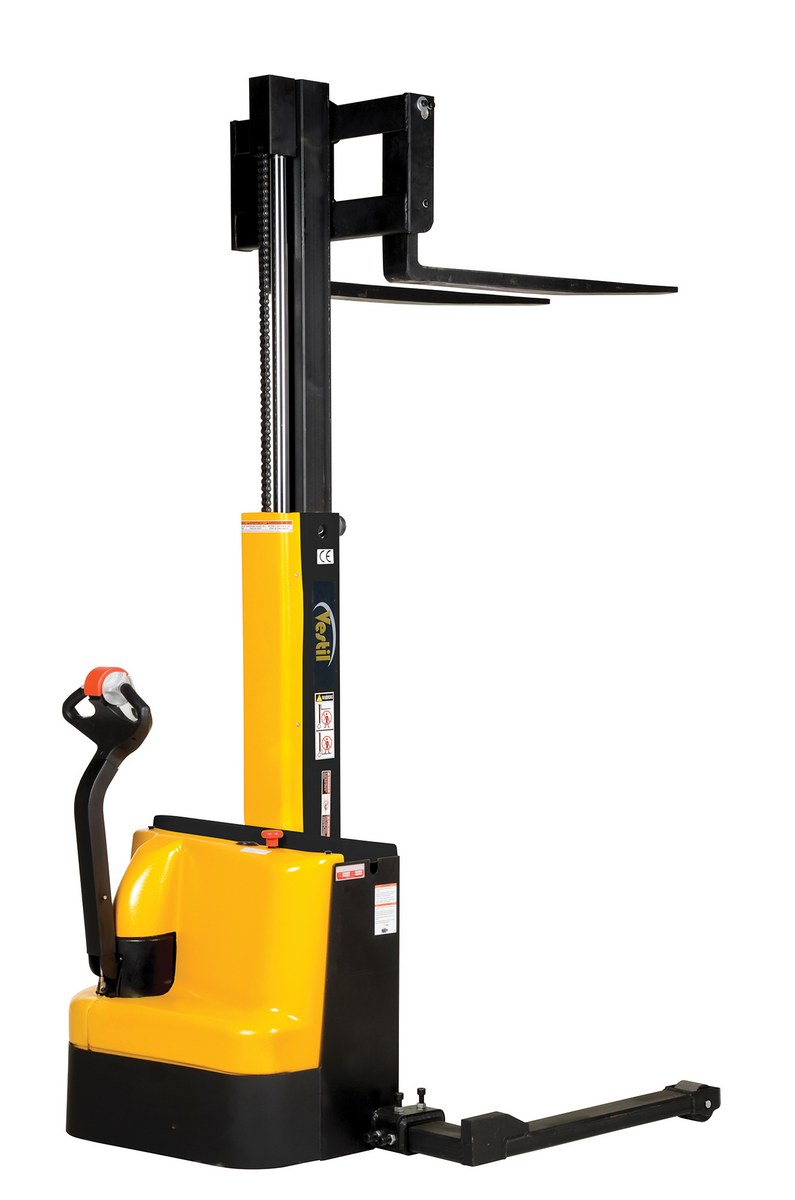

| SNM-90-AA | | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 90 In. Raised Height Adjustable Forks and Support Legs 2,500 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 2,500 Uniform Capacity 62 in to 90 in Raised Height (lb.): 2,000 | 1243 | ||

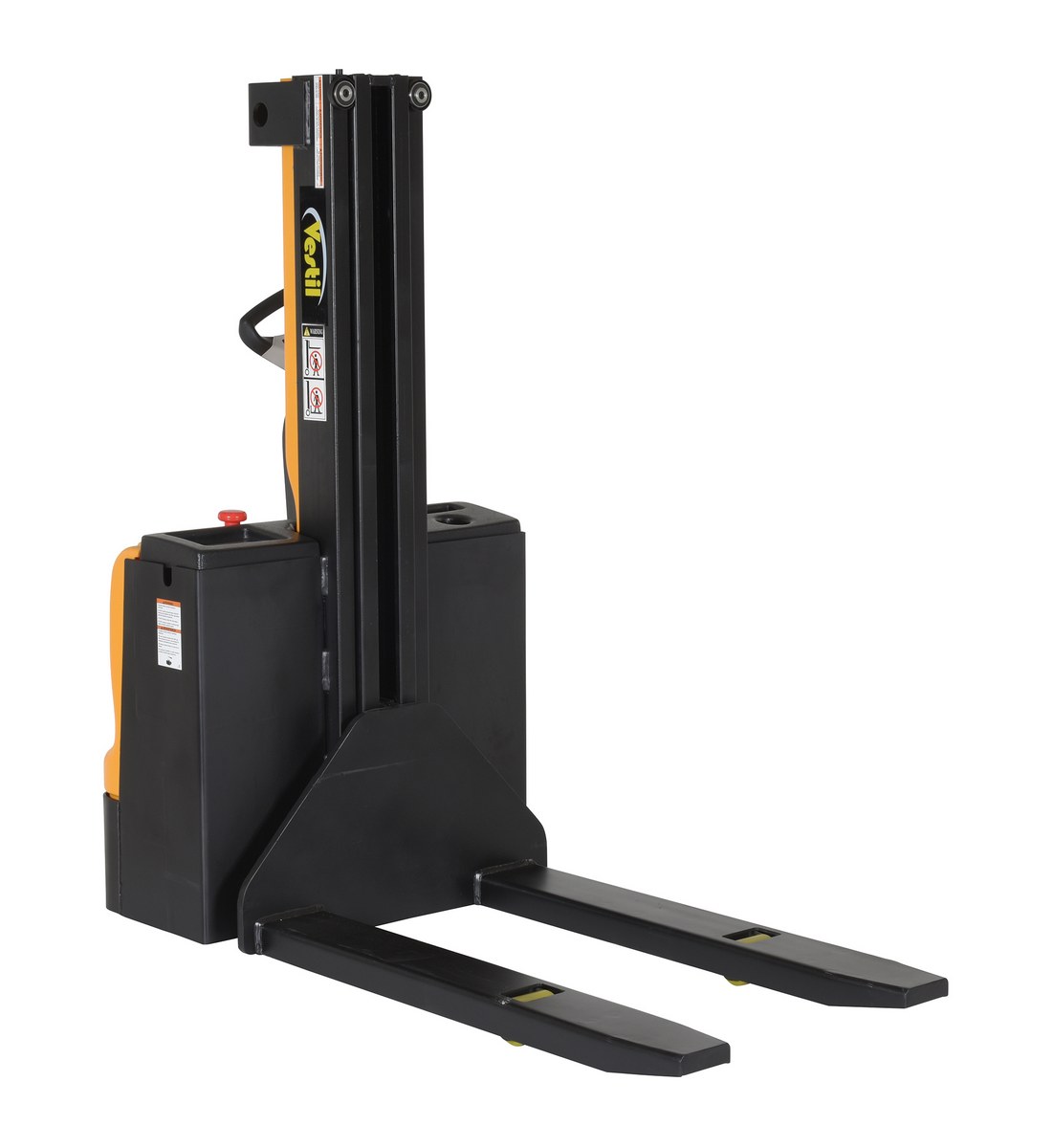

| SNM-90-FF-27 | | | 1 Year Limited Warranty | Steel Narrow Mast Stacker DC Powered 90 In. Raised Height Fixed Fork 27 In. Fork Width 2,500 Lb. Capacity Black / Yellow | Uniform Capacity 0 in to 62 in Raised Height (lb.): 2,500 Uniform Capacity 62 in to 90 in Raised Height (lb.): 1,500 | 1154 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4
Uniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Fork Width (in.): 21
Uniform Capacity (lb.): 3,000
Fork Width (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Fork Width (in.): 26-3/4
Uniform Capacity (lb.): 3,000
Fork Width (in.): 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Fork Width (in.): 8.3 to 26-3/4
Uniform Capacity (lb.): 1,500
Fork Width (in.): 8.3 to 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Fork Width (in.): 26-3/4
Uniform Capacity (lb.): 1,500
Fork Width (in.): 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Fork Width (in.): 8.3 to 26-3/4
Uniform Capacity (lb.): 2,200
Fork Width (in.): 8.3 to 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4
Uniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Fork Width (in.): 21
Uniform Capacity (lb.): 2,200
Fork Width (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4
Uniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 2,000
Uniform Capacity (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 2,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 62 in Raised Height (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 1,500
Uniform Capacity 0 in to 62 in Raised Height (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 1,500
For More Details of the Option Click the Red Model Button
| Model | Image | PDFs | Description | Wt (lbs.) | |||||
| AGM-UPG-2-12V |  |
  |
AGM Battery Upgrade (2x12V) must be purchased with new unit | 80 | |||||
| SL-DK |  |
 |
Solid Platform | 46 | |||||
| SNM-AA-DRR-FK | |
- | Drum/Roll/Reel forks | 140 | |||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Valve-Regulated Lead Acid Battery Series SDS Sheet for: SNM15-62-AA
Hydraulic Oil SDS Sheet for: SNM15-62-AA
Valve-Regulated Lead Acid Battery Series SDS Sheet for: SNM15-62-FF-27
Hydraulic Oil SDS Sheet for: SNM15-62-FF-27
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM3-43-AA
Hydraulic Oil SDS Sheet for: SNM3-43-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM3-43-FF-21
Hydraulic Oil SDS Sheet for: SNM3-43-FF-21
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM3-43-FF-27
Hydraulic Oil SDS Sheet for: SNM3-43-FF-27
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-62-AA
Hydraulic Oil SDS Sheet for: SNM-62-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-62-FA
Hydraulic Oil SDS Sheet for: SNM-62-FA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-62-FF-21
Hydraulic Oil SDS Sheet for: SNM-62-FF-21
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-62-FF-27
Hydraulic Oil SDS Sheet for: SNM-62-FF-27
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-90-AA
Hydraulic Oil SDS Sheet for: SNM-90-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-90-FF-27
Hydraulic Oil SDS Sheet for: SNM-90-FF-27
Other PDF's
Directory Links Of Available PDF's For All Products
Q: I have to raise the forks up 68" on the SNM-90-FF-27. How high will the mast be at that point?
A: If the forks are at 68", the mast will be at 98" high.
Q: What is the maximum ramp angle on the SNM-62-FA?
A: This unit has a 0 degree incline.
Q: What is the turning radius of the SNM15-62-FF-27?
A: The turning radius is 53-1/8".
Q: Our access door is 84", ceiling clearance is 103" Will this work for us?
A: No issue overall as mast height is 64" when forks are lowered. Mast overall height when forks are fully raised 90" is 108-1/2".
Q: Room ceiling clearance is 103", our load needs to be lifted 80" Will this work for us?
A: Mast overall height when forks are raised to 80" is 104" which may interfere with ceiling height.
