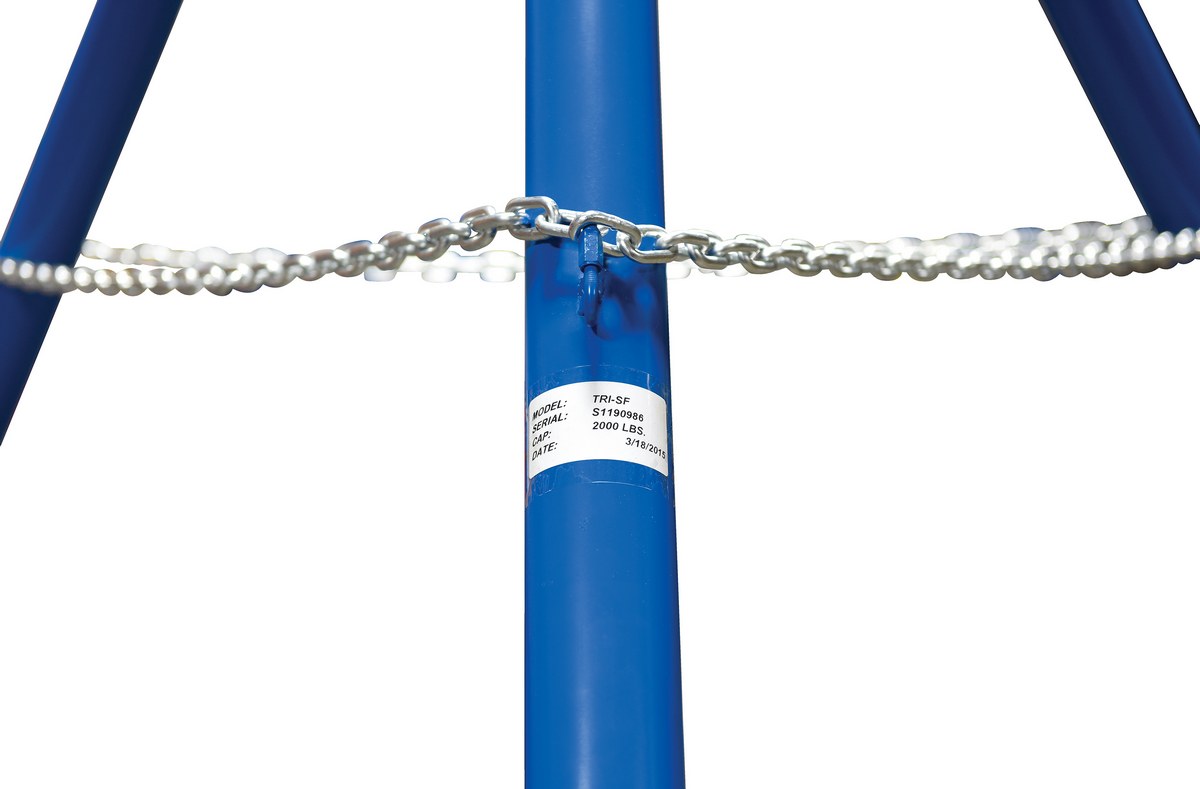

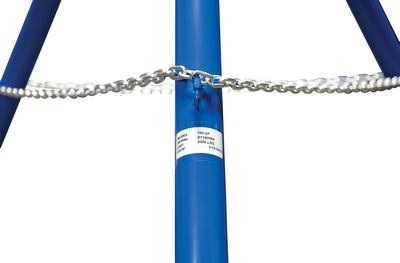

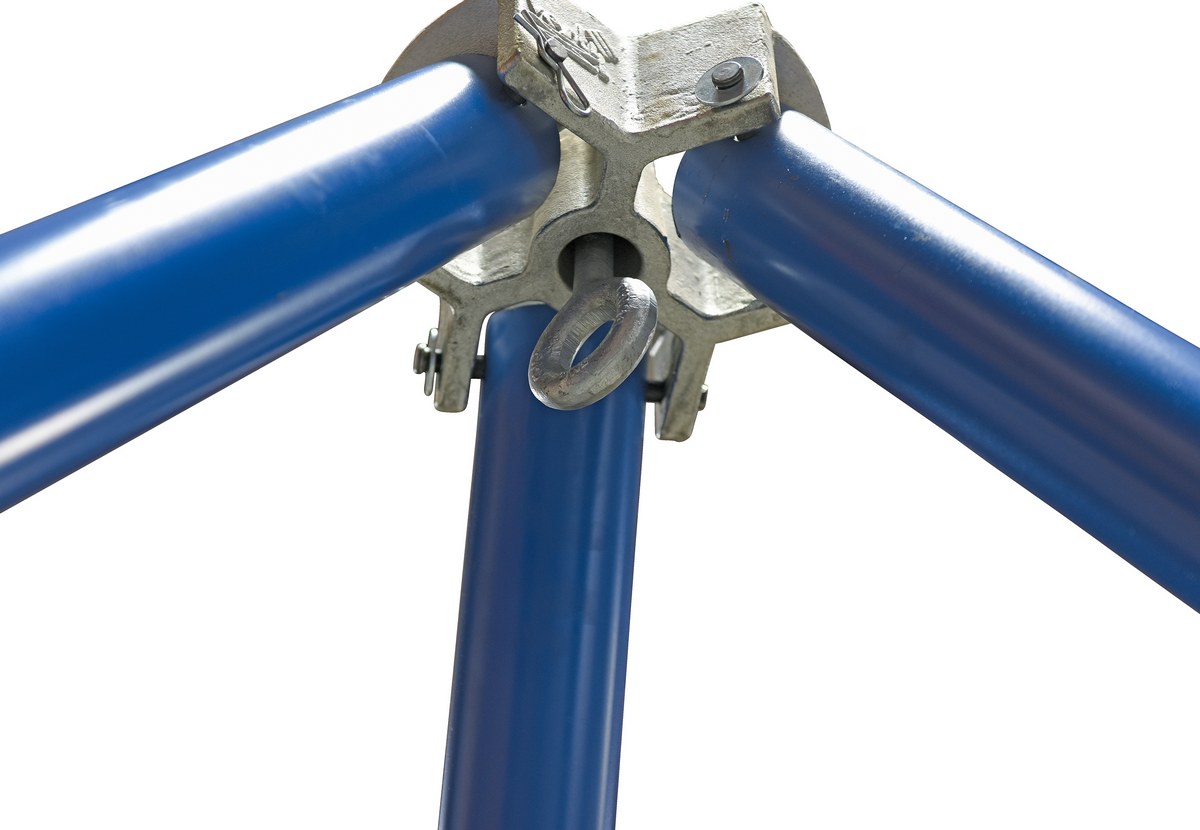

Tripod Hoist StandsThis portable steel or aluminum tripod hoist stand provides a convenient and economical lifting support stand. Available in adjustable or fixed height versions. The unit folds for convenient portability and storage. Great for access to confined spaces. Features padded pivots for smooth or spiked feet. The spiked feet are designed to be used in rough terrain. A swivel eye bolt and safety chain are standard. Chain hoist not included. Meets ANSI safety requirements for confined space Z117.1.
- Provides a convenient and economical lifting support stand
- Unit folds for convenient portability and storage
- Great for access to confined spaces with adjustable height legs

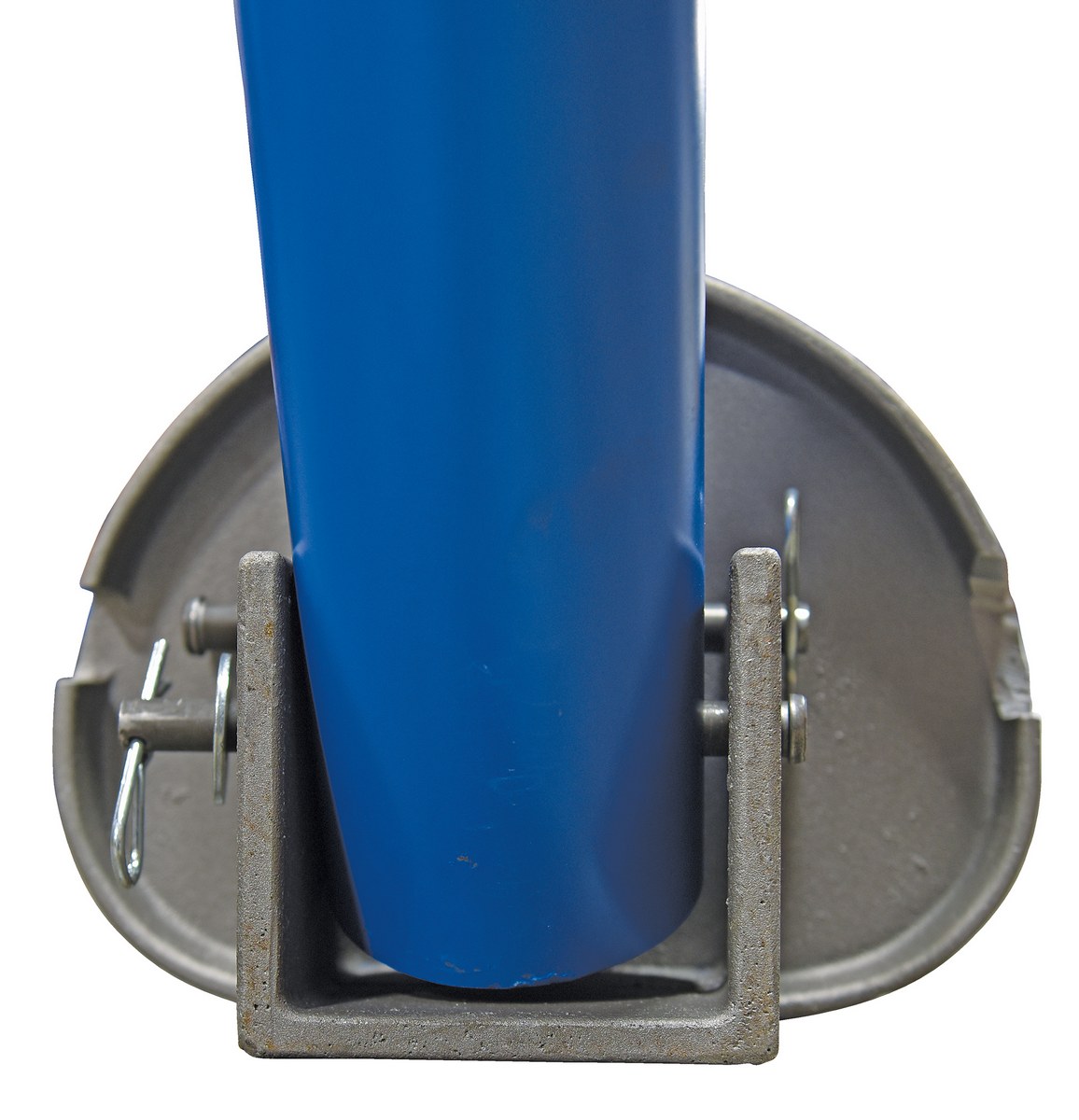

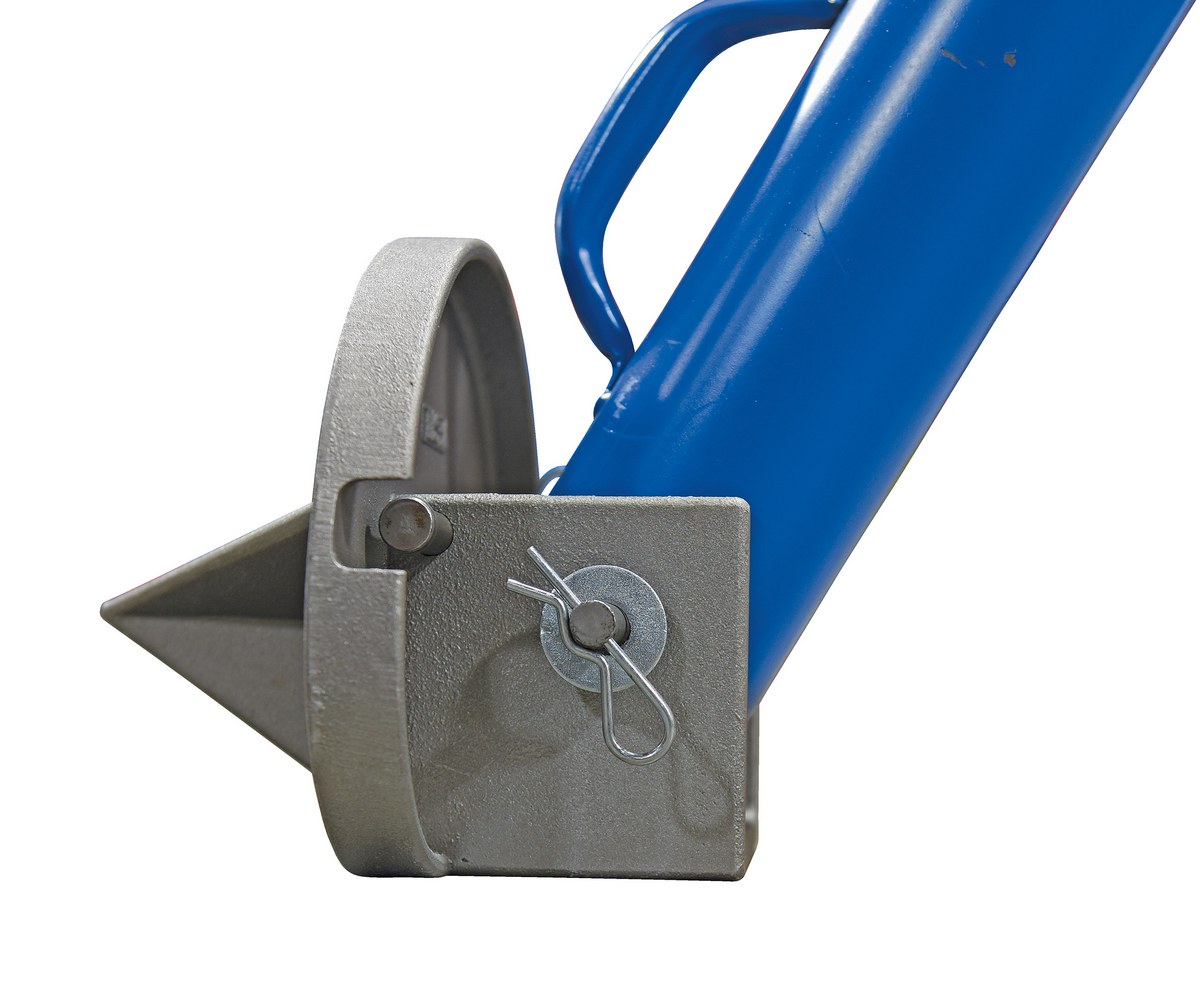

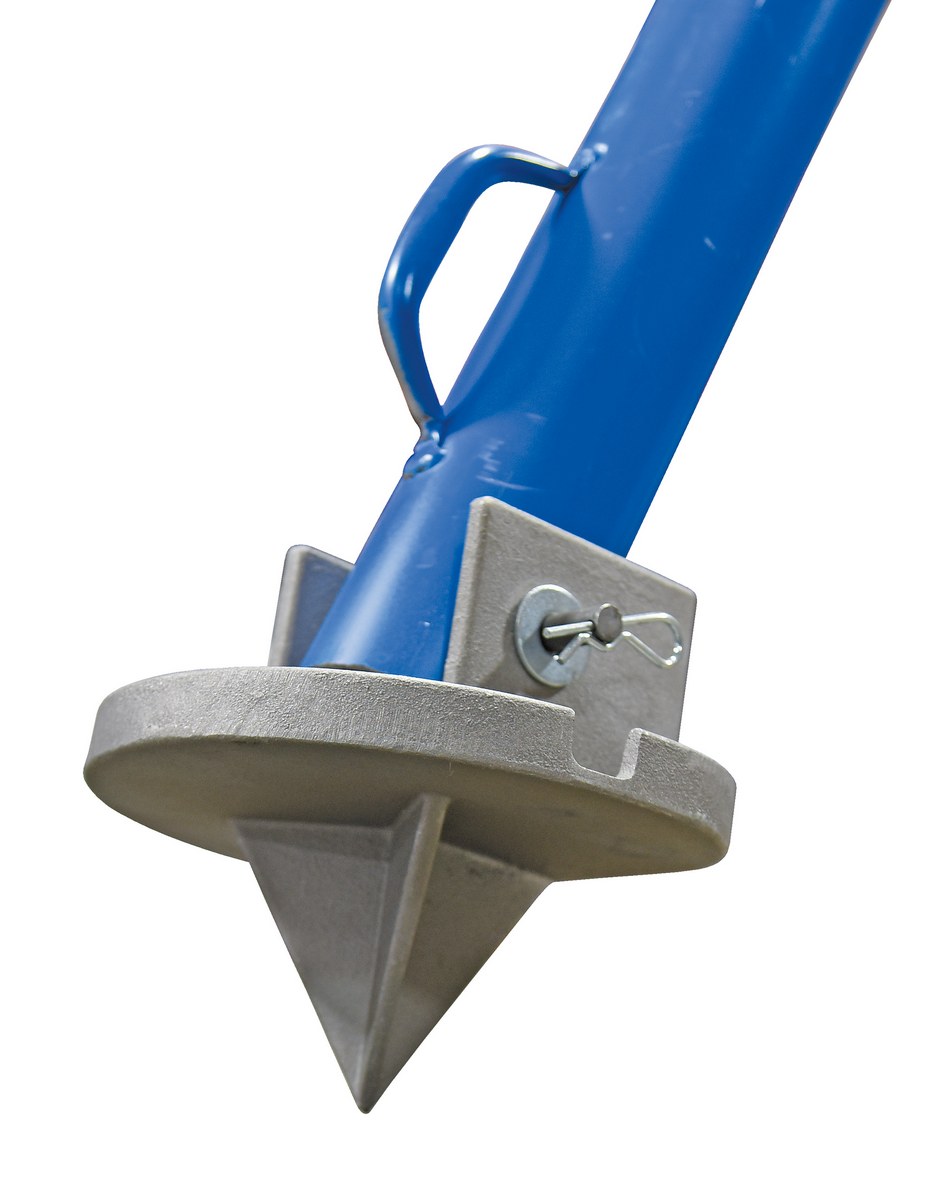

- Features padded pivots for smooth or spiked feet for use in rough terrain
Tie Rod Jibs
Mini Overhead Cantilever Jibs
Floor Mounted Jibs
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| TRI-AA |  | 90 Days Limited Warranty | Aluminum Adjustable Height Tripod Stand 115-5/8 In. x 115-5/8 In. x 111-5/8 In. 1,000 Lb. Capacity Silver | Uniform Capacity (lb.): 1,000 Eyelet Height Min./Max. (in.): 104-1/4 to 164-1/2 | 247 | ||

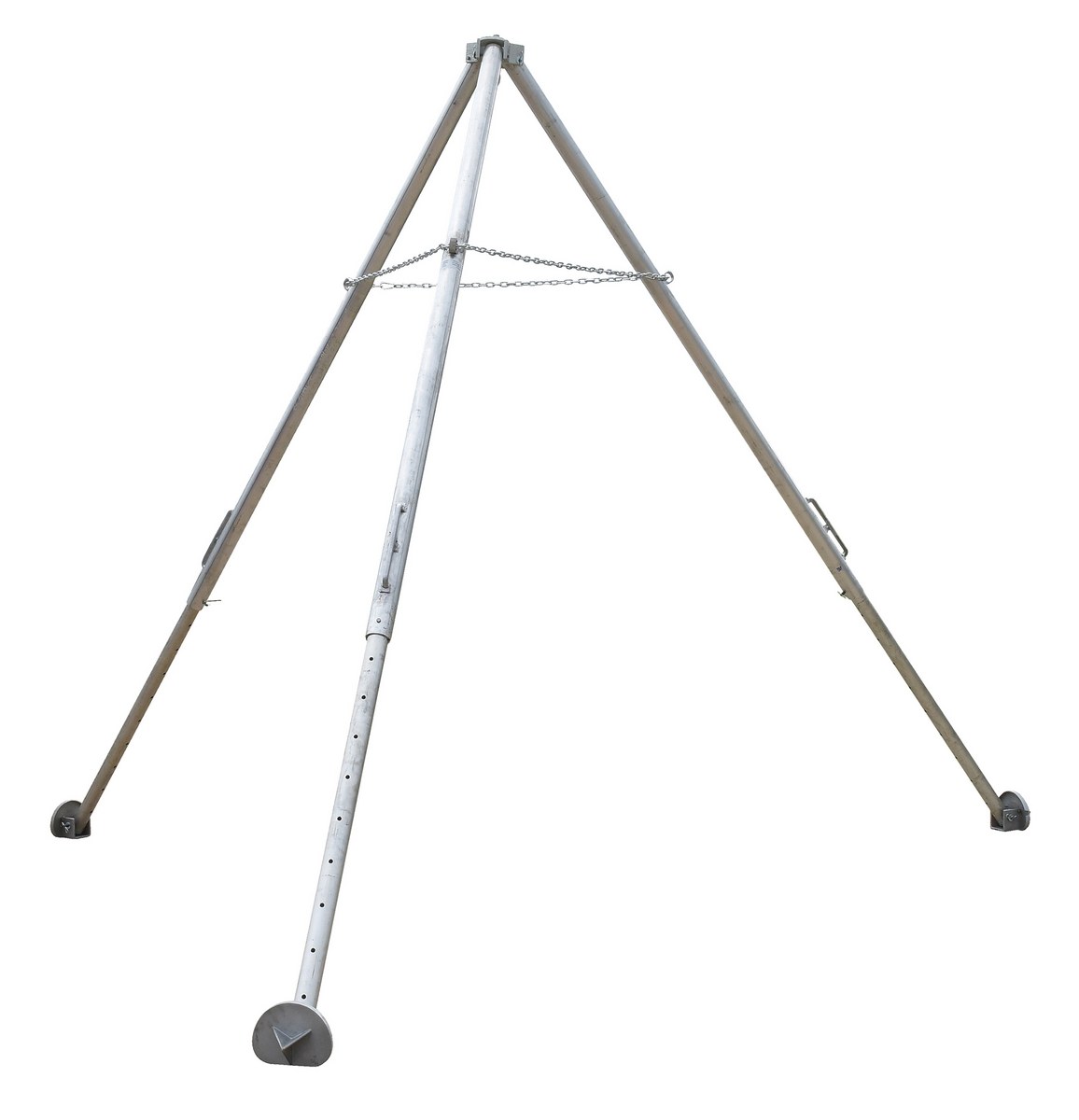

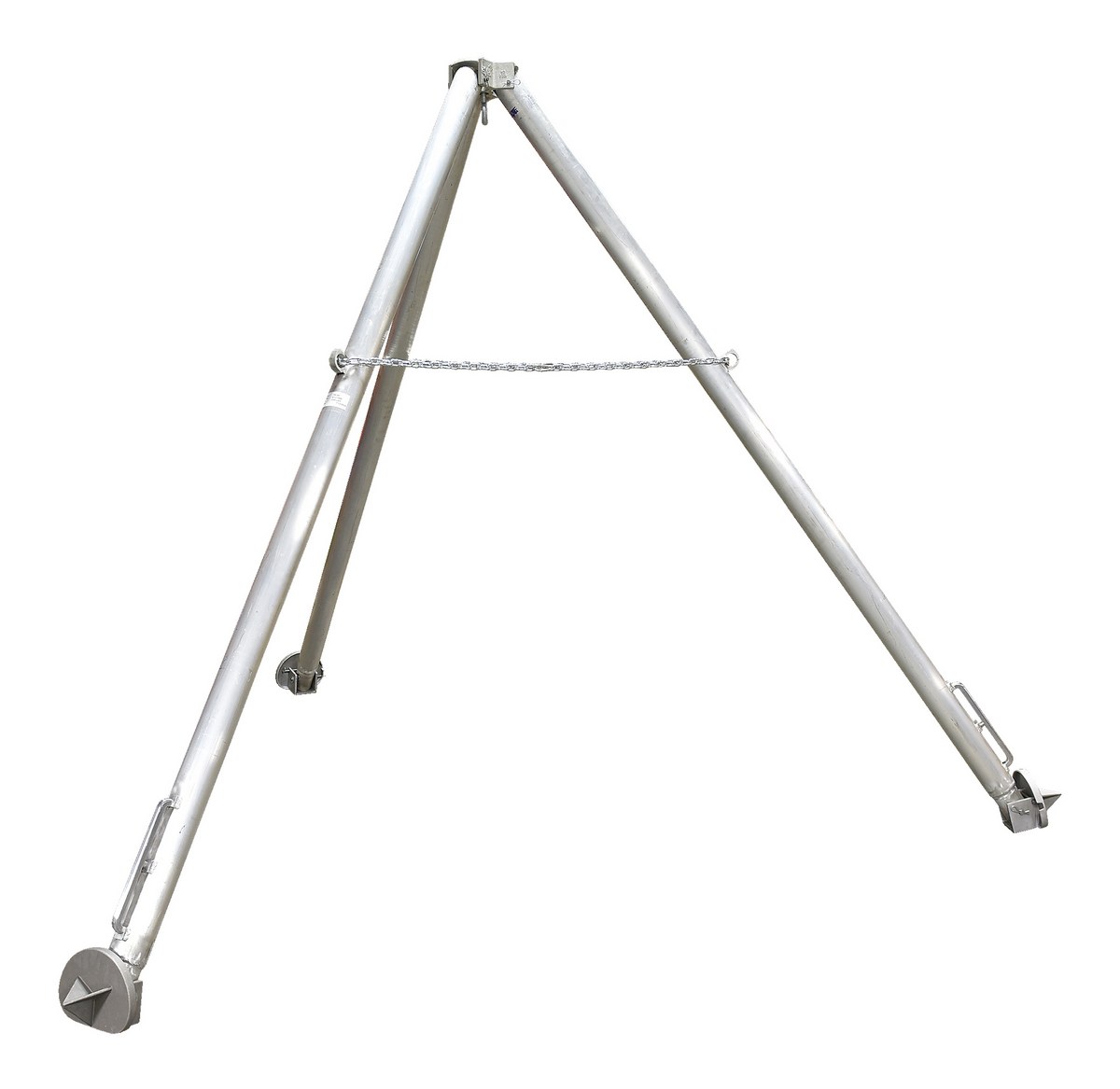

| TRI-AF |  | 90 Days Limited Warranty | Aluminum Fixed Tripod Stand 114-1/8 In. x 114-1/8 In. x 112 In. 1,000 Lb. Capacity Silver | Uniform Capacity (lb.): 1,000 Eyelet Height (in.): 104-1/2 | 215 | ||

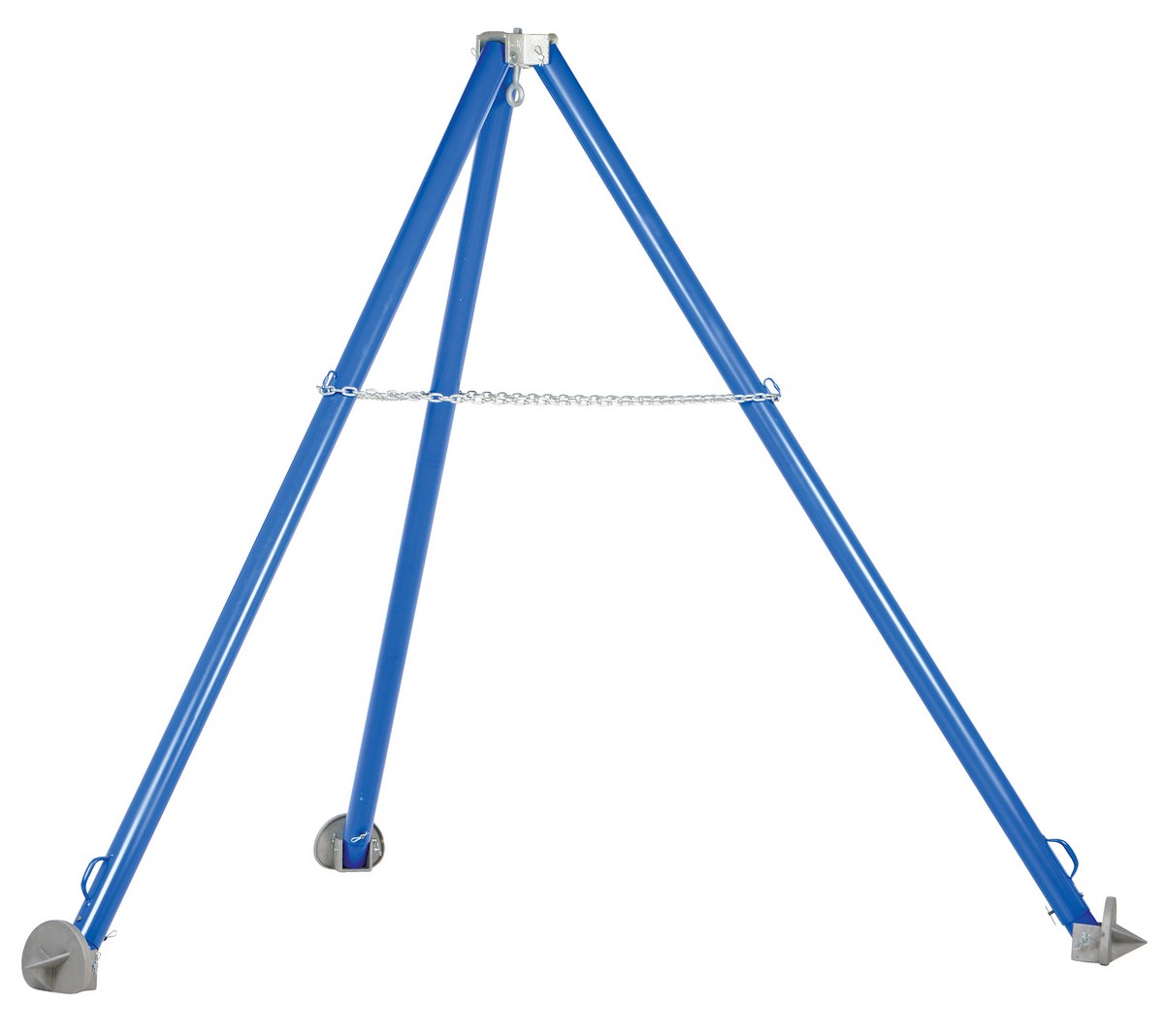

| TRI-SA |  | 90 Days Limited Warranty | Steel Adjustable Height Tripod Stand 113 In. x 113 In. x 112-3/8 In. 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Eyelet Height Min./Max. (in.): 105 to 165-3/4 | 322 | ||

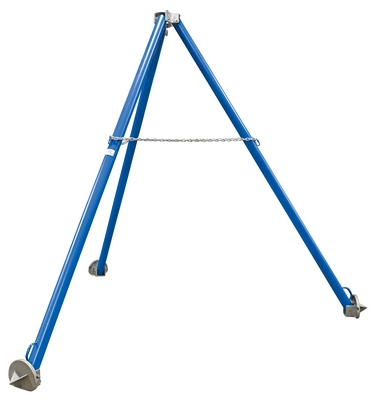

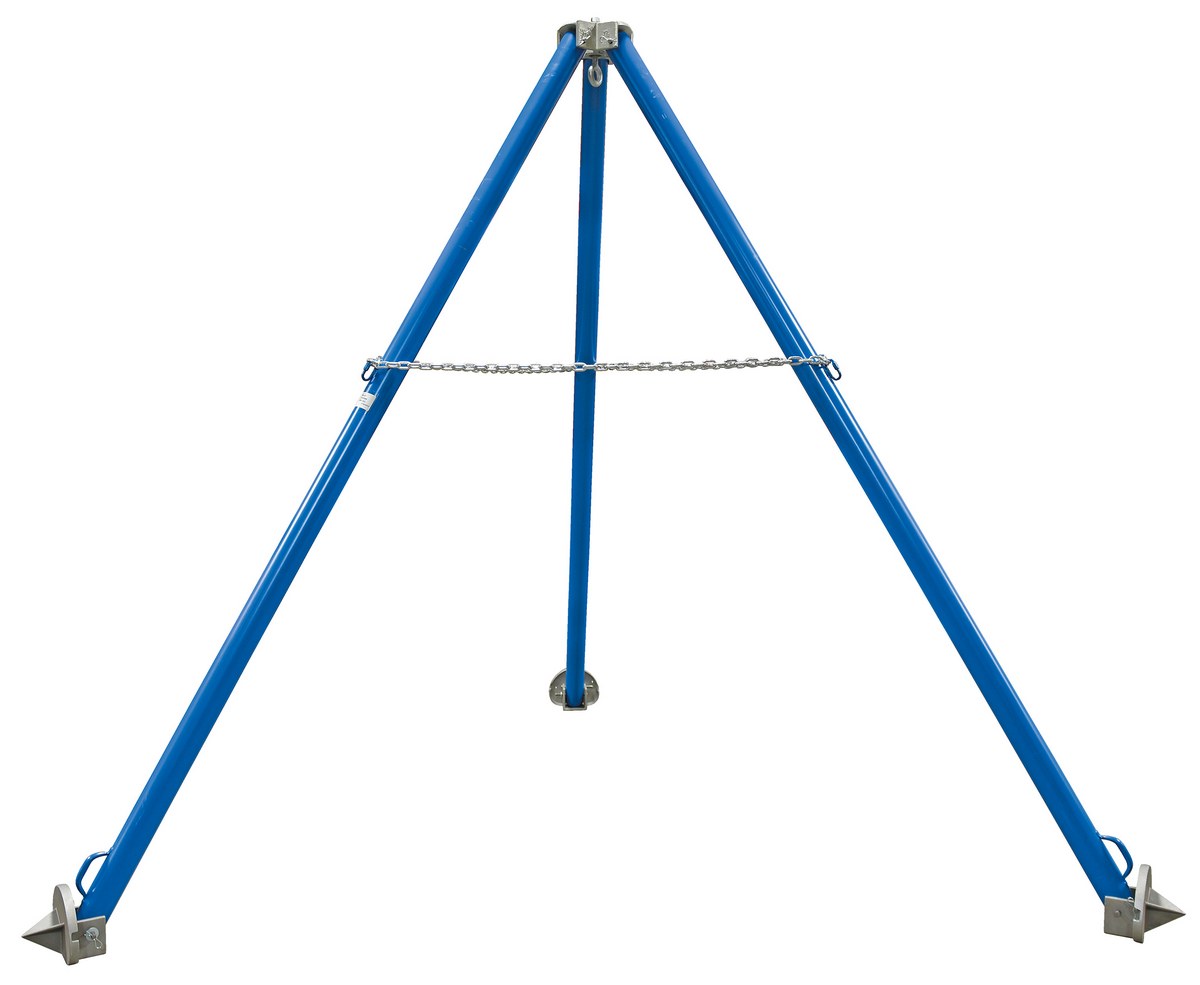

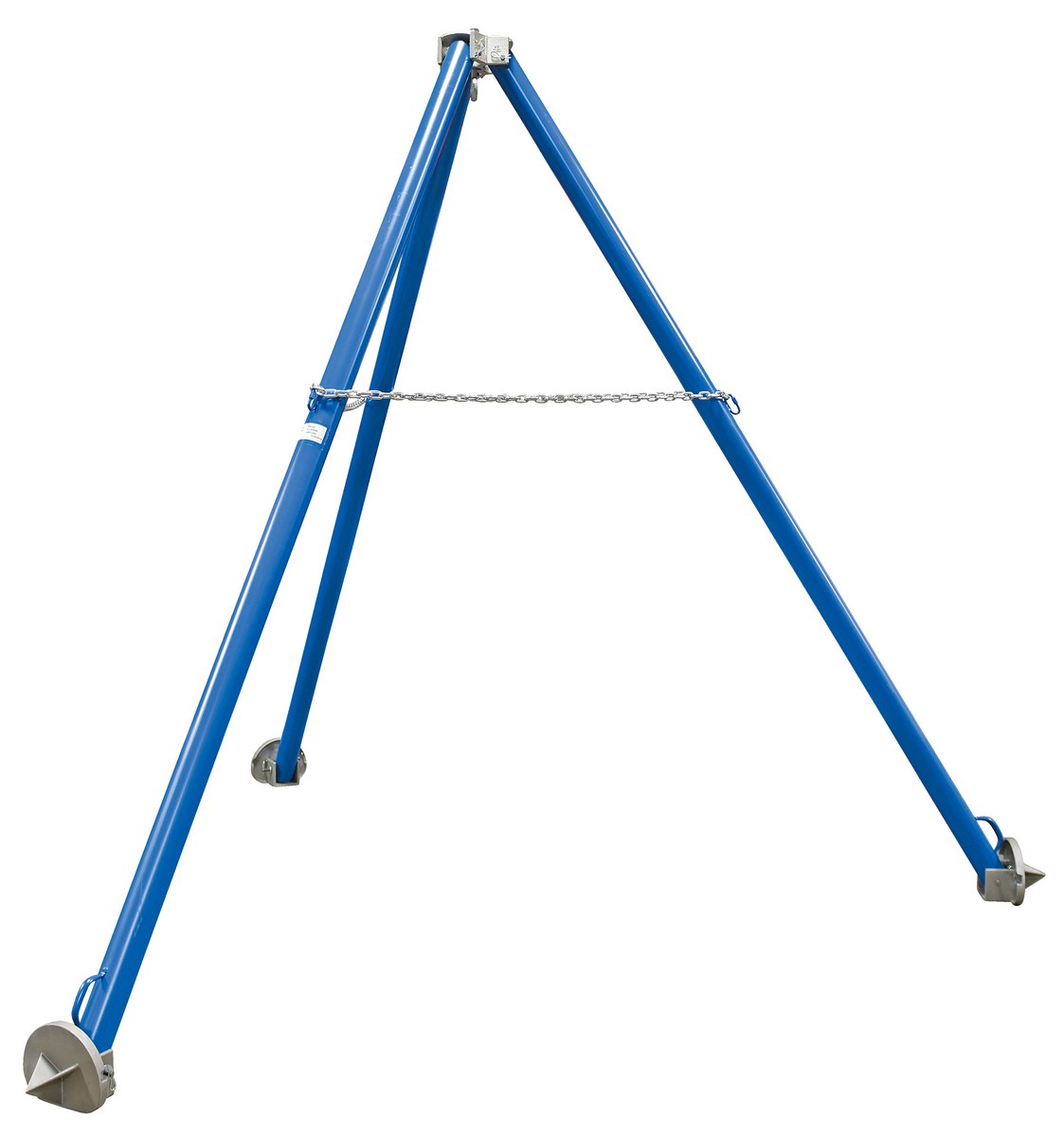

| TRI-SF |  | 90 Days Limited Warranty | Steel Fixed Tripod Stand 106-3/4 In. x 106-3/4 In. x 115-1/8 In. 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Eyelet Height (in.): 107-3/4 | 250 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Eyelet Height Min./Max. (in.): 104-1/4 to 164-1/2
Uniform Capacity (lb.): 1,000
Eyelet Height Min./Max. (in.): 104-1/4 to 164-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Eyelet Height (in.): 104-1/2
Uniform Capacity (lb.): 1,000
Eyelet Height (in.): 104-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Eyelet Height Min./Max. (in.): 105 to 165-3/4
Uniform Capacity (lb.): 2,000
Eyelet Height Min./Max. (in.): 105 to 165-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Eyelet Height (in.): 107-3/4
Uniform Capacity (lb.): 2,000
Eyelet Height (in.): 107-3/4
