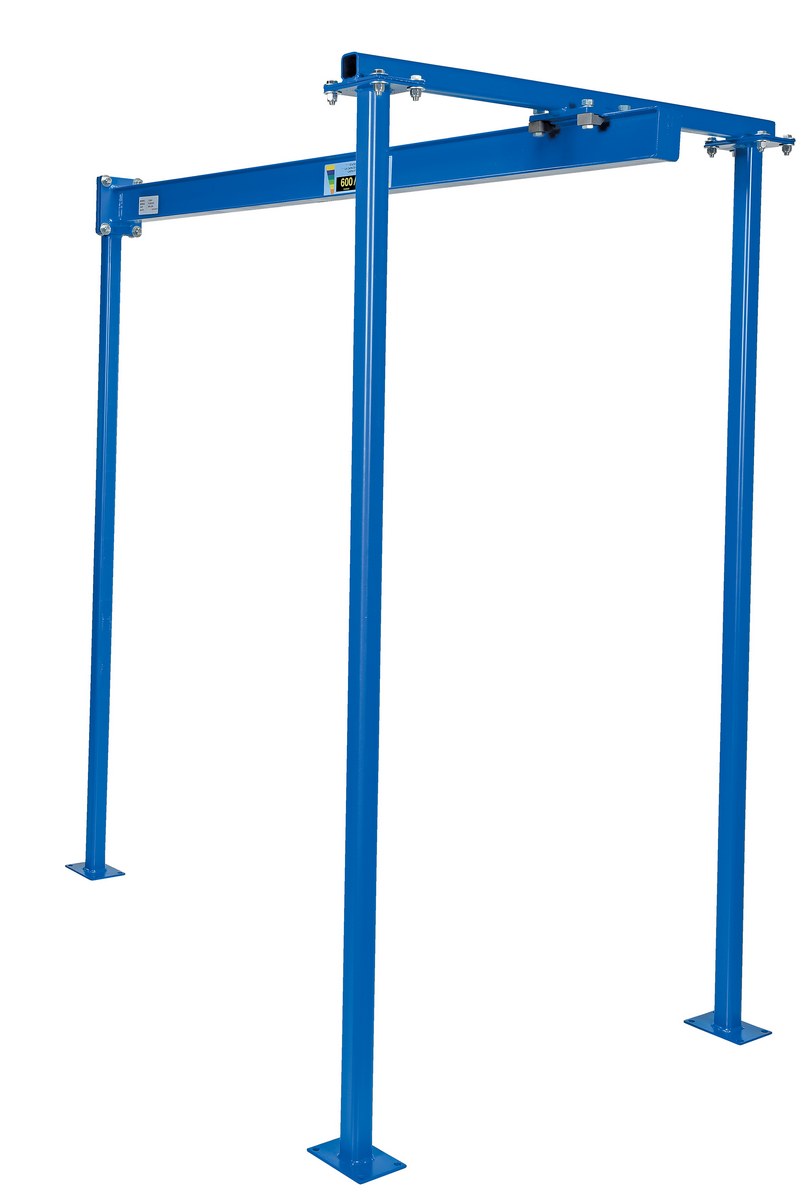

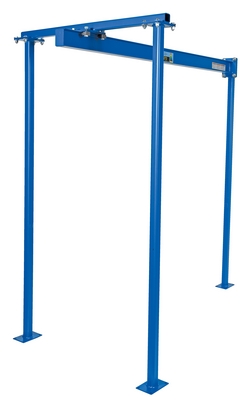

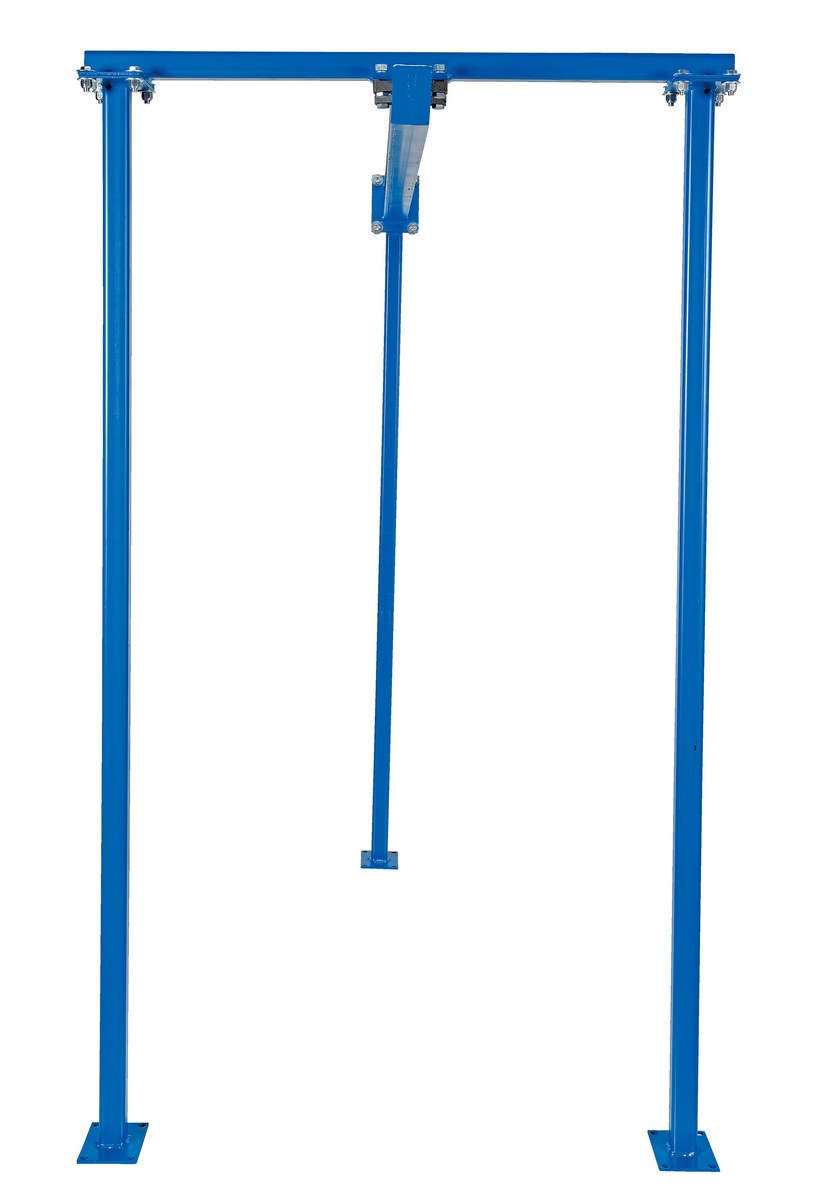

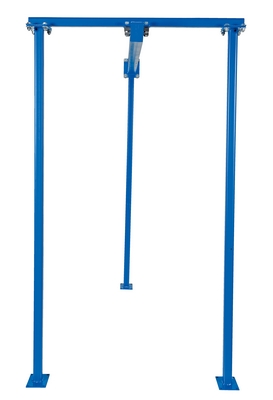

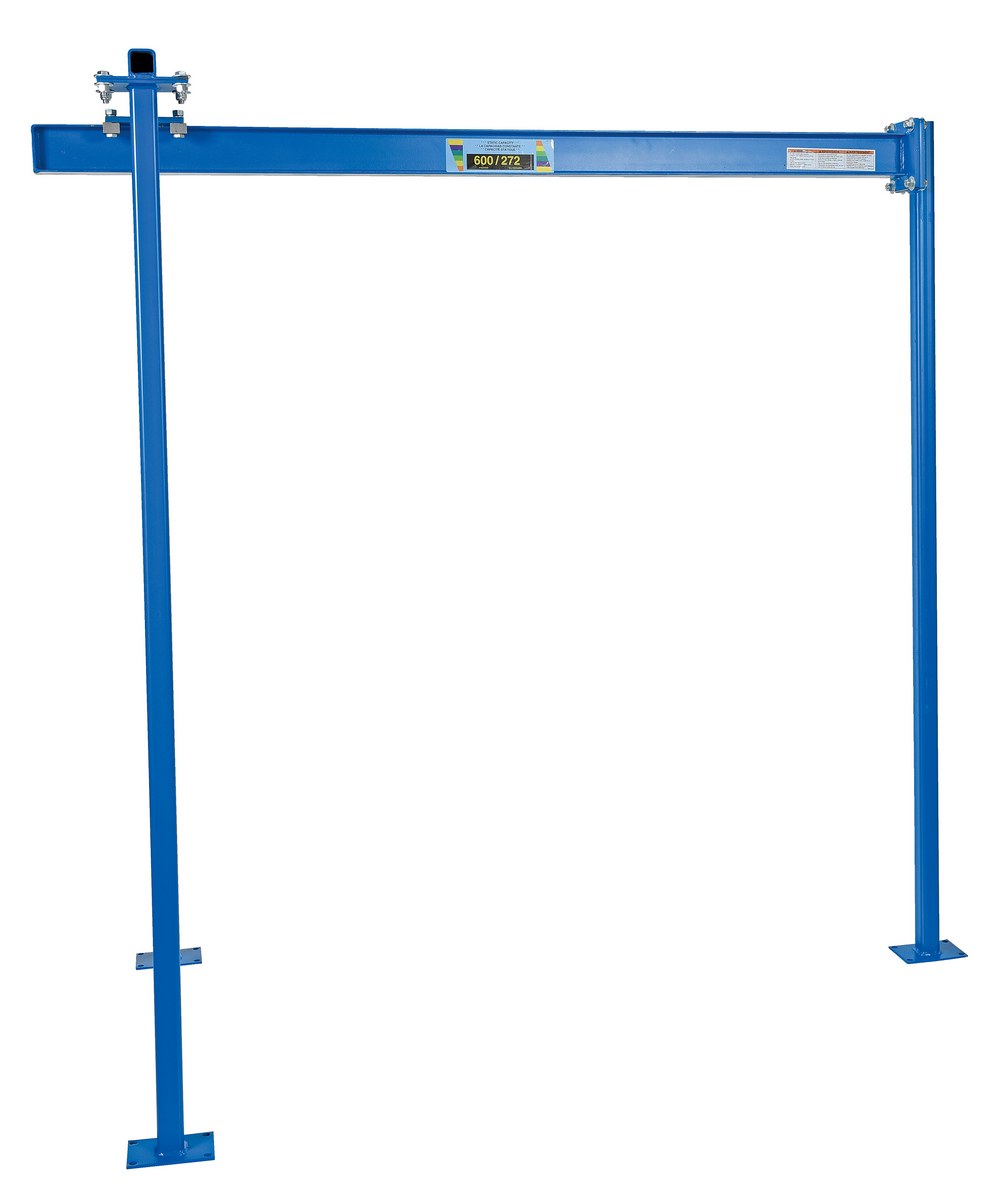

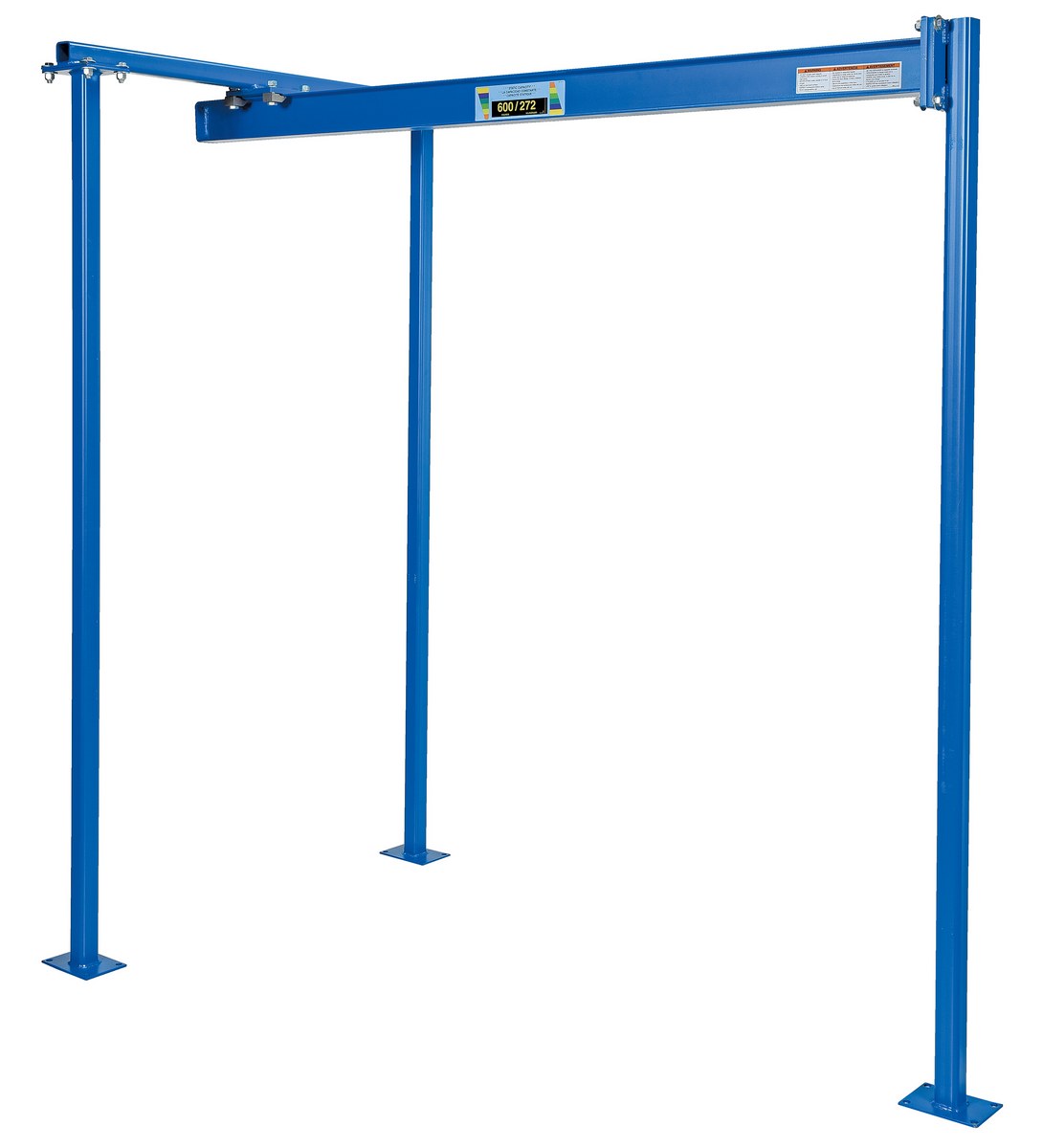

Extra Travel Tri-Post JibsThis unique jib was designed for use in workstations. Place over the top of your workbench. Extra travel fixed-height I-beam overhangs workbench to allow lifting of products from cart to bench. I-Beam flange is 2.66" and the height is 4.00". Usable I-beam length is 79-3/4". Hoists & Trollies can be ordered seperately. Steel construction with painted blue finish.
- Tri-Post jib was designed for use in workstations
- Place over the top of your workbench for various applications
- Fixed-height I-beam overhangs allow lifting of products from cart to bench
- Steel construction for heavy-duty strength and durability
Portable Jib Cranes
Tie Rod Jibs
Multi-Station Transportable Jib Cranes
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| TJIB-3 |  | 1 Year Limited Warranty | Steel Travel Tri-Post Jib 300 Lb. Capacity Blue | Uniform Capacity (lb.): 300 Under I-Beam Clearance (in.): 76-1/2 | 238 | ||

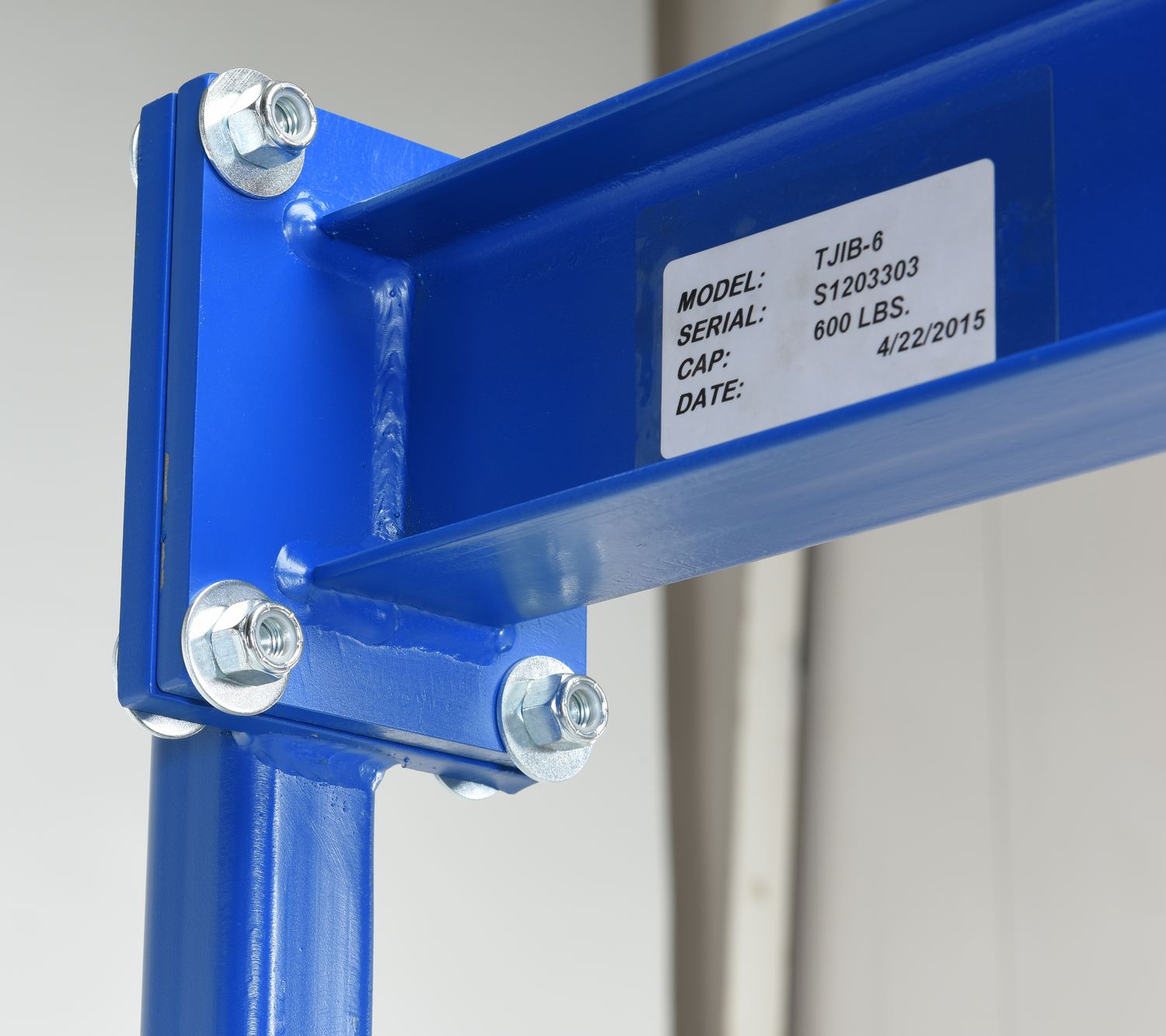

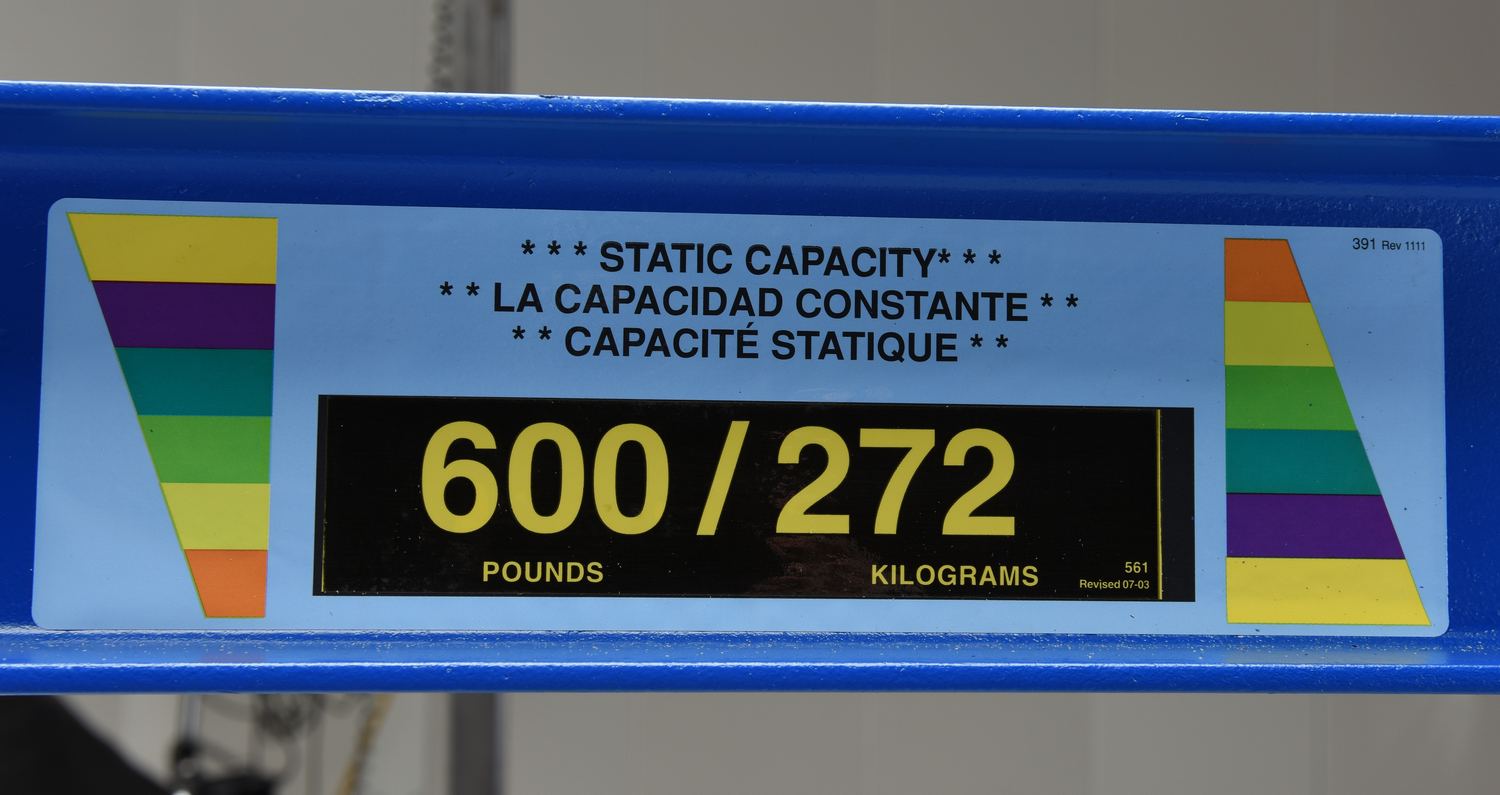

| TJIB-6 |  | 1 Year Limited Warranty | Steel Travel Tri-Post Jib 600 Lb. Capacity Blue | Uniform Capacity (lb.): 600 Under I-Beam Clearance (in.): 76-1/2 | 245 | ||
| TJIB-10 |  | 1 Year Limited Warranty | Steel Travel Tri-Post Jib 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Under I-Beam Clearance (in.): 76 | 285 | ||
| TJIB-20 |  | 1 Year Limited Warranty | Steel Travel Tri-Post Jib 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Under I-Beam Clearance (in.): 76 | 321 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Under I-Beam Clearance (in.): 76-1/2
Uniform Capacity (lb.): 300
Under I-Beam Clearance (in.): 76-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Under I-Beam Clearance (in.): 76-1/2
Uniform Capacity (lb.): 600
Under I-Beam Clearance (in.): 76-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Under I-Beam Clearance (in.): 76
Uniform Capacity (lb.): 1,000
Under I-Beam Clearance (in.): 76
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Under I-Beam Clearance (in.): 76
Uniform Capacity (lb.): 2,000
Under I-Beam Clearance (in.): 76
