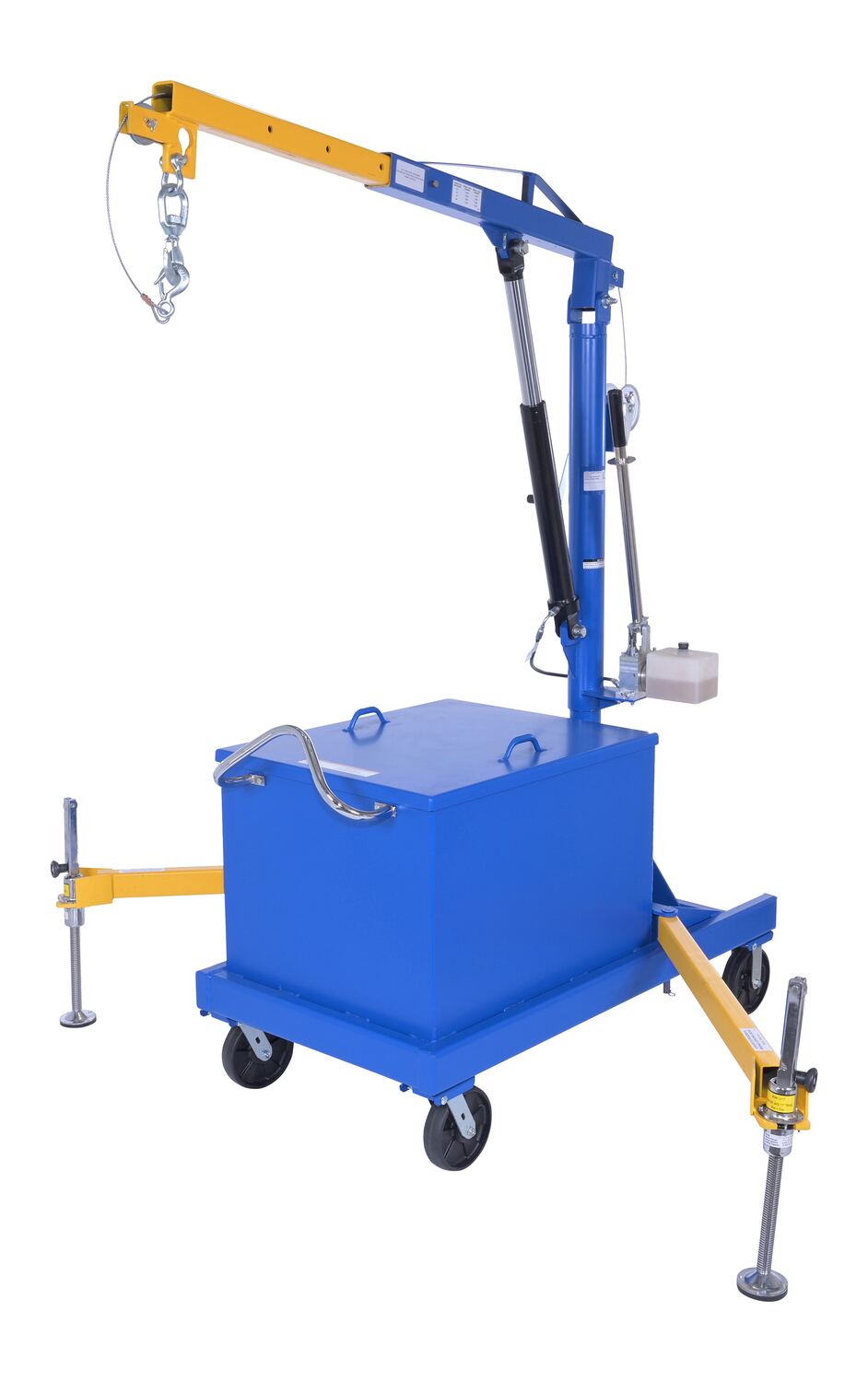

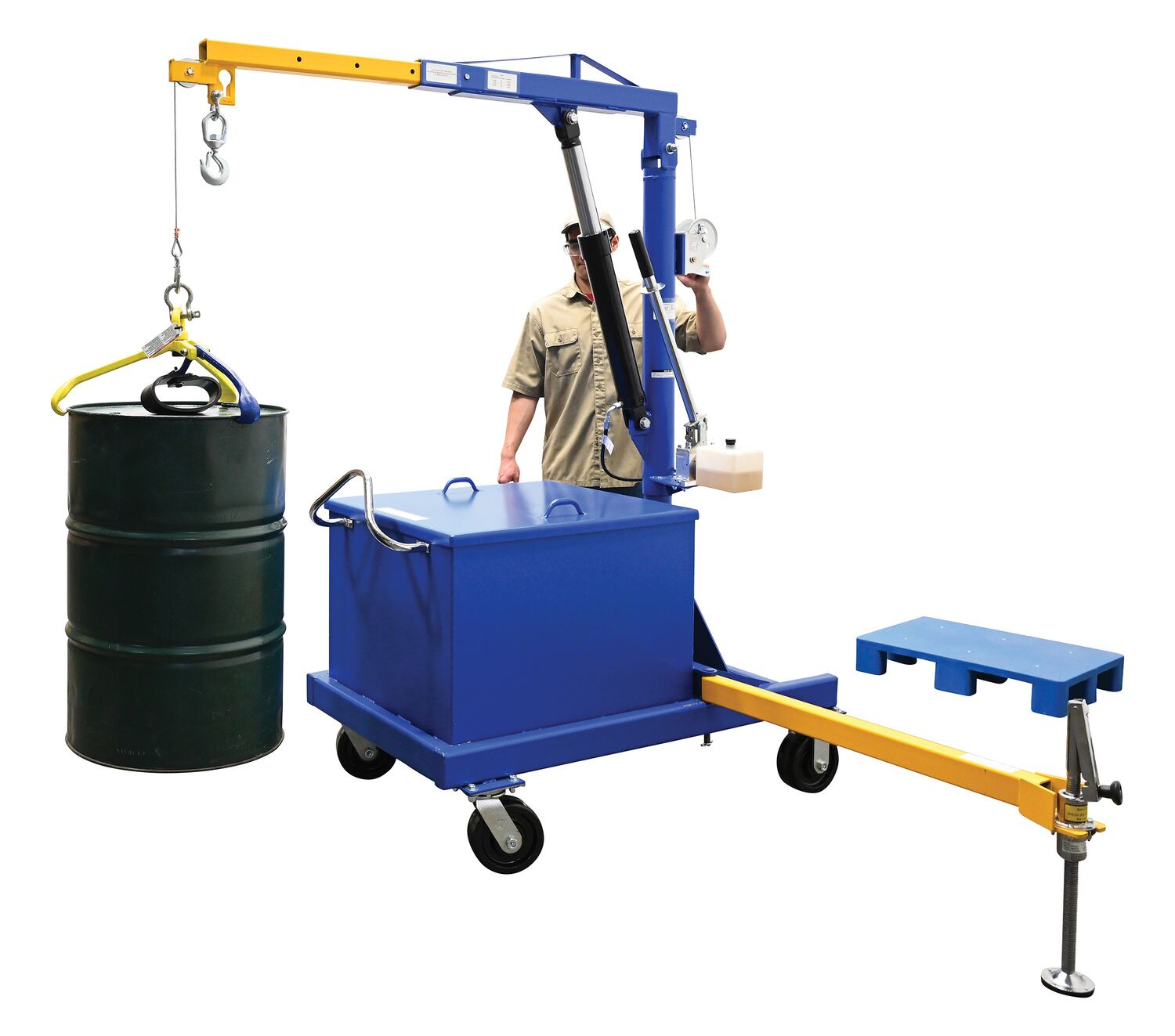

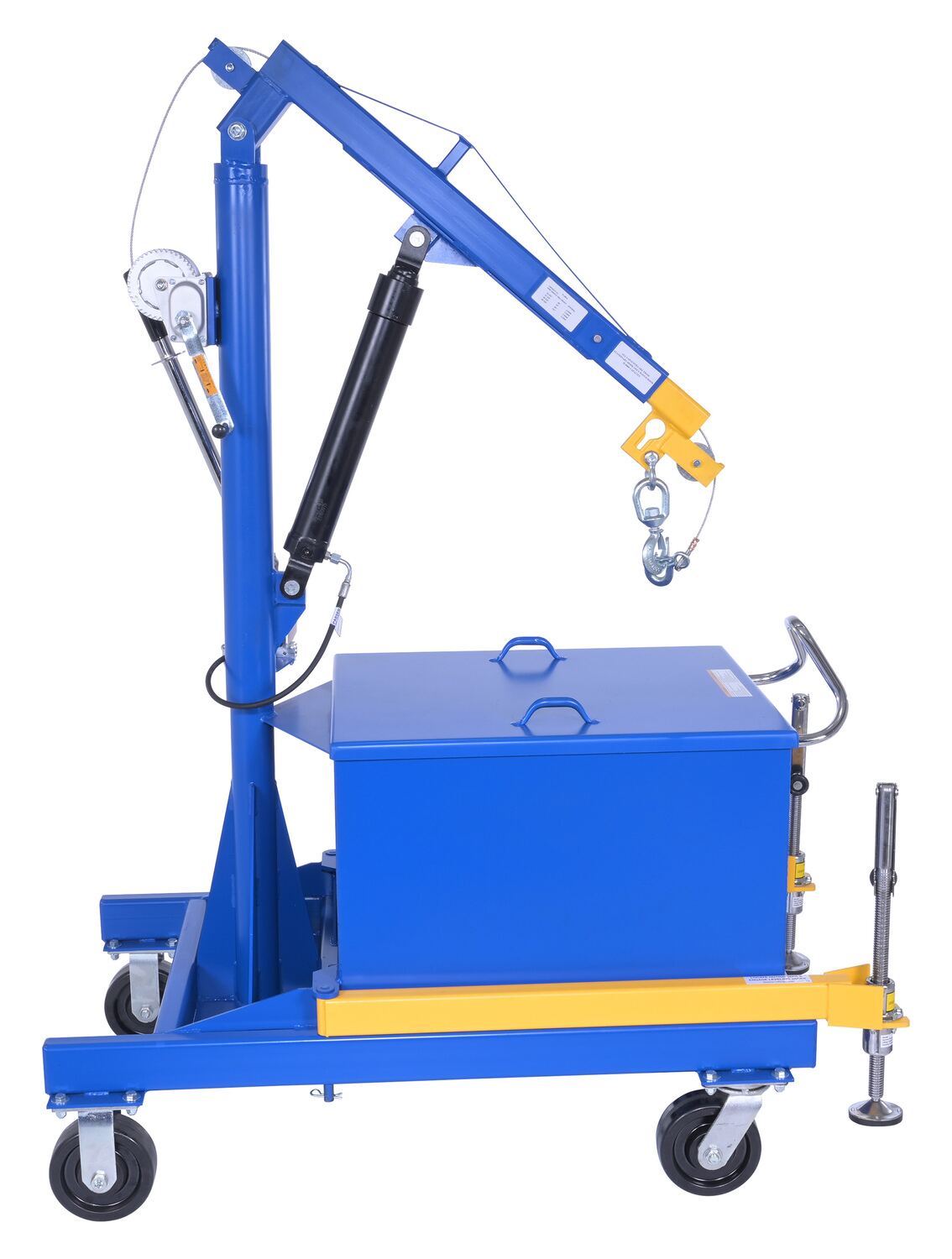

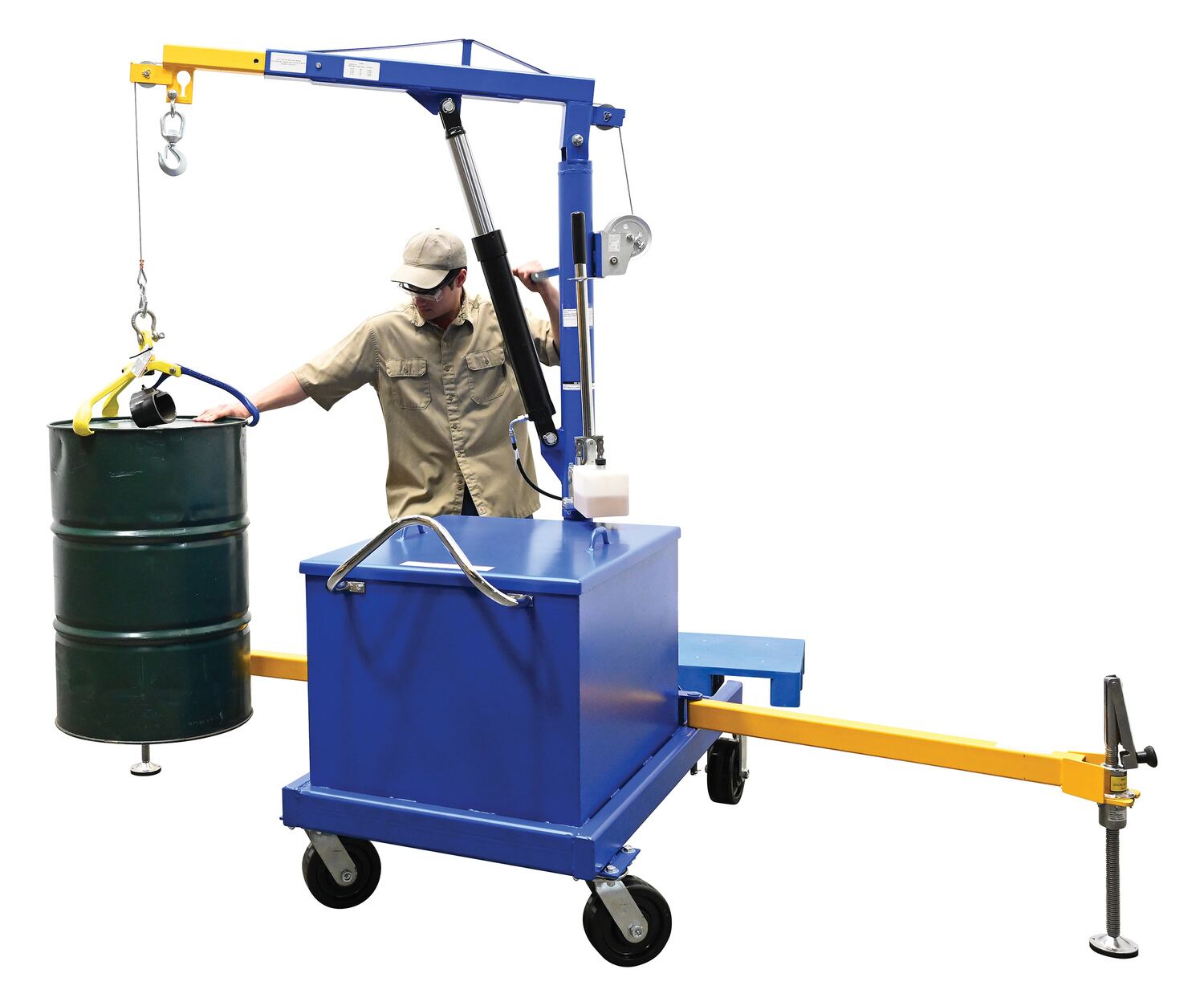

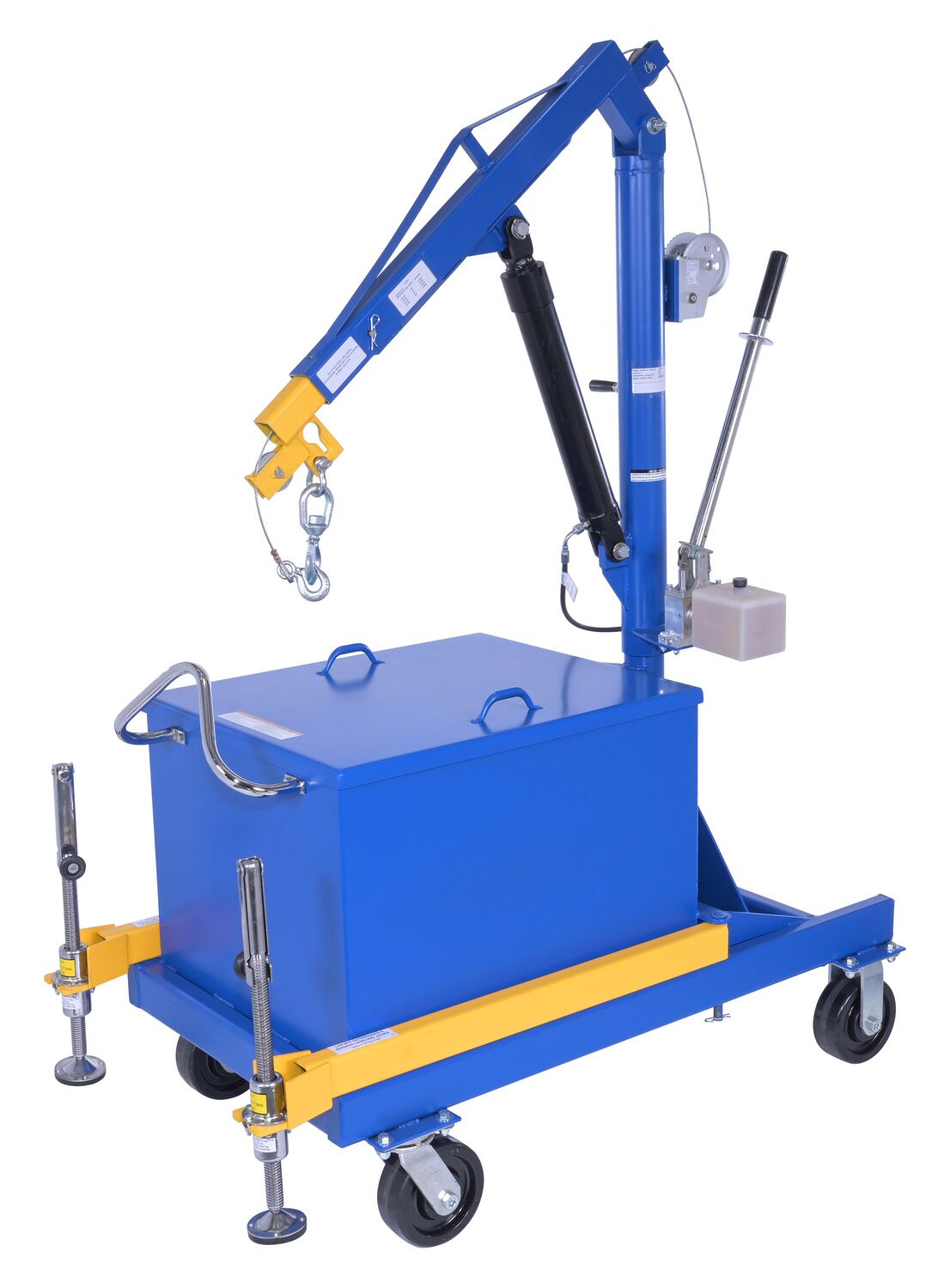

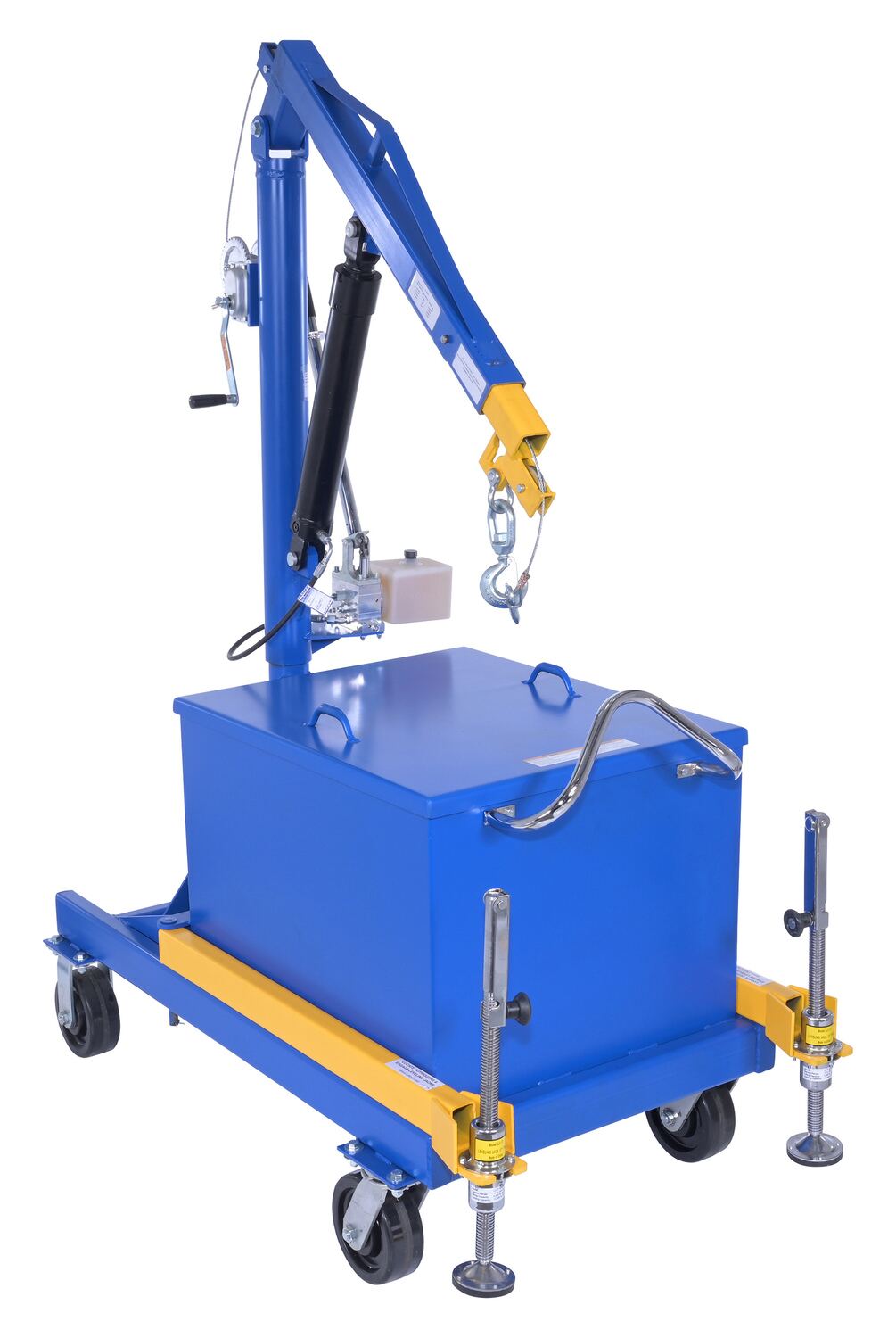

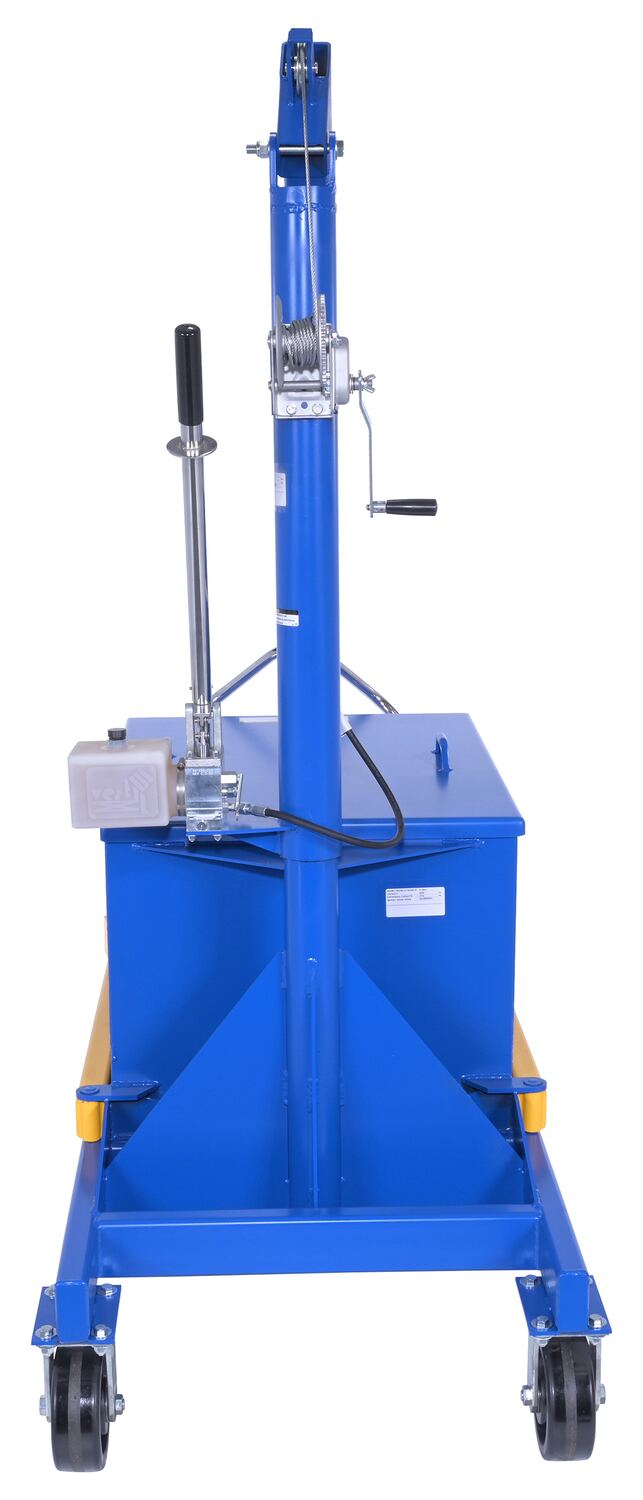

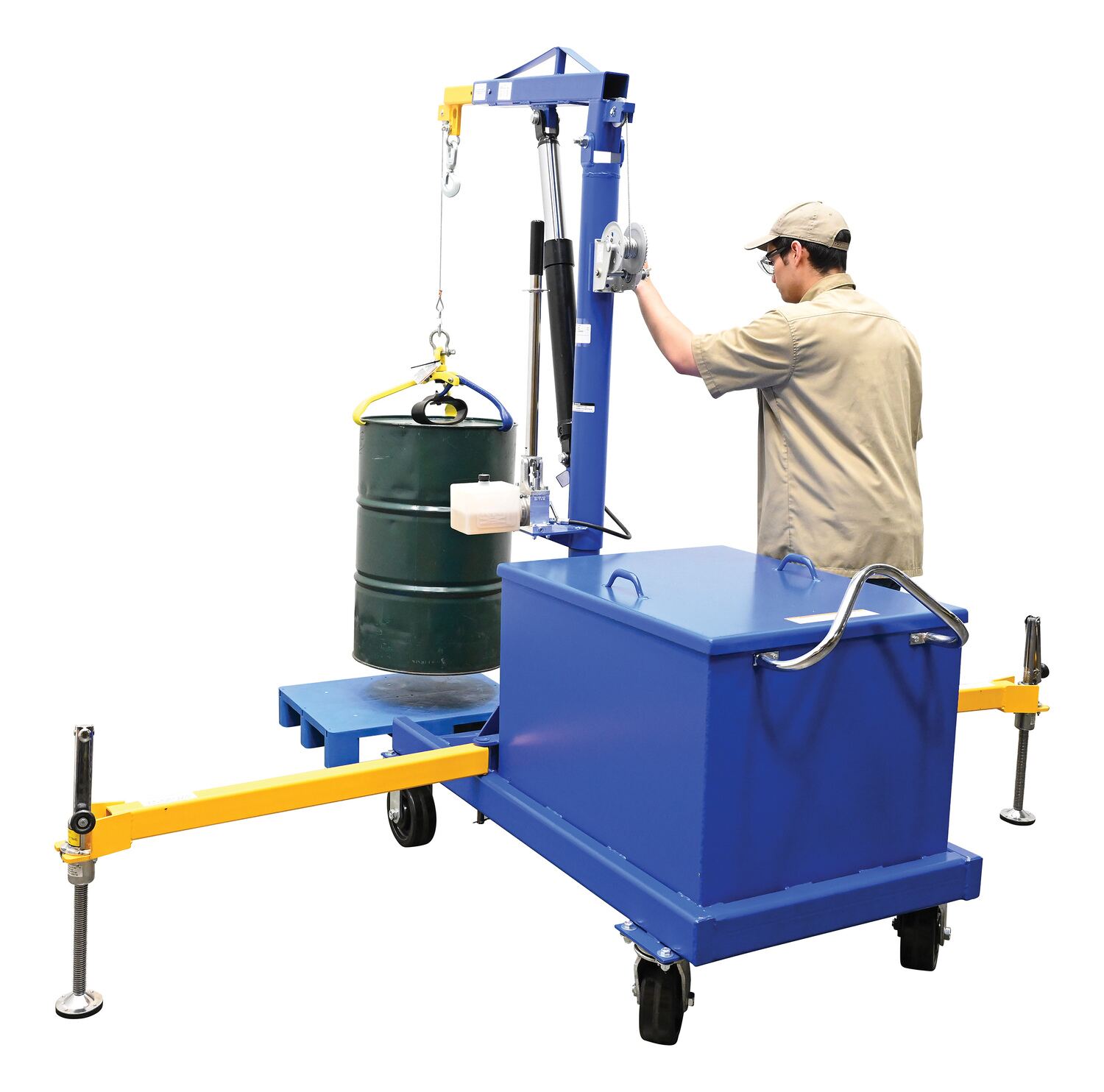

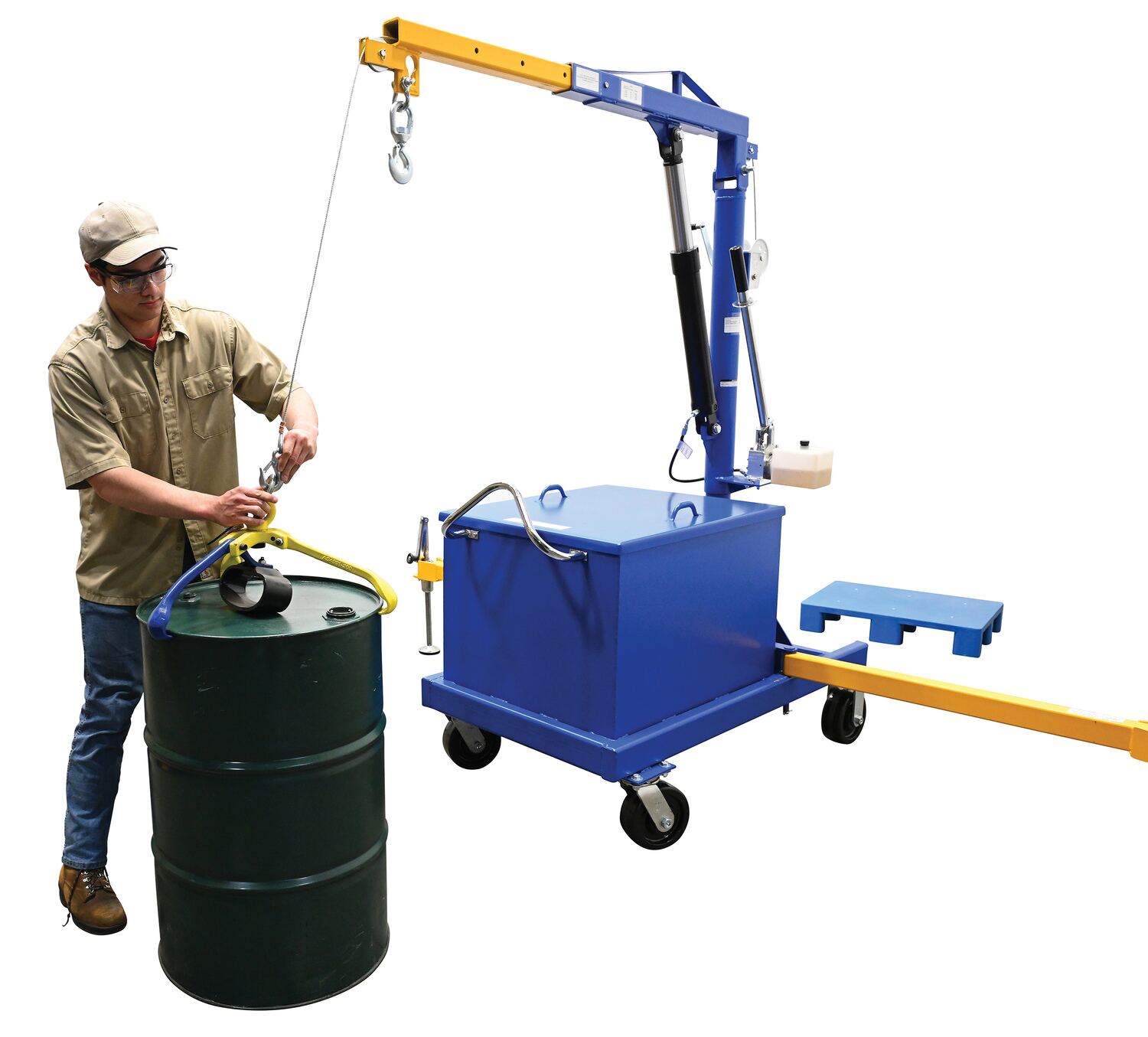

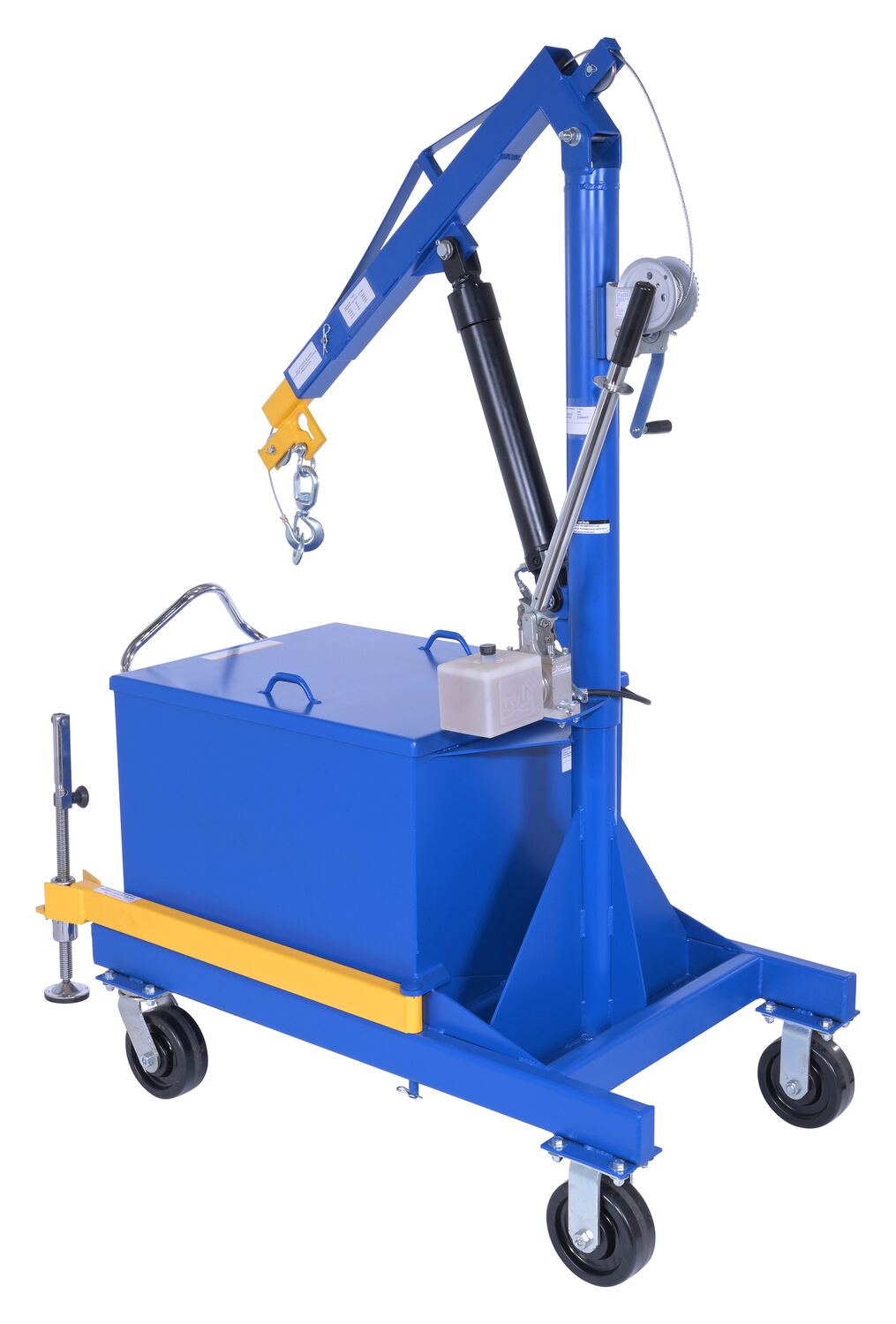

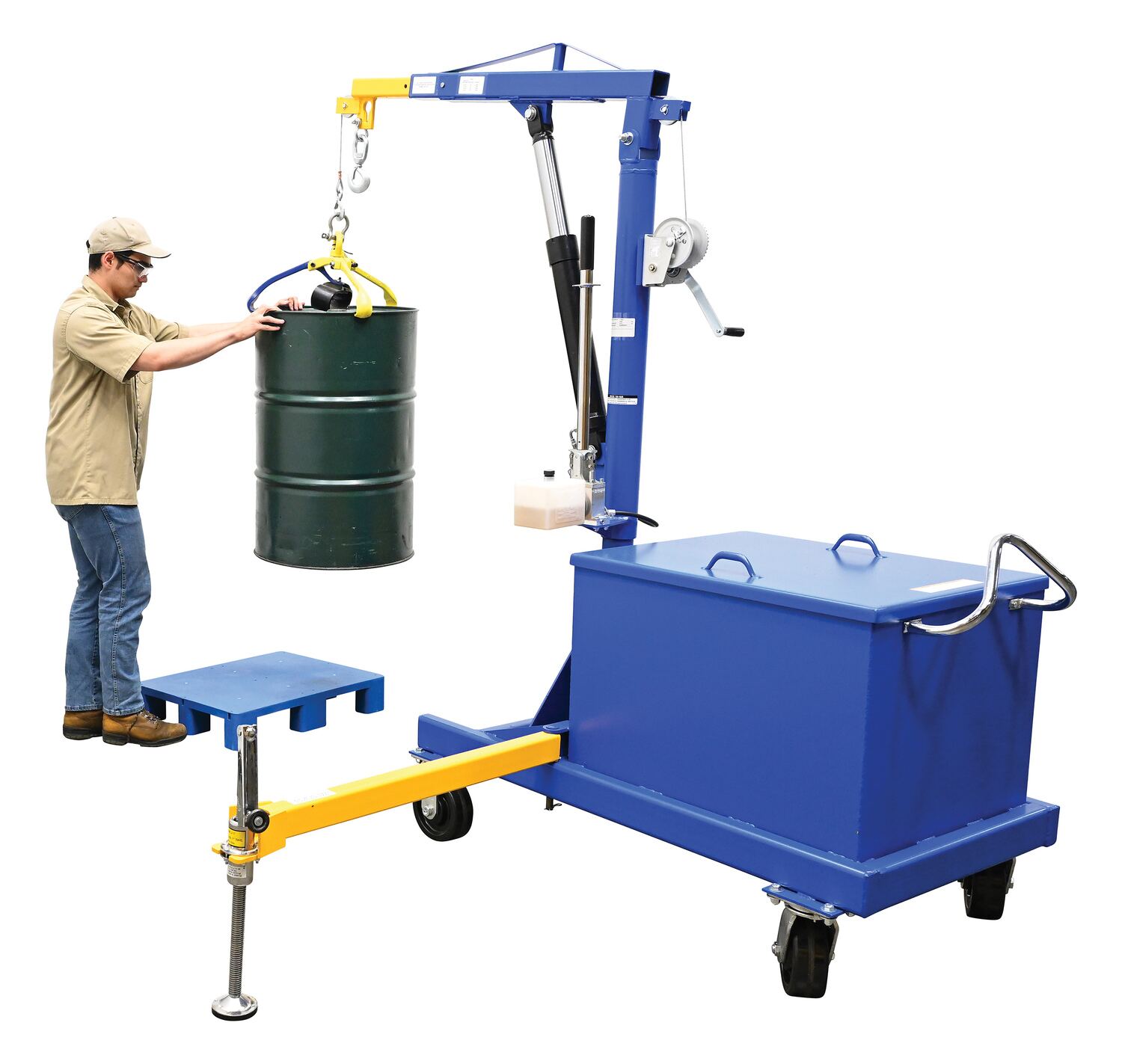

Portable Cantilever HoistsThe Portable Cantilever Hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond fram is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

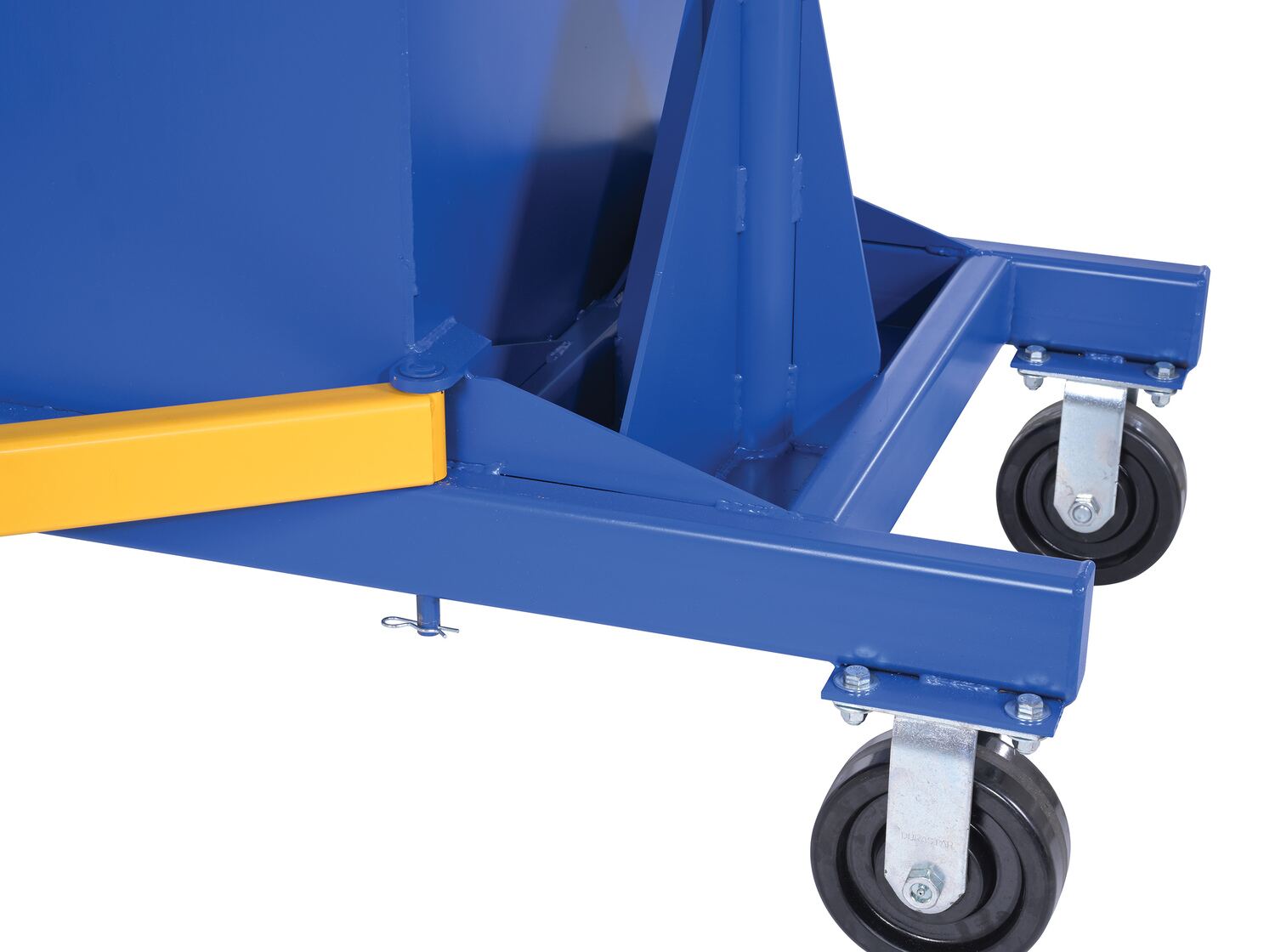

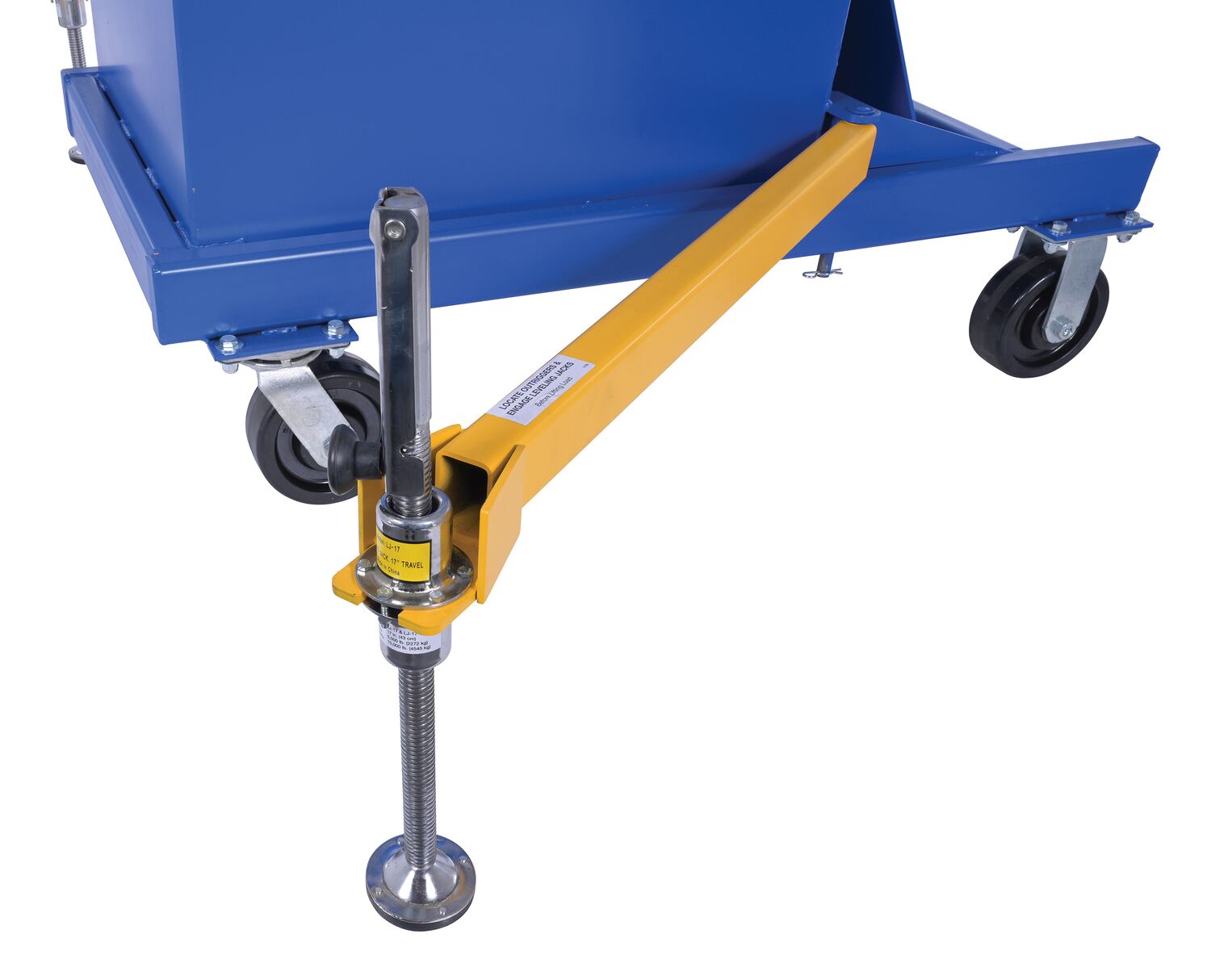

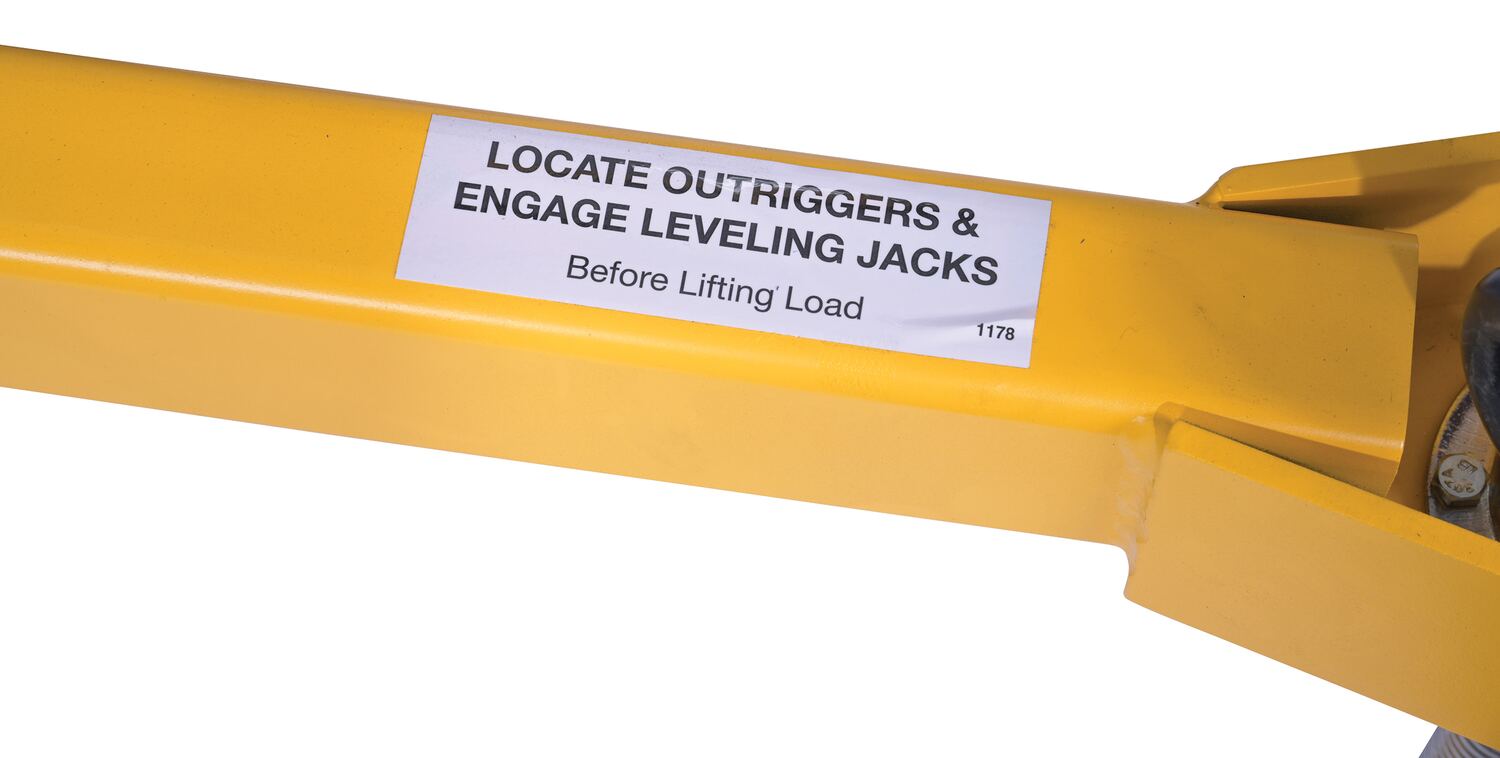

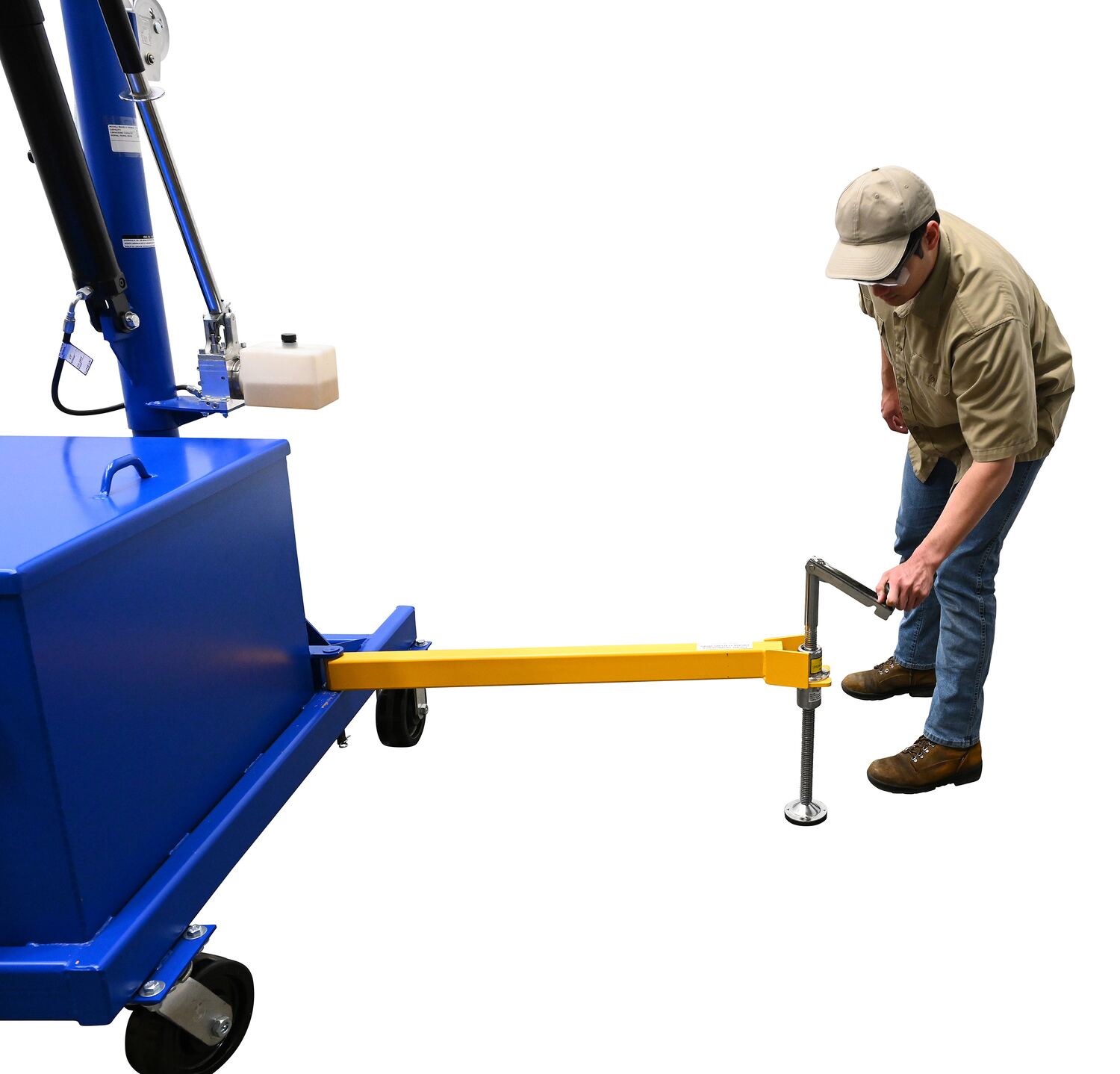

- Outriggers increase stability with counter-balanced/cantilever design

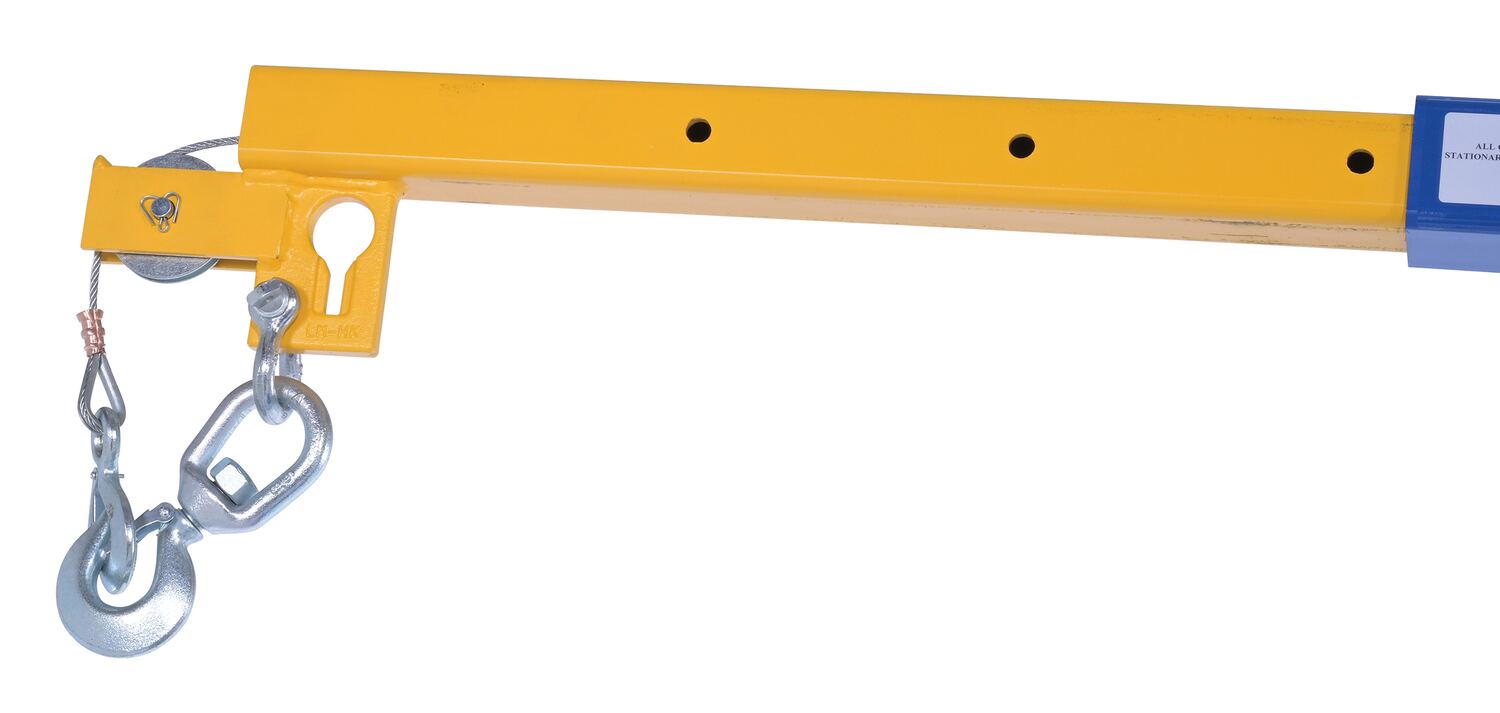

- Adjustable extendable boom
- Boom swivels 360 degrees

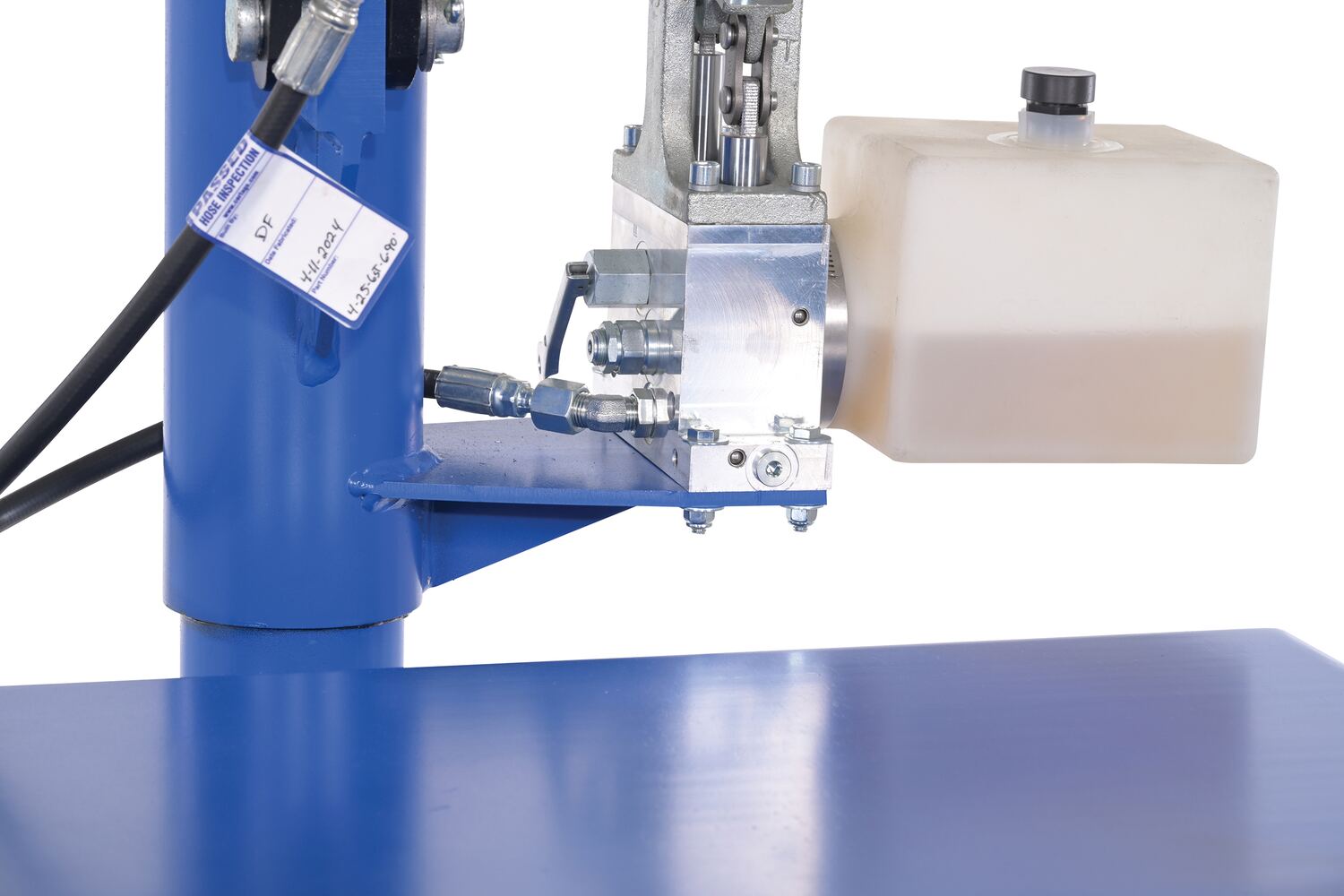

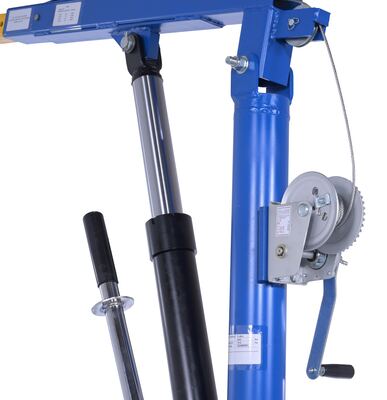

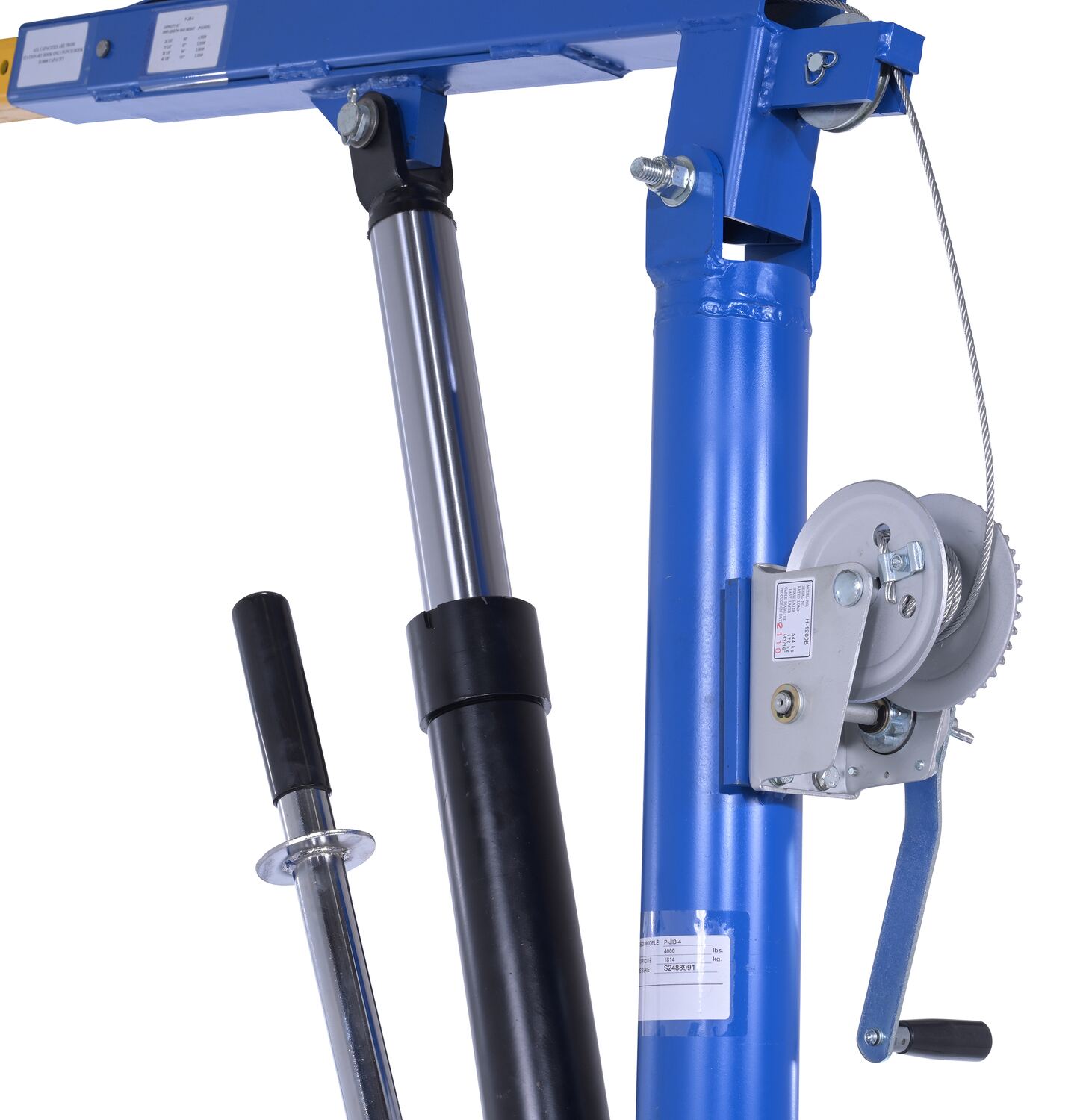

- Double acting hydraulic hand pump
Electric Powered Floor Cranes
Hitch-Mounted Truck Jib Crane
Air/Hand Pump Hydraulic Shop Crane
Lifter Jibs
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

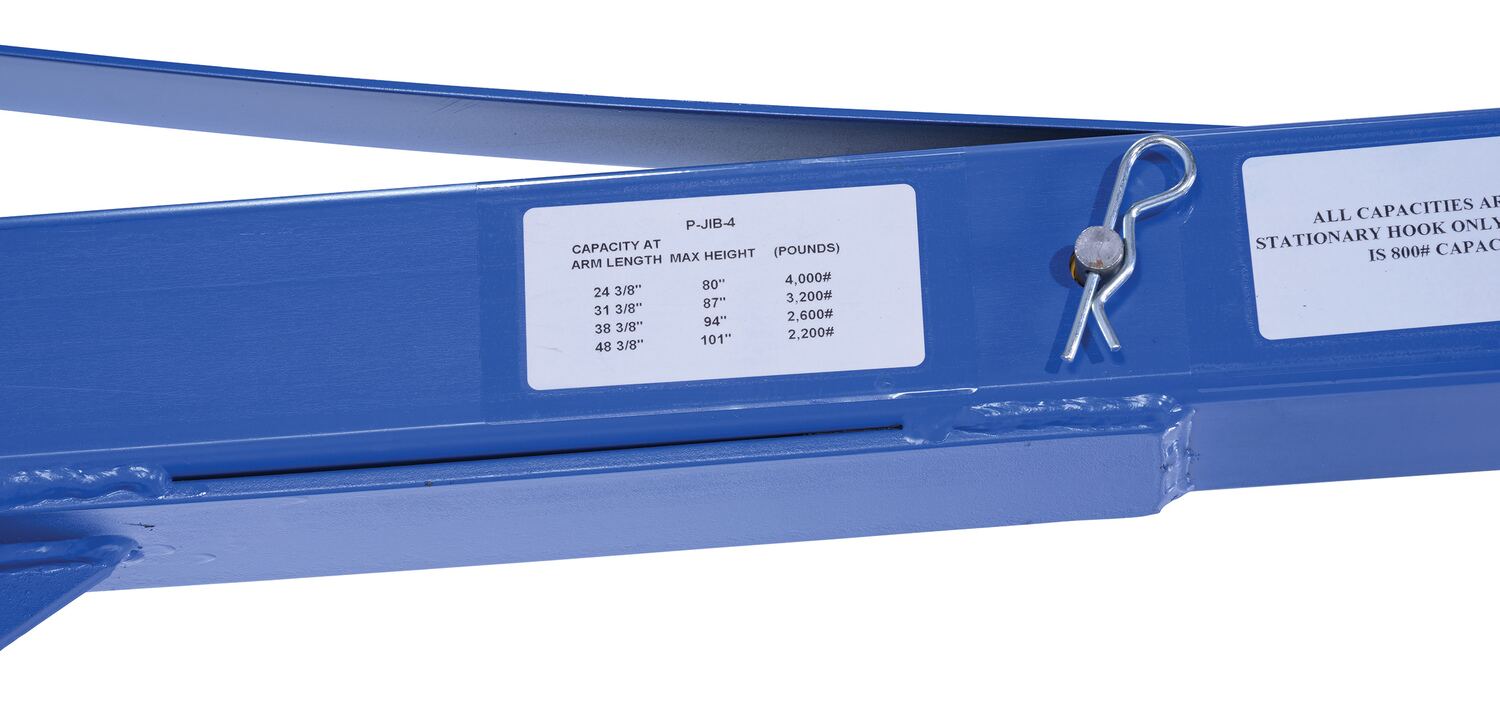

| P-JIB-2 | POPULAR |  | 1 Year Limited Warranty | Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 2000 Lb. Capacity Blue | Uniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000 Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600 | 939 | |
| P-JIB-4 |  | 1 Year Limited Warranty | Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 4000 Lb. Capacity Blue | Uniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000 Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200 | 950 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200
For More Details of the Option Click the Red Model Button

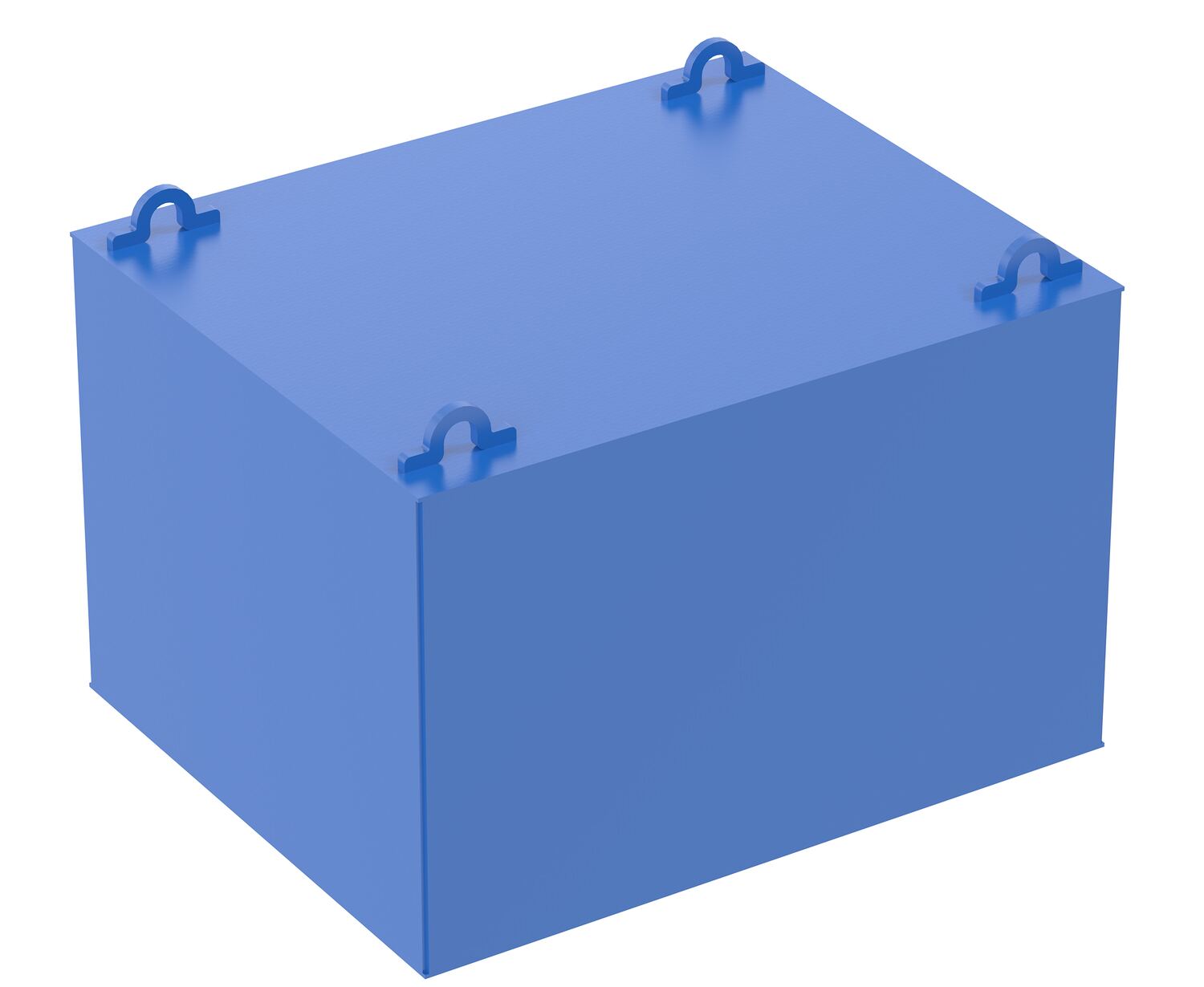

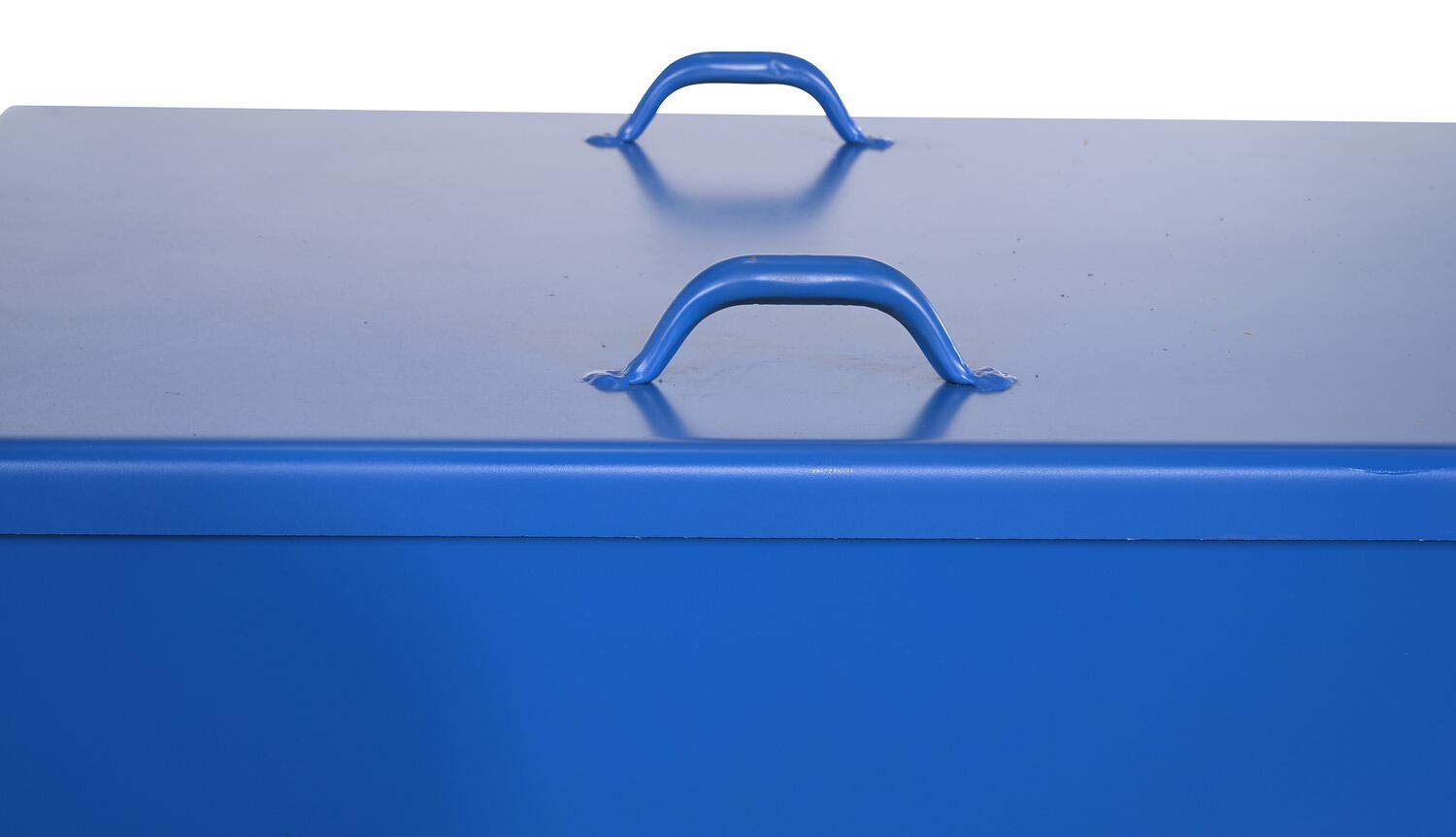

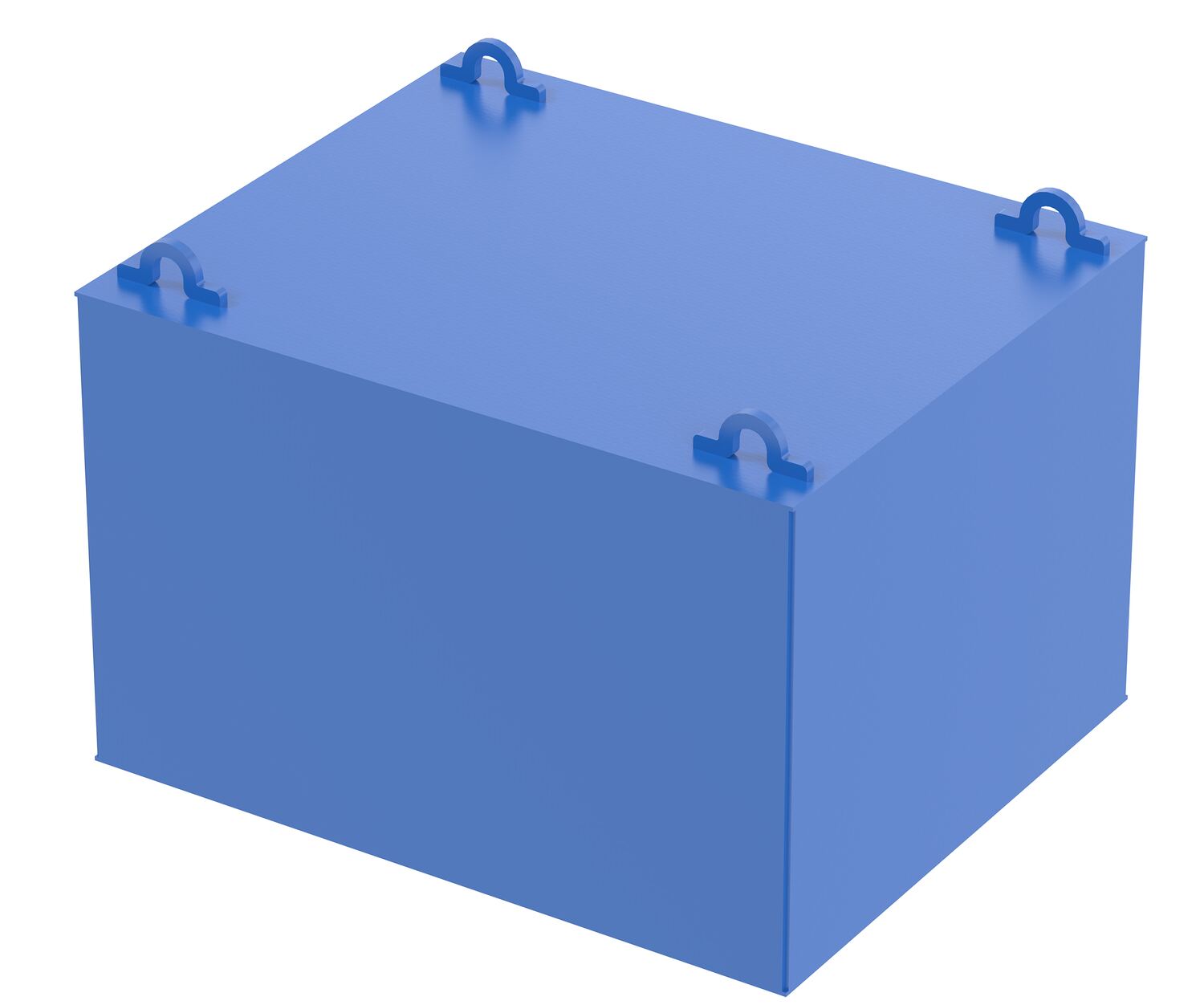

| P-JIB-BALL-2 |  | 1 Year Limited Warranty | Steel Cantilever Hoist Ballast 16-1/2 In. x 27 In. x 24 In. 2000 Lb. Capacity Blue | Attachment Method: Hook and Chain through 4 Lifting Eyes welded onto unit Package Contents: (1) Steel Cantilever Hoist Ballast | 2142 | |
| P-JIB-BALL-4 |  | 1 Year Limited Warranty | Steel Cantilever Hoist Ballast 33 In. x 27 In. x 24 In. 4000 Lb. Capacity Blue | Attachment Method: Hook and Chain through 4 Lifting Eyes welded onto unit Package Contents: (1) Steel Cantilever Hoist Ballast | 3942 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: P-JIB-2
Hydraulic Oil SDS Sheet for: P-JIB-4
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the length of the line on the portable cantilever hoist?
A: The line on the P-JIB-2 is 14' long.
Q: What should be used for the ballast?
A: Our removable ballast weight is available. Or sand, scrap steel or bags of quikrete would be adequate for use with the JIB.
Q: What is the hook to ground measurement when boom is fully extended both horizontally and vertically?
A: The hook to ground measurement is 110"
Q: What is the overall height when the boom is extended?
A: 125"H (boom fully extended and fully raised)
Q: What is the length of the line on model P-JIB-4?
A: 15'-0" cable length
Q: Would you please advise if the P-Jib-4 can be moved when loaded?
A: The P-JIB should NOT be moved while loaded. If you need to transport a load, I'd suggest the CBFC units
 |
|||||||||||||||||
