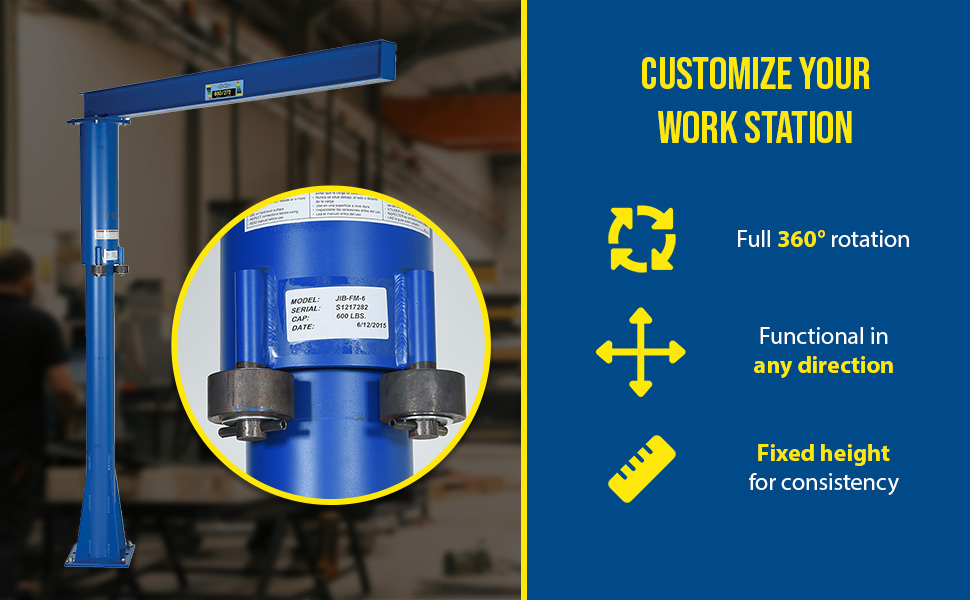

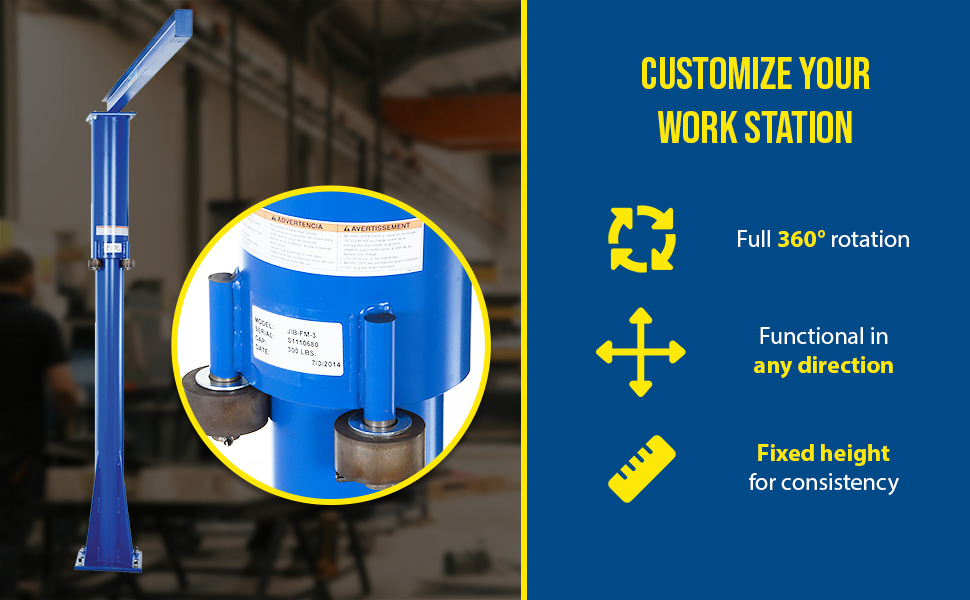

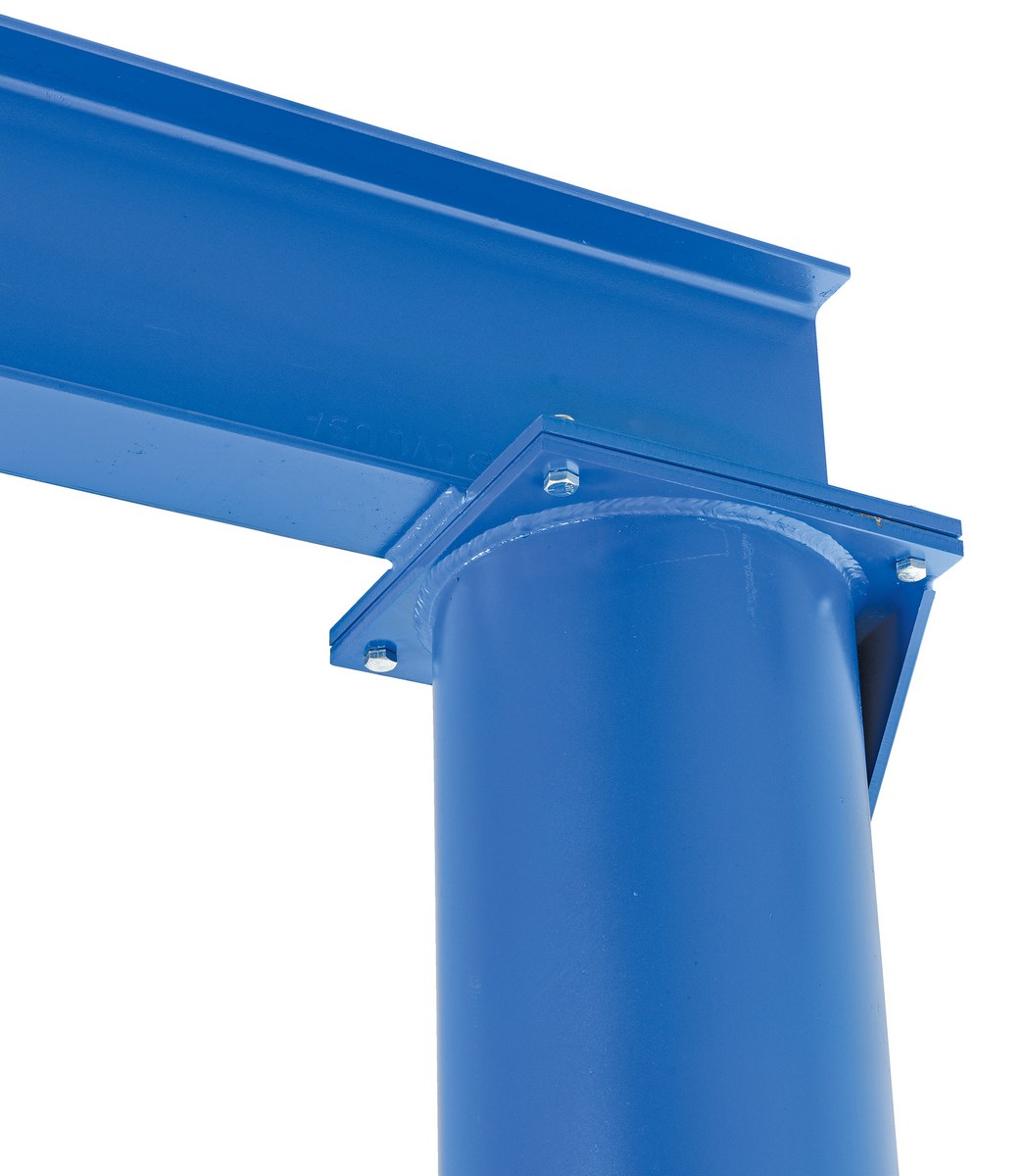

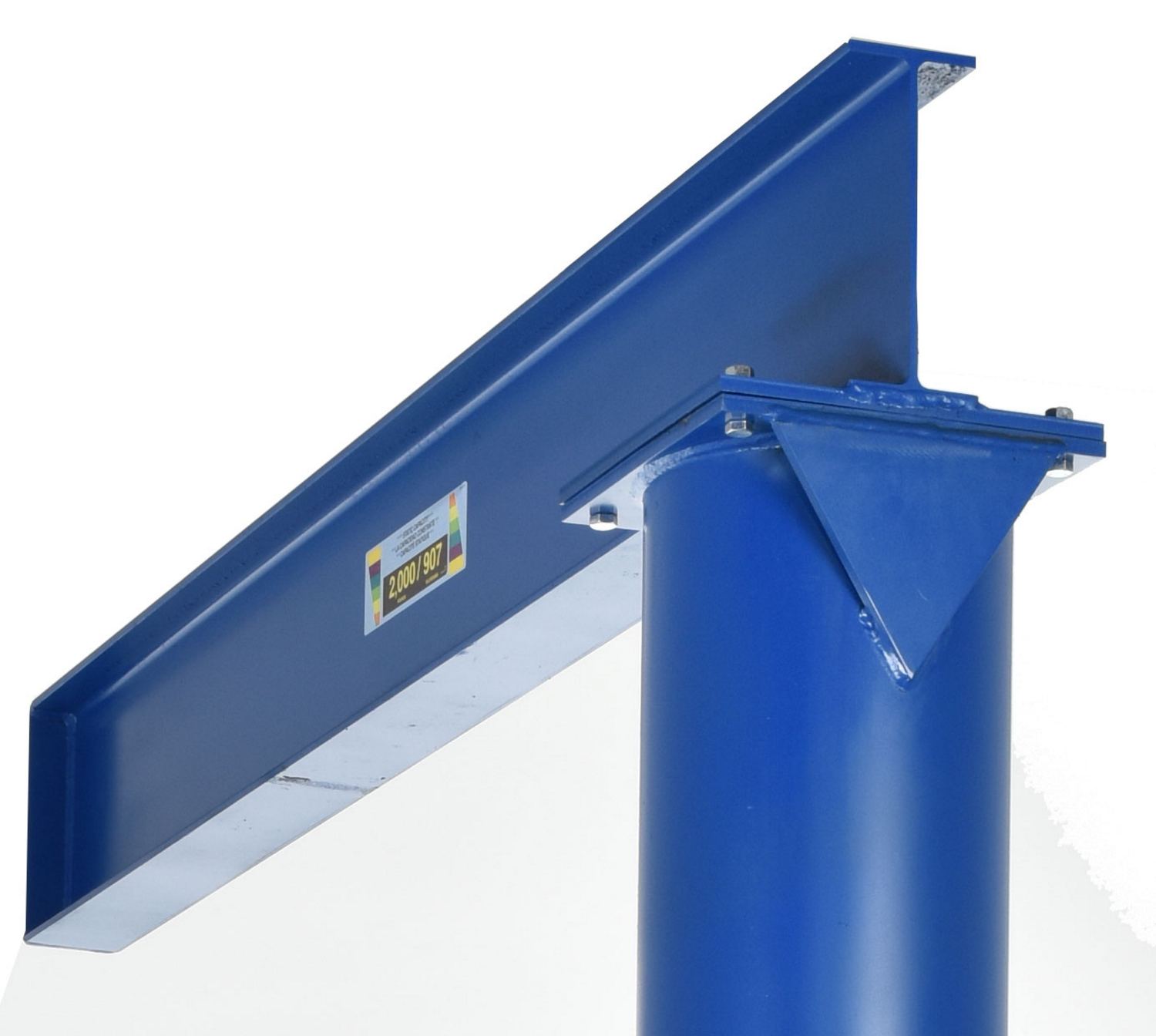

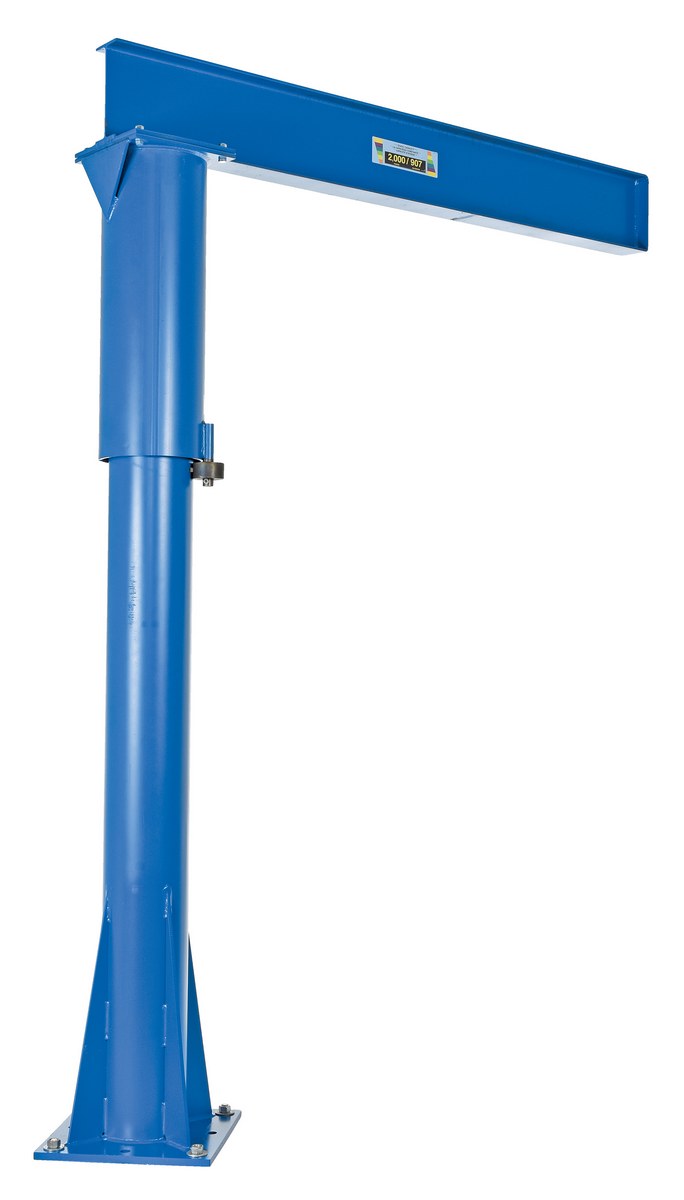

Floor Mounted JibsThis floor mounted jib adapts well to a variety of applications. With the unique design, the job is functional in any direction or complete customization of the work station. Solid steel construction will assist workers in lifting awkward material. The overall I-beam length is 80", except for model JIB-FM-40 which has an I-beam length of 80-3/8". Hoists & Trollies can be ordered seperately.

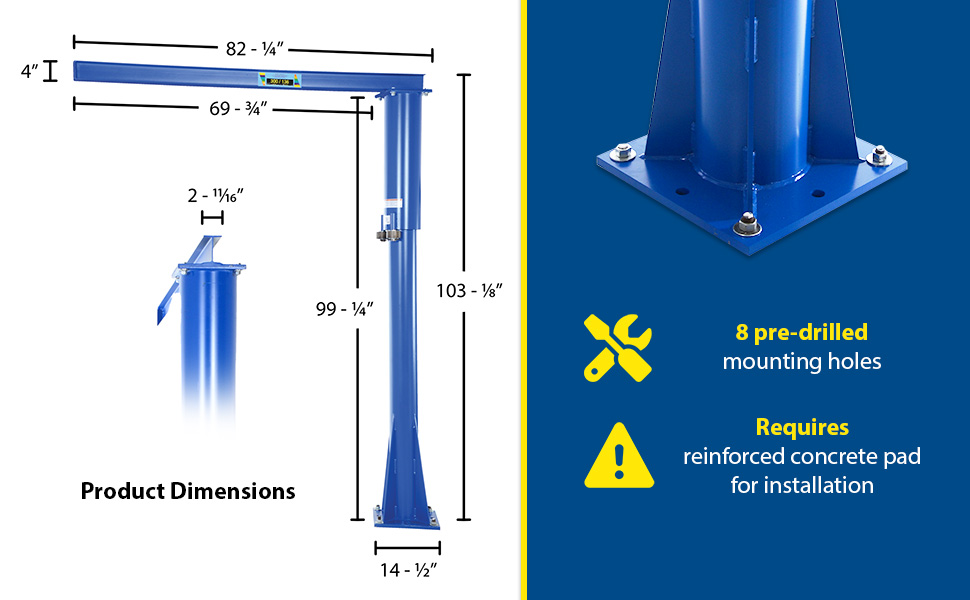

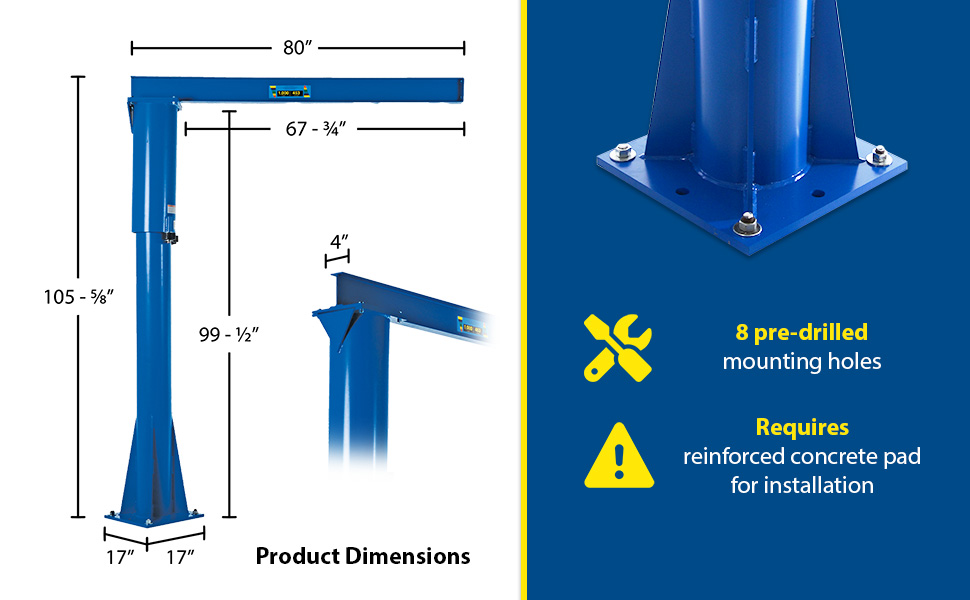

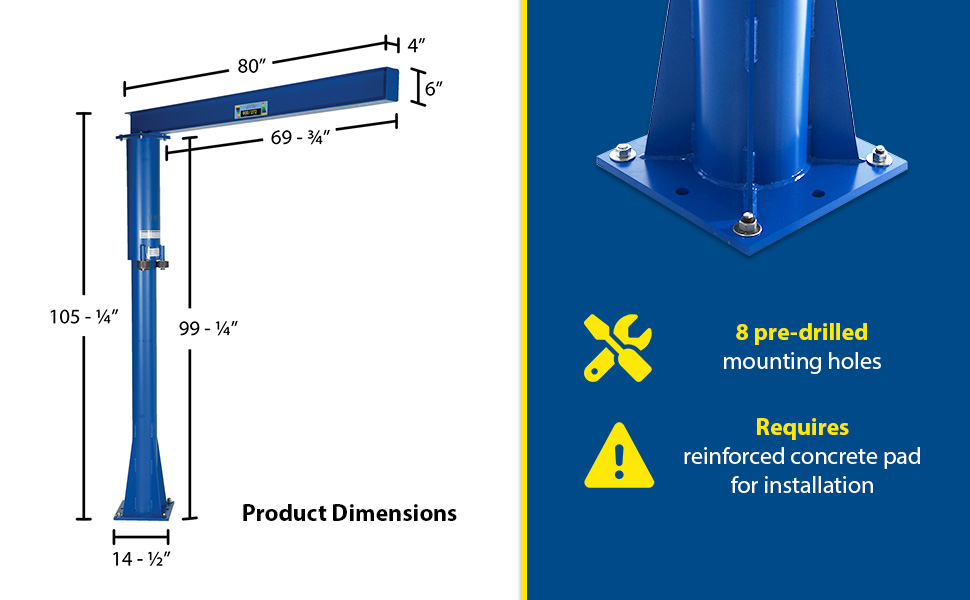

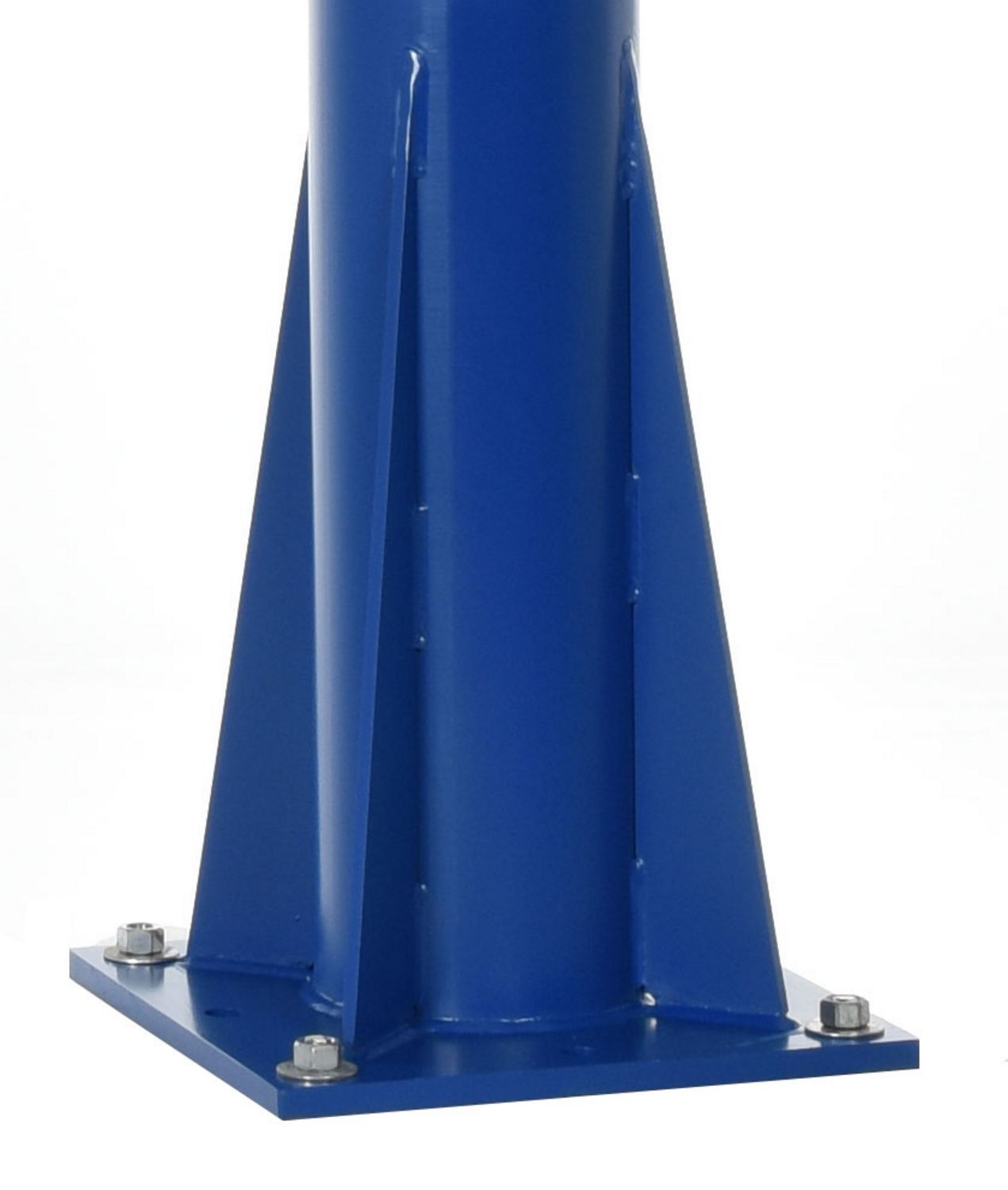

- Eight (8) pre-drilled mounting holes

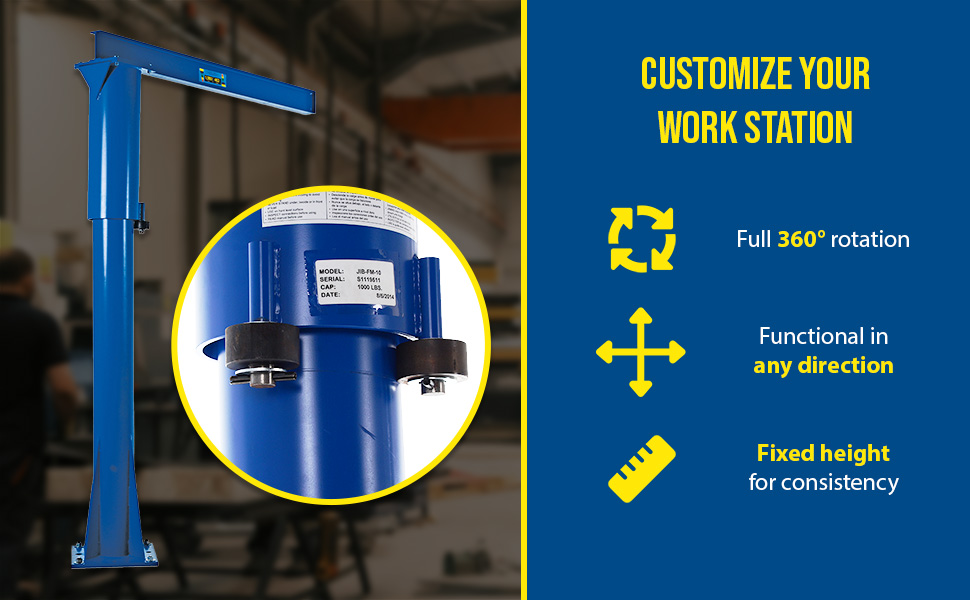

- Full 360 degree rotation
- Requires reinforced concrete pad for installation
- Fixed height design provides workplace consistency
Tripod Hoist Stands
Portable Offset Jib Cranes
Portable Jib Cranes
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

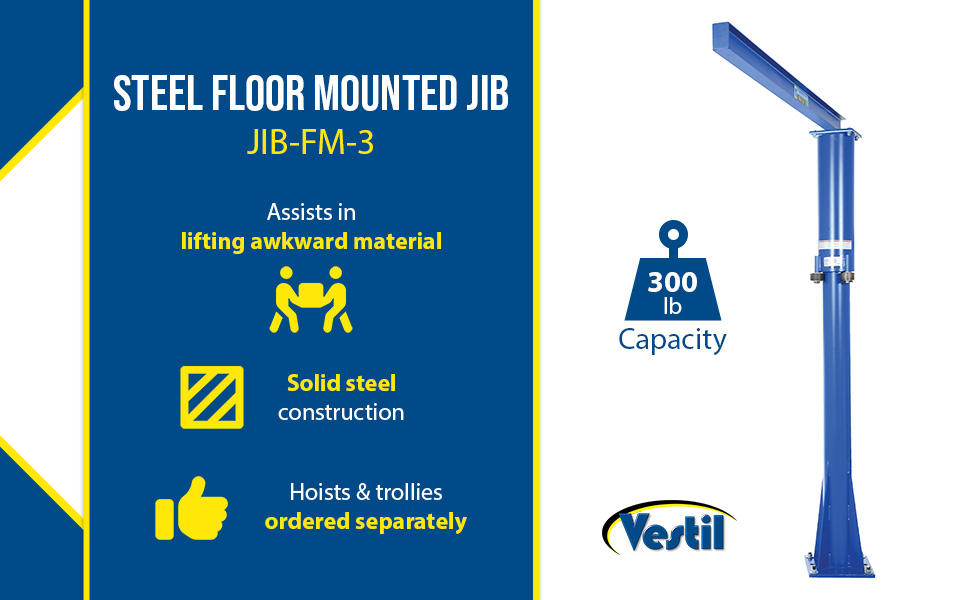

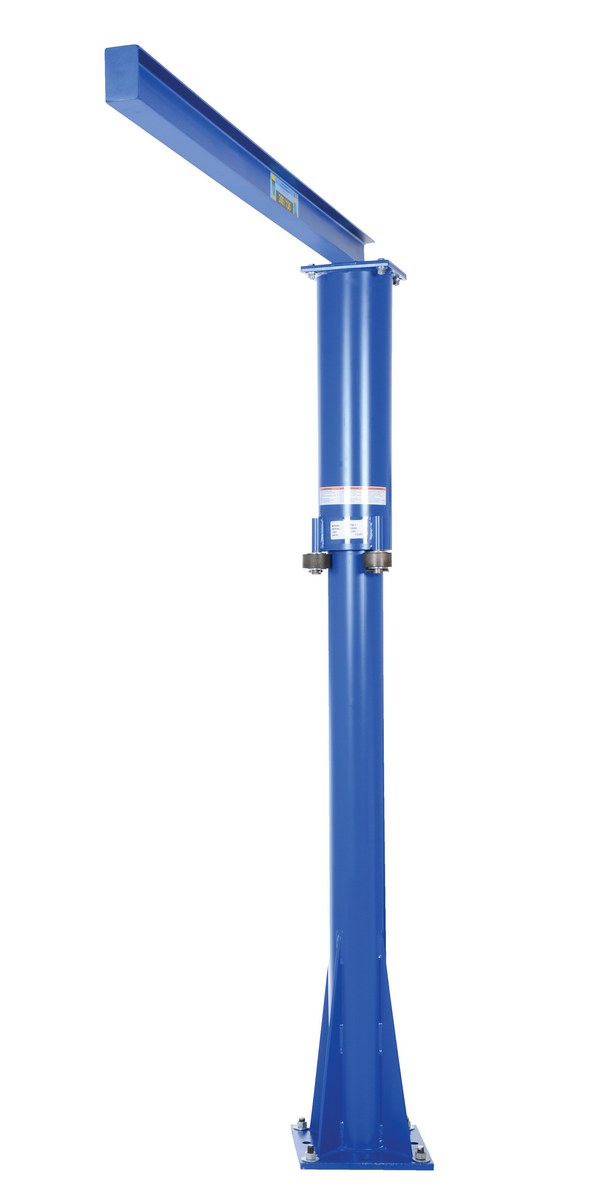

| JIB-FM-3 |  | 1 Year Limited Warranty | Steel Floor Mounted Jib 80 In. I-Beam 300 Lb. Capacity Blue | Uniform Capacity (lb.): 300 Under I-Beam to Ground Length (in.): 99-1/4 | 428 | ||

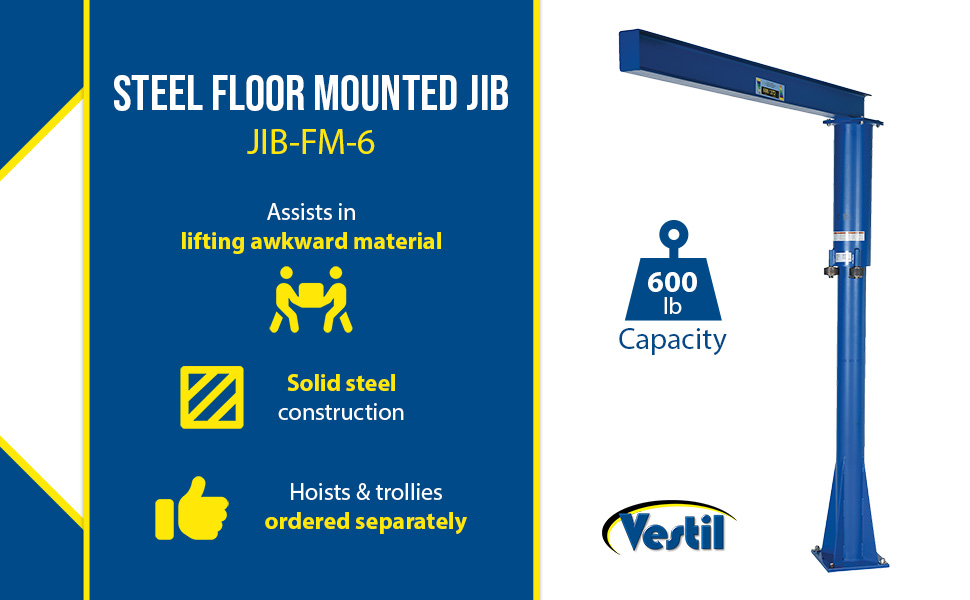

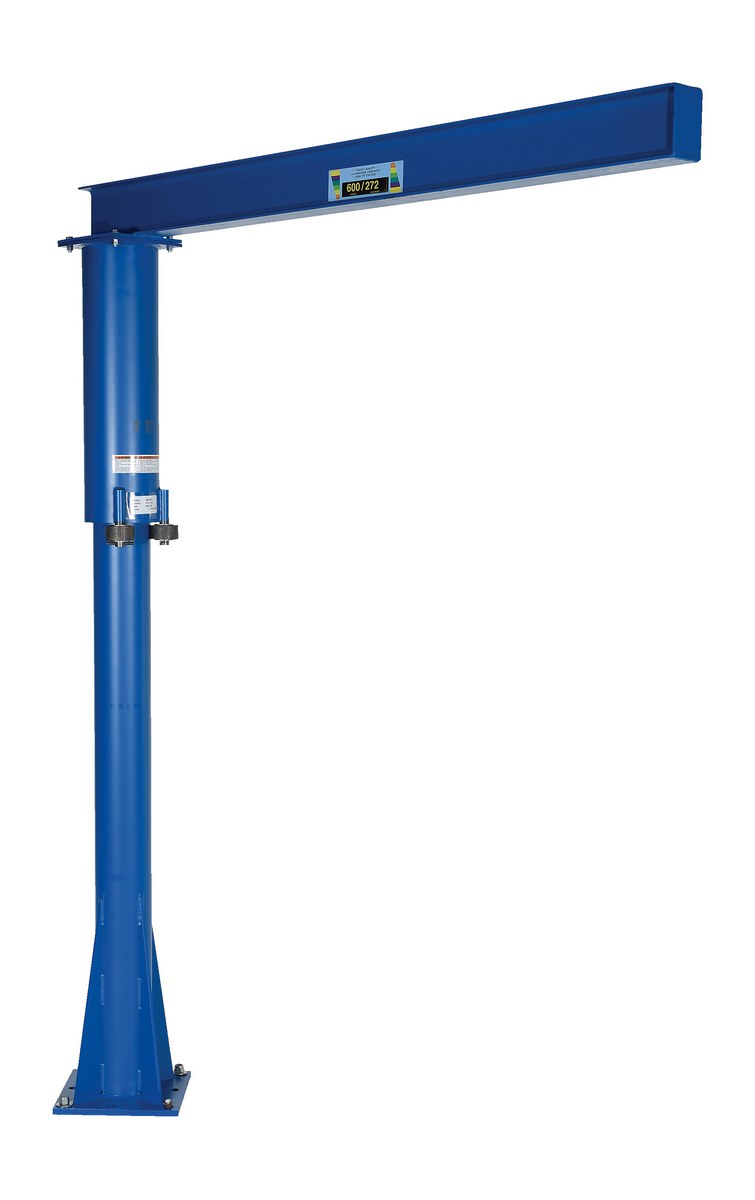

| JIB-FM-6 | POPULAR |  | 1 Year Limited Warranty | Steel Floor Mounted Jib 80 In. I-Beam 600 Lb. Capacity Blue | Uniform Capacity (lb.): 600 Under I-Beam to Ground Length (in.): 99-1/4 | 454 | |

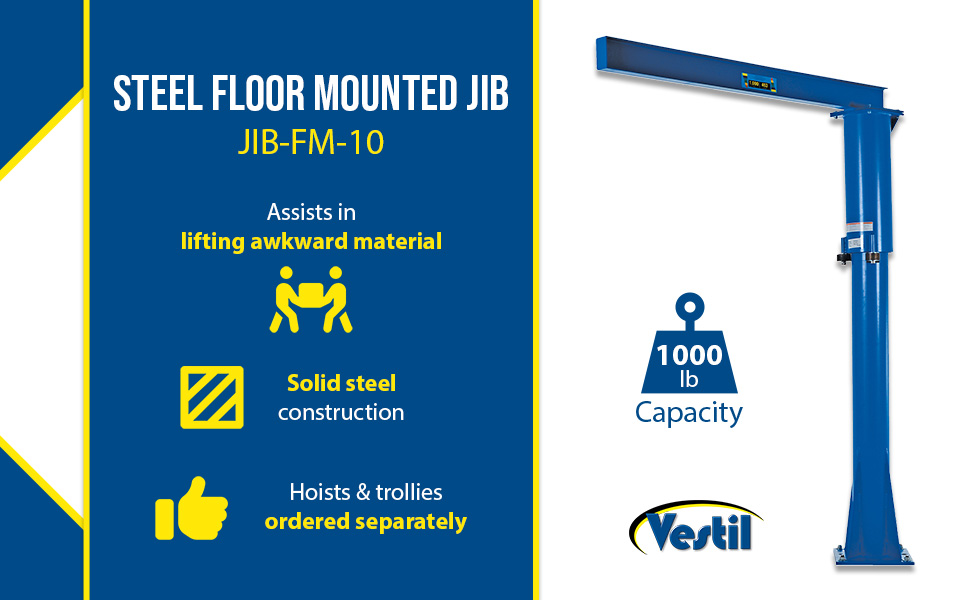

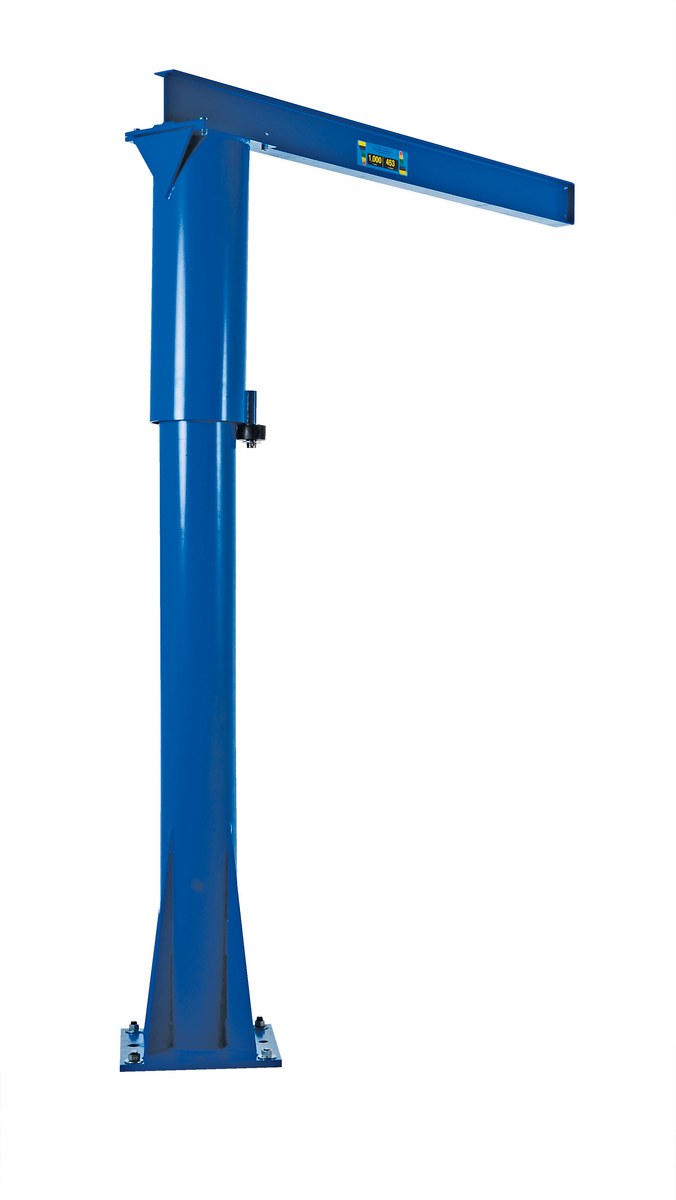

| JIB-FM-10 |  | 1 Year Limited Warranty | Steel Floor Mounted Jib 80 In. I-Beam 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Under I-Beam to Ground Length (in.): 99-1/2 | 610 | ||

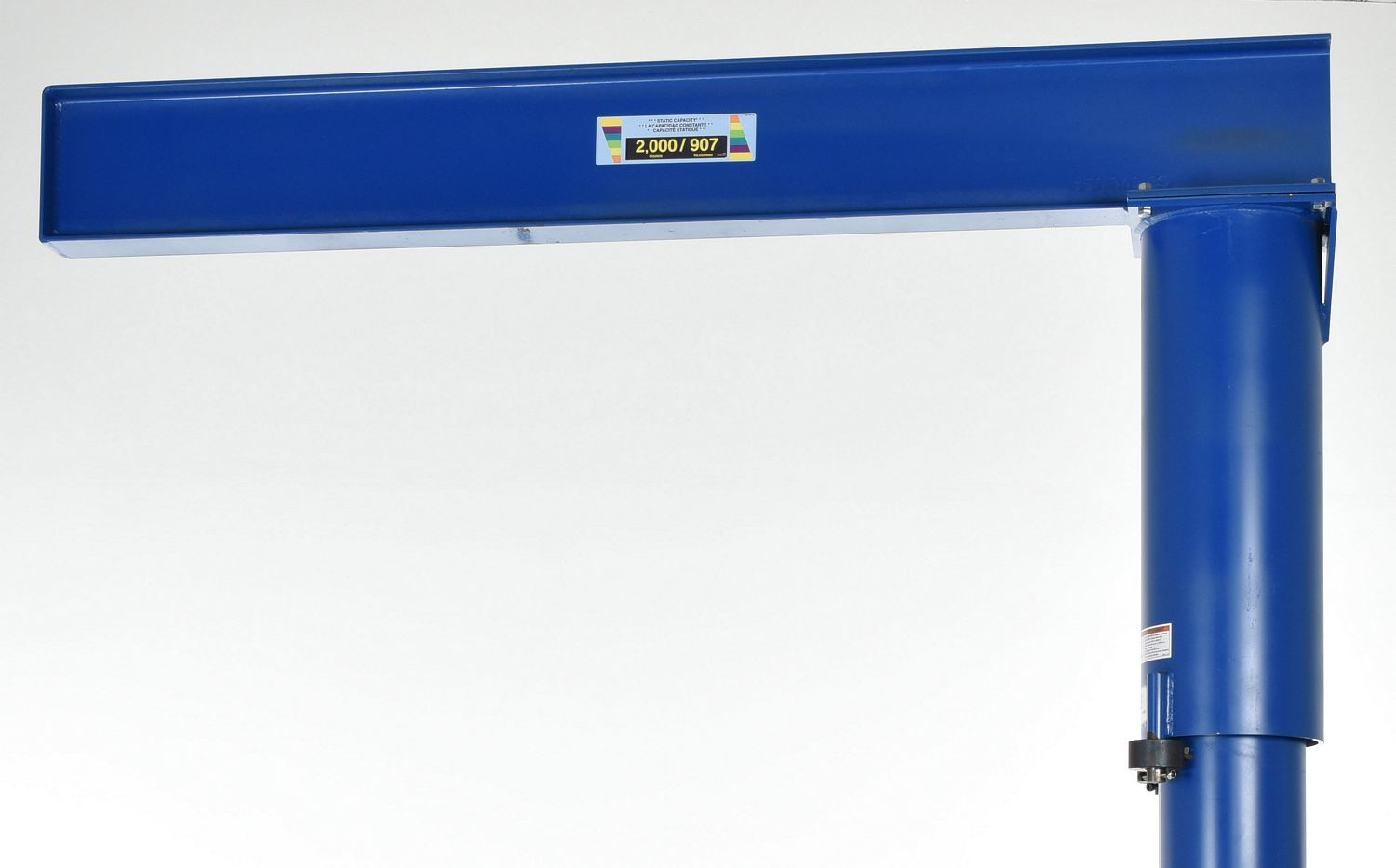

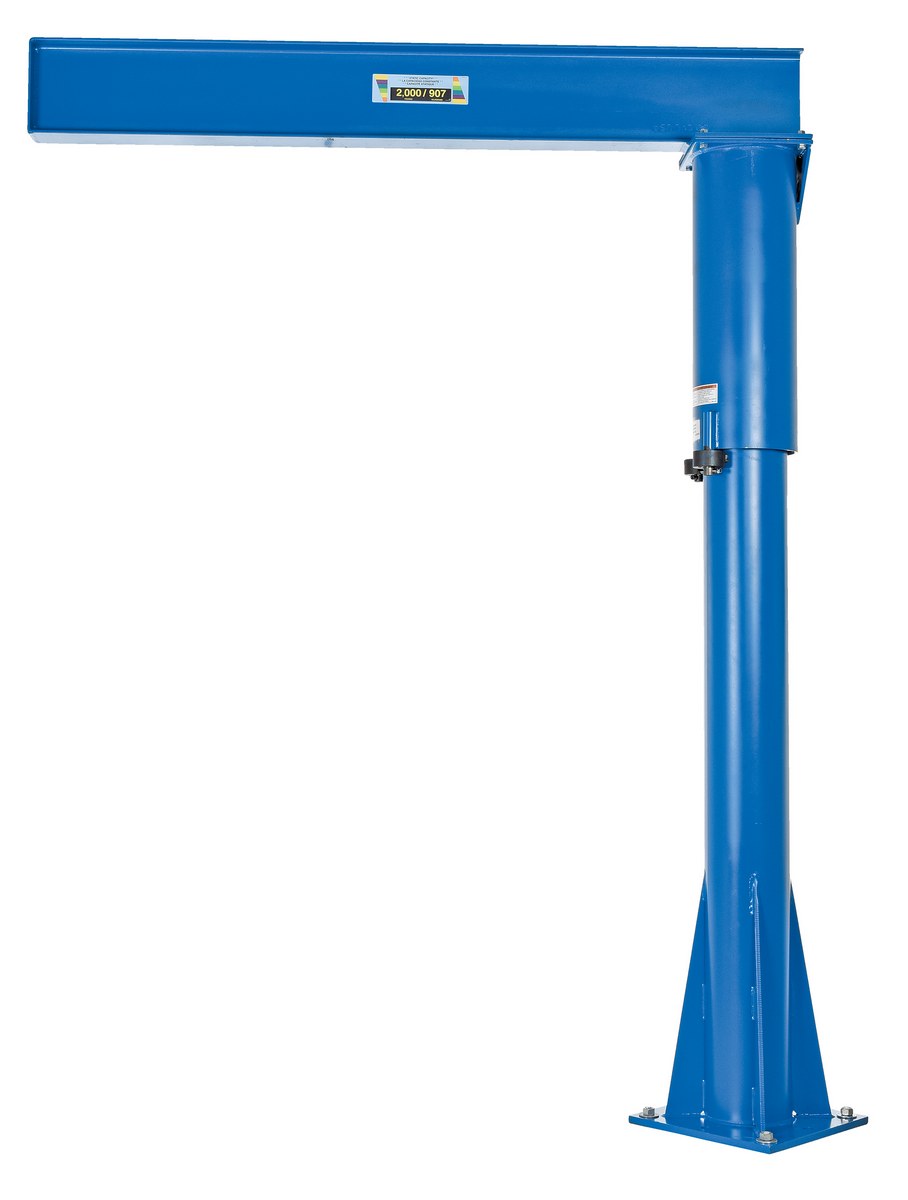

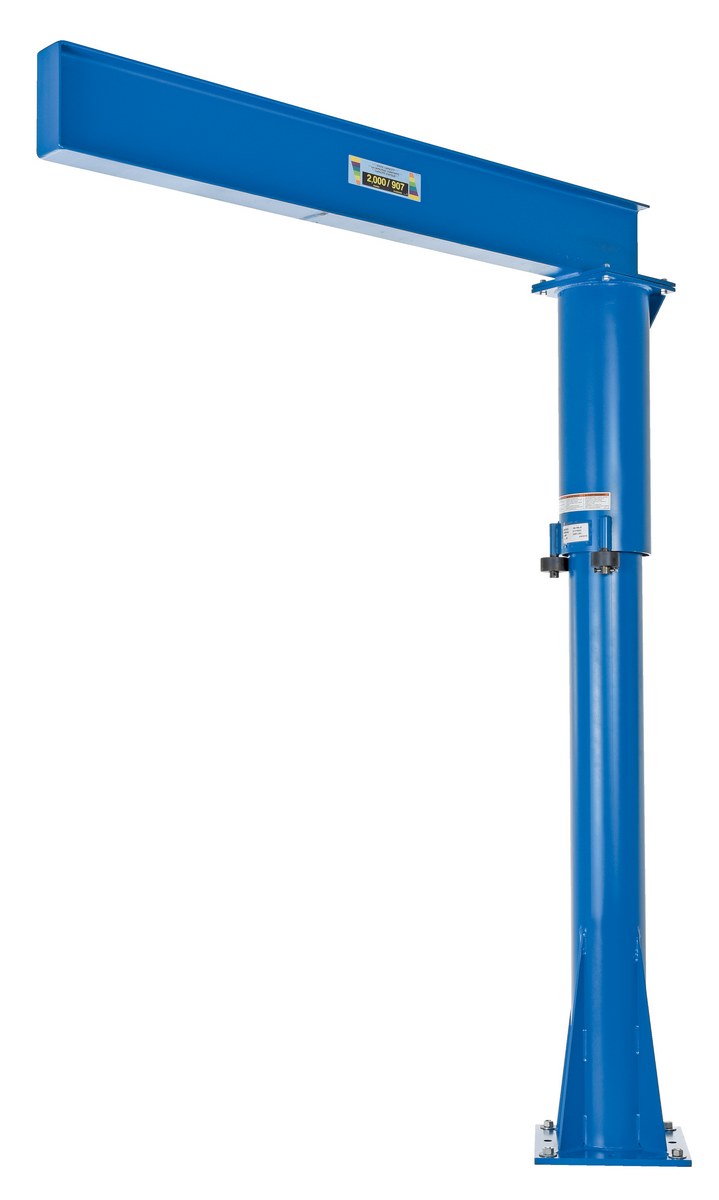

| JIB-FM-20 |  | 1 Year Limited Warranty | Steel Floor Mounted Jib 80 In. I-Beam 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Under I-Beam to Ground Length (in.): 99-1/2 | 651 | ||

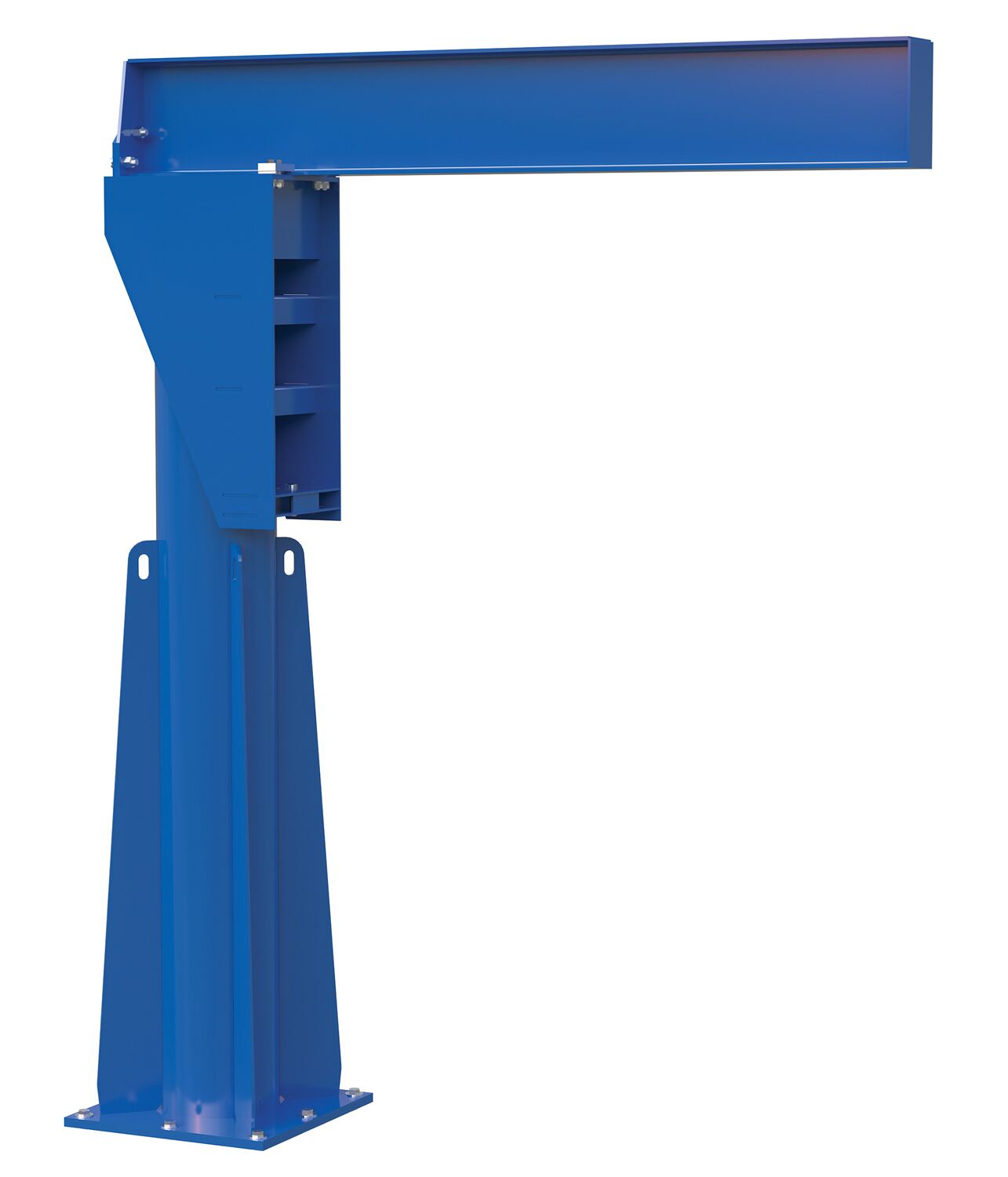

| JIB-FM-40 |  | 1 Year Limited Warranty | Steel Floor Mounted Jib 80-3/8 In. I-Beam 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Under I-Beam to Ground Length (in.): 99-1/4 | 783 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 99-1/4
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 99-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 99-1/4
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 99-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Under I-Beam to Ground Length (in.): 99-1/2
Uniform Capacity (lb.): 1000
Under I-Beam to Ground Length (in.): 99-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Under I-Beam to Ground Length (in.): 99-1/2
Uniform Capacity (lb.): 2000
Under I-Beam to Ground Length (in.): 99-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Under I-Beam to Ground Length (in.): 99-1/4
Uniform Capacity (lb.): 4000
Under I-Beam to Ground Length (in.): 99-1/4
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: I am interested in the floor mounted JIB. I have concrete where I want to install it. Must we pour a new foundation?
A: Because we do not know the condition and strength of the users concrete, pouring a new foundation is the only way we can guarantee the unit will not fail. We can only recommend installing per the instructions in the owners manual. Normal use of the jib causes vibrations that could potentially loosen a wedge anchor. We spec out J-anchors for use in new concrete.

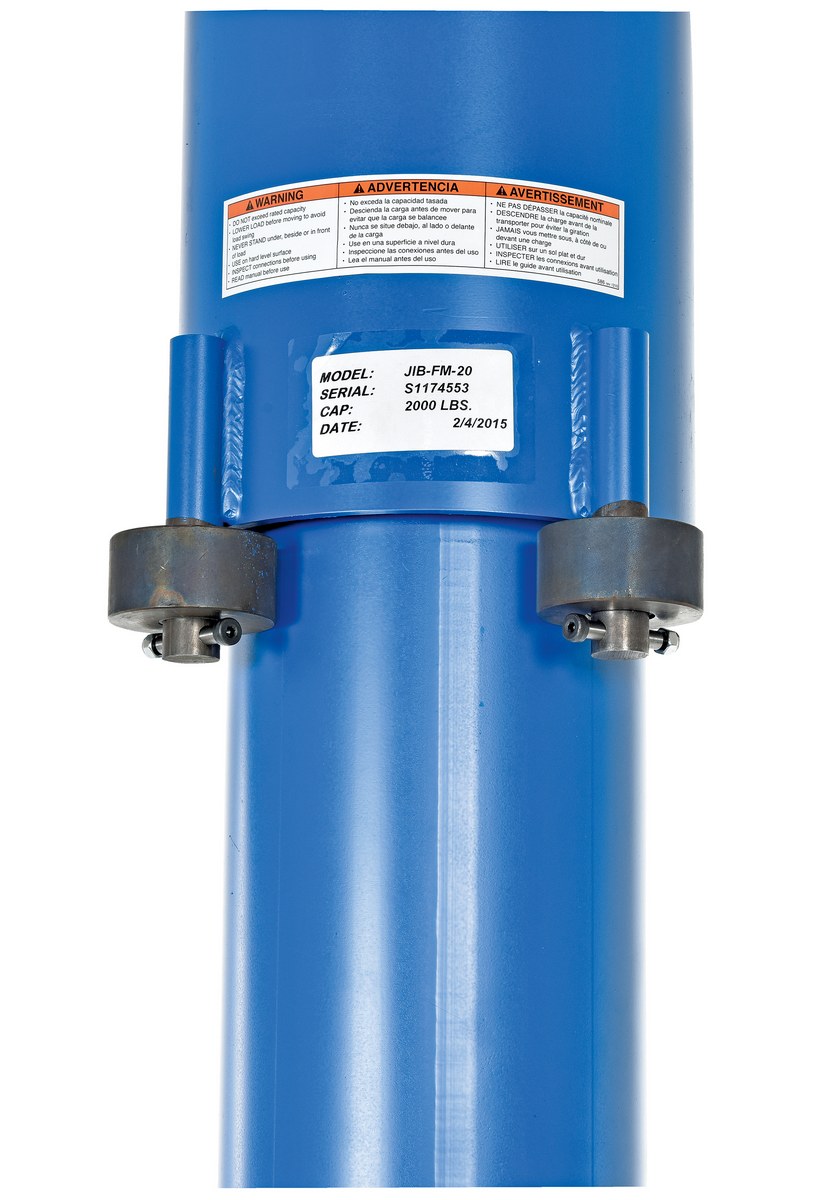

Q: Do you have any type of guard to protect from the pinchpoint of the lower guide wheel/rollers ?
A: Yes, we can add a guard to the floor mounted JIB. Please contact a sales associate for details to modify this unit.
Q: Do you have any type of stop to keep the JIB from rotating 360°?
A: Yes, our engineering team can add a rotation stop. Please contact a sales associate for details.
Q: Do the j bolts that you anchor the base in the concrete come with the JIB?
A: No. The "J BOLTS" do not come with the floor mounted JIB.
