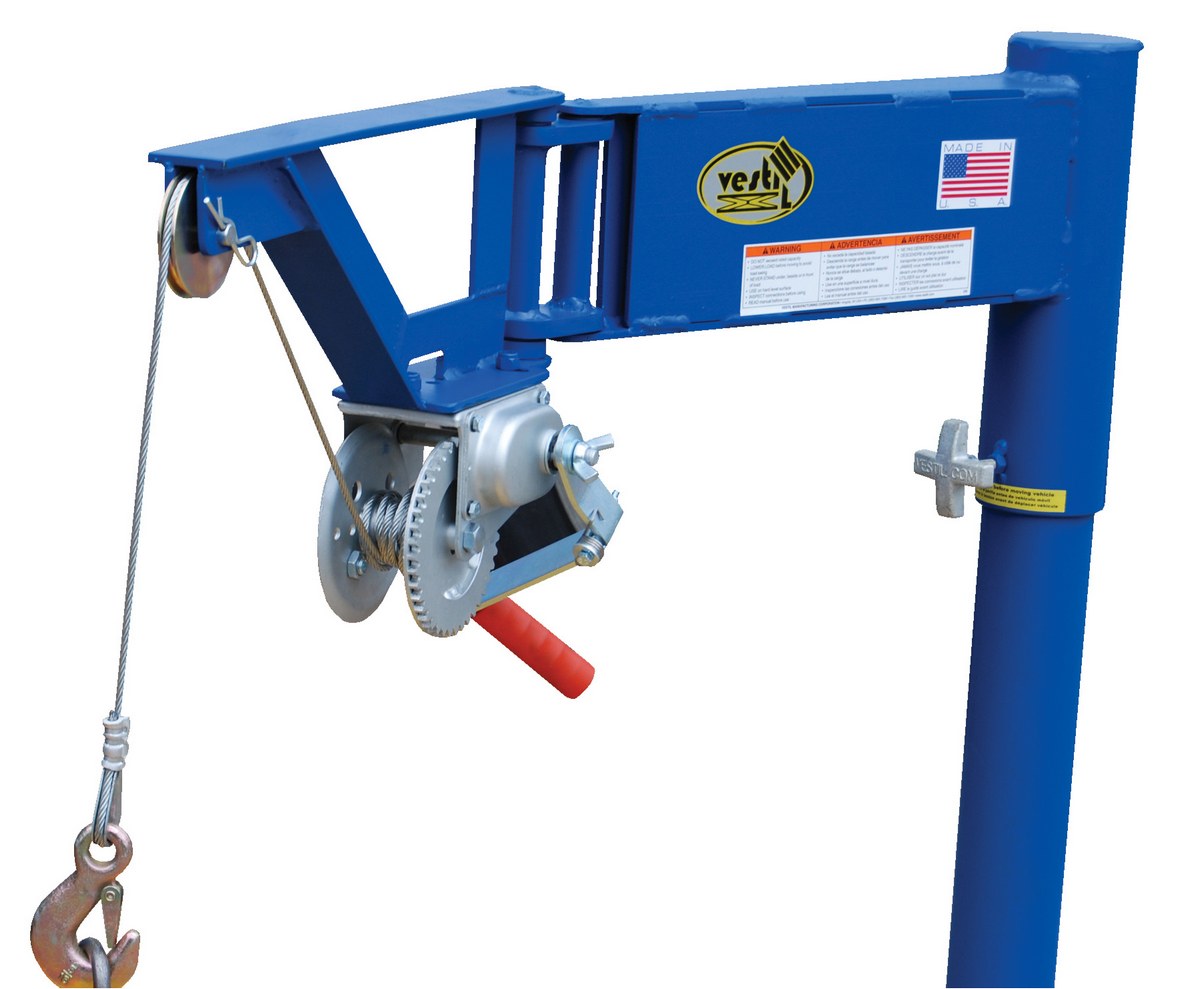

Lifter JibsLift items from the ground to van floor height, then rotate into cargo area. Manual, DC battery powered, and AC electrically powered winches are available. AC powered winch has a lift speed of 10 ft. per minute and DC powered at 7 ft. per minute at full capacity load. AC powered winch includes toggle switch. DC powered winch includes a pendant control. Battery powered winch includes 36" long leads. Battery not included. Van floor to raised hook height is 36-1/8". Double-pivot arm for use in tight spaces. Overall height is 46-1/16". Swing reach is 0" to 39-3/4". Steel construction. Painted finish. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
- Double-arm design allows for better operation and use in tight spaces
- Arm manually rotates 360 degrees for maximum versatility
- Welded steel construction offers a rugged long lasting use
- Pre-drilled mounting holes make installation quick and easy
Power Lift Jib Cranes
Hitch-Mounted Truck Jib Crane
Counter Balanced Floor Cranes
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

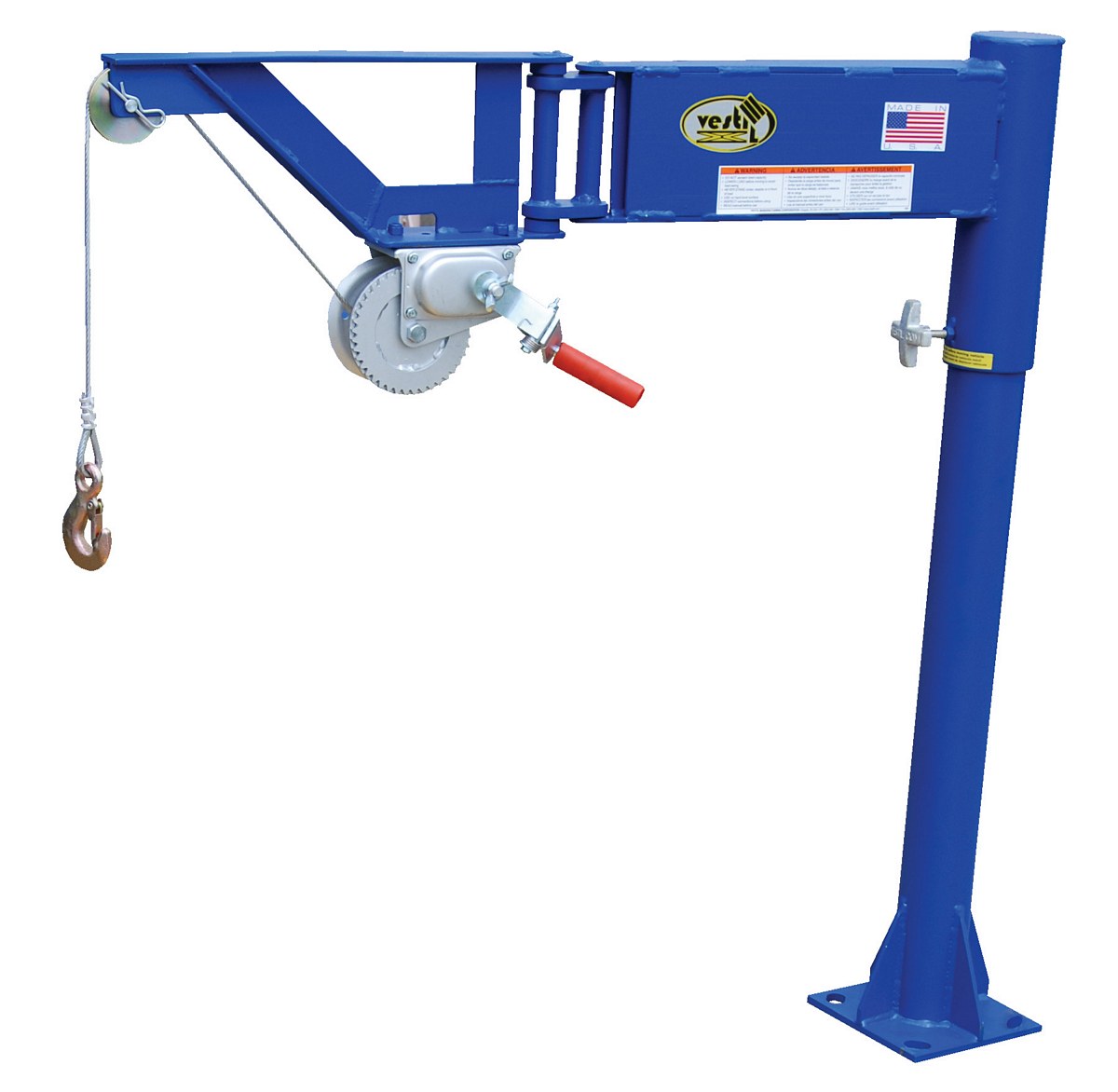

| VAN-J |  | 90 Days Limited Warranty | Steel Manual Lifter Jib 400 Lb. Capacity Blue | Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 | 143 | ||

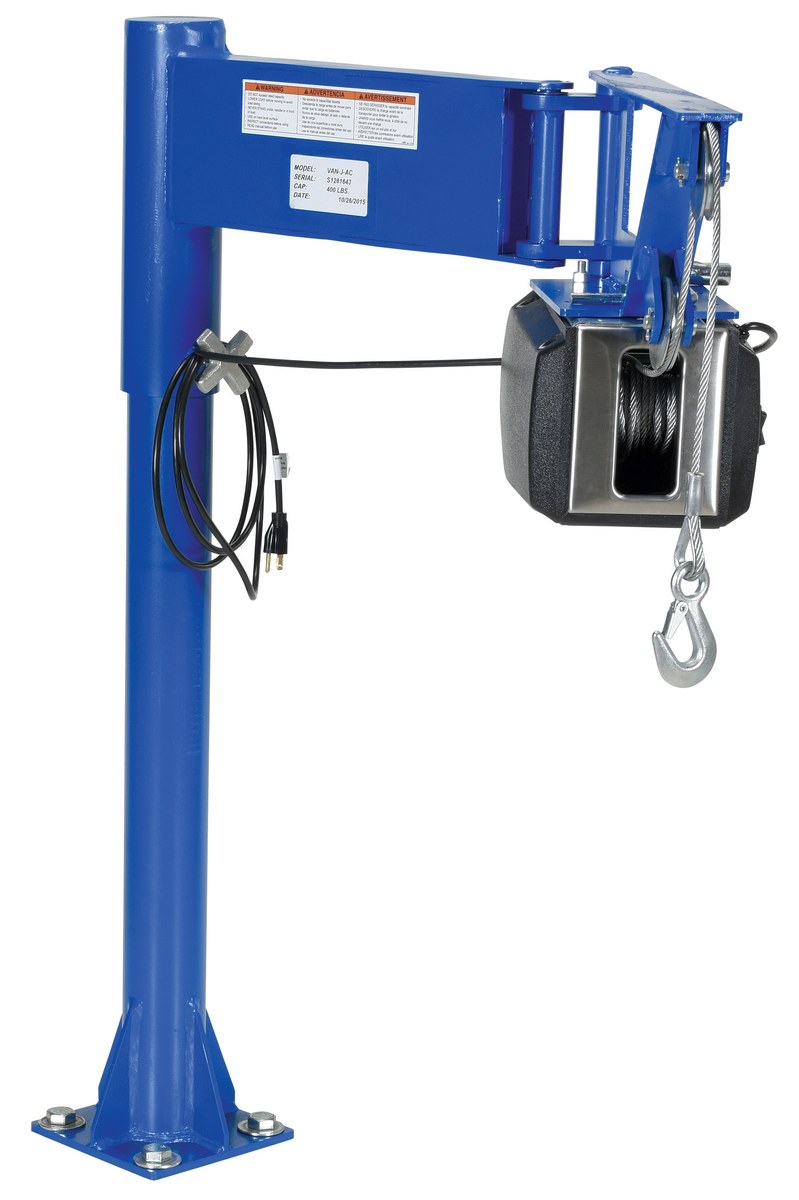

| VAN-J-AC |  | 90 Days Limited Warranty | Steel AC Powered Lifter Jib 400 Lb. Capacity Blue | Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 | 145 | ||

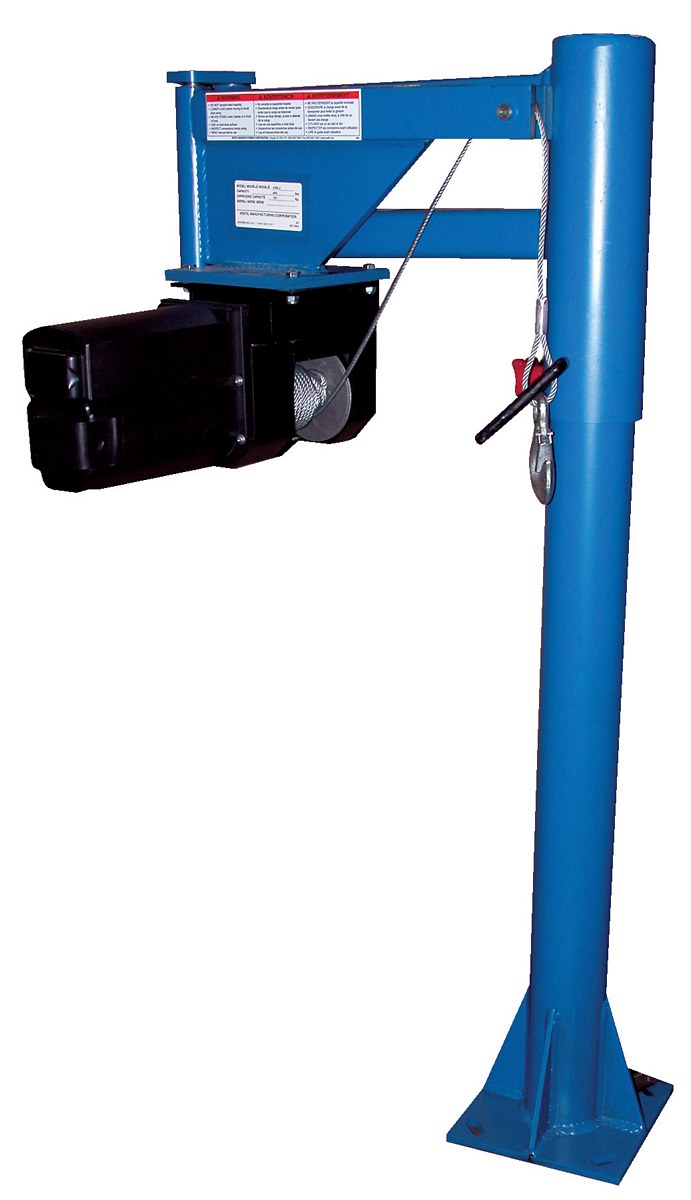

| VAN-J-DC | POPULAR |  | 90 Days Limited Warranty | Steel DC Powered Lifter Jib 400 Lb. Capacity Blue | Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 | 145 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
For More Details of the Option Click the Red Model Button

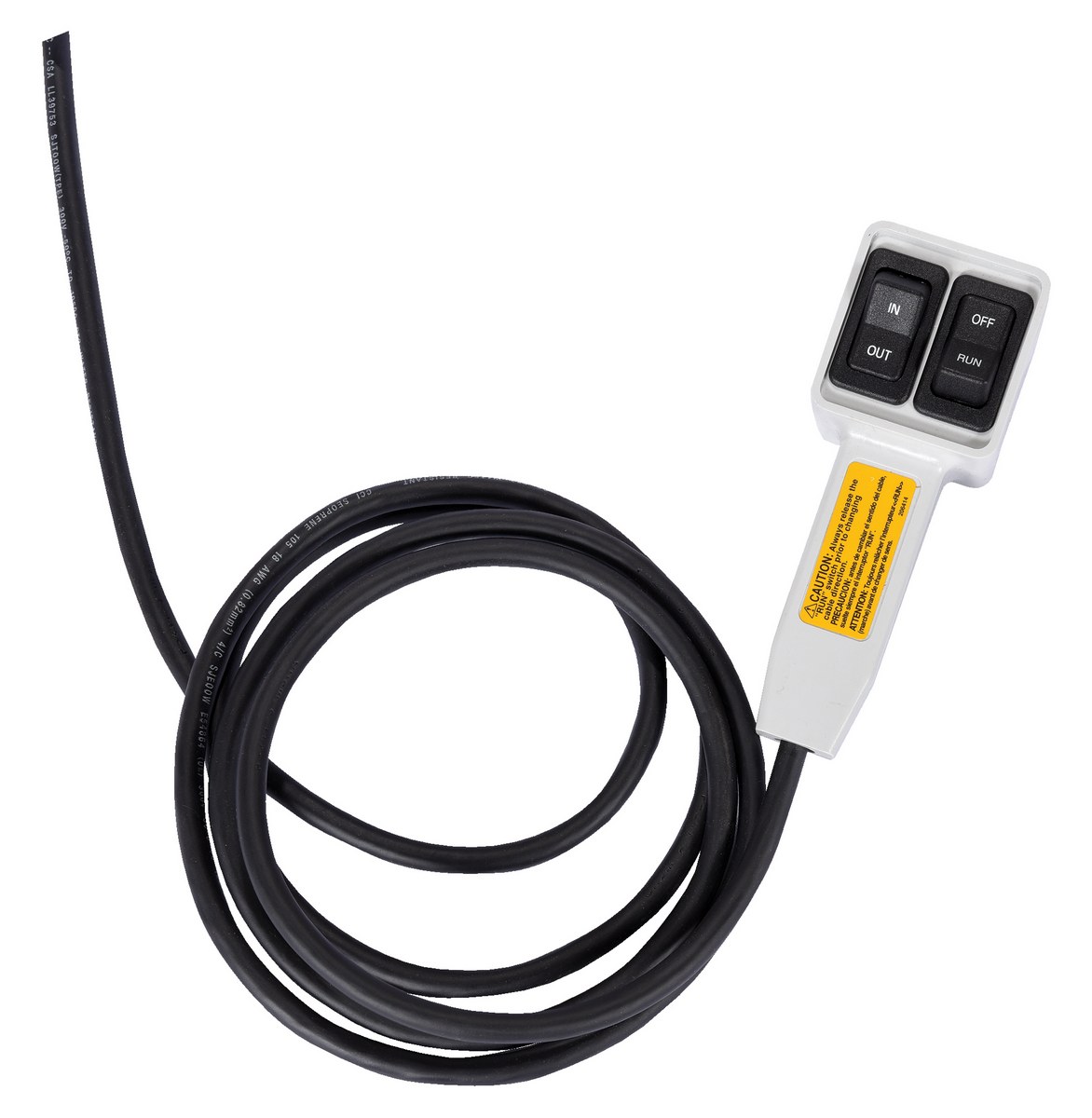

| WINCH-AC-HHPB |  | 30 Days Limited Warranty | Factory Installed Hand Held Push Button Control For AC Powered Jib Cranes | Cord Length (in.): 96 | 5 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Can the JIB be used outside?
A: The VAN-J and the VAN-J-DC are powder-coat carbon steel, however the winch is not waterproof and cannot be used outside.
Q: What is the diameter of the "Pole".
A: The diameter of the pole is 3-1/2".
 |
||||||||||||||||||||||
