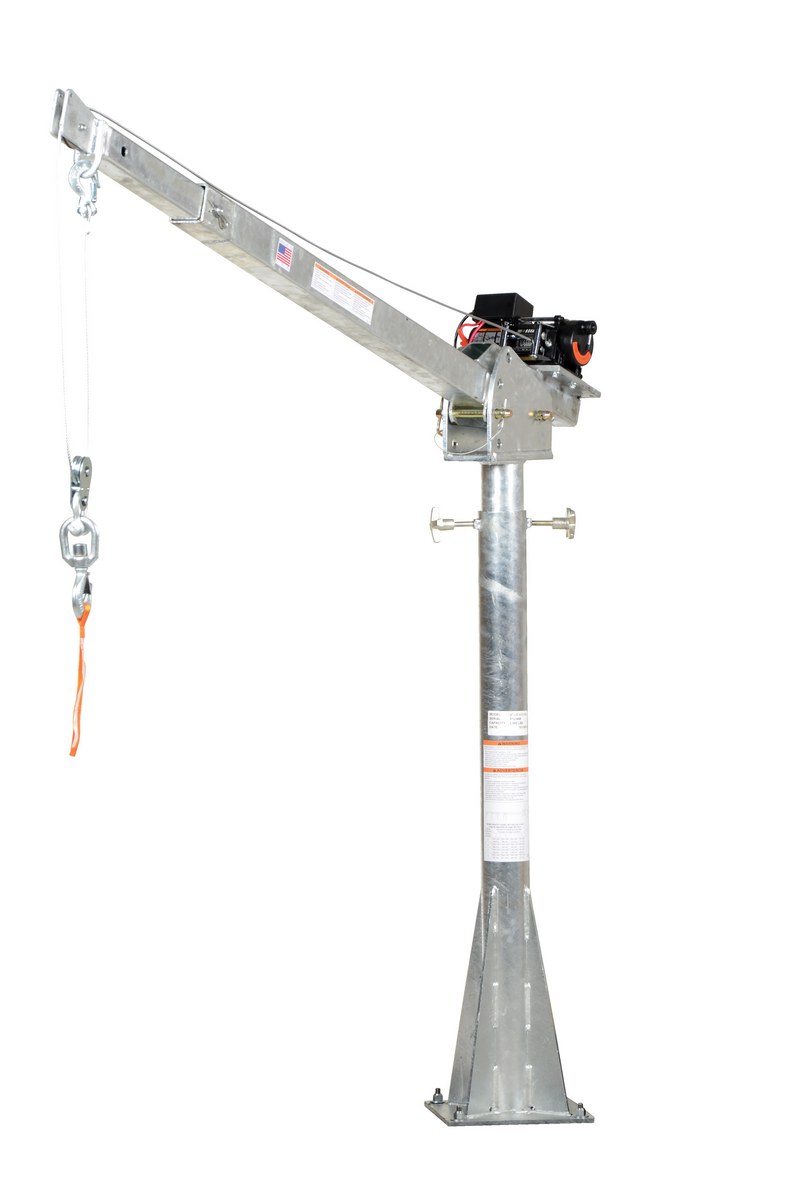

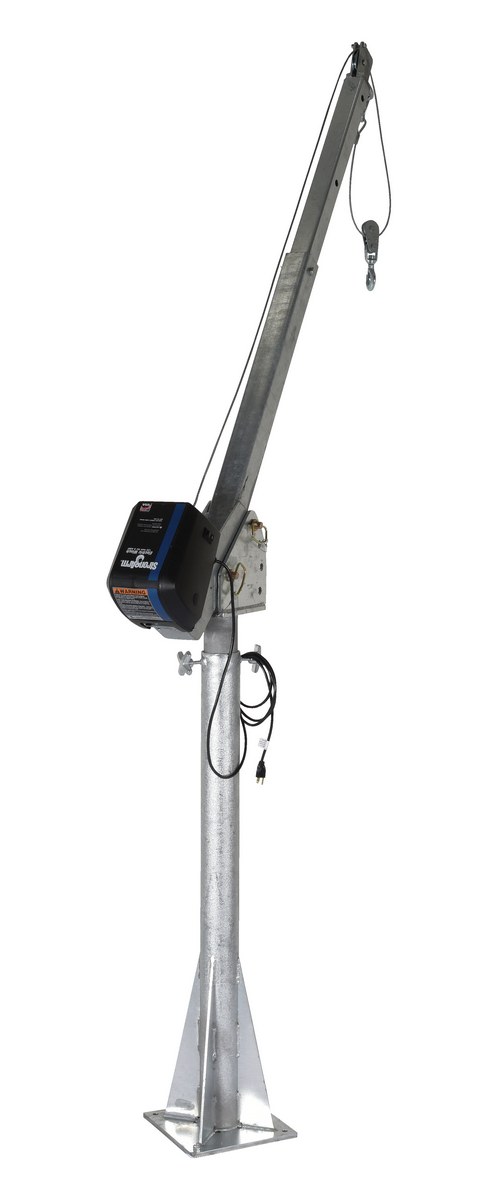

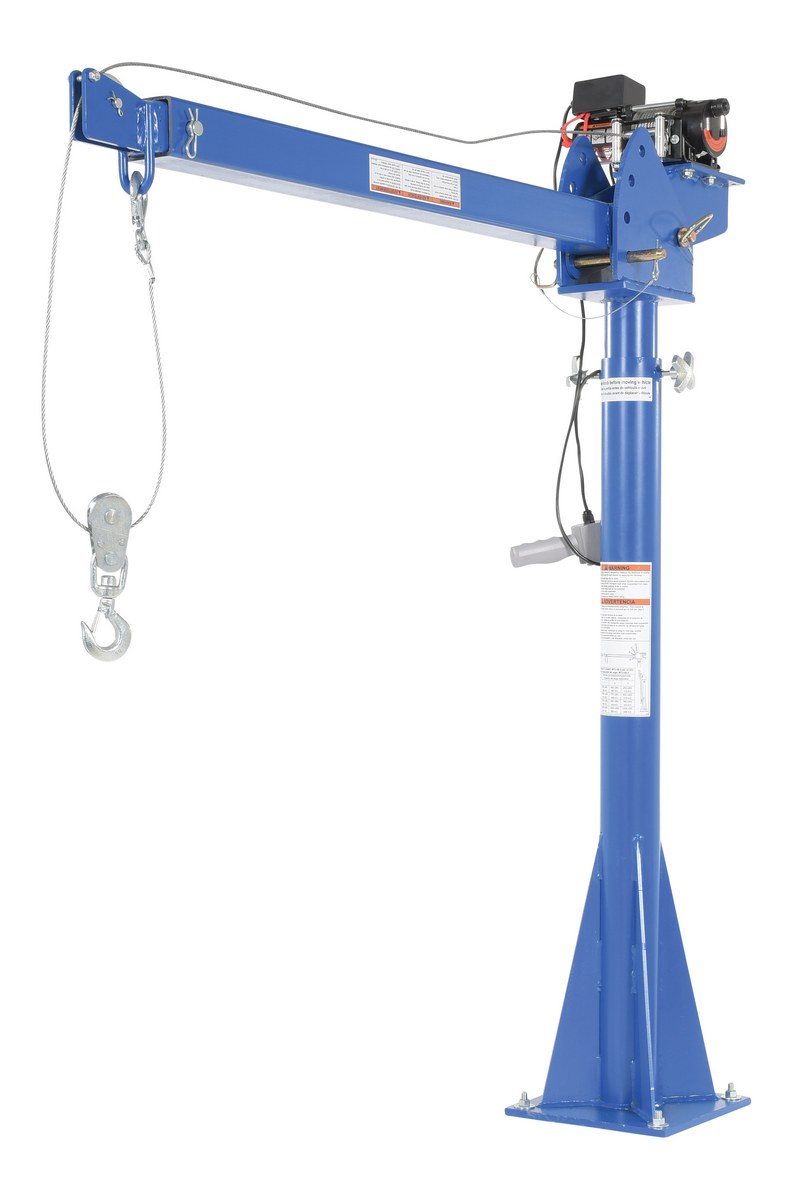

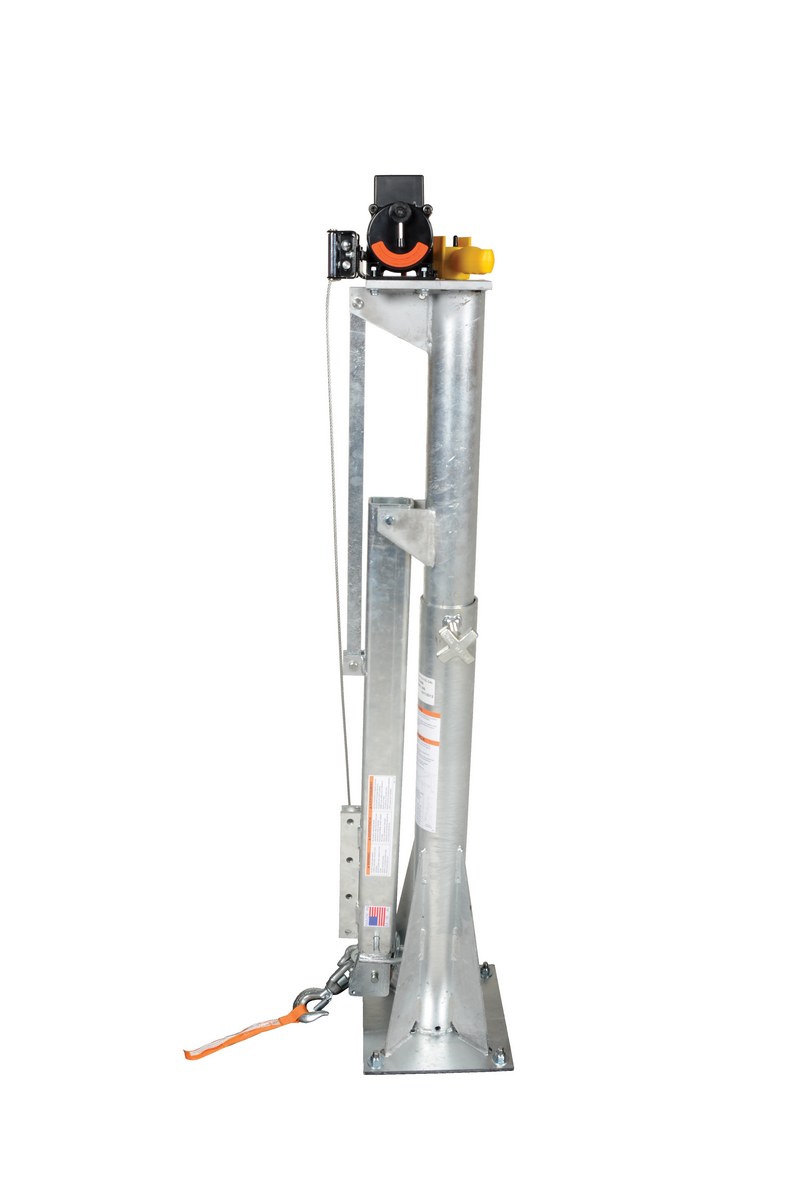

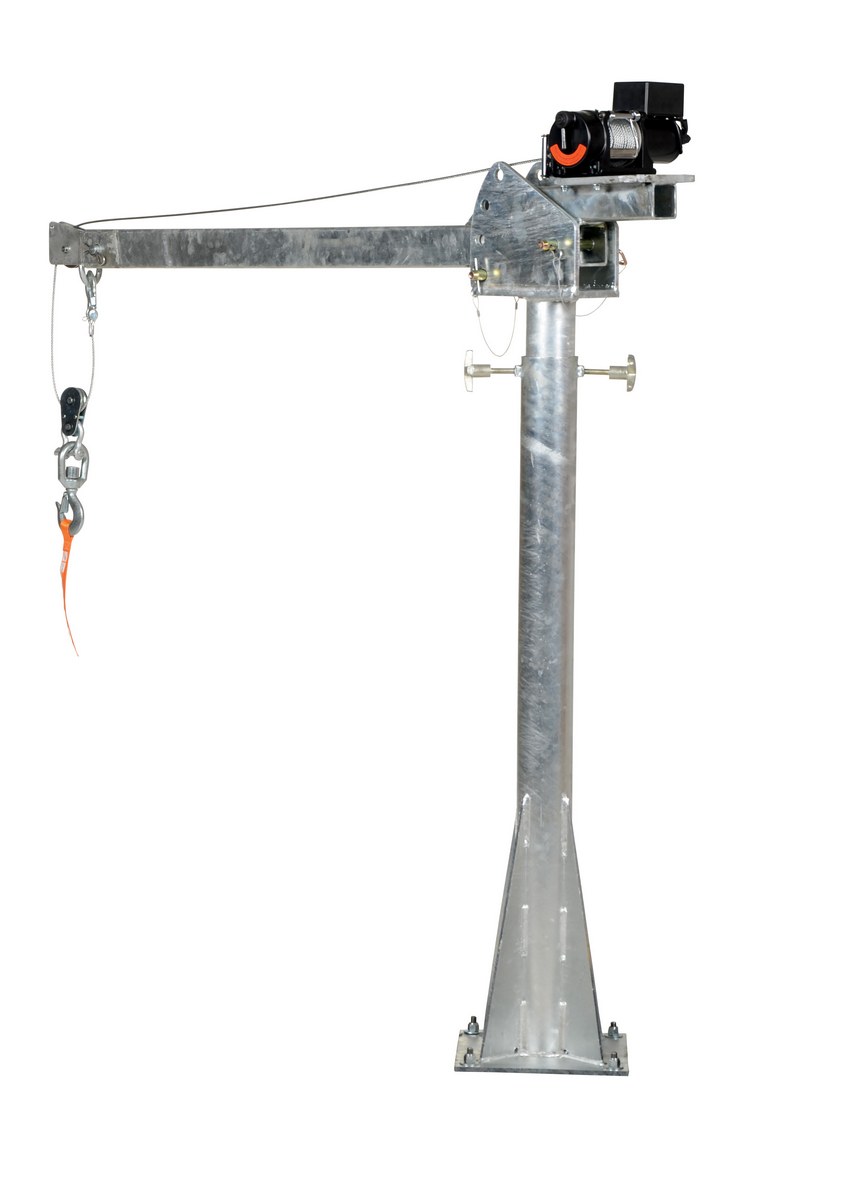

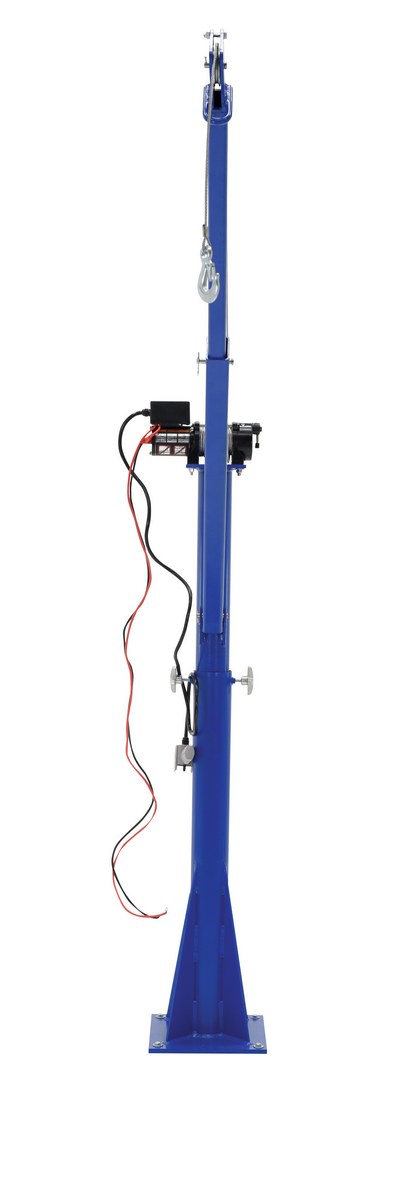

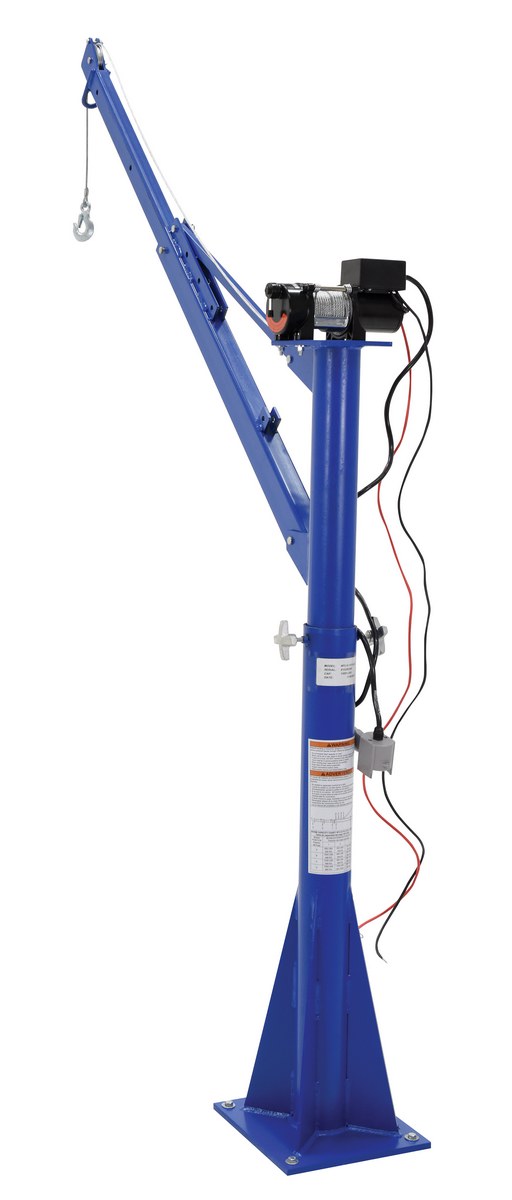

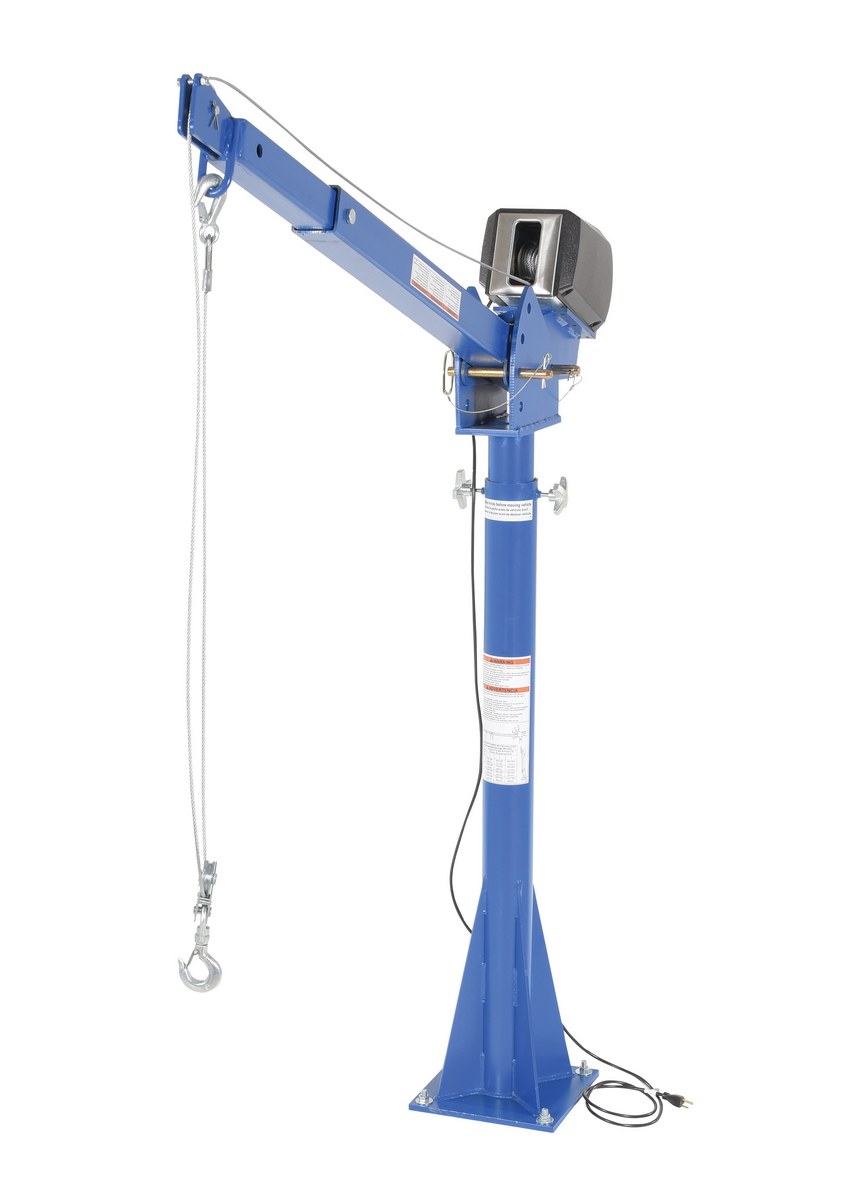

Power Lift Jib CranesDesigned for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.
- Powered cable winch makes lifting and maneuvering easy
- Boom telescopes in and out for greater reach and versatility
- 360 Degrees swivel design allows for maximum accessibility
- Pre-drilled base plate makes mounting quick and easy
Air/Hand Pump Hydraulic Shop Crane
Shop Crane Engine Hoists
Pallet Truck HoistAdditional Models In This Family
WTJ-E-15-3-DC-GAL
WTJ-E-15-3-AC
WTJ-20-4-DC
WTJ-E-15-3-DC
WTJ-E-15-3-AC-CSA
WTJ-20-3-AC-CSA-GAL
WTJ-E-15-3-DC-GAL
WTJ-20-3-AC
WTJ-20-3-DC-GAL
WTJ-E-15-3-AC-CSA
WTJ-E-15-3-AC
WTJ-20-4-AC-CSA
WTJ-20-4-DC
WTJ-E-15-3-AC-GAL
WTJ-20-4-DC-GAL
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| WTJ-20-3-AC |  | 90 Days Limited Warranty | Steel AC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 280 | ||

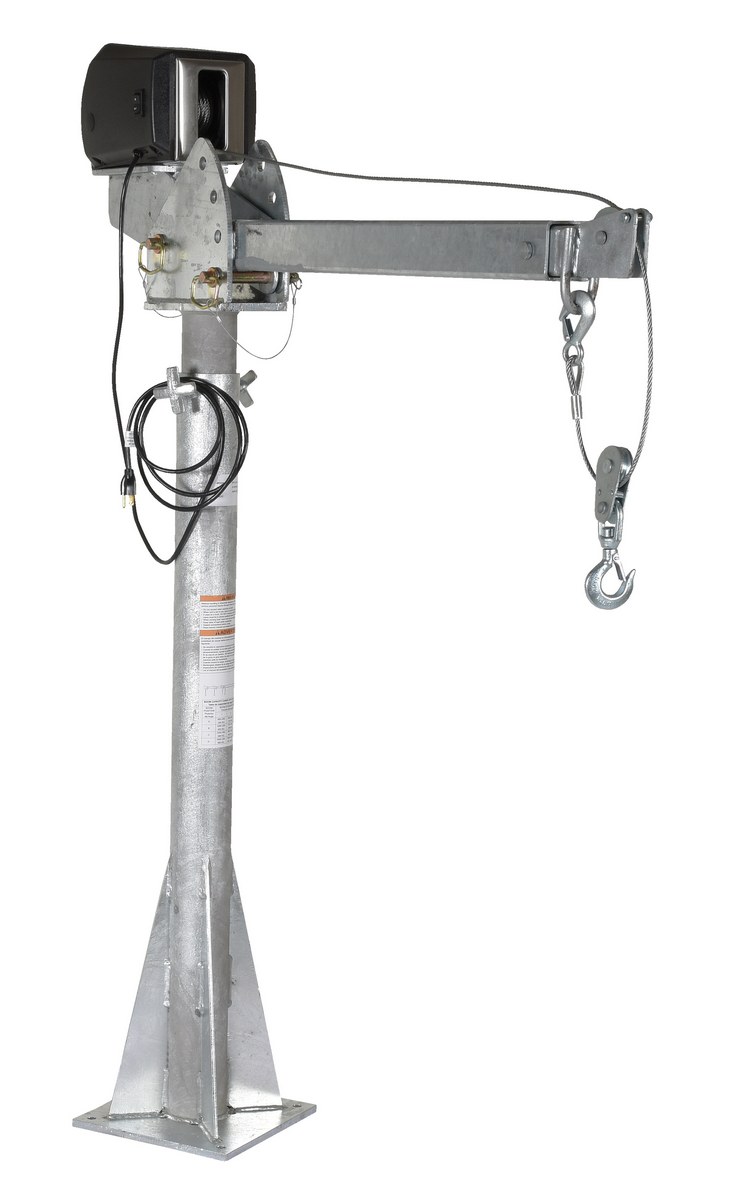

| WTJ-20-3-AC-GAL |  | 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 284 | ||

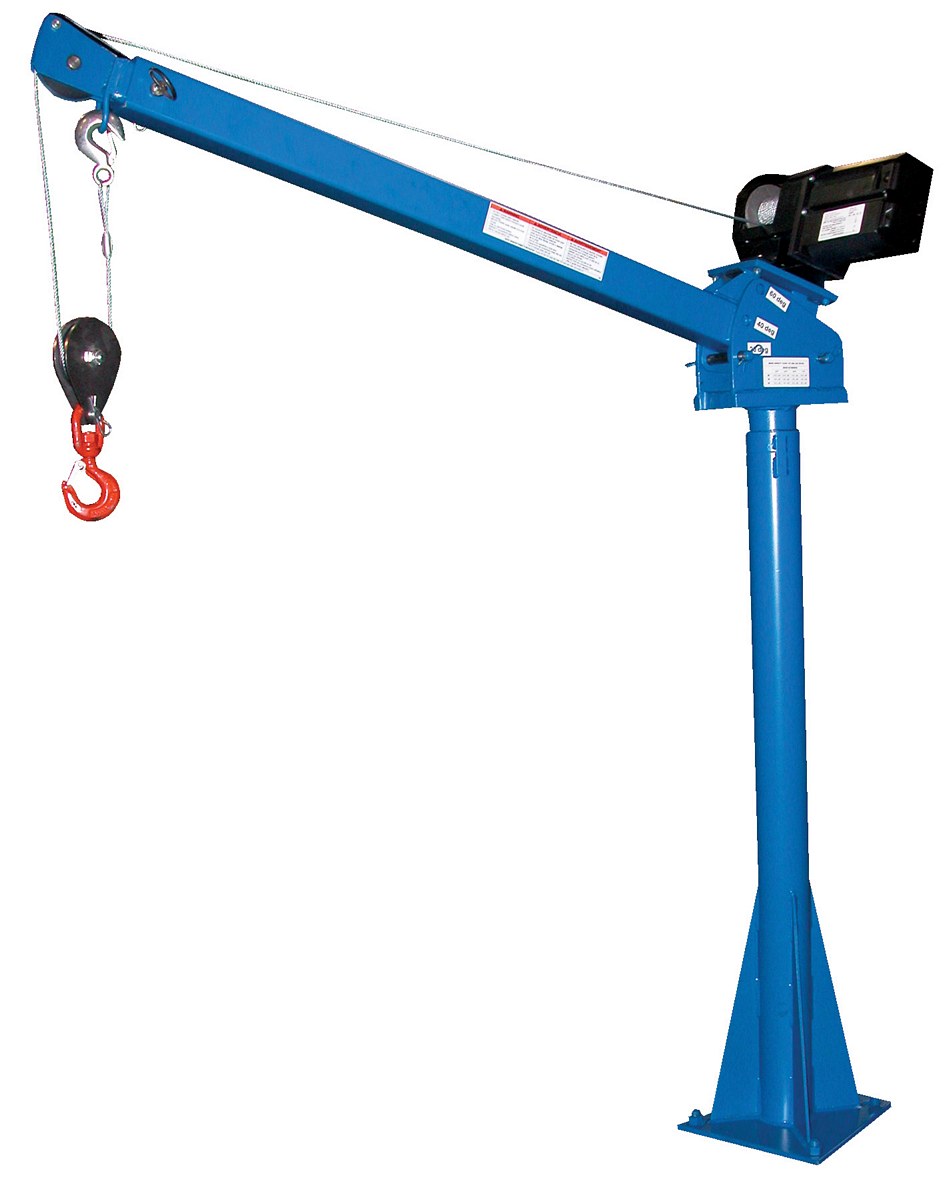

| WTJ-20-3-DC |  | 90 Days Limited Warranty | Steel DC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 261 | ||

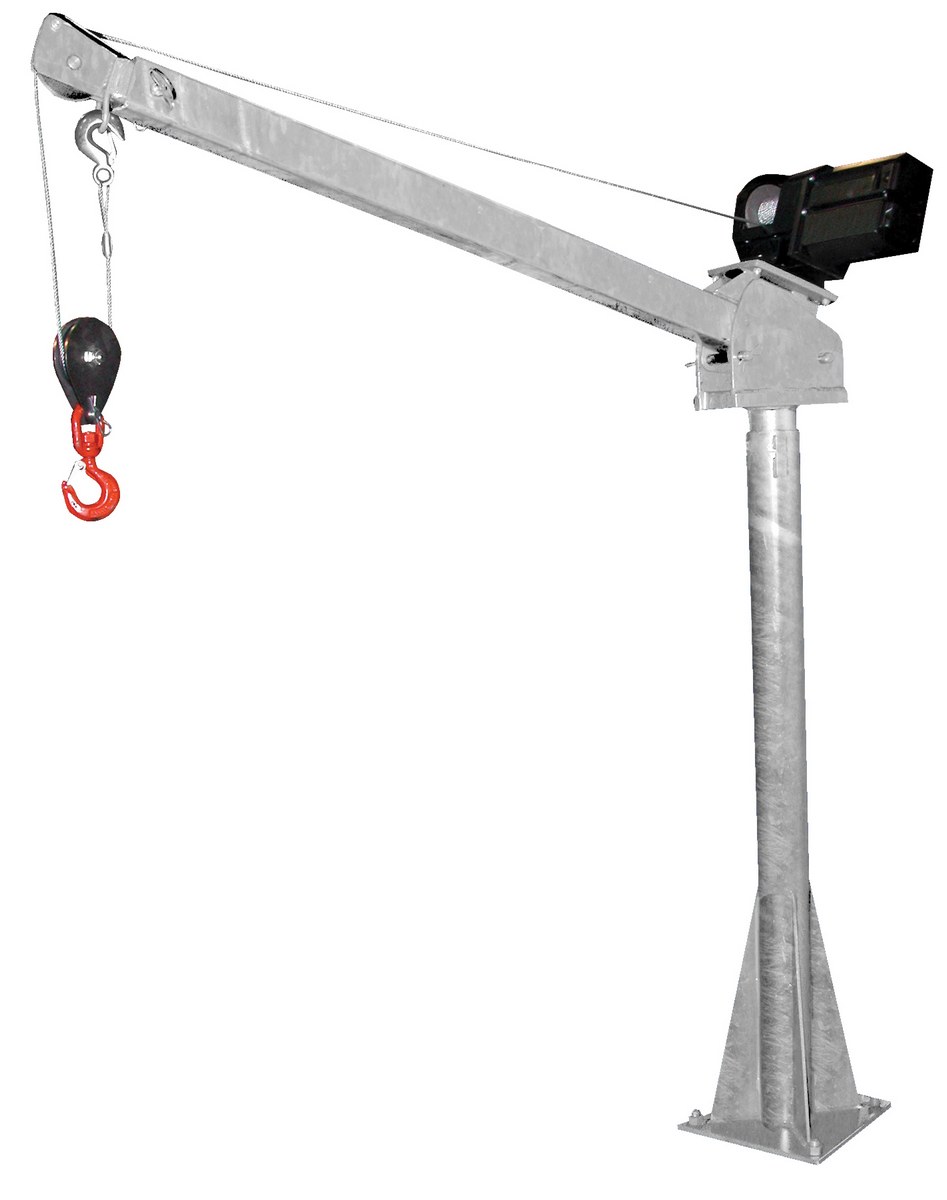

| WTJ-20-3-DC-GAL | | 90 Days Limited Warranty | Galvanized Steel DC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 265 | ||

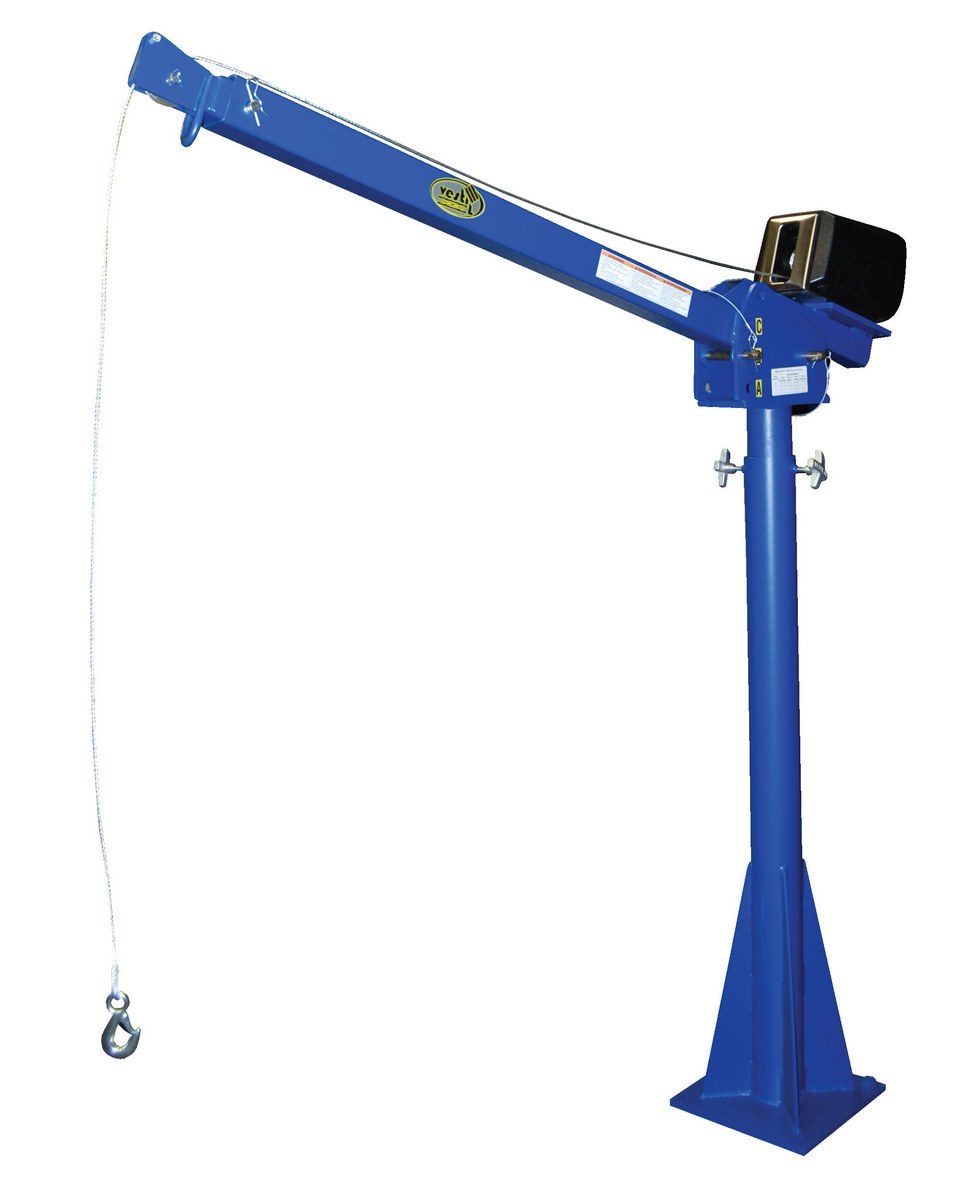

| WTJ-20-4-AC | POPULAR |  | 90 Days Limited Warranty | Steel AC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 290 | |
| WTJ-20-4-AC-GAL |  | 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 294 | ||

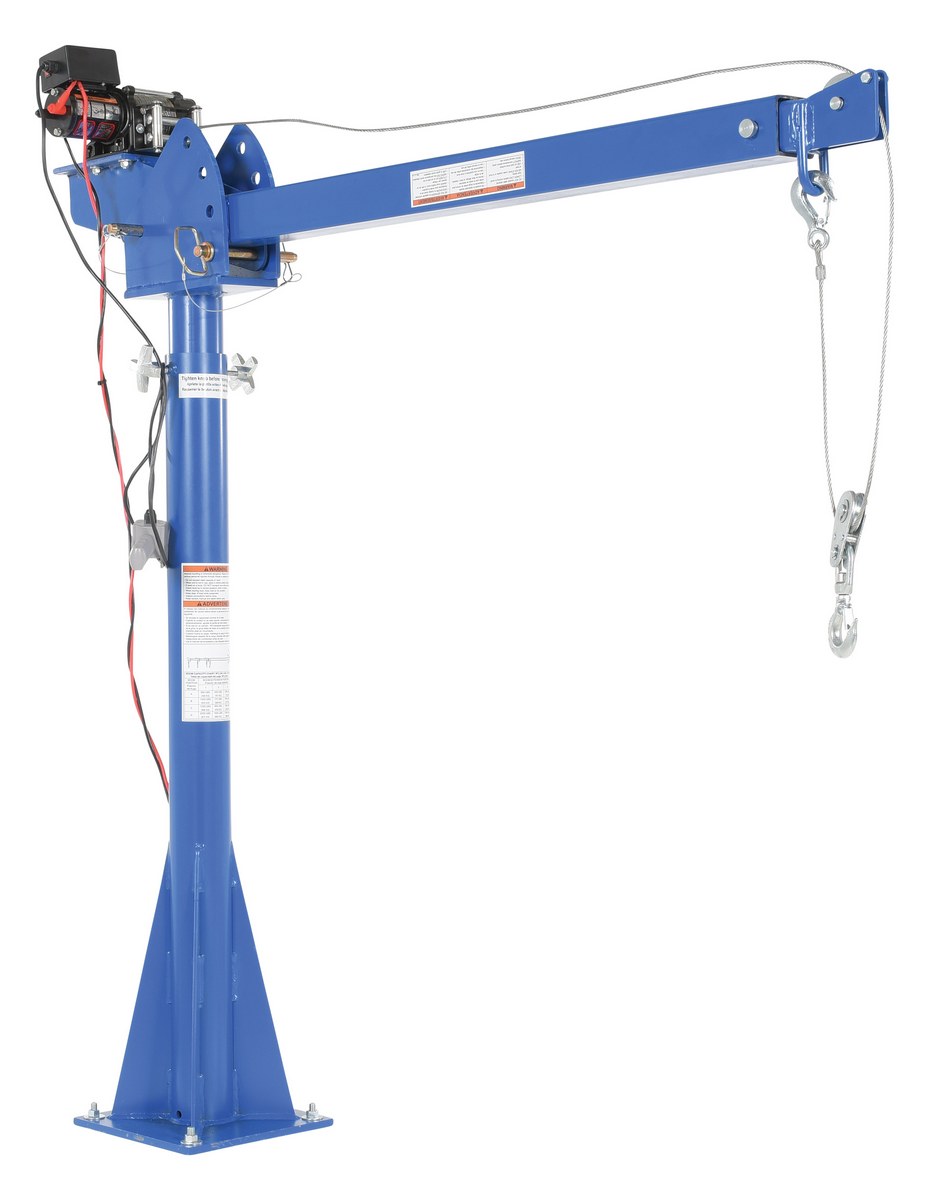

| WTJ-20-4-DC | | 90 Days Limited Warranty | Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 260 | ||

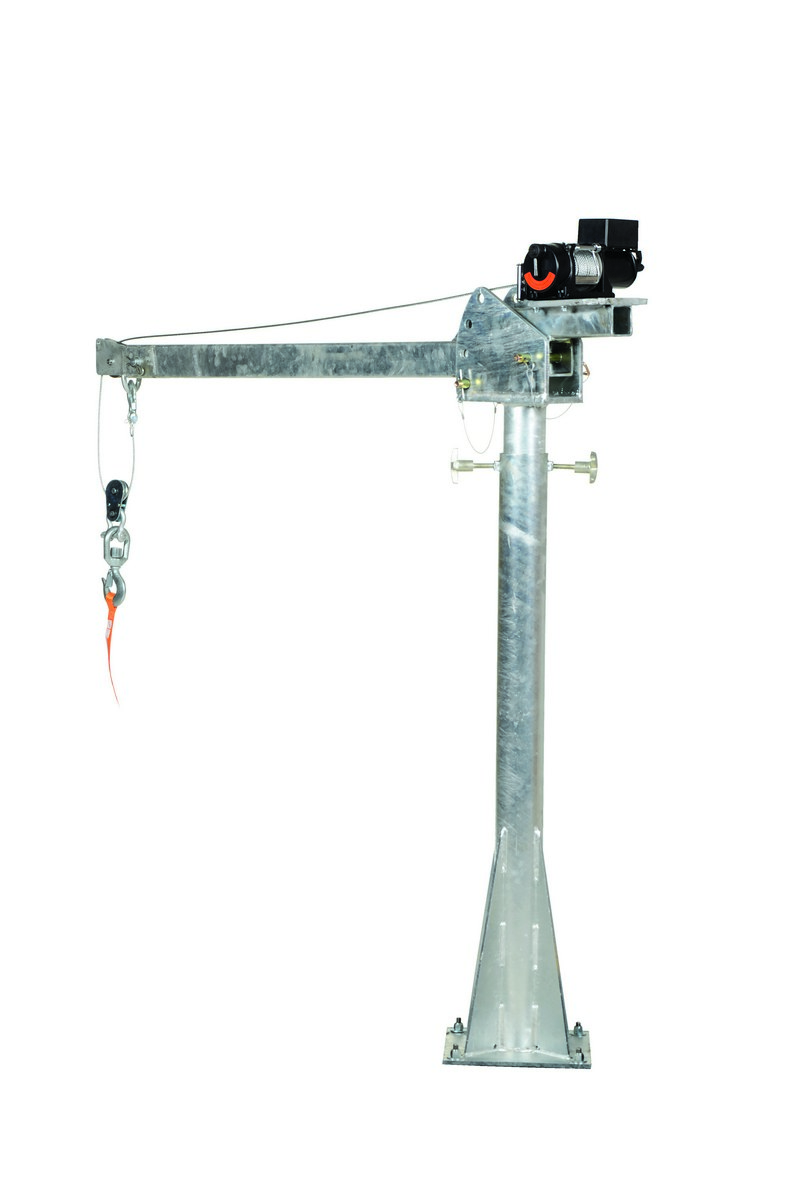

| WTJ-20-4-DC-GAL |  | 90 Days Limited Warranty | Galvanized Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 266 | ||

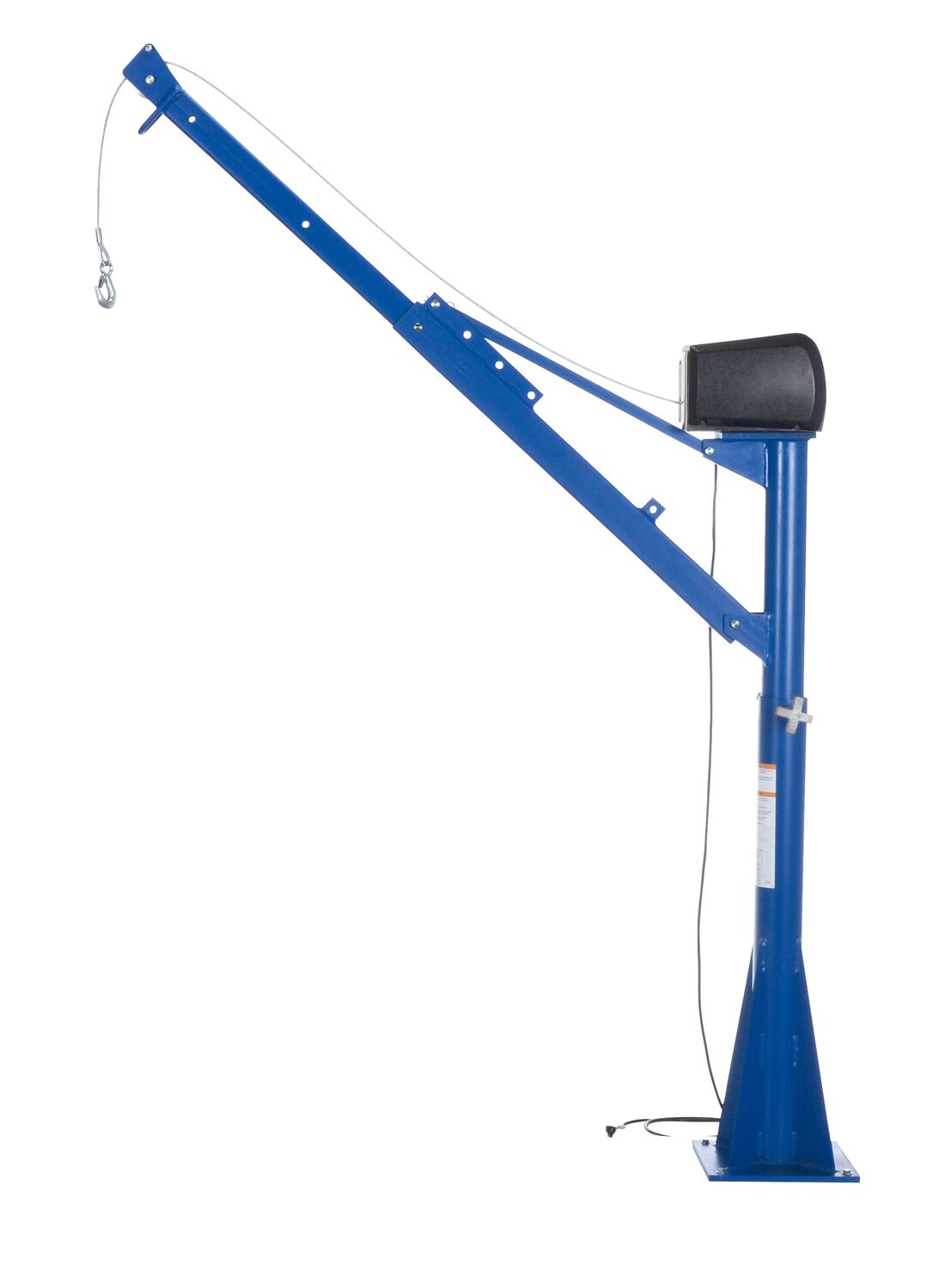

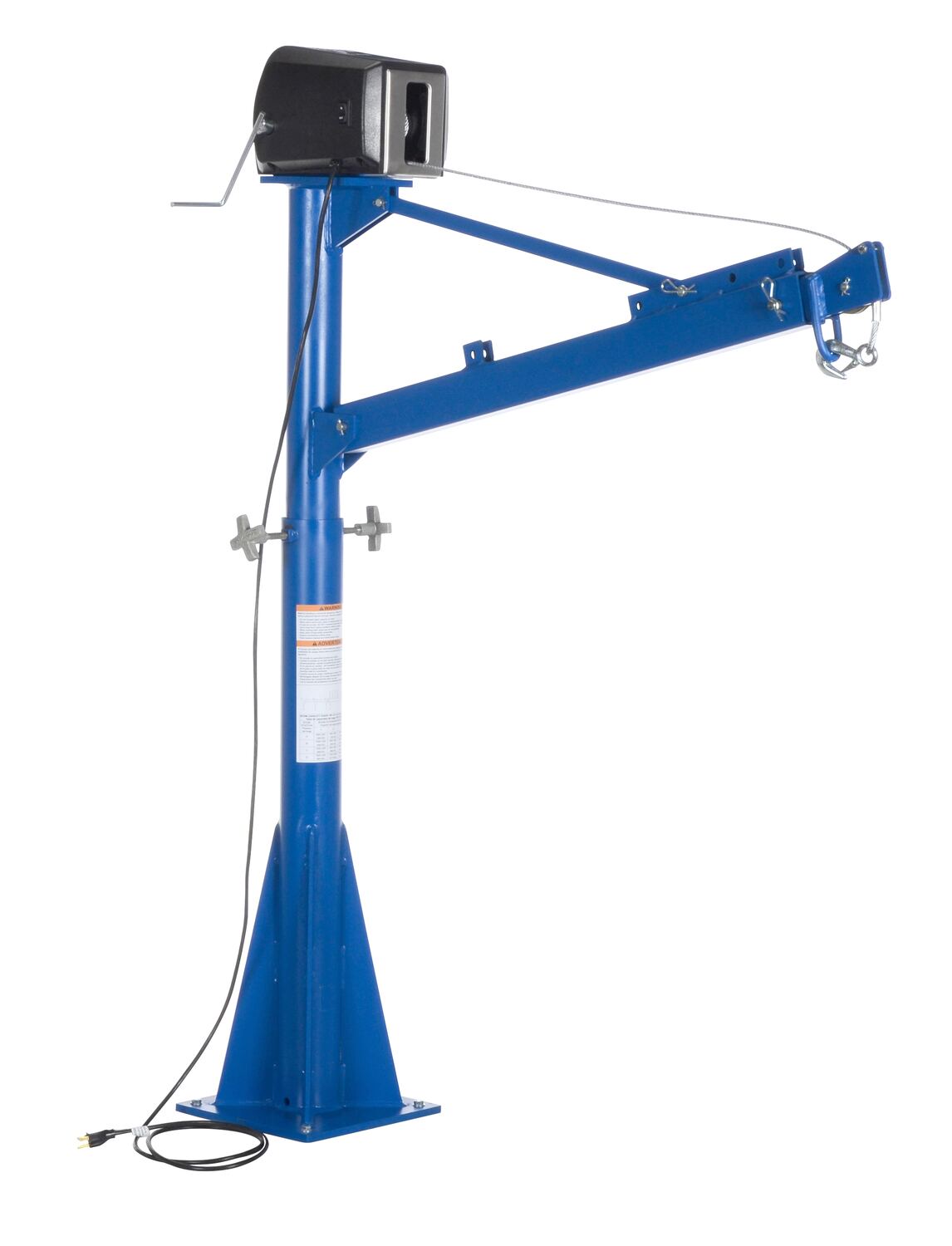

| WTJ-E-15-3-AC | | 90 Days Limited Warranty | Steel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 223 | ||

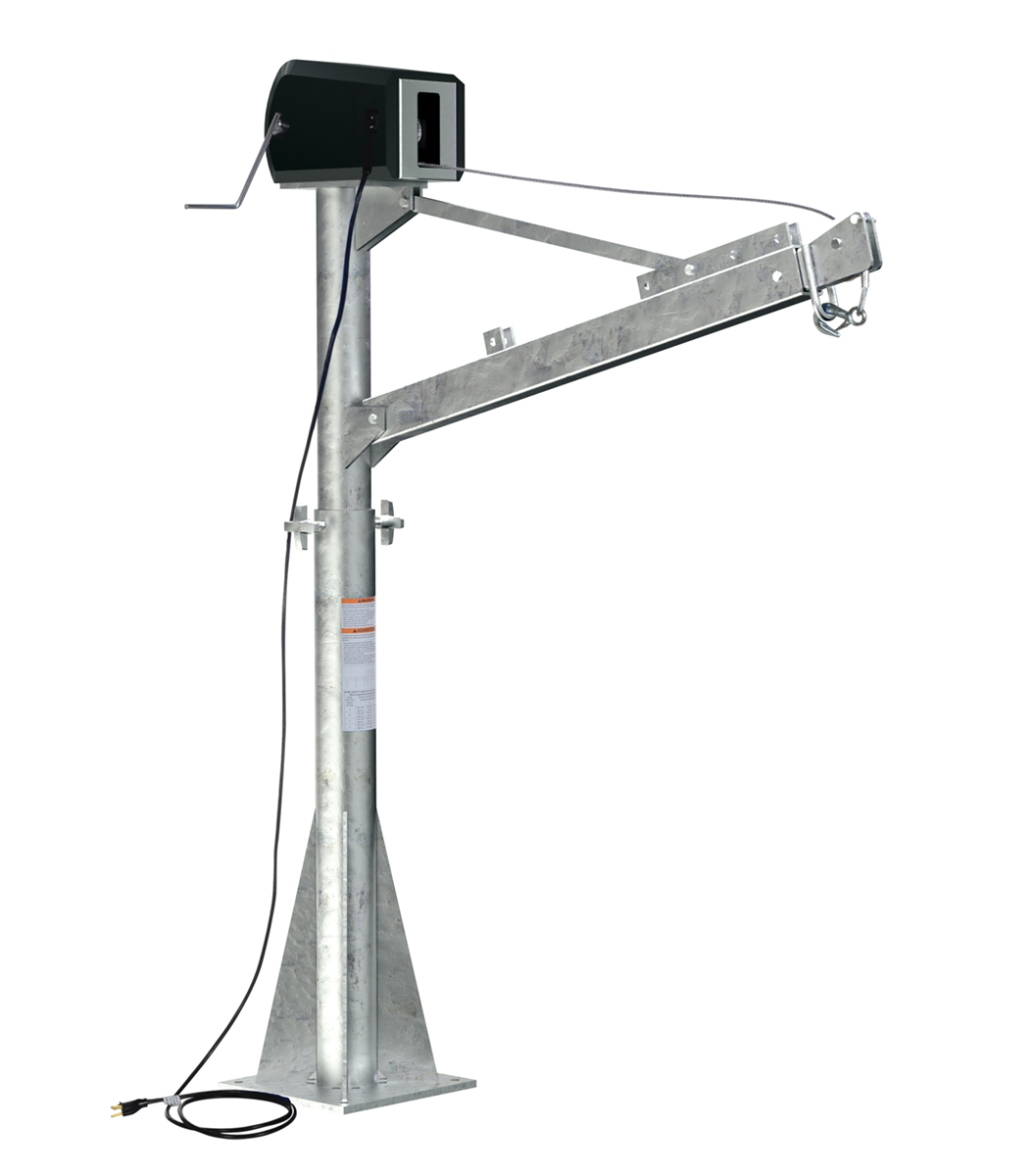

| WTJ-E-15-3-AC-GAL | | 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 305 | ||

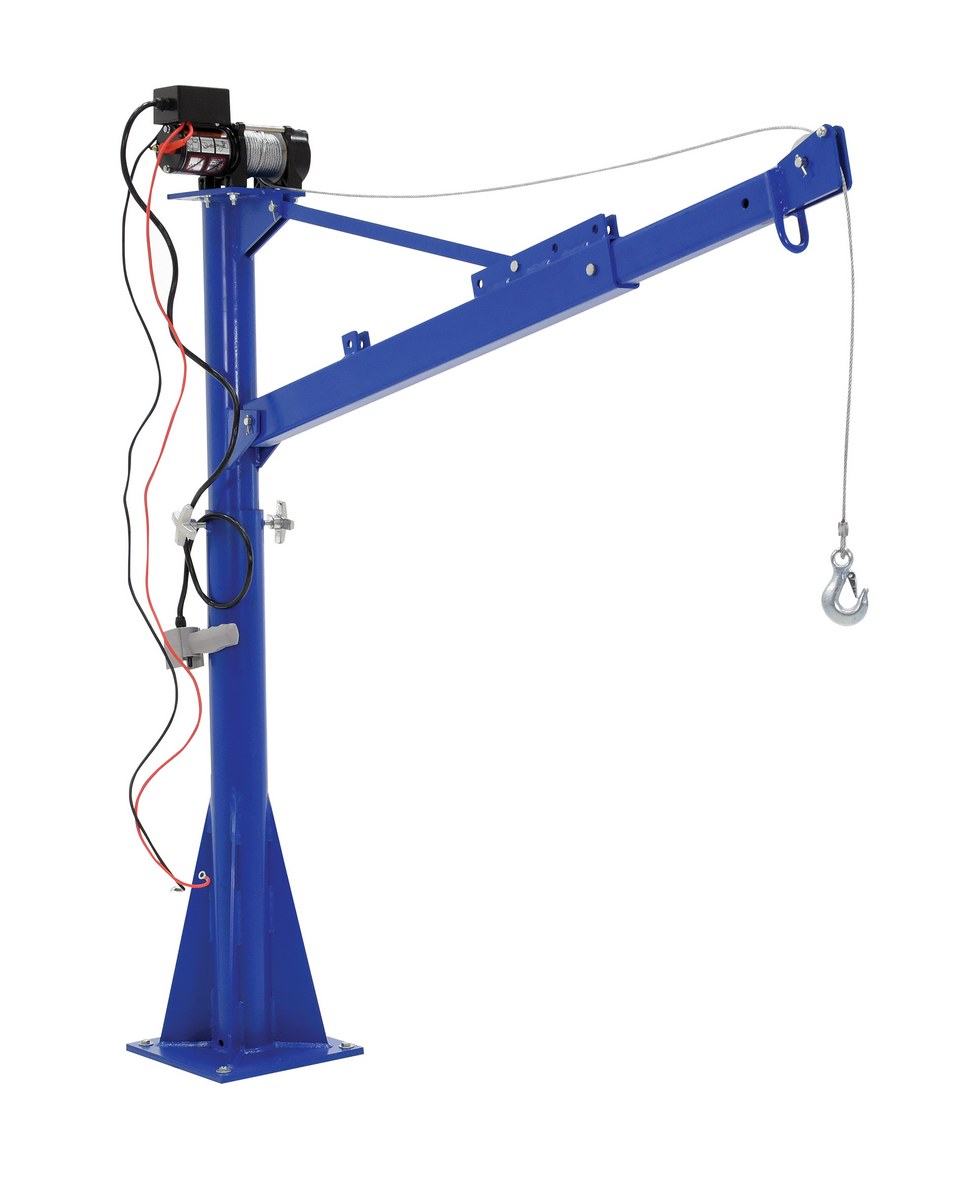

| WTJ-E-15-3-DC | | 90 Days Limited Warranty | Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 213 | ||

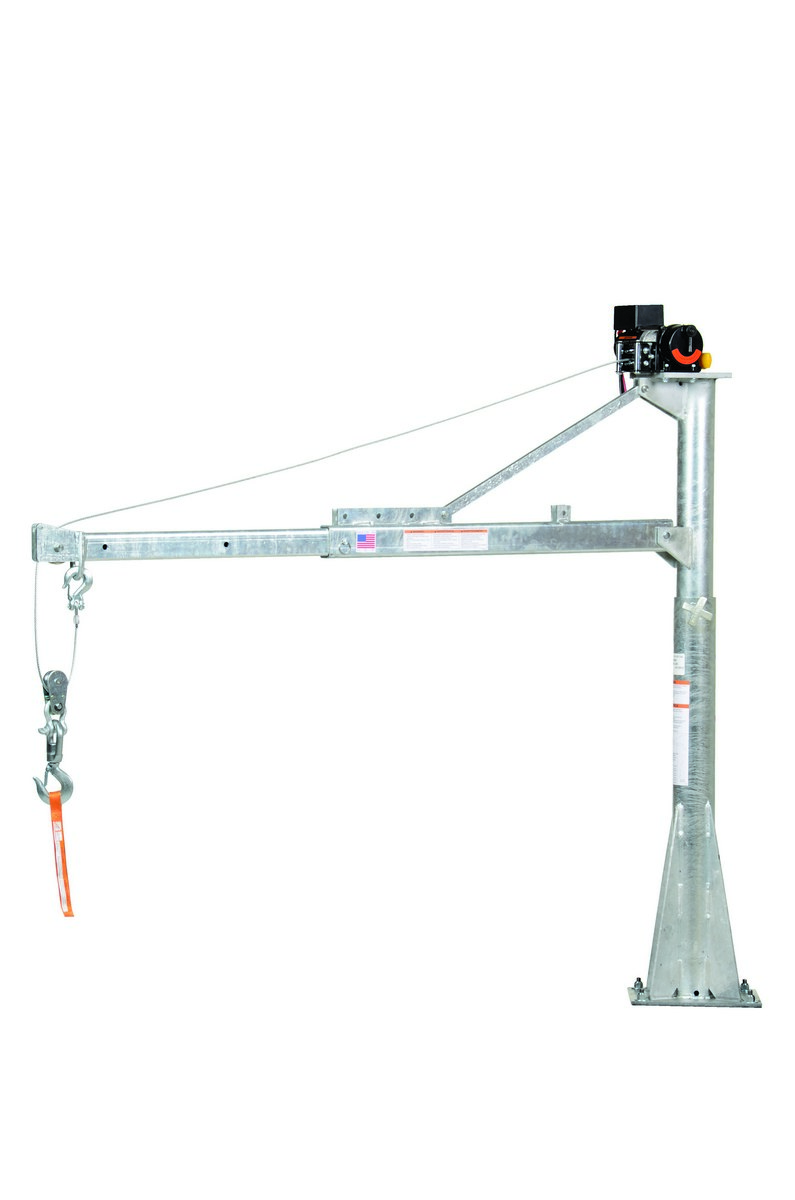

| WTJ-E-15-3-DC-GAL |  | 90 Days Limited Warranty | Galvanized Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 213 | ||

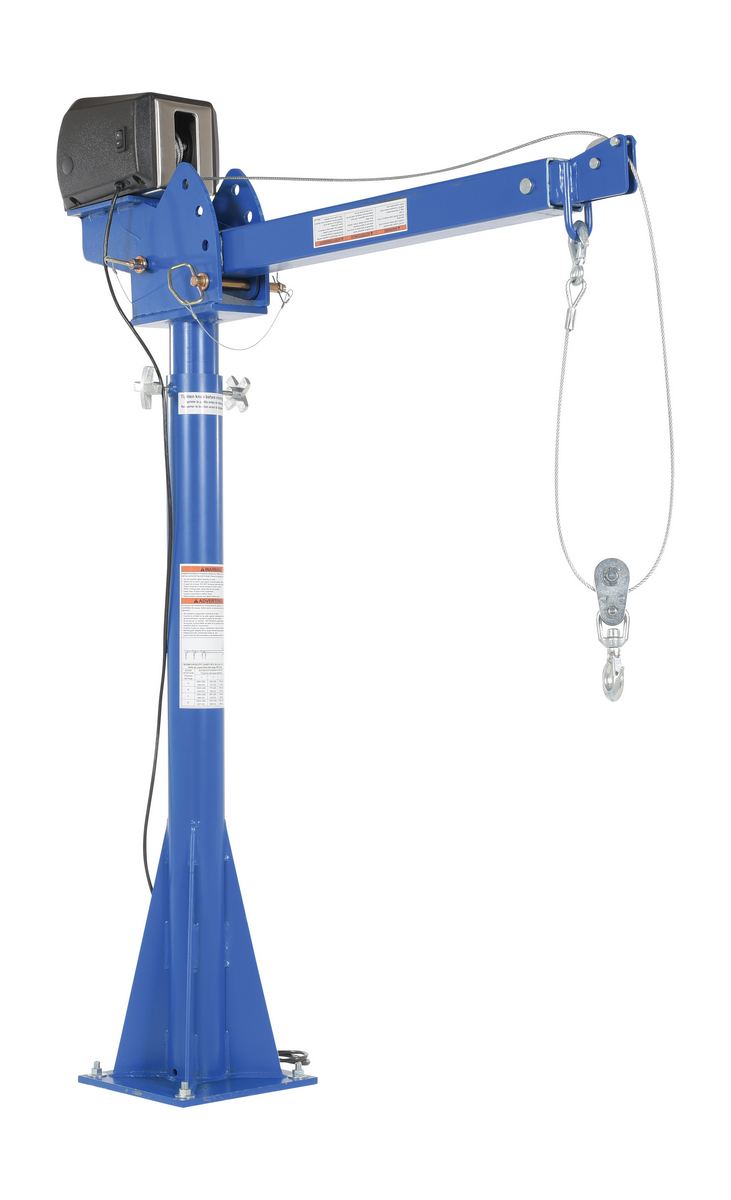

| WTJ-20-3-AC-CSA |  | 90 Days Limited Warranty | Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 280 | ||
| WTJ-20-3-AC-CSA-GAL | | 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2000 Boom Reach (in.): 39-1/4 to 63-1/4 | 284 | ||

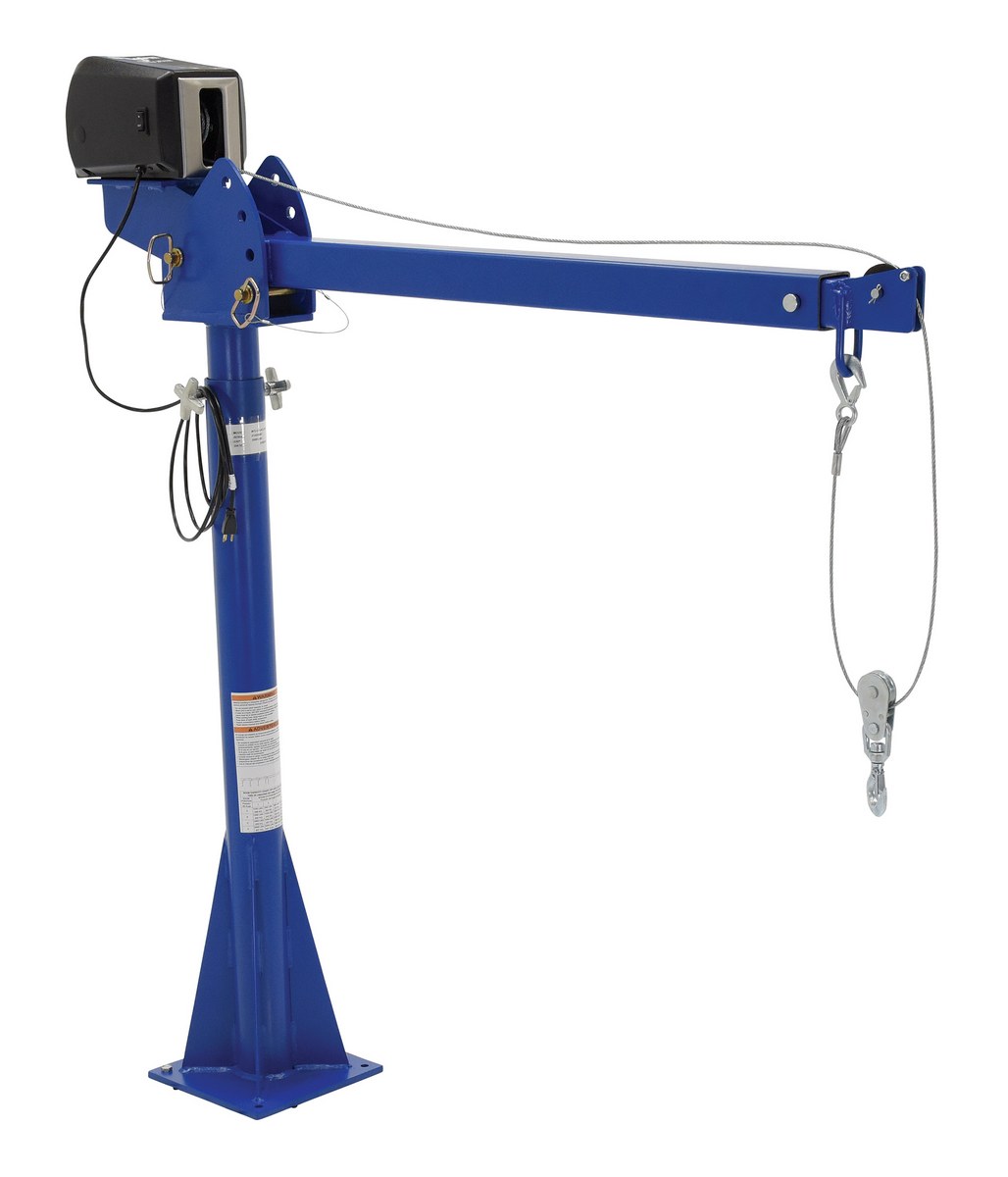

| WTJ-20-4-AC-CSA |  | 90 Days Limited Warranty | Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 275 | ||

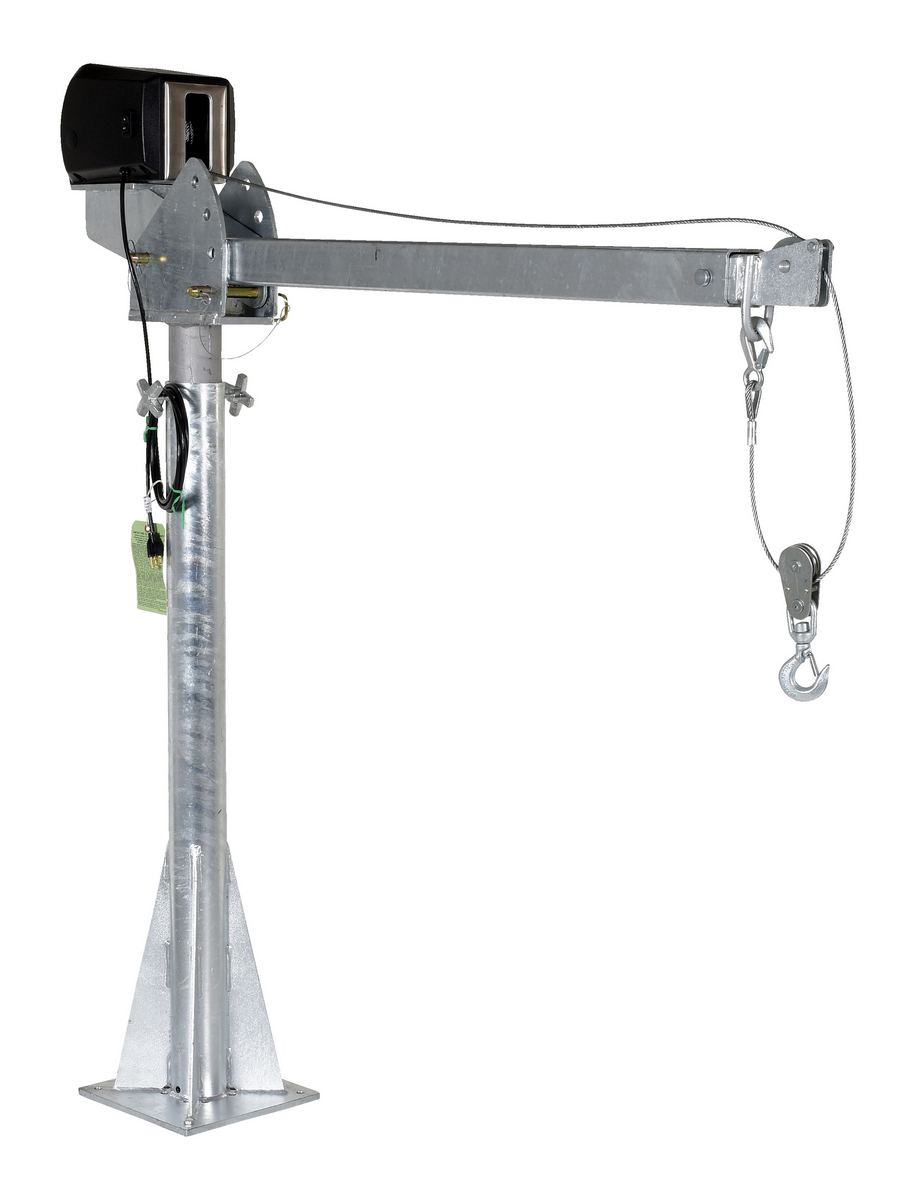

| WTJ-20-4-AC-CSA-GAL |  | 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2000 Boom Reach (in.): 51-1/4 to 87-1/4 | 281 | ||

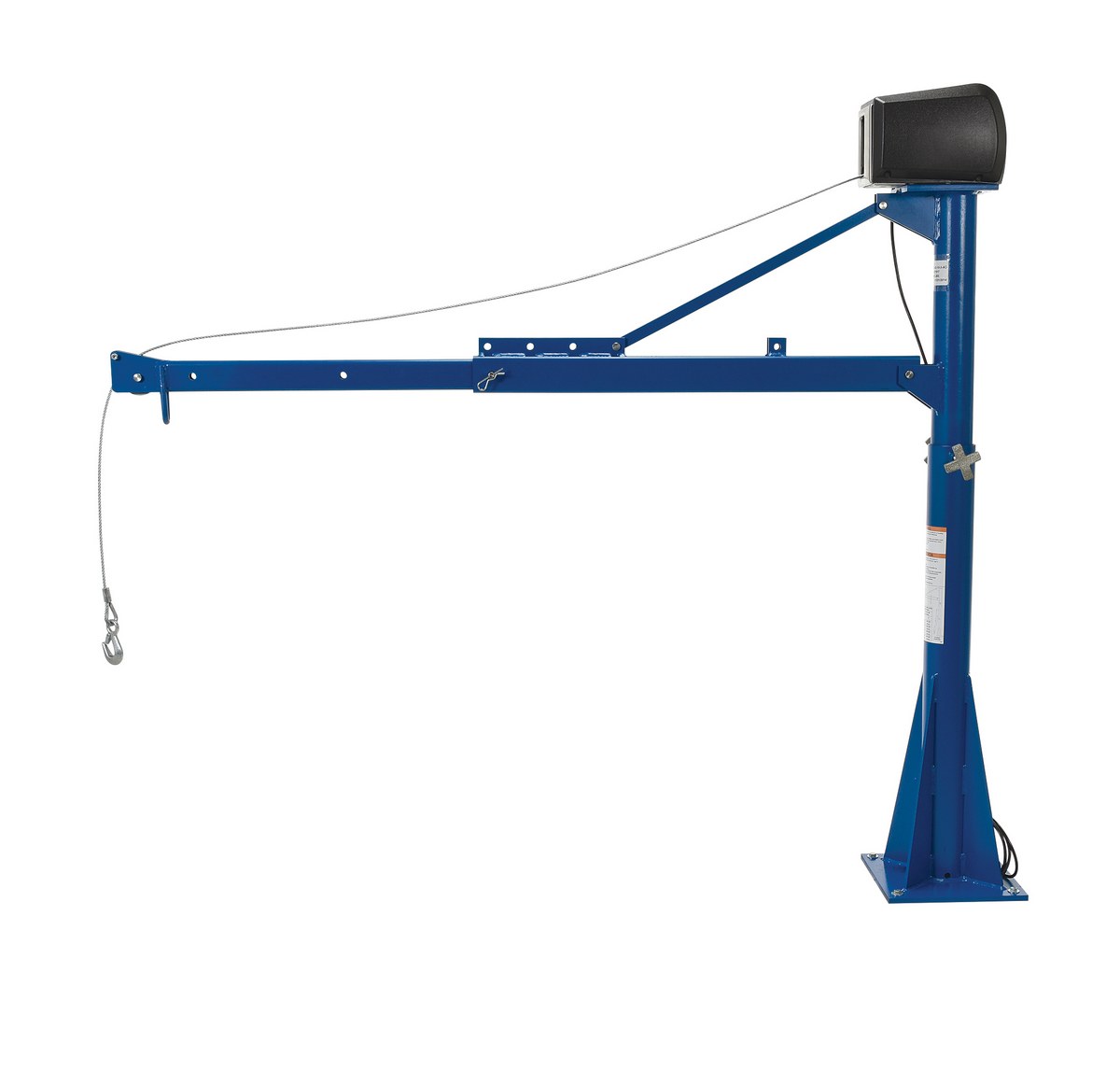

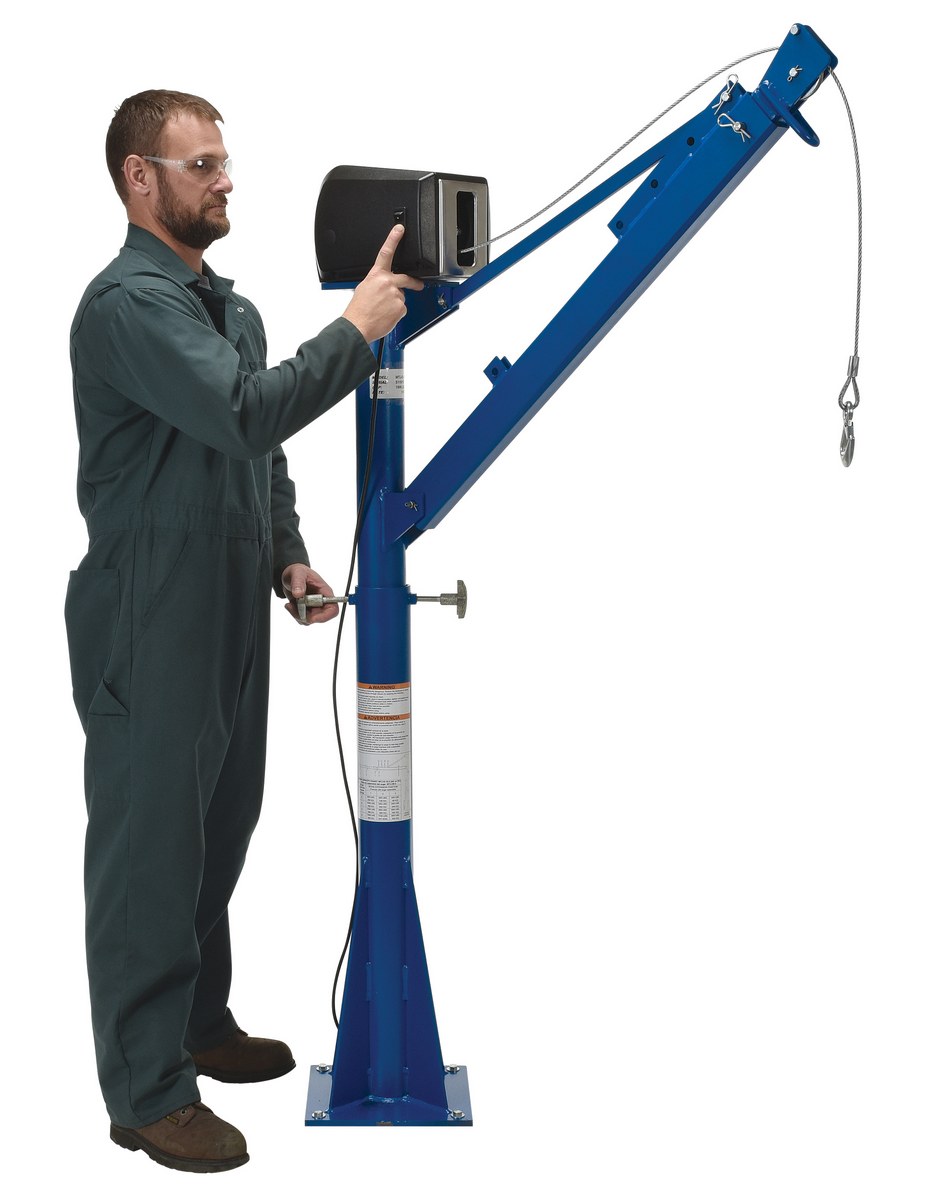

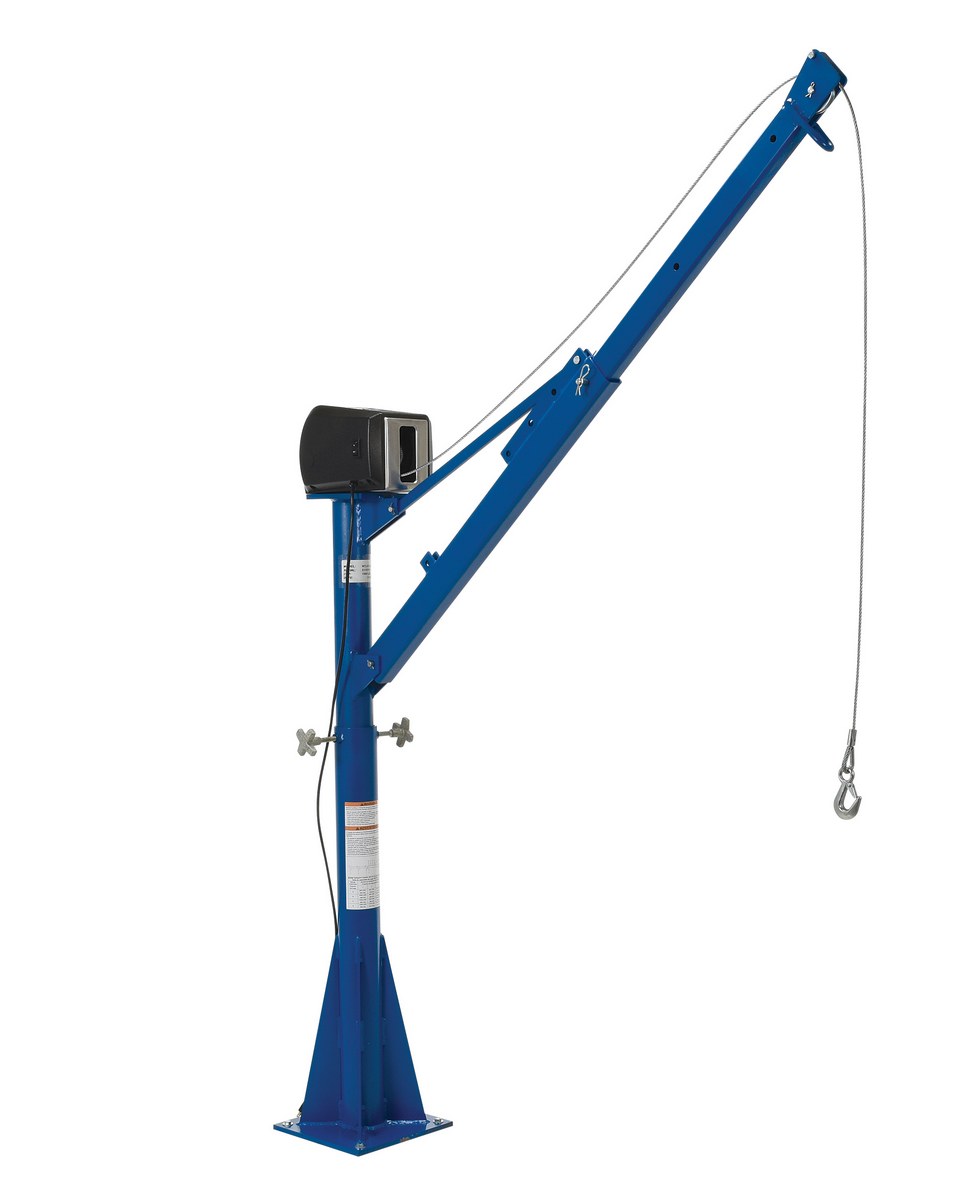

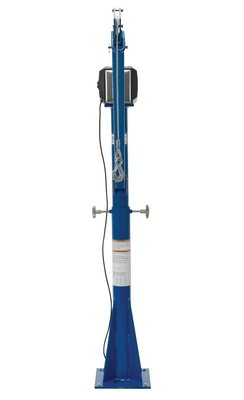

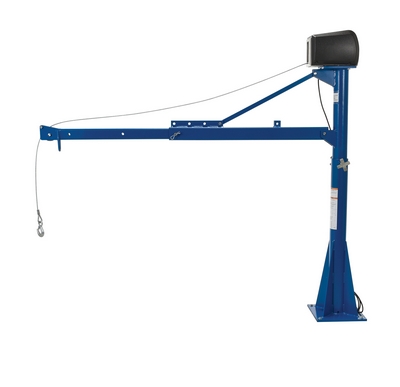

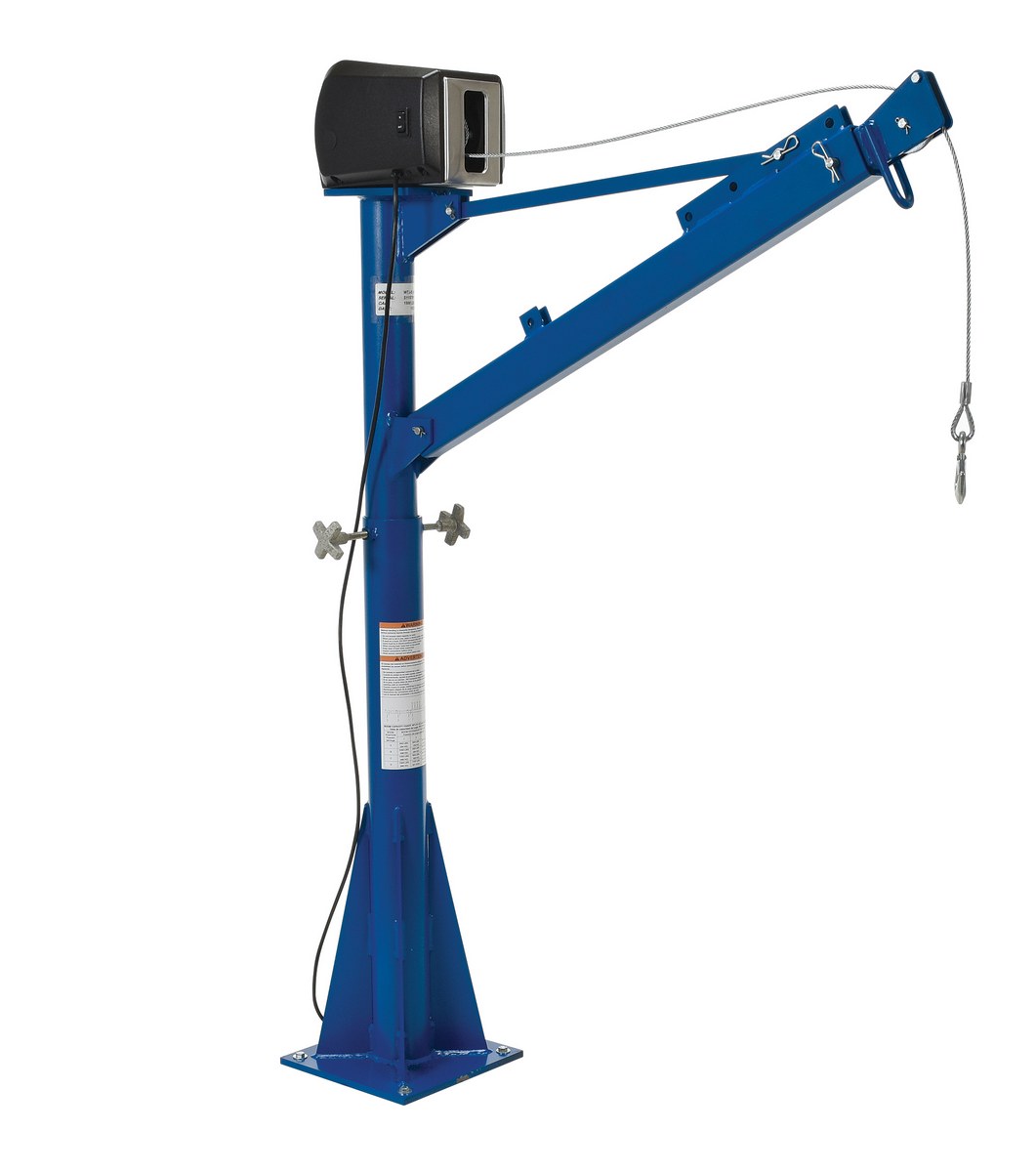

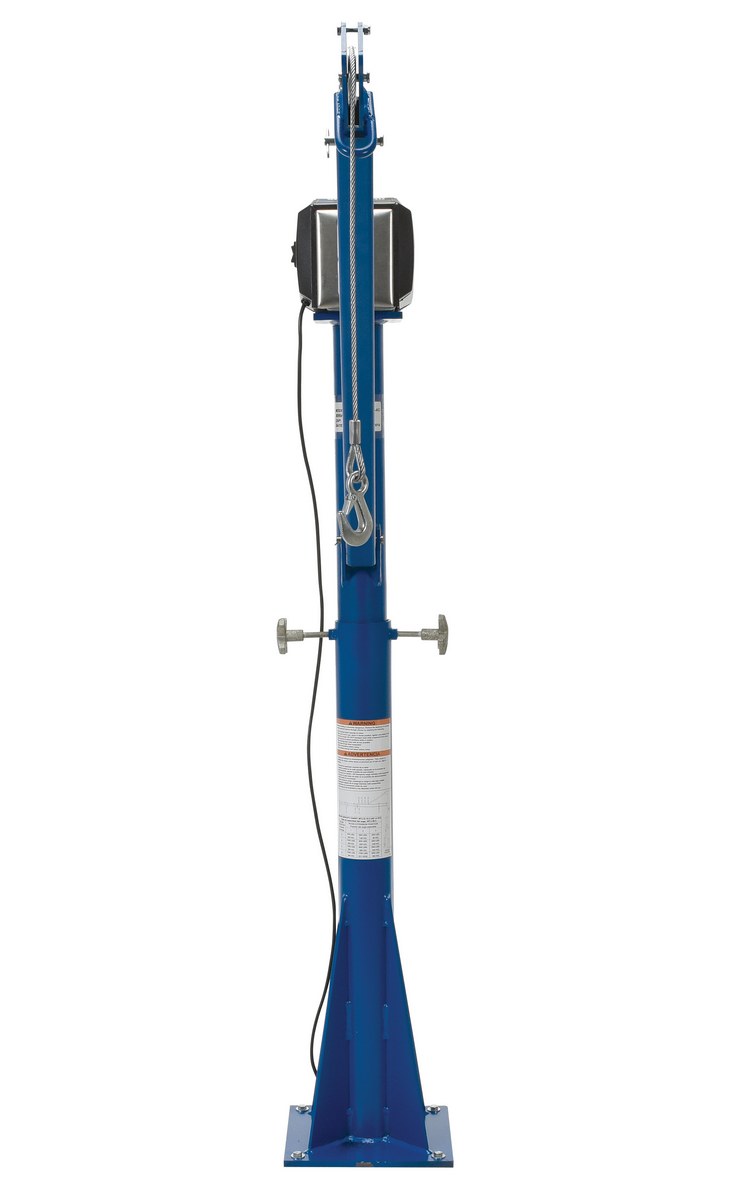

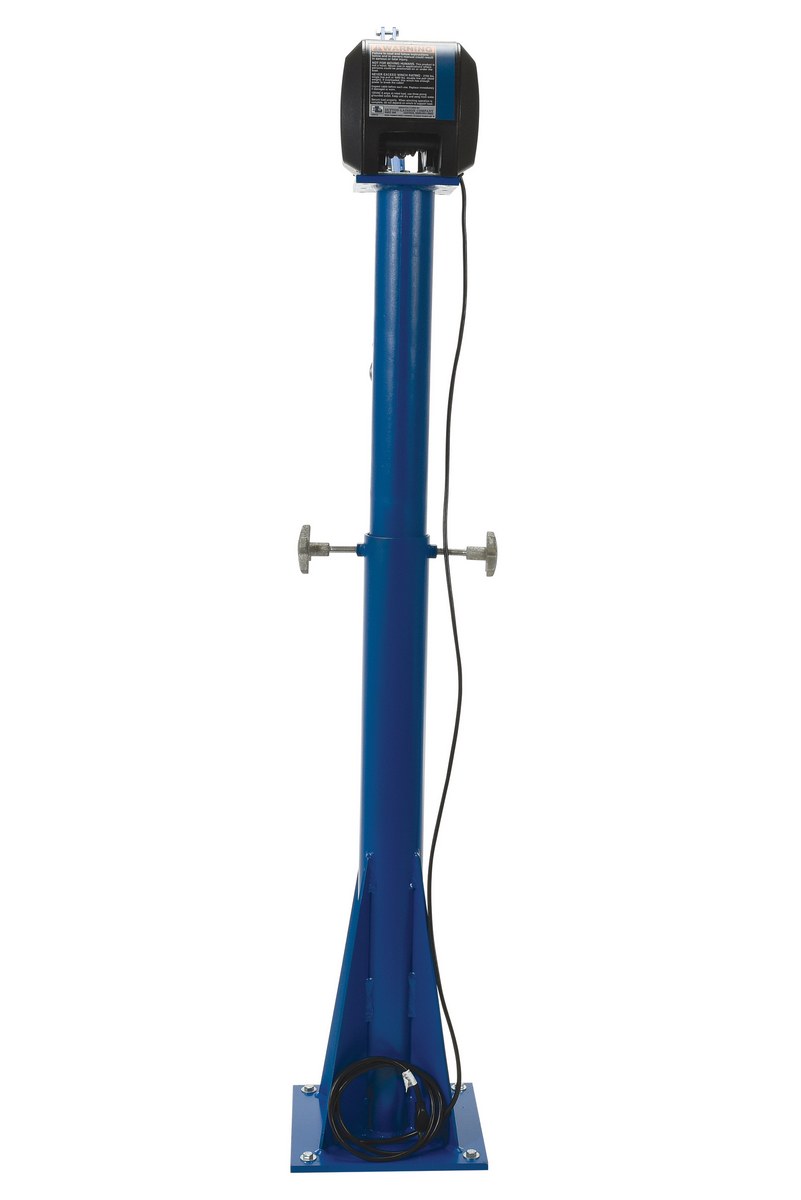

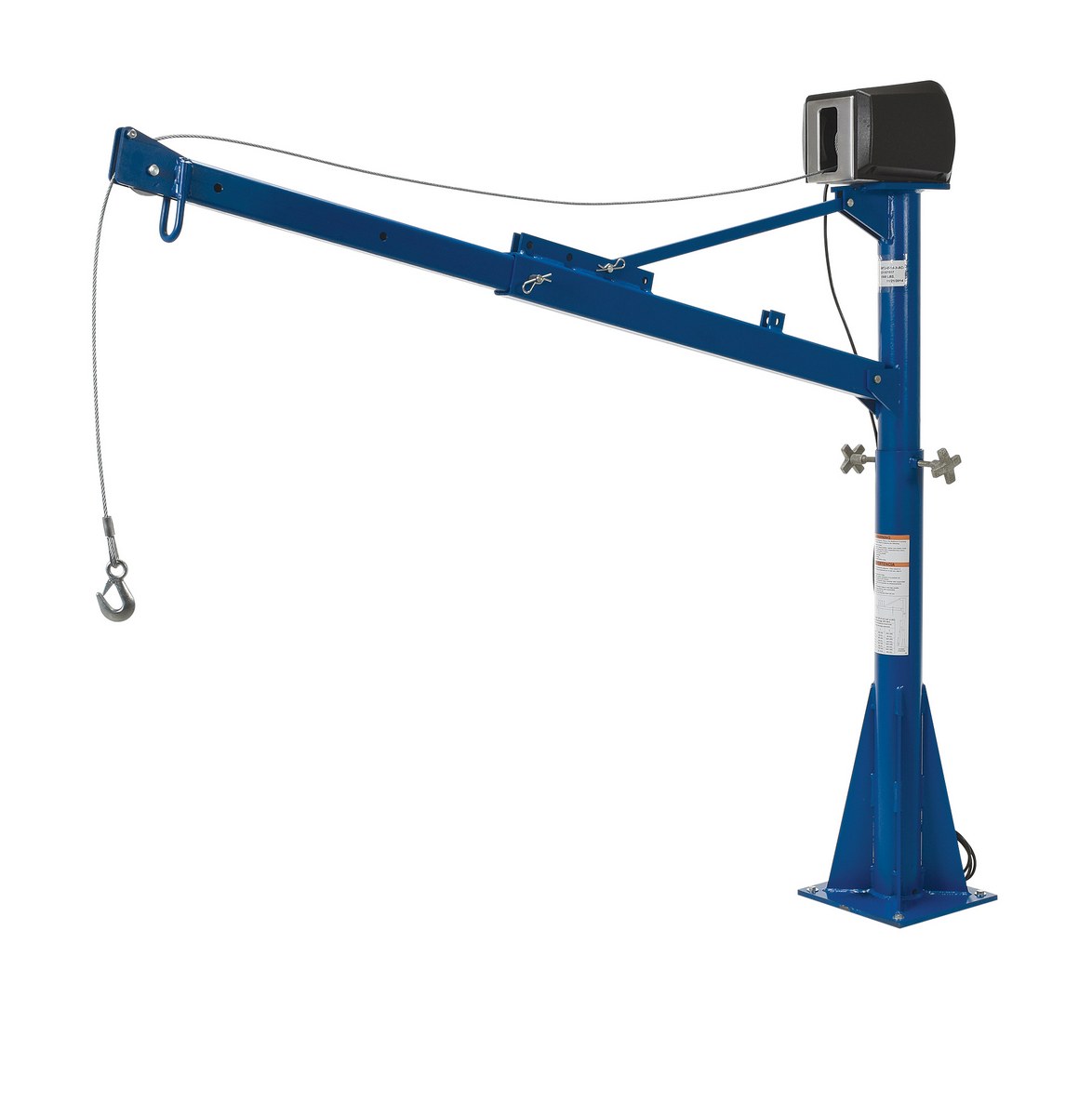

| WTJ-E-15-3-AC-CSA | | 90 Days Limited Warranty | Steel AC Powered Jib Crane CSA Compliant 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 227 | ||
| WTJ-E-15-3-AC-CSA-GA |  | 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane CSA Compliant 3-1/2 to 5-1/2 Ft. Boom 1,500 lb. Capacity Gray | Uniform Capacity (lb.): 1500 Boom Reach (in.): 43-1/16 to 66-3/4 | 223 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2000
Boom Reach (in.): 39-1/4 to 63-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2000
Boom Reach (in.): 51-1/4 to 87-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1500
Boom Reach (in.): 43-1/16 to 66-3/4
For More Details of the Option Click the Red Model Button
| Model | Image | PDF's | Description | Wt (lbs) |
|||
| WINCH-AC-HHPB |  |
- | UPGRADE AC WINCH WITH HANDHELD PUSH BUTTON CONTROL (THIS OPTION REPLACES STANDARD FINGERTIP SWITCH ON AC WINCHES) |
5 | |||
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Power Lift Jib Cranes PDF's will open in a new window when clicked.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: I planning on mounting this at the rear of a 12' flat bed, and see that this is a 1 hp motor for the 12V DC - will that run off a standard truck battery ?
A: Yes, the WTJ-20-4-DC will run off a standard 12V truck battery.
Q: What is the diameter of the mast of the WTJ-20-4-DC?
A: The diameter of the mast is 4"
Q: What is the minimum factor of safety for the crane design for the WTJ-20-4-DC?
A: All units (WTJ series on this product page) are built to a 3:1 safety factor.
Q: In the event of a power failure (or if the battery becomes disconnected from the motor), what happens to the motor? Does the cargo remain at its current location mid-lift, or will the motor release the cargo?
A: Load will not drop if power is lost to the motor. The AC winch includes an emergency hand crank in the event of power loss.
Q: What is the longest usable cable?
A: The winch holds 25' of cable.
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Lift Jib Cranes |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
