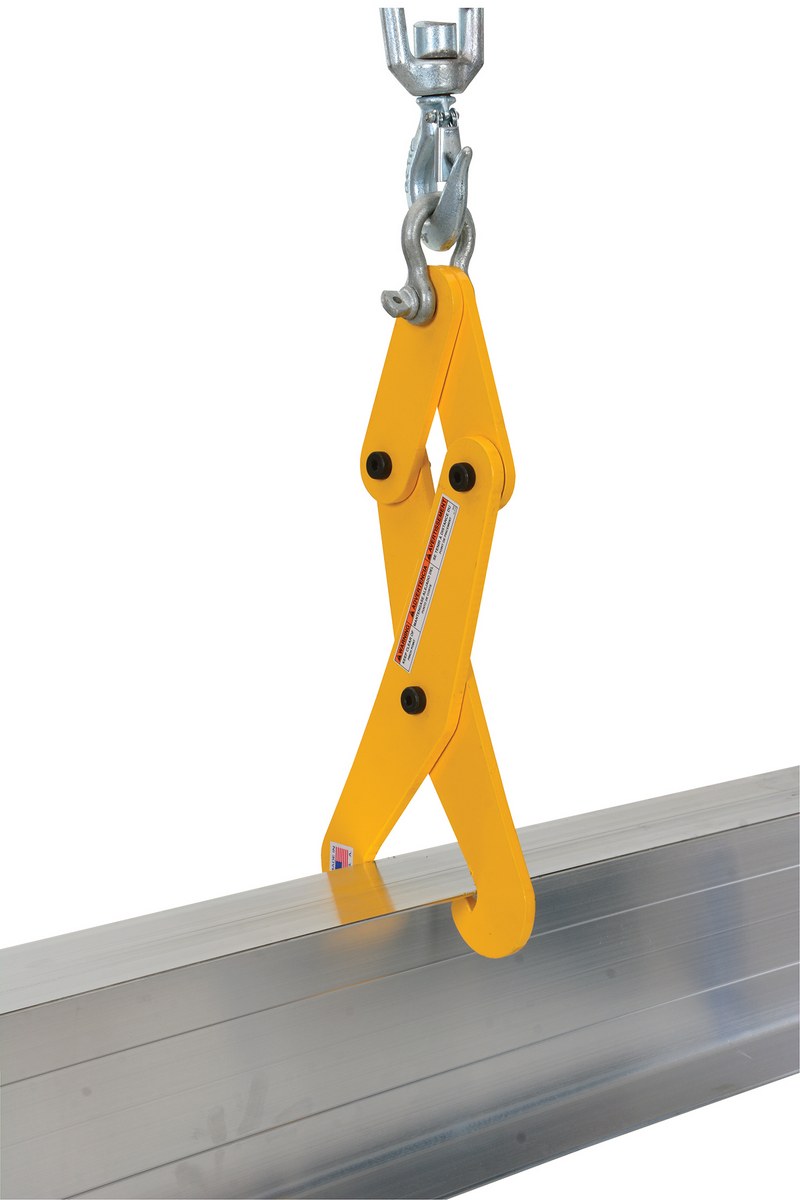

Heavy-Duty Beam TongsThe heavy duty beam tong are designed to lift I-beams in conjunction with overhead lifting devices. The scissor style design, utilizes the weight of the products being lifted for a more stable grip. Loads need to be centered and guided during lifting operation.
- Includes 2 ton clevis
- Manufactured to ASME B30.20 standards
- Variable open and closed widths
- Powder coated yellow finish
Non-Marring Plate Clamps
Horizontal Plate Clamps
Vertical Plate Clamps with Chain
Vertical Plate Clamps
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

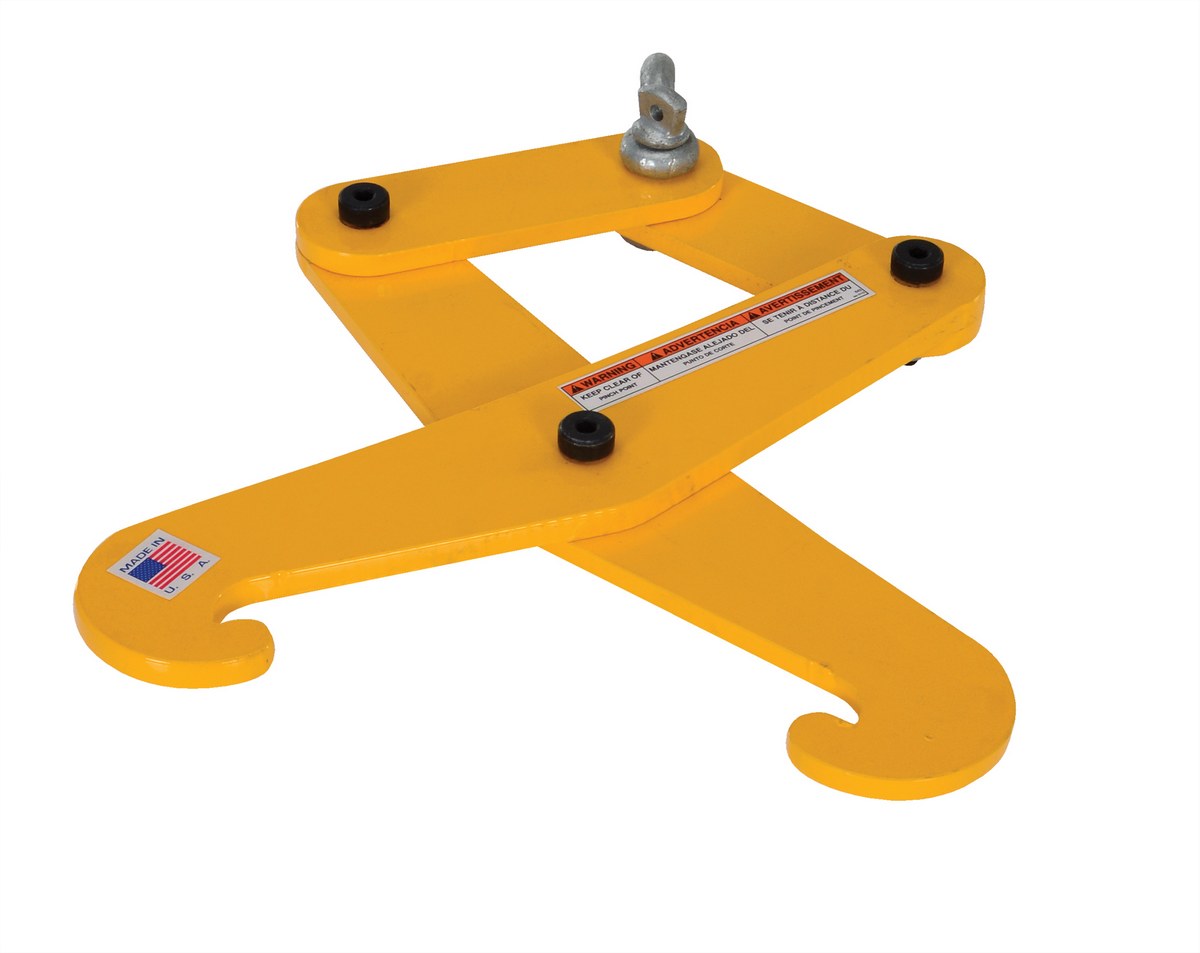

| BT-20 |  | 90 Days Limited Warranty | Steel Heavy Duty Beam Tongs 6 In. Max Beam Width 3/4 In. x 9-3/4 In. x 20-7/8 In. 2000 Lb. Capacity Yellow | Uniform Capacity (lb.): 2,000 Maximum Beam Width (in.): 6 | 12 | ||

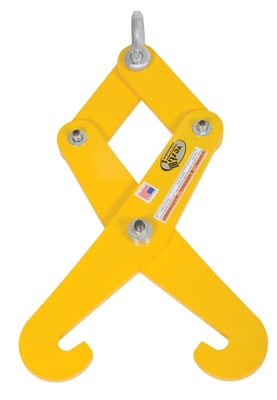

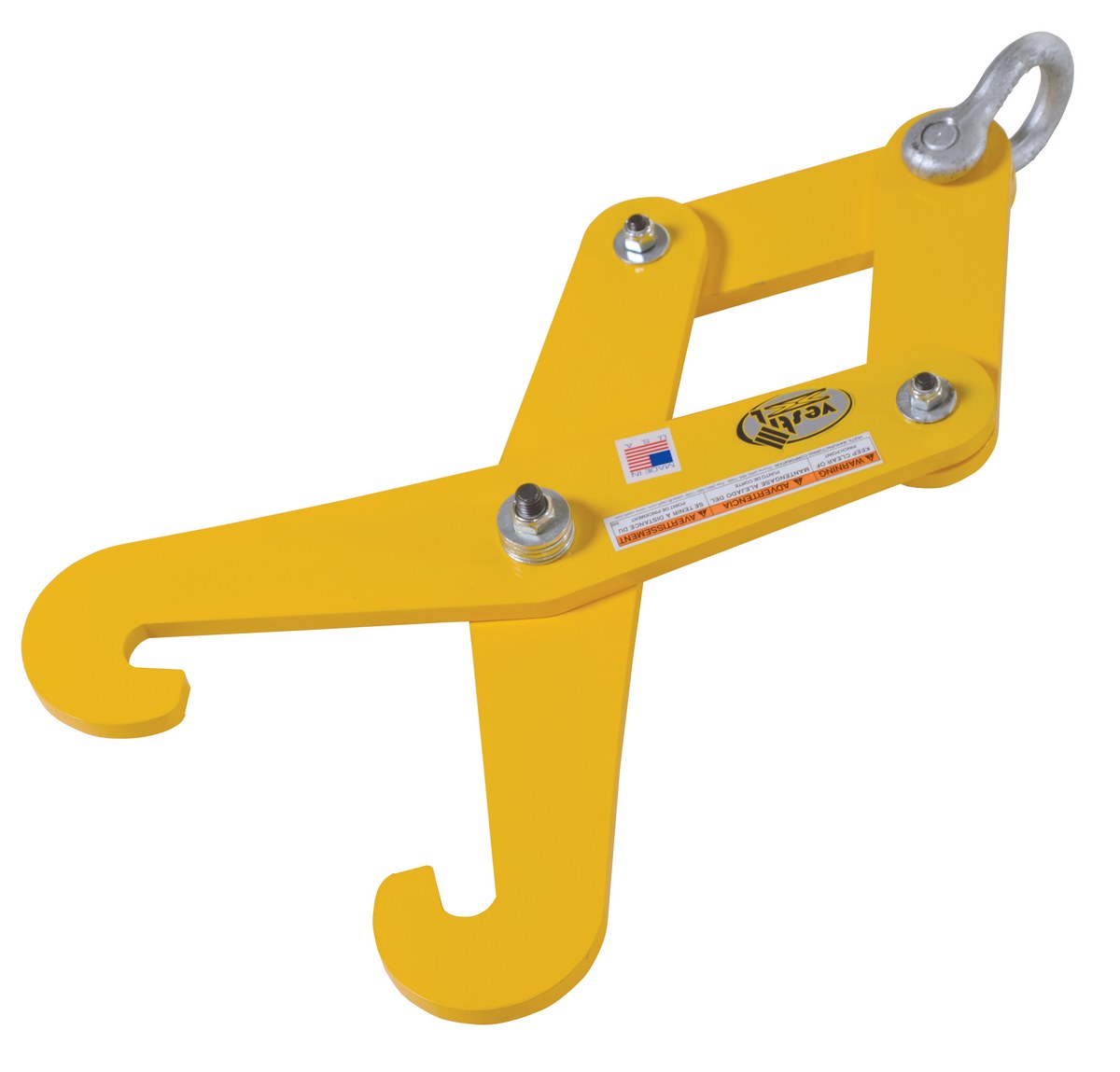

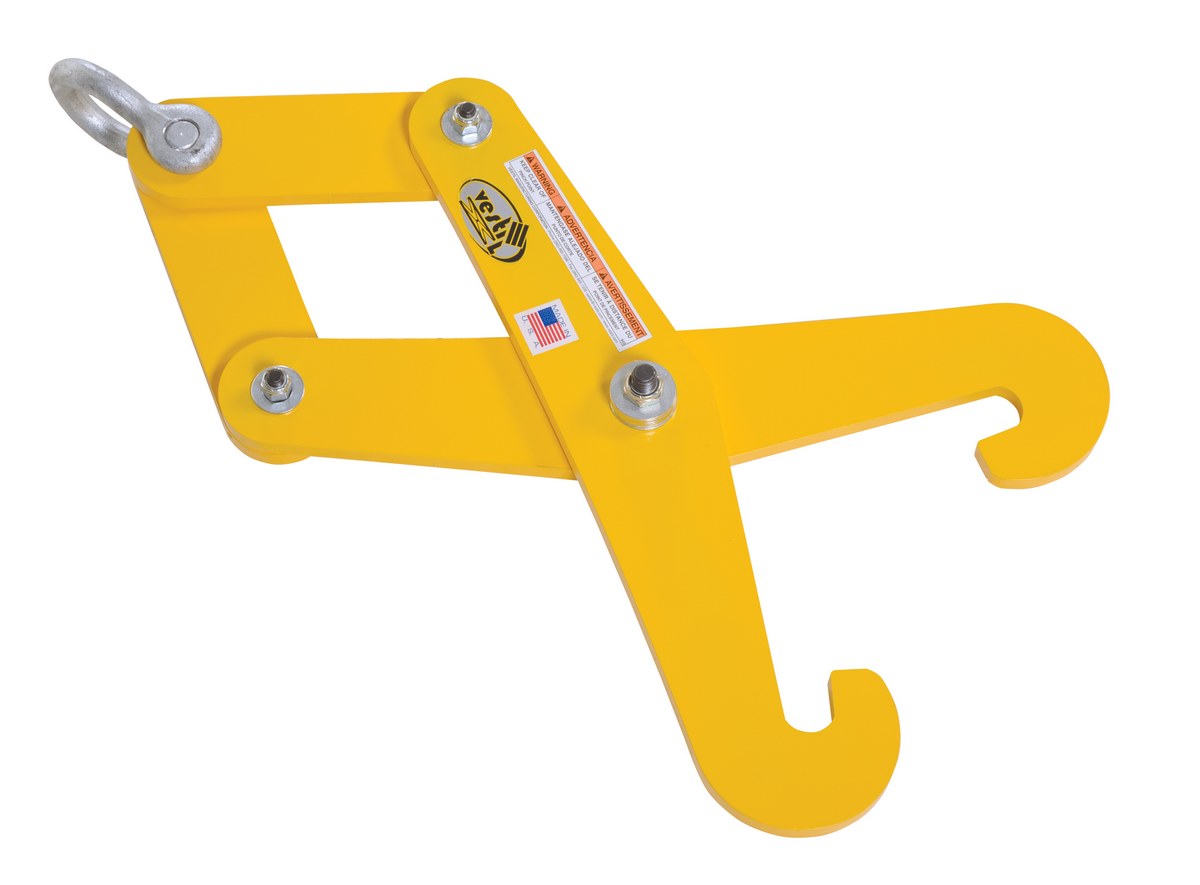

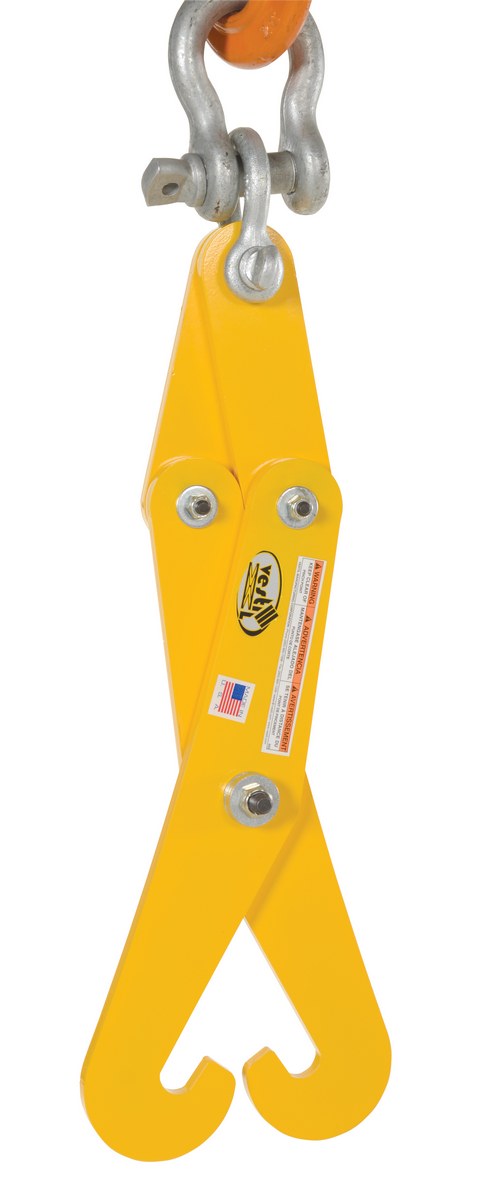

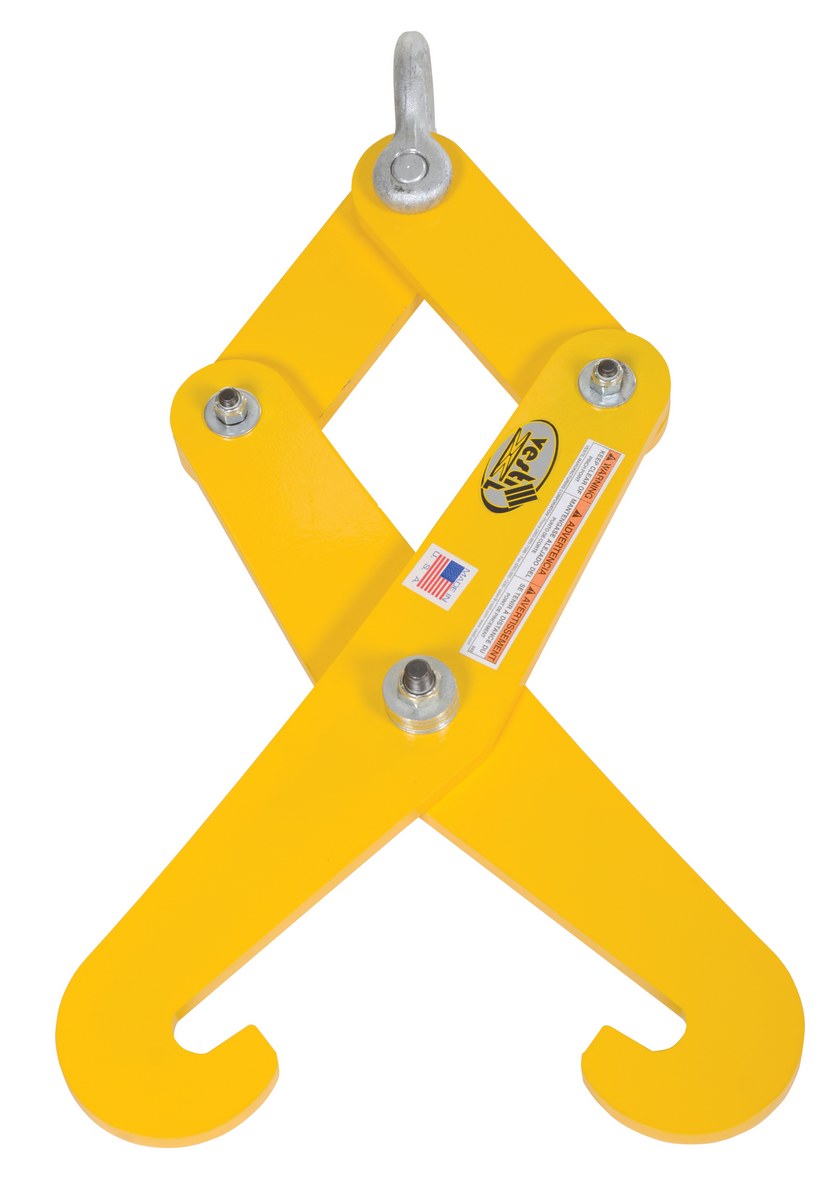

| BT-40 |  | 90 Days Limited Warranty | Steel Heavy Duty Beam Tongs 8 In. Max Beam Width 1 In. x 12-7/16 In. x 22-1/2 In. 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Maximum Beam Width (in.): 8 | 21 | ||

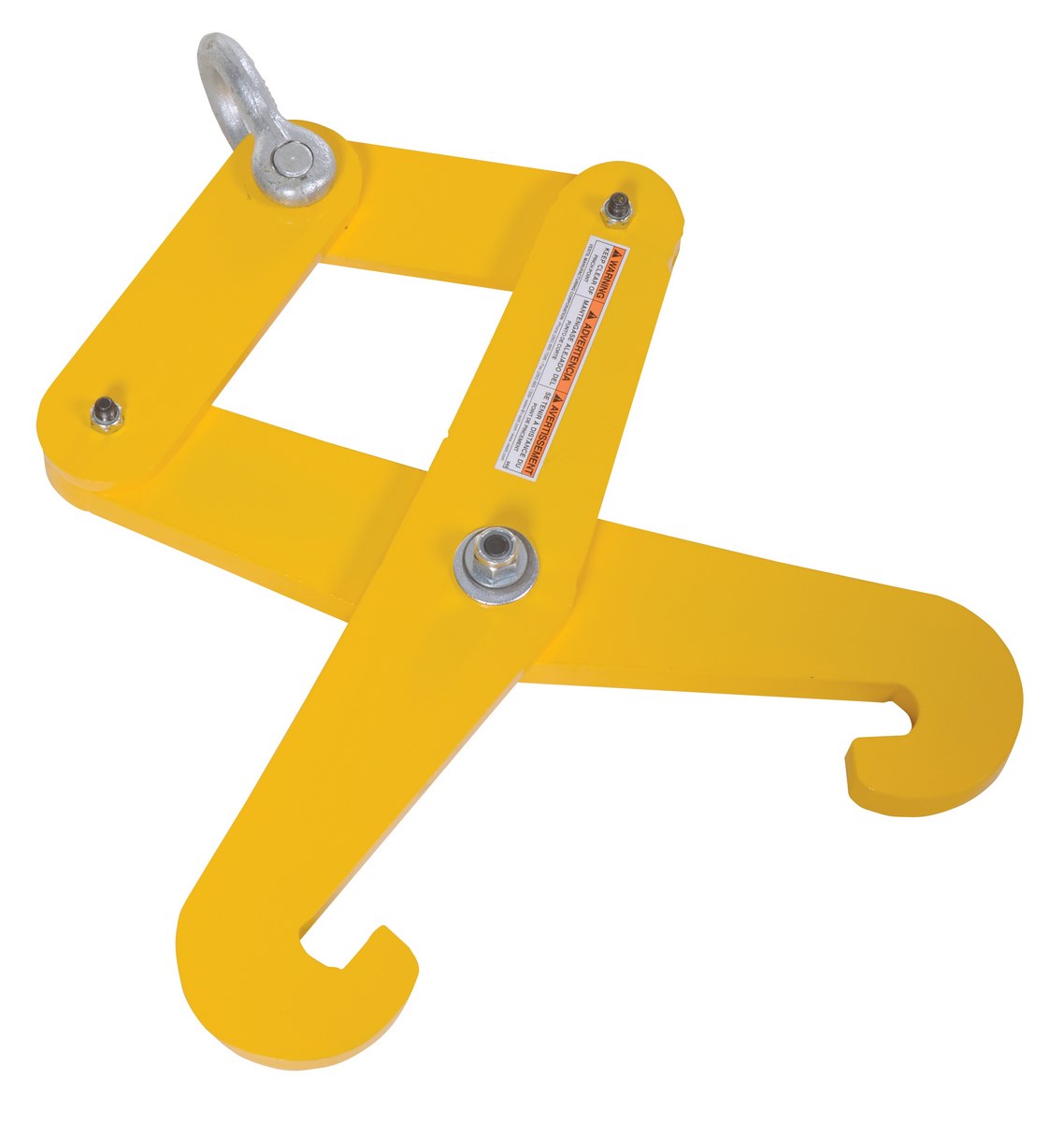

| BT-60 |  | 90 Days Limited Warranty | Steel Heavy Duty Beam Tongs 10 In. Max Beam Width 1-1/2 In. x 14-9/16 In. x 25-1/8 In. 6000 Lb. Capacity Yellow | Uniform Capacity (lb.): 6,000 Maximum Beam Width (in.): 10 | 27 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Maximum Beam Width (in.): 6
Uniform Capacity (lb.): 2,000
Maximum Beam Width (in.): 6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Maximum Beam Width (in.): 8
Uniform Capacity (lb.): 4,000
Maximum Beam Width (in.): 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Maximum Beam Width (in.): 10
Uniform Capacity (lb.): 6,000
Maximum Beam Width (in.): 10
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the minimum beam width/inside width when closed for model BT-20?
A: Inside width when closed is 2-9/16".
 |
||||||||||||||||||||||
Heavy-Duty Beam Tongs |
||||||||||||||||||||||
 |
||||||||||||||||||||||
The heavy duty beam tong are designed to lift I-beams in conjunction with overhead lifting devices. The scissor style design, utilizes the weight of the products being lifted for a more stable grip. Loads need to be centered and guided during lifting operation.
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
