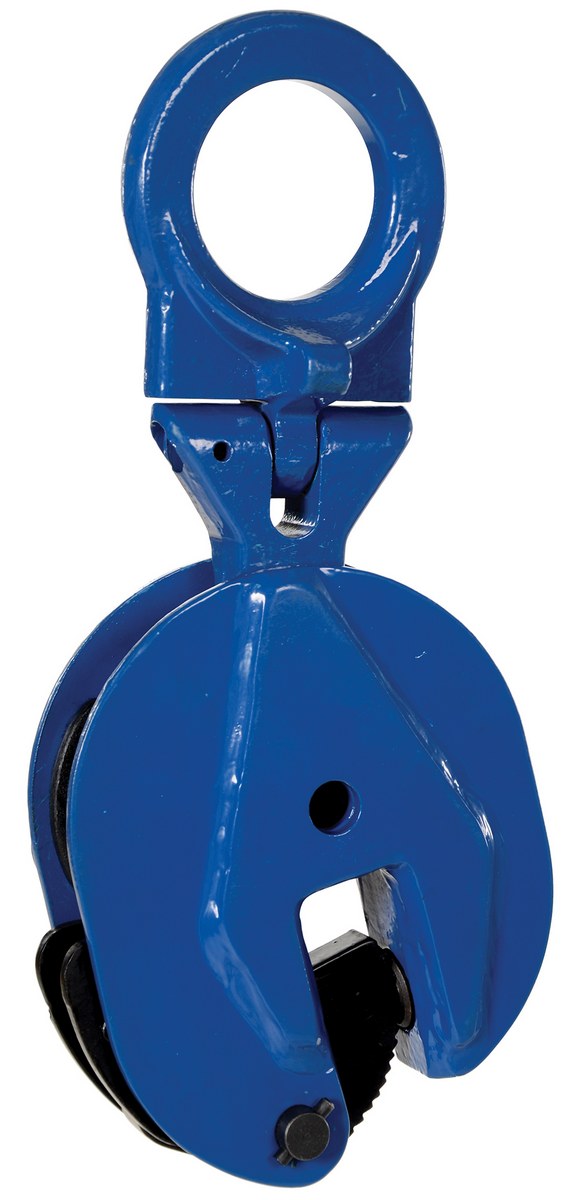

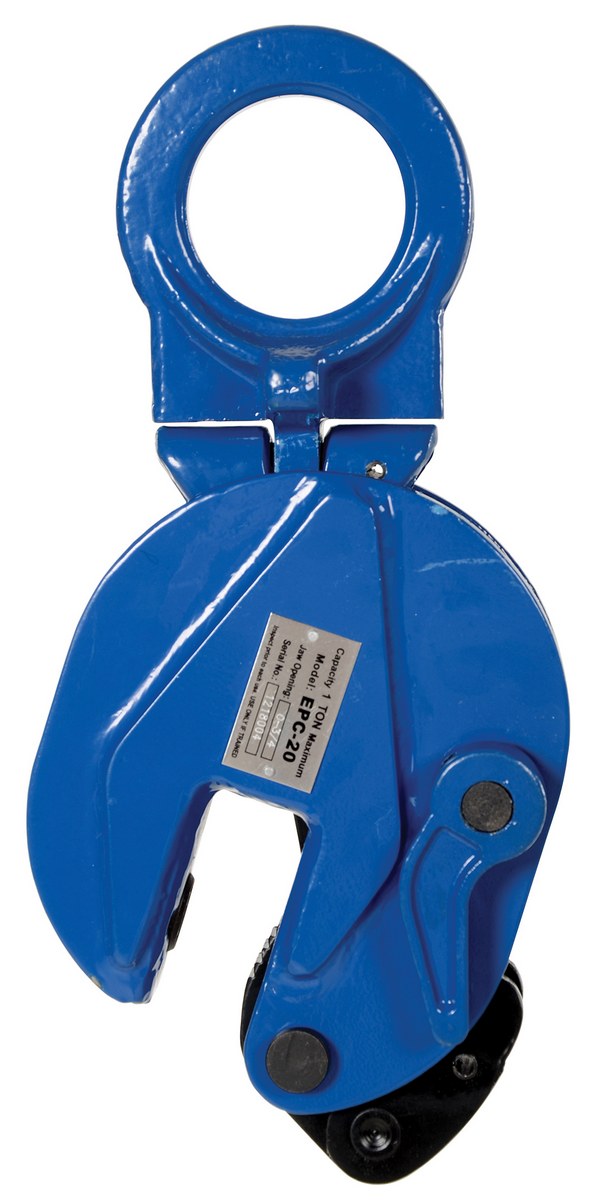

Vertical Plate ClampsPivoting bale for easier and more versatile operation. Automatic serrated hardened steel cams and pads. Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness of 30 RC (300 HB).
- Pivoting bale provides more versatile operation
- Drop-forged steel case provides maximum strength
- Unique design lifts one clean and oil free plate at a time
- Automatic serrated hardened steel cams and pads lock plate in place
Vertical Plate Clamps with Chain
Horizontal Plate Clamps
Non-Marring Plate Clamps
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

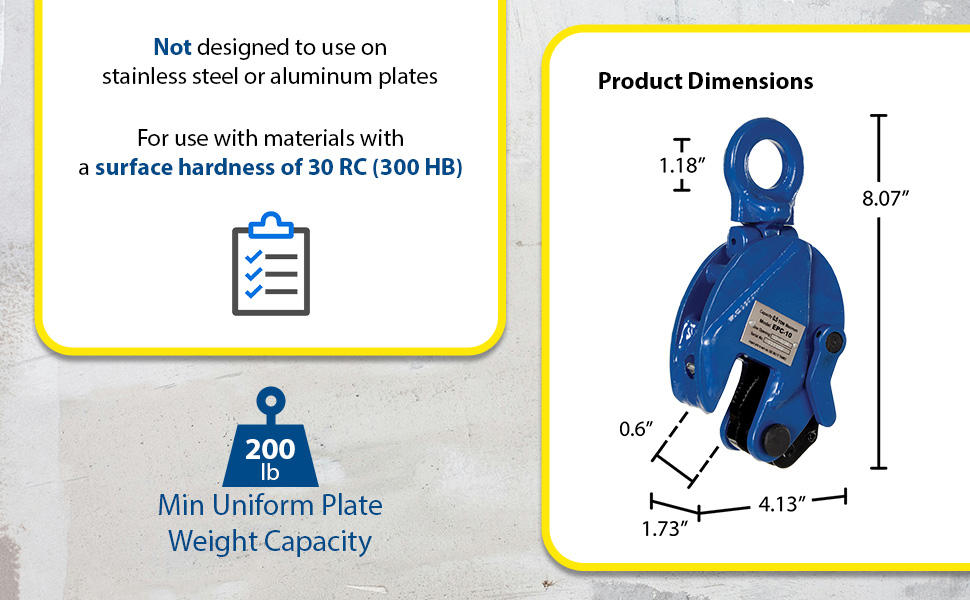

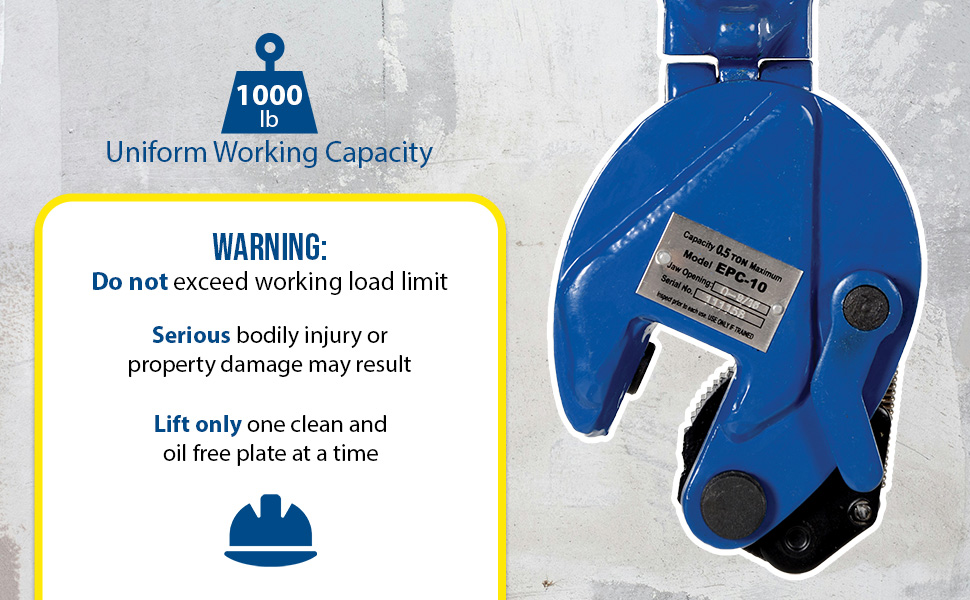

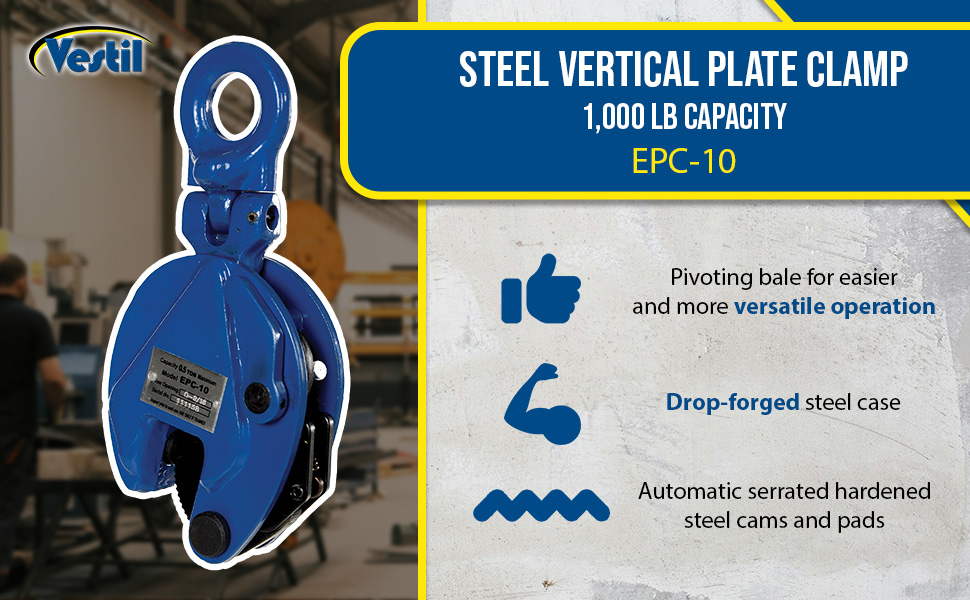

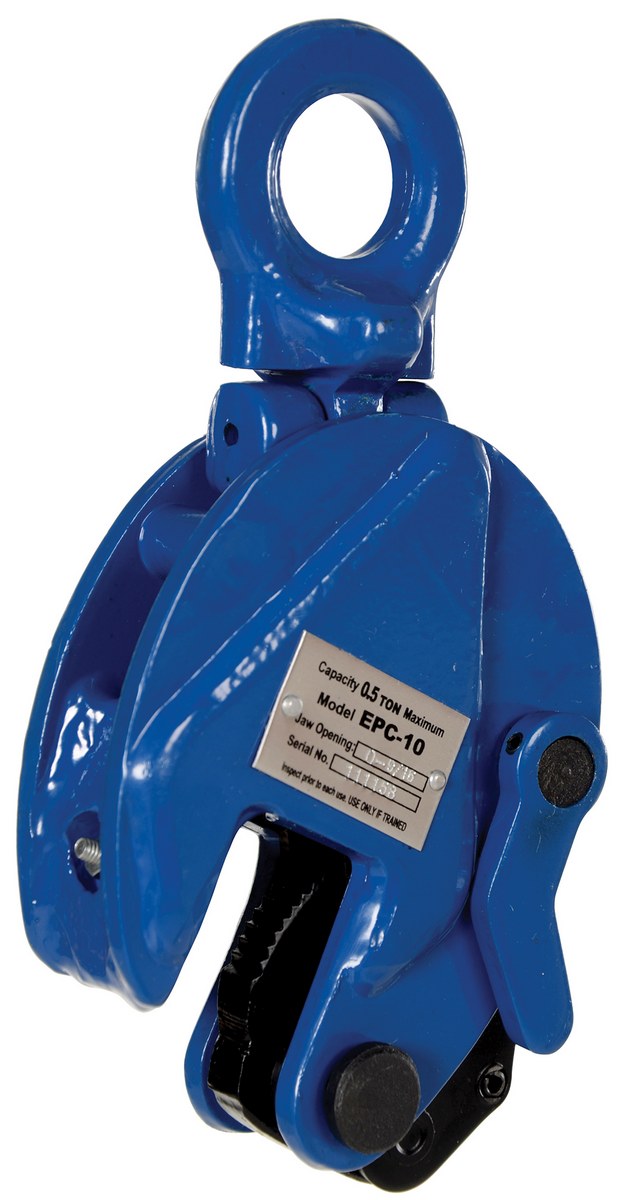

| EPC-10 |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp 1,000 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 200 Uniform Working Load Limit (lb.): 1,000 | 5 | ||

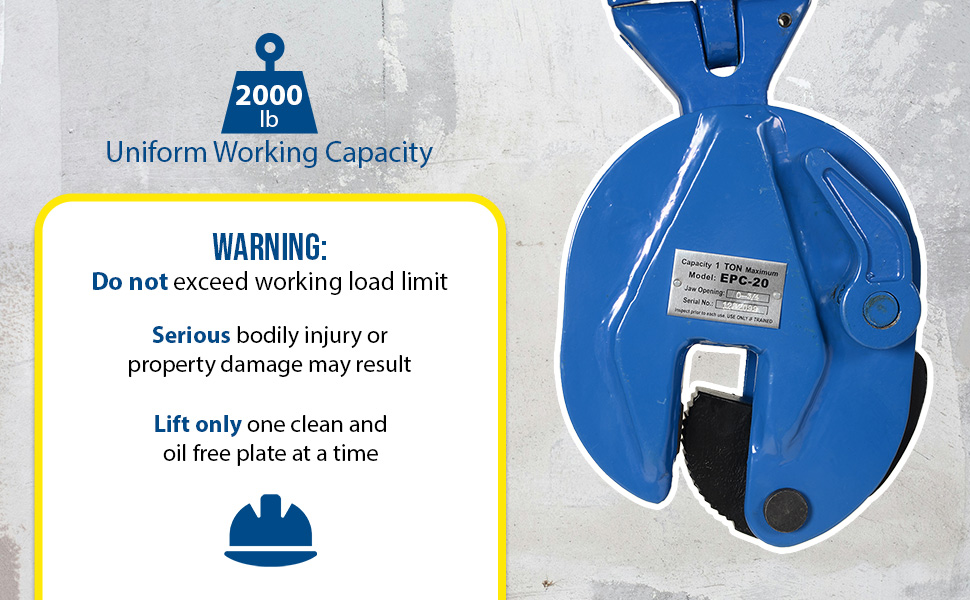

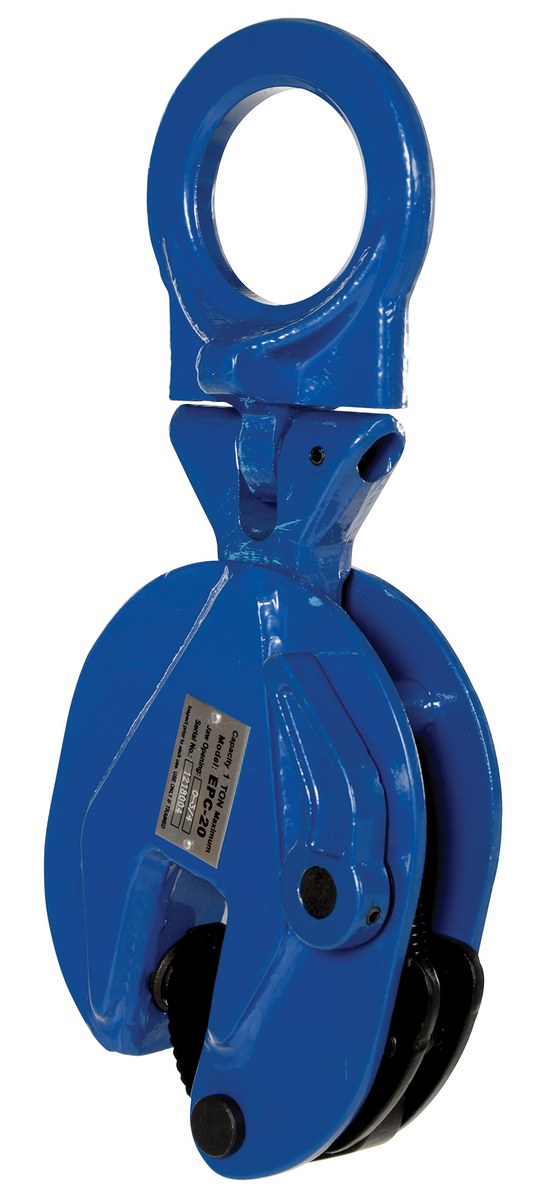

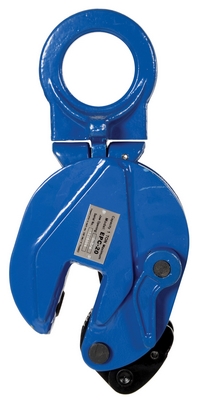

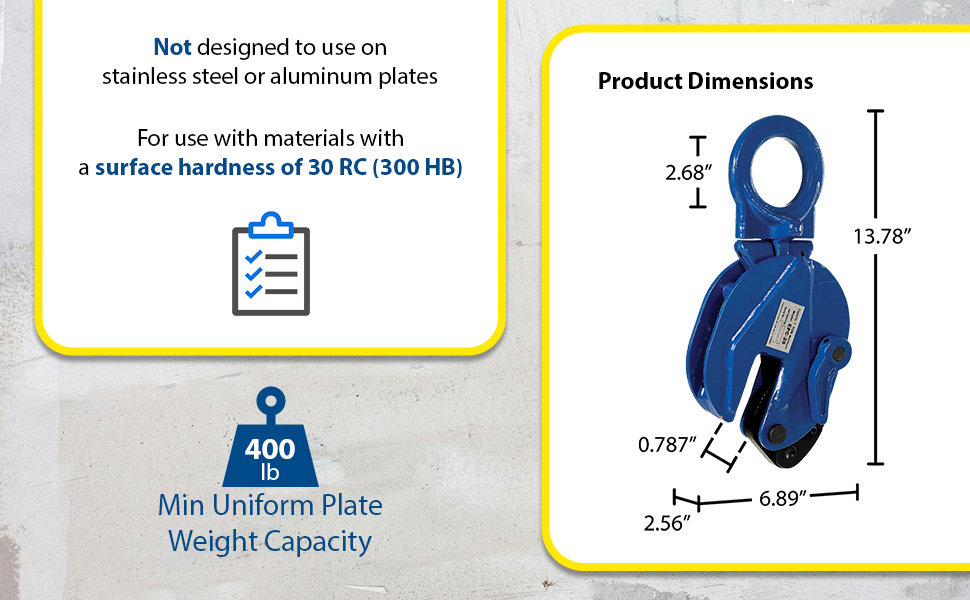

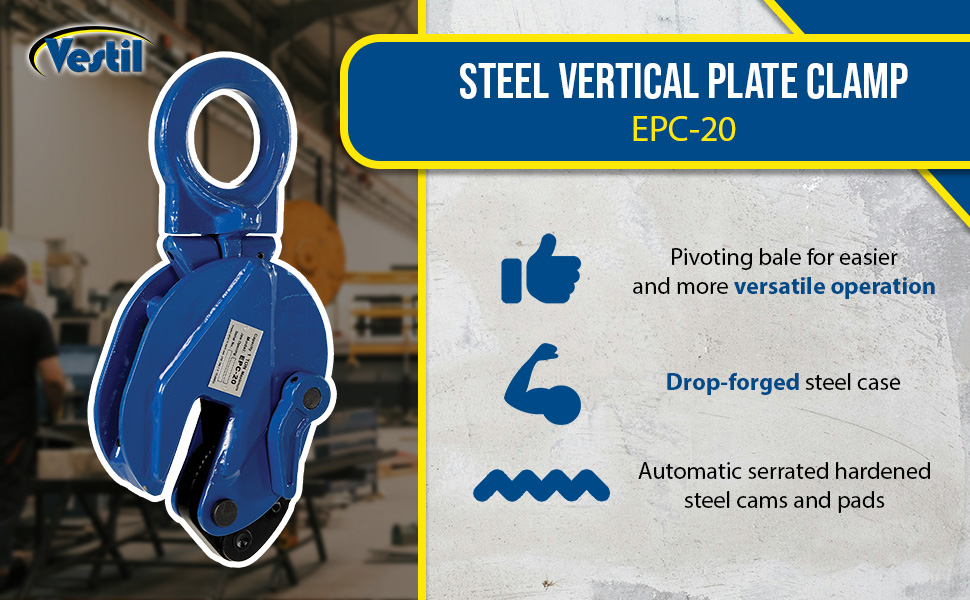

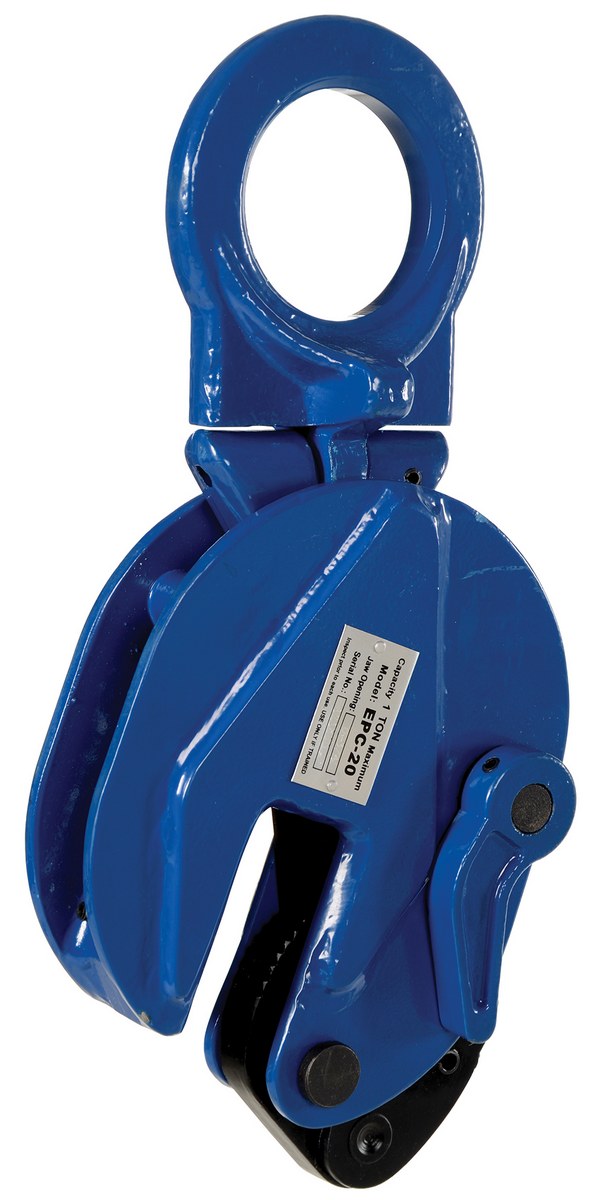

| EPC-20 | POPULAR |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp 2,000 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 400 Uniform Working Load Limit (lb.): 2,000 | 16 | |

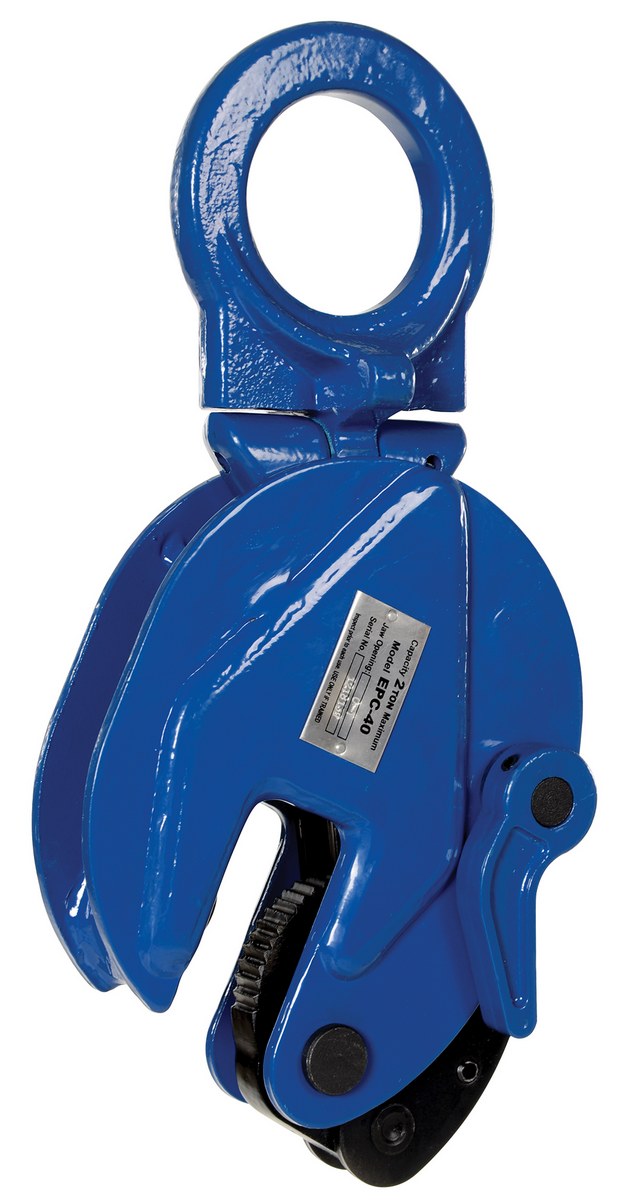

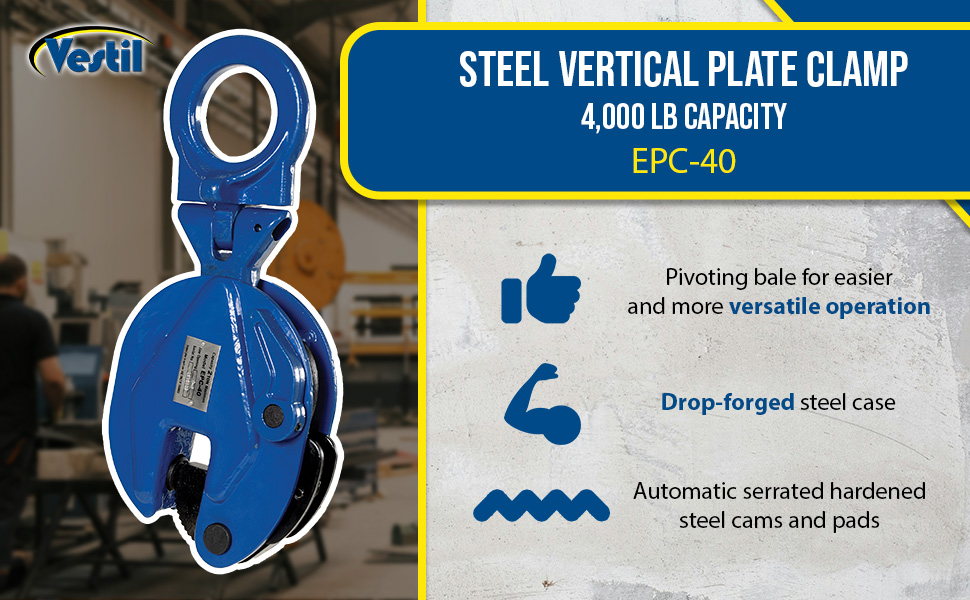

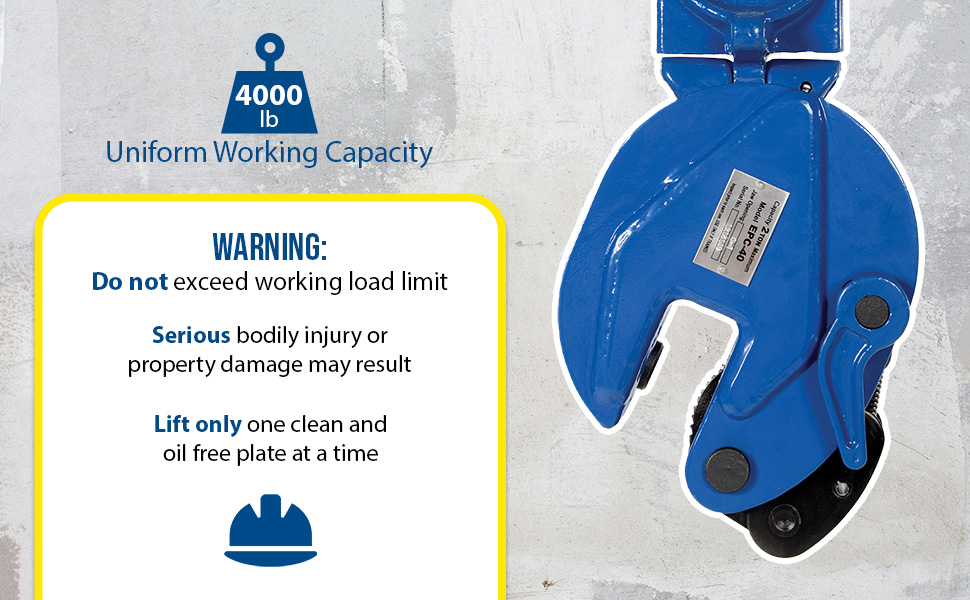

| EPC-40 |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp 4,000 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 800 Uniform Working Load Limit (lb.): 4,000 | 17 | ||

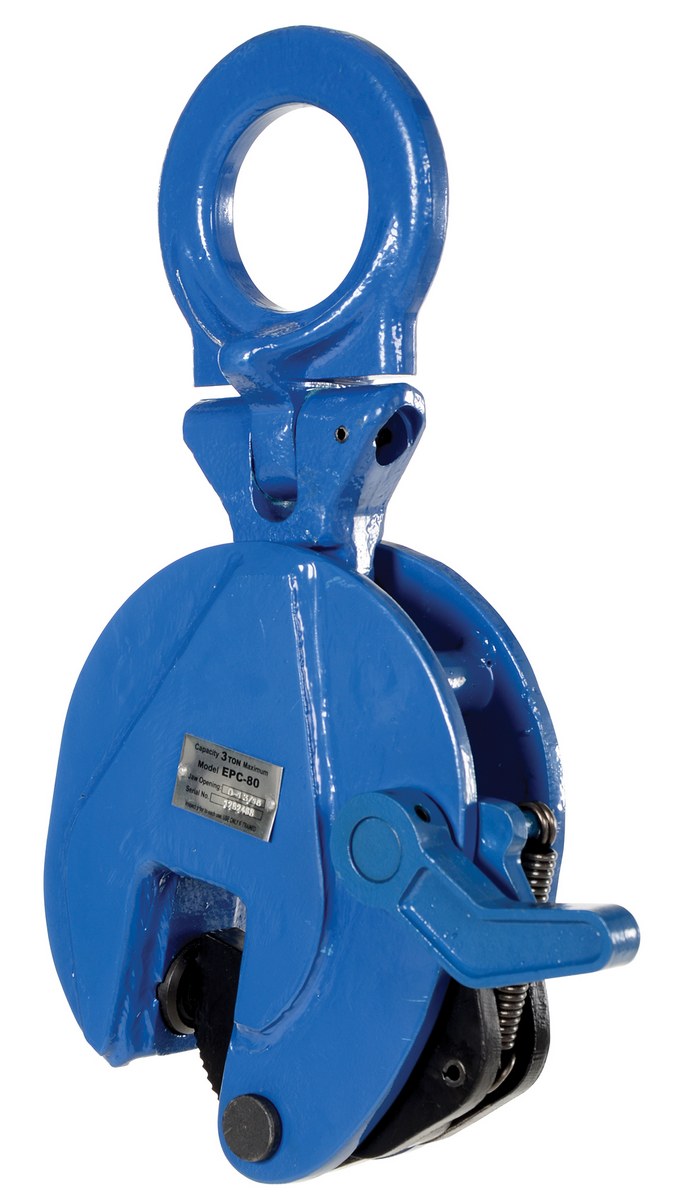

| EPC-80 |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp 6,600 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 1,320 Uniform Working Load Limit (lb.): 6,600 | 32 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600
Min Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600
