Heavy-Duty Pipe GrabsDesigned for lifting pipe (cast iron or steel) with overhead lifting device. Automatic operation allows for easy use by anyone. Loads must be centered and guided during lifting operations. Heavy-duty steel construction with yellow powder coat finish.
- Designed for lifting cast iron pipe with overhead lifting device
- Automatic operation allows for easy use by anyone
- Loads must be centered and guided during lifting operations
- Heavy-duty steel construction for strength & durability
Square Bar Stock Lifter
Polyester Lifting Slings - Double Ply
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| PG-C-045 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Cast Iron Pipes 27 In. x 8-3/8 In. x 18-3/4 In. 450 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 450 Works with Pipe (O.D.): 3-1/2 to 4 | 21 | ||
| PG-C-060 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Cast Iron Pipes 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 600 Works with Pipe (O.D.): 4-1/2 to 4-3/4 | 22 | ||
| PG-C-100 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Cast Iron Pipes 37 In. x 13-1/4 In. x 24-5/8 In. 1000 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 1,000 Works with Pipe (O.D.): 5-1/2 to 7 | 26 | ||

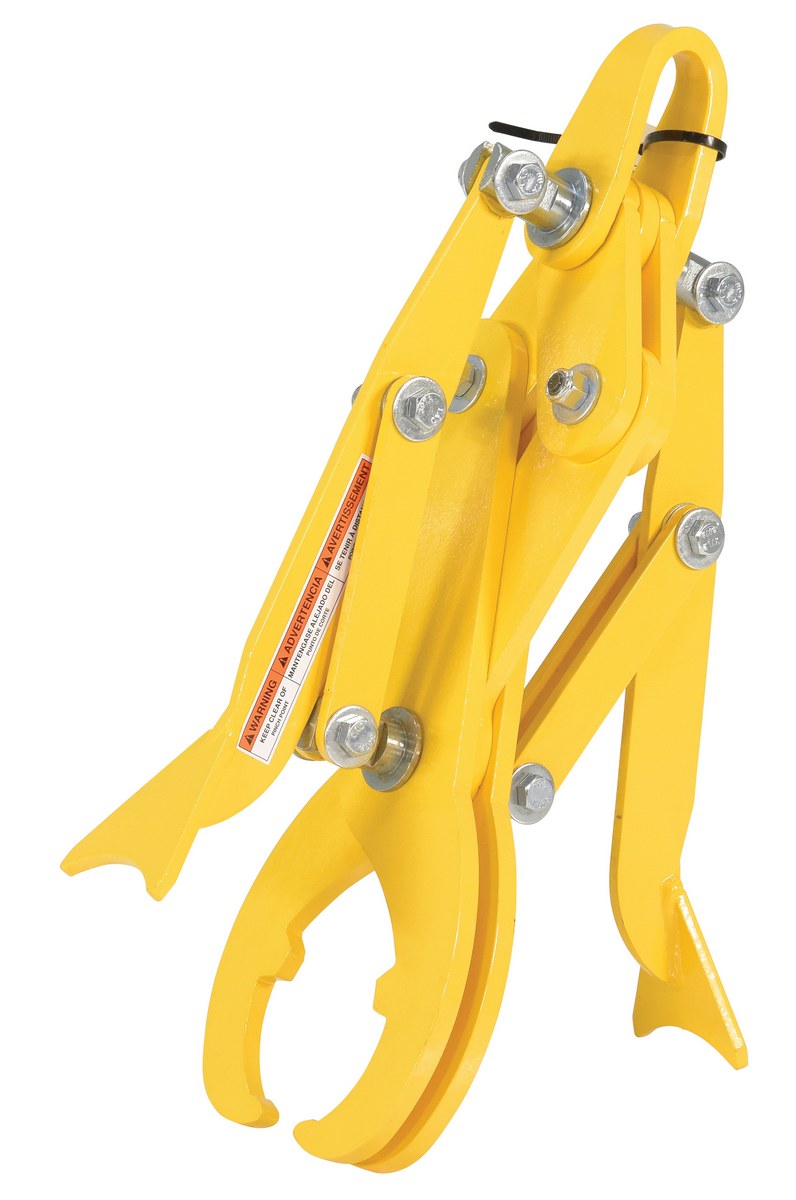

| PG-C-140 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Cast Iron Pipes 41-1/8 In. x 18-11/16 In. x 29-3/4 In. 1400 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 1,400 Works with Pipe (O.D.): 8-5/8 to 9 | 40 | ||

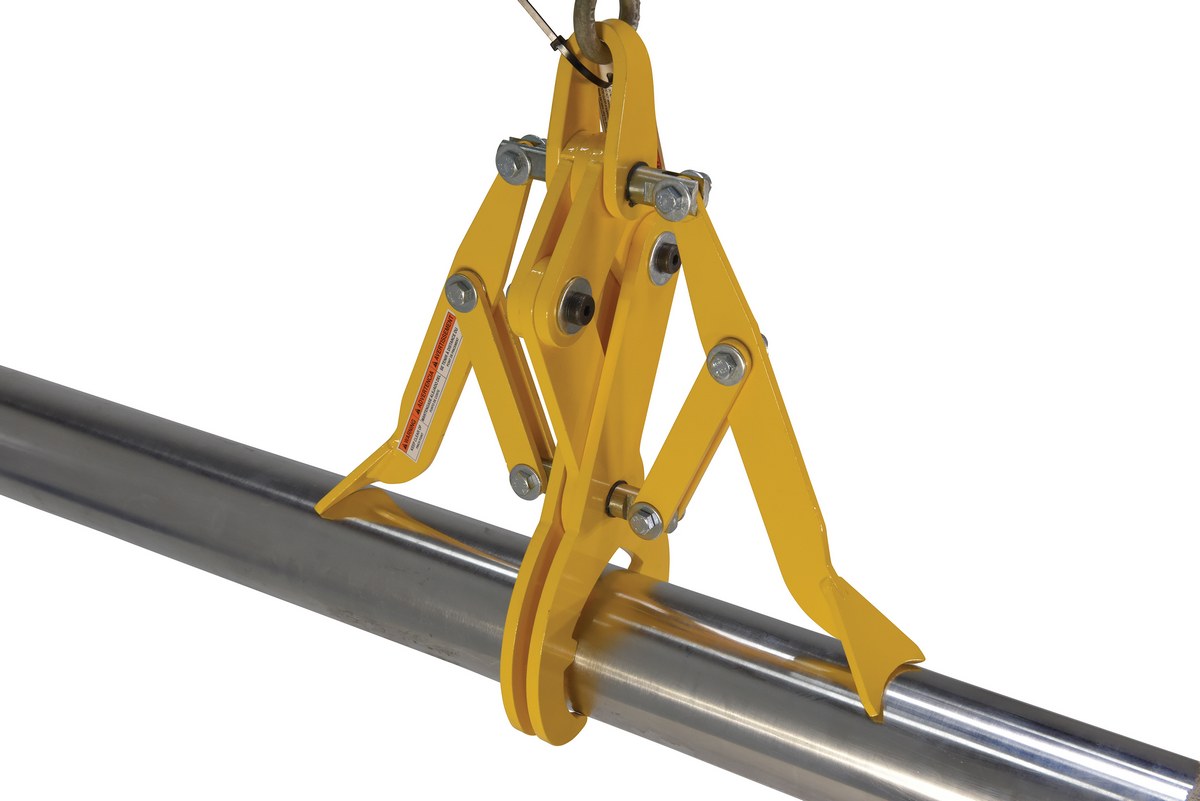

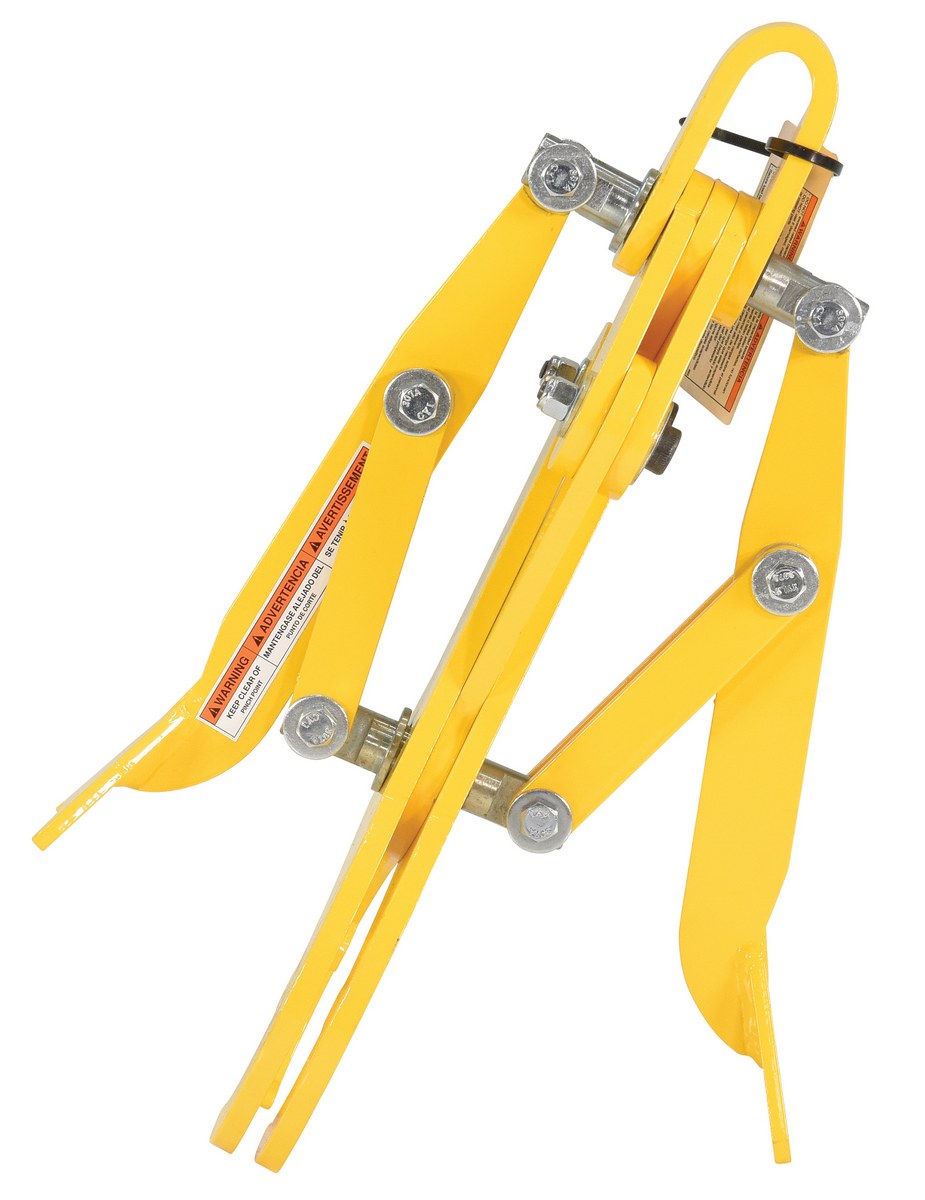

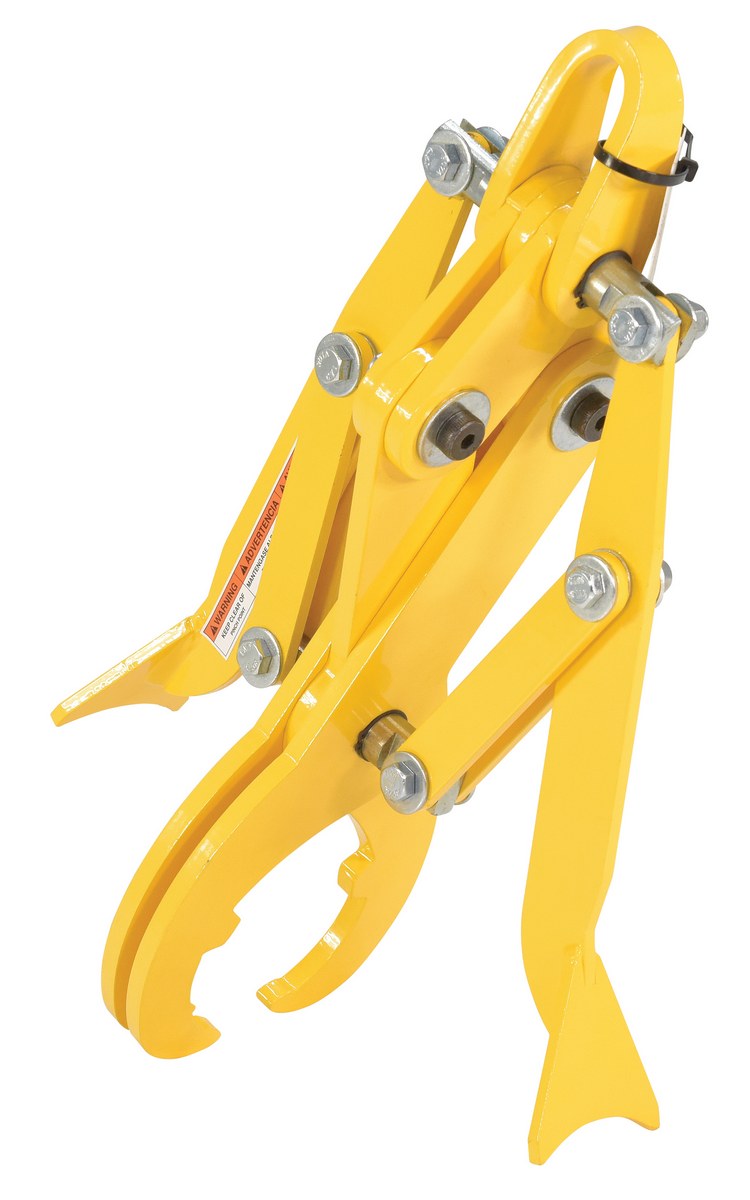

| PG-C-200 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Cast Iron Pipes 53 In. x 23-5/8 In. x 36-3/16 In. 2000 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 2,000 Works with Pipe (O.D.): 10-3/4 to 11 | 113 | ||

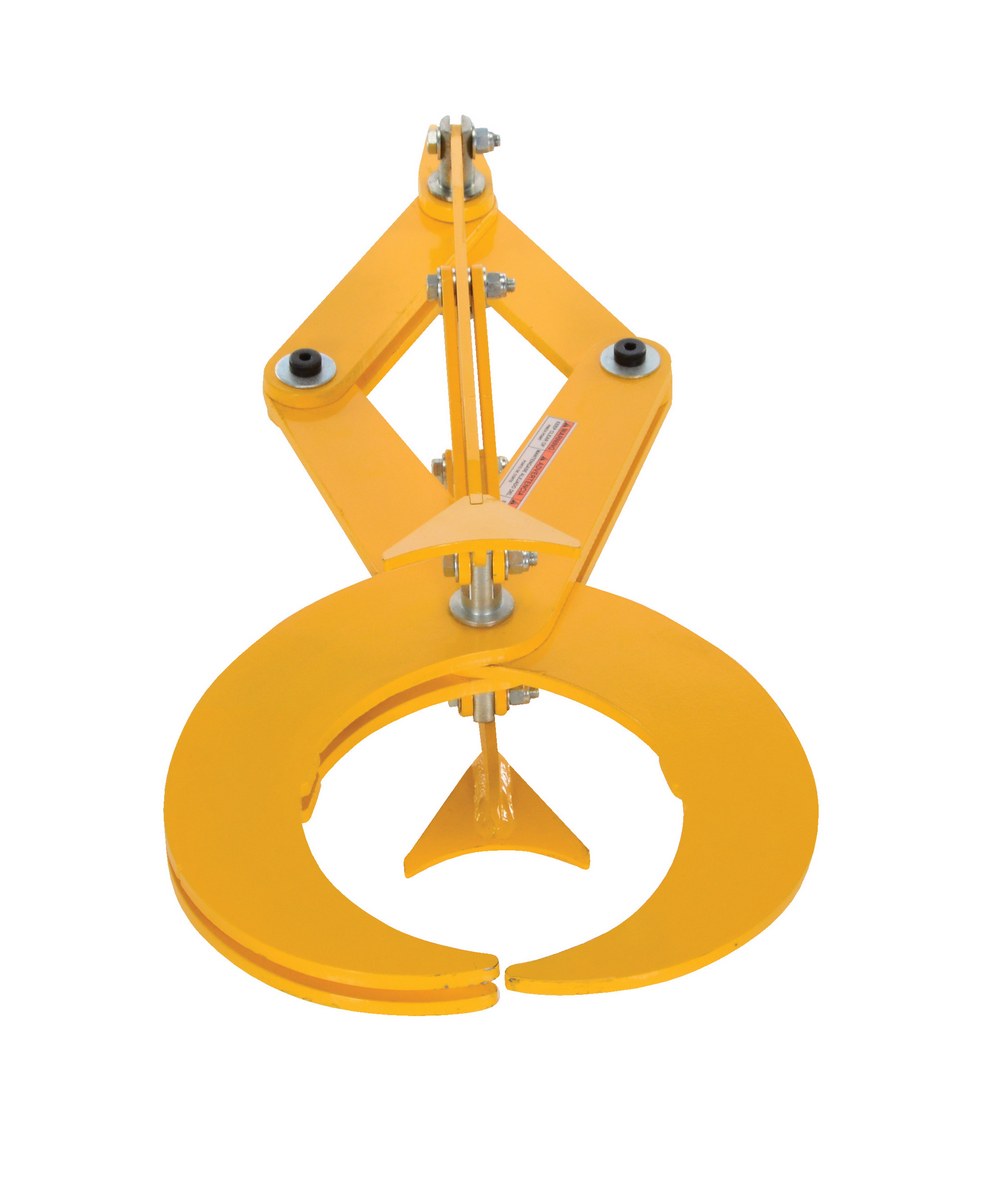

| PG-S-045 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Steel Pipes 27 In. x 8-3/8 In. x 18-3/4 In. 450 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 450 Works with Pipe (O.D.): 3-1/2 to 4 | 22 | ||

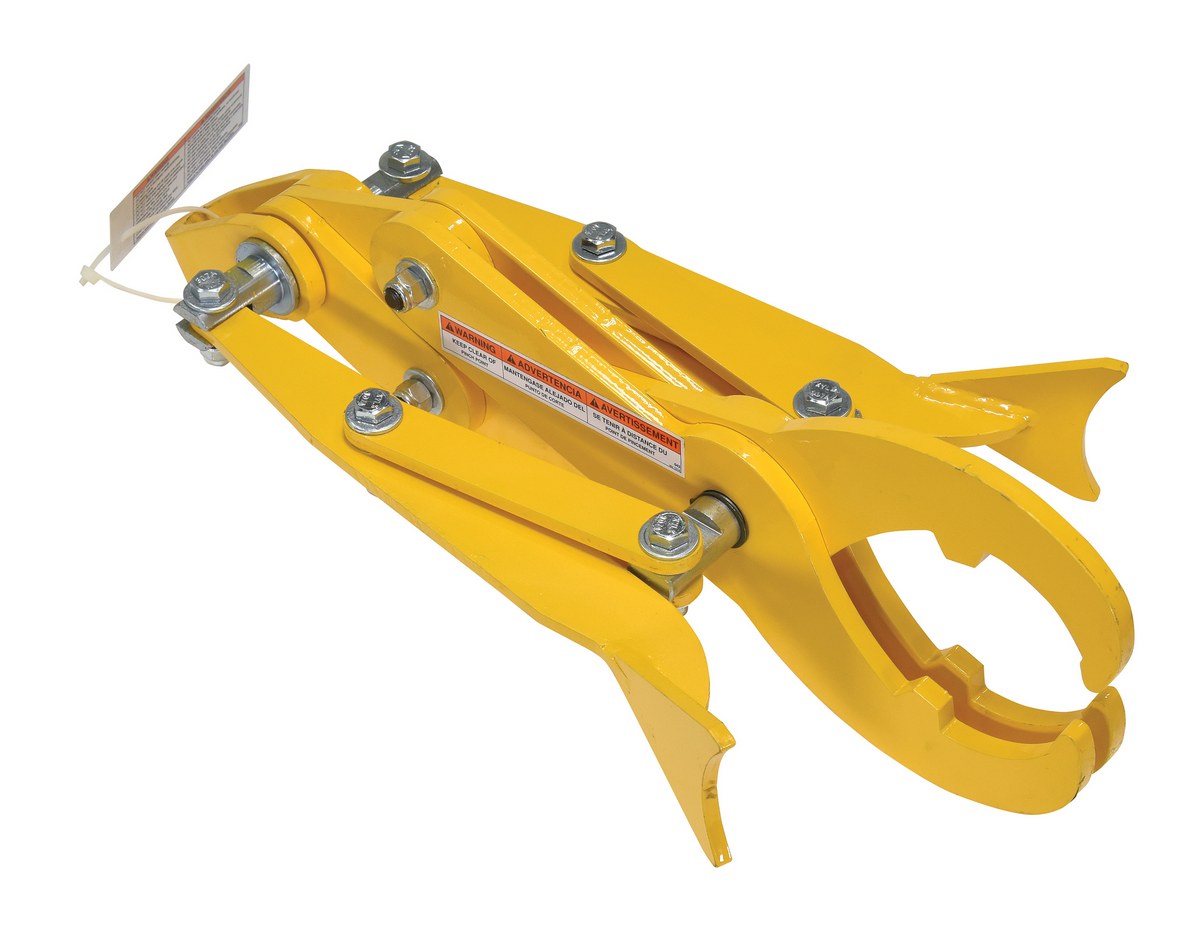

| PG-S-060 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Steel Pipes 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 600 Works with Pipe (O.D.): 4-1/2 to 4-3/4 | 21 | ||

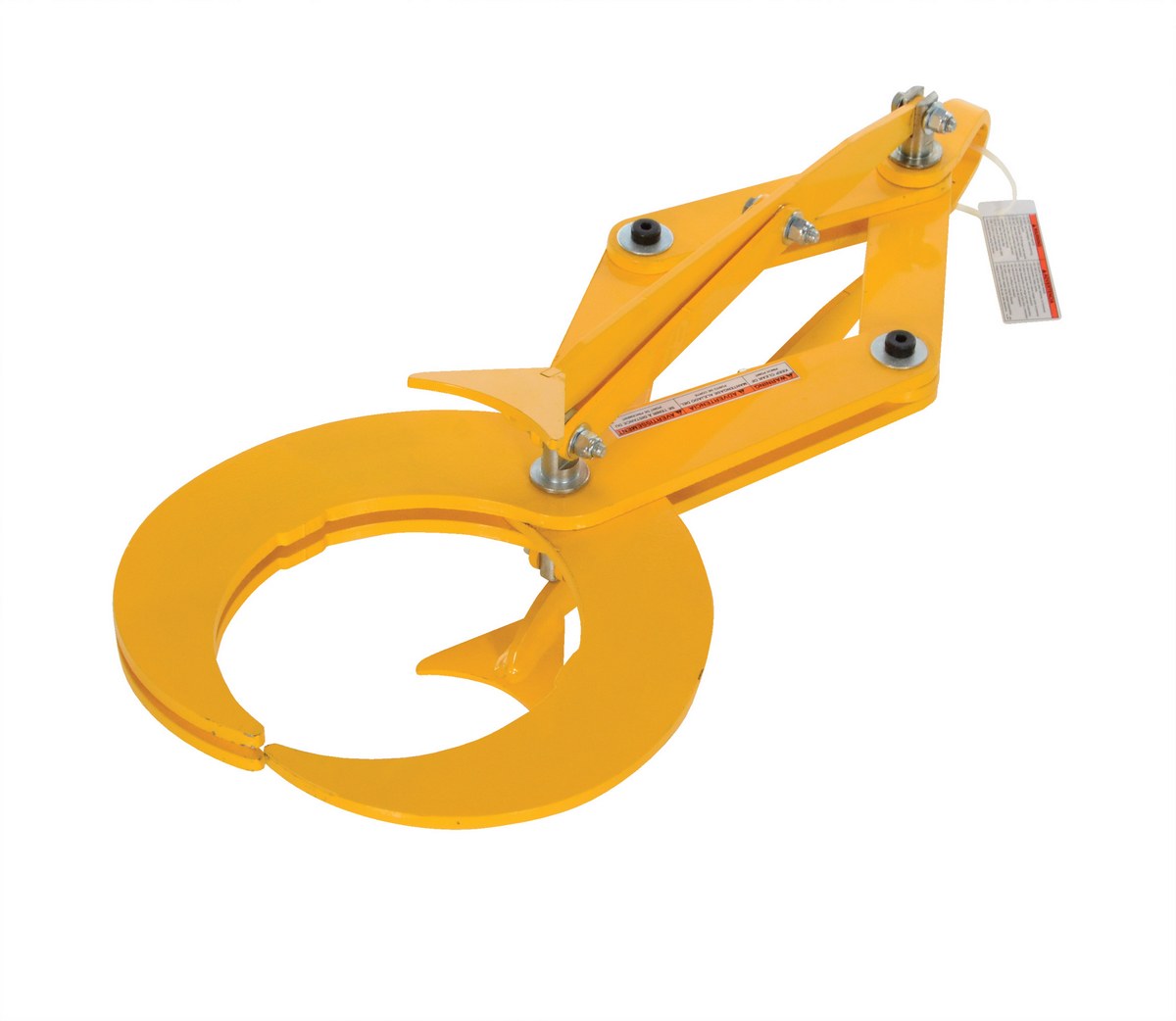

| PG-S-100 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Steel Pipes 37 In. x 13-1/4 In. x 24-5/8 In. 1000 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 1,000 Works with Pipe (O.D.): 5-1/2 to 7 | 26 | ||
| PG-S-140 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Steel Pipes 41-1/8 In. x 18-11/16 In. x 29-3/4 In. 1400 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 1,400 Works with Pipe (O.D.): 8-5/8 to 9 | 40 | ||
| PG-S-200 |  | 90 Days Limited Warranty | Steel Heavy Duty Pipe Grab For Steel Pipes 53 In. x 23-5/8 In. x 36-3/16 In. 2000 Lb. Capacity Yellow | Uniform Working Load Limit (lb.): 2,000 Works with Pipe (O.D.): 10-3/4 to 11 | 117 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
Uniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
Uniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
Uniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
Uniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
Uniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
Uniform Working Load Limit (lb.): 450
Works with Pipe (O.D.): 3-1/2 to 4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
Uniform Working Load Limit (lb.): 600
Works with Pipe (O.D.): 4-1/2 to 4-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
Uniform Working Load Limit (lb.): 1,000
Works with Pipe (O.D.): 5-1/2 to 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
Uniform Working Load Limit (lb.): 1,400
Works with Pipe (O.D.): 8-5/8 to 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
Uniform Working Load Limit (lb.): 2,000
Works with Pipe (O.D.): 10-3/4 to 11
