Vertical Plate Clamps with ChainDesigned for lifting plate material in a vertical position. Lifting eye includes chain for greater versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20 specifications. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
- Ideal for pulling over long distances
- Designed for in a vertical position
- Lifting eye includes chain for greater versatility
- Heavy-duty steel construction for years of reliable use
Vertical Plate Clamps
Positive Locking Plate Clamps
Heavy-Duty Die Lifting Tongs
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

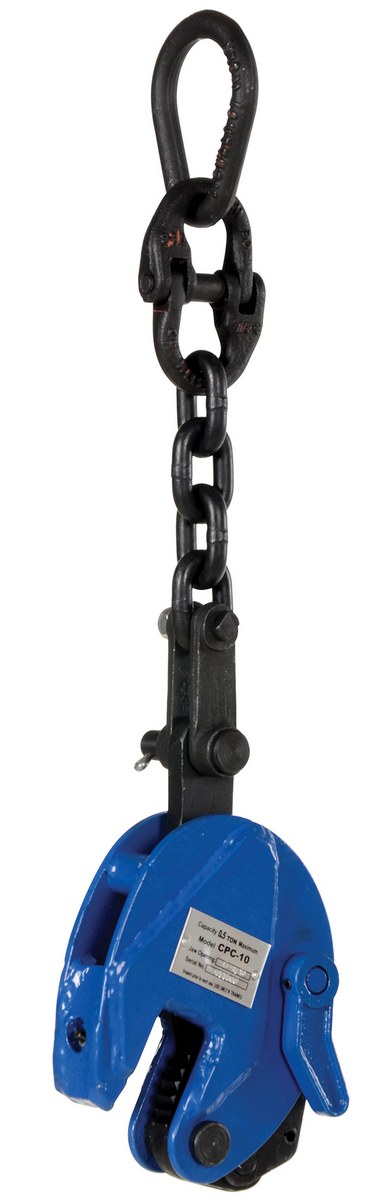

| CPC-10 |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp with Chain 4 In. x 1-31/32 In. x 16-7/8 In. 1000 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 200 Uniform Working Load Limit (lb.): 1,000 | 6 | ||

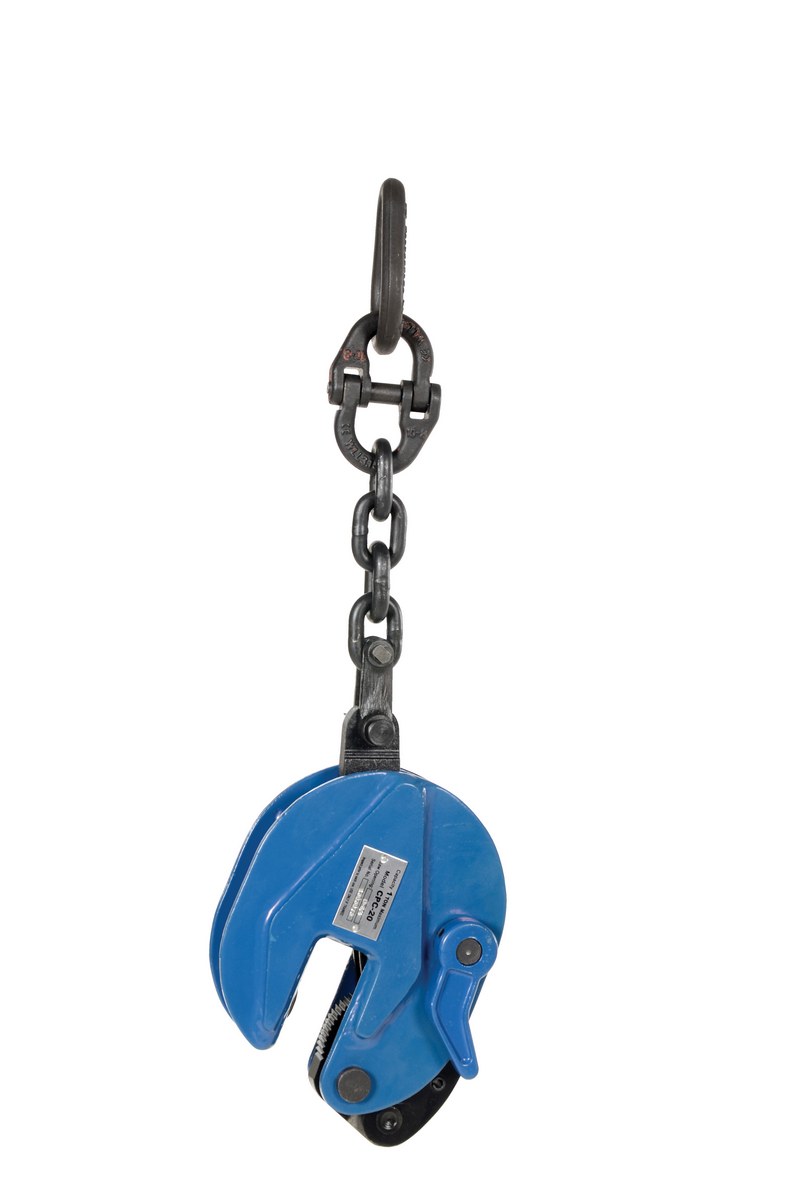

| CPC-20 |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp with Chain 6-1/2 In. x 2-1/2 In. x 22 In. 2000 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 400 Uniform Working Load Limit (lb.): 2,000 | 14 | ||

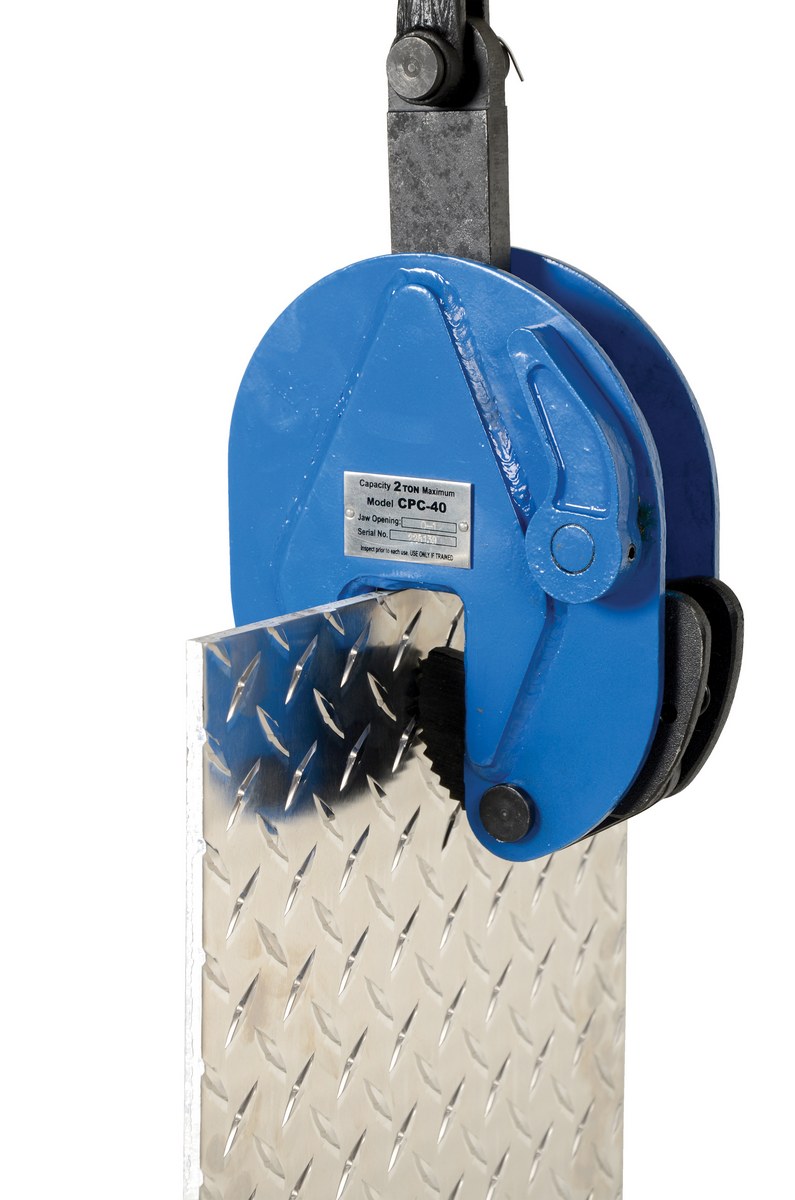

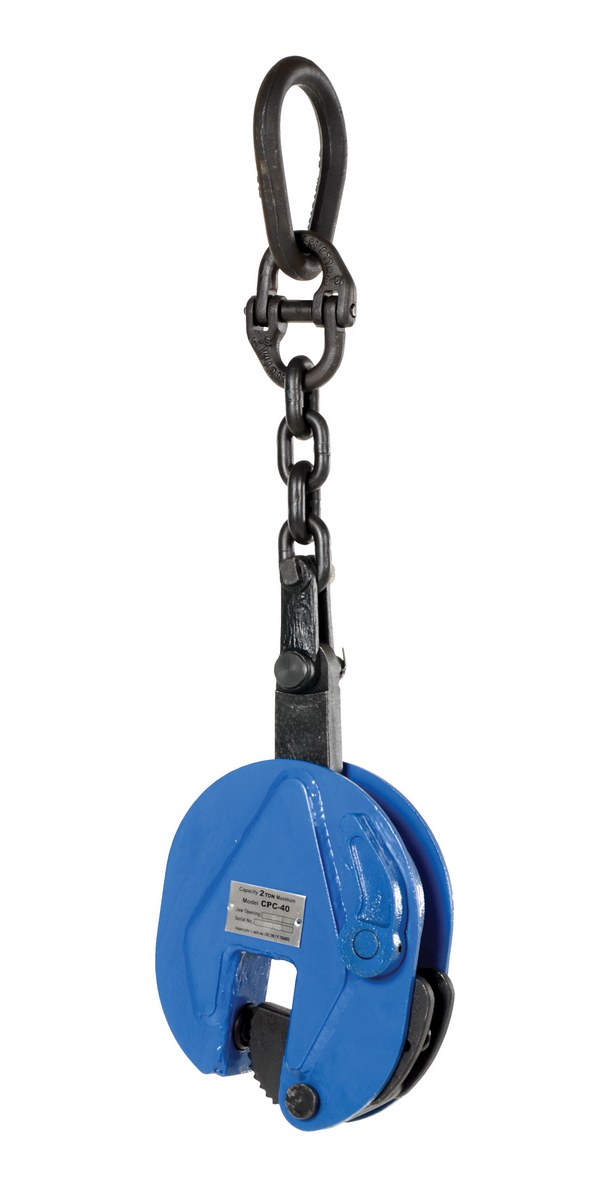

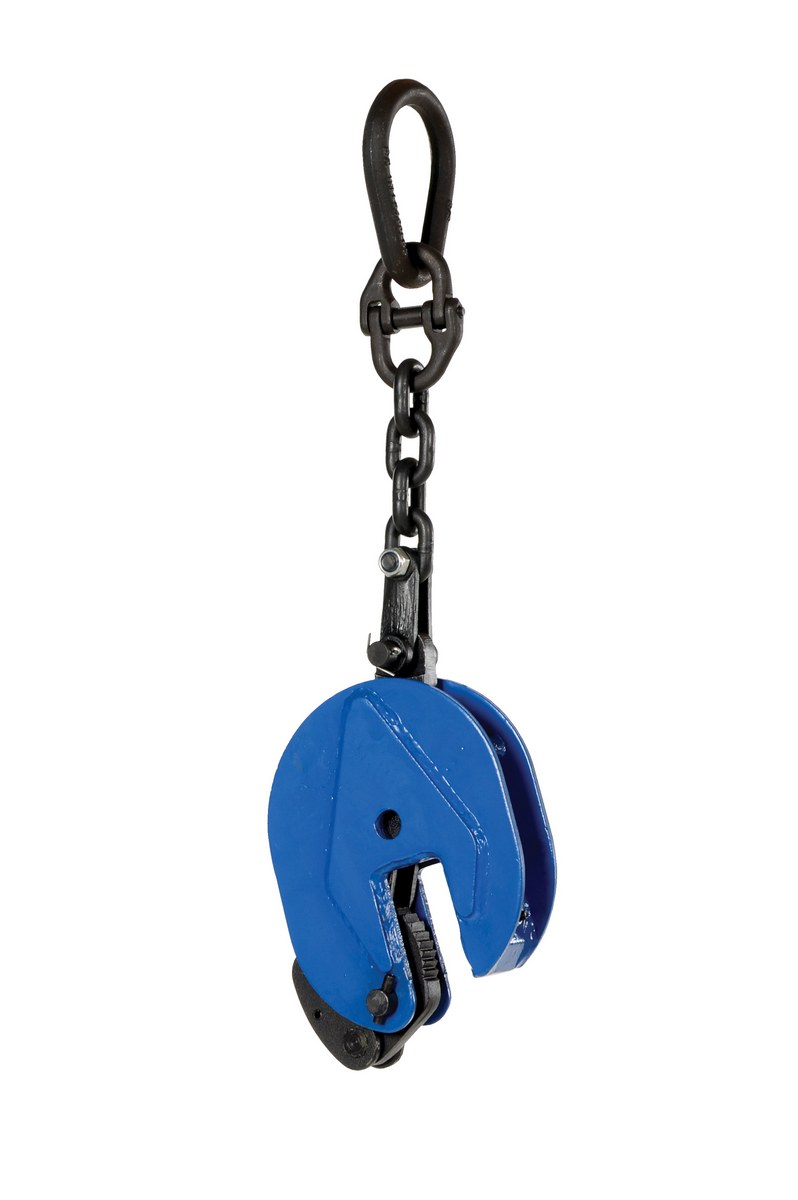

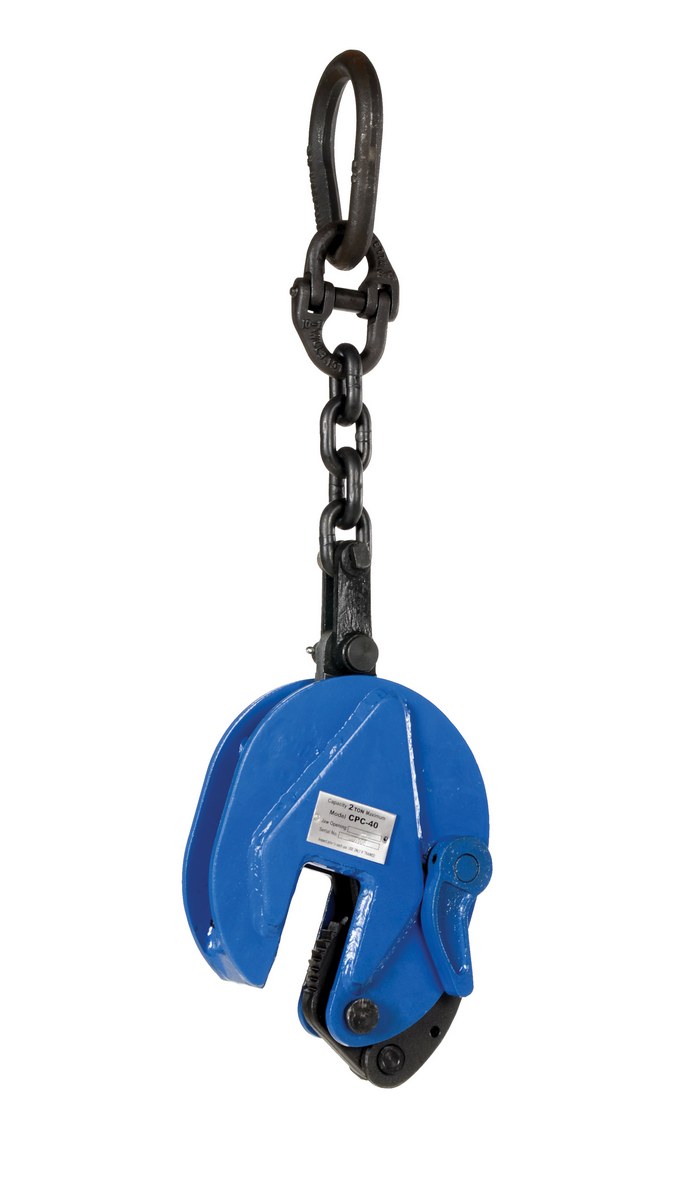

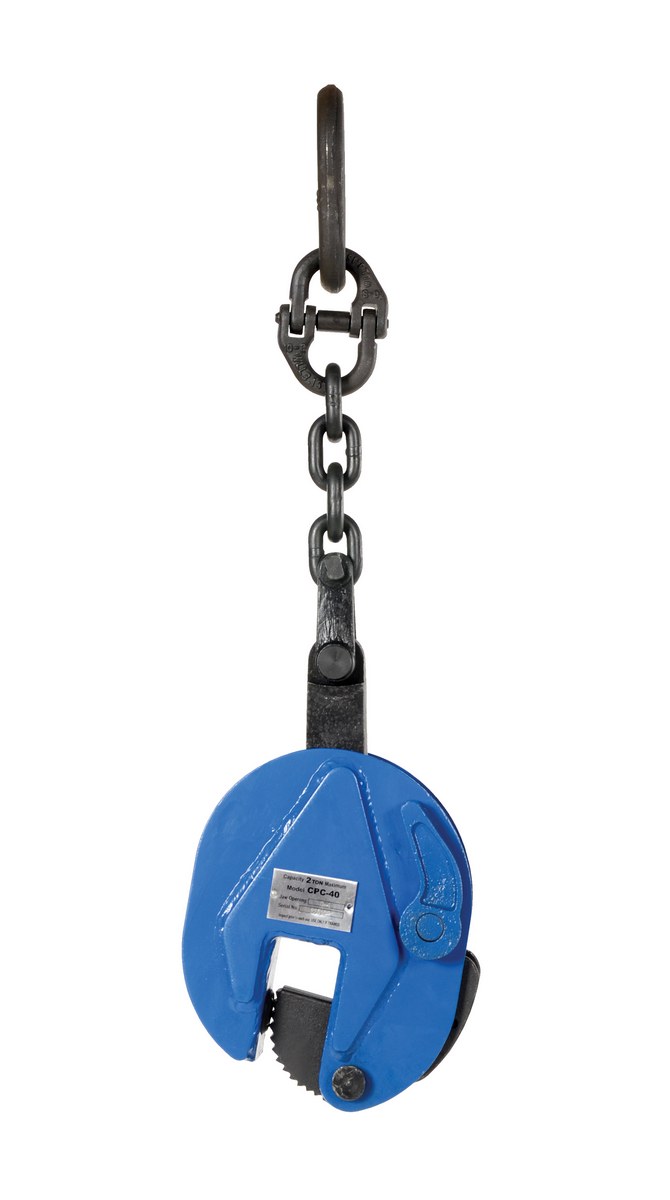

| CPC-40 |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp with Chain 7 In. x 2-3/4 In. x 23-1/2 In. 4000 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 800 Uniform Working Load Limit (lb.): 4,000 | 17 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
