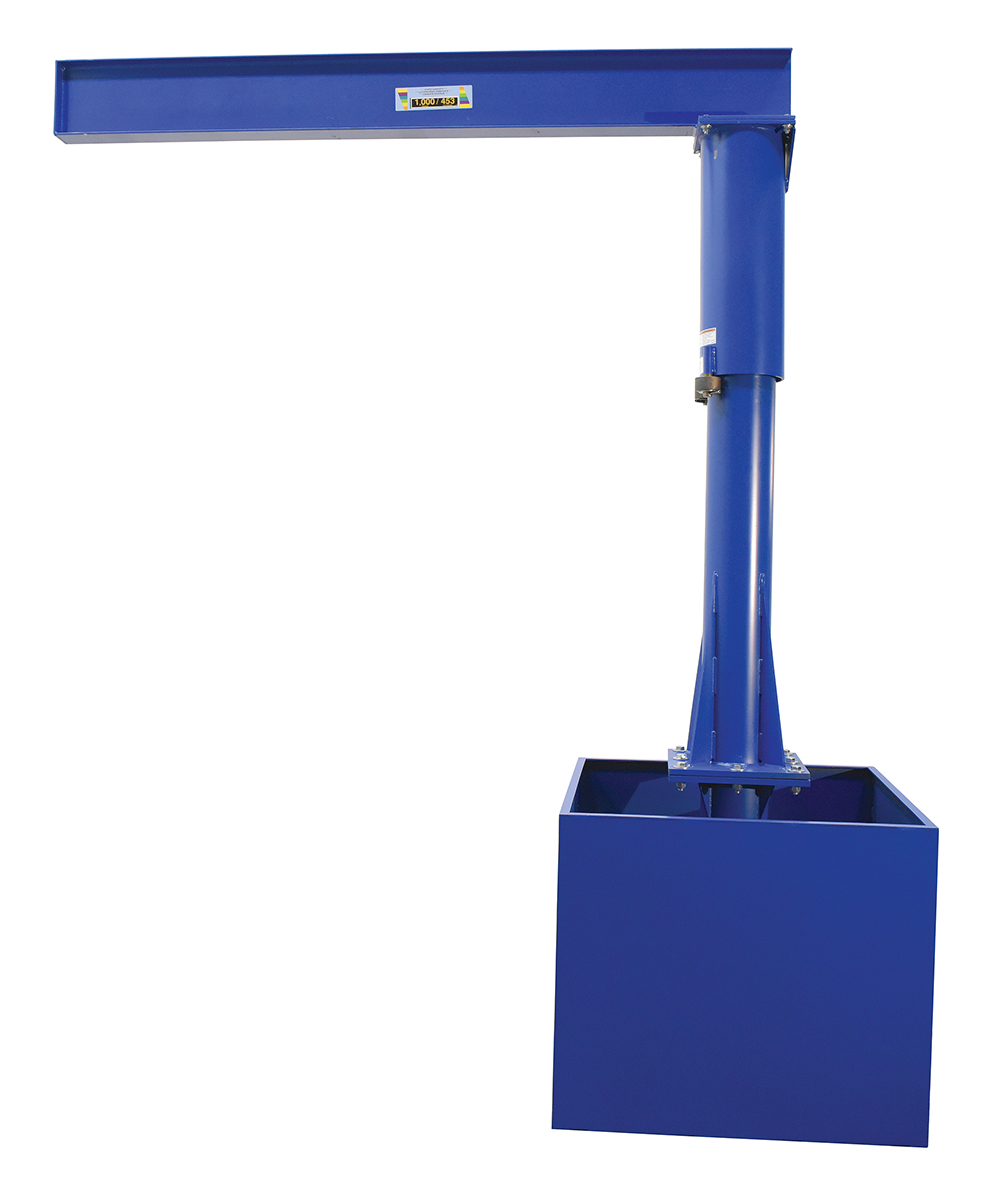

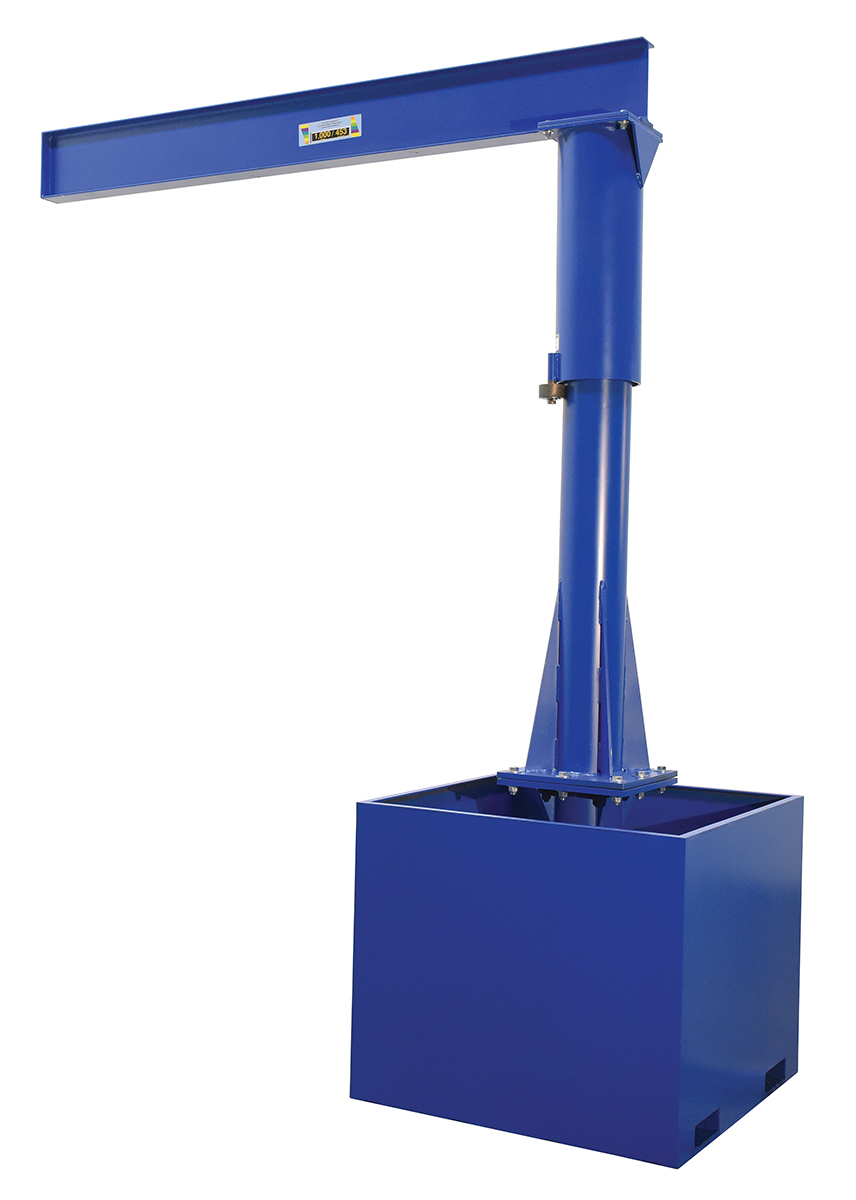

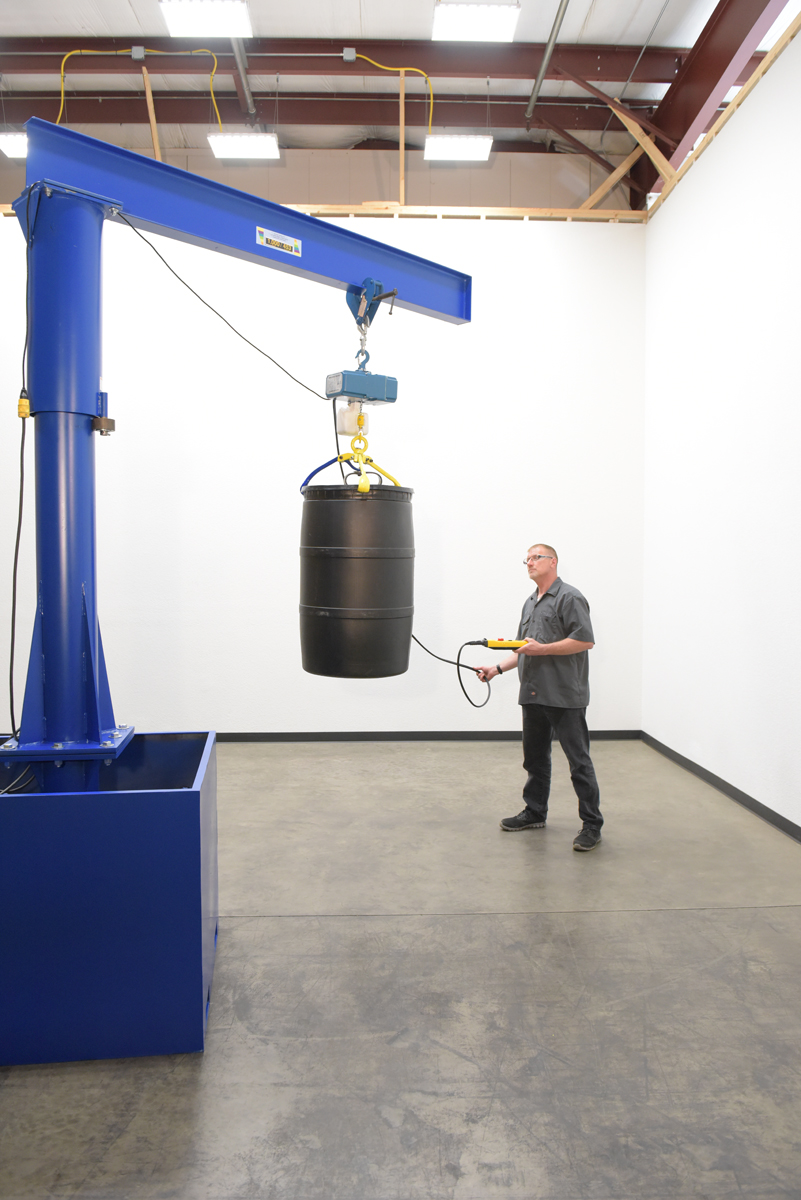

Portable Jib CranesUnique design allows for easy transportation of jib crane with a fork truck. Empty base models include instructions for proper filling with concrete. Fillable base measurements are 42-3/16" x 42-3/16" x 18"H or 36"H and includes built-in fork tubes. Fork tubes are 7-5/8"W x 2-5/8"H usable on 24" fork centers, for transportation with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Under I-beam clearance is 10'. Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. Hoists & Trollies can be ordered seperately.
- Design allows for easy transportation with a fork truck
- Fill standard base with concrete for proper use
- Upright vertical column bolts to base for optimal efficiency
- Steel construction for strength and durability
Floor Mounted Jibs
Festoon System
Tie Rod JibsAdditional Models In This Family
JIB-CB-25-8-10
JIB-CB-100-8-10
JIB-CB-25-10-10-BC
JIB-CB-100-8-10-BC
JIB-CB-18-B
JIB-CB-36-B
JIB-CB-36-BC
JIB-CB-18-B
JIB-CB-100-8-10
JIB-CB-36-B
JIB-CB-50-8-10-BC
JIB-CB-18-BC
JIB-CB-50-10-10-BC
JIB-CB-50-8-10
JIB-CB-100-8-10
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

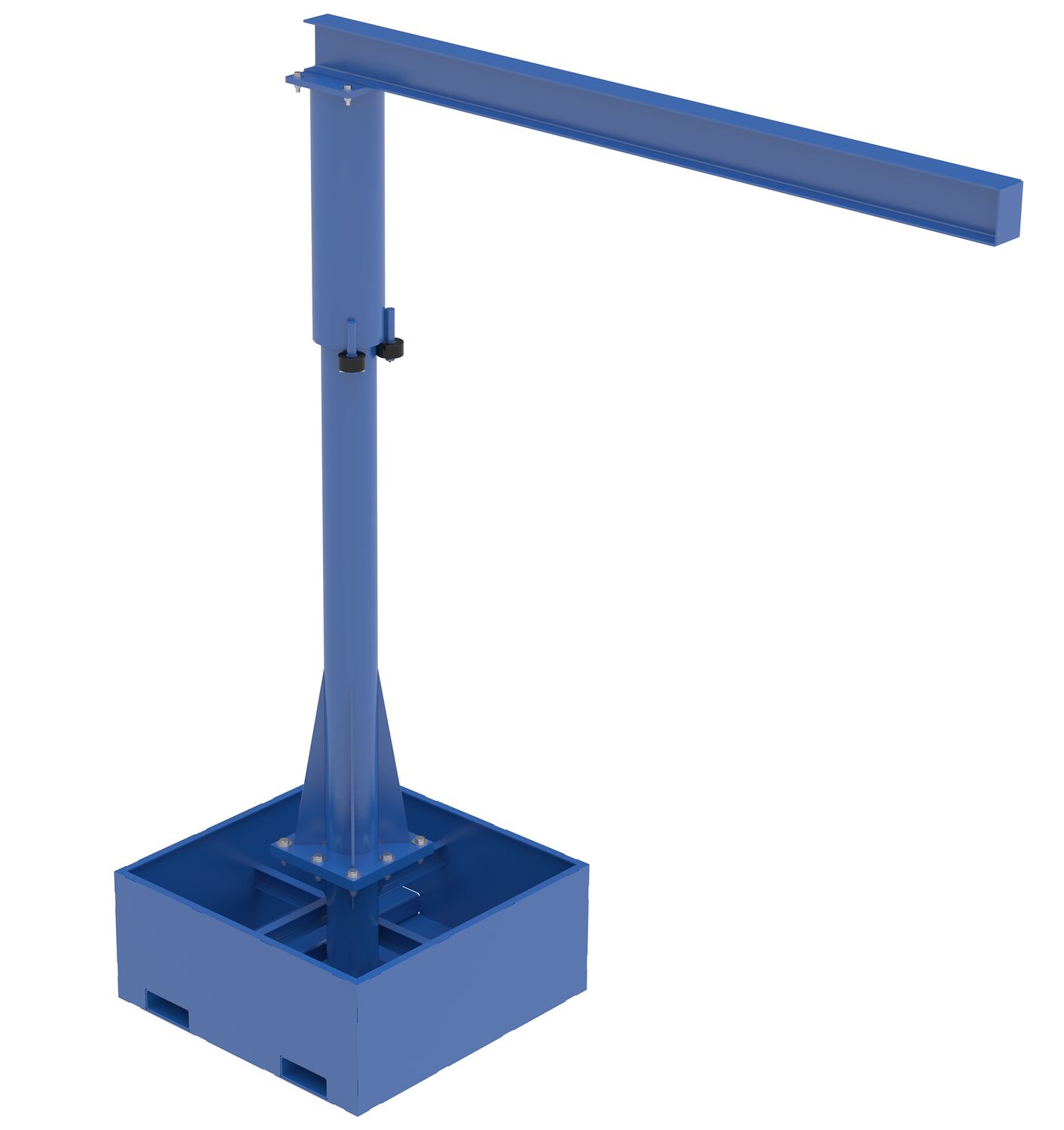

| JIB-CB-25-8-10 | | 1 Year Limited Warranty | Steel Portable Jib Crane with Empty Base 8 Ft. I-Beam 250 Lb. Capacity Blue | Uniform Capacity (lb.): 250 Overall I-Beam Length (in): 96 | 21108 | ||

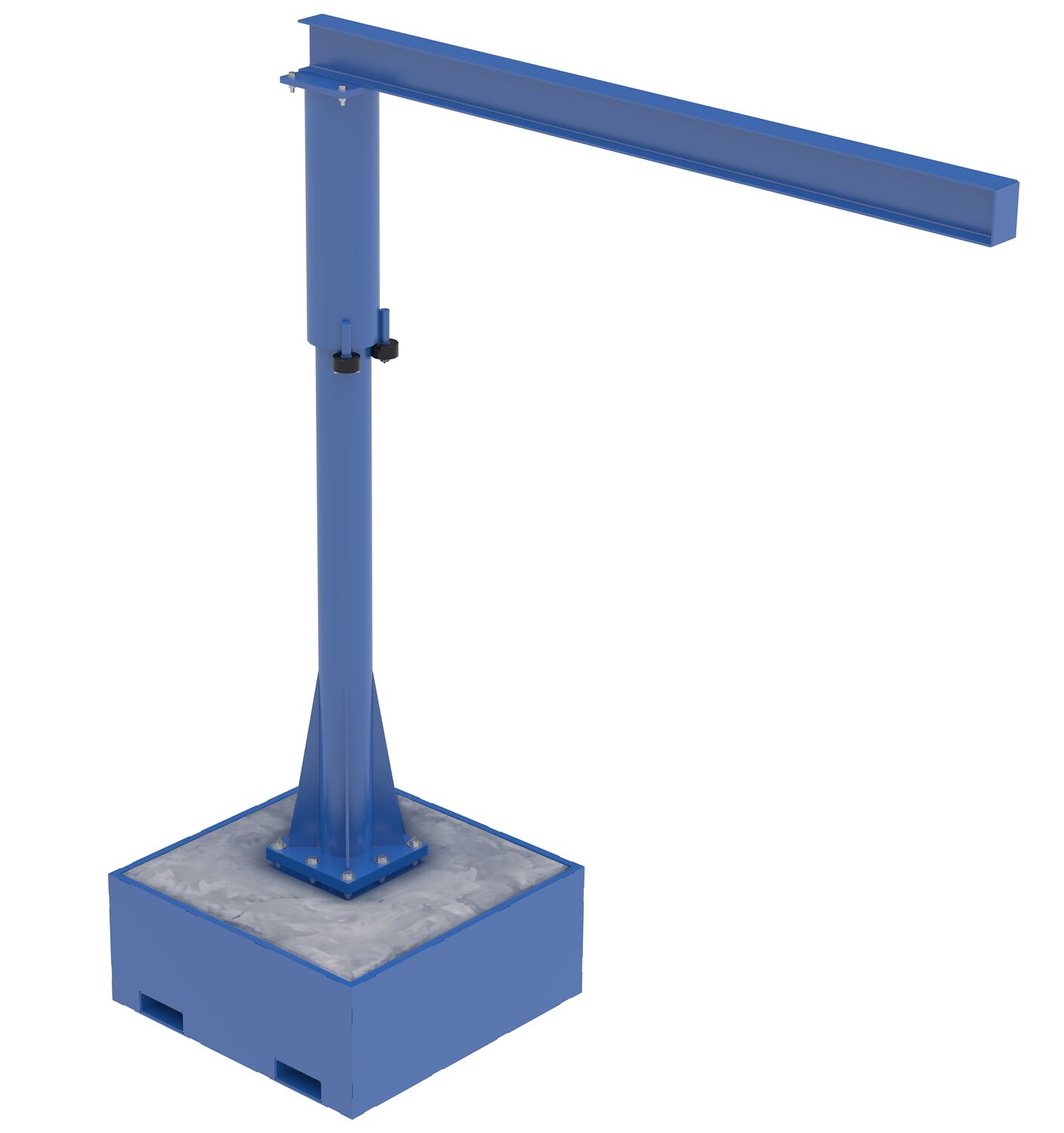

| JIB-CB-25-8-10-BC |  | 1 Year Limited Warranty | Steel Portable Jib Crane with Filled Base 8 Ft. I-Beam 250 Lb. Capacity Blue | Uniform Capacity (lb.): 250 Overall I-Beam Length (in): 96 | 23317 | ||

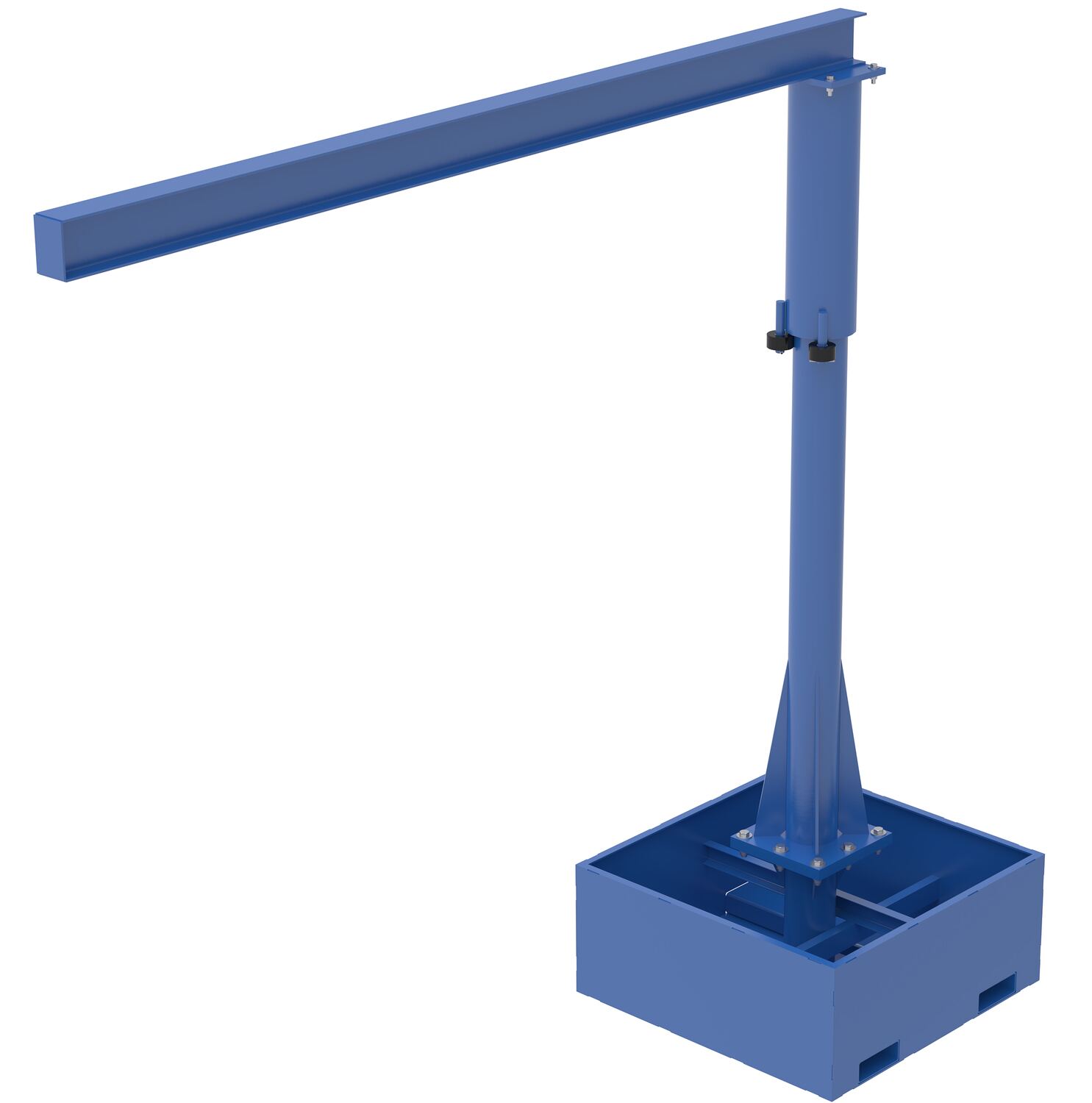

| JIB-CB-25-10-10 |  | 1 Year Limited Warranty | Steel Portable Jib Crane with Empty Base 10 Ft. I-Beam 250 Lb. Capacity Blue | Uniform Capacity (lb.): 250 Overall I-Beam Length (in): 120 | 2880 | ||

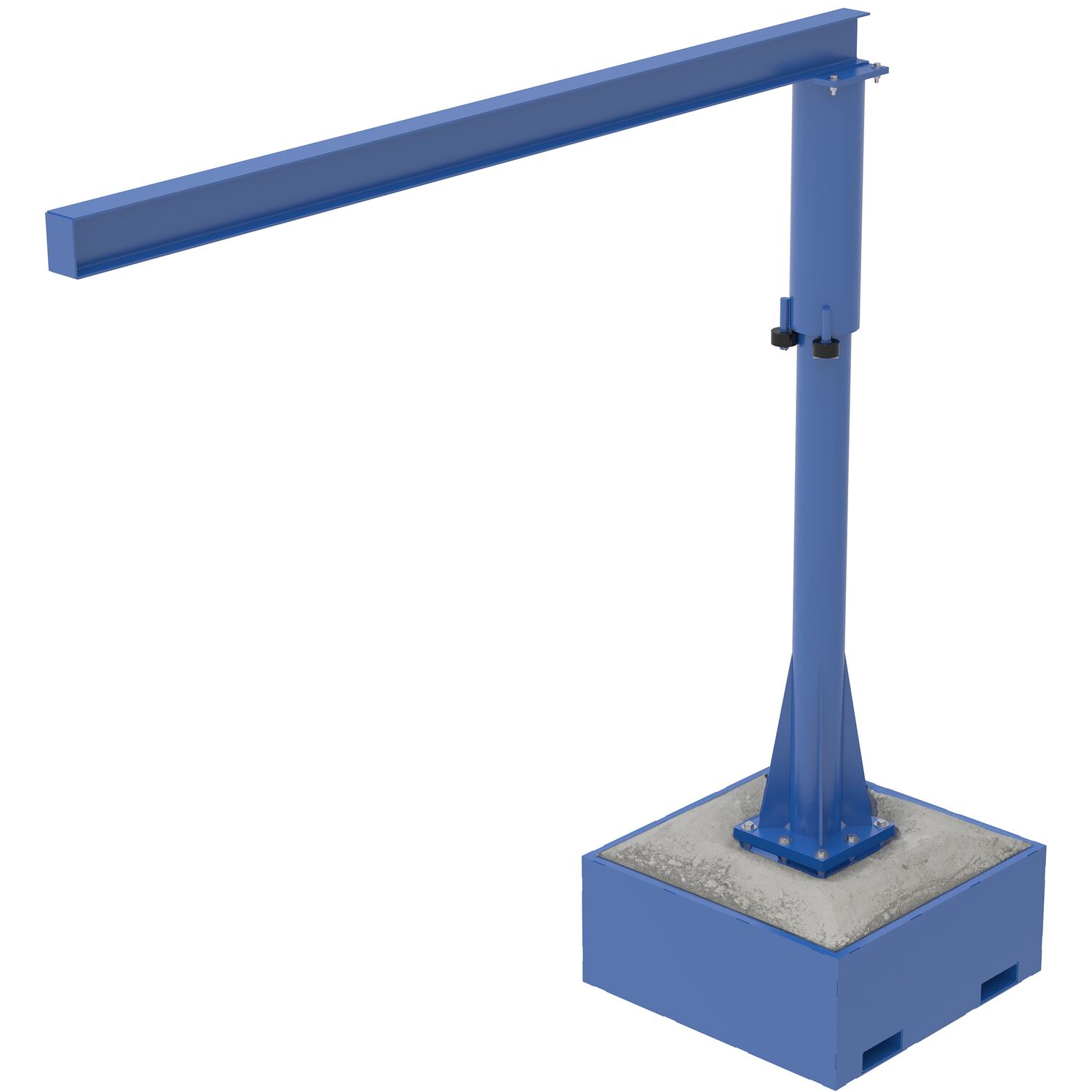

| JIB-CB-25-10-10-BC | | 1 Year Limited Warranty | Steel Portable Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity Blue | Uniform Capacity (lb.): 250 Overall I-Beam Length (in): 120 | 23442 | ||
| JIB-CB-50-8-10 | | 1 Year Limited Warranty | Steel Portable Jib Crane with Empty Base 8 Ft. I-Beam 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Overall I-Beam Length (in): 96 | 2974 | ||
| JIB-CB-50-8-10-BC | | 1 Year Limited Warranty | Steel Portable Jib Crane with Filled Base 8 Ft. I-Beam 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Overall I-Beam Length (in): 96 | 23416 | ||

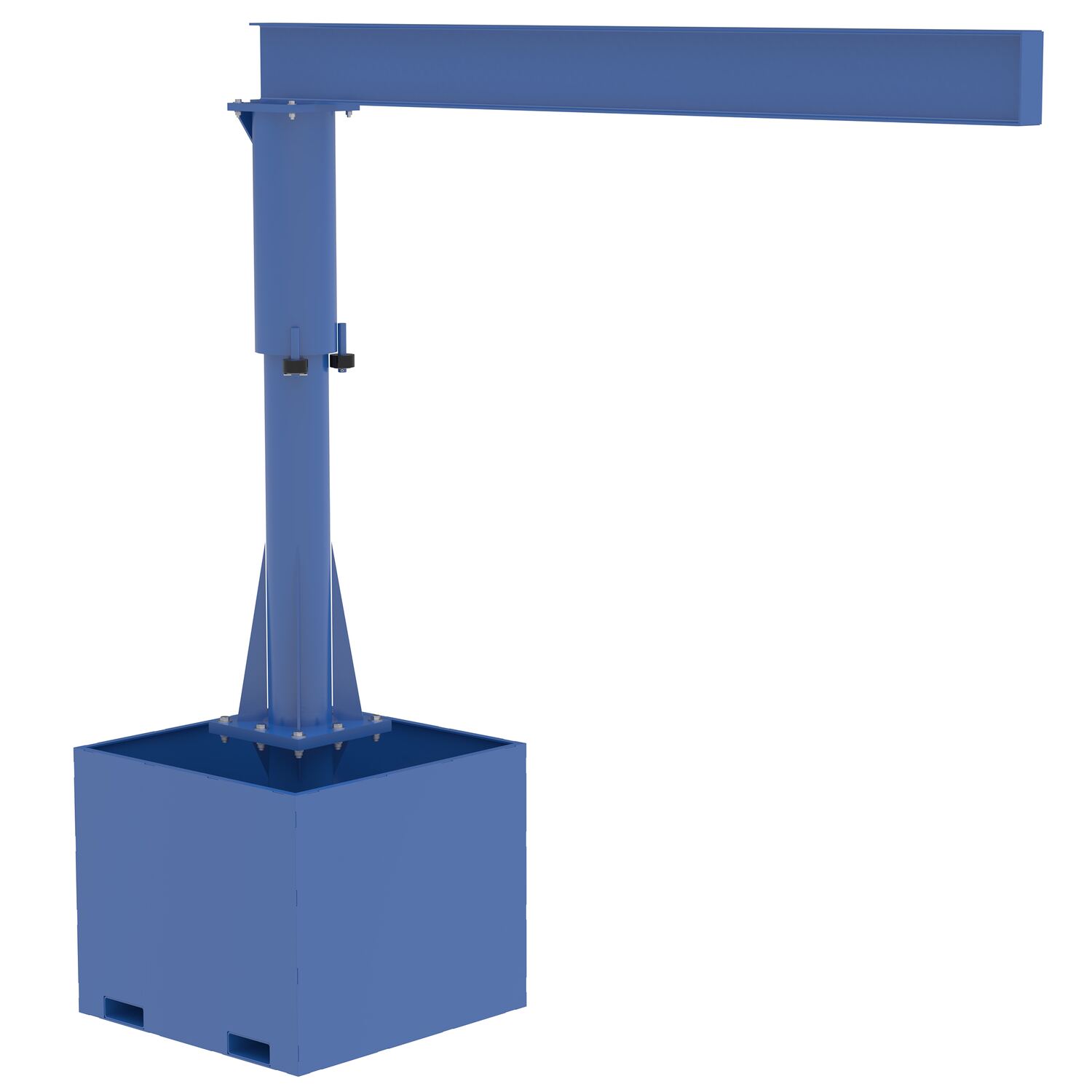

| JIB-CB-50-10-10 | POPULAR |  | 1 Year Limited Warranty | Steel Portable Jib Crane with Empty Base 10 Ft. I-Beam 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Overall I-Beam Length (in): 120 | 21321 | |

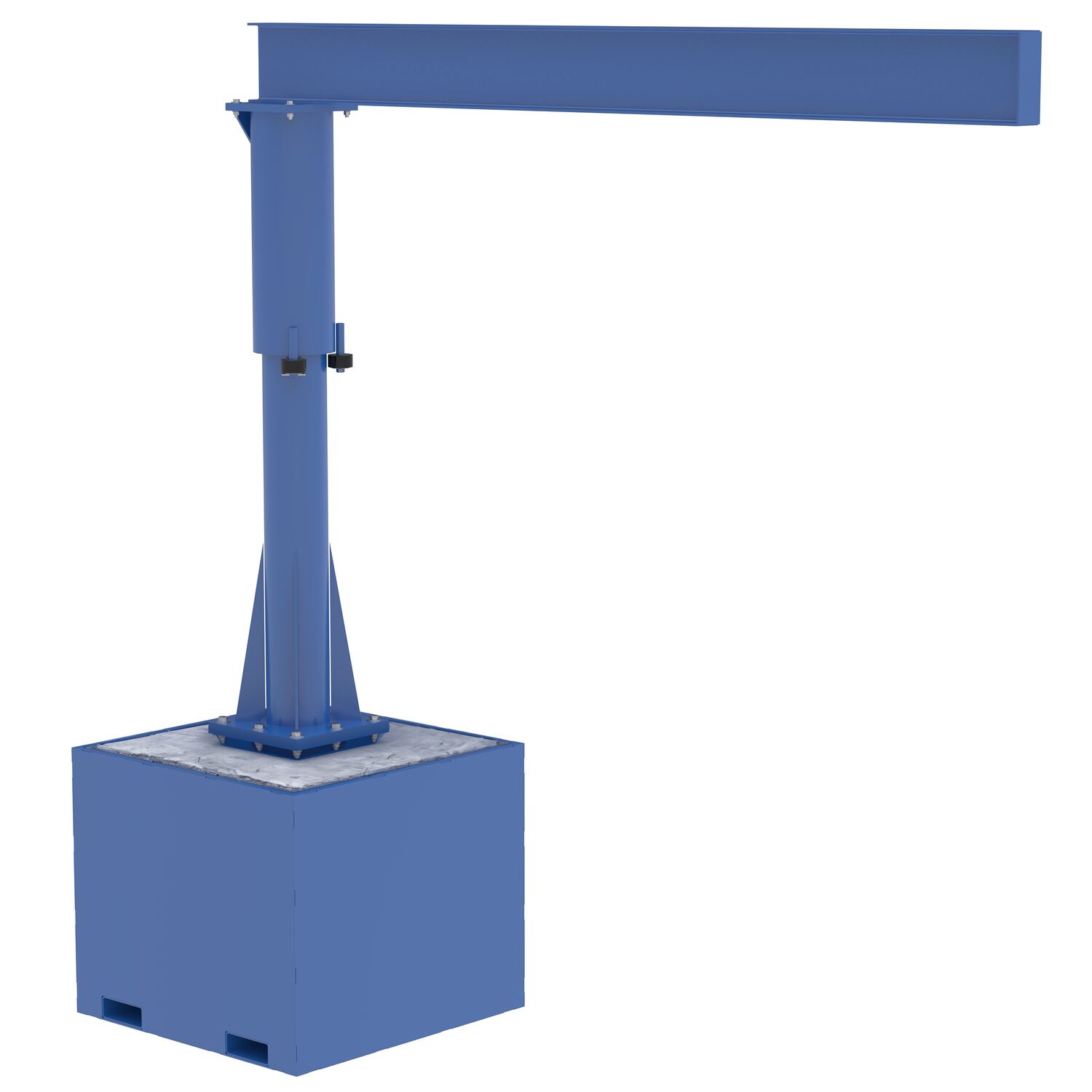

| JIB-CB-50-10-10-BC | | 1 Year Limited Warranty | Steel Portable Jib Crane with Filled Base 10 Ft. I-Beam 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Overall I-Beam Length (in): 120 | 25782 | ||

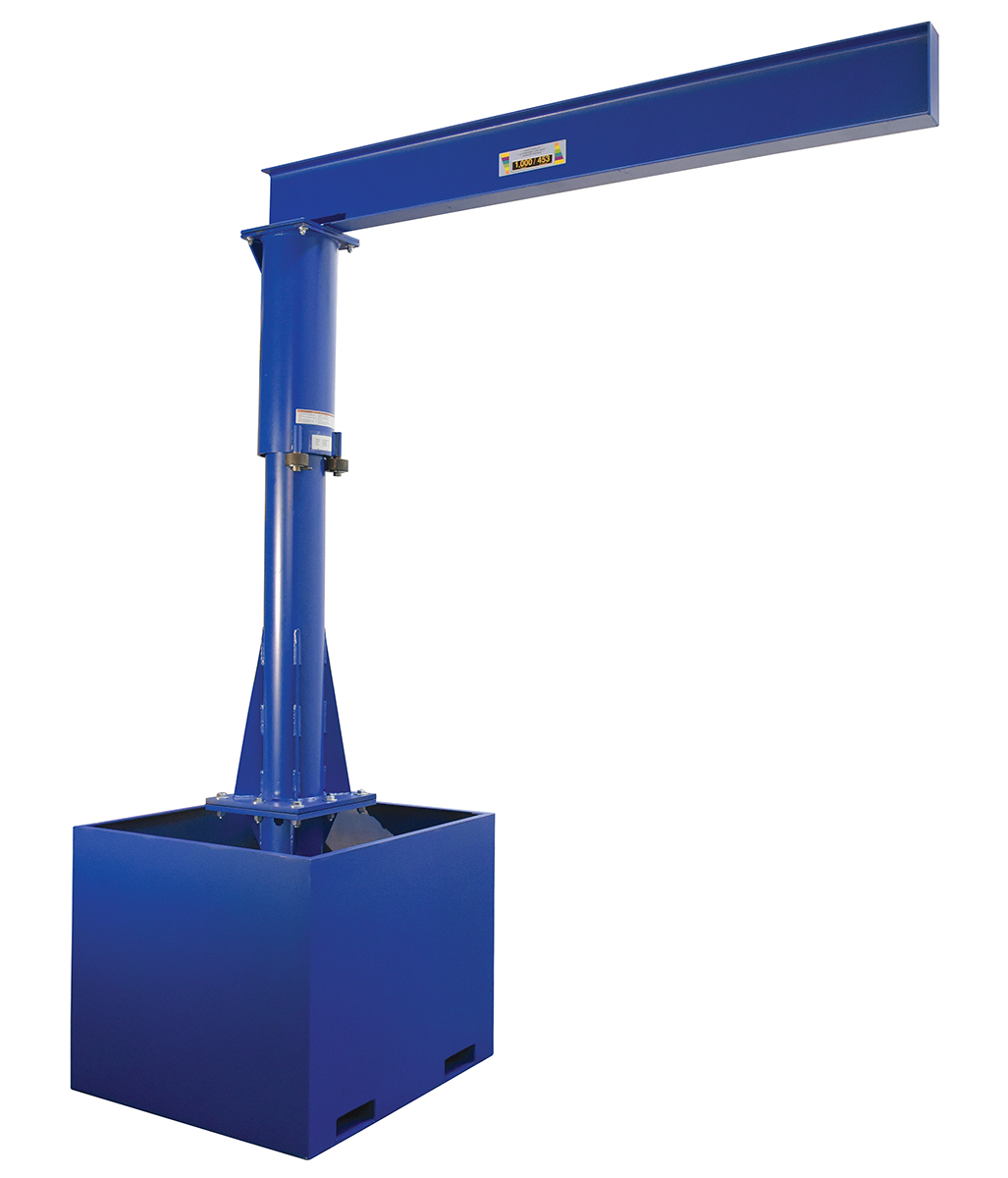

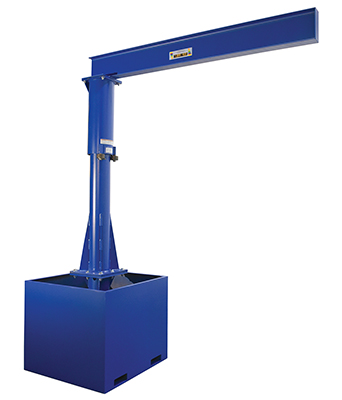

| JIB-CB-100-8-10 | | 1 Year Limited Warranty | Steel Portable Jib Crane with Empty Base 8 Ft. I-Beam 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Overall I-Beam Length (in): 96 | 21170 | ||

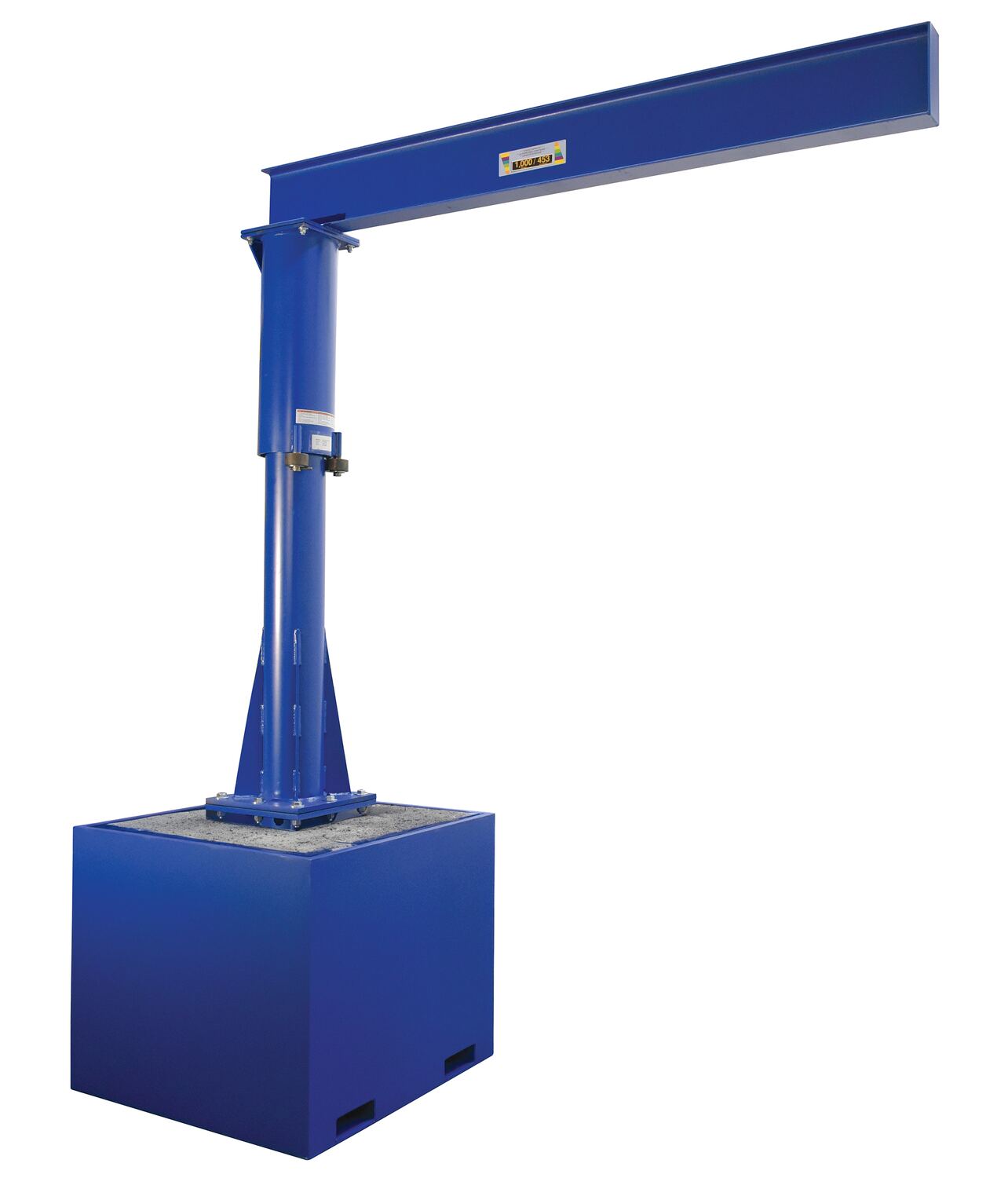

| JIB-CB-100-8-10-BC | | 1 Year Limited Warranty | Steel Portable Jib Crane with Filled Base 8 Ft. I-Beam 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Overall I-Beam Length (in): 96 | 25855 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 120
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 120
Uniform Capacity (lb.): 250
Overall I-Beam Length (in): 120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 120
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 120
Uniform Capacity (lb.): 500
Overall I-Beam Length (in): 120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96
Uniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96
For More Details of the Option Click the Red Model Button

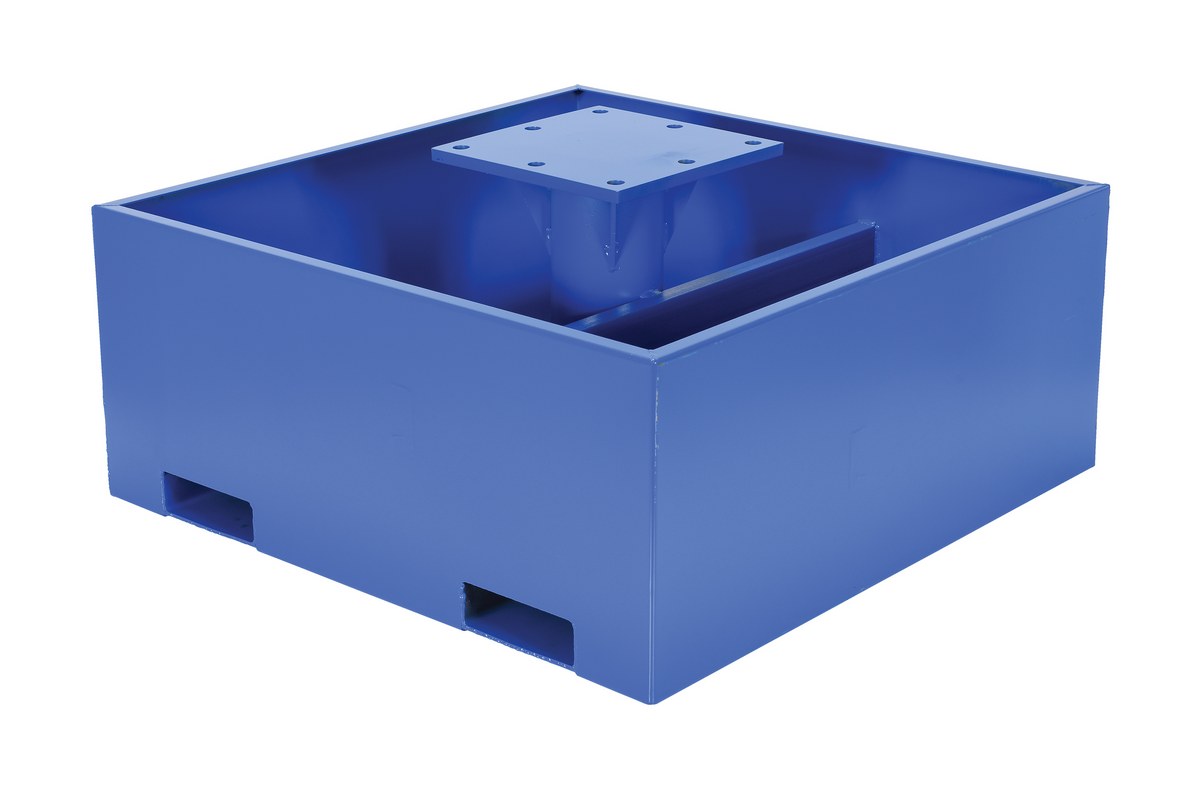

| JIB-CB-18-B | | 1 Year Limited Warranty | Steel Empty Concrete Base 18 In. Height For JIB Crane Models Blue | Fillable Base Height (in.): 18 Requires 60 Pound Bags Sakrete Mix (qty.): 41 | 479 | |

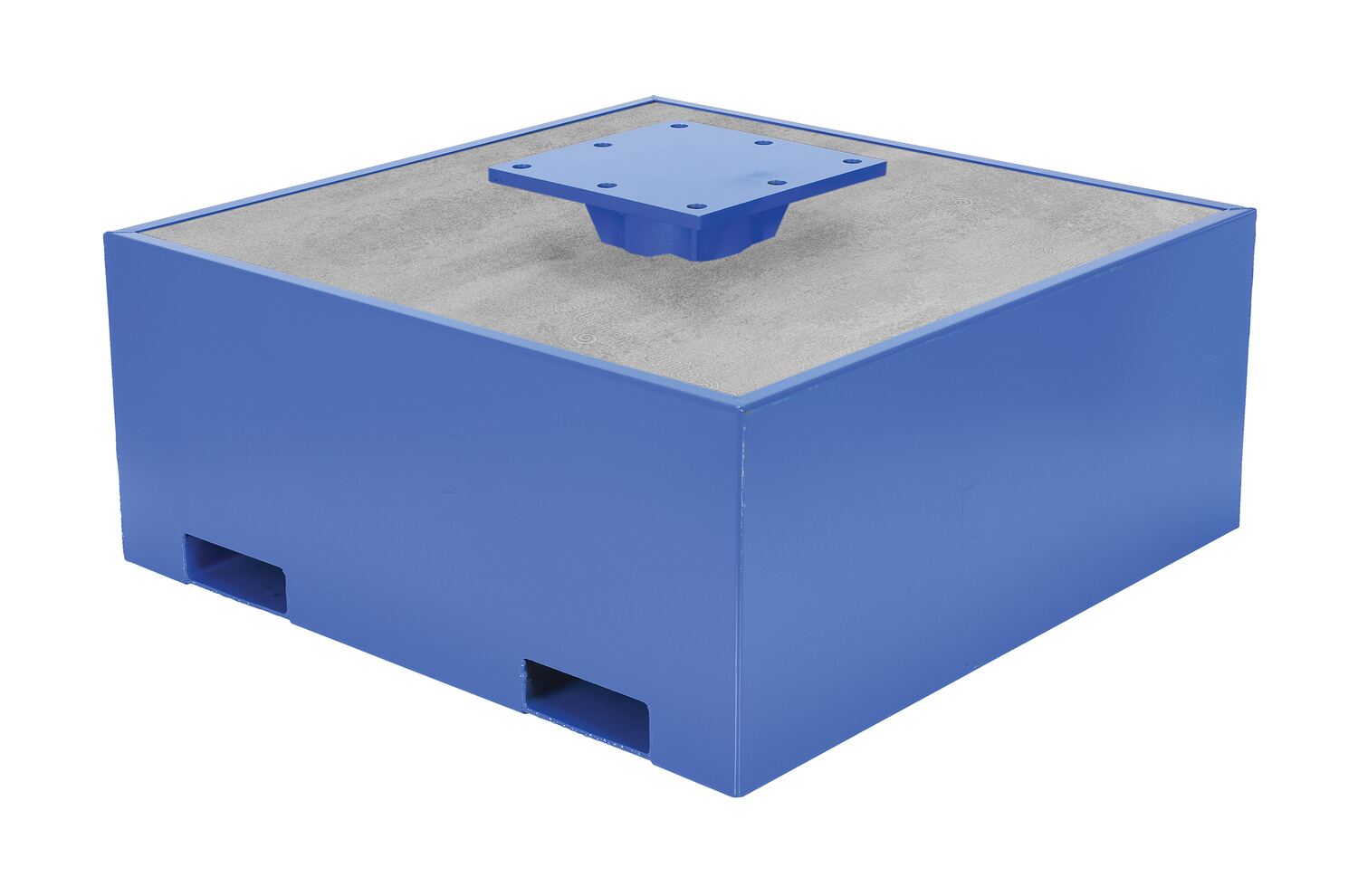

| JIB-CB-18-BC | | 1 Year Limited Warranty | Steel Concrete Filled Base 18 In. Height For JIB Crane Models Blue | Fillable Base Height (in.): 18 | 2780 | |

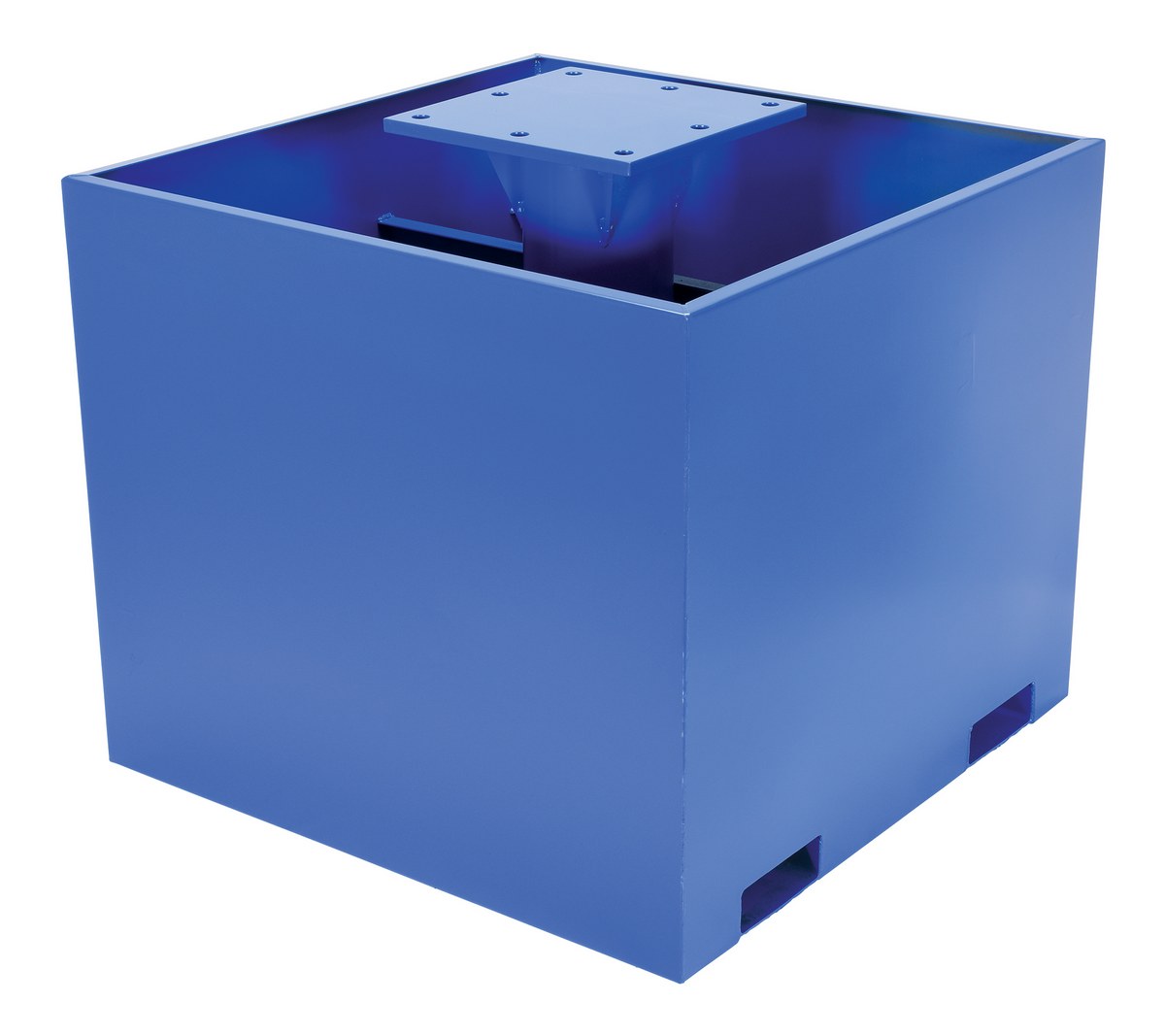

| JIB-CB-36-B | | 1 Year Limited Warranty | Steel Empty Concrete Base 36 In. Height For JIB Crane Models Blue | Fillable Base Height (in.): 36 Requires 60 Pound Bags Sakrete Mix (qty.): 82 | 674 | |

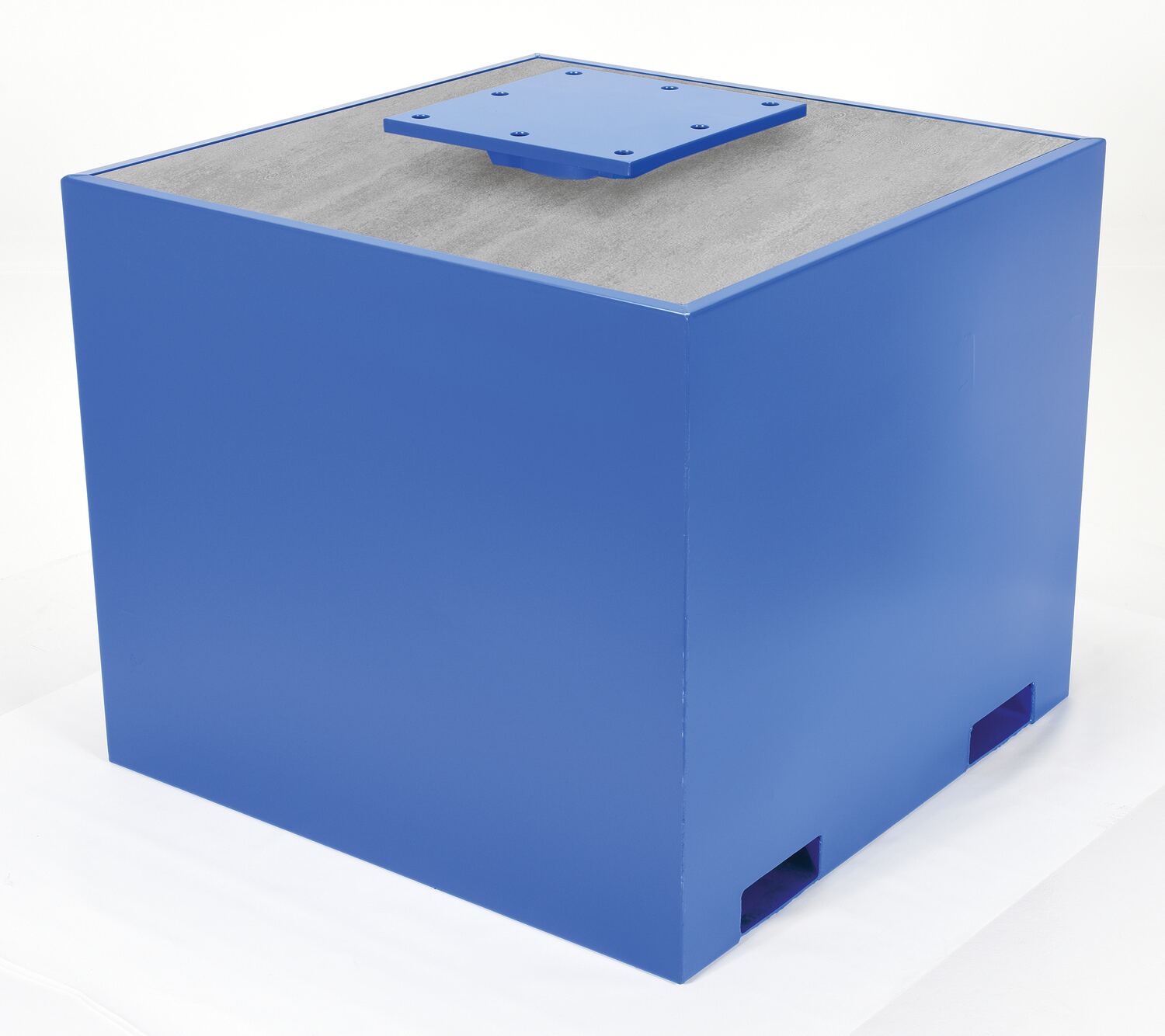

| JIB-CB-36-BC | | 1 Year Limited Warranty | Steel Concrete Filled Base 36 In. Height For JIB Crane Models Blue | Fillable Base Height (in.): 36 | 5078 |
.
