Casters For Hoppers (D, R & H) (H-CK,D-CK)

Casters For Hoppers (D, R & H)

SERIES: H-CK,D-CK

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Sets include two (2) rigid, two (2) swivel casters. For the H series 1/4 and 1/2 cubic yard hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes. Casters are shipped uninstalled to prevent freight damage.

H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3-3/4"

D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7-1/2", 8" casters 9-1/2"

R series hopper: Any caster kit for D-Style Hoppers will work with R Hoppers.

**Weight of hopper must be considered when calculating usable capacity**

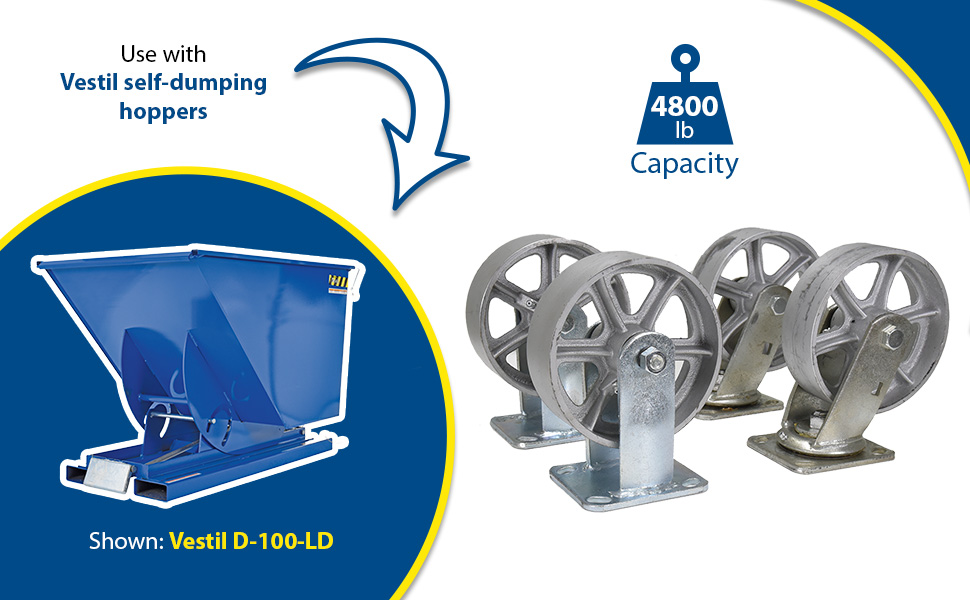

D-100-LD + D-CK4-GFN-2 + PLID-D-100

H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3-3/4"

D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7-1/2", 8" casters 9-1/2"

R series hopper: Any caster kit for D-Style Hoppers will work with R Hoppers.

**Weight of hopper must be considered when calculating usable capacity**

D-100-LD + D-CK4-GFN-2 + PLID-D-100

Other Hoppers

Hydraulic Dumping Hoppers

Chip & Waste Trucks

Triple-Bin Recycling Hopper

Portable Steel Hopper with Power Traction Drive

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

H-CK3-SC6-2

D-CK4-C24C

H-CK4-PU6-2

H-CK3-C23C

H-CK3-C13C

D-CK4-C15D

H-CK3-C13C

H-CK3-C24C

D-CK4-PU8-2

H-CK3-SC6-2HD

H-CK4-SC6-2HD

D-CK4-MR6-2

D-CK4-C15C

H-CK3-SC6-2HD

H-CK4-GFN6-2

Hopper Caster Kits Upgrade Benefit Chart

**Weight of hopper must be considered when calculating usable capacity**

Note: Hardware Already Included

Upgraded Hopper Caster Kit Model #'s	Caster Image	Size	Total Capacity	New Tread Type	Casters In Kit	Description	Added Benefits
H-CK3-C13C		6X2	3750	PREMIUM GRADE POLY (SI) (ORANGE)	CST-F34-6X2SI-S (1) \| CST-F34-6X2SI-R (2)	Made with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan.	NON-MARKING \| 100% MAINTENANCE-FREE \| LESS PUSH/PULL FORCE REQUIRED \|REJECTS DEBRIS \| EXCELLENT FLOOR PRESERVATION \| SMOOTH & QUIET RIDE \| WATER RESISTANT ALUMINUM CORE \| 6203 PREMIUM PRECISION BALL BEARINGS \| 3 YEAR (WHEEL) WARRANTY
H-CK3-C24C		6X2	3750	HIGH GRADE GFN (RX) (BLACK)	CST-HLD2-6X2GFN-S (1) \| CST-HLD2-6X2GFN-R (2)	Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada.	NON-MARKING HIGH-QUALITY PROPRIETARY TREAD \| LIGHTWEIGHT DESIGN \| ABSORBS IMPACT \| MOISTURE RESISTANT \| EASY ROLL PERFORMANCE \| ENVIRONMENTALLY FRIENDLY \|SEALED GROUND PRECISION BALL BEARINGS \| 3 YEAR WARRANTY
H-CK3-C23C		6X2	6000	HIGH GRADE HD GFN (RX) (BLACK)	CST-HHD-6X2GFN-S (1) \| CST-HHD-6X2GFN-R (2)	Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada.	KINGPINLESS \| INDUSTRY LEADING CAPACITY \| LIGHTWEIGHT DESIGN \| NON-MARKING HIGH-QUALITY PROPRIETARY TREAD \| ABSORBS IMPACT \| MOISTURE RESISTANT \| EASY ROLL PERFORMANCE \|SEALED GROUND PRECISION BALL BEARINGS \| 3 YEAR WARRANTY
H-CK4-C13C		6X2	5000	PREMIUM GRADE POLY (SI) (ORANGE)	CST-F34-6X2SI-S (1) \| CST-F34-6X2SI-R (2) \| CST-F34-6X2SI-SWB (1)	Made with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan.	NON-MARKING \| 100% MAINTENANCE-FREE \| LESS PUSH/PULL FORCE REQUIRED \|REJECTS DEBRIS \| EXCELLENT FLOOR PRESERVATION \| SMOOTH & QUIET RIDE \| WATER RESISTANT ALUMINUM CORE \| 6203 PREMIUM PRECISION BALL BEARINGS \| 3 YEAR (WHEEL) WARRANTY
H-CK4-C24C		6X2	5000	HIGH GRADE GFN (RX) (BLACK)	CST-HLD2-6X2GFN-S (1) \| CST-HLD2-6X2GFN-R (2) \| CST-HLD2-6X2GFN-SWB (1)	Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada.	NON-MARKING HIGH-QUALITY PROPRIETARY TREAD \| LIGHTWEIGHT DESIGN \| ABSORBS IMPACT \| MOISTURE RESISTANT \| EASY ROLL PERFORMANCE \| ENVIRONMENTALLY FRIENDLY \|SEALED GROUND PRECISION BALL BEARINGS \| 3 YEAR WARRANTY
H-CK4-C23C		6X2	5000	HIGH GRADE GFN (RX) (BLACK)	CST-HHD-6X2GFN-S (1) \| CST-HHD-6X2GFN-R (2) \| CST-HHD-6X2GFN-SWB (1)	Robust kingpinless rigging matched with high-tech proprietary glass filled nylon (RX). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Canada.	NON-MARKING \| CHEMICAL & MOISTURE RESISTANT \| SMOOTH RIDE PERFORMANCE \| QUIET OPERATION \| PRECISION BALL BEARINGS
FOR D-SERIES AND R-SERIES HOPPERS
D-CK4-C34C		6X2	6000	PREMIUM GRADE POLY (SI) (ORANGE)	CST-F40-6X2SI-S (1) \| CST-F40-6X2SI-R (2) \| CST-F40-6X2SI-SWB (1)	Robust kingpinless series matched with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan.	KINGPINLESS \| NON-MARKING \| 100% MAINTENANCE-FREE \| LESS PUSH/PULL FORCE REQUIRED \| SMOOTH & QUIET RIDE \| EXCELLENT FLOOR PRESERVATION \| REJECTS DEBRIS \| WATER RESISTANT ALUMINUM CORE \| 6203 PREMIUM PRECISION BALL BEARINGS \| 3 YEAR WARRANTY
D-CK4-C34D		8X2	8000	PREMIUM GRADE POLY (SI) (ORANGE)	CST-F40-8X2SI-S (1) \| CST-F40-8X2SI-R (2) \| CST-F40-8X2SI-SWB (1)	Robust kingpinless series matched with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan.	KINGPINLESS \| NON-MARKING \| 100% MAINTENANCE-FREE \| LESS PUSH/PULL FORCE REQUIRED \| SMOOTH & QUIET RIDE \| EXCELLENT FLOOR PRESERVATION \| REJECTS DEBRIS \| WATER RESISTANT ALUMINUM CORE \| 6203 PREMIUM PRECISION BALL BEARINGS \| 3 YEAR WARRANTY
D-CK4-C15C		6X2	6000	PREMIUM GRADE "DUAL" WHEEL POLY (SI) (ORANGE)	CST-FXE-6X2DSI-S (2) \| CST-FXE-6X2DSI-R (2)	The new X-Treme Ergo is an industry leader in ERGONOMIC PERFORMANCE. Made of premium grade polyurethane, the independent dual wheels allow for sharp turns with the smallest radius. Coupled with an industry changing "double" precision raceway, for one of the tightest swivels produced.	REDUCES PUSH/PULL FORCE BY UP TO 62% \|HIGH-QUALITY NON-MARKING PROPRIETARY TREAD \| 100% MAINTENANCE-FREE \| STATE OF THE ART "DOUBLE" PRECISION SEALED RACEWAY \| DUAL WHEELS - FOR PRECISE TURNING RADIUS \| INDUSTRY LEADING CAPACITY \| 6203 PREMIUM SEALED PRECISION BALL BEARINGS \| LIGHT-WEIGHT RUST RESISTANT ALUMINUM CORE \| HIGH QUALITY, RUST RESISTANT CHROME PLATED FINISH \| 3 YEAR WARRANTY
D-CK4-C15D		8X2	8000	PREMIUM GRADE "DUAL" WHEEL POLY (SI) (ORANGE)	CST-FXE-8X2DSI-S (2) \| CST-FXE-8X2DSI-R (2)	The new X-Treme Ergo is an industry leader in ERGONOMIC PERFORMANCE. Made of premium grade polyurethane, the independent dual wheels allow for sharp turns with the smallest radius. Coupled with an industry changing "double" precision raceway, for one of the tightest swivels produced.	REDUCES PUSH/PULL FORCE BY UP TO 62% \|HIGH-QUALITY NON-MARKING PROPRIETARY TREAD \| 100% MAINTENANCE-FREE \| STATE OF THE ART "DOUBLE" PRECISION SEALED RACEWAY \| DUAL WHEELS - FOR PRECISE TURNING RADIUS \| INDUSTRY LEADING CAPACITY \| 6203 PREMIUM SEALED PRECISION BALL BEARINGS \| LIGHT-WEIGHT RUST RESISTANT ALUMINUM CORE \| HIGH QUALITY, RUST RESISTANT CHROME PLATED FINISH \| 3 YEAR WARRANTY
D-CK4-C24C		6X2	5000	HIGH GRADE GFN (RX) (BLACK)	CST-HLD2-6X2GFN-S (1) \| CST-HLD2-6X2GFN-R (2) \| CST-HLD2-6X2GFN-SWB (1)	Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada.	NON-MARKING HIGH-QUALITY PROPRIETARY TREAD \| LIGHTWEIGHT DESIGN \| ABSORBS IMPACT \| MOISTURE RESISTANT \| EASY ROLL PERFORMANCE \| ENVIRONMENTALLY FRIENDLY \|SEALED GROUND PRECISION BALL BEARINGS \| 3 YEAR WARRANTY
D-CK4-C24D		8X2	5000	HIGH GRADE GFN (RX) (BLACK)	CST-HLD2-8X2GFN-S (1) \| CST-HLD2-8X2GFN-R (2) \| CST-HLD2-8X2GFN-SWB (1)	Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada.	NON-MARKING HIGH-QUALITY PROPRIETARY TREAD \| LIGHTWEIGHT DESIGN \| ABSORBS IMPACT \| MOISTURE RESISTANT \| EASY ROLL PERFORMANCE \| ENVIRONMENTALLY FRIENDLY \|SEALED GROUND
D-CK4-C23C		6X2	8000	HIGH GRADE HD GFN (RX) (BLACK)	CST-HHD-6X2GFN-S (1) \| CST-HHD-6X2GFN-R (2) \| CST-HHD-6X2GFN-SWB (1)	Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada.	KINGPINLESS \| INDUSTRY LEADING CAPACITY \| LIGHTWEIGHT DESIGN \| NON-MARKING HIGH-QUALITY PROPRIETARY TREAD \| ABSORBS IMPACT \| MOISTURE RESISTANT \| EASY ROLL PERFORMANCE \|SEALED GROUND PRECISION BALL BEARINGS \| 3 YEAR WARRANTY
Weight Of Hopper Must Be Considered When Calculating Usable Capacity

model chart

Related or Similar Products:

Product

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

Product

D Style - Self-Dumping Steel Hoppers with Bumper Release

Product

Portable Steel Hopper with Power Traction Drive

Product

Portable Steel Hoppers

Product

Low Profile Parts Hoppers

Product

Low Profile Hoppers

Model #

Description

Attributes

Net Wt.
(lbs)

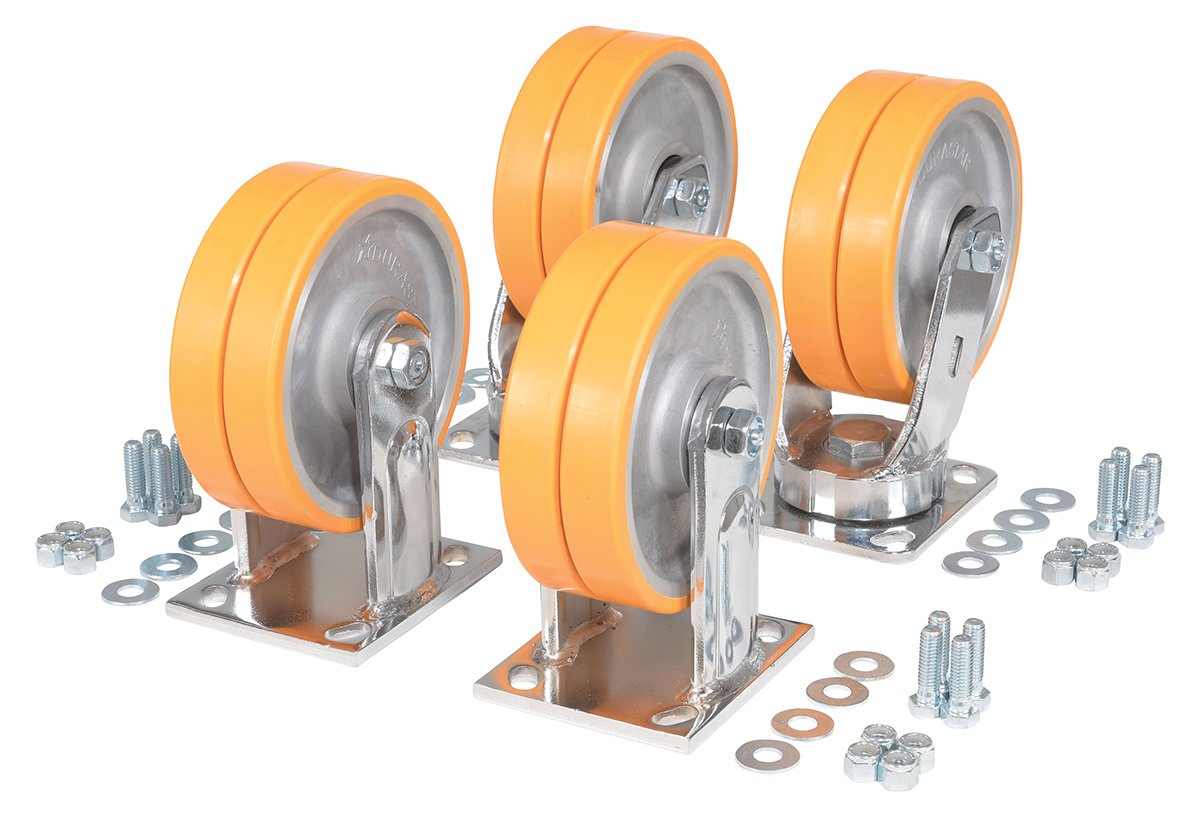

D-CK4-C15C

Polyurethane Caster Kit 6 in x 2 in 6000 lb Capacity Orange

Uniform Capacity (lb.): 6000
Product Dimensions/Weight: 1 Rigid Caster

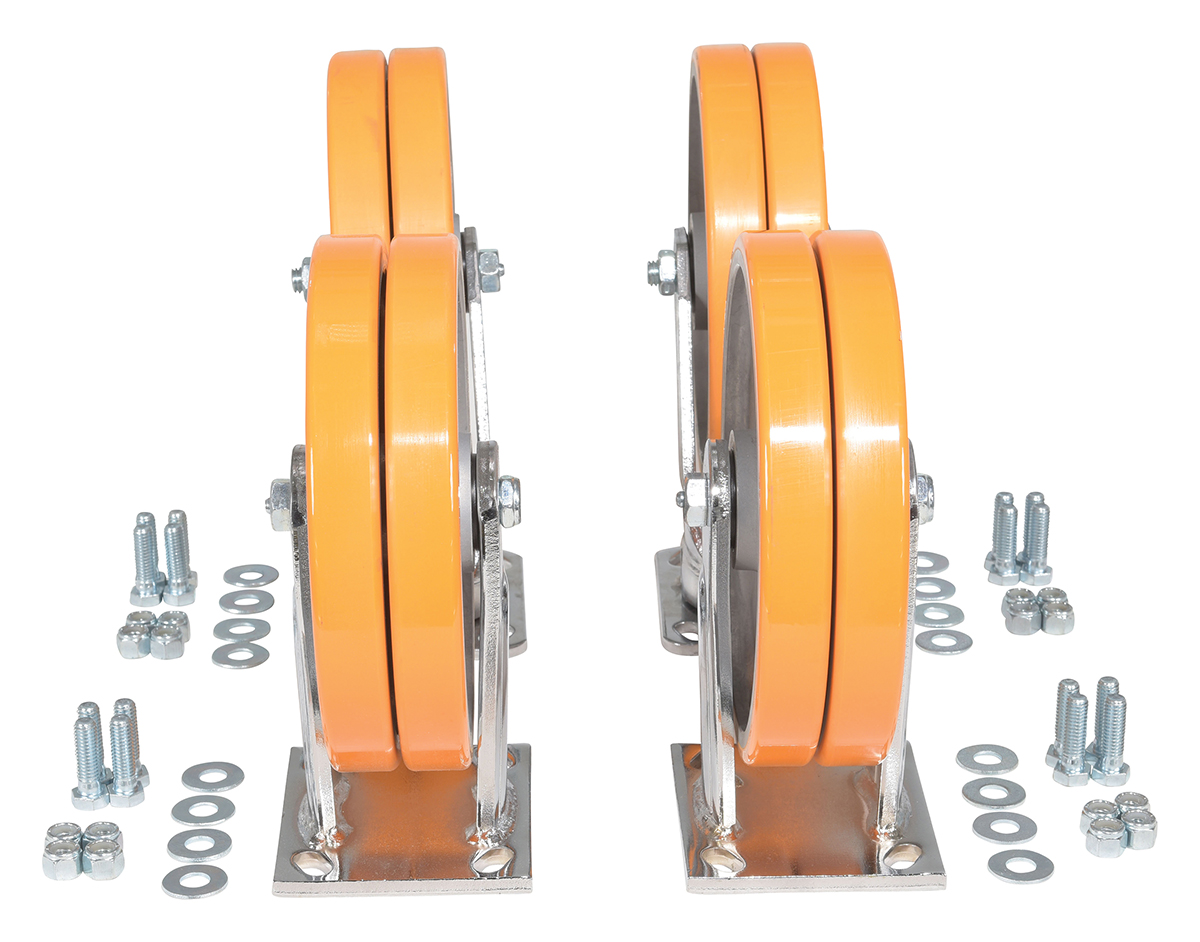

D-CK4-C15D

Polyurethane Caster Kit 8 in x 2 in 8000 lb Capacity Orange

Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster

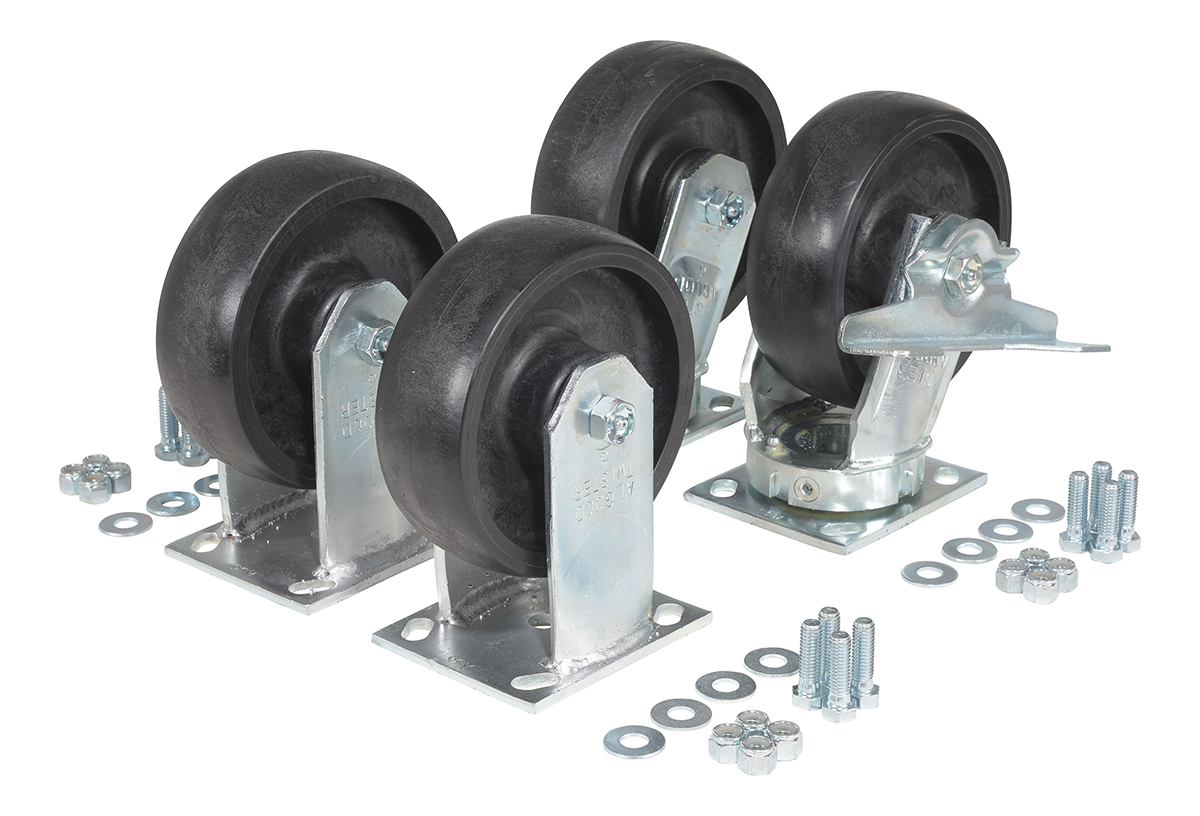

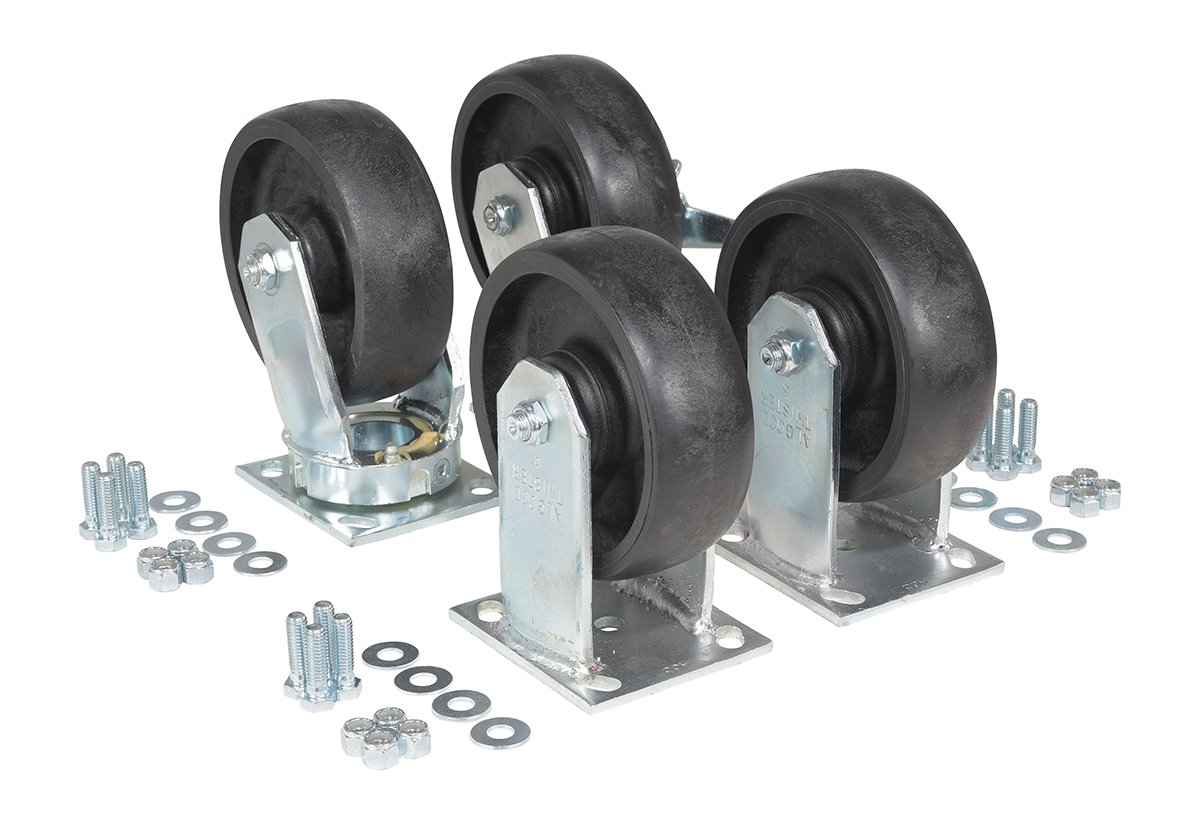

D-CK4-C23C

Glass-Filled Nylon Caster Kit 6 in x 2 in 8000 lb Capacity Black

Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster

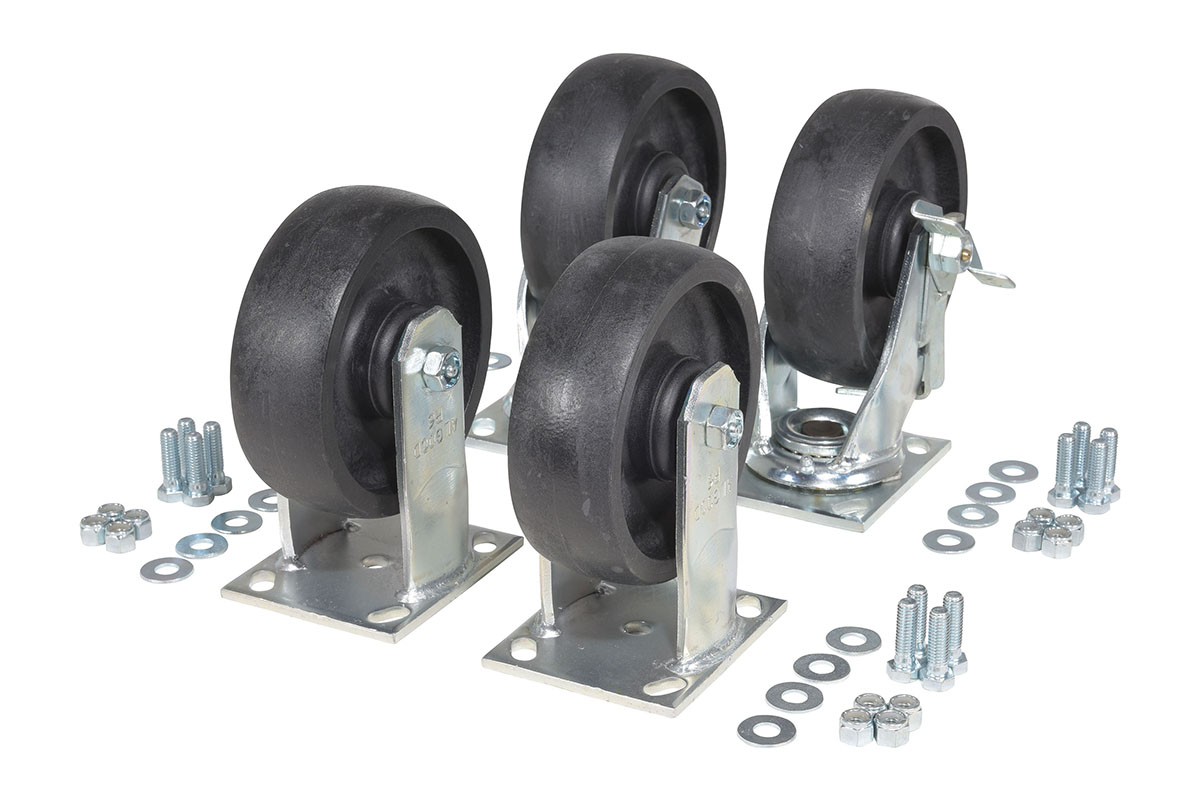

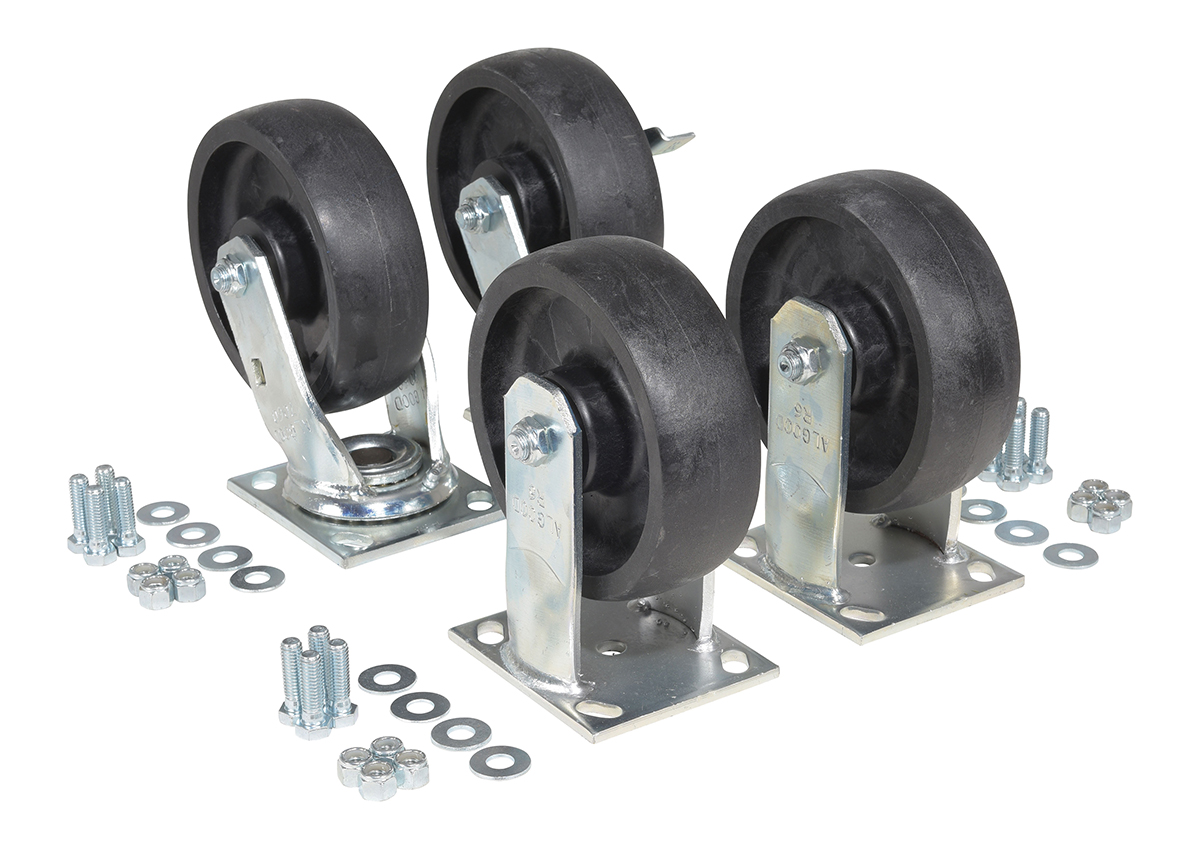

D-CK4-C24C

Glass-Filled Nylon Caster Kit 6 in x 2 in 5000 lb Capacity Black

Uniform Capacity (lb.): 5000
Product Dimensions/Weight: 1 Rigid Caster

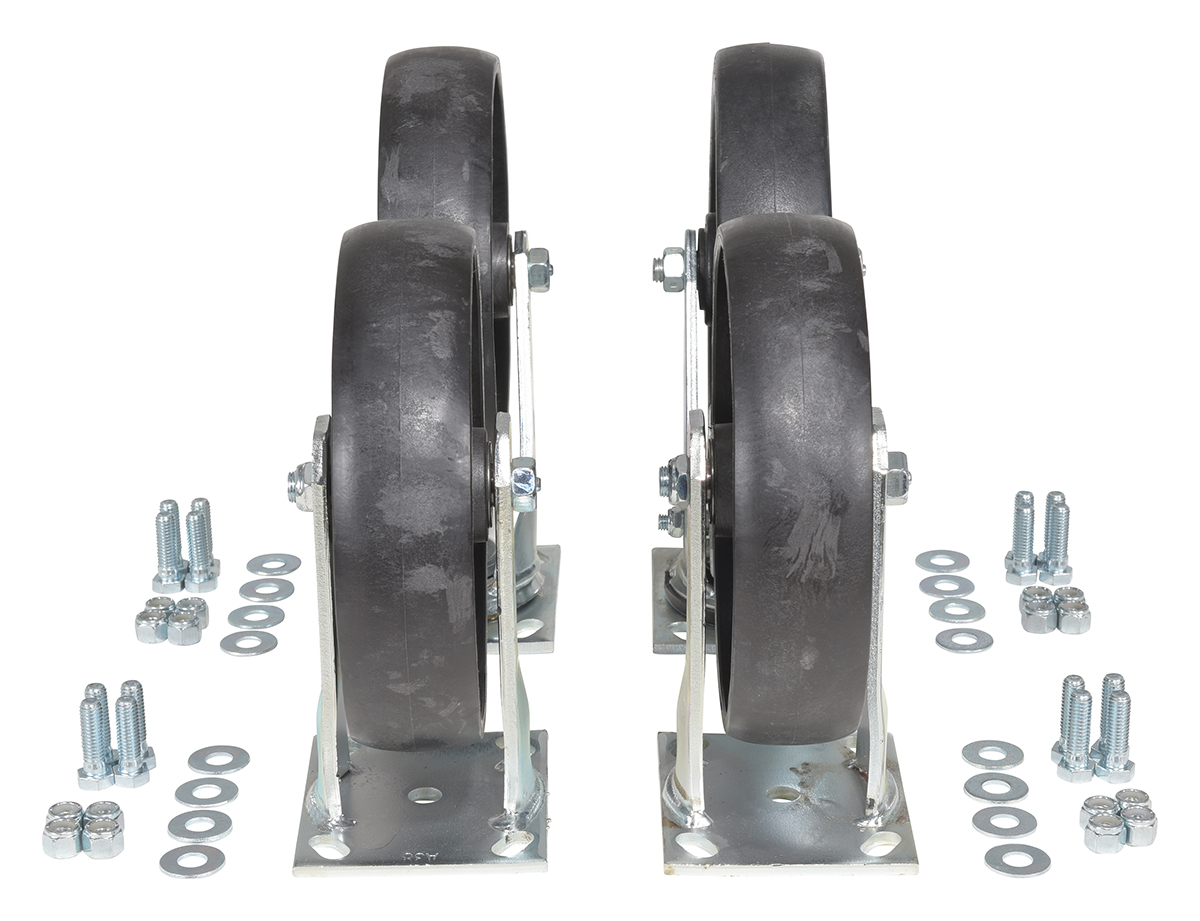

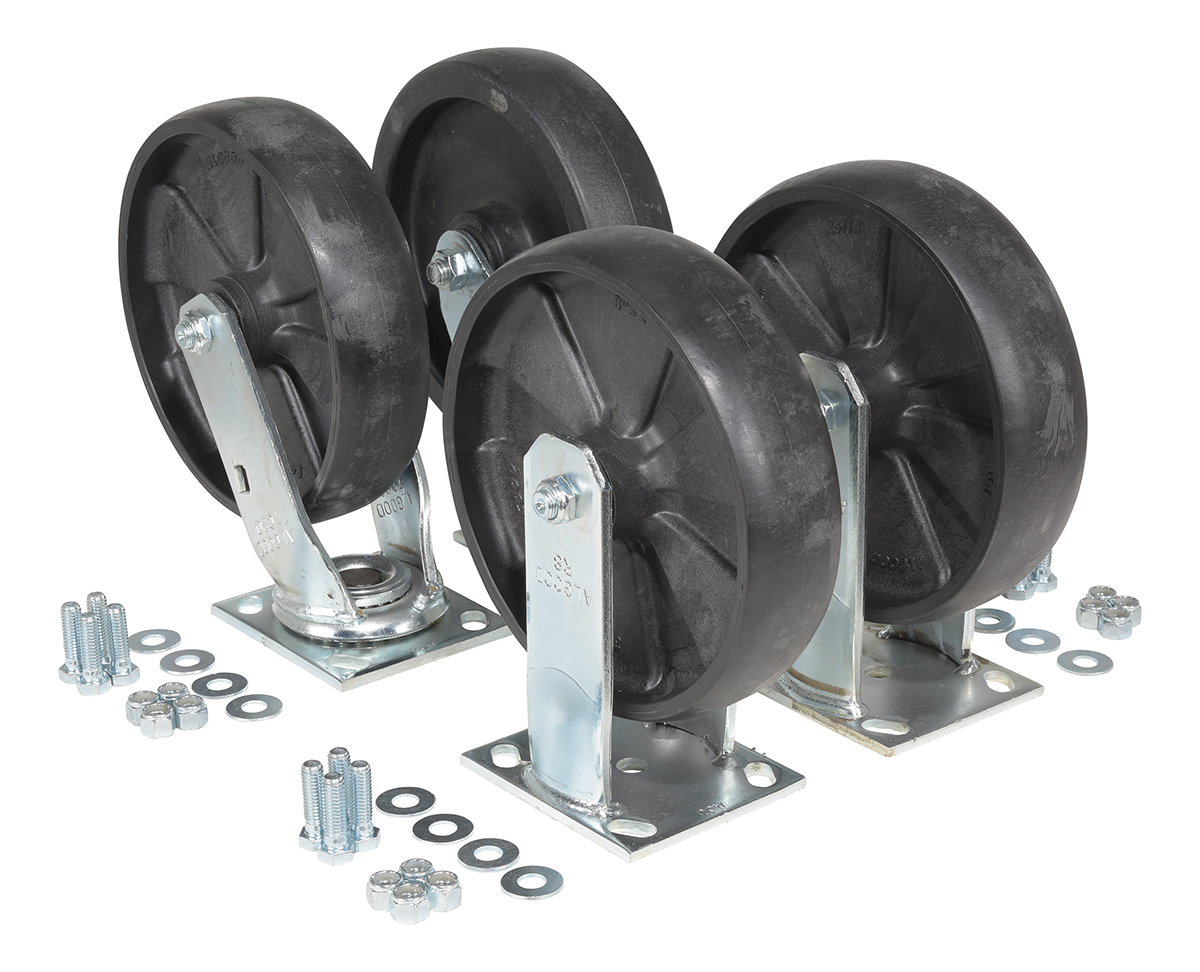

D-CK4-C24D

Glass-Filled Nylon Caster Kit 8 in x 2 in 4800 lb Capacity Black

Uniform Capacity (lb.): 5000
Product Dimensions/Weight: 1 Rigid Caster

D-CK4-C34C

Elastic Polyurethane Caster Kit 6 in x 2 in 6000 lb Capacity Butterscotch

Uniform Capacity (lb.): 6000
Product Dimensions/Weight: 1 Rigid Caster

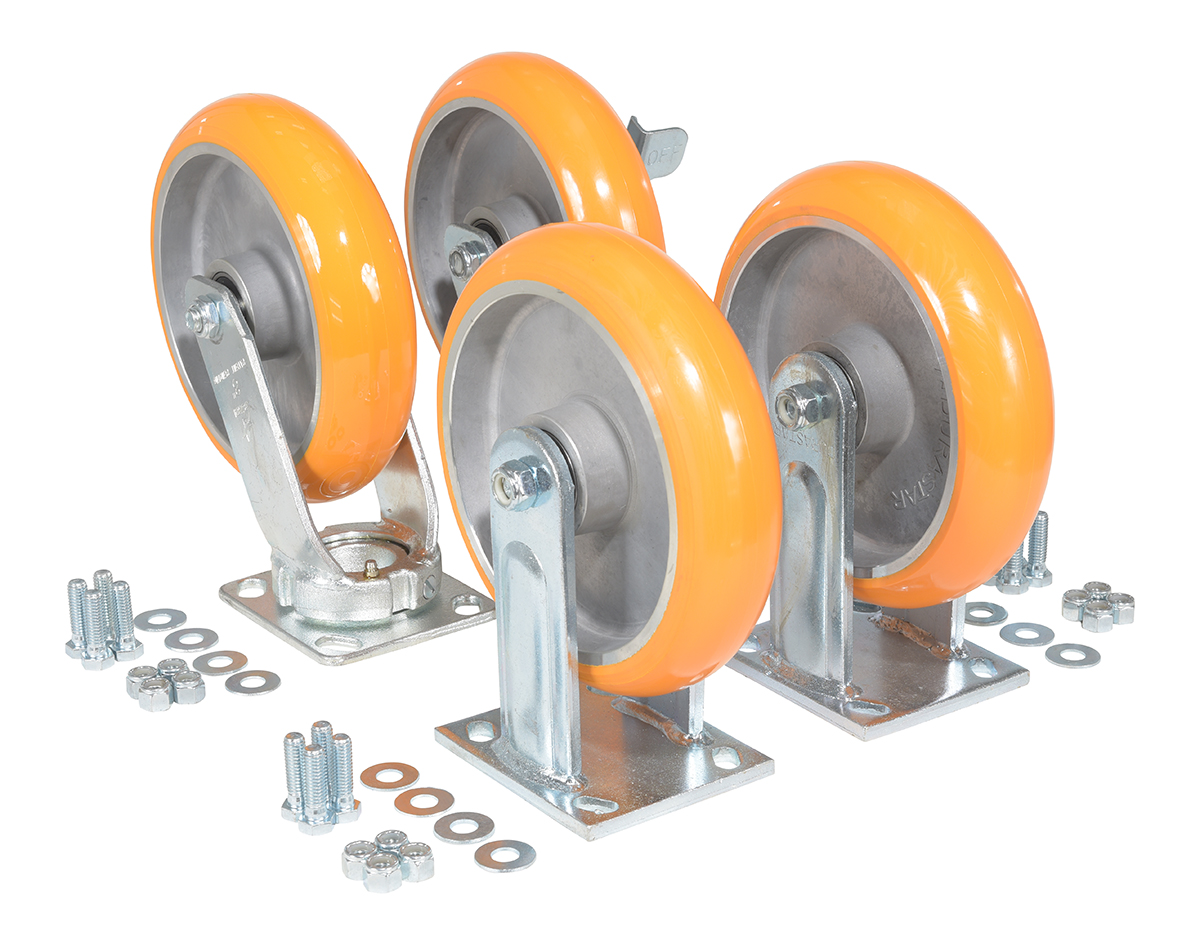

D-CK4-C34D

Polyurethane Caster Kit 8 in x 2 in 8000 lb Capacity Butterscotch

Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster

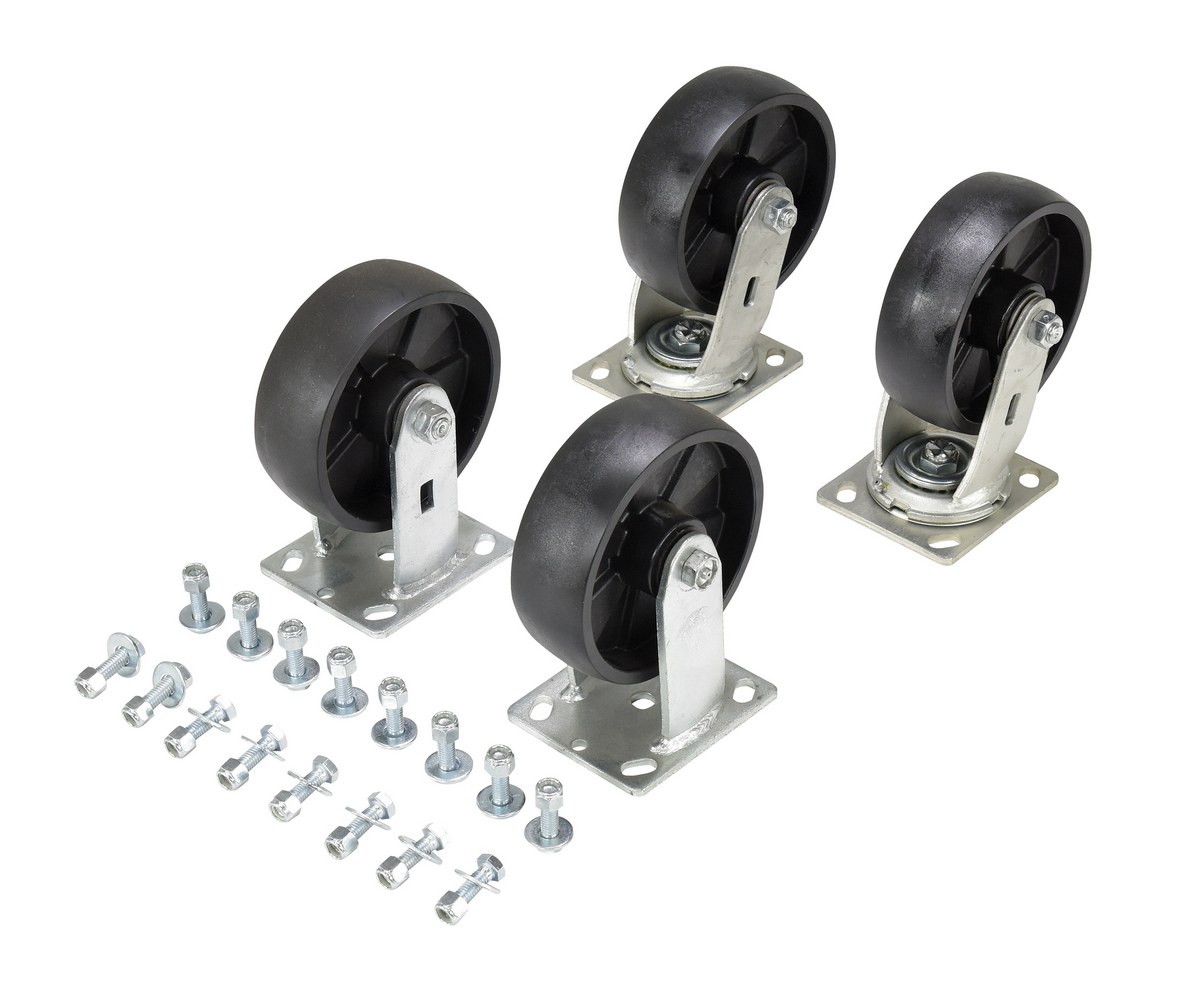

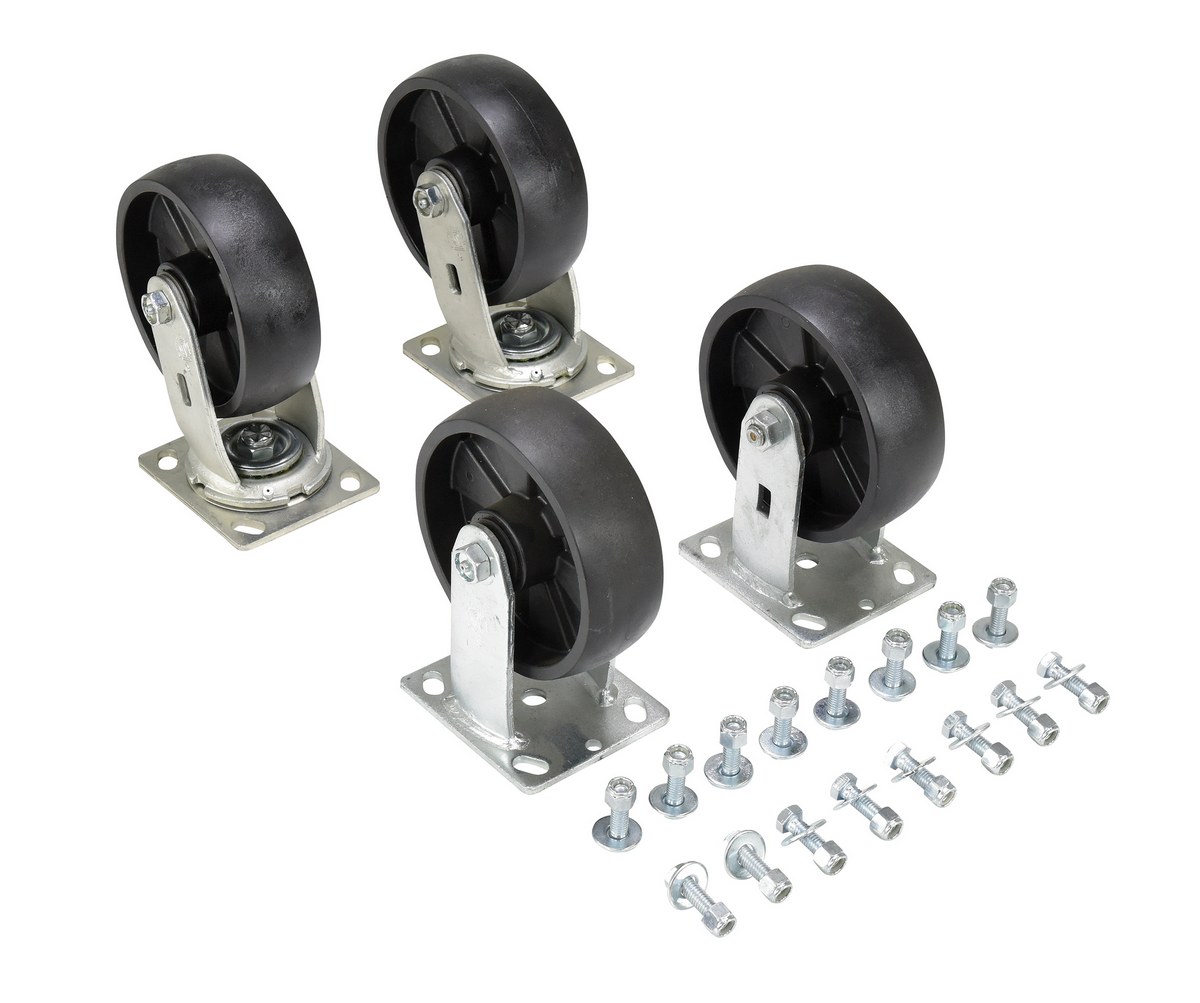

D-CK4-GFN6-2

Glass Filled Nylon Caster Kit 6 In. x 2 In. 4800 Lb. Capacity Black

Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

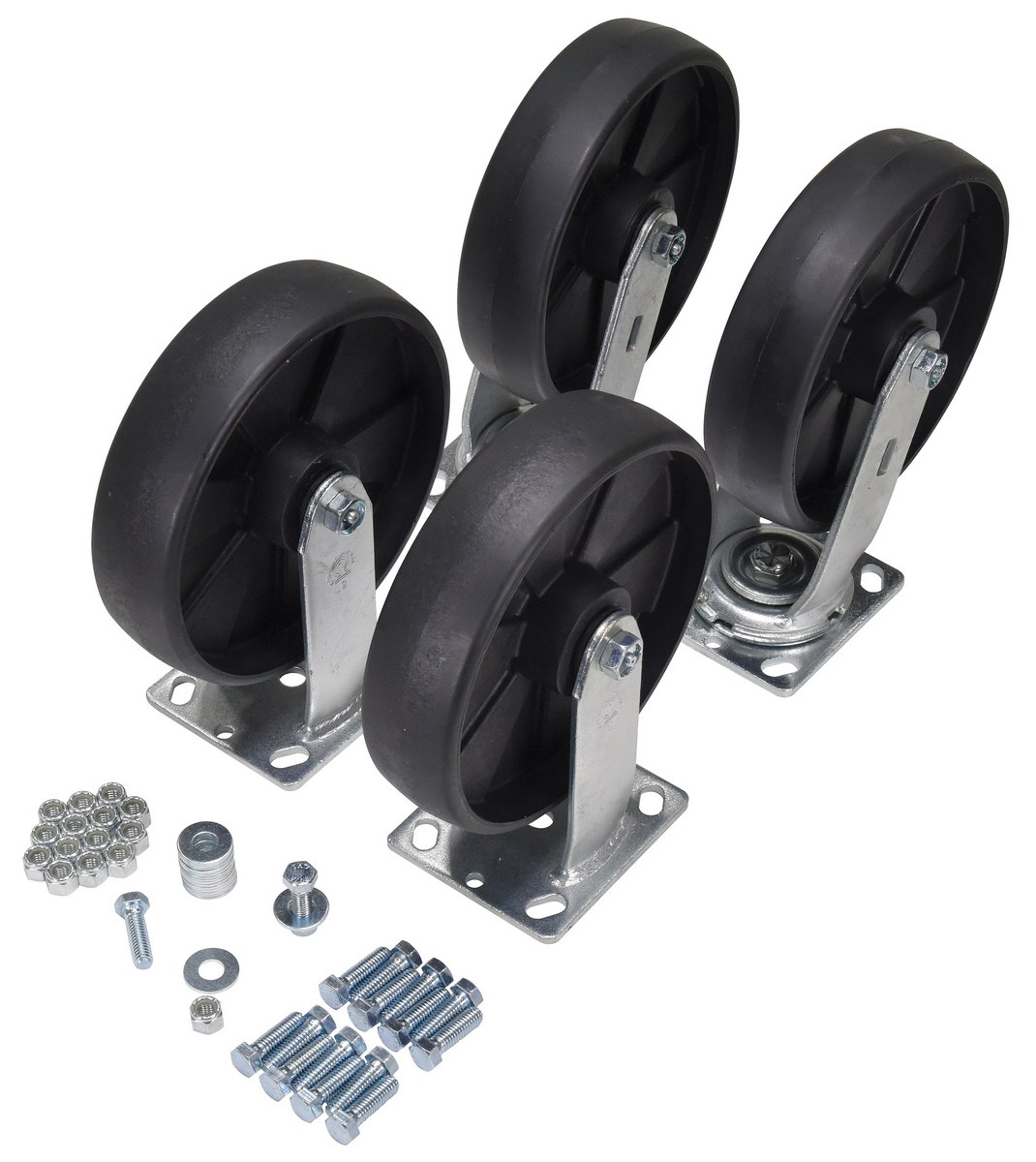

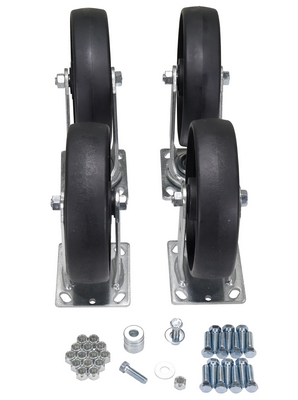

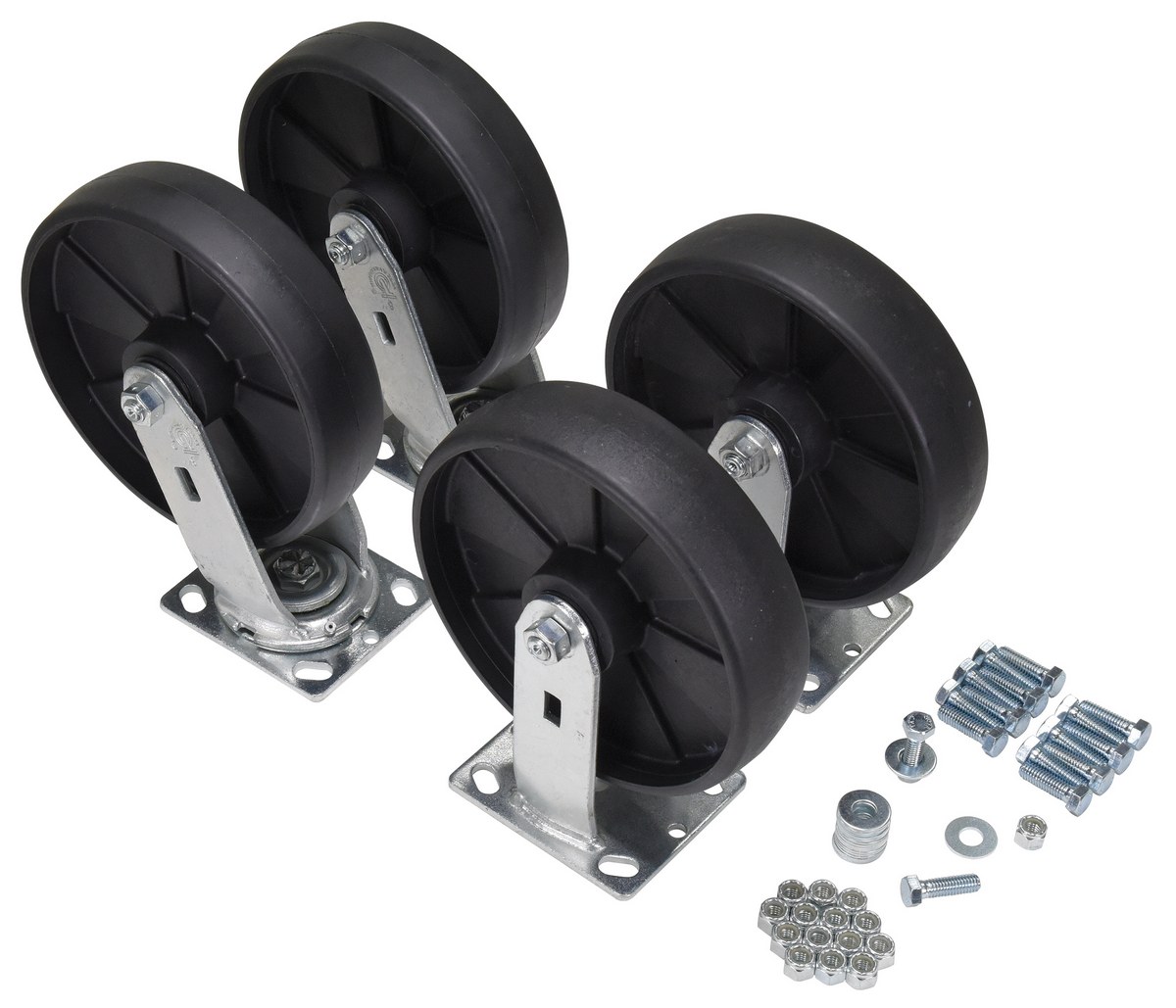

D-CK4-GFN8-2

Glass Filled Nylon Caster Kit 8 In. x 2 In. 5000 Lb. Capacity Black

Uniform Capacity (lb.): 5,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

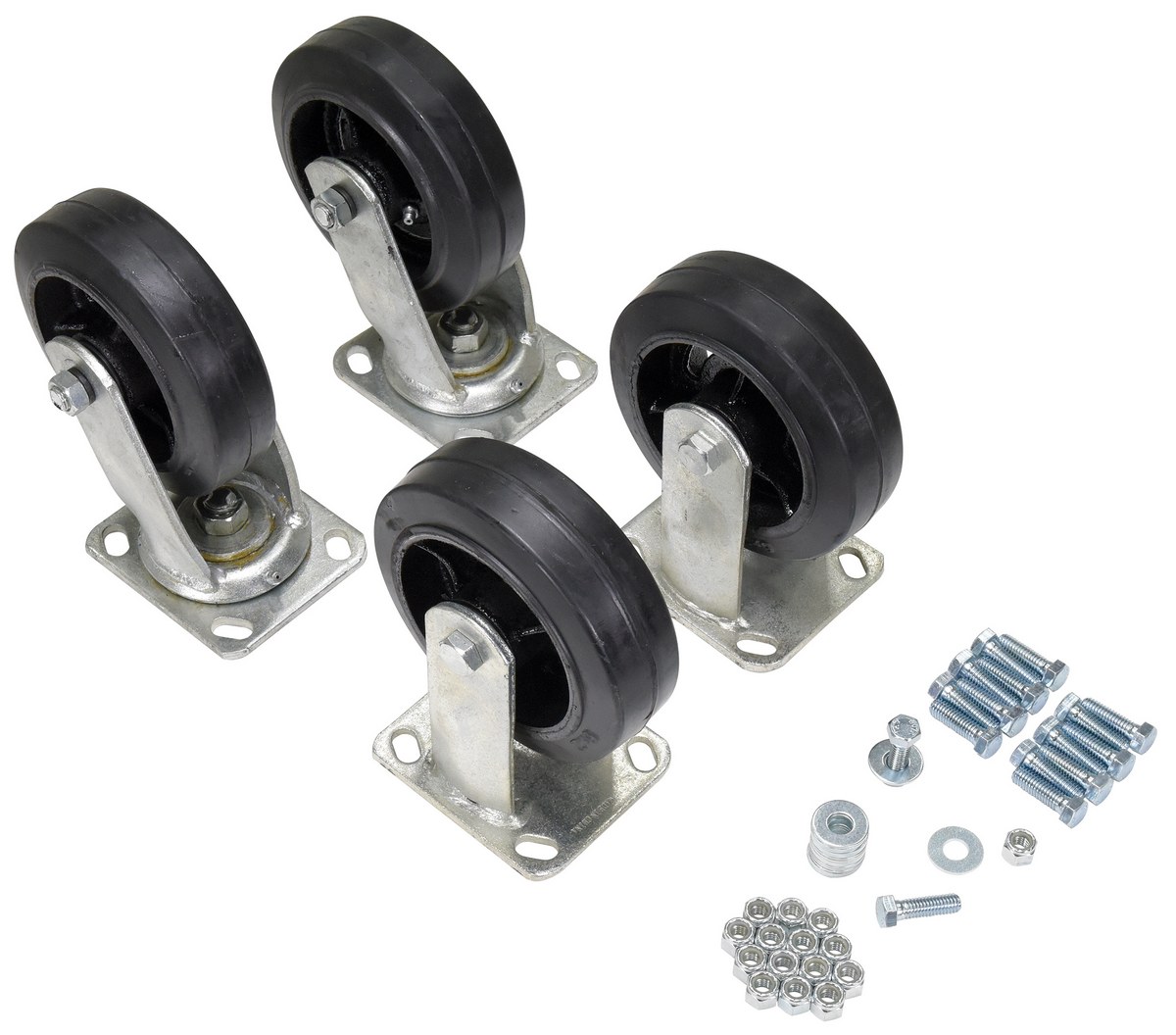

D-CK4-MR6-2

Mold On Rubber Caster Kit 6 In. x 2 In. 2400 Lb. Capacity Black

Uniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

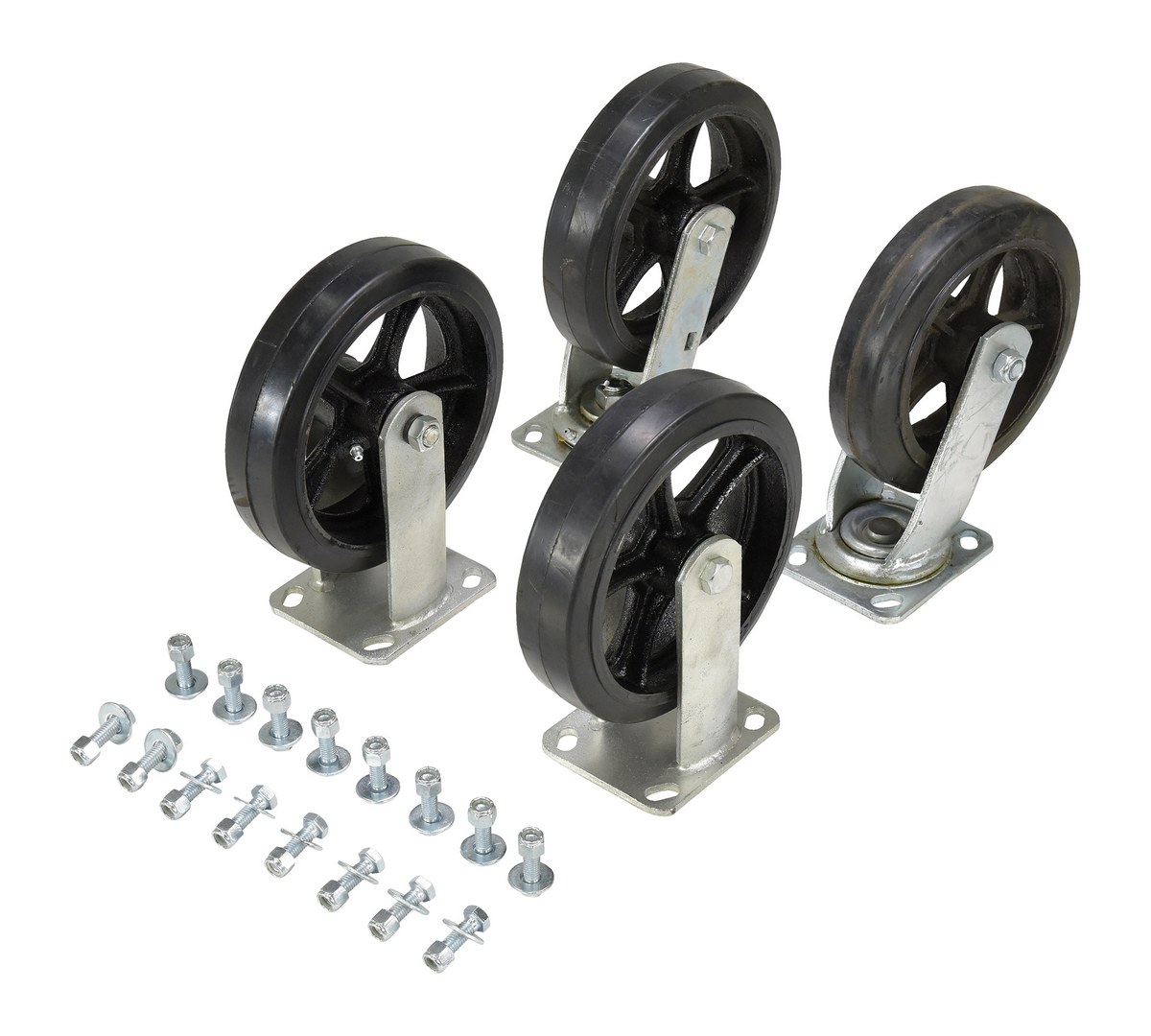

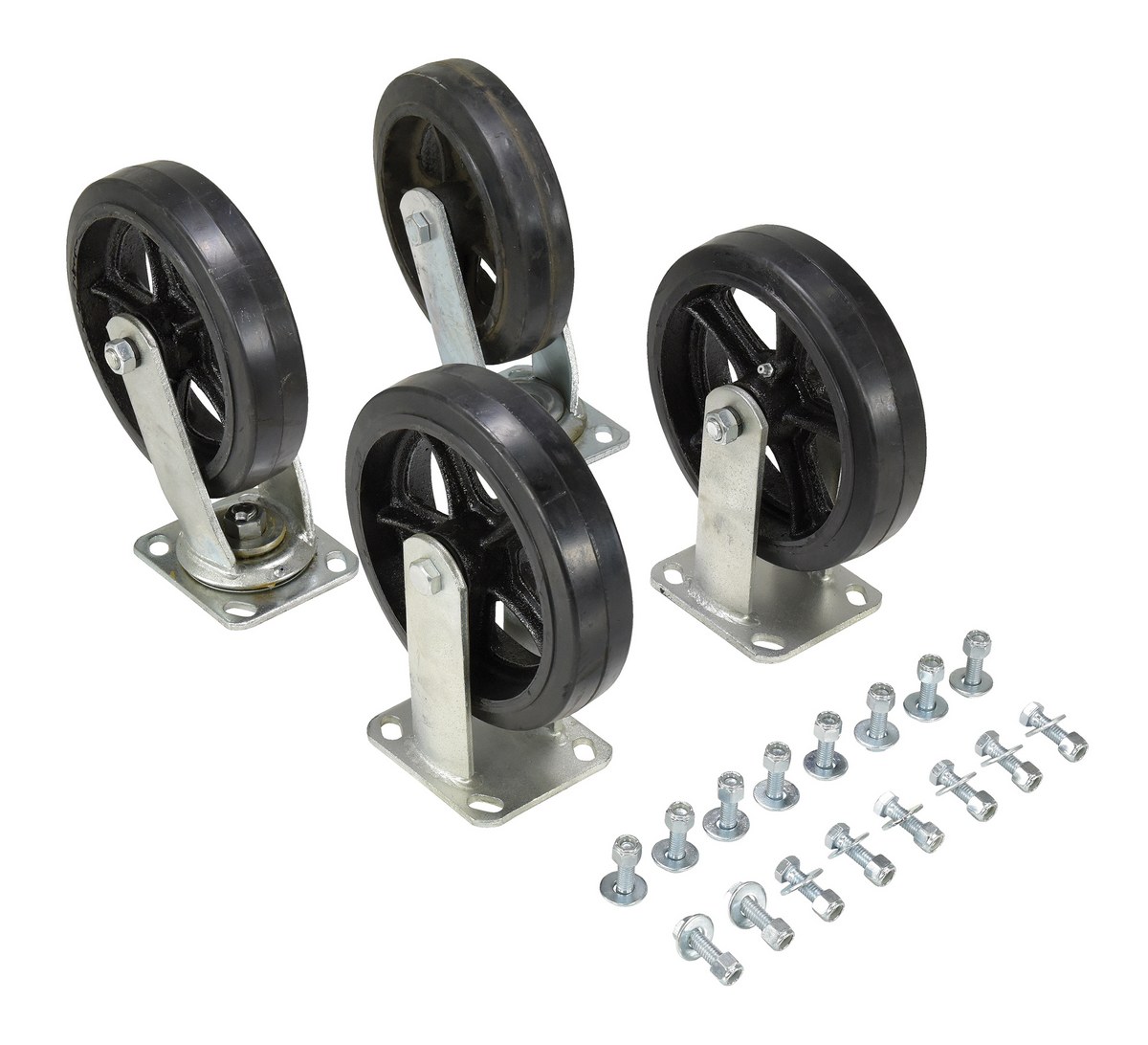

D-CK4-MR8-2

Mold On Rubber Caster Kit 8 In. x 2 In. 2400 Lb. Capacity Black

Uniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

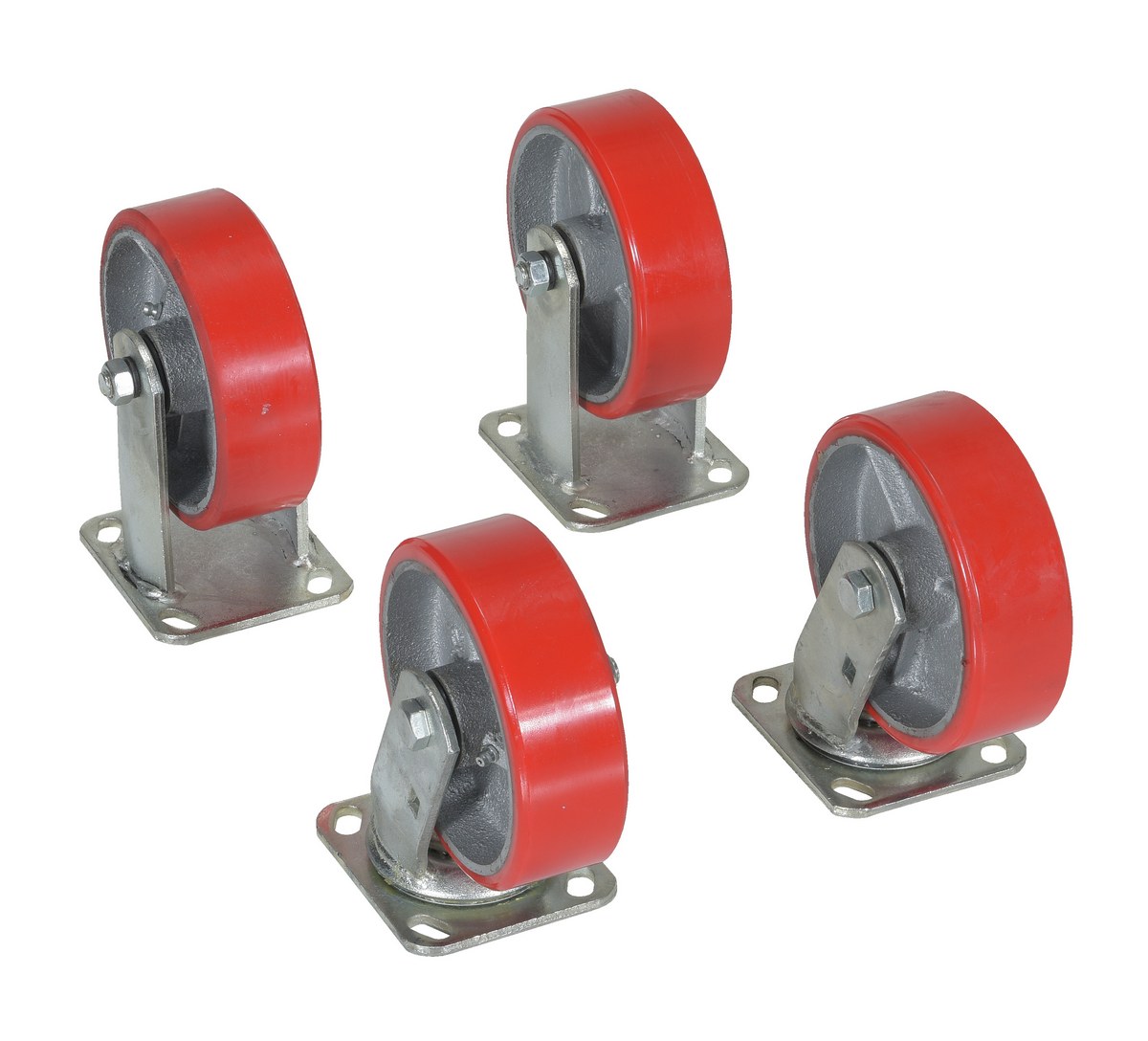

D-CK4-PU6-2

Poly On Steel Caster Kit 6 In. x 2 In. 4800 Lb. Capacity Red

Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

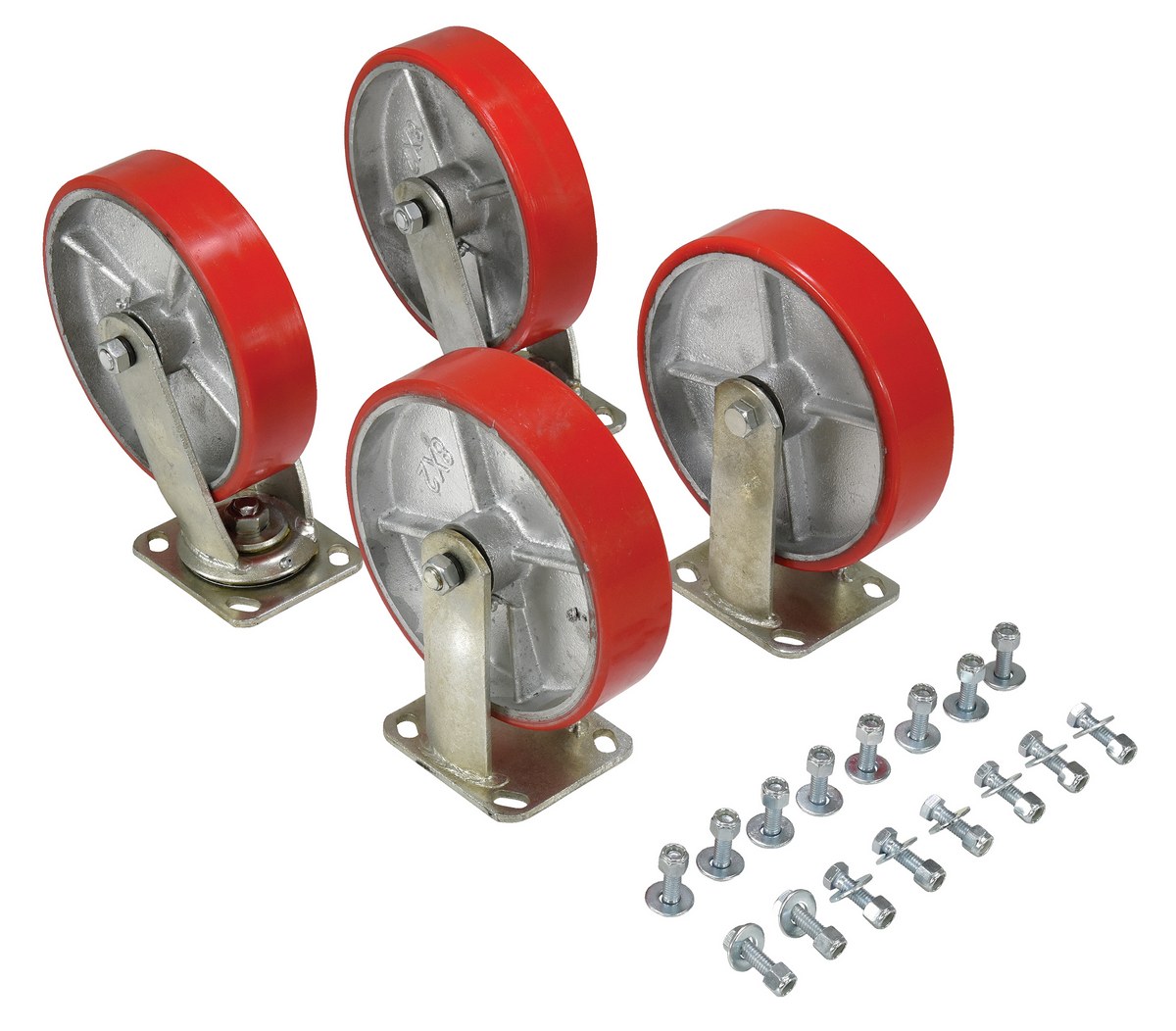

D-CK4-PU8-2

Poly On Steel Caster Kit 8 In. x 2 In. 4800 Lb. Capacity Red

Uniform Capacity (lb.): 5,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

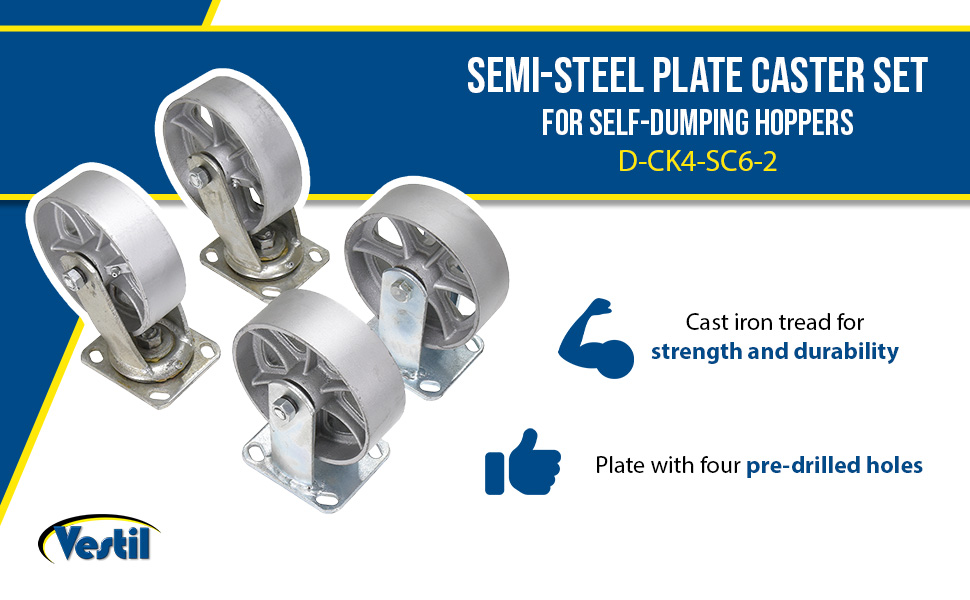

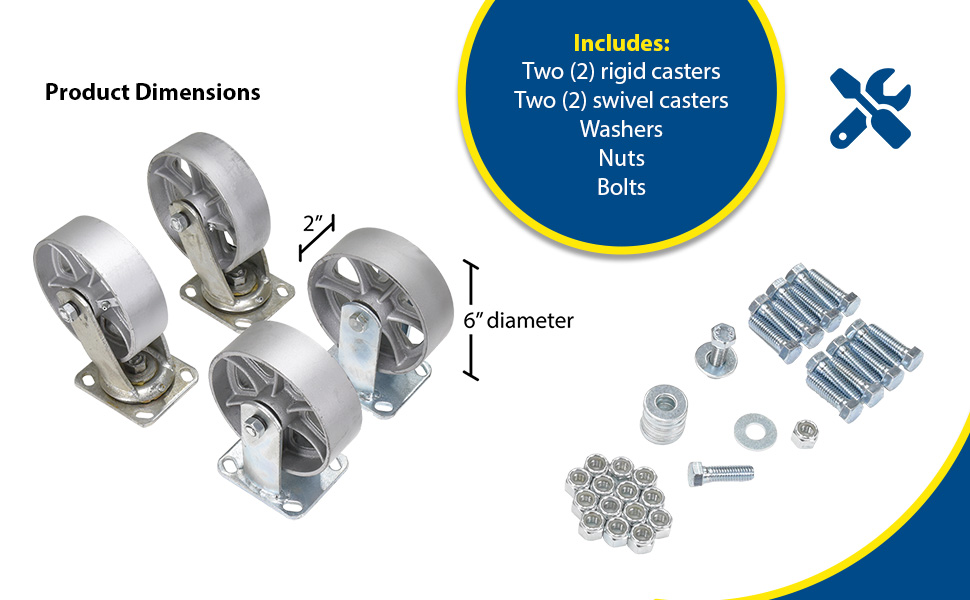

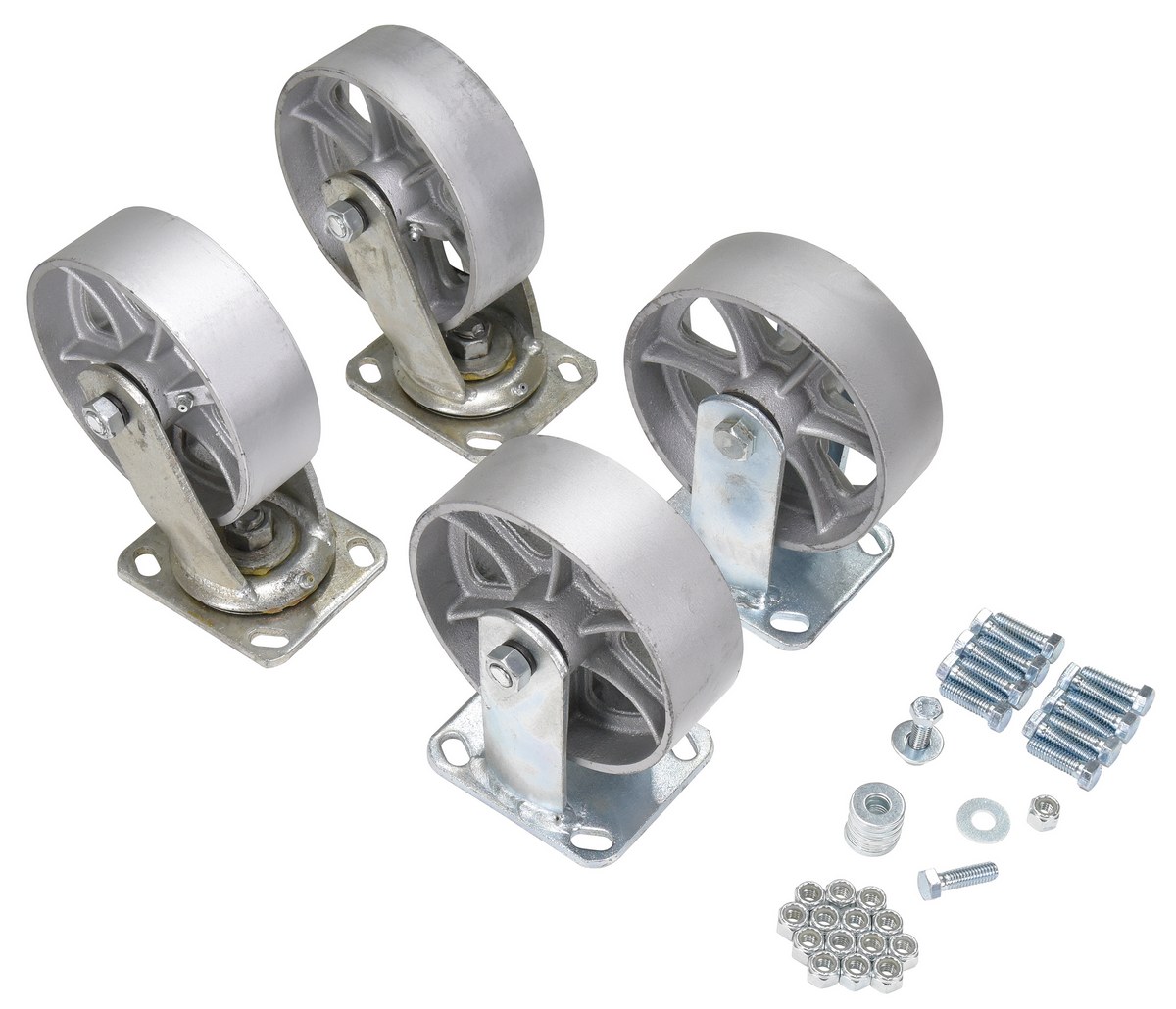

D-CK4-SC6-2

Semi Steel Caster Kit 6 In. x 2 In. 8000 Lb. Capacity Silver

Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

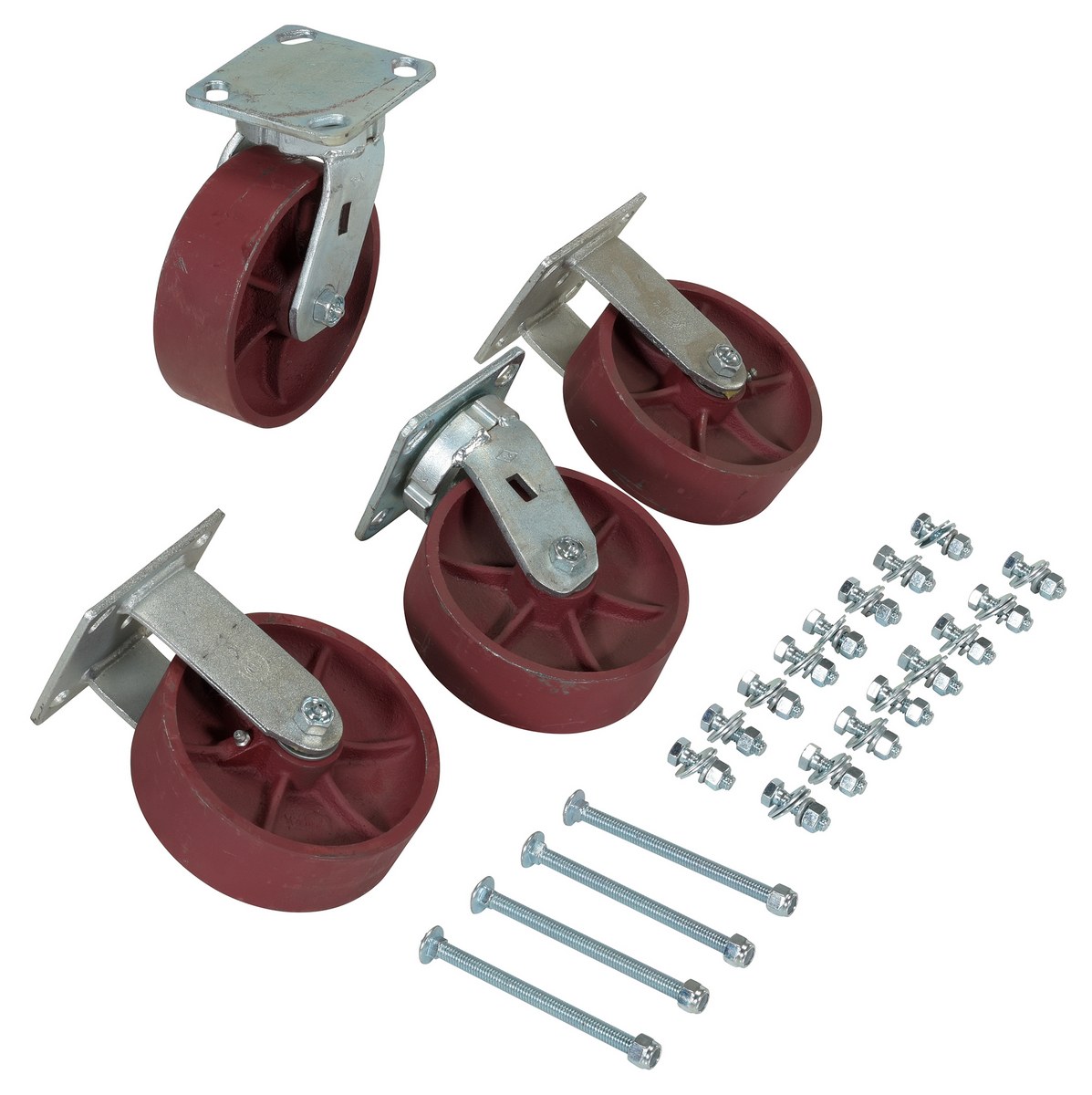

D-CK4-SC6-2HD

Ductile Steel Caster Kit 6 In. x 2 In. 8000 Lb. Capacity Maroon

Uniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

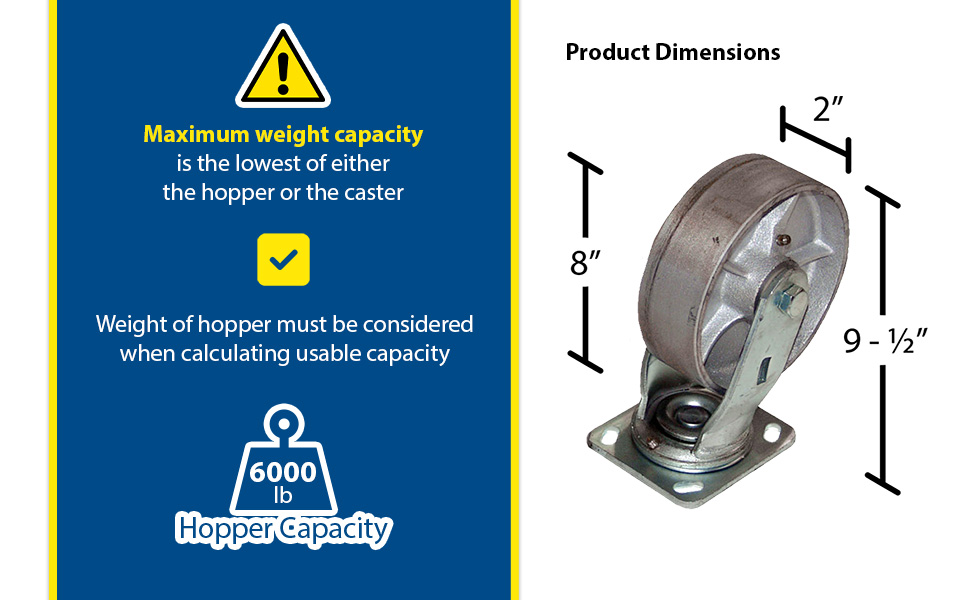

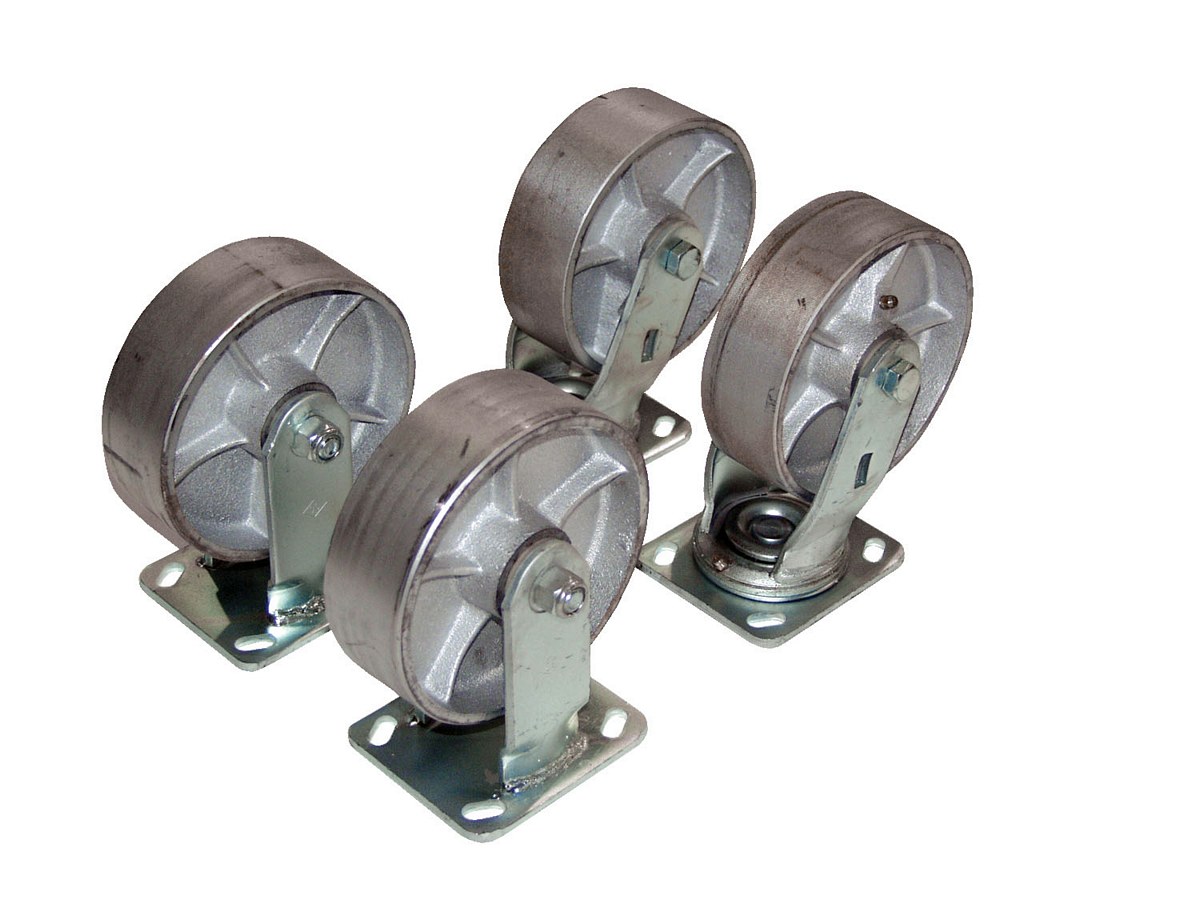

D-CK4-SC8-2

Semi Steel Caster Kit 8 In. x 2 In. 4800 Lb. Capacity Silver

Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

H-CK3-C13C

Elastic Polyurethane Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity Butterscotch

Uniform Capacity (lb.): 3750
Swivel Caster Qty: 1

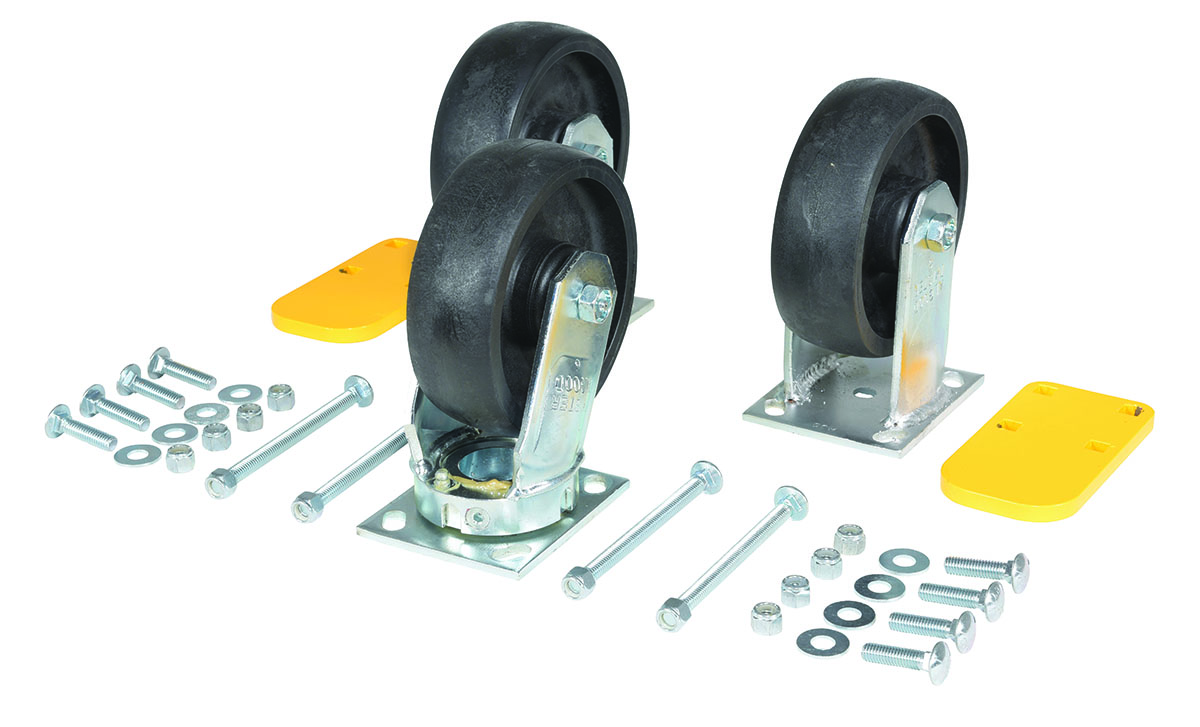

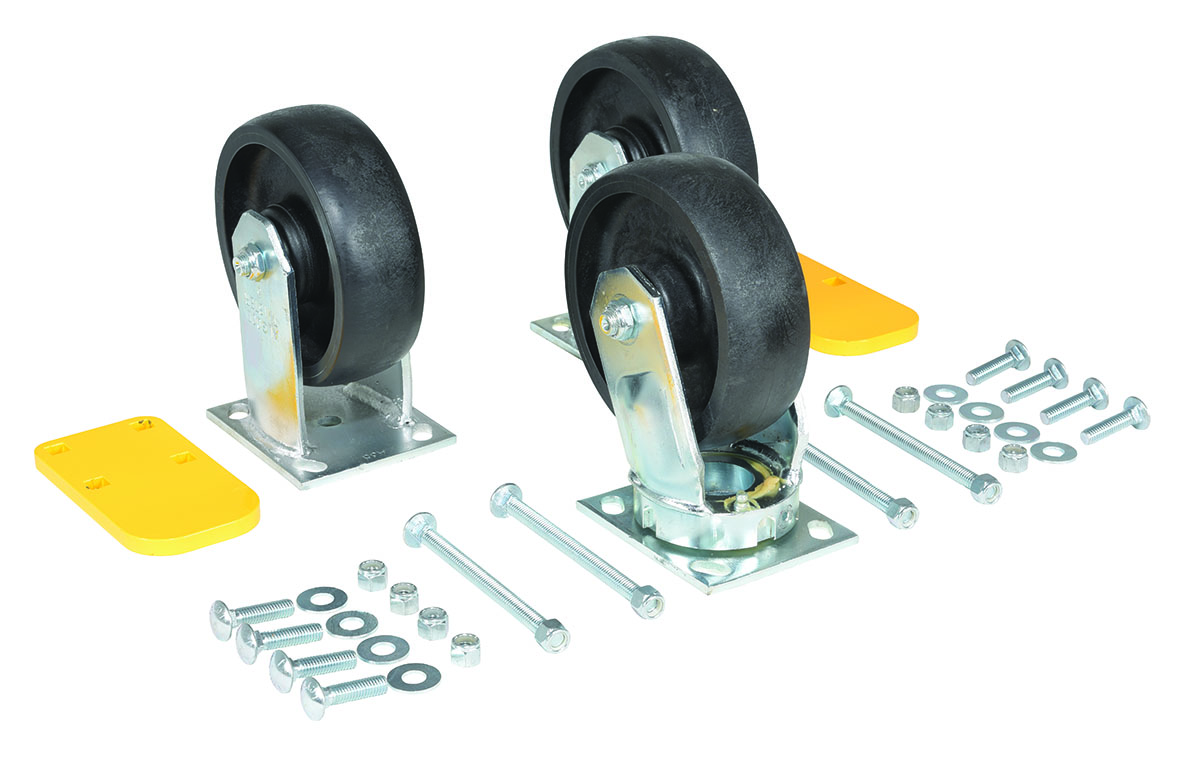

H-CK3-C23C

Glass-Filled Nylon Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity Black

Uniform Capacity (lb.): 6000
Swivel Caster Qty: 1

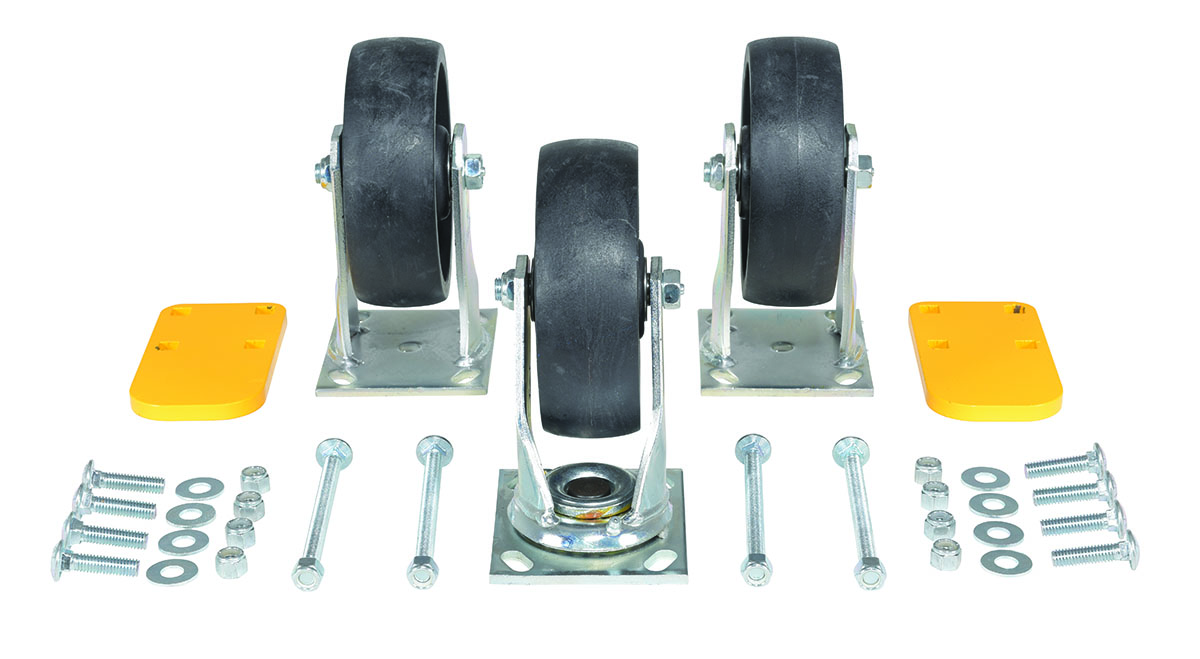

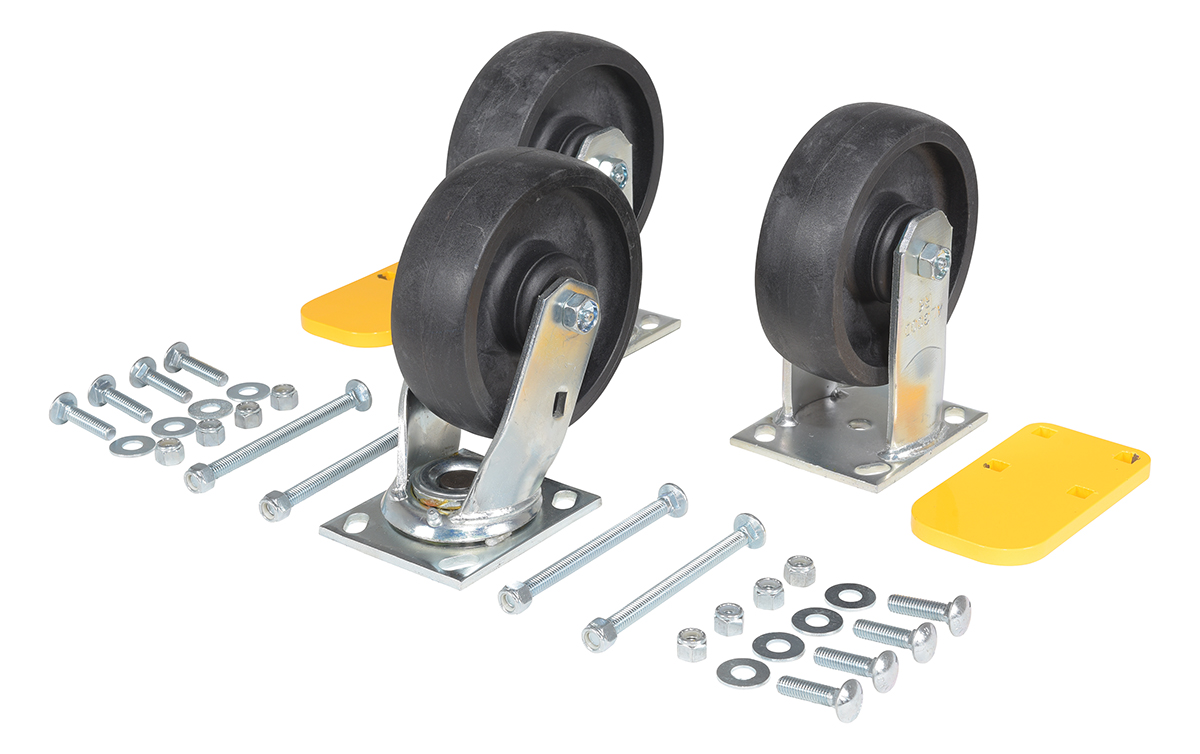

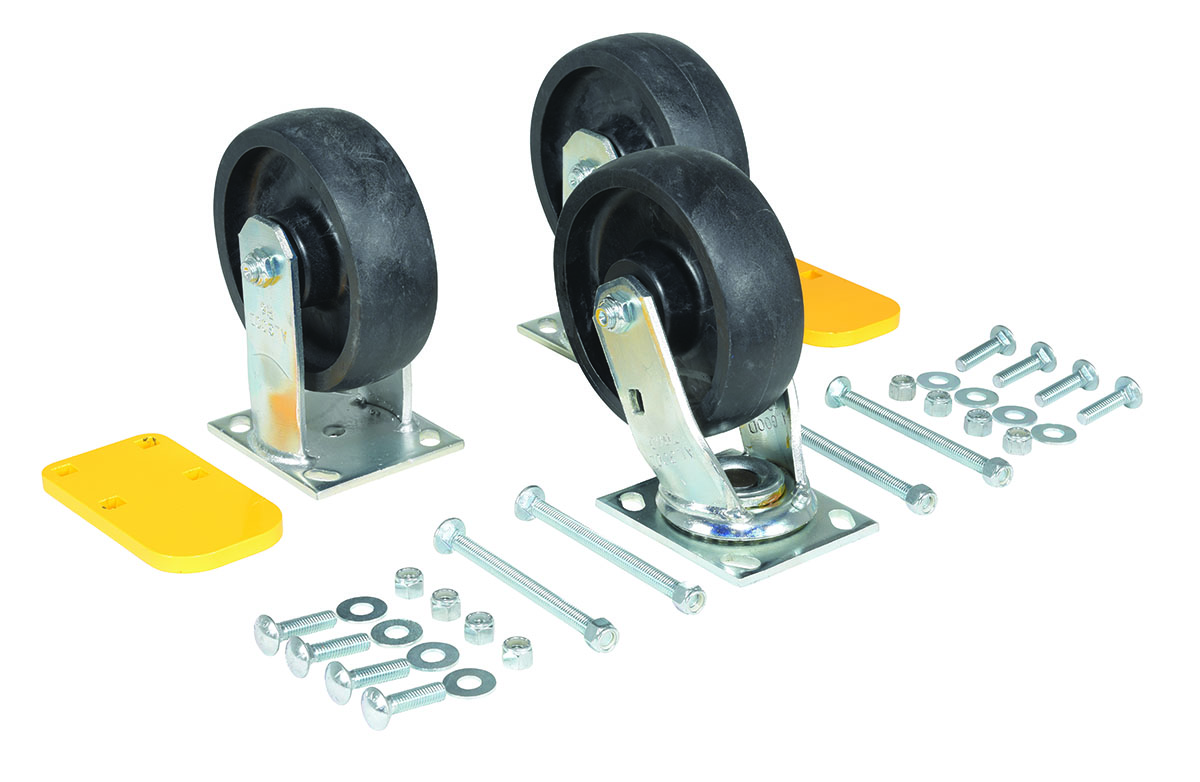

H-CK3-C24C

Glass-Filled Nylon Caster Kit 6 In. x 2 In. 3,750 Lb. Capacity Black

Uniform Capacity (lb.): 3750
Swivel Caster Qty: 1

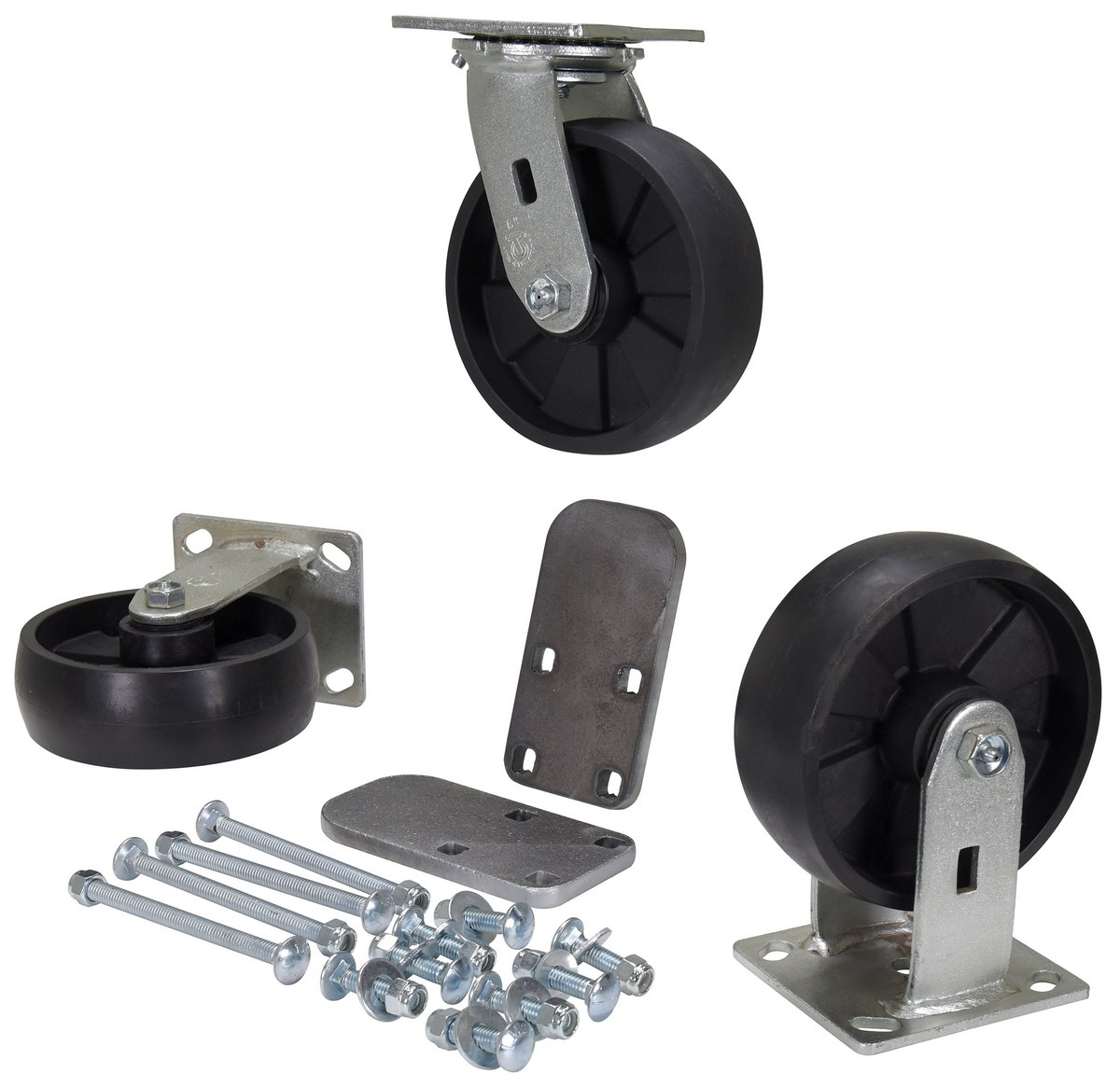

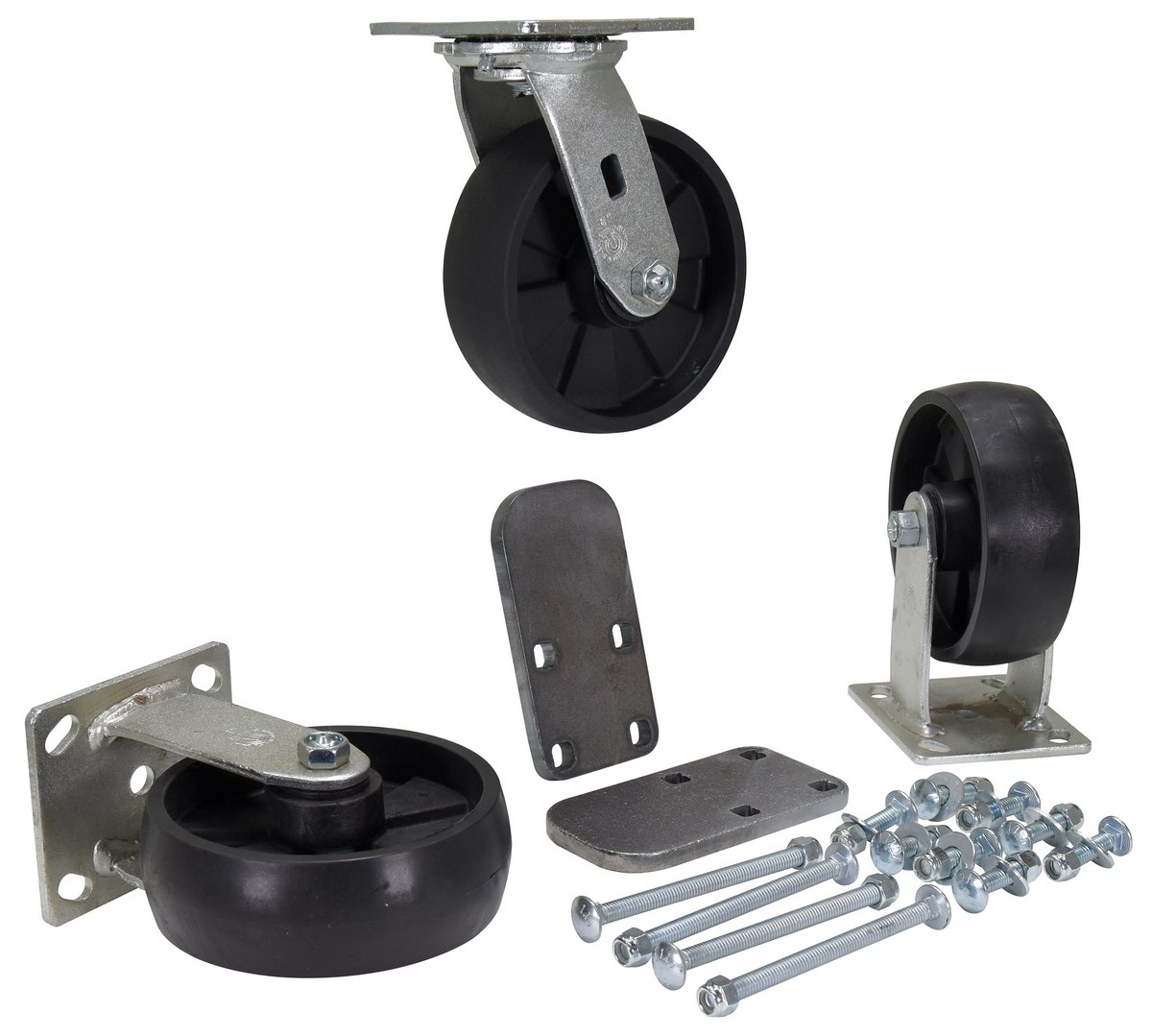

H-CK3-GFN6-2

Glass Filled Nylon Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity Black

Uniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

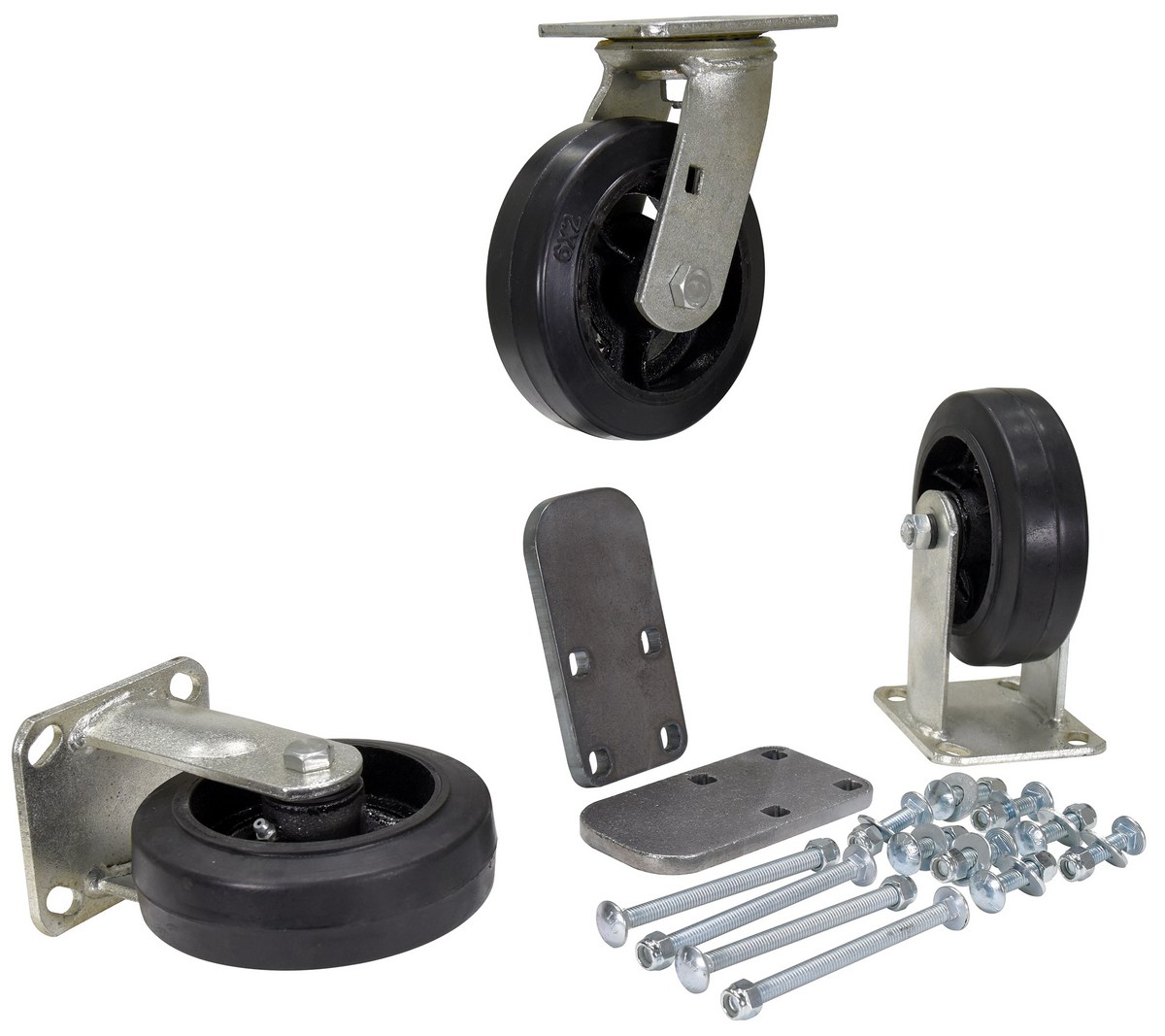

H-CK3-MR6-2

Mold On Rubber Caster Kit 6 In. x 2 In. 1,800 Lb. Capacity Black

Uniform Capacity (lb.): 1800
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

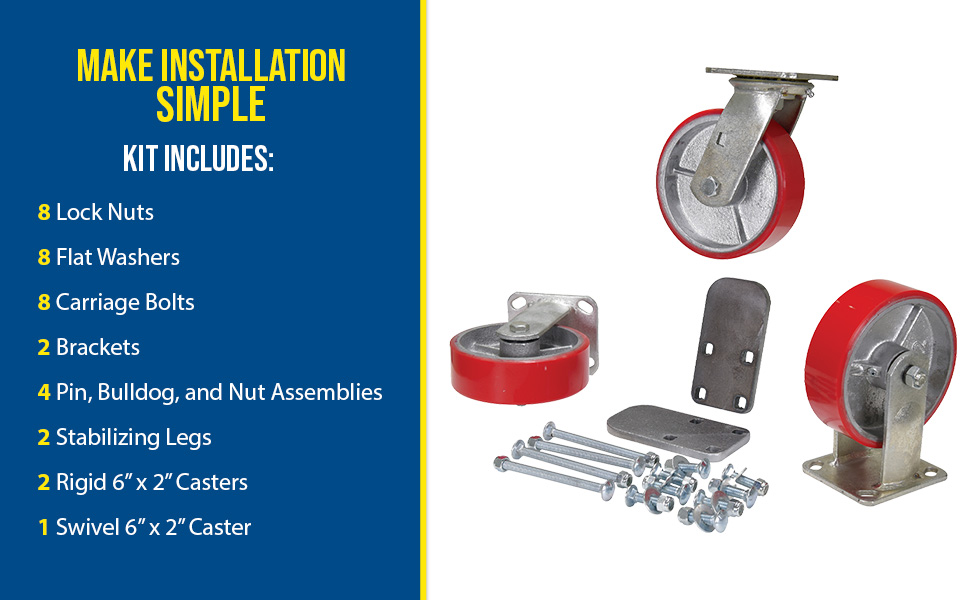

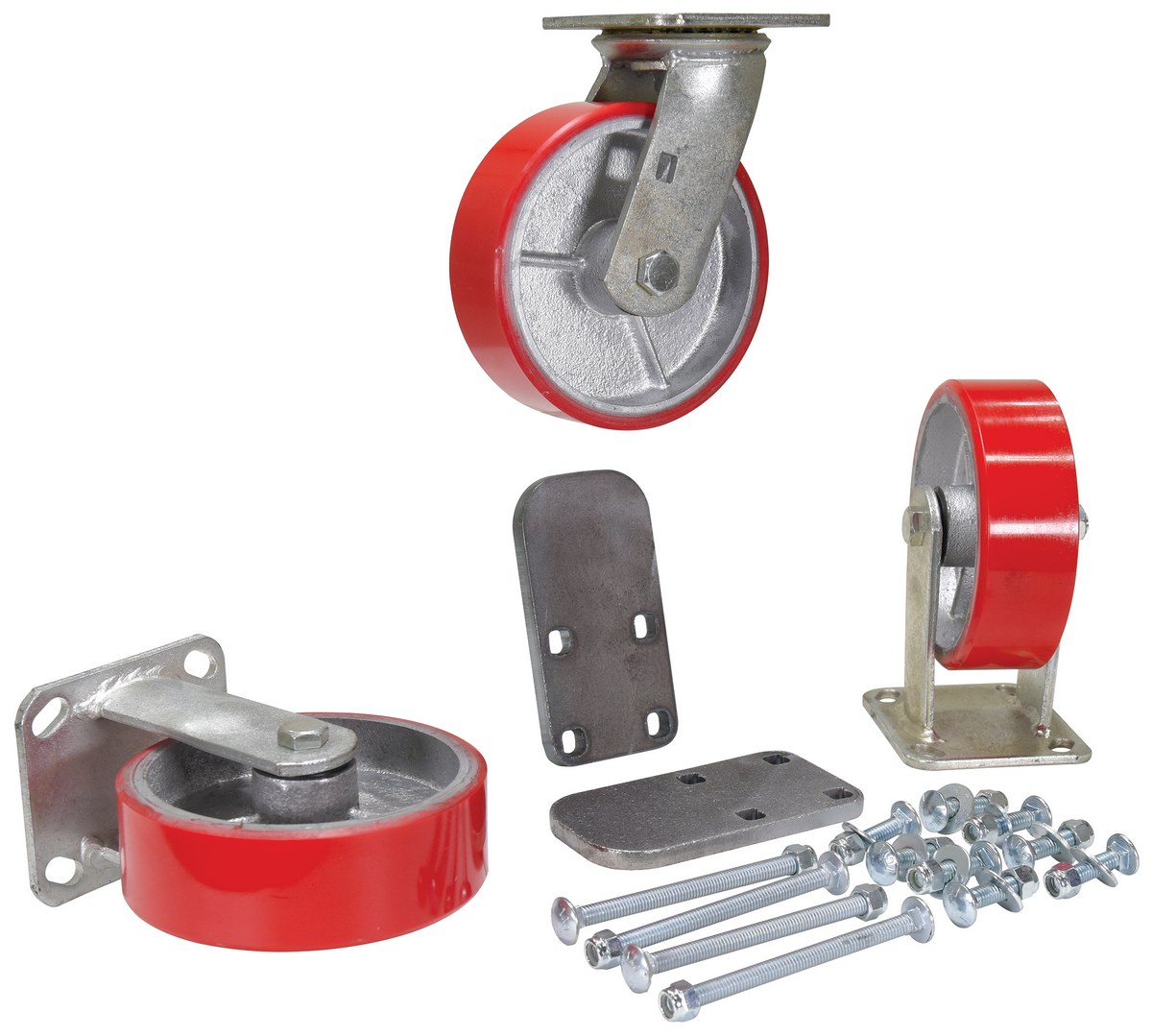

H-CK3-PU6-2

Poly On Steel Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity Red

Uniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

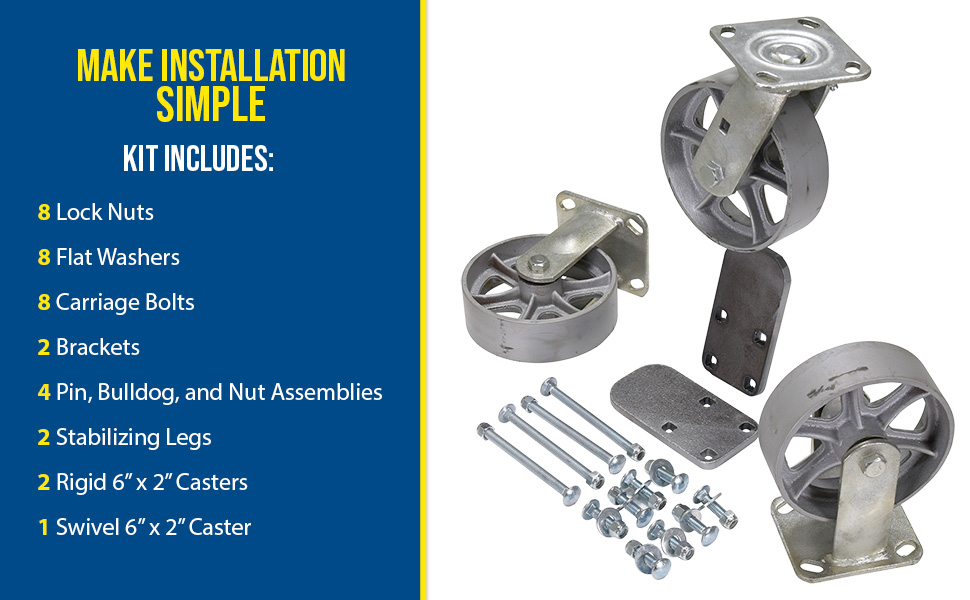

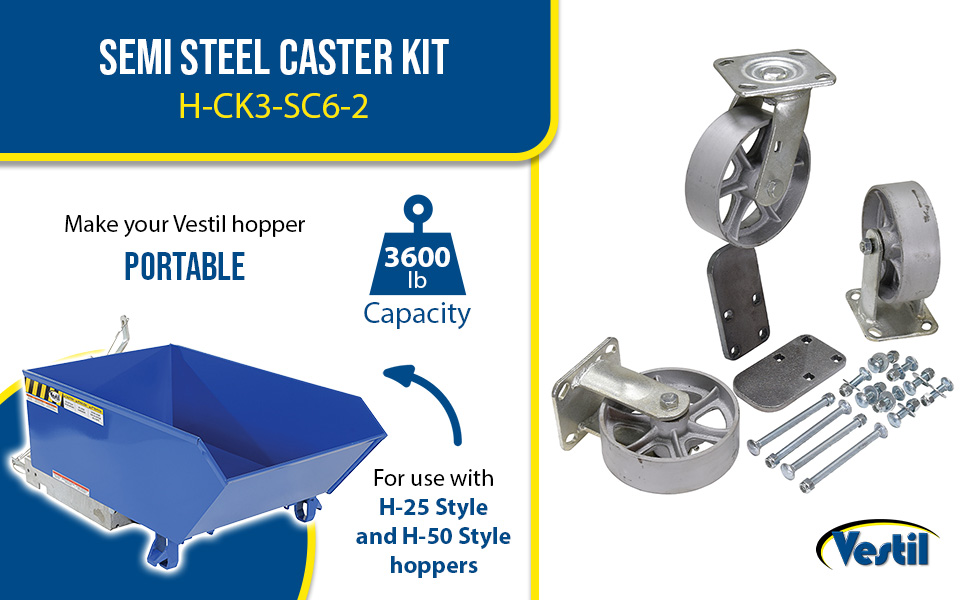

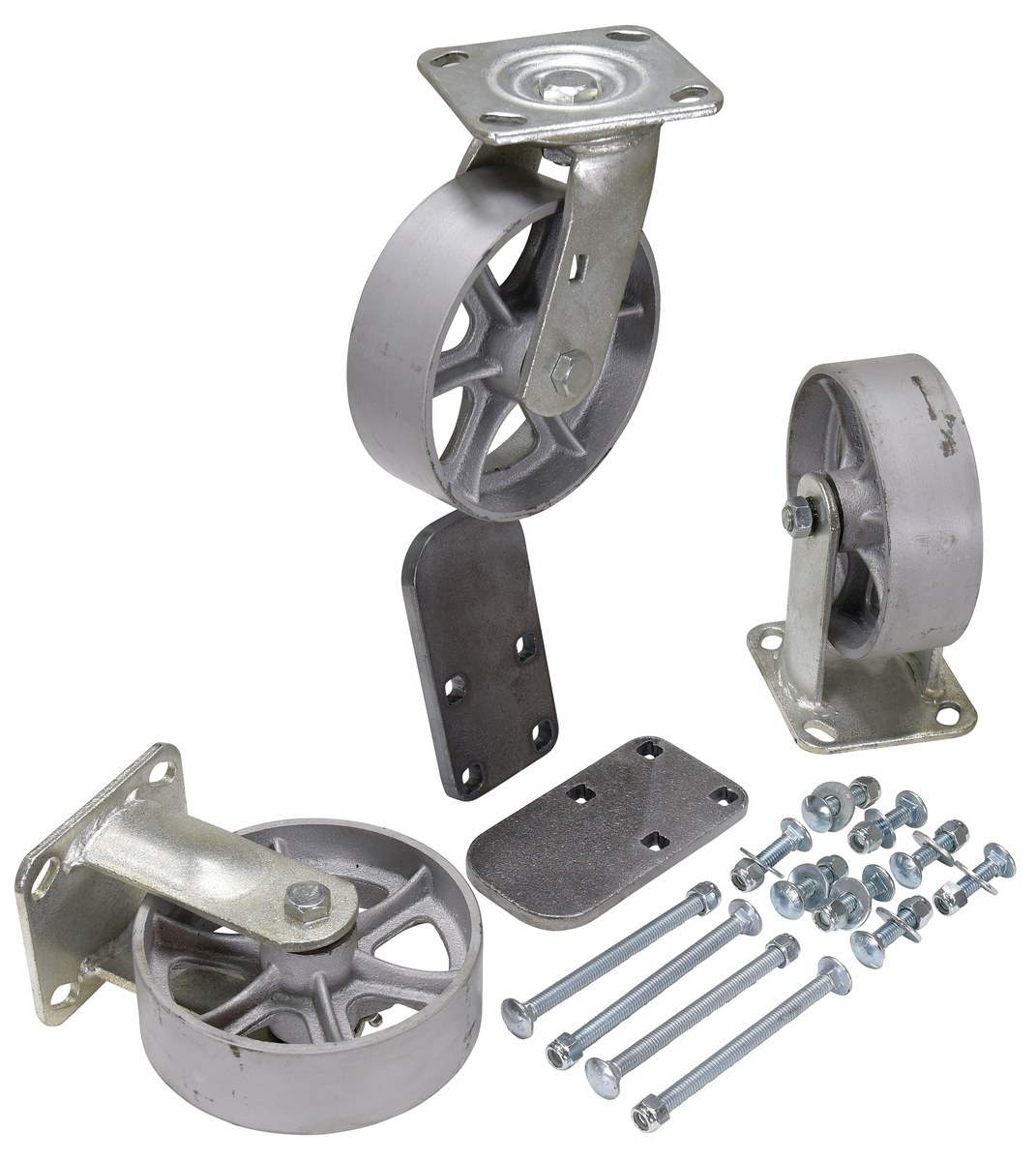

H-CK3-SC6-2

Semi Steel Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity Silver

Uniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

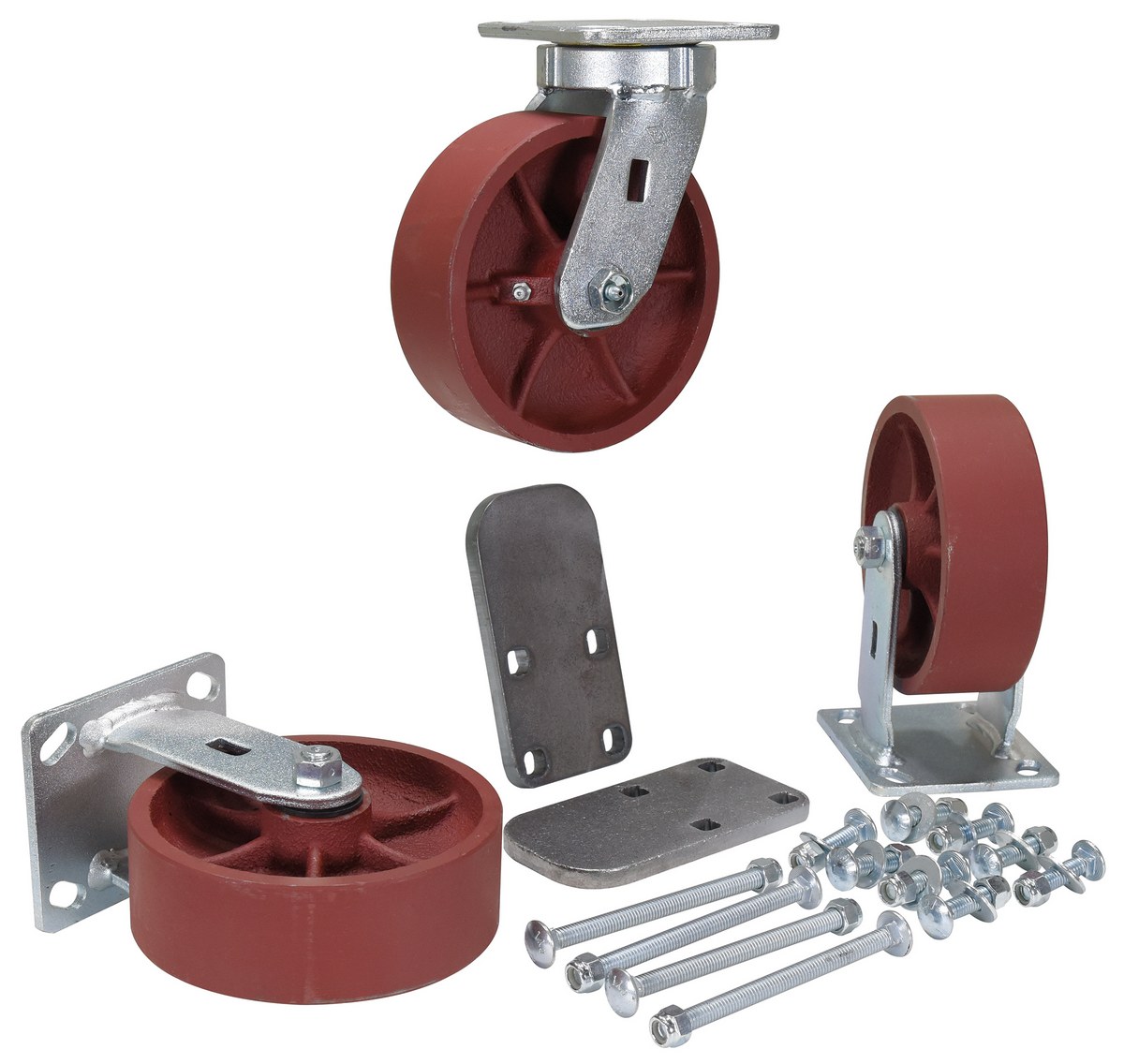

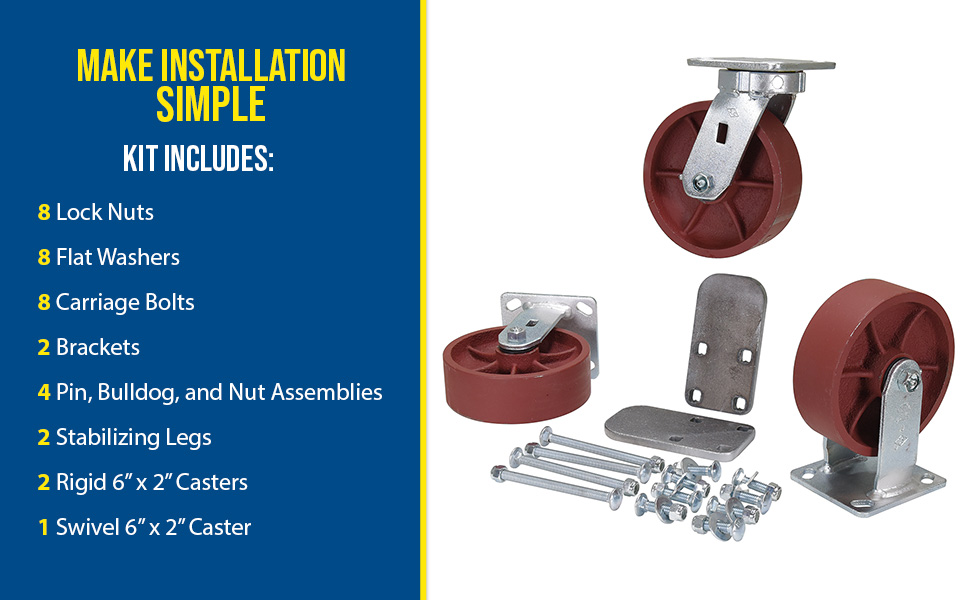

H-CK3-SC6-2HD

Ductile Steel Caster Kit 6 In. x 2 In. 6,000 Lb. Capacity Maroon

Uniform Capacity per caster (lb.): 6000
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

H-CK4-C13C

Elastic Polyurethane Caster Kit 6 In. x 2 In. 5,000 Lb. Capacity Butterscotch

Uniform Capacity (lb.): 5000
Swivel Caster Qty: 1

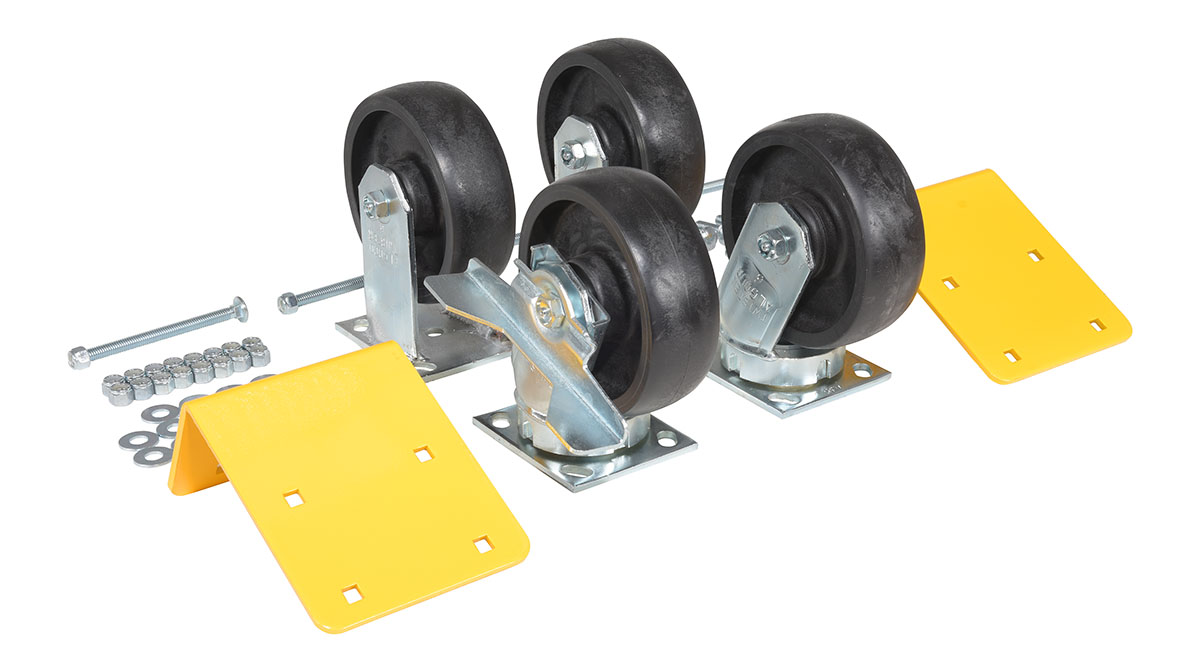

H-CK4-C23C

Glass-Filled Nylon Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity Black

Uniform Capacity (lb.): 8000
Swivel Caster Qty: 1

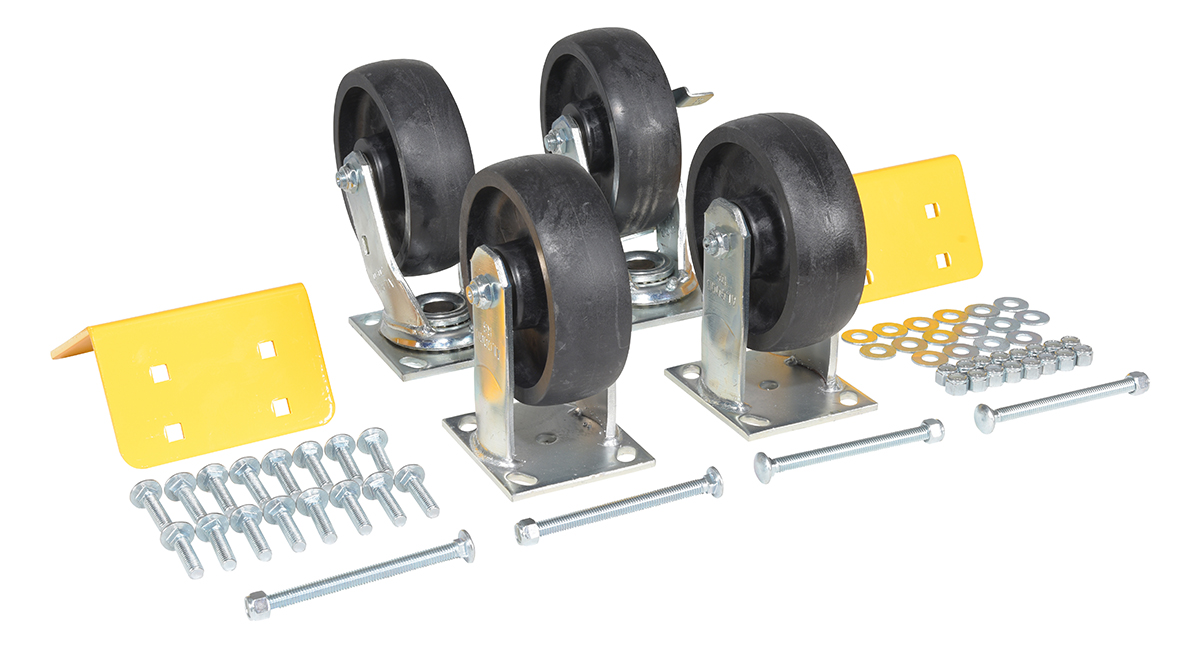

H-CK4-C24C

Glass-Filled Nylon Caster Kit 6 In. x 2 In. 5,000 Lb. Capacity Black

Uniform Capacity (lb.): 5000
Swivel Caster Qty: 1

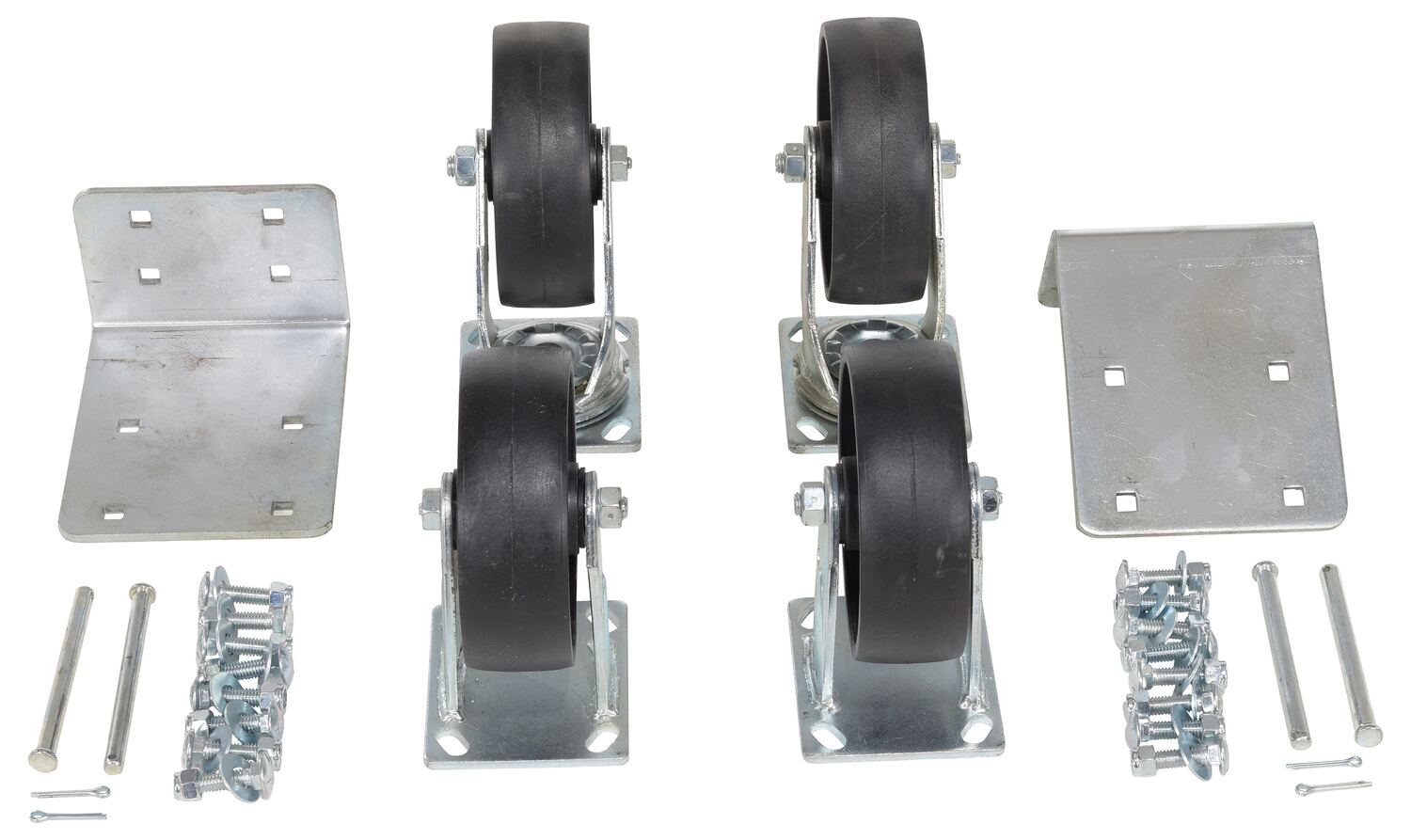

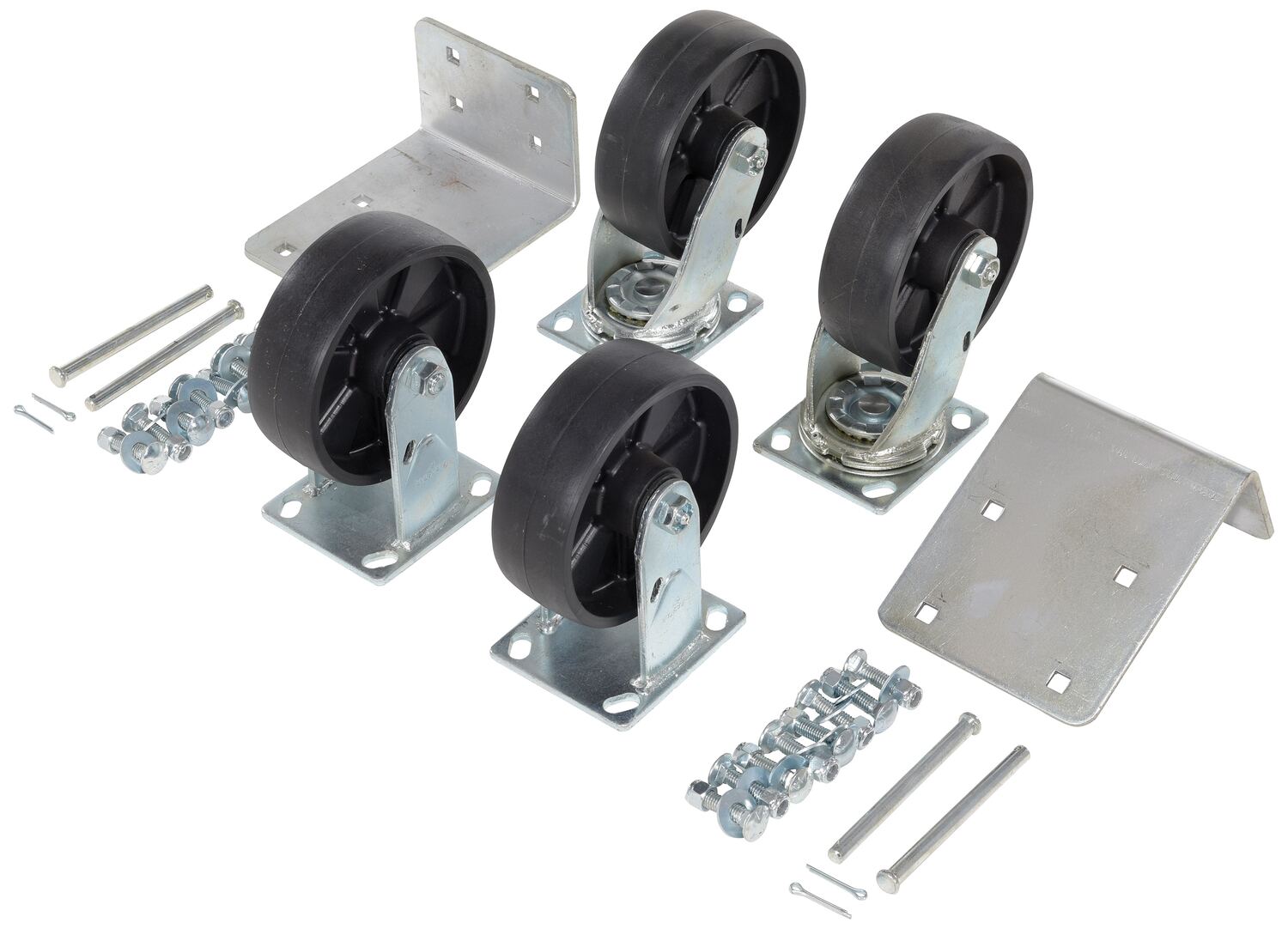

H-CK4-GFN6-2

Glass Filled Nylon Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity Black

Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

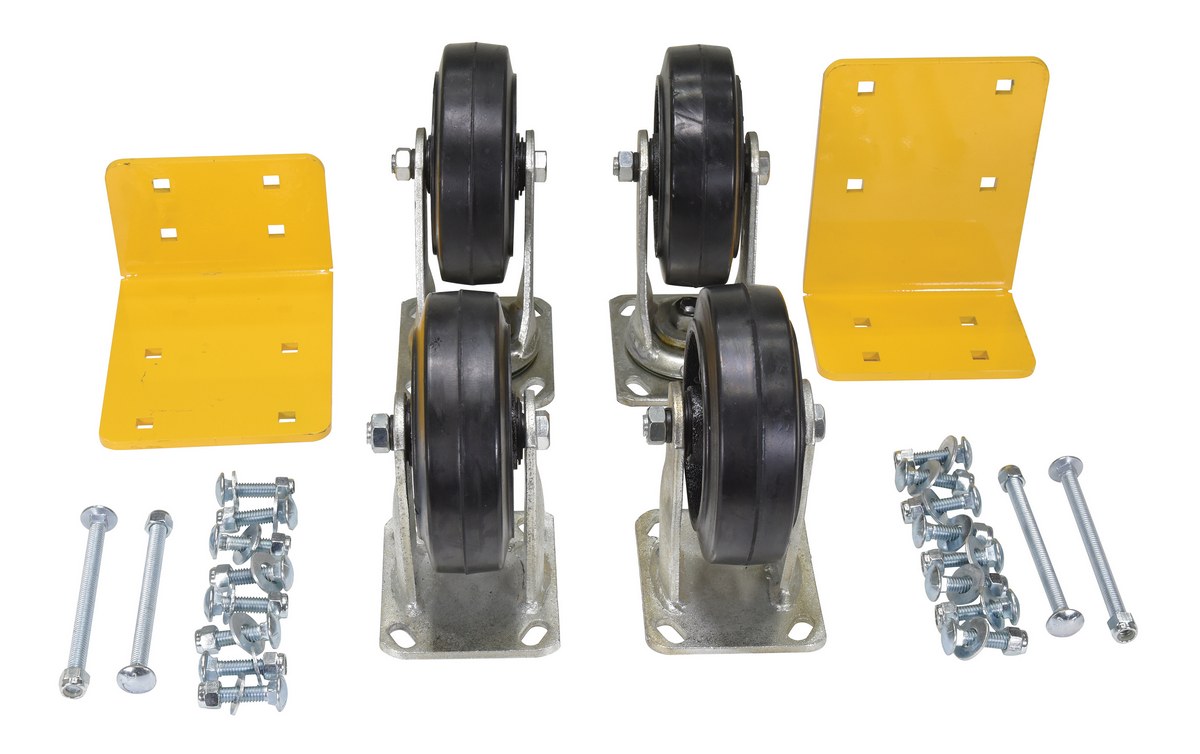

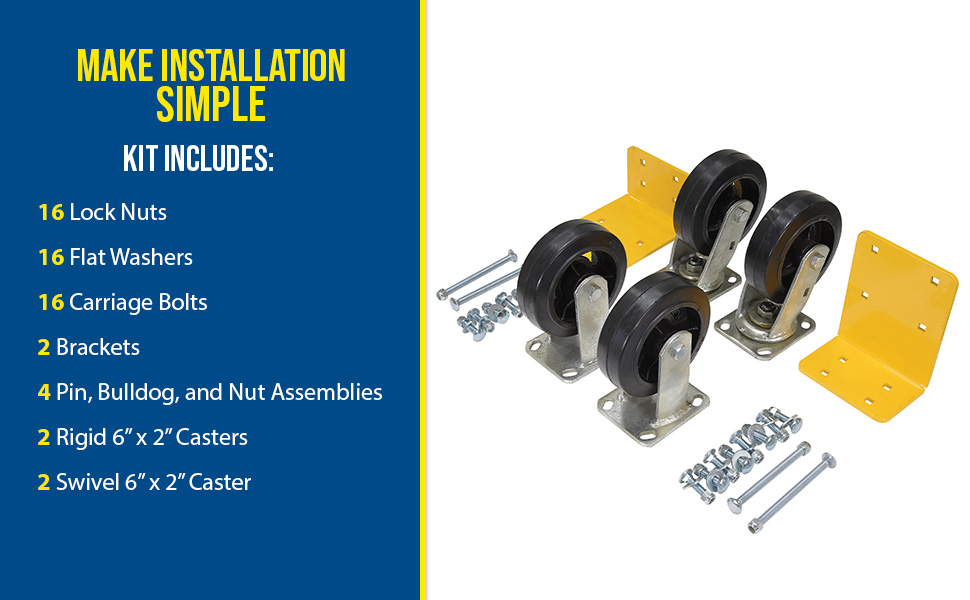

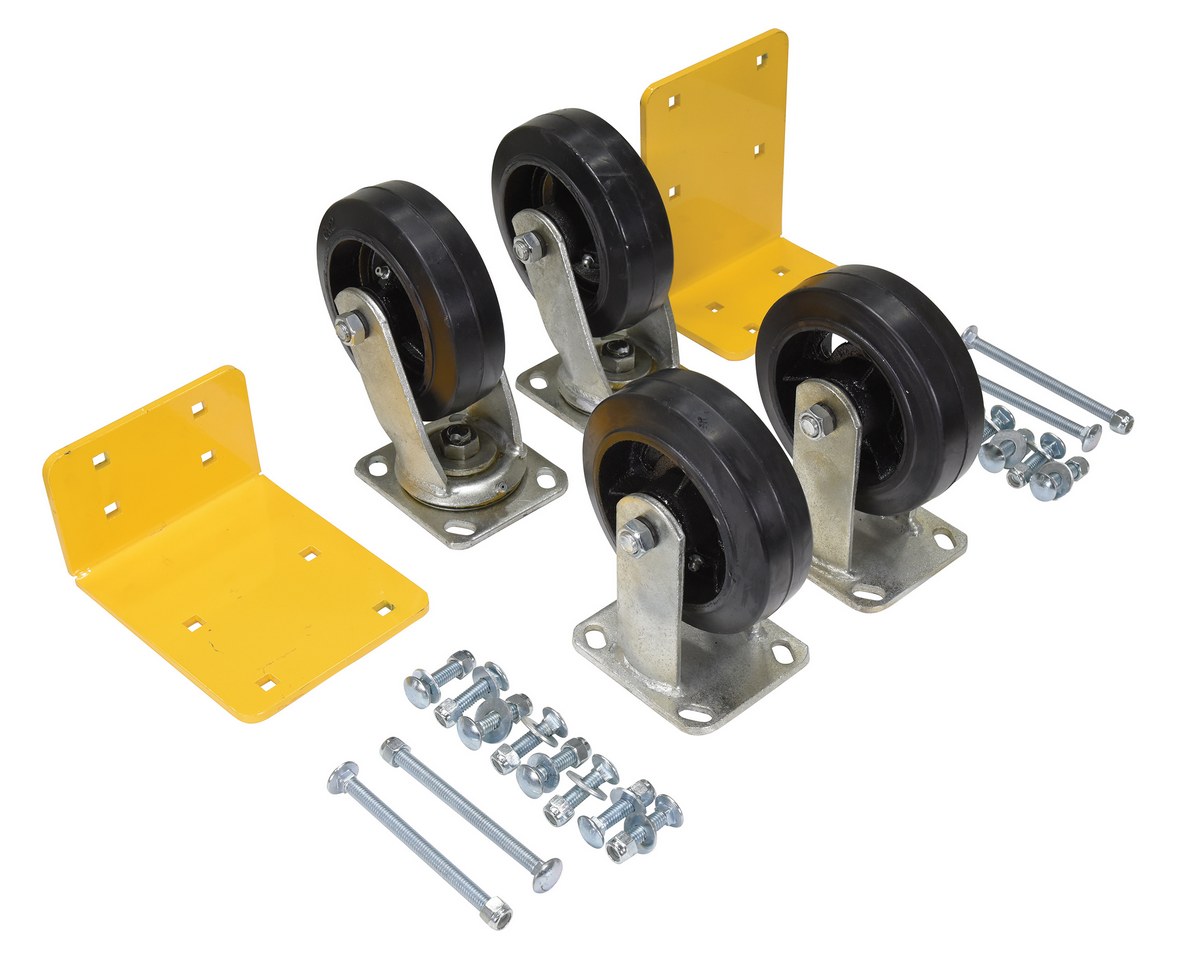

H-CK4-MR6-2

Mold On Rubber Caster Kit 6 In. x 2 In. 2,400 Lb. Capacity Black

Uniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

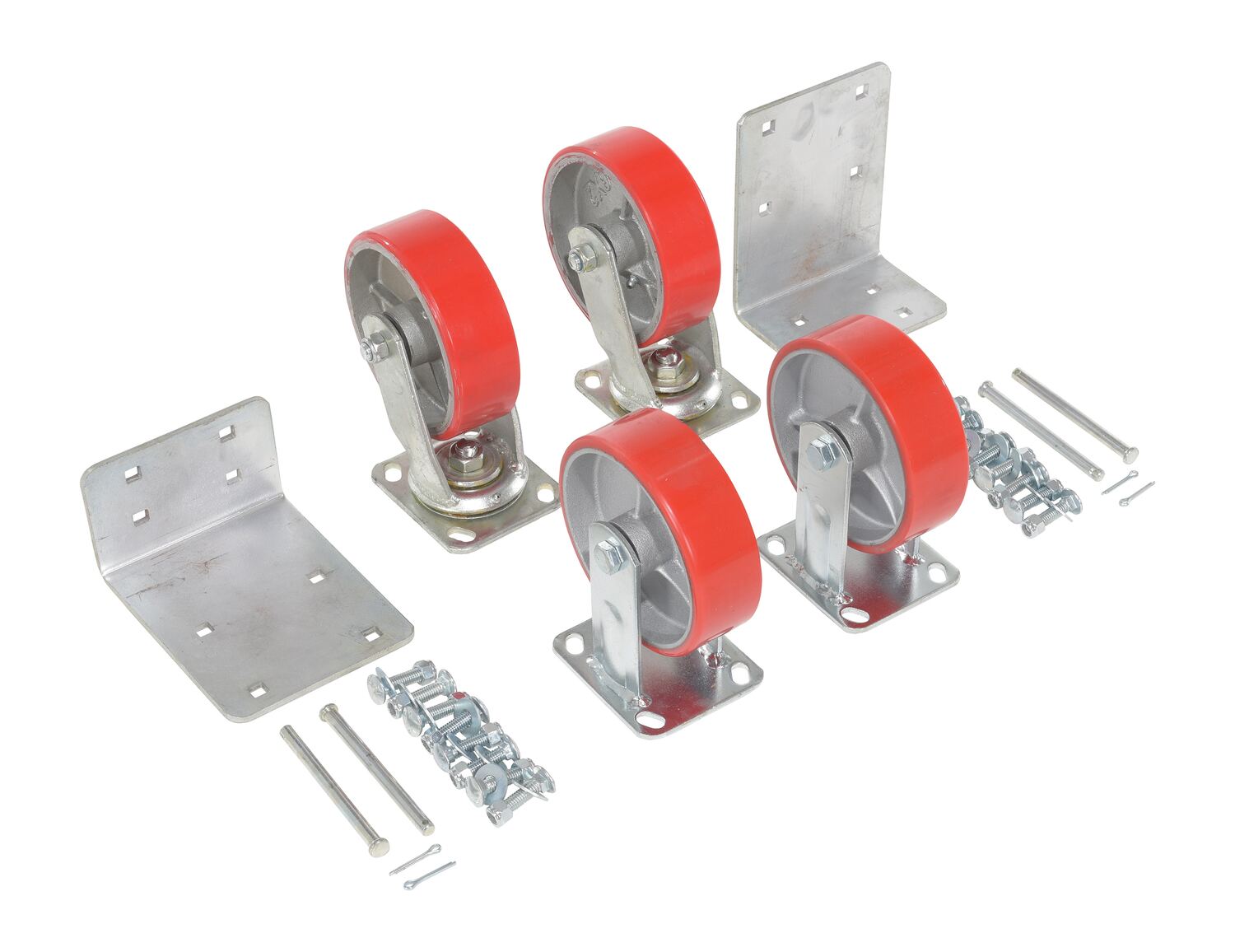

H-CK4-PU6-2

Poly On Steel Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity Red

Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

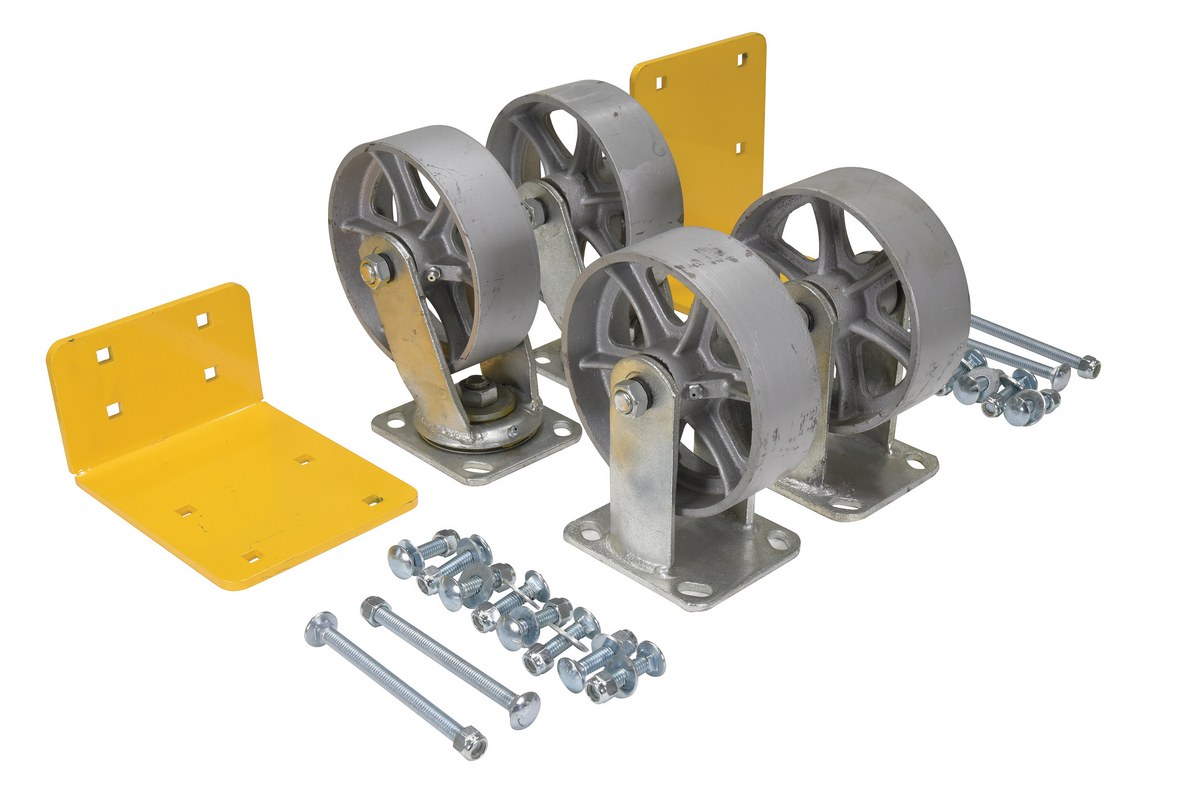

H-CK4-SC6-2

Semi Steel Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity Silver

Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

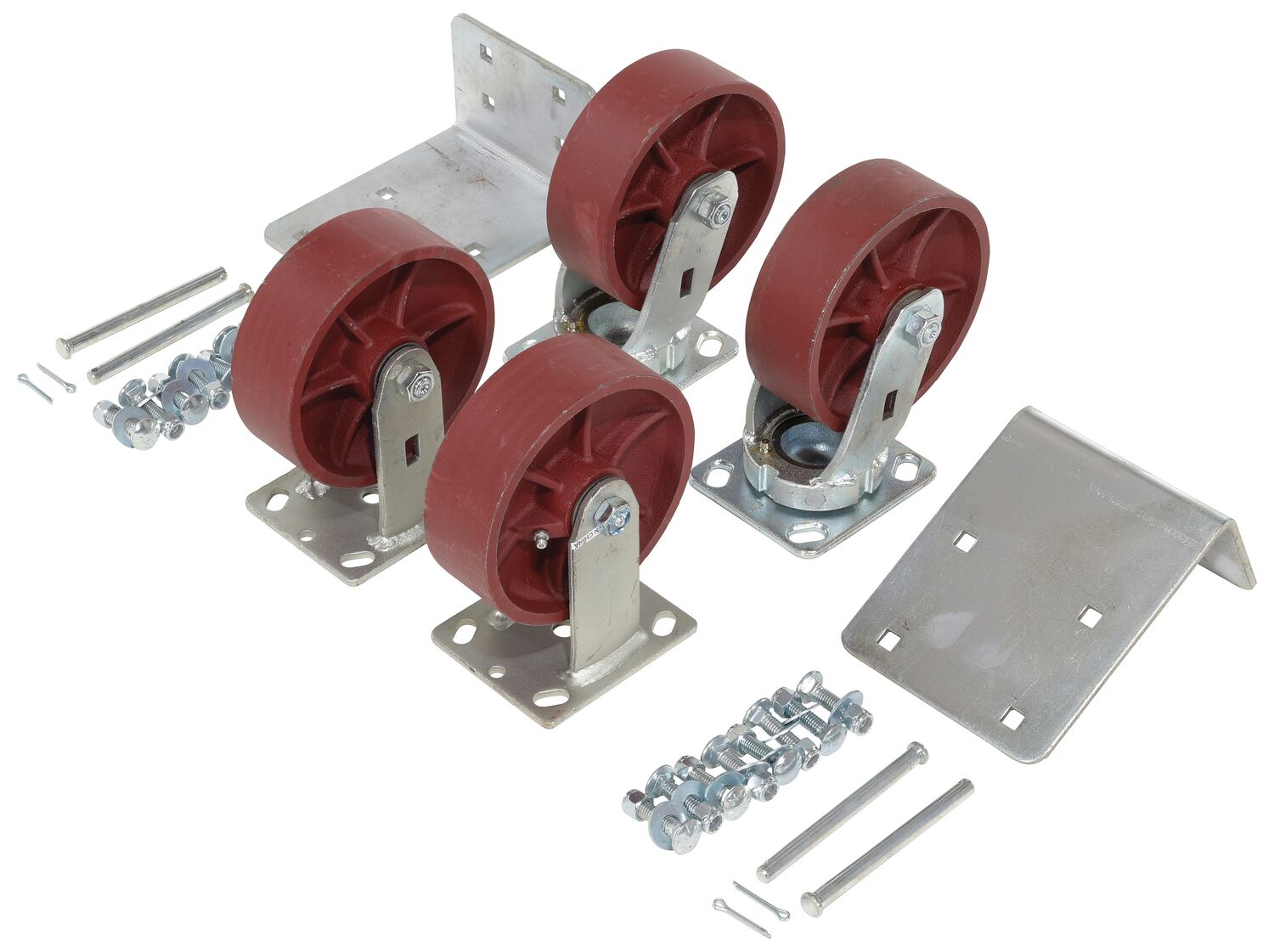

H-CK4-SC6-2HD

Ductile Steel Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity Maroon

Uniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

Casters For Hoppers (D, R & H)

Casters For Hoppers (D, R & H)

Casters For Hoppers (D, R & H)

Featured Fork Truck Attachments

Other Hoppers

Additional Models In This Family
view entire Image Gallery

Hopper Caster Kits Upgrade Benefit Chart

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Q: Which caster should I use with the hopper?

Q: Which caster kits are compatible with the 1/3 cubic yard and 3/4 cubic yard hoppers?

Related or Similar Products:

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

D Style - Self-Dumping Steel Hoppers with Bumper Release

Portable Steel Hopper with Power Traction Drive

Portable Steel Hoppers

Low Profile Parts Hoppers

Low Profile Hoppers

Casters For Hoppers (D, R &...

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com

Casters for Self-Dumping Hoppers
Model	Image	PDF	Caster Size	Capacity (lbs.)	Caster Description	Qty. Per Order	Wt. (lbs.)
Caster for H-Style Hoppers, -25 & -50
H-CK3-C13C			6"x2"	3,750	Polyurethane	3	18
H-CK3-C23C			6"x2"	8,000	Glass Filled Nylon	3	22
H-CK3-C24C			6"x2"	3,750	Glass Filled Nylon	3	21
H-CK3-SC6-2			6"x2"	3,600	Semi-Steel	3	27
H-CK3-MR6-2			6"x2"	1,800	Mold-On-Rubber	3	25
H-CK3-PU6-2			6"x2"	3,600	Poly-On-Steel	3	26
H-CK3-GFN6-2			6"x2"	3,600	Glass Filled Nylon	3	17
H-CK3-SC6-2HD			6"x2"	6,000	Ductile Steel	3	35
Caster for H-Style Hoppers, -100 & -150
H-CK4-C13C			6"x2"	5,000	Polyurethane	4	24
H-CK4-C23C			6"x2"	5,000	Glass Filled Nylon	4	30
H-CK4-C24C			6"x2"	5,000	Glass Filled Nylon	4	28
H-CK4-SC6-2			6"x2"	4,800	Semi-Steel	4	31
H-CK4-MR6-2			6"x2"	2,400	Mold-On-Rubber	4	28
H-CK4-PU6-2			6"x2"	4,800	Poly-On-Steel	4	30
H-CK4-GFN6-2			6"x2"	4,800	Glass Filled Nylon	4	18
H-CK4-SC6-2HD			6"x2"	8,000	Ductile Steel	4	42
Caster for D-Style and R-Style Hoppers
D-CK4-C15C			6"x2"	6,000	Dual Polyurethane	4	32
D-CK4-C15D			8"x2"	8,000	Dual Polyurethane	4	42
D-CK4-C23C			6"x2"	8,000	Glass Filled Nylon	4	30
D-CK4-C24C			6"x2"	5,000	Glass Filled Nylon	4	28
D-CK4-C24D			8"x2"	5,000	Glass Filled Nylon	4	28
D-CK4-C34C			6"x2"	6,000	Elastic Polyurethane	4	28
D-CK4-C34D			8"x2"	8,000	Elastic Polyurethane	4	34
D-CK4-SC6-2			6"x2"	4,800	Semi-Steel	4	19
D-CK4-SC8-2			8"x2"	4,800	Semi-Steel	4	22
D-CK4-MR6-2			6"x2"	2,400	Mold-On-Rubber	4	29
D-CK4-MR8-2			8"x2"	2,400	Mold-On-Rubber	4	37
D-CK4-PU6-2			6"x2"	4,800	Poly-On-Steel	4	31
D-CK4-PU8-2			8"x2"	5,000	Poly-On-Steel	4	42
D-CK4-GFN6-2			6"x2"	4,800	Glass Filled Nylon	4	19
D-CK4-GFN8-2			8"x2"	5,000	Glass Filled Nylon	4	22
D-CK4-SC6-2HD			6"x2"	8,000	Ductile Steel	4	43
Weight of hopper must be considered when calculating usable capacity

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

Casters For Hoppers (D, R & H)

Casters For Hoppers (D, R & H)

Casters For Hoppers (D, R & H)

Featured Fork Truck Attachments

Other Hoppers

Additional Models In This Family view entire Image Gallery

Hopper Caster Kits Upgrade Benefit Chart

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Q: Which caster should I use with the hopper?

Q: Which caster kits are compatible with the 1/3 cubic yard and 3/4 cubic yard hoppers?

Freight Quote

Parts Request

Ask An Expert

Find A Distributor

PROP 65 Warning

Related or Similar Products:

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

D Style - Self-Dumping Steel Hoppers with Bumper Release

Portable Steel Hopper with Power Traction Drive

Portable Steel Hoppers

Low Profile Parts Hoppers

Low Profile Hoppers

Casters For Hoppers (D, R &...

Our Customer Service Associates Are Here To Assist You!Call Vestil At 260-665-7586 Or info@vestil.com

Additional Models In This Family
view entire Image Gallery

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
