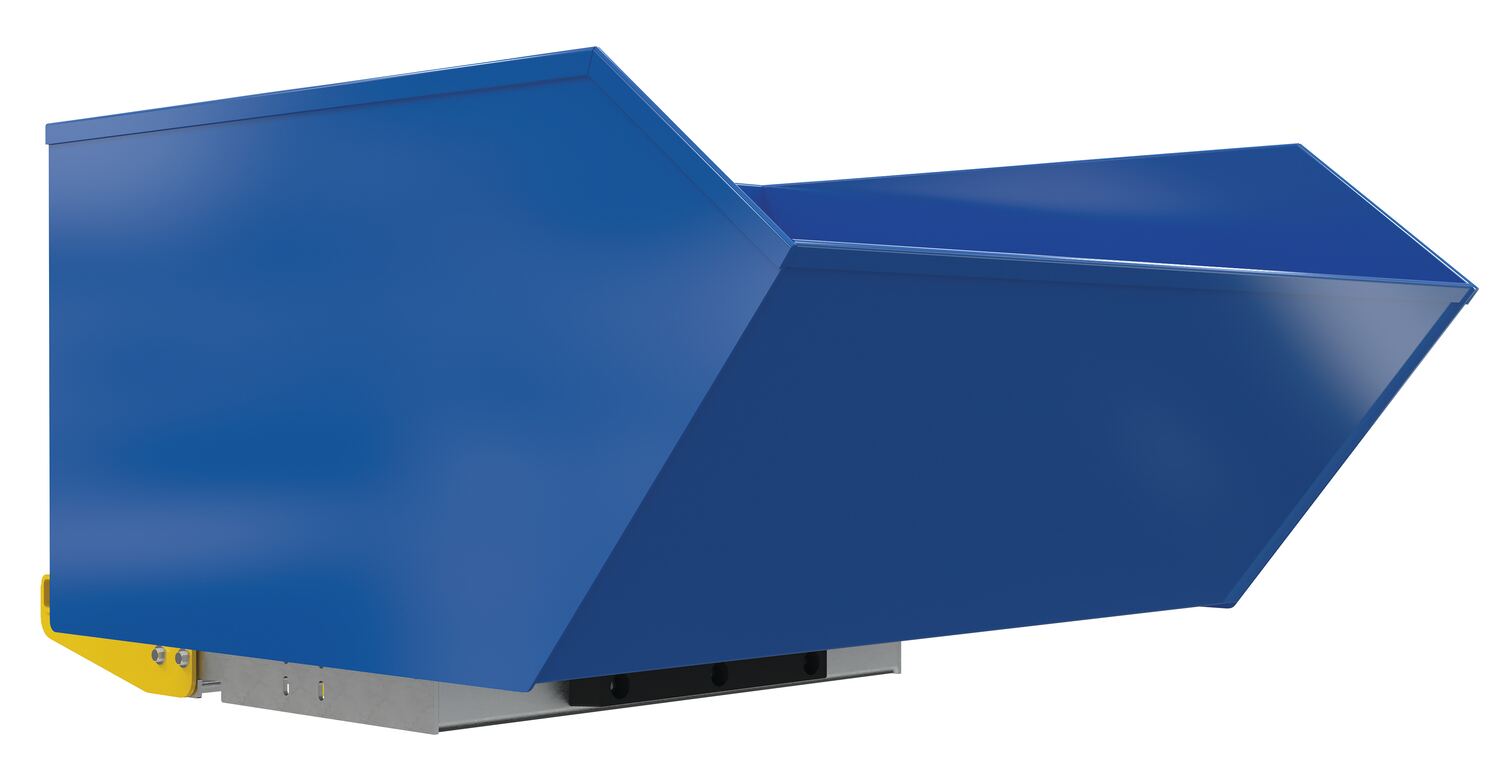

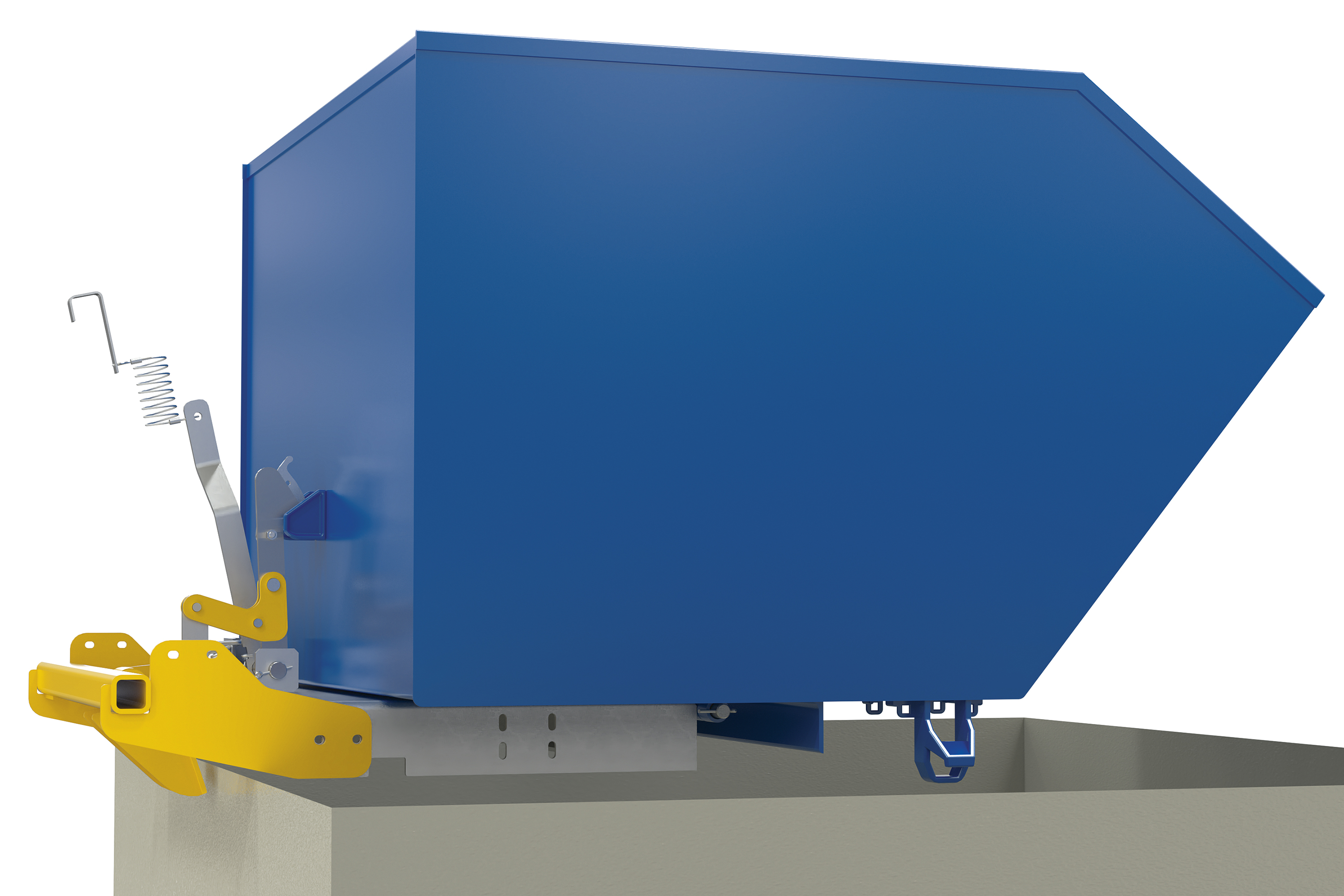

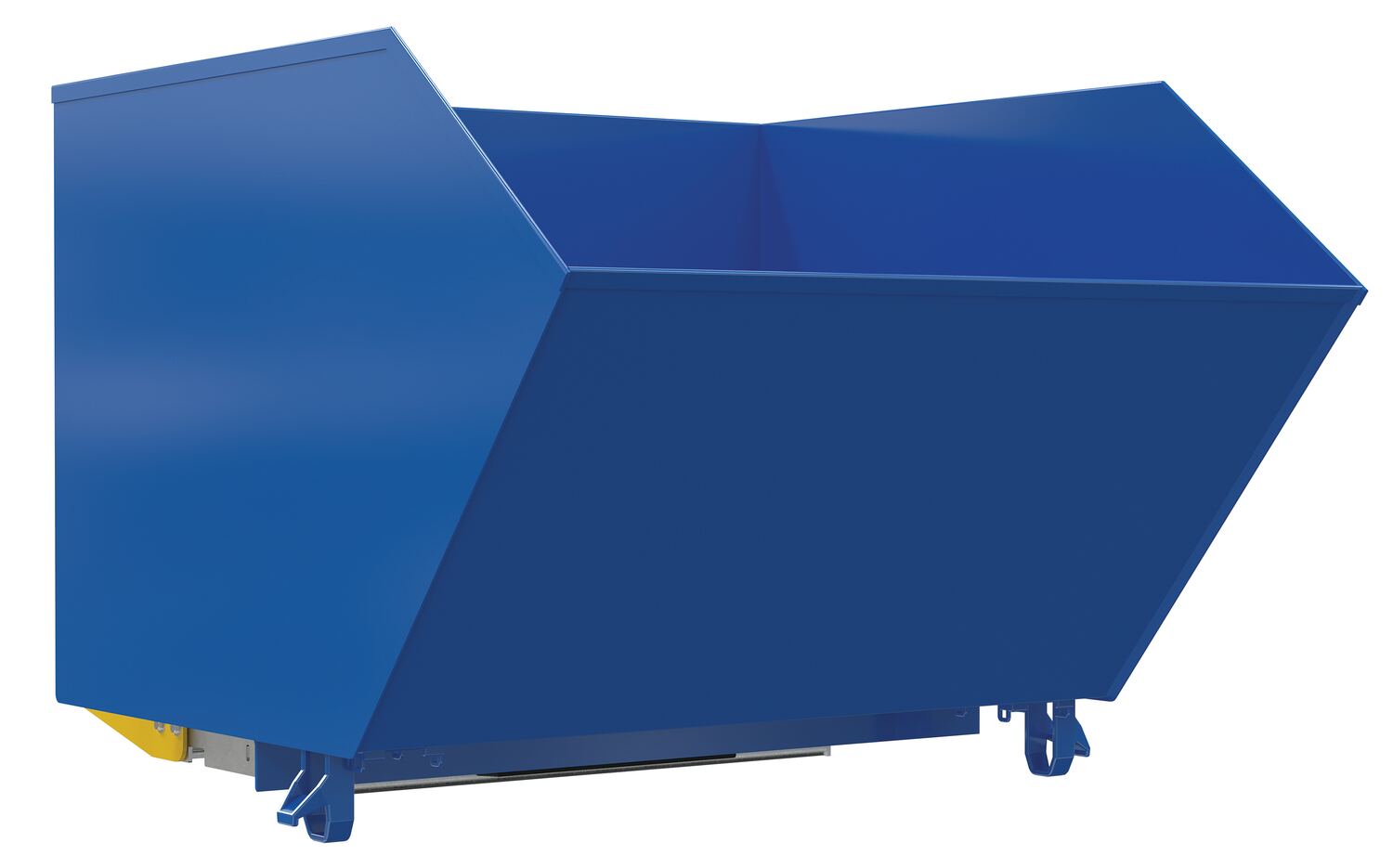

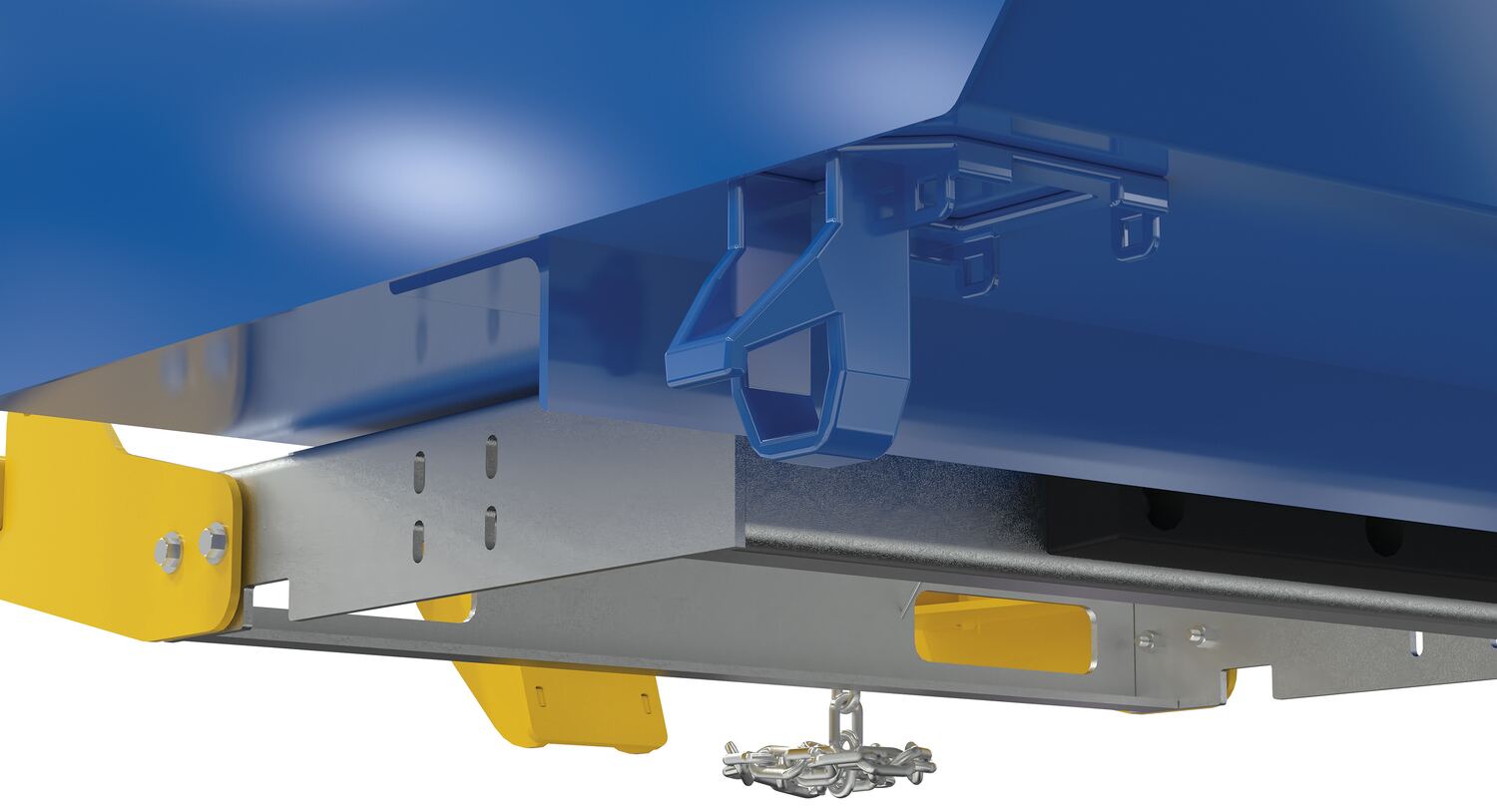

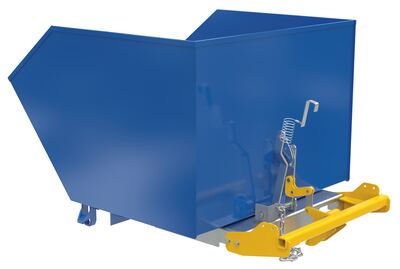

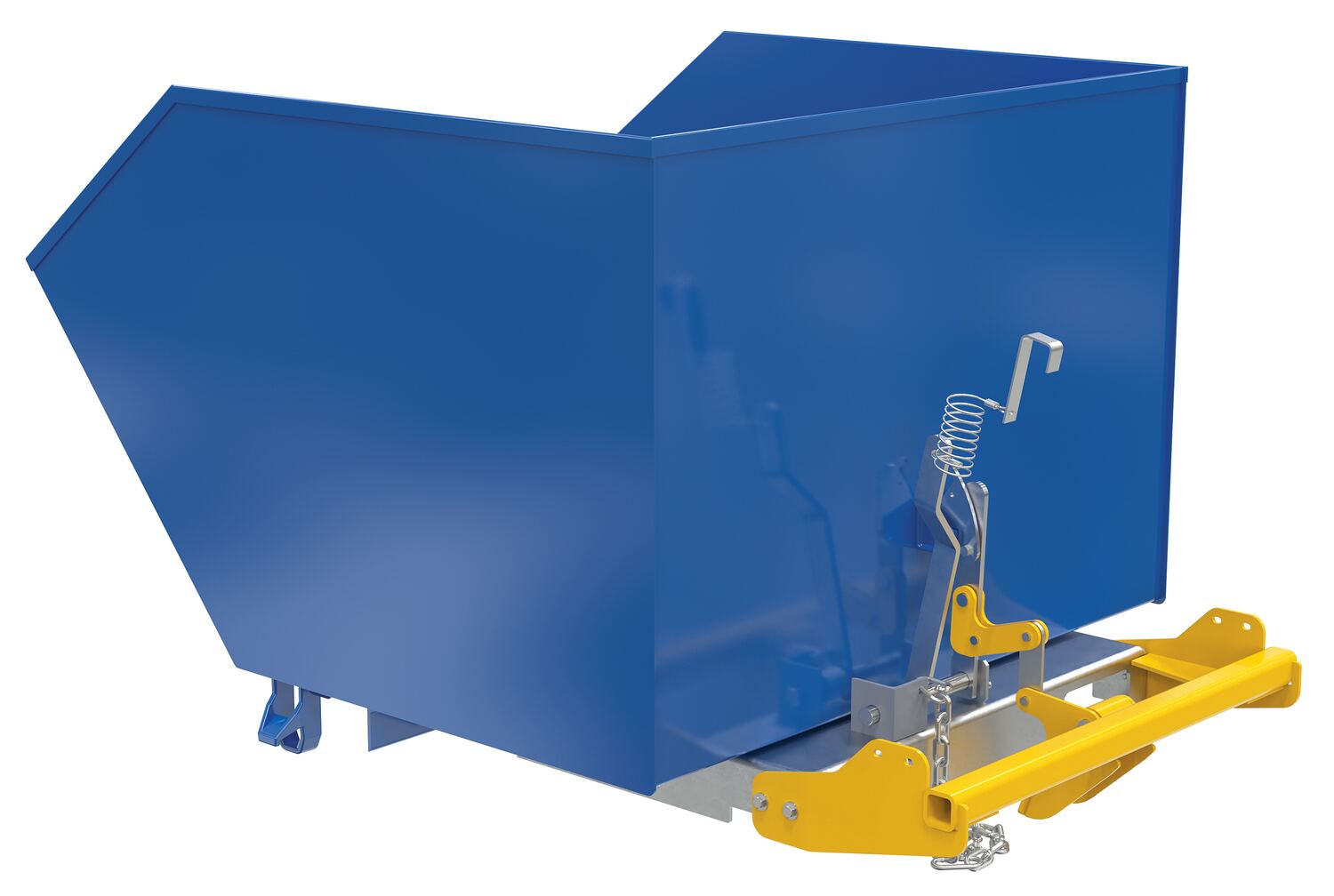

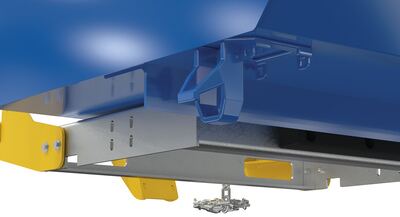

H Style Bump & Dump HoppersA Self-dumping hopper with a bumper release defends worker safety. The hopper is automatically released to dump, when the edge of the hopper (back of the hopper) is contacted. Hopper then returns to an upright and locked position automatically after it dumps. A cable is also included that may be operated from the seat of the fork truck to manually dump the hopper. A safety restraint is provided to secure the hopper to the fork truck. Steel construction with blue baked-in powder-coated finish for added toughness. Hopper must be attached to the fork truck when dumping.
- Capped fork pockets
- Low Profile design
- 90 degree dump angle
- Cushioned rubber bump stop
Portable Steel Hoppers
Low Profile Hoppers
Chip & Waste Trucks
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| H-100-HD-BD | NEW |  | 90 Days Limited Warranty | Steel Heavy Duty Bump & Dump Hopper 1 Cubic Yard 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6000 Steel (gauge): | 422 | |
| H-100-LD-BD | NEW |  | 90 Days Limited Warranty | Steel Light Duty Bump & Dump Hopper 1 Cubic Yard 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Steel (gauge): | 385 | |
| H-100-MD-BD | NEW |  | 90 Days Limited Warranty | Steel Medium Duty Bump & Dump Hopper 1 Cubic Yard 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Steel (gauge): | 403 | |
| H-150-HD-BD | NEW |  | 90 Days Limited Warranty | Steel Heavy Duty Bump & Dump Hopper 1-1/2 Cubic Yard 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6000 Steel (gauge): | 496 | |
| H-150-LD-BD | NEW |  | 90 Days Limited Warranty | Steel Light Duty Bump & Dump Hopper 1-1/2 Cubic Yard 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Steel (gauge): | 392 | |
| H-150-MD-BD | NEW |  | 90 Days Limited Warranty | Steel Medium Duty Bump & Dump Hopper 1-1/2 Cubic Yard 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Steel (gauge): | 457 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Steel (gauge):
Uniform Capacity (lb.): 6000
Steel (gauge):
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Steel (gauge):
Uniform Capacity (lb.): 2000
Steel (gauge):
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Steel (gauge):
Uniform Capacity (lb.): 4000
Steel (gauge):
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Steel (gauge):
Uniform Capacity (lb.): 6000
Steel (gauge):
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Steel (gauge):
Uniform Capacity (lb.): 2000
Steel (gauge):
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Steel (gauge):
Uniform Capacity (lb.): 4000
Steel (gauge):
For More Details of the Option Click the Red Model Button
.
