Premium Heavy Duty PolyurethaneMade of exclusive premium grade proprietary polyurethane with donut tread (SI Heavy Duty).
Ideal for applications where superior strength and high ergonomic performance is required. Orange
tread color. 85 +/-5 Shore A. Wheel core is constructed of aluminum. Made in Taiwan.
- Kingpinless
- High Capacity
- Non-Marking
- Precision Sealed Ball Bearing
- Ideal for TOWLINE Applications (3/8" diameter steel ball bearings absorb thrust and load)
- Donut Tread Allows for Easier Roll Ability
- Precision Machined and Induction Hardened Raceway
Polyurethane Casters (Blue)
Polyurethane (SI) Casters
Polyurethane (DT, Green) Casters
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|
| CST-F40-6X2SI-R |  | 3 YEARS Limited Warranty | 6 x 2 | RIGID | 1500 | 7-1/2 | 4 x 4-1/2 | 6 |
| CST-F40-8X2SI-R |  | 3 YEARS Limited Warranty | 8 x 2 | RIGID | 2000 | 9-1/2 | 4 x 4-1/2 | 8 |
| CST-F40-6X2SI-S |  | 3 YEARS Limited Warranty | 6 x 2 | SWIVEL | 1500 | 7-1/2 | 4 x 4-1/2 | 7 |
| CST-F40-8X2SI-S |  | 3 YEARS Limited Warranty | 8 x 2 | SWIVEL | 2000 | 9-1/2 | 4 x 4-1/2 | 8 |
| CST-F40-6X2SI-SWB |  | 3 YEARS Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 1500 | 7-1/2 | 4 x 4-1/2 | 7 |

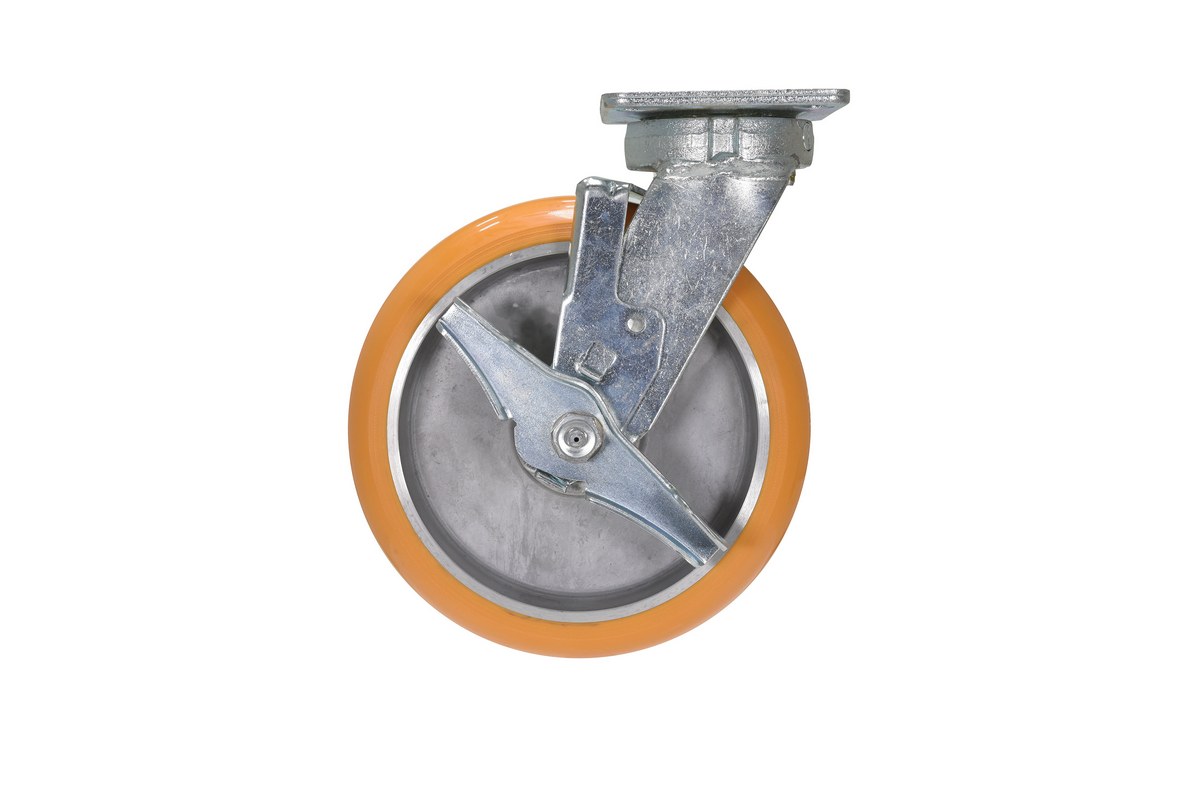

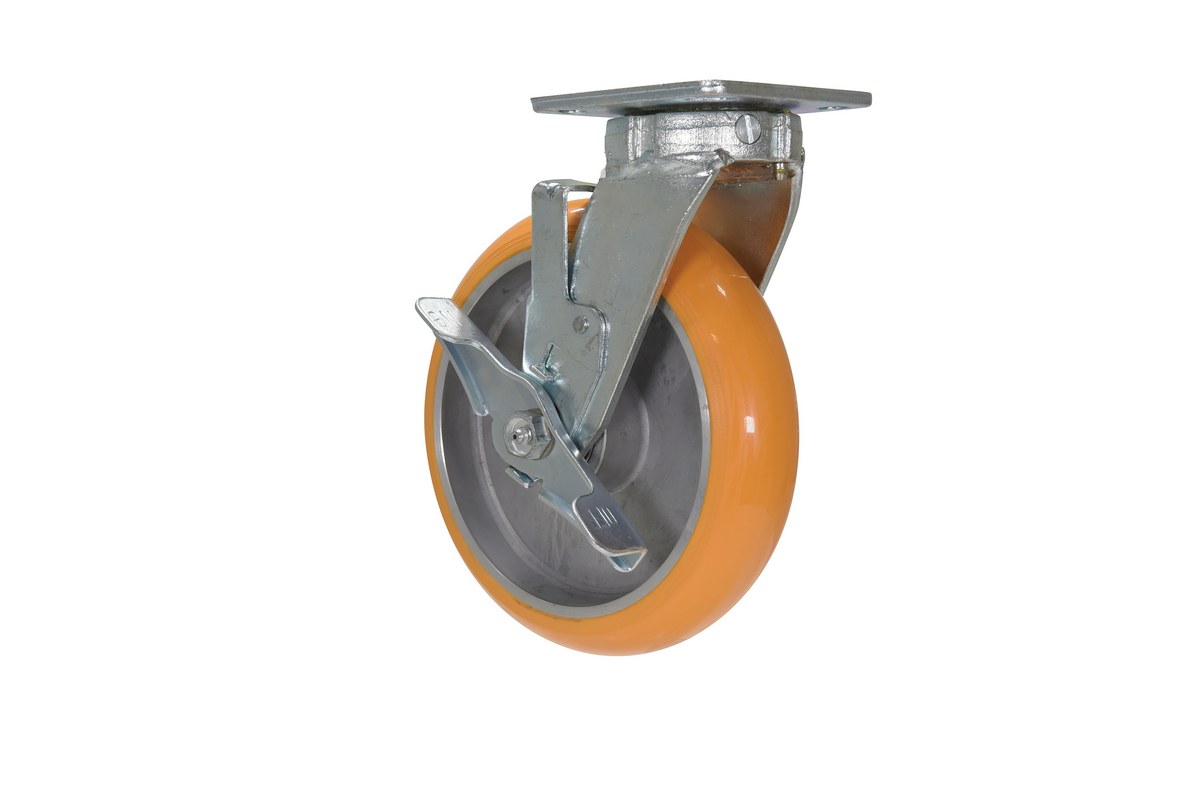

| CST-F40-8X2SI-SWB |  | 3 YEARS Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 2000 | 9-1/2 | 4 x 4-1/2 | 8 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
Premium Heavy Duty Polyurethane PDF's will open in a new window when clicked.
Manuals
No Owners Manuals For This Product
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
No Approval Drawings For This Product
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
