H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
H-100-HS_A.jpg H-100-HS_B.jpg H-100-HS_C.jpg H-100-HS_D.jpg
H-100-HS_E.jpg H-100-HS_F.jpg
H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

model: H-100-HS



H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

model: H-100-HS

Featured Fork Truck Attachments


Open Side Hopper
Steel Self-Dumping Hoppers
Work Platforms
Salt Boxes and Scoop
Forged Steel Forks
Fork Leveler
Round or Triangular Fork Extensions
Multi-Person Work Platforms
Fork Truck Mounted Brush Sweepers
model chart
Print Friendly
H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers
SERIES: H

Minimize fatigue and injury during loading! The low profile front edge provides an unobstructed path for item placement!

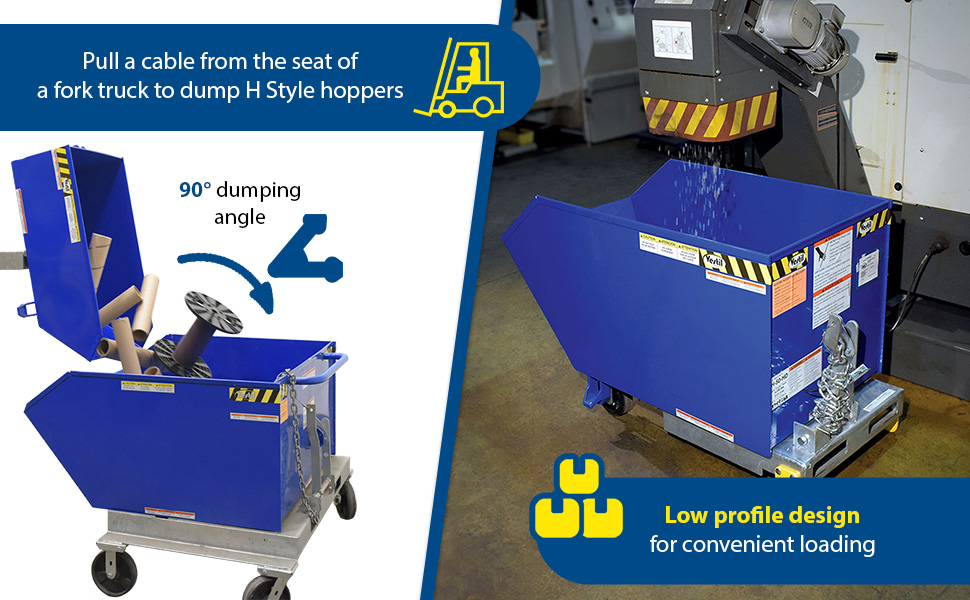

Units feature a full 90 degrees dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. The included safety restraint/chain must be securely attached to the lift truck without slack. 22" L usable fork pockets measure 7"W x 2"H. Formed base thickness is 1/4". Blue baked-in powder-coated toughness with a galvanized base. Models H-25 may be stacked with H-50 models,while, the H-100 can be stacked with the H-150 models. The H-200 hoppers can only be stacked with other H-200 series models. Never stack hoppers more than 3 high. Must be attached to fork truck when dumping.

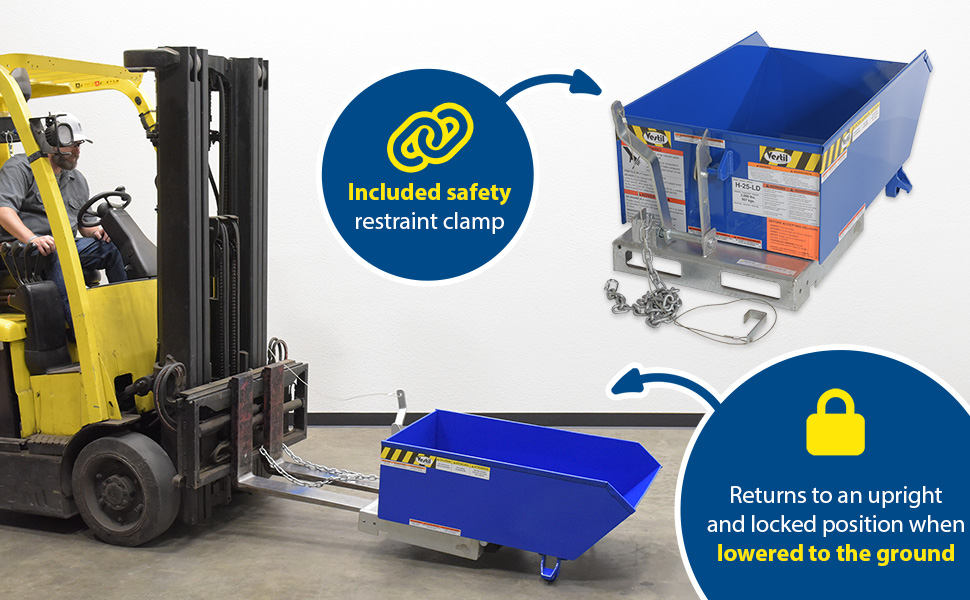

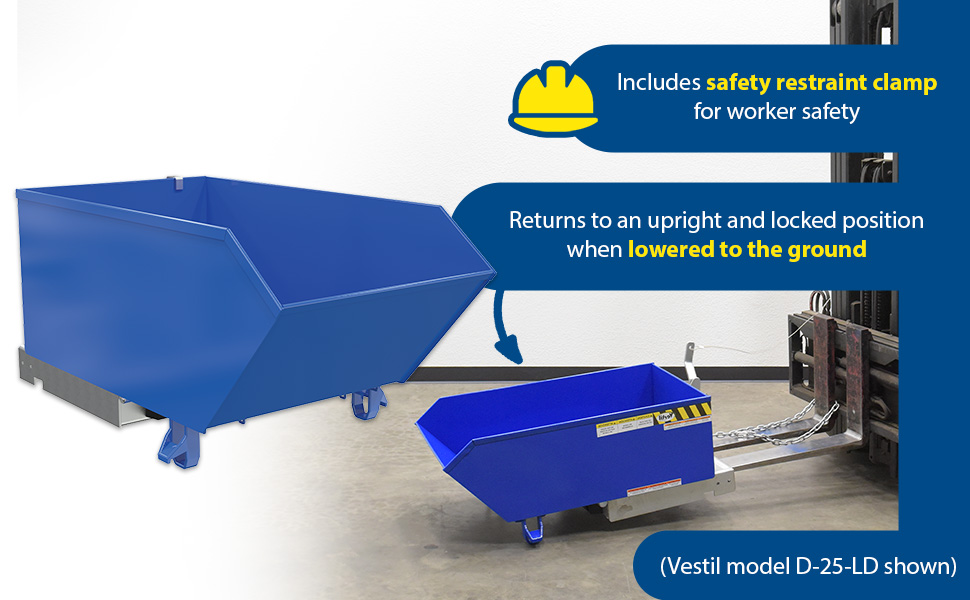

  • Hopper is able to be dumped from seat of fork truck
  • Fork pockets are capped on the end to allow for dumping
  • Perfect for fitting in low height areas
  • Low profile front edge provides an unobstructed path for item placement

High Strength Steel Hoppers

  • High strength steel models are available (suffix -HS)
  • High-Strength material provides greater impact resistance
  • Resists and dents and punctures from dropped materials
  • Great for use in foundry environments
  • Promotes extended product life
6 Sizes
4 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel, HS (High Strength)
H-25-(strength) .25 Cubic Yard
H-33-(strength) .33 Cubic Yard
H-50-(strength) .50 Cubic Yard
H-75-(strength) .75 Cubic Yard
H-100-(strength) 1 Cubic Yard
H-150-(strength) 1.5 Cubic Yard
H-200-(strength) 2 Cubic Yard

Check Out Our Bump & Dump Version (H Series)!

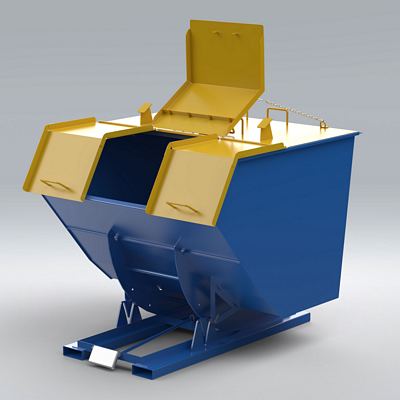

Caster Options | Optional Lids

Minimize fatigue and injury during loading! The low profile front edge provides an unobstructed path for item placement!

Units feature a full 90 degrees dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. The included safety restraint/chain must be securely attached to the lift truck without slack. 22" L usable fork pockets measure 7"W x 2"H. Formed base thickness is 1/4". Blue baked-in powder-coated toughness with a galvanized base. Models H-25 may be stacked with H-50 models,while, the H-100 can be stacked with the H-150 models. The H-200 hoppers can only be stacked with other H-200 series models. Never stack hoppers more than 3 high. Must be attached to fork truck when dumping.

  • Hopper is able to be dumped from seat of fork truck
  • Fork pockets are capped on the end to allow for dumping
  • Perfect for fitting in low height areas
  • Low profile front edge provides an unobstructed path for item placement

High Strength Steel Hoppers

  • High strength steel models are available (suffix -HS)
  • High-Strength material provides greater impact resistance
  • Resists and dents and punctures from dropped materials
  • Great for use in foundry environments
  • Promotes extended product life
6 Sizes
4 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel, HS (High Strength)
H-25-(strength) .25 Cubic Yard
H-33-(strength) .33 Cubic Yard
H-50-(strength) .50 Cubic Yard
H-75-(strength) .75 Cubic Yard
H-100-(strength) 1 Cubic Yard
H-150-(strength) 1.5 Cubic Yard
H-200-(strength) 2 Cubic Yard

Check Out Our Bump & Dump Version (H Series)!

Caster Options | Optional Lids

Other Hoppers

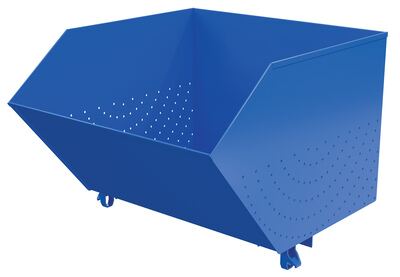

 Fabric Hoppers Flat Open Side Hopper Open Side Hopper Low Profile Parts Hoppers

Additional Models In This Family
view entire Image Gallery

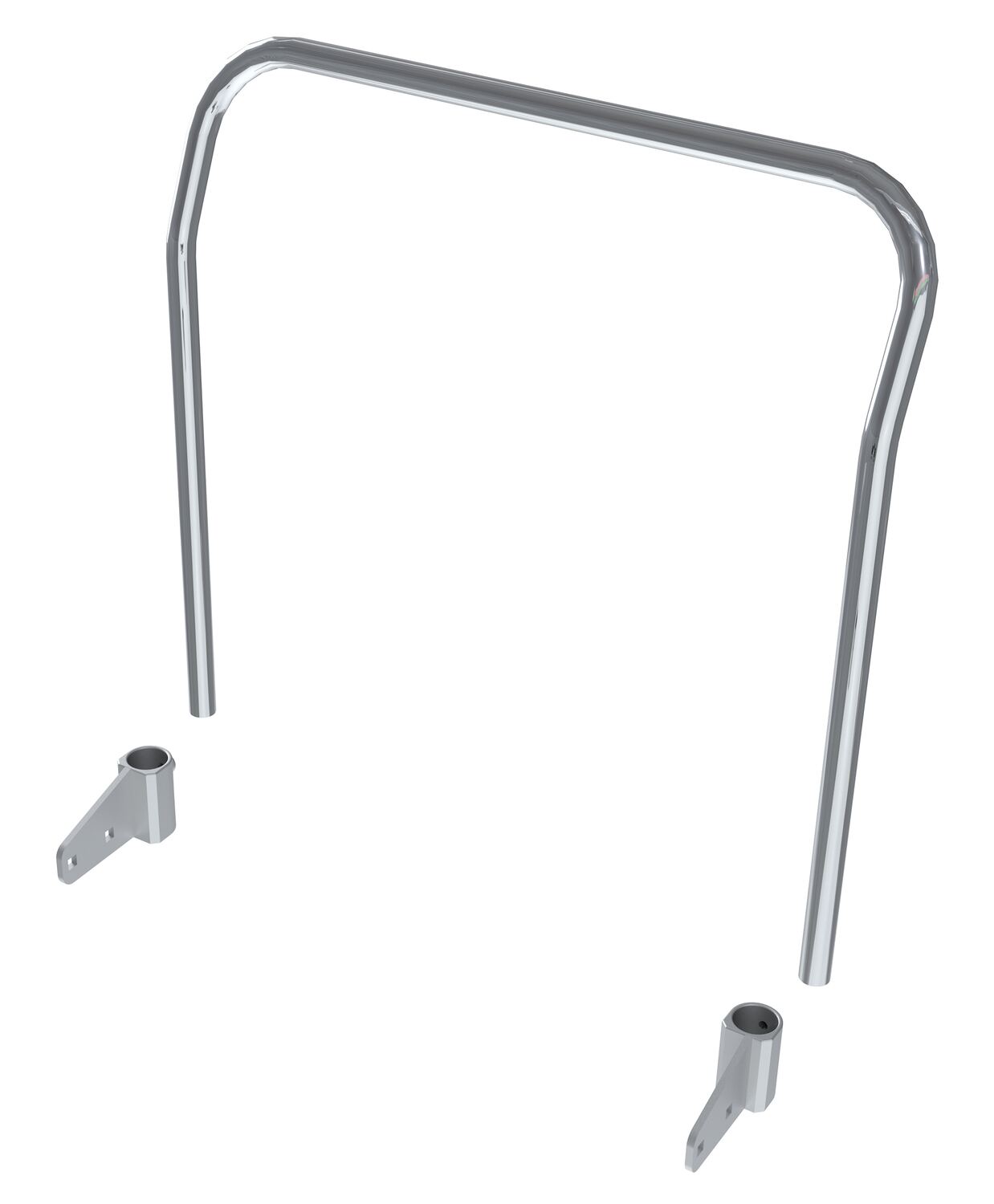

H-HOPPER-HK-1

H-HOPPER-HK-1

H-33-HD

H-33-HD

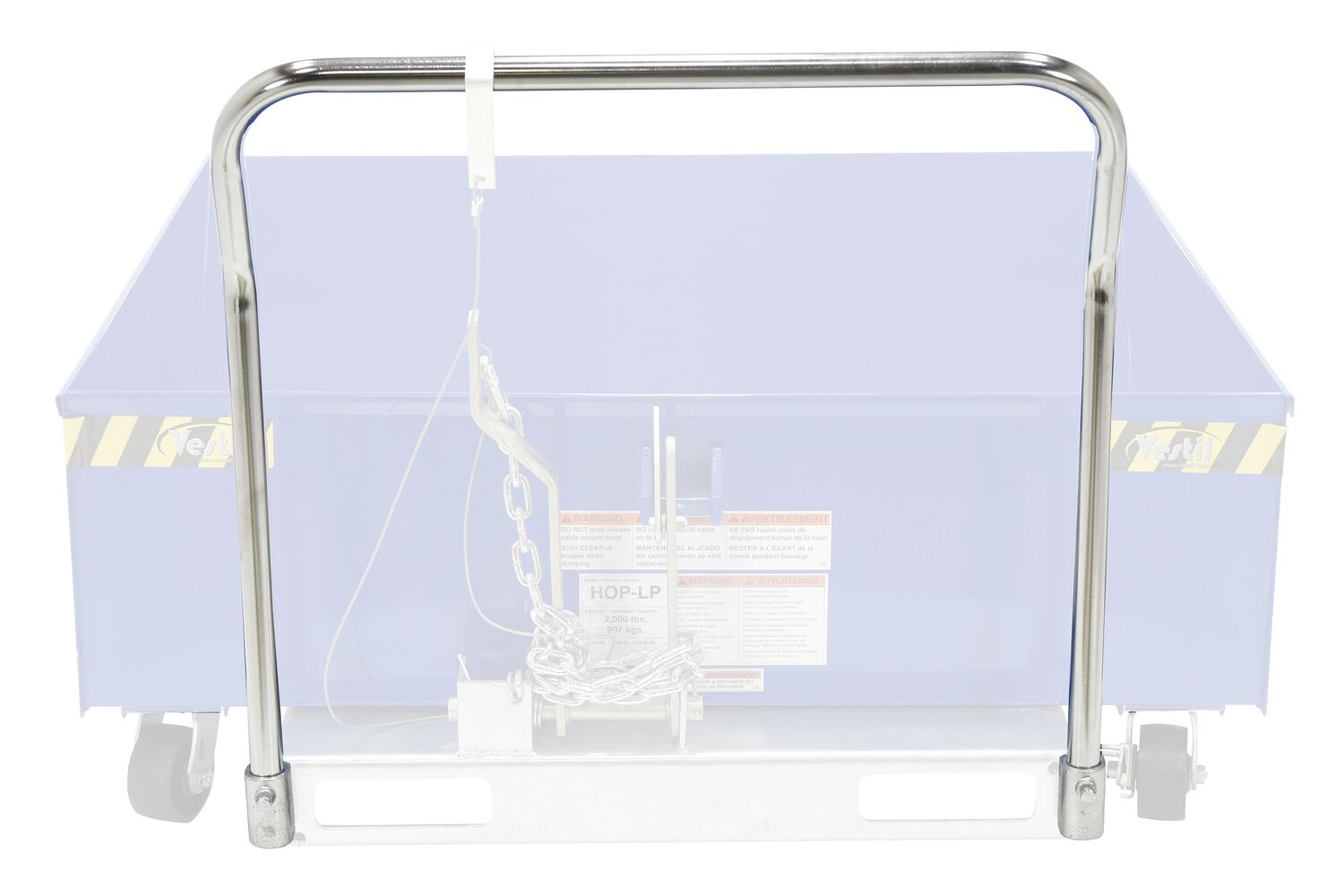

H-HOPPER-HK-2

H-HOPPER-HK-2

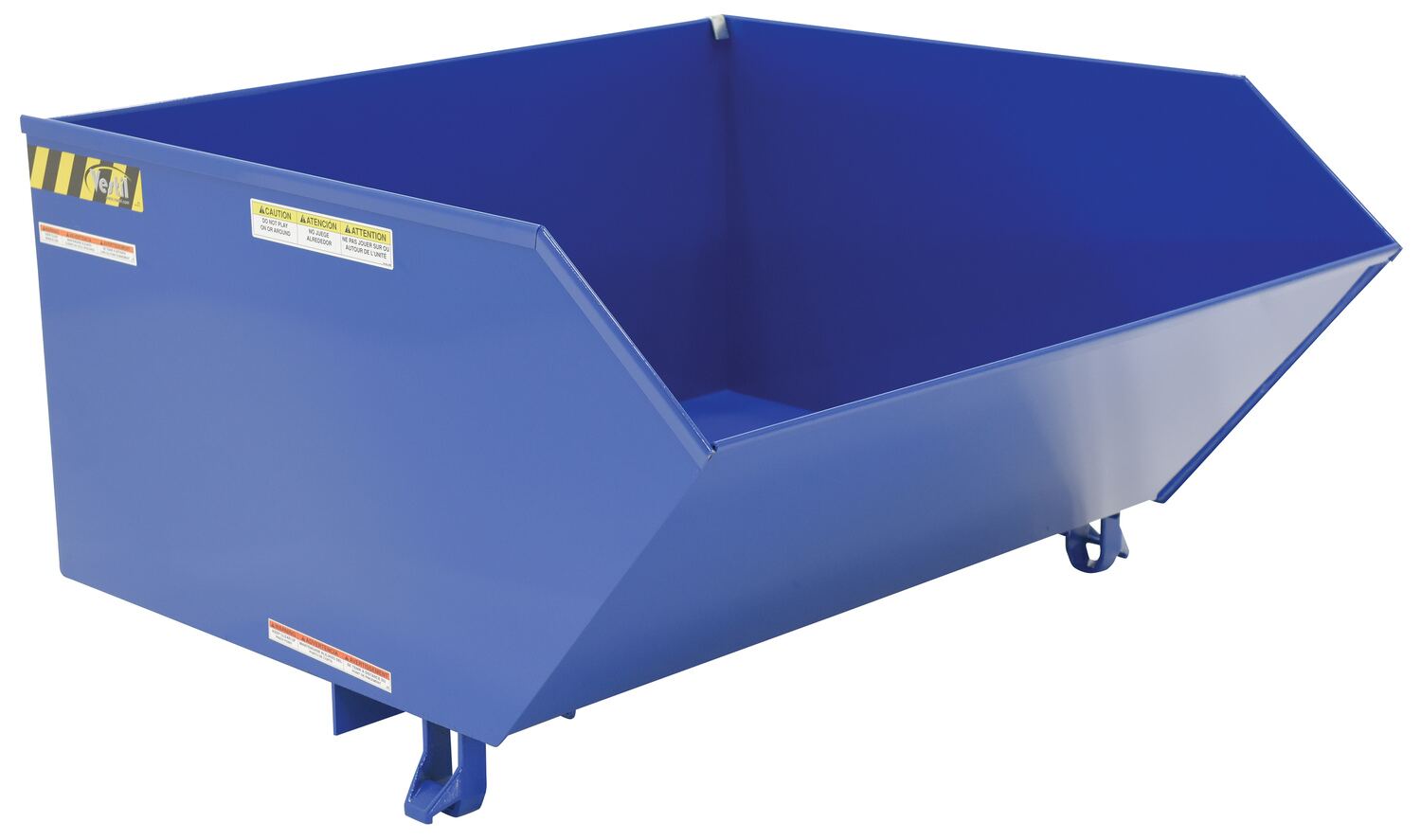

H-100-HD

H-100-HD

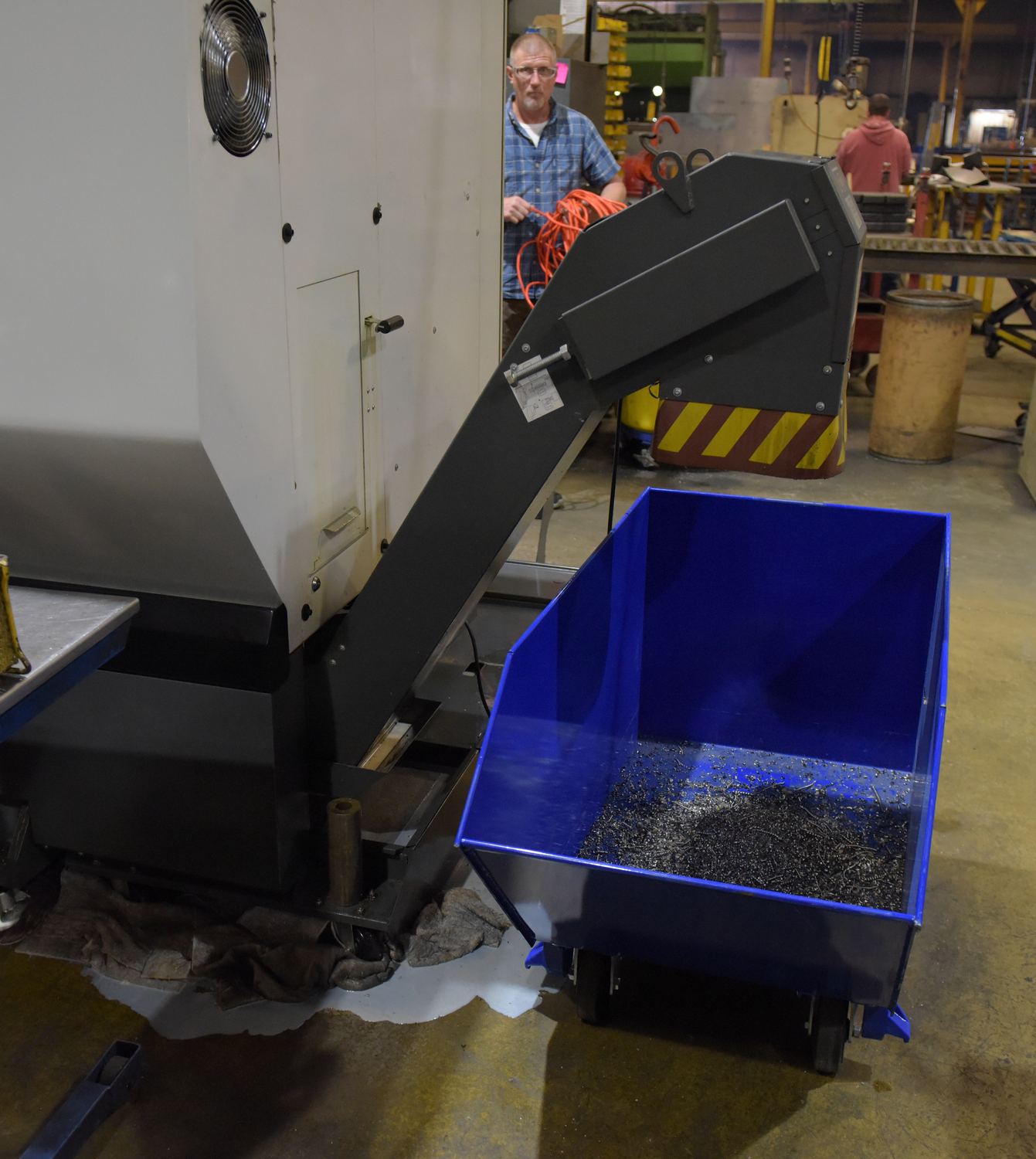

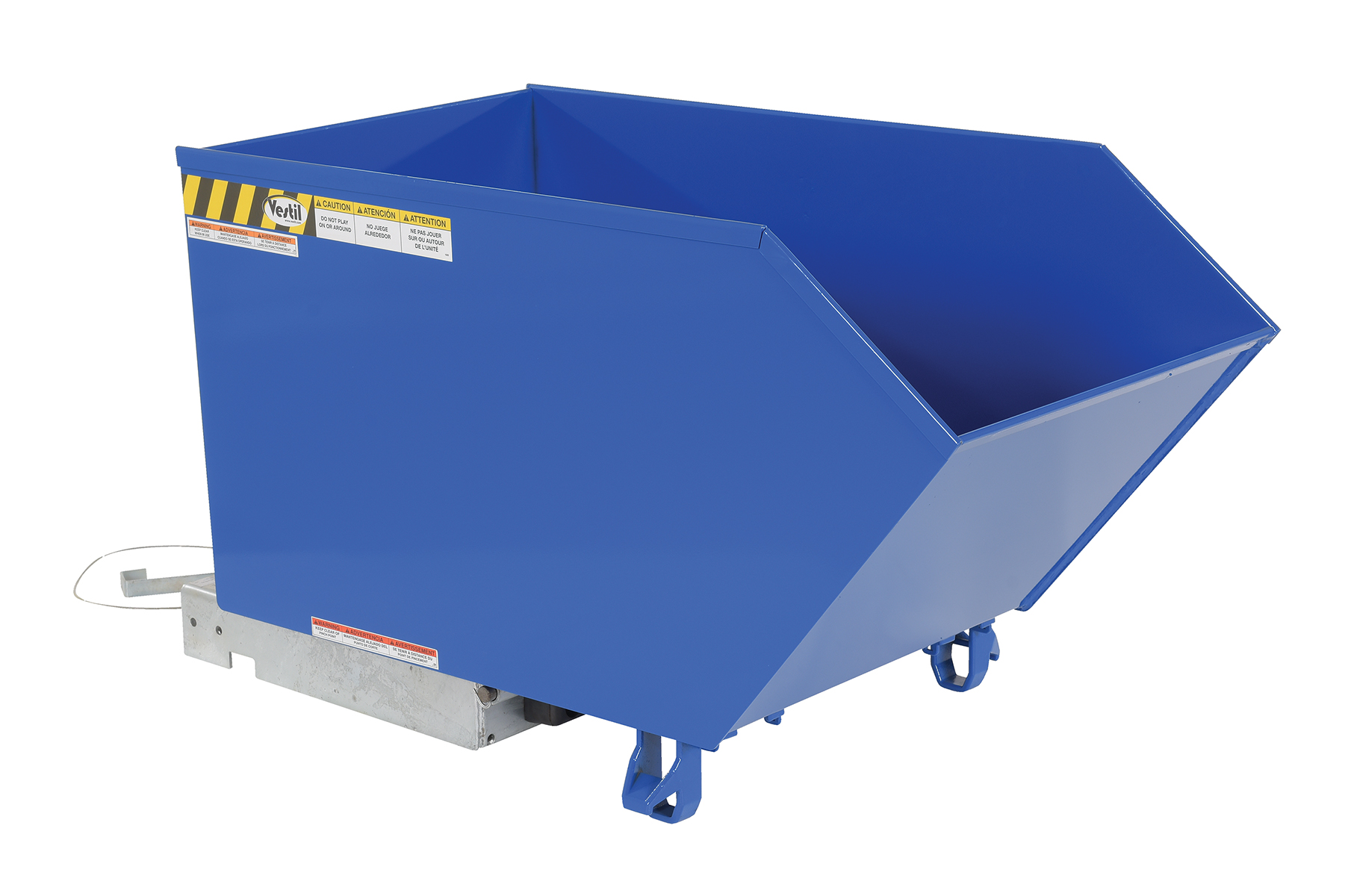

H-50-MD

H-50-MD

H-50-MD

H-50-MD

H-50-MD

H-50-MD

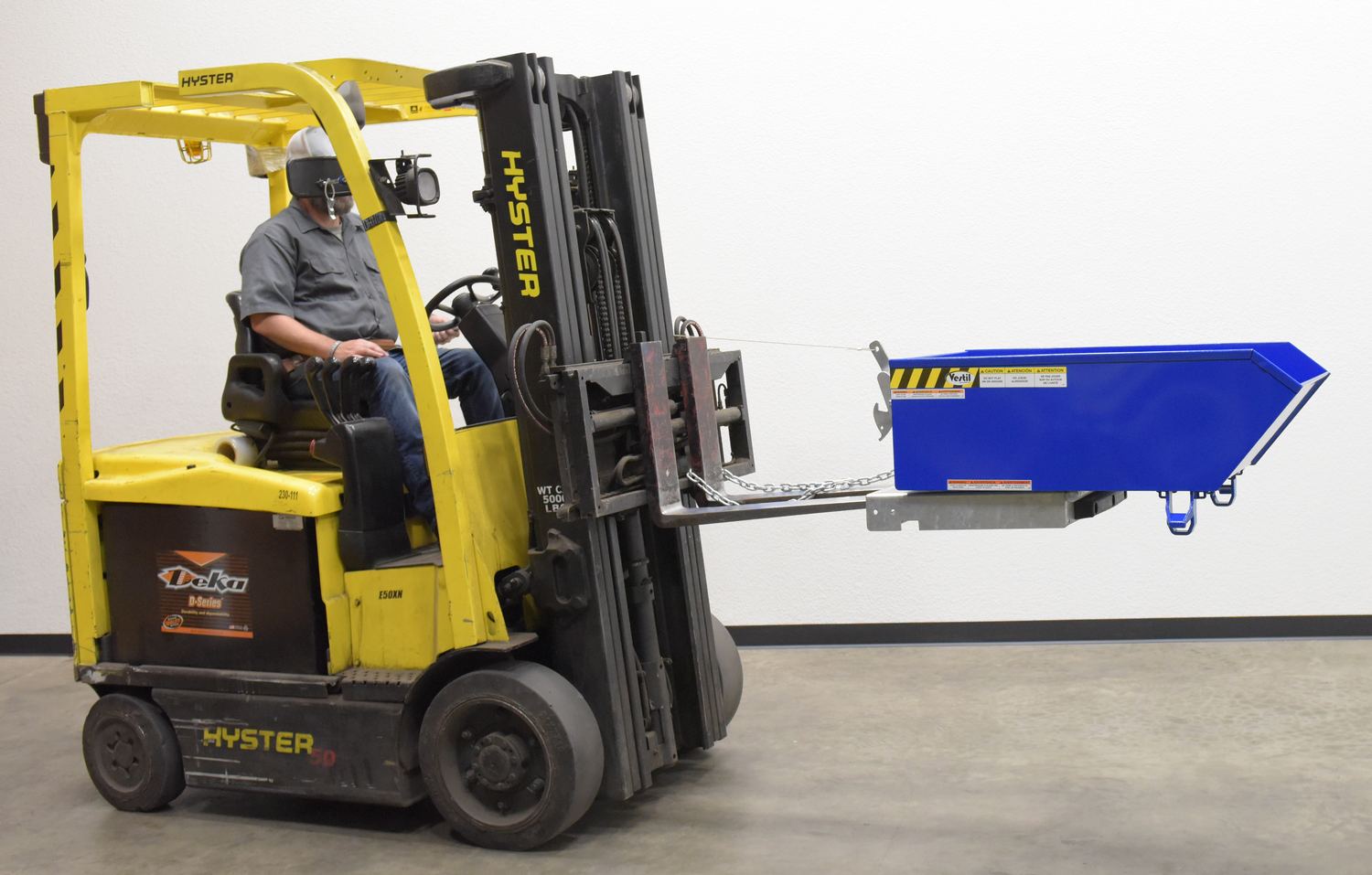

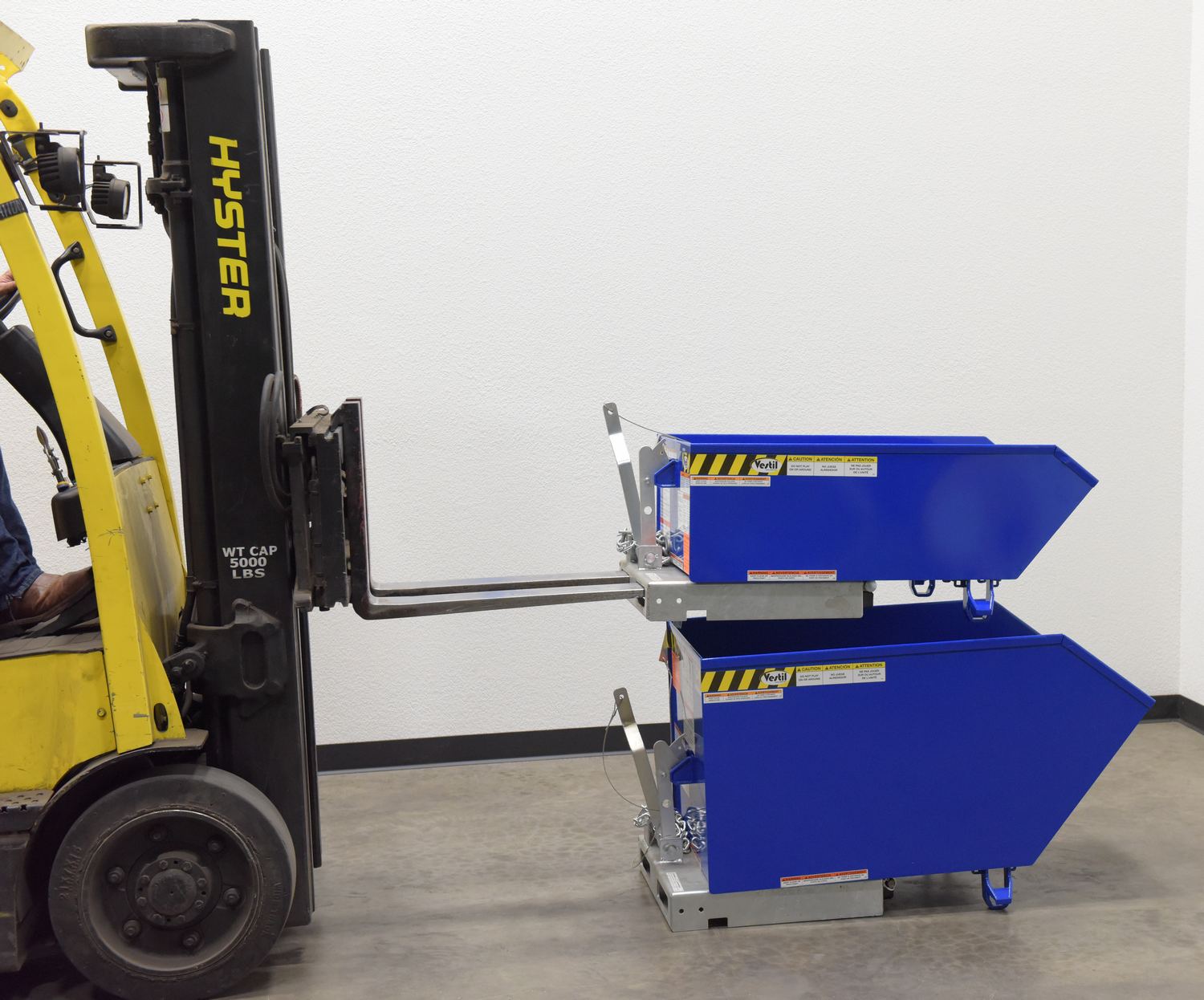

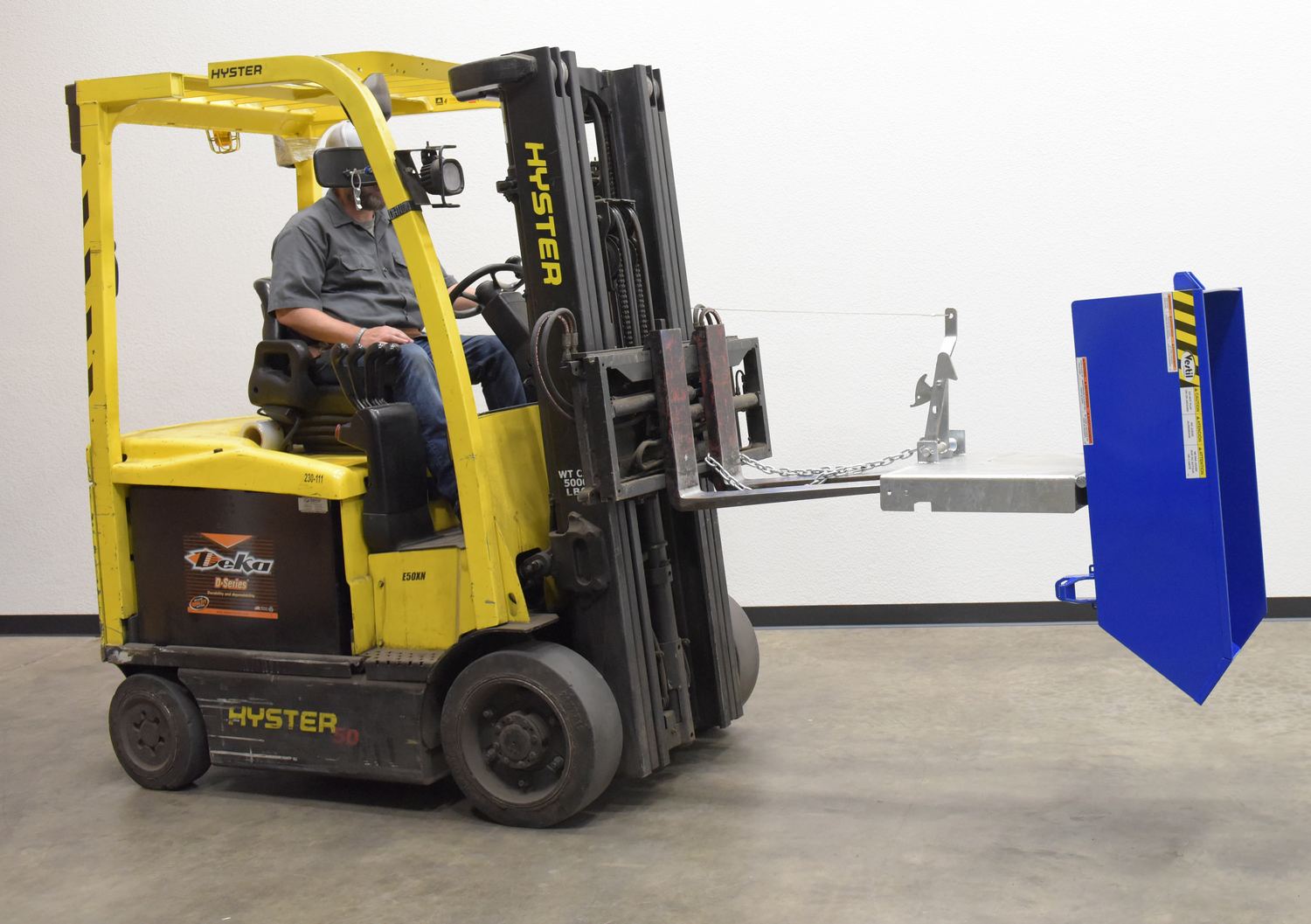

H-25-HD

H-25-HD

H-50-MD

H-50-MD

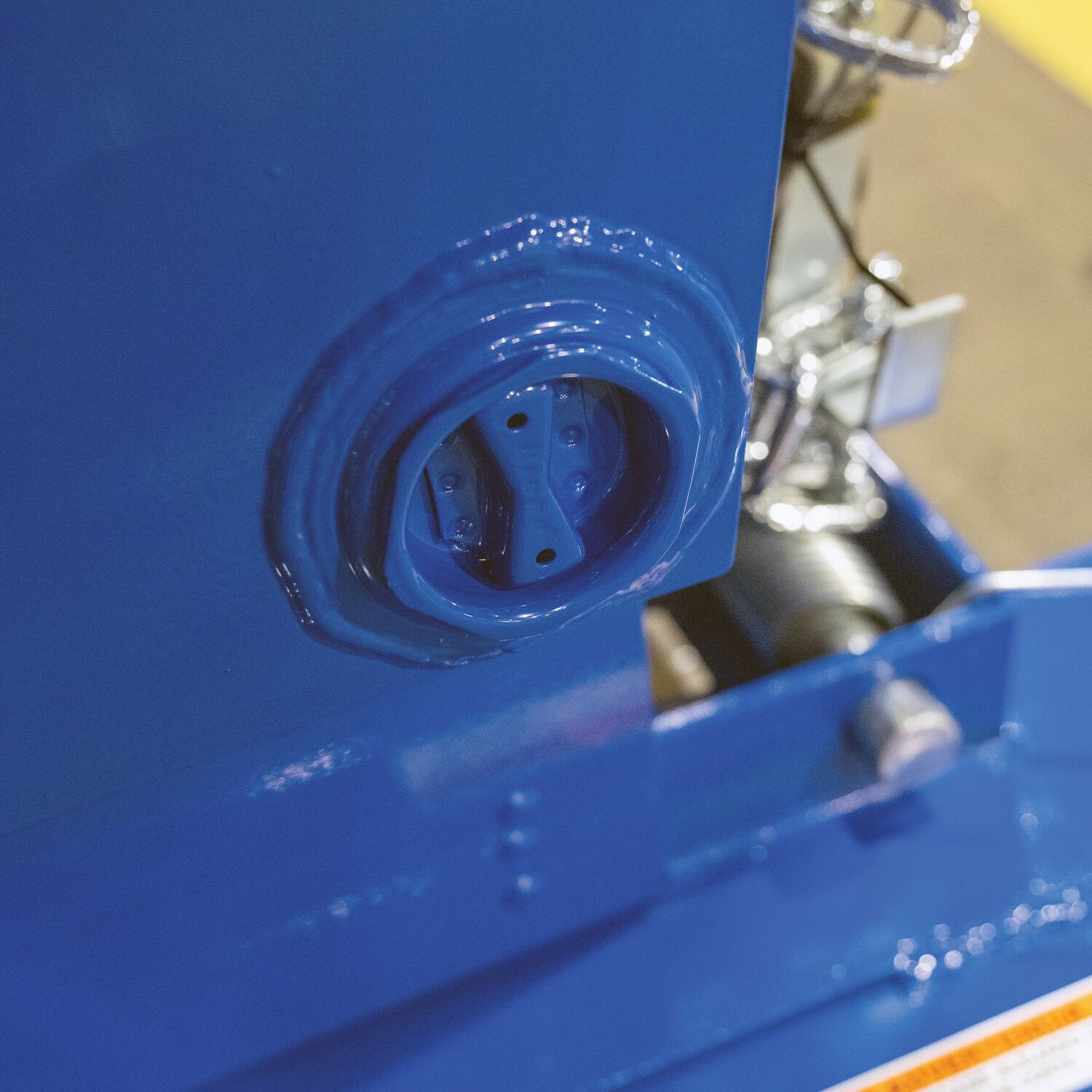

H-DPLG-2

H-DPLG-2

H-DPLG-2

H-DPLG-2

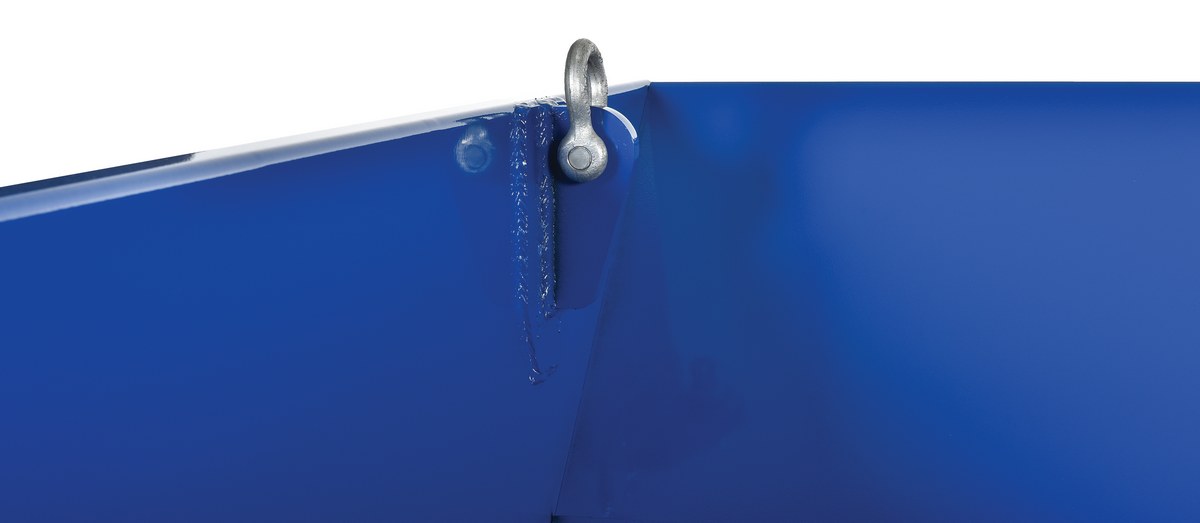

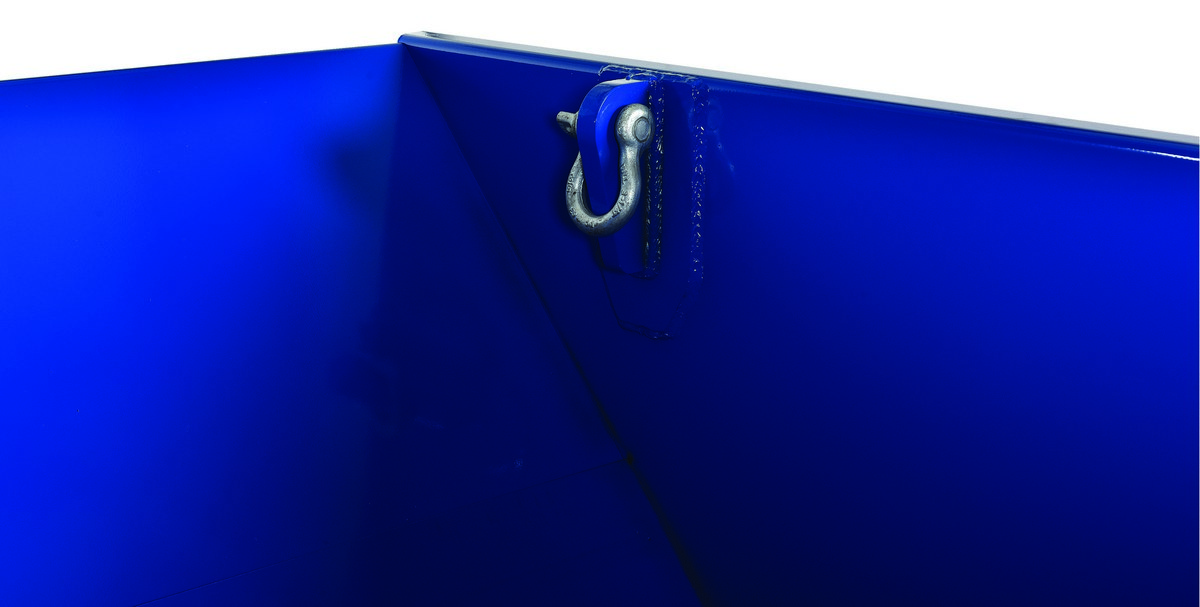

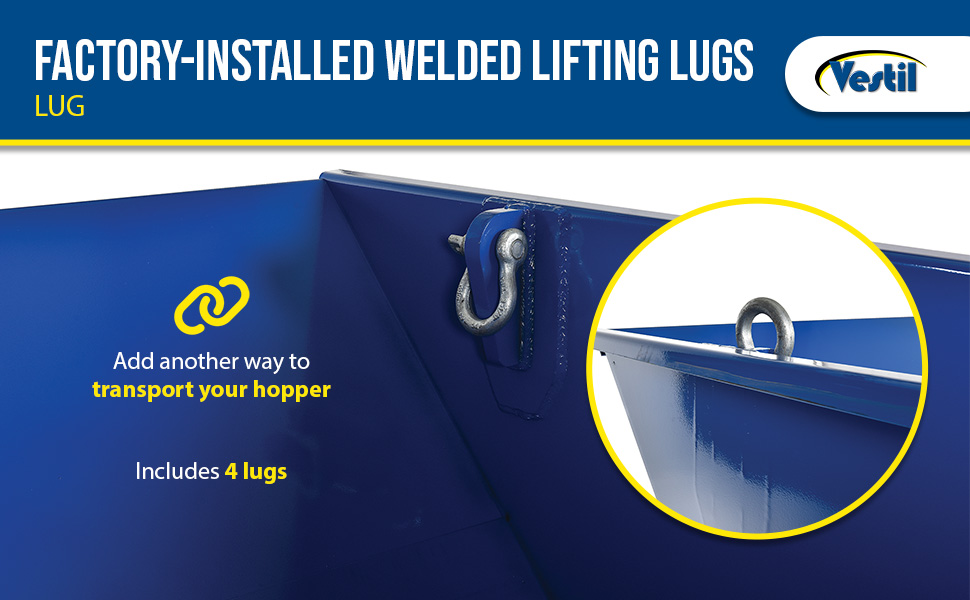

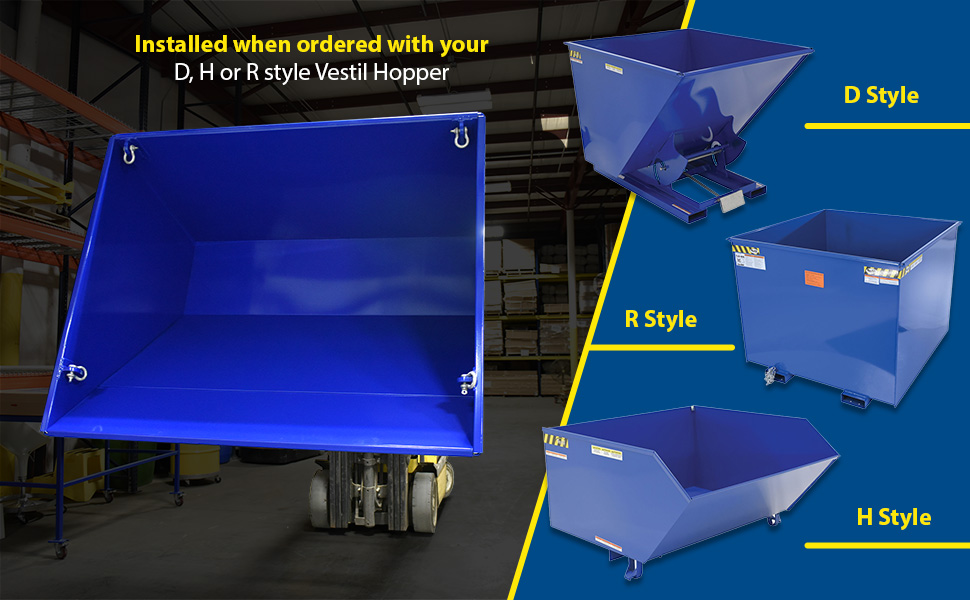

LUG

LUG

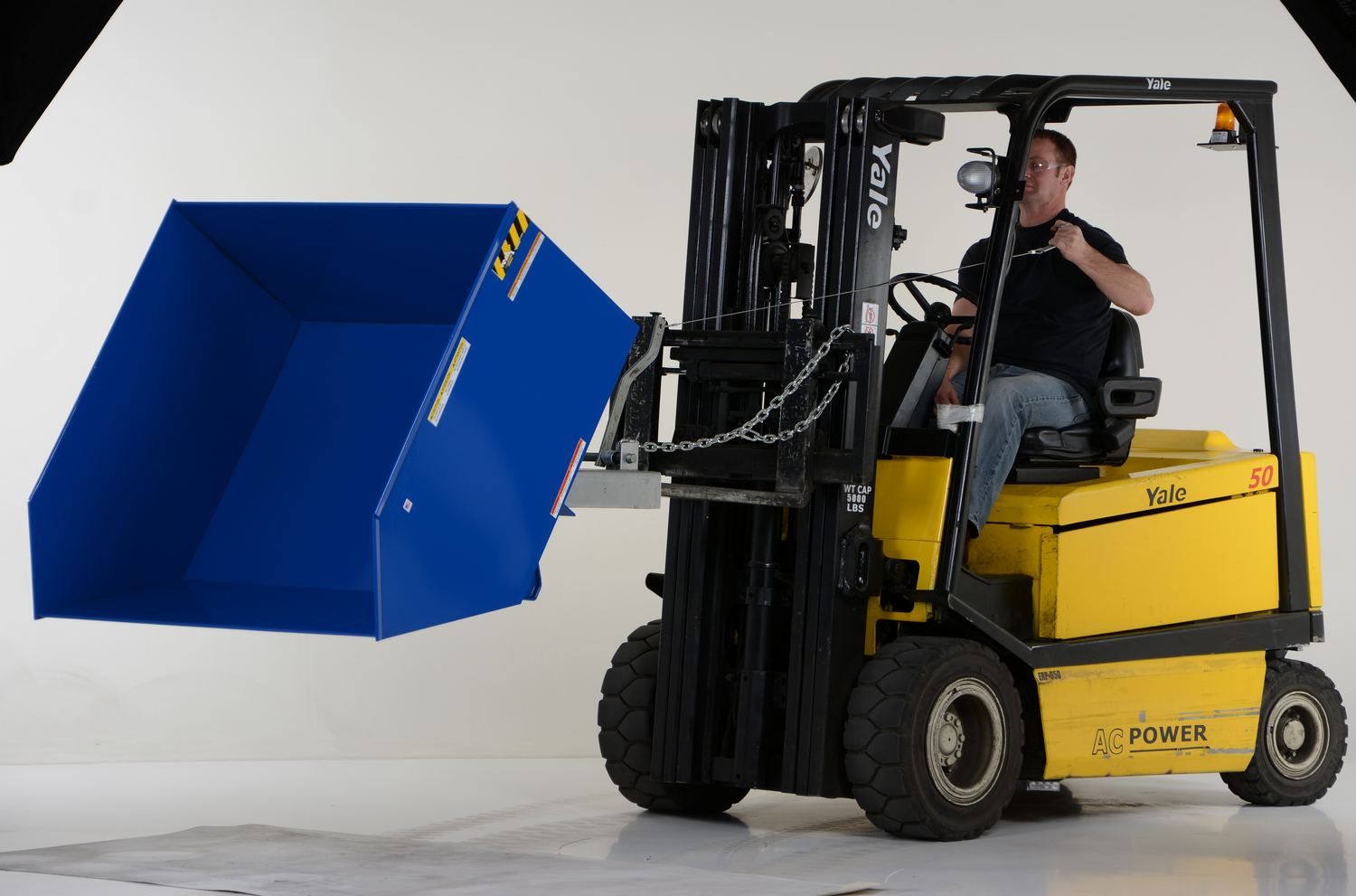

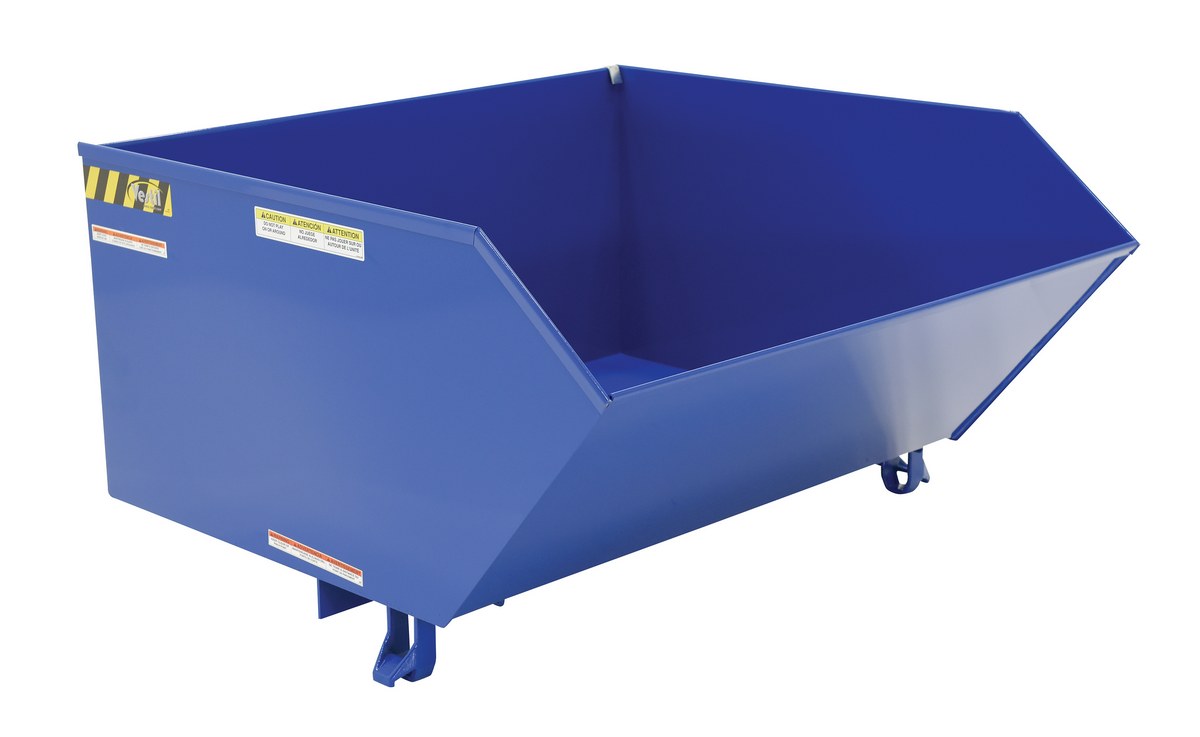

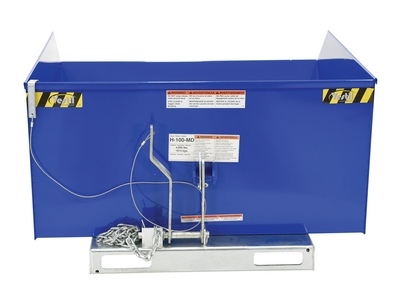

H-100-MD

H-100-MD

H-100-MD

H-100-MD

H-HOPPER-HK-1

H-HOPPER-HK-1

Check Out All Of Our Specialty Colors Available!

SODA RED


SODA RED
Suggested Use: Hazard
Model Suffix: -SR

WHITE


WHITE
Suggested Use: Paper
Model Suffix: -WHT

BATTLE SHIP GRAY


BATTLE SHIP GRAY
Suggested Use: Metal
Model Suffix: -GY-SG

TRACTOR GREEN


TRACTOR GREEN
Suggested Use: Organic
Model Suffix: -GRN-T

BLUE (Standard)


BLUE (Standard Color)
Suggested Use: Plastic
Model Suffix: -

YELLOW


YELLOW
Suggested Use: Glass
Model Suffix: -YEL

ORANGE


ORANGE
Suggested Use: Corrosive Fluid
Model Suffix: -ORG-C

HOT DIPPED GALVANIZED


HOT DIPPED GALVANIZED
Suggested Use: Wet Environment
Model Suffix: -GAL

EARTH BROWN


EARTH BROWN
Suggested Use: Combustible Fluids
Model Suffix: -BRN-EB

KHAKI TAN


KHAKI TAN
Suggested Use: User Defined
Model Suffix: -BRN-KT

SANDY BEIGE


SANDY BEIGE
Suggested Use: User Defined
Model Suffix: -BRN-SB

BUBBLE GUM PINK


BUBBLE GUM PINK
Suggested Use: User Defined
Model Suffix: -BG

BLACK - HIGH GLOSS


BLACK - HIGH GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-HG

BLACK - SEMI-GLOSS


BLACK - SEMI-GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-SG

HUNTER GREEN


HUNTER GREEN
Suggested Use: User Defined
Model Suffix: -GRN-H

SILVER LINING


SILVER LINING
Suggested Use: User Defined
Model Suffix: -SL

SKY BLUE


SKY BLUE
Suggested Use: User Defined
Model Suffix: -BL-S

MACHINE GRAY


MACHINE GRAY
Suggested Use: User Defined
Model Suffix: -GY-MG


Notice These swatches are a representation of the colors available, and may not be exact.

For a list of Model Numbers of each Color, Go down to the Model chart below and choose your color from the Alternate Colors Menu alt-colors-icon.jpg

model chart
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
H-25-HD H-25-HD90 Days Limited WarrantySteel Heavy Duty Low Profile Self Dumping Hopper 1/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		215

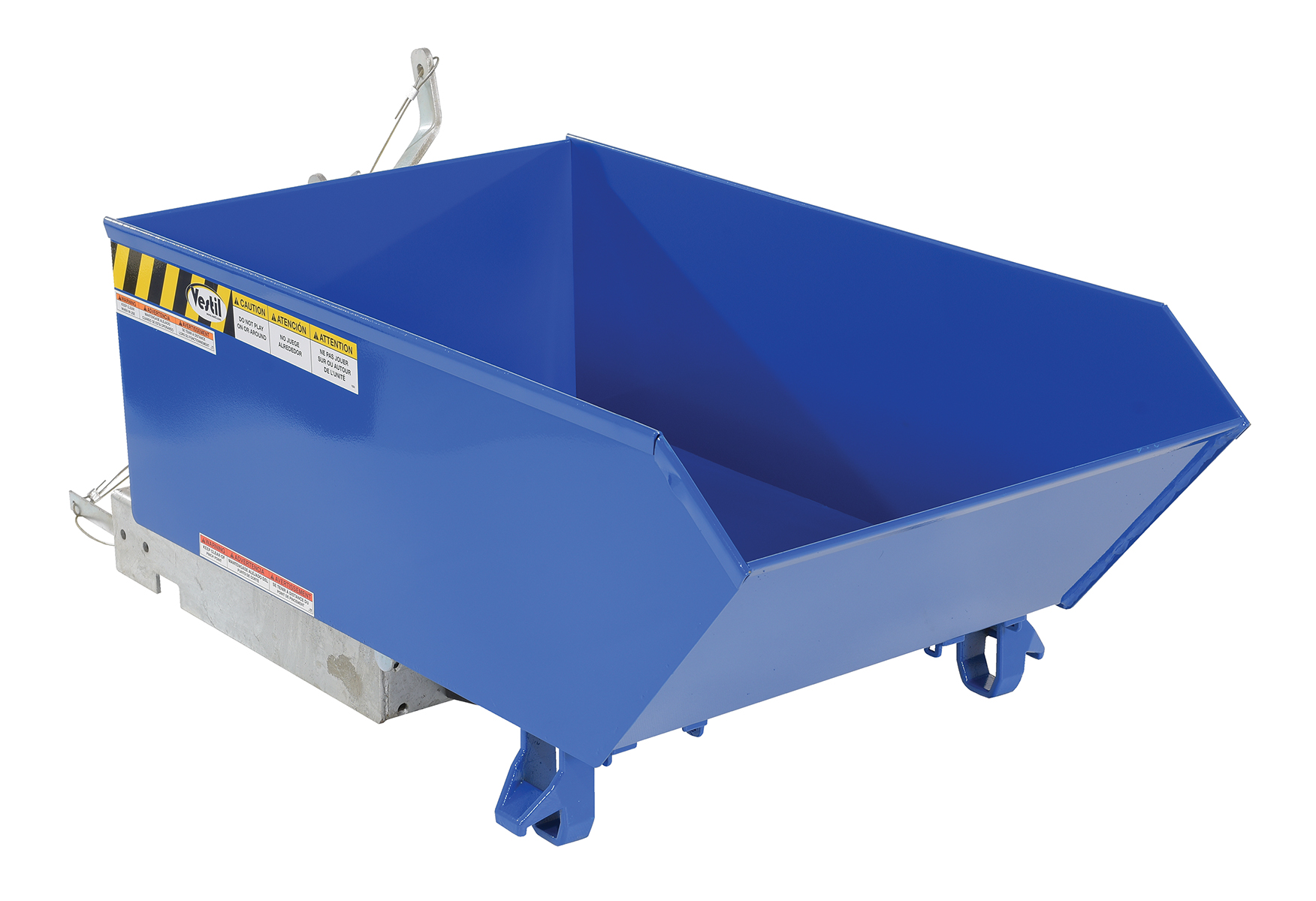

H-25-LD H-25-LD90 Days Limited WarrantySteel Light Duty Low Profile Self Dumping Hopper 1/4 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		171
H-25-MD H-25-MD90 Days Limited WarrantySteel Medium Duty Low Profile Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		210
H-33-HD H-33-HD90 Days Limited WarrantySteel Heavy Duty Low Profile Self Dumping Hopper 1/3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		235

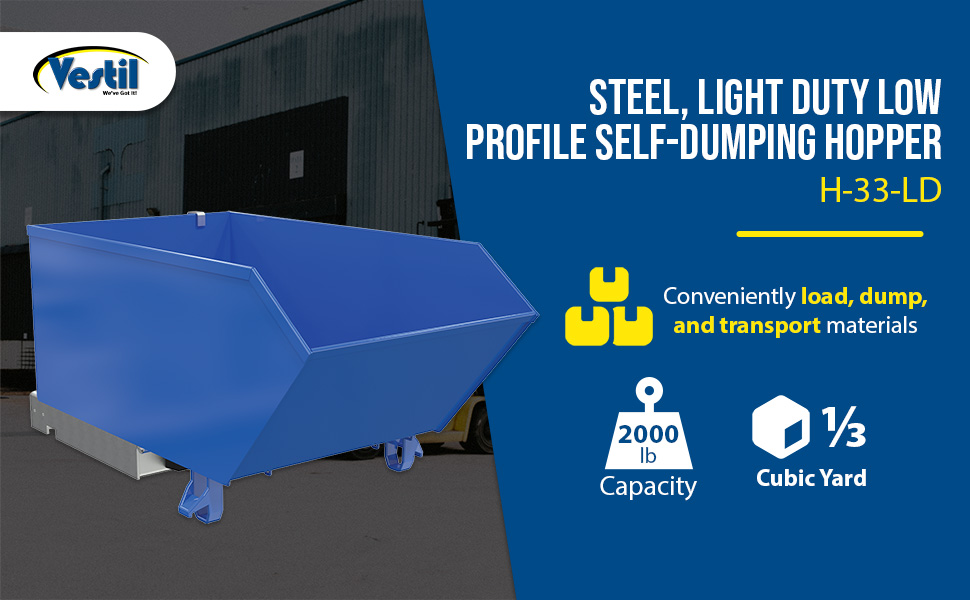

H-33-LD H-33-LD90 Days Limited WarrantySteel Light Duty Low Profile Self Dumping Hopper 1/3 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		195

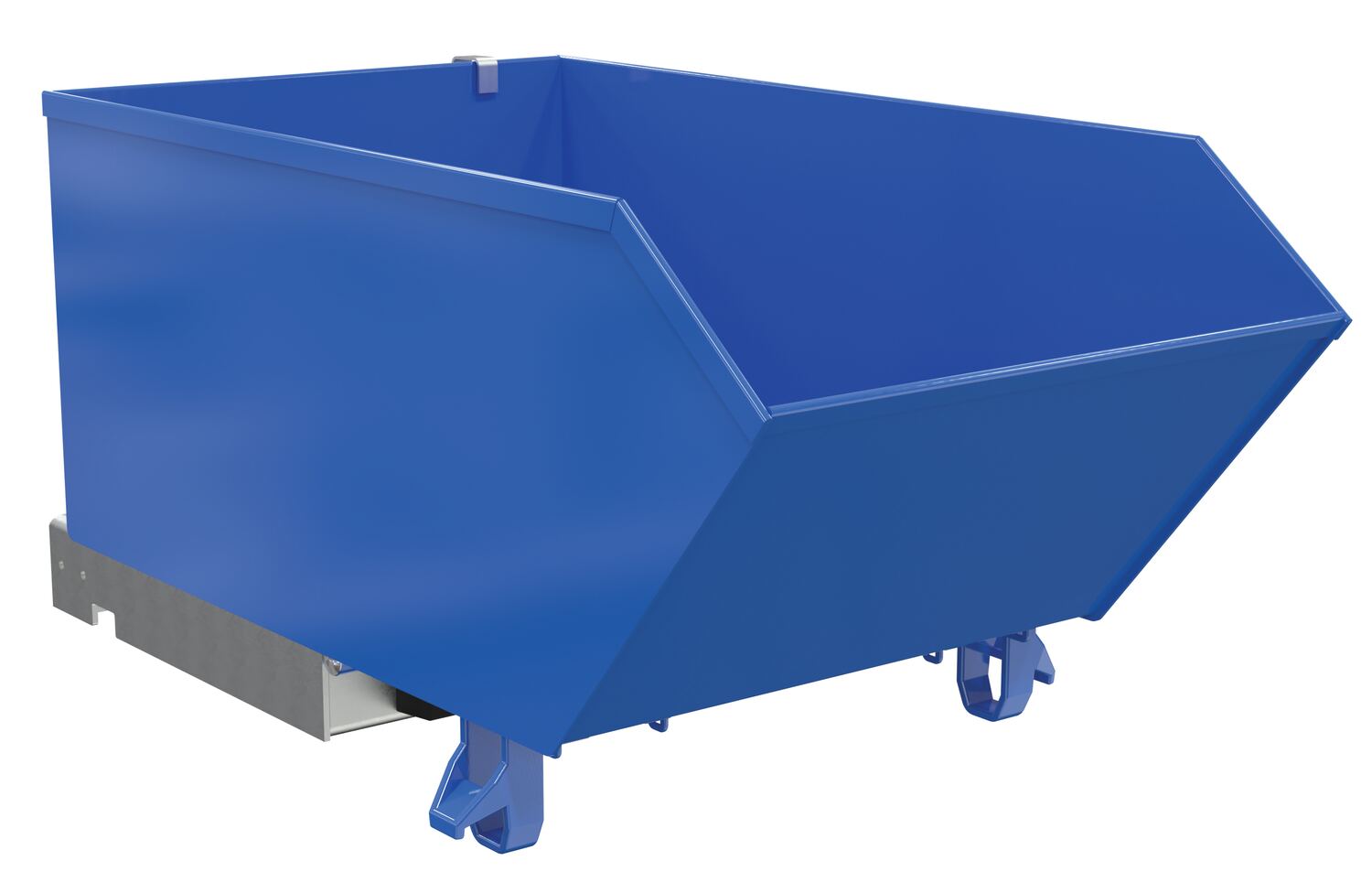

H-33-MD H-33-MD90 Days Limited WarrantySteel Medium Duty Low Profile Self Dumping Hopper 1/3 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		225
H-50-HD H-50-HD90 Days Limited WarrantySteel Heavy Duty Low Profile Self Dumping Hopper 1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		277
H-50-LD H-50-LD90 Days Limited WarrantySteel Light Duty Low Profile Self Dumping Hopper 1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		210
H-50-MD H-50-MD90 Days Limited WarrantySteel Medium Duty Low Profile Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		243

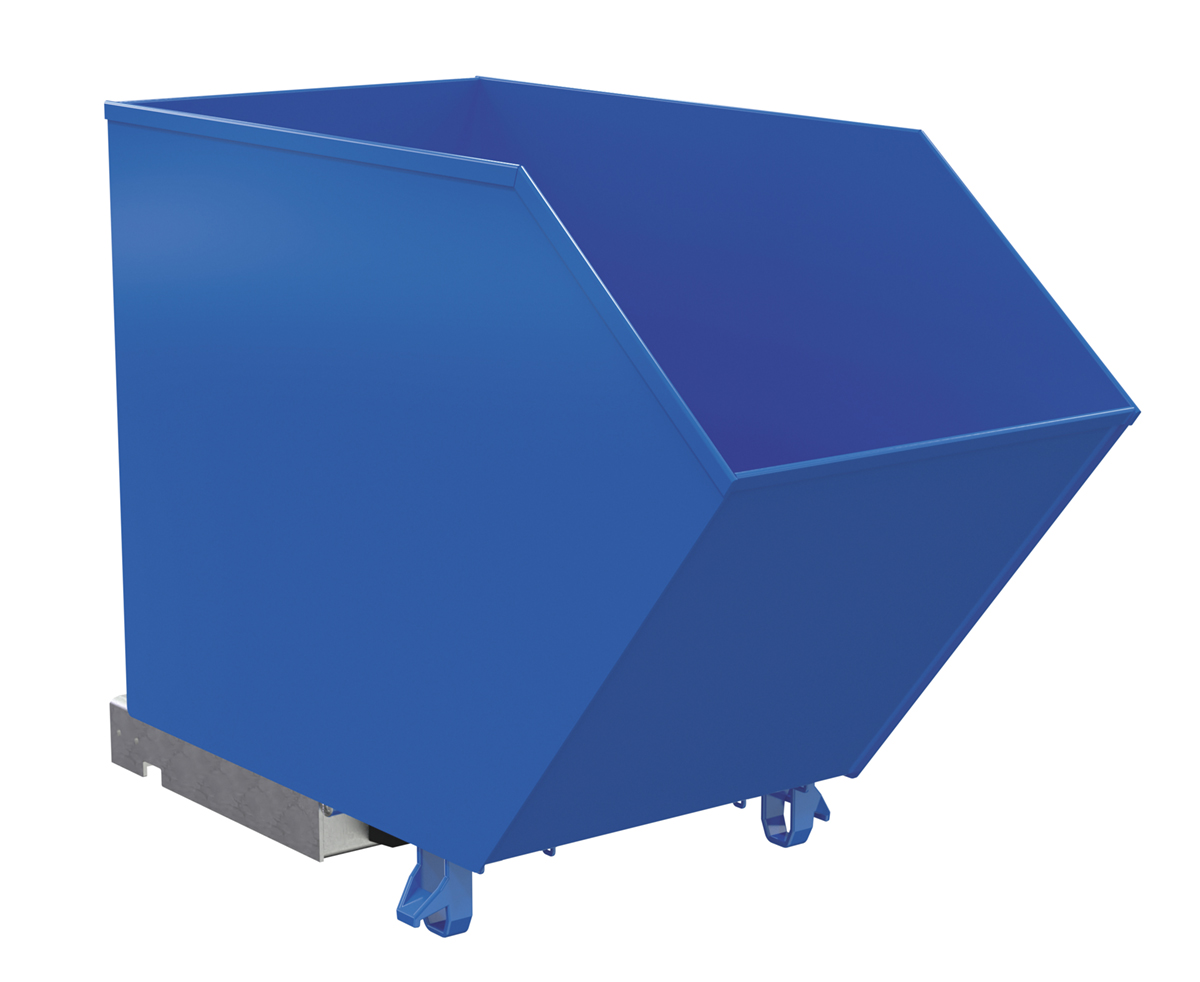

H-75-HD H-75-HD90 Days Limited WarrantySteel Heavy Duty Low Profile Self Dumping Hopper 3/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Fork Pocket Center (in.): 11-5/8		317

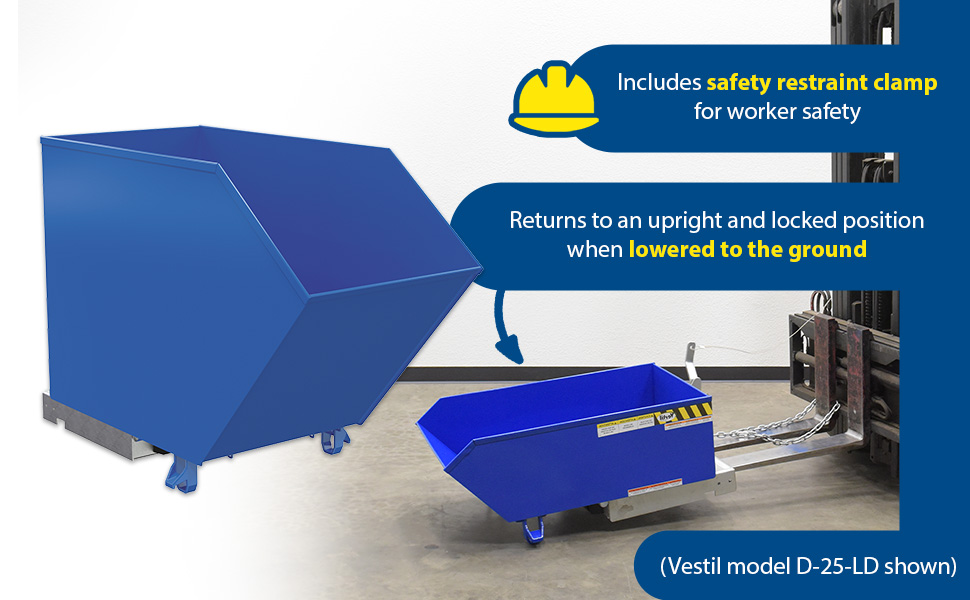

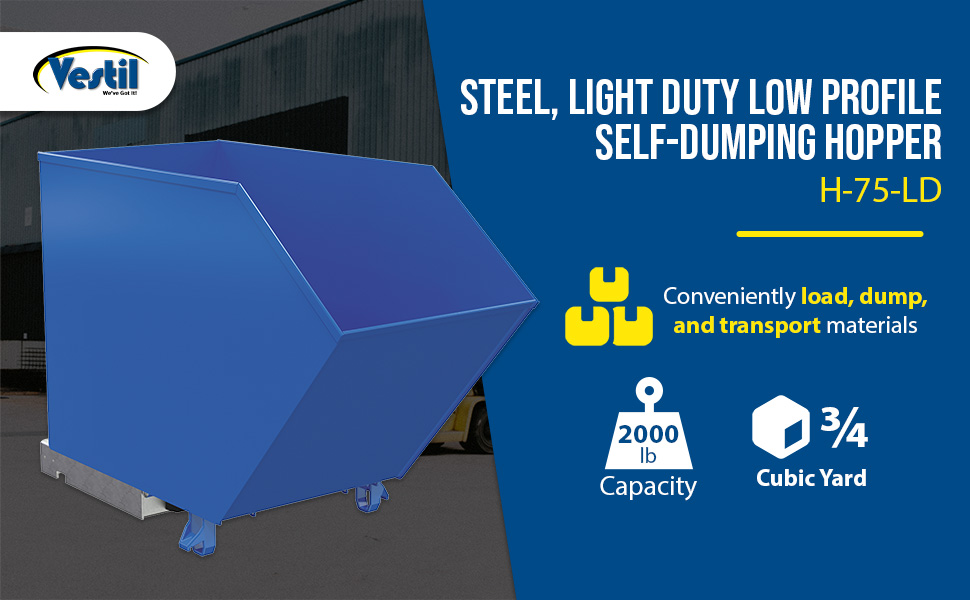

H-75-LD H-75-LD90 Days Limited WarrantySteel Light Duty Low Profile Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Fork Pocket Center (in.): 11-5/8		241

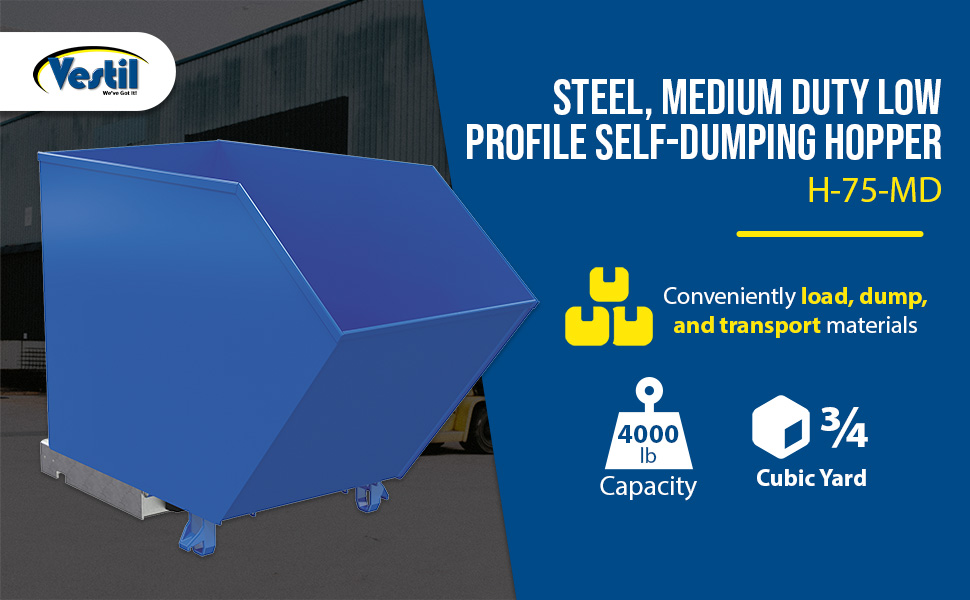

H-75-MD H-75-MD90 Days Limited WarrantySteel Medium Duty Low Profile Self Dumping Hopper 3/4 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Fork Pocket Center (in.): 11-5/8		279
H-100-HD POPULAR H-100-HD90 Days Limited WarrantySteel Heavy Duty Low Profile Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		410
H-100-LD H-100-LD90 Days Limited WarrantySteel Light Duty Low Profile Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		320

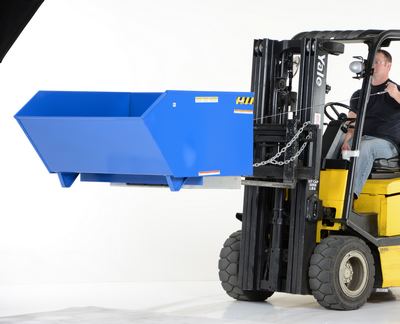

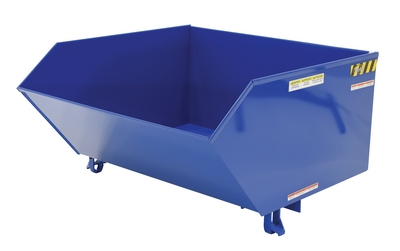

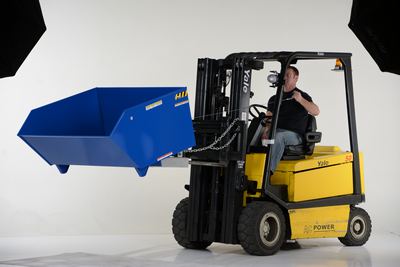

H-100-MD H-100-MD90 Days Limited WarrantySteel Medium Duty Low Profile Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		360
H-150-HD H-150-HD90 Days Limited WarrantySteel Heavy Duty Low Profile Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		505

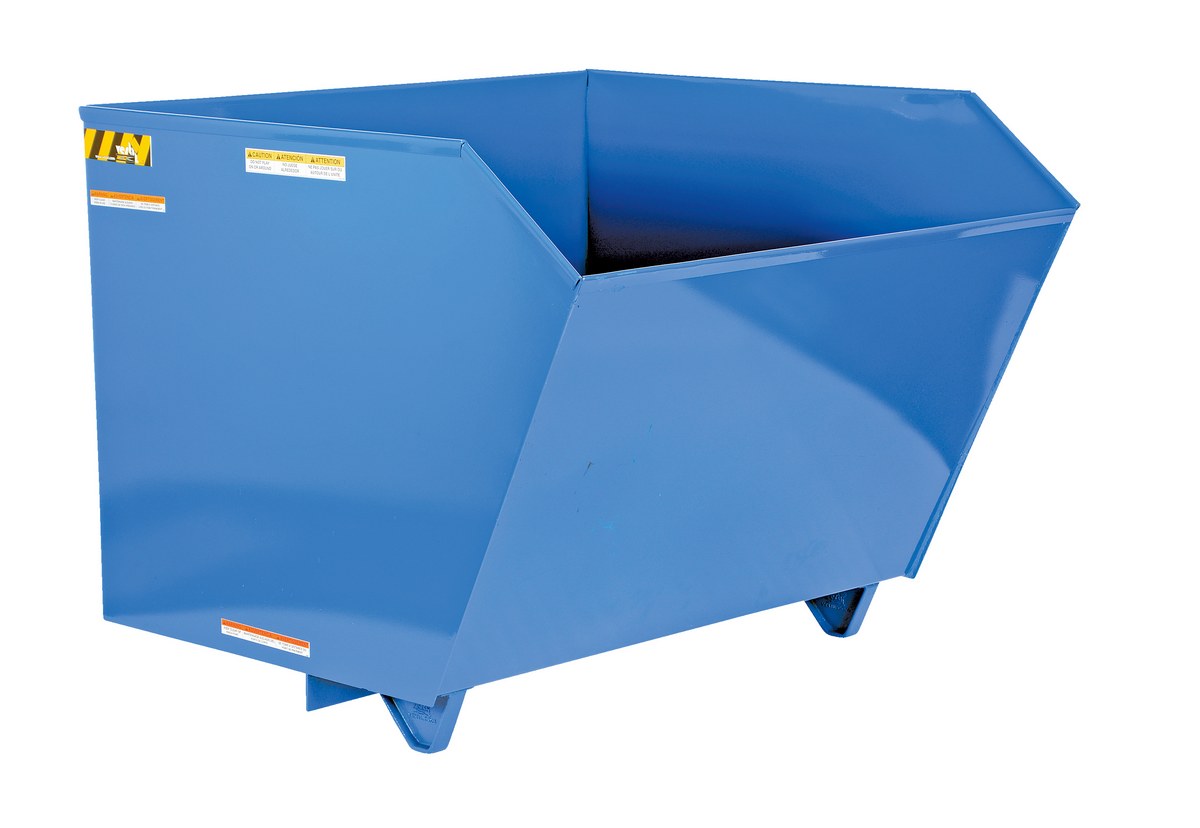

H-150-LD H-150-LD90 Days Limited WarrantySteel Light Duty Low Profile Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		370
H-150-MD H-150-MD90 Days Limited WarrantySteel Medium Duty Low Profile Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		436

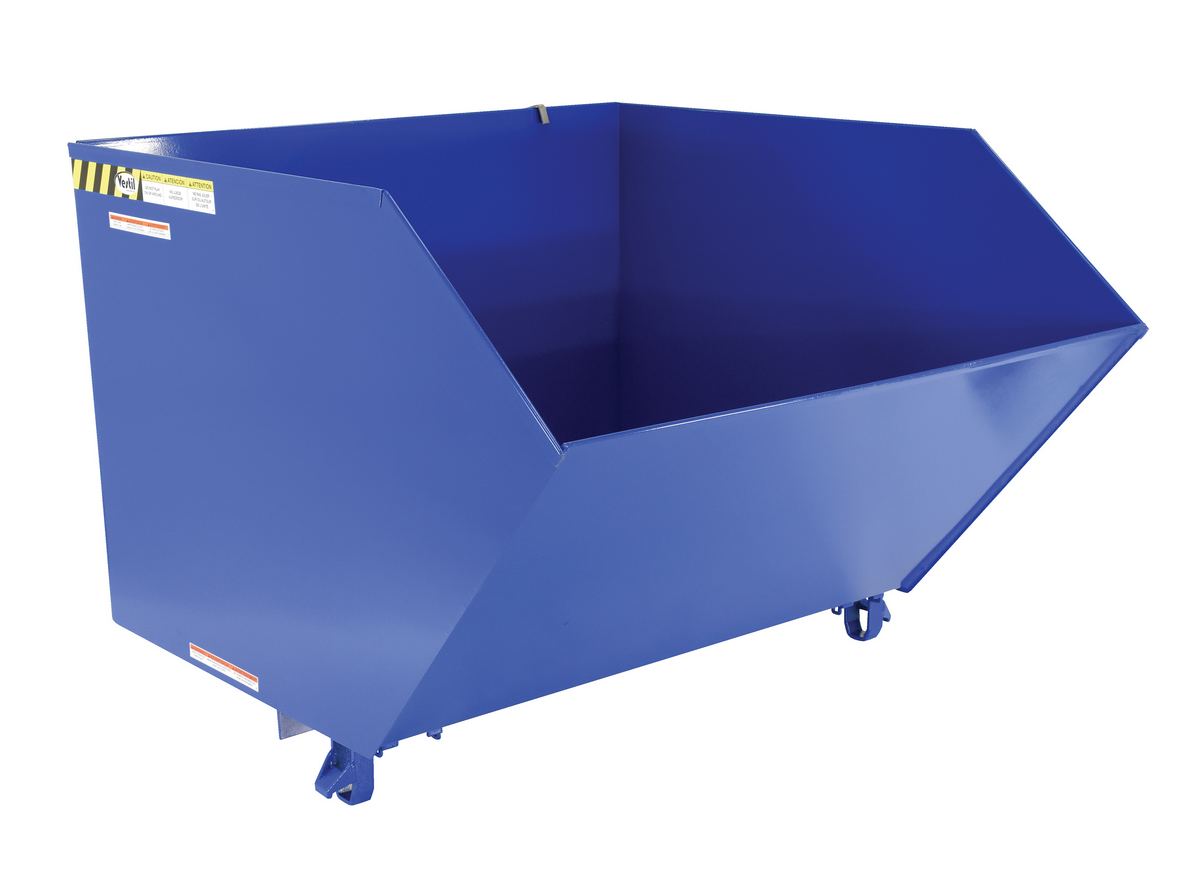

H-200-HD H-200-HD90 Days Limited WarrantySteel Heavy Duty Low Profile Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		575

* Click the Comparison Table link above this table, or compare up to 3 products side-by-side by clicking Green +

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

H-25-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

H-25-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

H-25-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

H-33-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

H-33-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

H-33-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

H-50-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

H-50-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

H-50-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

H-75-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 6000
Fork Pocket Center (in.): 11-5/8
Uniform Capacity (lbs.): 6000
Fork Pocket Center (in.): 11-5/8

H-75-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2000
Fork Pocket Center (in.): 11-5/8
Uniform Capacity (lbs.): 2000
Fork Pocket Center (in.): 11-5/8

H-75-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4000
Fork Pocket Center (in.): 11-5/8
Uniform Capacity (lbs.): 4000
Fork Pocket Center (in.): 11-5/8

H-100-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

H-100-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

H-100-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

H-150-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

H-150-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

H-150-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

H-200-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
For More Details of the Option Click the Red Model Button

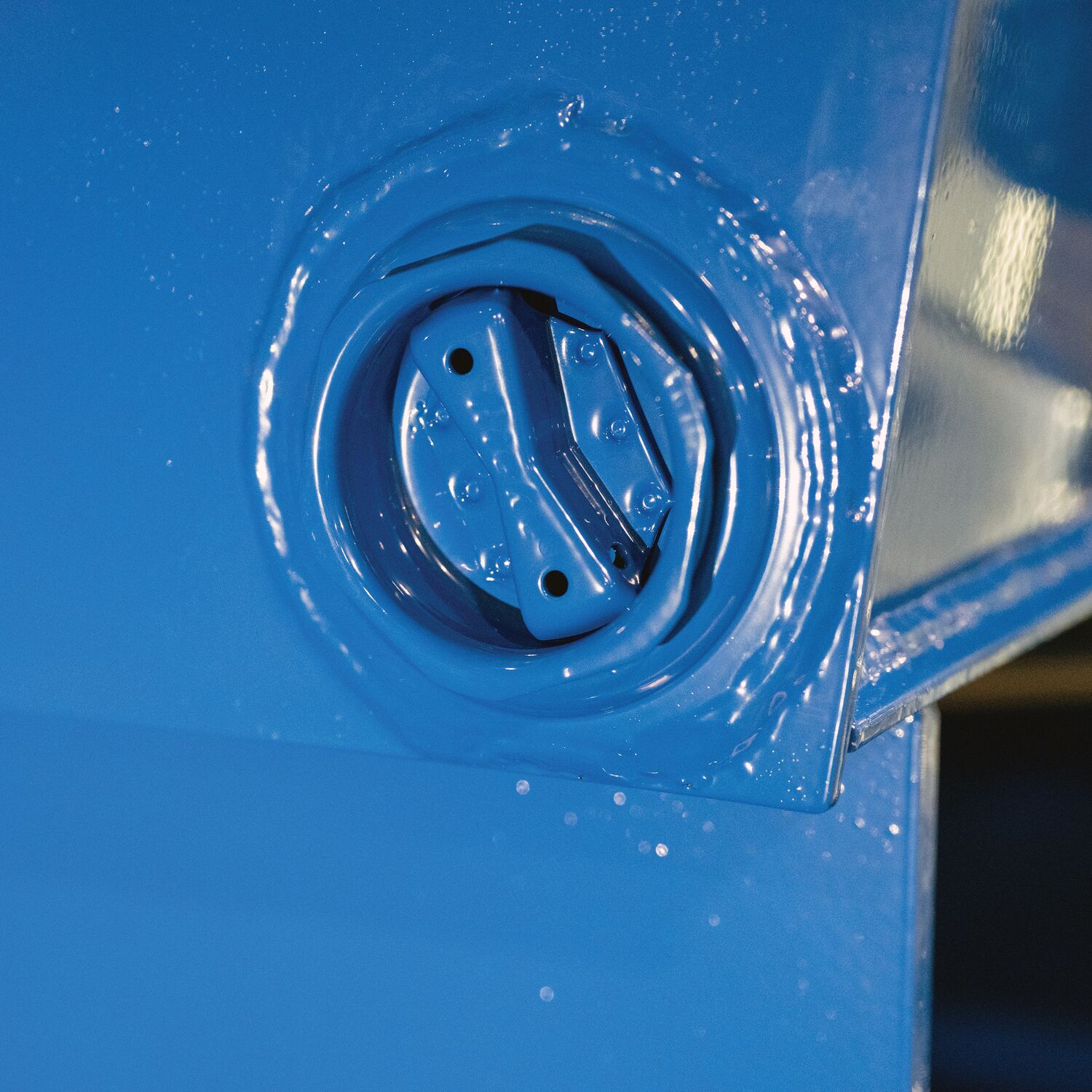

H-DPLG-2 H-DPLG-230 Days Limited WarrantyFactory Installed Welded Steel 2 In. Threaded Drain Plug Left Corner For H Style HoppersDrain Size (in): 2
Nominal Fitting Connection Size - 1: 2"		2

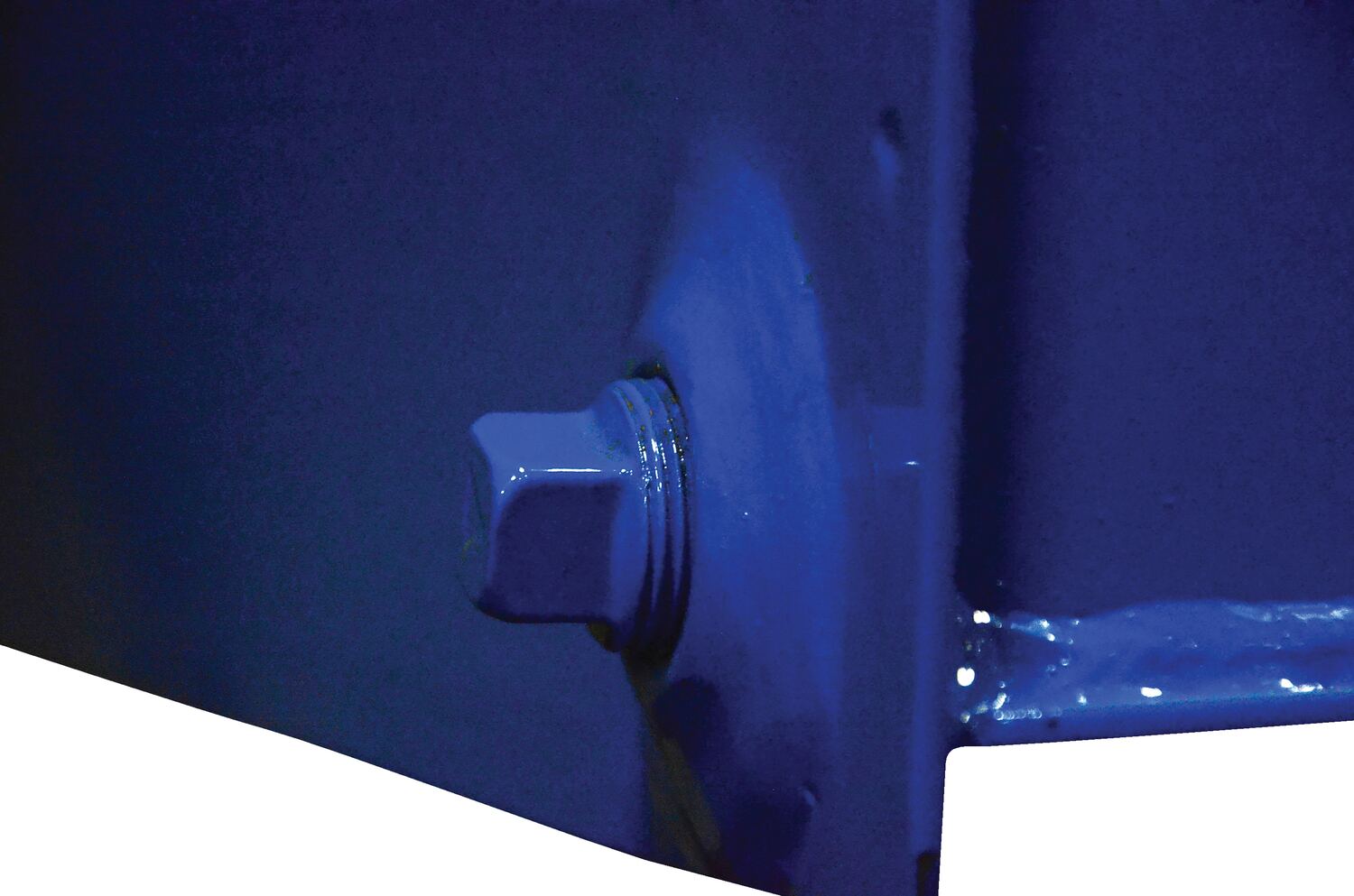

H-DPLG-75 H-DPLG-7530 Days Limited WarrantyFactory Installed Welded Steel 3/4 In. Threaded Drain Plug Left Corner For H Style HoppersDrain Size (in): .75
Nominal Fitting Connection Size - 1: 3/4"		2

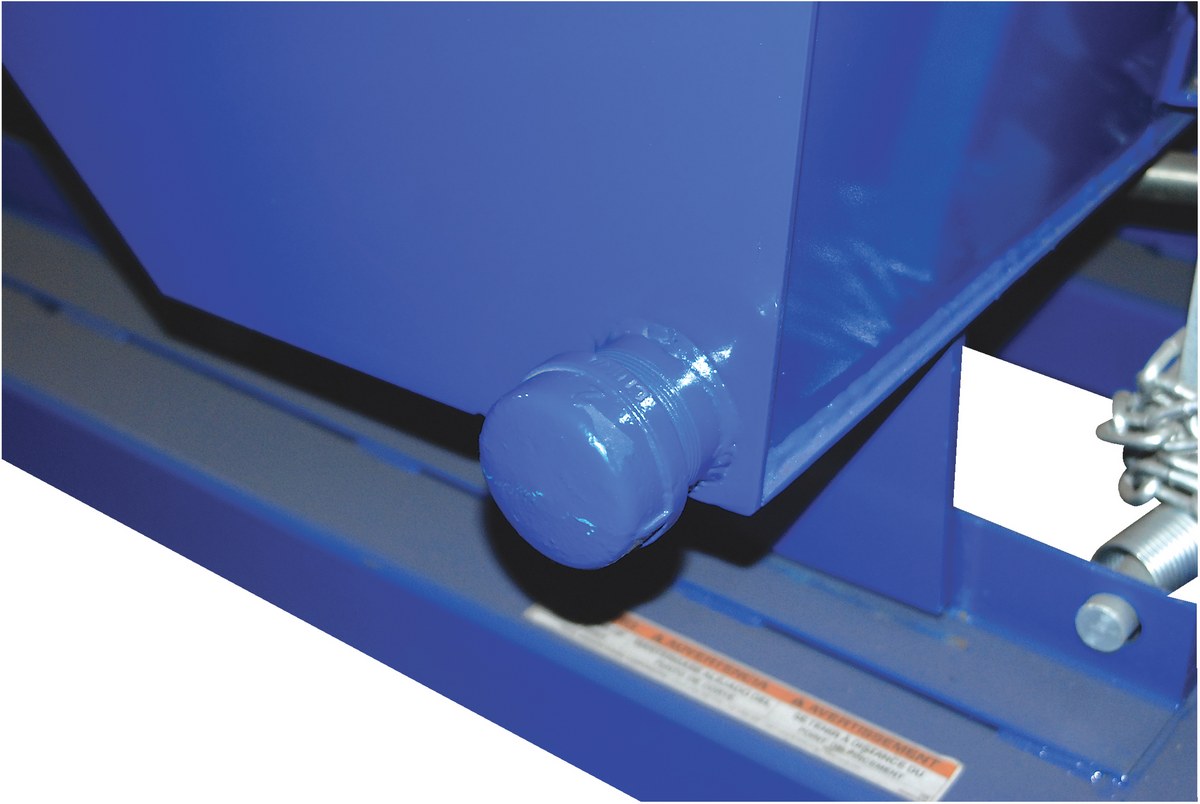

LEKP LEKP90 Days Limited WarrantyFactory Installed Welded Leak Proof For HoppersBrand / Model Compatibility: H & D Style Hoppers
5
LUG LUG90 Days Limited WarrantyFactory Installed Welded Steel Lifting Lugs 3 In. x 6 In. x 8 In. Quantity 4 For D Style, H Style & R-Style Hoppers BluePackage Quantity: 4
23
H-HOPPER-HK-1 NEW H-HOPPER-HK-190 Days Limited WarrantySteel H-Hopper-Handle -Kit H-25 Thru H-75Compatible H-Hopper: H-25 thru H-75
Installation Hardware Included?: Yes		15
H-HOPPER-HK-2 NEW H-HOPPER-HK-290 Days Limited WarrantySteel H-Hopper-Handle -Kit H-100 Thru H-200Compatible H-Hopper: H-100 thru H-200
Installation Hardware Included?: Yes		17
H-BD-L NEW H-BD-L90 Days Limited WarrantySteel Bump and Dump Retro-Fit Kit H-Style Hoppers YellowHardware Included: Yes
Overall Width (in.): 14-1/8		41
Model Image PDF Description Wt. (lbs.)
Caster Options - Caster options for H style hoppers -
Optional Lids - Lid options for H style hoppers -
PLID-INSTALL PLID-INSTALL - Factory Installation of Hopper Lid -
* H-DPLG-75 and H-DPLG-2 Options include leak proof chute welds
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers PDF's will open in a new window when clicked.

Manuals


H
Owners Manual

H-GAL
Owners Manual

Hopper%20Spring%20Replacement
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


H-25-HD

H-25-LD

H-25-MD

H-33-HD

H-33-LD

H-33-MD

H-50-HD

H-50-LD

H-50-MD

H-75-HD

H-75-LD

H-75-MD

H-100-HD

H-100-LD

H-100-MD

H-150-HD

H-150-LD

H-150-MD

H-200-HD

H-HOPPER-HK-1

H-HOPPER-HK-2

H-BD-L

Testing Certificates


H-100-HD

H-100-LD

H-100-MD

H-150-HD

H-150-LD

H-150-MD

H-200-HD

H-25-HD

H-25-LD

H-25-MD

H-33-HD

H-33-LD

H-33-MD

H-50-HD

H-50-LD

H-50-MD

H-75-HD

H-75-LD

H-75-MD

H-BD-L

H-DPLG-2

H-HOPPER-HK-1

H-HOPPER-HK-2

LEKP

LUG

SDS Sheets

No SDS Sheets For This Product

Other PDF's

Specialty Colors Hoppers
Specialty Hopper Colors Product Mailing Brochure

Bump Dump Kit for H-Style Hoppers Mailing Brochure

H-Style Hopper Handle Kit Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products
Reference#: CF-5670 Dewatering Hoppers
 Reference#: CF-5670 Dewatering Hoppers
Reference#: CF-5670 Dewatering Hoppers
Hopper with special holes drilled in the sides to allow liquid to drain out of the contained area.
Reference#: CF-6539 Steel Hopper Lids
 Reference#: CF-6539 Steel Hopper Lids
Reference#: CF-6539 Steel Hopper Lids
Special Steel Hopper Lids for Hoppers
For more Specialty Designs similar to these... Click Here

Q: I'm looking at the low profile hopper . Does it come with casters?

A: Casters are available for the H- Style Low Profile Hopper. Please see the hopper home page for multiple options.

Q: What does "MD" mean on the hopper?

A: LD (light duty) 12 gauge steel, 2,000 lb. capacity. MD (medium duty) 10 gauge steel, 4,000 lb. capacity. HD (heavy duty) 8 gauge steel, 6,000 lb. capacity.

Q: Which caster should I purchase for my hopper?

A: The mold on rubber and poly on steel casters with their soft tread are quiet and ideal for uneven floors. The glass filled nylon casters provide a smoother roll. The semi-steel and ductile steel casters are the most durable. Your sales associate can help you match the capacity and size of the caster kits to your hopper.

Q: What is the capacity of the lifting lugs?

A: The capacity of the lifting lugs is compatible with the capacity of the hopper.

Q: Which caster kits are compatible with the 1/3 cubic yard and 3/4 cubic yard hoppers?

A: The caster kit options with 3 casters would be compatible with the H-33 series and H-75 series hoppers.




Related or Similar Products:

Heavy-Duty Poly Lids for D & H series Hoppers
Product

Heavy-Duty Poly Lids for D & H series Hoppers

D-Style Hoppers, No Bump & Dump
Product

D-Style Hoppers, No Bump & Dump

Casters For Hoppers (D, R & H)
Product

Casters For Hoppers (D, R & H)

D Style - Self-Dumping Steel Hoppers with Bumper Release
Product

D Style - Self-Dumping Steel Hoppers with Bumper Release

H Style Bump & Dump Hoppers
Product

H Style Bump & Dump Hoppers

Low Profile Parts Hoppers
Product

Low Profile Parts Hoppers





H Style - Low Profile 90 degre...




Minimize fatigue and injury during loading! The low profile front edge provides an unobstructed path for item placement!

Units feature a full 90 degrees dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. The included safety restraint/chain must be securely attached to the lift truck without slack. 22" L usable fork pockets measure 7"W x 2"H. Formed base thickness is 1/4". Blue baked-in powder-coated toughness with a galvanized base. Models H-25 may be stacked with H-50 models,while, the H-100 can be stacked with the H-150 models. The H-200 hoppers can only be stacked with other H-200 series models. Never stack hoppers more than 3 high. Must be attached to fork truck when dumping.

  • Hopper is able to be dumped from seat of fork truck
  • Fork pockets are capped on the end to allow for dumping
  • Perfect for fitting in low height areas
  • Low profile front edge provides an unobstructed path for item placement

High Strength Steel Hoppers

  • High strength steel models are available (suffix -HS)
  • High-Strength material provides greater impact resistance
  • Resists and dents and punctures from dropped materials
  • Great for use in foundry environments
  • Promotes extended product life
6 Sizes
4 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel, HS (High Strength)
H-25-(strength) .25 Cubic Yard
H-33-(strength) .33 Cubic Yard
H-50-(strength) .50 Cubic Yard
H-75-(strength) .75 Cubic Yard
H-100-(strength) 1 Cubic Yard
H-150-(strength) 1.5 Cubic Yard
H-200-(strength) 2 Cubic Yard

Check Out Our Bump & Dump Version (H Series)!

Caster Options | Optional Lids


Model # Description Attributes Net Wt.
(lbs)
H-100-HD H-100-HDSteel Heavy Duty Low Profile Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		410

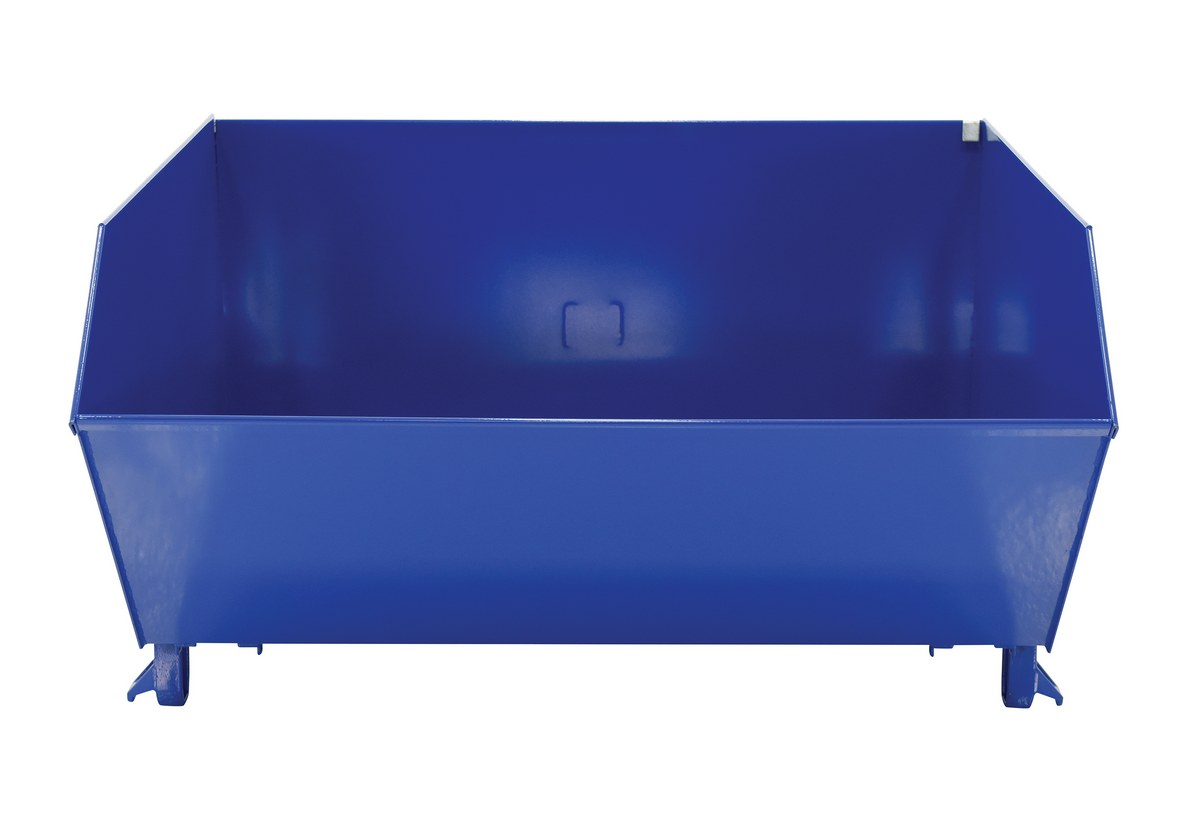

H-100-LD H-100-LDSteel Light Duty Low Profile Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		320
H-100-MD H-100-MDSteel Medium Duty Low Profile Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		360
H-150-HD H-150-HDSteel Heavy Duty Low Profile Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		505
H-150-LD H-150-LDSteel Light Duty Low Profile Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		370
H-150-MD H-150-MDSteel Medium Duty Low Profile Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		436
H-200-HD H-200-HDSteel Heavy Duty Low Profile Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		575
H-25-HD H-25-HDSteel Heavy Duty Low Profile Self Dumping Hopper 1/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		215
H-25-LD H-25-LDSteel Light Duty Low Profile Self Dumping Hopper 1/4 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		171
H-25-MD H-25-MDSteel Medium Duty Low Profile Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		210
H-33-HD H-33-HDSteel Heavy Duty Low Profile Self Dumping Hopper 1/3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		235
H-33-LD H-33-LDSteel Light Duty Low Profile Self Dumping Hopper 1/3 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		195
H-33-MD H-33-MDSteel Medium Duty Low Profile Self Dumping Hopper 1/3 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		225
H-50-HD H-50-HDSteel Heavy Duty Low Profile Self Dumping Hopper 1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		277
H-50-LD H-50-LDSteel Light Duty Low Profile Self Dumping Hopper 1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		210
H-50-MD H-50-MDSteel Medium Duty Low Profile Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		243
H-75-HD H-75-HDSteel Heavy Duty Low Profile Self Dumping Hopper 3/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Fork Pocket Center (in.): 11-5/8		317
H-75-LD H-75-LDSteel Light Duty Low Profile Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Fork Pocket Center (in.): 11-5/8		241
H-75-MD H-75-MDSteel Medium Duty Low Profile Self Dumping Hopper 3/4 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Fork Pocket Center (in.): 11-5/8		279

Options


Model Image PDF Description Wt. (lbs.)
Caster Options - Caster options for H style hoppers -
Optional Lids - Lid options for H style hoppers -
PLID-INSTALL PLID-INSTALL - Factory Installation of Hopper Lid -
* H-DPLG-75 and H-DPLG-2 Options include leak proof chute welds

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
