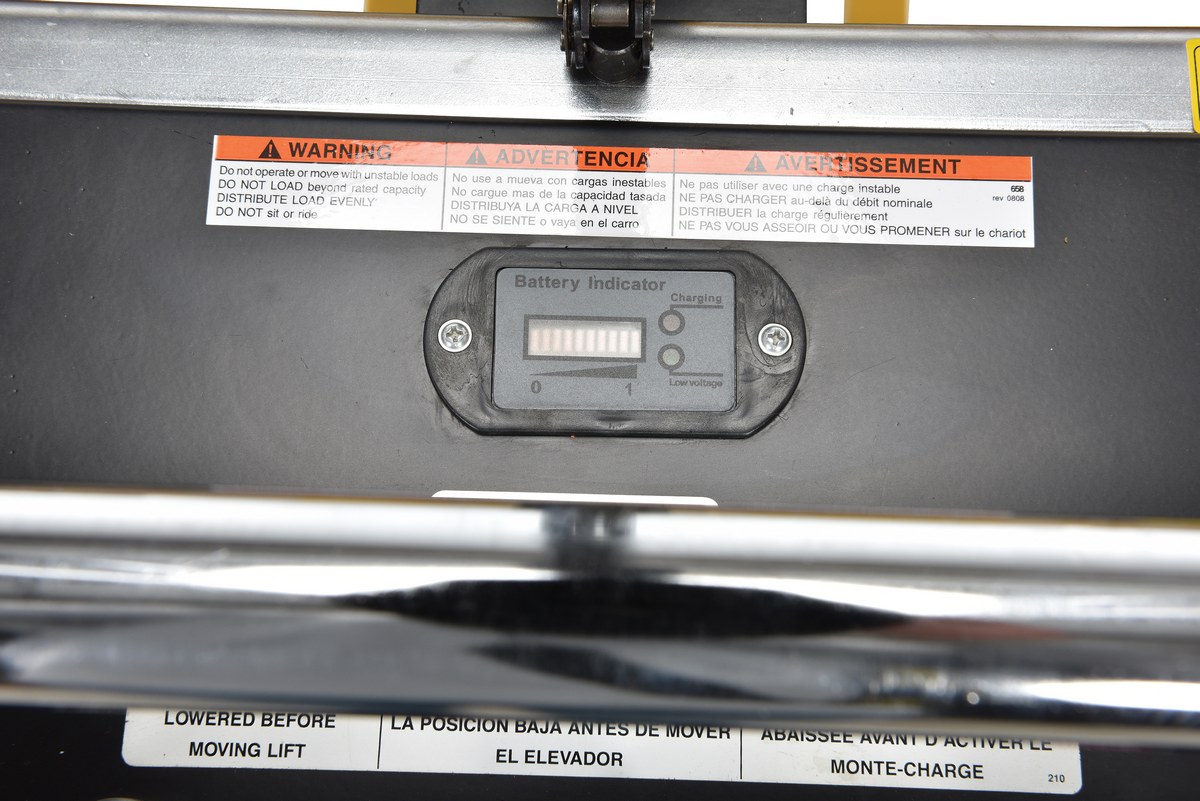

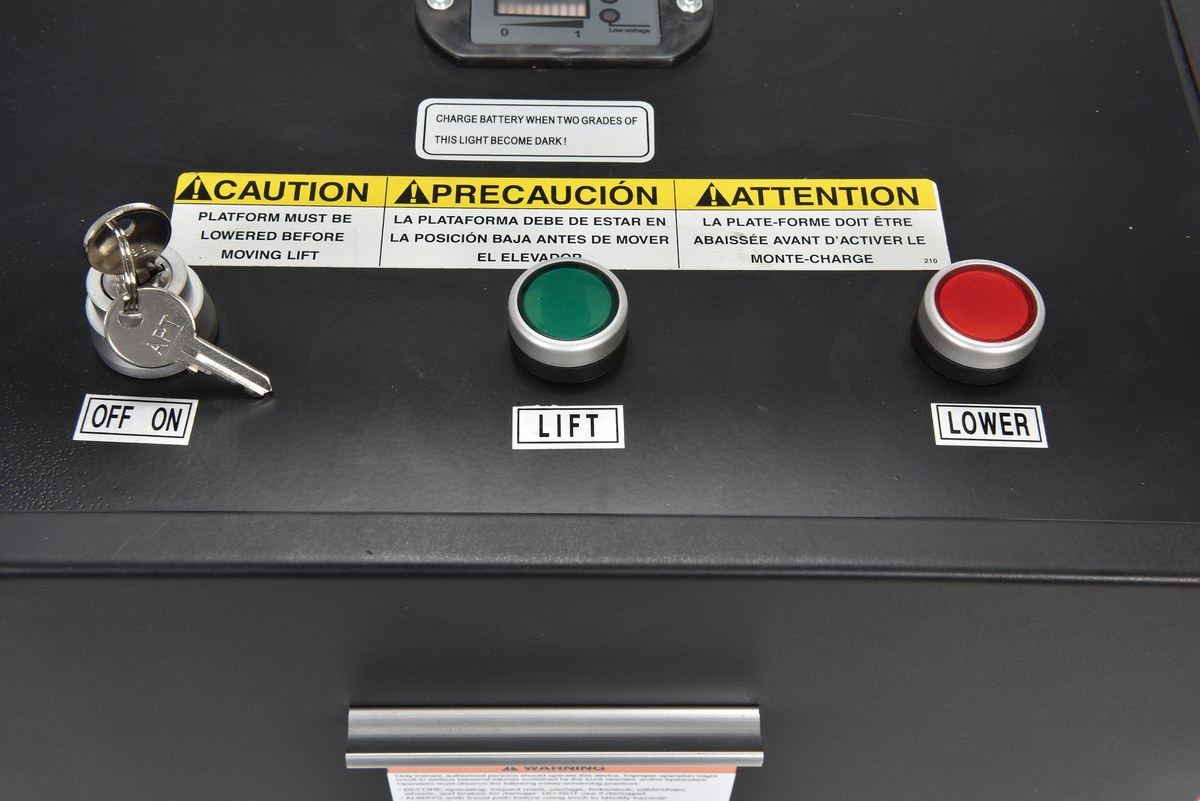

DC Powered Hefti-LiftsDC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when moving and positioning loads. Ideal for working in confined spaces and eliminates manual handling problems and injuries. Includes removable platform for operations requiring forks (excpt HYD-CB-10-DC). Units roll easily on two (2) rigid and two (2) swivel poly-on-steel casters and include a foot operated brake. Not for use with pallets. All welded steel construction with chrome platform and uprights. Each fork is 4-1/2"W x 2-1/2"H, the fork length is the same as the platform length. Overall fork width is 22". Units run off one (1) 12V battery. Includes battery charger, battery charge indicator and emergency on/off switch. Variety of attachments available.
304 stainless steel unit are ideal for food, pharmaceutical, chemical and clean room applications. Unit rolls easily on (2) two rigid and (2) two total lock swivel casters.
- Non-slip chain provides accurate deck positioning
- Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
- Removable platform allows operation requiring forks
- Welded steel construction provides long lasting rugged use
Manual & DC Work Positioners
Hand Winch Lift Trucks
Adjustable Box Stacker
Lite Load LiftsAdditional Models In This Family
HYDC-FRKHK
HYD-10-DC-SS
HYD-10-DC
HYD-10-DC
HYD-10-DC
HYDC-RP
HYDC-VFRK
HYD-CB-10-DC
HYDC-SSP
HYD-10-DC
HYD-10-DC
HYDC-BTP
HYDC-SSP
HYDC-VFRK
HYDC-RR
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

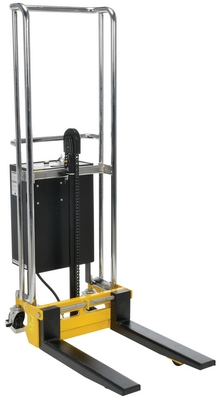

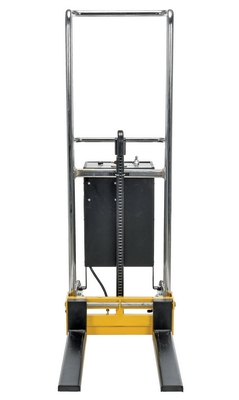

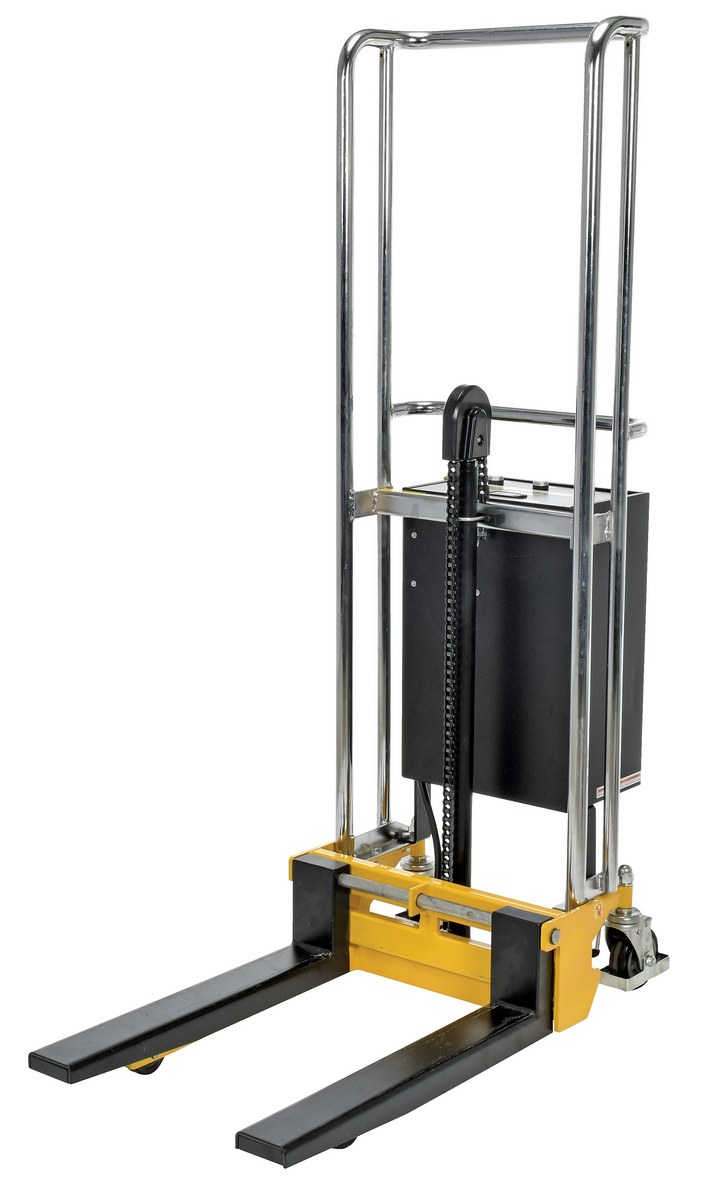

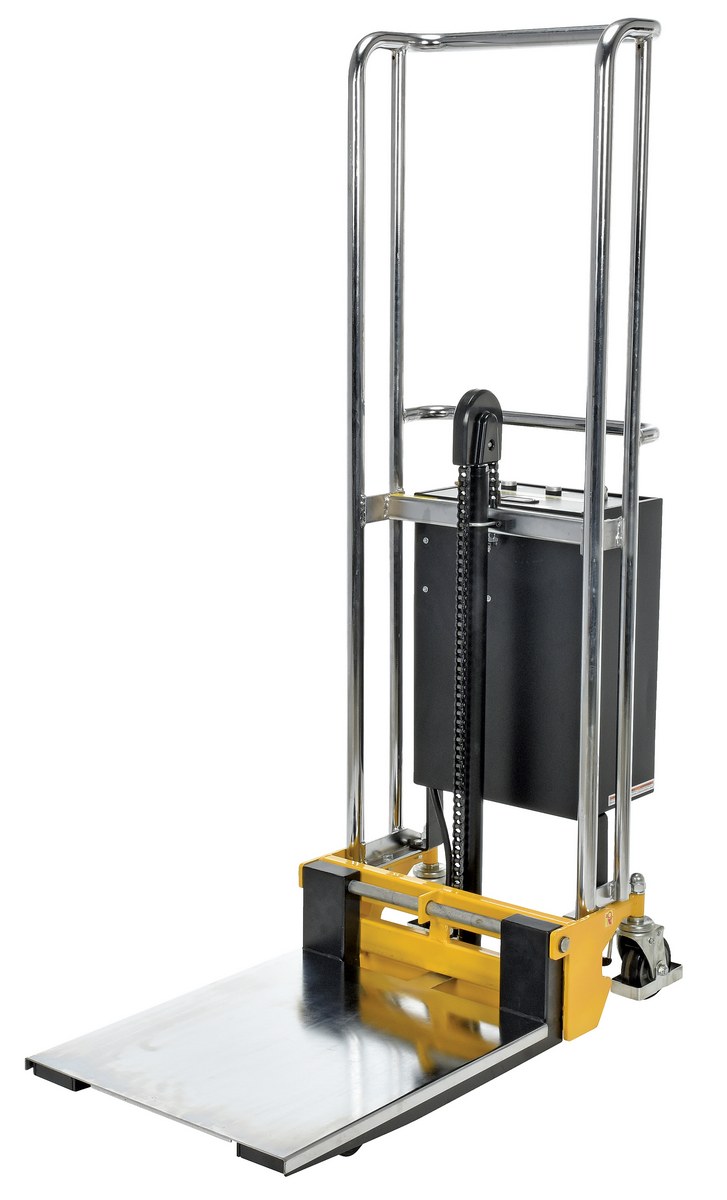

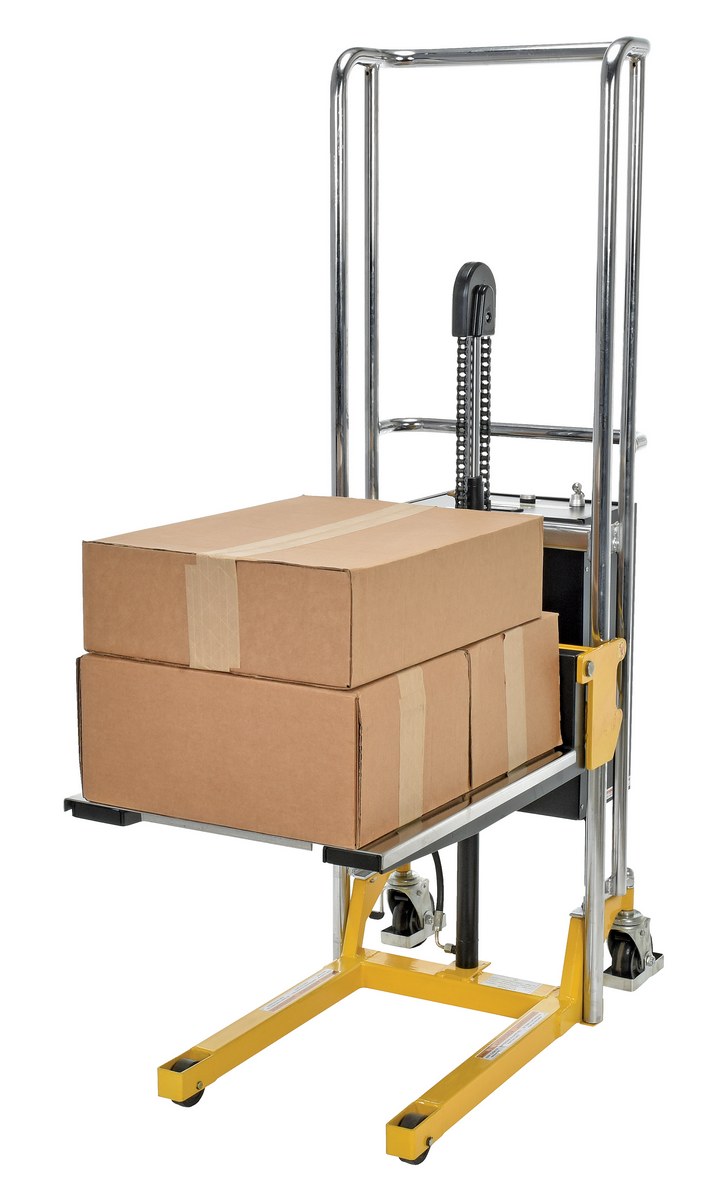

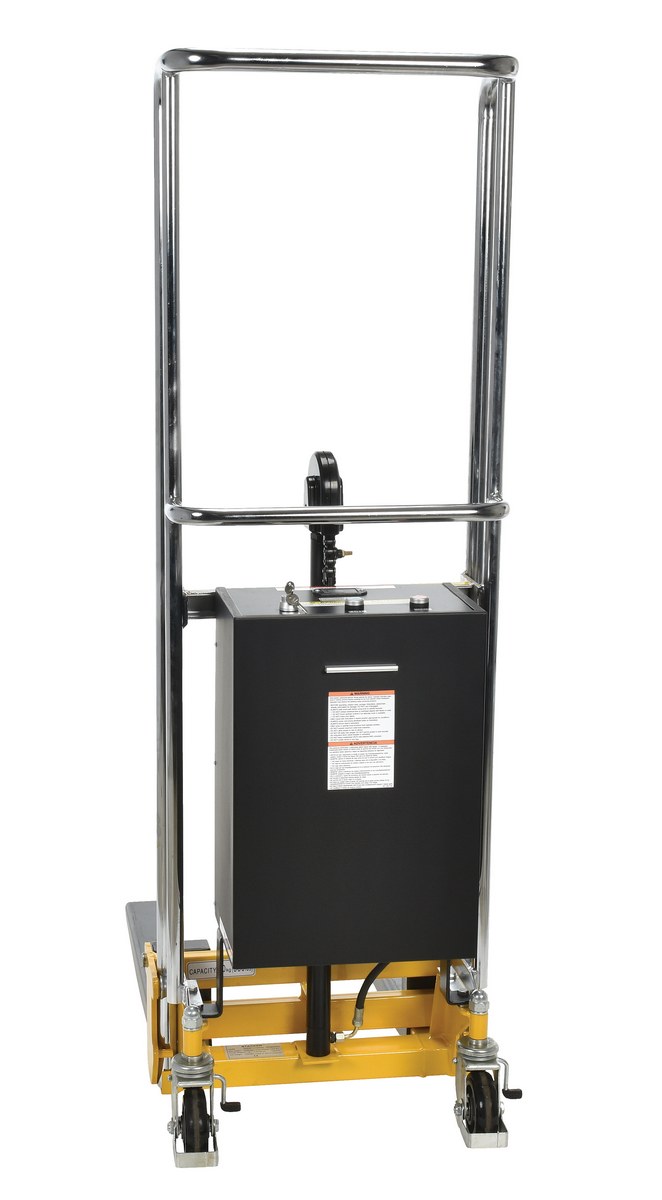

| HYD-10-DC | POPULAR |  | 90 Days Limited Warranty | Steel Portable DC Powered Hefti-Lift 37 In. x 69 In. 880 Lb. Capacity Silver / Black | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 22-1/8 x 25-3/4 | 276 | |

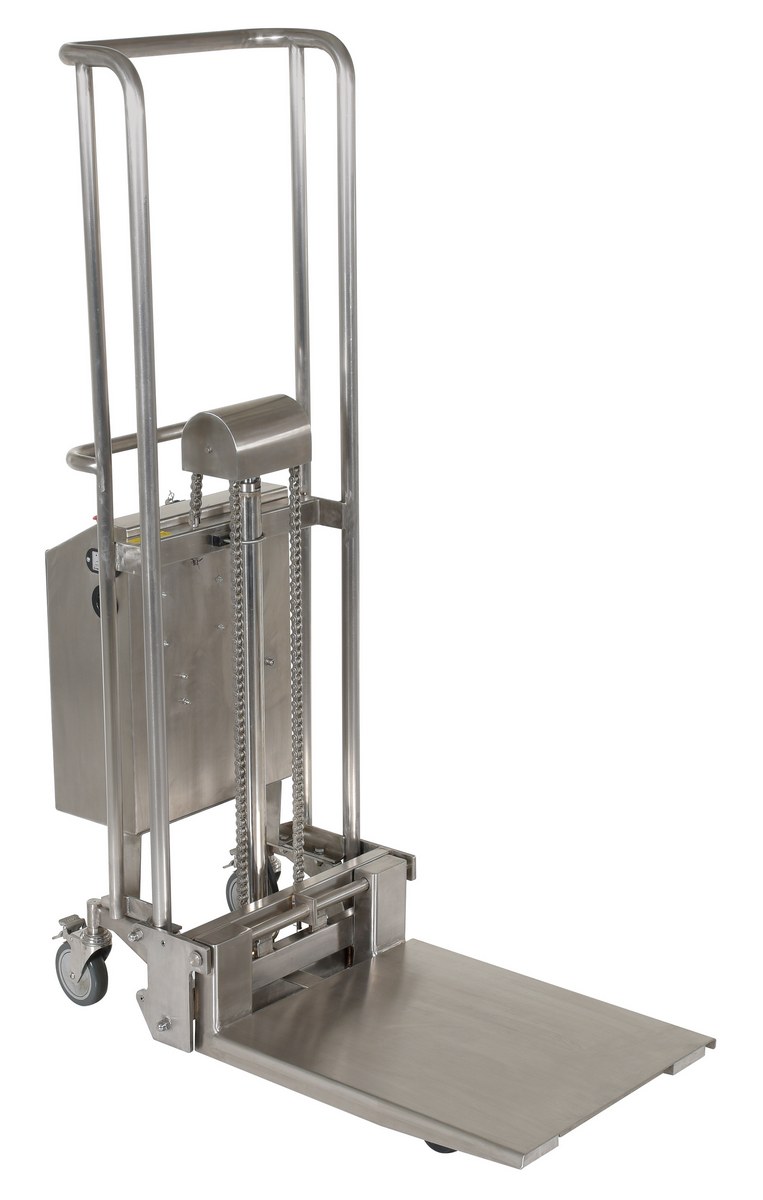

| HYD-10-DC-SS | |  | 90 Days Limited Warranty | Partially Stainless Steel Portable DC Powered Hefti-Lift 44 In. x 68 In. 880 Lb. Capacity Silver | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 22 x 25-3/4 | 292 | |

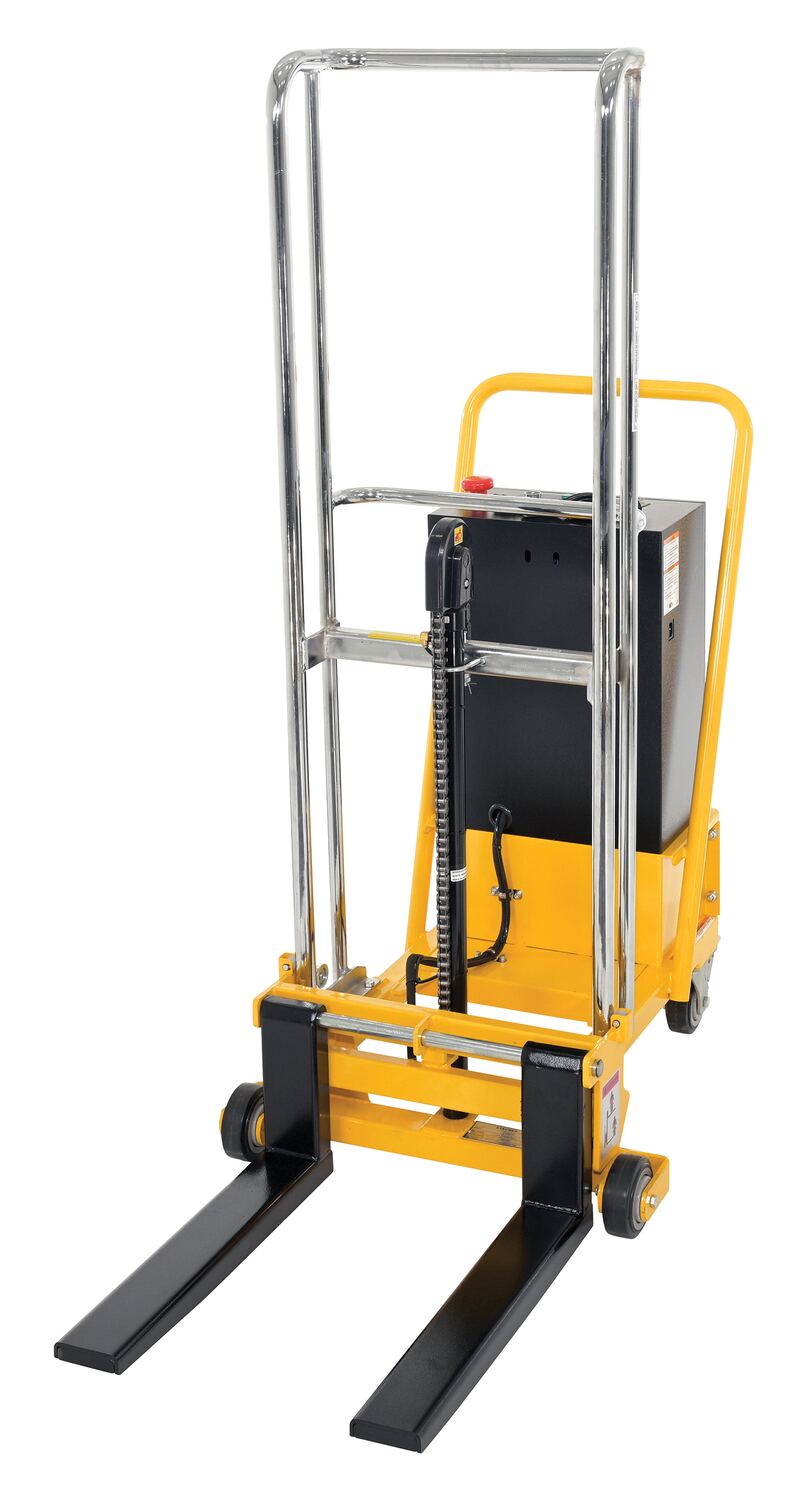

| HYD-CB-10-DC | | 90 Days Limited Warranty | Steel Counter Balanced Hefti-Lift 68 In. x 68-3/4 In. 550 Lb. Capacity Yellow / Black | Uniform Capacity (lb.): 550 Service Range (in.): 2-3/4 to 55-1/2 | 555 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22-1/8 x 25-3/4
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22-1/8 x 25-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22 x 25-3/4
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22 x 25-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Service Range (in.): 2-3/4 to 55-1/2
Uniform Capacity (lb.): 550
Service Range (in.): 2-3/4 to 55-1/2
For More Details of the Option Click the Red Model Button

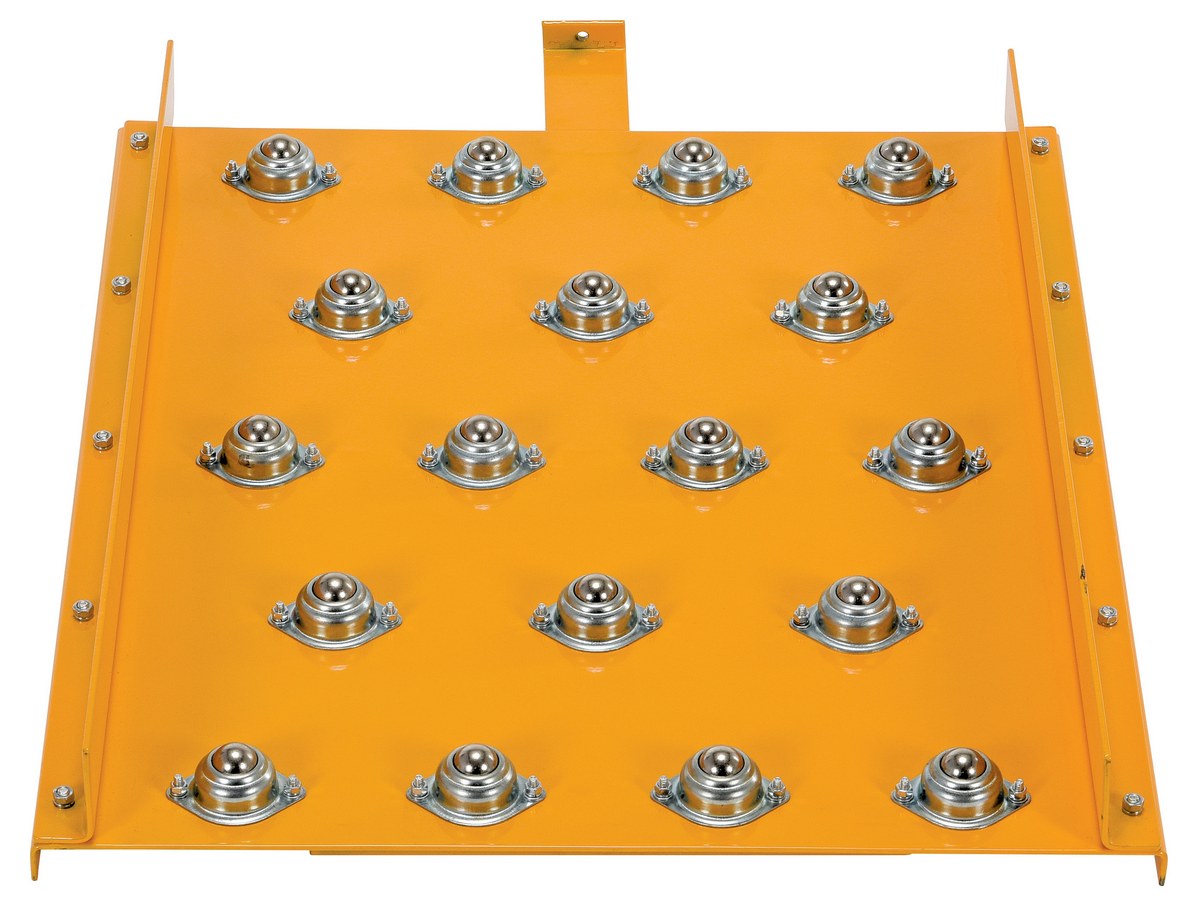

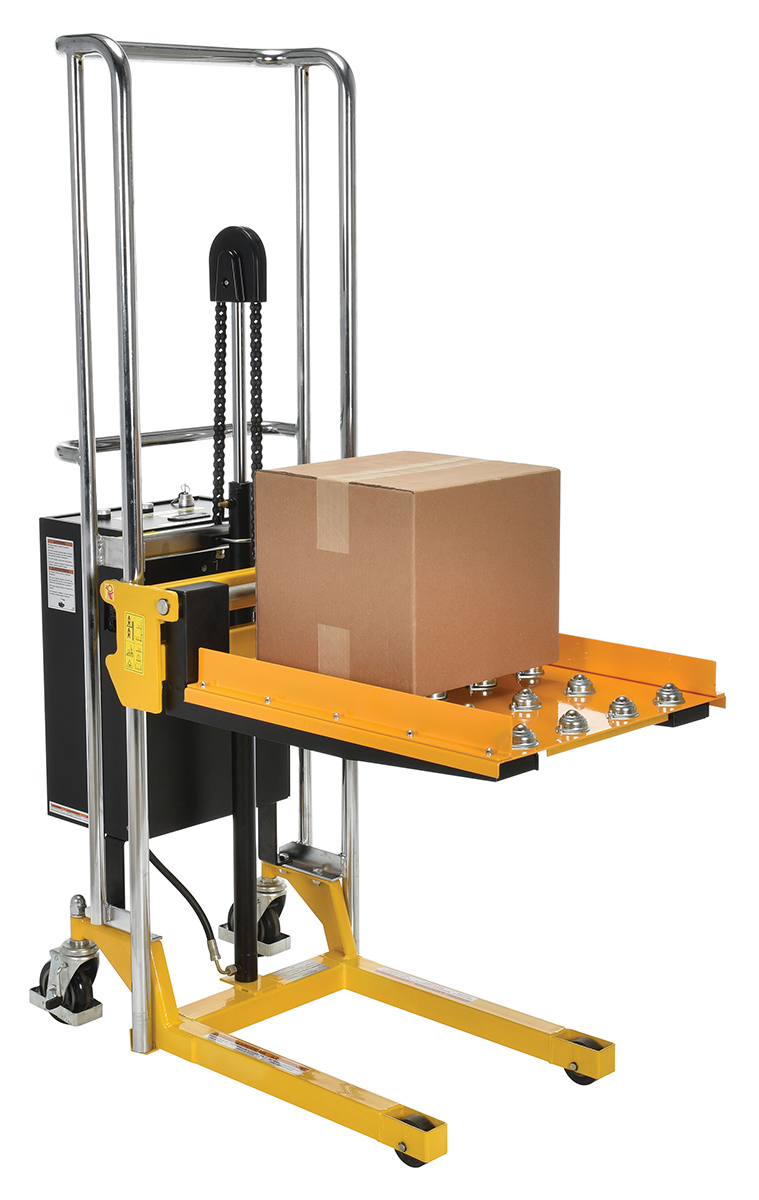

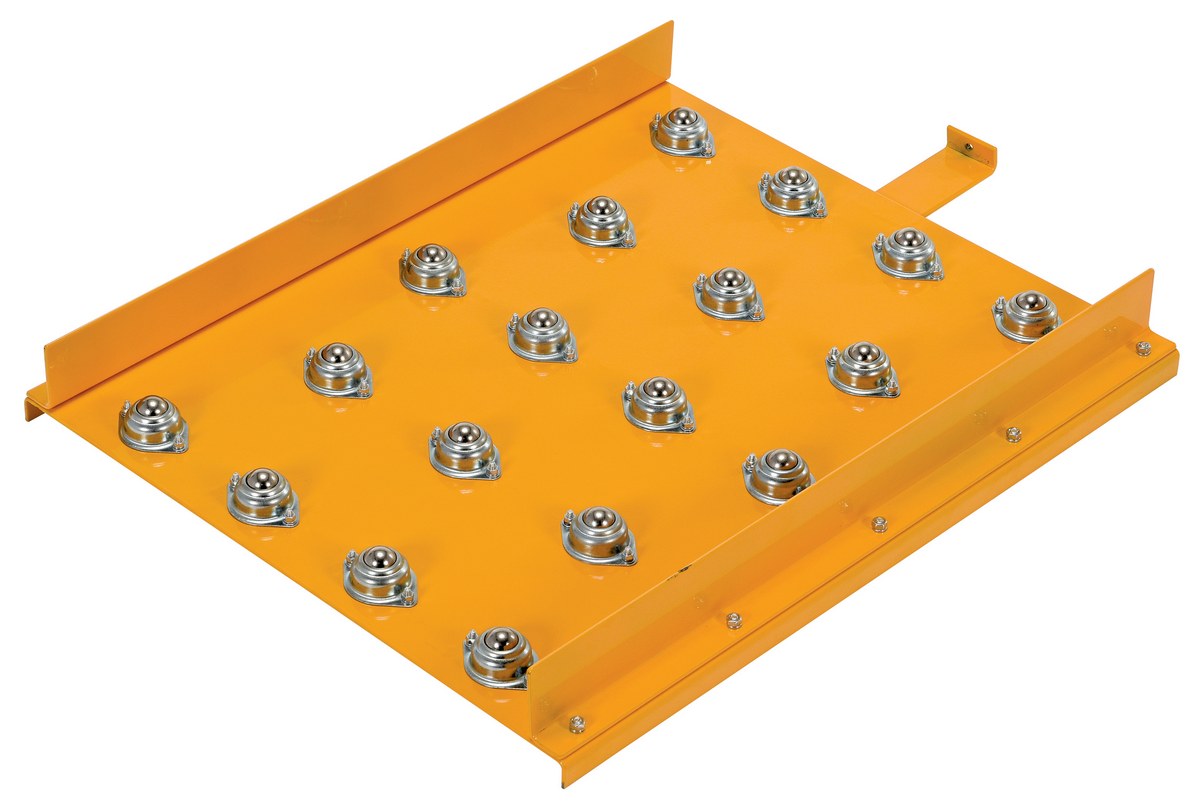

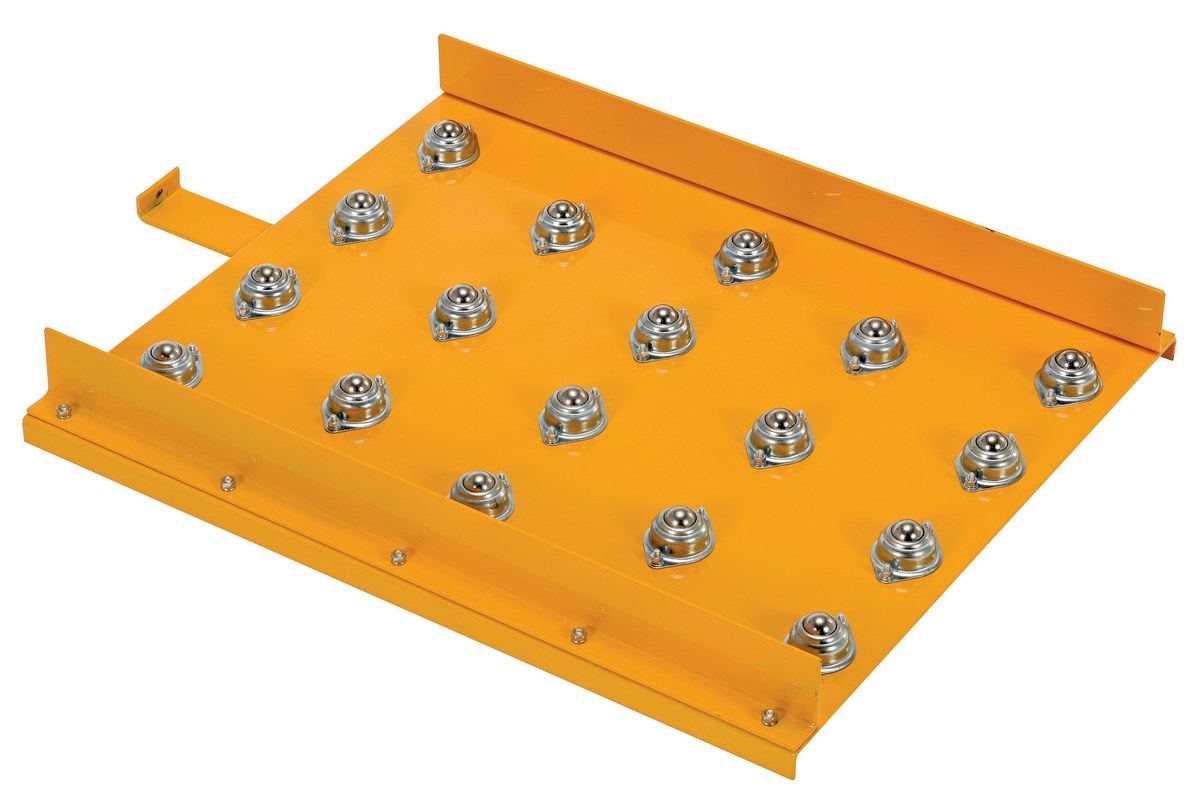

| HYDC-BTP |  | 90 Days Limited Warranty | Steel Ball Transfer Platform 25-3/4 In. x 19-1/4 In. For Hefti-Lift Models Yellow | Usable Width (in.): 19-1/4 Usable Length (in.): 25-3/4 | 34 | |

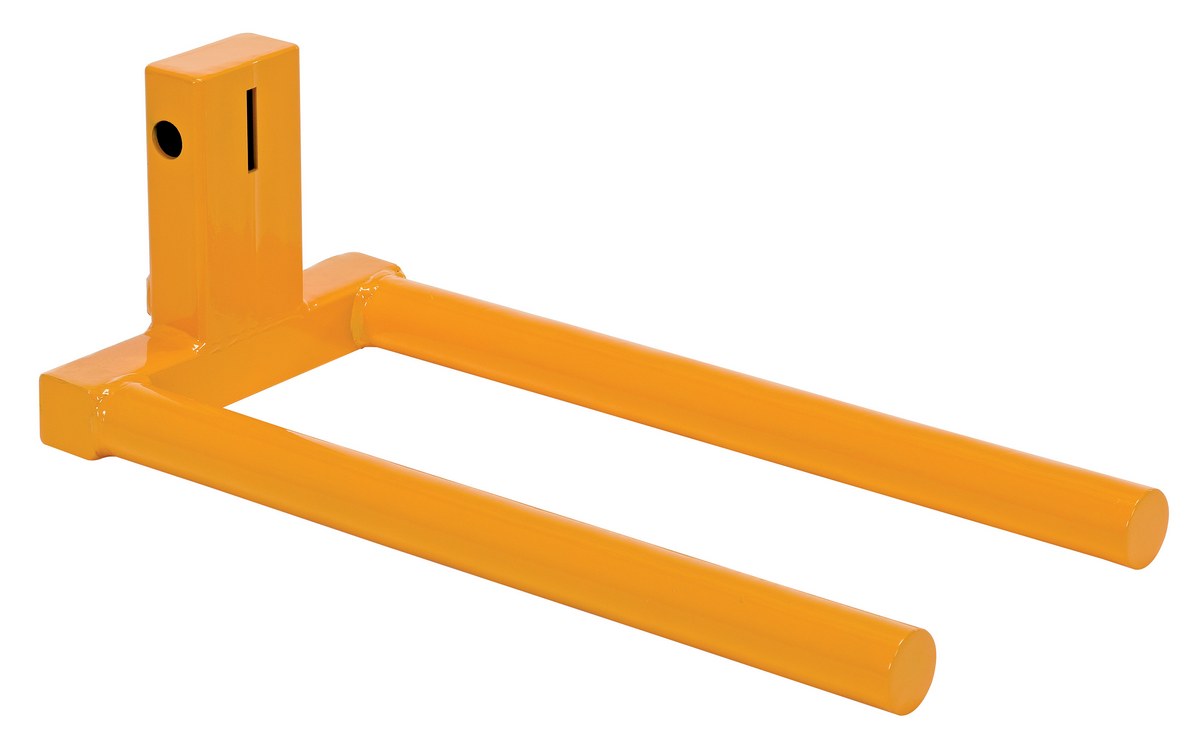

| HYDC-DSPIN |  | 90 Days Limited Warranty | Steel Double Spindle Attachment For Hefti-Lift Models 800 Lb. Capacity Yellow | Attachment Method: Bolt On Spindle Diameter (in.): 2.375 | 18 | |

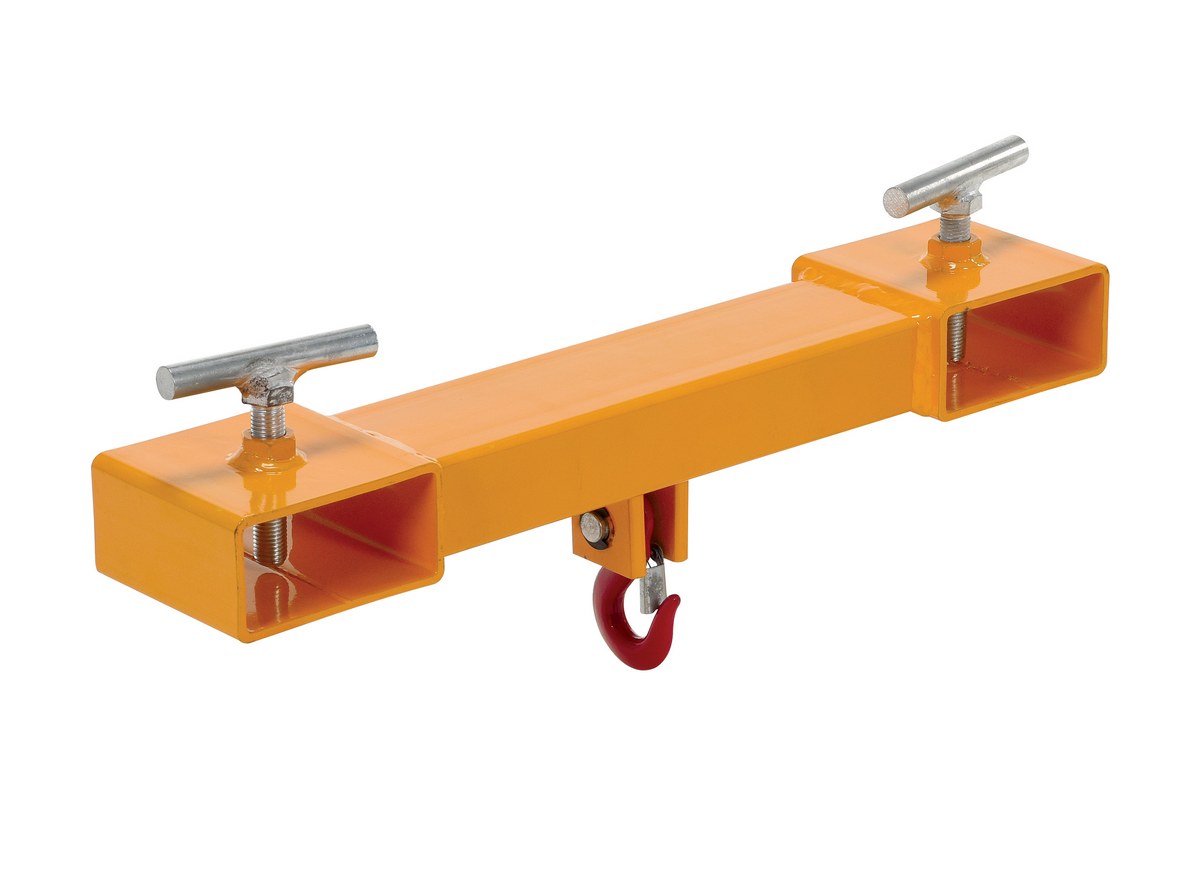

| HYDC-FRKHK |  | 90 Days Limited Warranty | Steel Fork Hook Attachment For Hefti-Lift Models Yellow | Fork Pocket Width (in.): 4-1/4 Fork Pocket Height (in.): 2 | 15 | |

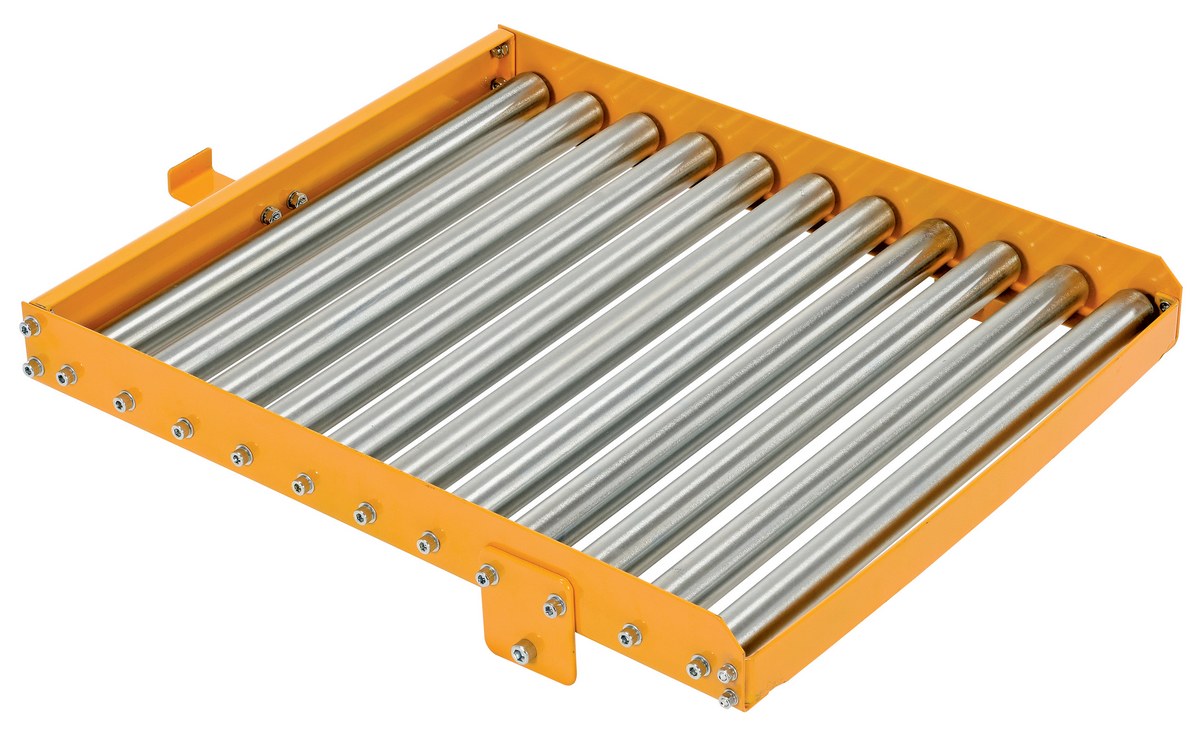

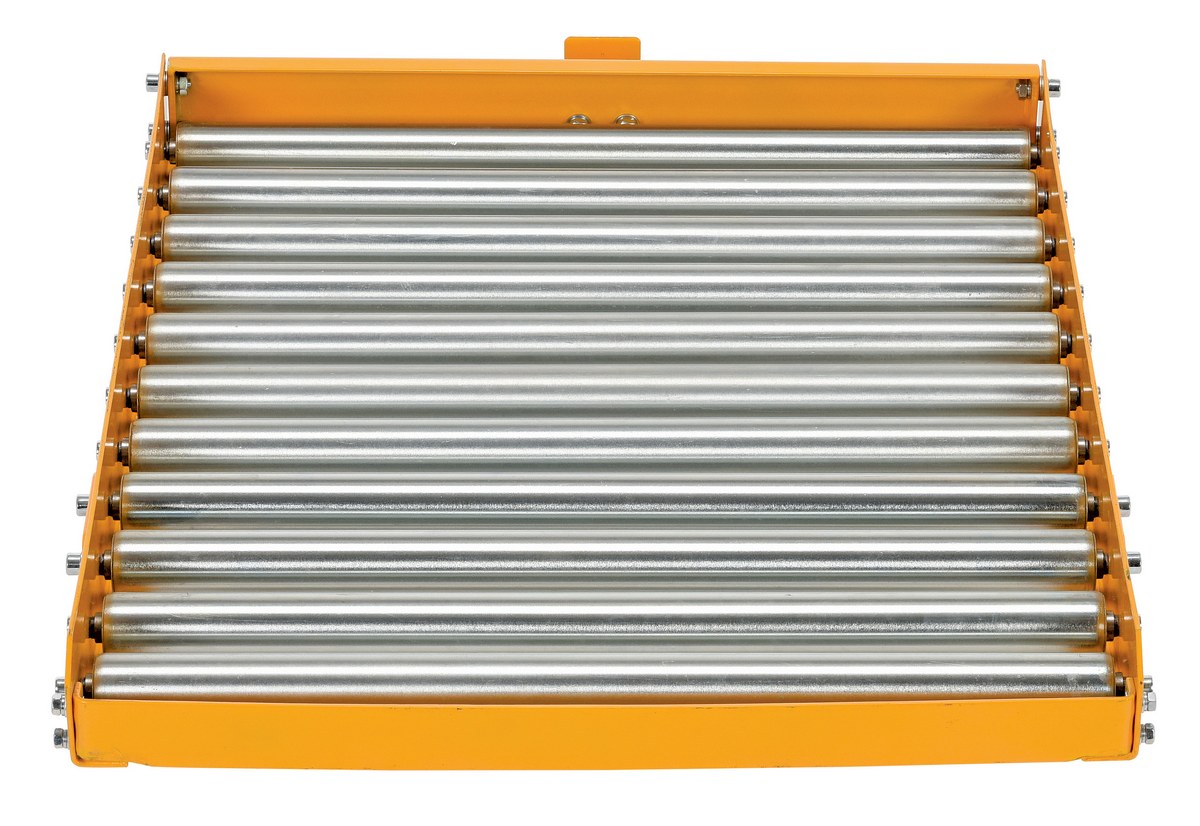

| HYDC-RP |  | 90 Days Limited Warranty | Steel Roller Platform 26 In. x 21-1/2 In. Hefti-Lift Models Yellow | Usable Width (in.): 21-1/2 Usable Length (in.): 26 | 51 | |

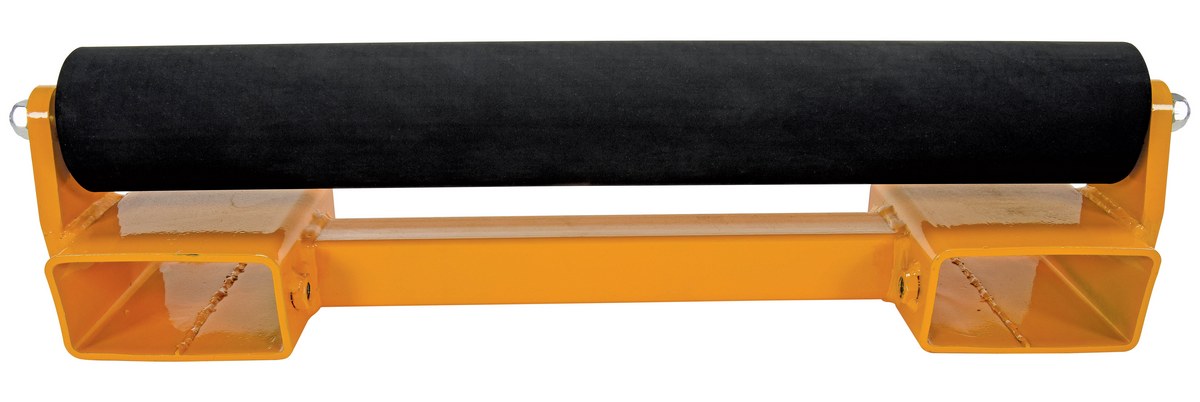

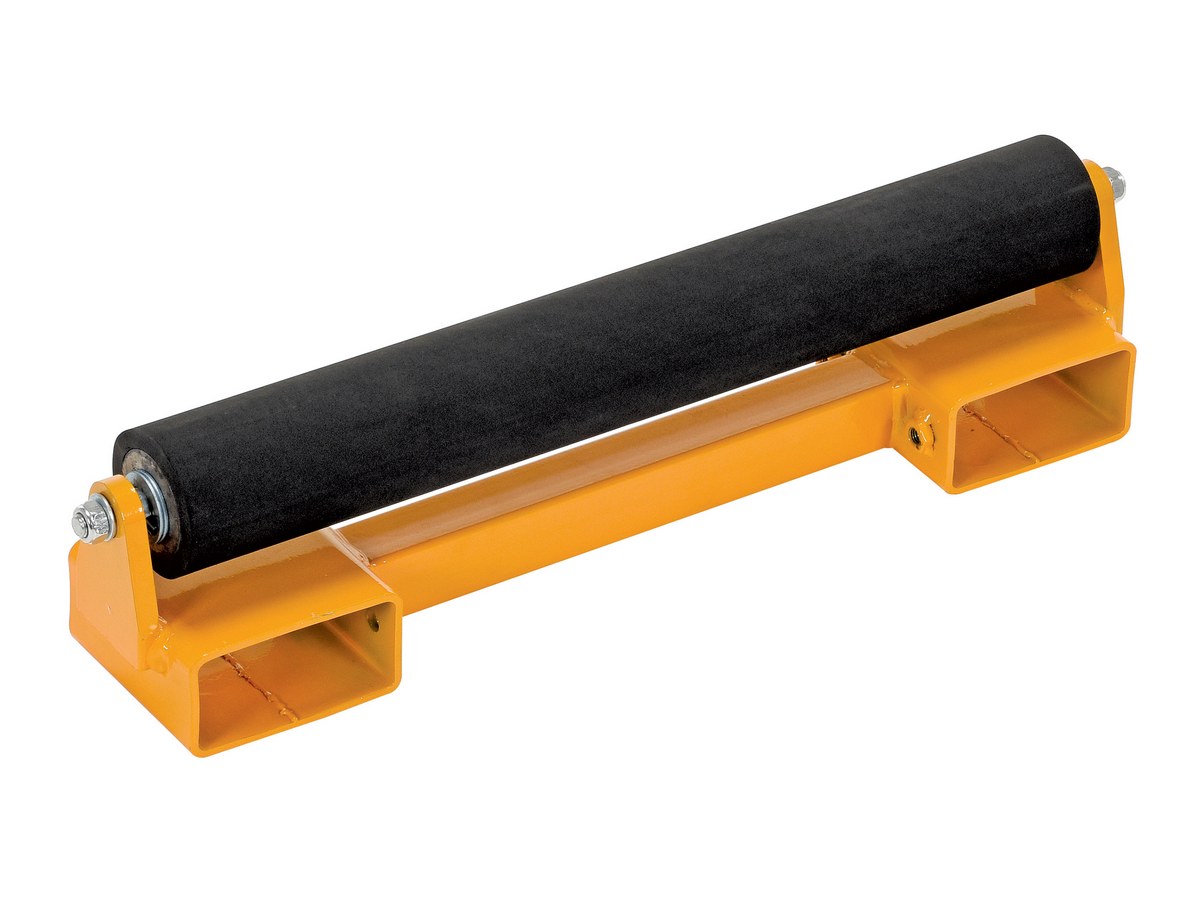

| HYDC-RR |  | 90 Days Limited Warranty | Rubber Roller Attachment For Hefti-Lift Models Yellow | Fork Pocket Width (in.): 4-1/2 Fork Pocket Height (in.): 2 | 22 | |

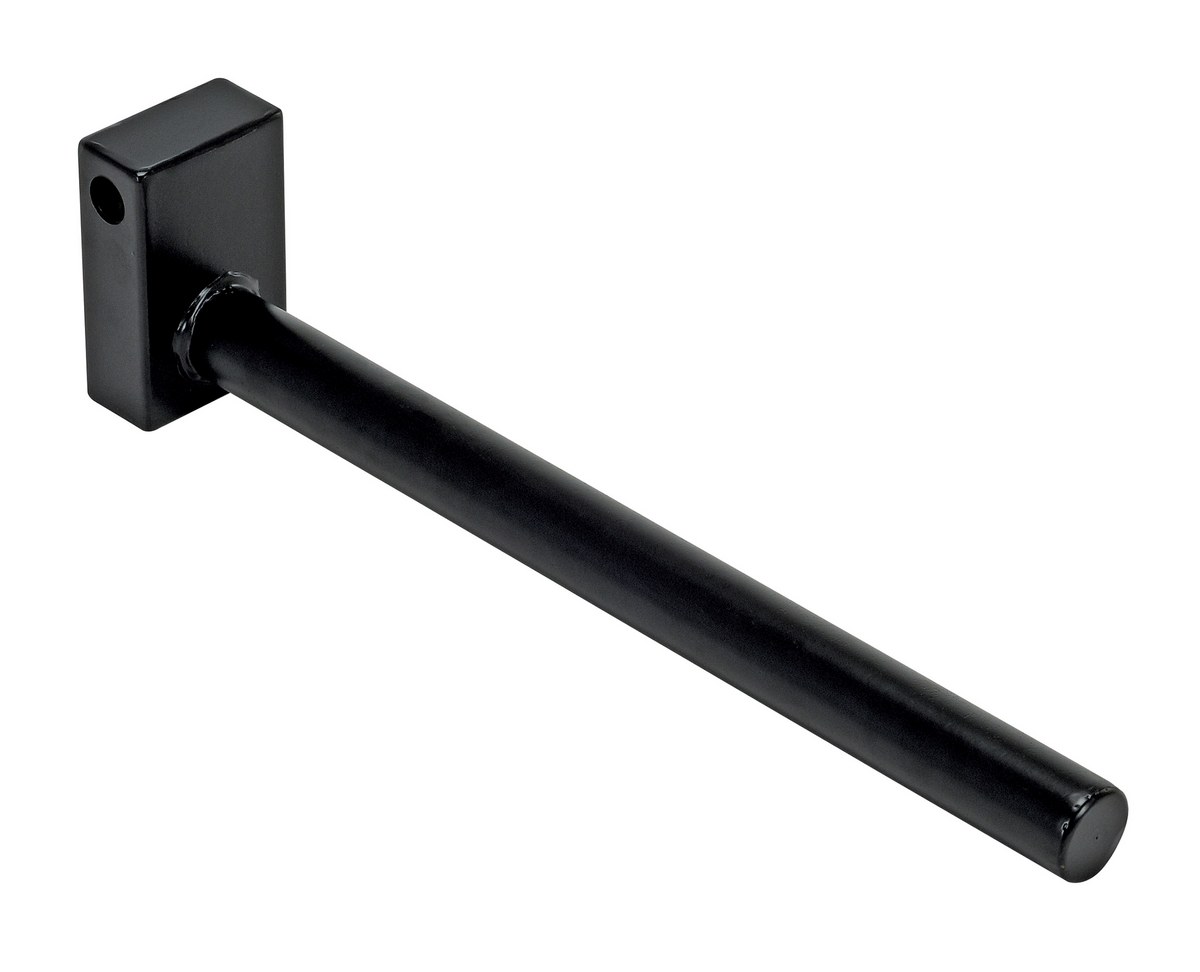

| HYDC-SPIN |  | 90 Days Limited Warranty | Steel Single Spindle Attachment For Hefti-Lift Models Black | Attachment Method: Spindle Diameter (in.): 2 | 10 | |

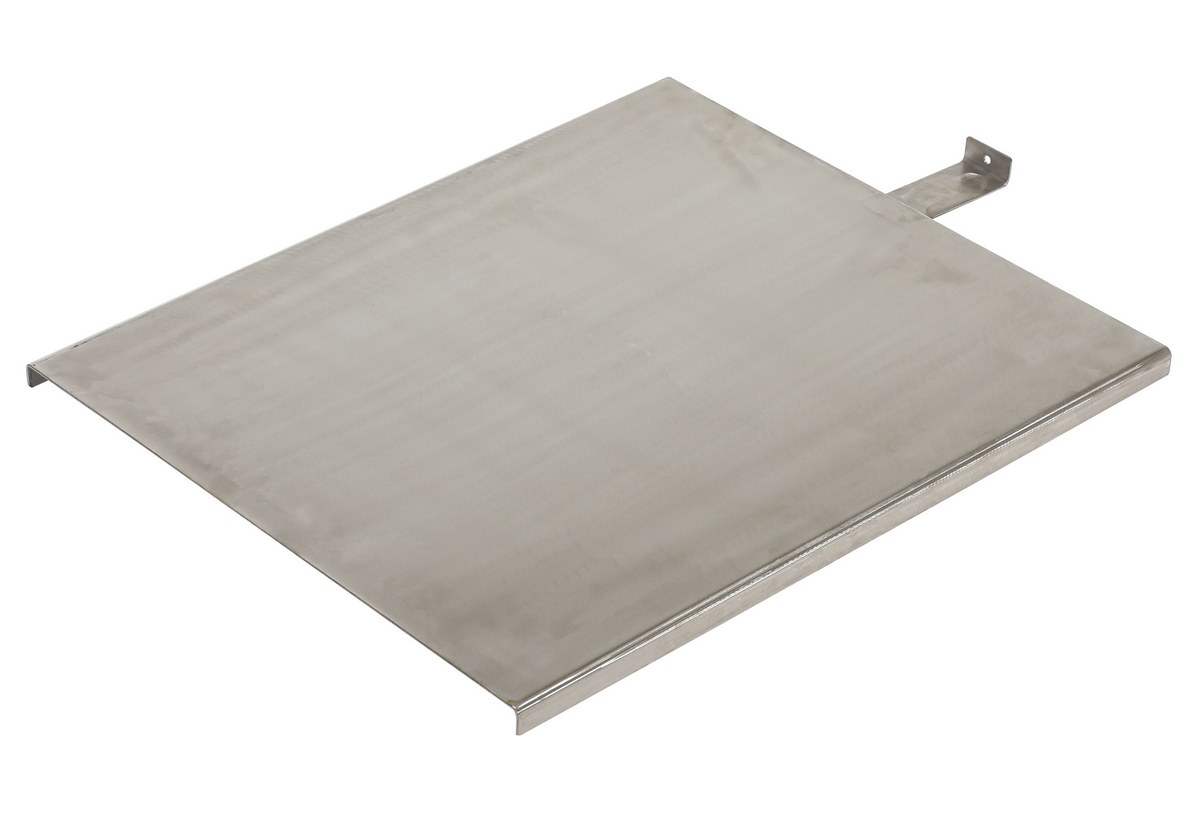

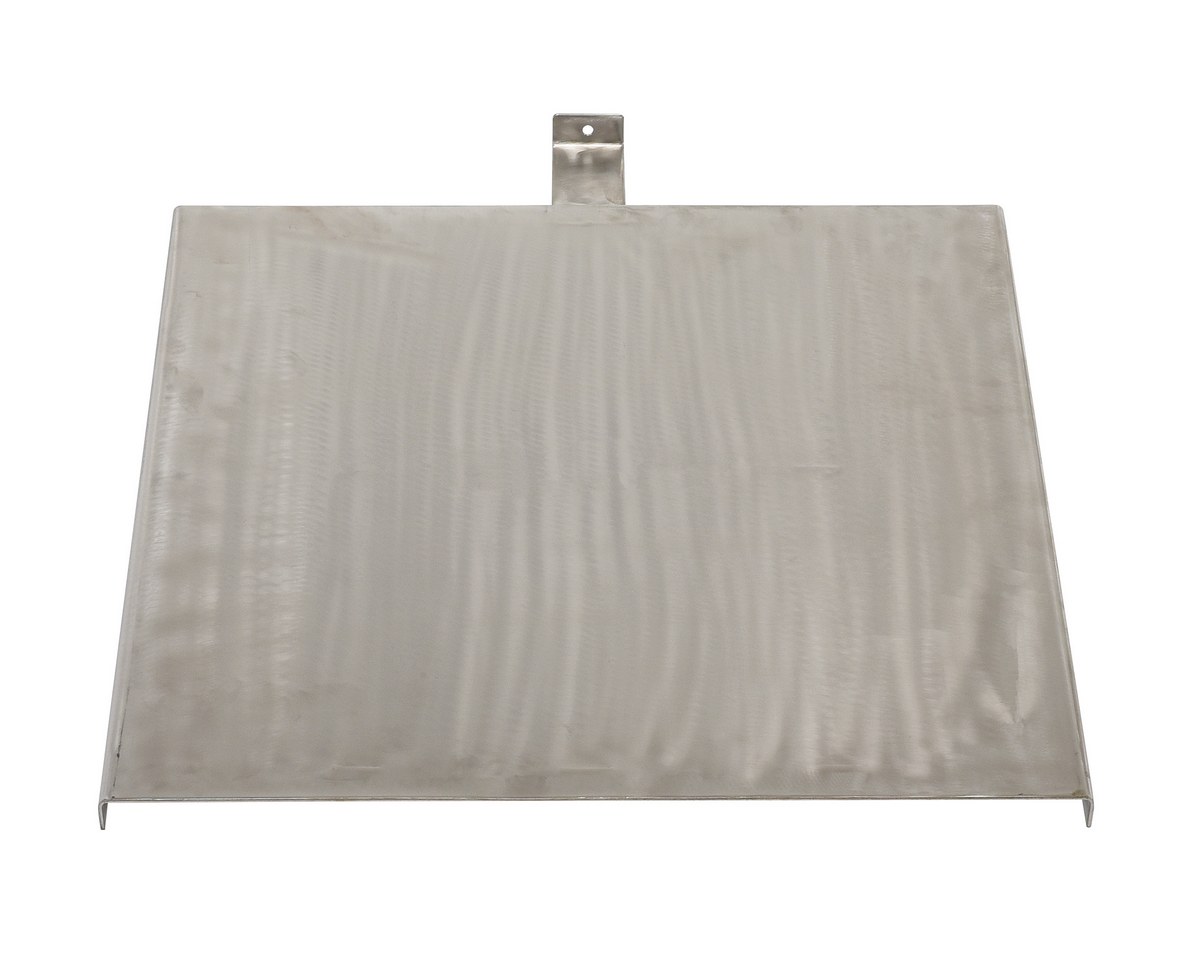

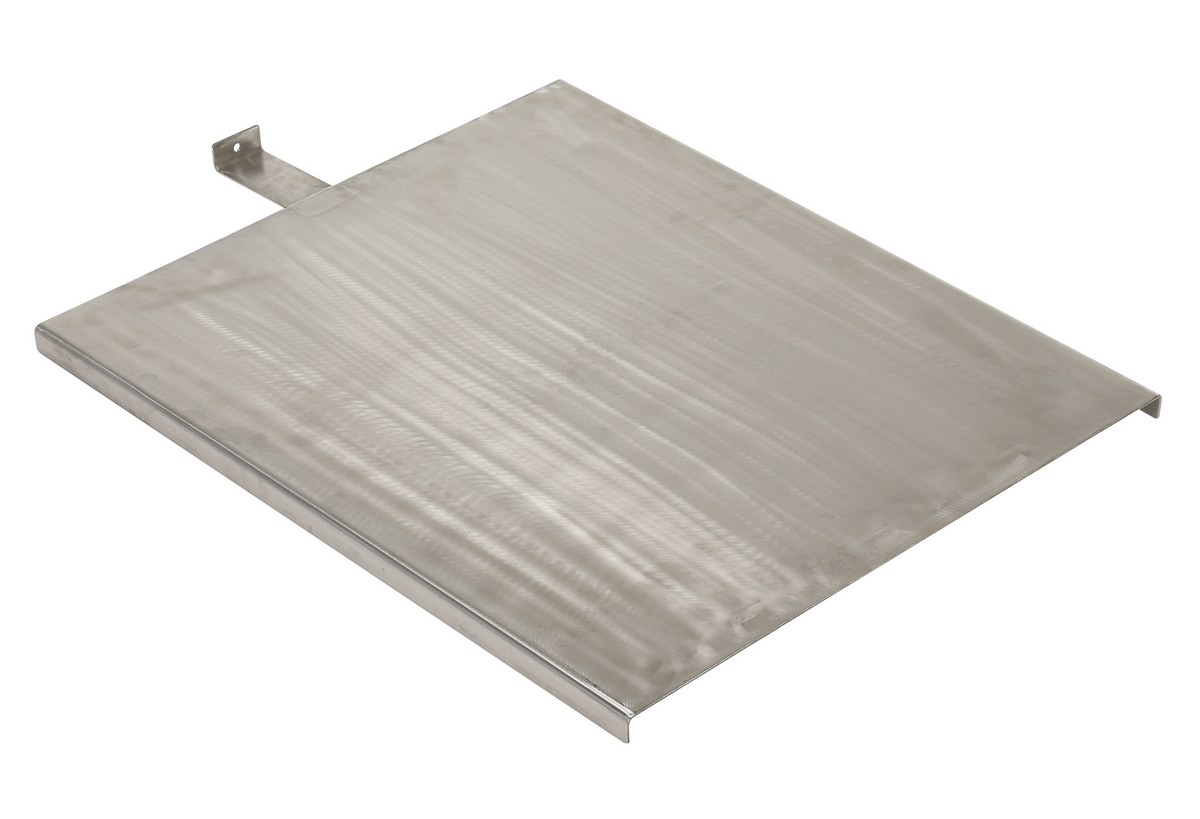

| HYDC-SSP | | 90 Days Limited Warranty | Stainless Steel Platform Attachment 25-3/4 In. x 22 In. For Hefti-Lift Models Silver | Usable Width (in.): 22 Usable Length (in.): 25-3/4 | 22 | |

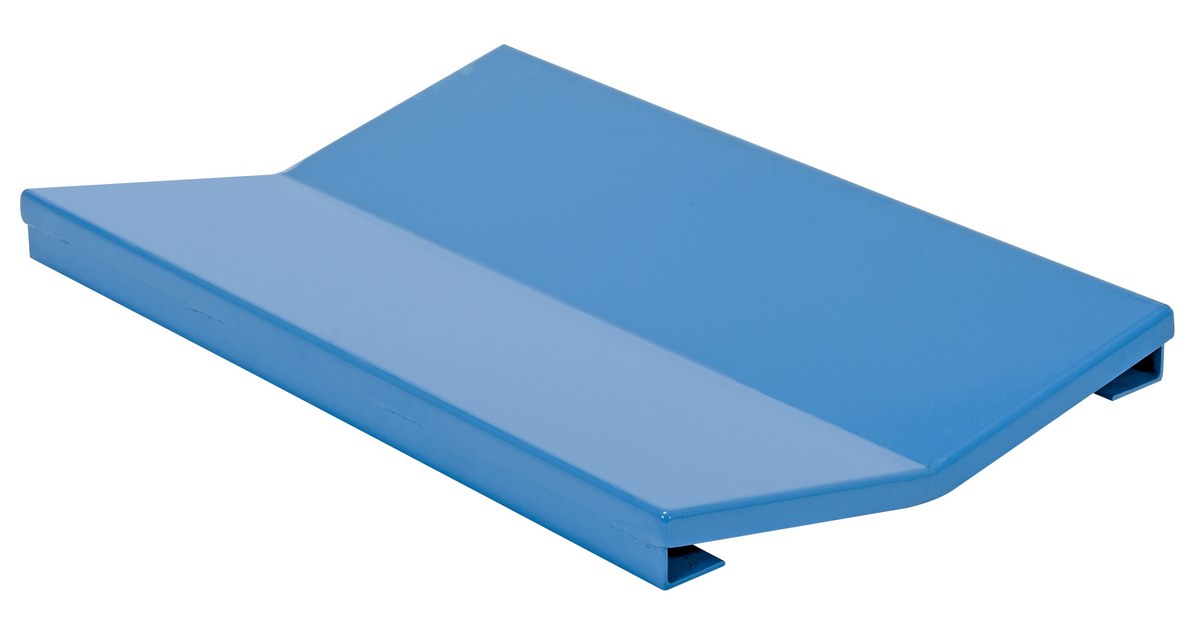

| HYDC-VBLK |  | 90 Days Limited Warranty | Steel V-Block Conveyor Attachment For Hefti-Lift Models Blue | Attachment Method: | 27 | |

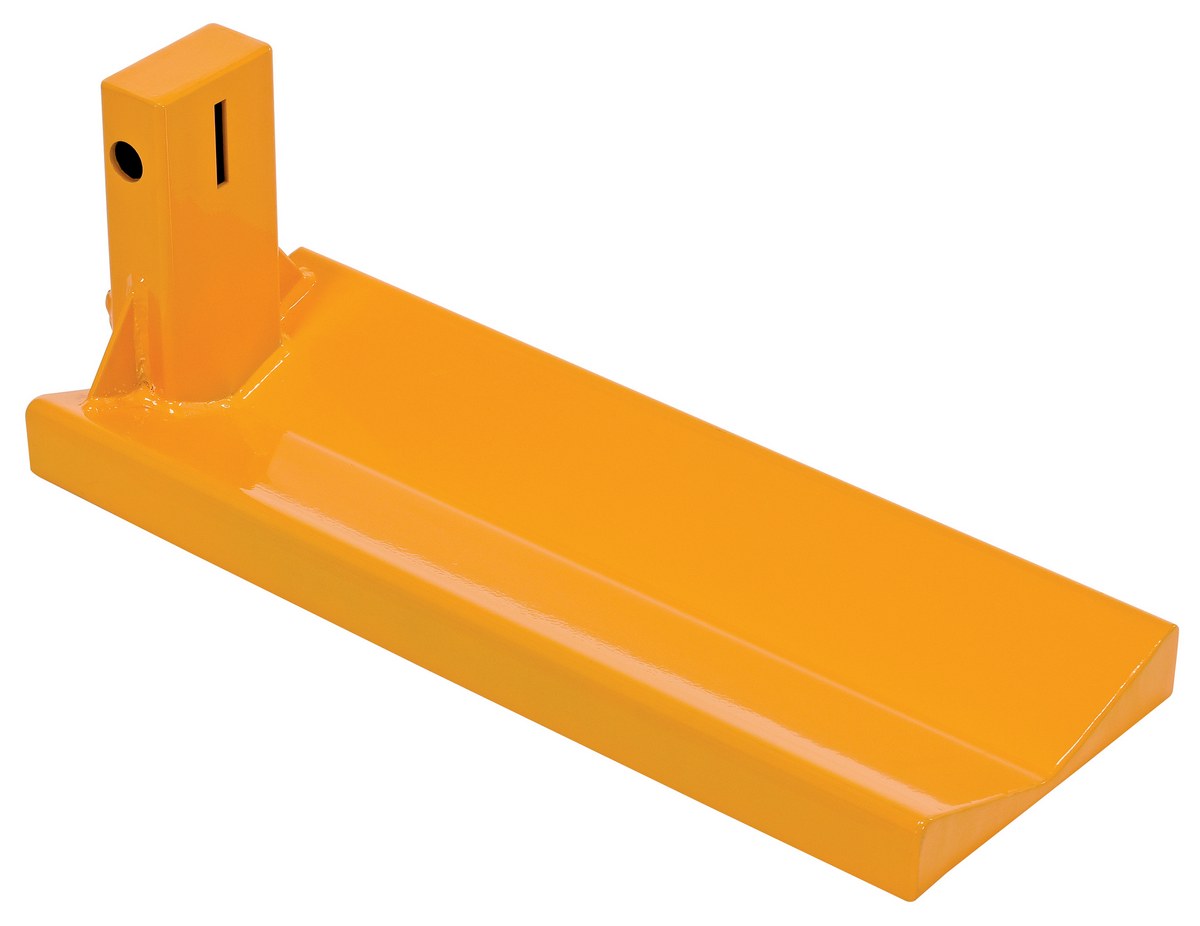

| HYDC-VFRK | | 90 Days Limited Warranty | Steel V Fork Attachment For Hefti-Lift Models Yellow | Attachment Method: | 28 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HYD-10-DC
Hydraulic Oil SDS Sheet for: HYD-10-DC
Hydraulic Oil SDS Sheet for: HYD-10-DC-SS
Valve-Regulated Lead Acid Batteries SDS Sheet for: HYD-CB-10-DC
Hydraulic Oil SDS Sheet for: HYD-CB-10-DC
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the capacity of the HYDC-SPIN?
A: The HYDC-SPIN capacity is 400 lbs.

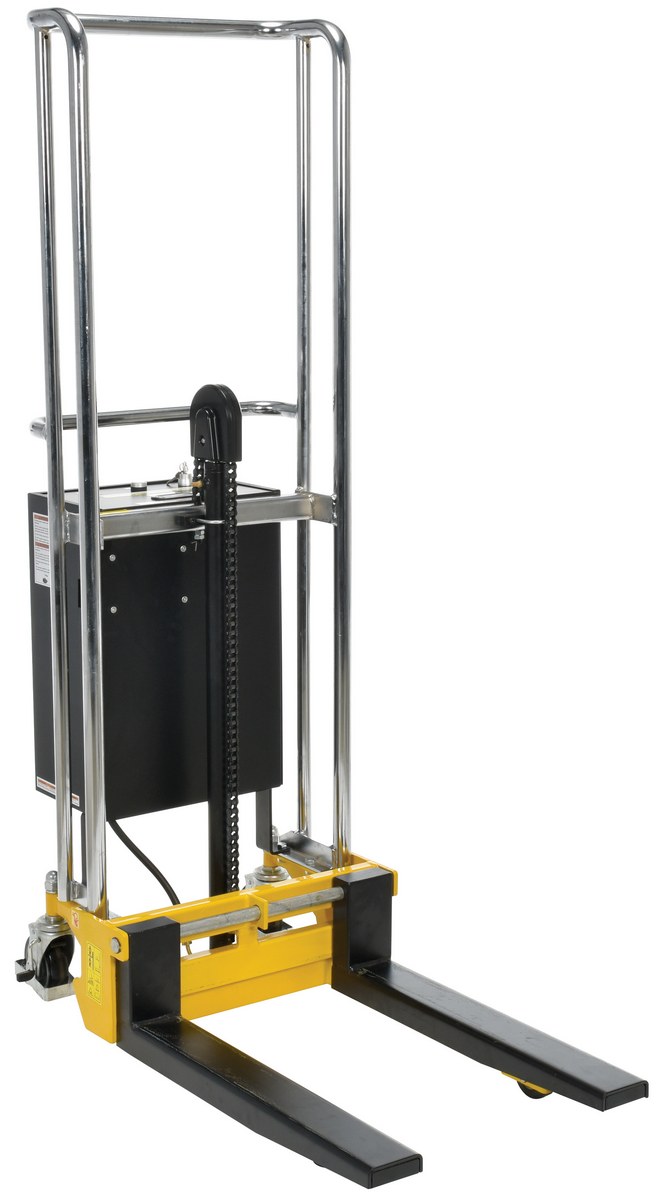

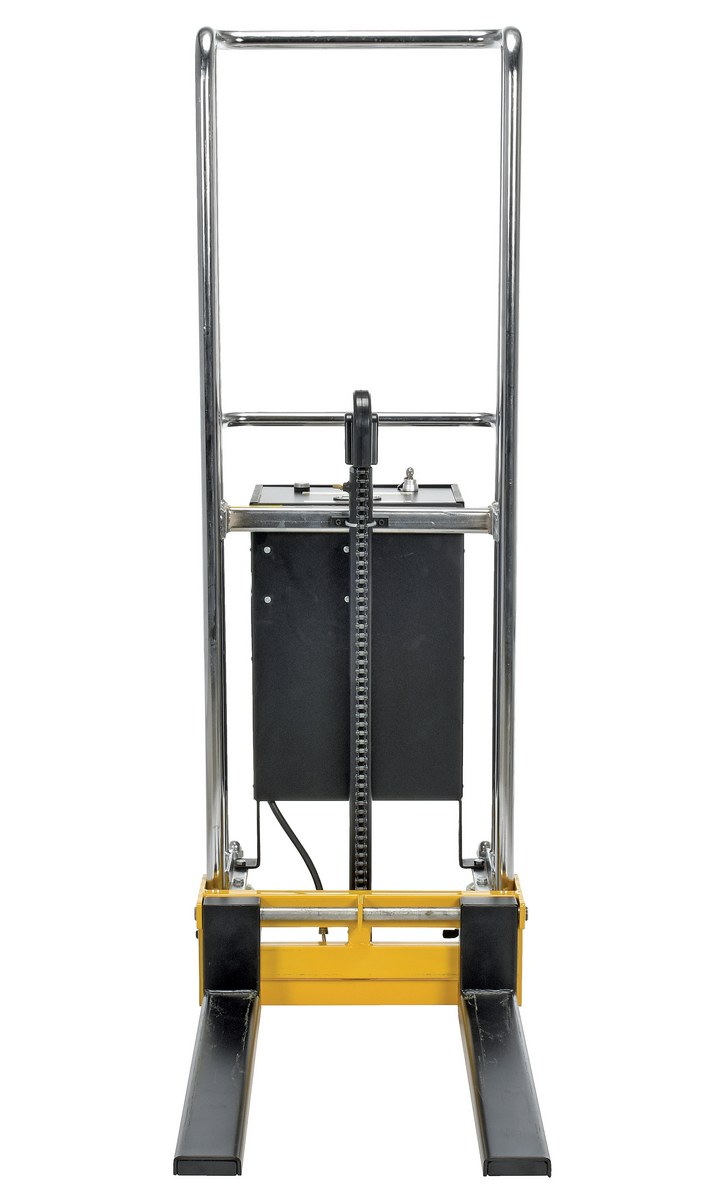

Q: Are the forks adjustable on the HYD-10-DC?
A: Yes, when the forks are extended, overall fork width is 21-5/8", and when forks are retracted the overall fork width is 9".
Q: What is the capacity of the HYDC-FRKHK?
A: The HYDC-FRKHK has a 600 lb. capacity.
Q: What is the turning radius of HYD-CB-10-DC?
A: The turning radius of HYD-CB-10-DC is 34-1/4"
 |
||||||||||||||||||||||
