Hydra Carts

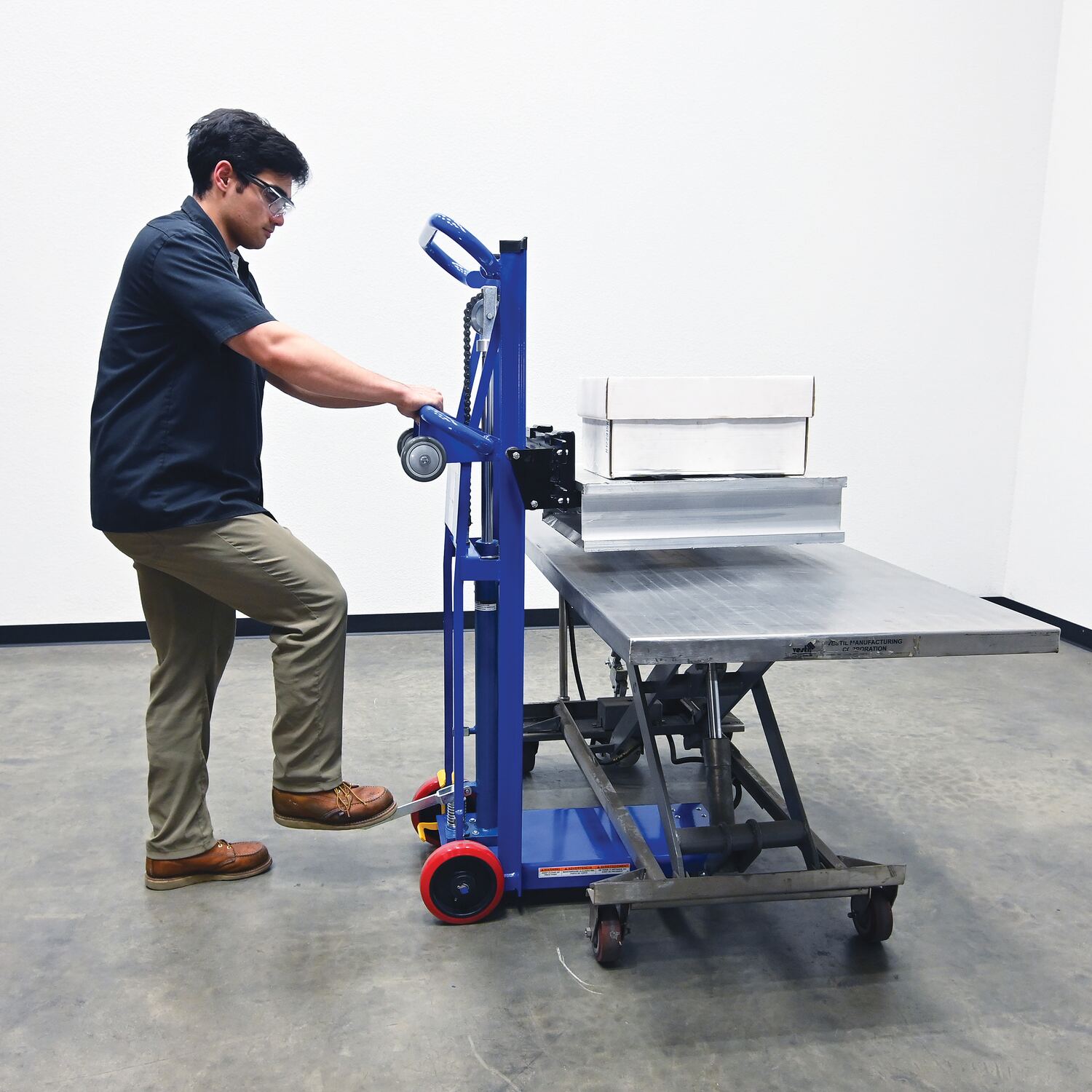

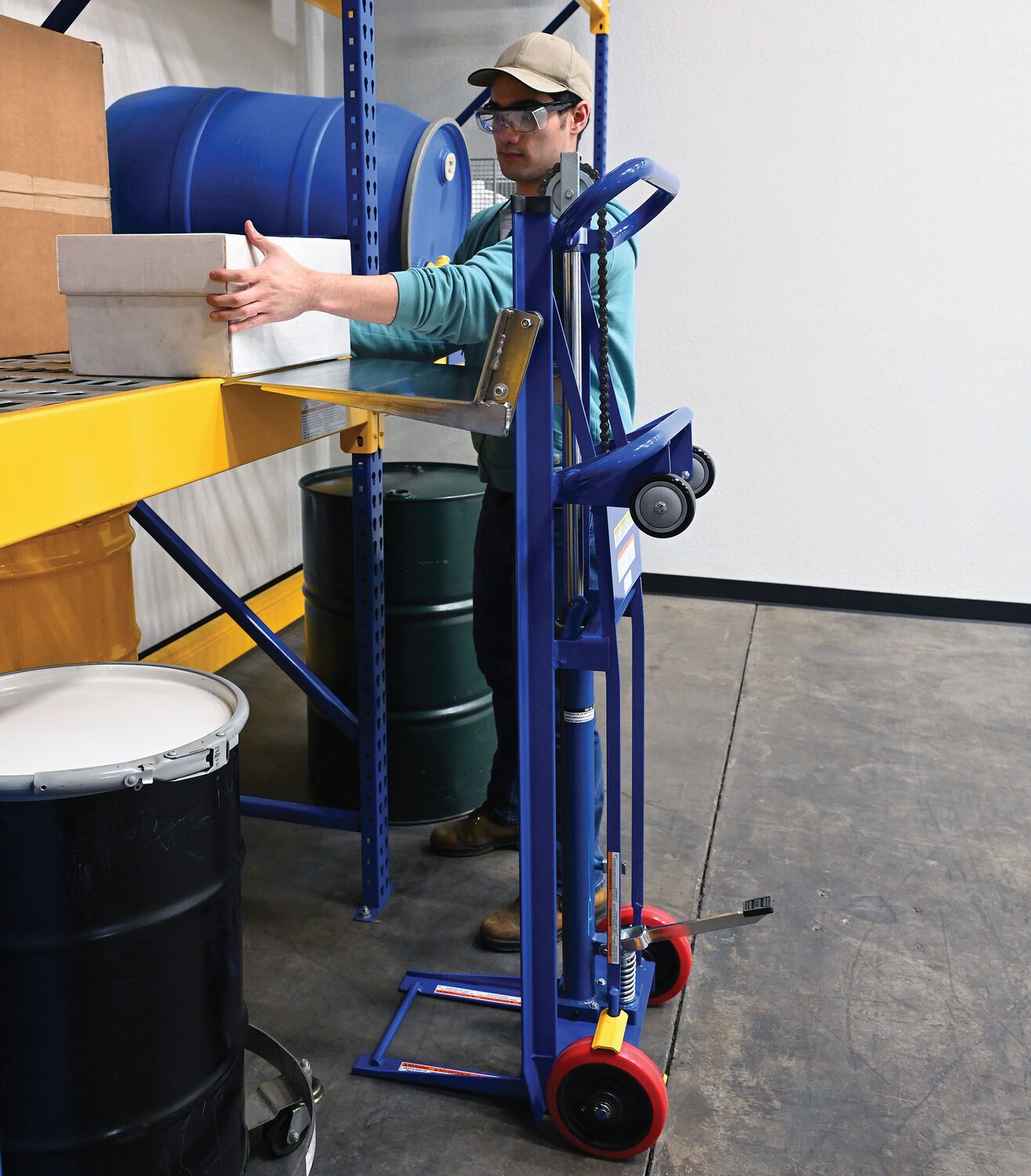

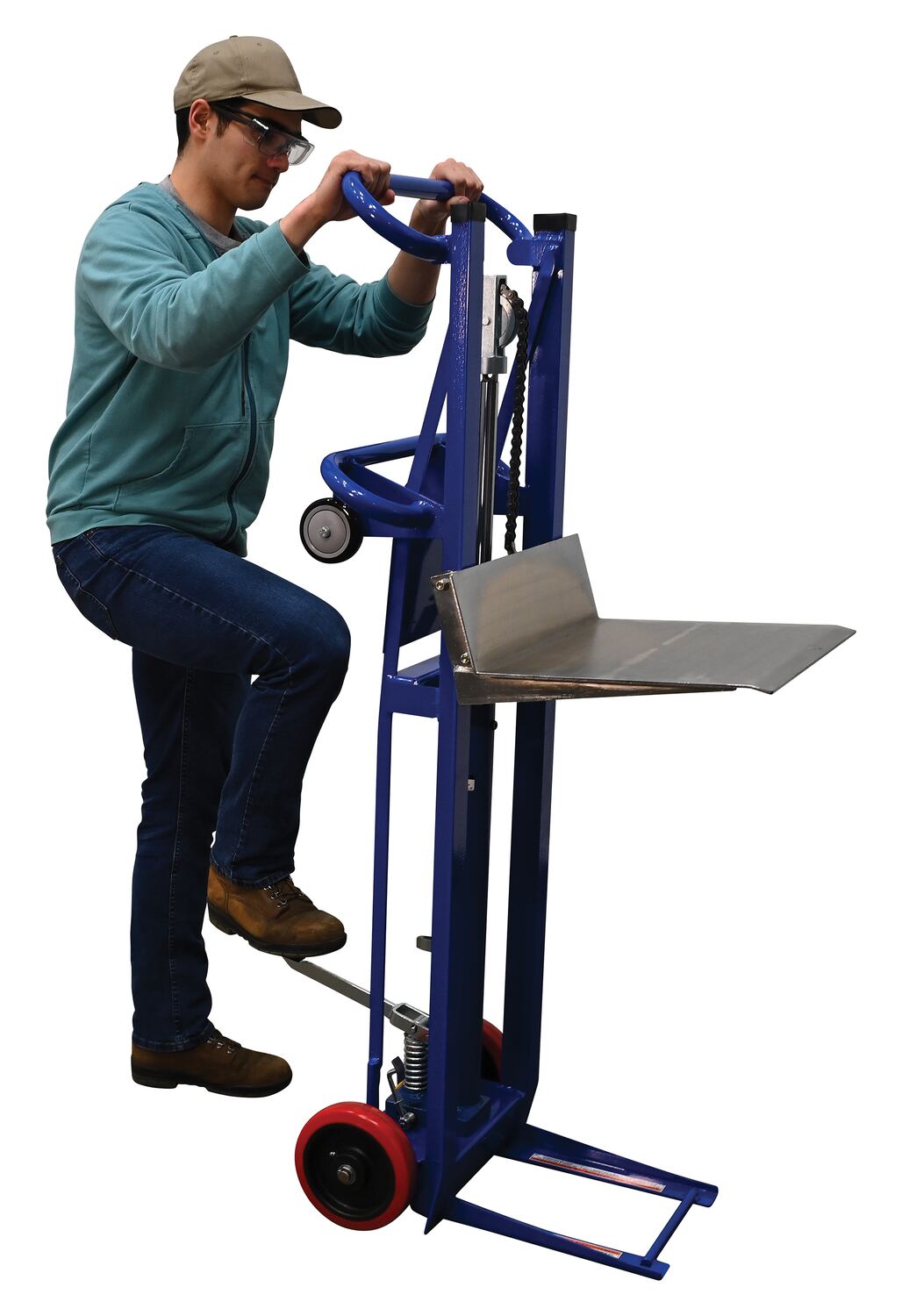

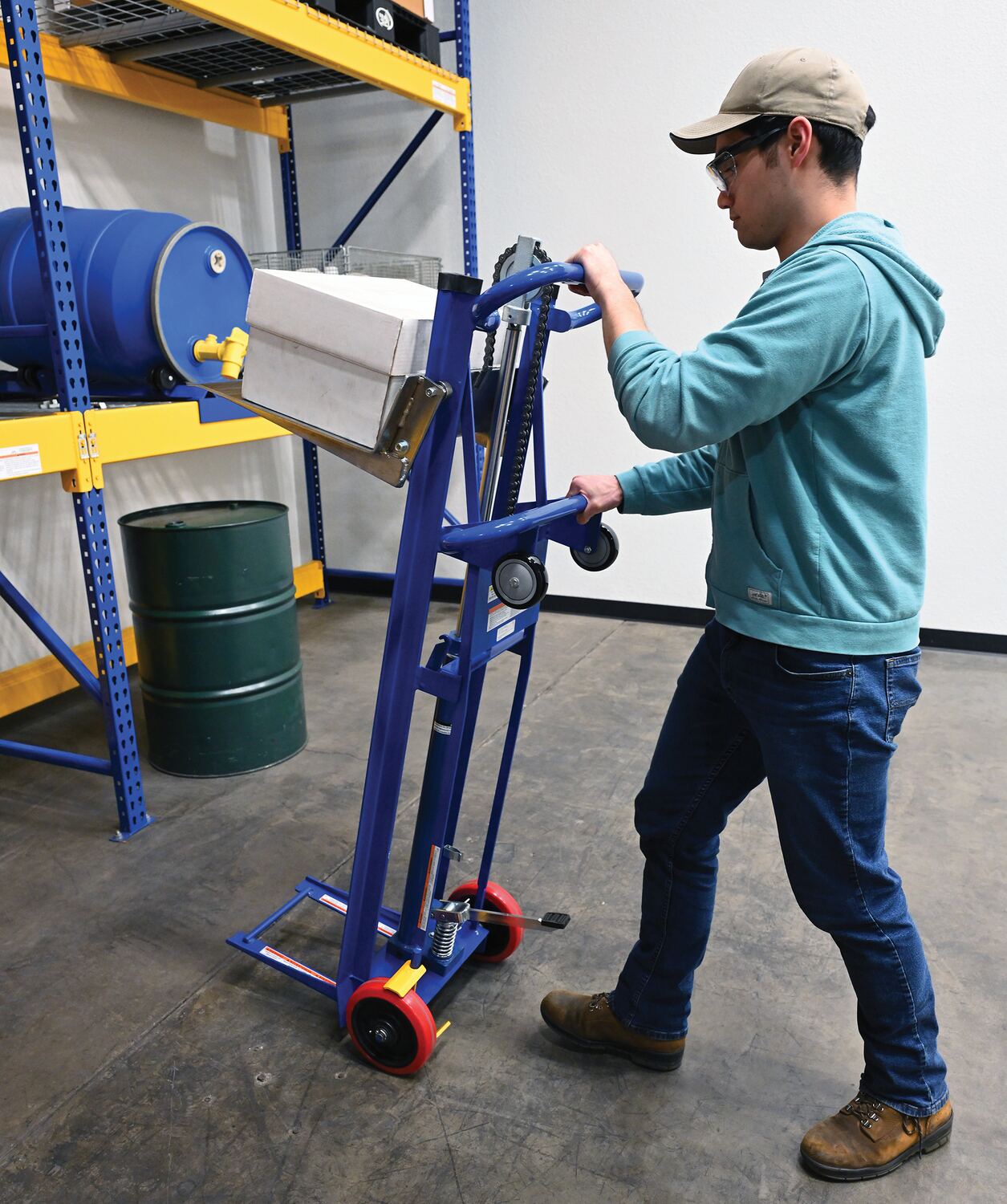

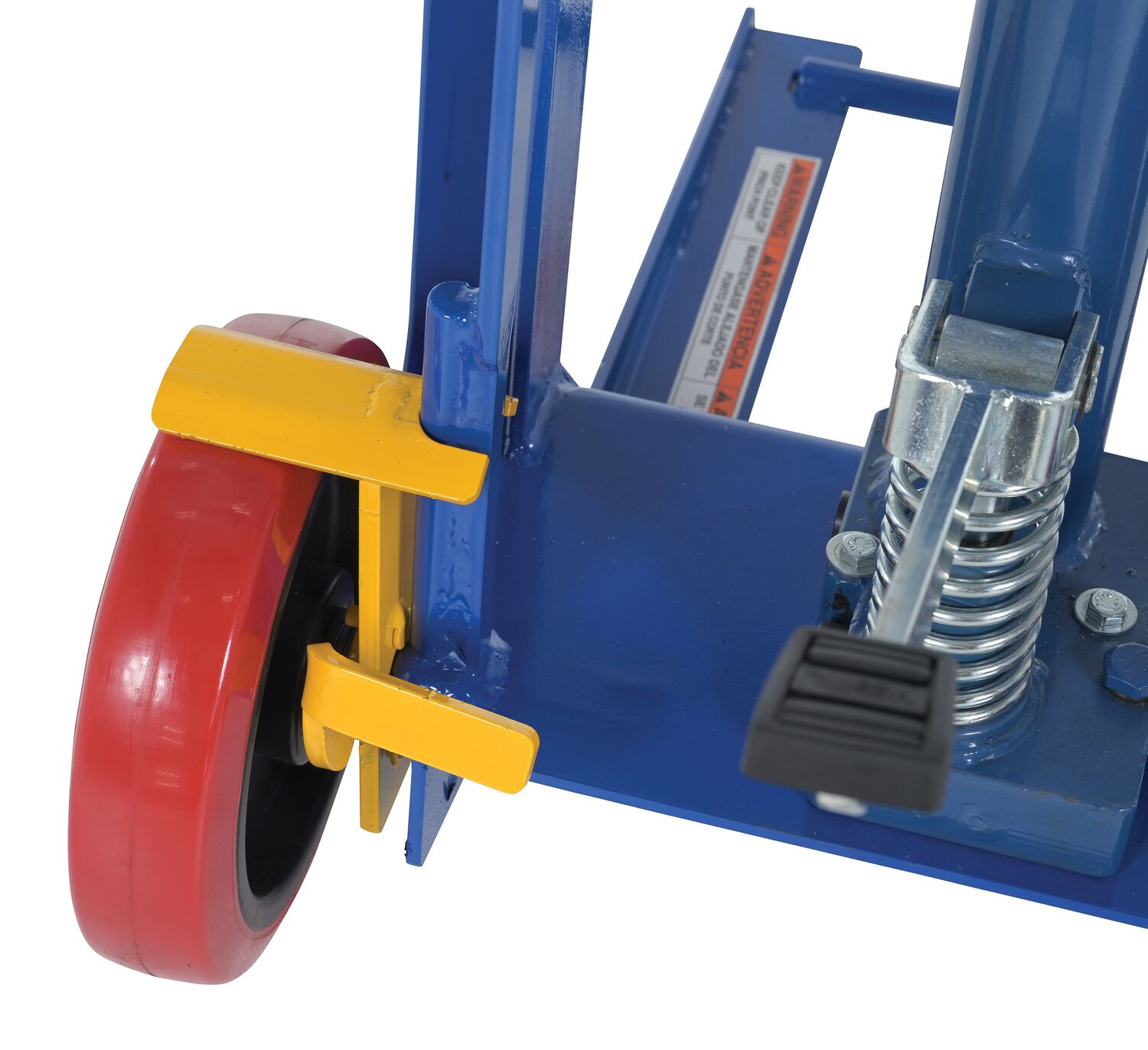

Transport loads in the lowered position and maneuver work materials to an ergonomic height. Ideal in compact work areas. Safe and easy one person handling of loads up to 1,000 lbs. An efficient way to unload heavy objects from semi trailers. Rugged steel construction for years of service. Dependable precision built hydraulic system is activated by easy action foot lever. Additional rollers on the handle make loading into a delivery truck easy. Steel construction. Approximately 1" of lift per pump. Models HYDRA-2 & HYDRA-4 come standard with a single wheel brake. HYDRA-HD has (2) two swivel casters with brakes. Baked-in powder coat finish for toughness.
- Ideal in compact work areas and for many years of service
- Efficient way to unload heavy objects for one person handling

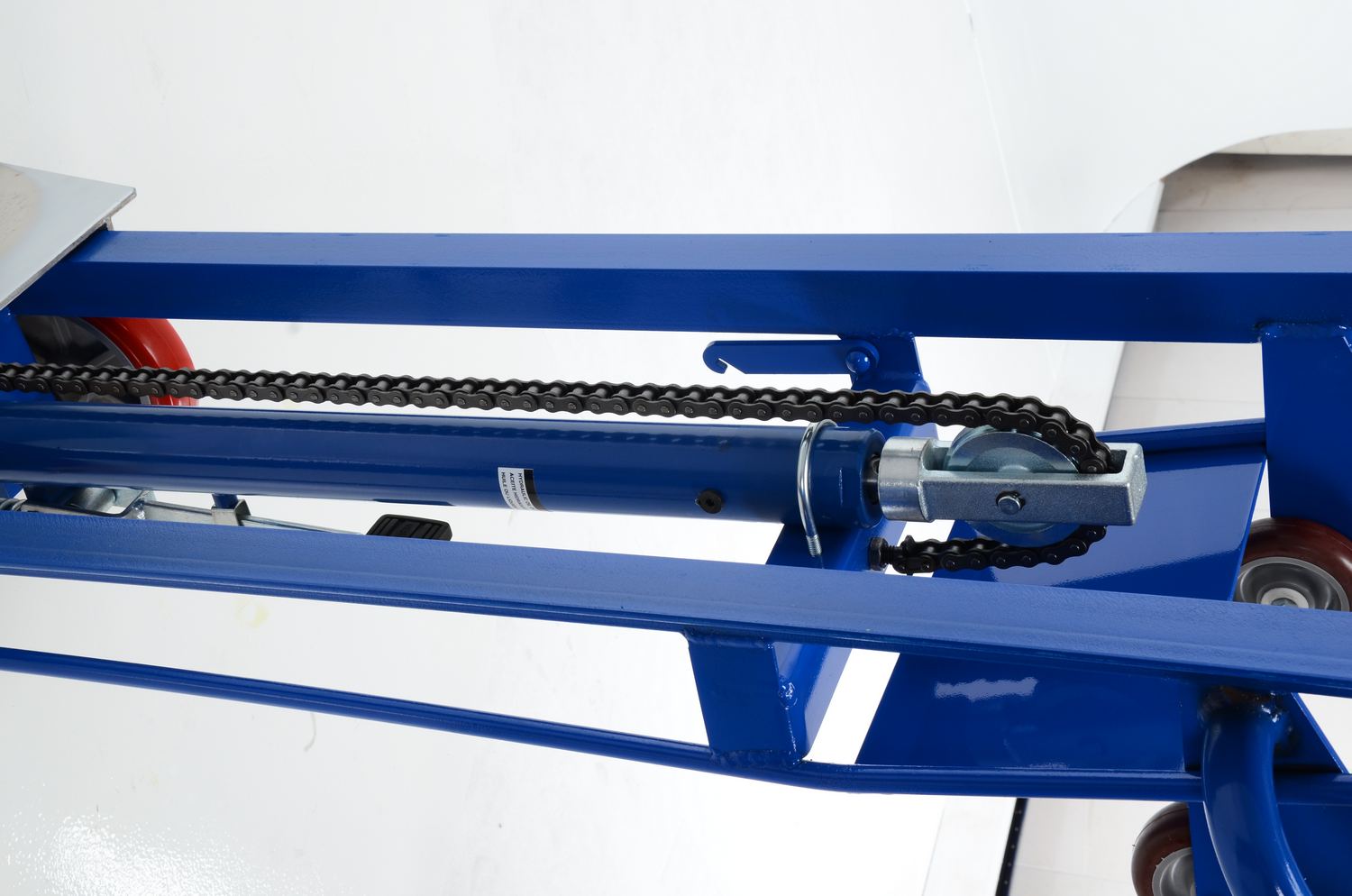

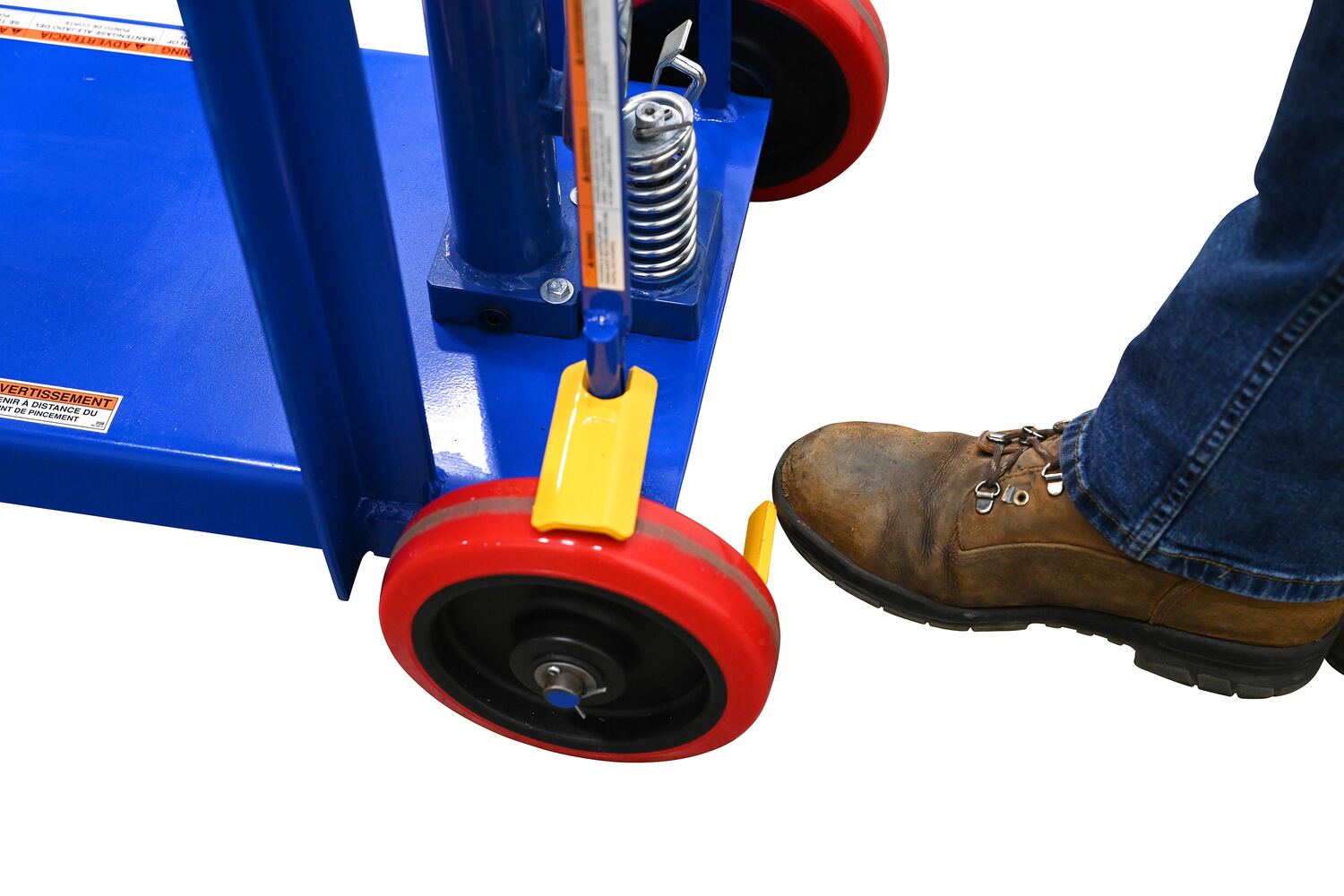

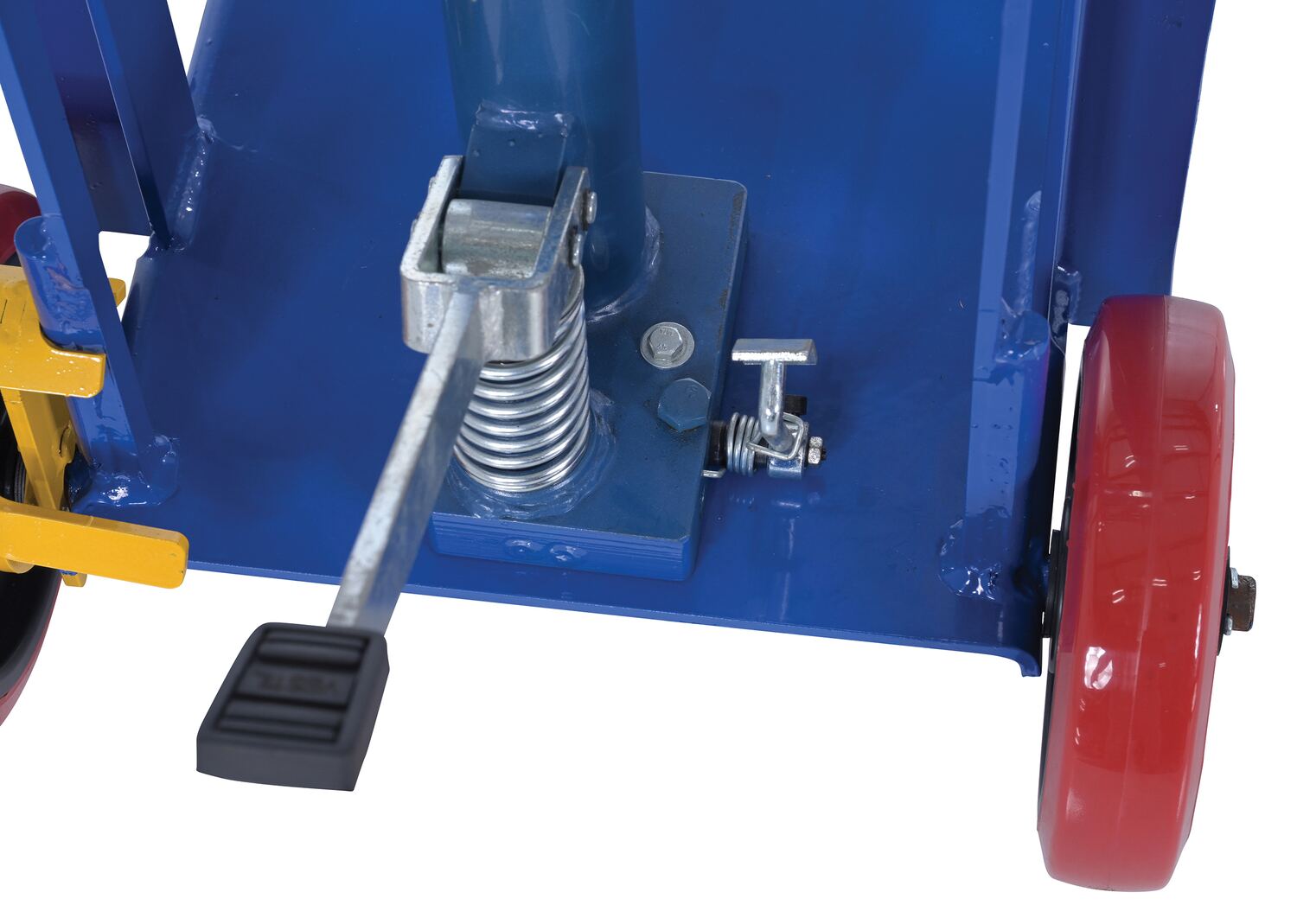

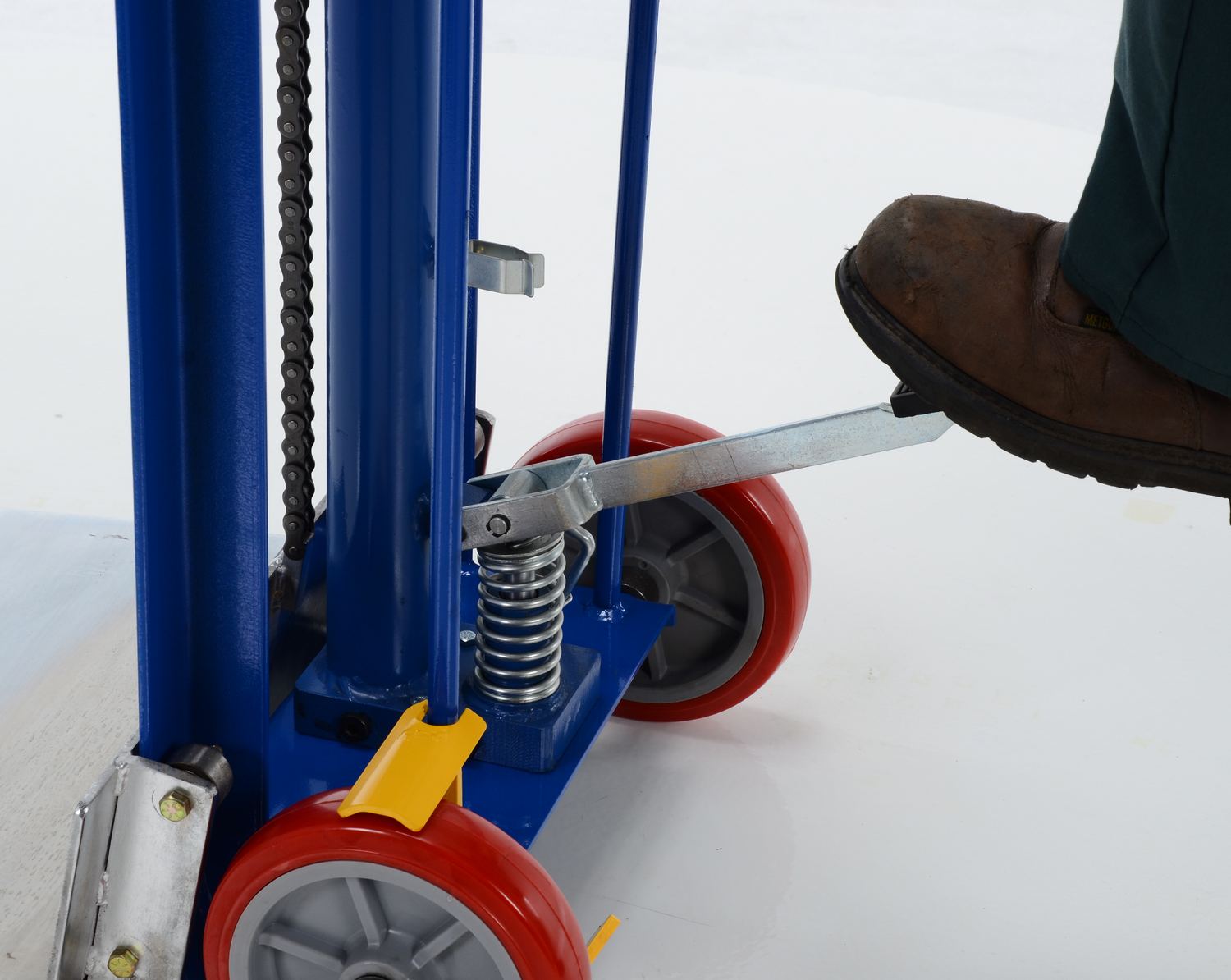

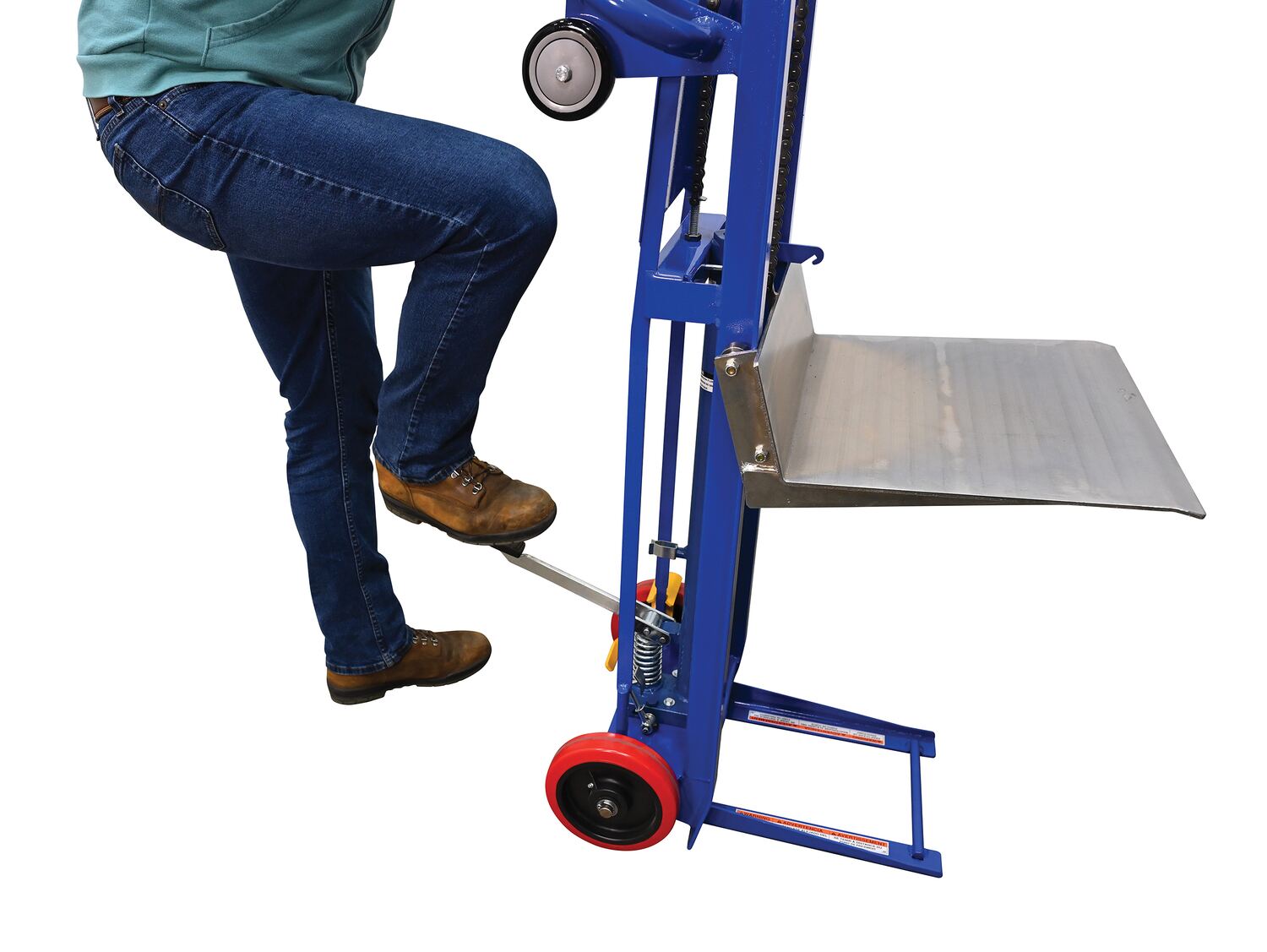

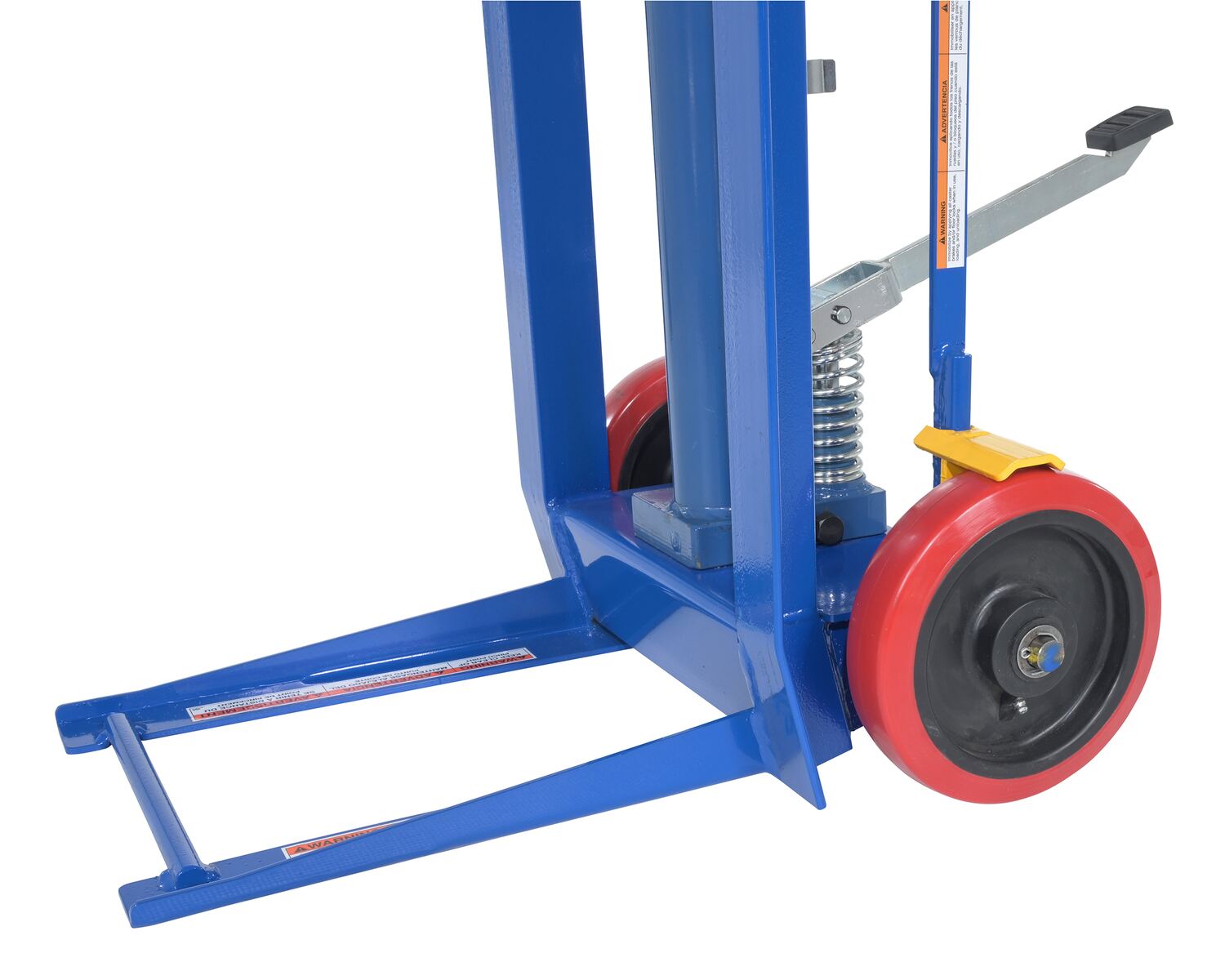

- Precision built hydraulic system is activated by an easy action foot lever

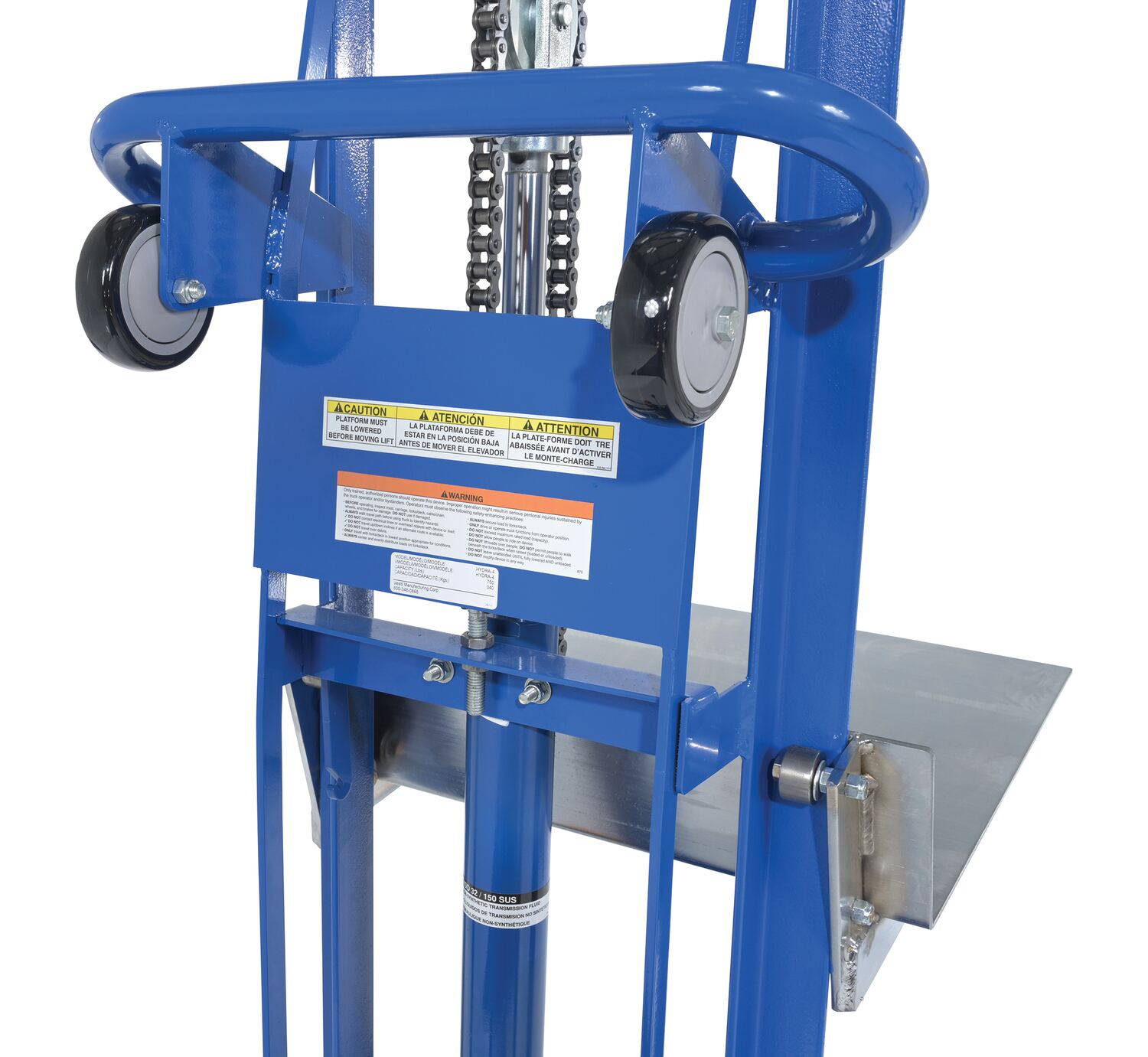

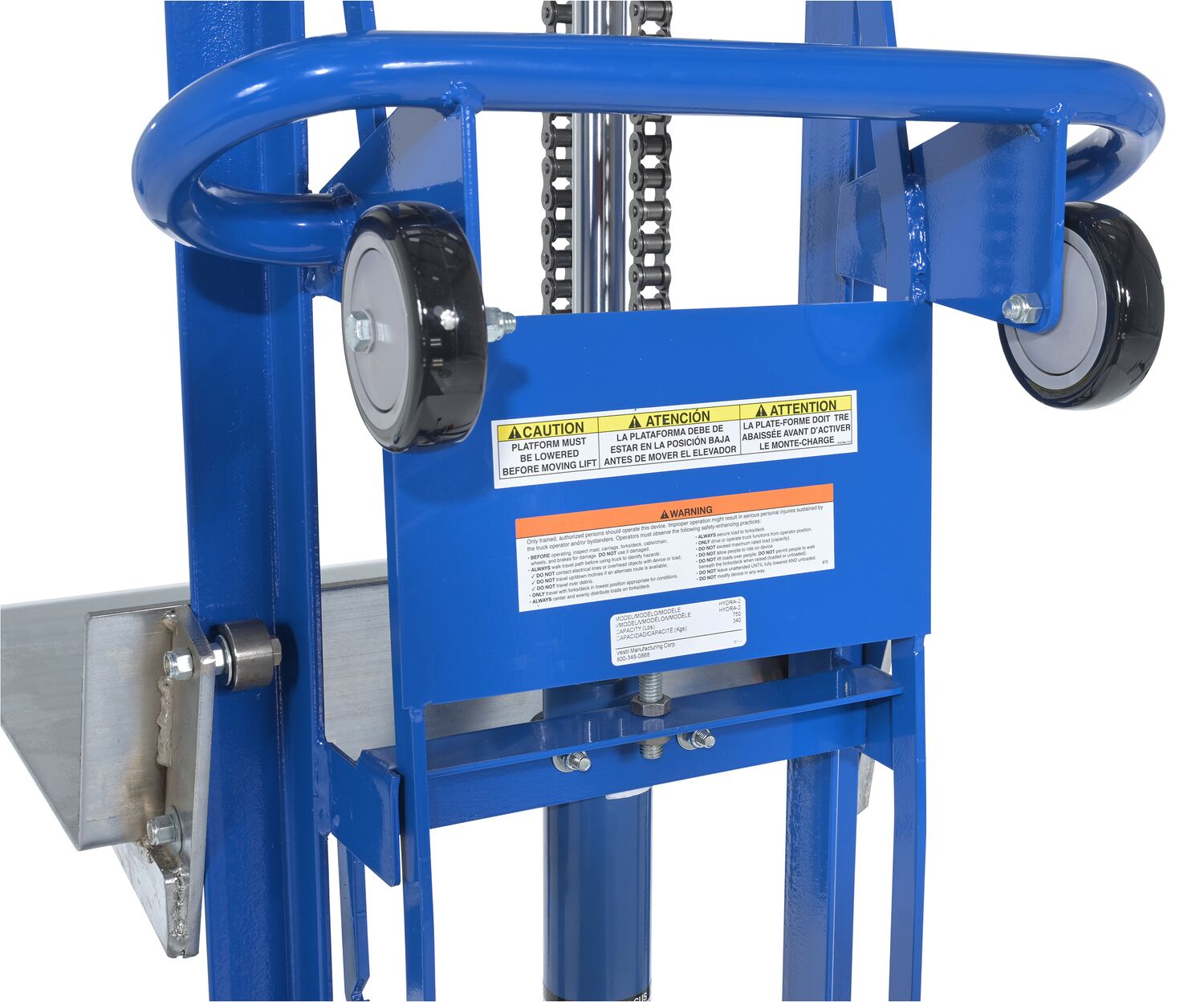

- Additional rollers on handle make loading into a truck easy
Versatile Quick Lifts
Counter Balanced Lite Load Lift
Manual & DC Work Positioners
Adjustable Box StackerAdditional Models In This Family
HYDRA-H
HYDRA-HD
HYDRA-2
HYDRA-2
HYDRA-4-AF-18
HYDRA-4-AF-18
HYDRA-4-AF-18
HYDRA-4-AF-18
HYDRA-4
HYDRA-HD
HYDRA-4
HYDRA-2
HYDRA-HD
HYDRA-4-AF-18
HYDRA-4-AF-18
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

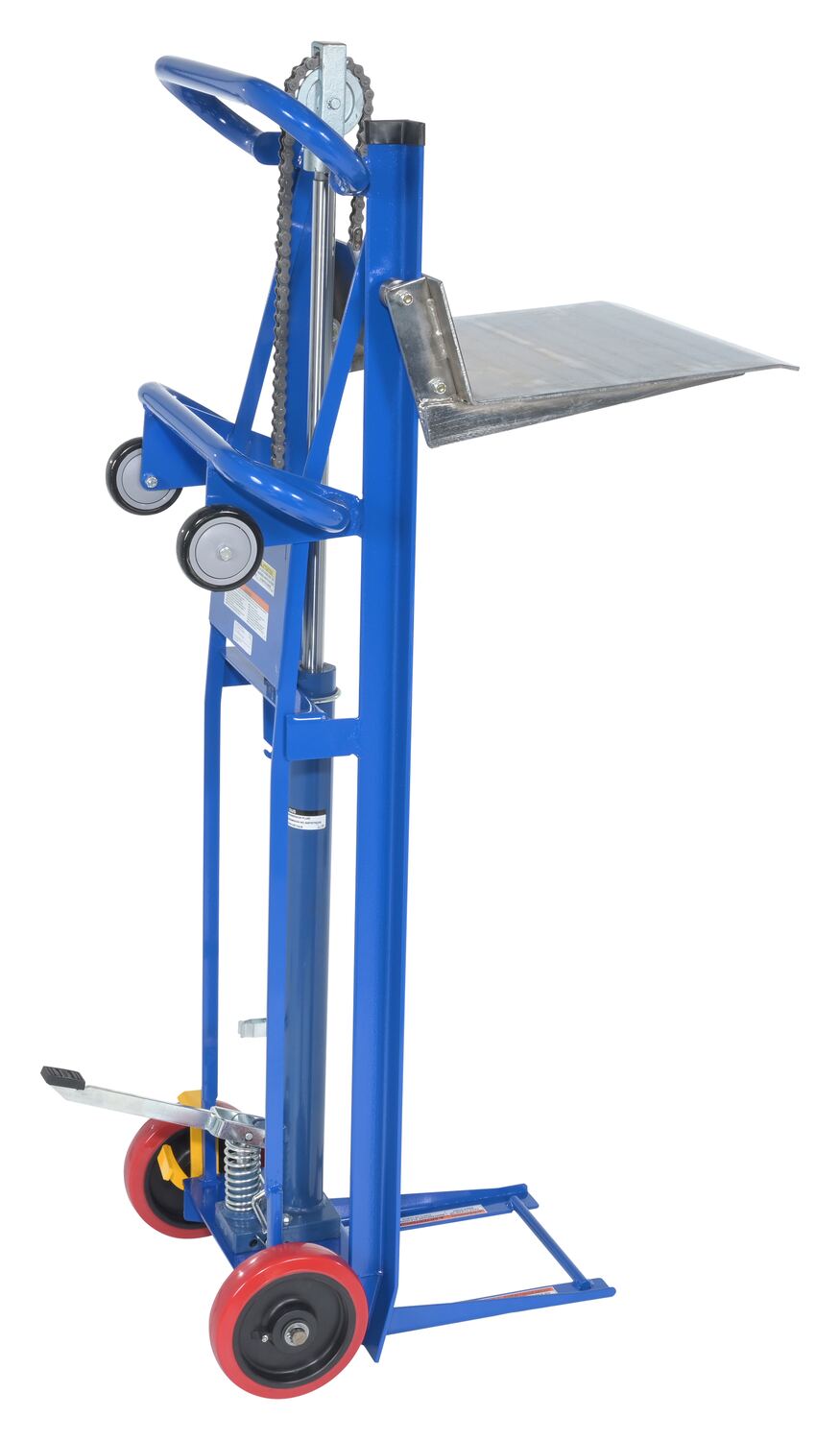

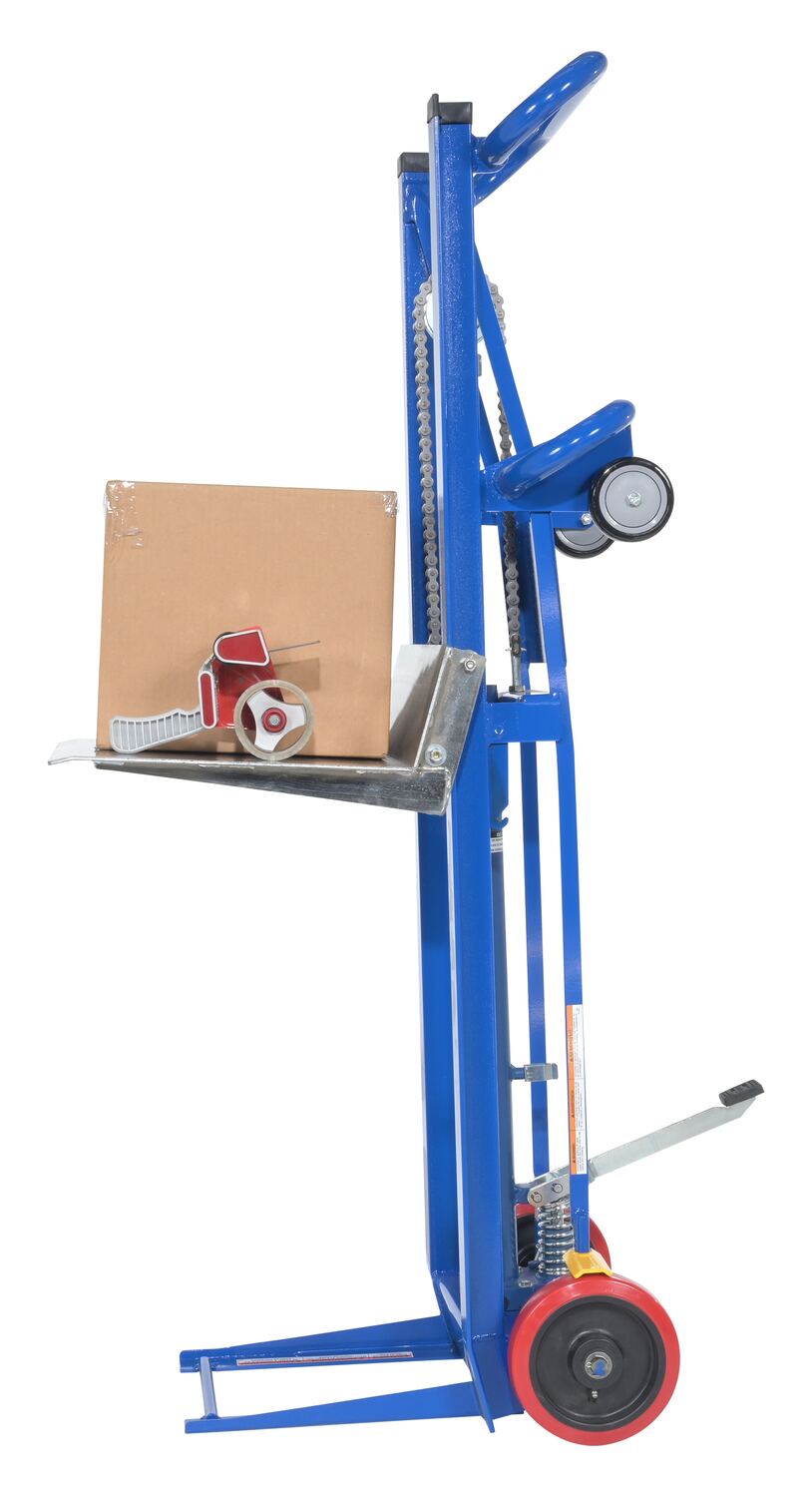

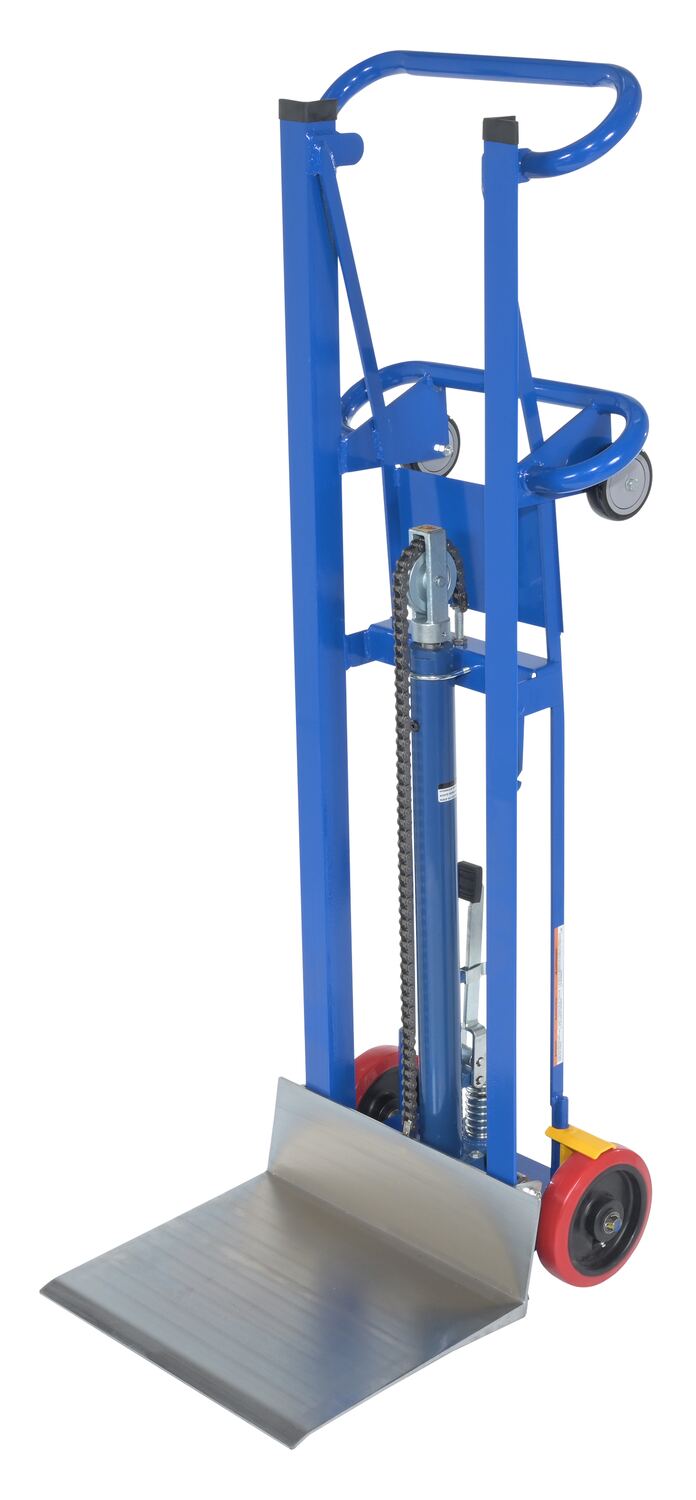

| HYDRA-2 |  | 90 Days Limited Warranty | Steel Hydra Lift Cart 20 In. x 16-3/16 In. 750 Lb. Capacity Blue | Uniform Capacity (lb.): 750 Platform Width (in.): 20 | 221 | ||

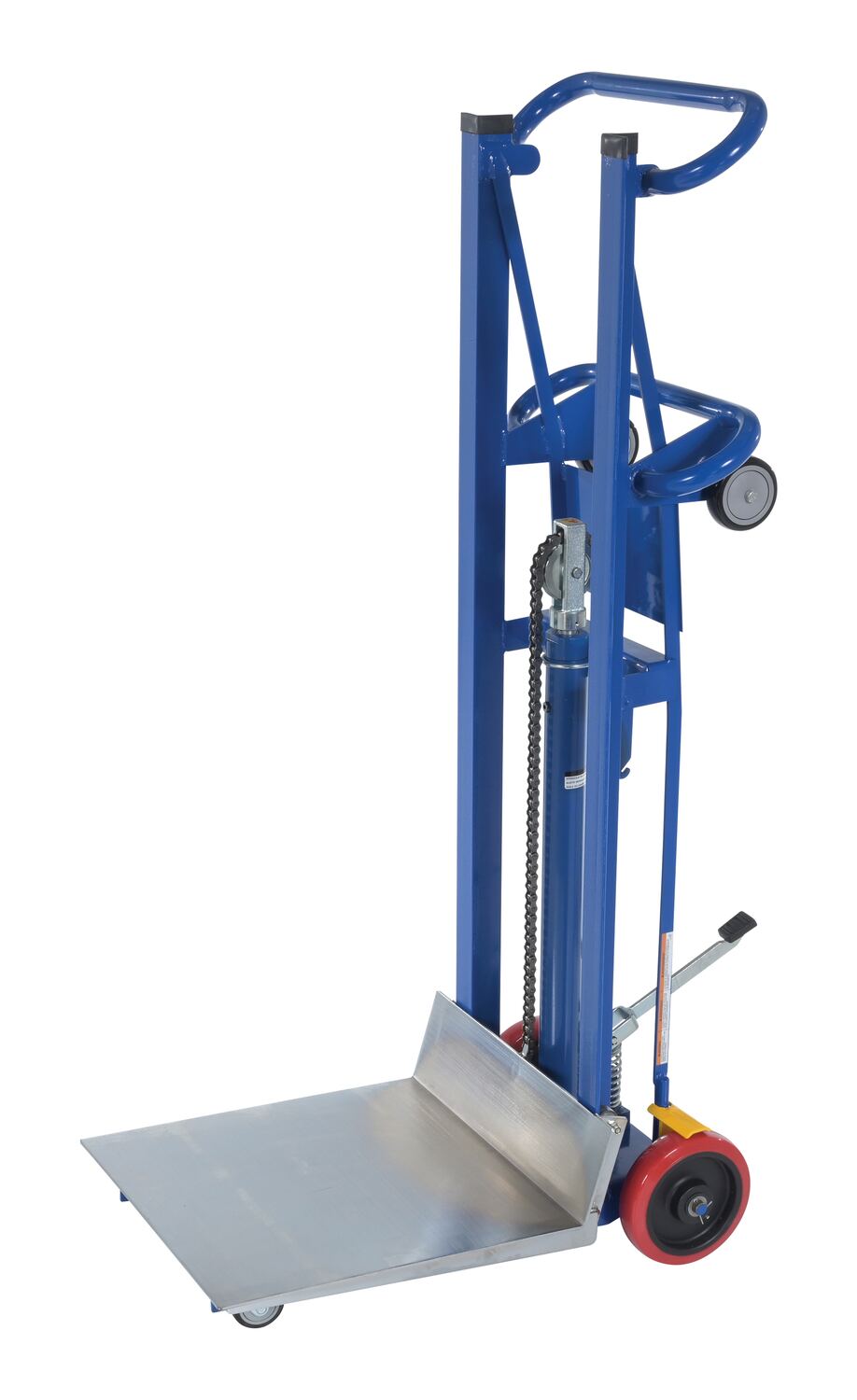

| HYDRA-4 | | 90 Days Limited Warranty | Steel Hydra Lift Cart 20 In. x 21-3/8 In. 750 Lb. Capacity Blue | Uniform Capacity (lb.): 750 Platform Width (in.): 20 | 234 | ||

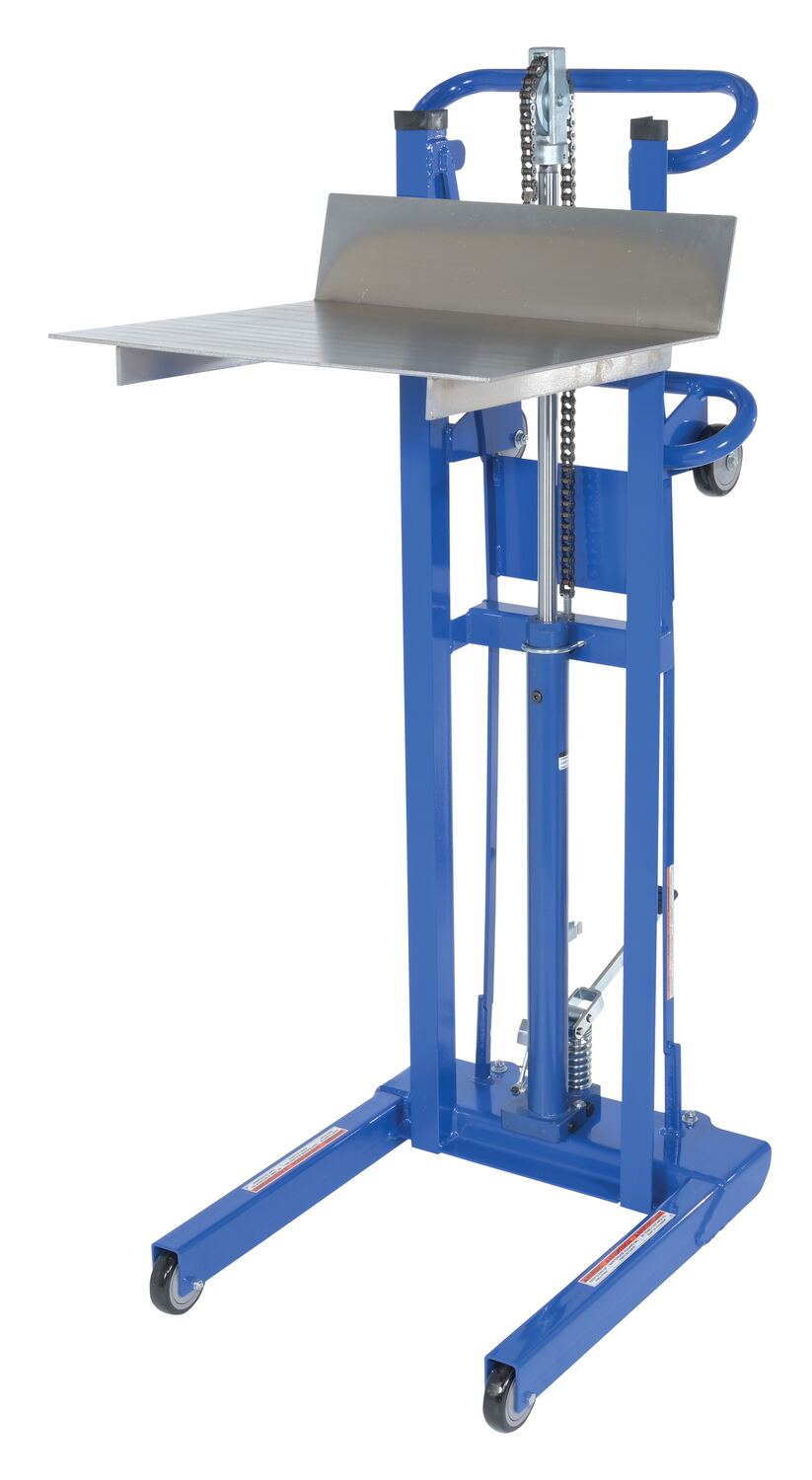

| HYDRA-HD |  | 90 Days Limited Warranty | Steel Hydra Lift Cart 35-5/16 In. x 61-13/16 In. 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Platform Width (in.): 24 | 241 | ||

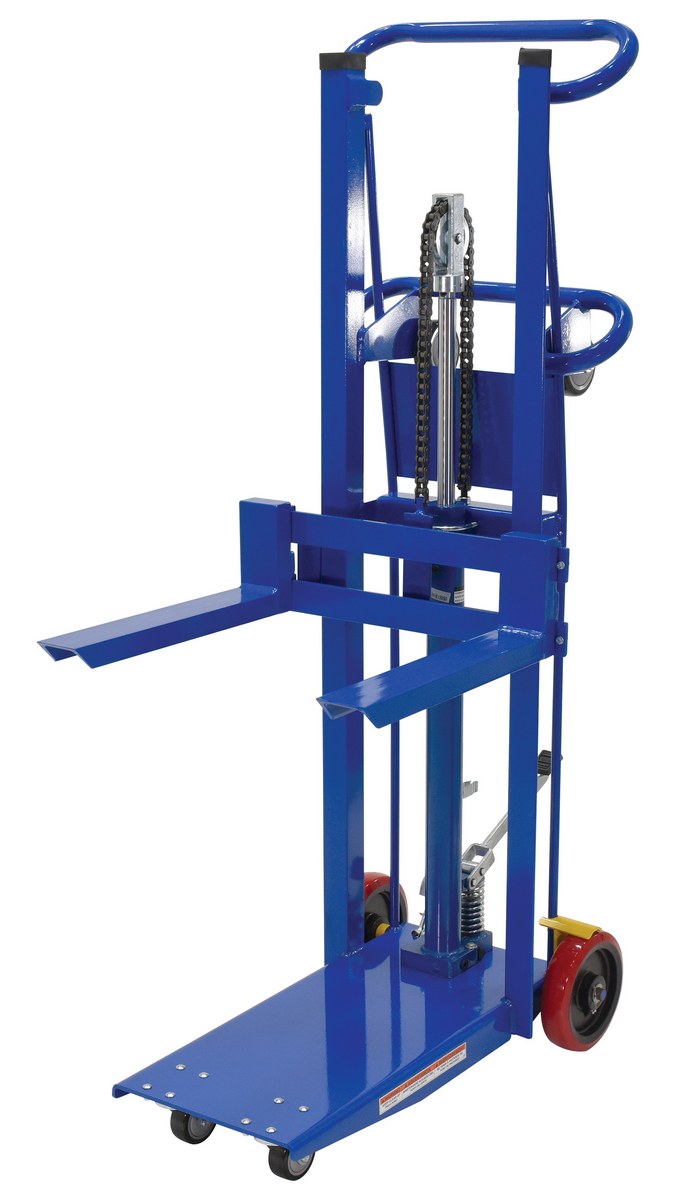

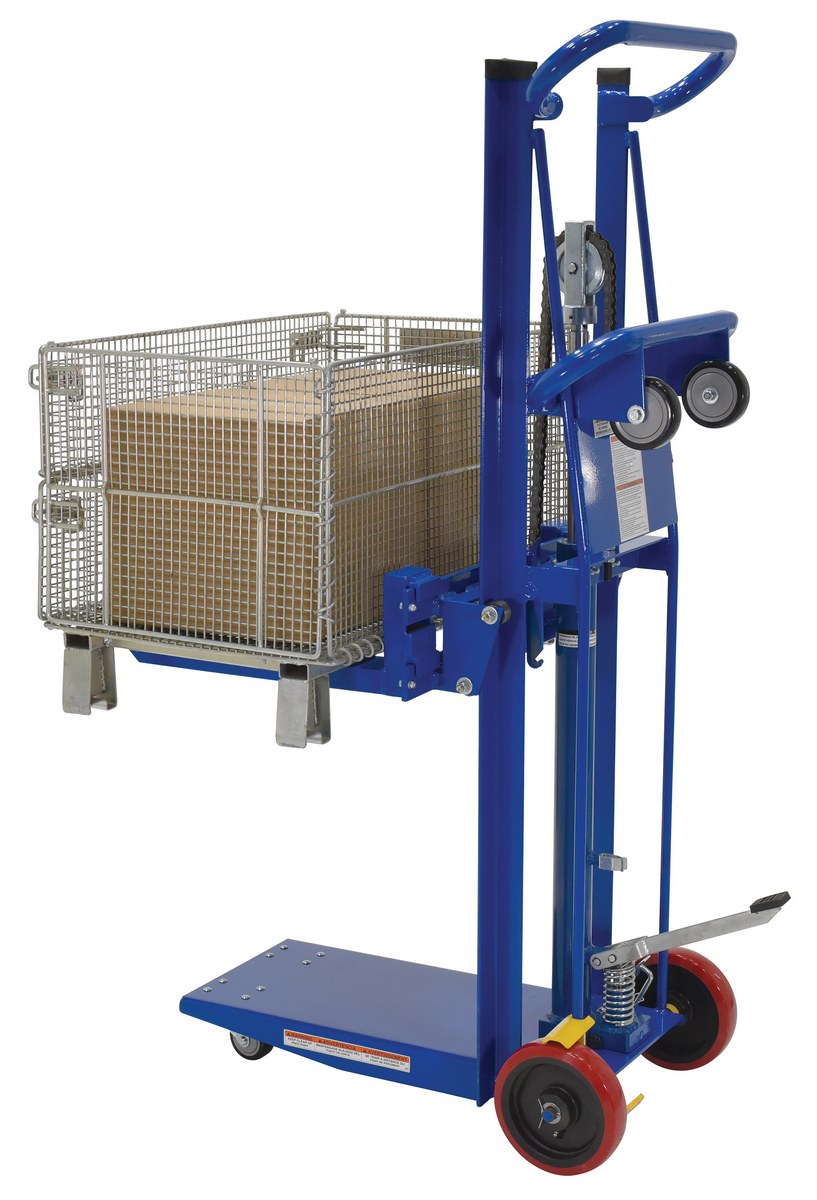

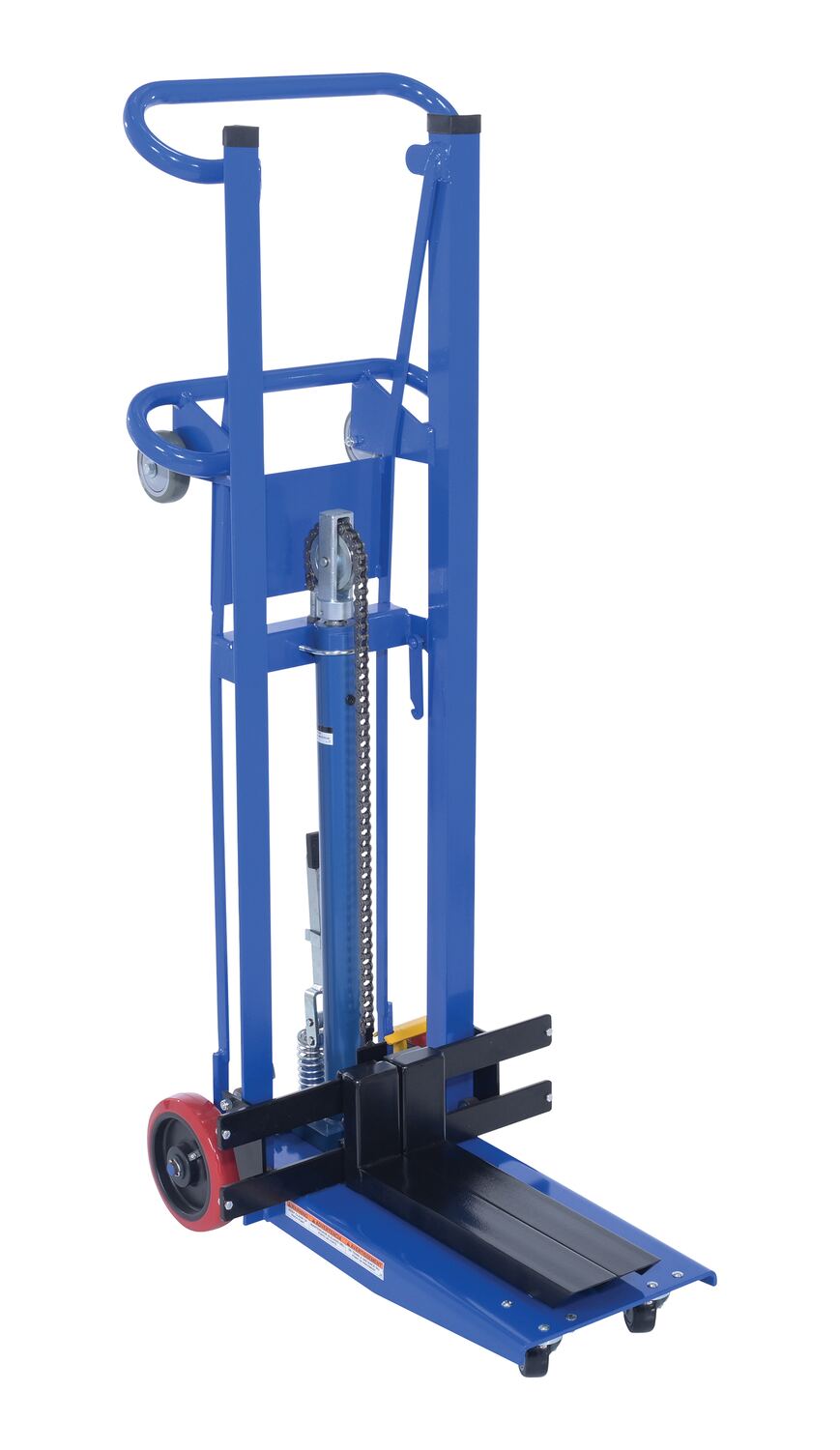

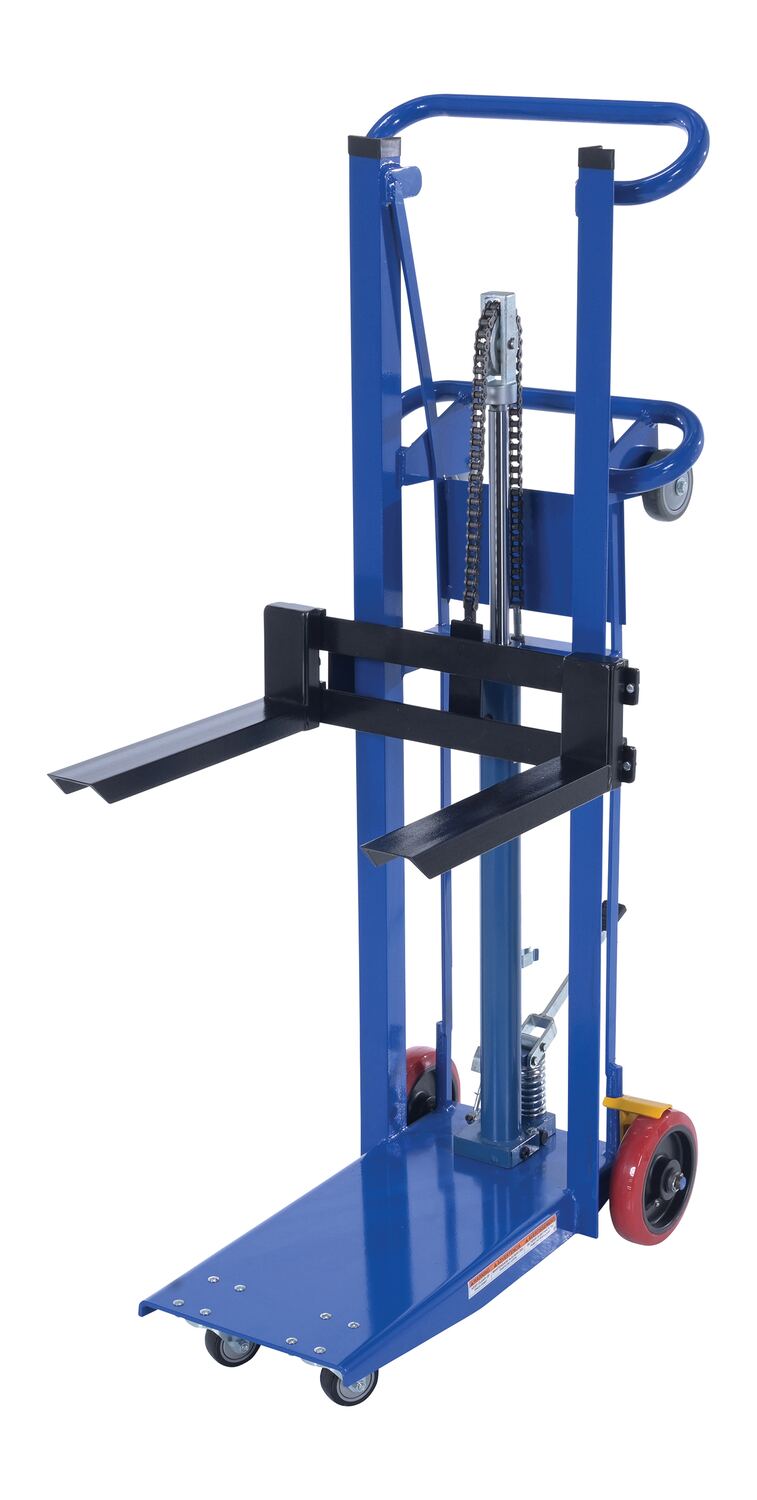

| HYDRA-4-AF-18 |  | 90 Days Limited Warranty | Steel Hydra Lift Cart with Forks 22 In. x 20 In. 750 Lb. Capacity Blue | Uniform Capacity (lb.): 750 Platform Width (in.): 20 | 245 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20
Uniform Capacity (lb.): 750
Platform Width (in.): 20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20
Uniform Capacity (lb.): 750
Platform Width (in.): 20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 24
Uniform Capacity (lb.): 1000
Platform Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20
Uniform Capacity (lb.): 750
Platform Width (in.): 20
For More Details of the Option Click the Red Model Button

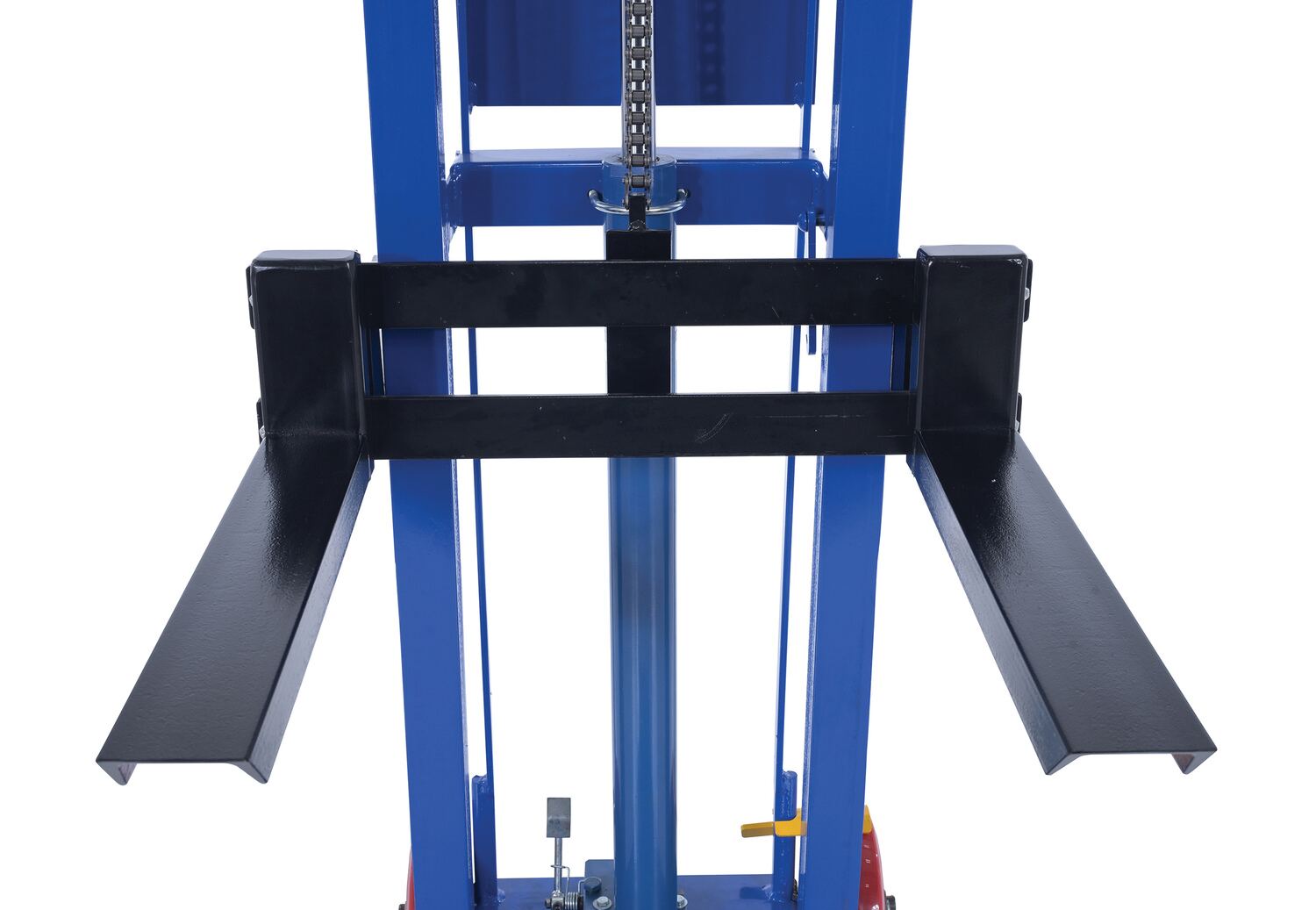

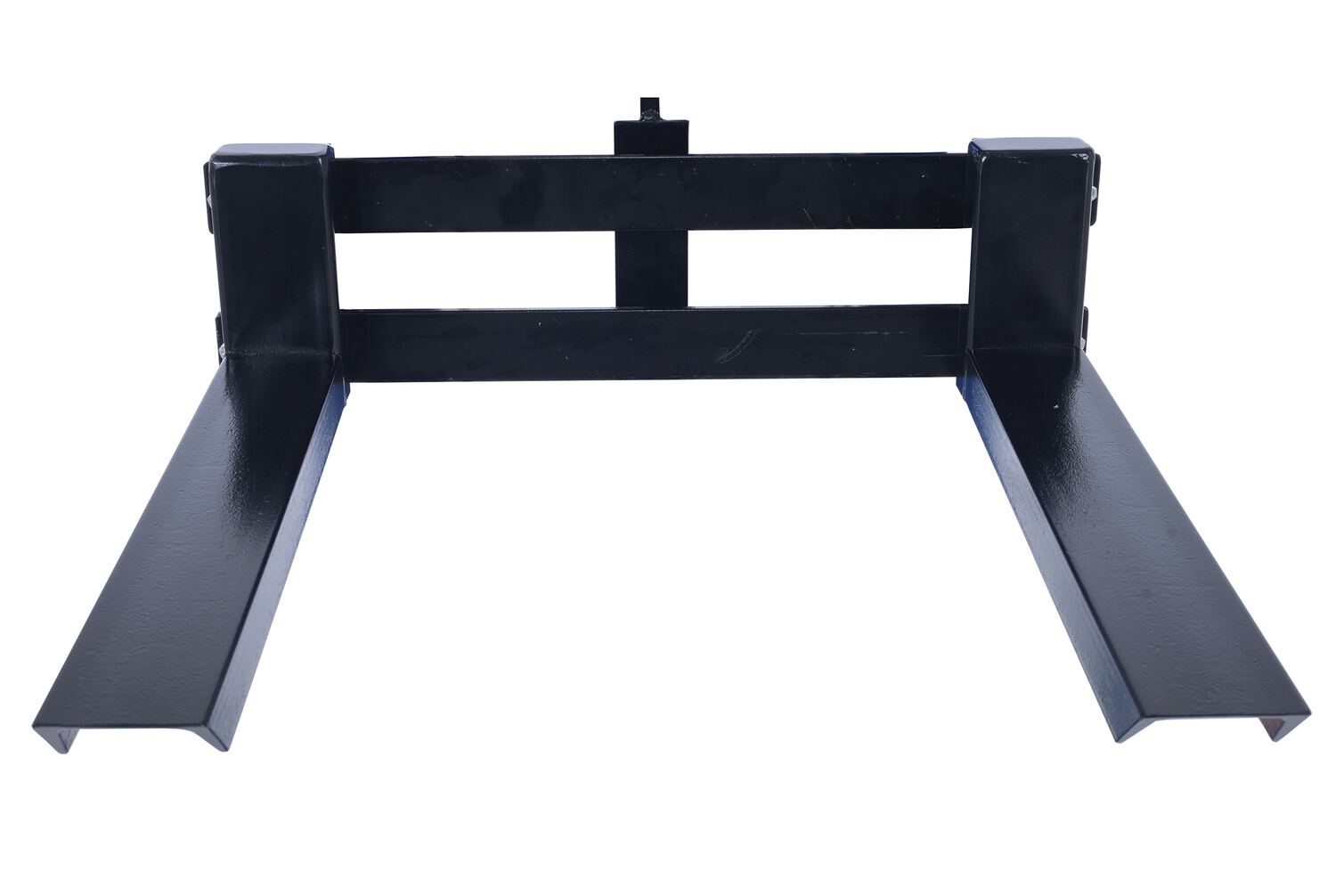

| HYDRA-AF-18 |  | 90 Days Limited Warranty | Steel Adjustable Forks Attachment 6 In. to 22 In. For Hydraulic Lift Cart Model Yellow | Fork Width/Length (in.): 3 x 18 Forks O.D. Minimum/Maximum (in.): 6 to 22 | 41 | |

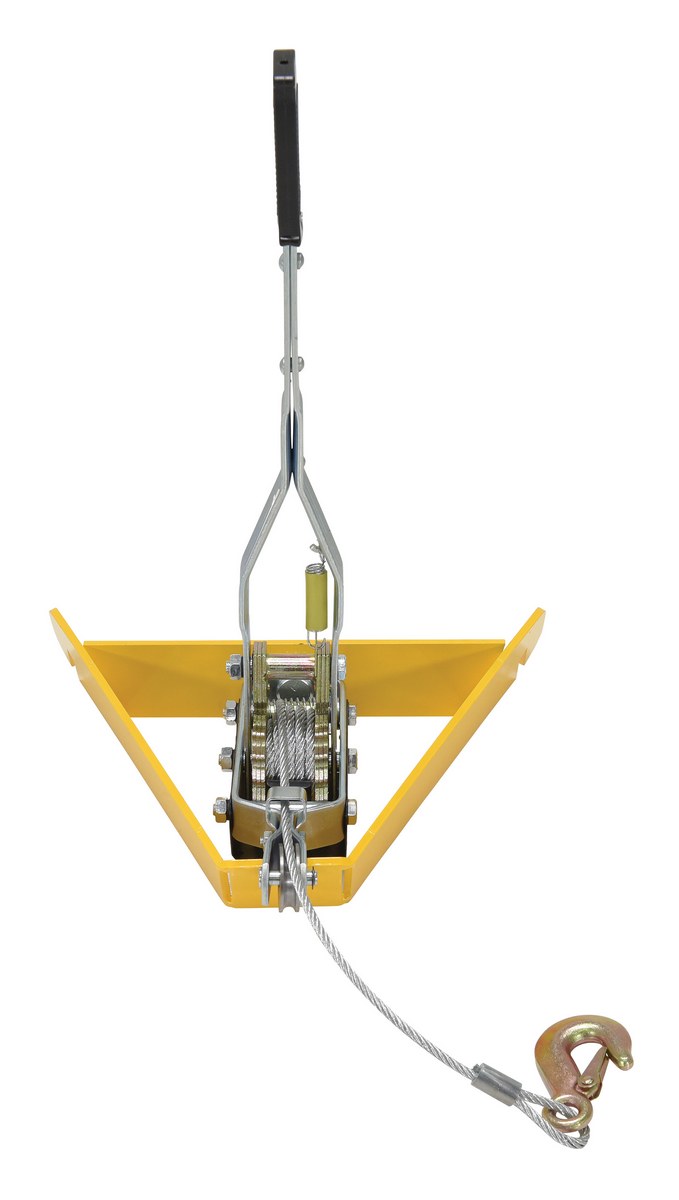

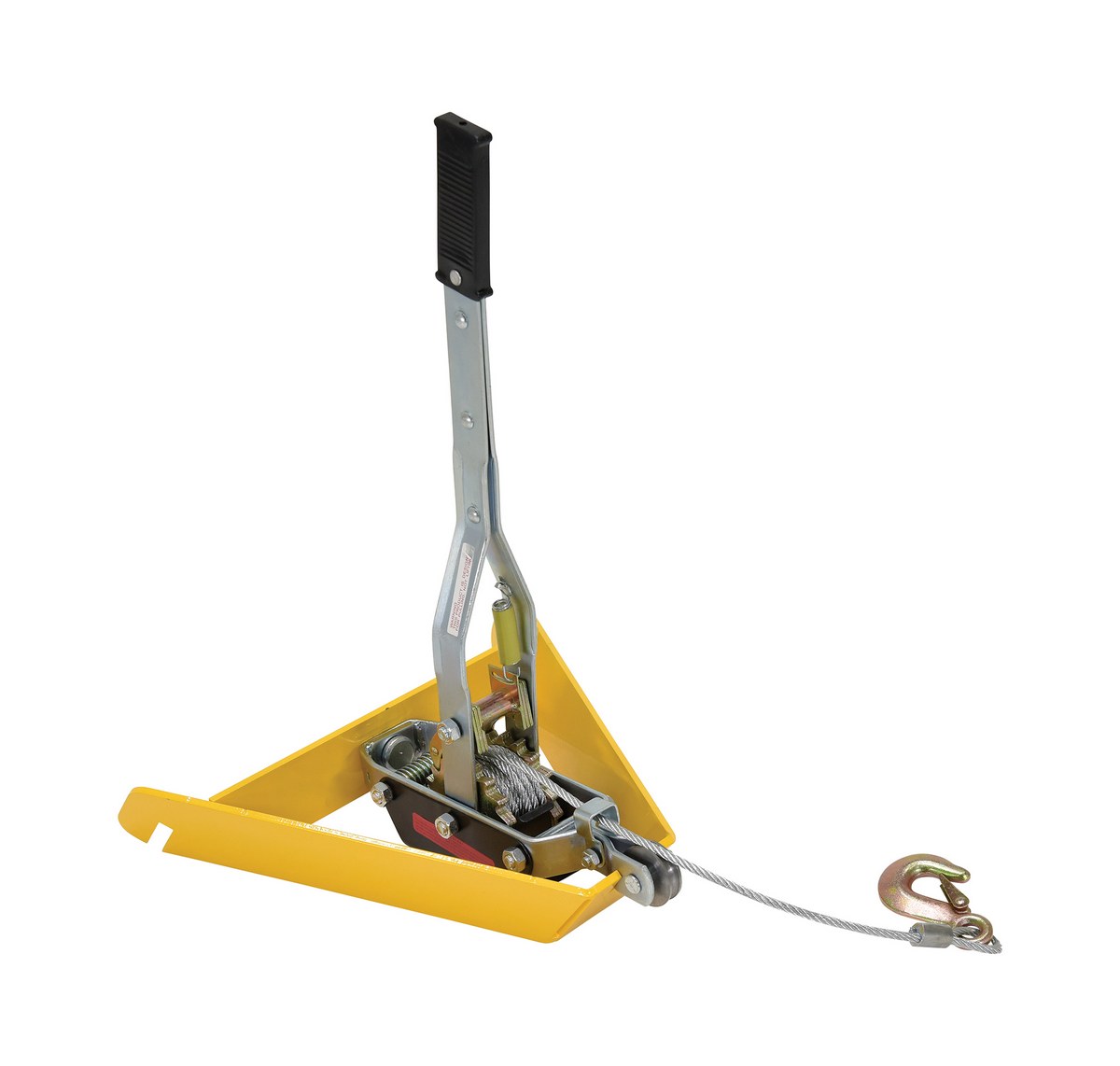

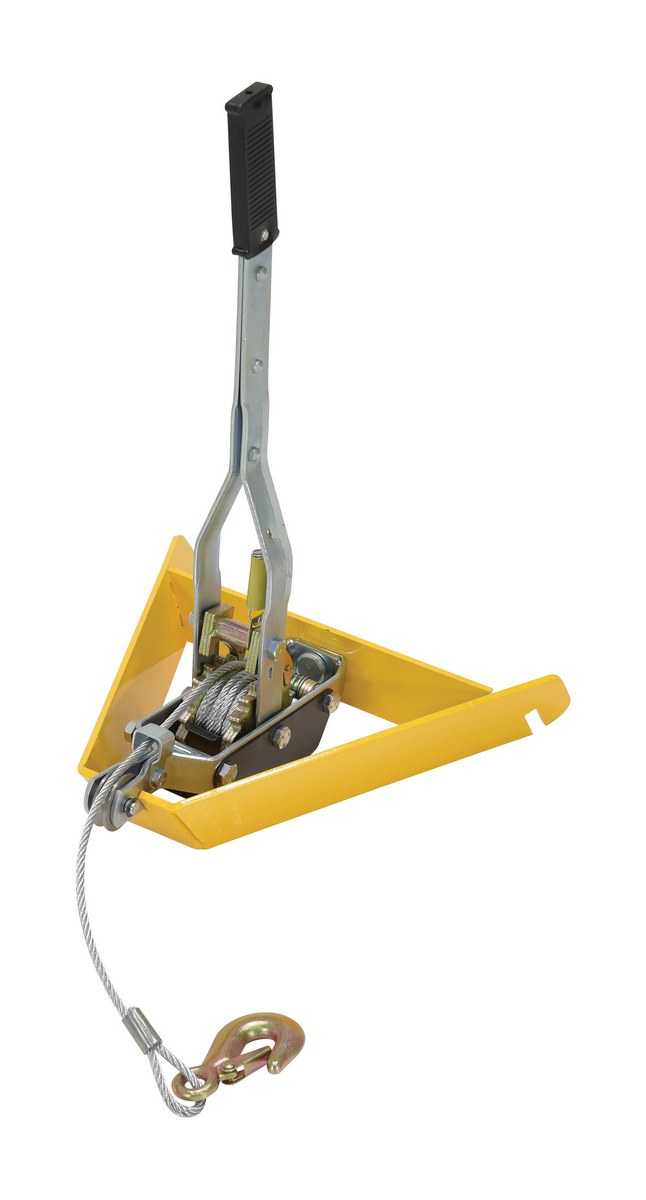

| HYDRA-H |  | 90 Days Limited Warranty | Steel Hand Crank Winch & Hook Attachment For Hydra Lift Cart Model Yellow | Maximum Capacity (lb.): 400 | 23 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: HYDRA-2
Hydraulic Oil SDS Sheet for: HYDRA-4
Hydraulic Oil SDS Sheet for: HYDRA-4-AF-18
Hydraulic Oil SDS Sheet for: HYDRA-HD
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the cable length of the HYDRA-H?
A: Single line cable length: 9.85' Double line cable length: 5'
 |
|||||||||||||||||||||||||||
