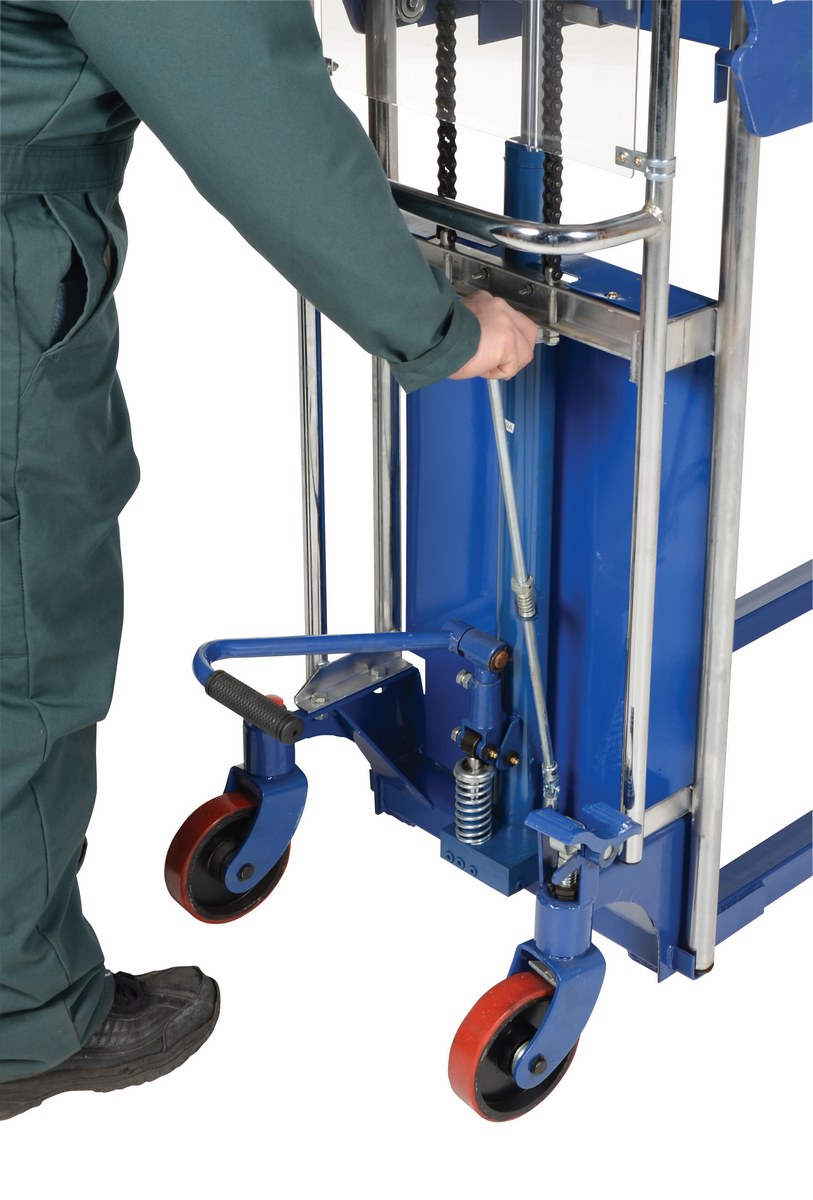

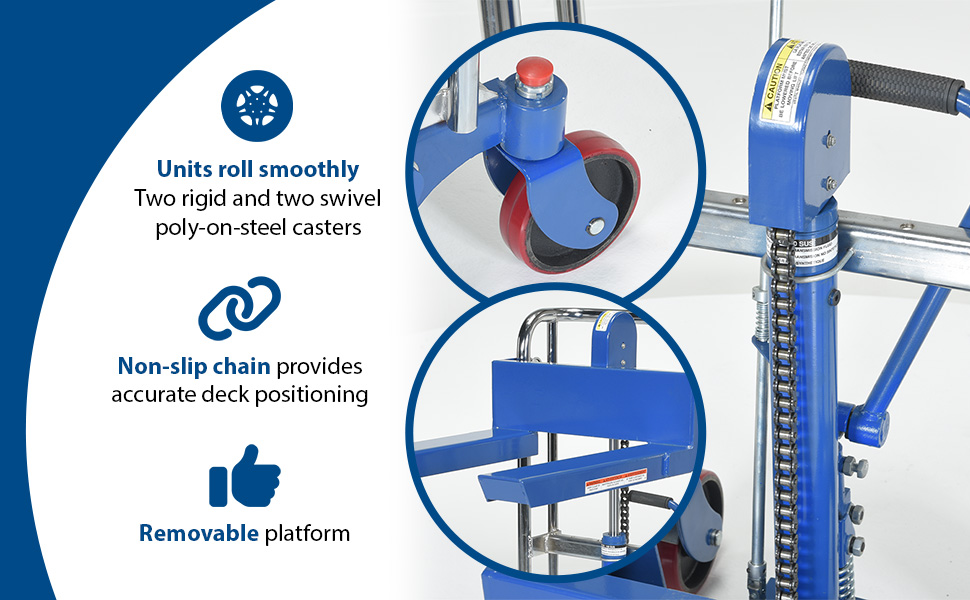

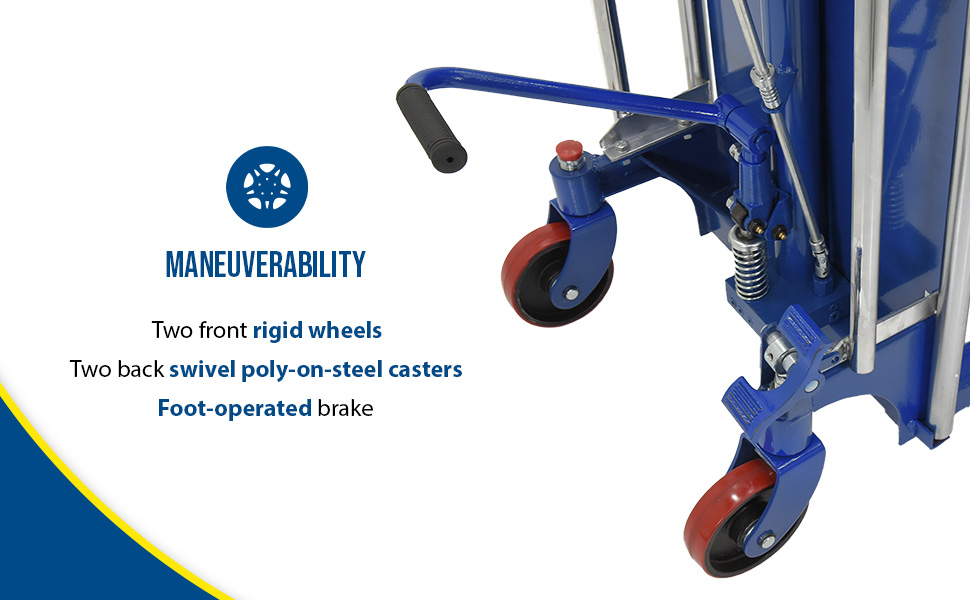

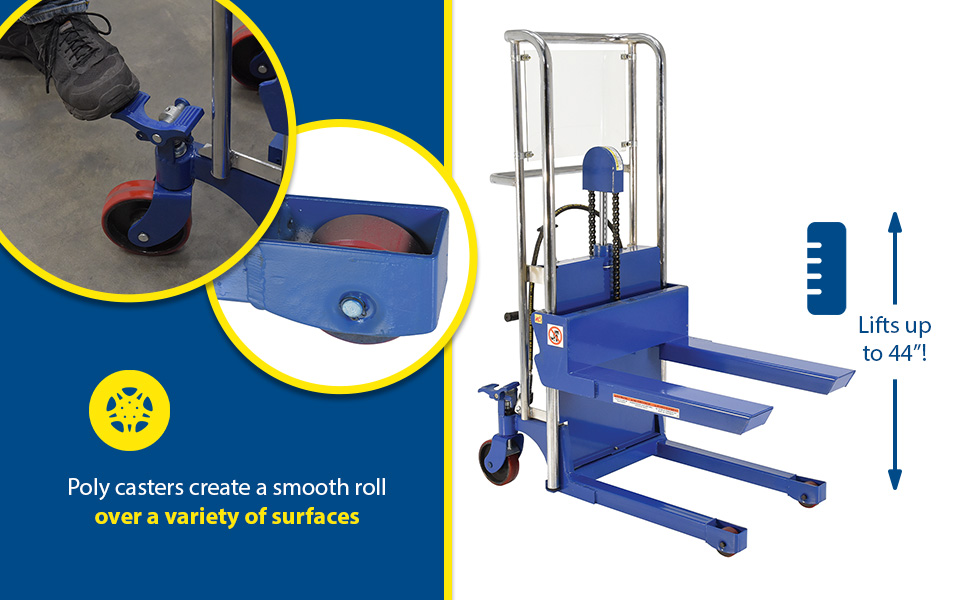

Hefti-LiftsThe Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields 3/4" of platform travel per stroke, auto-shift models feature a two speed foot pump.The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. The units are designed of welded steel construction with chrome platforms and uprights (except model HYD-10-DA-SS) Each fork is 4-1/2"W x 2-1/2"H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets. Stainless Steel units are compact, lightweight, and capable of turning in a small radius when space is limited. A built-in automatic load check valve is included for improved safety. Model HYD-5-SS features a hydraulic foot pump, while model HYD-10-DA-SS comes with a dual acting manual hydraulic hand pump.
HYD-5-SS and HYD-5-LP platforms are not removable.

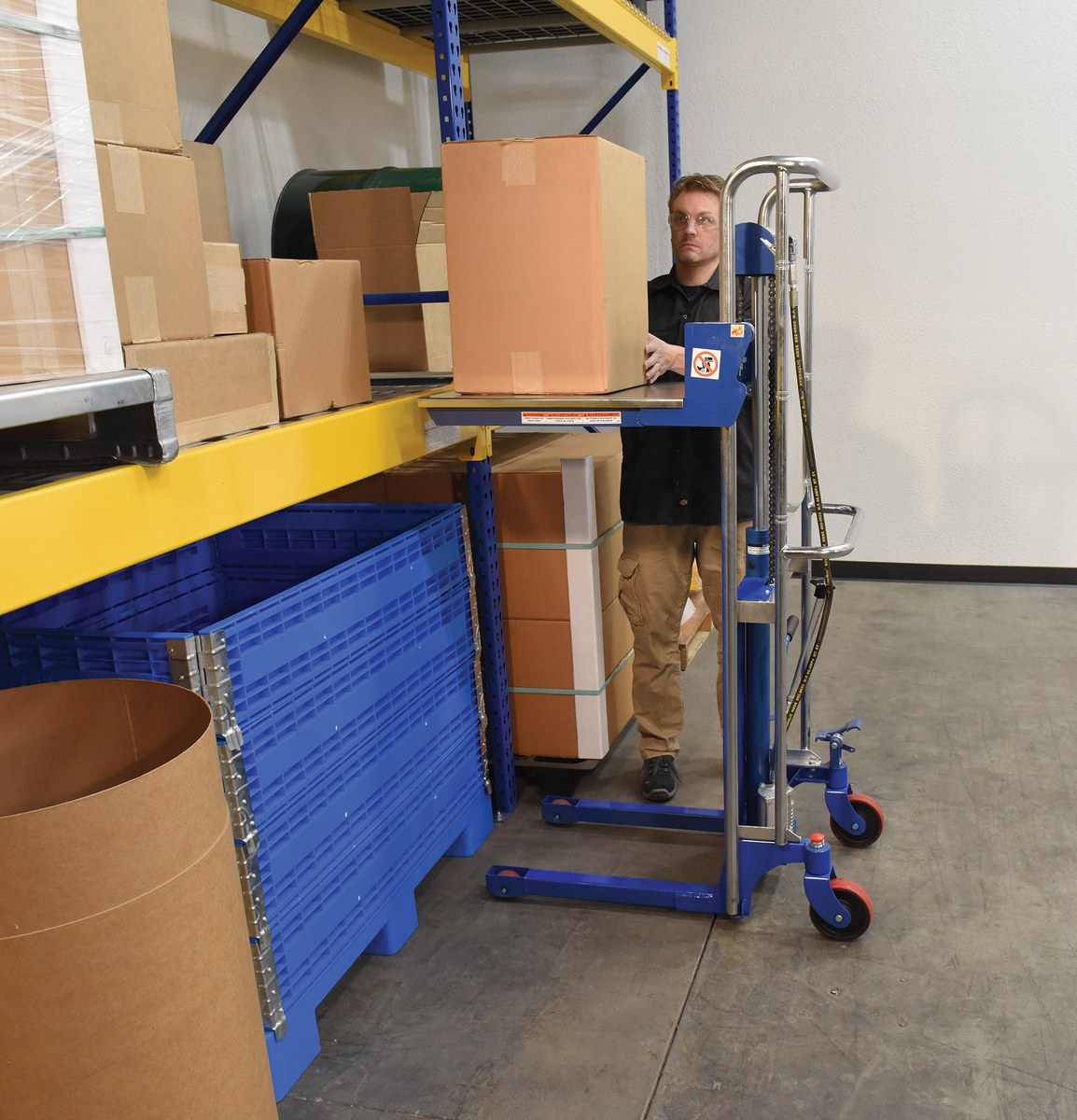

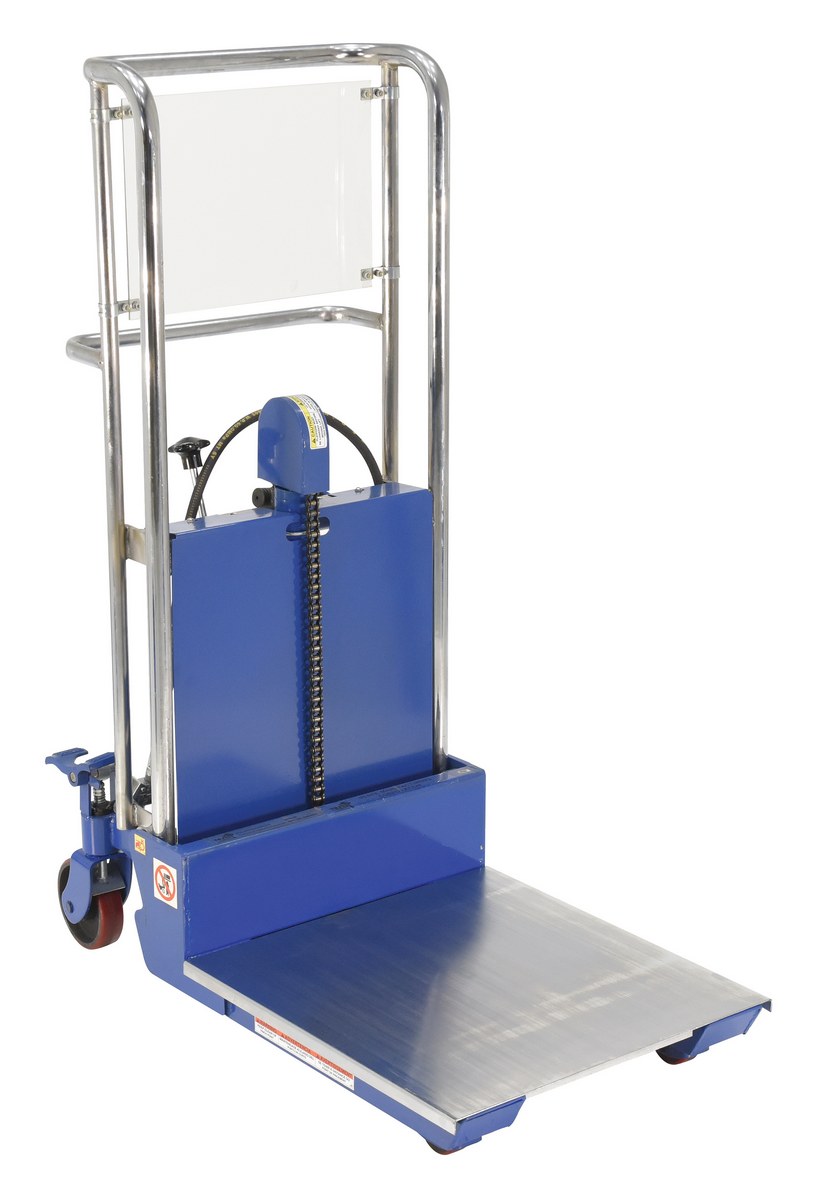

Air Powered units are great in manufacturing or distributing facilities when space is limited. The single speed foot pump and hand held push button control (reciprocating air/oil power) raise forks to the desired location. The foot pump can be utilized to maneuver the table height to a precise position. The unit requires a minimum hose diameter of 1/4" and air pressure of 72 to 100 psi.
Portable Worksite Lift
Powered Quick Lifts
Portable Hand Winch Lifter
Portable Aluminum Load LifterAdditional Models In This Family

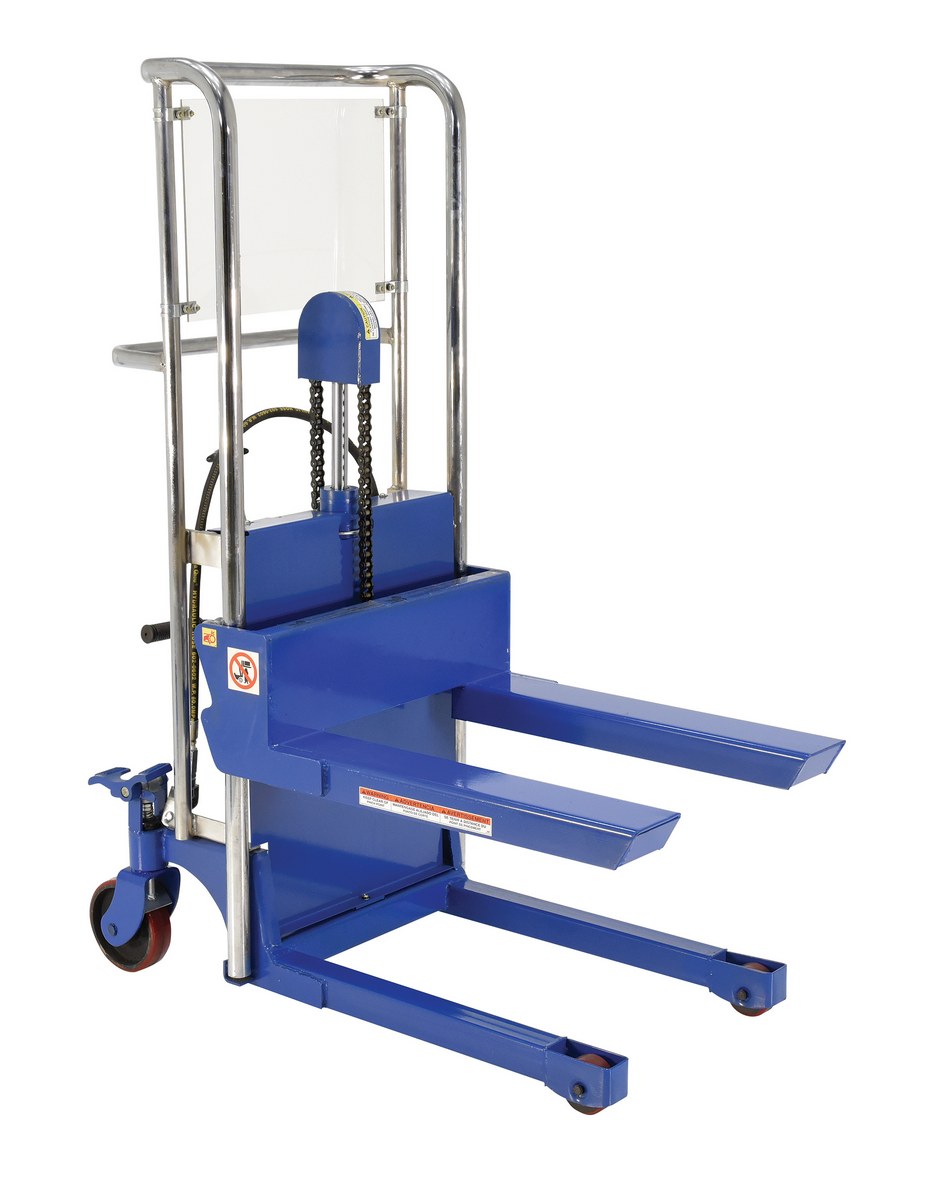

HYD-5-AIR

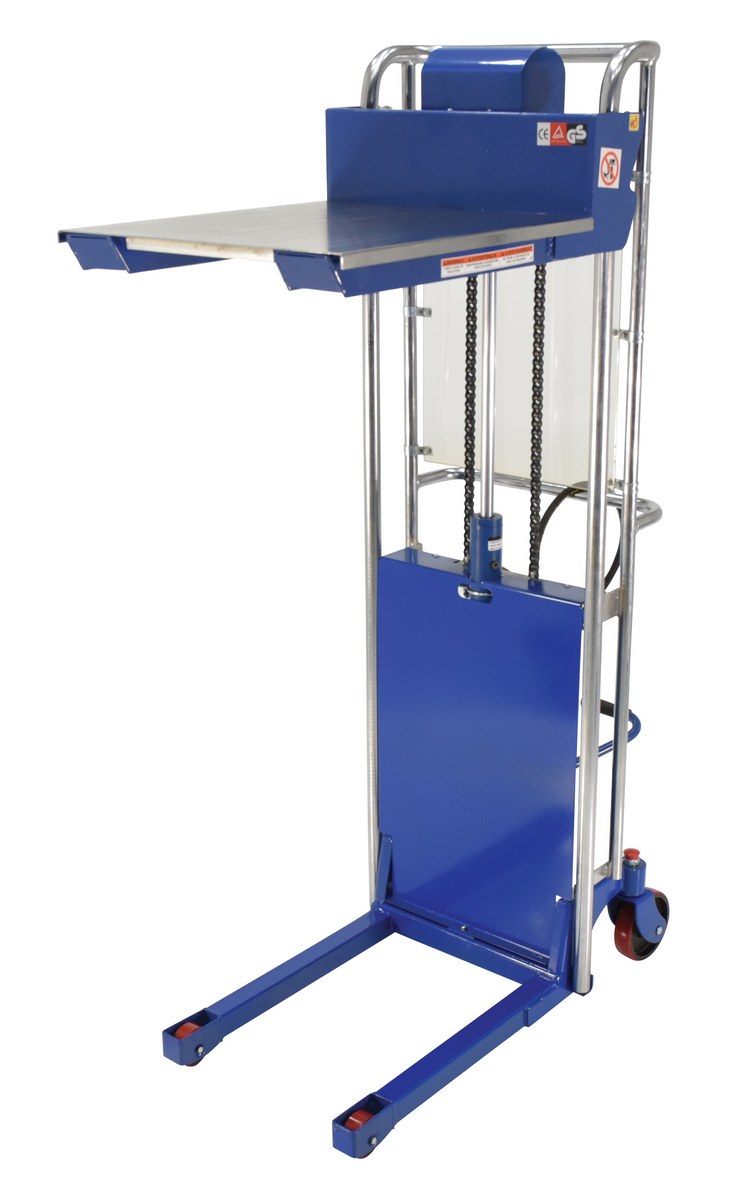

HYD-10-AIR

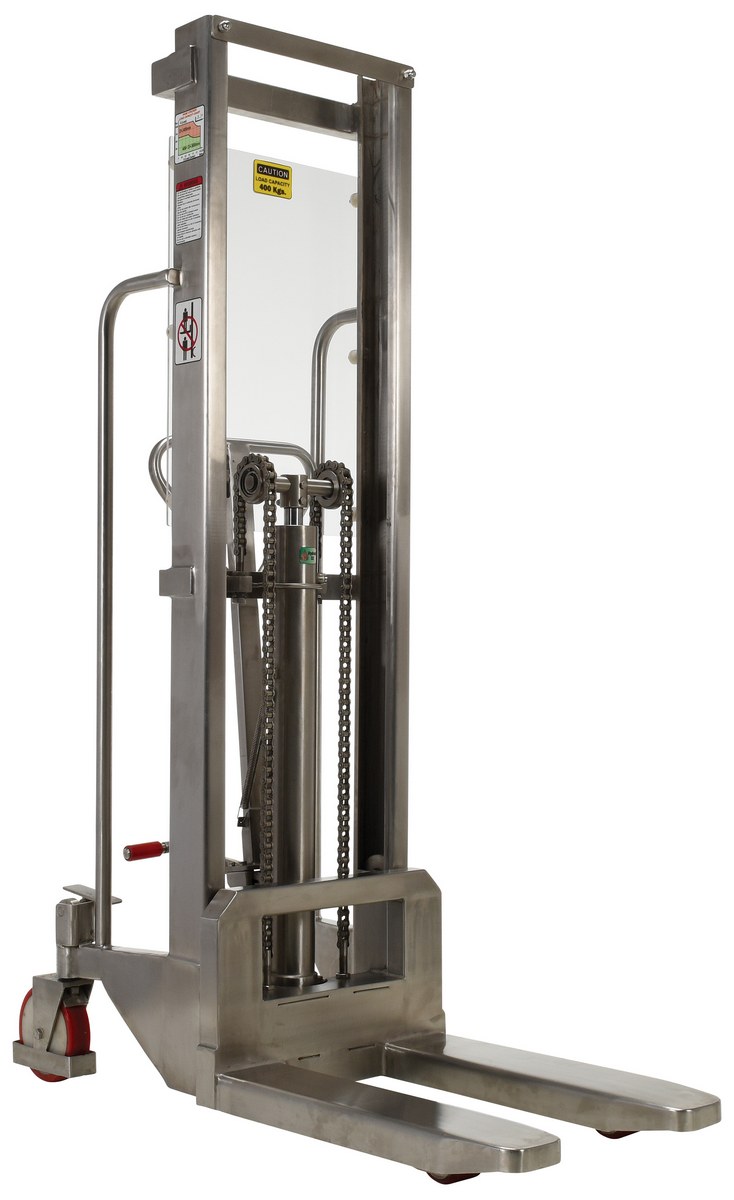

HYD-10-DA-SS
HYD-5-EP
HYD-5-LP
HYD-5-LP
HYD-5-EP

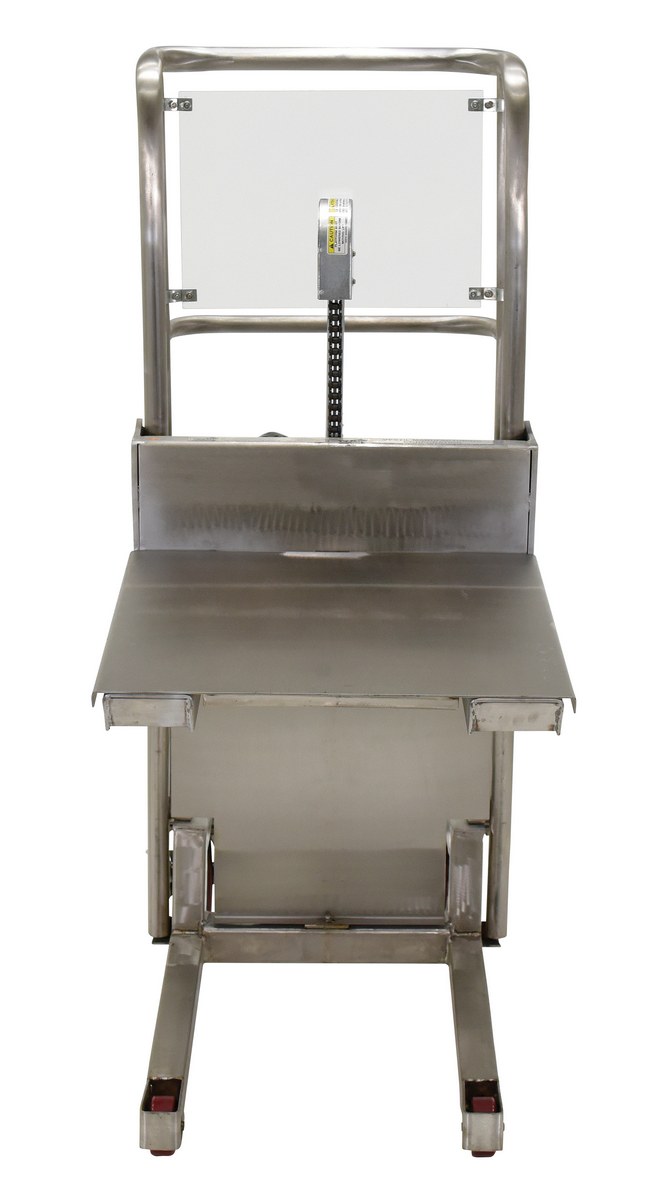

HYD-5-PSS
HYD-5-LP
HYD-5-LP

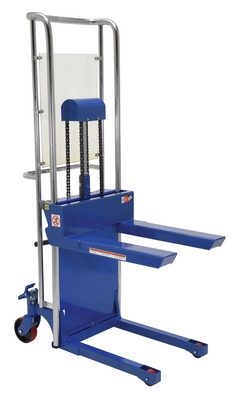

HYD-10
HYD-5-LP
HYD-15
HYD-5-LP
HYD-15
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

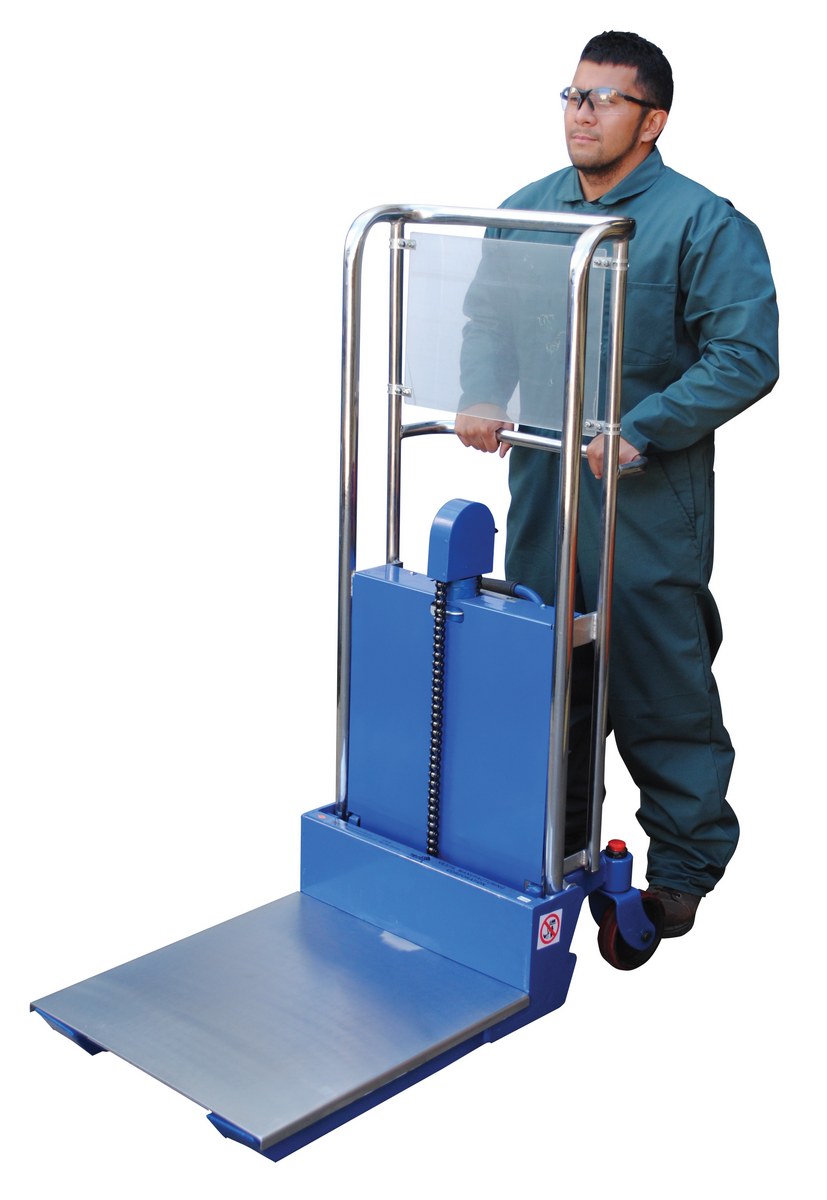

| HYD-5 |  | 90 Days Limited Warranty | Steel Portable Foot Pump Hefti-Lift 41 In. x 54 In. 880 Lb. Capacity Blue | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 | 246 | ||

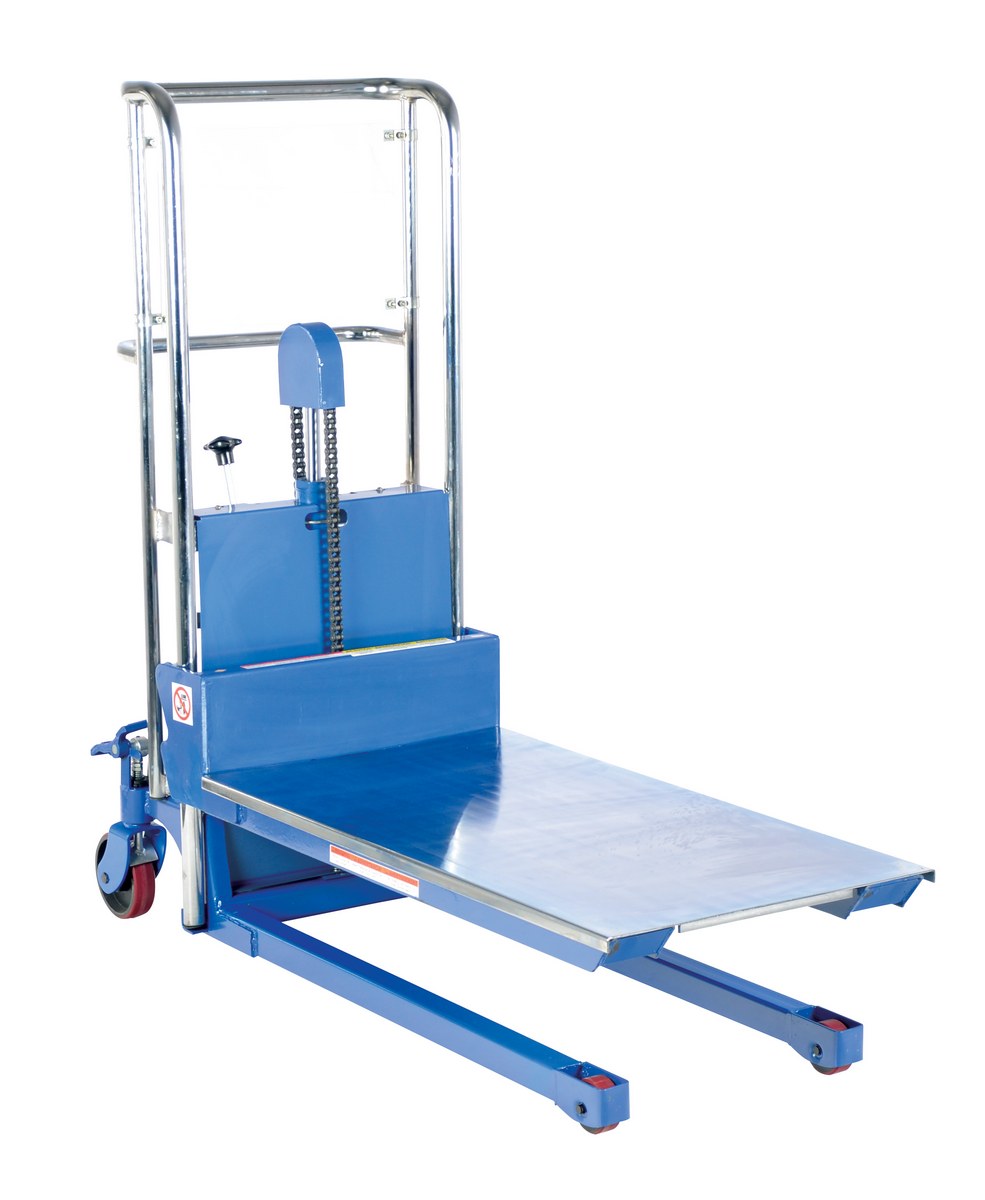

| HYD-5-EP |  | 90 Days Limited Warranty | Steel Portable Foot Pump Hefti-Lift 60 In. x 54 In. 400 Lb. Capacity Blue | Uniform Capacity (lb.): 400 Platform Width/Length (in.): 23 x 40 | 293 | ||

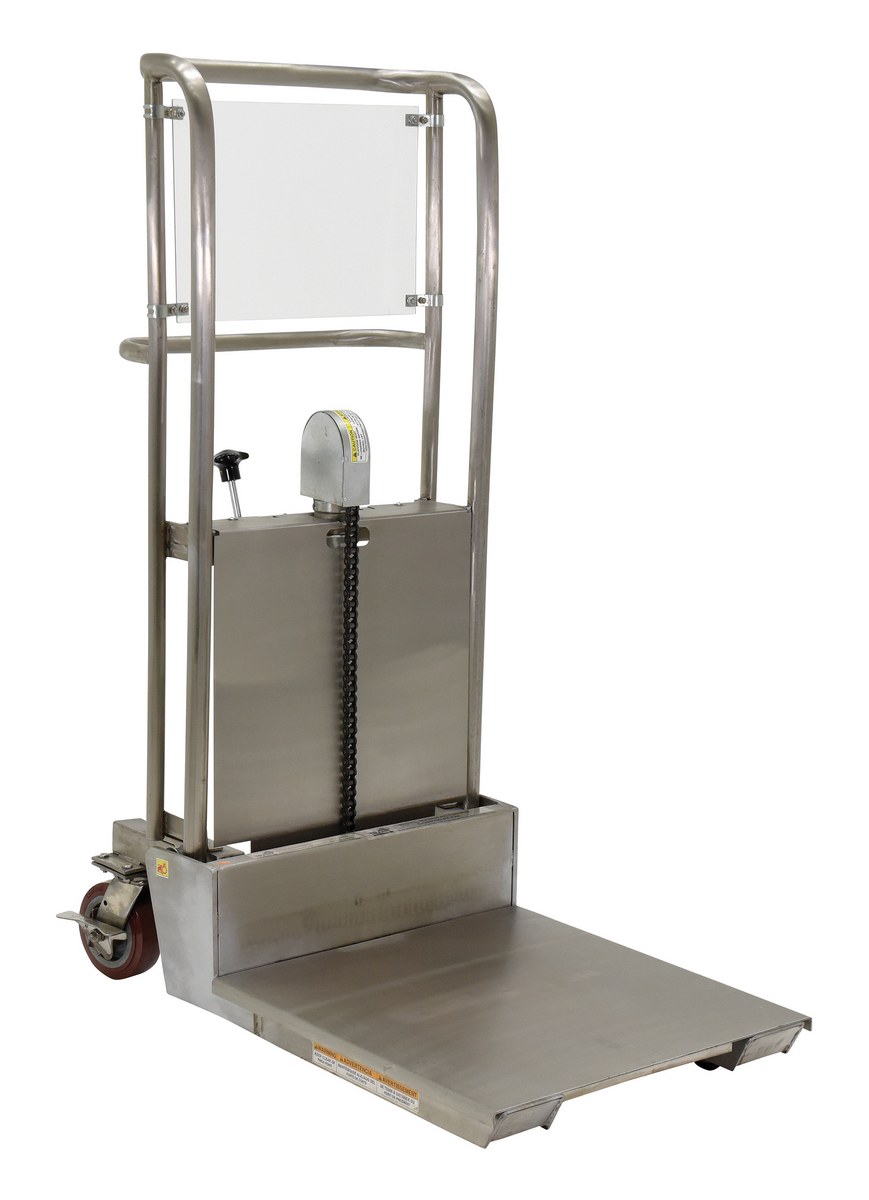

| HYD-5-PSS |  | 90 Days Limited Warranty | Partially Stainless Steel Foot Pump Hefti-Lift 36 In. x 52-1/8 In. 450 Lb. Capacity Silver | Uniform Capacity (lb.): 450 Platform Width/Length (in.): 21 x 24 | 236 | ||

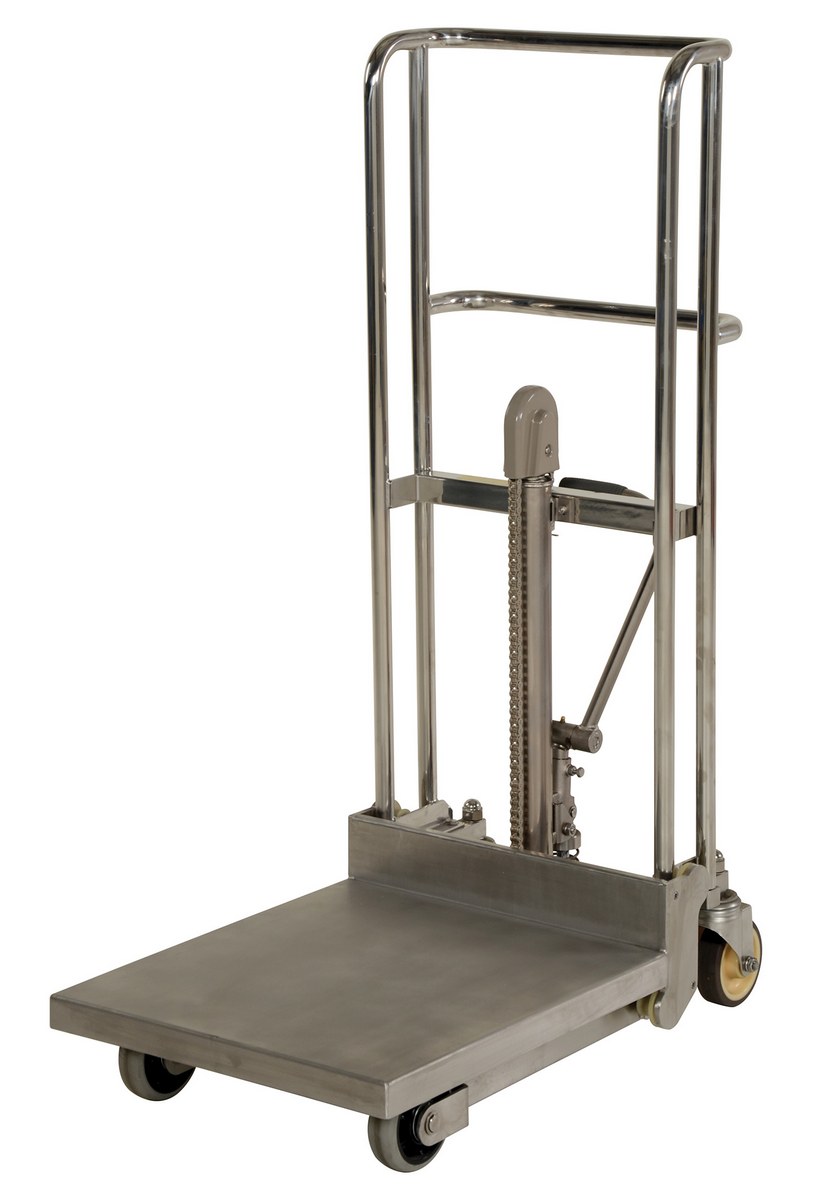

| HYD-5-SS |  | 90 Days Limited Warranty | Stainless Steel Hydraulic Hefti-Lift 35-13/16 In. x 52-1/8 In. 450 Lb. Capacity Silver | Uniform Capacity (lb.): 450 Platform Width/Length (in.): 23-7/8 x 21-1/4 | 236 | ||

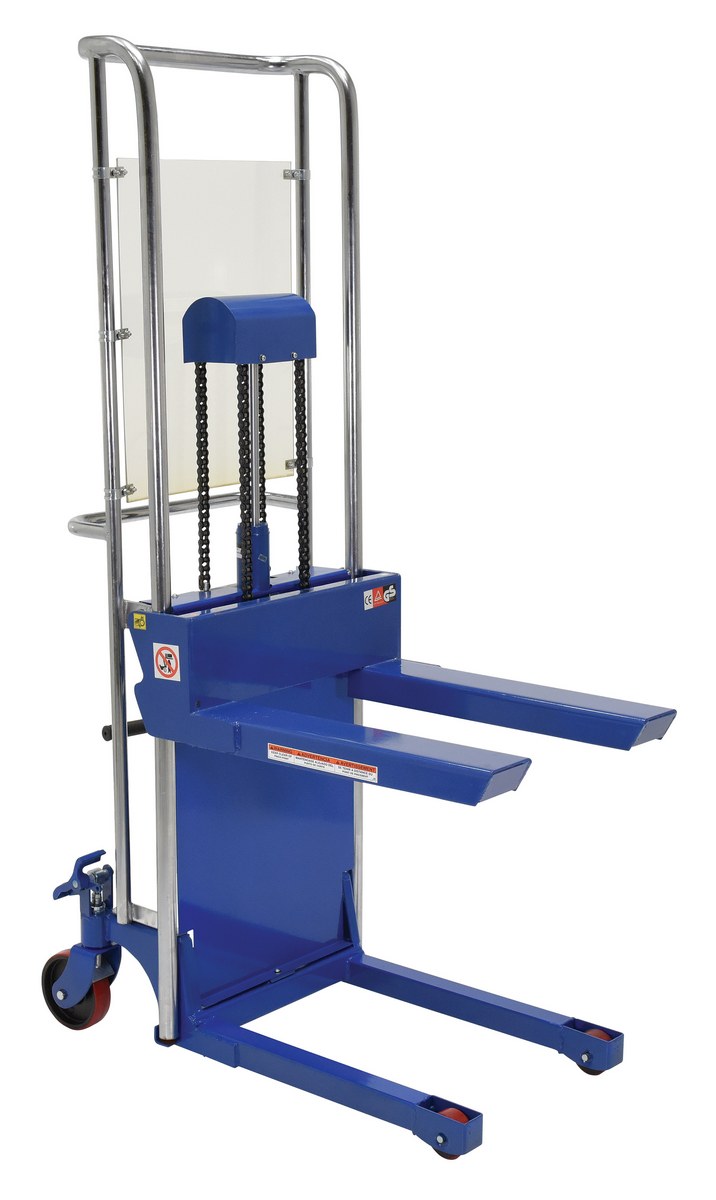

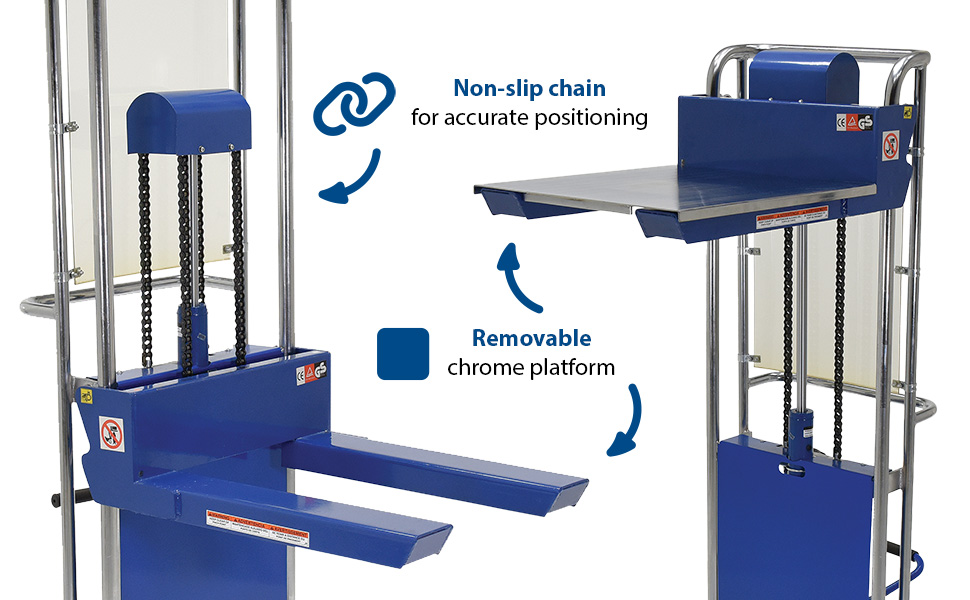

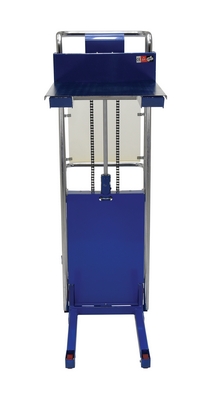

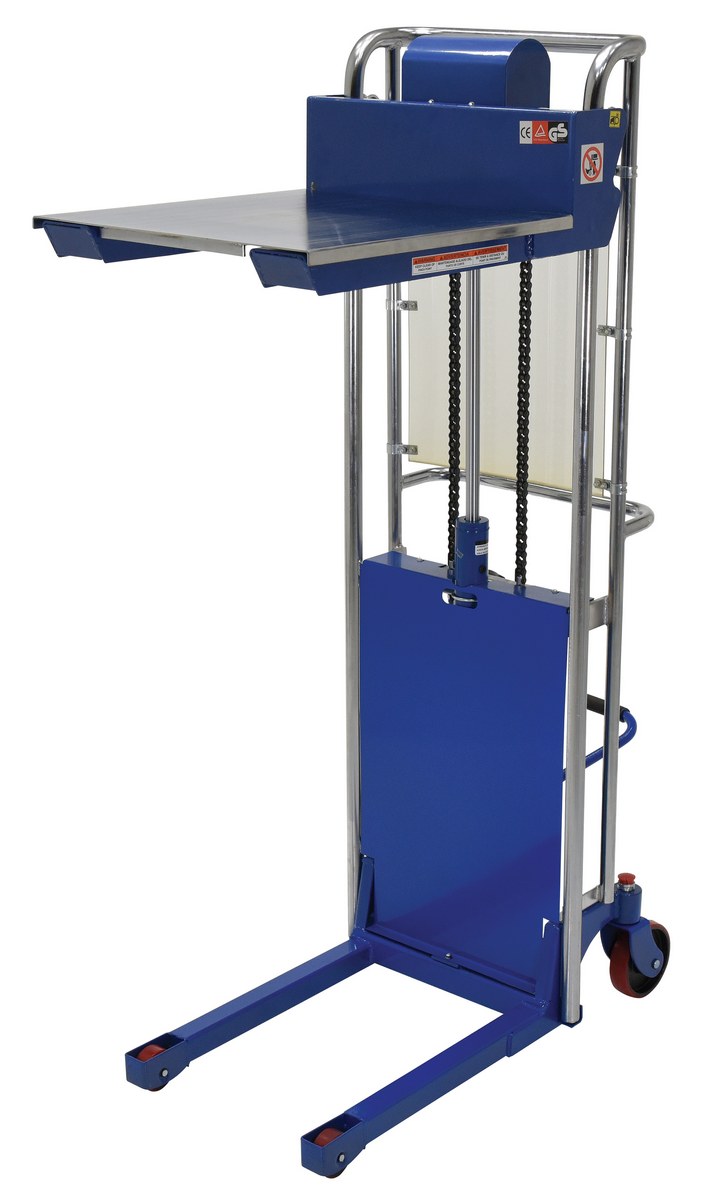

| HYD-10 | POPULAR |  | 90 Days Limited Warranty | Steel Portable Foot Pump Hefti-Lift 41 In. x 69 In. 880 Lb. Capacity Blue | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 | 280 | |

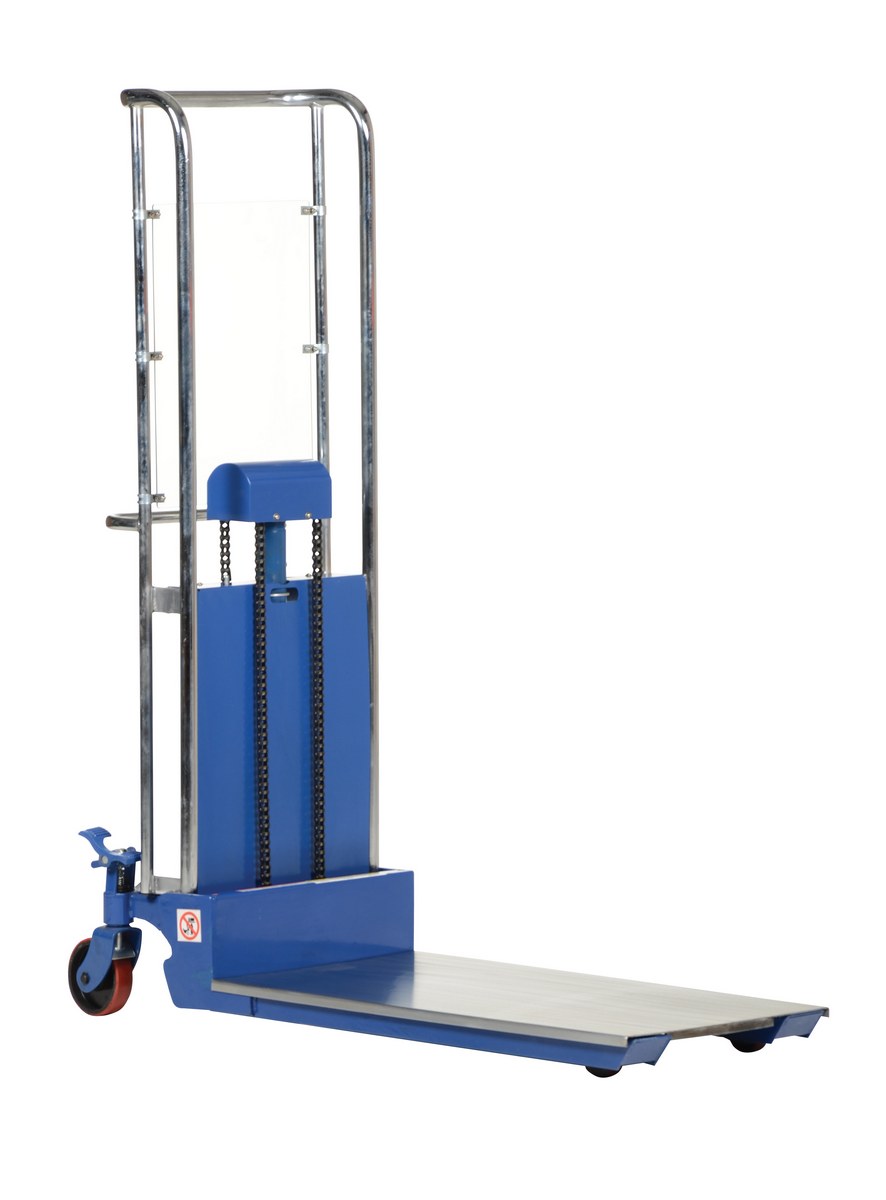

| HYD-10-EP |  | 90 Days Limited Warranty | Steel Portable Foot Pump Hefti-Lift 57 In. x 69 In. 300 Lb. Capacity Blue | Uniform Capacity (lb.): 300 Platform Width/Length (in.): 23 x 40 | 308 | ||

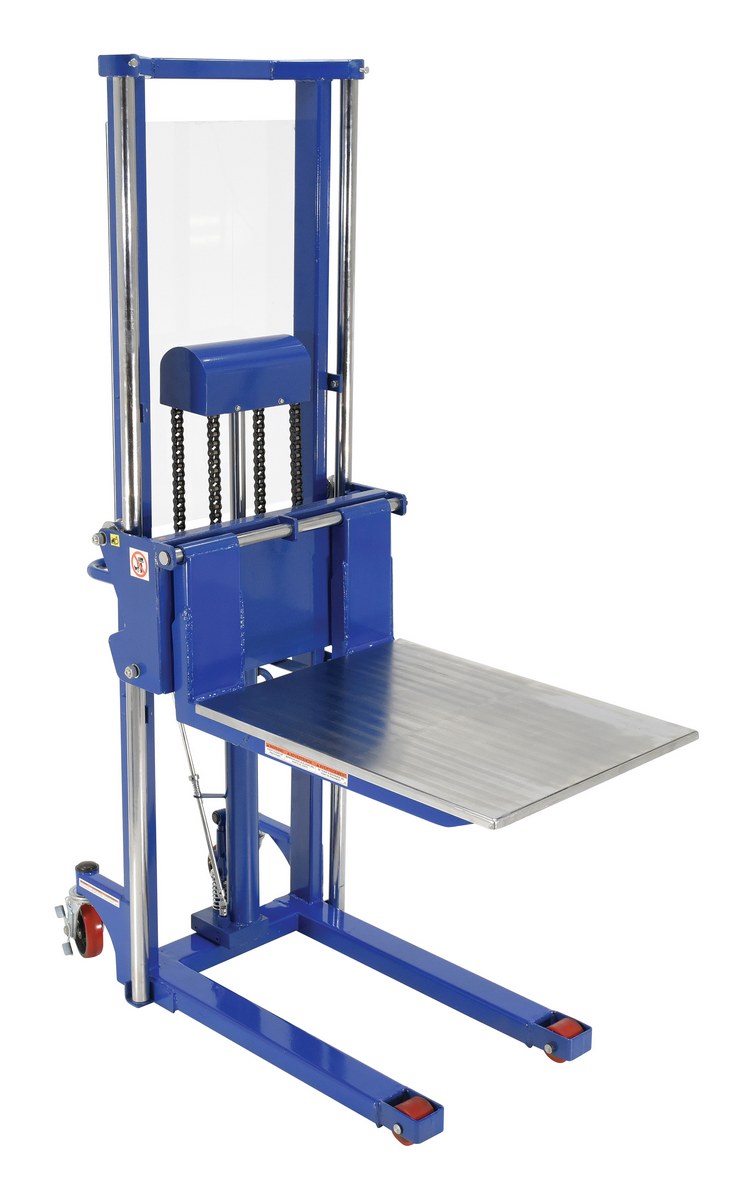

| HYD-15 | | 90 Days Limited Warranty | Steel Portable Foot Pump Hefti-Lift 51 In. x 79-3/8 In. 1500 Lb. Capacity Blue | Uniform Capacity (lb.): 1500 Platform Width/Length (in.): 23 x 31-1/2 | 479 | ||

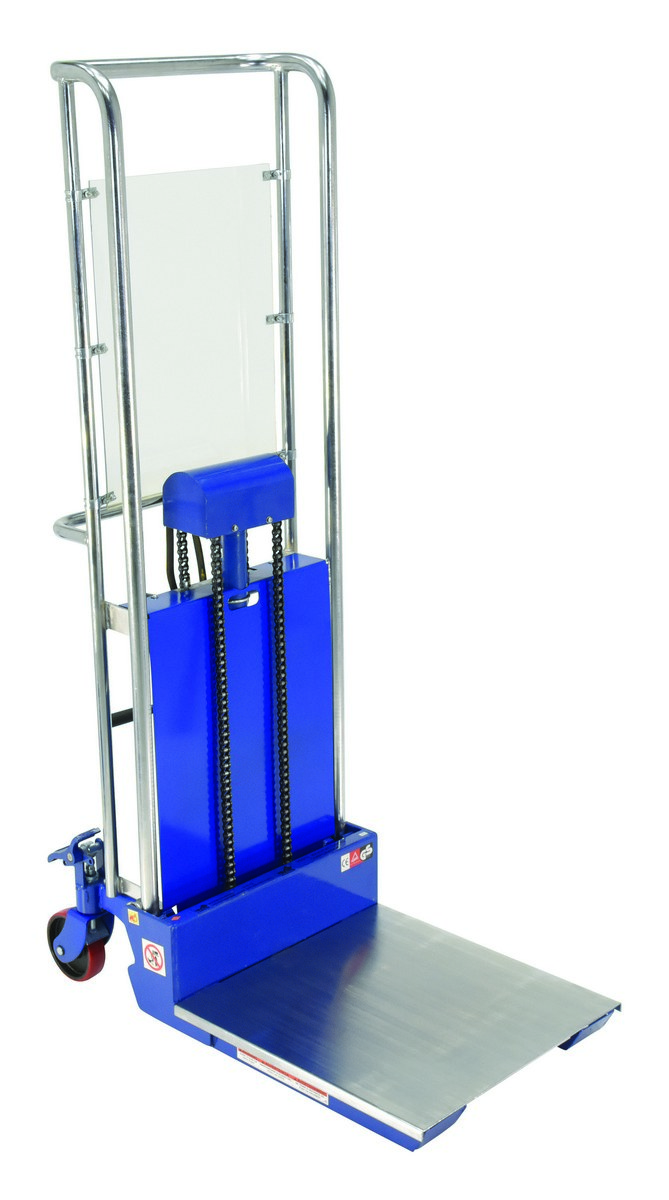

| HYD-10-AIR | | | 90 Days Limited Warranty | Steel Portable Air Foot Pump Hetti-Lift 41 In. x 69 In. 880 Lb. Capacity Blue | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 | 295 | |

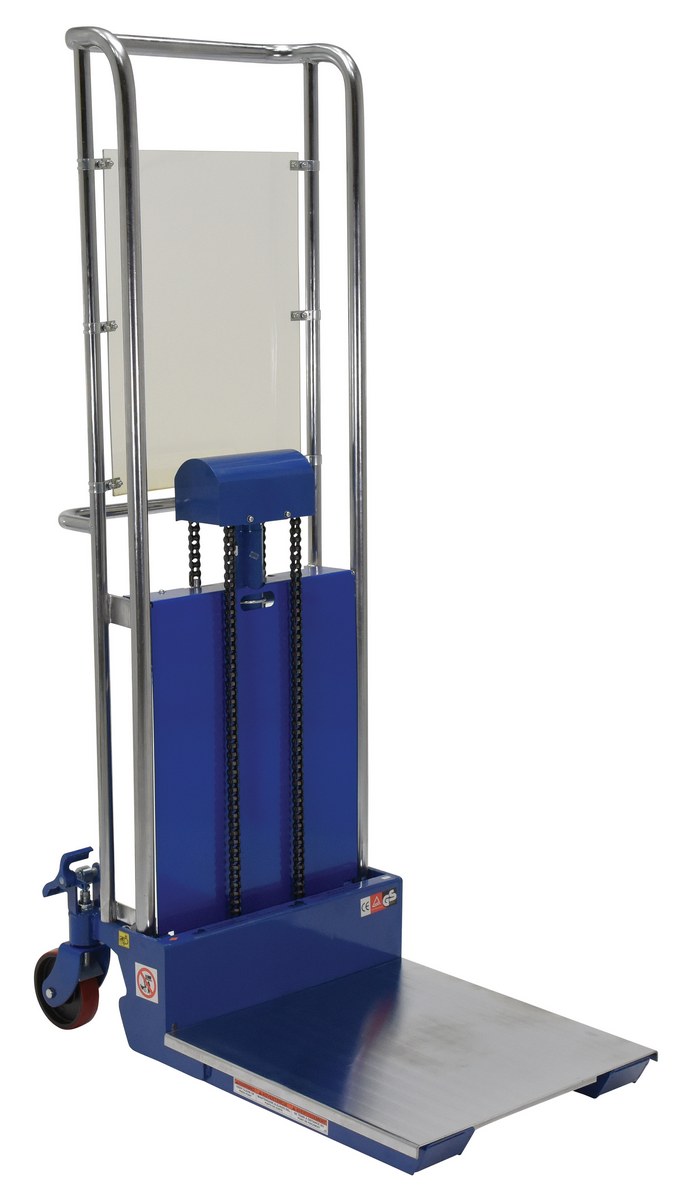

| HYD-10-AS |  | 90 Days Limited Warranty | Steel Portable Two Speed Foot Pump Hefti-Lift 36 In. x 70 In. 880 Lb. Capacity Blue | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 | 321 | ||

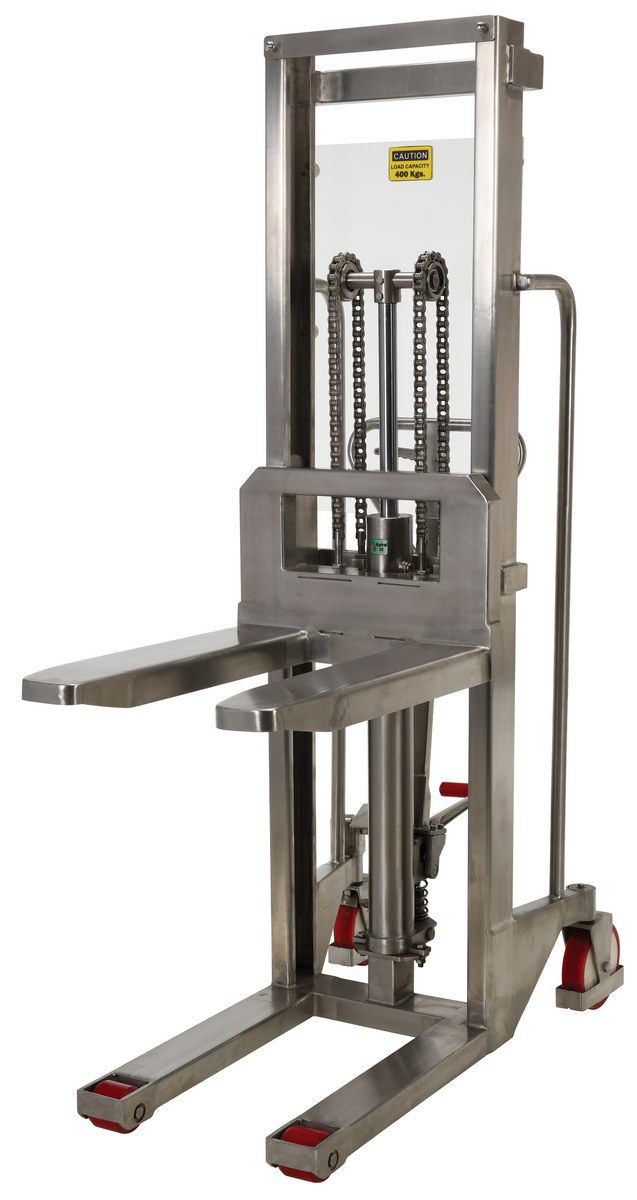

| HYD-10-DA-SS | |  | 90 Days Limited Warranty | Stainless Steel Portable Hand Pump Hefti-Lift 48 In. x 74 In. 800 Lb. Capacity Silver | Uniform Capacity (lb.): 800 Service Range (in.): 3-1/8 x 59 | 354 | |

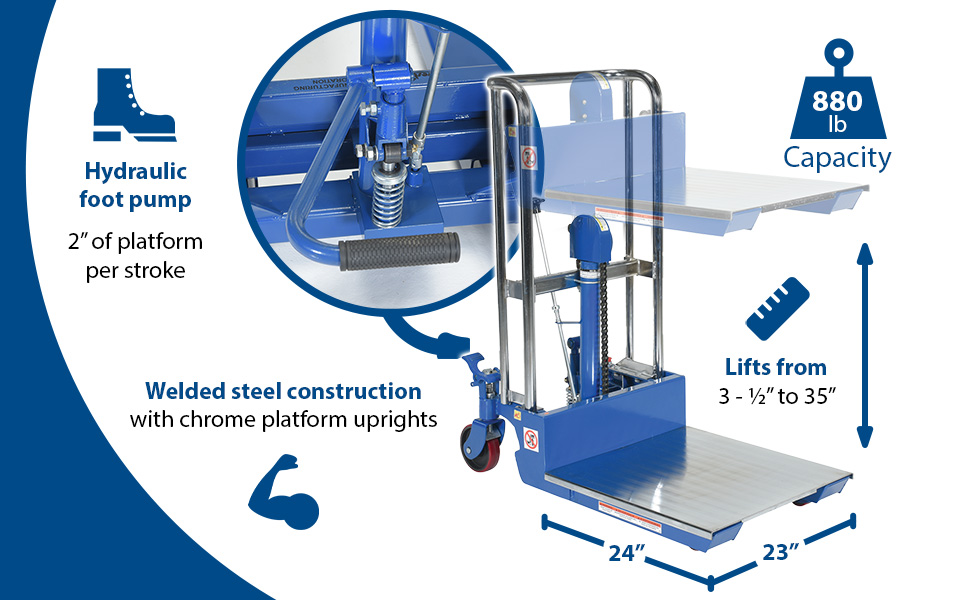

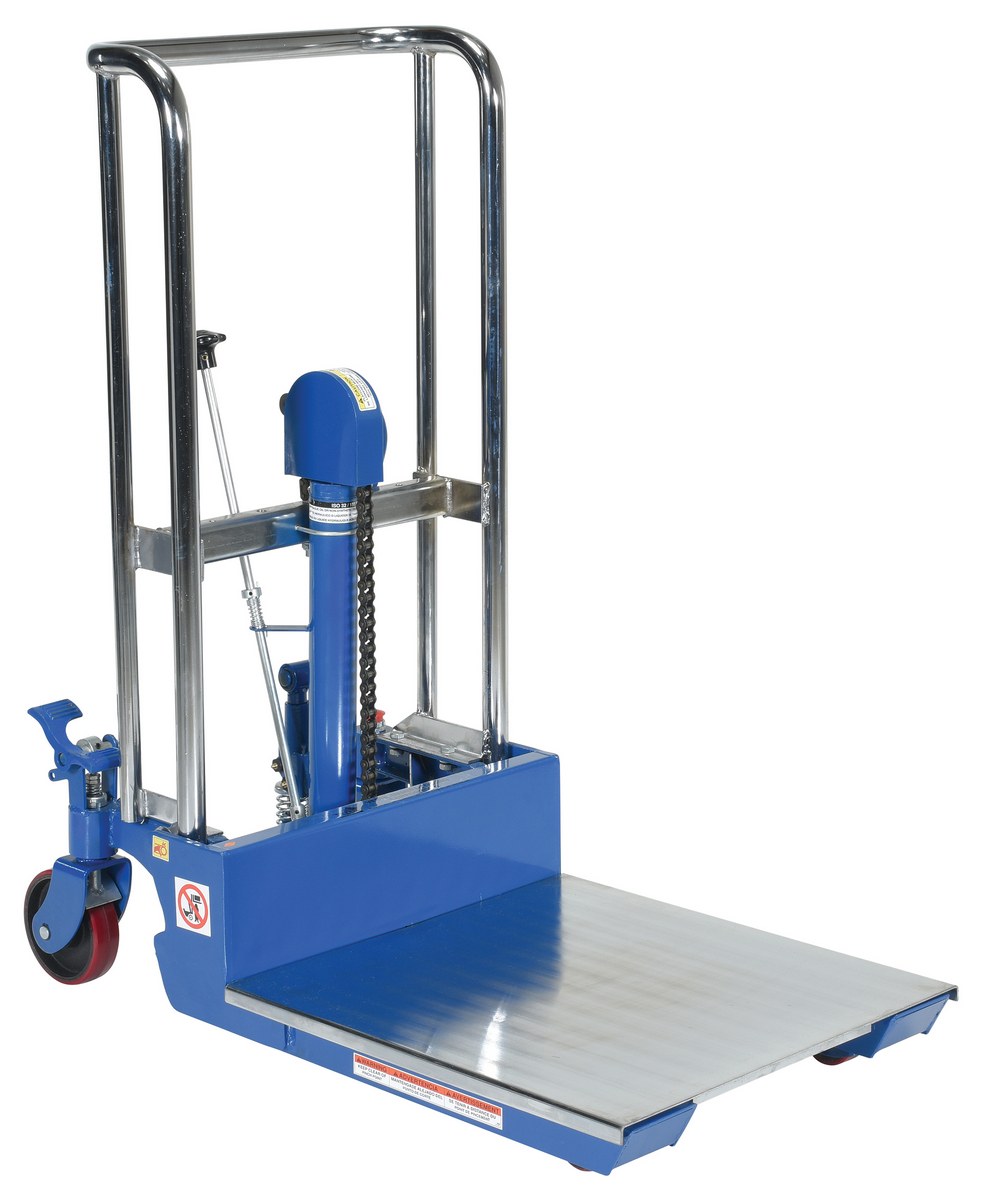

| HYD-3 |  | 90 Days Limited Warranty | Steel Portable Welded Hydraulic Hefti-Lift 880 Lb. Capacity Blue | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 | 235 | ||
| HYD-5-AIR | | 90 Days Limited Warranty | Steel Portable Air Foot Pump Hefti-Lift 41 In. x 54 In. 880 Lb. Capacity Blue | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 | 261 | ||
| HYD-5-AS |  | 90 Days Limited Warranty | Steel Two Speed Foot Pump Hefti-Lift 36 In. x 55 In. 880 Lb. Capacity Blue | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 | 286 | ||

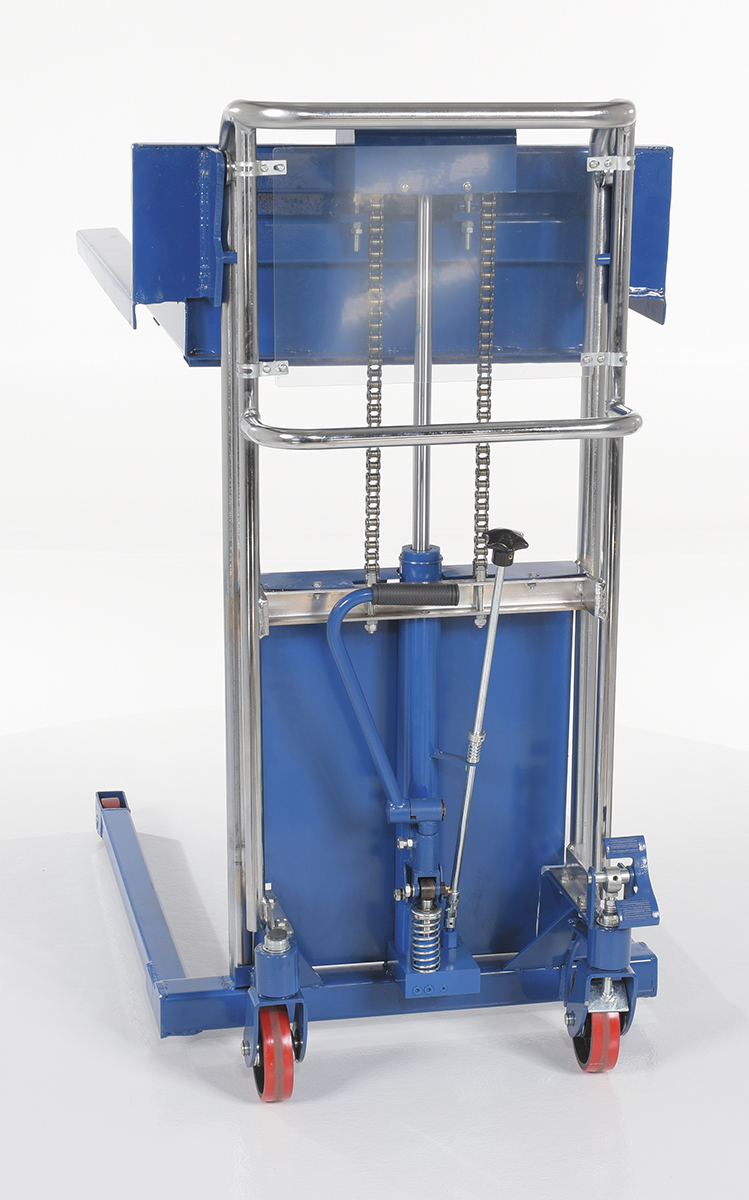

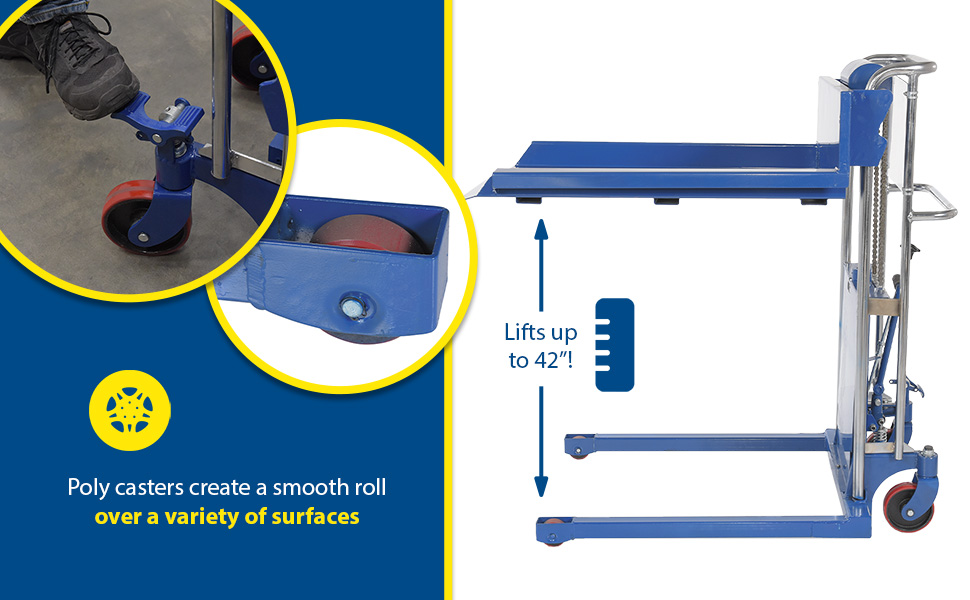

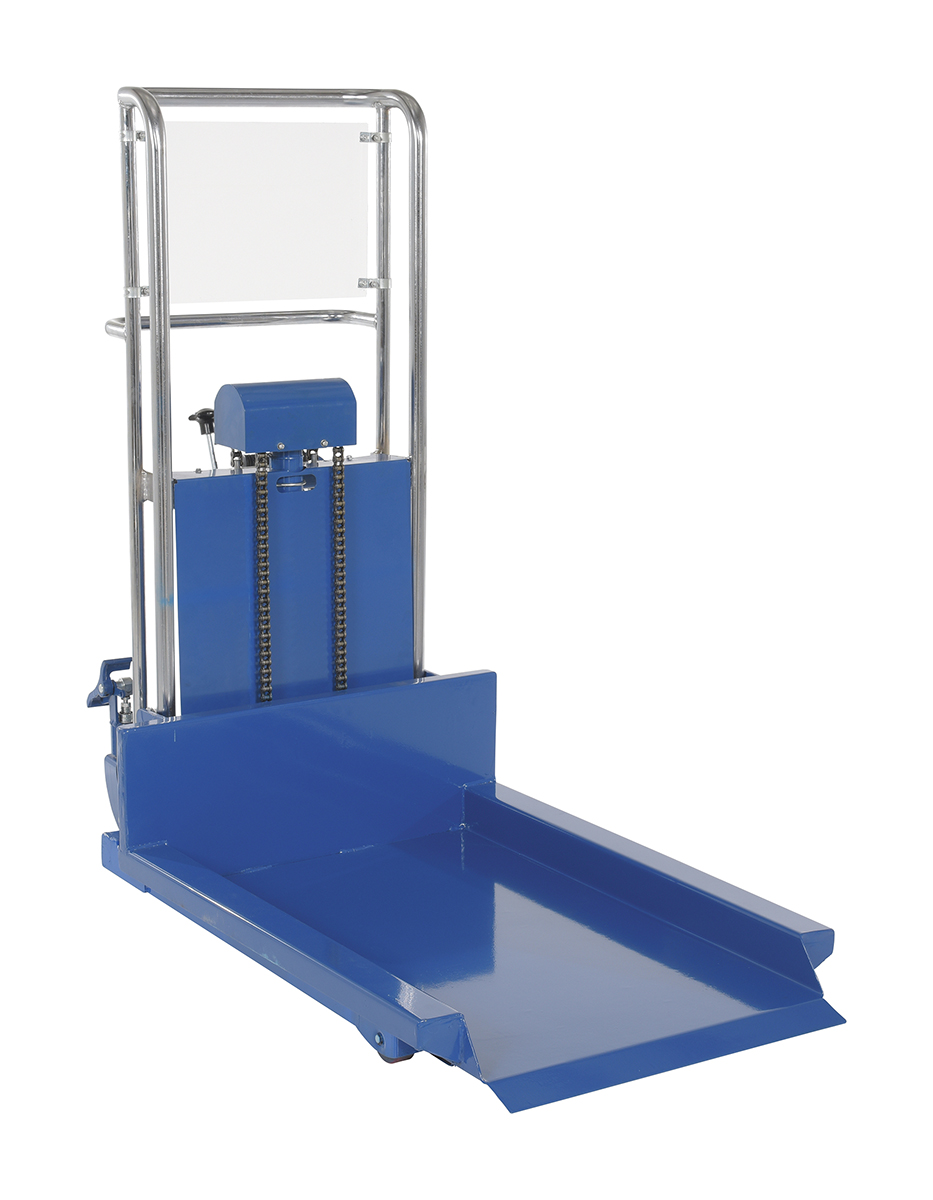

| HYD-5-LP | | 1 Year Limited Warranty | Steel Low Profile Hefti-Lift 53-1/2 In. x 53-3/4 In. 880 Lb. Capacity Blue | Uniform Capacity (lb.): 880 Platform Width/Length (in.): 24" x 36" | 305 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width/Length (in.): 23 x 40
Uniform Capacity (lb.): 400
Platform Width/Length (in.): 23 x 40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 450
Platform Width/Length (in.): 21 x 24
Uniform Capacity (lb.): 450
Platform Width/Length (in.): 21 x 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 450
Platform Width/Length (in.): 23-7/8 x 21-1/4
Uniform Capacity (lb.): 450
Platform Width/Length (in.): 23-7/8 x 21-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Platform Width/Length (in.): 23 x 40
Uniform Capacity (lb.): 300
Platform Width/Length (in.): 23 x 40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Platform Width/Length (in.): 23 x 31-1/2
Uniform Capacity (lb.): 1500
Platform Width/Length (in.): 23 x 31-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Service Range (in.): 3-1/8 x 59
Uniform Capacity (lb.): 800
Service Range (in.): 3-1/8 x 59
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 24" x 36"
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 24" x 36"
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: HYD-10
Hydraulic Oil SDS Sheet for: HYD-10-AIR
Hydraulic Oil SDS Sheet for: HYD-10-AS
Hydraulic Oil SDS Sheet for: HYD-10-DA-SS
Hydraulic Oil SDS Sheet for: HYD-10-EP
Hydraulic Oil SDS Sheet for: HYD-15
Hydraulic Oil SDS Sheet for: HYD-5
Hydraulic Oil SDS Sheet for: HYD-5-AIR
Hydraulic Oil SDS Sheet for: HYD-5-AS
Hydraulic Oil SDS Sheet for: HYD-5-EP
Hydraulic Oil SDS Sheet for: HYD-5-LP
Hydraulic Oil SDS Sheet for: HYD-5-PSS
Hydraulic Oil SDS Sheet for: HYD-5-SS
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Can the V-Block be used on the HYD-10?
A: The HYDC-VBLK accessory for the DC powered unit can be used on the manual units as well.
Q: We are looking at the extra platform for the HYD-5-LP. How high is the lip on the platform?
A: The HYD-5-LP platform lip is 3-1/8" high. The HYD-5-EP platform lip is 5-1/8".
Q: How much hydraulic fluid do these units hold?
A: The Hefti-Lifts hold 2-2.5 quarts of hydraulic fluid.

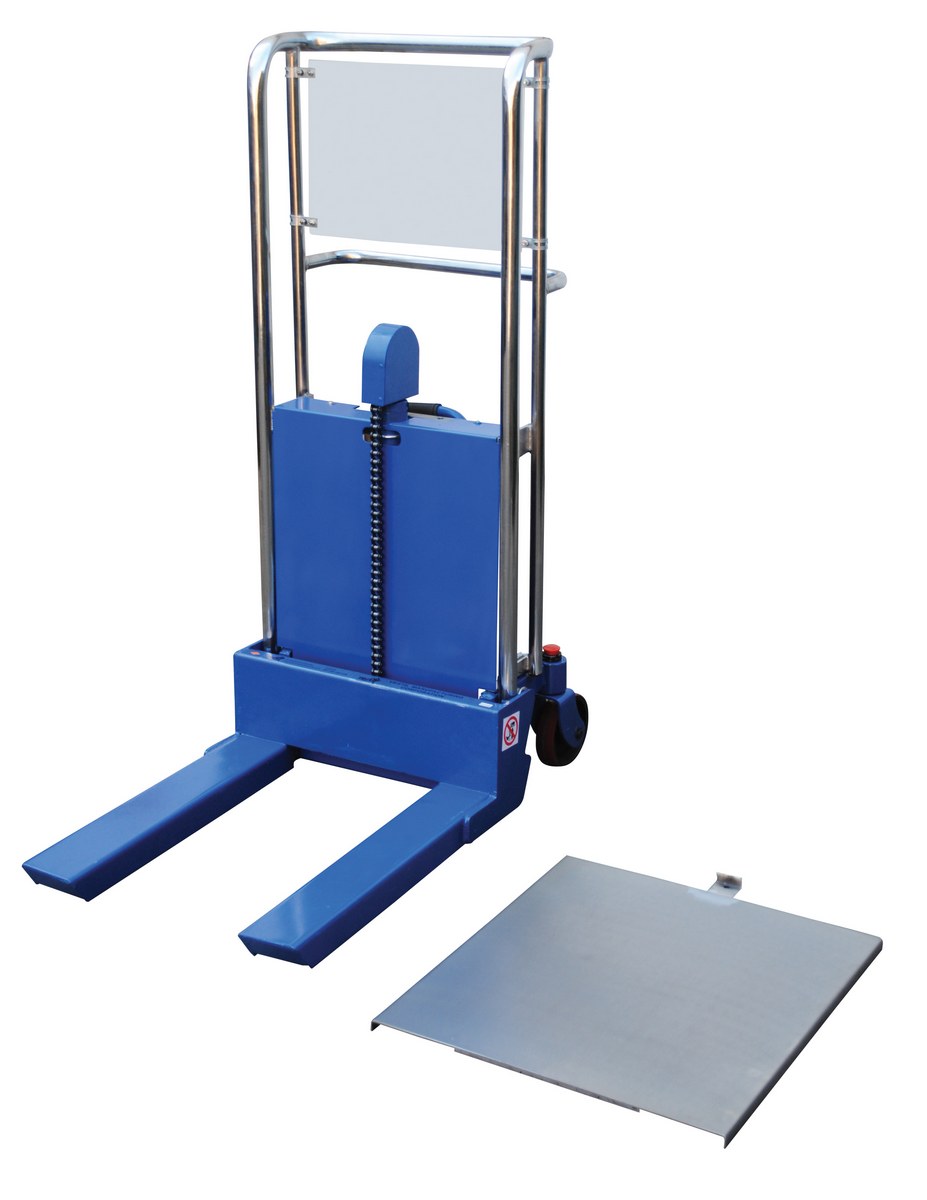

Q: Is the platform removable so the unit can be used just with the forks?
A: Yes platform is removable on the following models HYD-10, HYD-10-AIR, HYD-10-AS, HYD-10-DA,SS, HYD-10-DC, HYD-10-DC,SS HYD-10-EP. Lift can be used with or without platform (with forks).
Q: How tall can it reach?

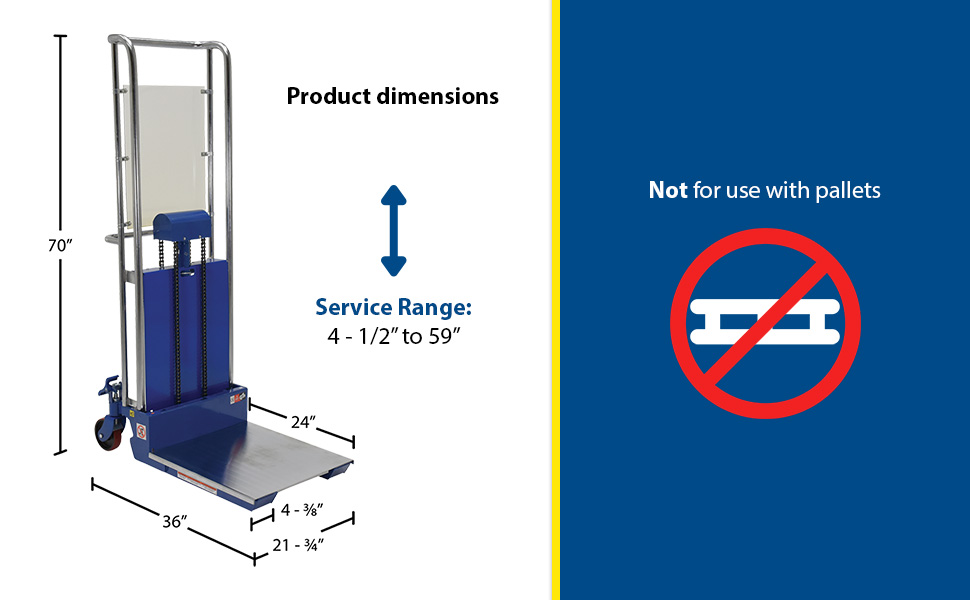

A: Overall height is 79.375". Maximum height is 53". Maximum travel distance is 49".
Q: How thick are the forks? Will they fit low profile pallets?

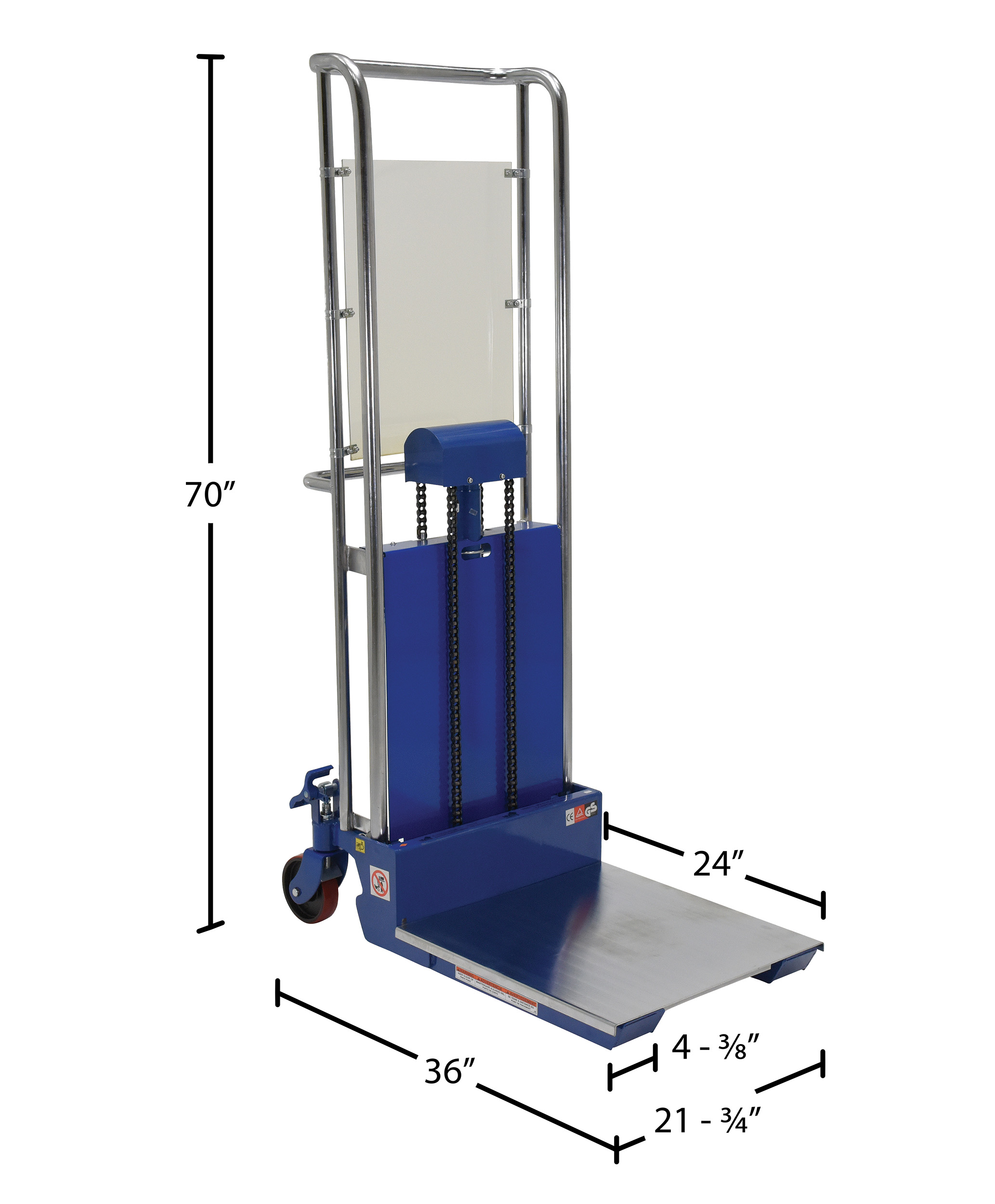

A: Width of the forks 4 3/8", overall fork width 21 3/4", usable length 40". Also fork thickness 0.184" and height 2 3/8".
Q: What is the inside dimension of the platform?
A: The platform inside dimension is 24".
Q: Does model HYD-5-LP feature a removable platform?
A: No, model HYD-5-LP platform is not removable.
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
