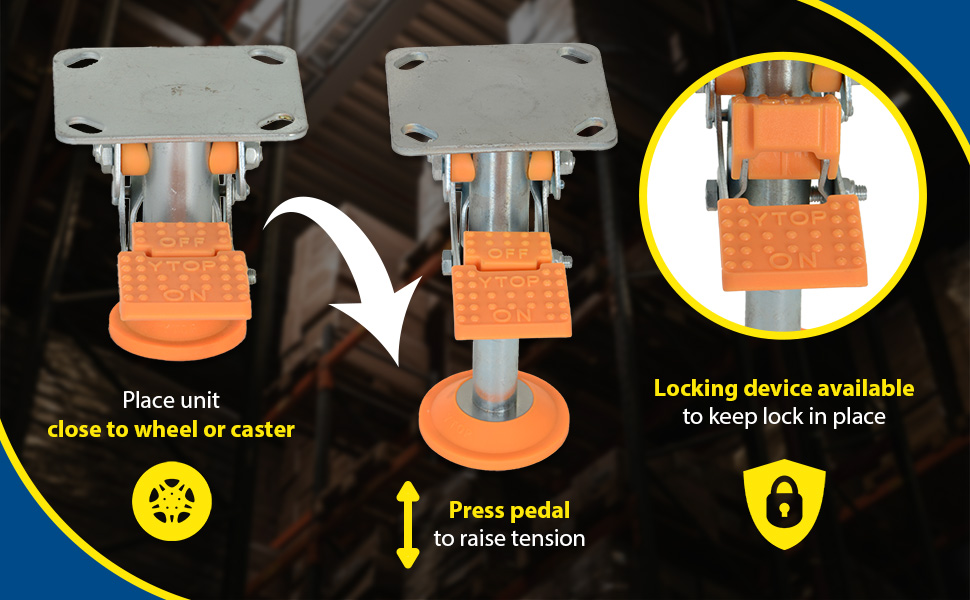

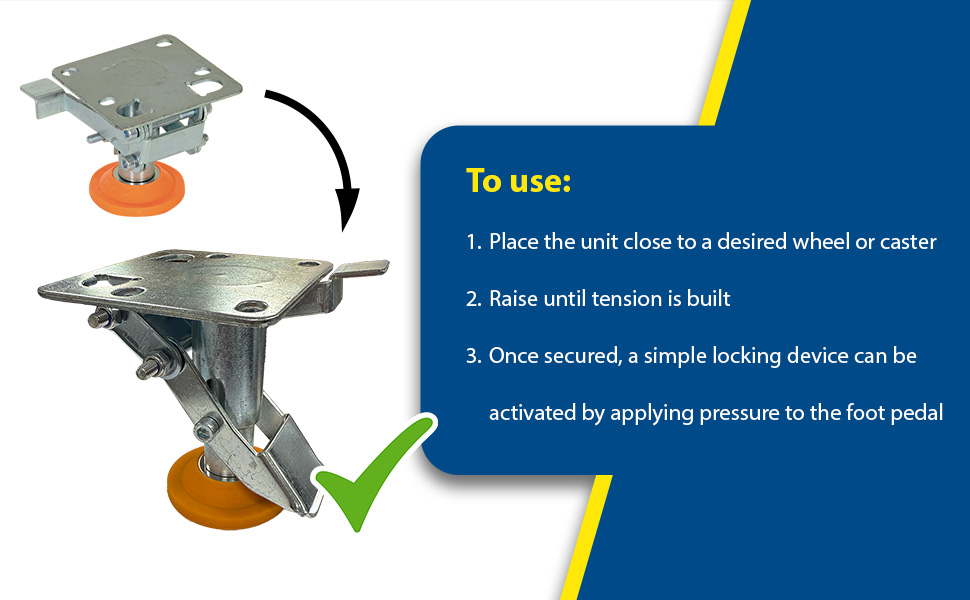

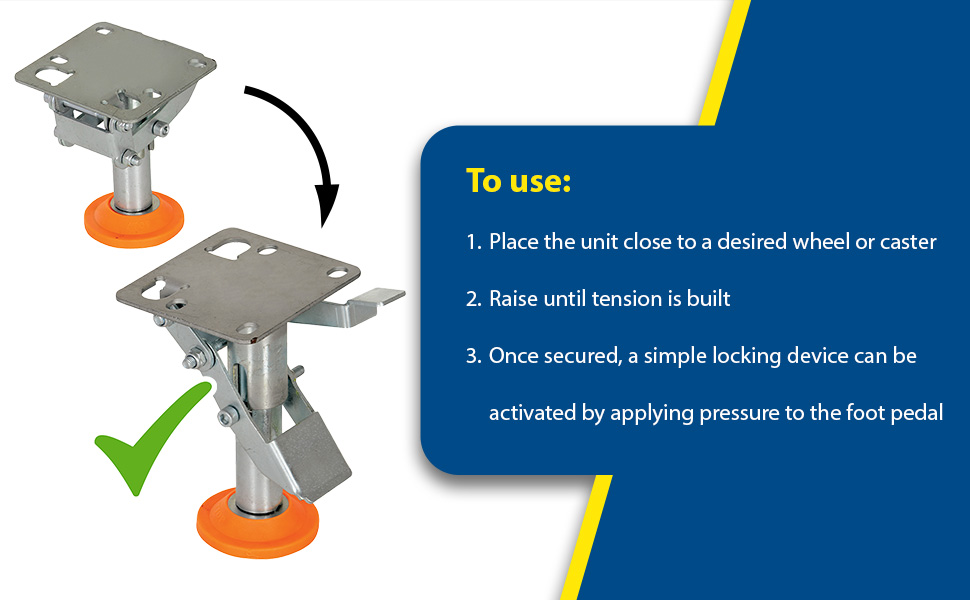

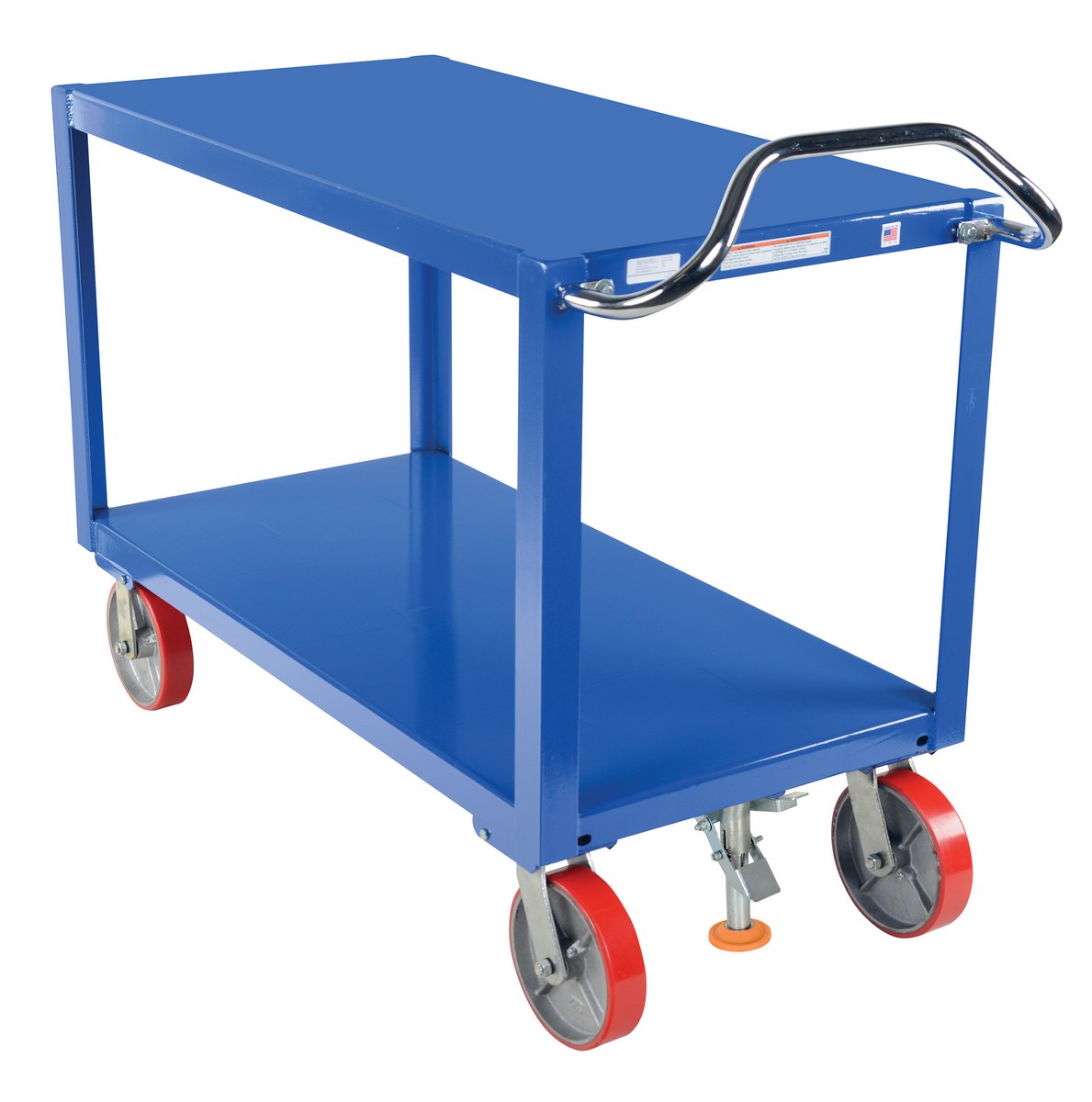

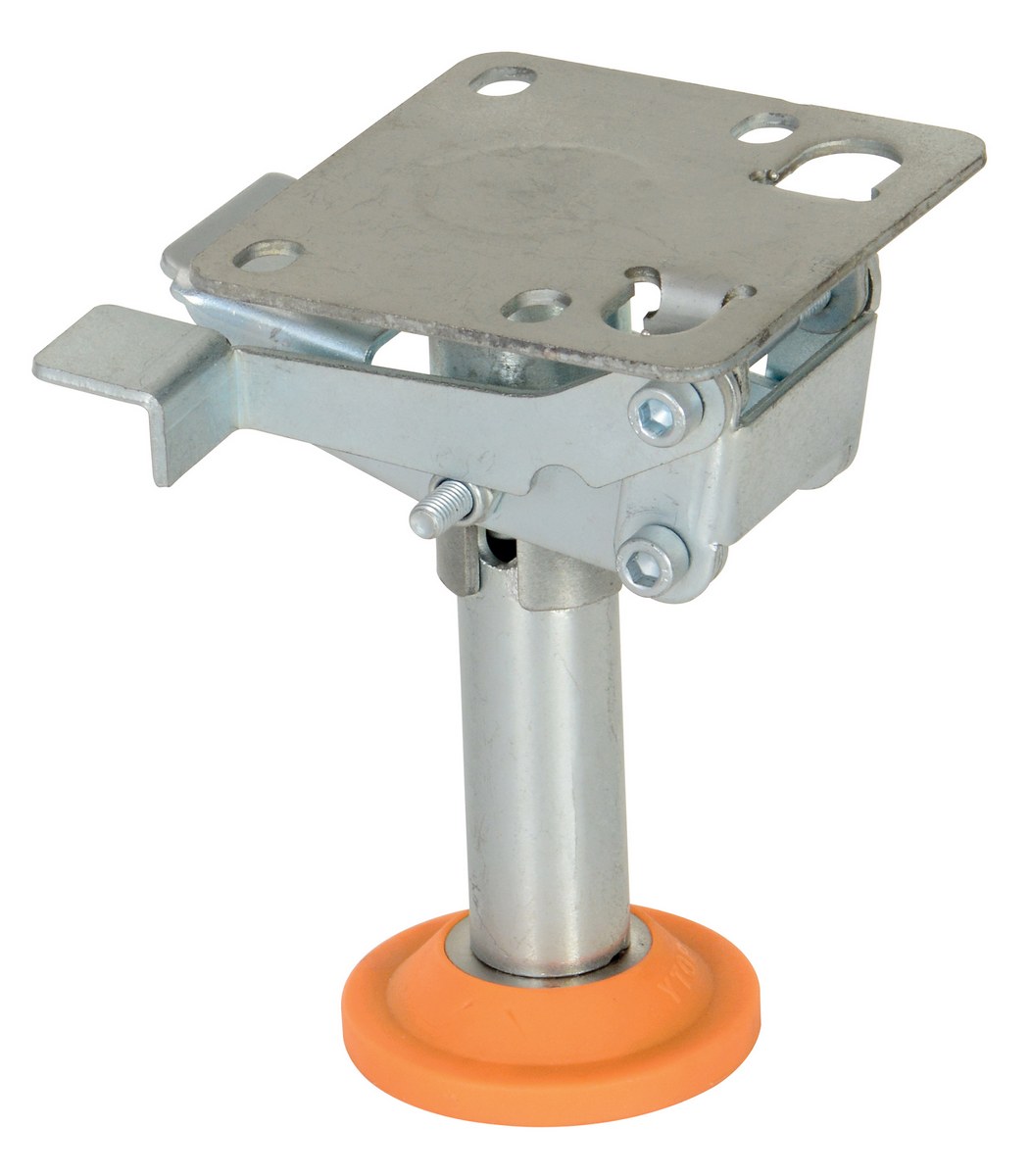

Polyurethane Floor LocksFloor Locks are ideal for maintenance and construction facilities. The unit is designed to create a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.
- Steel construction for durability
- Thermoplastic polyurethane base for stability
- Locking device for quick service
- Lightweight for portability
Economical Floor Locks
Low Profile Floor Lock
Adjustable Height Floor Locks
Leveling JacksAdditional Models In This Family
FL-LKH-6
FL-LKL-5
FL-LKH-6
FL-LKL-3
FL-LKL-4
FL-LKH-4
FL-LKL-5
FL-LKH-8
FL-LKH-5
FL-LKL-3
FL-LKH-8
FL-LKL-5
FL-LKL-4
FL-LKL-5
FL-LKL-4
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

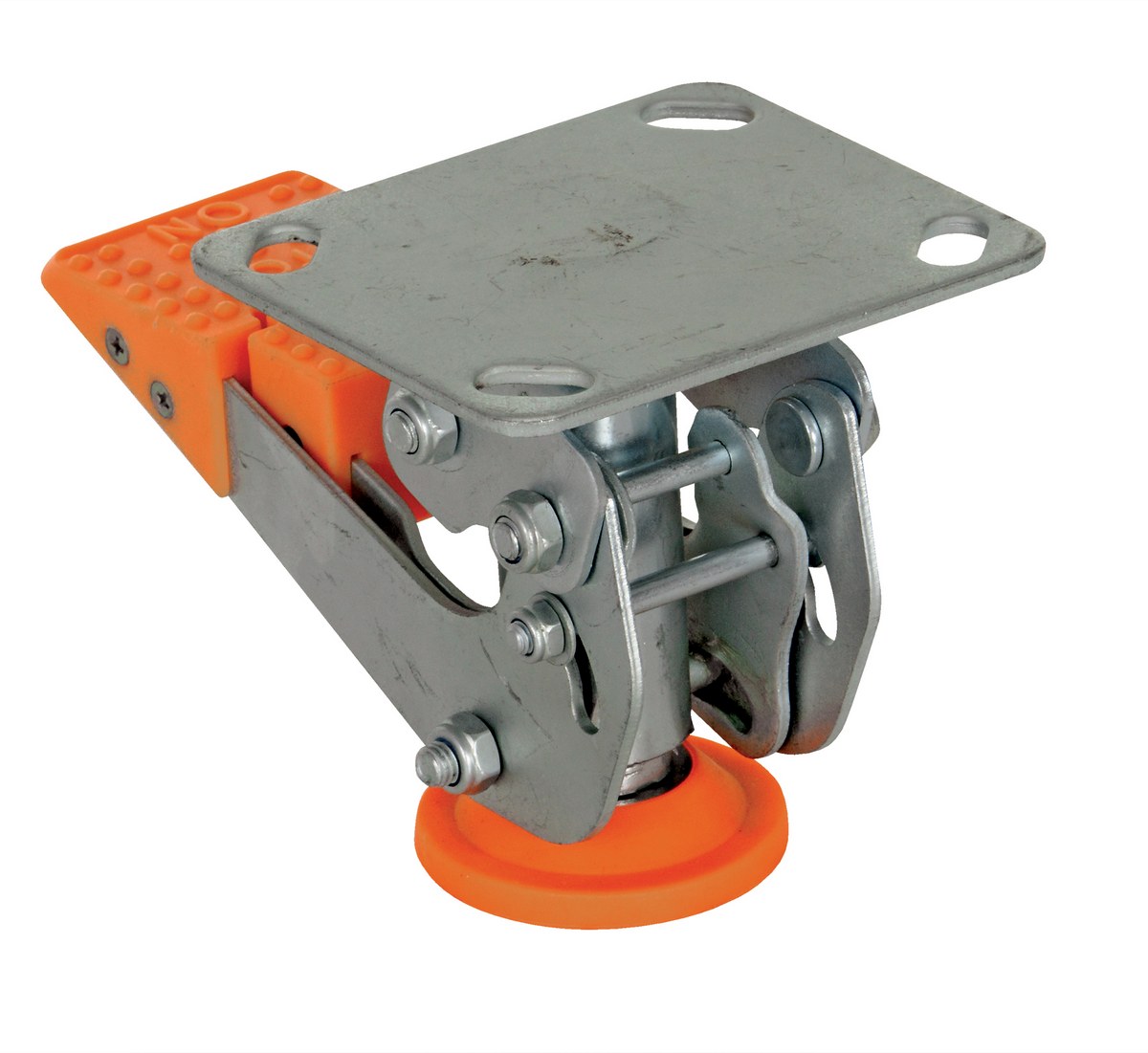

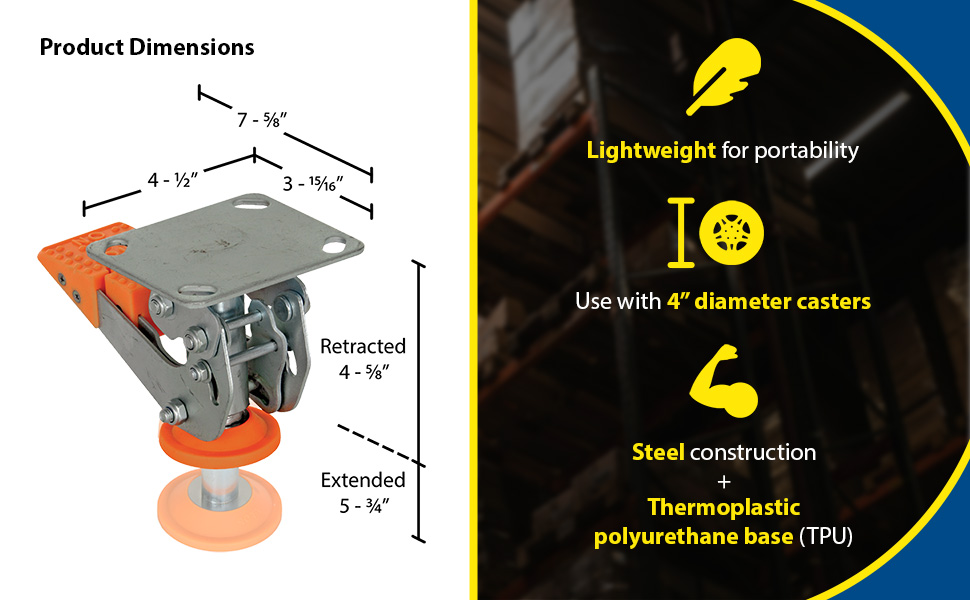

| FL-LKH-4 | | 30 Days Limited Warranty | Steel Floor Lock 4-5/8 to 5-3/4 In. Height Silver | Lowered Height (in.): 4-5/8 Raised Height (in.): 5-3/4 | 4 | ||

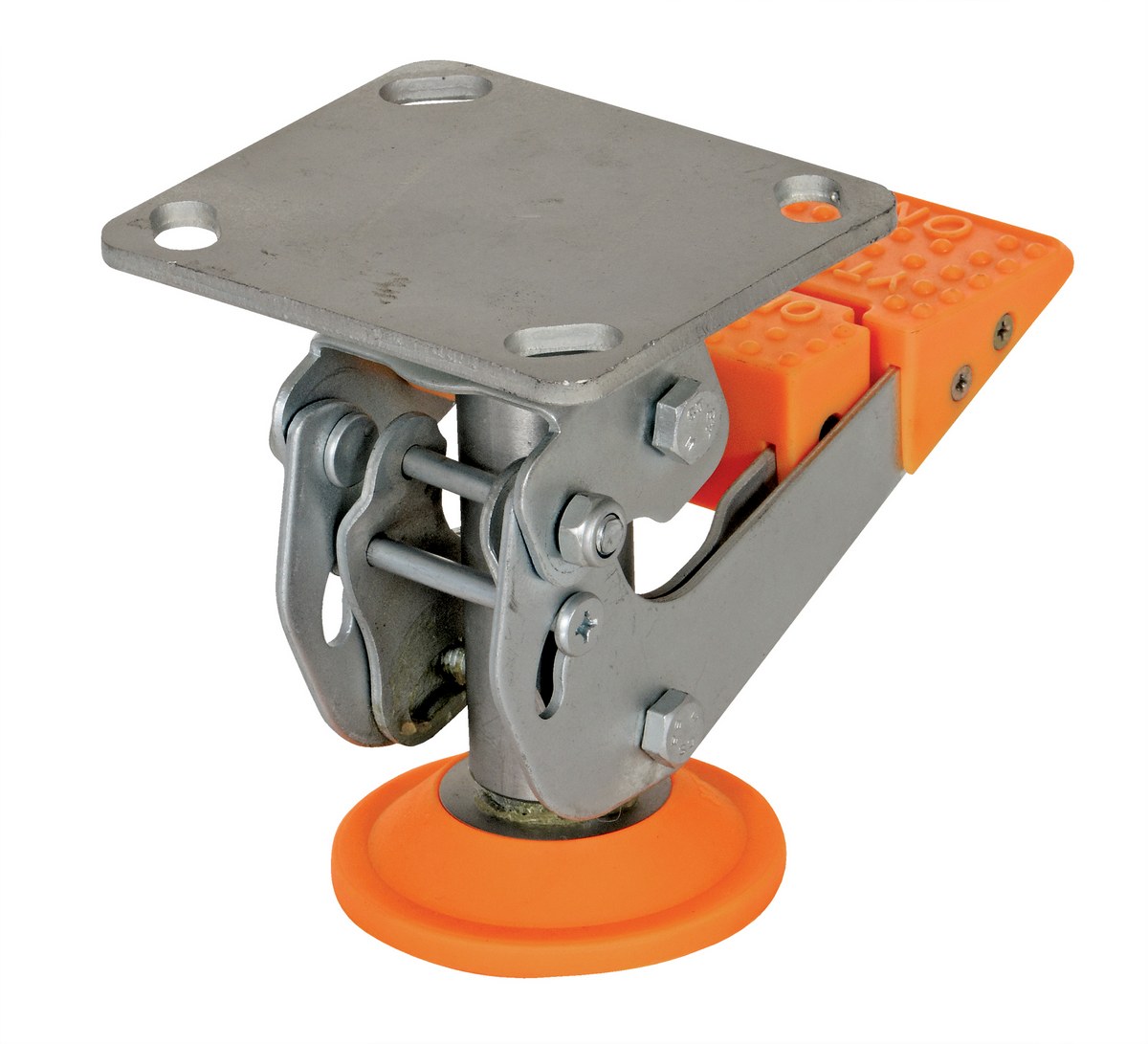

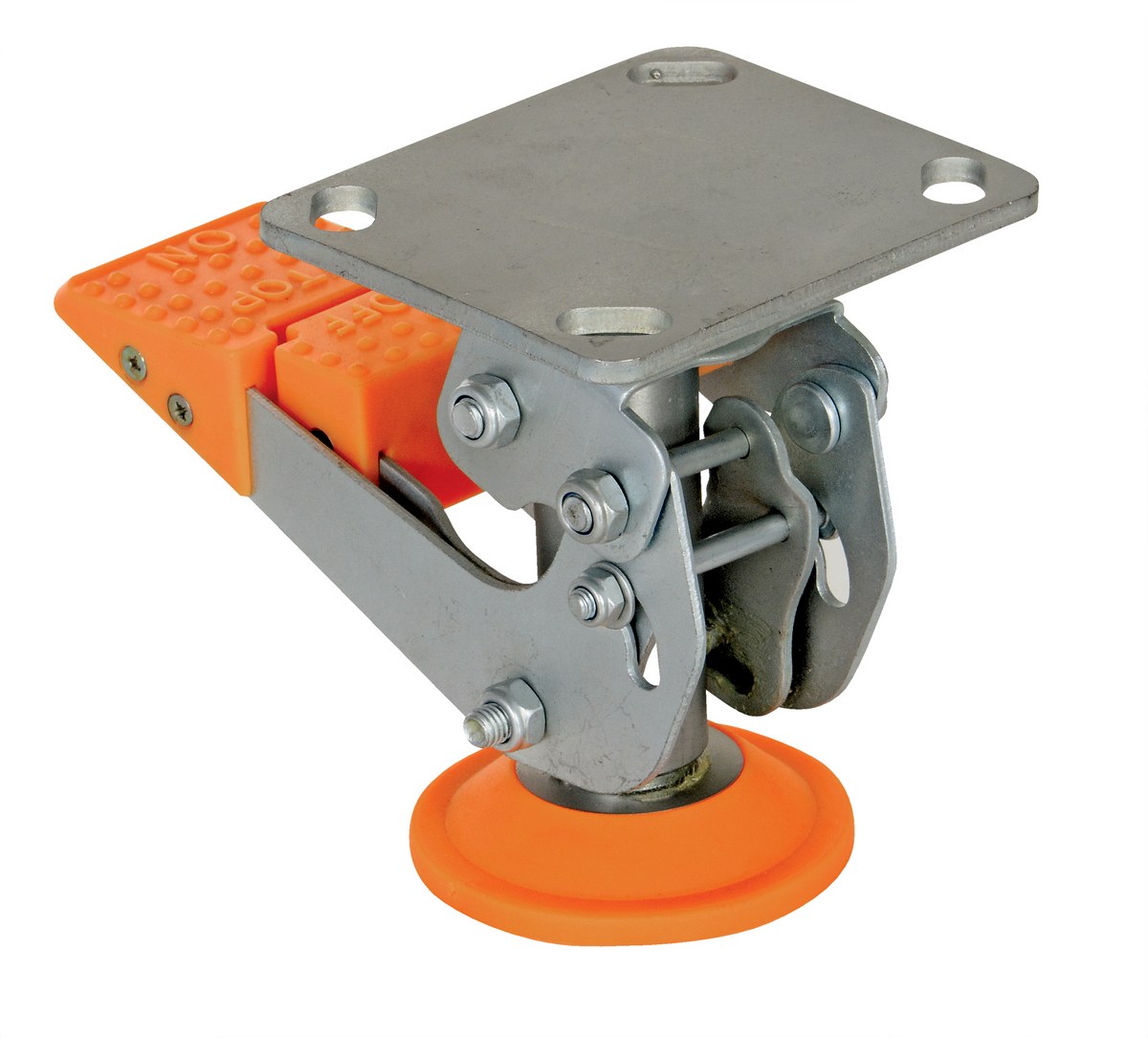

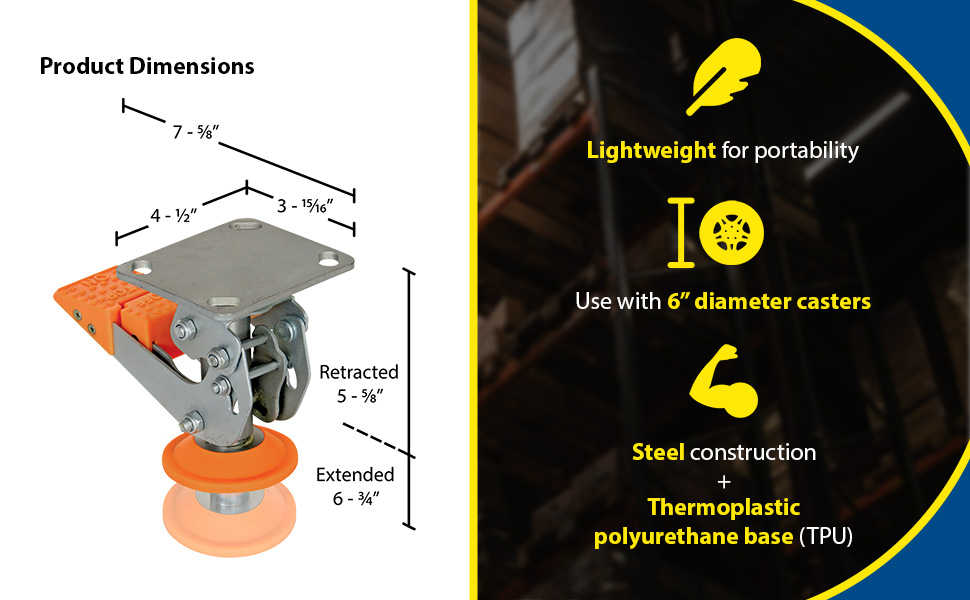

| FL-LKH-5 | | 30 Days Limited Warranty | Steel Floor Lock 5-5/8 to 6-3/4 In. Height Silver | Lowered Height (in.): 5-5/8 Raised Height (in.): 6-3/4 | 5 | ||

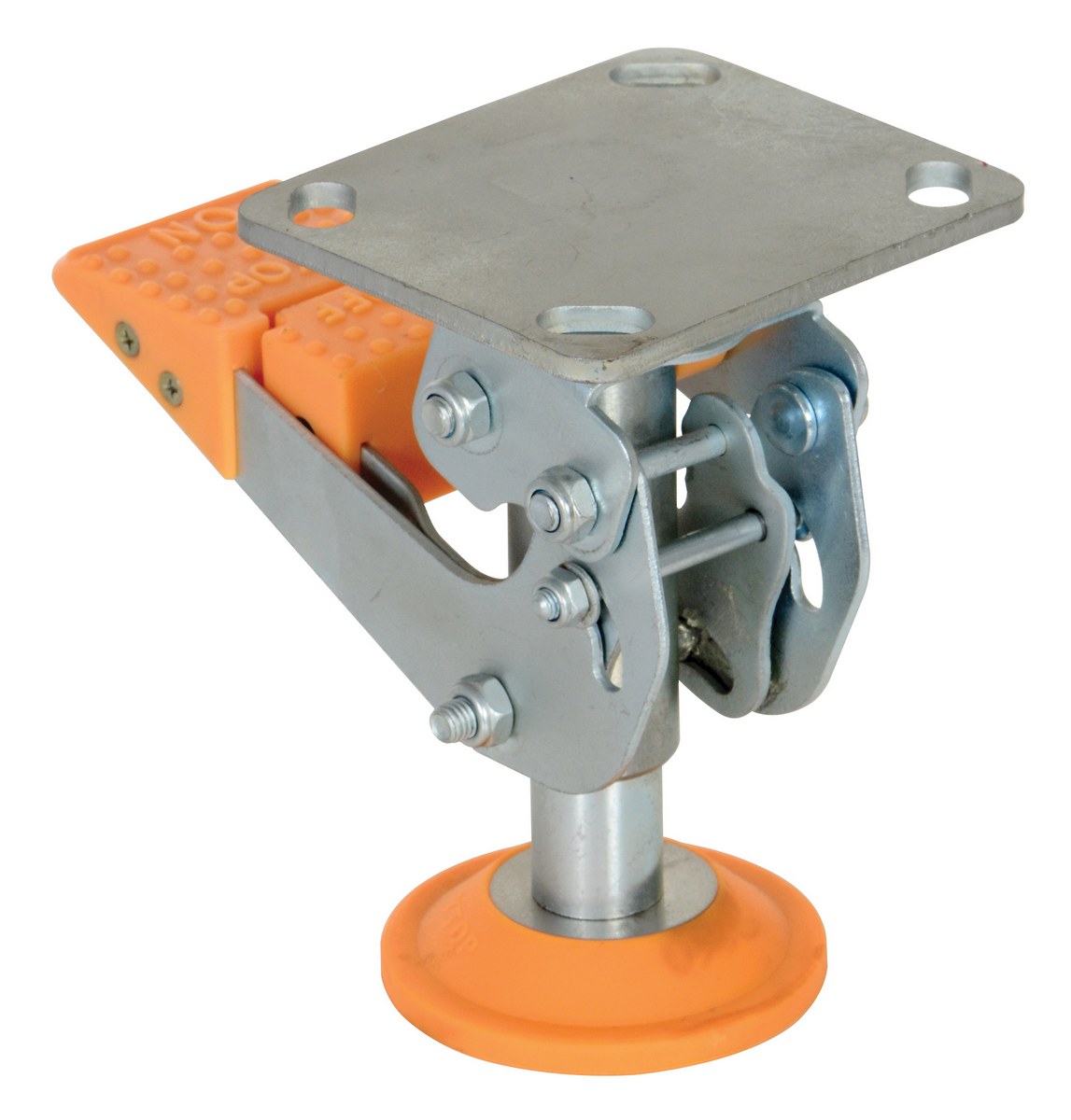

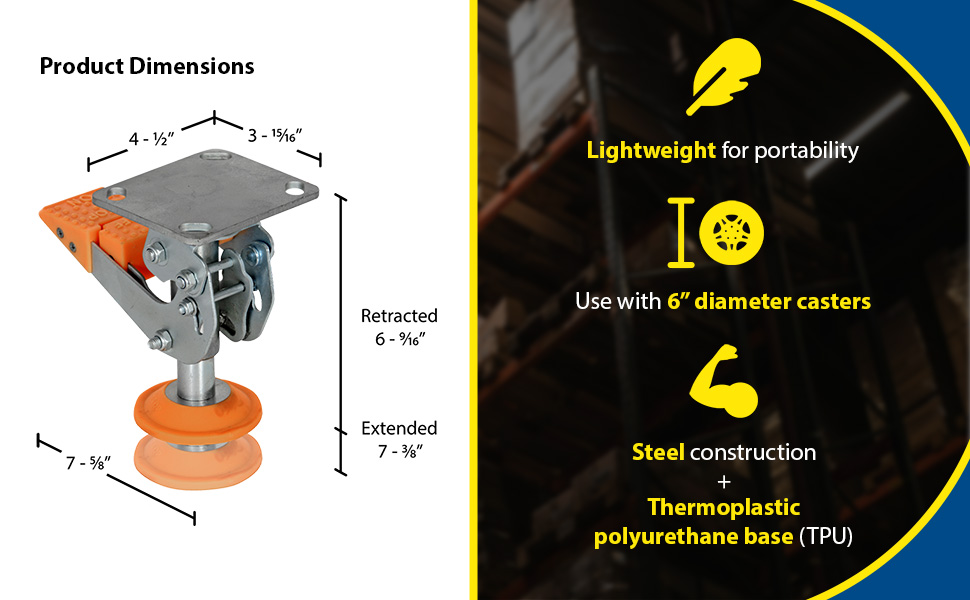

| FL-LKH-6 | | 30 Days Limited Warranty | Steel Floor Lock 6-9/16 to 7-5/8 In. Height Silver | Lowered Height (in.): 6-9/16 Raised Height (in.): 7-5/8 | 5 | ||

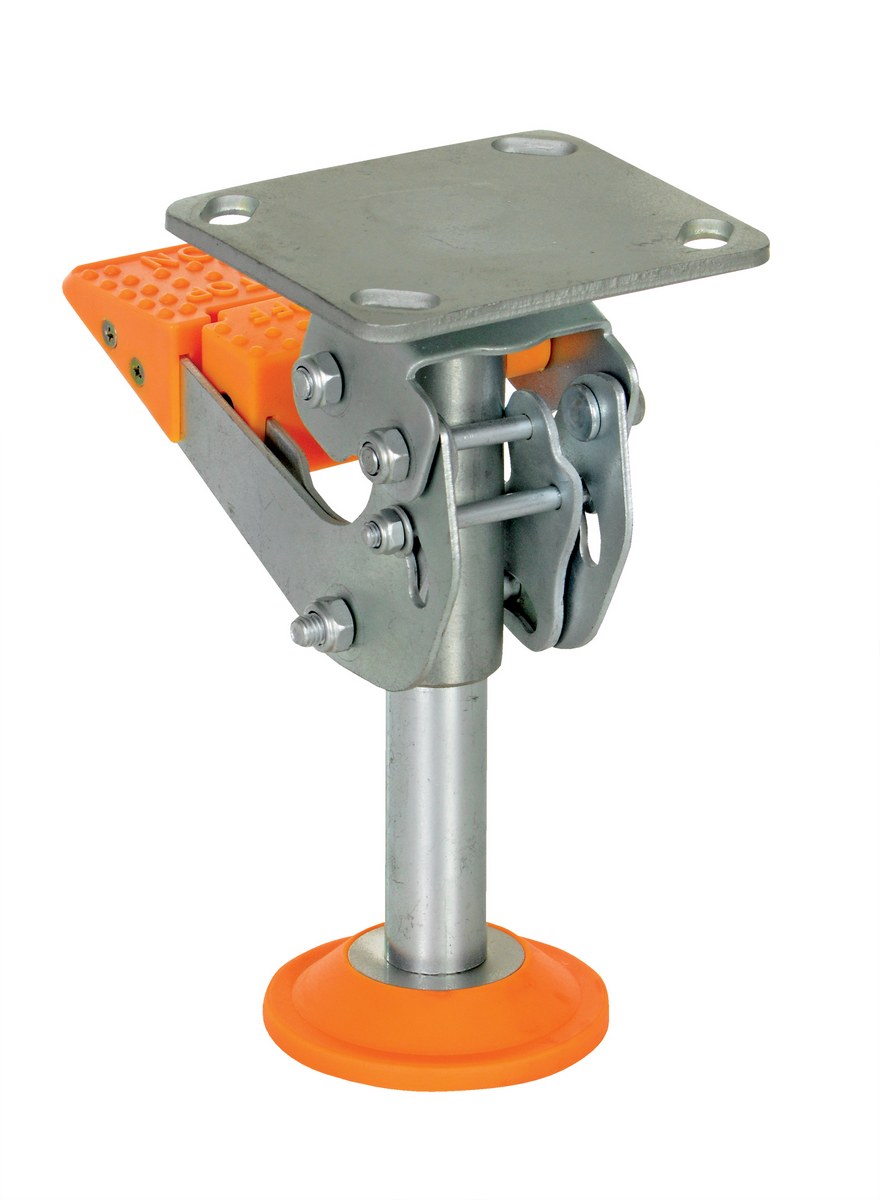

| FL-LKH-8 | | 30 Days Limited Warranty | Steel Floor Lock 8-5/16 to 9-7/16 In. Height Silver | Lowered Height (in.): 8-5/16 Raised Height (in.): 9-7/16 | 5 | ||

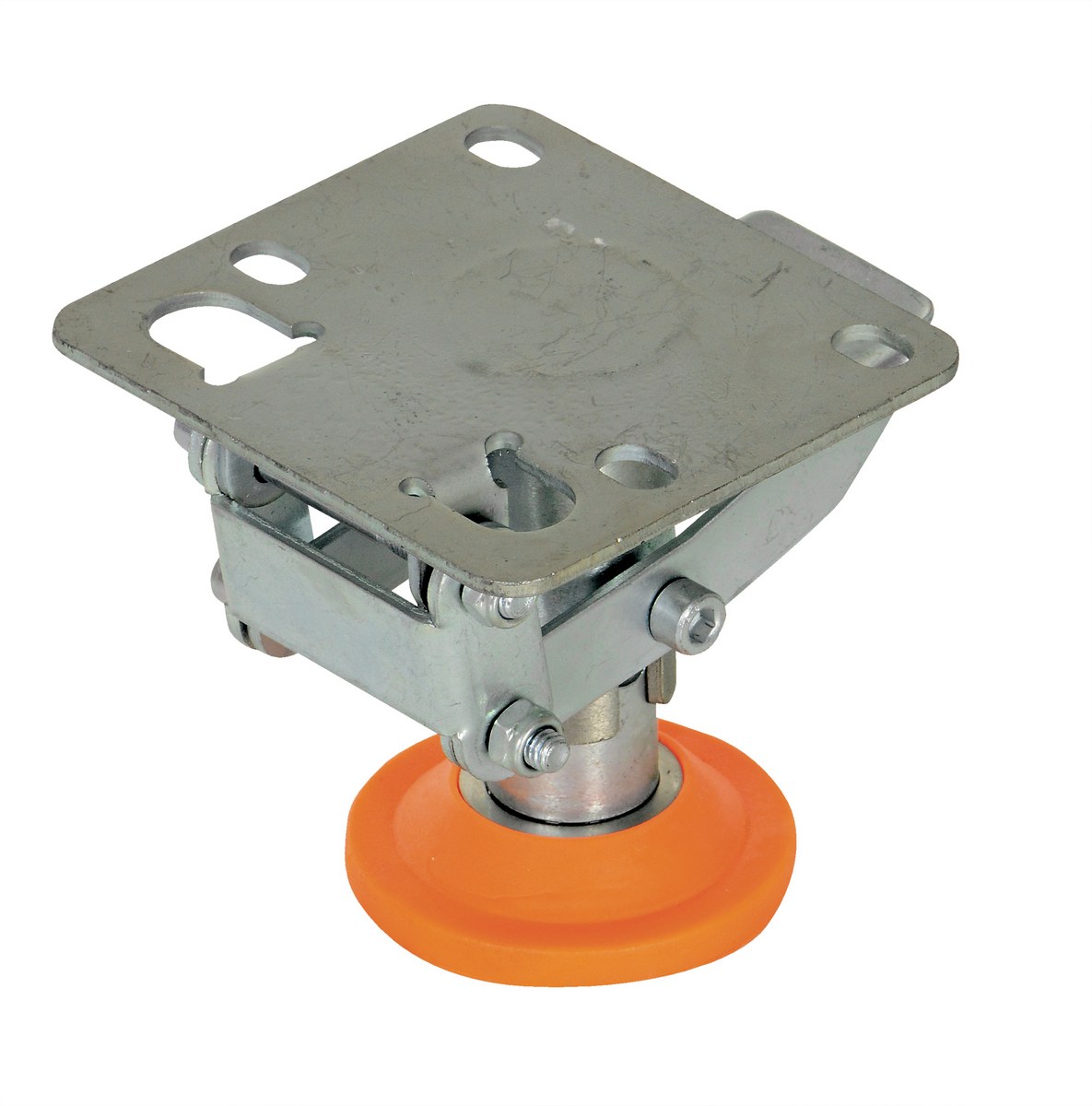

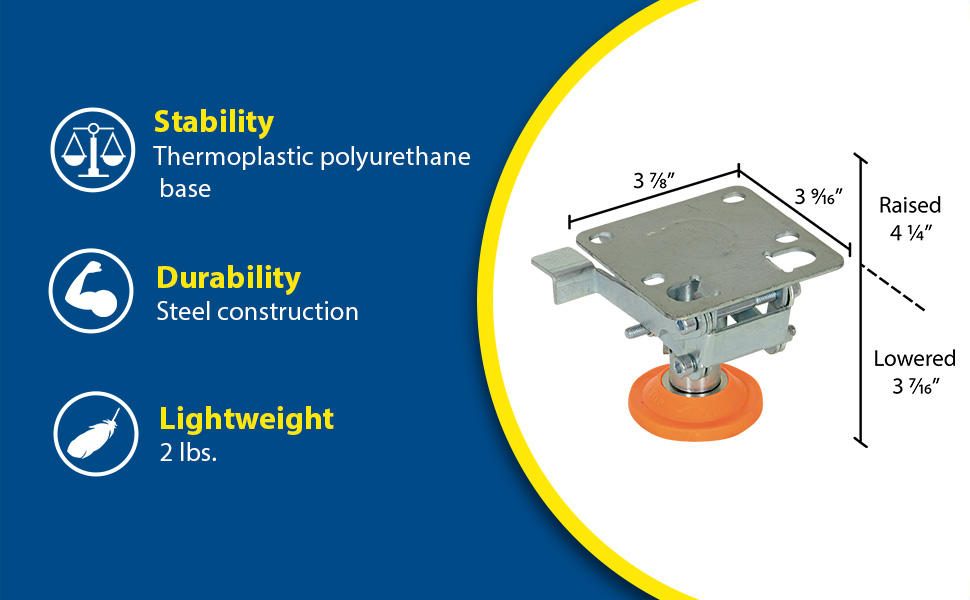

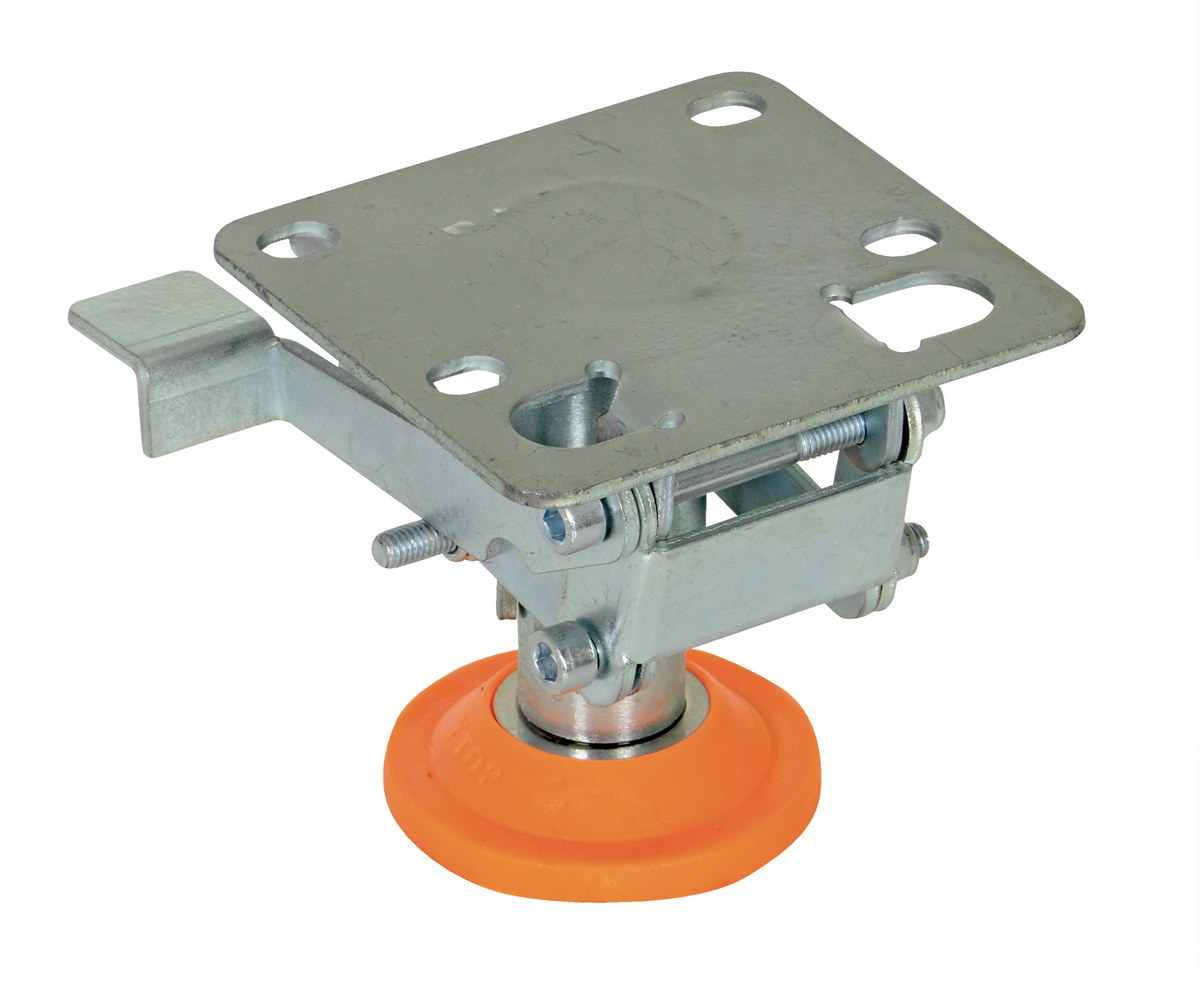

| FL-LKL-3 | | 30 Days Limited Warranty | Steel Floor Lock 3-7/16 to 4-1/4 In. Height Silver | Lowered Height (in.): 3-7/16 Raised Height (in.): 4-1/4 | 2 | ||

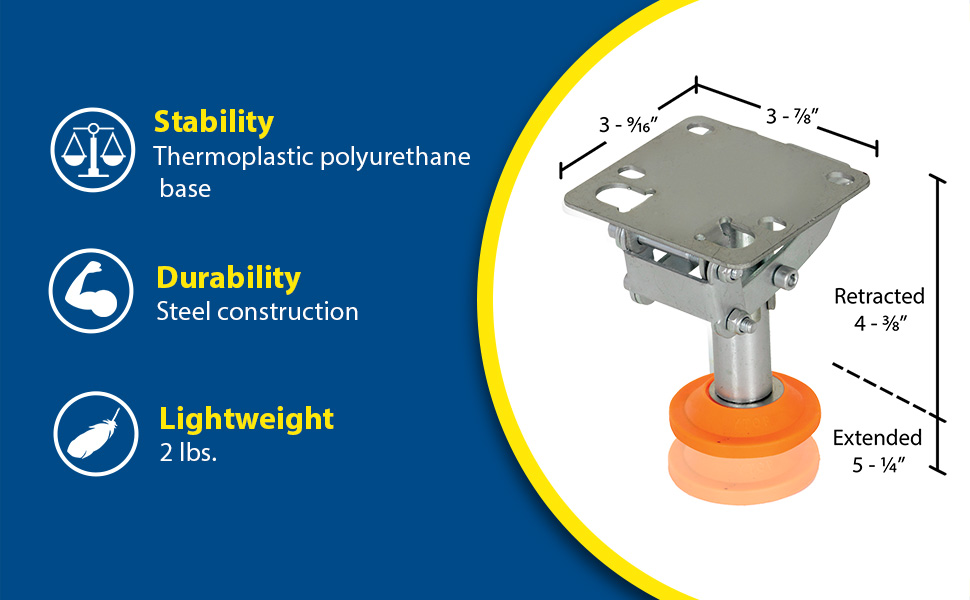

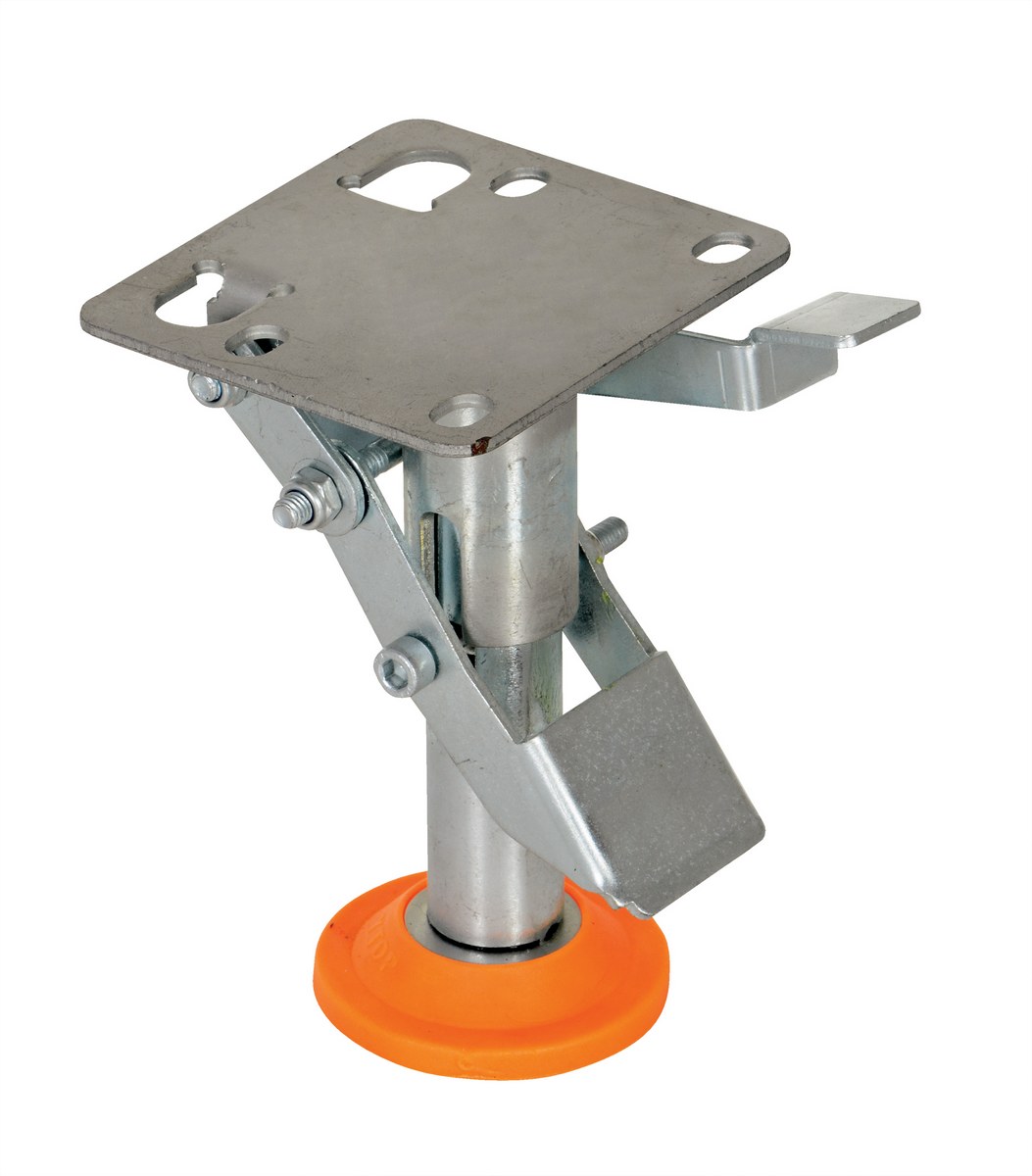

| FL-LKL-4 | | 30 Days Limited Warranty | Steel Floor Lock 4-3/8 to 5-1/4 In. Height Silver | Lowered Height (in.): 4-3/8 Raised Height (in.): 5-1/4 | 2 | ||

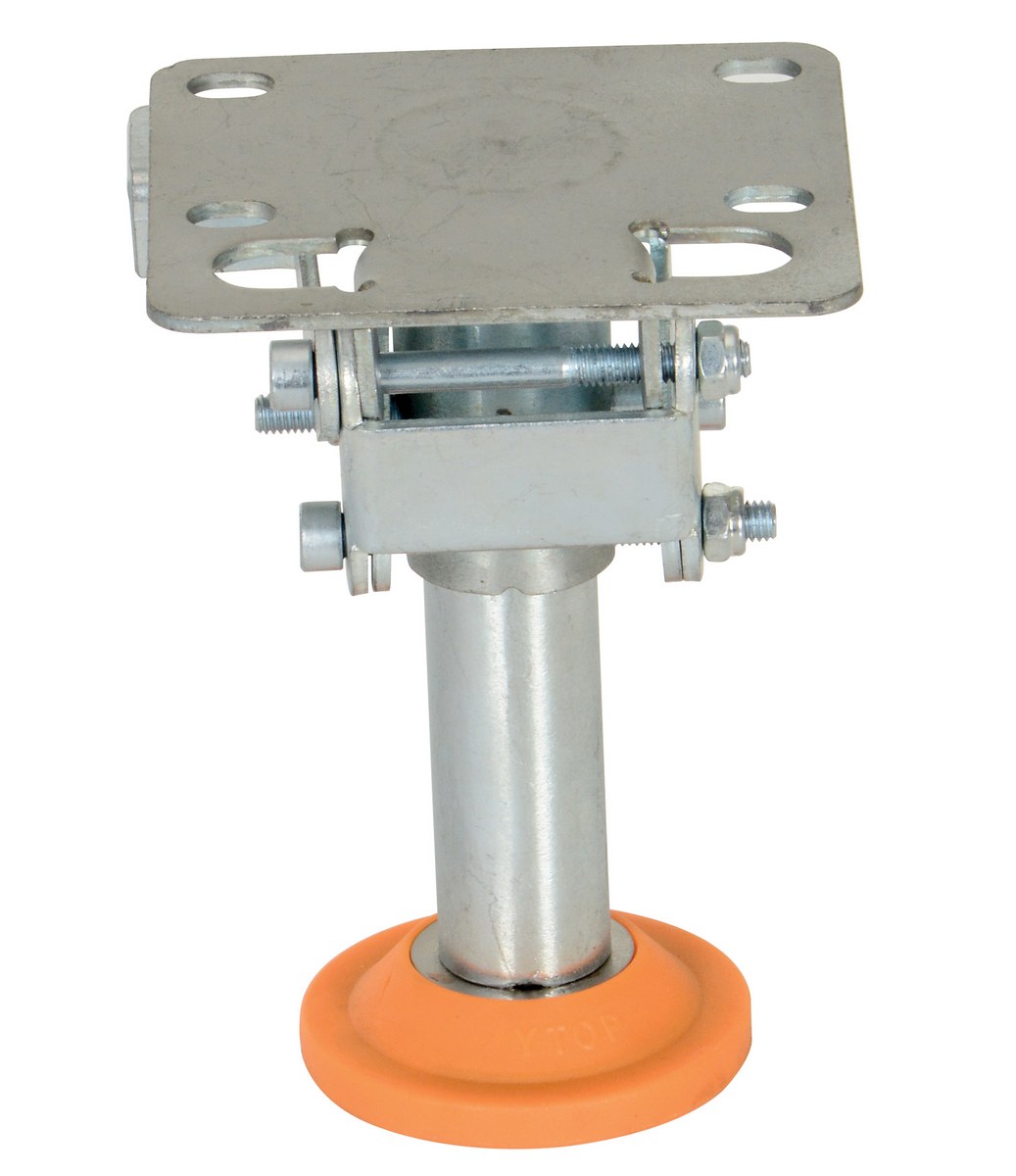

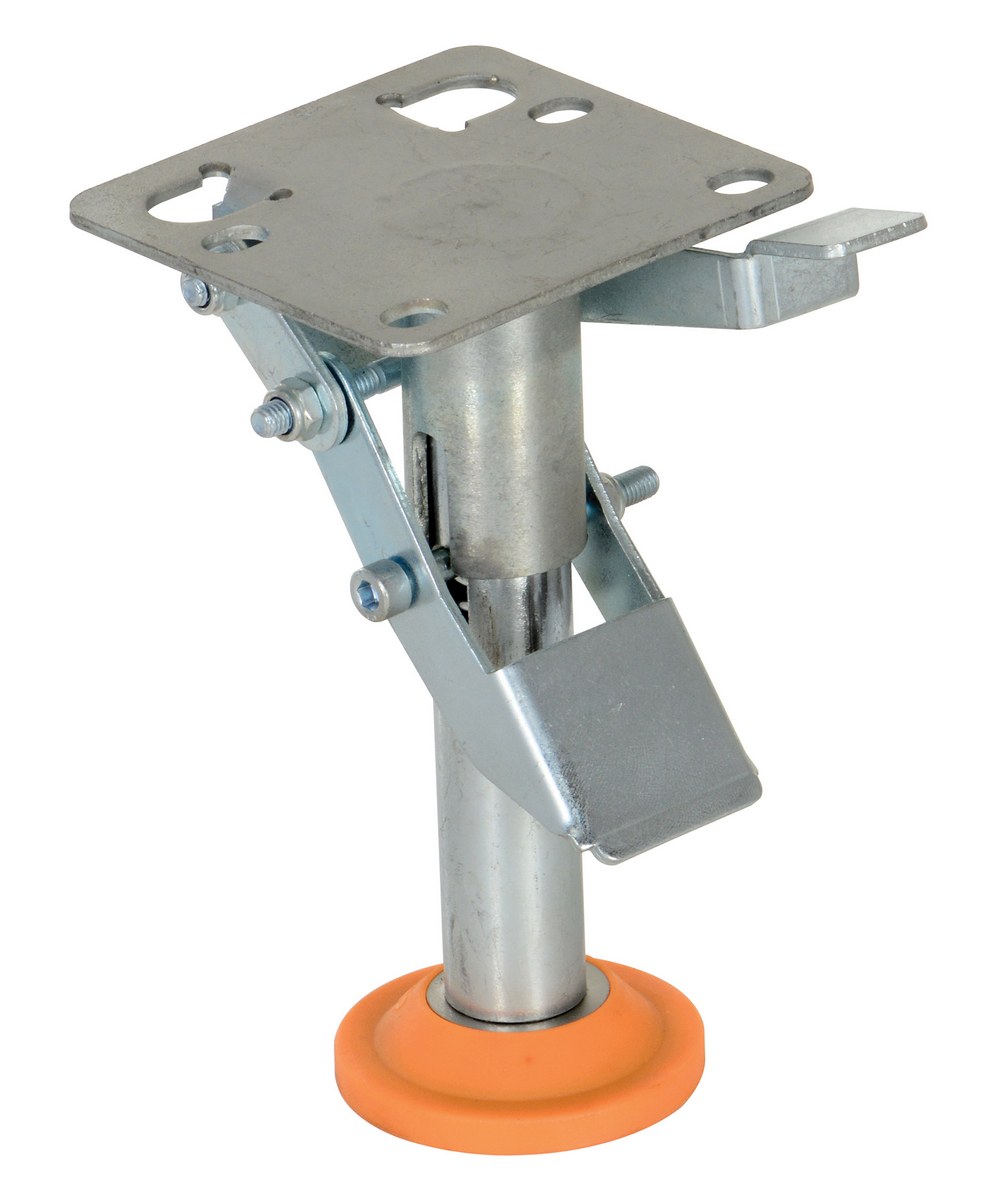

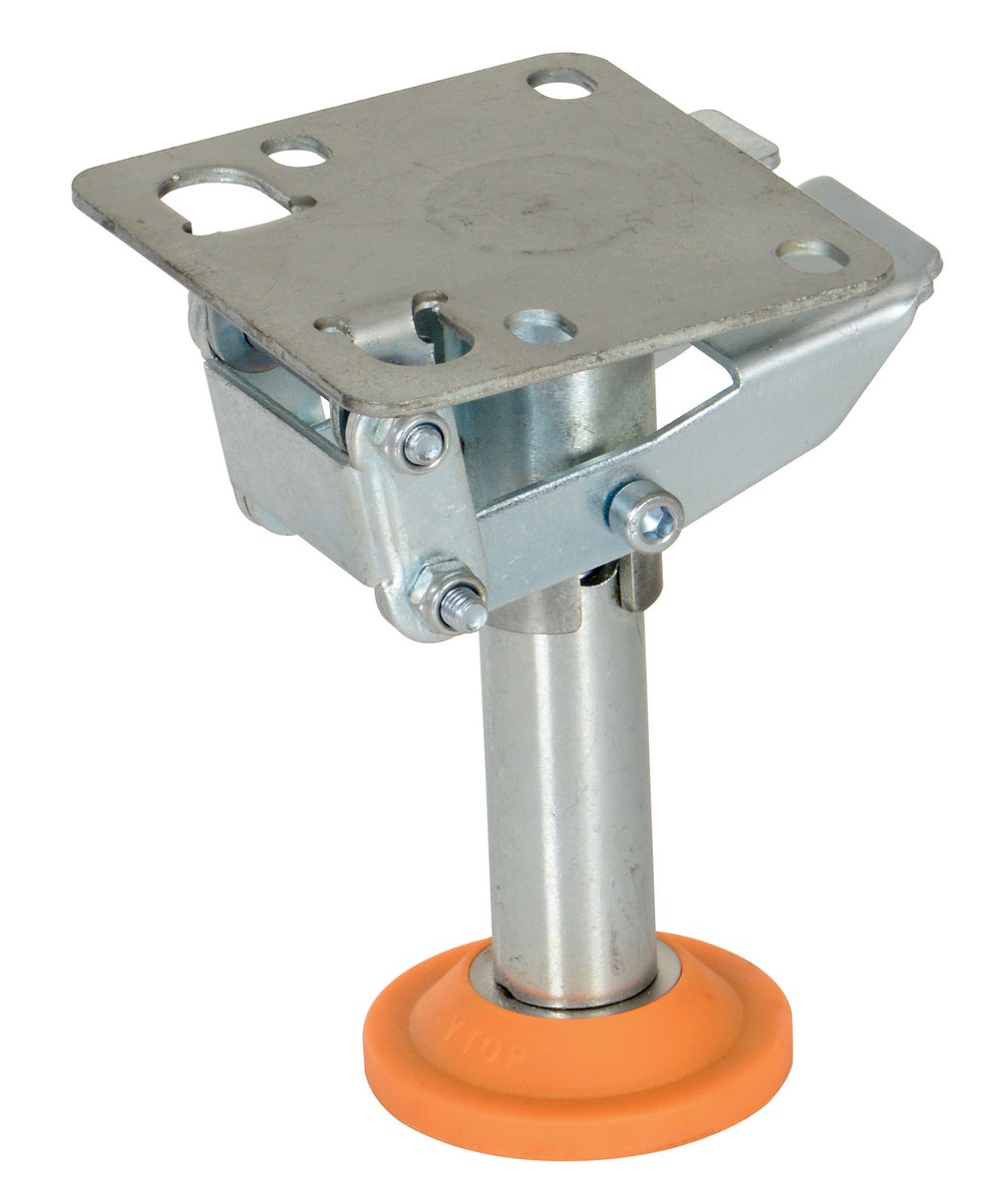

| FL-LKL-5 | | 30 Days Limited Warranty | Steel Floor Lock 5-5/8 to 6-1/4 In. Height Silver | Lowered Height (in.): 5-5/8 Raised Height (in.): 6-1/4 | 2 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 4-5/8
Raised Height (in.): 5-3/4
Lowered Height (in.): 4-5/8
Raised Height (in.): 5-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 5-5/8
Raised Height (in.): 6-3/4
Lowered Height (in.): 5-5/8
Raised Height (in.): 6-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 6-9/16
Raised Height (in.): 7-5/8
Lowered Height (in.): 6-9/16
Raised Height (in.): 7-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 8-5/16
Raised Height (in.): 9-7/16
Lowered Height (in.): 8-5/16
Raised Height (in.): 9-7/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 3-7/16
Raised Height (in.): 4-1/4
Lowered Height (in.): 3-7/16
Raised Height (in.): 4-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 4-3/8
Raised Height (in.): 5-1/4
Lowered Height (in.): 4-3/8
Raised Height (in.): 5-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 5-5/8
Raised Height (in.): 6-1/4
Lowered Height (in.): 5-5/8
Raised Height (in.): 6-1/4
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the locking capacity of the FL-LKH-8?
A: The locking capacity of the FL-LKH-8 is 2,000 lbs.
Q: What is the temperature rating for the floor lock?
A: The temperature rating is -30 to 120° Fahrenheit.
Q: What is the capacity of the FL-LKL-3?
A: The capacity is 9,000 lbs/
Q: What is the temperature rating for polyurethane foot pads on the FL-LKH-5 & FL-LKH-6 floor locks?
A: 120 degrees Fahrenheit
 |
||||||||||||||||||||||||||||||||||||||||||
