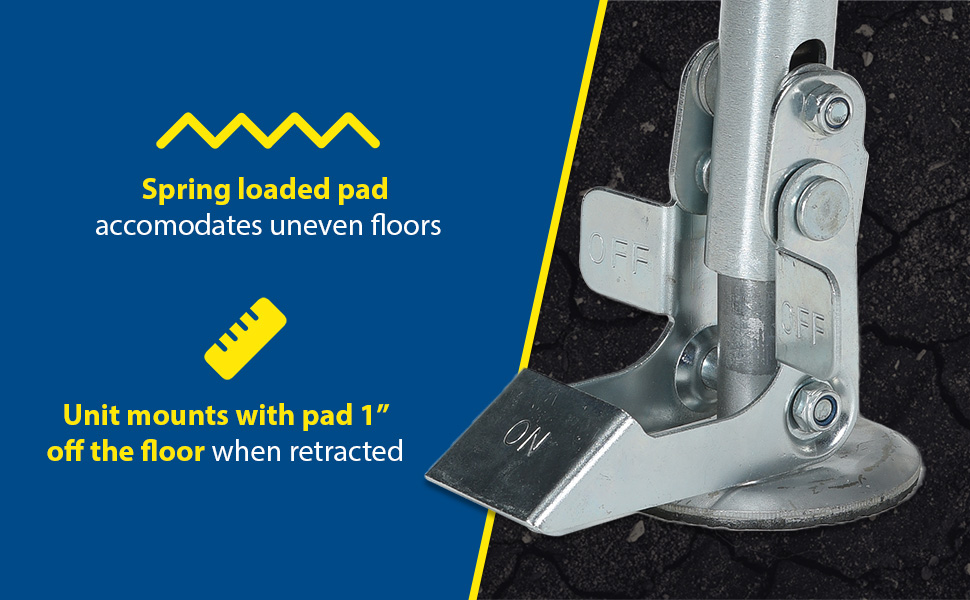

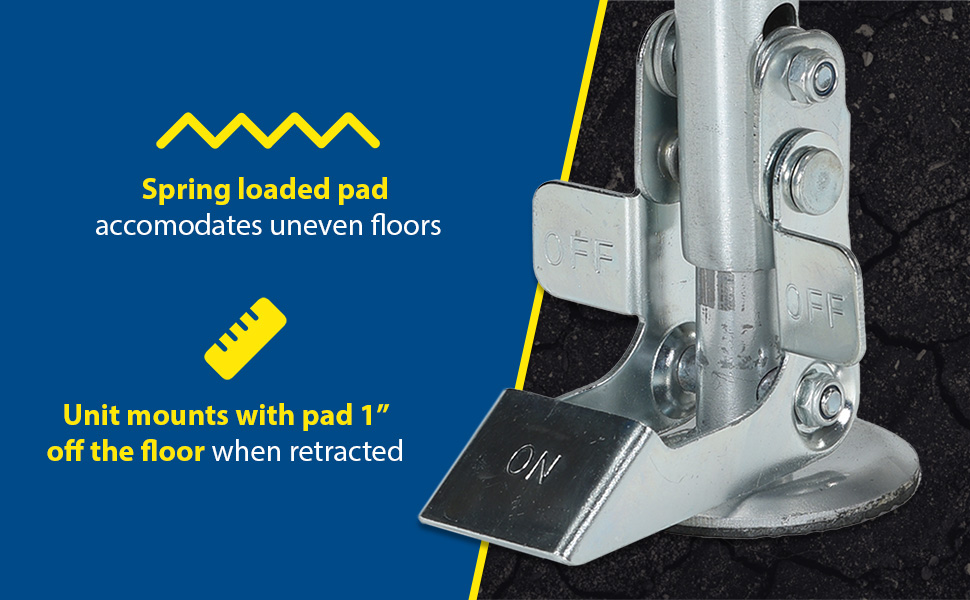

General Purpose Floor LocksFloor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Brake is independent of casters and can be installed to any convenient location on the cart. Designed to be mounted to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1-1/2" off the floor when retracted.
Adjustable Height Floor Locks
Basement Floor Jacks
Leveling JacksAdditional Models In This Family
FL-LK-5EG
FL-LK-5X
FL-LK-S
FL-LK-SMR-R
FL-LK-6EM
FL-LK-S
FL-LK-SMR-SS-R
FL-LK-SMR-SS-L
FL-LK-SMR-SS-R
FL-LK-8EM
FL-LK-5X
FL-LK-7G
FL-LK-6EM
FL-LK-4E
FL-LK-SMR-L
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

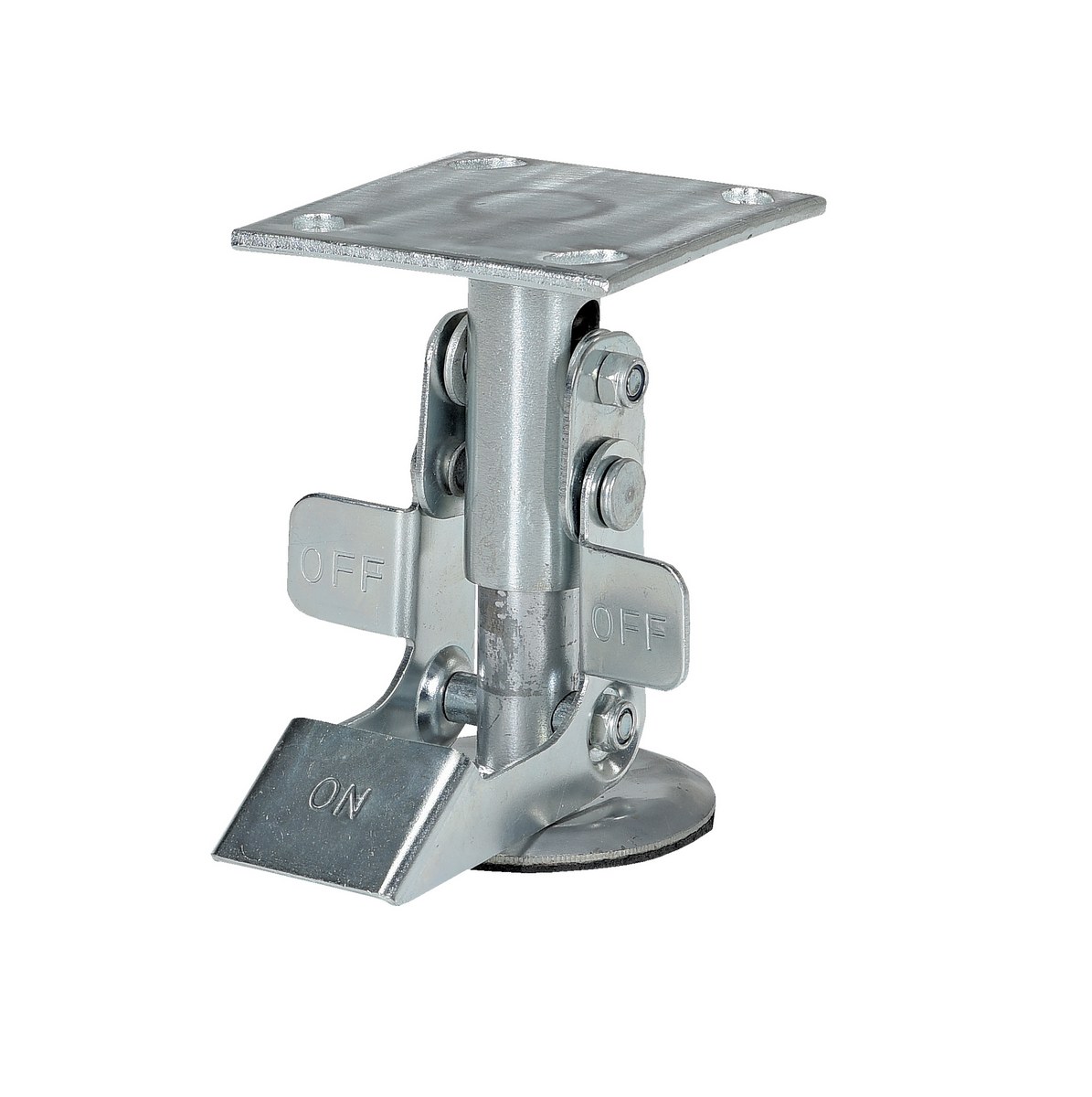

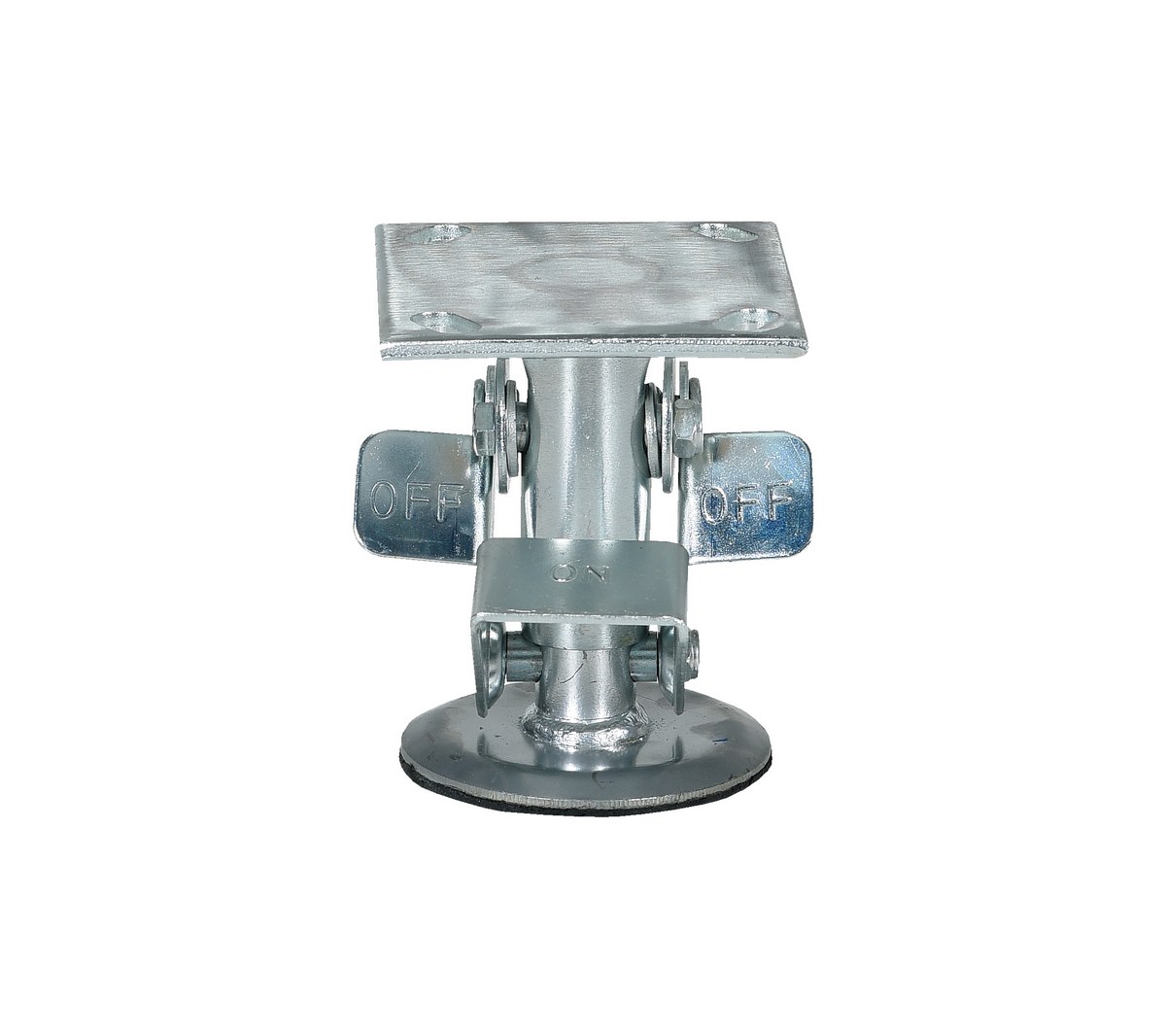

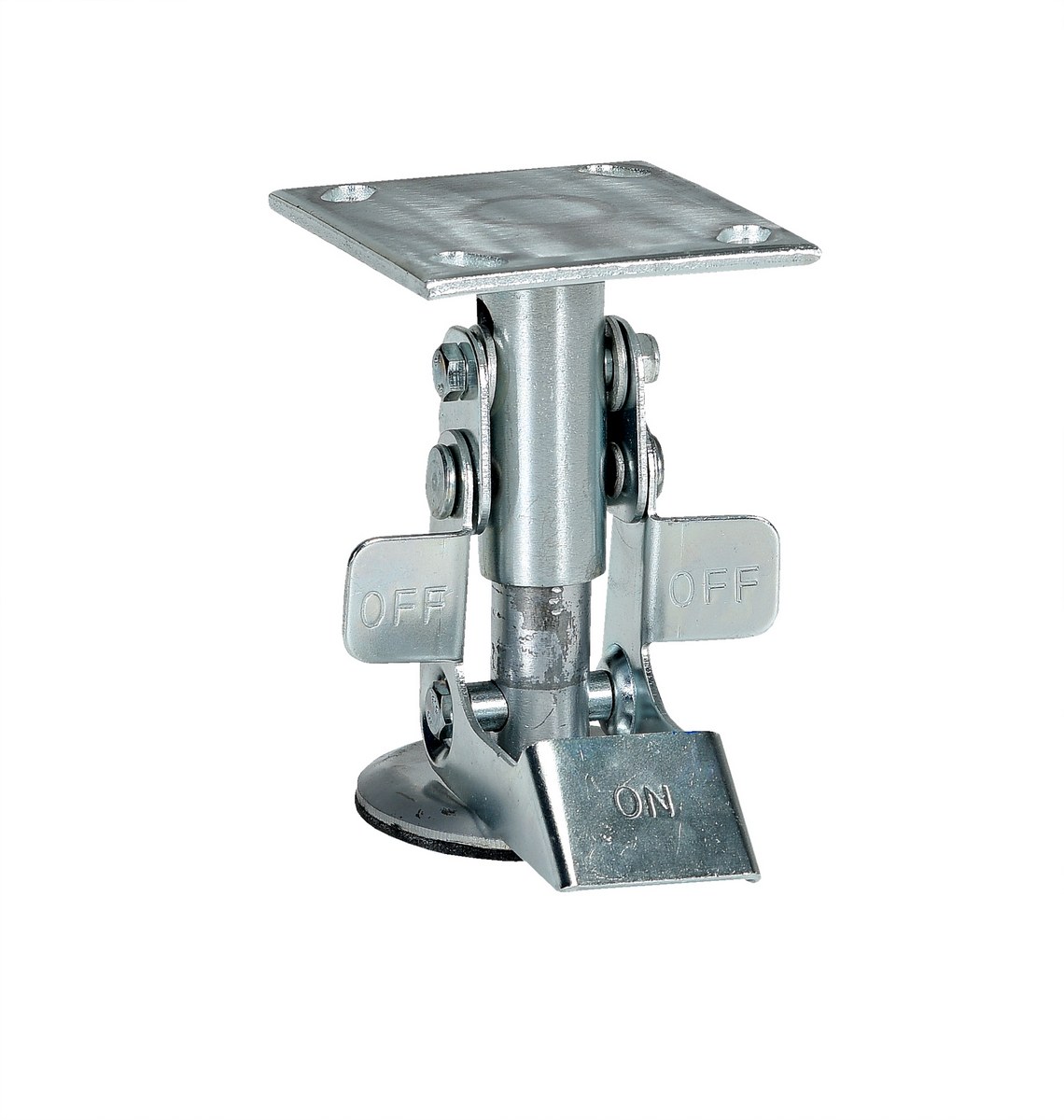

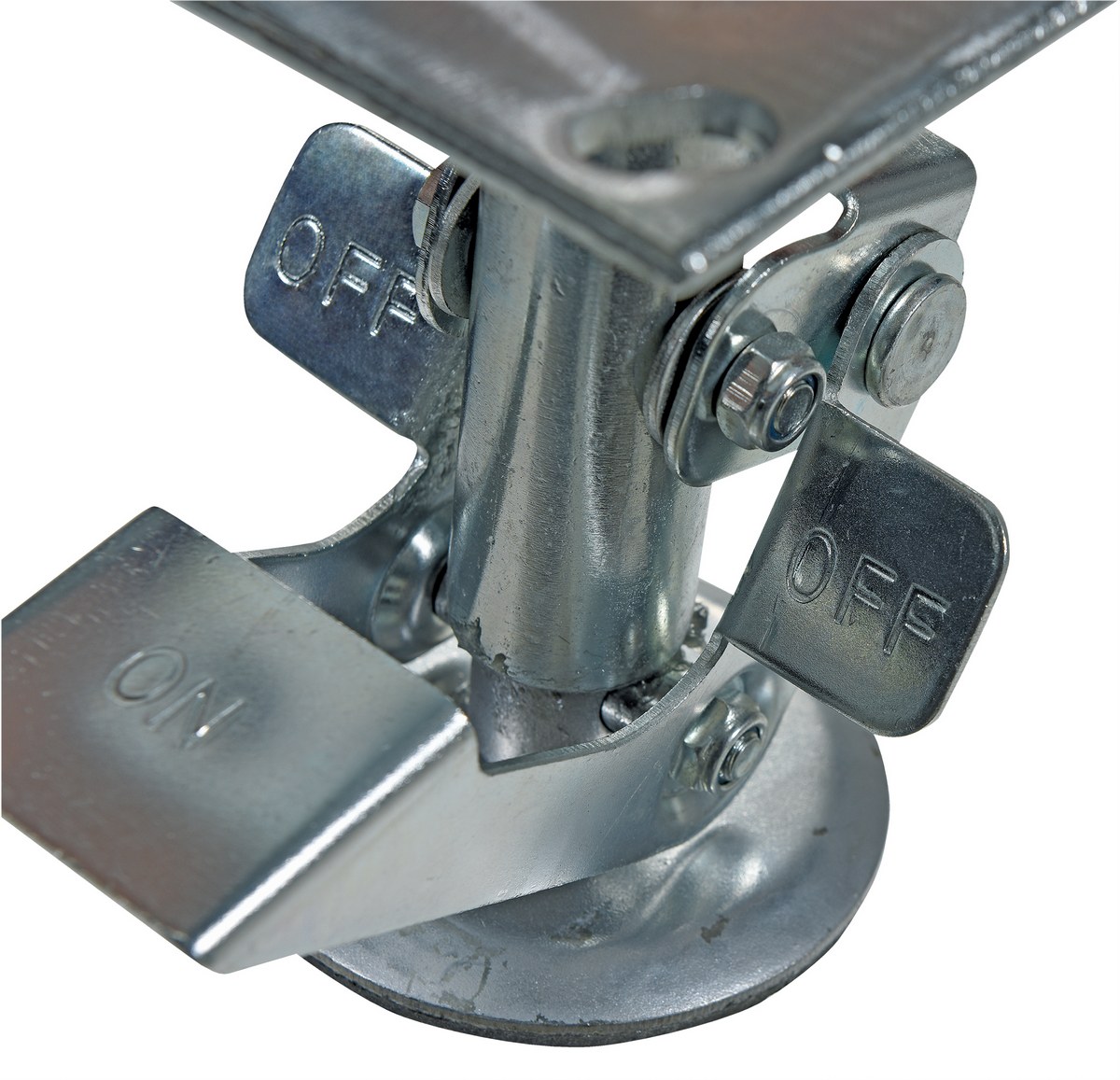

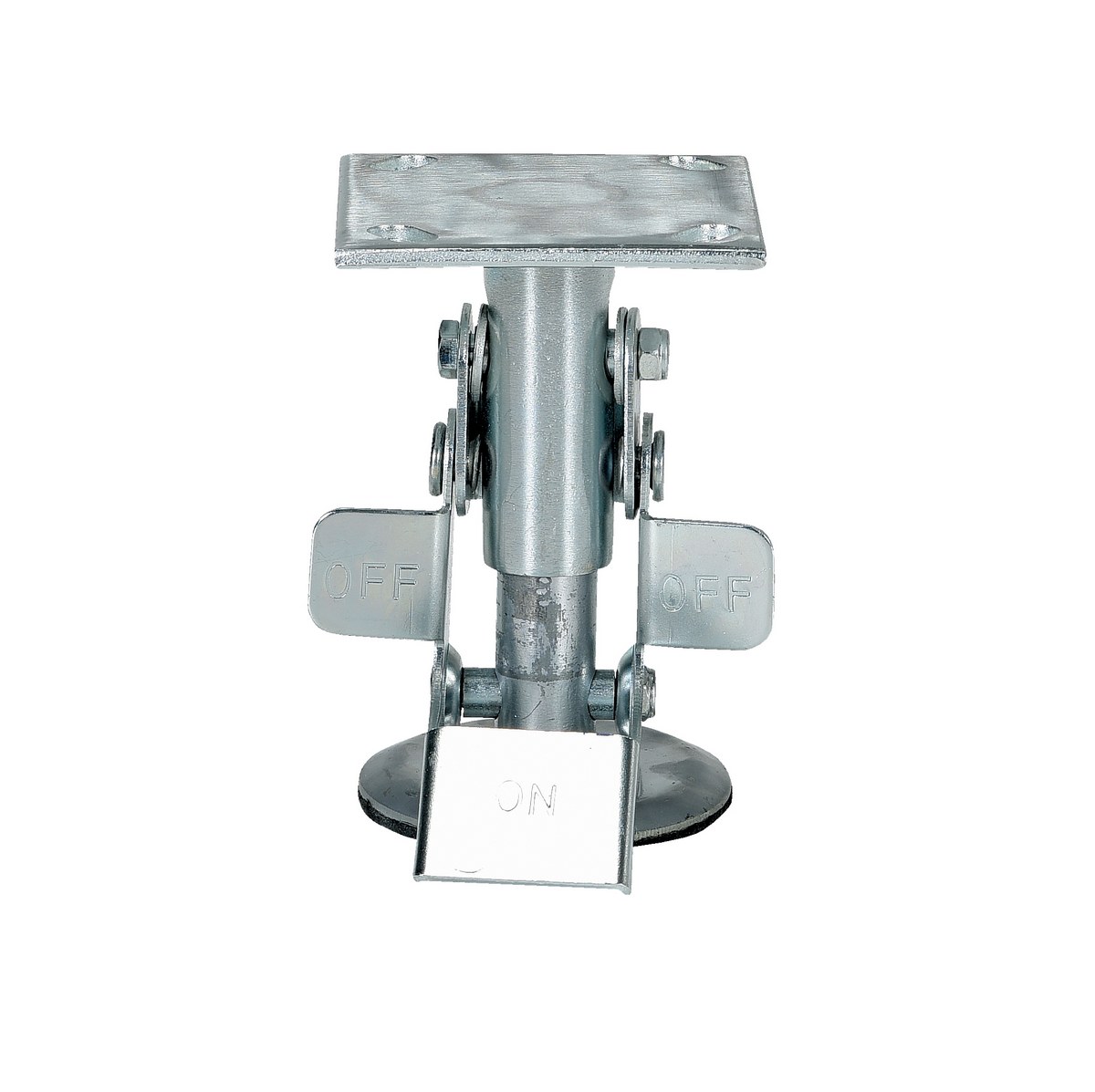

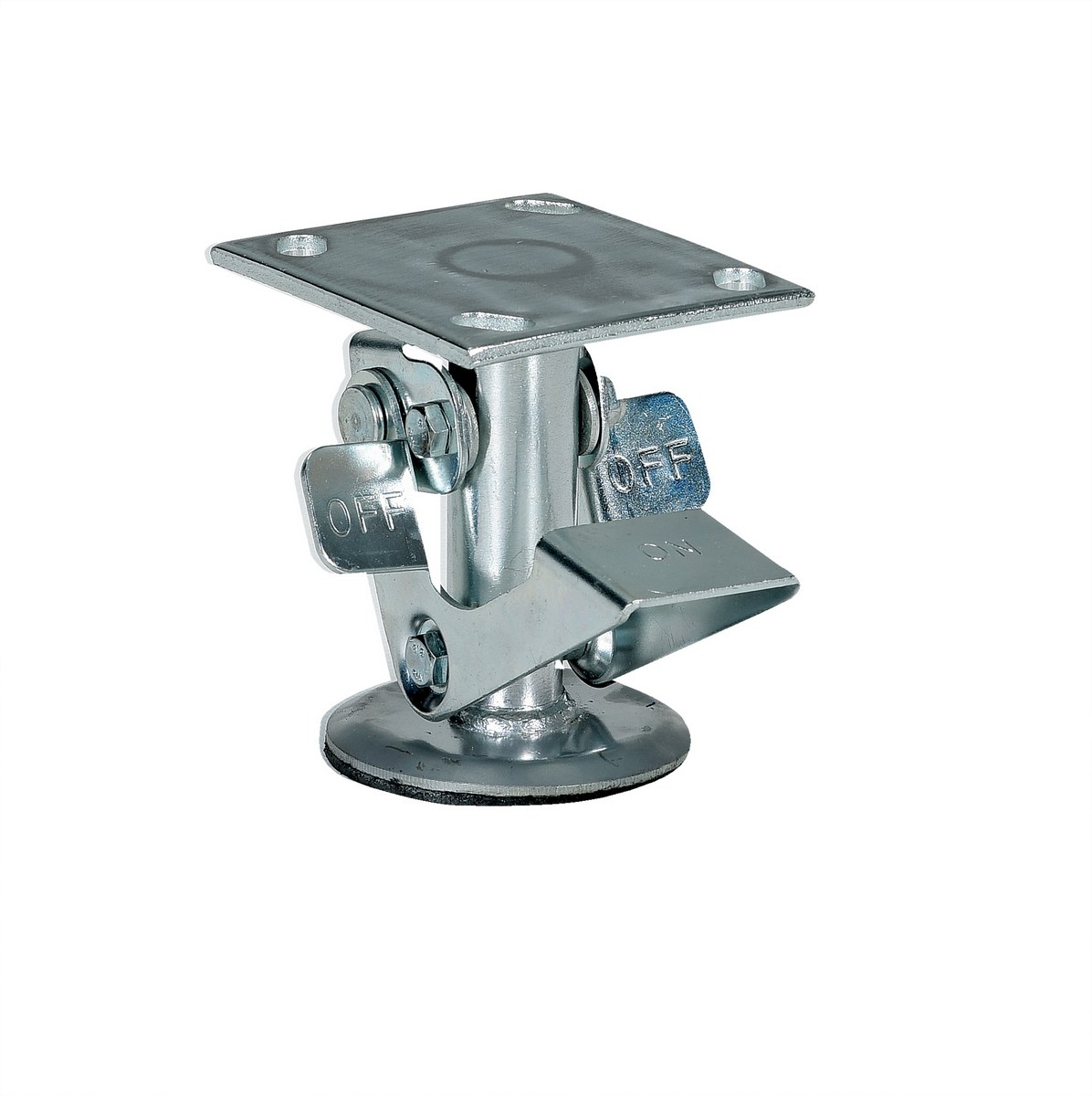

| FL-LK-4E |  | 30 Days Limited Warranty | Steel Top Mount Floor Lock 4-7/8 to 5-5/8 In. Height Silver | Caster Diameter (in.): 4 Mount Height (in.): 5-5/8 | 4 | ||

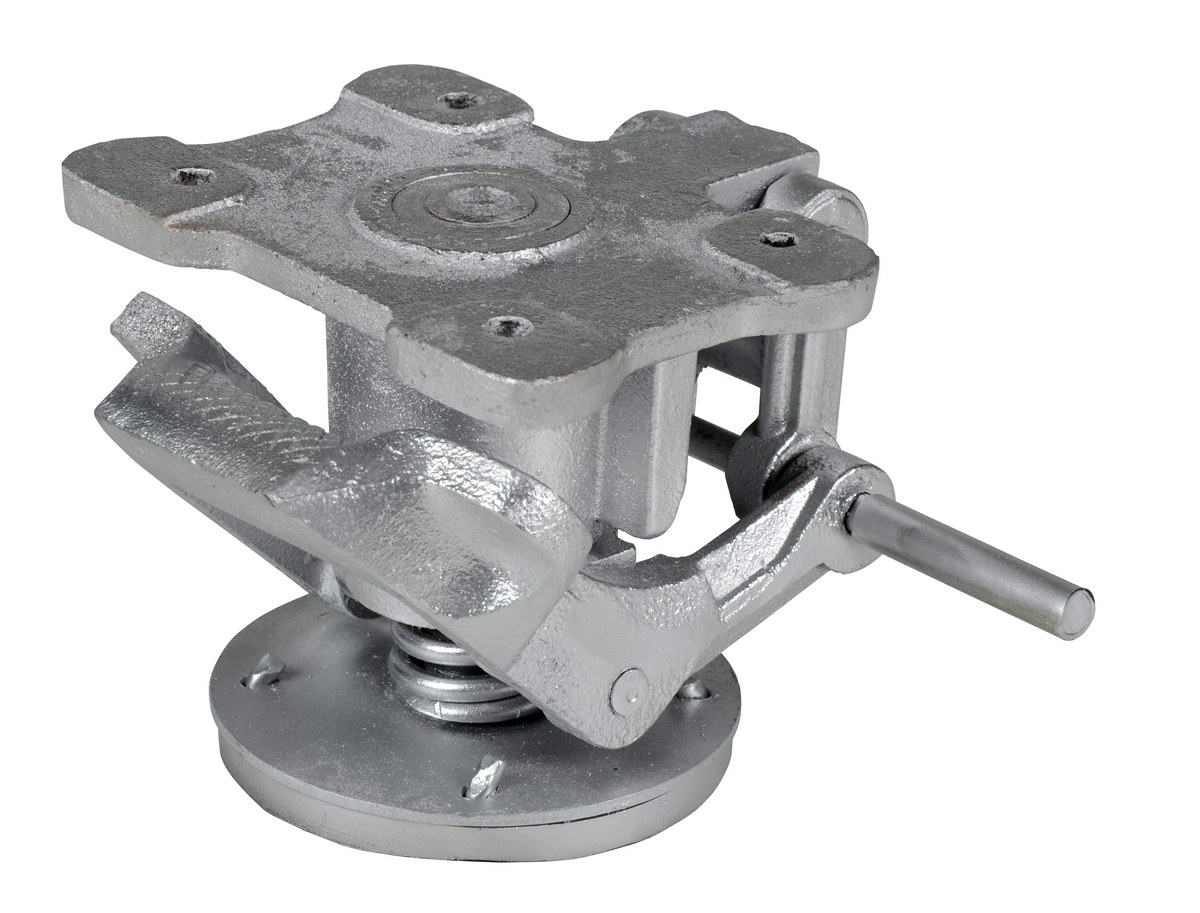

| FL-LK-5X | | 30 Days Limited Warranty | Steel Top Mount Floor Lock 4-1/2 to 5-5/8 In. Height Silver | Mounting Height (in.): 5-5/8 Retracted Height (in.): 4-1/2 | 9 | ||

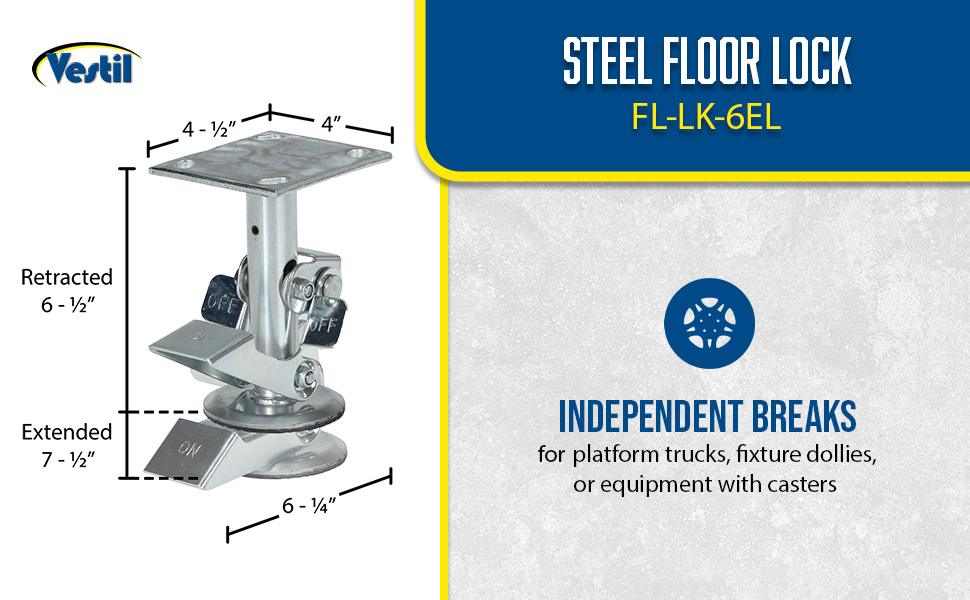

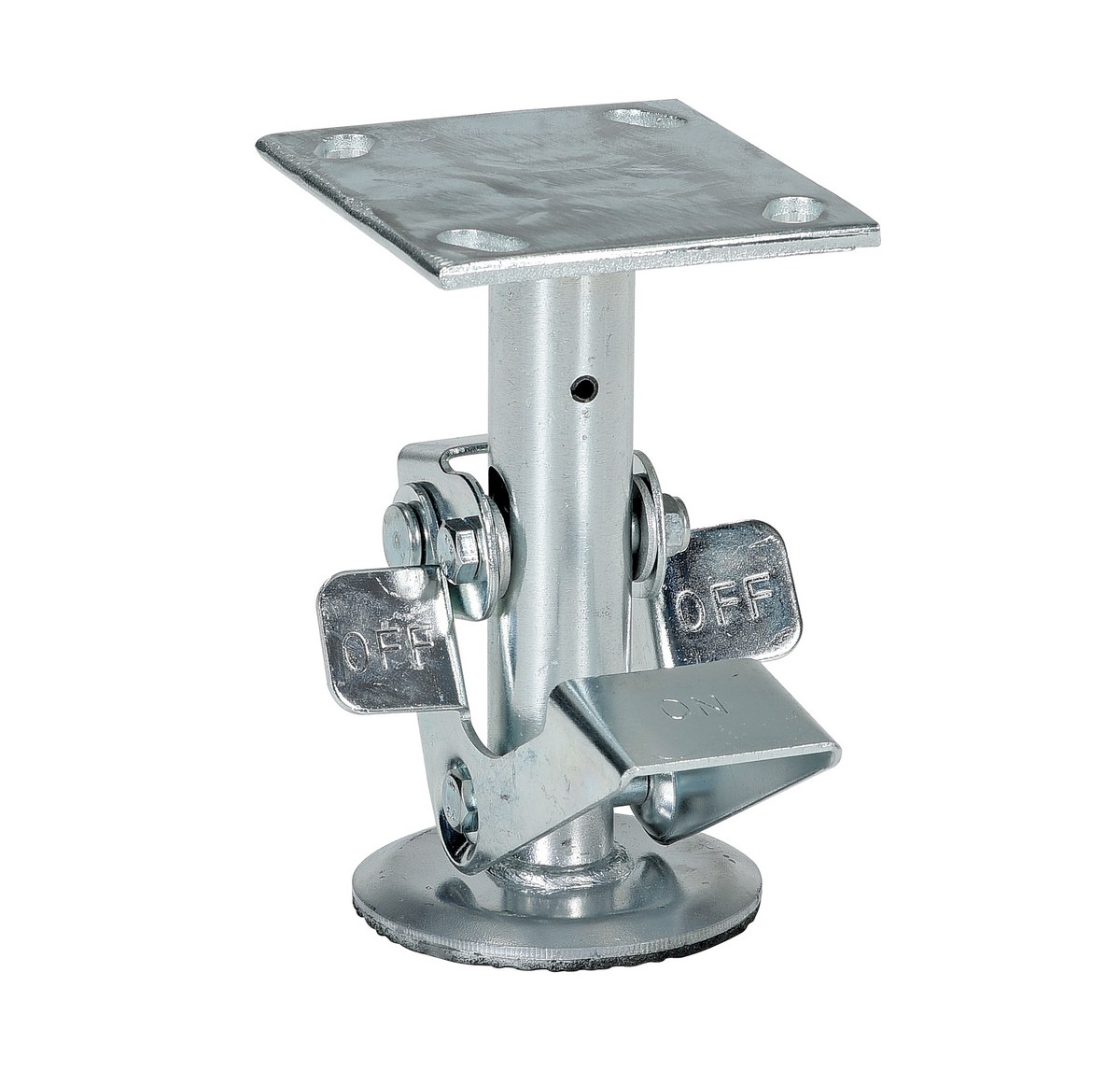

| FL-LK-6EL |  | 30 Days Limited Warranty | Galvanized Steel Top Mount Floor Lock 6-1/2 to 7-1/4 In. Height Gray | Mounting Height (in.): 7-1/4 Retracted Height (in.): 6-1/2 | 4 | ||

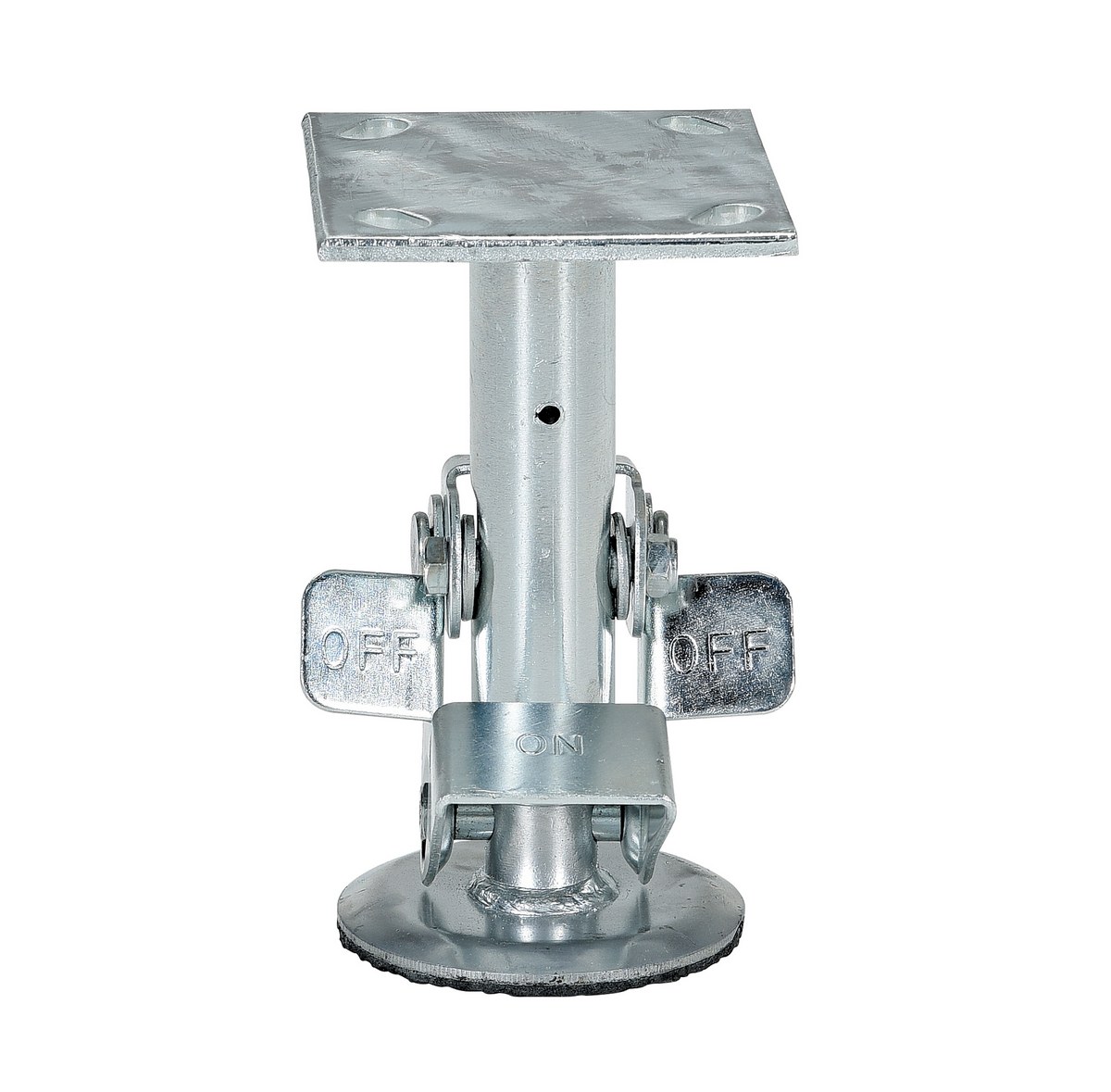

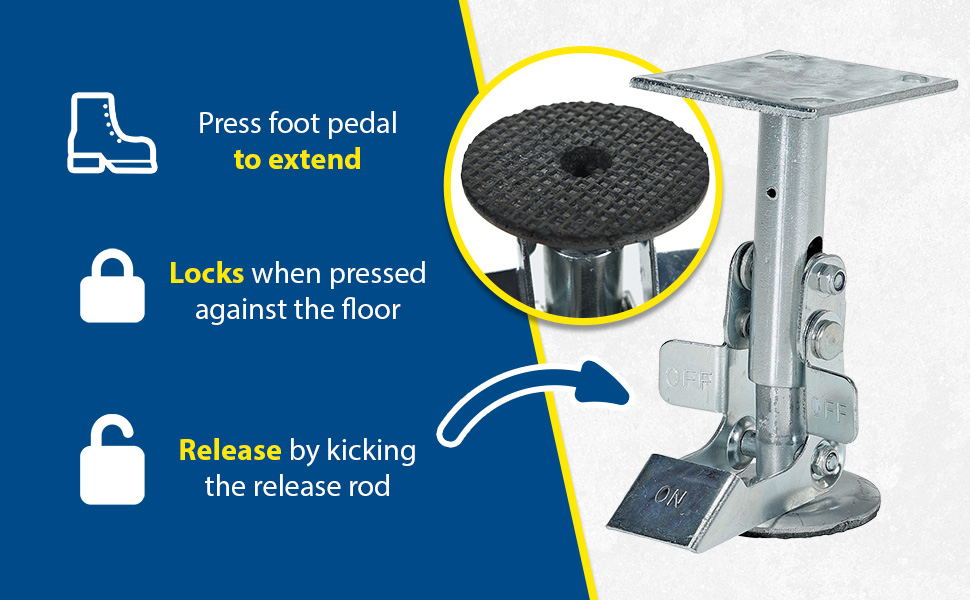

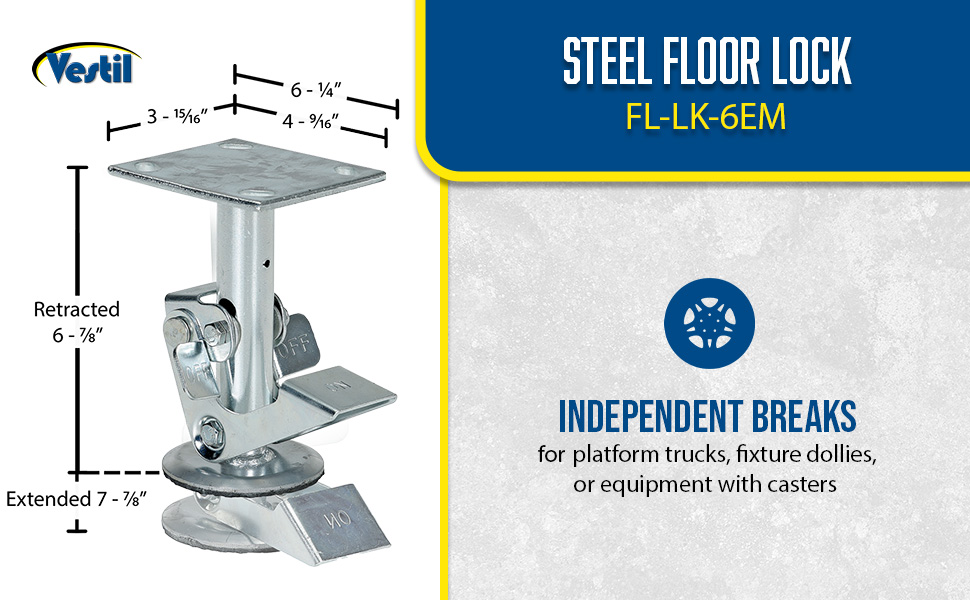

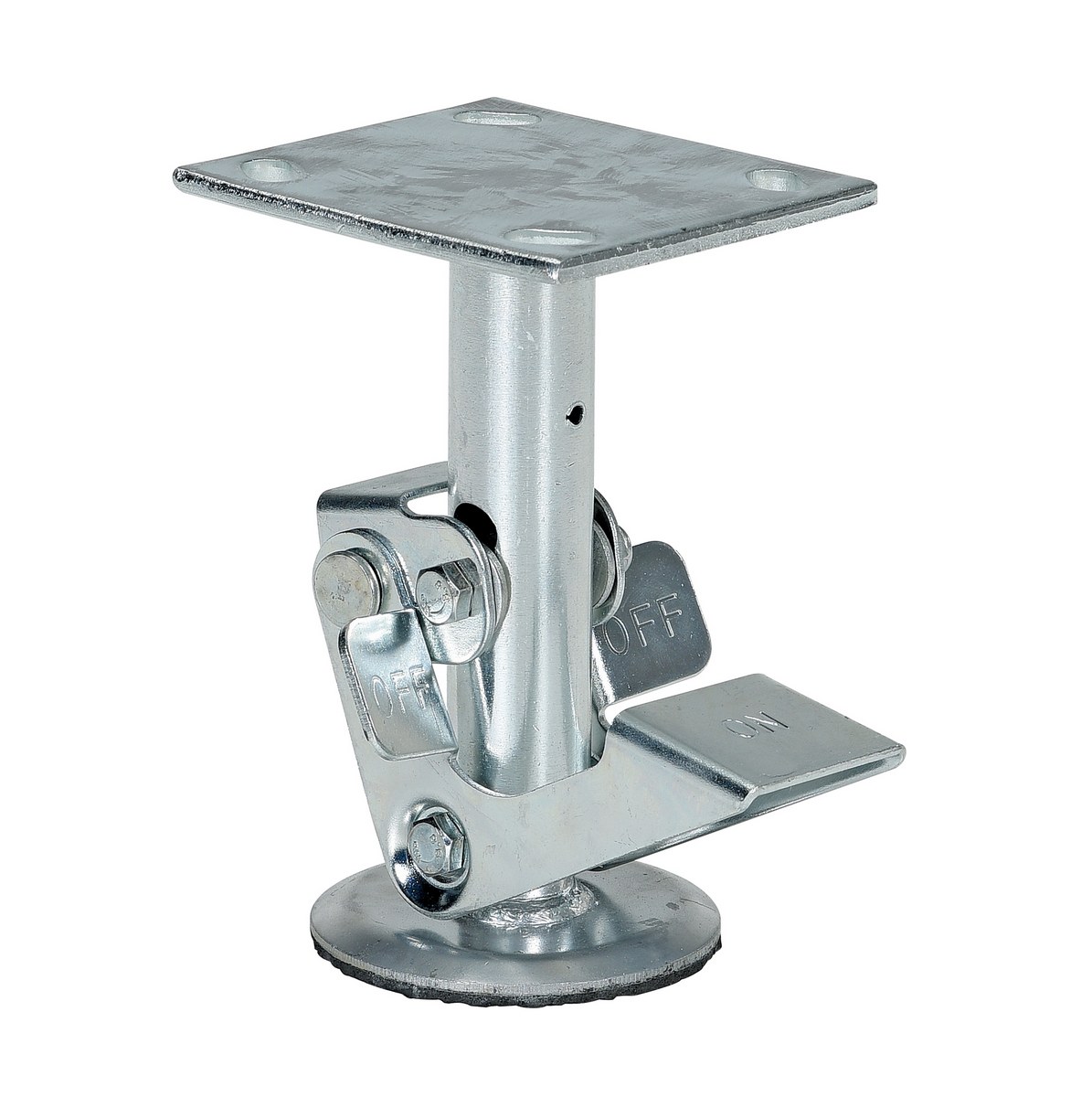

| FL-LK-6EM |  | 30 Days Limited Warranty | Steel Top Mount Floor Lock 6-7/8 to 7-1/2 In. Height Silver | Mounting Height (in.): 7-1/2 Retracted Height (in.): 6-7/8 | 4 | ||
| FL-LK-7G | | 30 Days Limited Warranty | Steel Top Mount Floor Lock 6-1/4 to 7-3/4 In. Height Silver | Mounting Height (in.): 7-3/4 Retracted Height (in.): 6-1/4 | 11 | ||

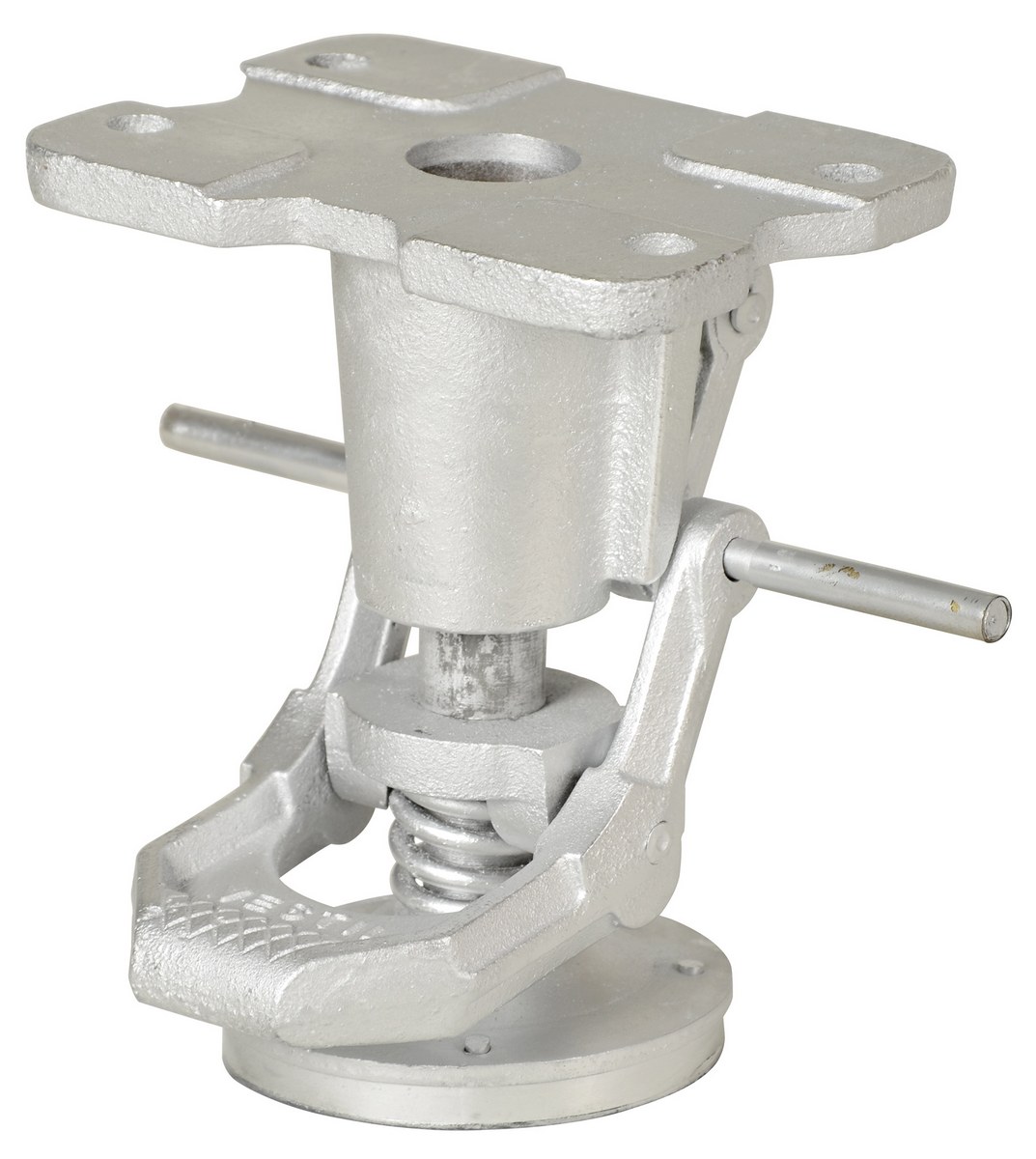

| FL-LK-7X |  | 30 Days Limited Warranty | Steel Floor Lock 6-1/4 to 7-1/4 In. Height Silver | Mounting Height (in.): 7-1/4 Retracted Height (in.): 6-1/4 | 11 | ||

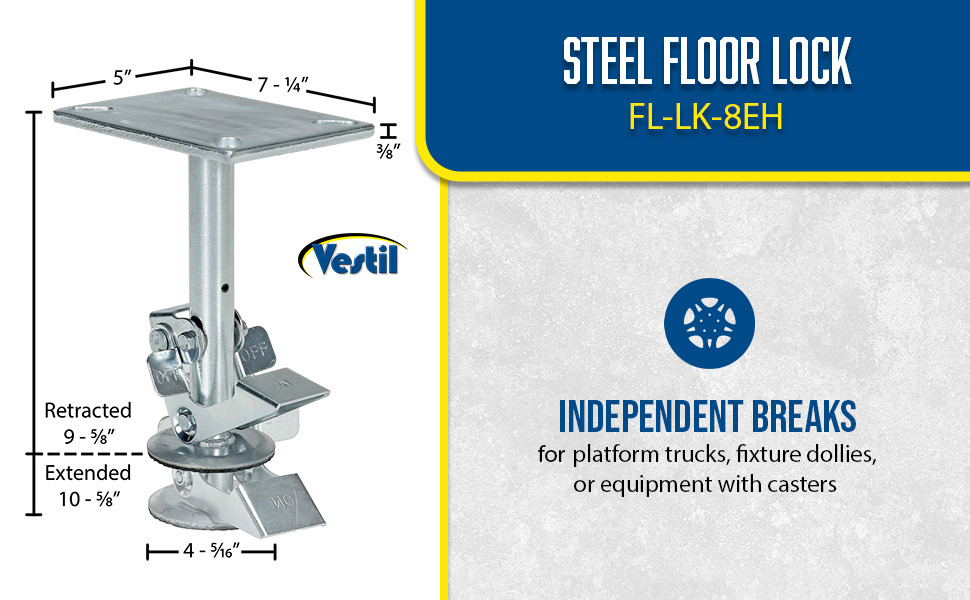

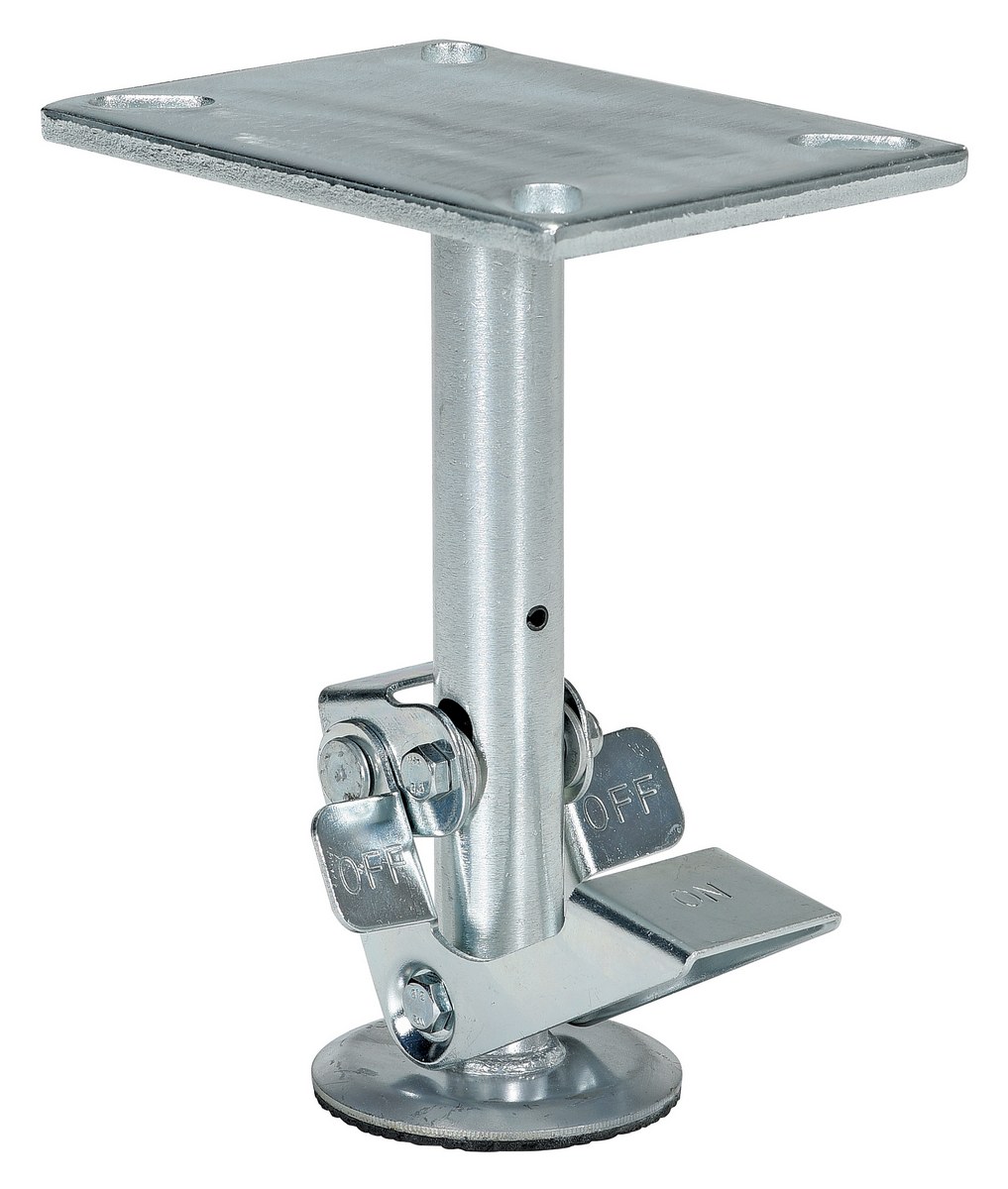

| FL-LK-8EH |  | 30 Days Limited Warranty | Steel Floor Lock 9-1/2 to 10-1/8 In. Height Silver | Mounting Height (in.): 10-1/2 Retracted Height (in.): 9-5/8 | 7 | ||

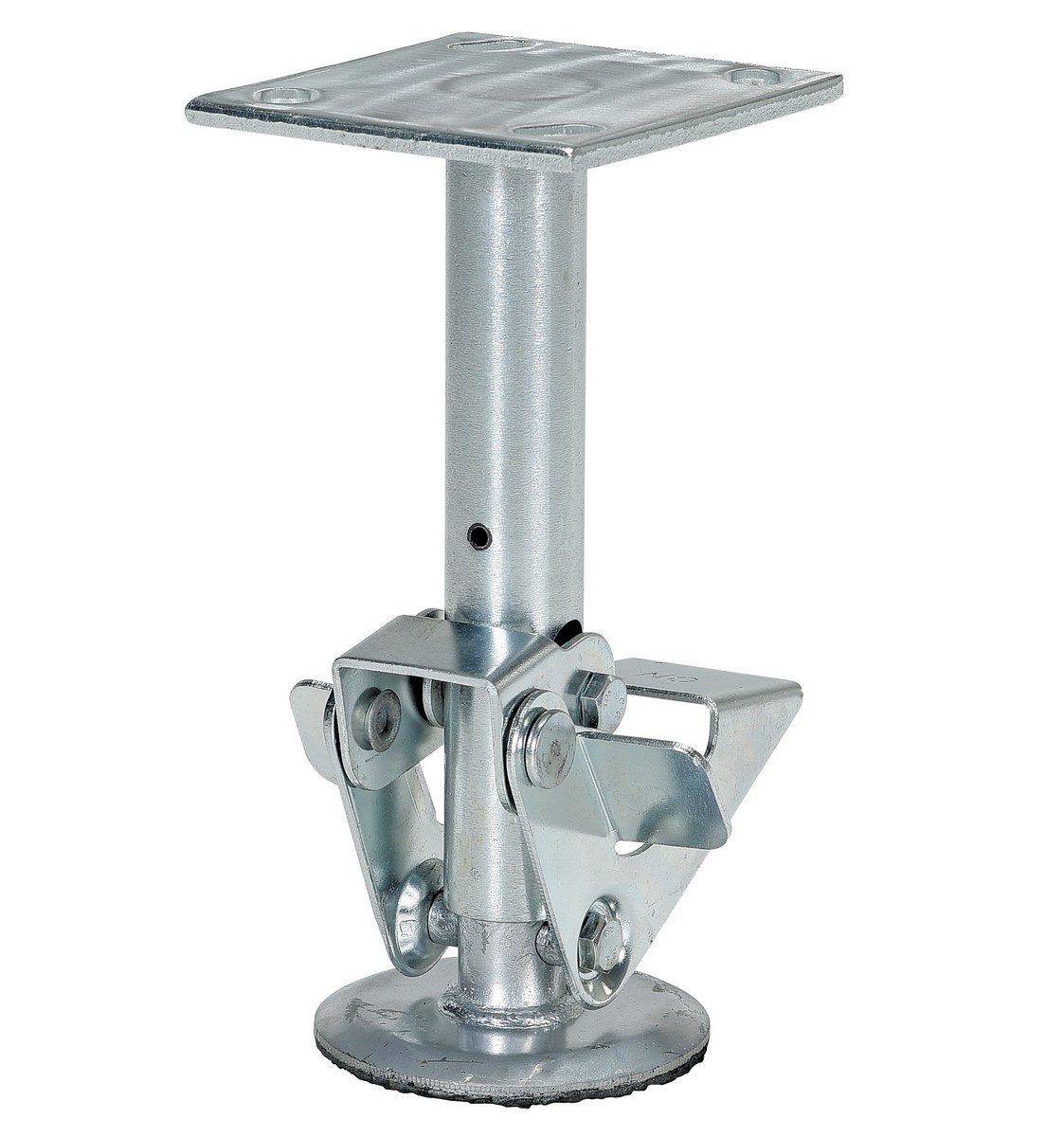

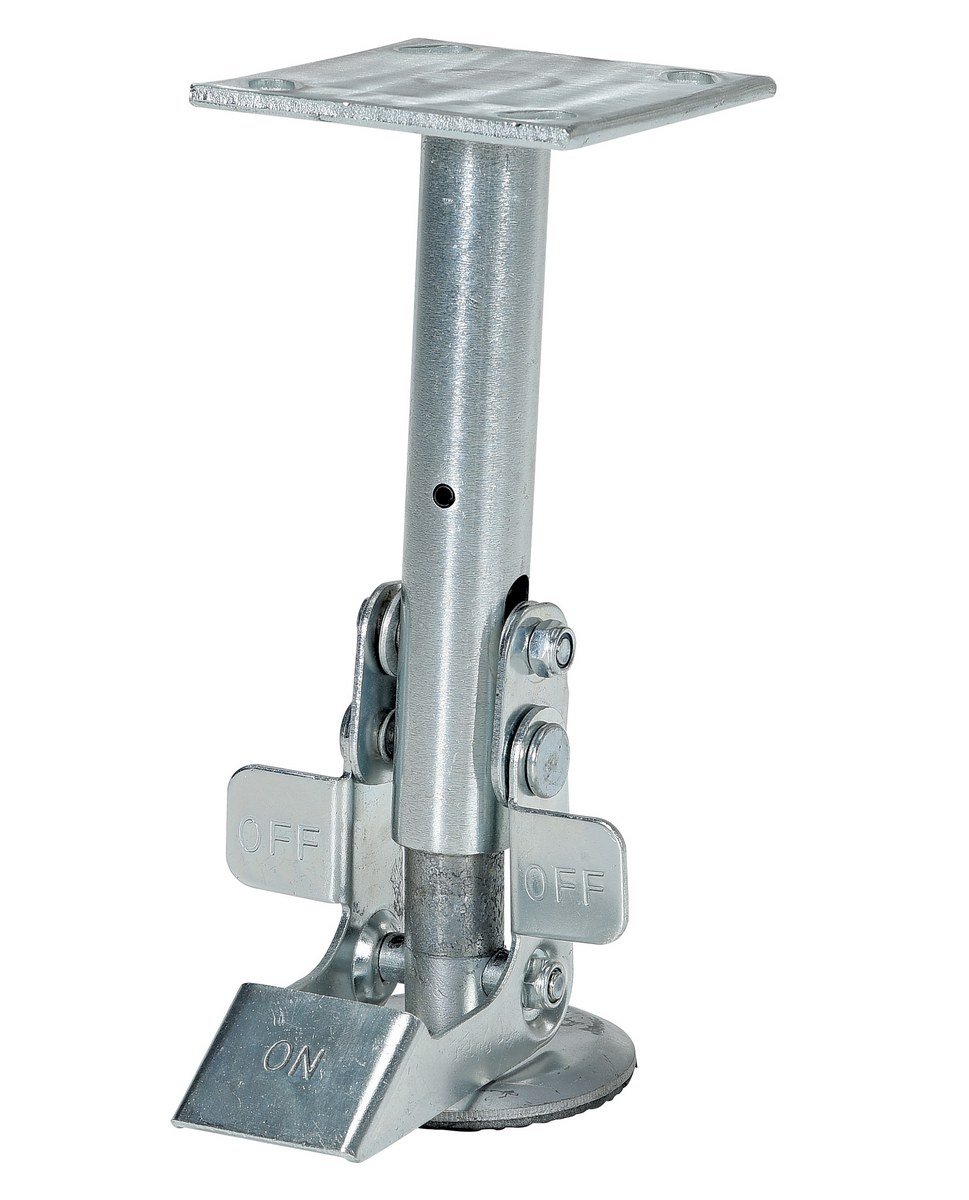

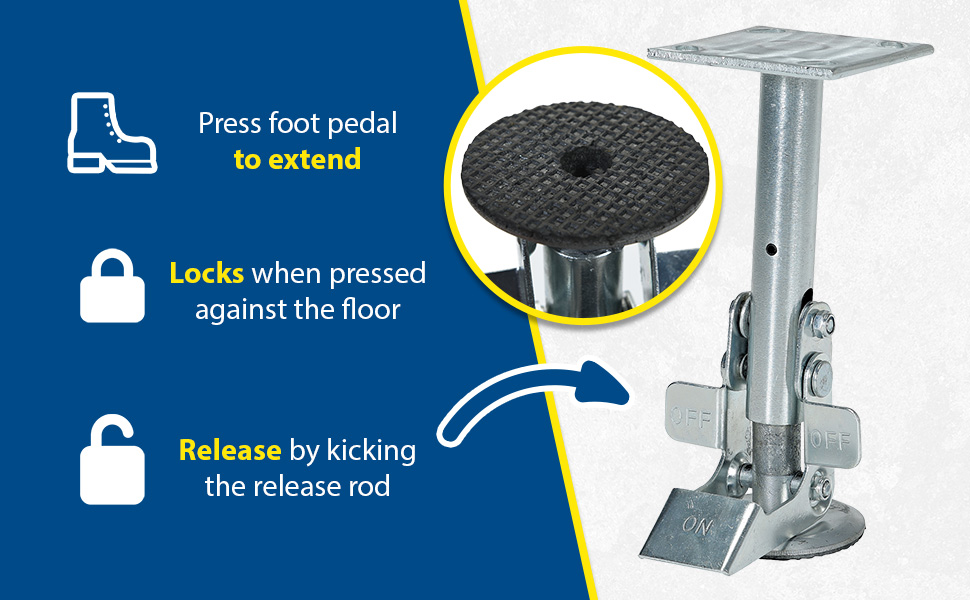

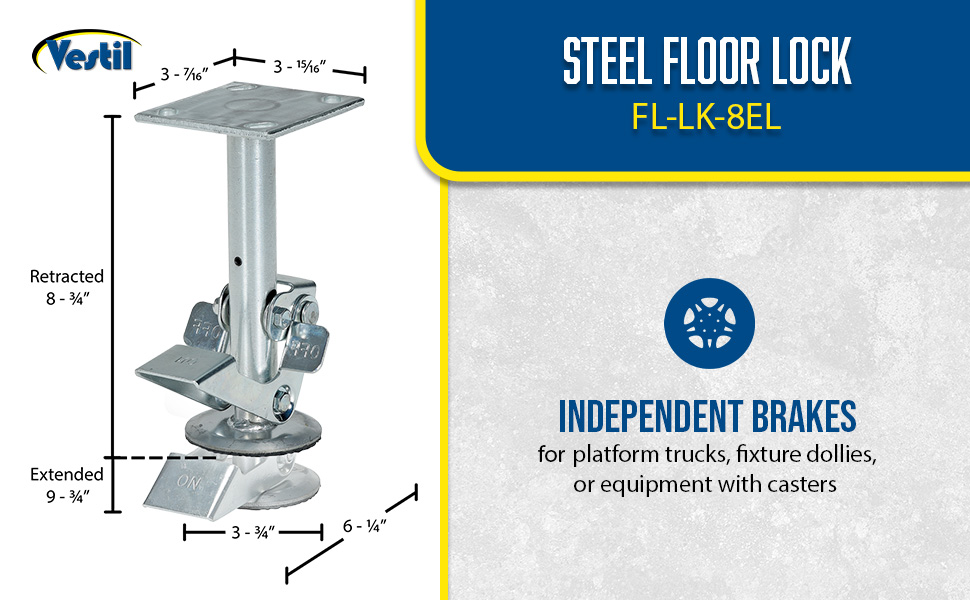

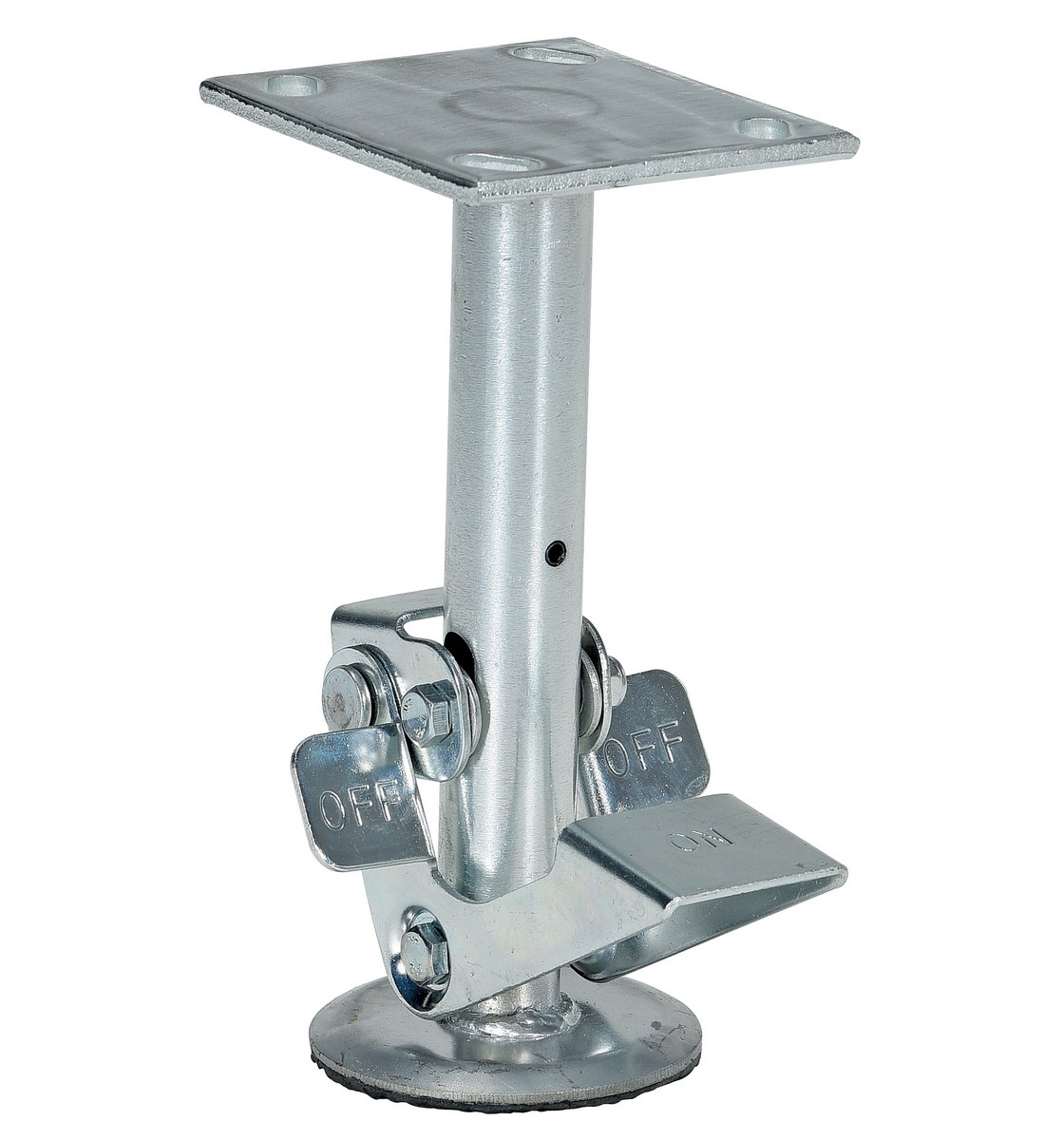

| FL-LK-8EL |  | 30 Days Limited Warranty | Steel Floor Lock 9-1/2 to 8-3/4 In. Height Silver | Mounting Height (in.): 9-1/2 Retracted Height (in.): 8-3/4 | 4 | ||

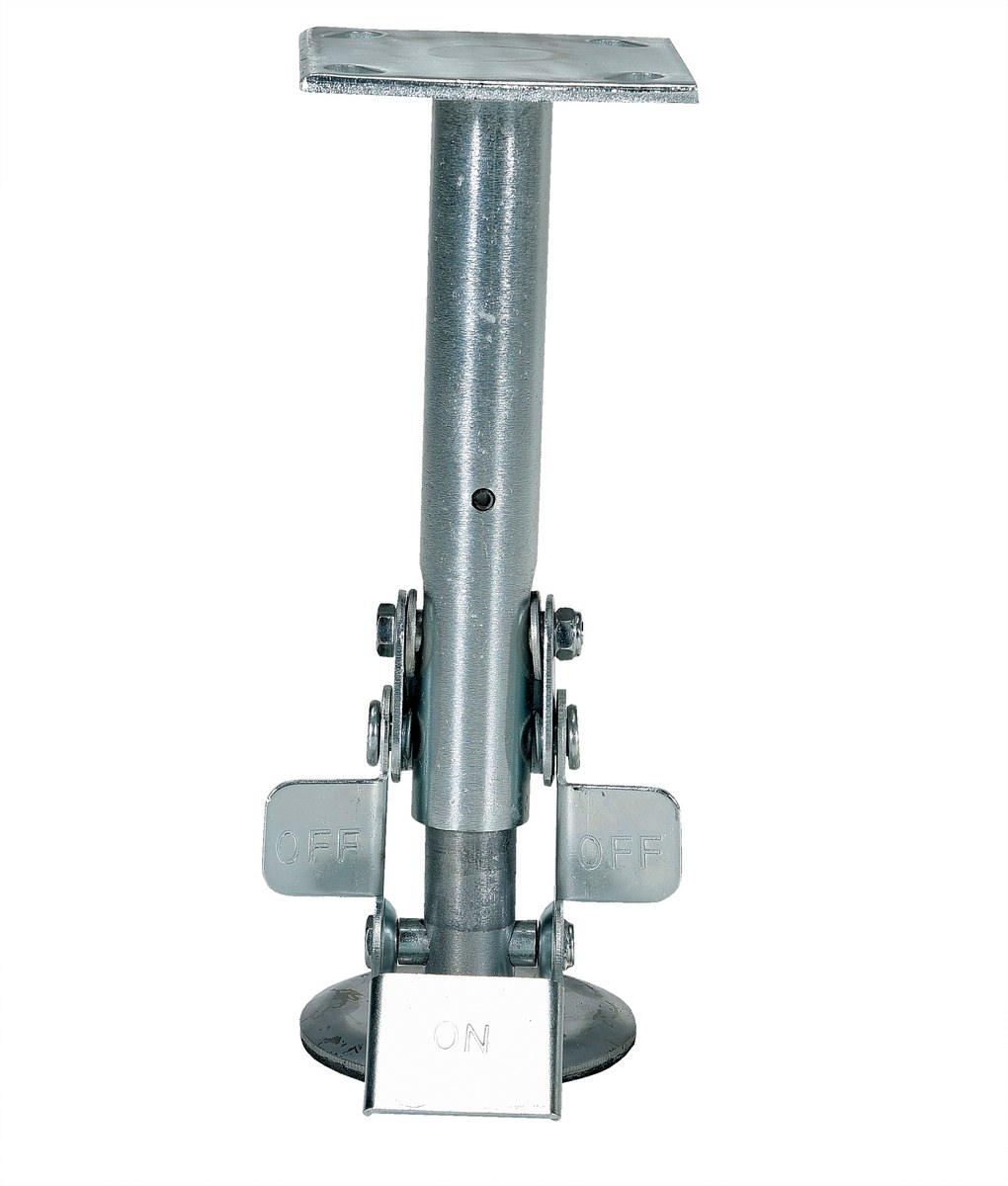

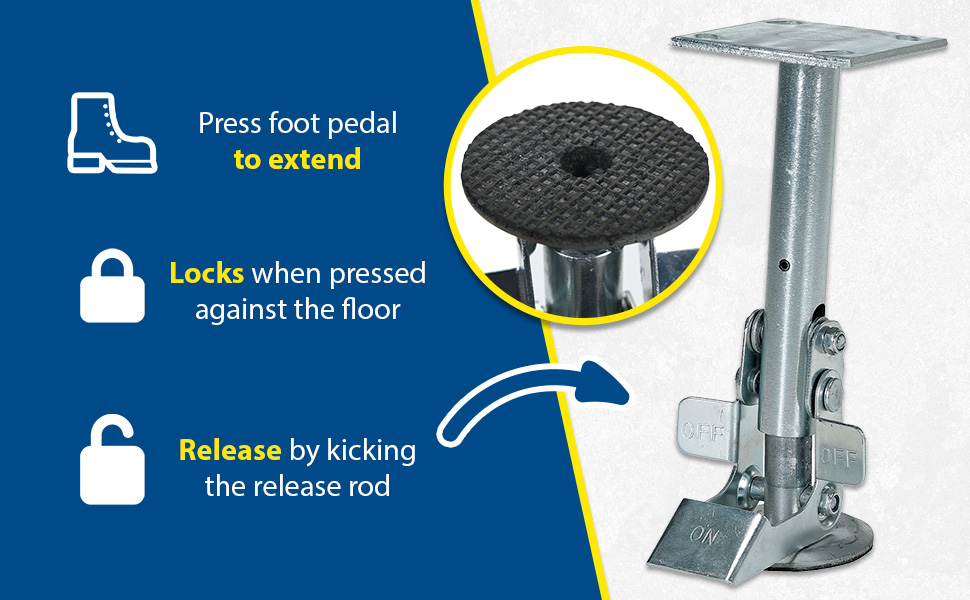

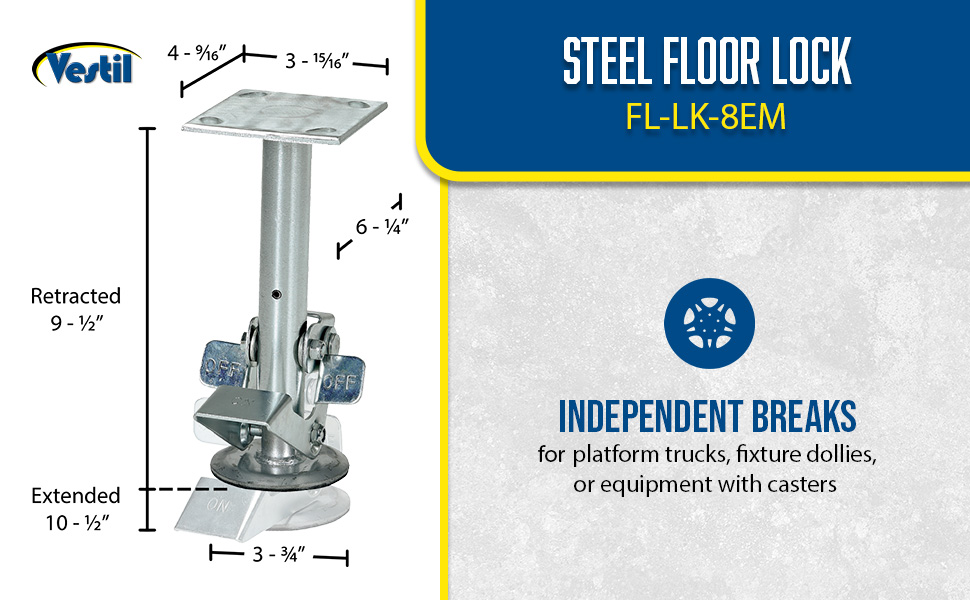

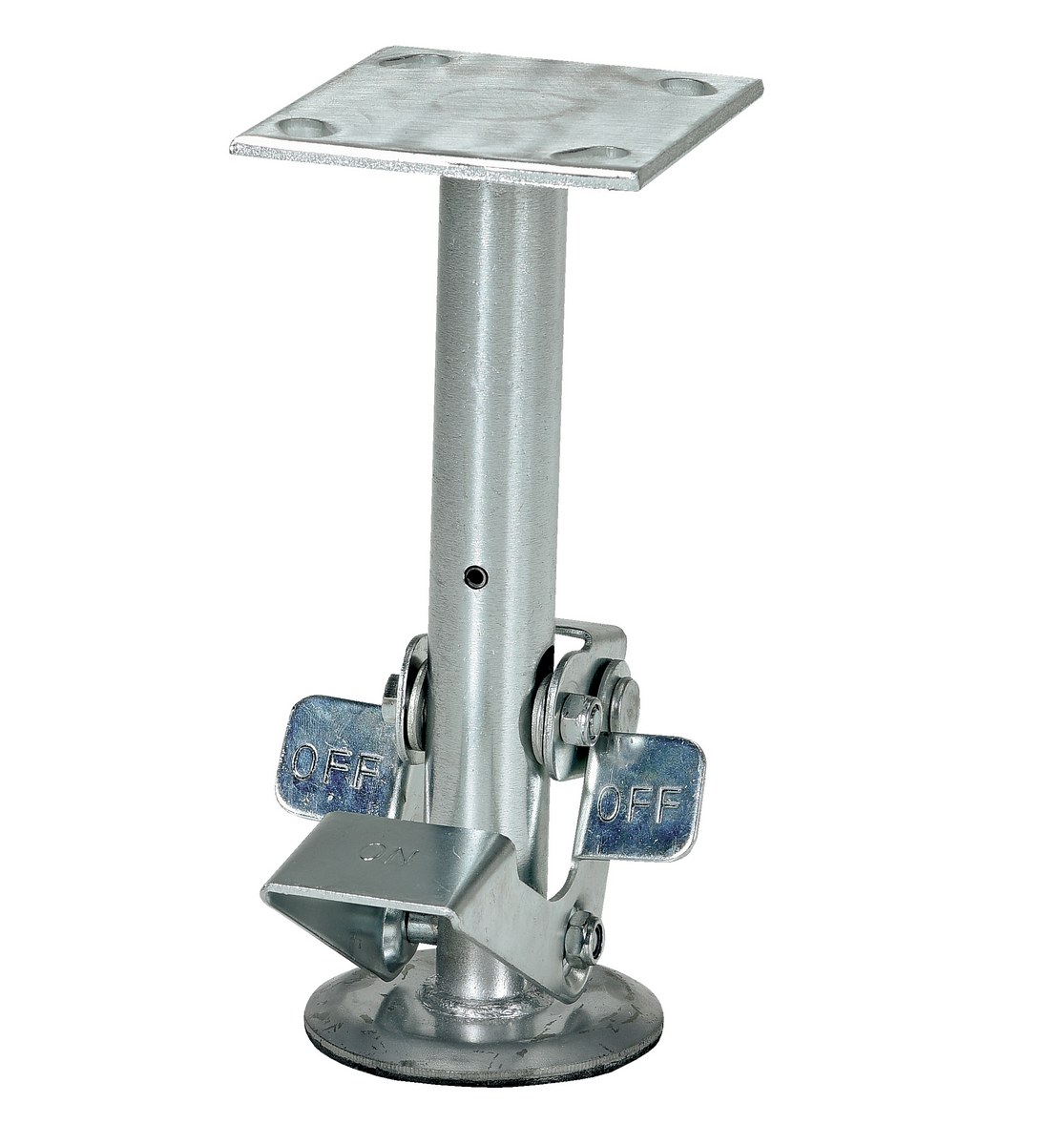

| FL-LK-8EM |  | 30 Days Limited Warranty | Steel Floor Lock 9-1/2 to 10-1/8 In. Height Silver | Mounting Height (in.): 10-1/8 Retracted Height (in.): 9-1/2 | 5 | ||

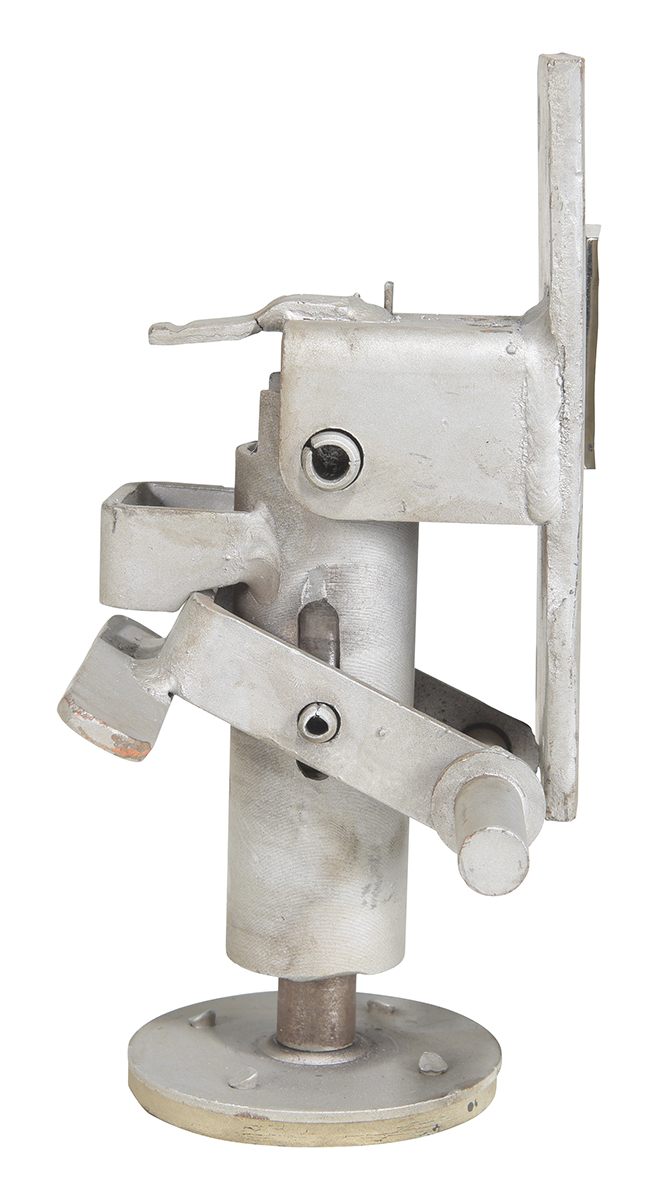

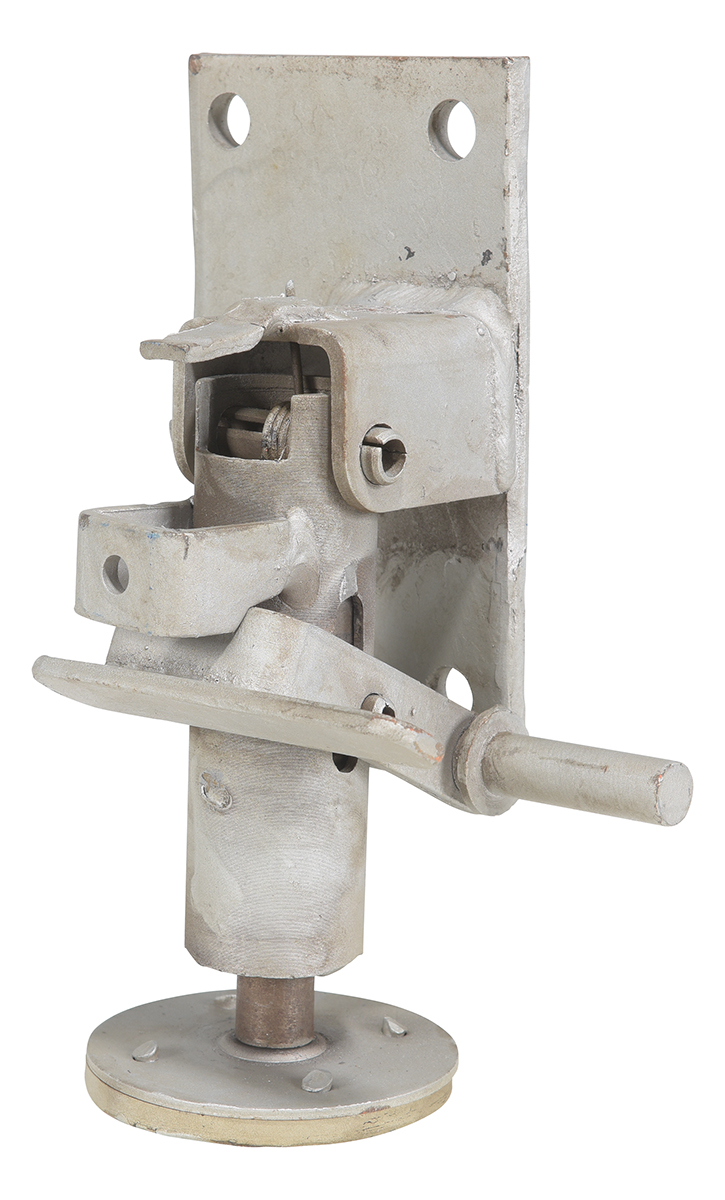

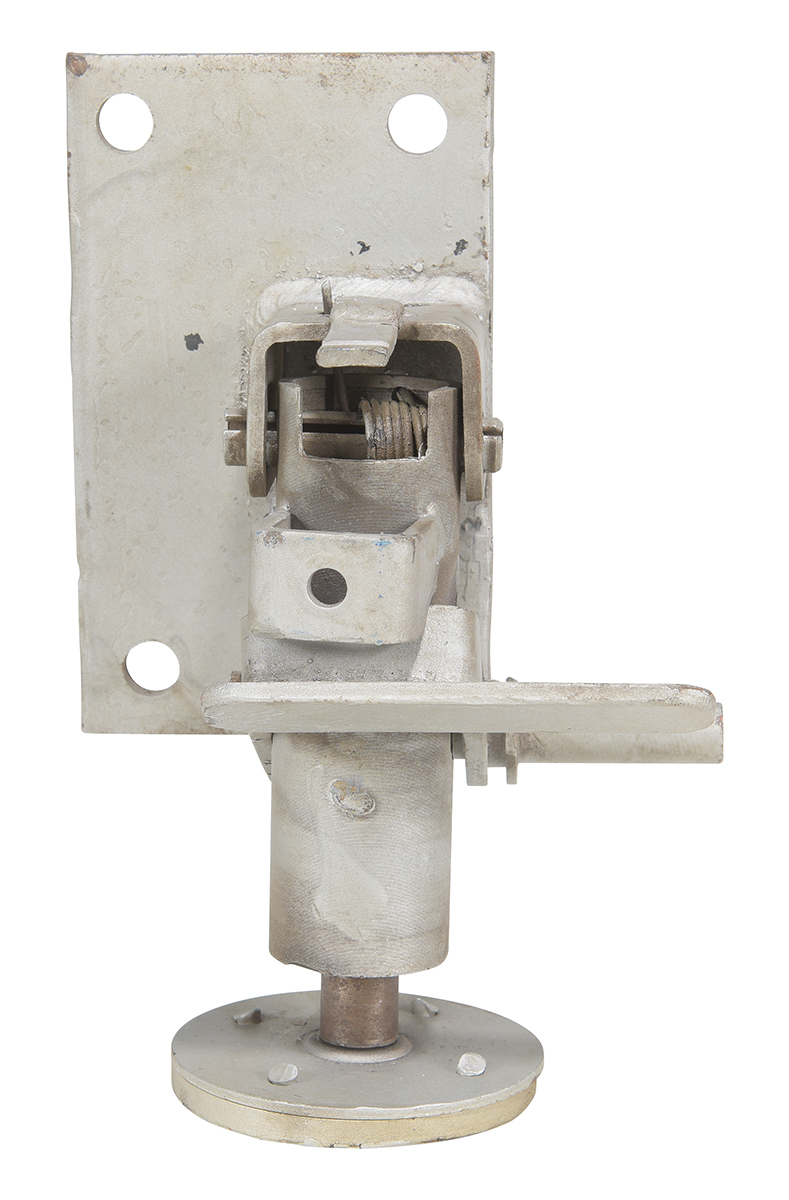

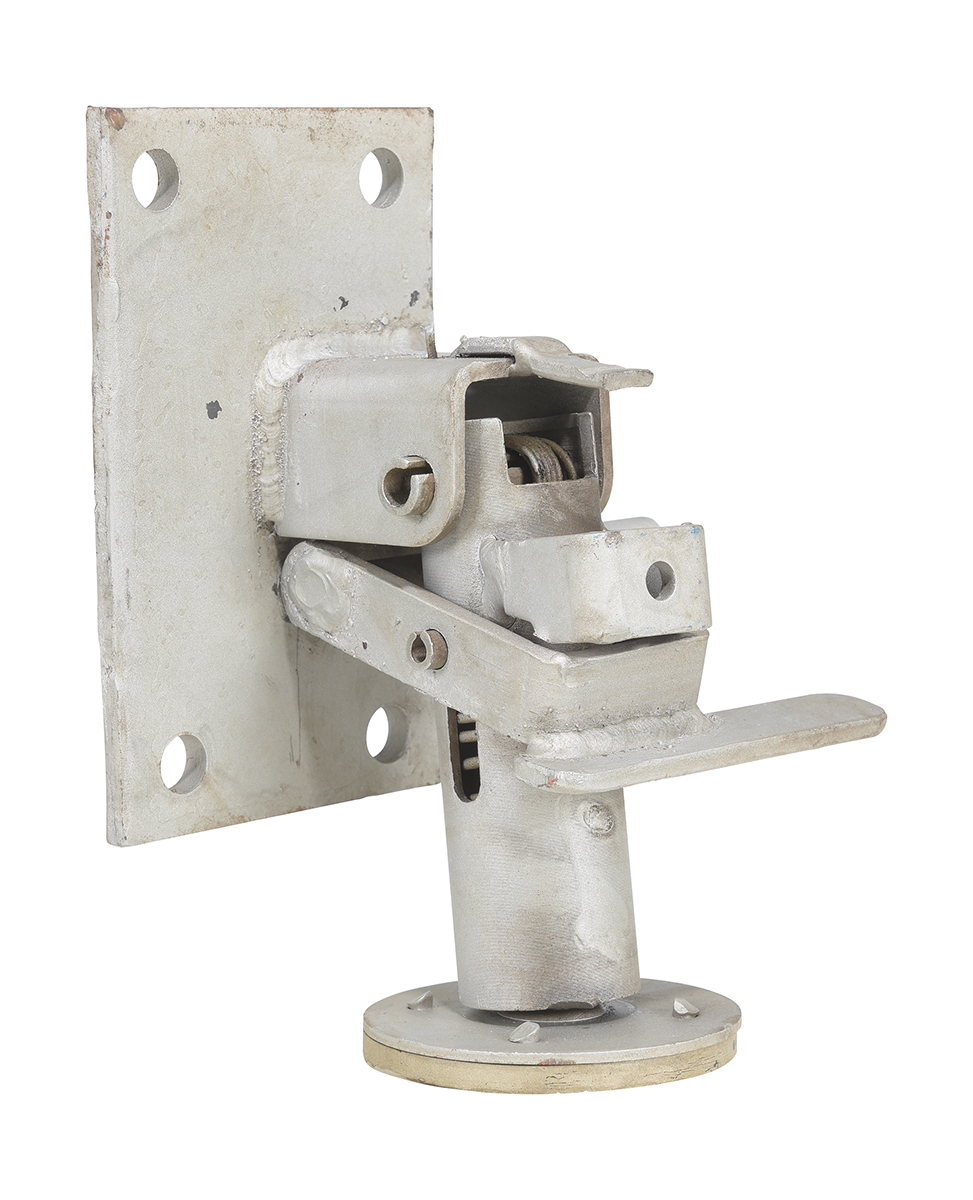

| FL-LK-S |  | 30 Days Limited Warranty | Steel Floor Lock 7 In. to 8-3/16 In. Height Silver | Mounting Height (in.): 8-3/16 Retracted Height (in.): 7 | 6 | ||

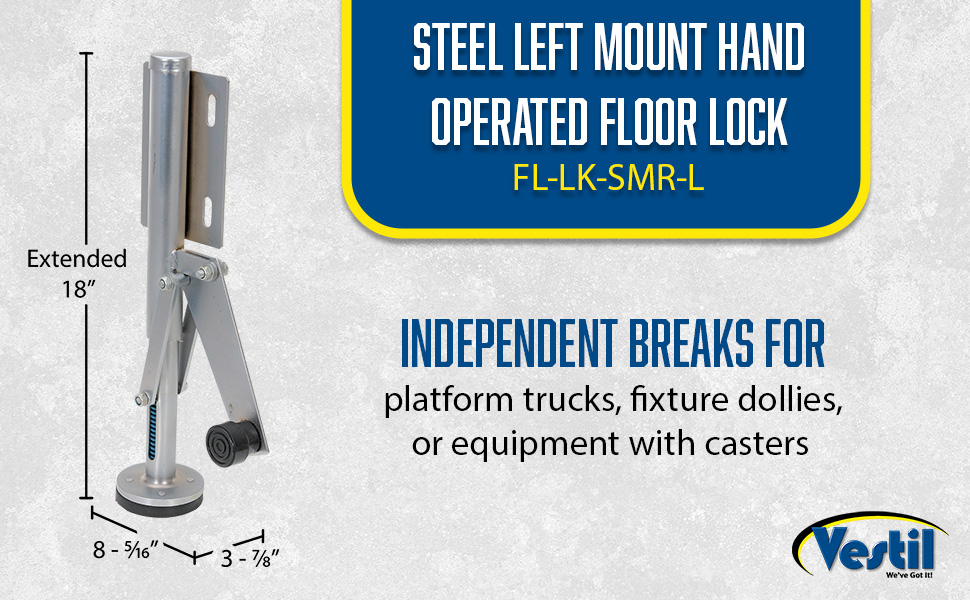

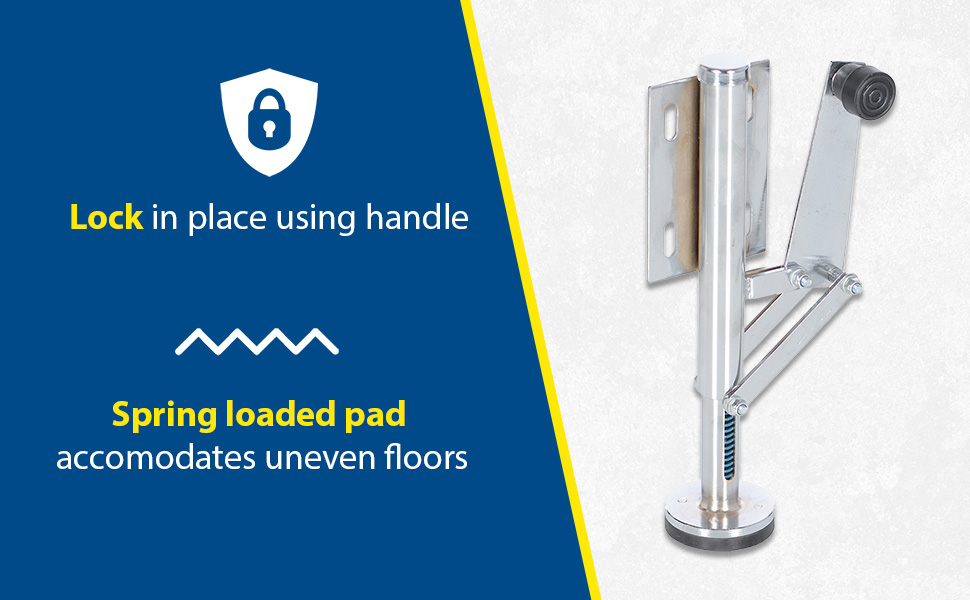

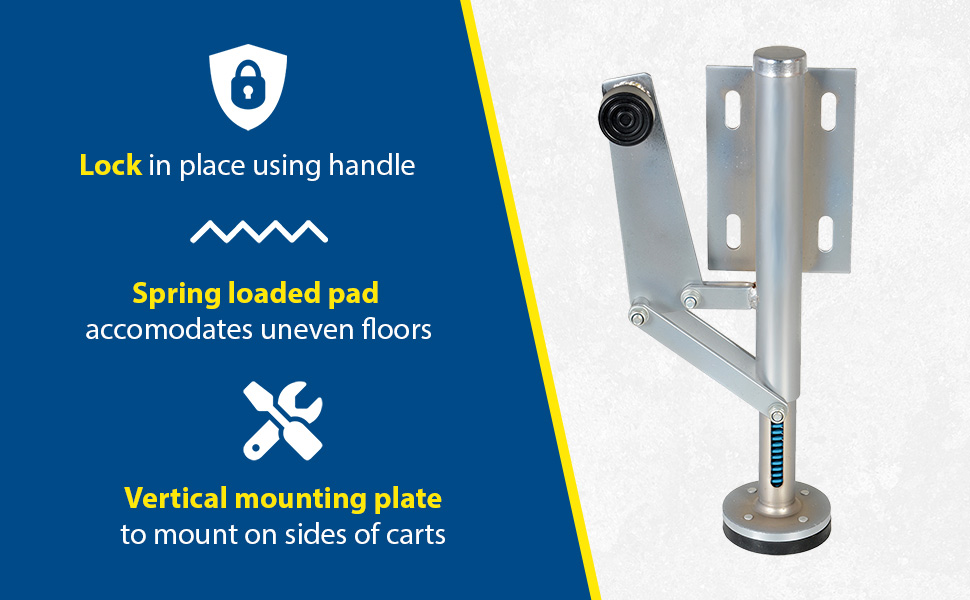

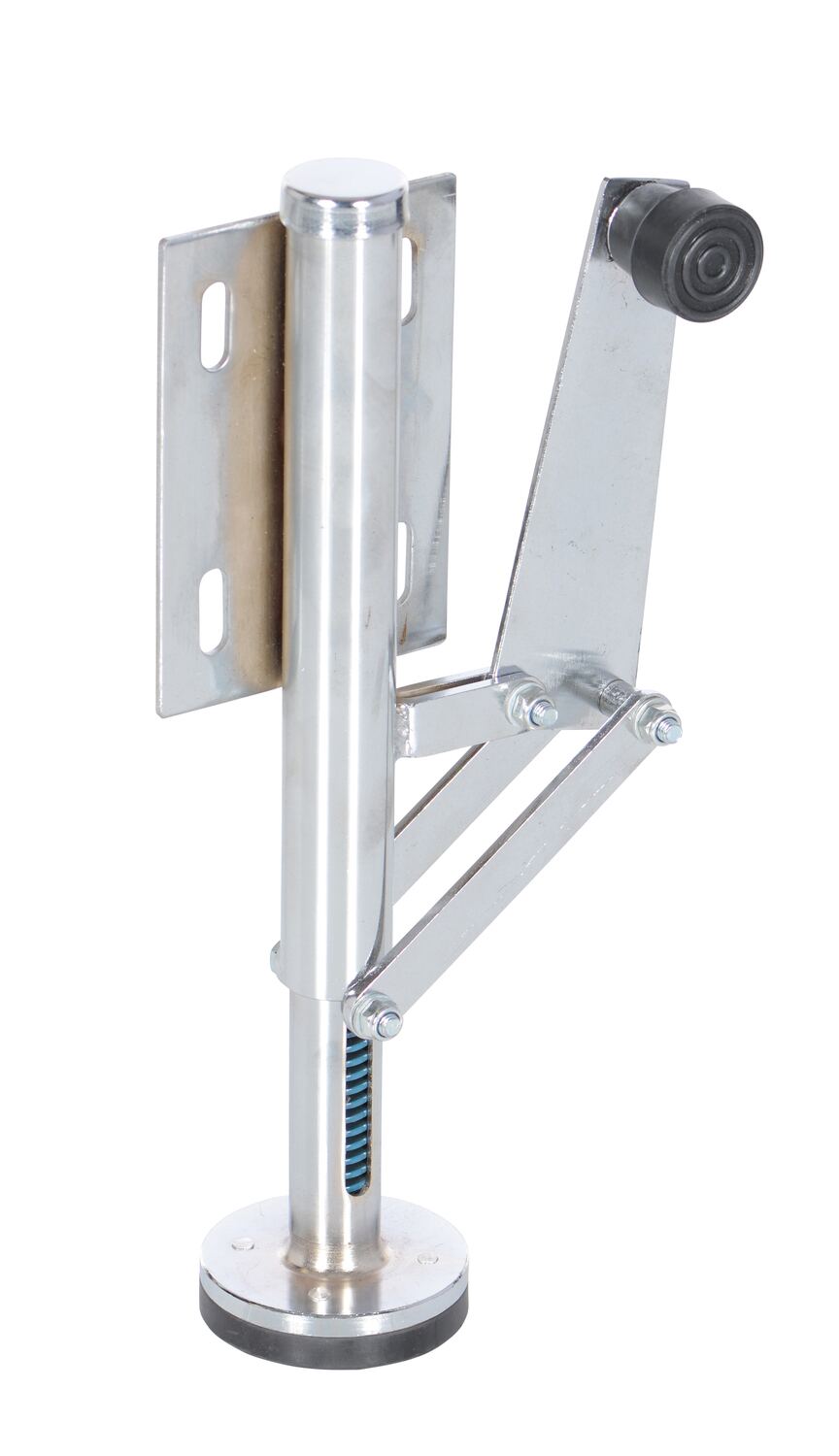

| FL-LK-SMR-L |  | 30 Days Limited Warranty | Steel Left Mount Hand Operated Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

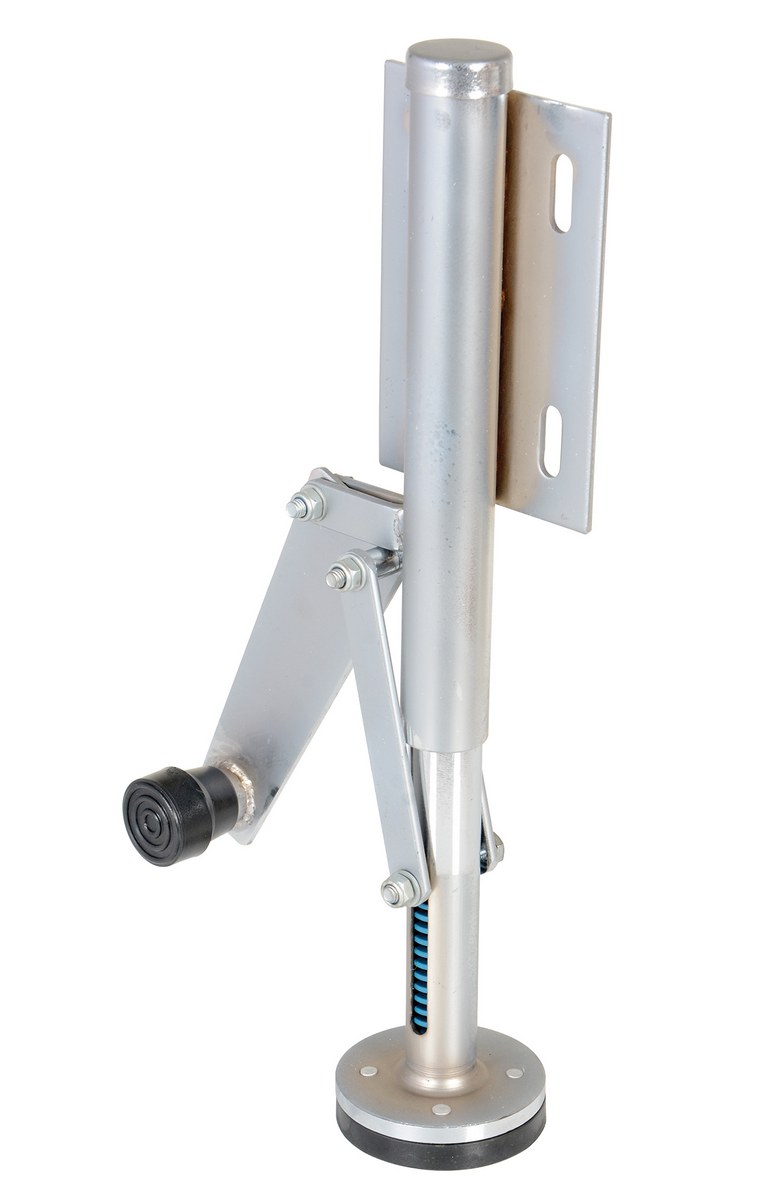

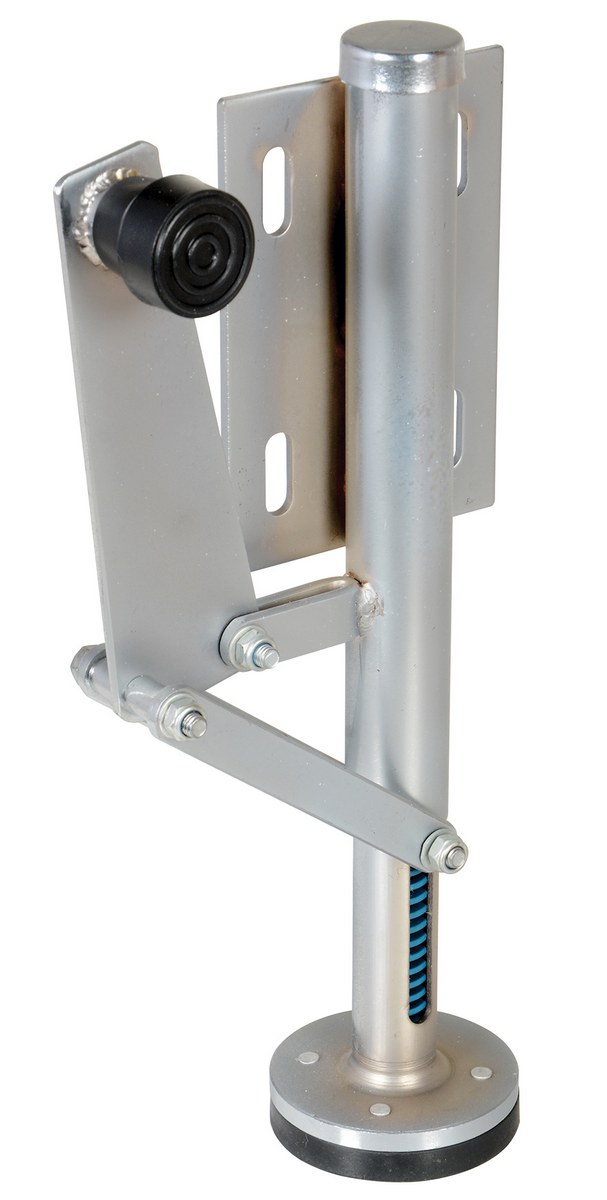

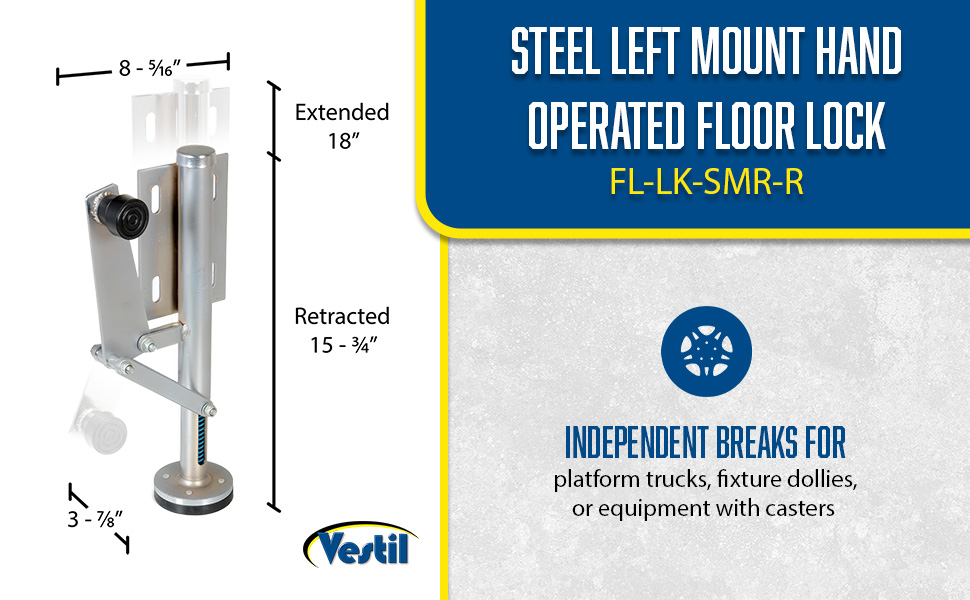

| FL-LK-SMR-R |  | 30 Days Limited Warranty | Steel Right Mount Hand Operated Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

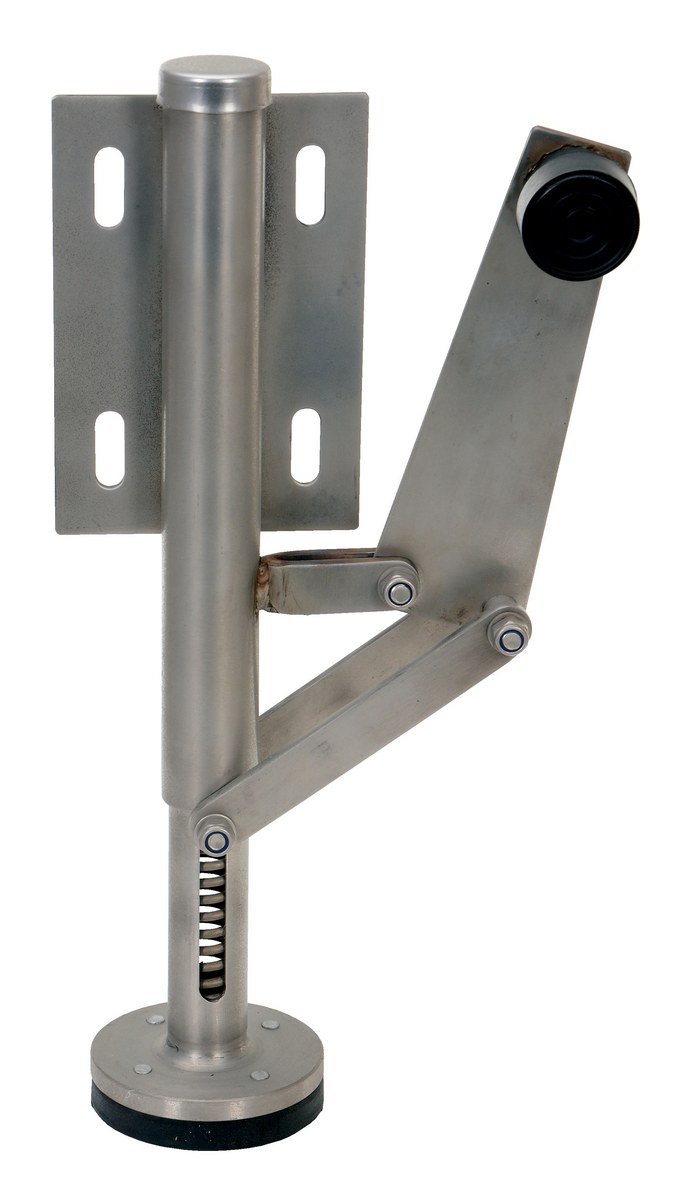

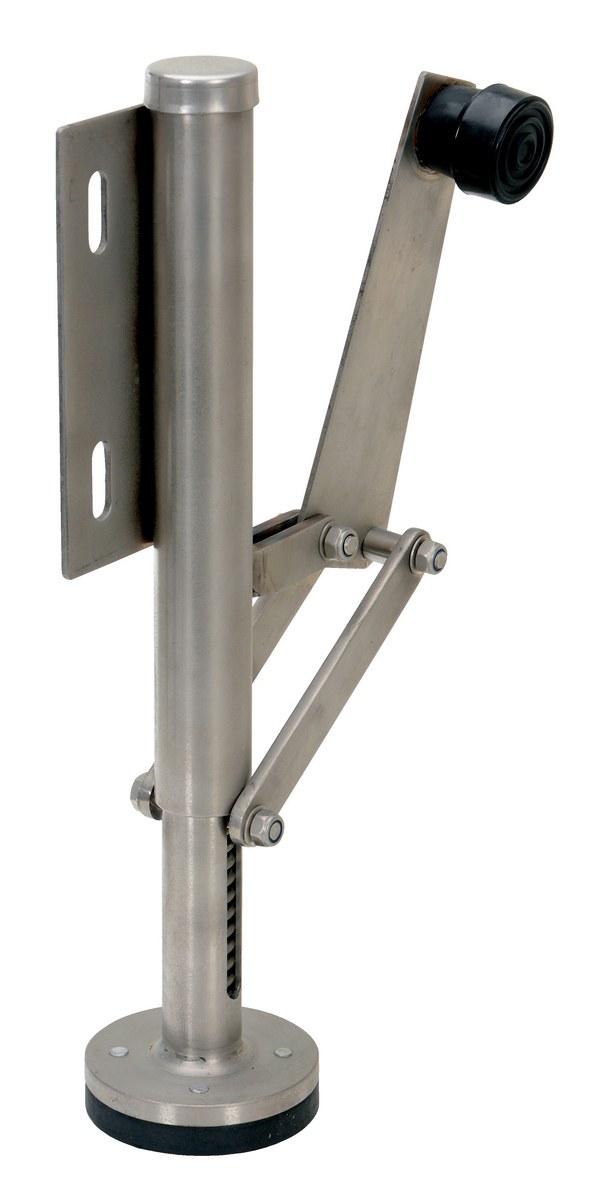

| FL-LK-SMR-SS-L |  | 30 Days Limited Warranty | Stainless Steel Left Mount Hand Operated Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

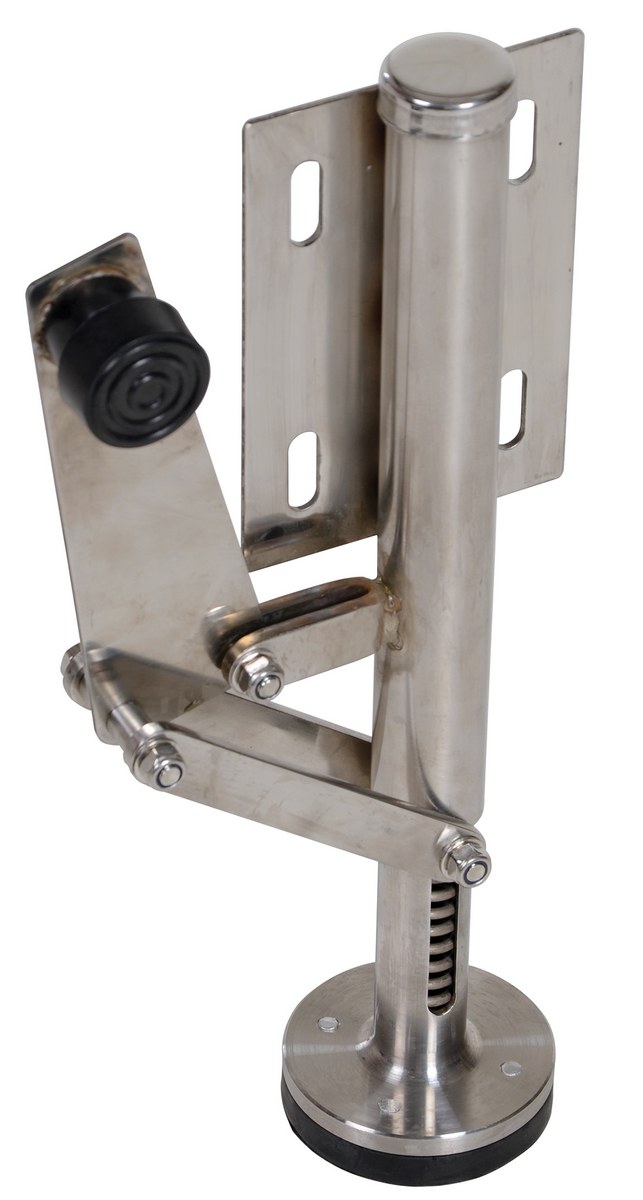

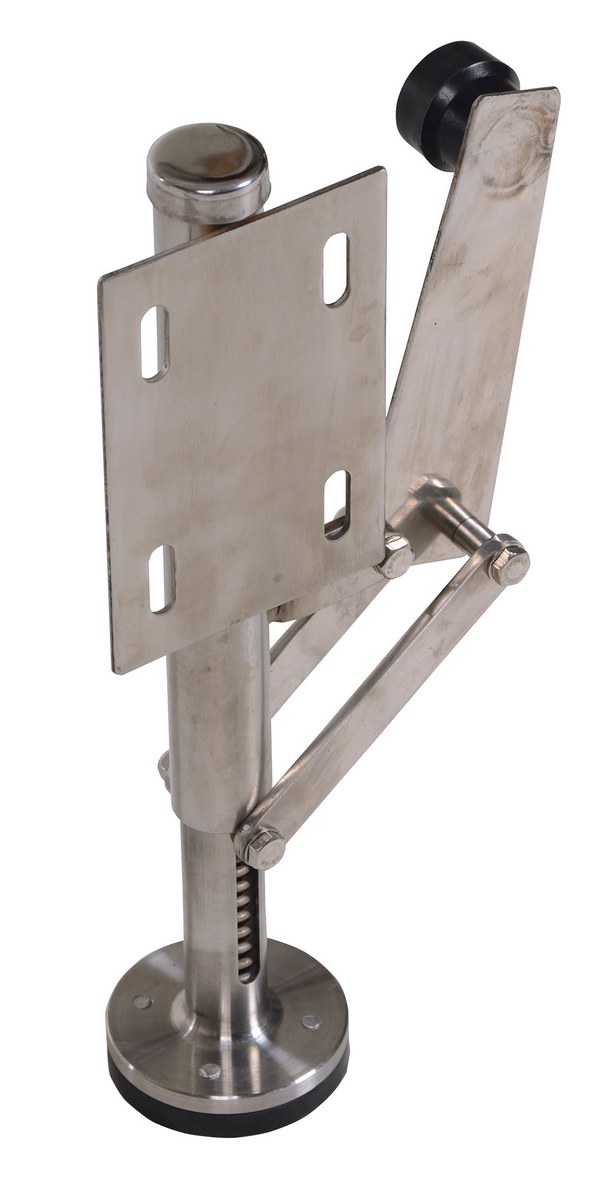

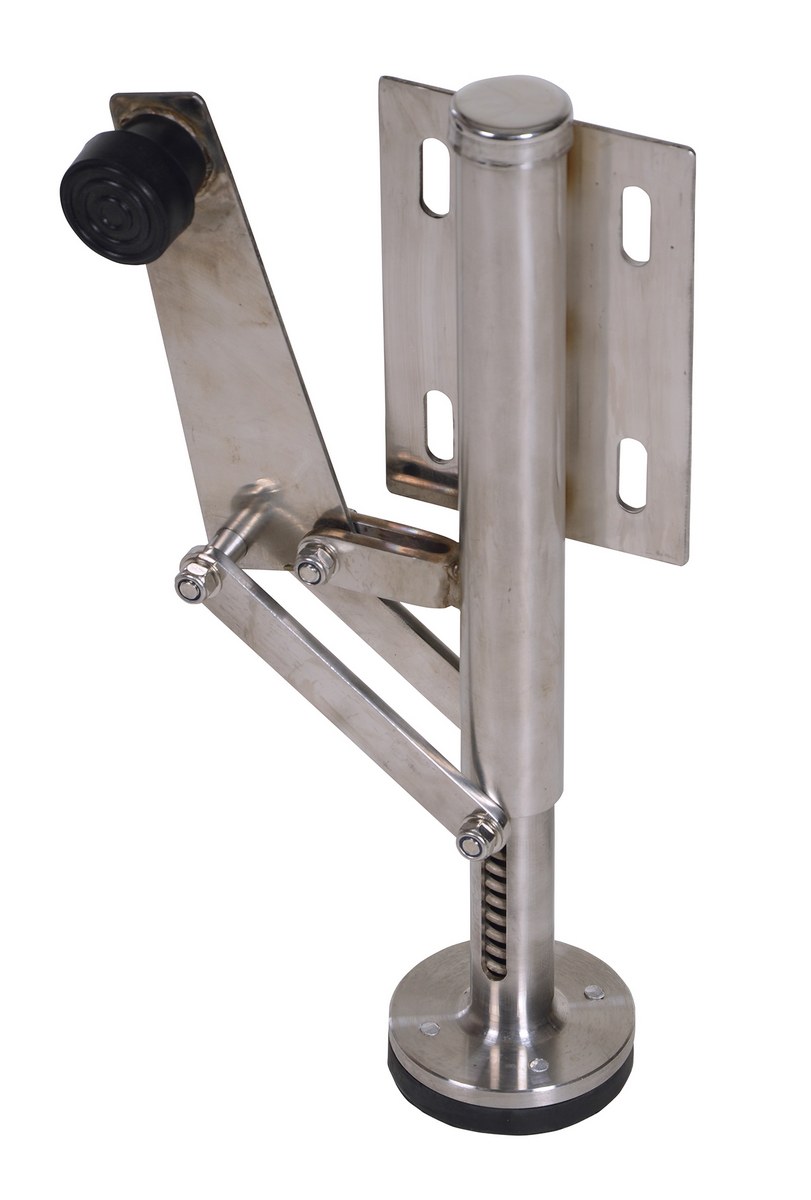

| FL-LK-SMR-SS-R |  | 30 Days Limited Warranty | Stainless Steel Right Mount Hand Opertated Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

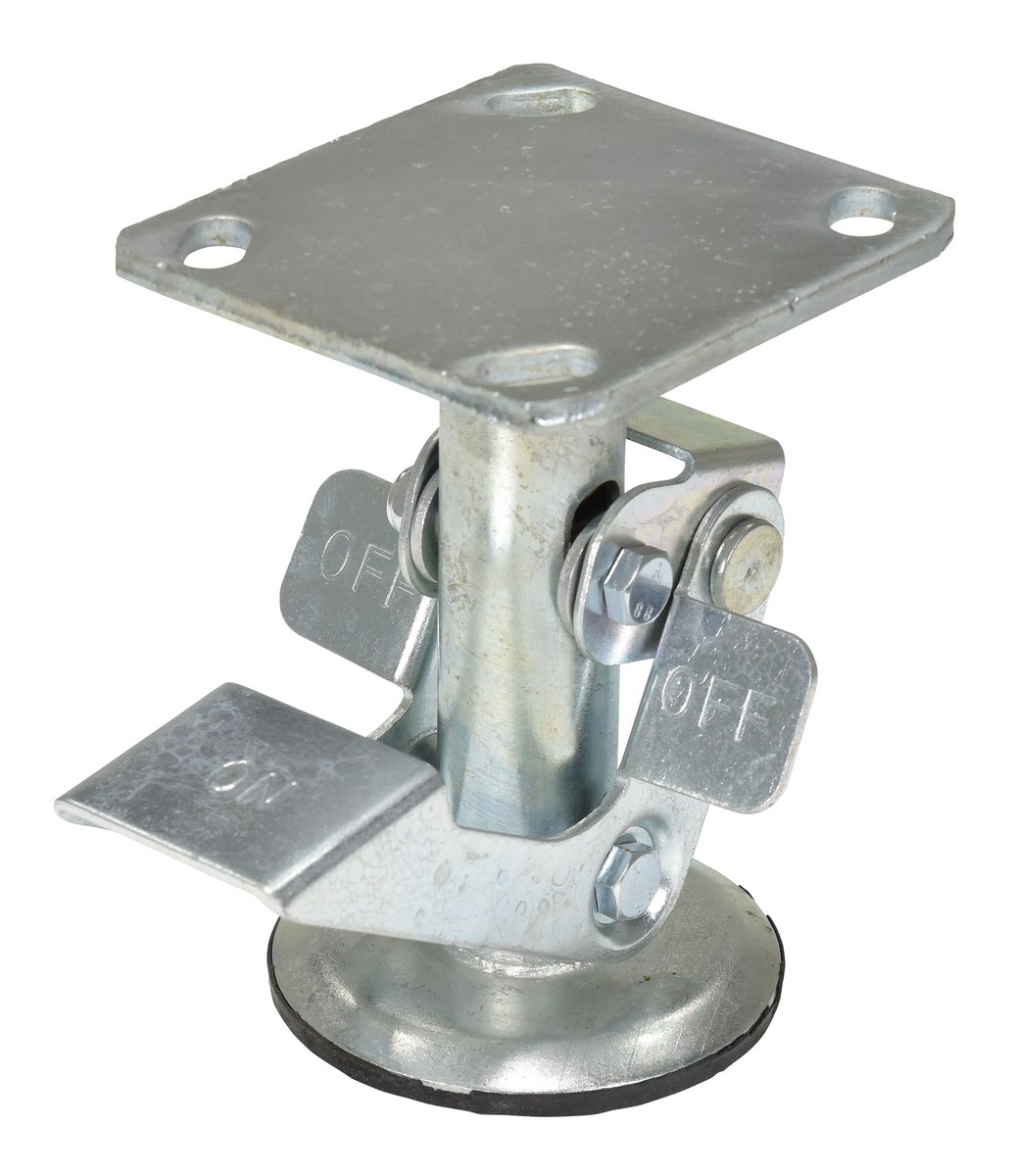

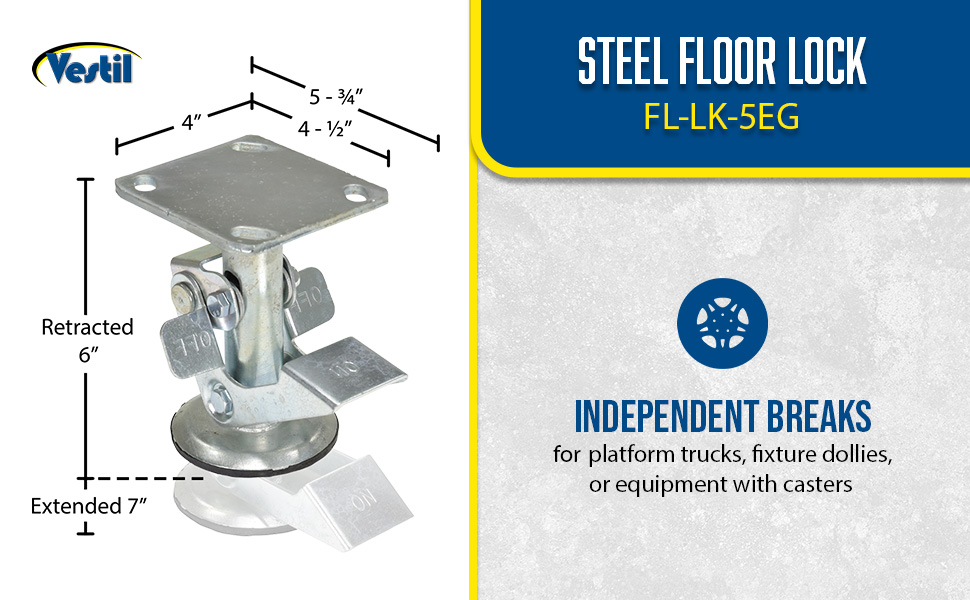

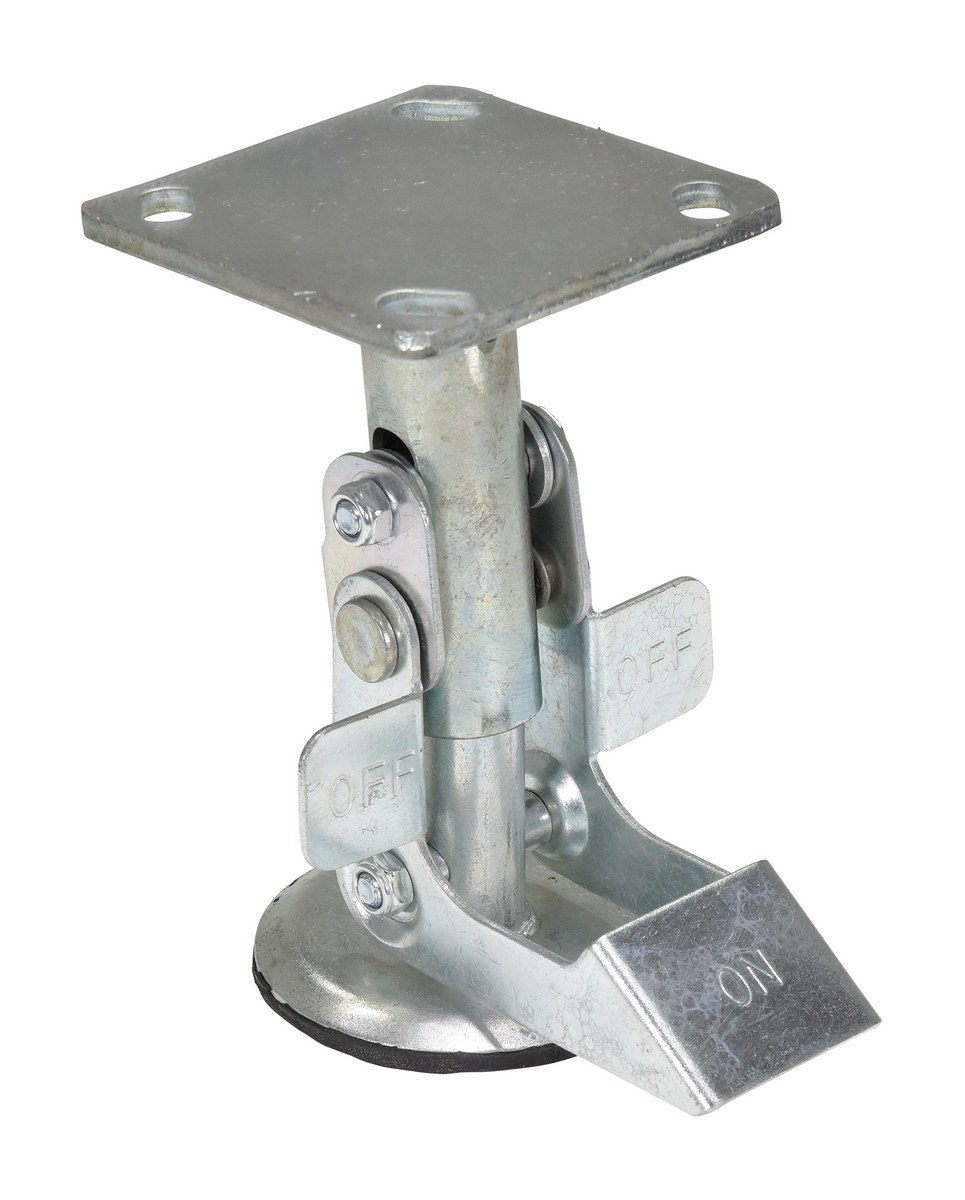

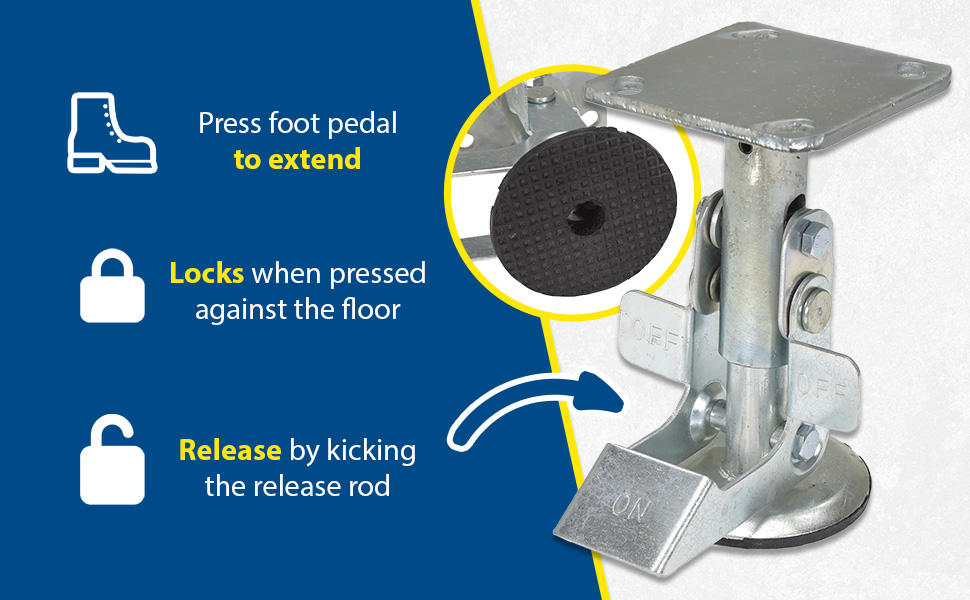

| FL-LK-5EG | | 30 Days Limited Warranty | Steel Top Mount Floor Lock 6 to 7 In. Height Silver | Mounting Height (in.): 7 Height Retracted (in.): 6 | 5 | ||

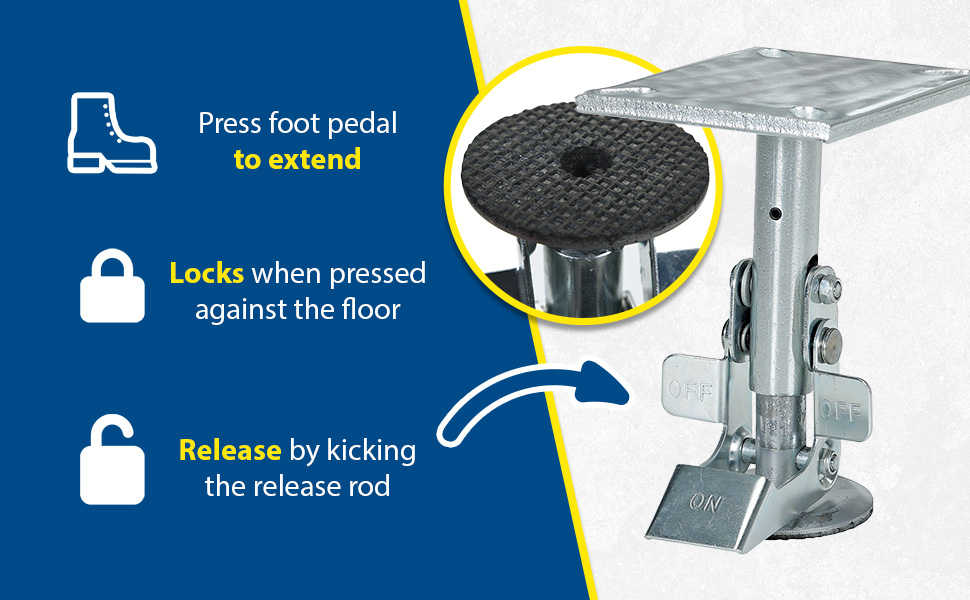

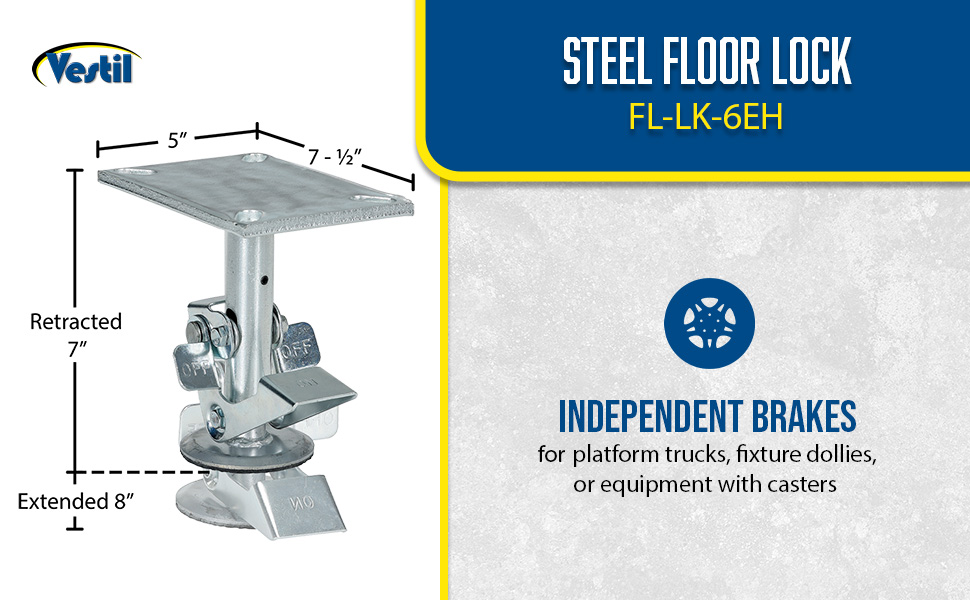

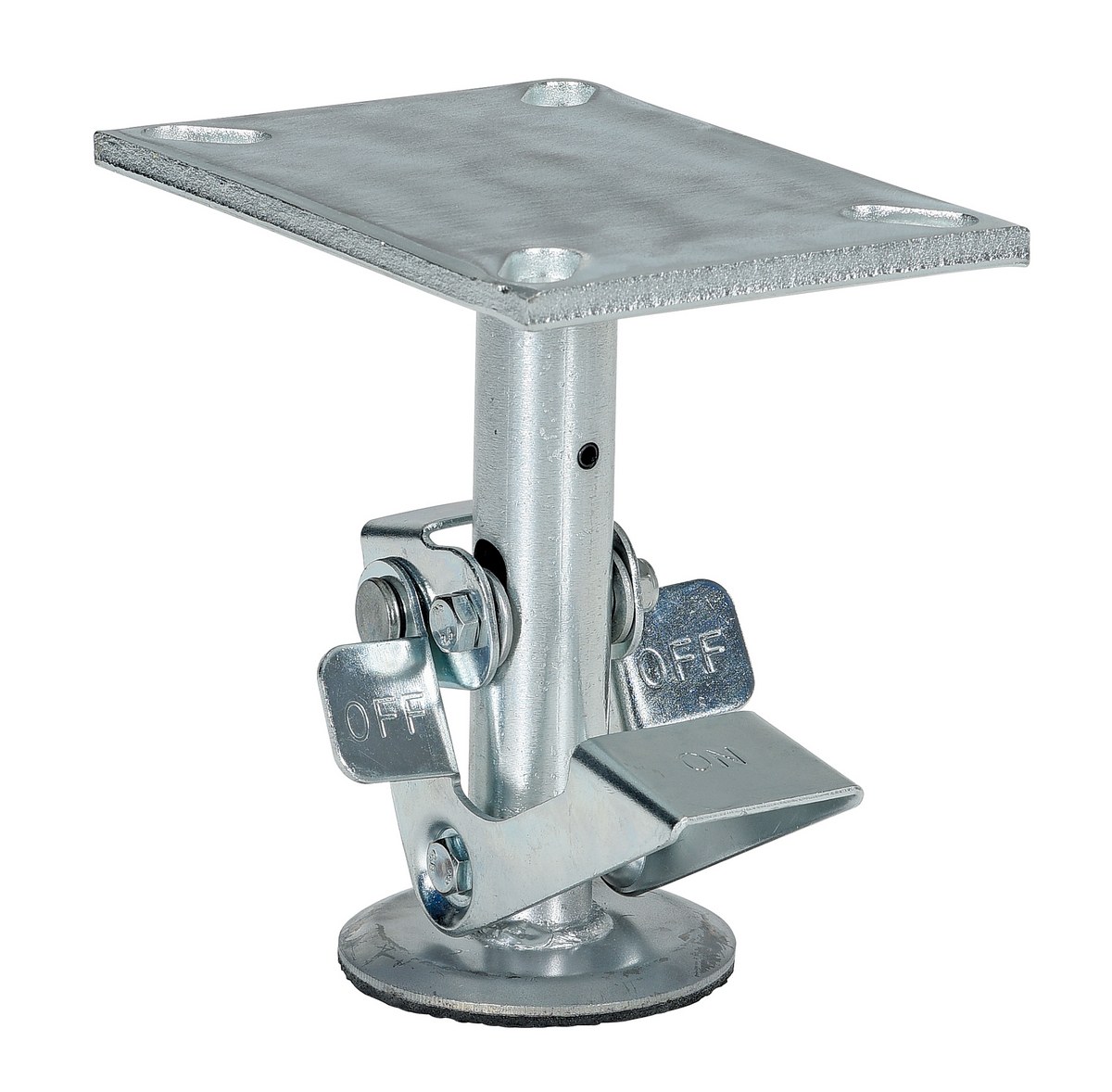

| FL-LK-6EH |  | 30 Days Limited Warranty | Steel Top Mount Floor Lock 7 to 8 In. Height Silver | Mounting Height (in.): 8 Retracted Height (in.): 7 | 7 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Caster Diameter (in.): 4
Mount Height (in.): 5-5/8
Caster Diameter (in.): 4
Mount Height (in.): 5-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 5-5/8
Retracted Height (in.): 4-1/2
Mounting Height (in.): 5-5/8
Retracted Height (in.): 4-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/2
Mounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7-1/2
Retracted Height (in.): 6-7/8
Mounting Height (in.): 7-1/2
Retracted Height (in.): 6-7/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7-3/4
Retracted Height (in.): 6-1/4
Mounting Height (in.): 7-3/4
Retracted Height (in.): 6-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/4
Mounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10-1/2
Retracted Height (in.): 9-5/8
Mounting Height (in.): 10-1/2
Retracted Height (in.): 9-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 9-1/2
Retracted Height (in.): 8-3/4
Mounting Height (in.): 9-1/2
Retracted Height (in.): 8-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10-1/8
Retracted Height (in.): 9-1/2
Mounting Height (in.): 10-1/8
Retracted Height (in.): 9-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 8-3/16
Retracted Height (in.): 7
Mounting Height (in.): 8-3/16
Retracted Height (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7
Height Retracted (in.): 6
Mounting Height (in.): 7
Height Retracted (in.): 6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 8
Retracted Height (in.): 7
Mounting Height (in.): 8
Retracted Height (in.): 7
General Purpose Floor Locks PDF's will open in a new window when clicked.
Manuals
No Owners Manuals For This Product
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: What is the capacity of the floor lock?
A: The FL-LK-4E has a capacity of 1200 lbs.
Q: What is the capacity, as well as the force required to engage them?
A: Locking capacity is 1,200 lbs. Force required to engage the brake: 20 - 30 lbs.
Q: What is the capacity rating on the FL-LK-SMR-L and the FL-LK-SMR-R ?
A: The locking capacity is 2,000 lbs.
Q: Will the FL-LK models work in an autoclave at 350-400 degrees F for approximately 6 hours at 15 PSI?
A: No, FL-LK models will not work in an autoclave at 350-400 degrees F.
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Purpose Floor Locks |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Brake is independent of casters and can be installed to any convenient location on the cart. Designed to be mounted to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1-1/2" off the floor when retracted. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
