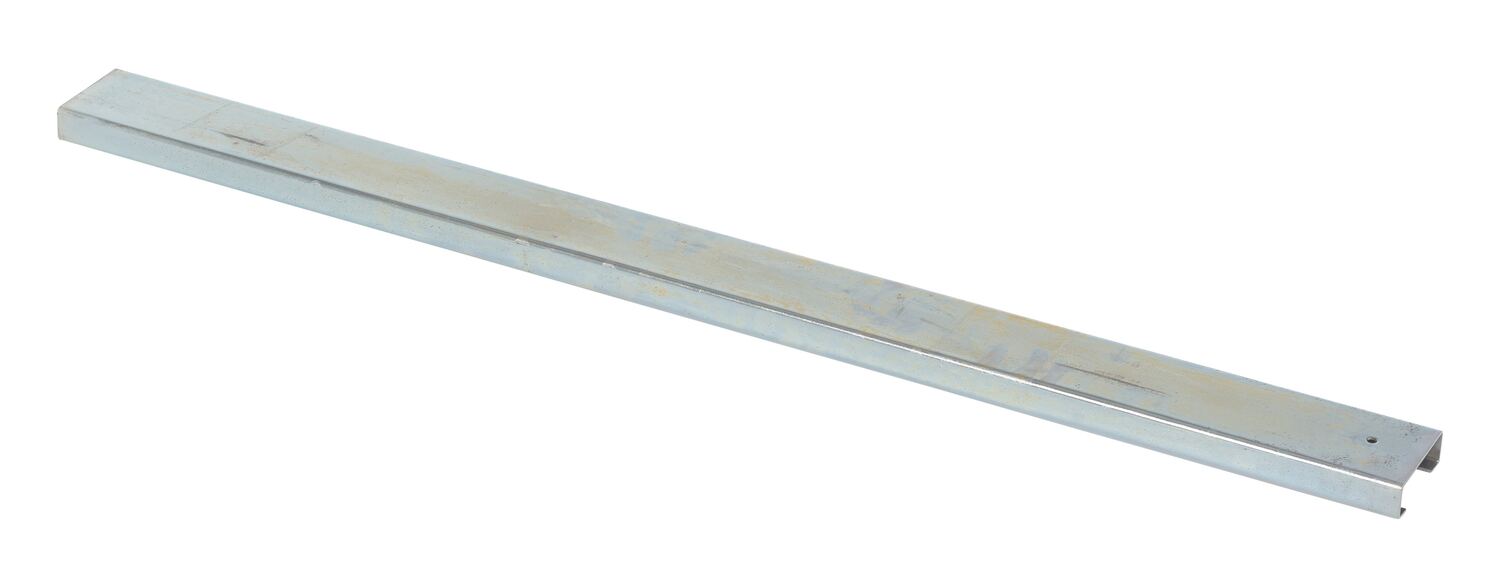

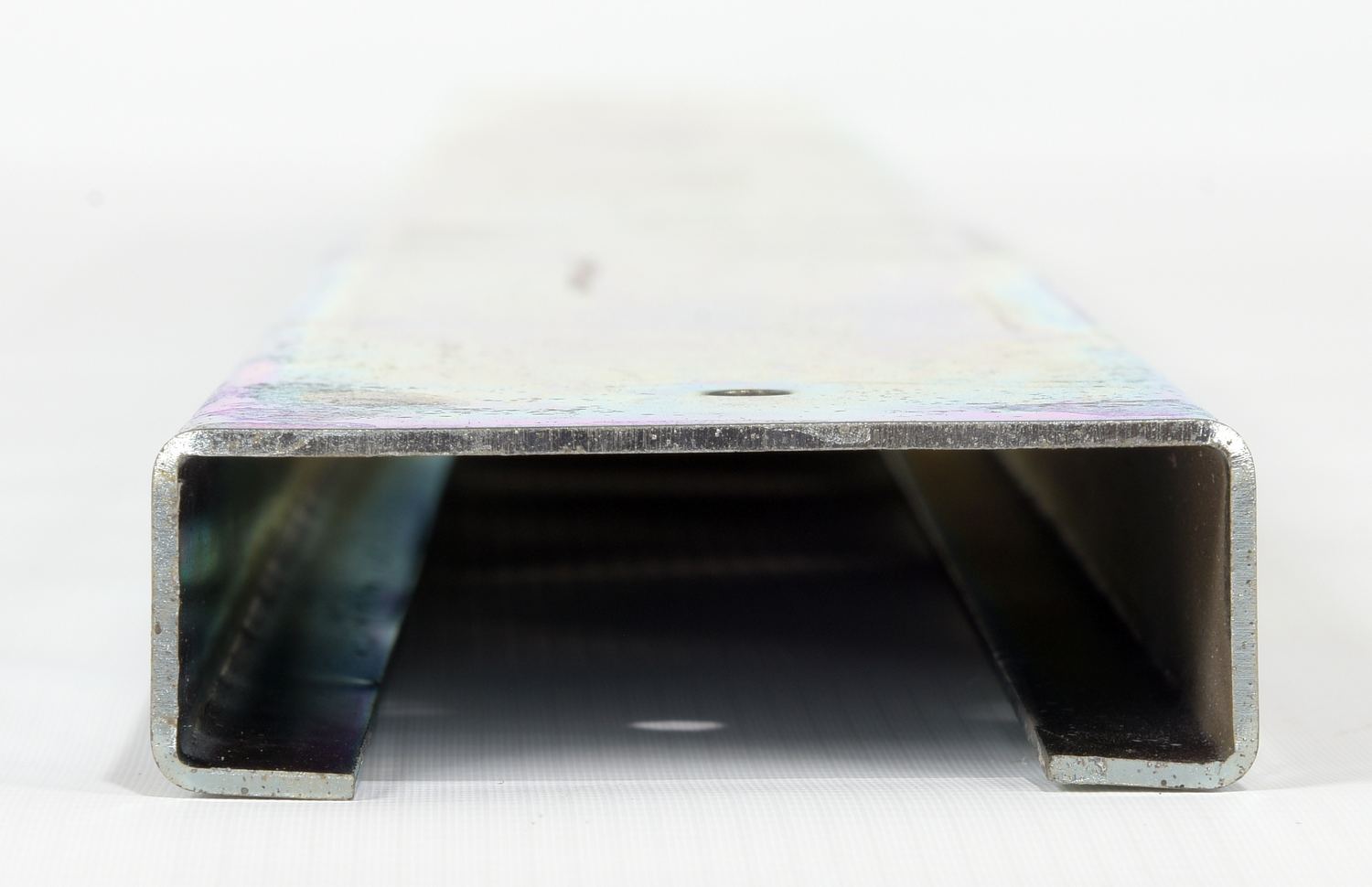

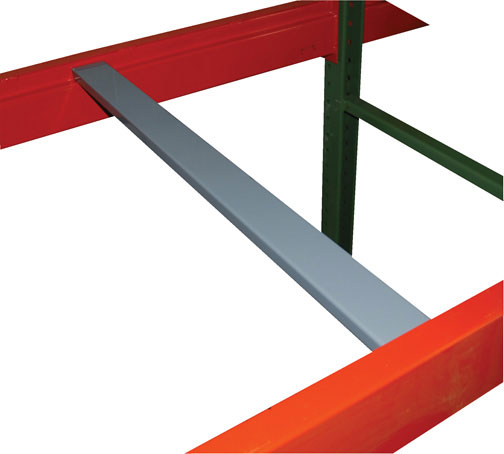

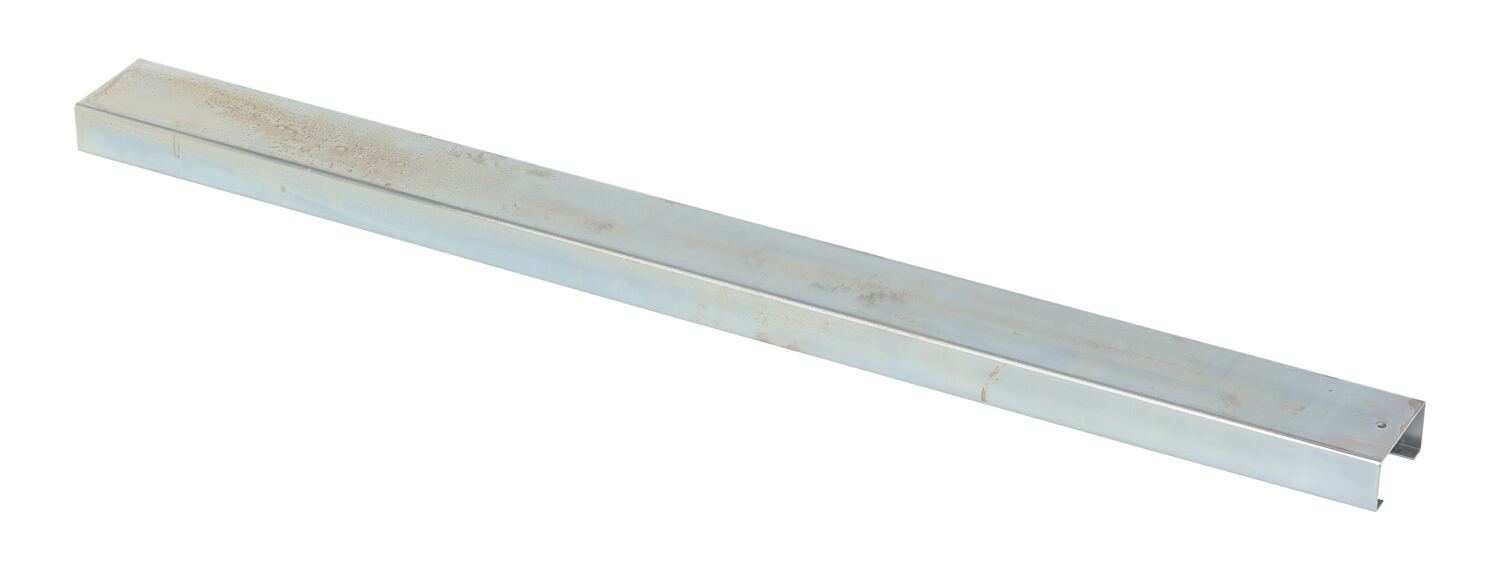

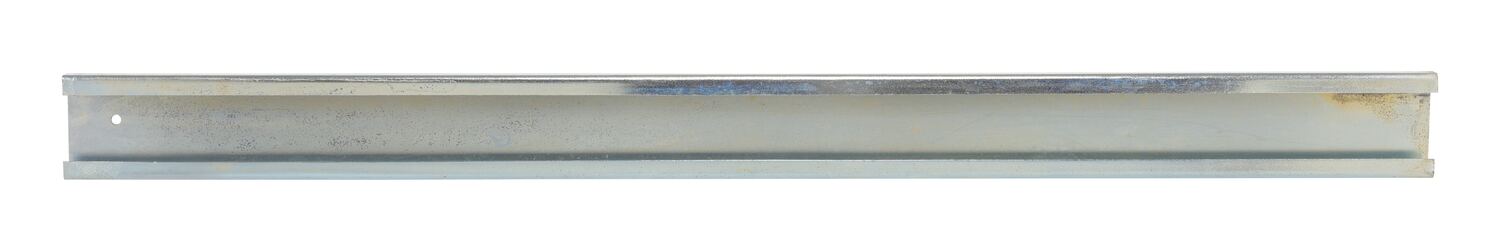

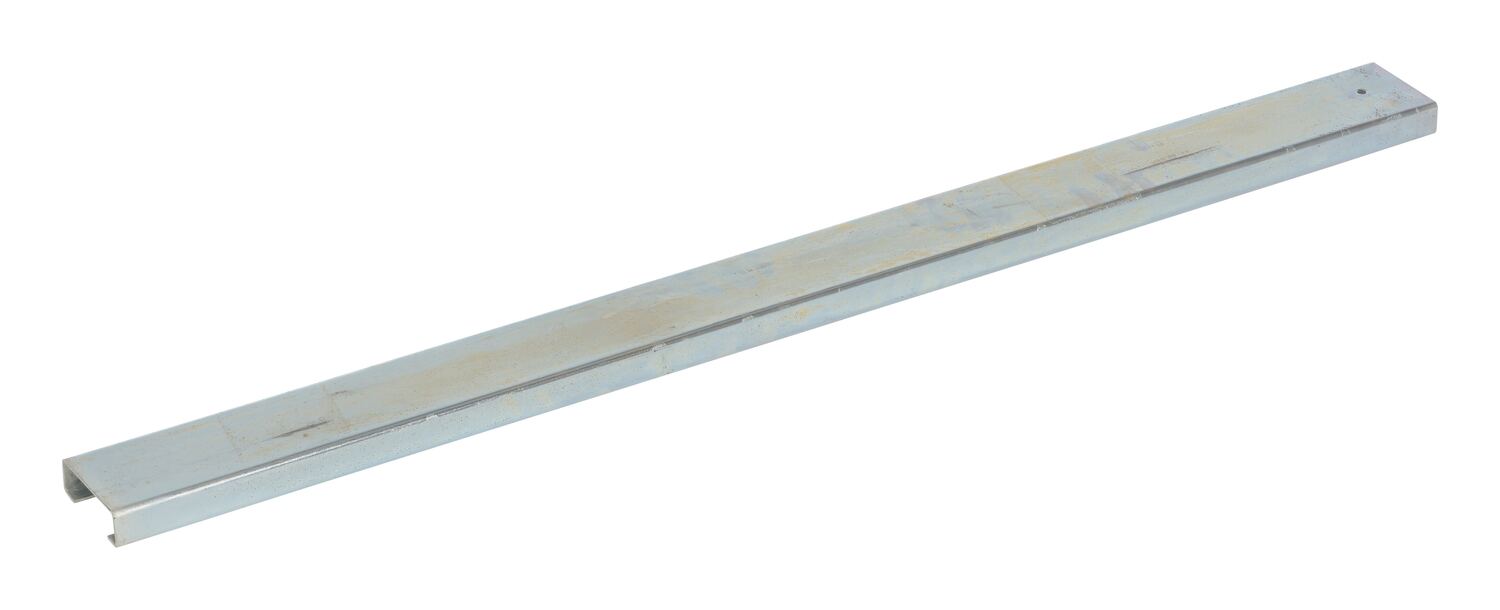

Pallet Support BarsCross bars provide economical support for pallets between rack cross beams. The model SSB-42, is 1-1/2" high. It is designed to sit flush with the top of the rack step beam. The model PSB-42 is 1" high and is designed to be used with 1/2" plywood or particle board so the board will be flush with the top of the beam. The boxed steel bars fit our standard 42" rack. 14 gauge material.
- Cross bars provide economical support for pallets between rack cross beams
- Design is for half inch plywood or particle board in order to be flush with top of beam
- Boxed steel bars fit standard 42 inch rack for maximum efficiency
- Use in industrial applications for optimal results
Gravity Flow Inserts
Pallet Rack Lifting Dolly
Nylon Pallet Rack Netting
Pallet Rack Security Gates
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| PSB-42 |  | 90 Days Limited Warranty | Galvanized Steel Pallet Support Bar 38-1/2 In. x 3 In. x 1 In. 1000 Lb. Capacity Gray | Uniform Capacity (lb.): 1,000 Steel (gauge): 14 | 6 | ||
| SSB-42 |  | 90 Days Limited Warranty | Galvanized Steel Pallet Support Bar 1-1/2 In. Height 1,000 Lb. Capacity Gray | Steel (gauge): 14 Uniform Capacity (lb.): 1000 | 9 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Steel (gauge): 14
Uniform Capacity (lb.): 1,000
Steel (gauge): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Steel (gauge): 14
Uniform Capacity (lb.): 1000
Steel (gauge): 14
Uniform Capacity (lb.): 1000
