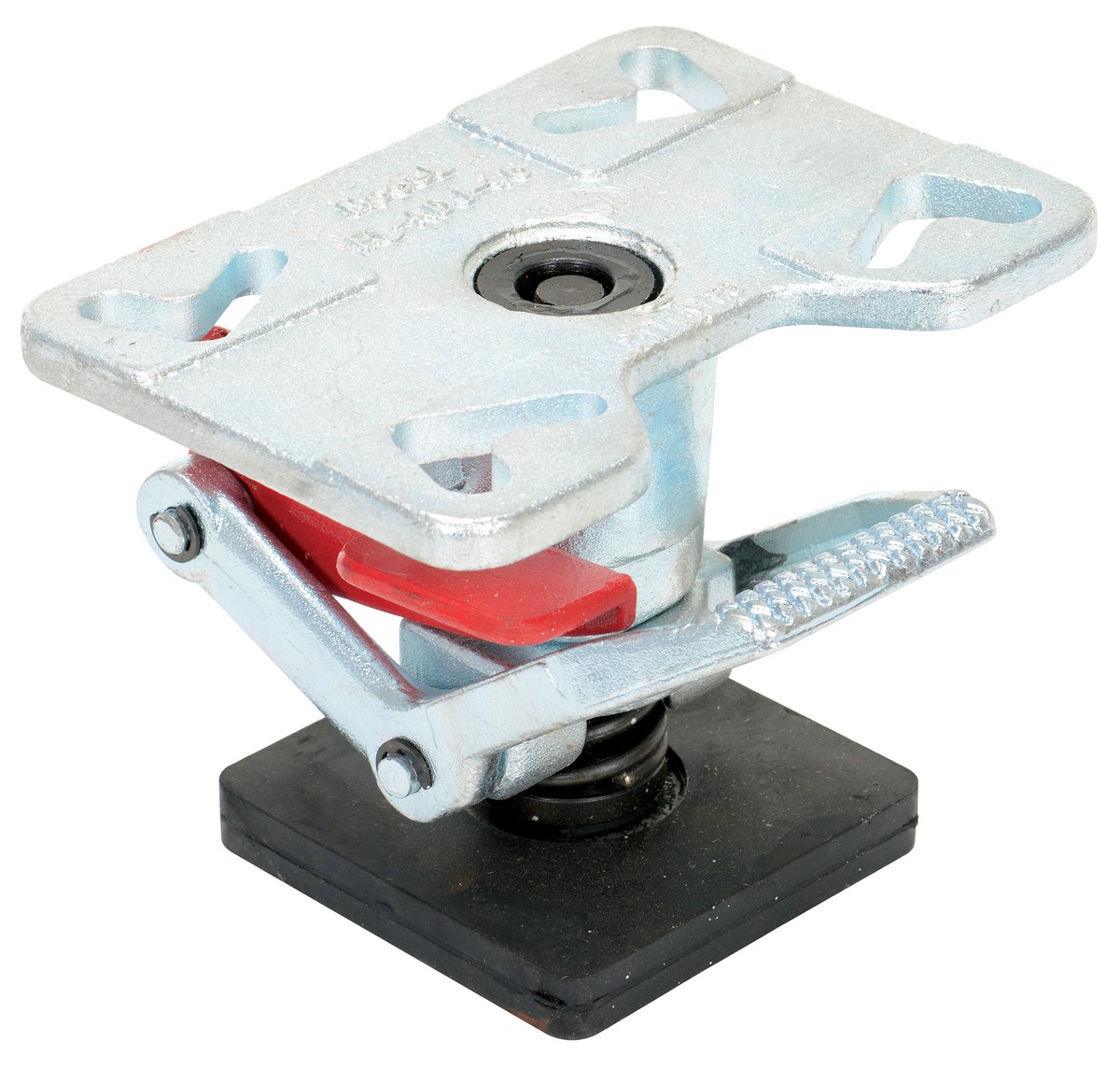

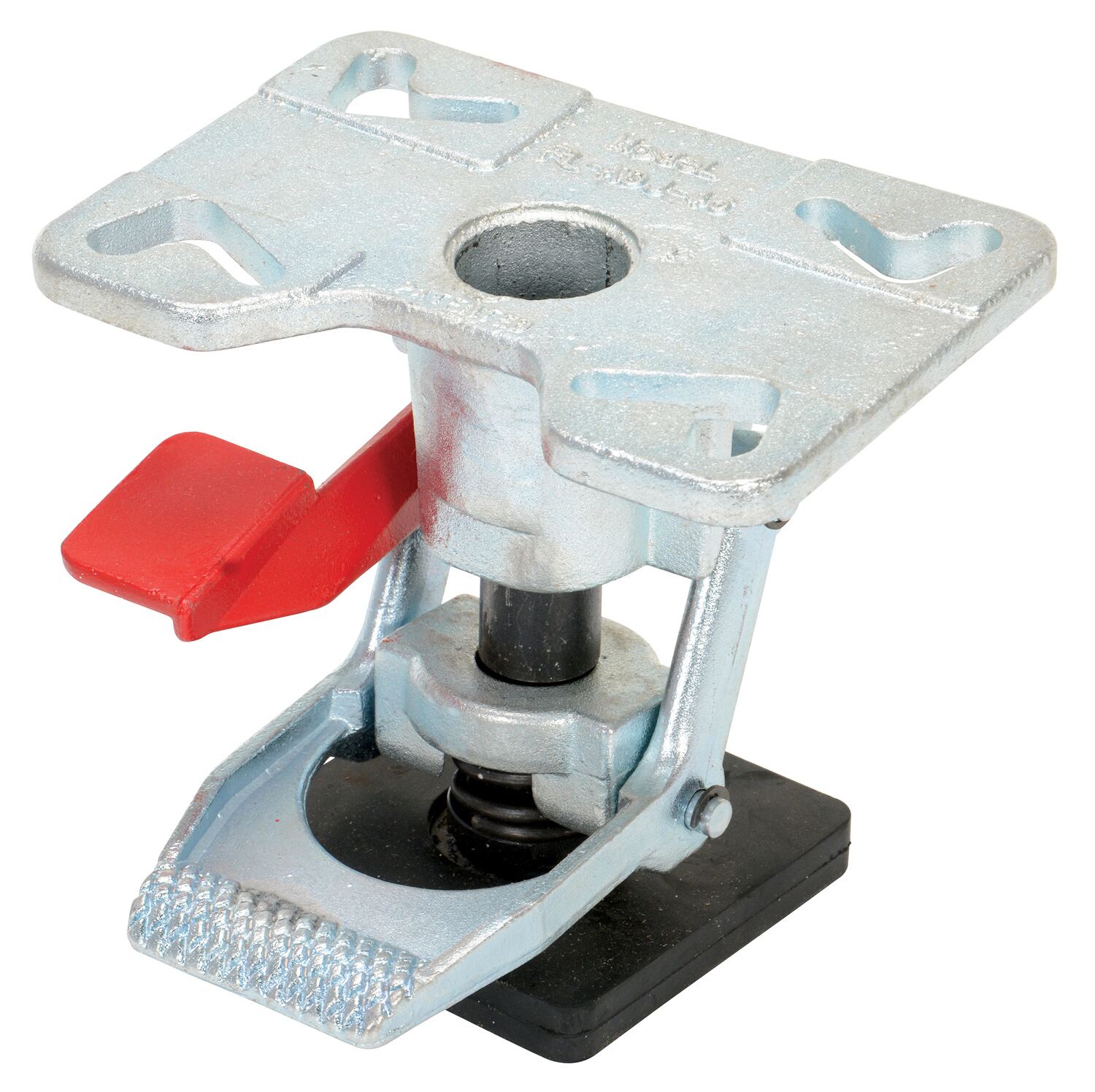

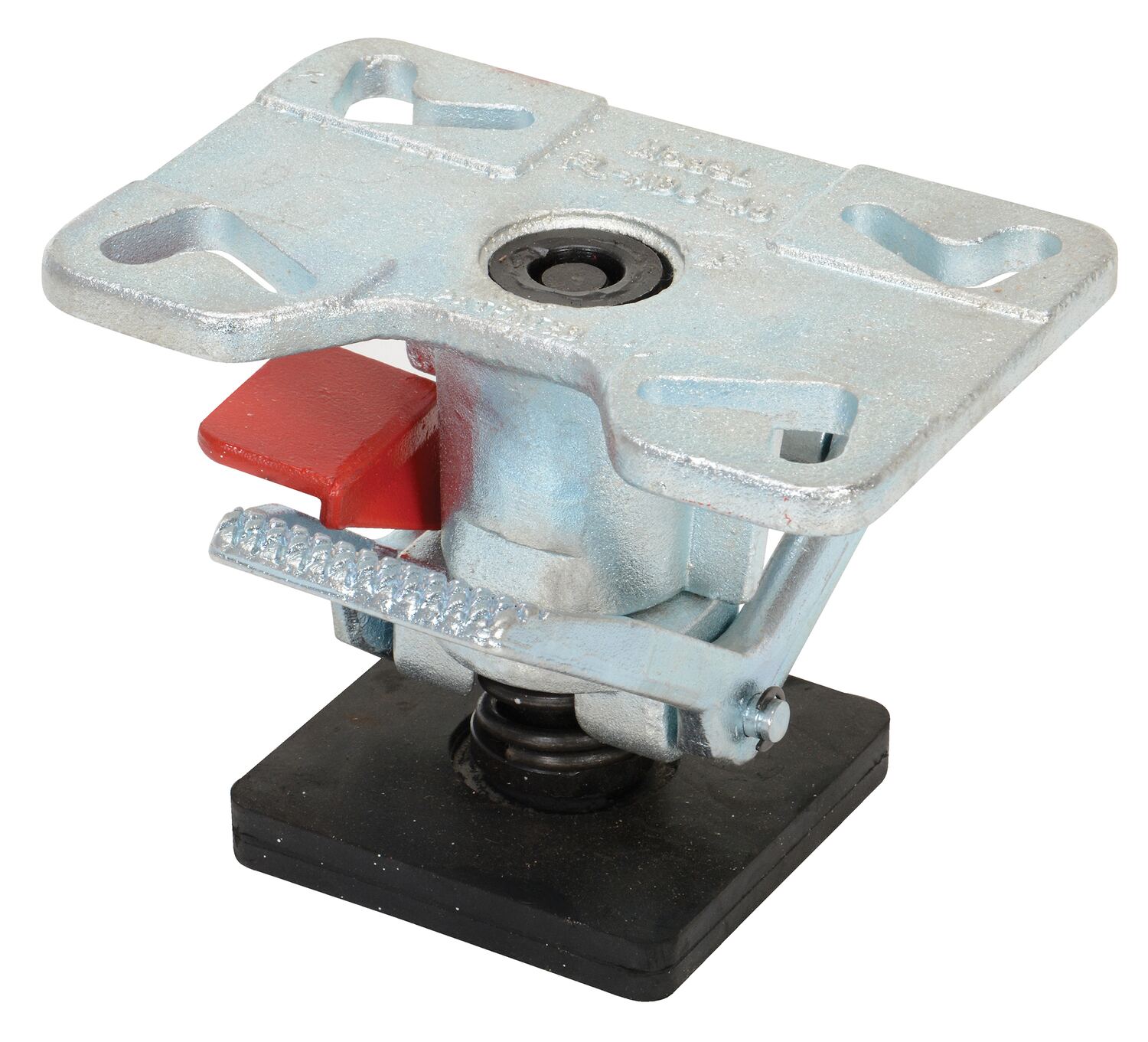

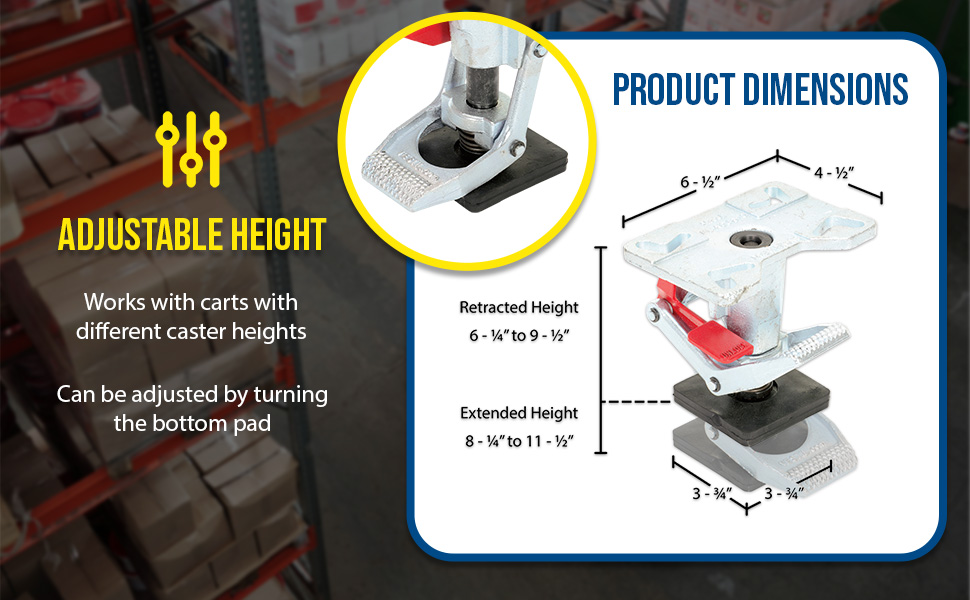

Adjustable Height Floor LocksThis one of a kind floor lock includes an adjustable height foot pad that will work on carts with different caster heights. The adjustable height feature provides uniform locking and safety unlocking force for better ergonomic operation. This feature also keeps the floor lock working properly as spring and pads wear over time. Height is adjustable by turning the bottom pad. The bottom pad includes suction-cups for extra grip.
- Uniform locking and safer unlocking force offers better ergonomic operation
- Heavy-duty cast steel construction offers long lasting use

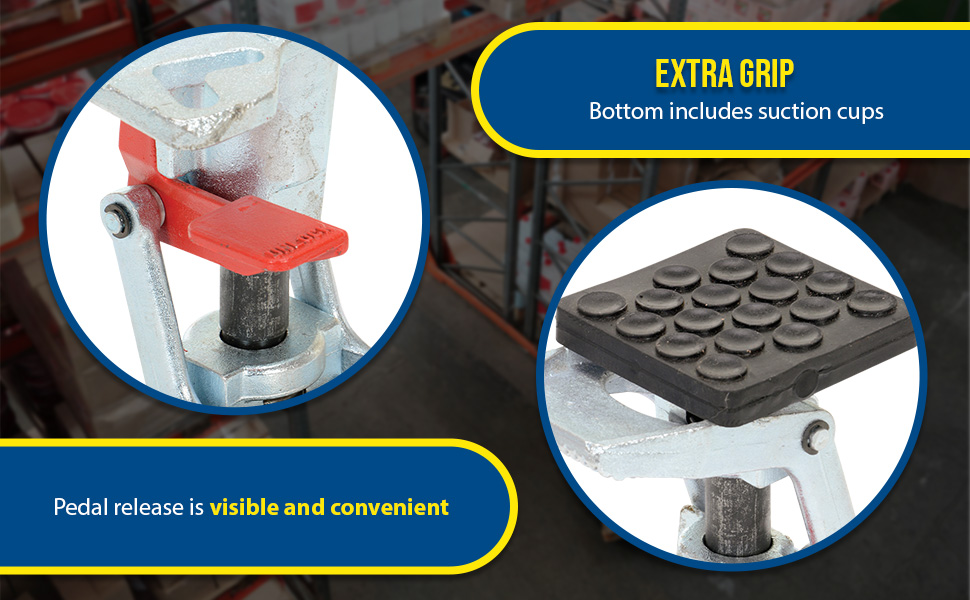

- Pedal release has a visible & convenient location

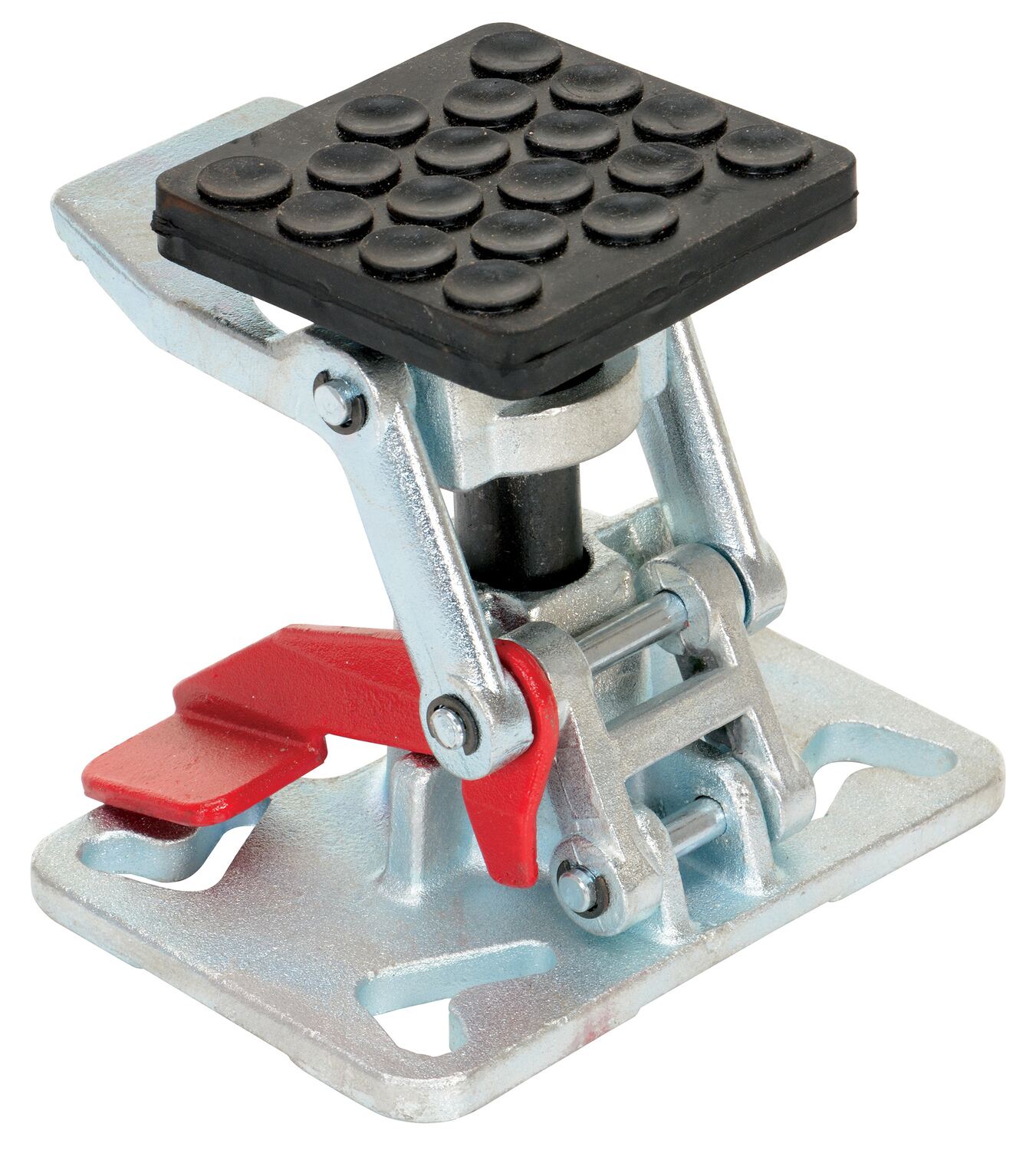

- Bottom pad includes suction-cups for extra grip
General Purpose Floor Locks
Economical Floor Locks
Low Profile Floor Lock
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

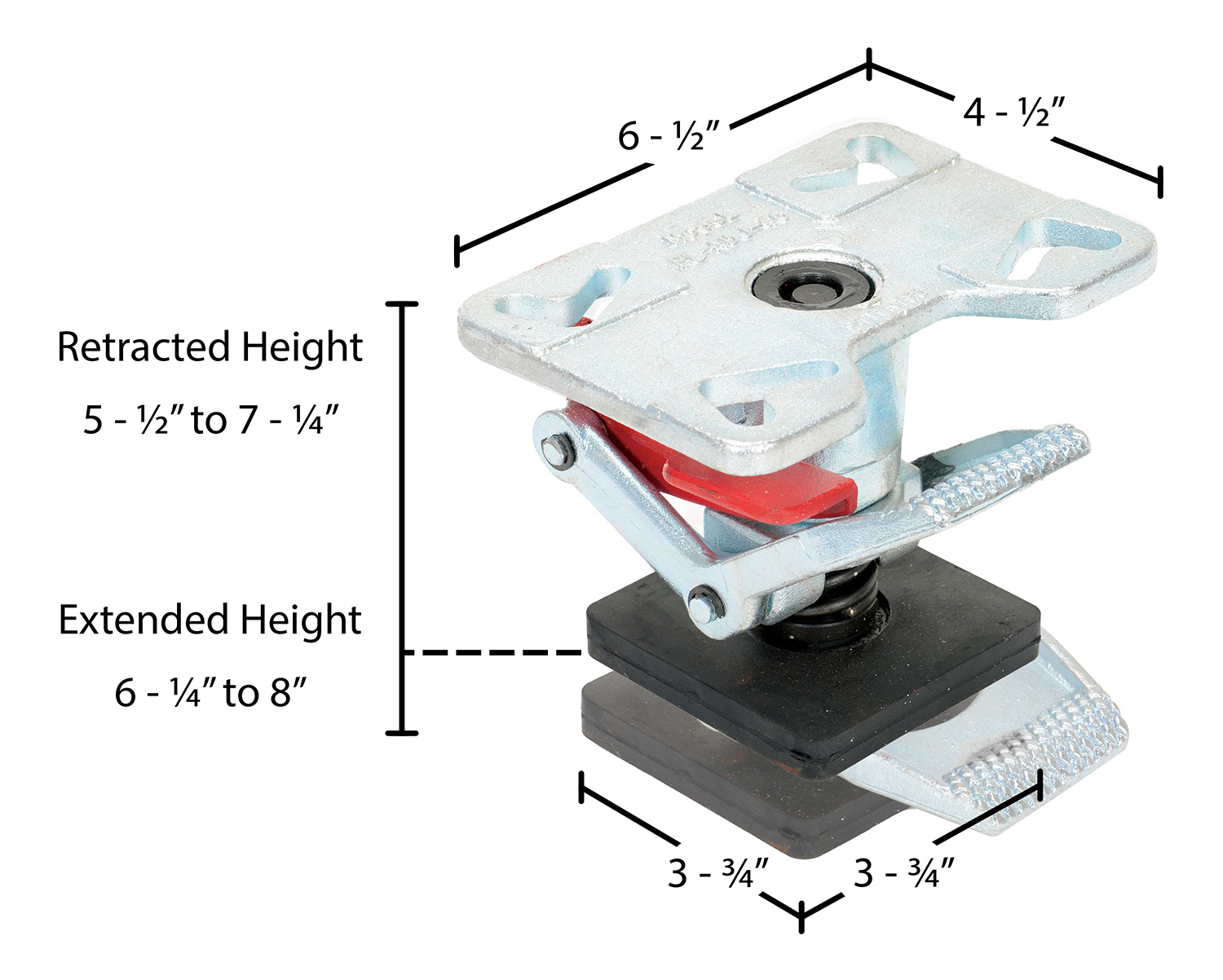

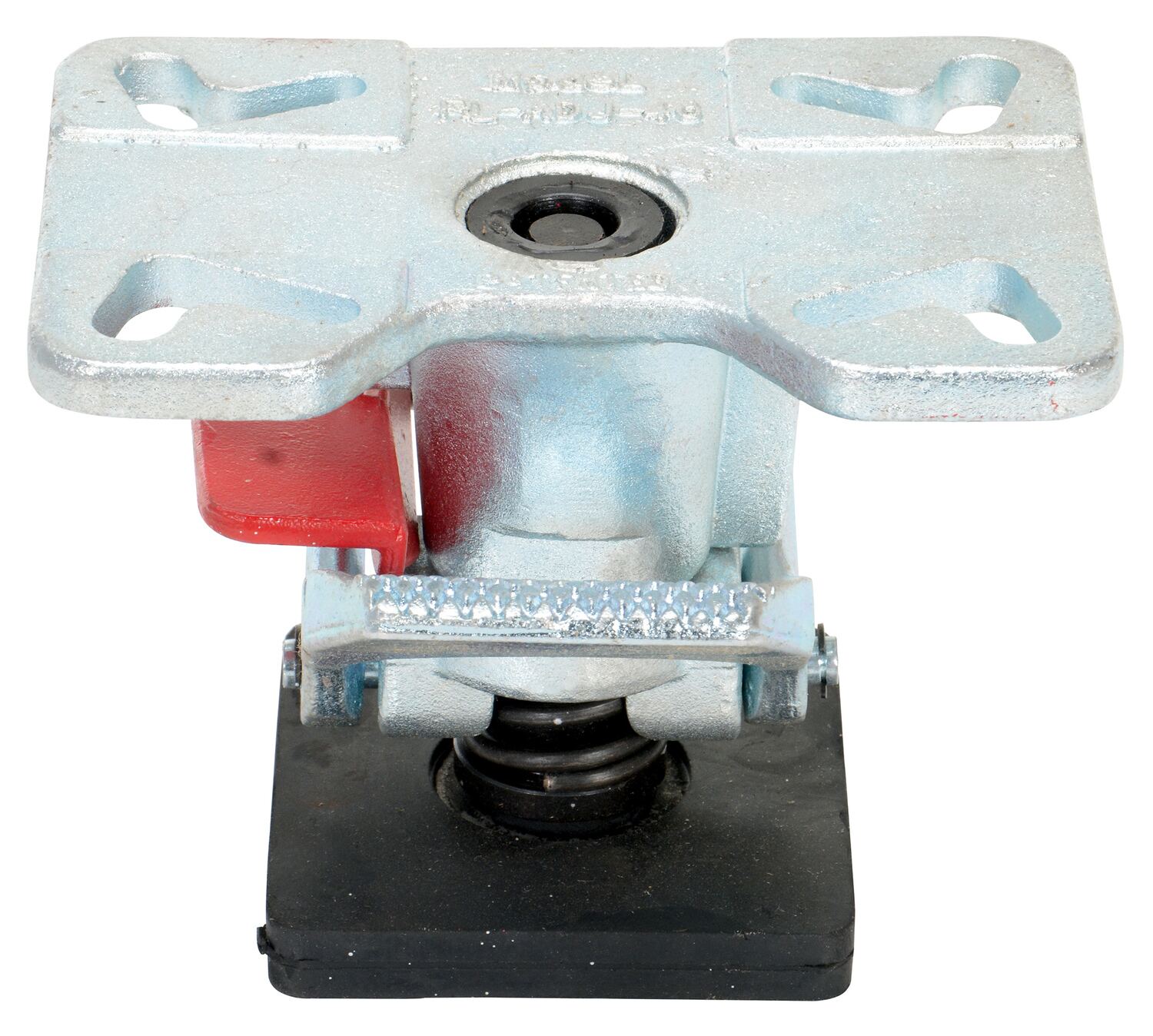

| FL-ADJ-46 | POPULAR |  | 90 Days Limited Warranty | Steel Adjustable Floor Lock 6-1/4 to 8 In. Height Silver | Used with Caster Size (in. - in.): 4 to 6 Extended Height (in. to in.): 6-1/4 to 8 | 9 | |

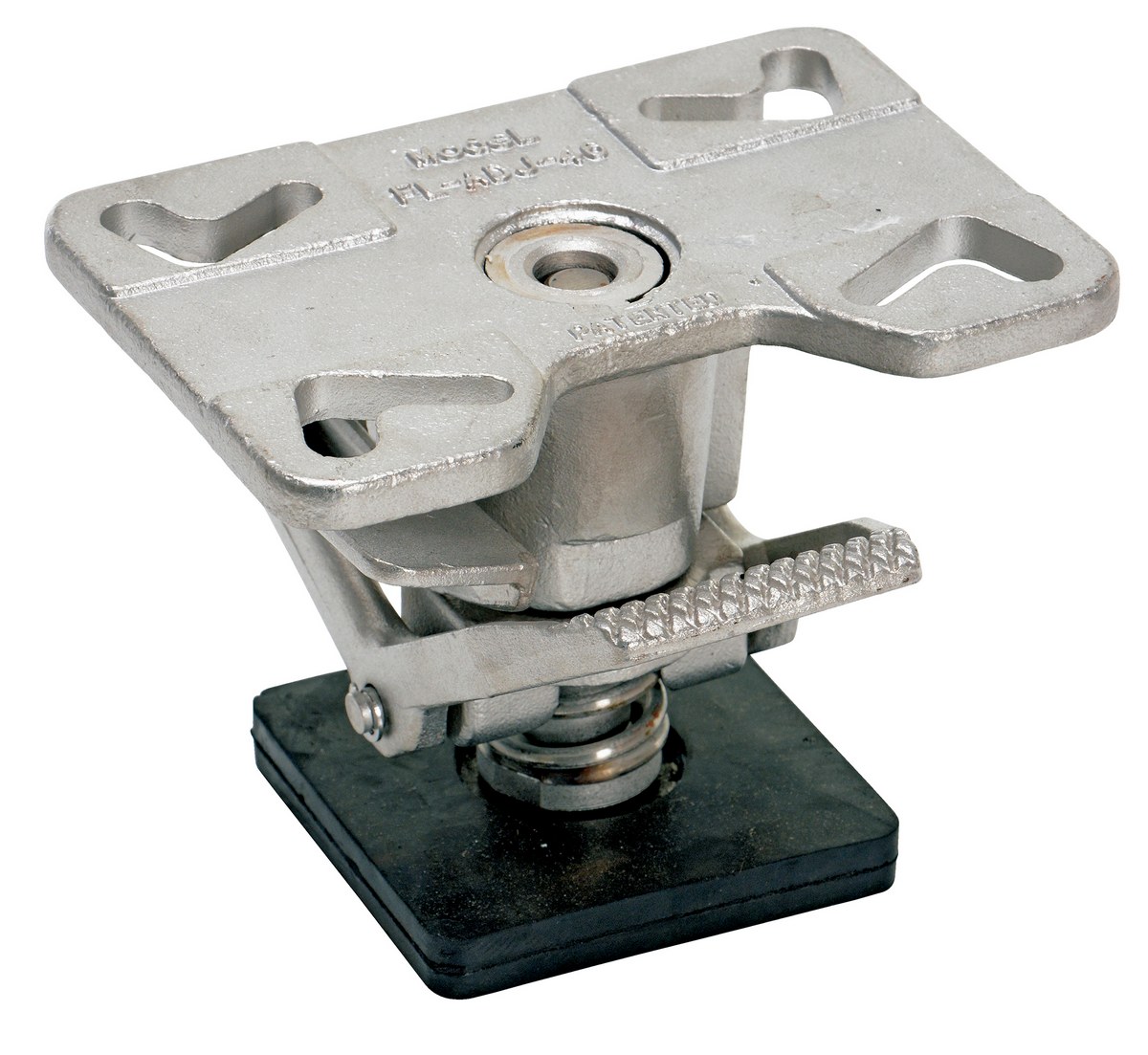

| FL-ADJ-46-SS |  | 90 Days Limited Warranty | Stainless Steel Adjustable Floor Lock 6-1/4 to 8 In. Height Silver | Used with Caster Size (in. - in.): 4 to 6 Extended Height (in. to in.): 6-1/4 to 8 | 7 | ||

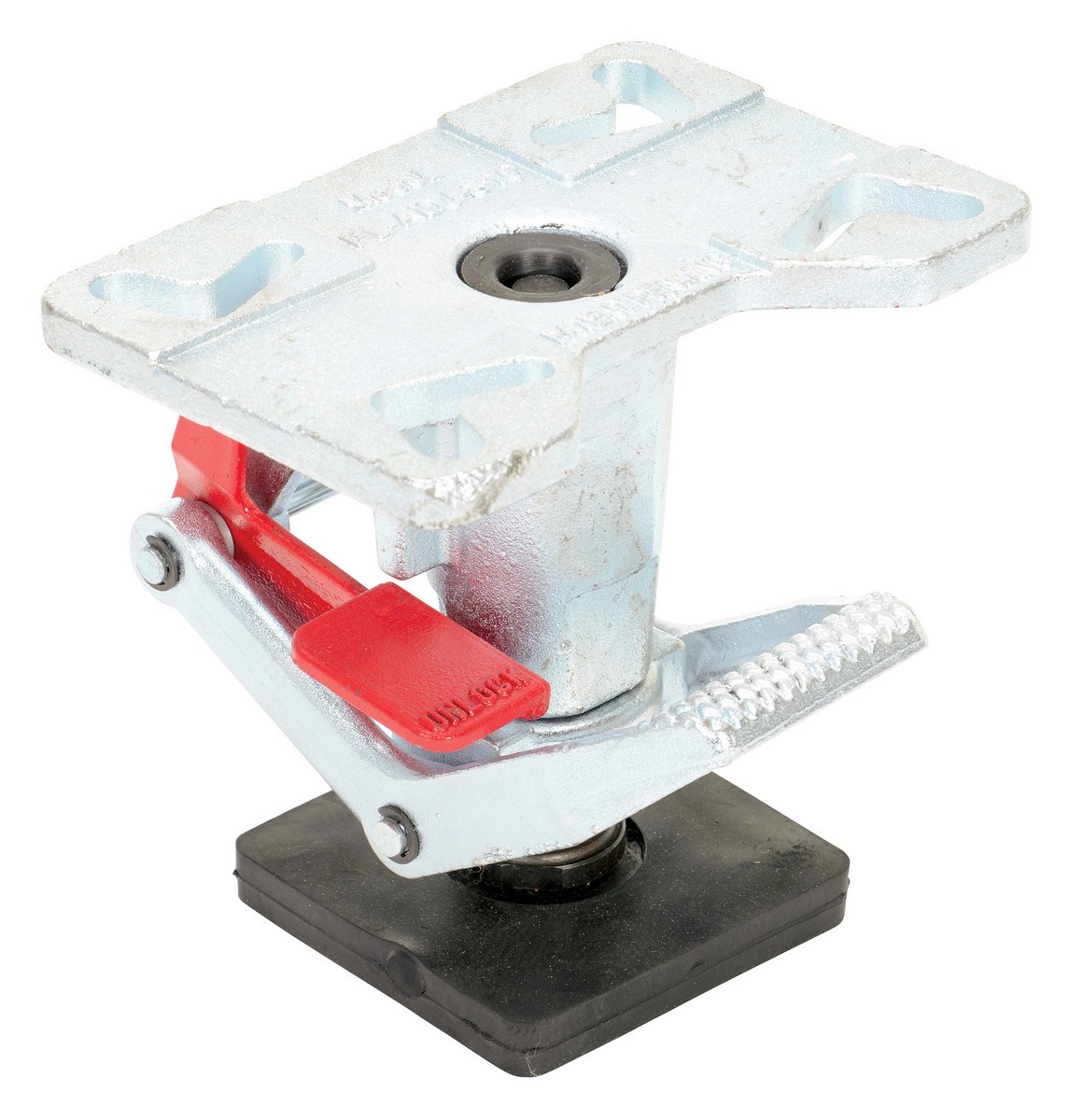

| FL-ADJ-810 |  | 90 Days Limited Warranty | Steel Adjustable Floor Lock 8-1/4 to 11-1/2 In. Height Silver | Used with Caster Size (in. - in.): 6 to 8 Extended Height (in. to in.): 8-1/4 to 11-1/2 | 8 | ||

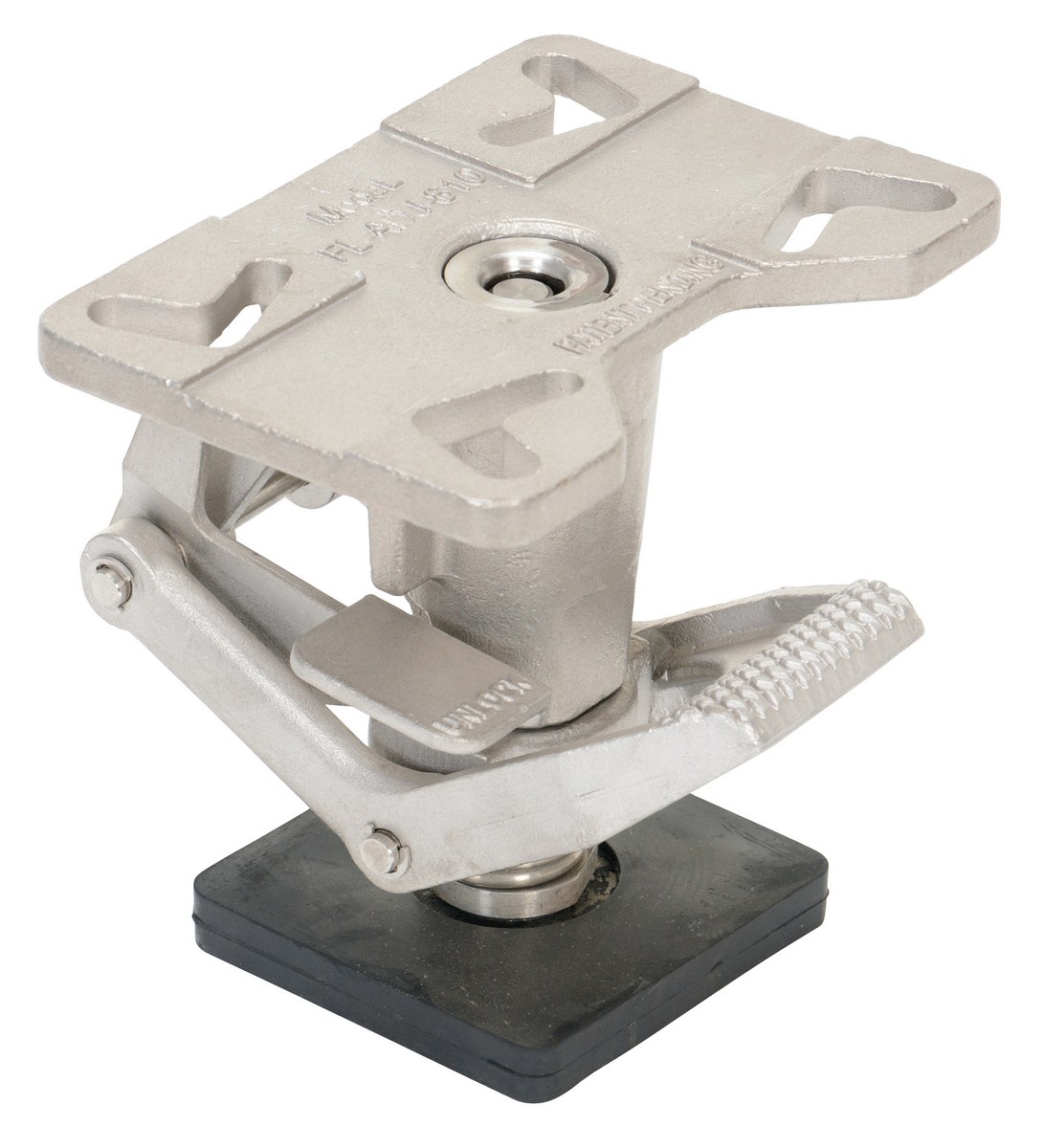

| FL-ADJ-810-SS |  | 90 Days Limited Warranty | Stainless Steel Adjustable Floor Lock 8-1/4 to 11-1/2 In. Height Silver | Used with Caster Size (in. - in.): 6 to 8 Extended Height (in. to in.): 8-1/4 to 11-1/2 | 9 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Used with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8
Used with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Used with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8
Used with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Used with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2
Used with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Used with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2
Used with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What grade stainless steel is the FL-ADJ-46-SS?
A: The FL-ADJ-46-SS and the FL-ADJ-810-SS are composed of 304 grade Stainless Steel.
Q: What is the capacity of the floor lock?
A: the FL-ADJ floor locks have a locking capacity of 2,000 lbs.
Q: Will the FL-ADJ models work in an autoclave at 350-400 degrees F for approximately 6 hours at 15 PSI?
A: No, FL-ADJ models will not work in an autoclave at 350-400 degrees F.
 |
|||||||||||||||||||||||||||
