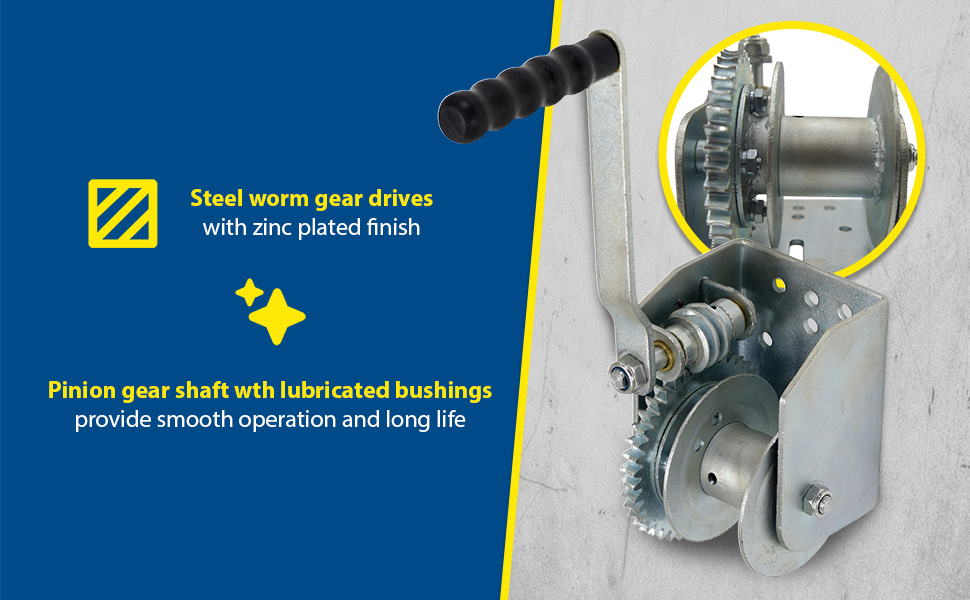

Hand WinchesWall Mounted Hand Winches Pulling devices that use a wire, rope or cable to move heavy loads. Constructed of steel worm gear drives with zinc plated finish. Pinion gear shaft with lubricated down bushings provide smooth operation and long life.
Stainless Steel Hand Winches are constructed of 304 stainless steel for corrosion resistance. Machine cut spur gears ensure smooth accurate operation, while protective gear covers keep dirt out and help prevent worker injuries. Winches feature copper bushings, a drum clamp for easy attachment of wire rope (not included), and an automatic brake for positive load control during lifting and lowering operations. The pulling capacity is in the horizontal position.
Long Reach Cable Pullers
Manual and Worm Gear Hand Winches
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

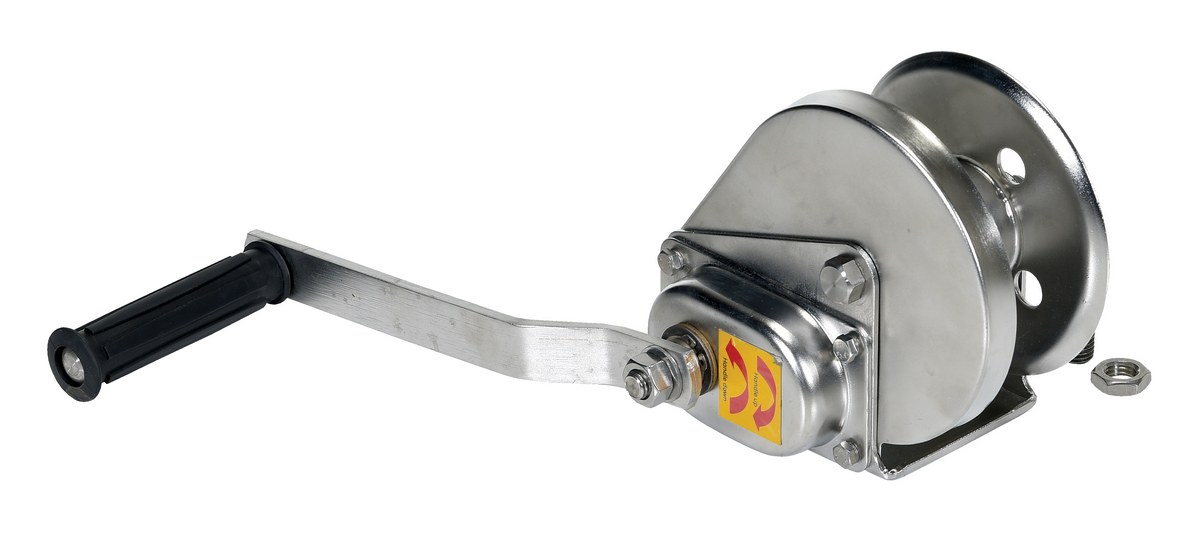

| HWSS-1200-NR |  | 30 Days Limited Warranty | Stainless Steel Hand Winch 1200 Lb. Capacity Silver | Uniform Capacity (lb.): 1200 Gear Ratio: 4.2:1 | 9 | ||

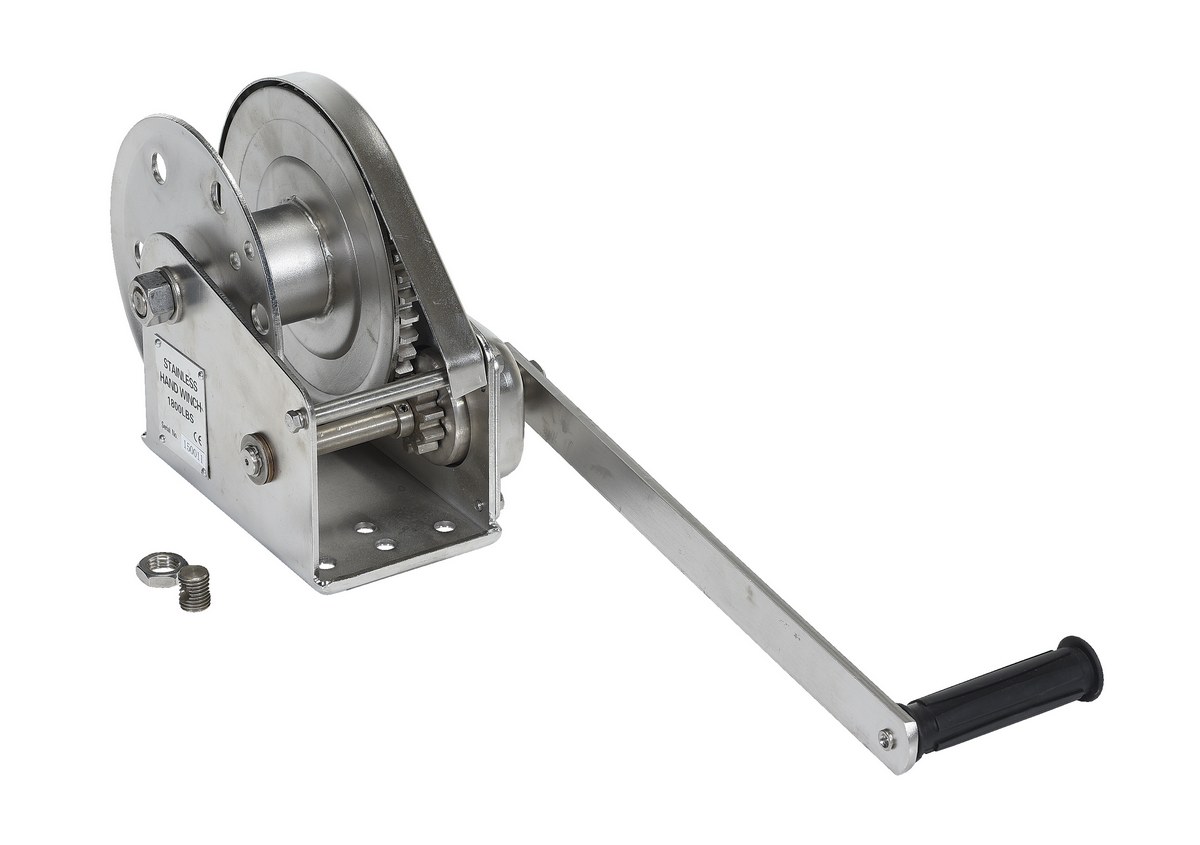

| HWSS-1800-NR |  | 30 Days Limited Warranty | Stainless Steel Hand Winch 1800 Lb. Capacity Silver | Uniform Capacity (lb.): 1800 Gear Ratio: 5:1 | 17 | ||

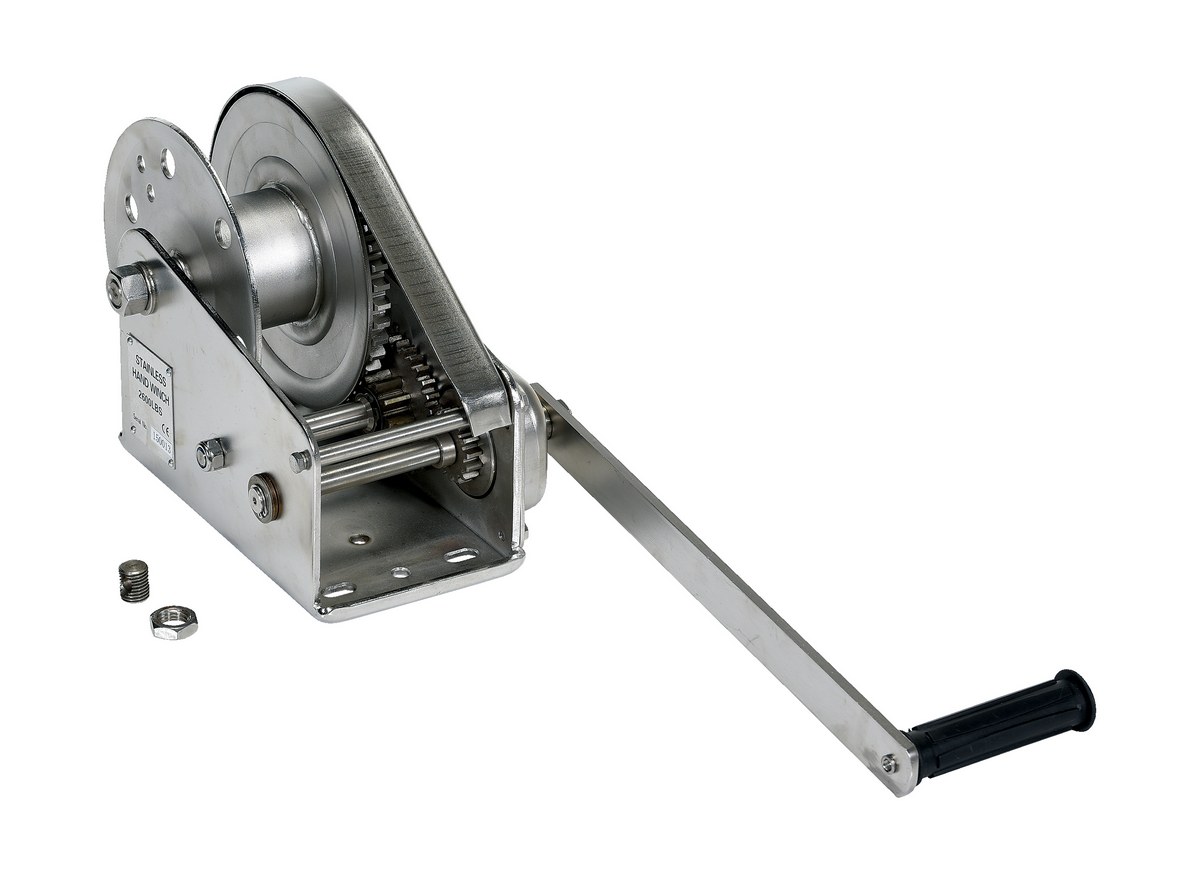

| HWSS-2600-NR |  | 30 Days Limited Warranty | Stainless Steel Hand Winch 2600 Lb. Capacity Silver | Uniform Capacity (lb.): 2600 Gear Ratio: 10:1 | 22 | ||

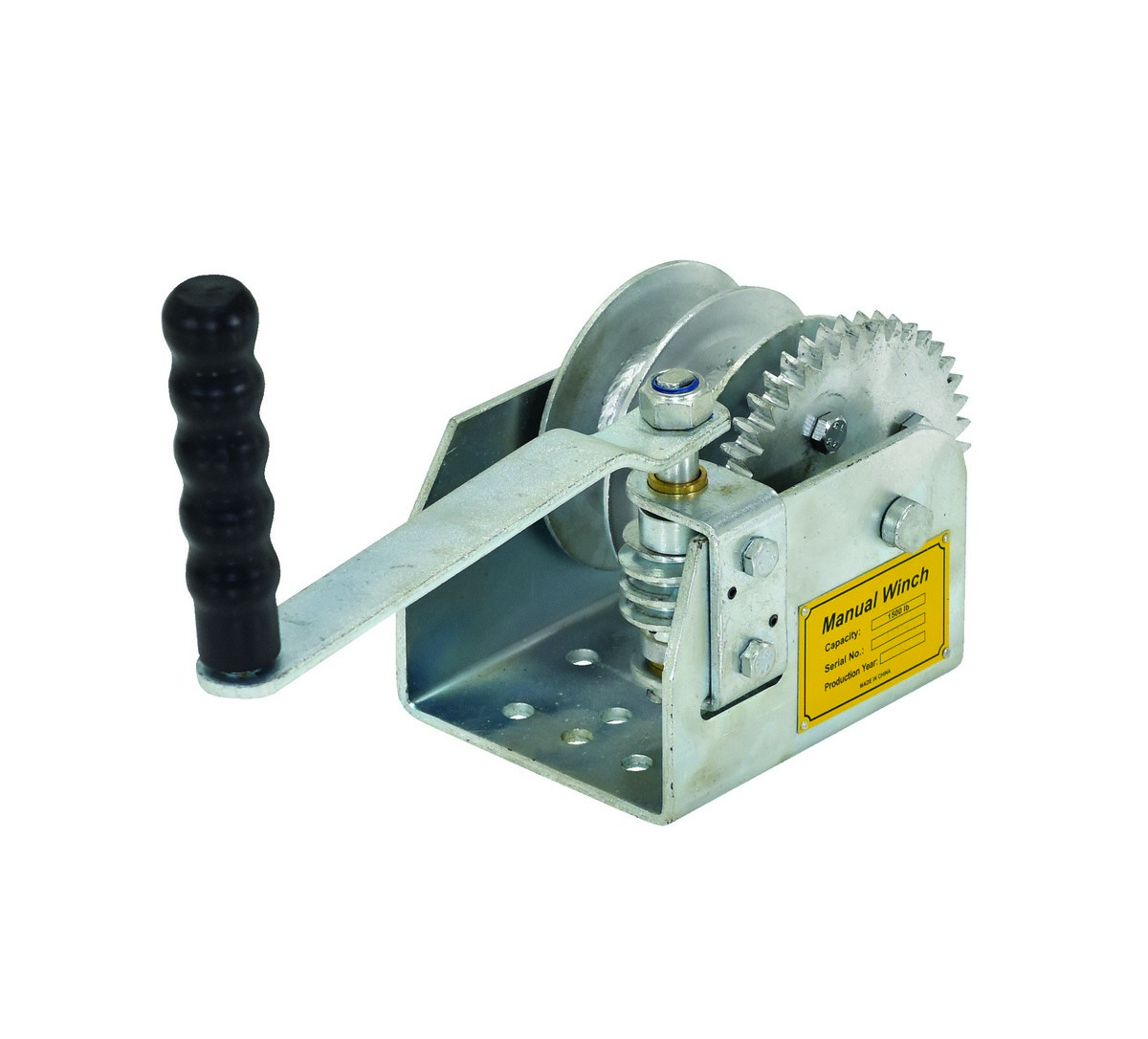

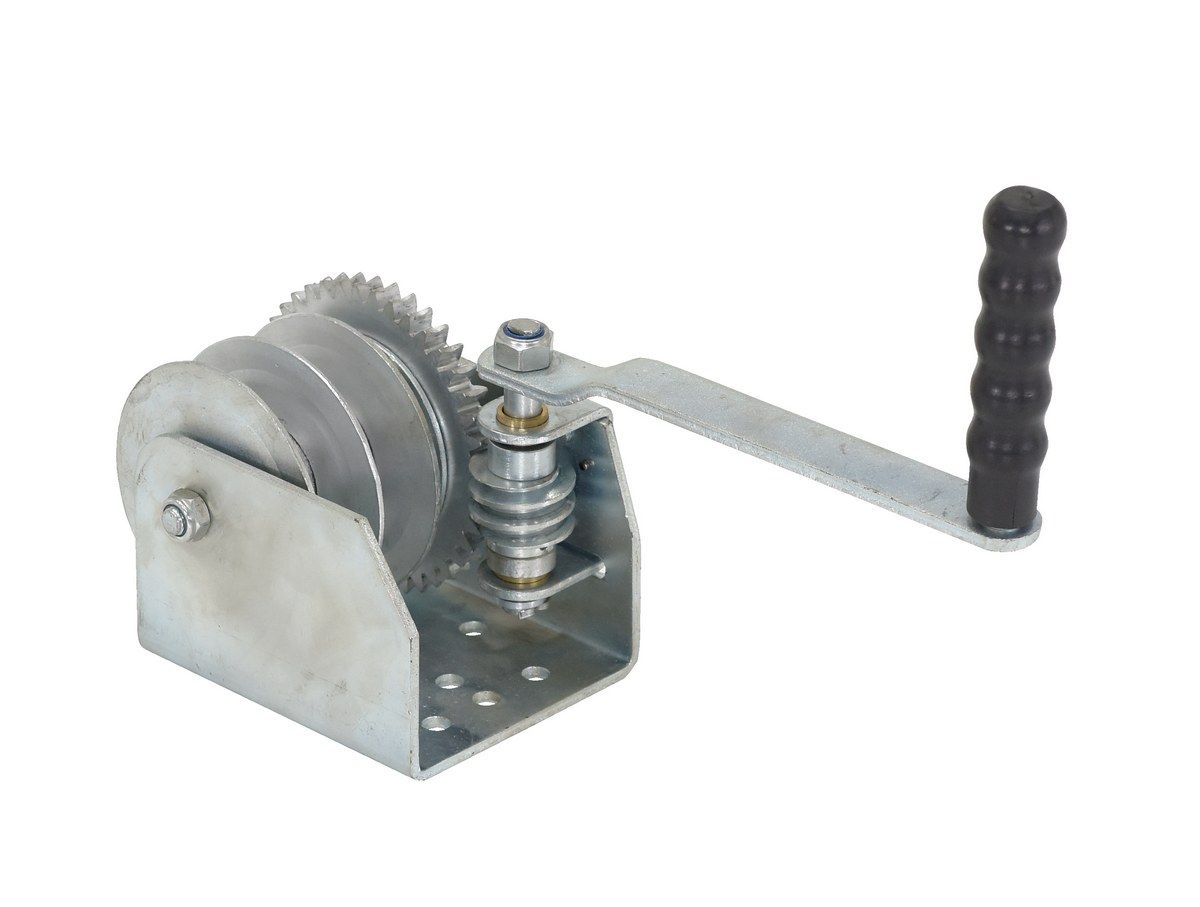

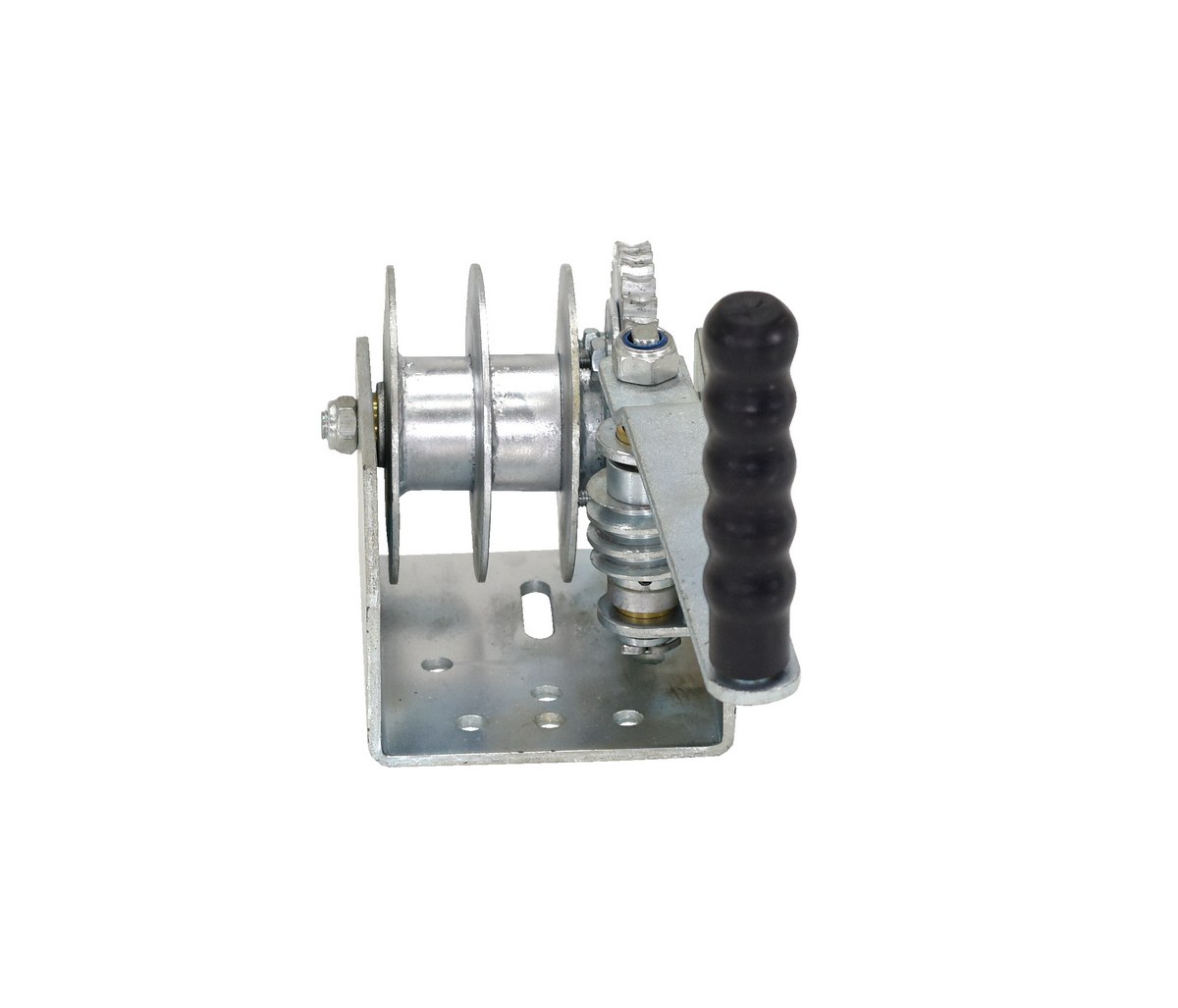

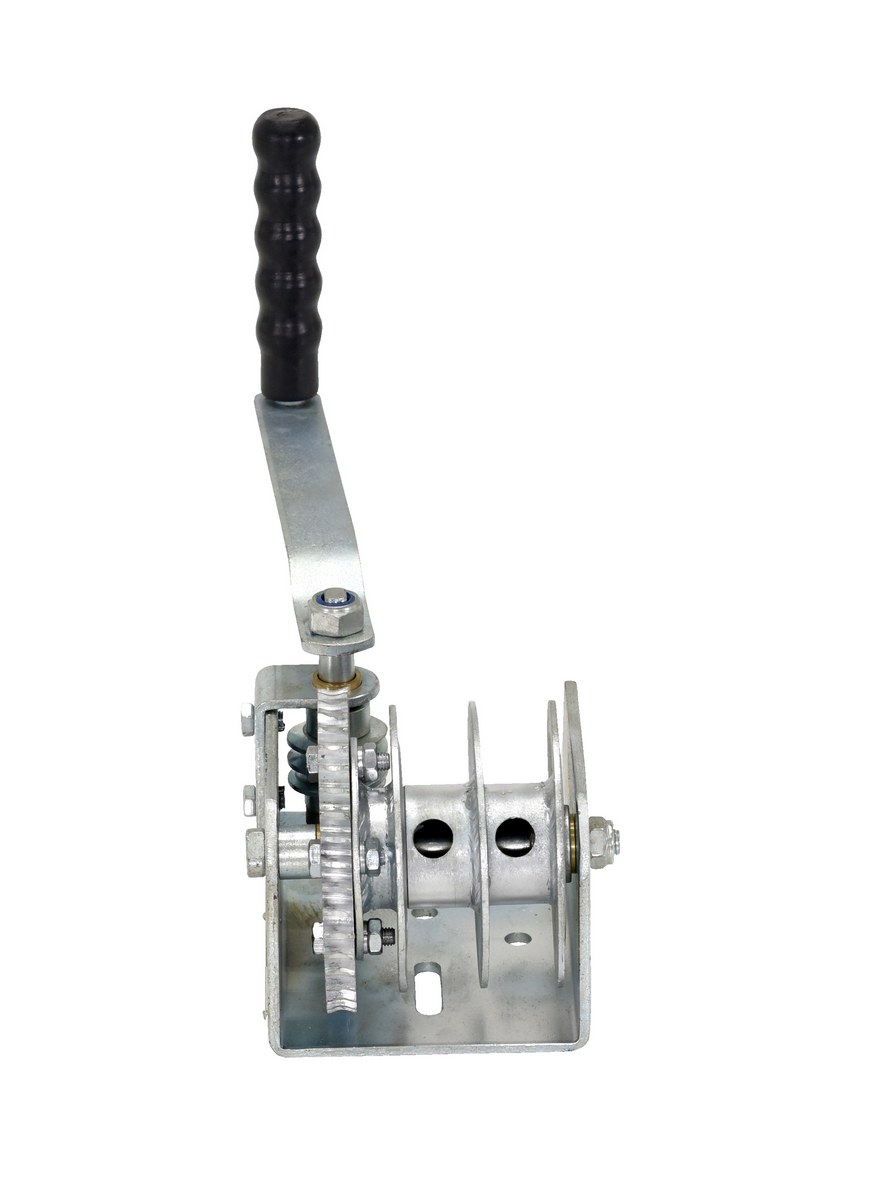

| WALL-D |  | 30 Days Limited Warranty | Steel Double Wall Mounted Hand Winch 1500 Lb. Capacity Silver | Uniform Capacity (lb.): 1,500 Handle Length (in.): 6.6 | 13 | ||

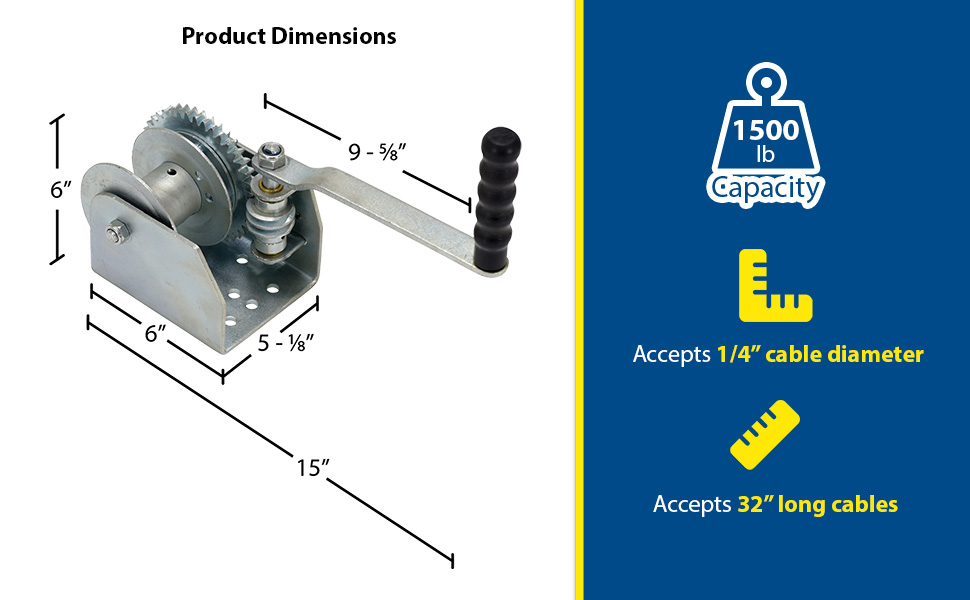

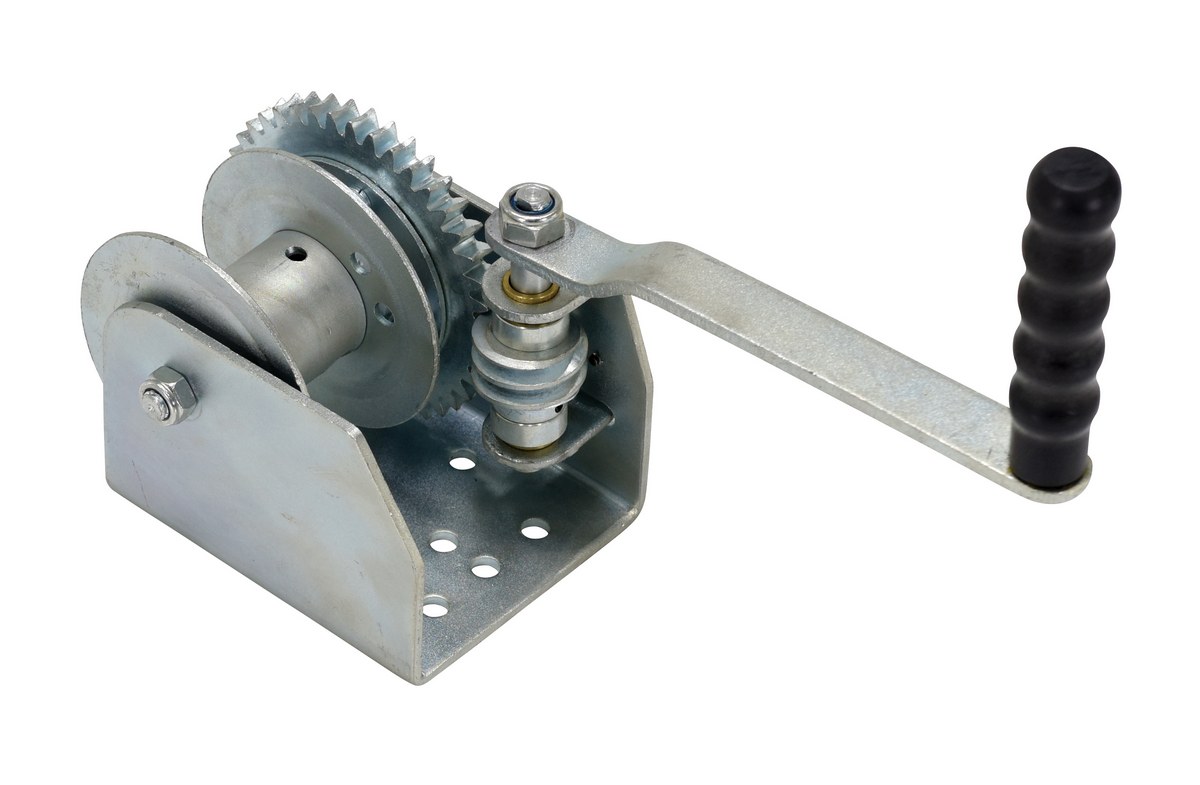

| WALL-S |  | 30 Days Limited Warranty | Steel Single Wall Mounted Hand Winch 1500 Lb. Capacity Silver | Uniform Capacity (lb.): 1,500 Handle Length (in.): 9.6 | 12 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Gear Ratio: 4.2:1
Uniform Capacity (lb.): 1200
Gear Ratio: 4.2:1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1800
Gear Ratio: 5:1
Uniform Capacity (lb.): 1800
Gear Ratio: 5:1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2600
Gear Ratio: 10:1
Uniform Capacity (lb.): 2600
Gear Ratio: 10:1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Handle Length (in.): 6.6
Uniform Capacity (lb.): 1,500
Handle Length (in.): 6.6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Handle Length (in.): 9.6
Uniform Capacity (lb.): 1,500
Handle Length (in.): 9.6
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the largest diameter the WALL-D can accommodate?
A: The largest diameter the WALL-D can handle is 3/16".
Q: Does this product lock in both directions?
A: The handle is locked in both directions unless it is released.
Q: How much 1/4" rope can I put on the WALL-D winch?
A: The WALL-D can accommodate 32'.
Q: Does this model have or need a brake?
A: WALL-D & WALL-S, they have a friction plate so they do not unwind uncontrollably.
Q: What is the recommended wire rope gauge and max length?
A: On the WALL-D we recommend 1/4 in wire x 26 in long.
Q: What is the material of the black grips on the handles?
A: The black grips on the handles are rubber.
Q: How is the rope released once it is locked for WALL-S and WALL-D?
A: WALL-S and WALL-D are worm gear winches. This means the rope, wire, or cable will not release until the manual crank handle is turned to raise or lower the load.
 |
||||||||||||||||||||||||||||||||
