Polyurethane CastersPolyurethane is ideal for most environments. It is resistant to a variety of chemicals, and produces an easy roll for ergonomic applications. It also provides good floor preservation and works effectively in both indoor and outdoor environments. In this series, the polyurethane is bonded to a lightweight, water resistant aluminum core for longer lasting durability.
- Non-marking
- Lightweight rust resistant aluminum core
- Sealed raceway
- Chemical & moisture resistant
- Anti-corrosive & rust resistant zinc plated finish
- Hardened bearing raceway
- Precision ball bearings
Cast Iron/ Semi-Steel Casters
Pneumatic Casters
Polyurethane Casters (Blue)Additional Models In This Family
CST-VE-8X2PUA-R
CST-VE-6X2PUA-SWB
CST-VE-5X2PUA-SWTB
CST-VE-4X2PUA-SWTB
CST-VE-4X2PUA-SWB
CST-VE-5X2PUA-SWB
CST-VE-8X2PUA-SWTB
CST-VE-8X2PUA-R
CST-VE-6X2PUA-SWTB
CST-VE-5X2PUA-SWB
CST-VE-8X2PUA-SWTB
CST-VE-4X2PUA-S
CST-VE-8X2PUA-R
CST-VE-5X2PUA-R
CST-VE-5X2PUA-S
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

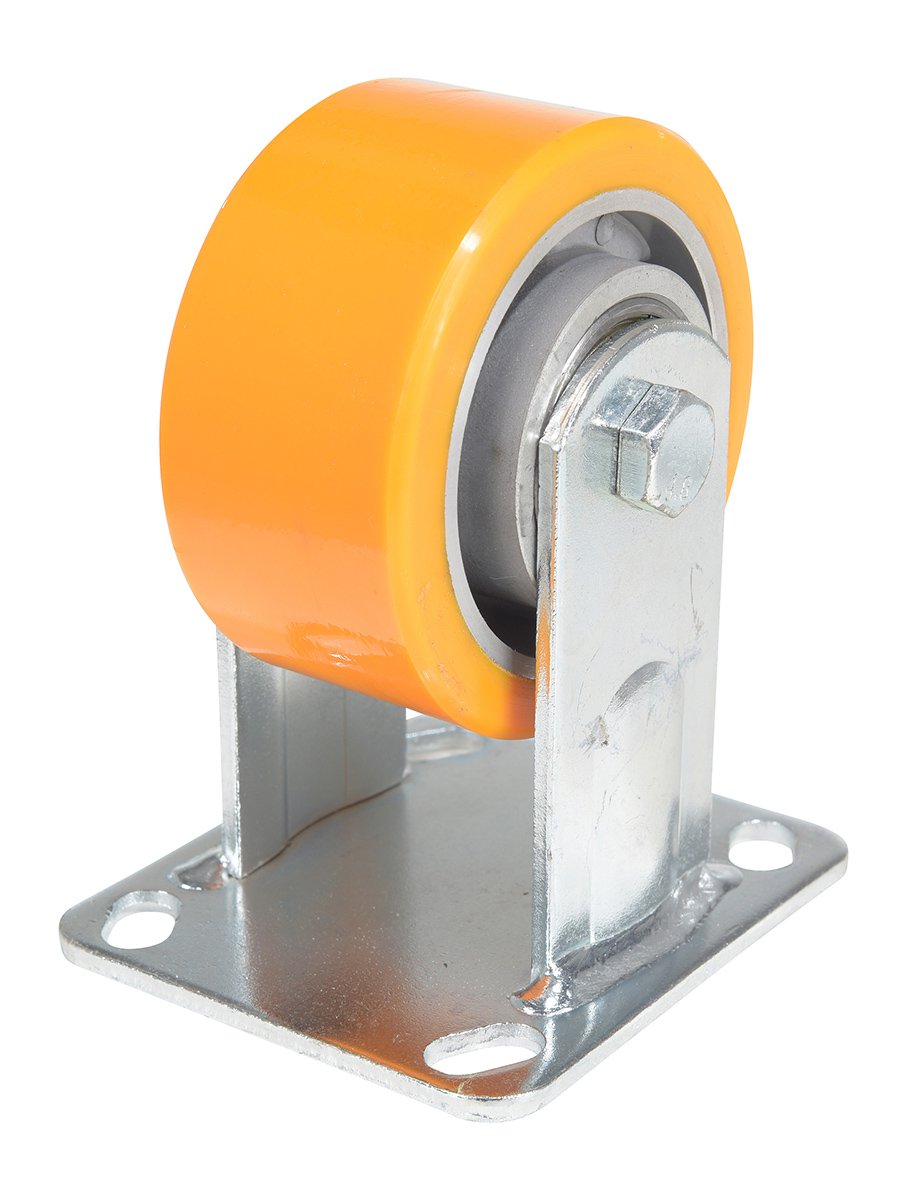

| CST-VE-4X2PUA-R |  | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 660 | 5-1/2 | 4 x 4-1/2 | 5 |

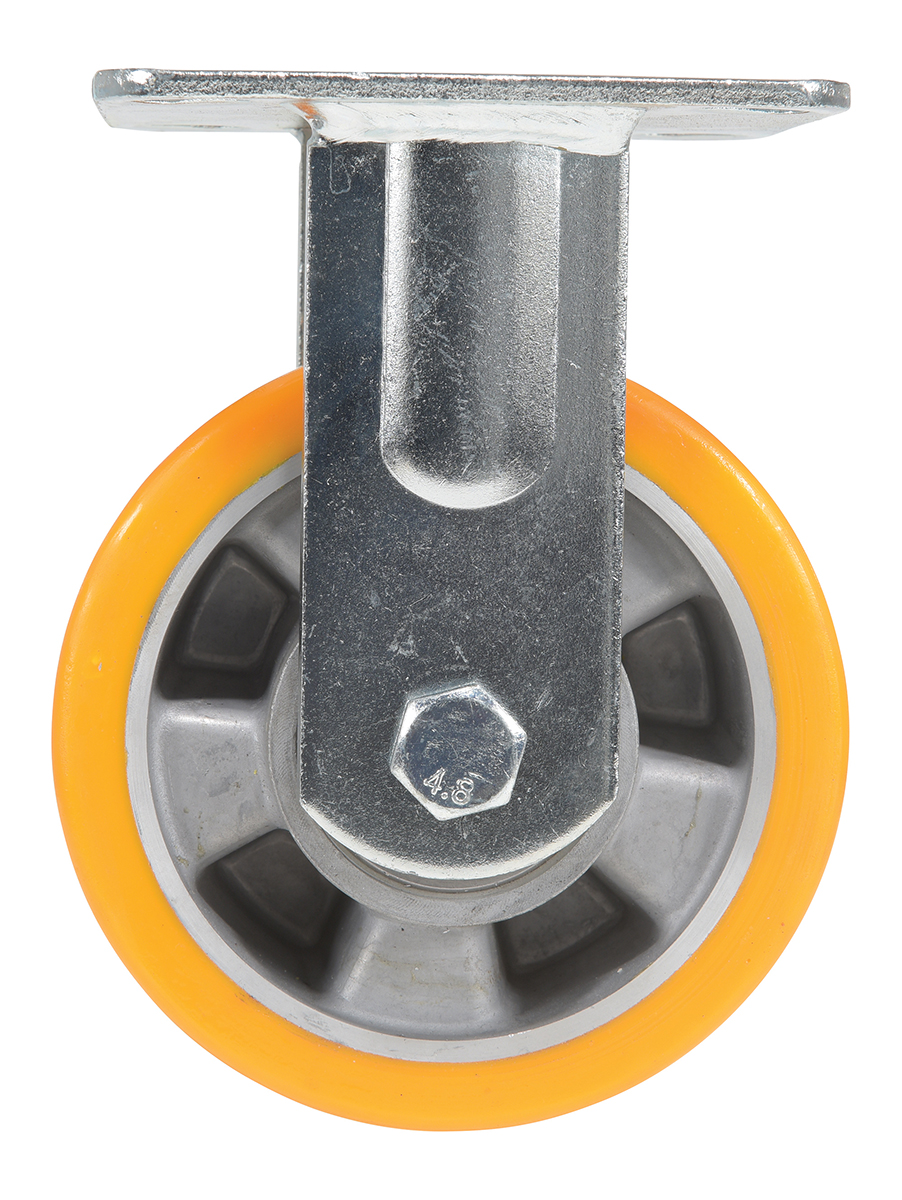

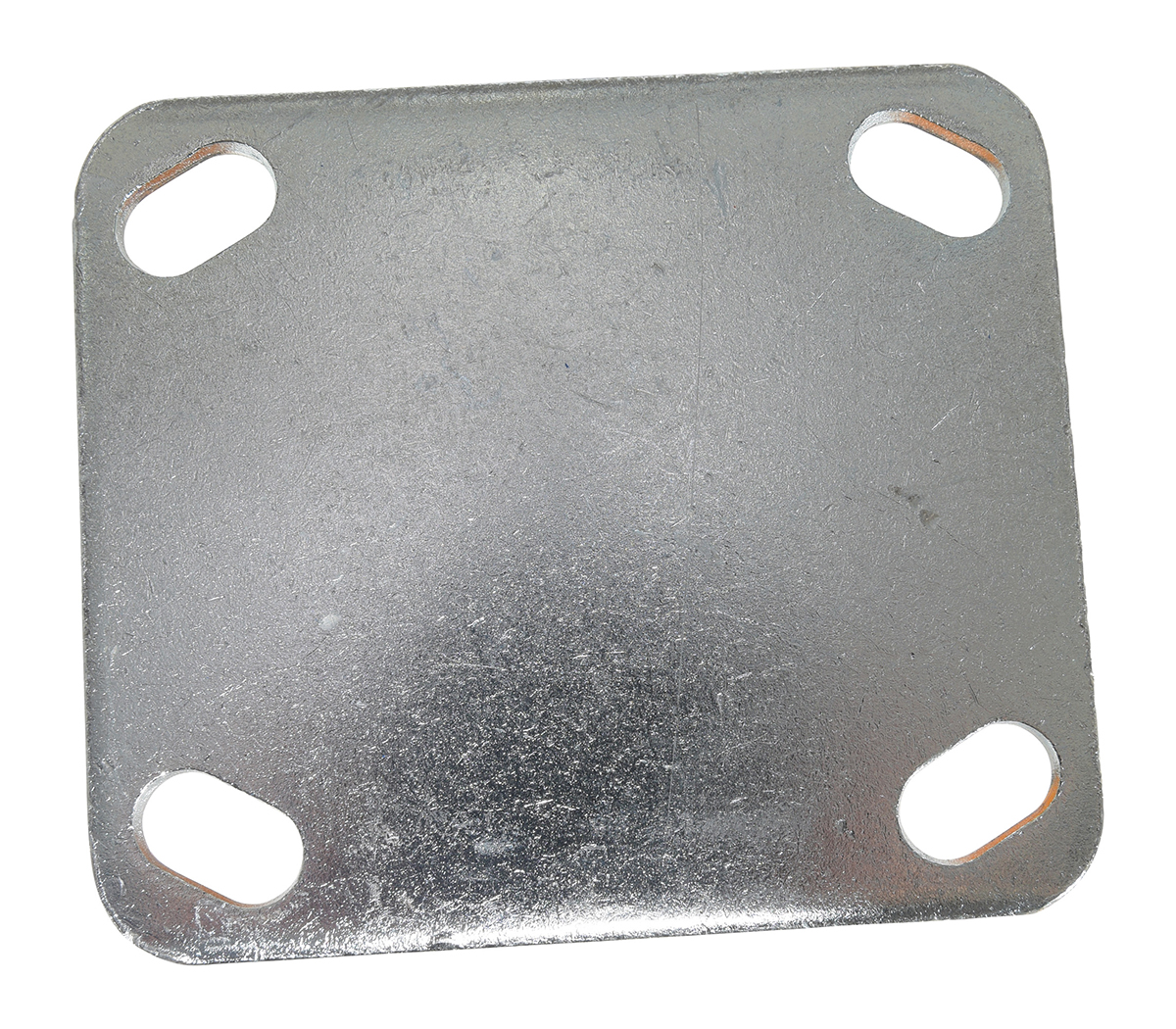

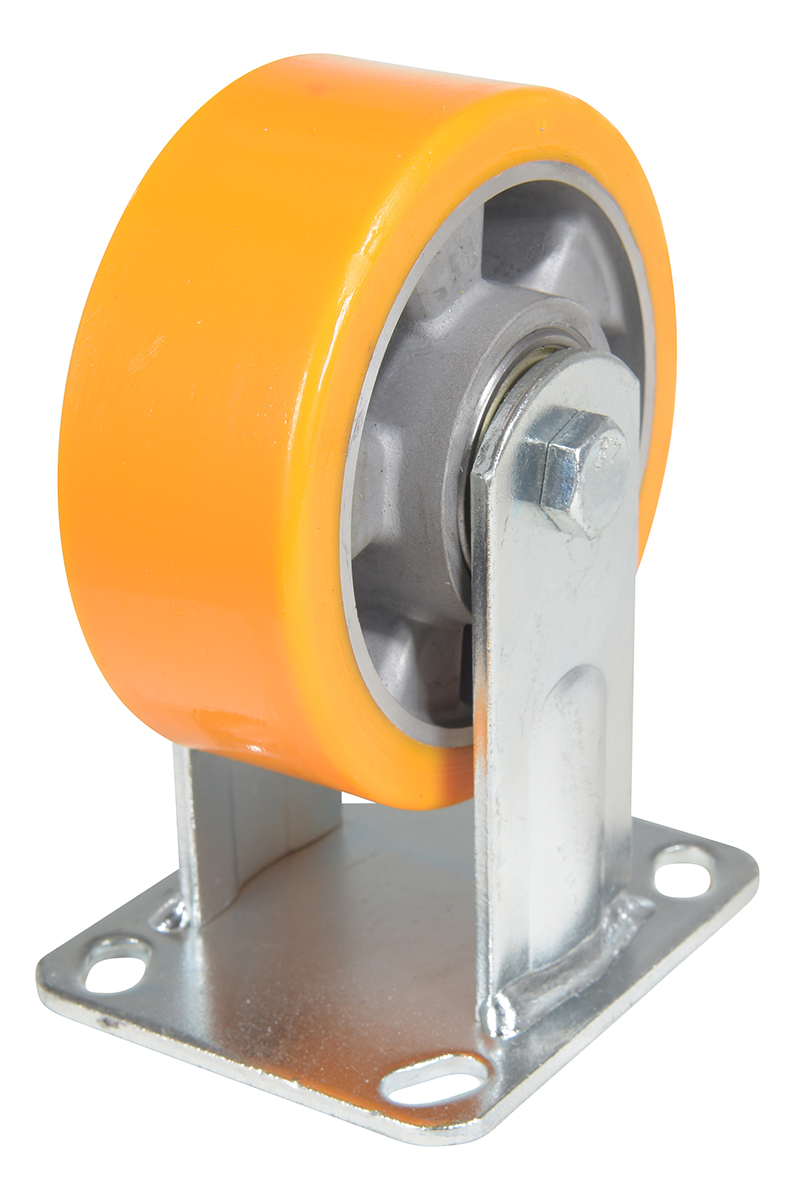

| CST-VE-5X2PUA-R |  | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 990 | 6-1/2 | 4 x 4-1/2 | 5 |
| CST-VE-6X2PUA-R |  | 1 Year Limited Warranty | 6 x 2 | RIGID | 1212 | 7-1/2 | 4 x 4-1/2 | 8 |

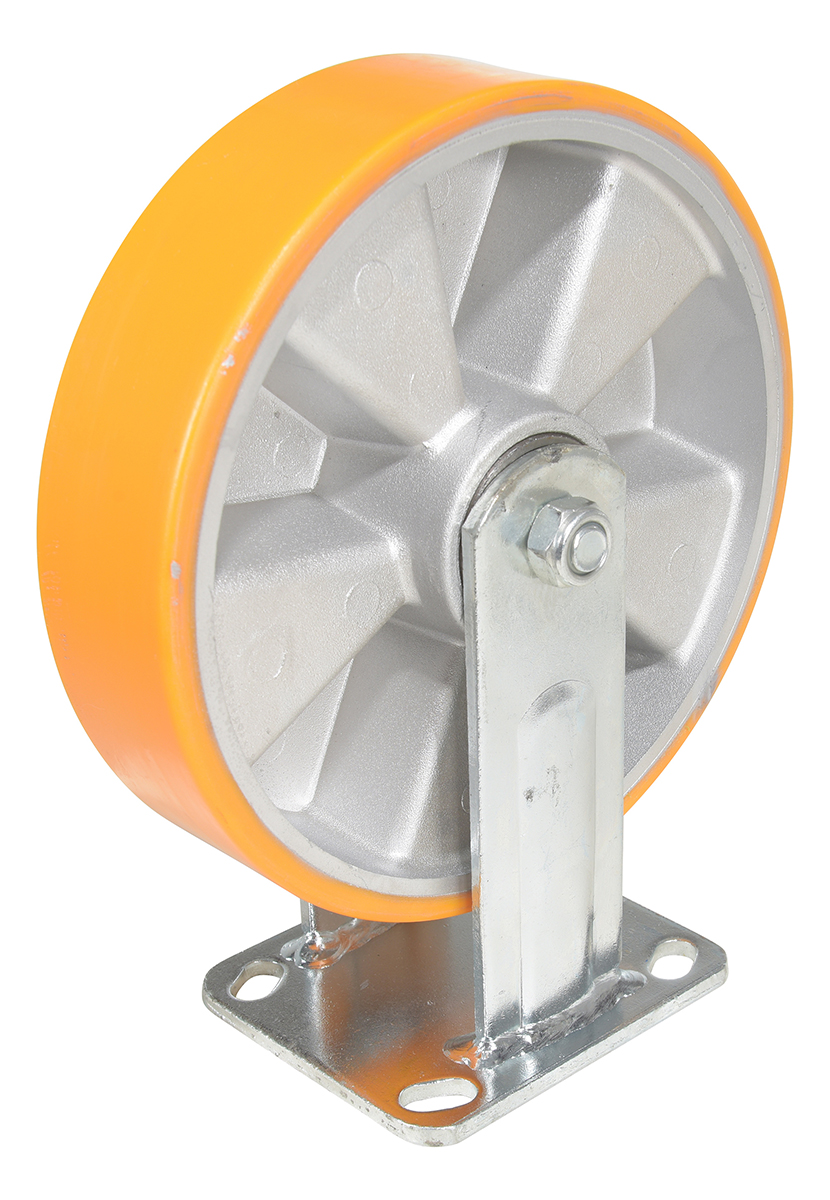

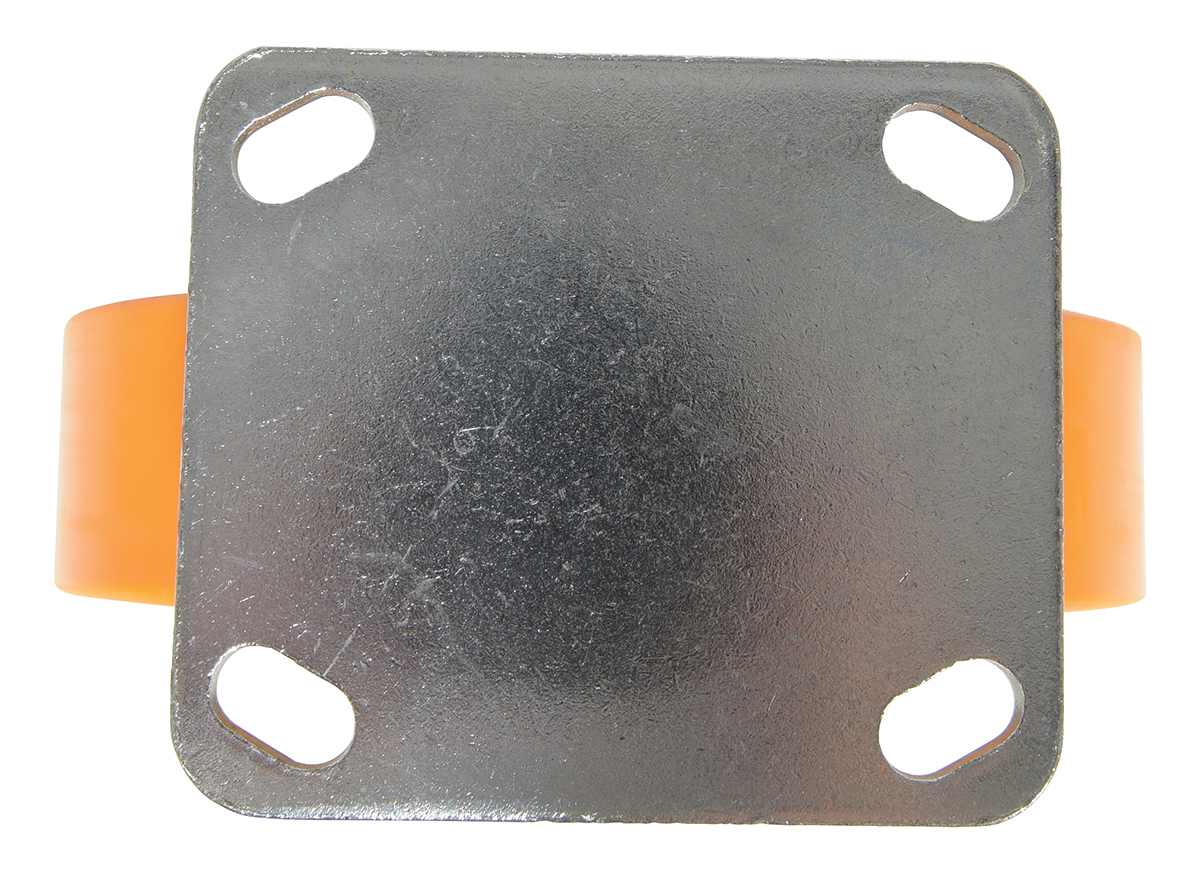

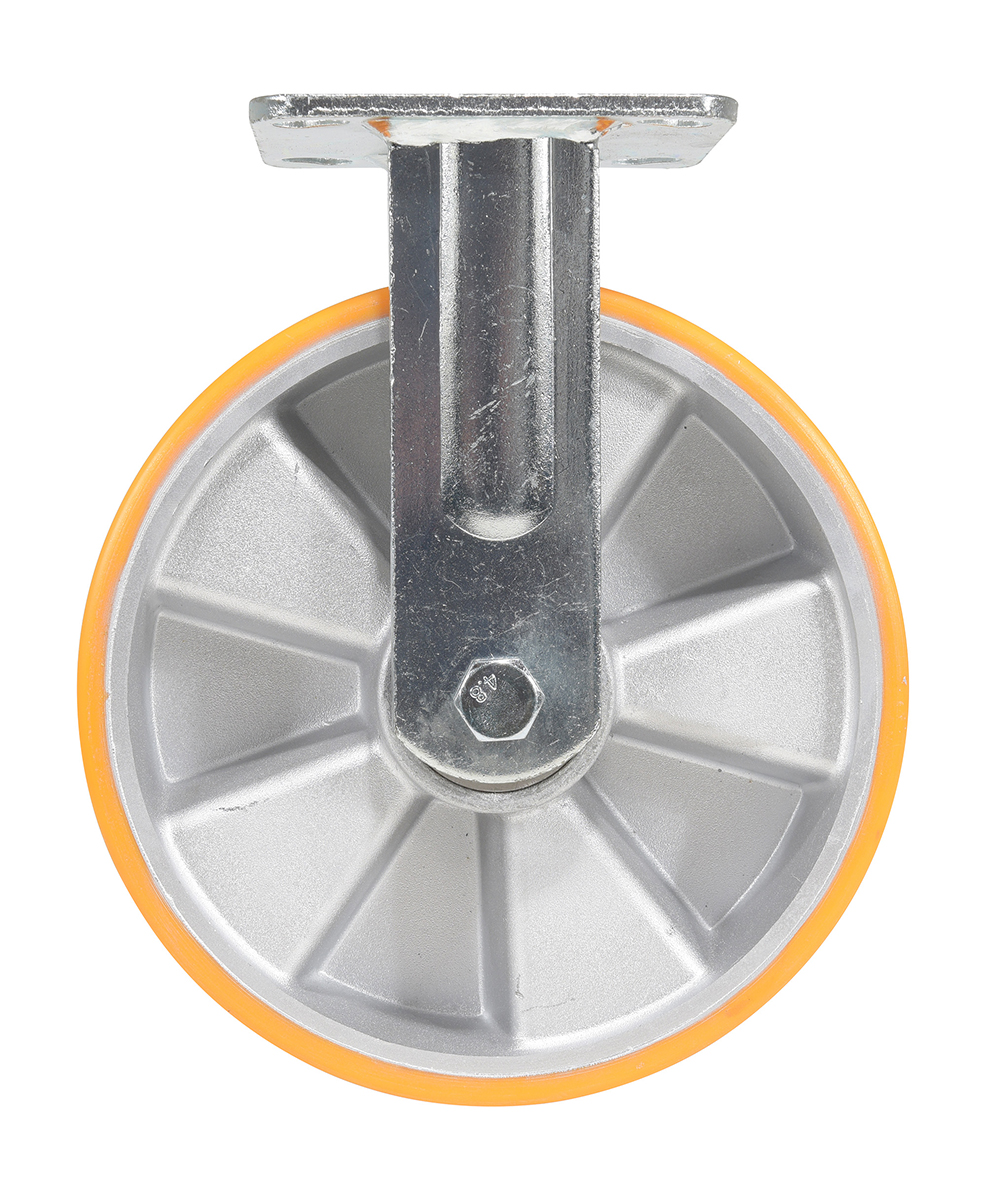

| CST-VE-8X2PUA-R |  | 1 Year Limited Warranty | 8 x 2 | RIGID | 1543 | 9-7/16 | 4 x 4-1/2 | 10 |

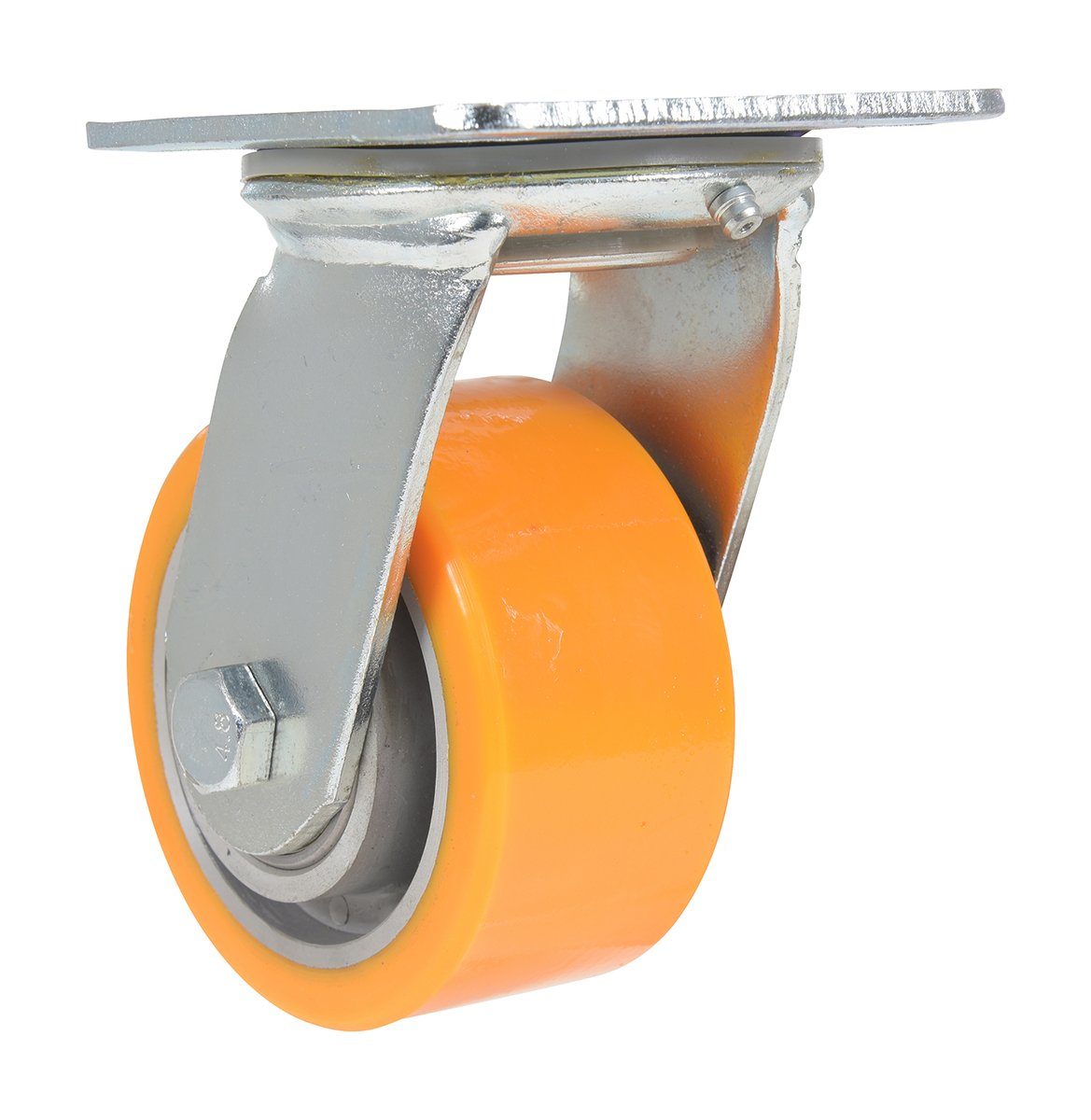

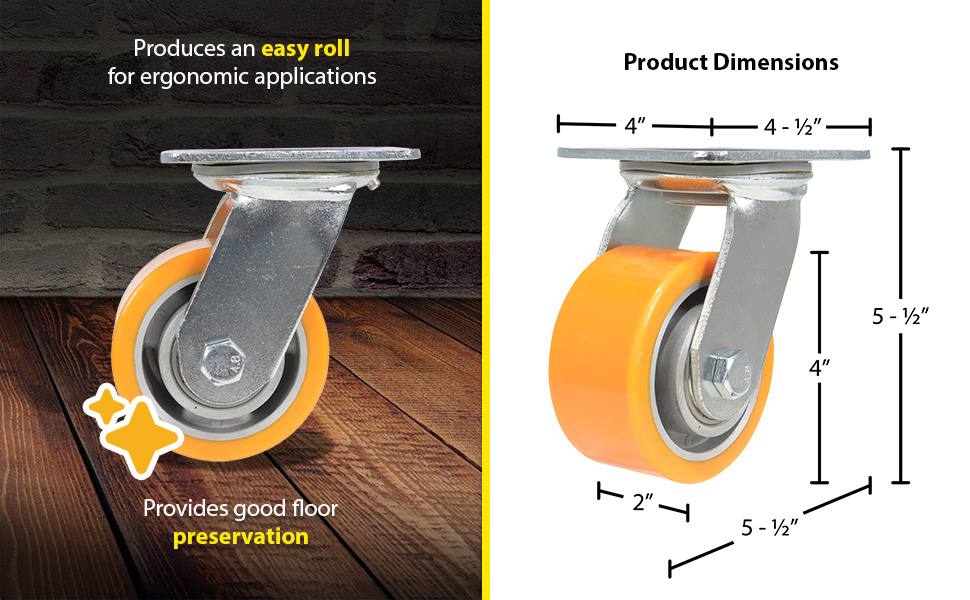

| CST-VE-4X2PUA-S |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 660 | 5-1/2 | 4 x 4-1/2 | 5 |

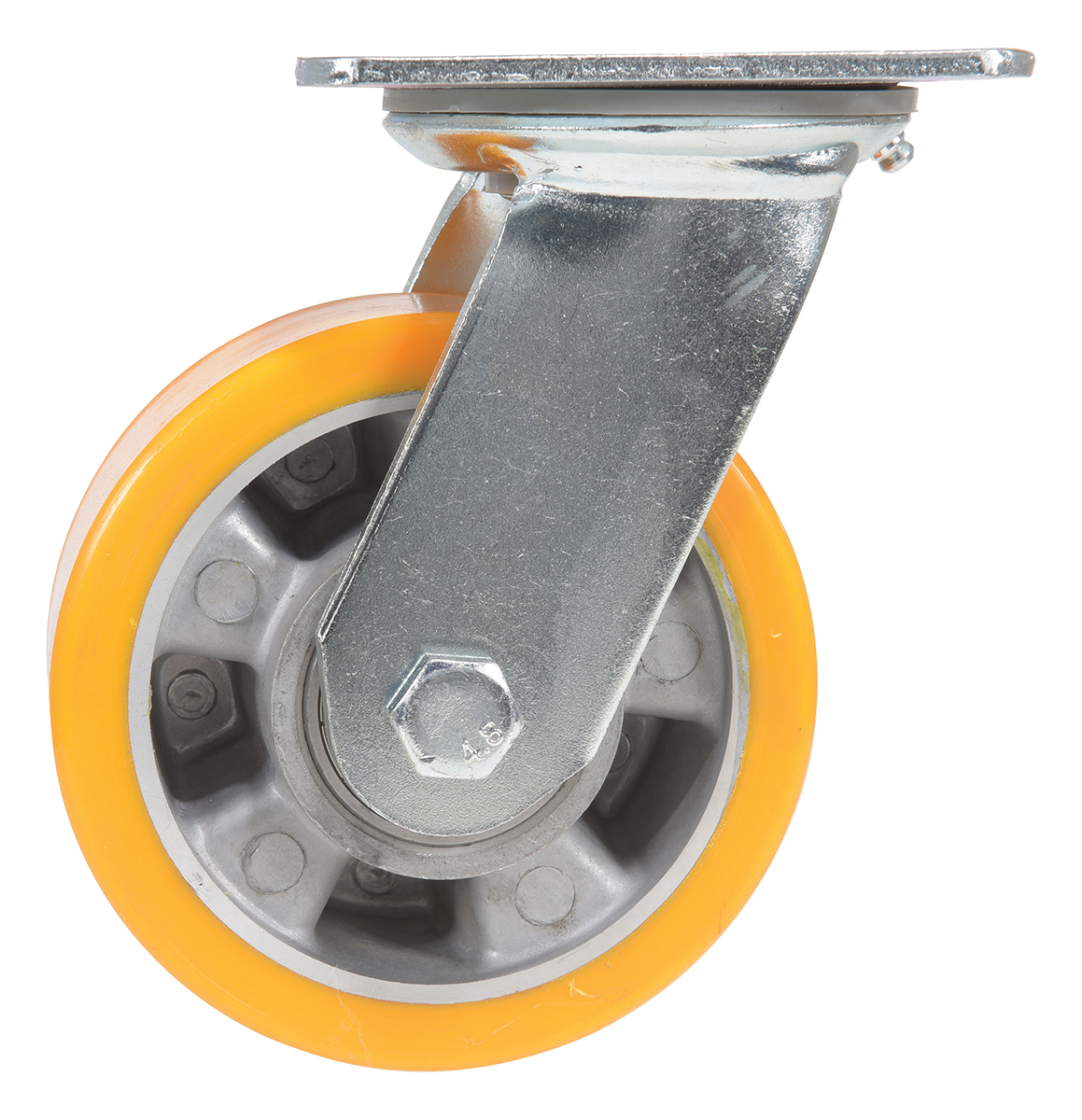

| CST-VE-5X2PUA-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 990 | 6-1/2 | 4 x 4-1/2 | 6 |

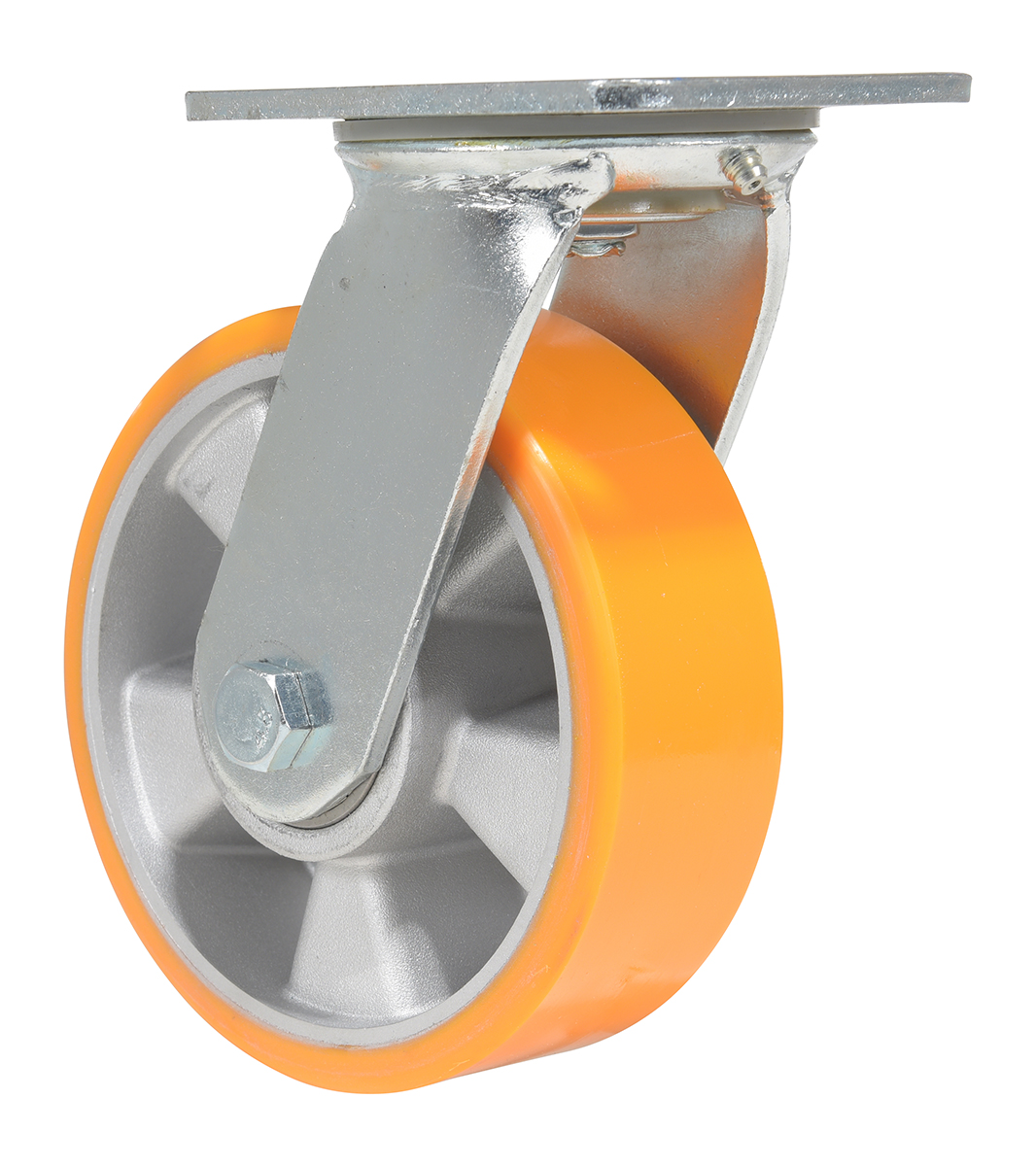

| CST-VE-6X2PUA-S |  | 1 Year Limited Warranty | 6 x 2 | SWIVEL | 1212 | 7-1/2 | 4 x 4-1/2 | 9 |
| CST-VE-8X2PUA-S |  | 1 Year Limited Warranty | 8 x 2 | SWIVEL | 1543 | 9-7/16 | 4 x 4-1/2 | 11 |

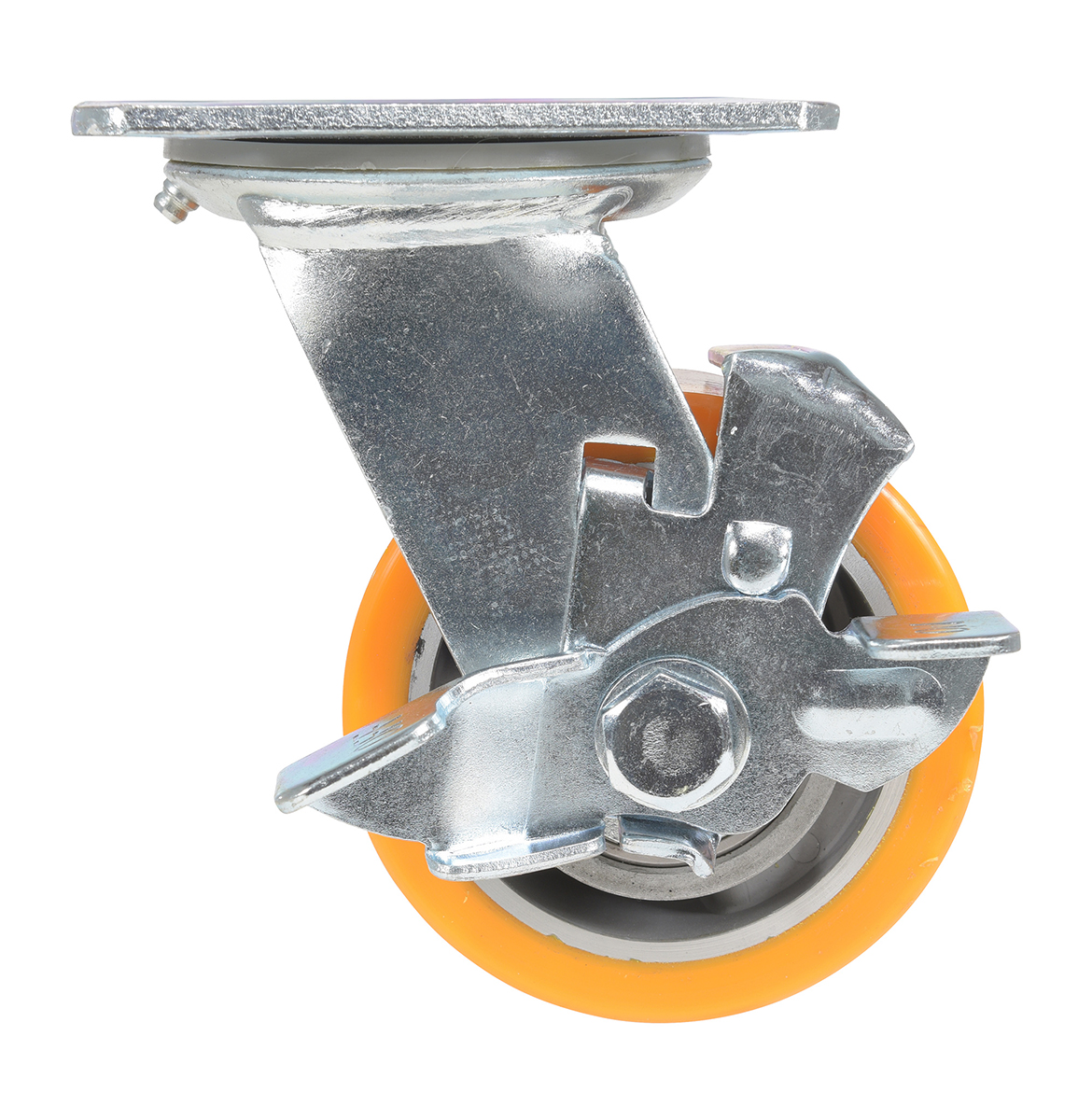

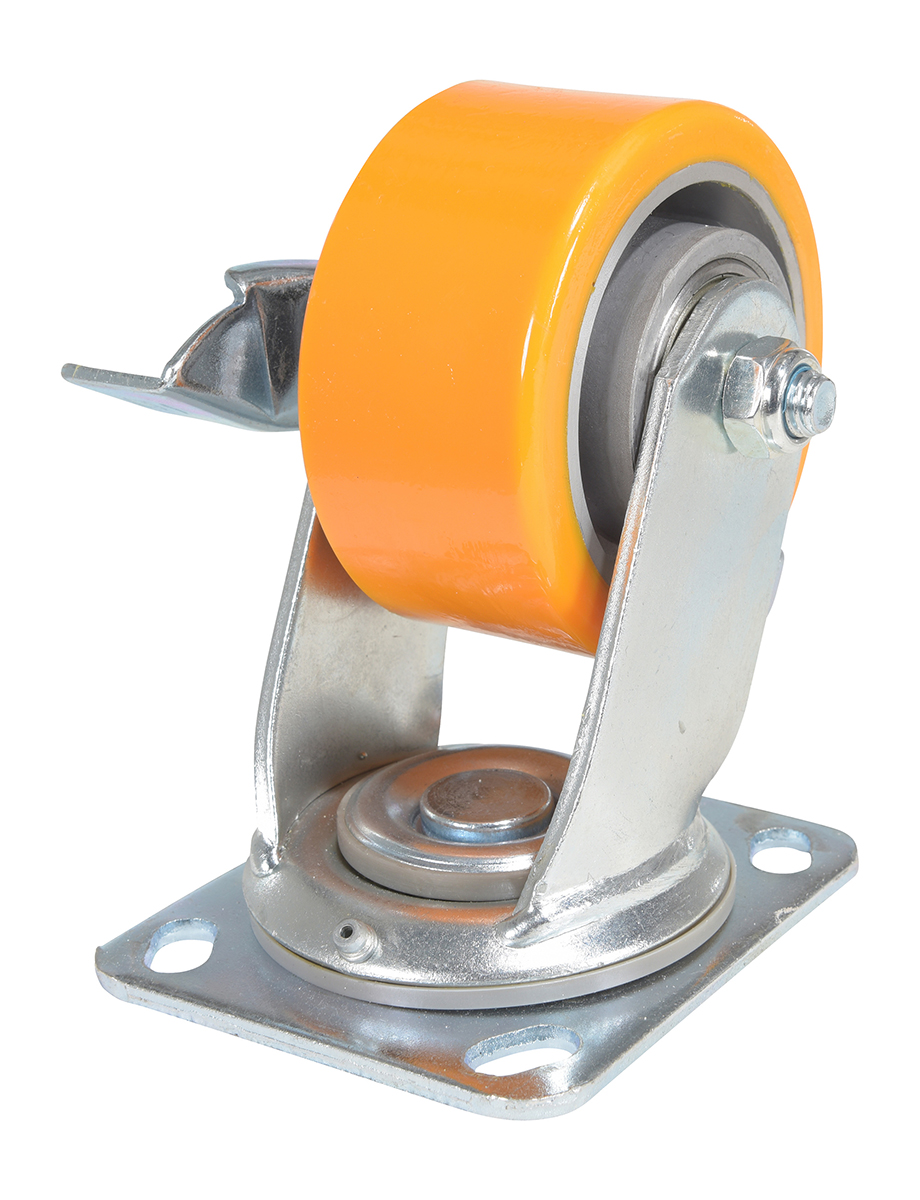

| CST-VE-4X2PUA-SWB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 660 | 5-1/4 | 4 x 4-1/2 | 6 |

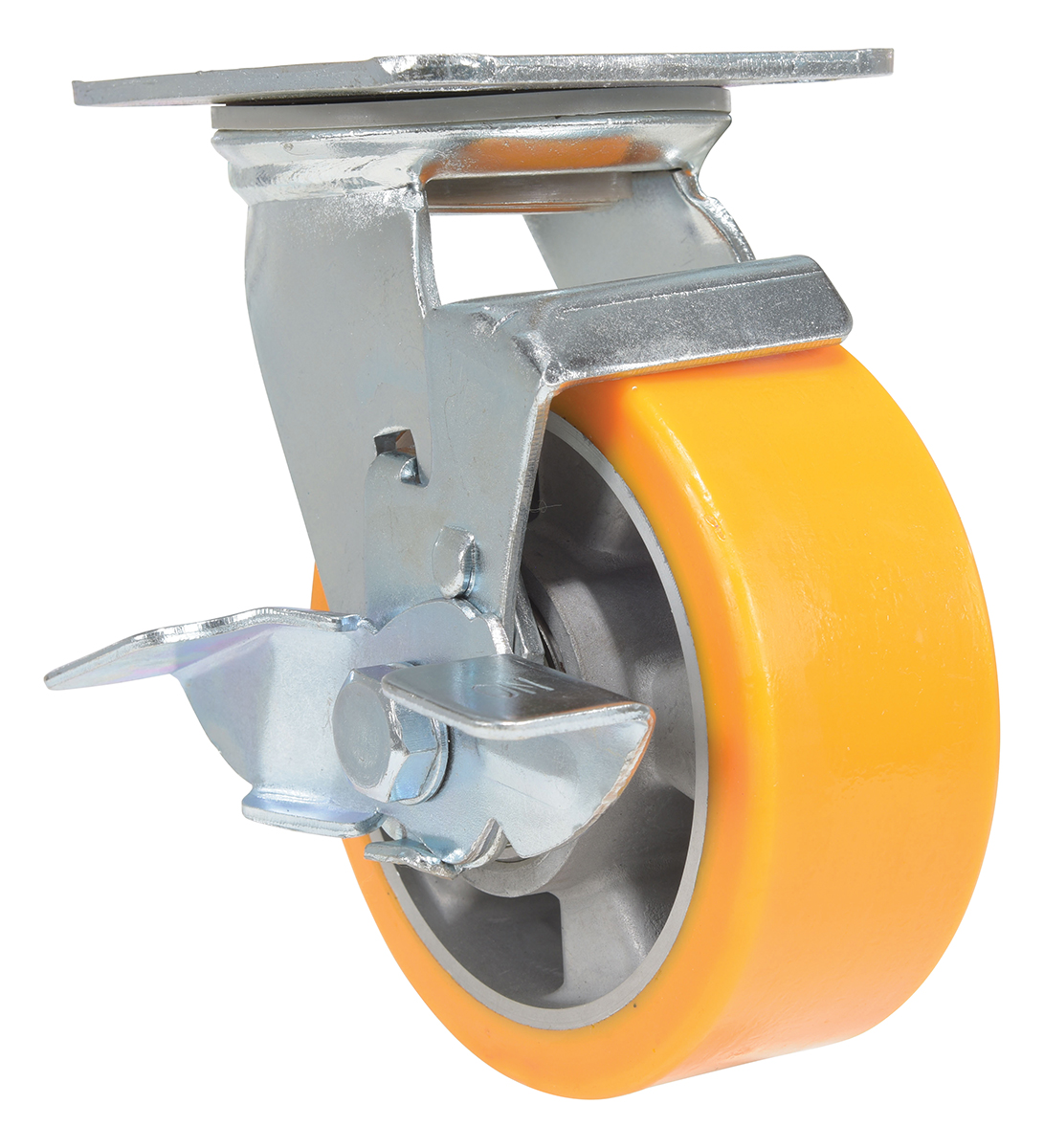

| CST-VE-5X2PUA-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 990 | 6-1/2 | 4 x 4-1/2 | 6 |

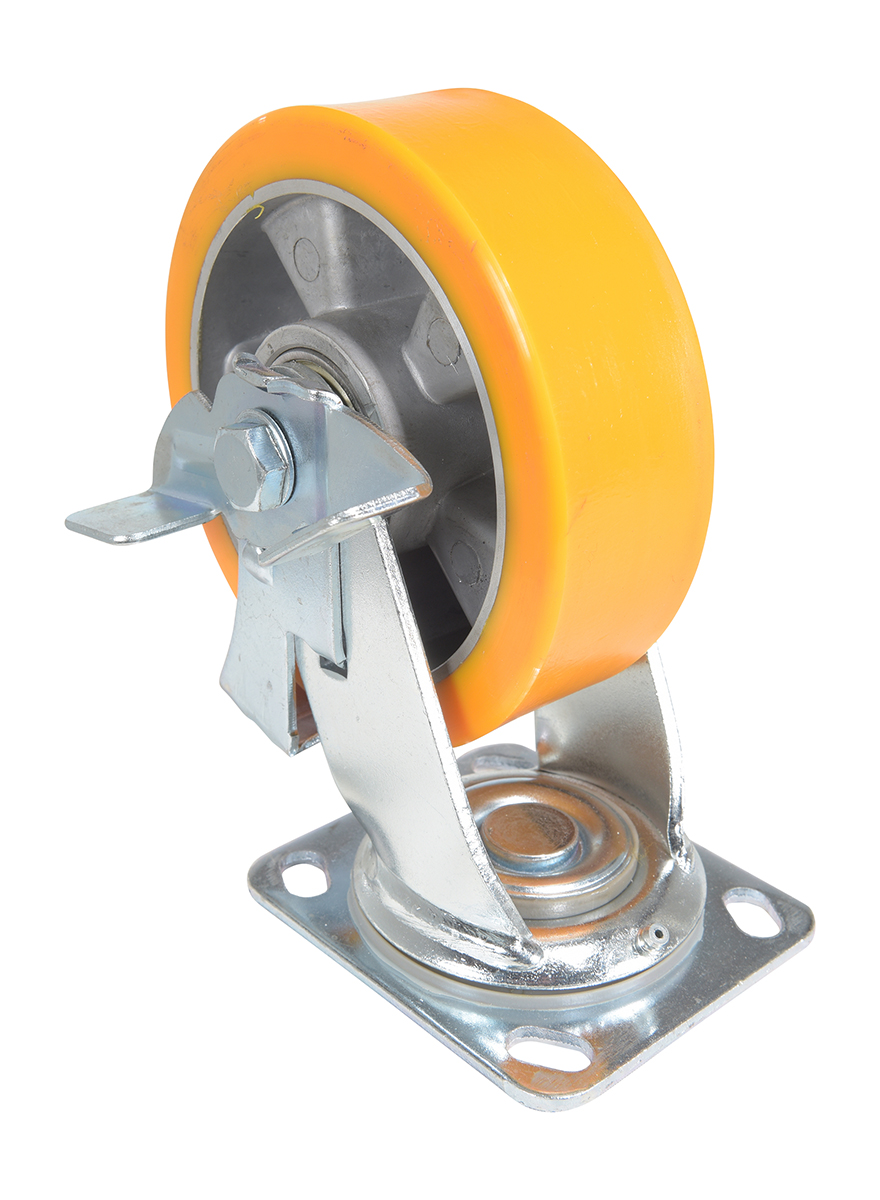

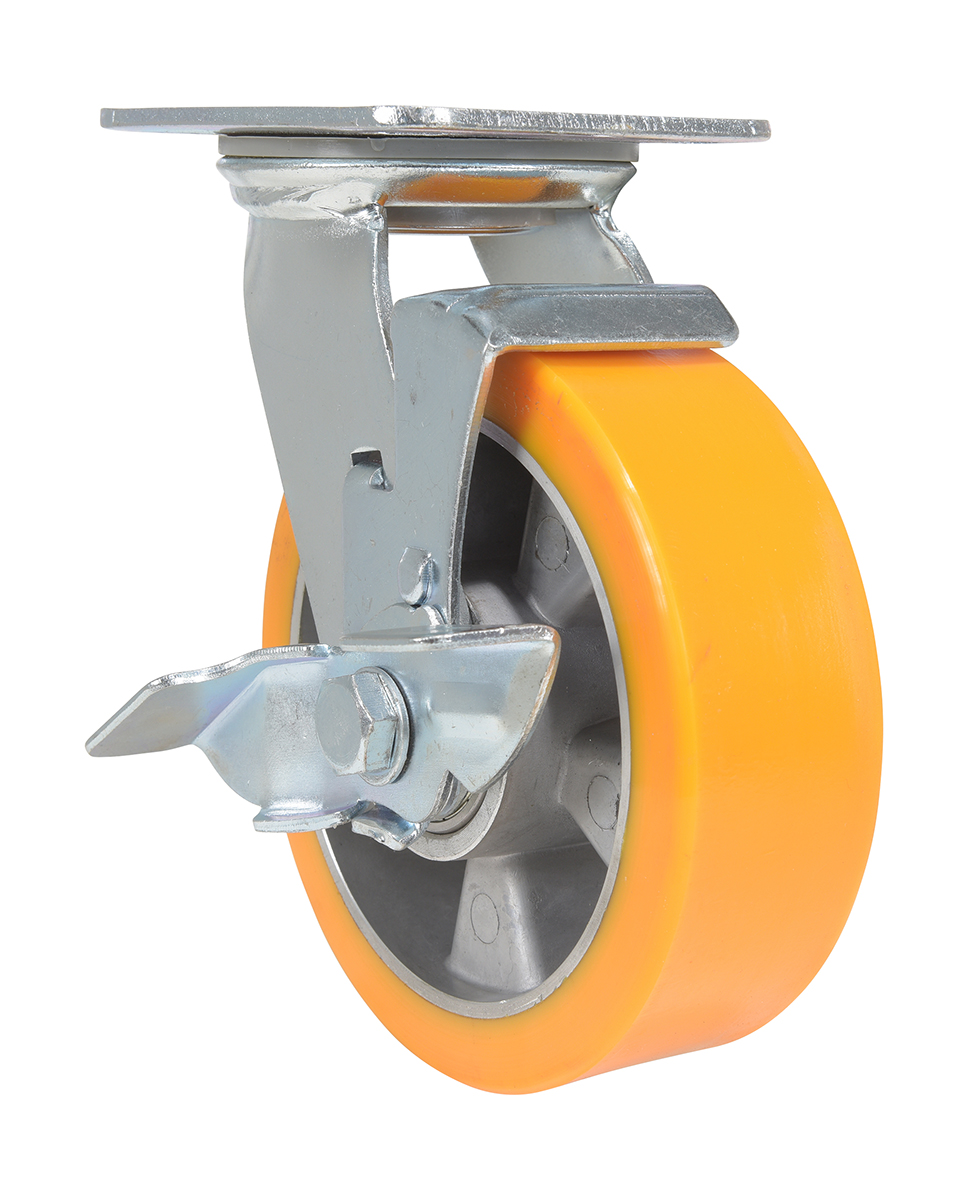

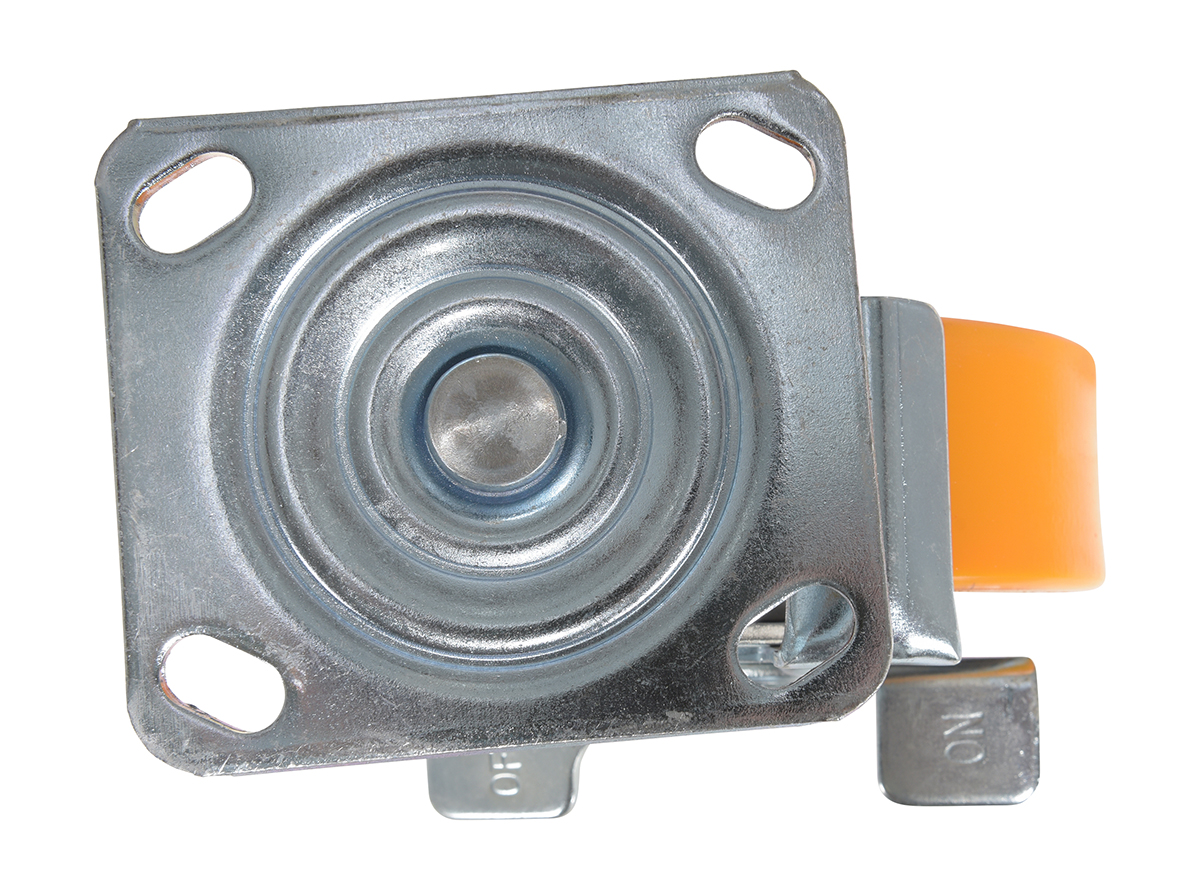

| CST-VE-6X2PUA-SWB |  | 1 Year Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 1212 | 7-1/2 | 4 x 4-1/2 | 7 |

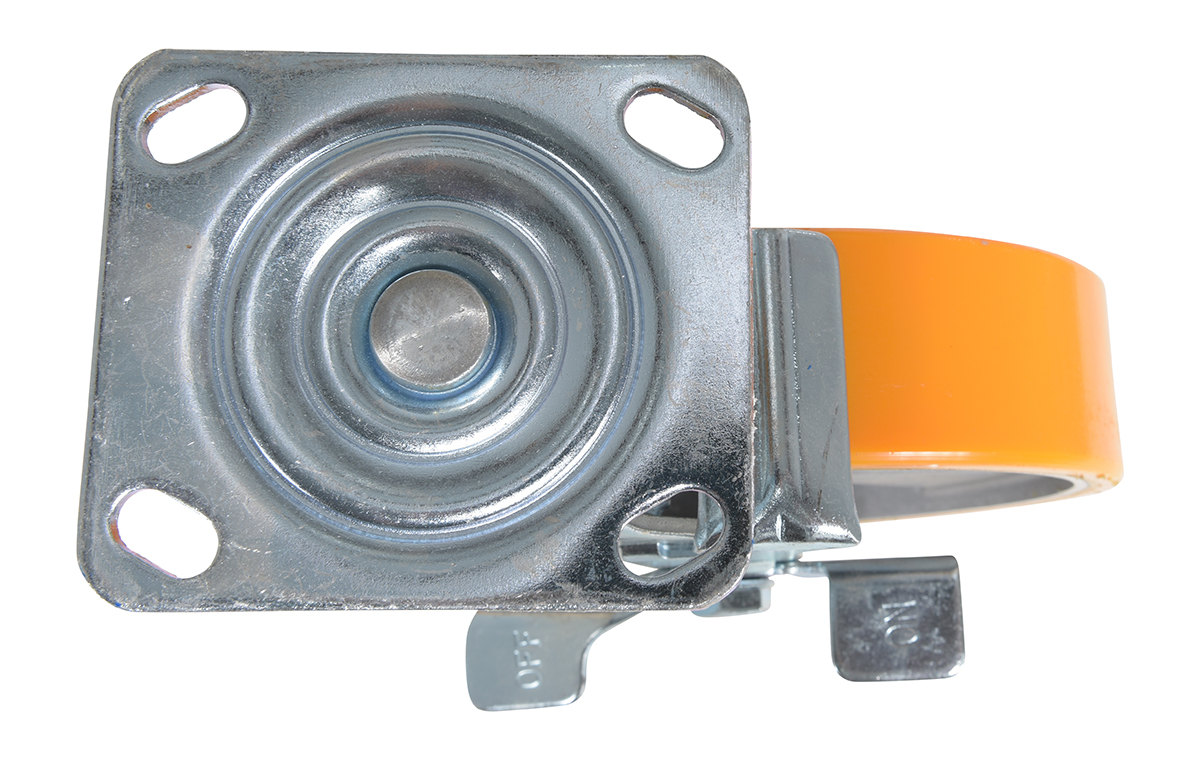

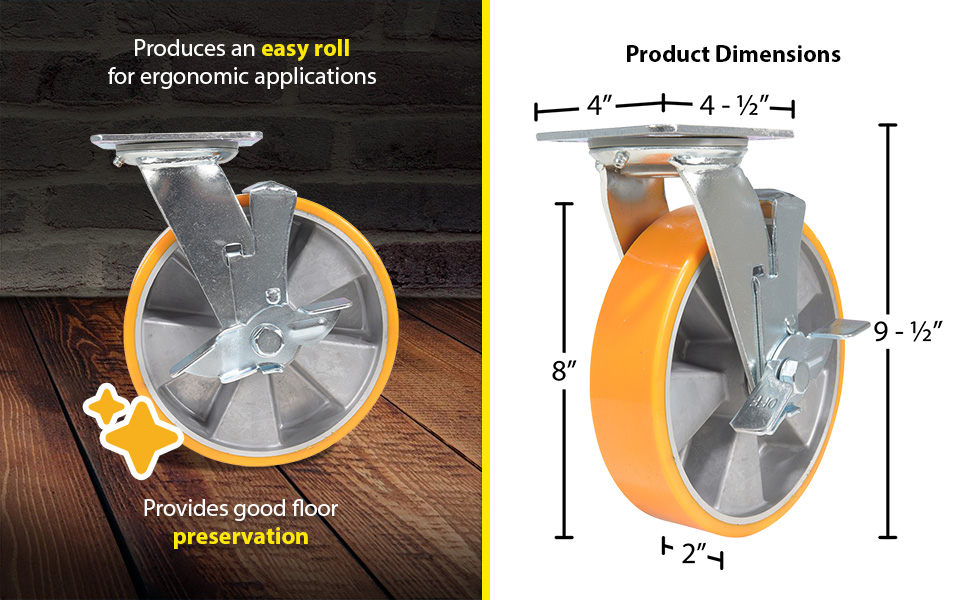

| CST-VE-8X2PUA-SWB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 1760 | 9-1/2 | 4 x 4-1/2 | 8 |
| CST-VE-4X2PUA-SWTB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/TOTAL BRAKE | 660 | 5-1/2 | 4 x 4-1/2 | 6 |

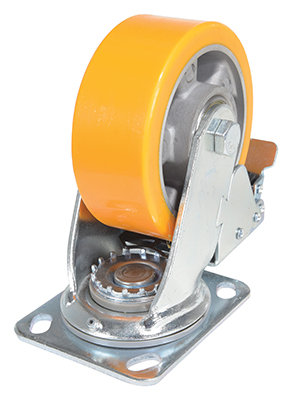

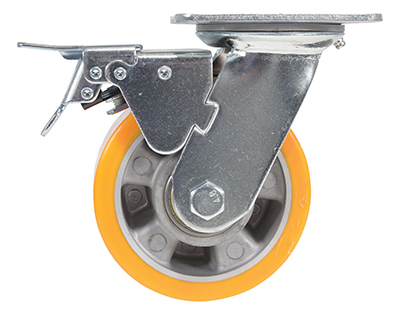

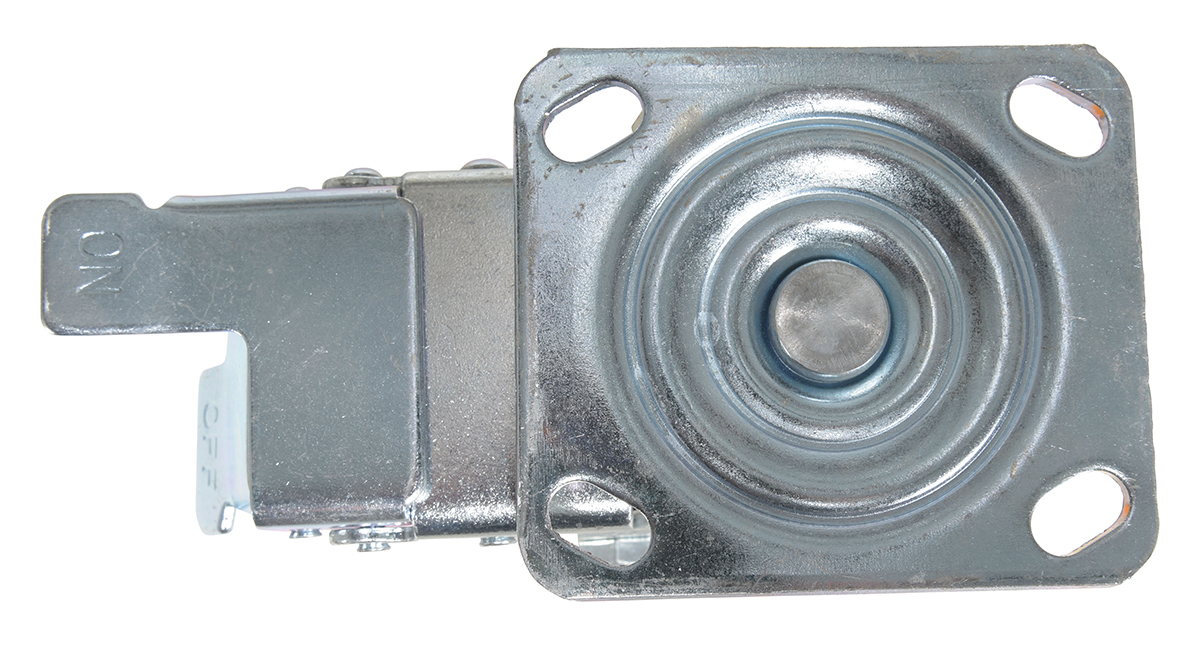

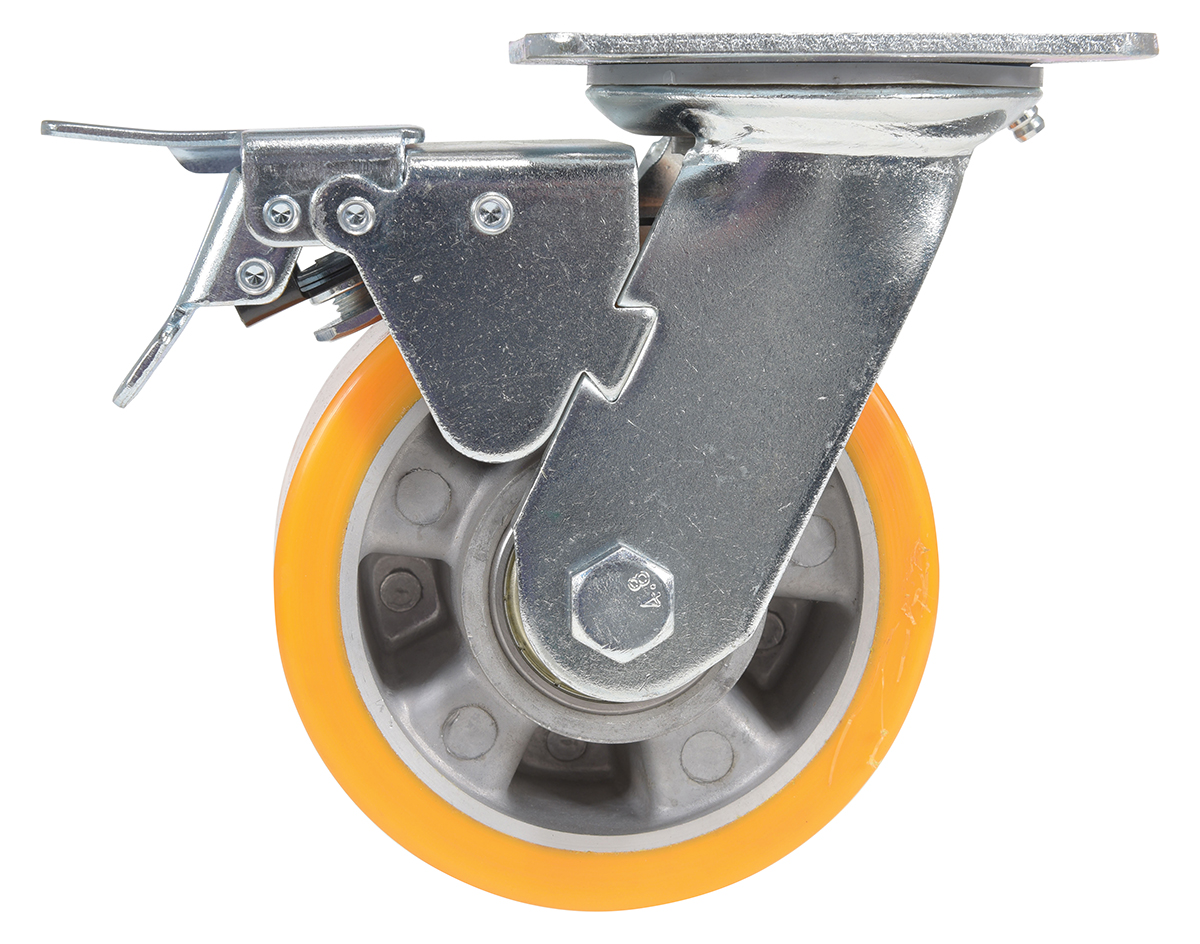

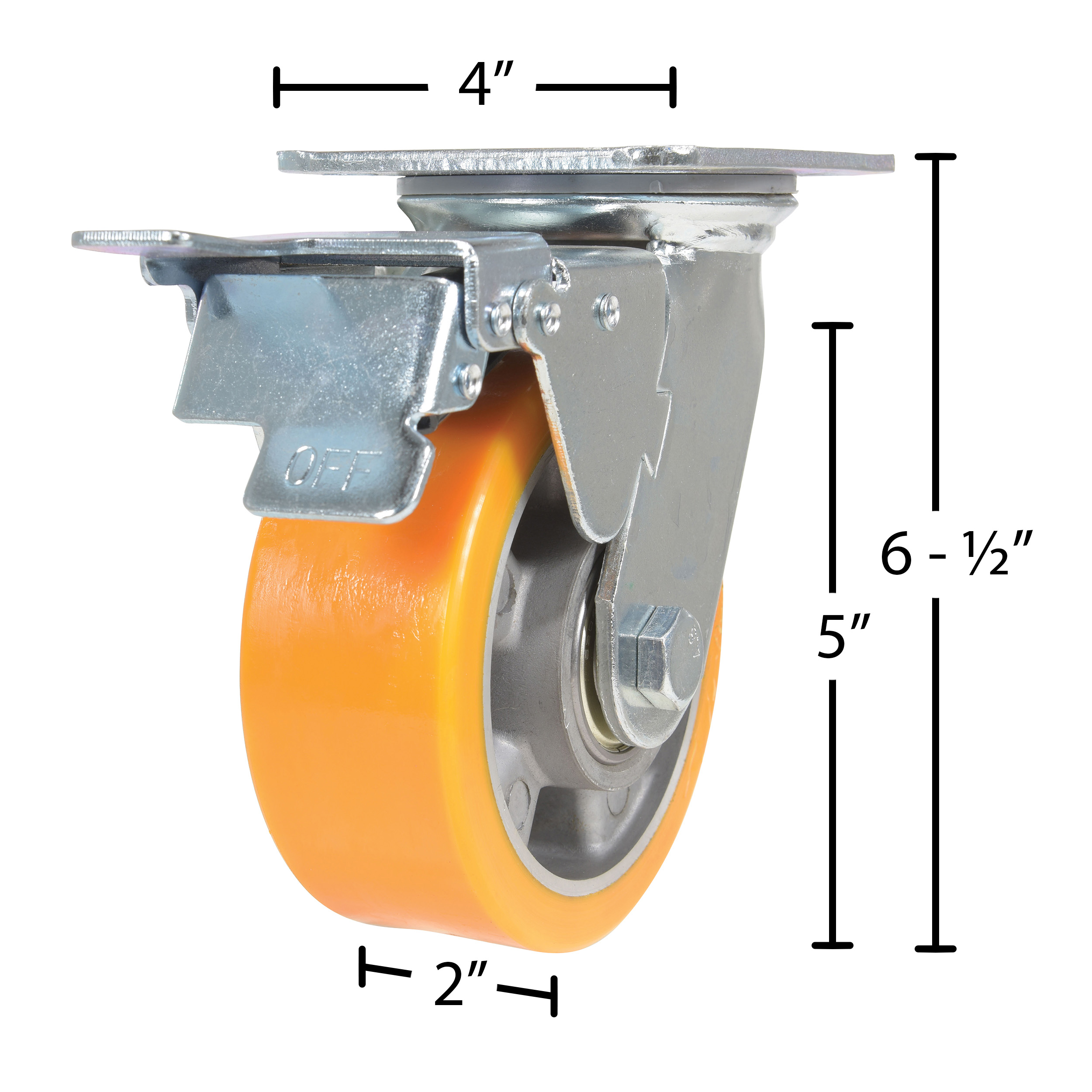

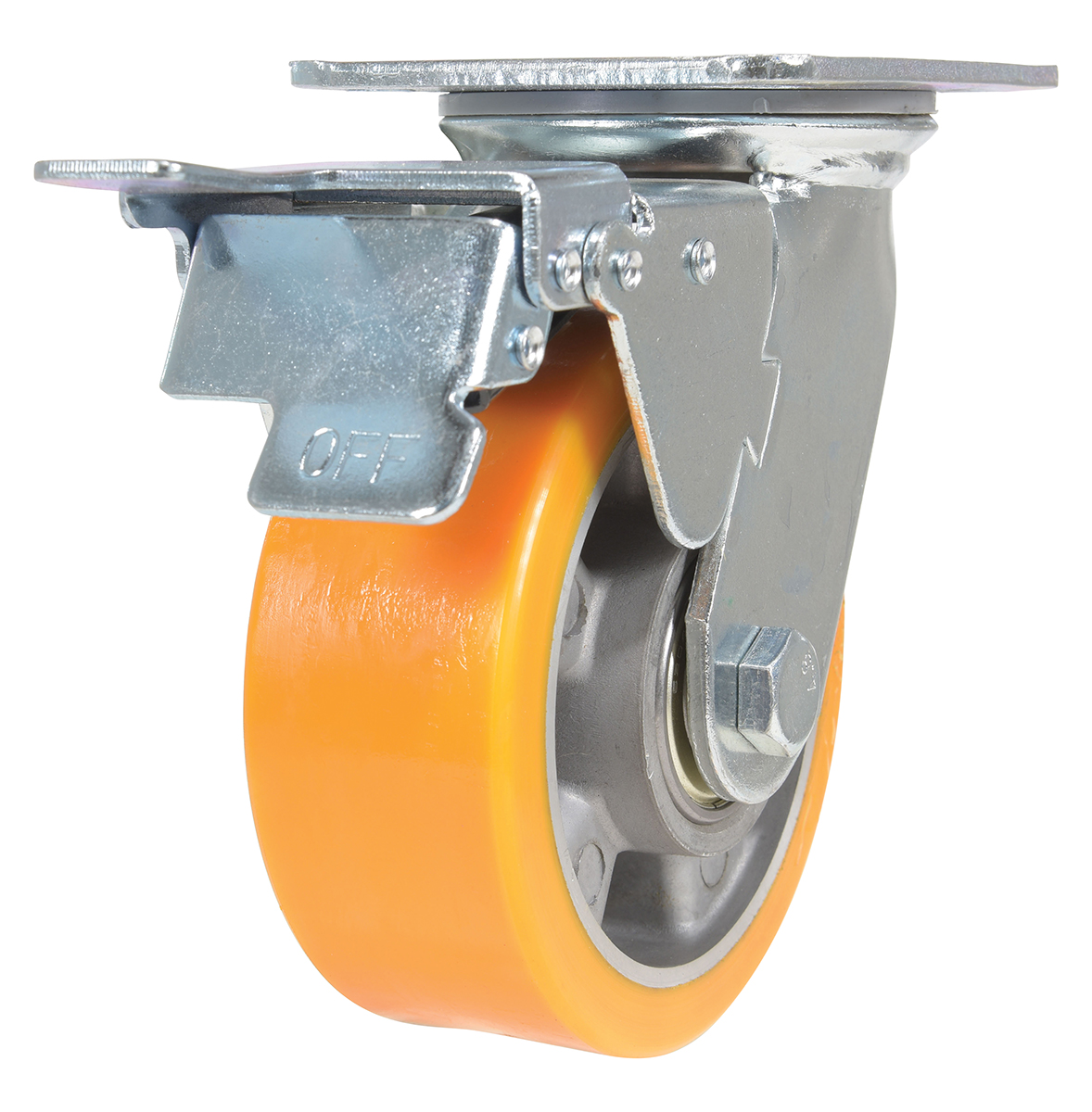

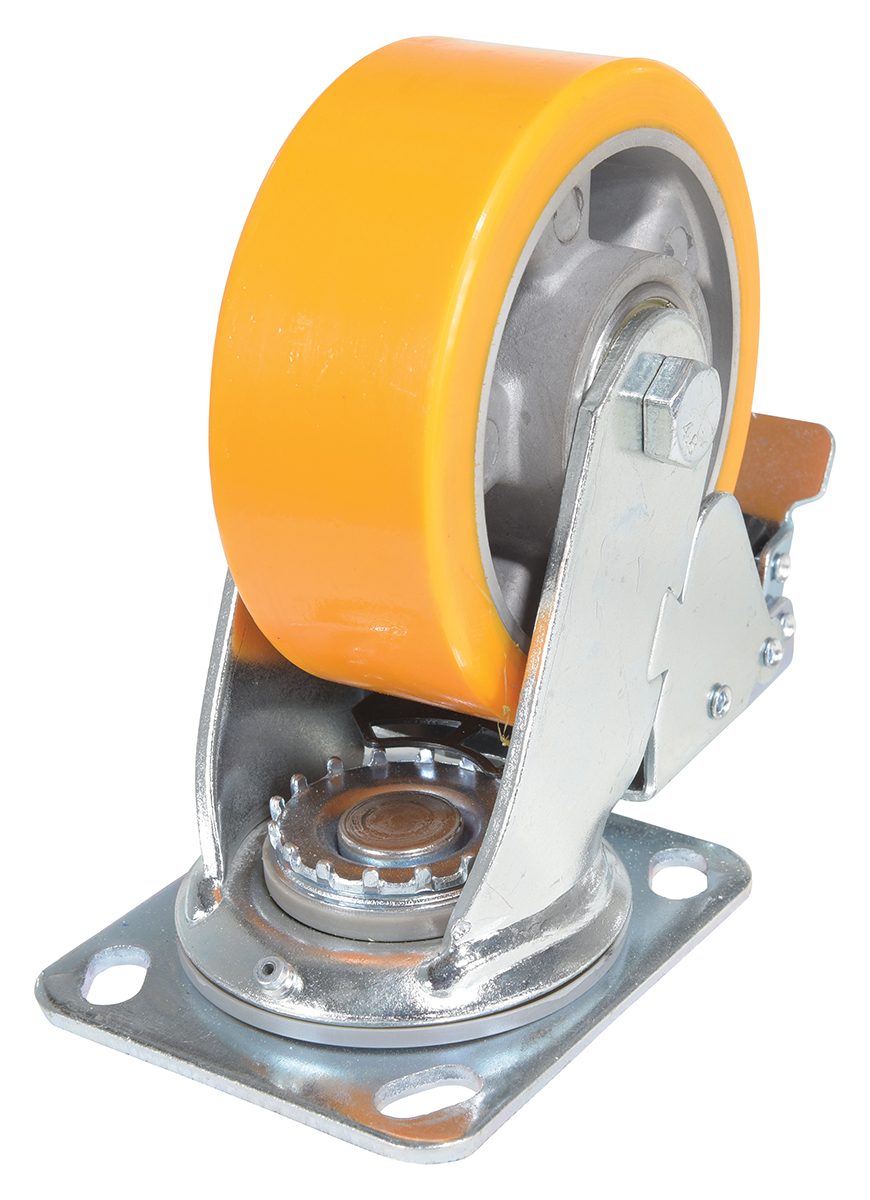

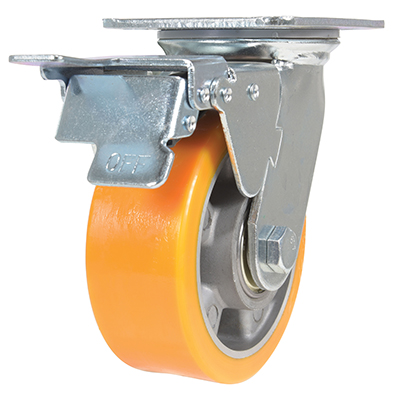

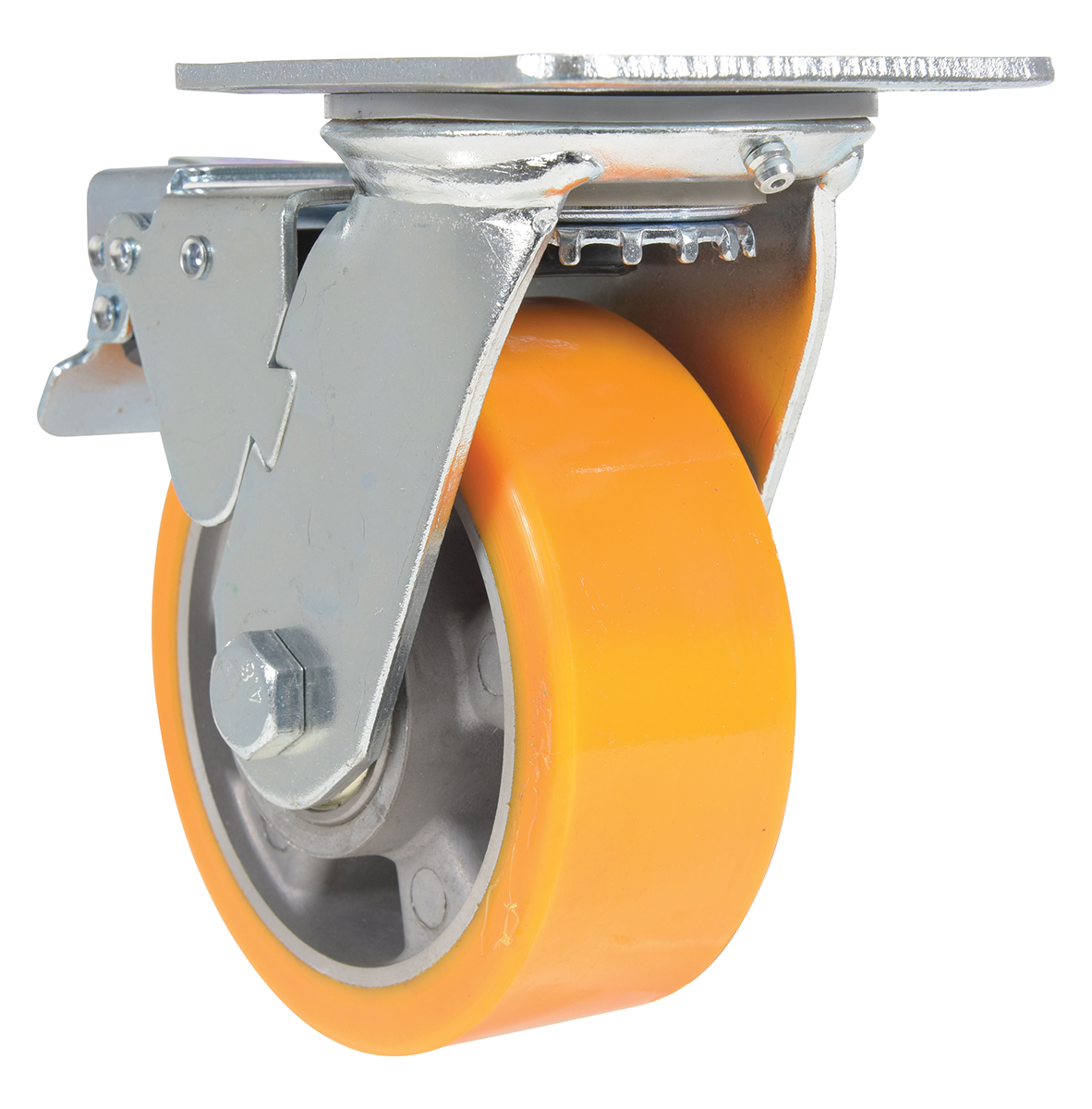

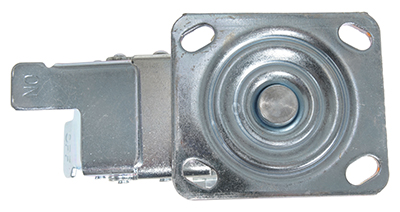

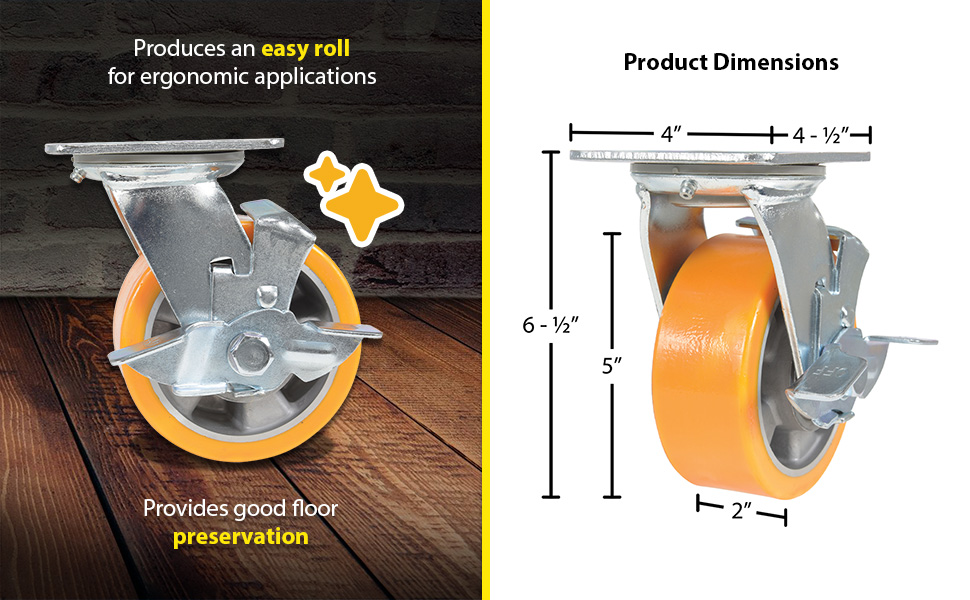

| CST-VE-5X2PUA-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 990 | 6-1/2 | 4 x 4-1/2 | 7 |

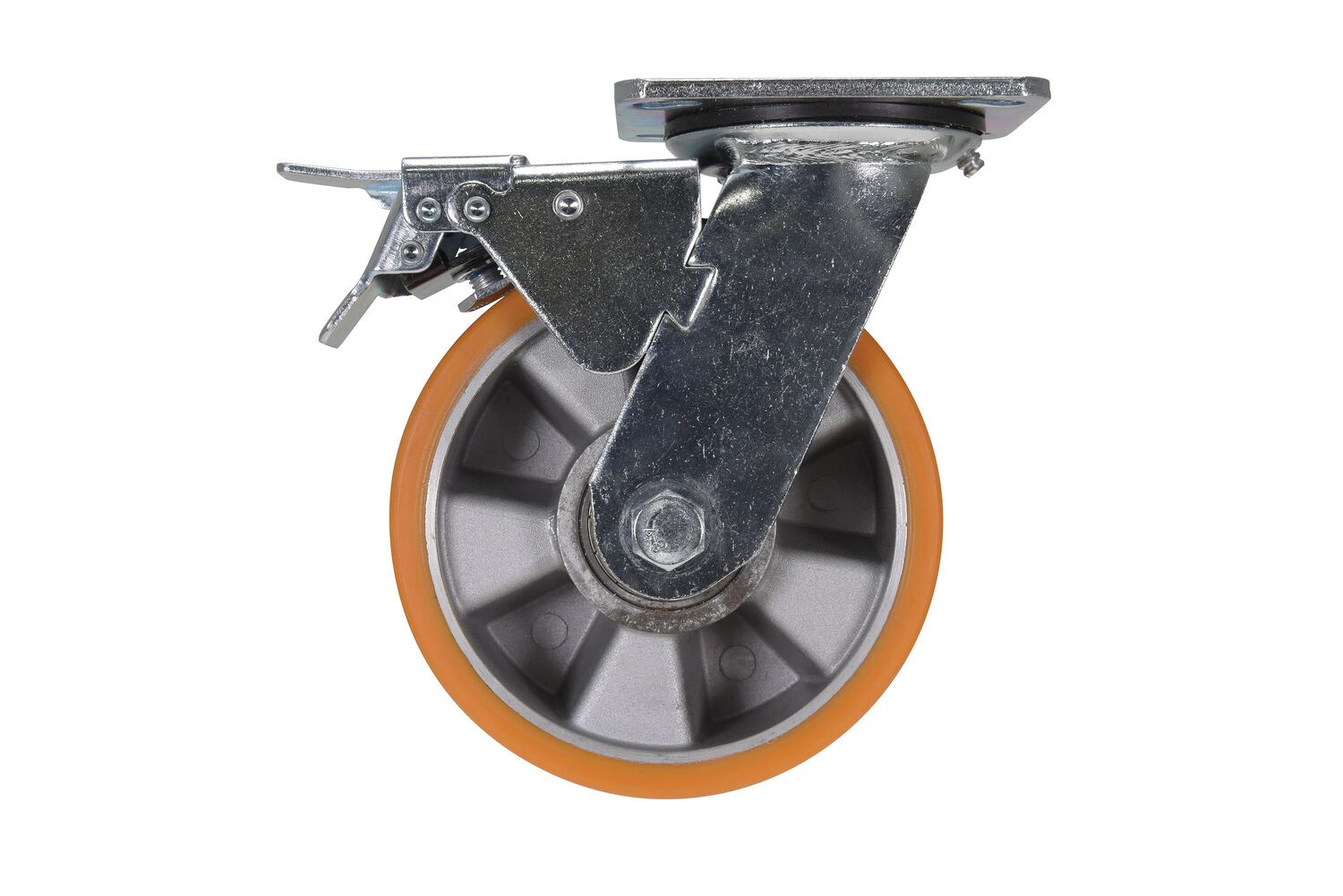

| CST-VE-6X2PUA-SWTB |  | 1 Year Limited Warranty | 6 x 2 | SWIVEL W/TOTAL BRAKE | 1210 | 7-1/2 | 4 x 4-1/2 | 9 |

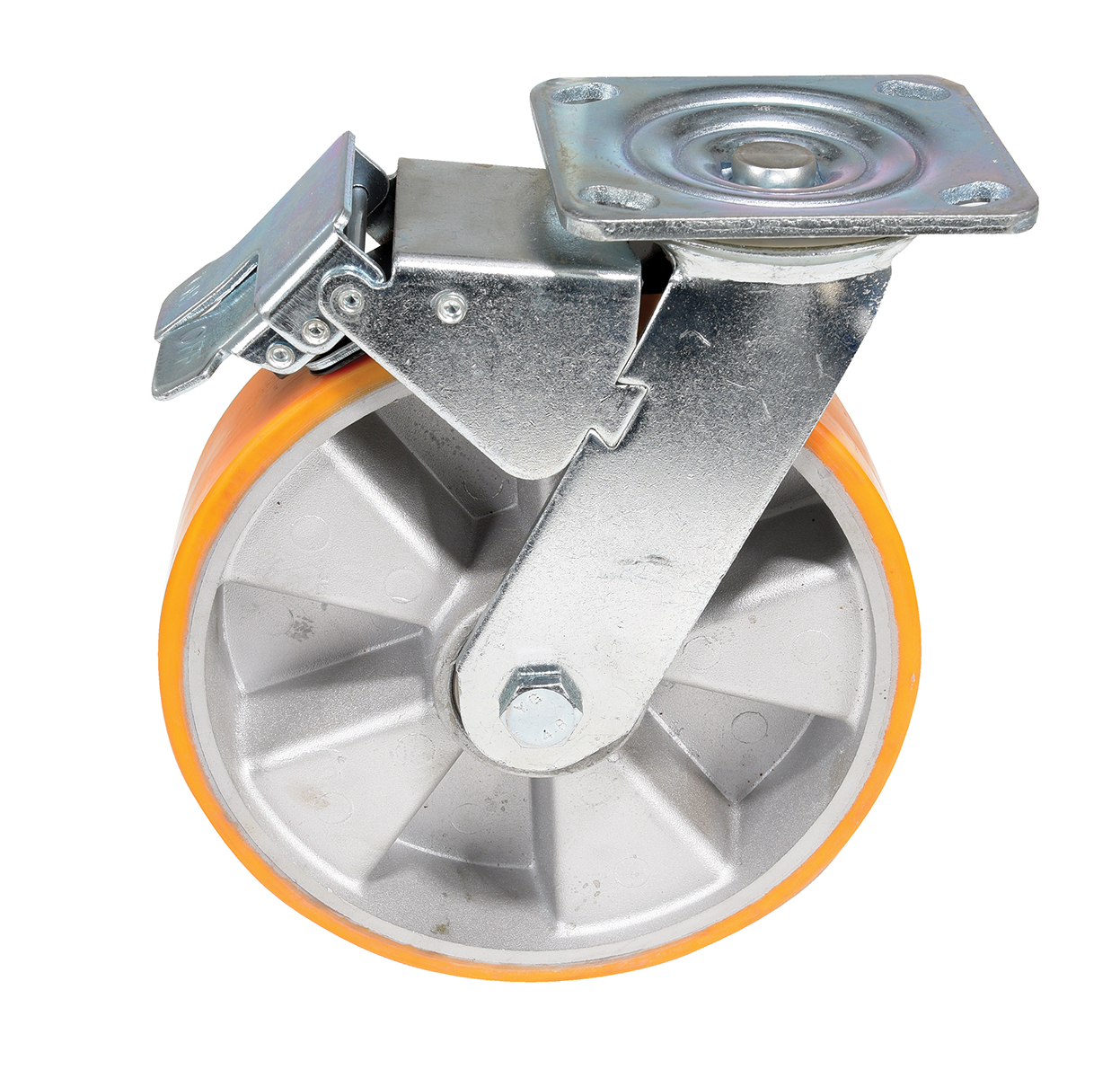

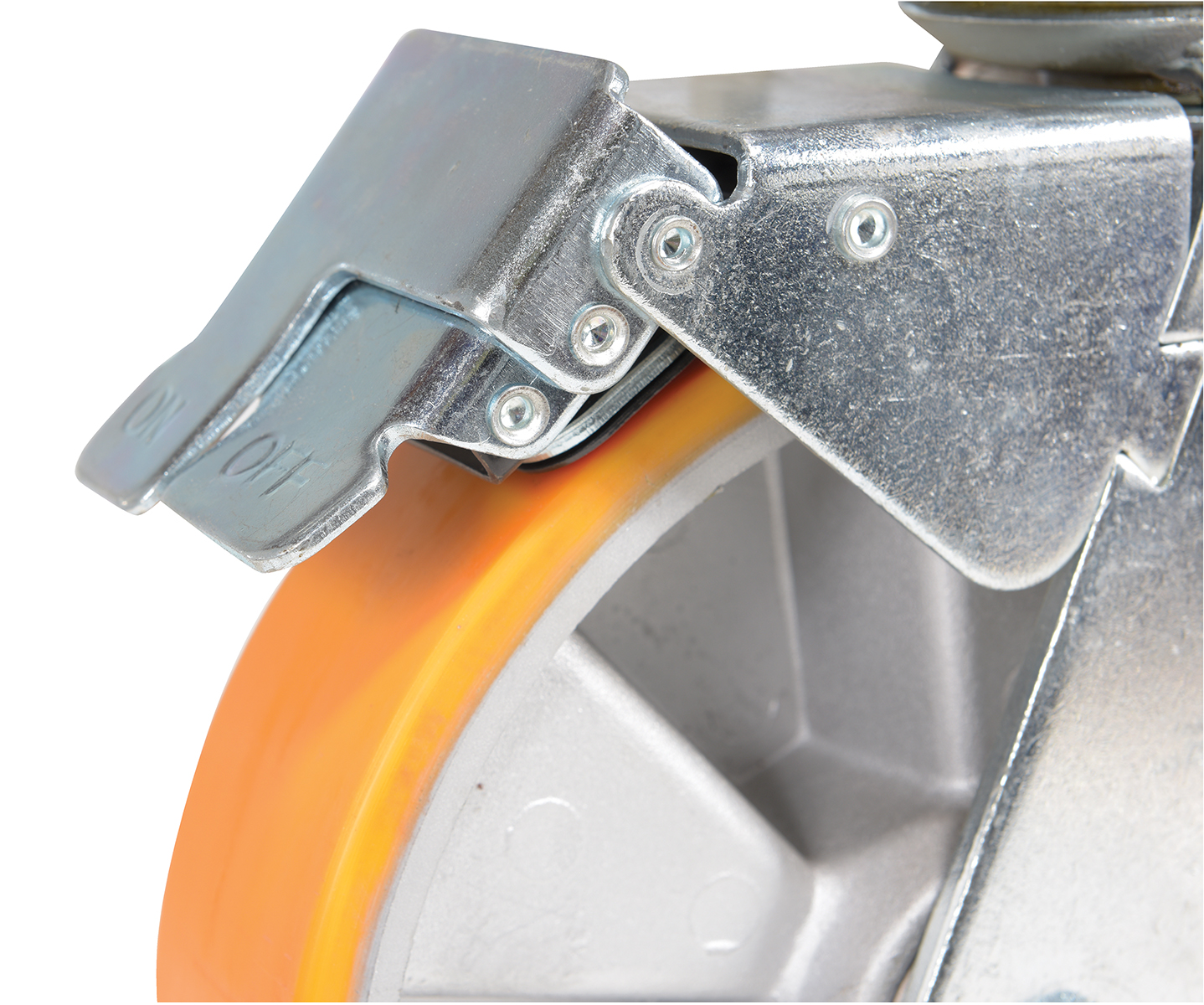

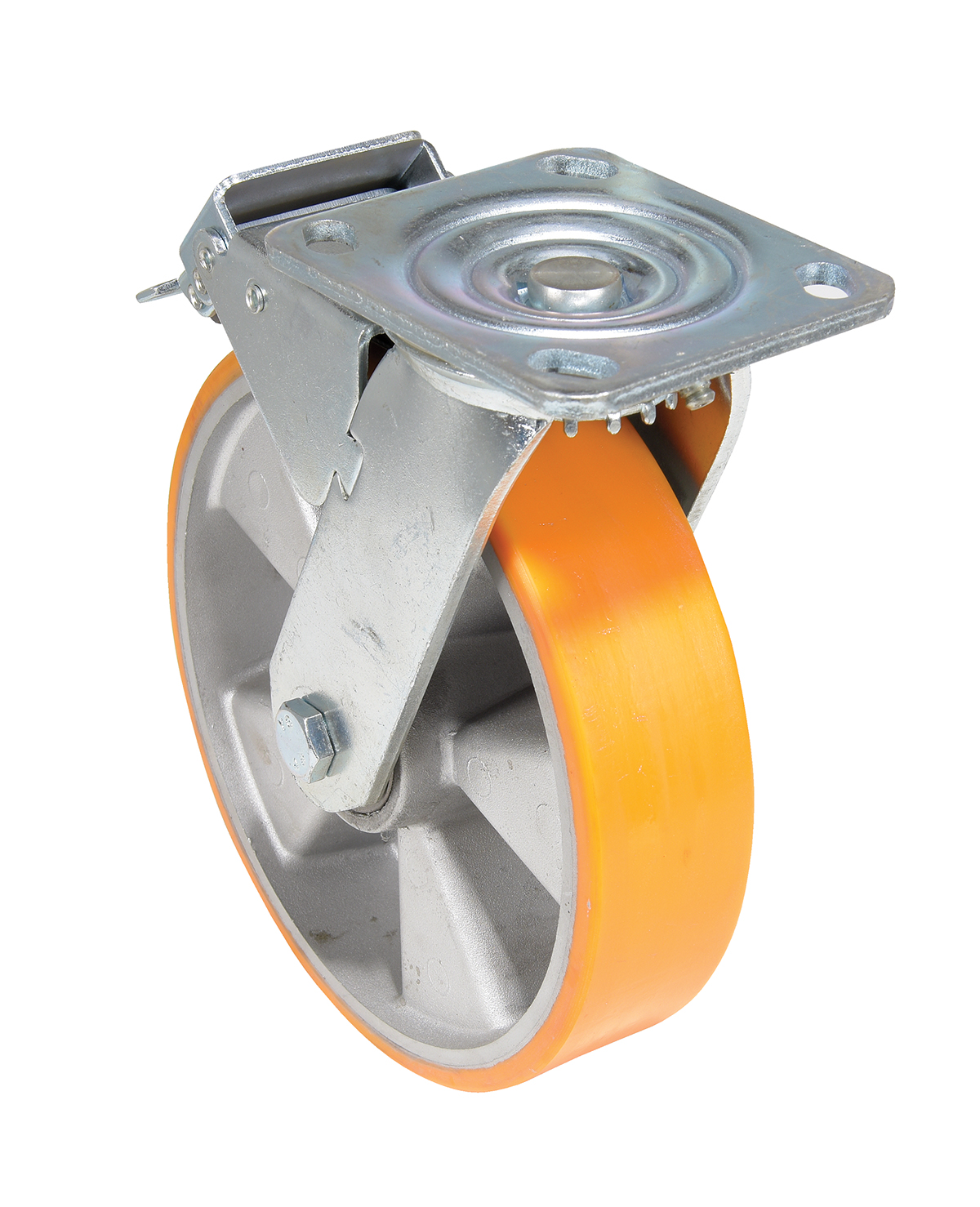

| CST-VE-8X2PUA-SWTB |  | 1 Year Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 1543 | 9-1/2 | 4 x 4-1/2 | 9 |
