Polyurethane CastersPolyurethane is ideal for most environments. It is resistant to a variety of chemicals, and produces an easy roll for ergonomic applications. It also provides good floor preservation and works effectively in both indoor and outdoor environments.
- Resistant to most chemicals
- Easy roll performance
- Sealed raceway
- Anti-corrosive & rust resistant zinc plated finish
- Hardened double ball raceway
- Grease zerk fittings
- Ball bearings
- Roller bearings
Flat-Free (Rubber)
Mold On Rubber (On Aluminum) Casters
Glass Filled Nylon (RX)
Glass Filled Nylon CastersAdditional Models In This Family

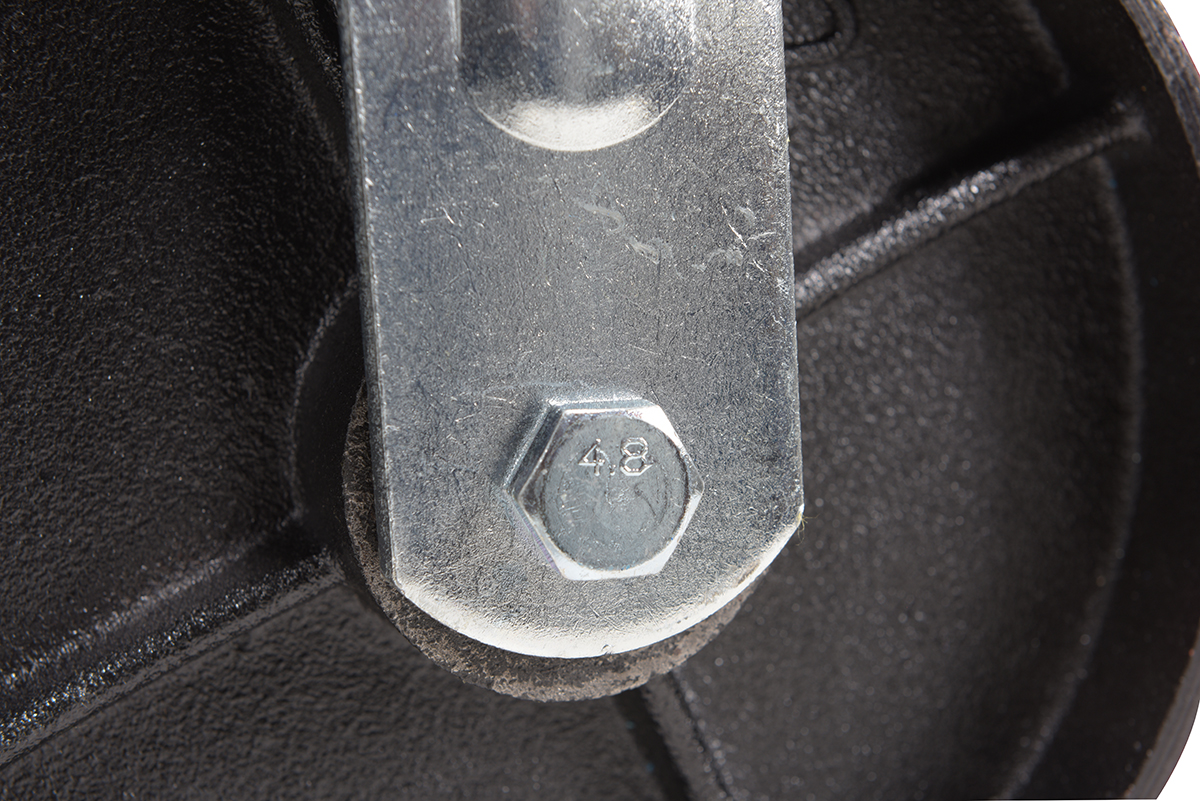

CST-VE-8X2PU-SWB

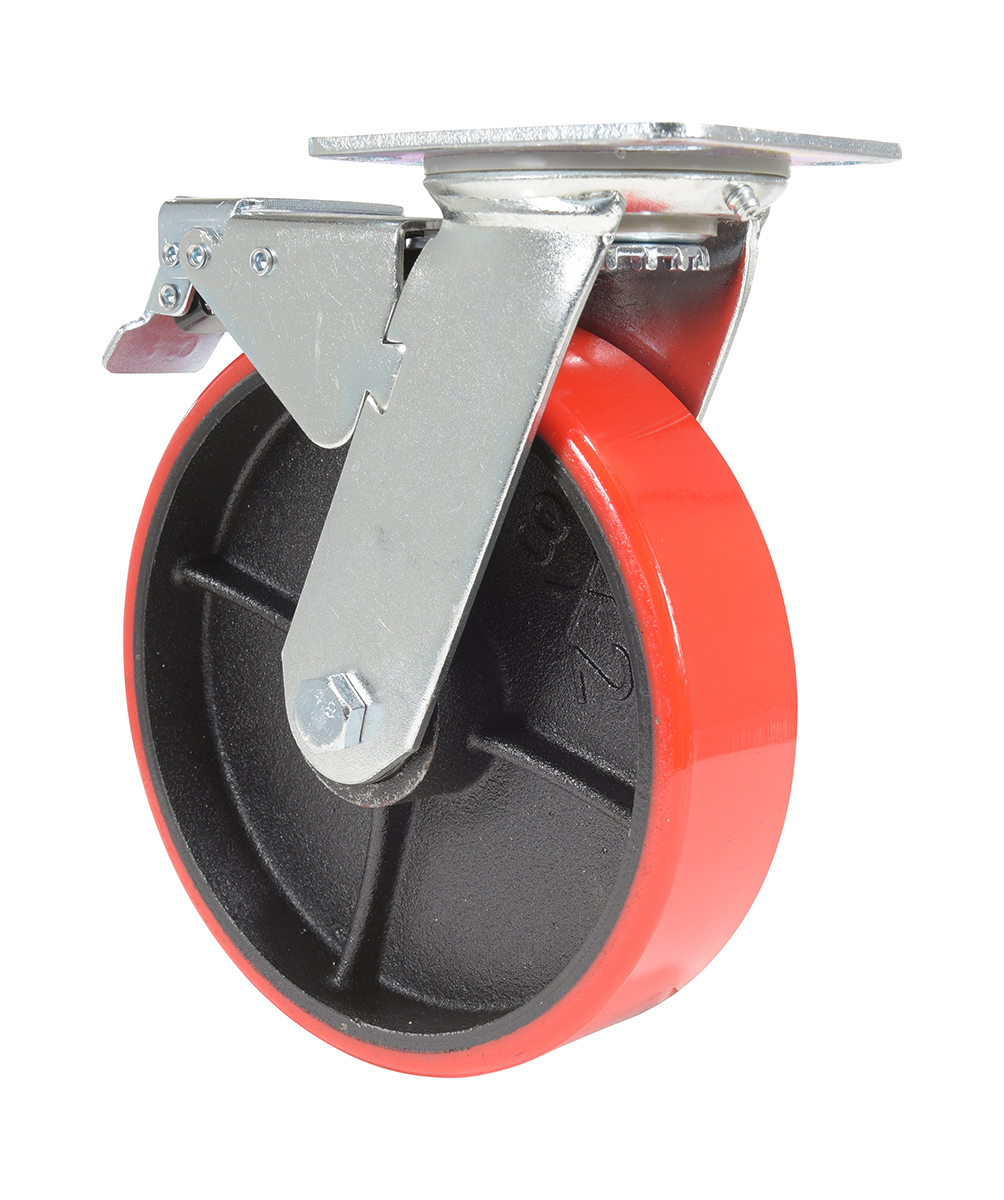

CST-VE-8X2PU-SWTB
CST-VE-8X2PU-R
CST-VE-4X2PU-R

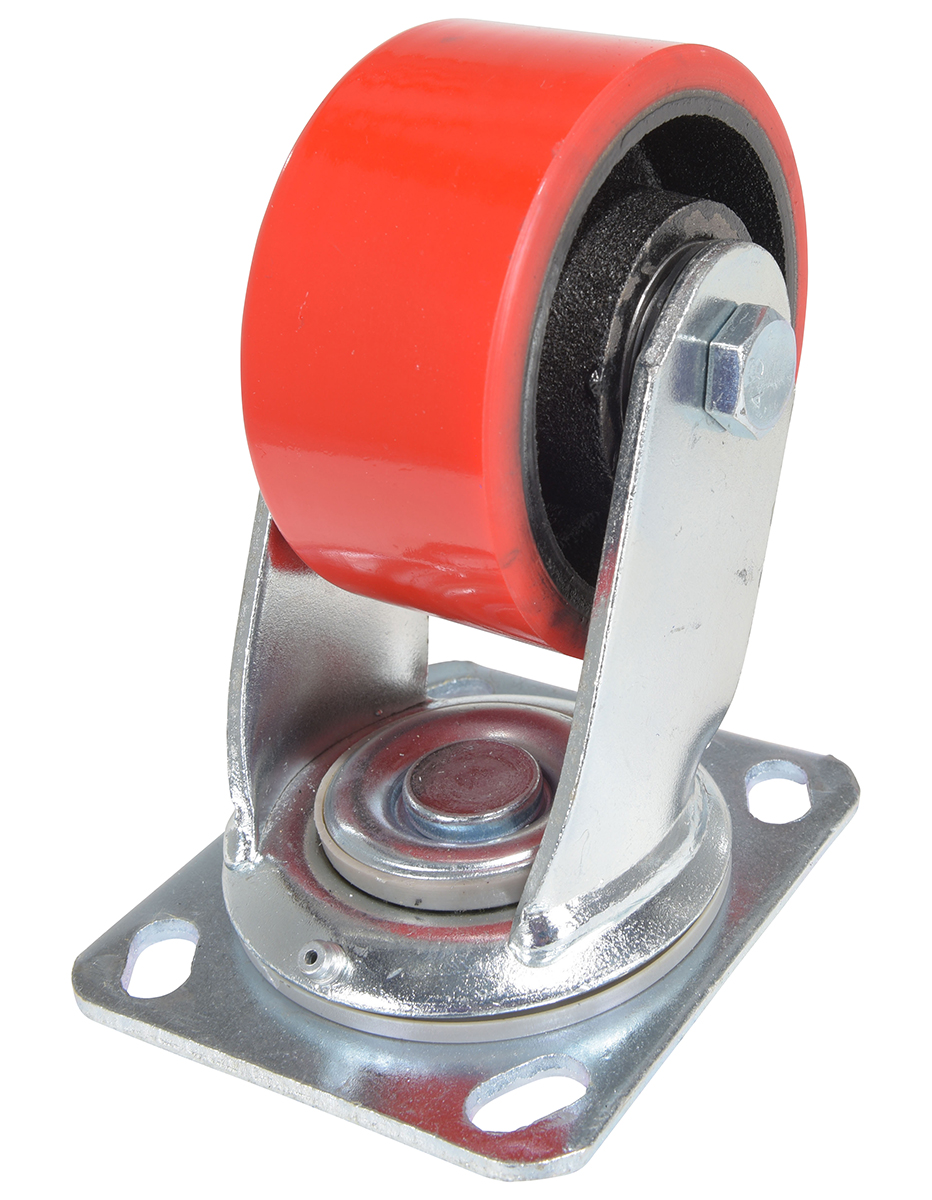

CST-VE-4X2PU-S
CST-VE-5X2PU-S
CST-VE-4X2PU-SWTB
CST-VE-5X2PU-R

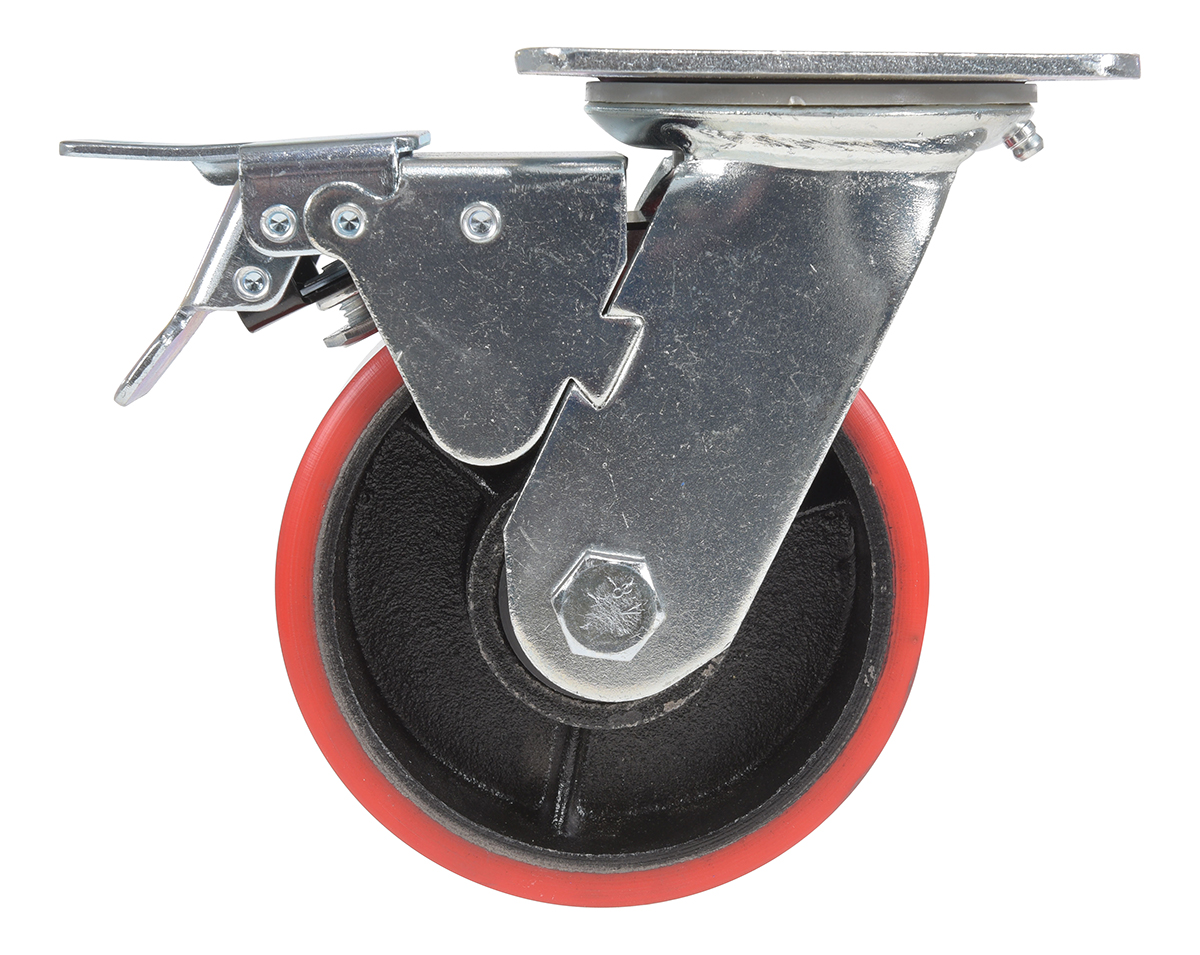

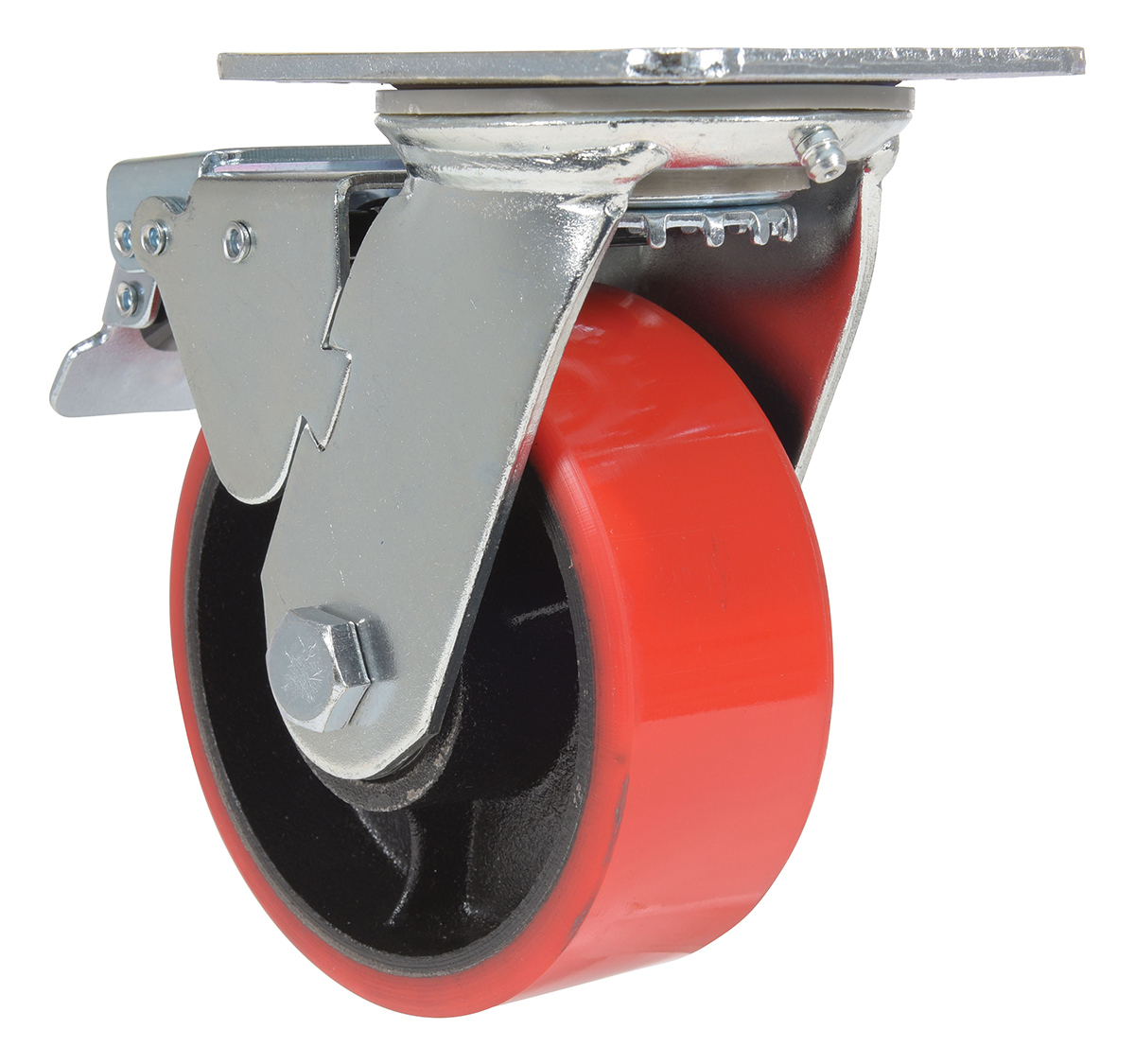

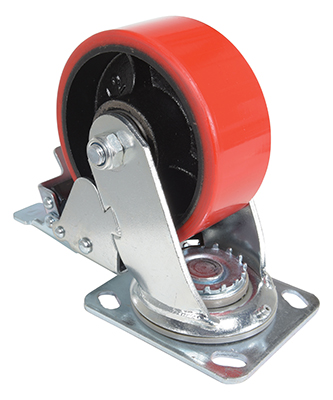

CST-VE-5X2PU-SWTB
CST-VE-5X2PU-SWTB
CST-VE-8X2PU-SWB

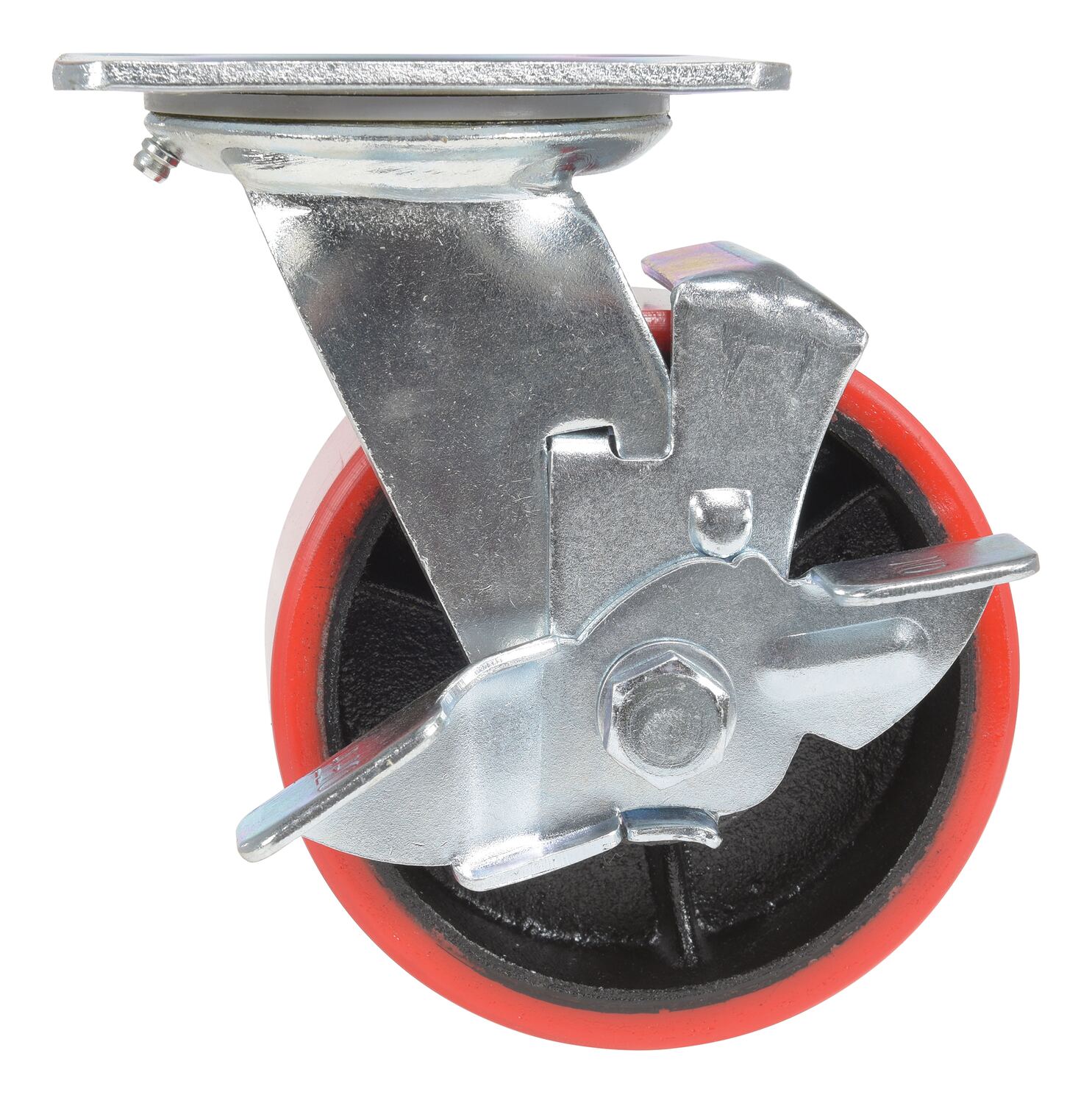

CST-VE-5X2PU-SWB
CST-VE-5X2PU-S
CST-VE-4X2PU-R
CST-VE-4X2PU-SWB
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |

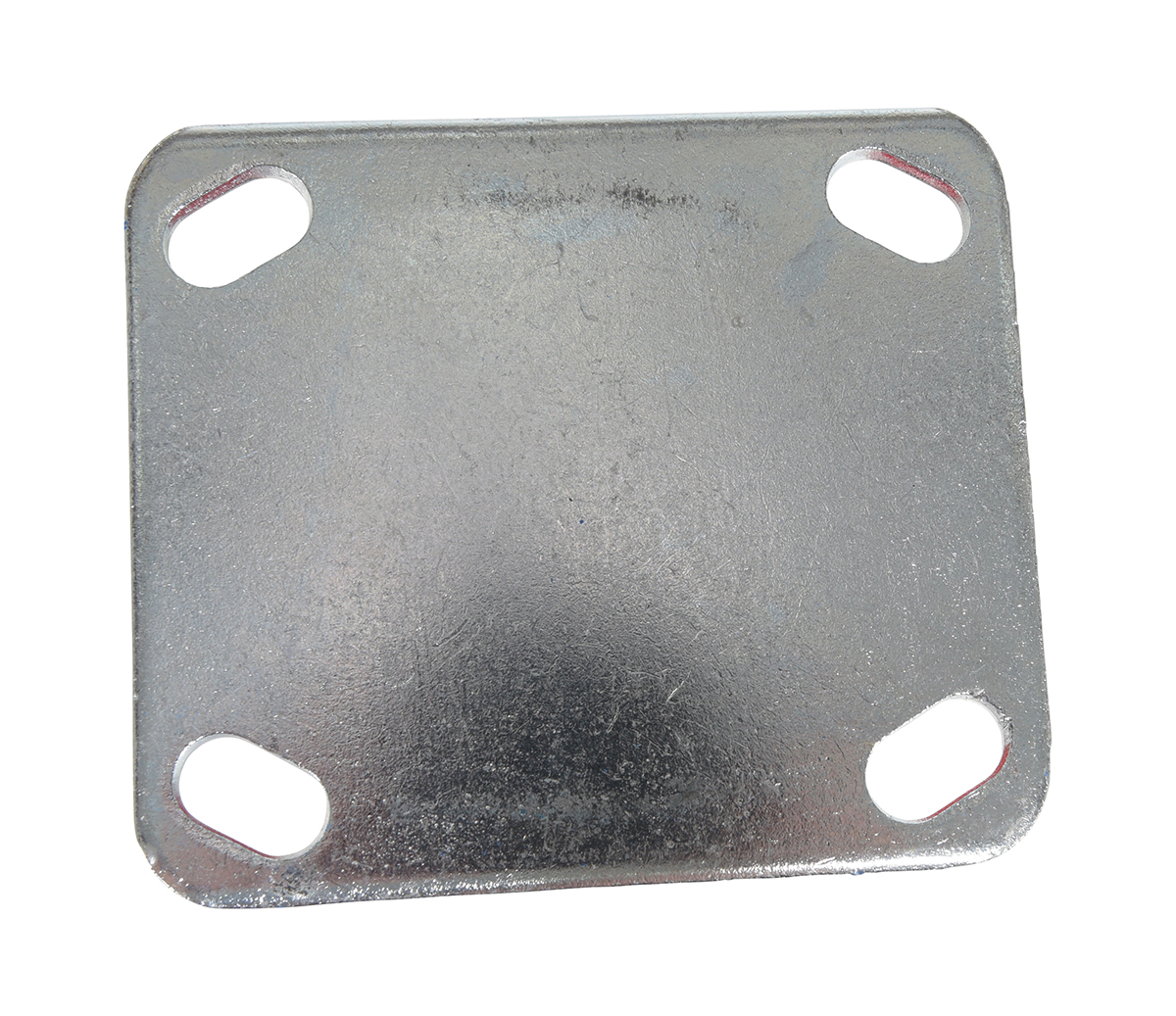

Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

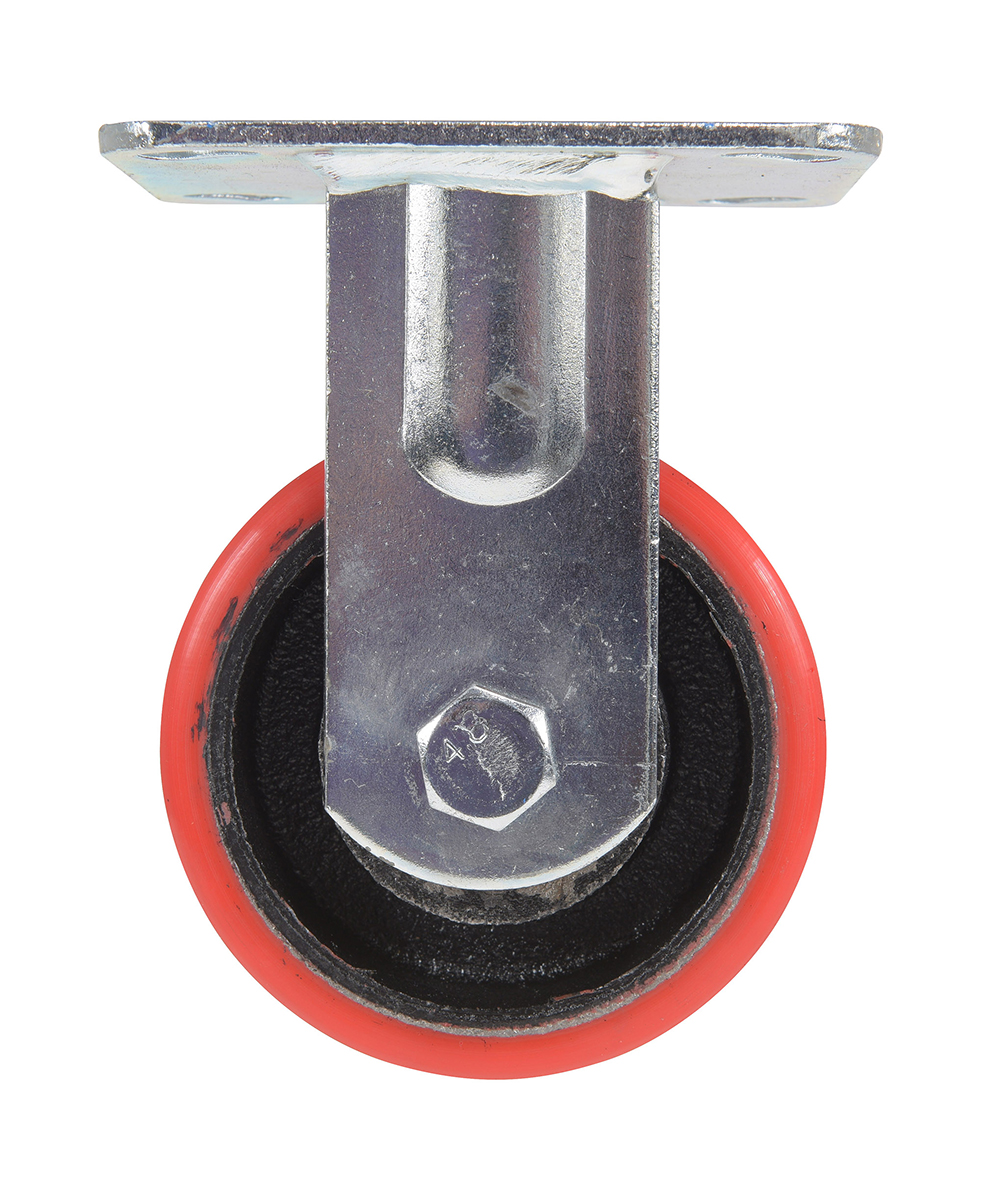

| CST-VE-4X2PU-R |  | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 792 | 5-1/2 | 4 x 4-1/2 | 5 |

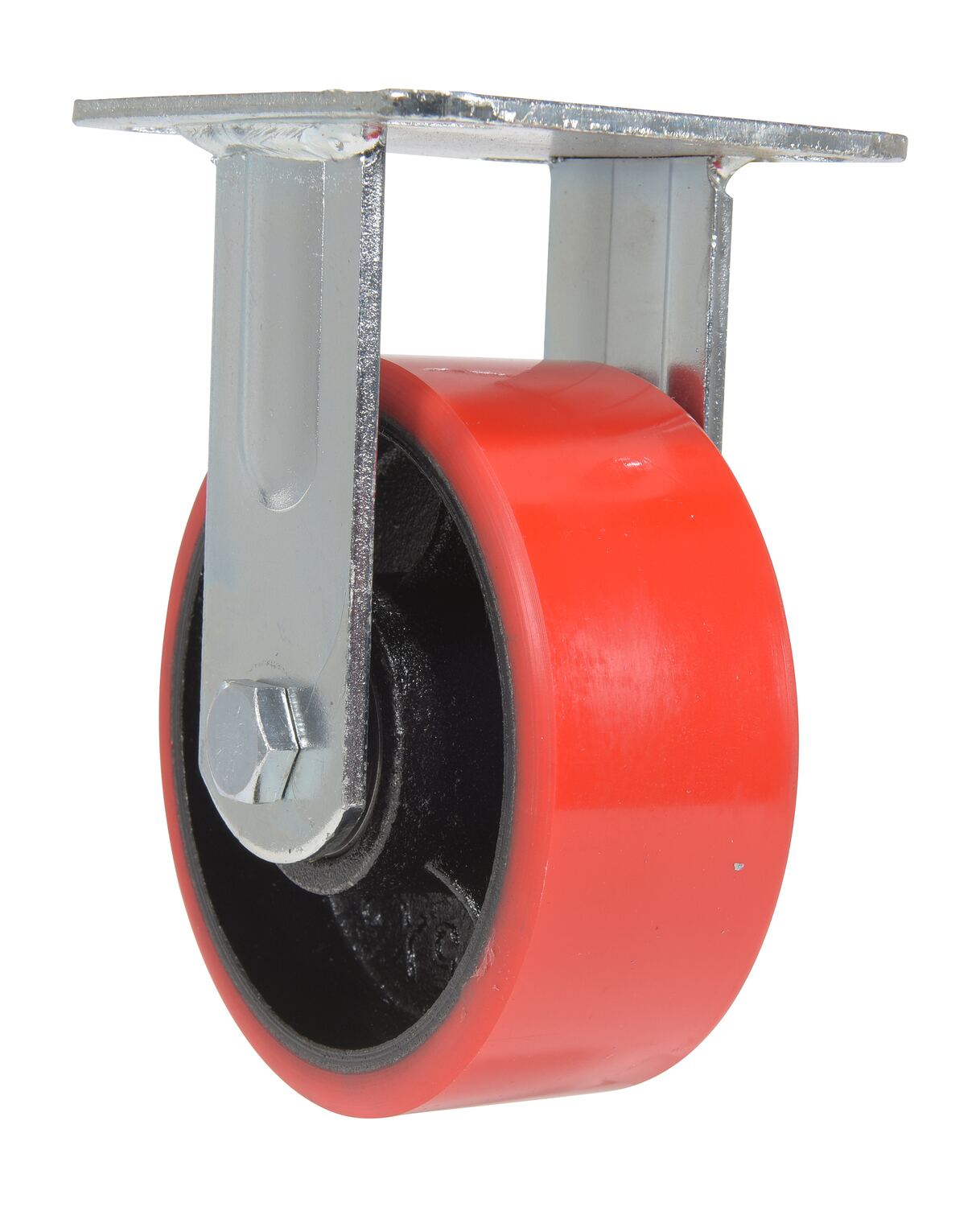

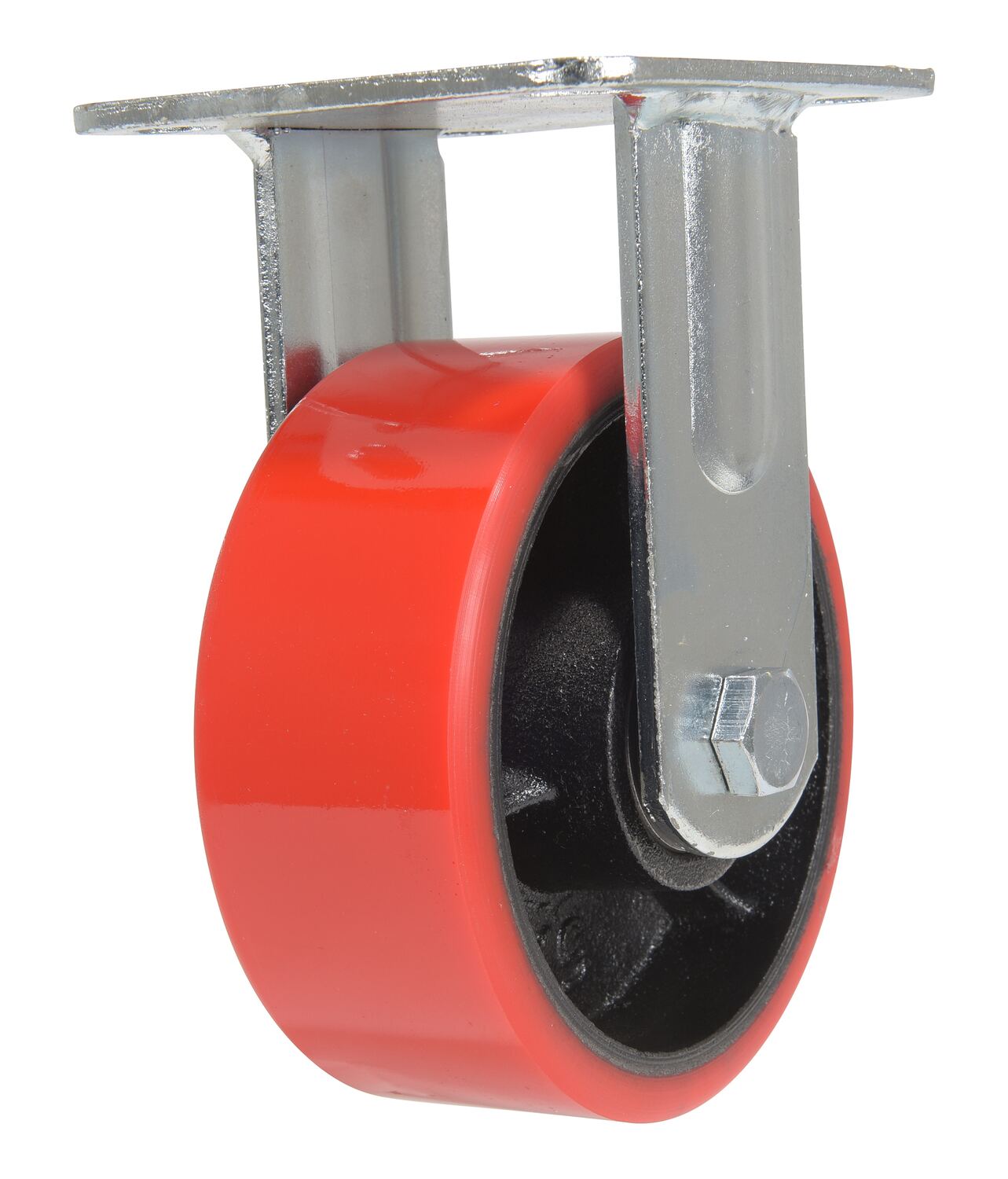

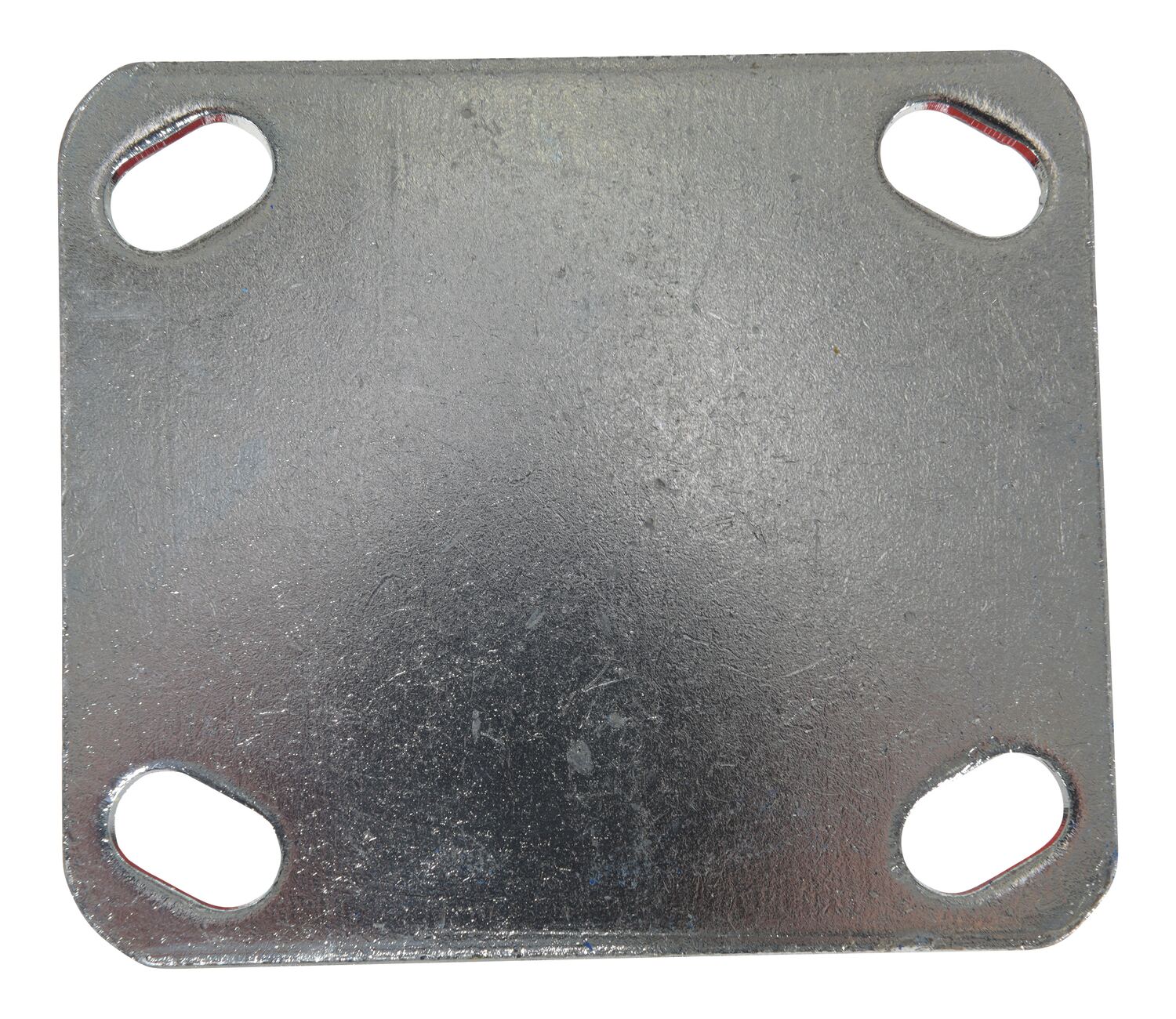

| CST-VE-5X2PU-R | | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 990 | 6-1/2 | 4 x 4-1/2 | 6 |

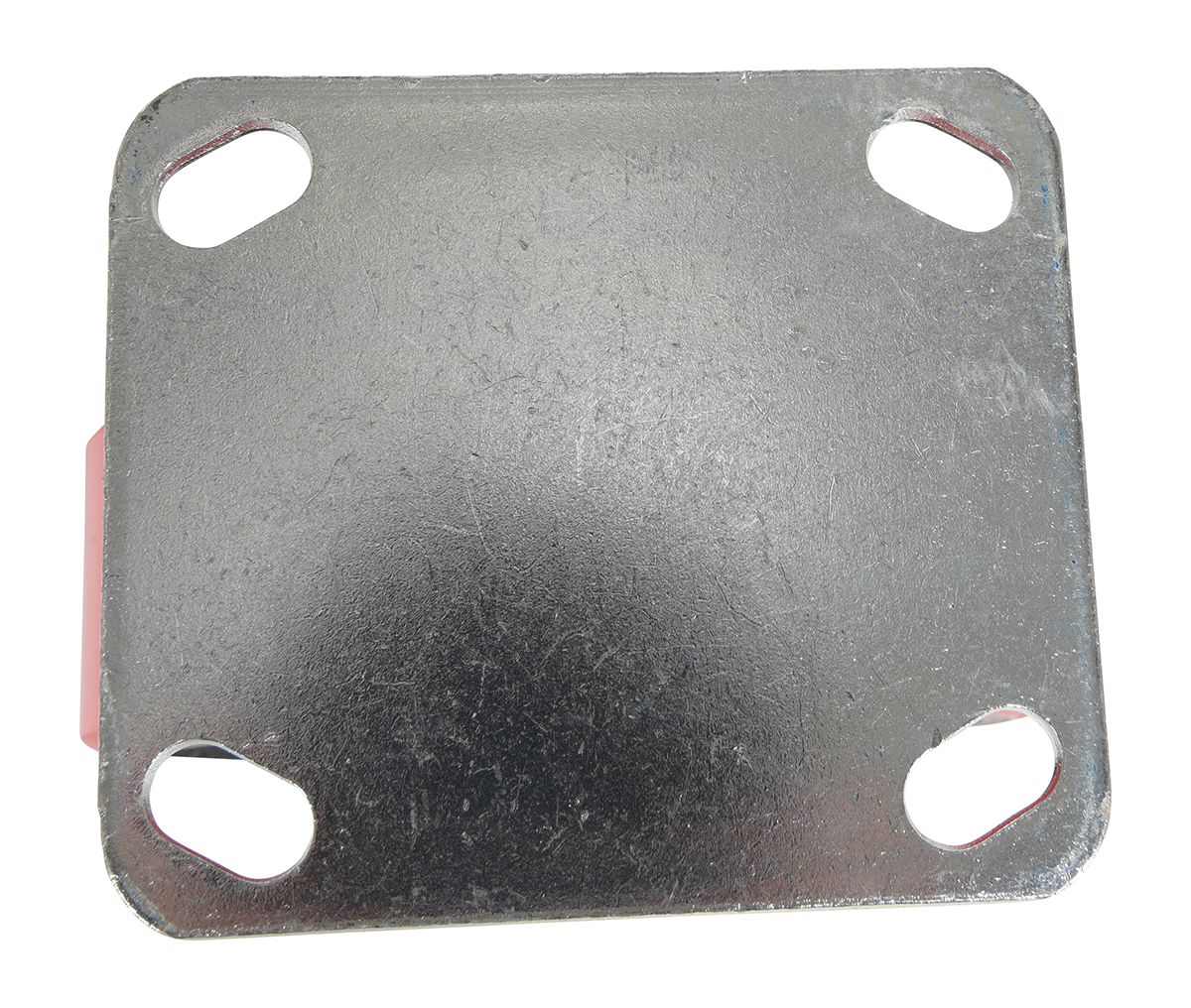

| CST-VE-6X2PU-R |  | 1 YEAR Limited Warranty | 6 x 2 | RIGID | 1232 | 7-1/2 | 4 x 4-1/2 | 7 |

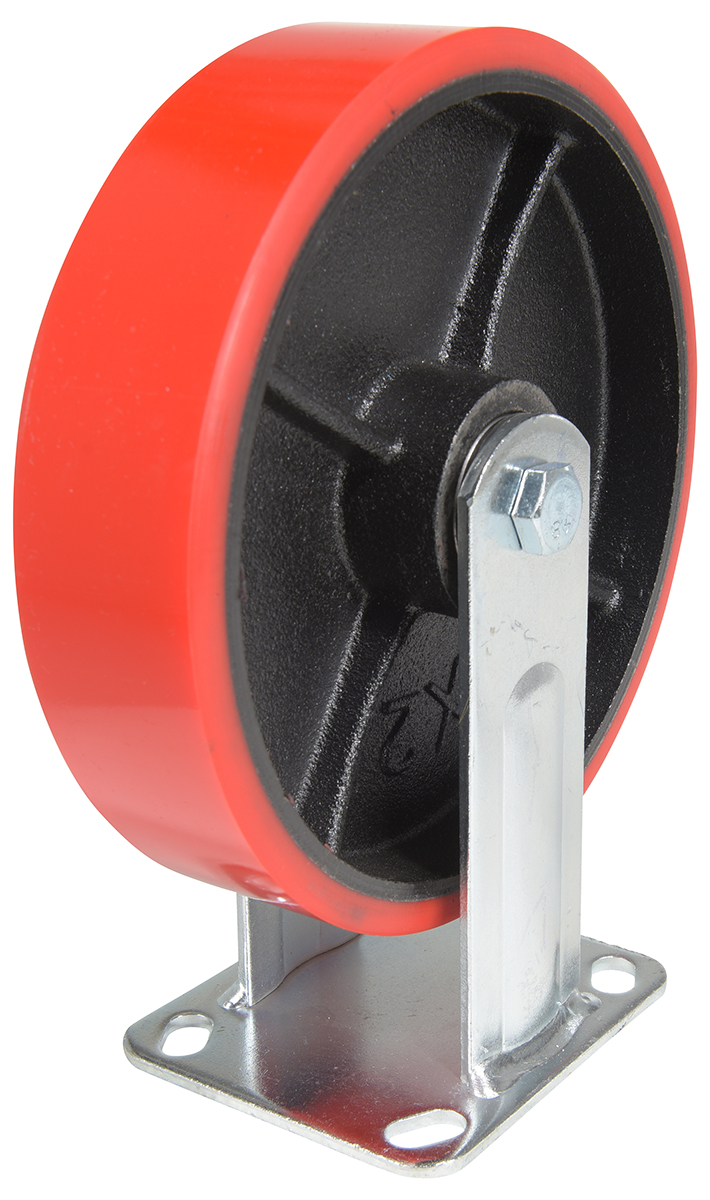

| CST-VE-8X2PU-R |  | 1 YEAR Limited Warranty | 8 x 2 | RIGID | 1474 | 9-1/2 | 4 x 4-1/2 | 9 |

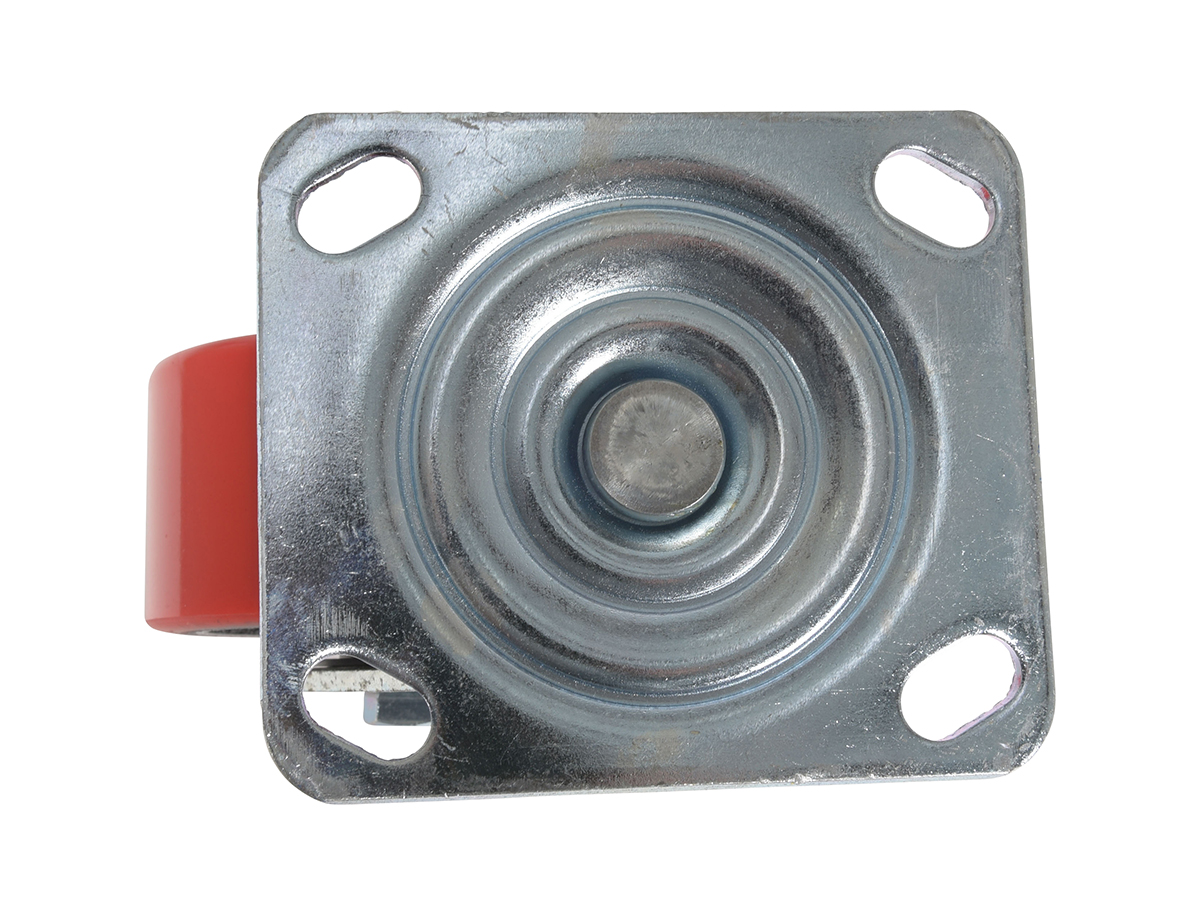

| CST-VE-4X2PU-S |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 792 | 5-1/2 | 4 x 4-1/2 | 6 |

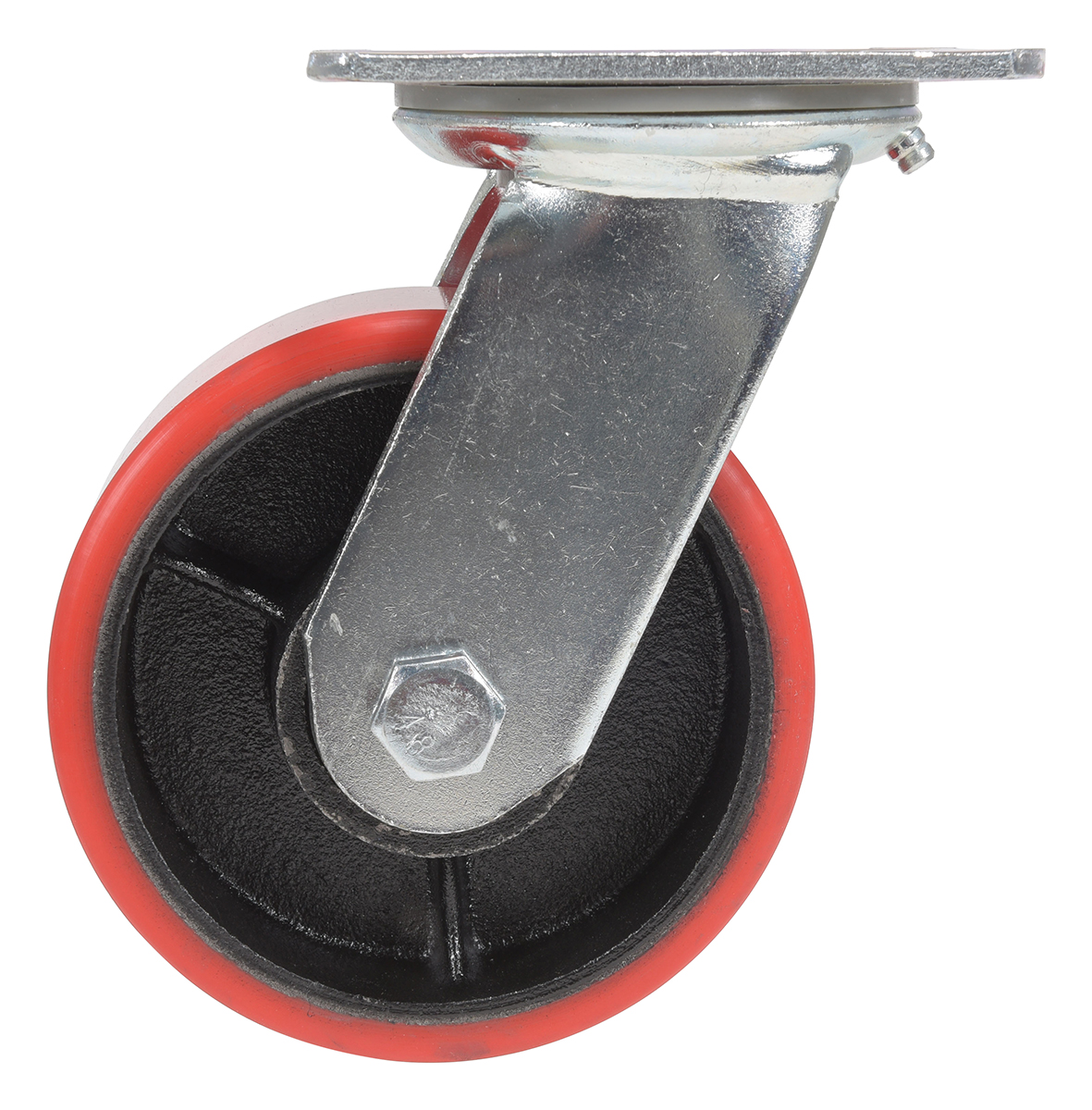

| CST-VE-5X2PU-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 990 | 6-1/2 | 4 x 4-1/2 | 7 |

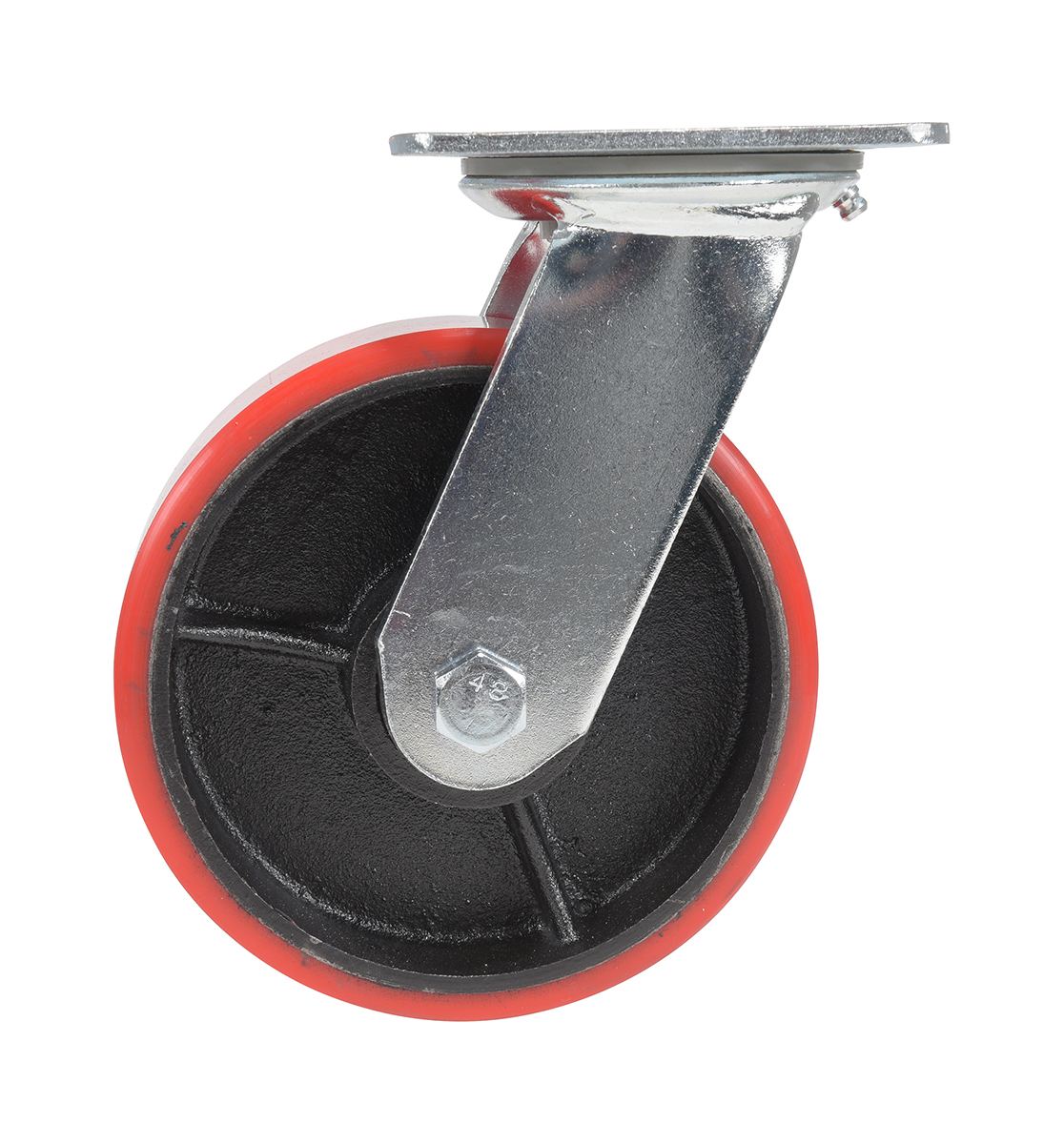

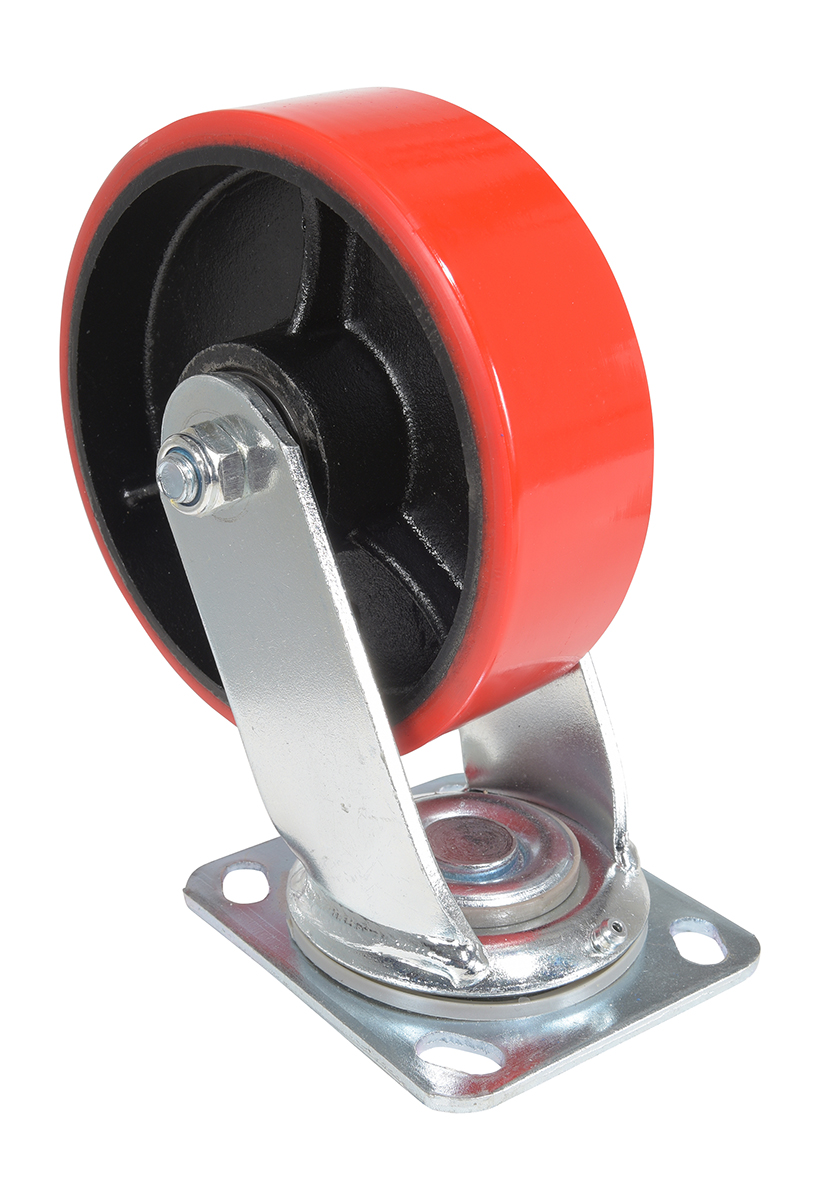

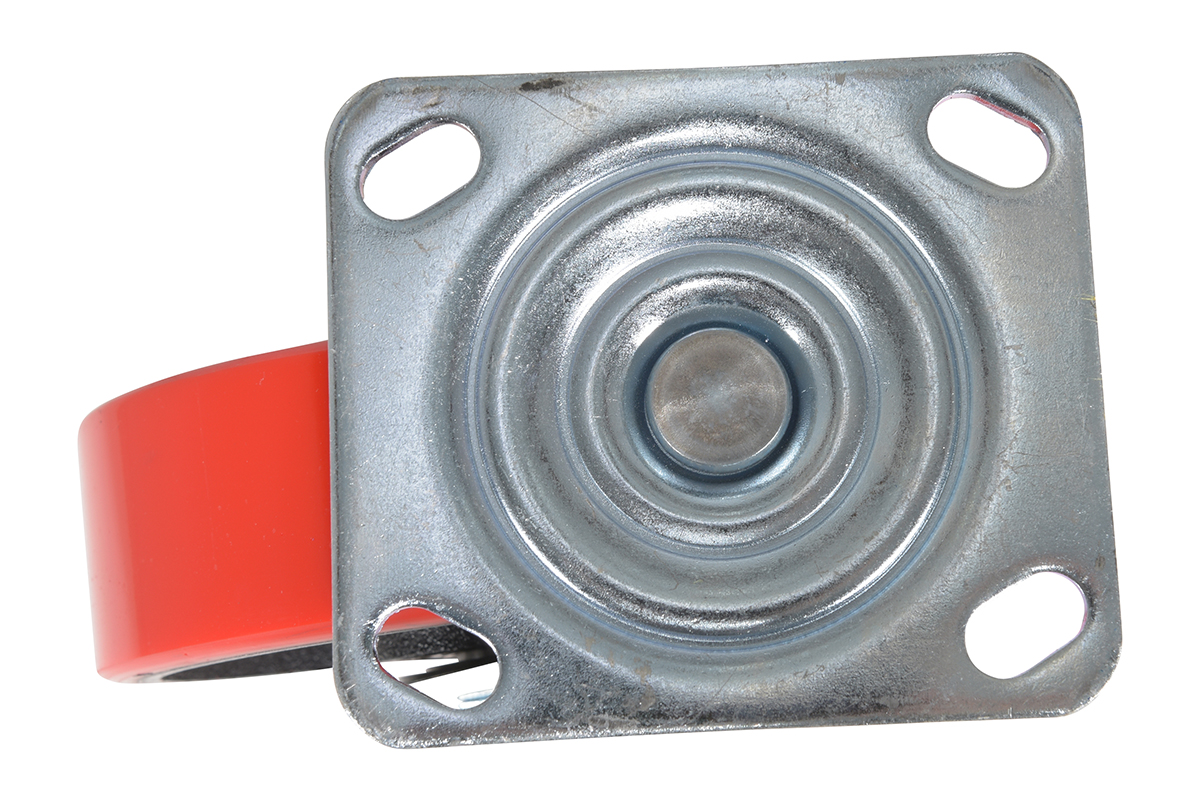

| CST-VE-6X2PU-S |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL | 1232 | 7-1/2 | 4 x 4-1/2 | 8 |

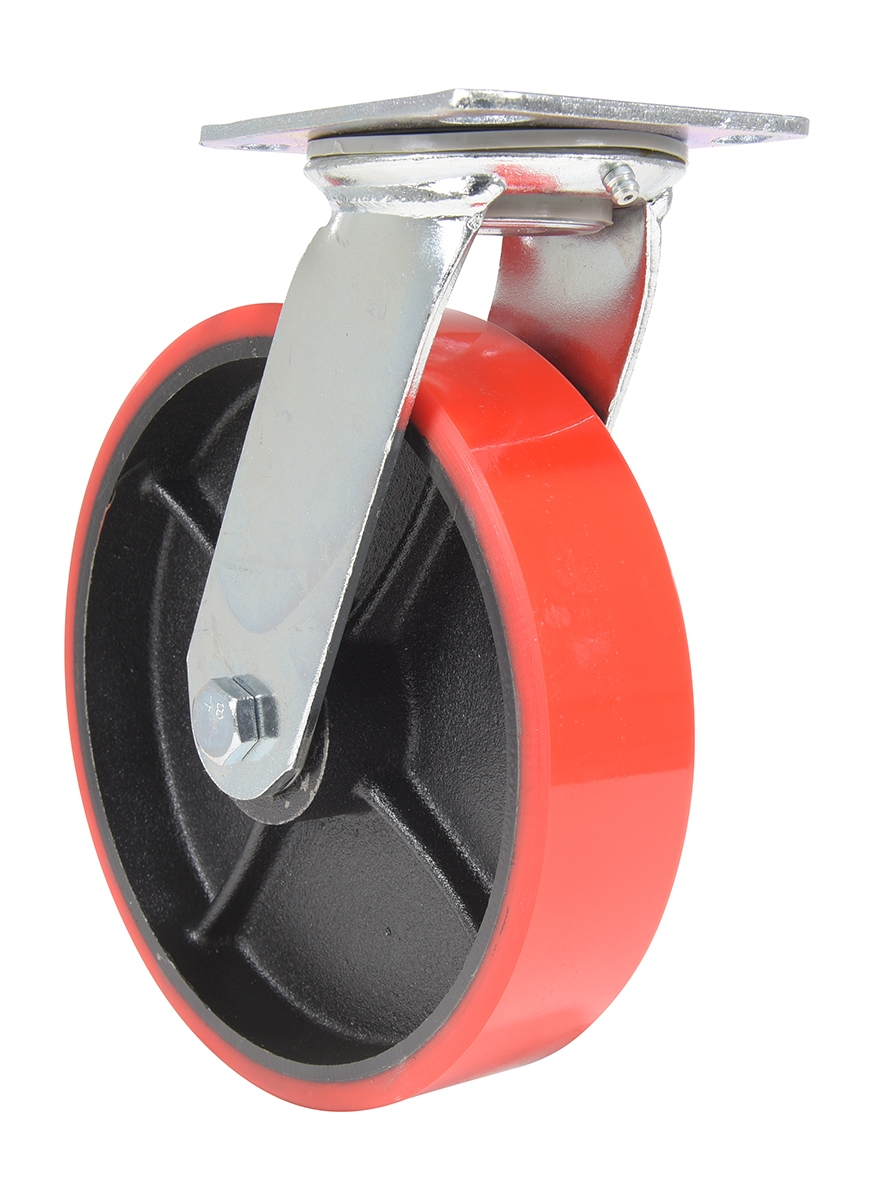

| CST-VE-8X2PU-S |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 1474 | 9-1/2 | 4 x 4-1/2 | 10 |

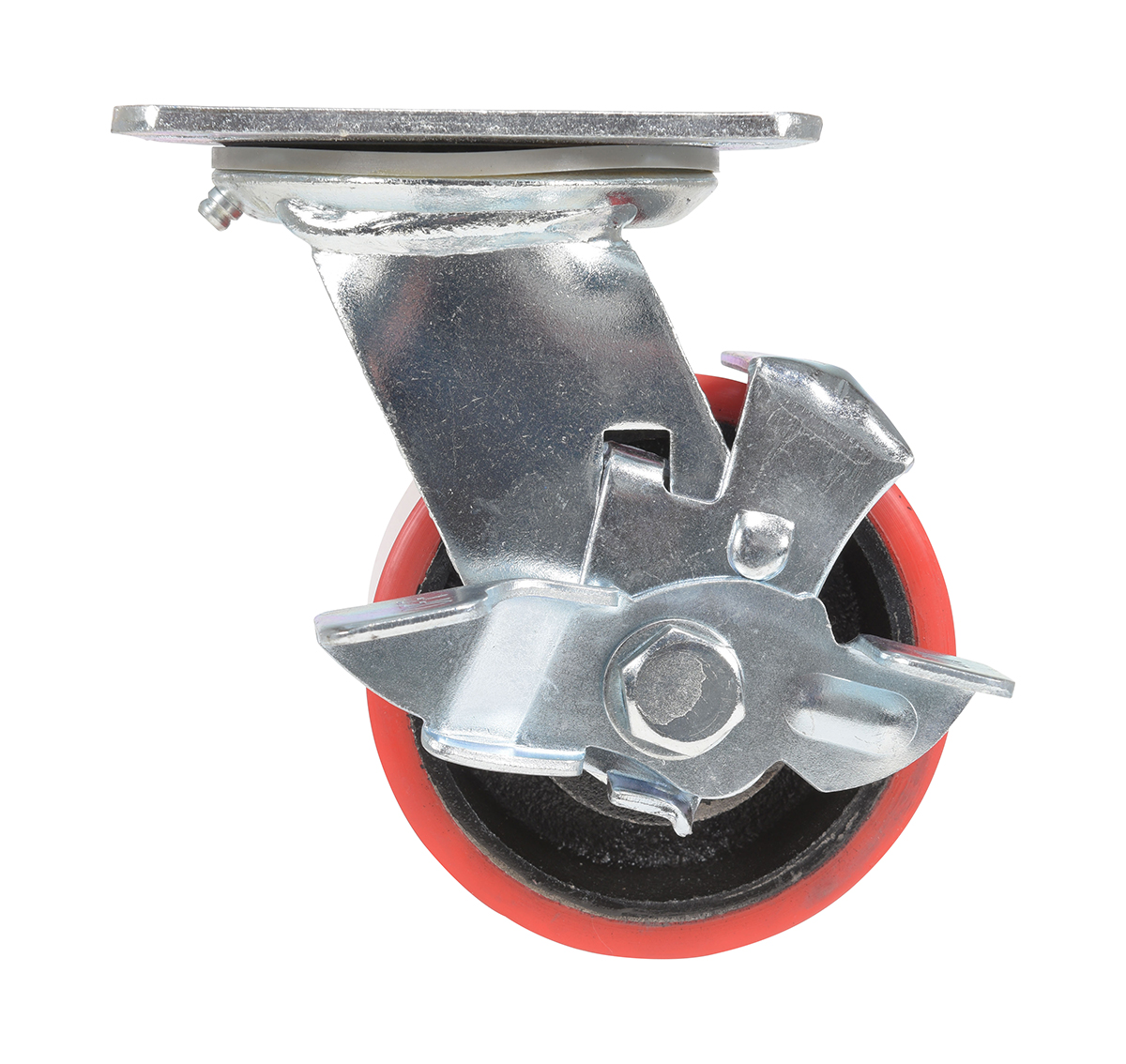

| CST-VE-4X2PU-SWB | | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 792 | 5-1/2 | 4 x 4-1/2 | 7 |
| CST-VE-5X2PU-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 990 | 6-1/2 | 4 x 4-1/2 | 7 |

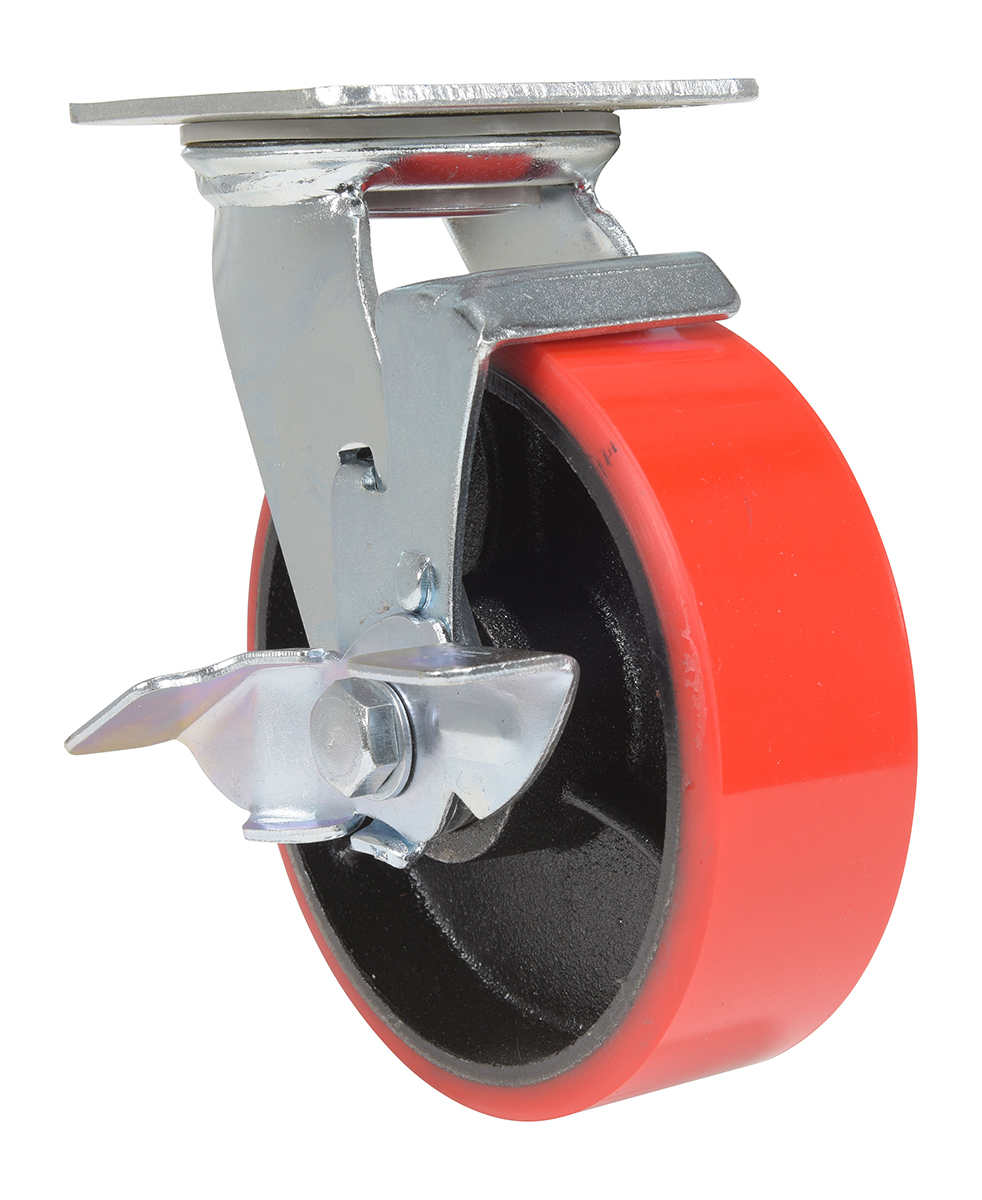

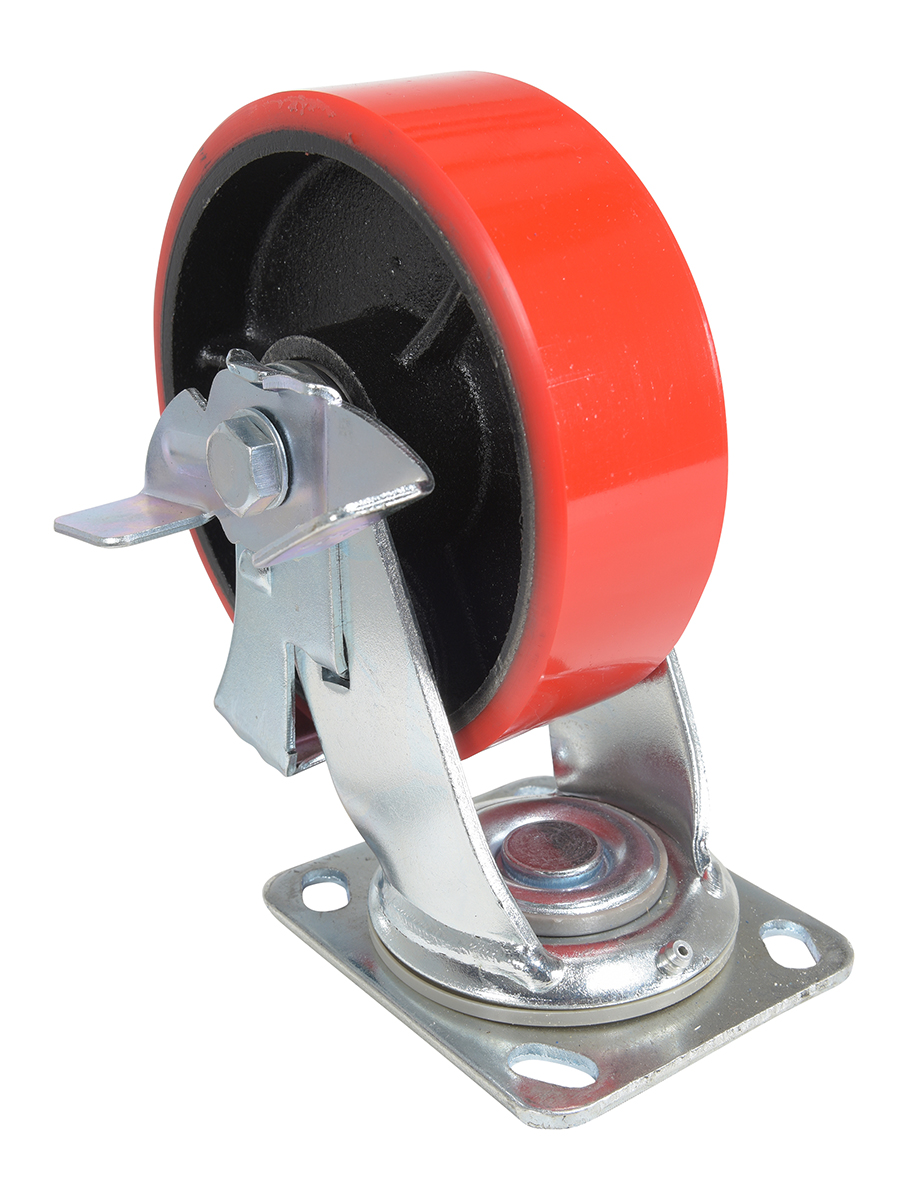

| CST-VE-6X2PU-SWB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 1232 | 7-1/2 | 4 x 4-1/2 | 8 |

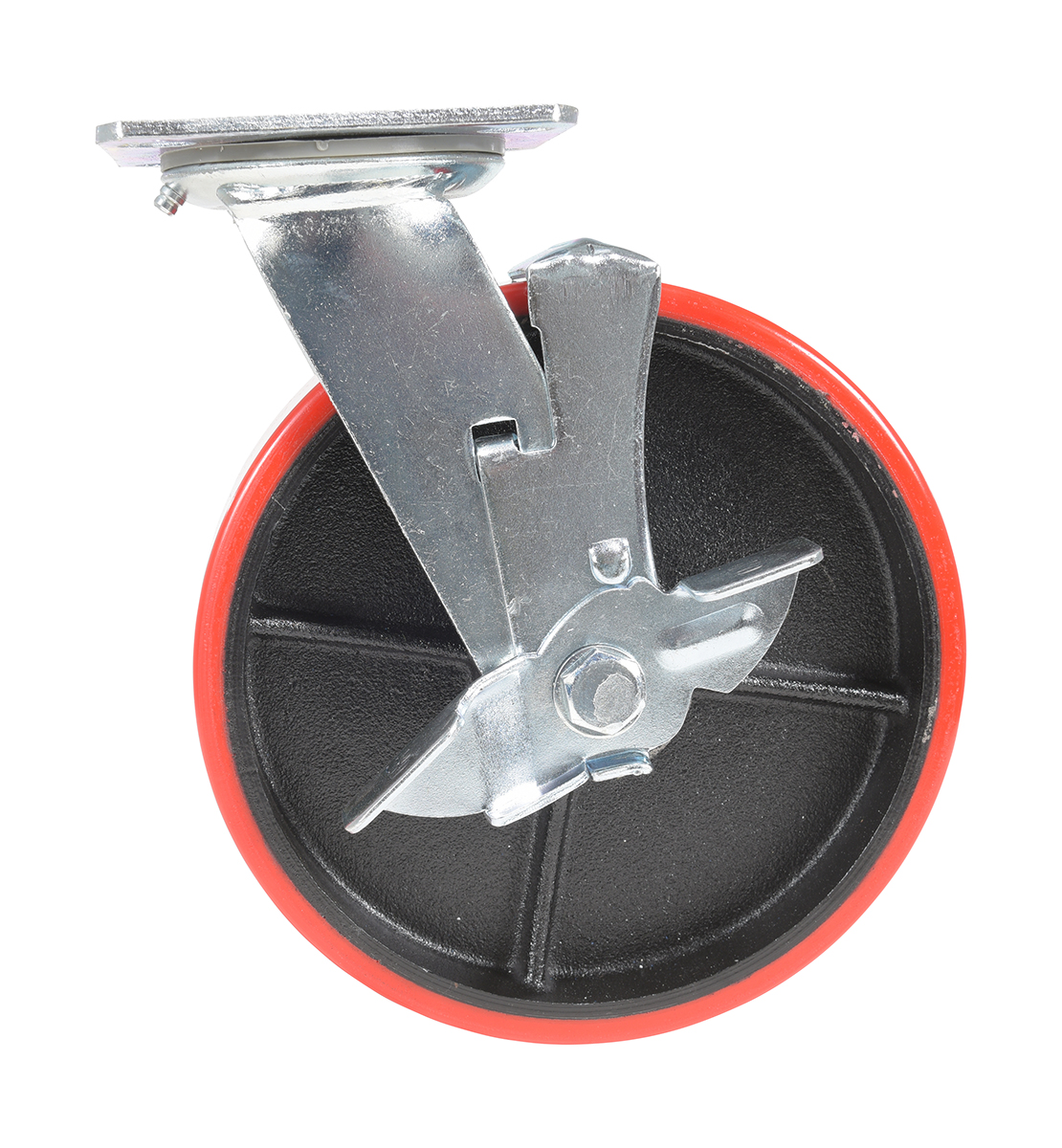

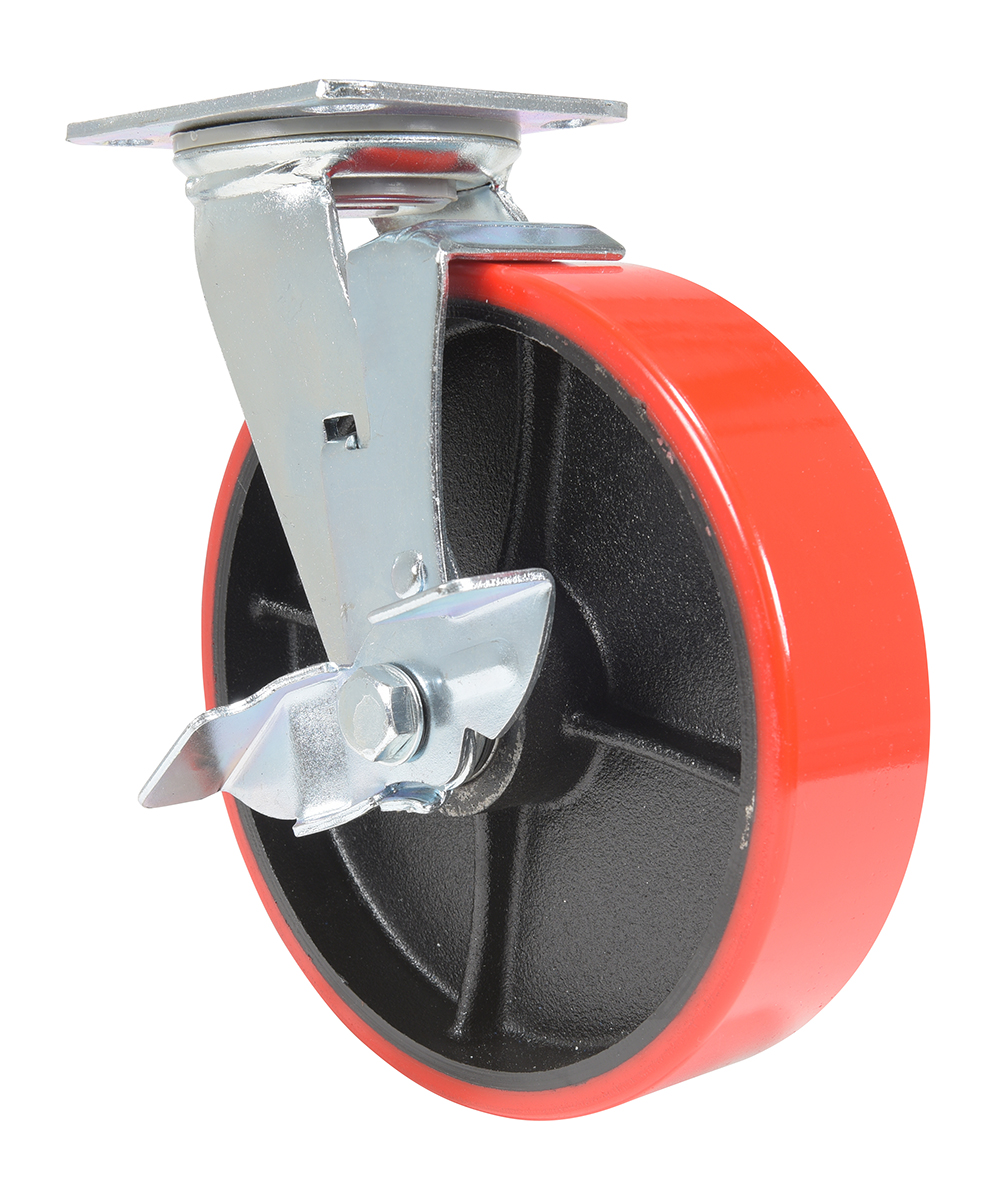

| CST-VE-8X2PU-SWB | | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 1474 | 9-1/2 | 4 x 4-1/2 | 10 |

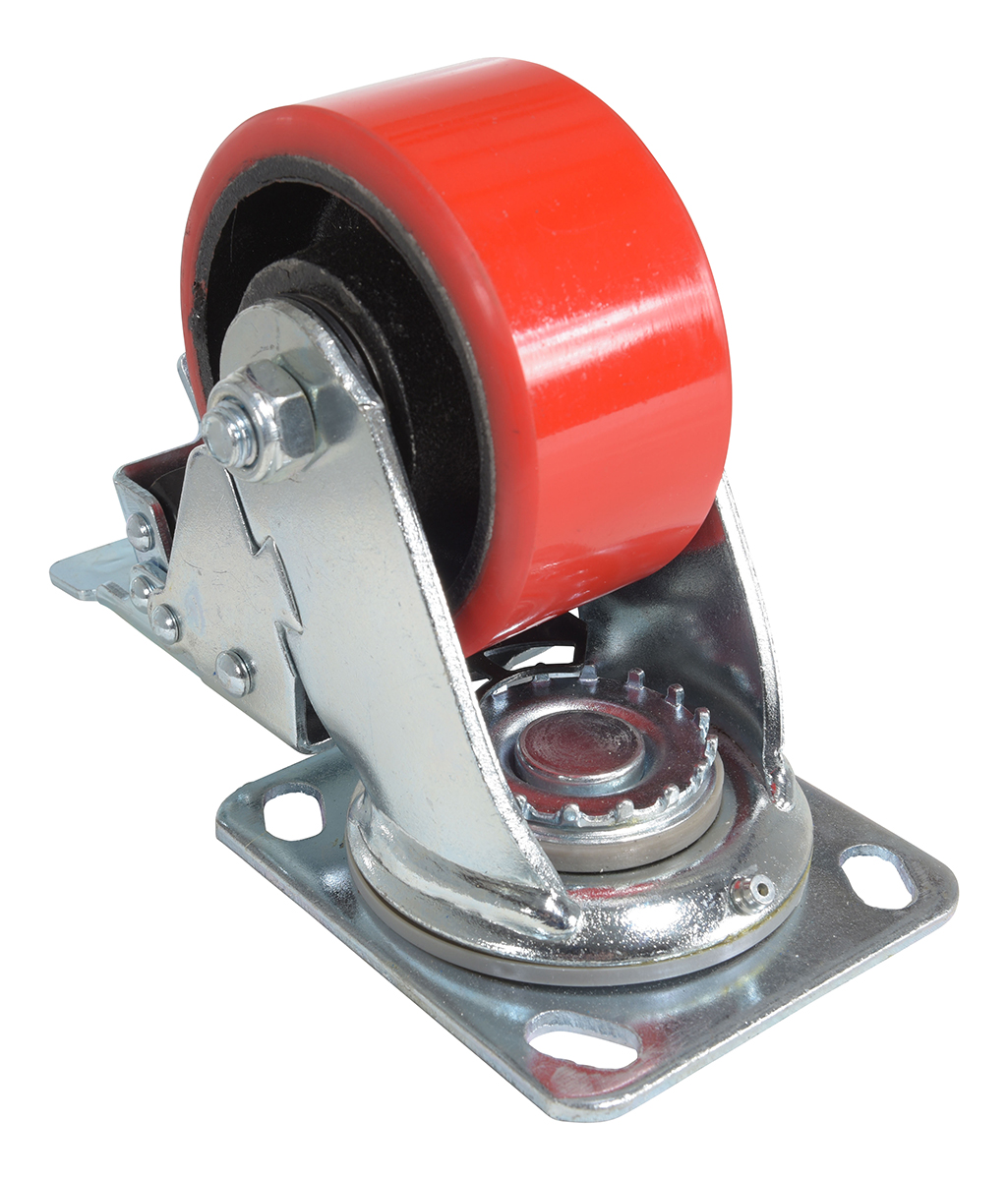

| CST-VE-4X2PU-SWTB | | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/TOTAL BRAKE | 792 | 5-1/2 | 4 x 4-1/2 | 7 |

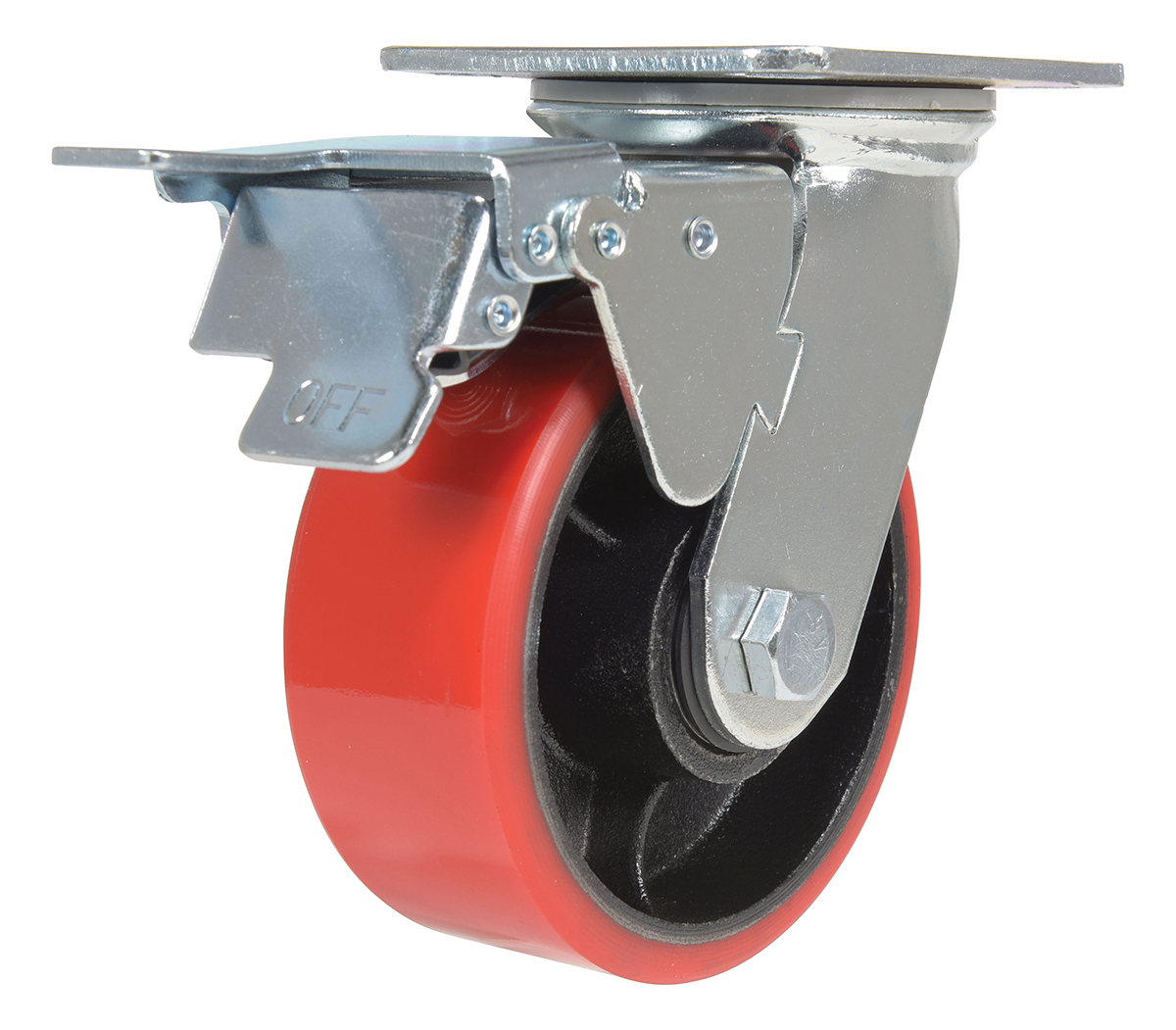

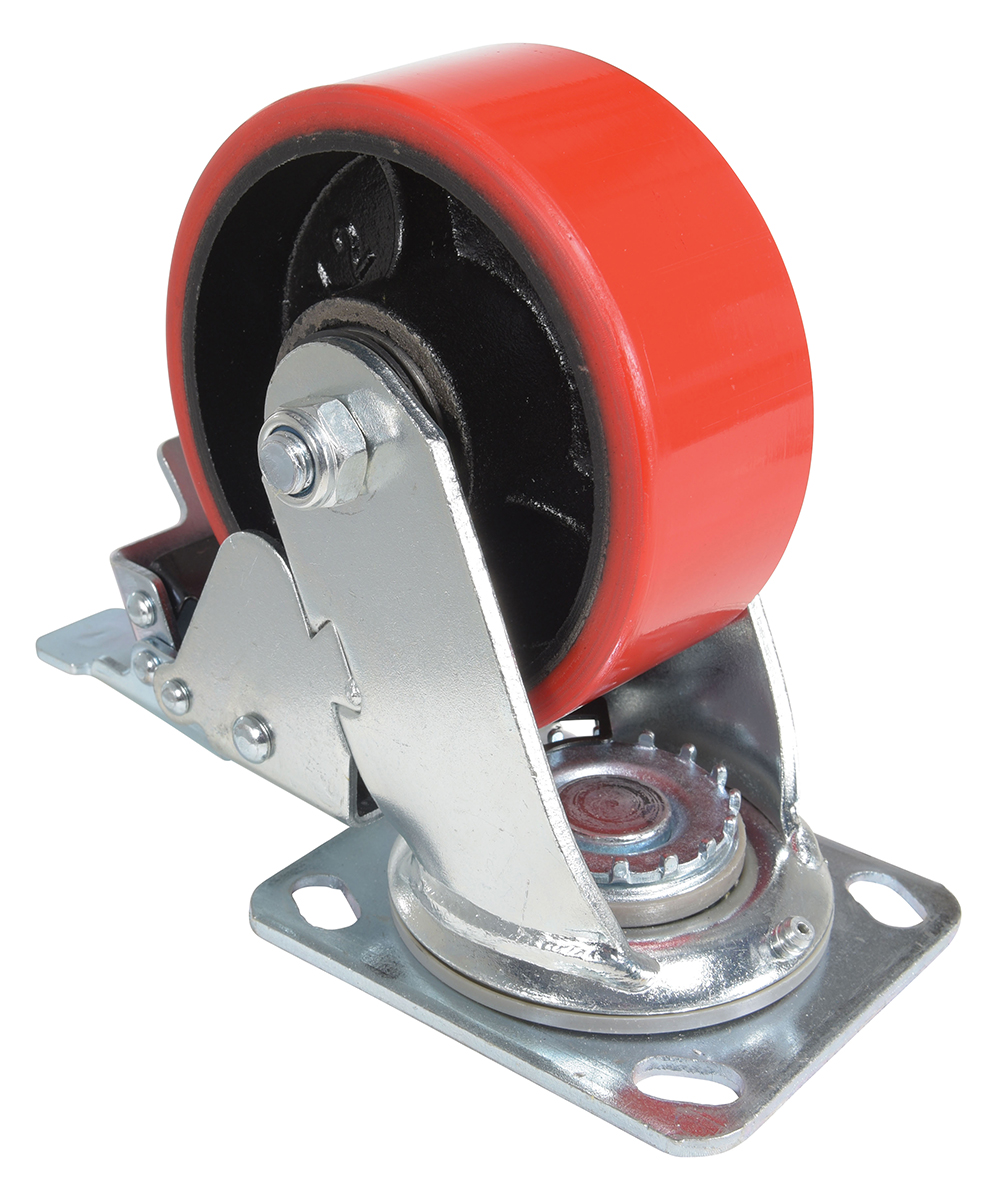

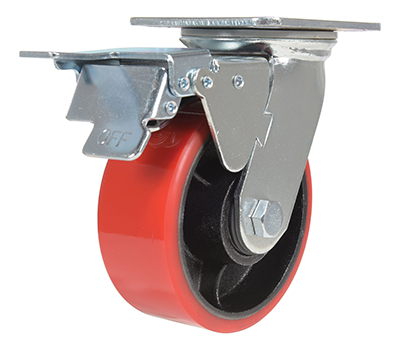

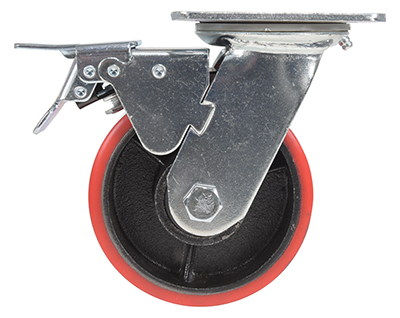

| CST-VE-5X2PU-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 990 | 6-1/2 | 4 x 4-1/2 | 8 |
| CST-VE-6X2PU-SWTB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/TOTAL BRAKE | 1232 | 7-1/2 | 4 x 4-1/2 | 9 |
| CST-VE-8X2PU-SWTB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 1474 | 9-1/2 | 4 x 4-1/2 | 11 |
