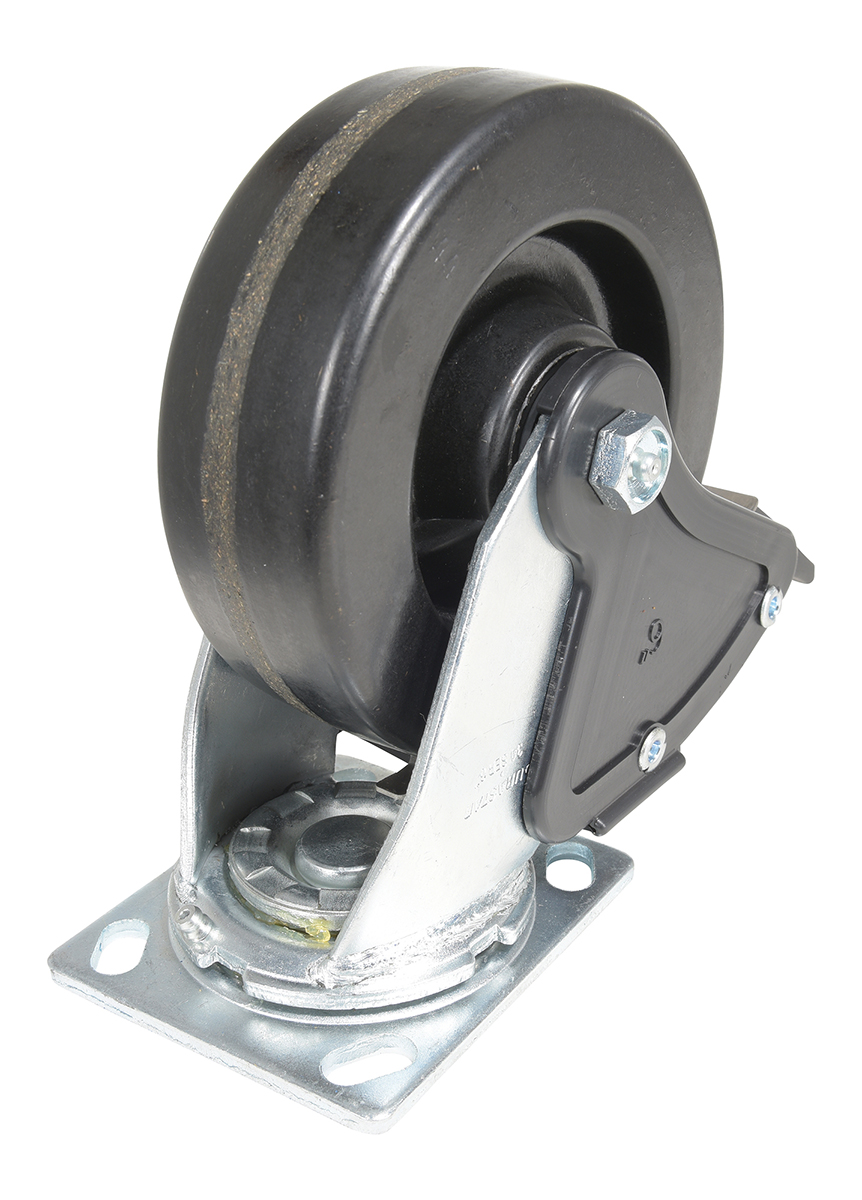

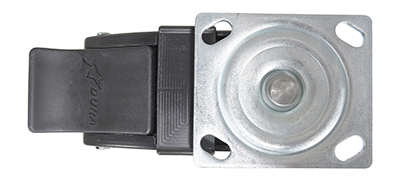

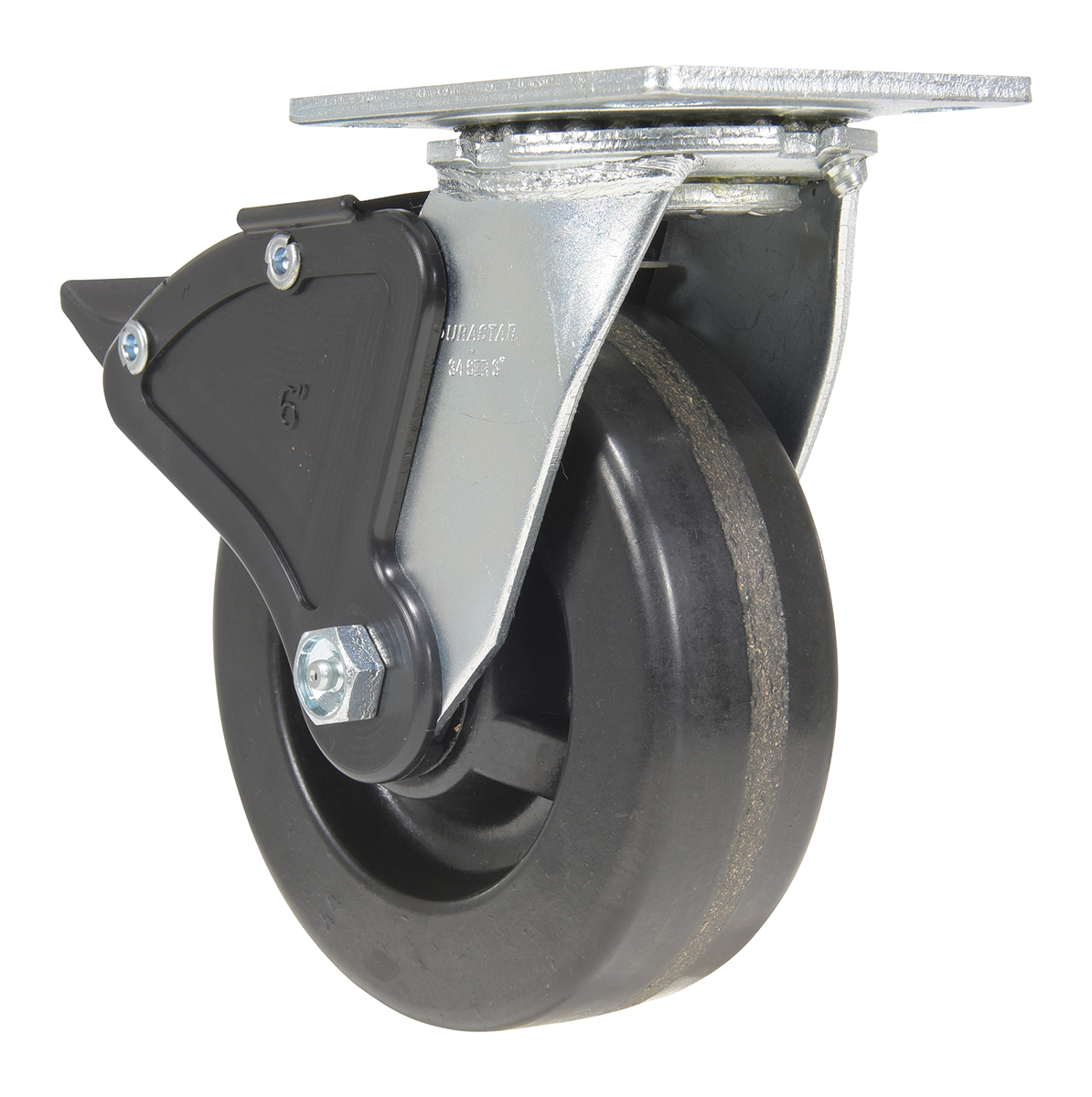

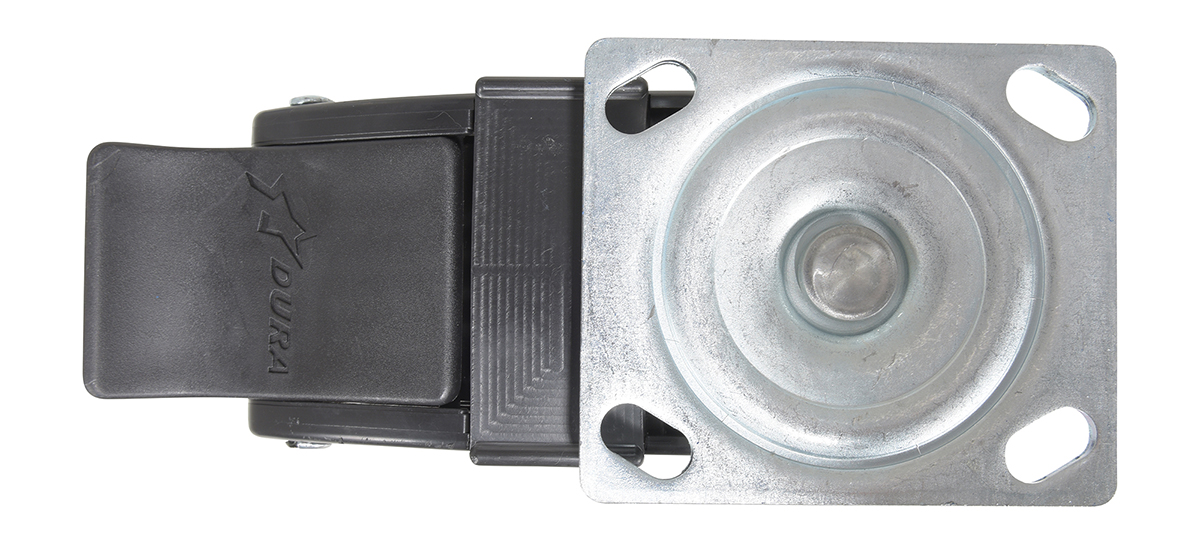

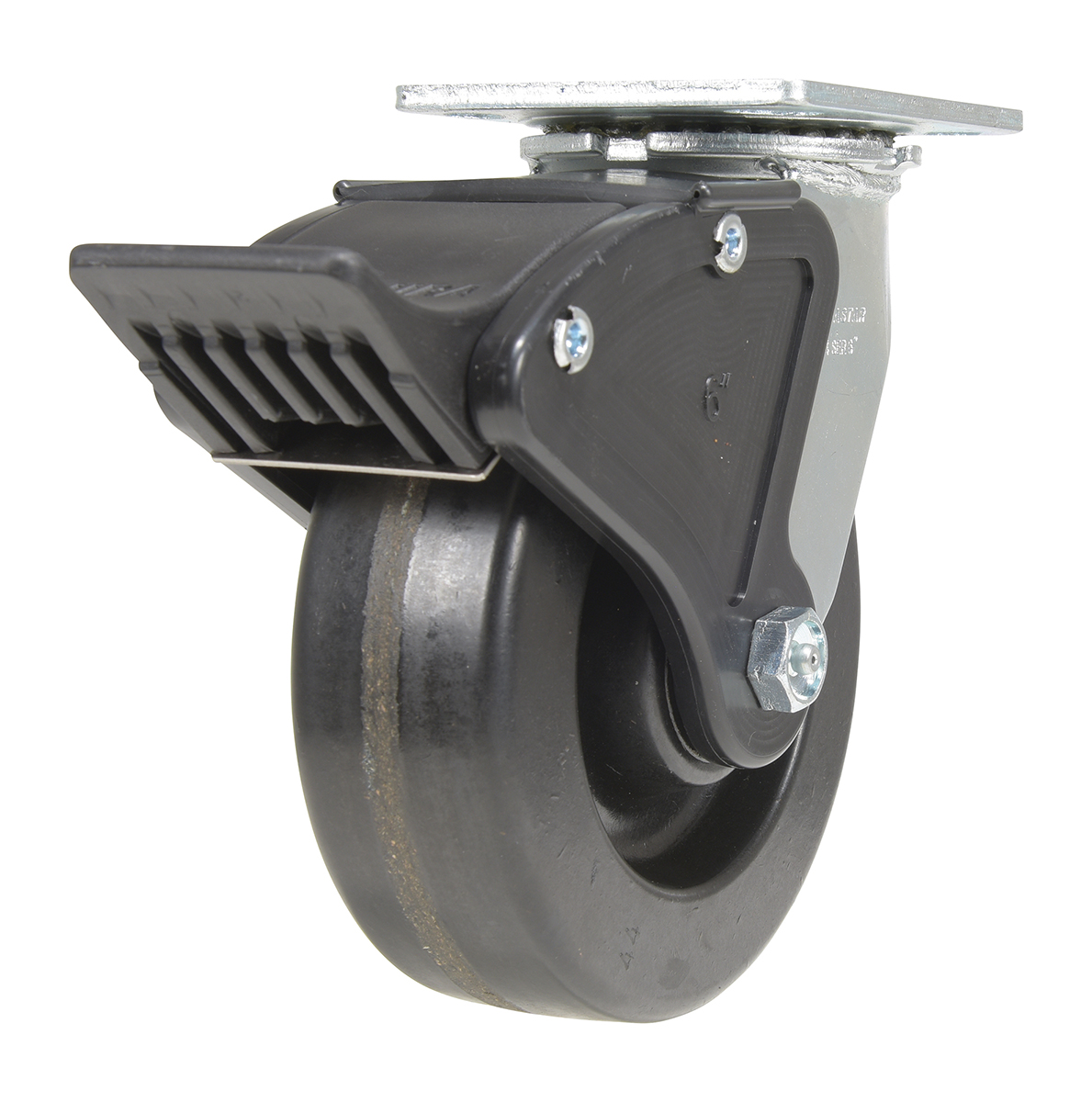

model: CST-VE-6X2PH-SWTB

Phenolic Casters

model: CST-VE-6X2PH-SWTB

Featured Casters & Wheels

Wheels

Ductile Steel V-Groove Casters

Rubber Casters

Phenolic Wheel

Stainless Steel Thermoplastic Rubber-Elastomer Casters

Mold On Rubber (On Aluminum) Casters

Flat-Free (Rubber)

Premium Heavy Duty Polyurethane

Glass Filled Nylon (RX)

model chart

Print Friendly

Phenolic Casters

SERIES: CST-VE-PH

Phenolic wheels have a high resistance to impact damage, while providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark resistant and operates in a wide temperature range. Black tread color. Wheel core is phenolic. 100 Shore A.

RESISTANT TO MOST CHEMICALS
EASY ROLL PERFORMANCE
ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
HARDENED DOUBLE BALL RACEWAY
GREASE ZERK FITTINGS
ROLLER BEARINGS

Phenolic wheels have a high resistance to impact damage, while providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark resistant and operates in a wide temperature range. Black tread color. Wheel core is phenolic. 100 Shore A.

RESISTANT TO MOST CHEMICALS
EASY ROLL PERFORMANCE
ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
HARDENED DOUBLE BALL RACEWAY
GREASE ZERK FITTINGS
ROLLER BEARINGS

Other "Go-To" Casters

Cast Iron/ Semi-Steel Casters

Glass Filled Nylon Casters

Polyurethane Casters

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

CST-VE-6X2PH-SWTB

CST-BL-4X2PH-R

CST-VE-8X3PH-4PSL

CST-BL-5X2PH-R

CST-VE-6X2PH-S

CST-VE-6X2PH-SWTB

CST-VE-4X2PH-SWTB

CST-VE-6X2PH-SWB

CST-VE-8X3PH-R

CST-VE-8X3PH-S

CST-VE-6X2PH-R

CST-VE-8X2PH-SWTB

CST-VE-6X2PH-SWB

CST-VE-6X2PH-SWTB

CST-VE-8X3PH-S

model chart

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)

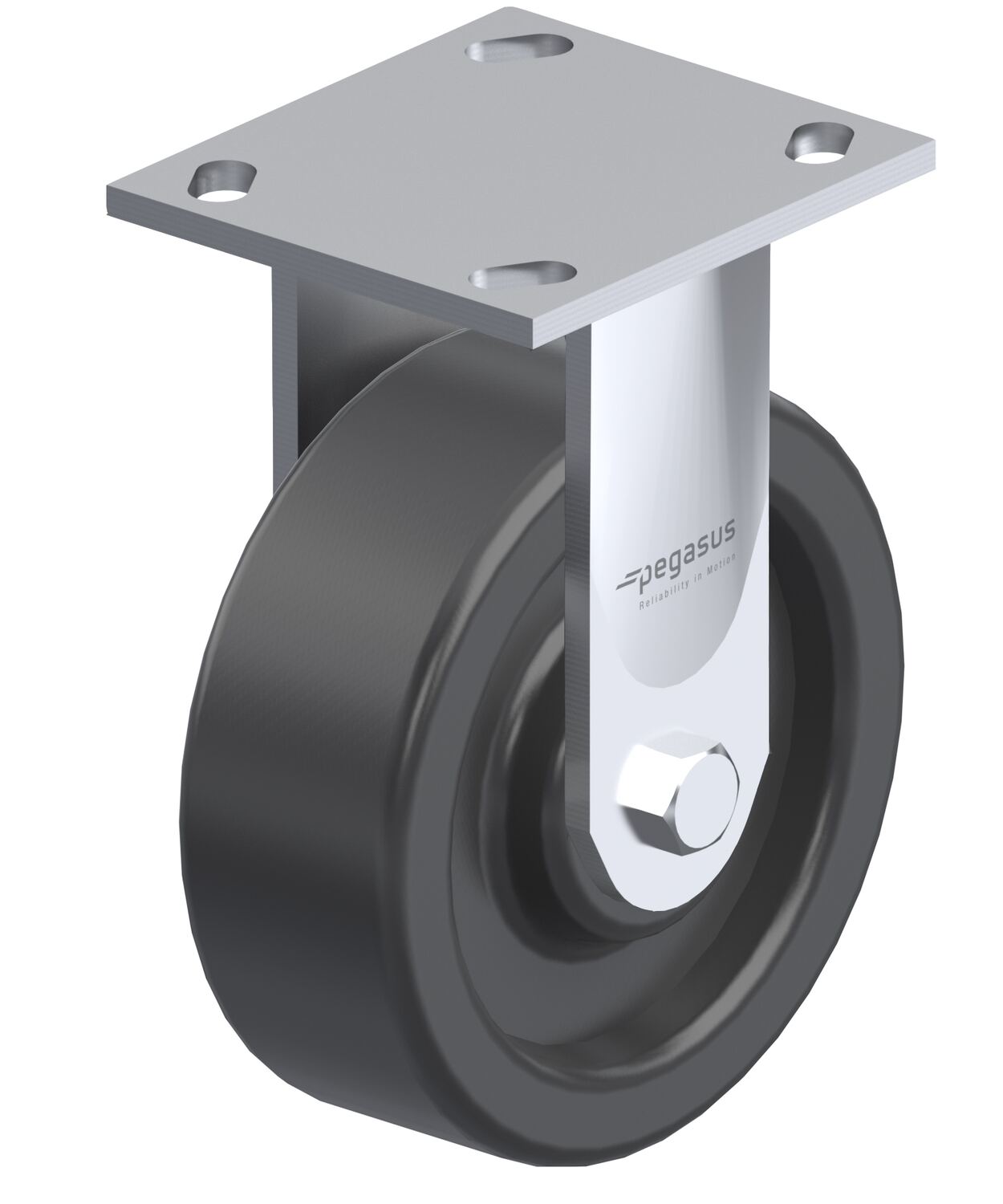

CST-BL-4X2PH-R	1YEAR Limited Warranty	4x2	Rigid	800	5-5/8	4-1/2 x 4	5
CST-BL-5X2PH-R	1YEAR Limited Warranty	5x2	Rigid	1000	6-1/2	4-1/2 x 4	6
CST-BL-6X2PH-R	1YEAR Limited Warranty	6x2	Rigid	1200	7-1/2	4-1/2 x 4	7

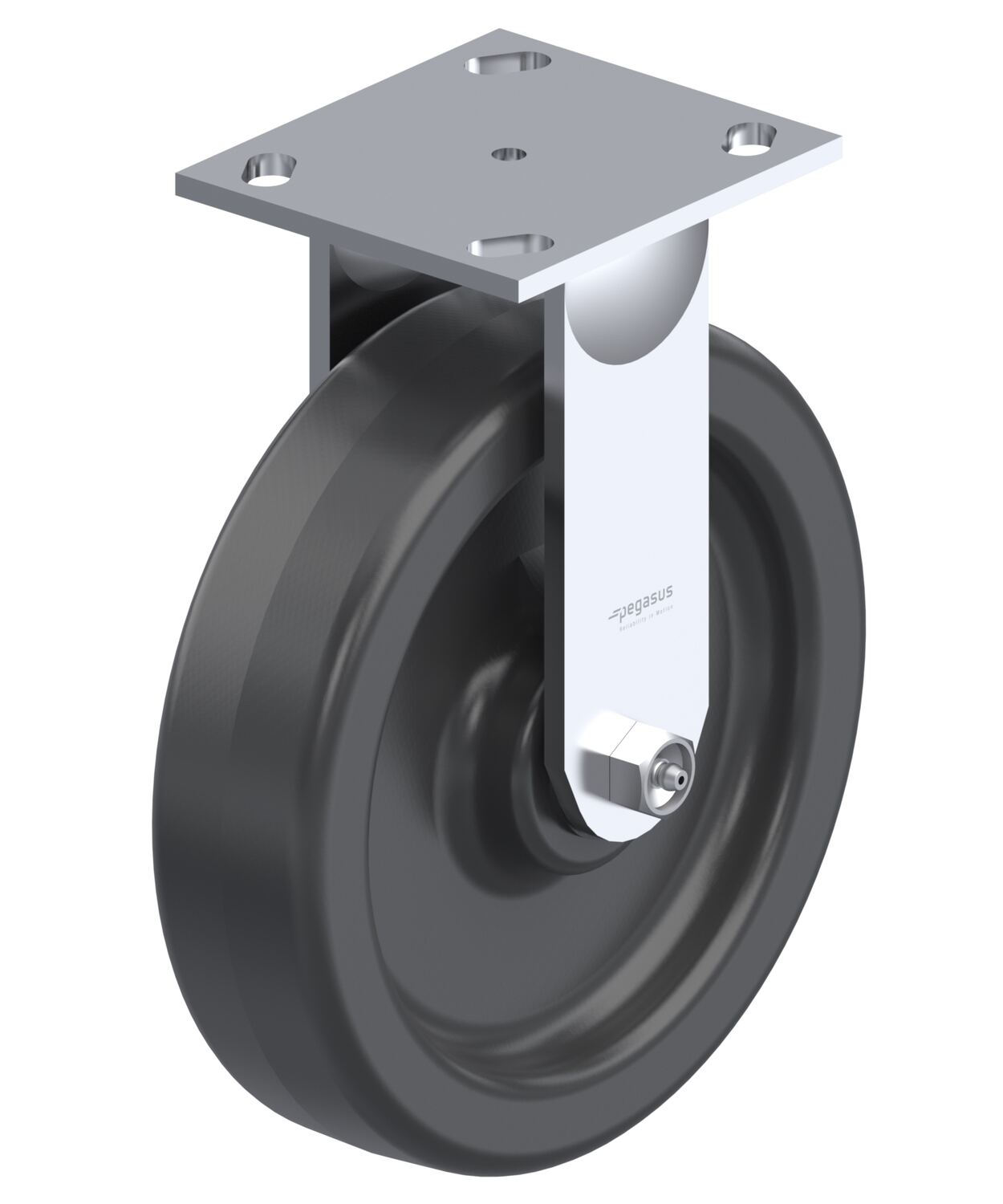

CST-BL-8X2PH-R	1YEAR Limited Warranty	8x2	Rigid	1250	9-1/2	4-1/2 x 4	8
CST-VE-4X2PH-R	1 YEAR Limited Warranty	4 x 2	RIGID	800	5-1/2	4 x 4-1/2	5
CST-VE-5X2PH-R	1 YEAR Limited Warranty	5 x 2	RIGID	1000	6-1/2	4 x 4-1/2	5

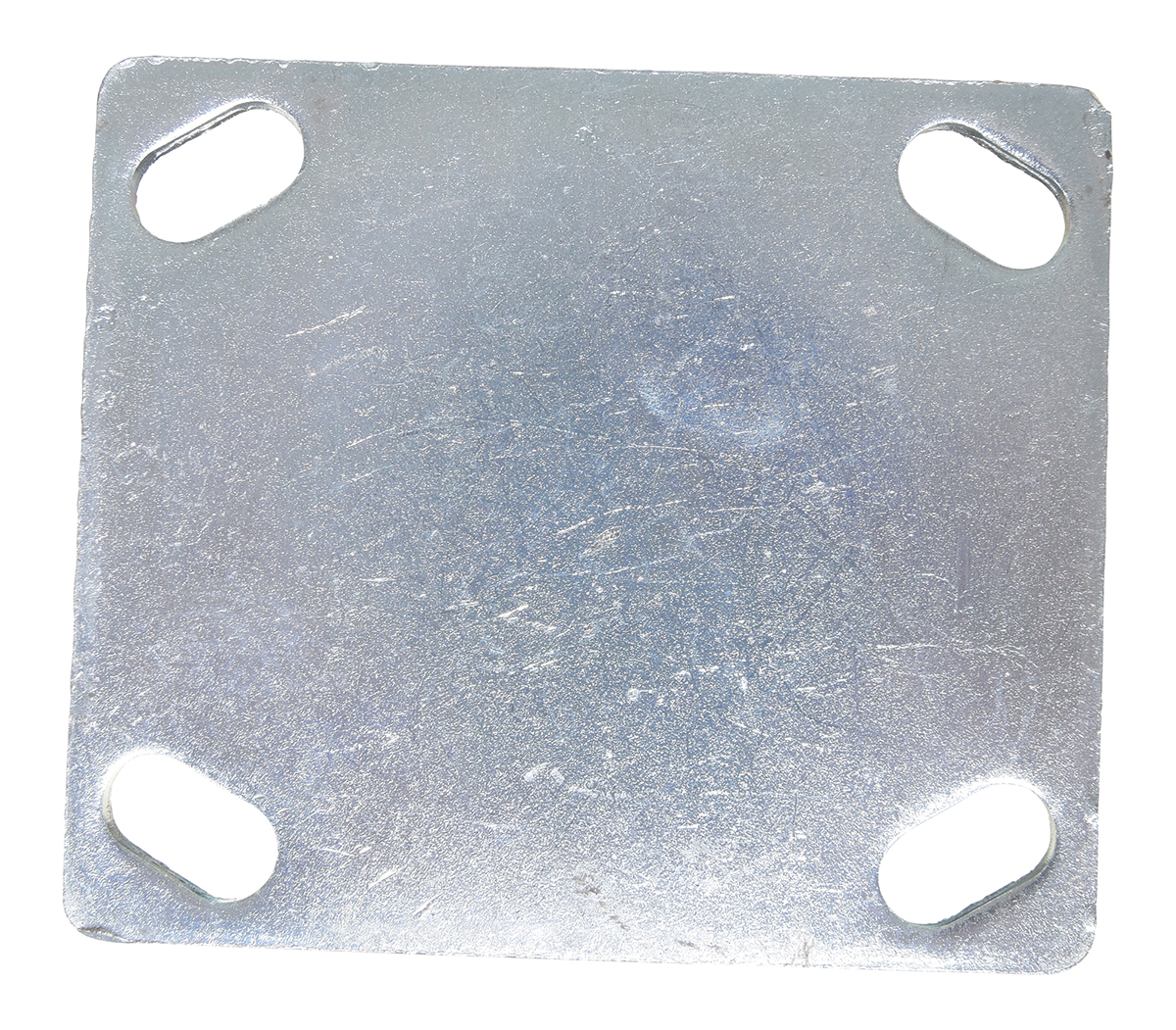

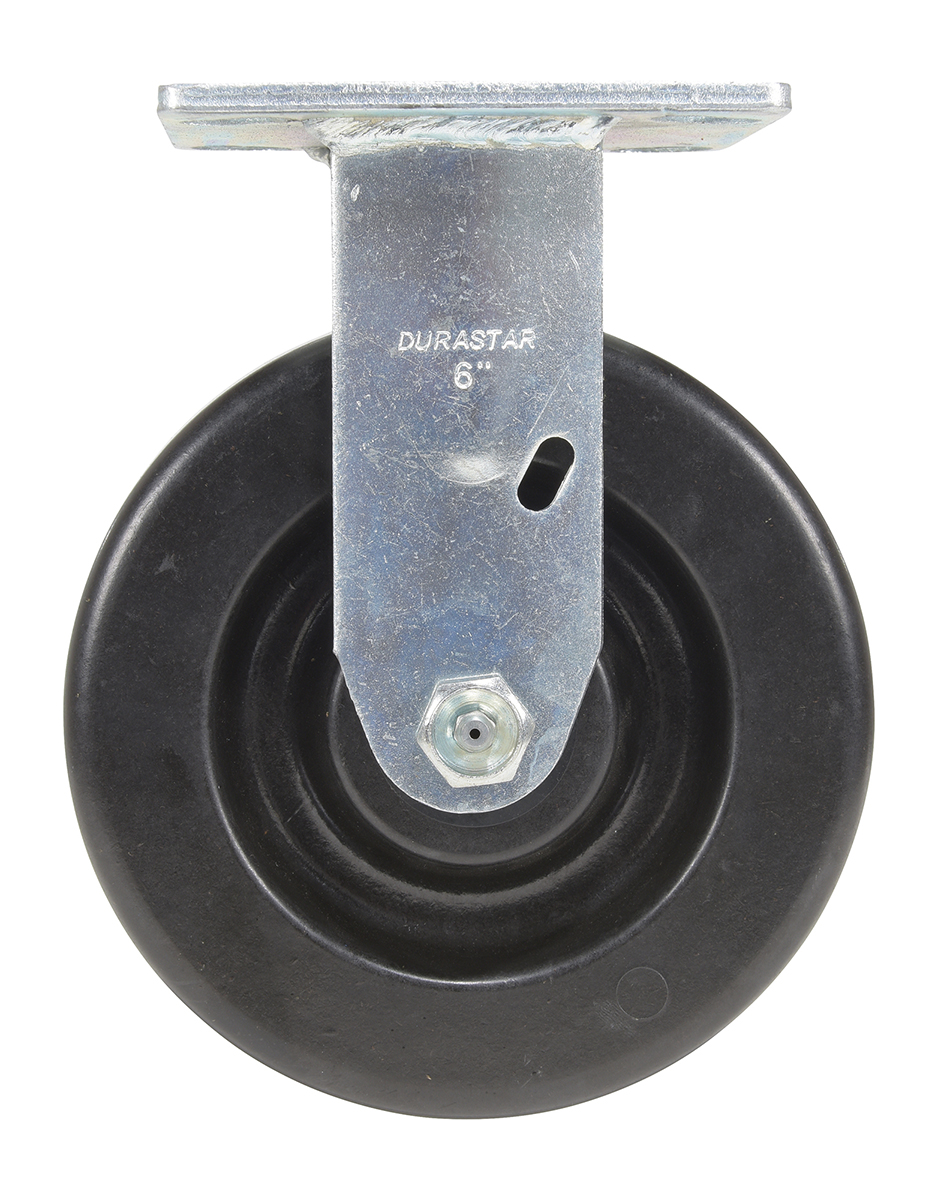

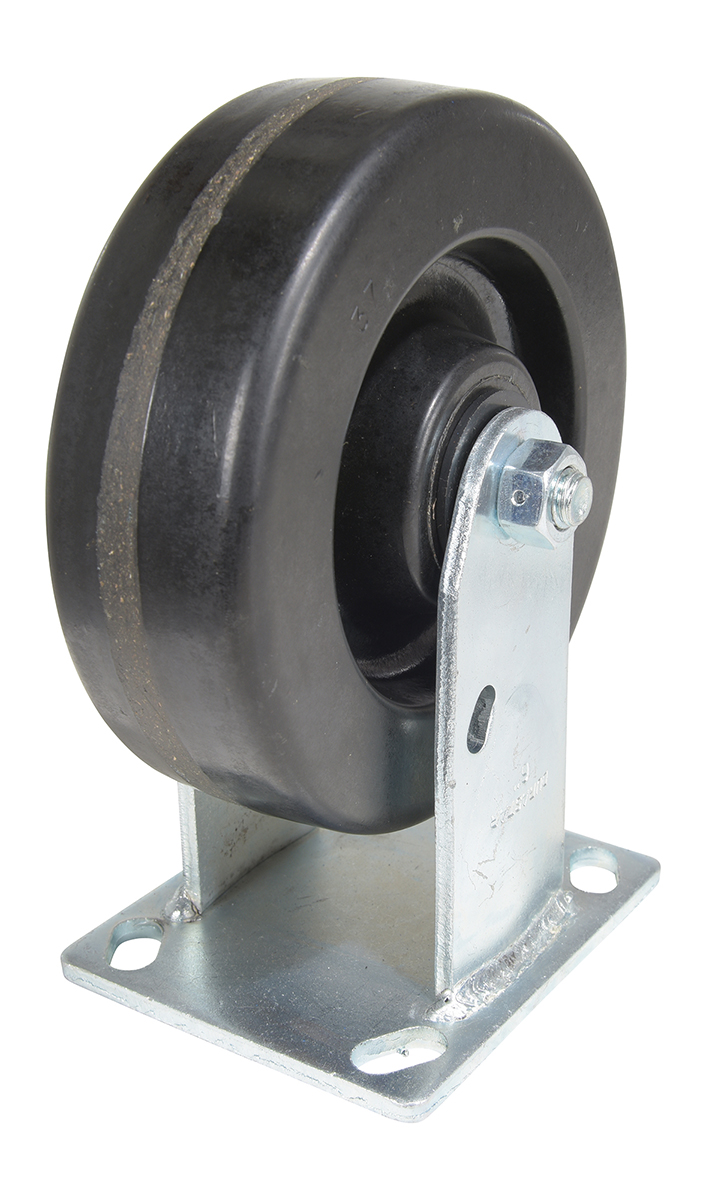

CST-VE-6X2PH-R	1 YEAR Limited Warranty	6 x 2	RIGID	1200	7-1/2	4 x 4-1/2	6
CST-VE-8X2PH-R	1 YEAR Limited Warranty	8 x 2	RIGID	1250	9-1/2	4 x 4-1/2	7
CST-VE-8X3PH-R	Limited Warranty	8 x 3	RIGID	2500	9-1/2	4-1/2 x 6-1/4	15

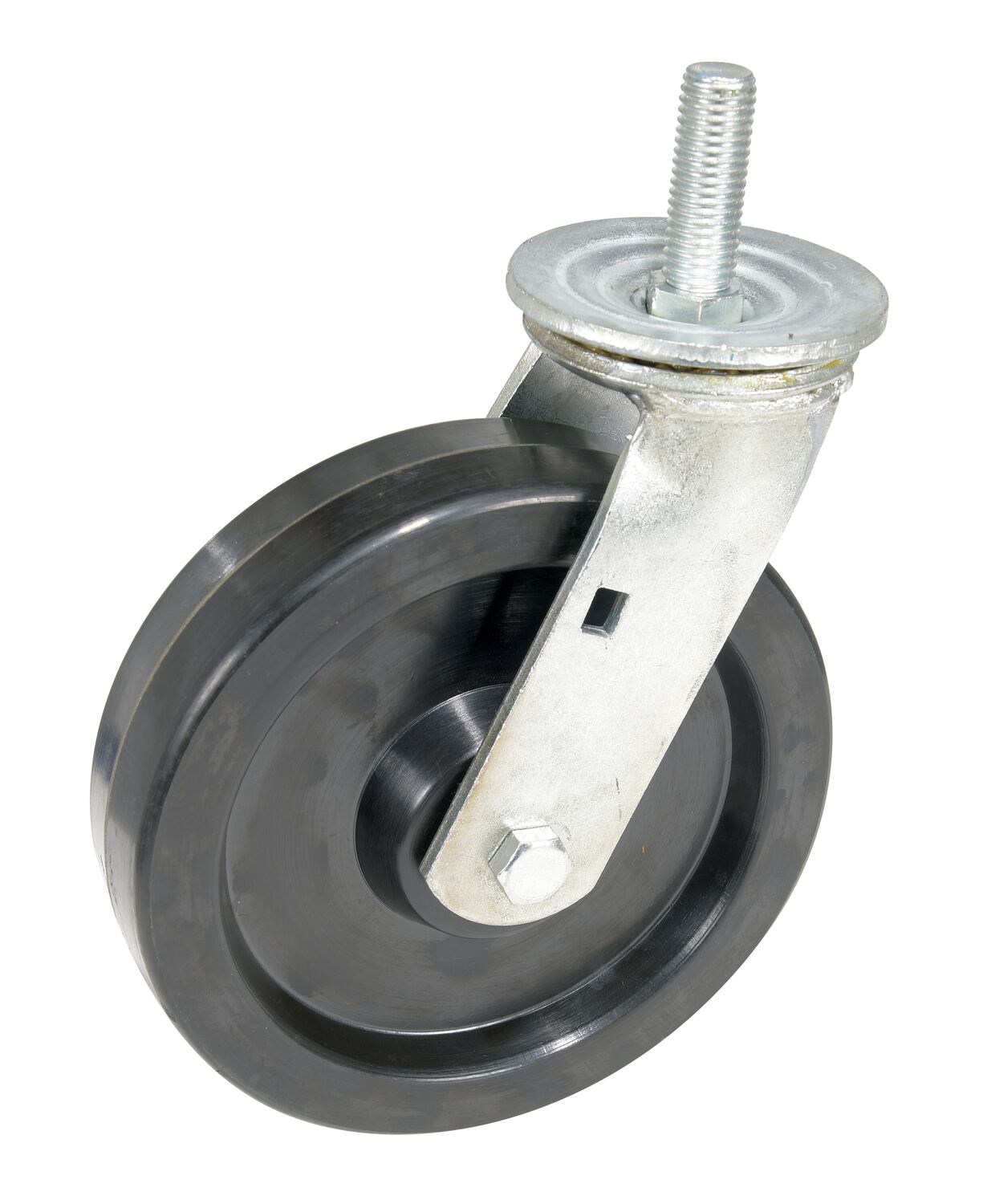

CST-VE-8X2PH-STS	Limited Warranty	8x2	STEM SWIVEL	1300	11.5	Stem	10

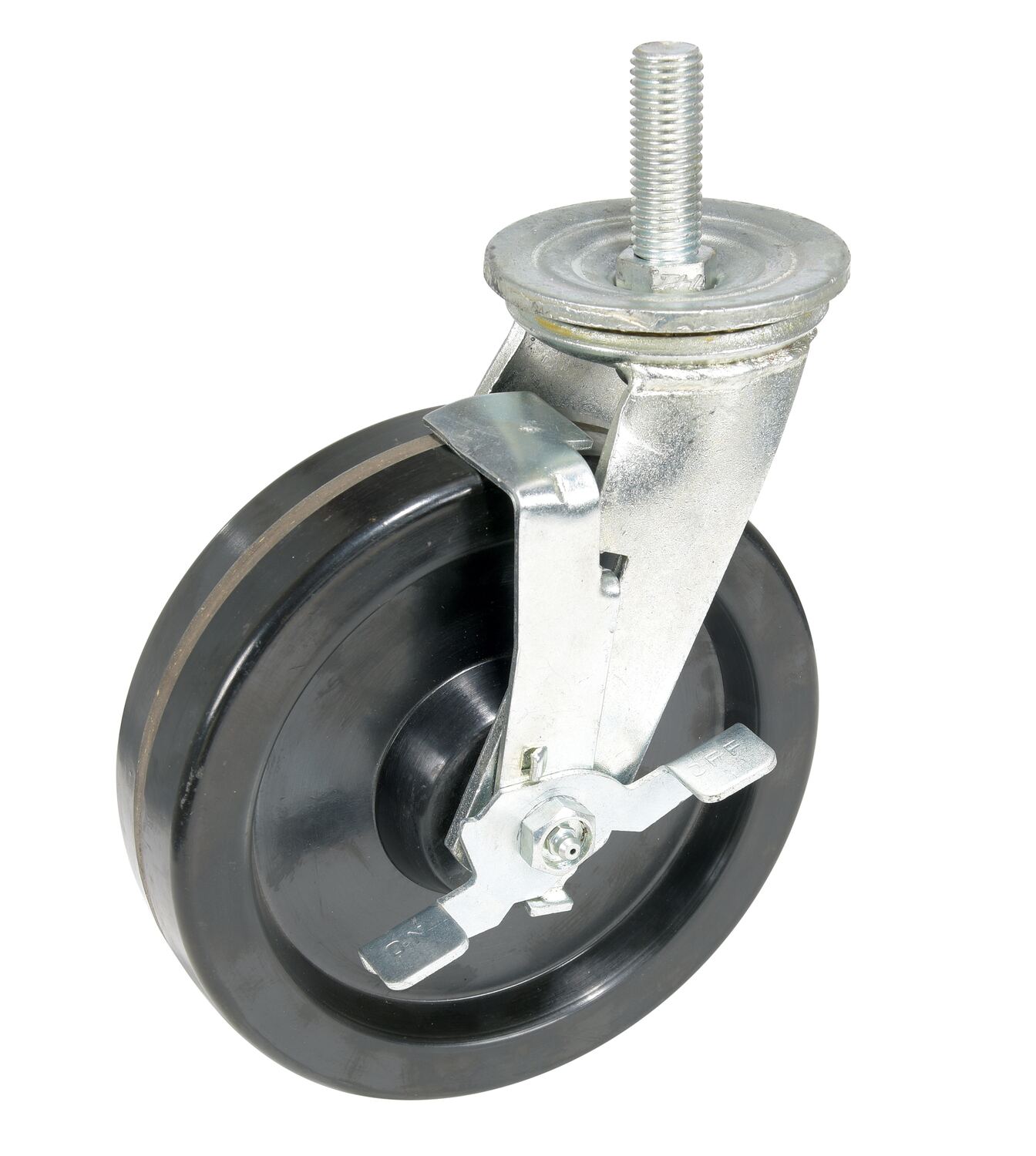

CST-VE-8X2PH-STS-BR	Limited Warranty	8x2	STEM SWIVEL W/ BRAKE	1300	11.5	Stem	11

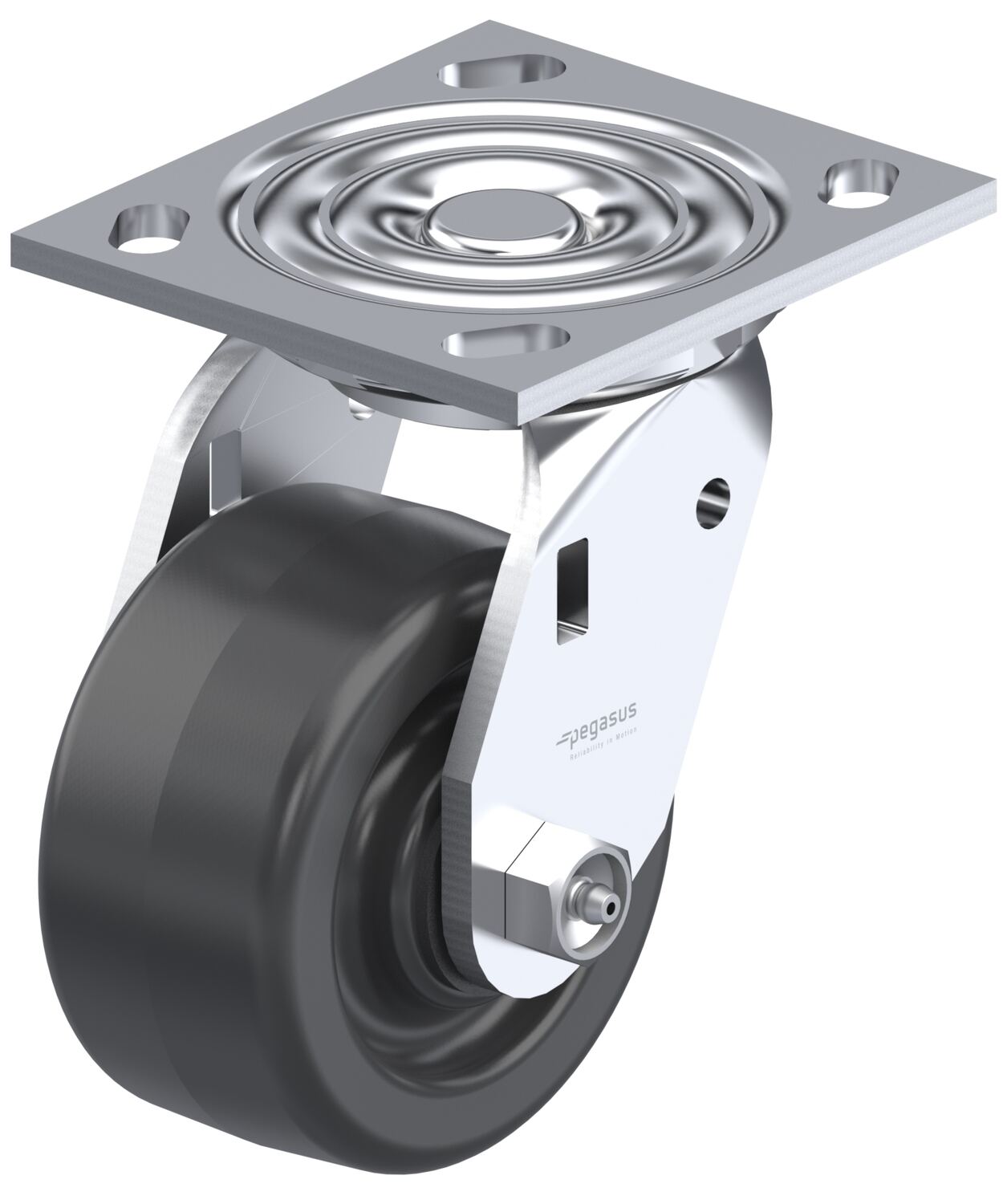

CST-BL-4X2PH-S	1YEAR Limited Warranty	4x2	Swivel	800	5-5/8	4-1/2 x 4	5

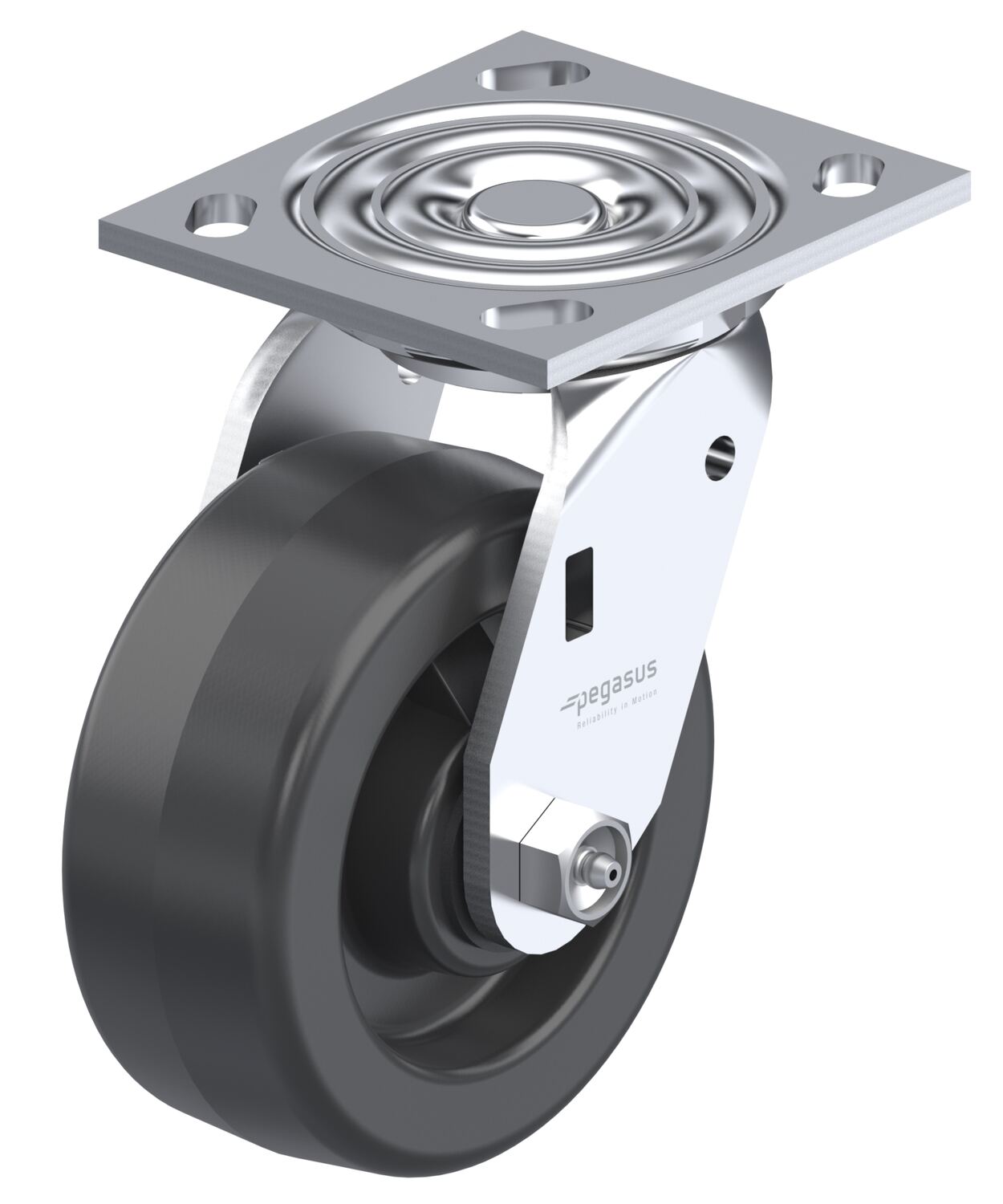

CST-BL-5X2PH-S	1YEAR Limited Warranty	5x2	Swivel	1000	6-1/2	4-1/2 x 4	6
CST-BL-5X2PH-SWB	1YEAR Limited Warranty	5x2	Swivel	1000	6-1/2	4-1/2 x 4	8

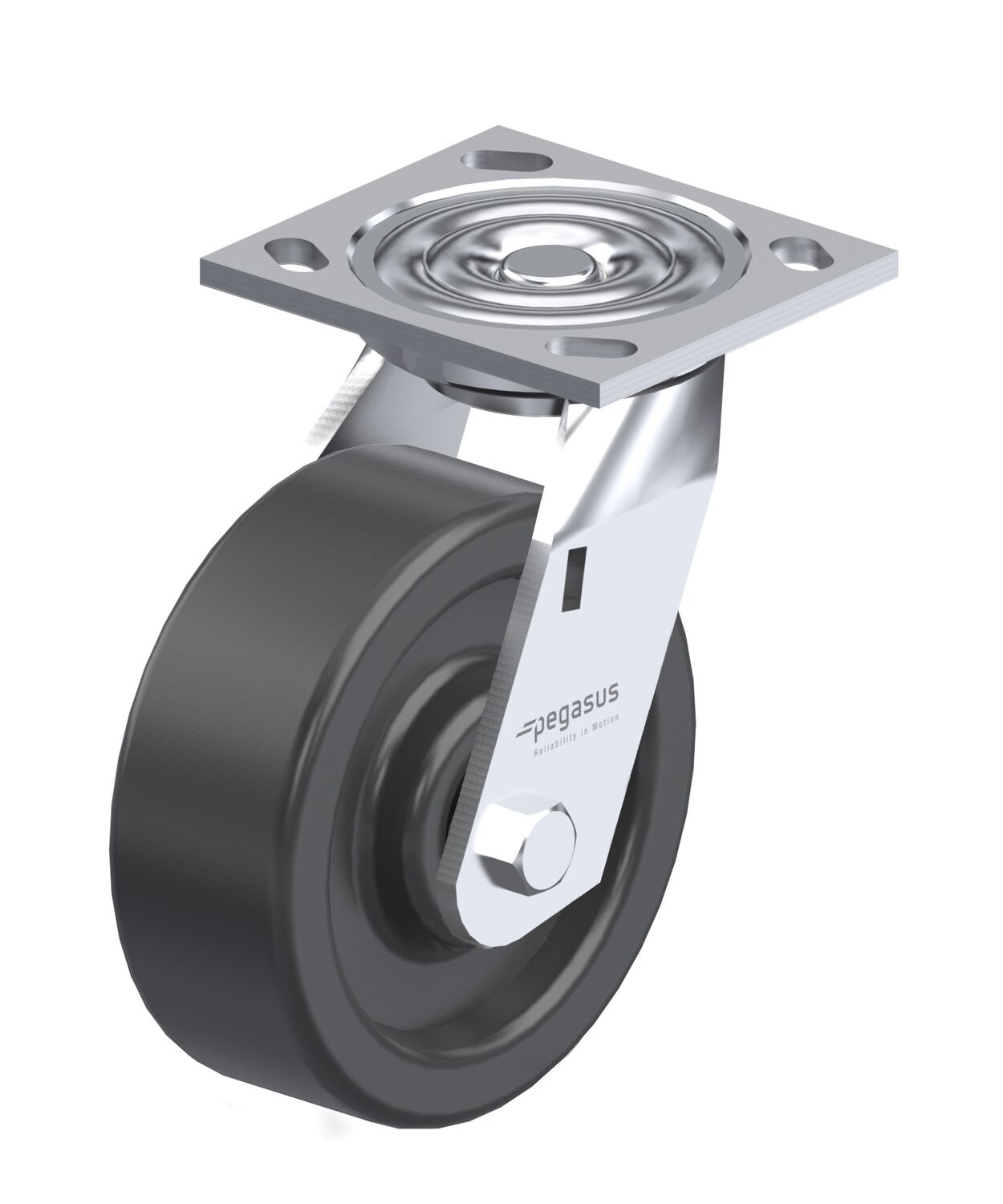

CST-BL-6X2PH-S	1YEAR Limited Warranty	6x2	Swivel	1200	7-1/2	4-1/2 x 4	7
CST-BL-6X2PH-SWB	1YEAR Limited Warranty	6x2	Swivel	1200	7-1/2	4-1/2 x 4	8

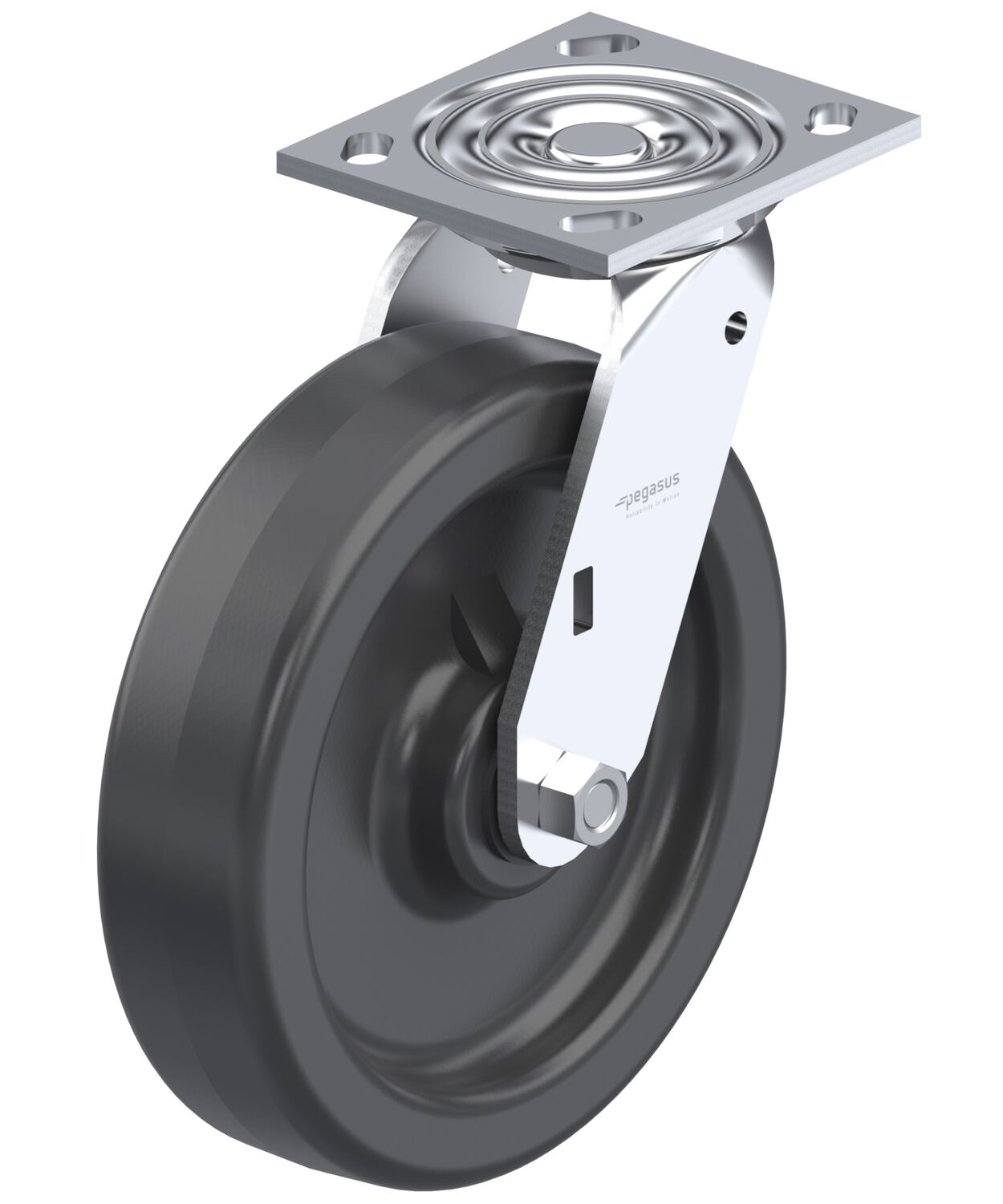

CST-BL-8X2PH-S	1YEAR Limited Warranty	8x2	Swivel	1250	9-1/2	4-1/2 x 4	9

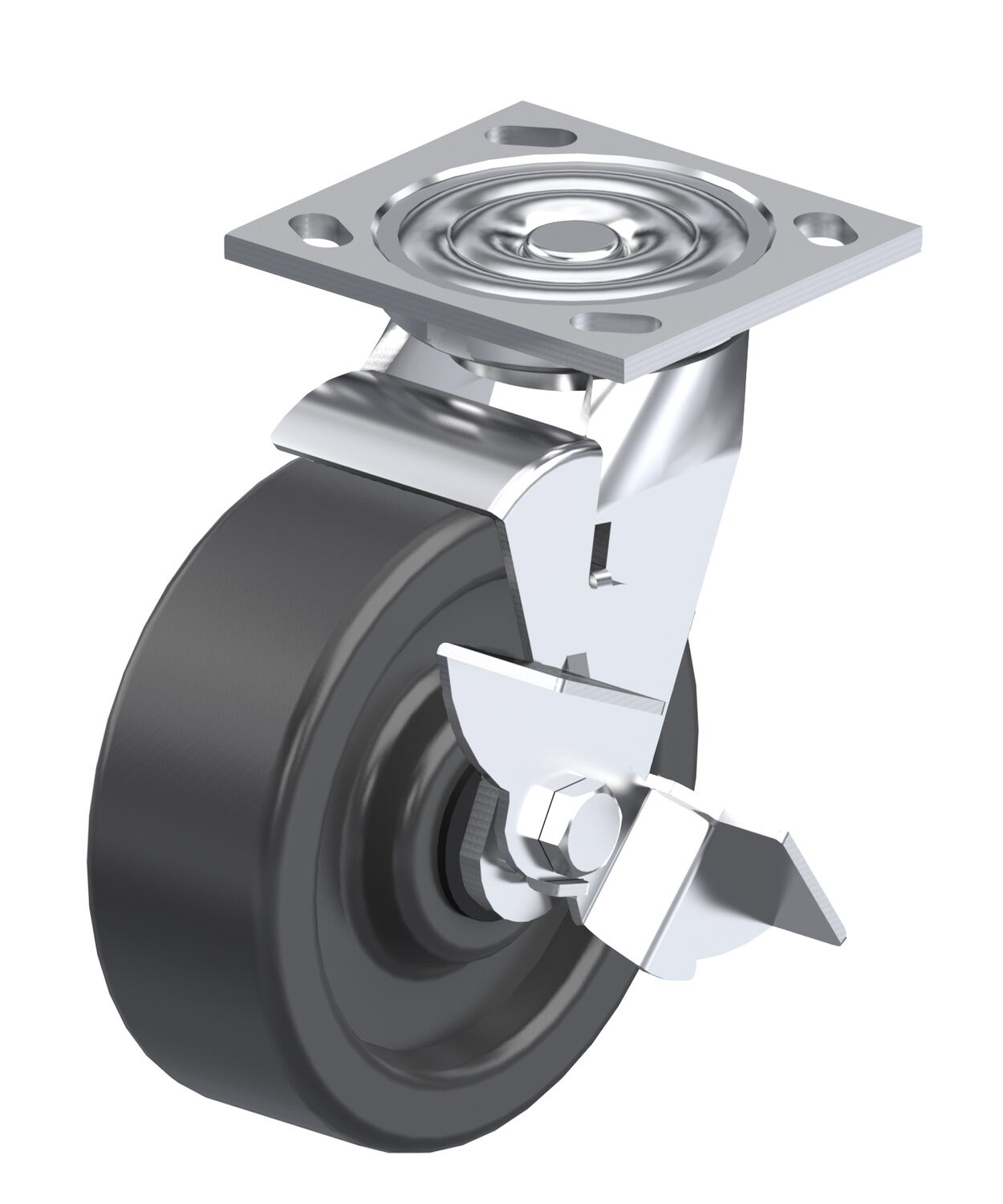

CST-BL-8X2PH-SWB	1YEAR Limited Warranty	8x2	Swivel	1250	9-1/2	4-1/2 x 4	11

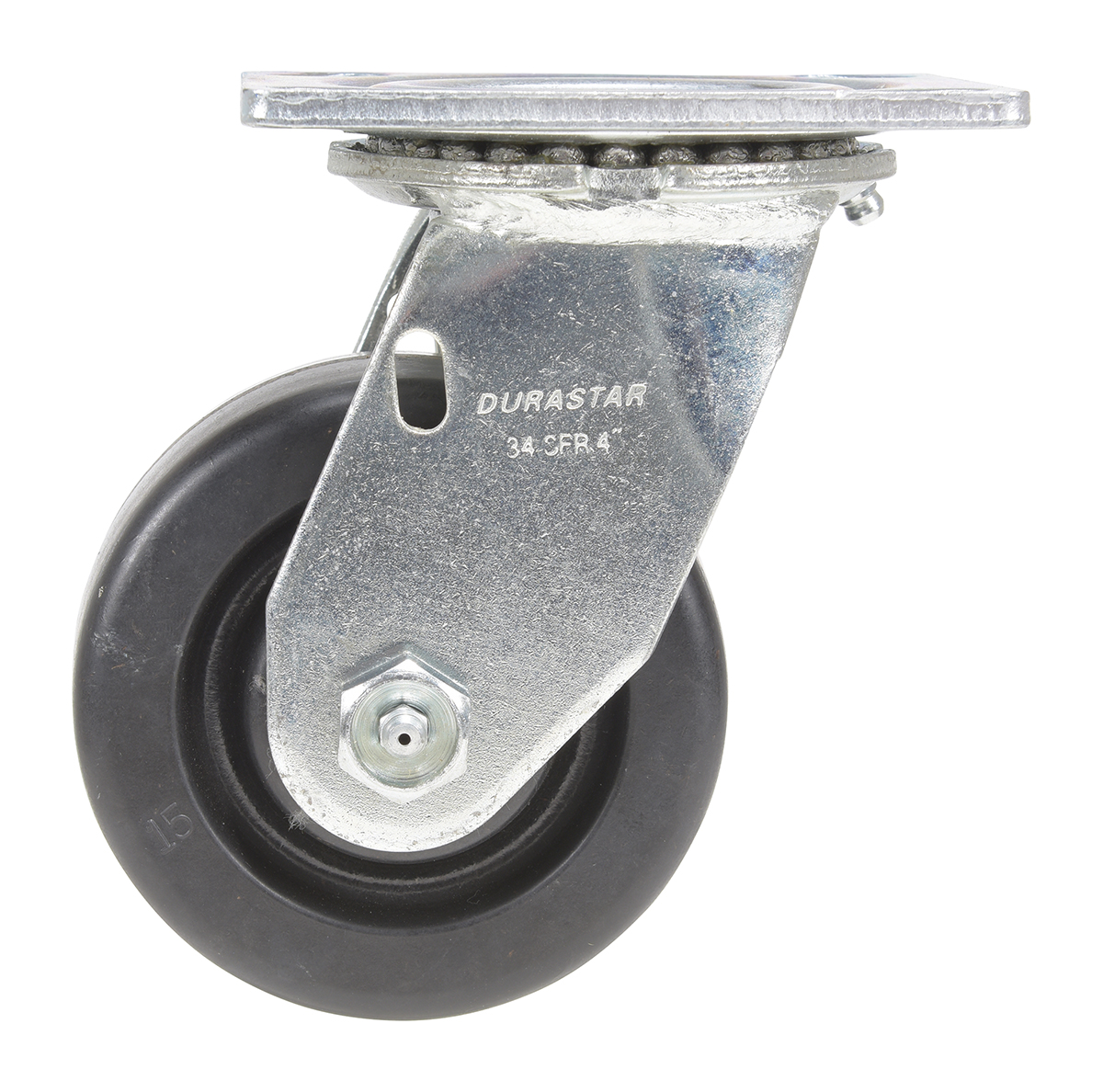

CST-VE-4X2PH-S	1 YEAR Limited Warranty	4 x 2	SWIVEL	800	5-1/2	4 x 4-1/2	5

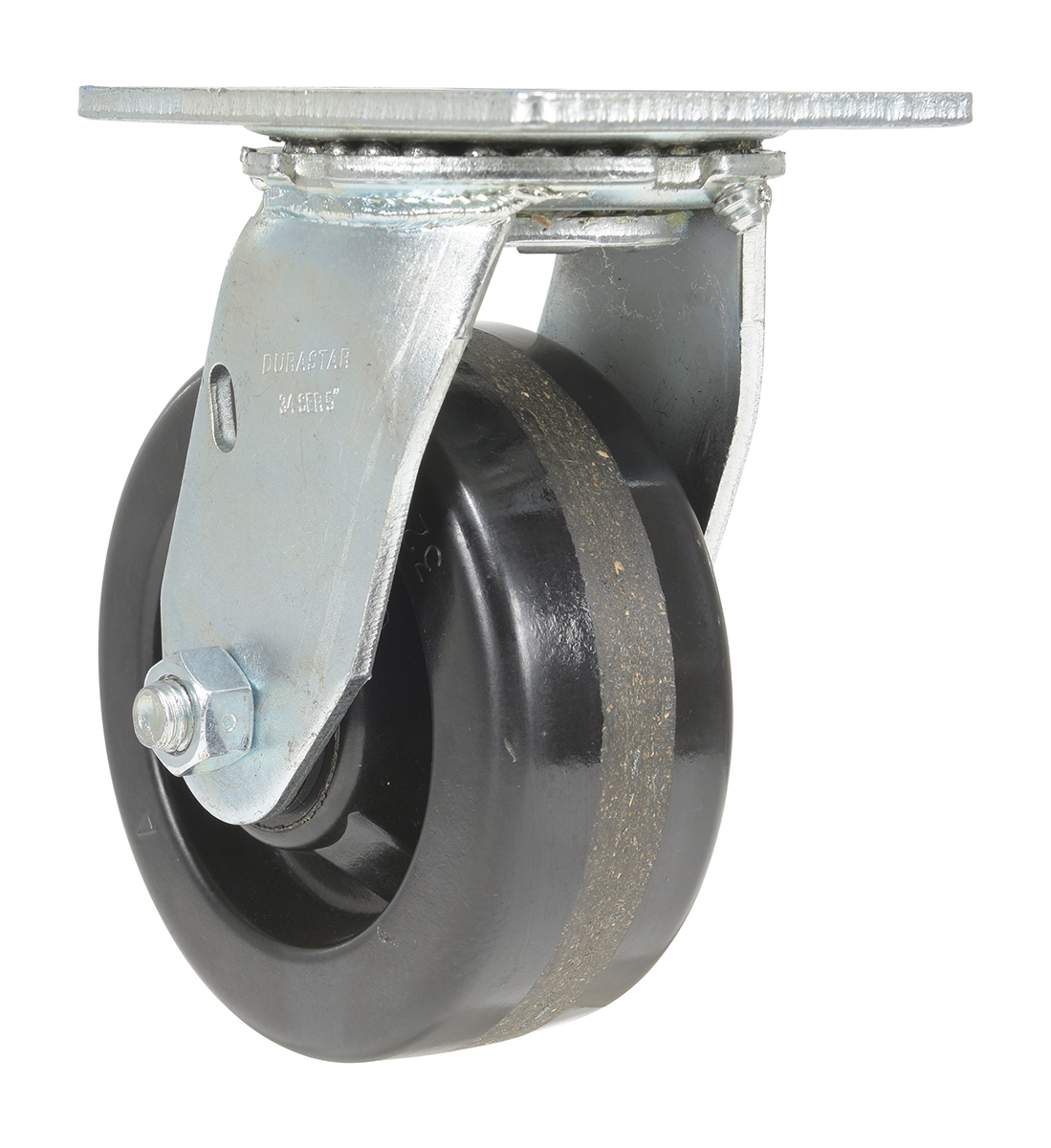

CST-VE-5X2PH-S	1 YEAR Limited Warranty	5 x 2	SWIVEL	1000	6-1/2	4 x 4-1/2	6

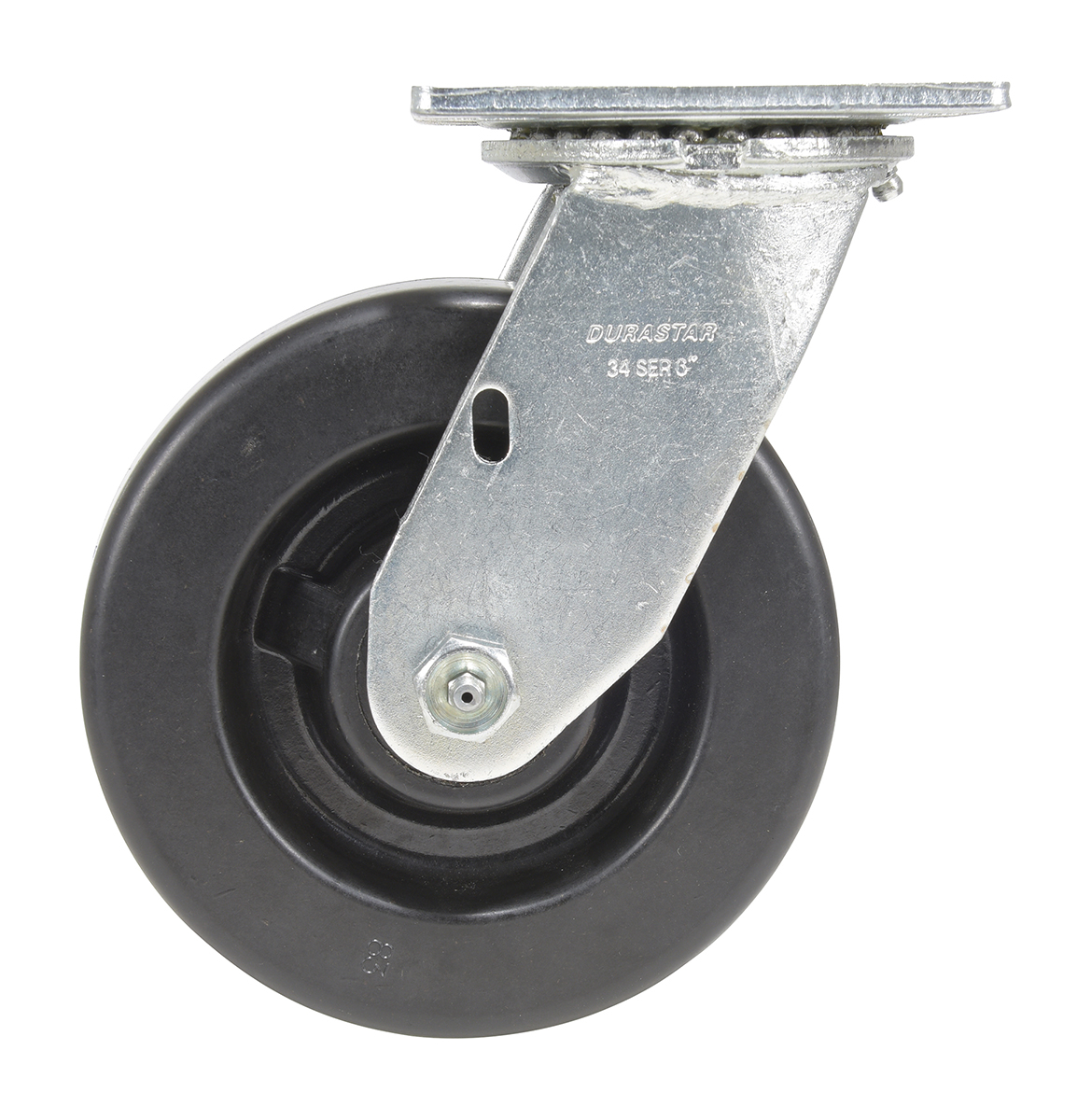

CST-VE-6X2PH-S	1 YEAR Limited Warranty	6 x 2	SWIVEL	1200	7-1/2	4 x 4-1/2	7
CST-VE-8X2PH-S	1 YEAR Limited Warranty	8 x 2	SWIVEL	1250	9-1/2	4 x 4-1/2	8

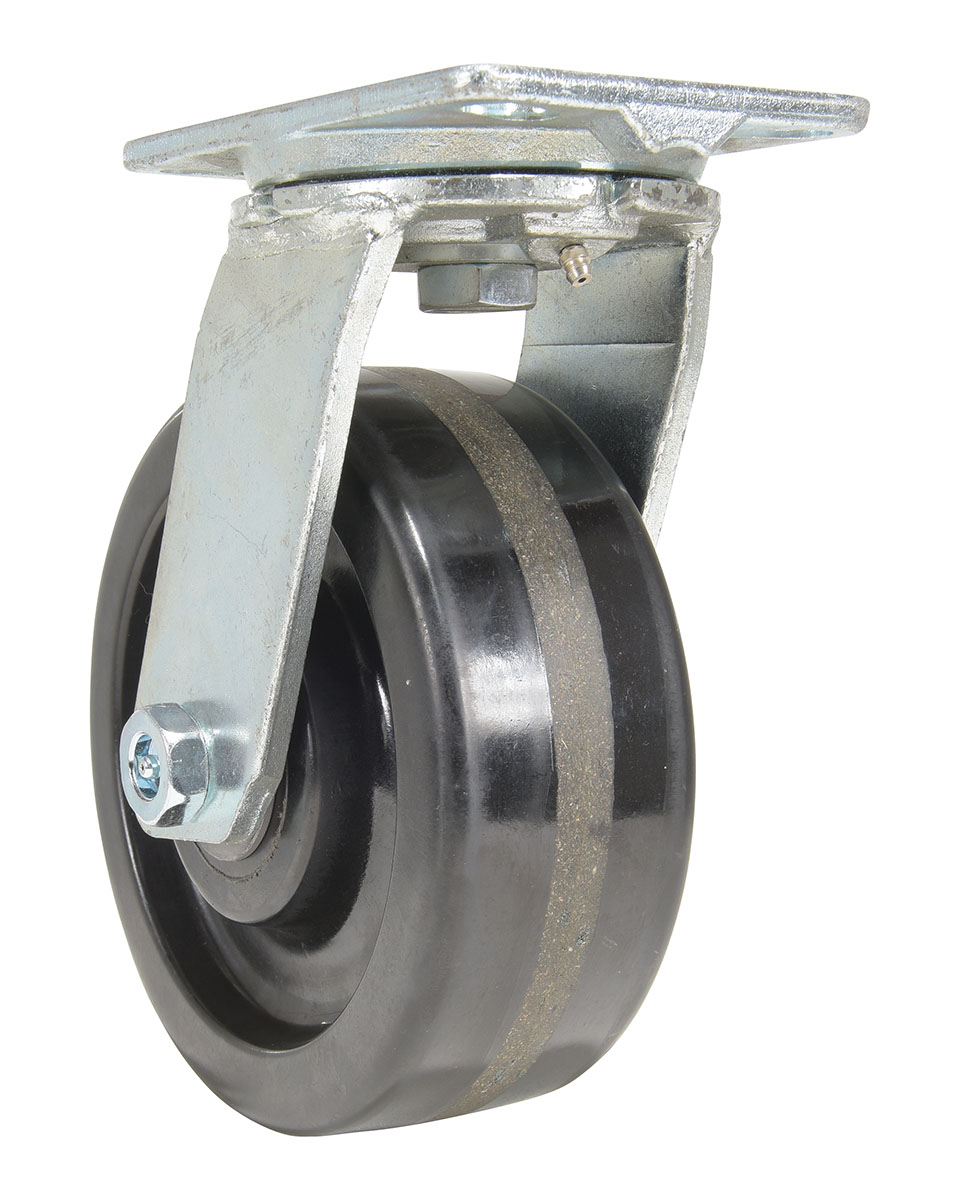

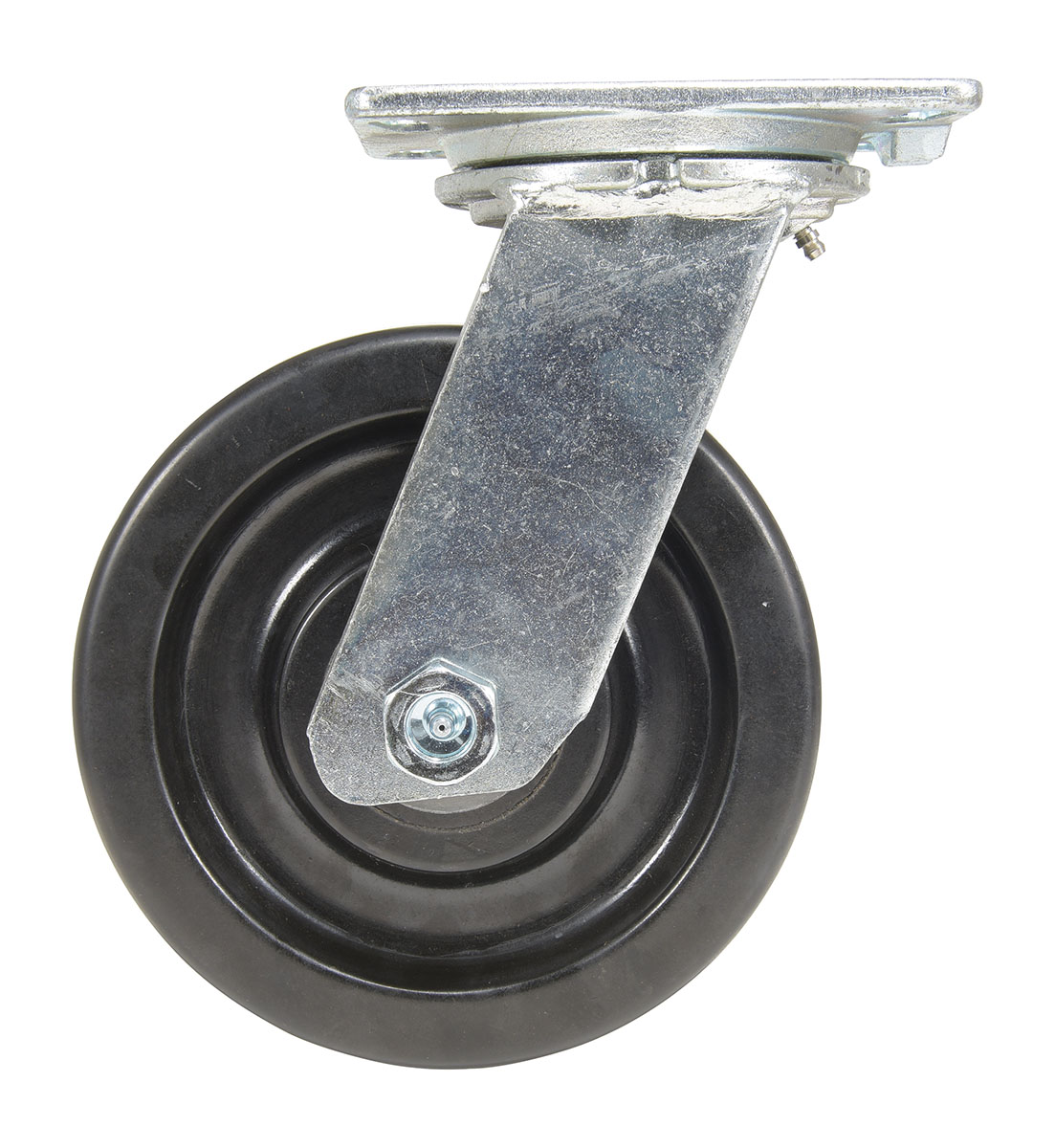

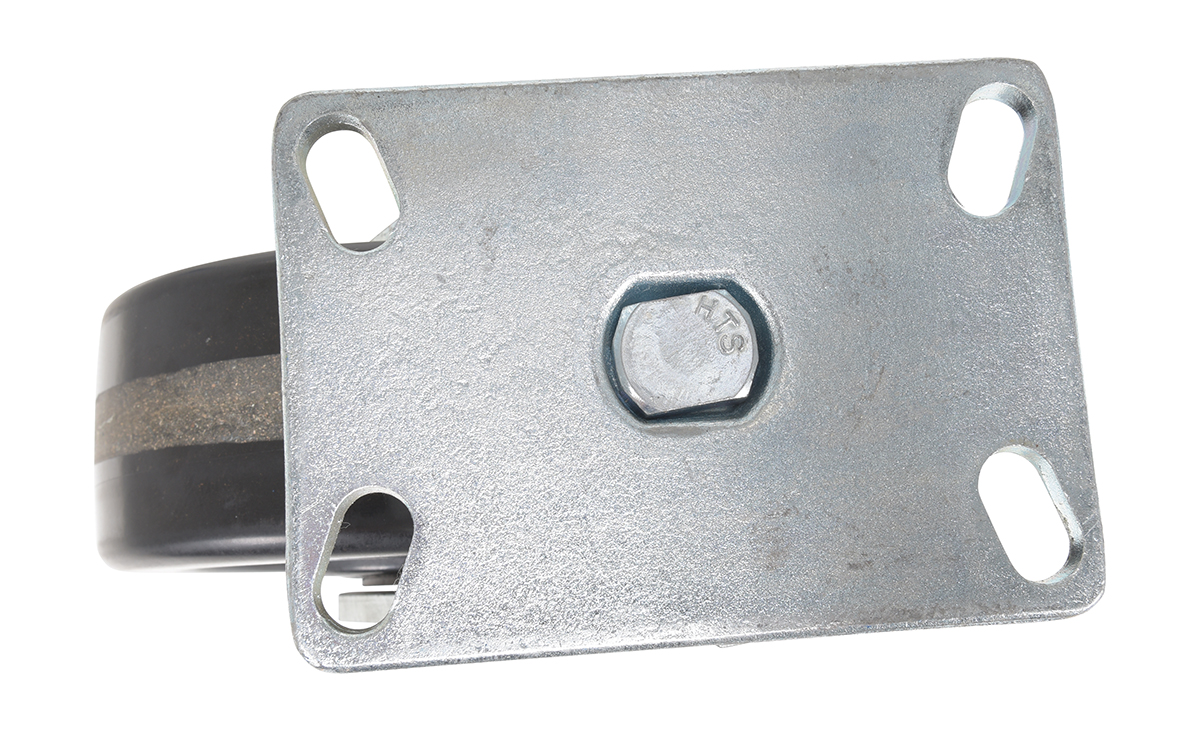

CST-VE-8X3PH-S	Limited Warranty	8 x 3	SWIVEL	2500	10	4-1/2 x 6-1/4	18

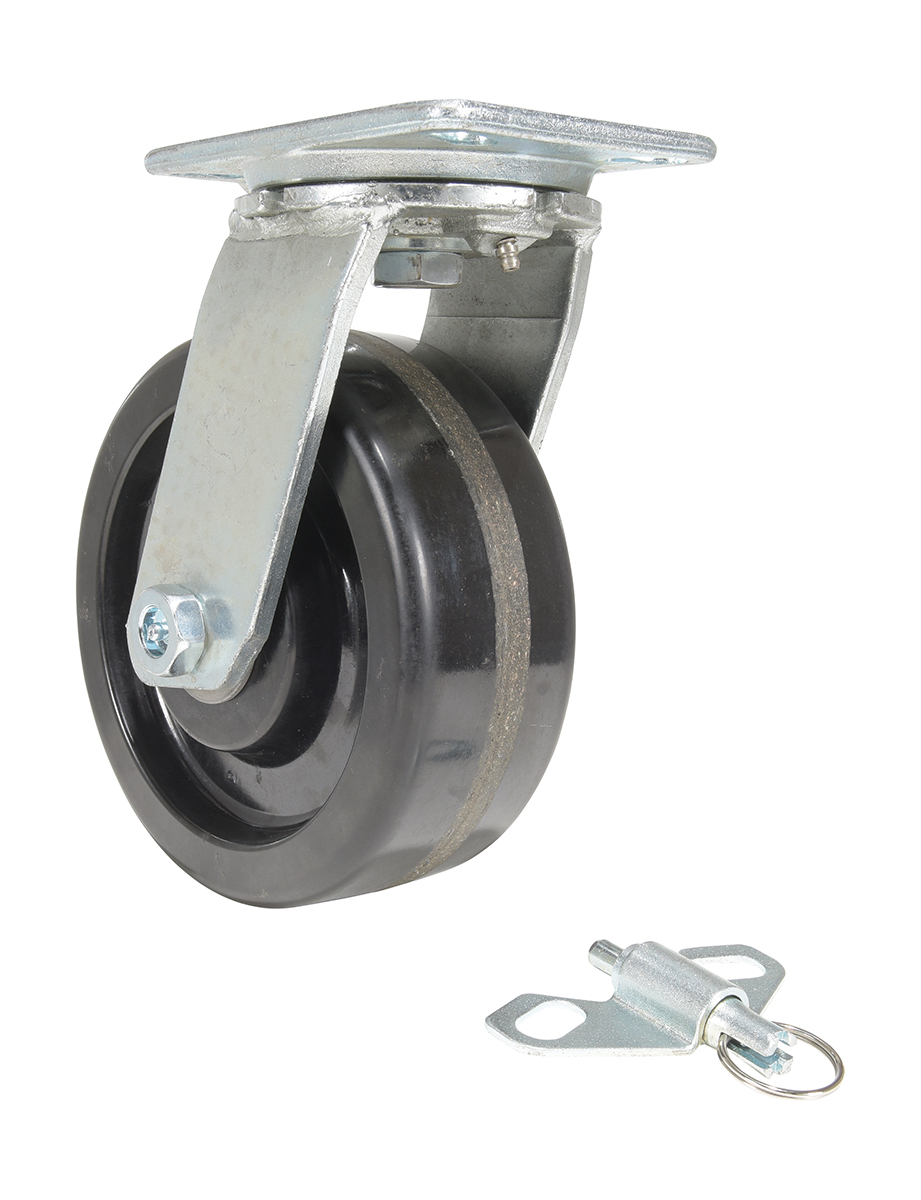

CST-VE-8X3PH-4PSL	Limited Warranty	8 x 3	SWIVEL 4 LOCK	2500	10	4-1/2 x 6-1/4	18

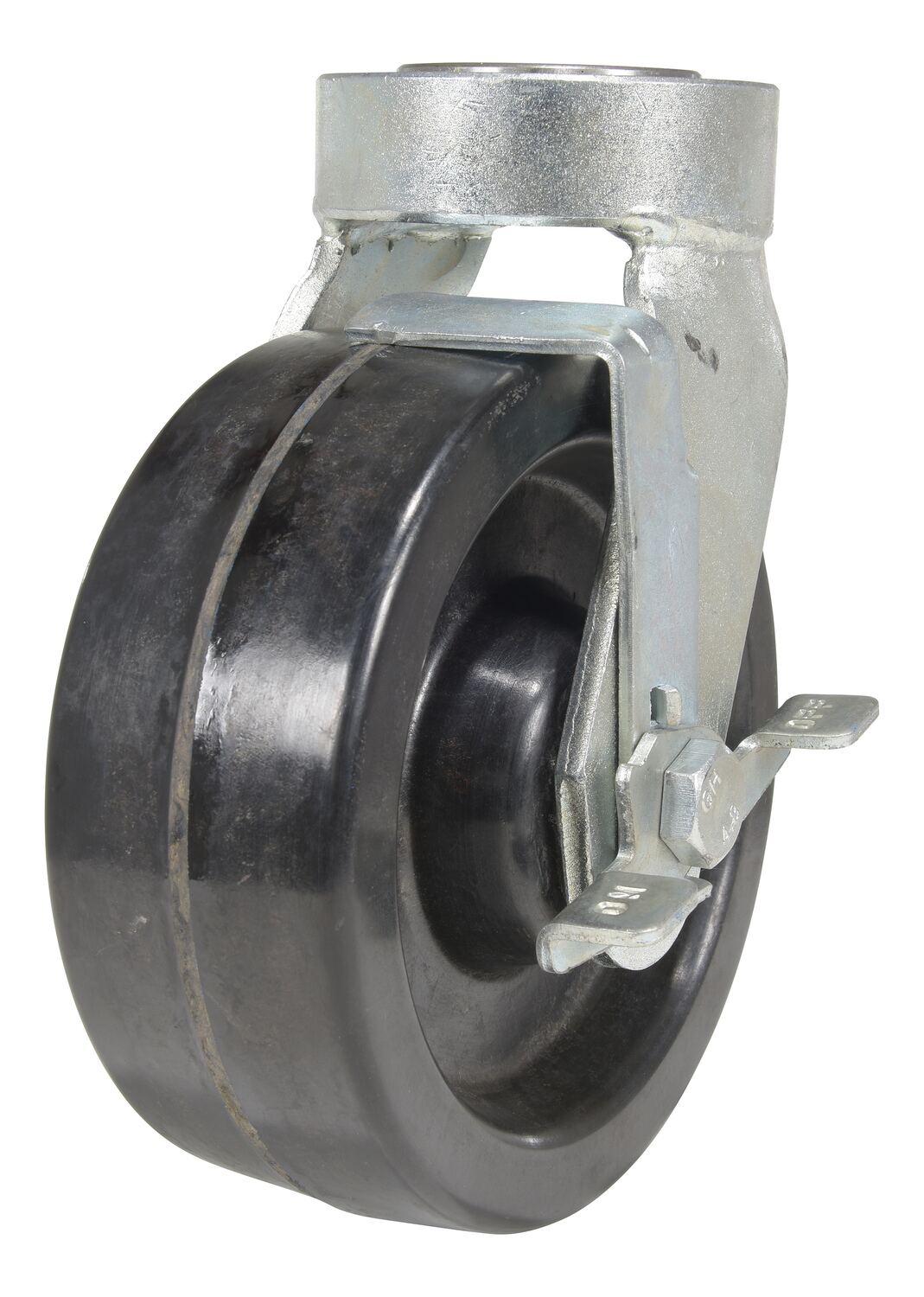

CST-VE-8X3PH-NTP-SWB	Limited Warranty	8x3	SWIVEL W/ TOTAL LOCK	1300	10.25	None	18

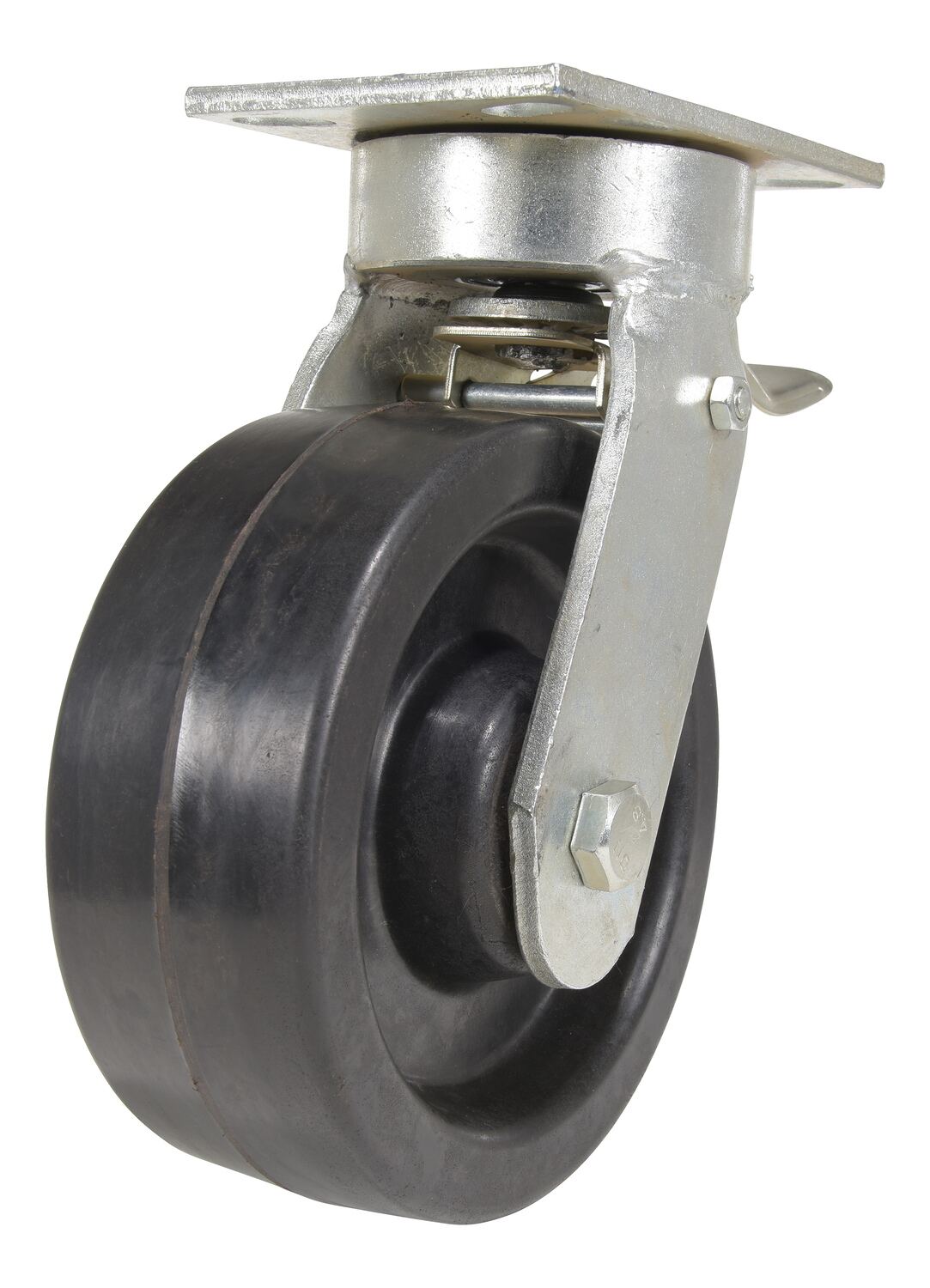

CST-VE-8X3PH-SWTB	Limited Warranty	8x3	SWIVEL W/ TOTAL LOCK BRAKE	1300	10.75"	None	20
CST-BL-4X2PH-SWB	1YEAR Limited Warranty	4x2	Swivel W/Brake	800	5-5/8	4-1/2 x 4	7

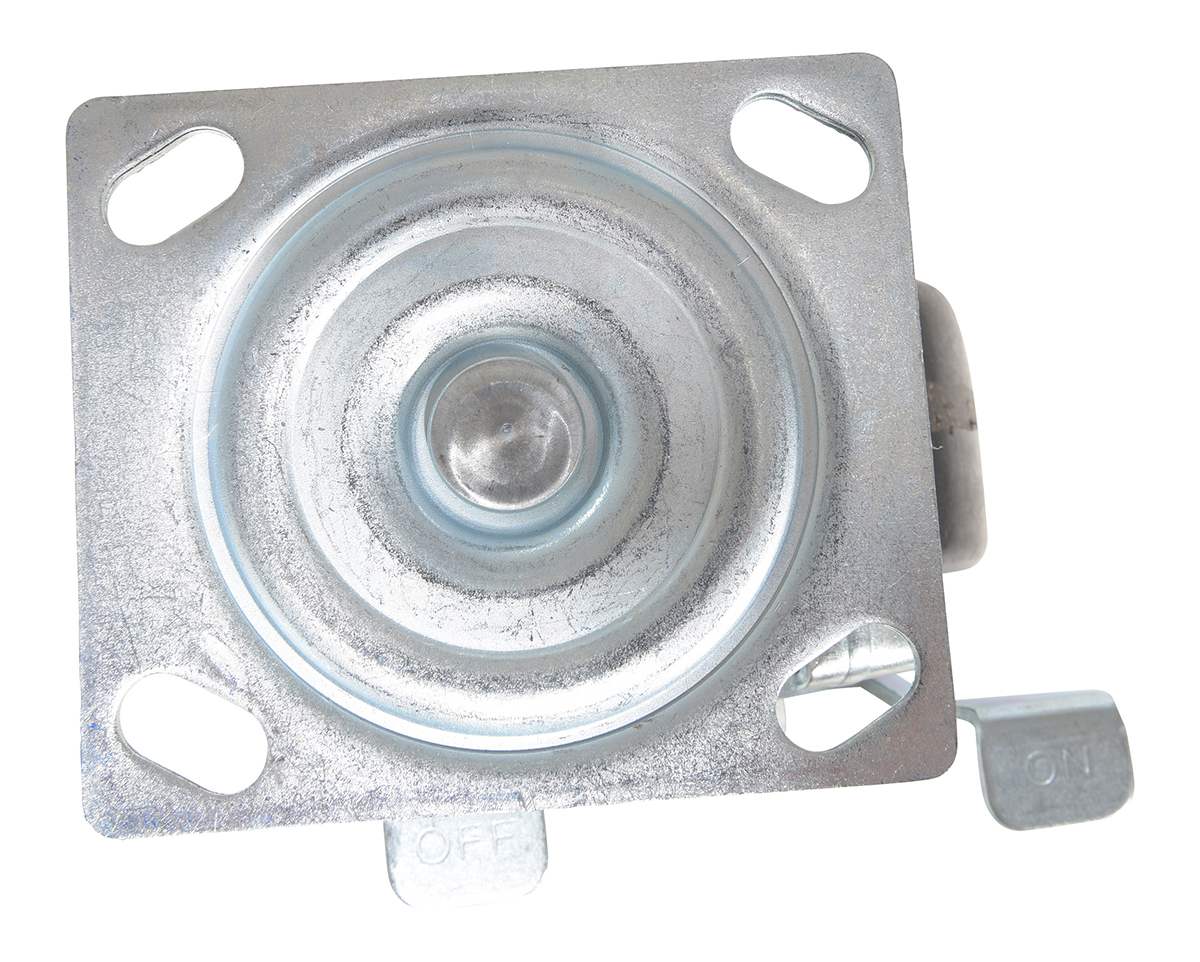

CST-VE-4X2PH-SWB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/BRAKE	800	5-1/2	4 x 4-1/2	6

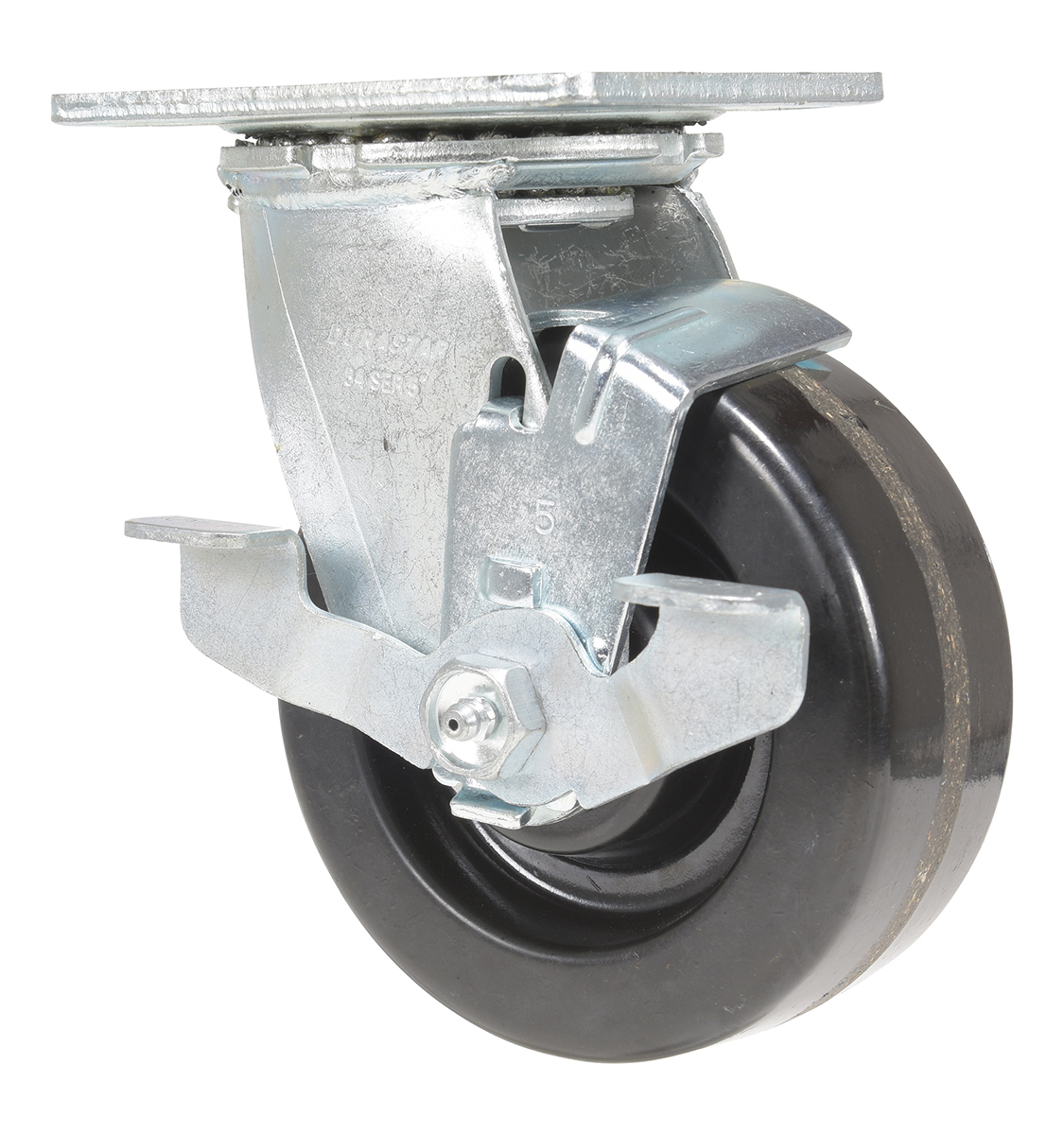

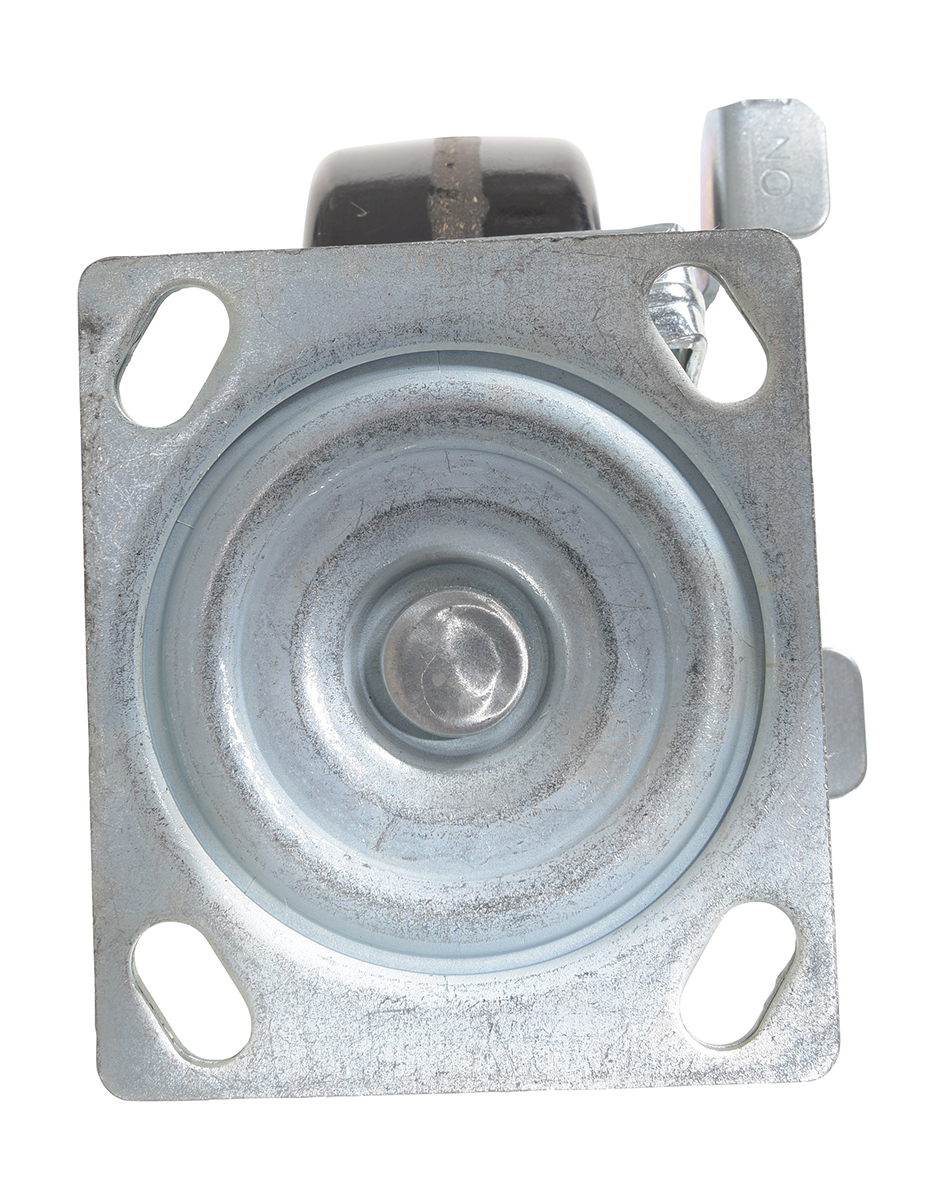

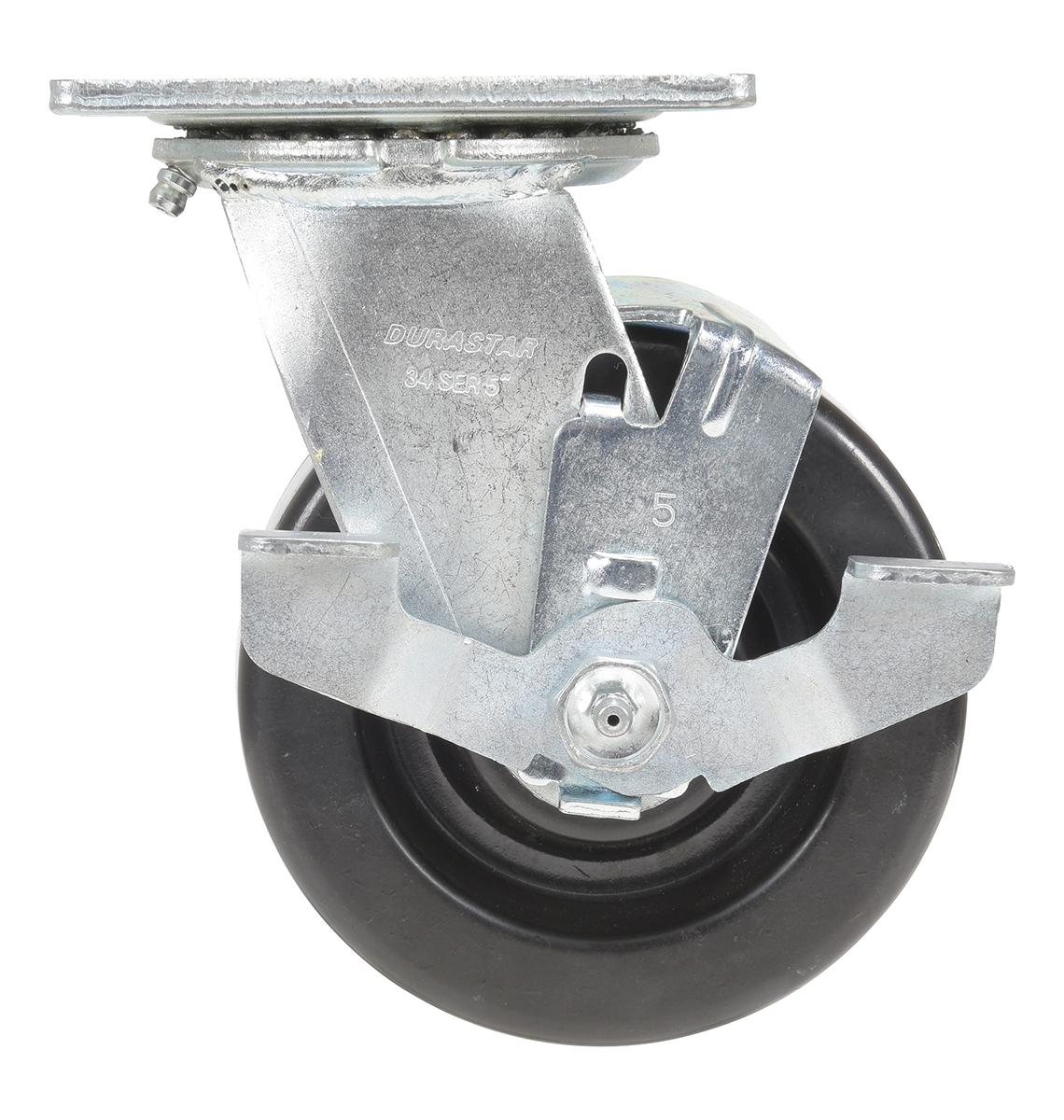

CST-VE-5X2PH-SWB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/BRAKE	1000	6-1/2	4 x 4-1/2	6

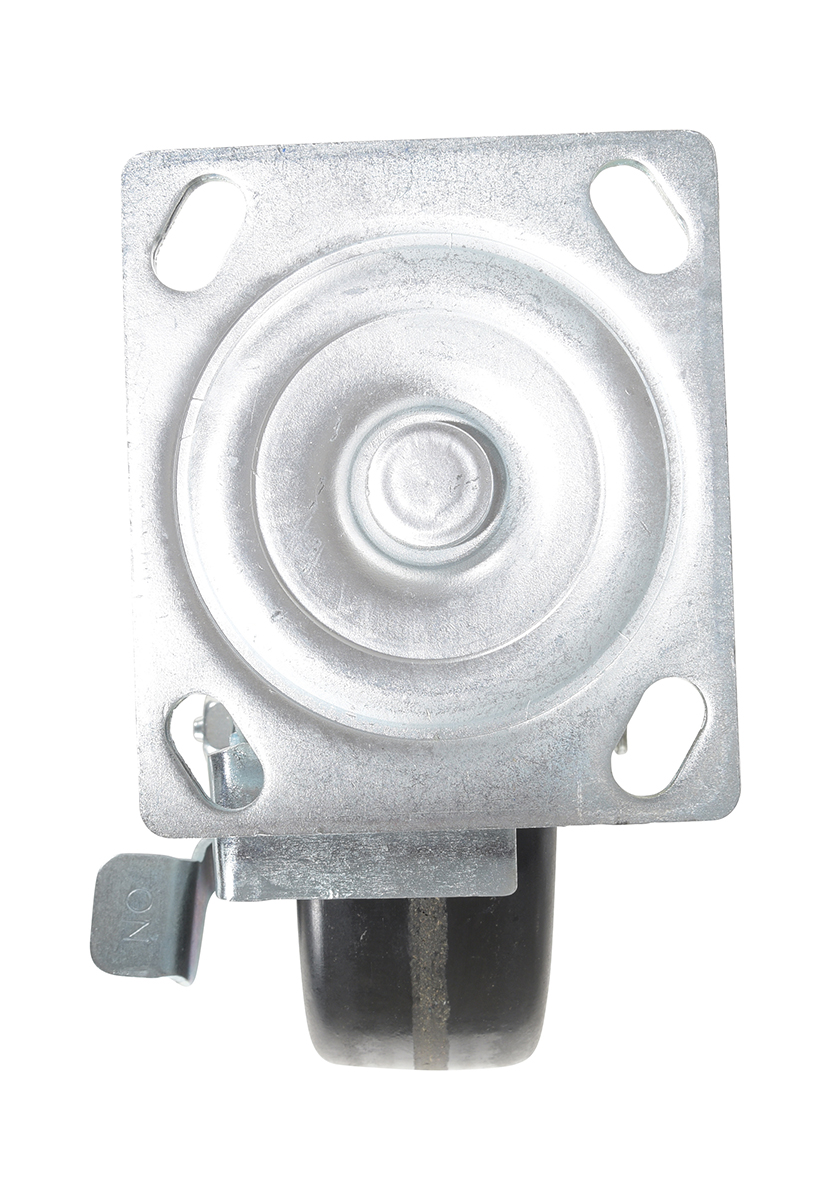

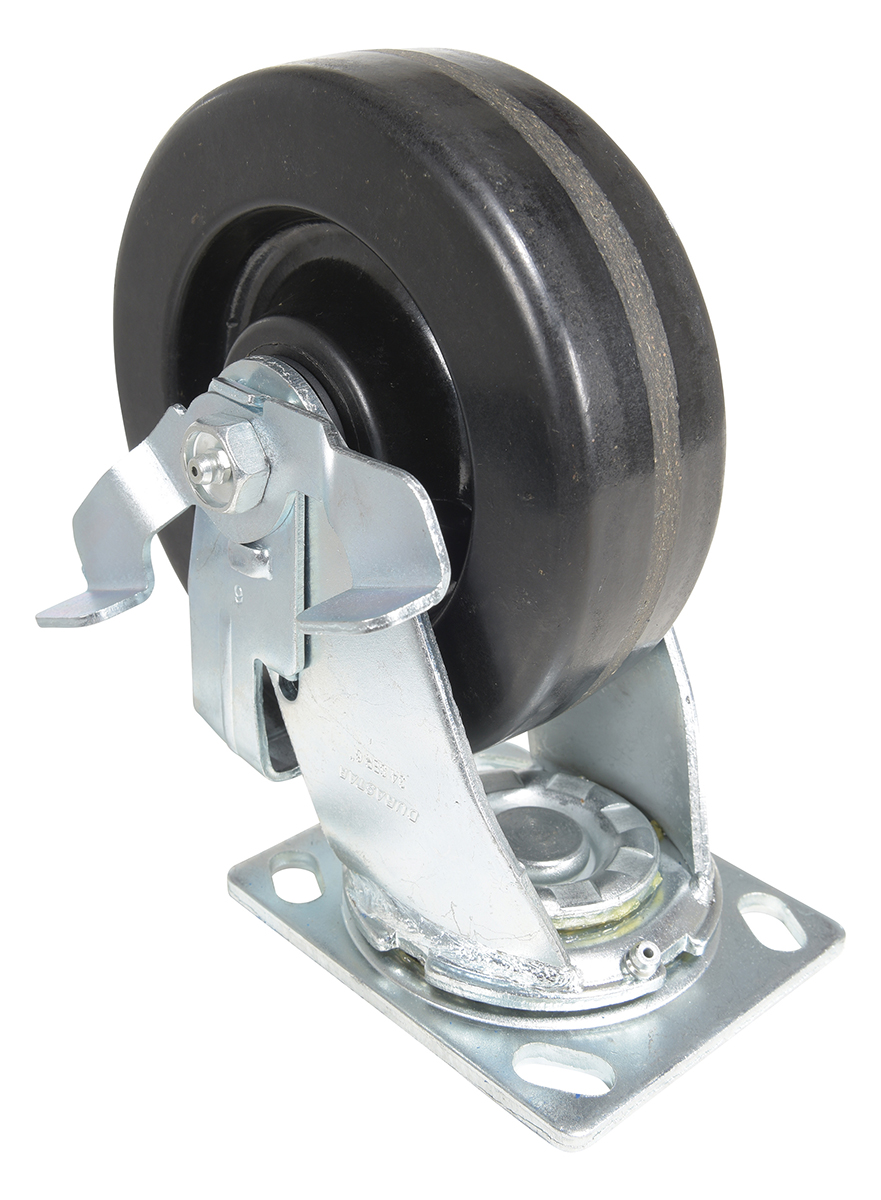

CST-VE-6X2PH-SWB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/BRAKE	1200	7-1/2	4 x 4-1/2	7
CST-VE-8X2PH-SWB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/BRAKE	1250	9-1/2	4 x 4-1/2	9

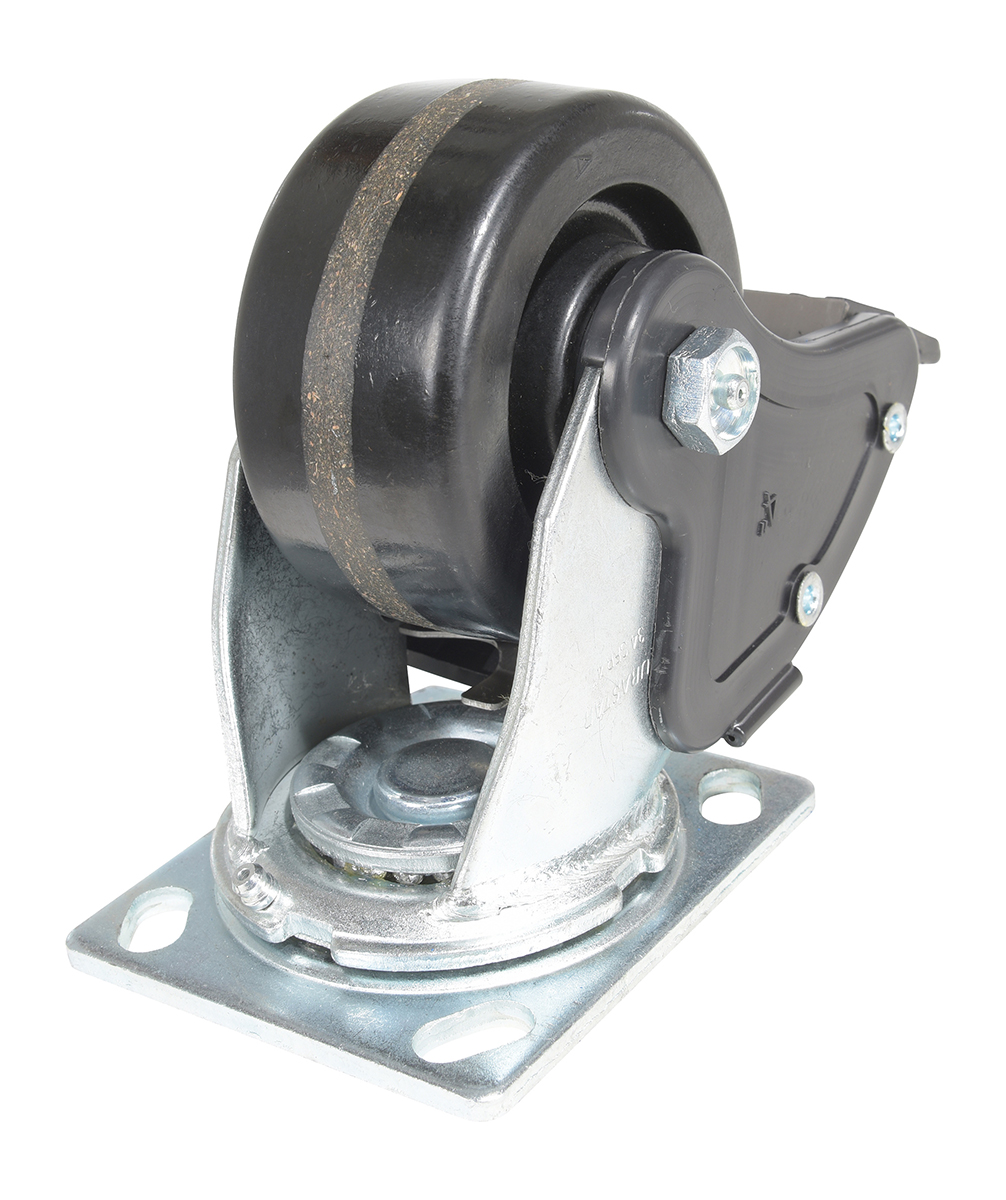

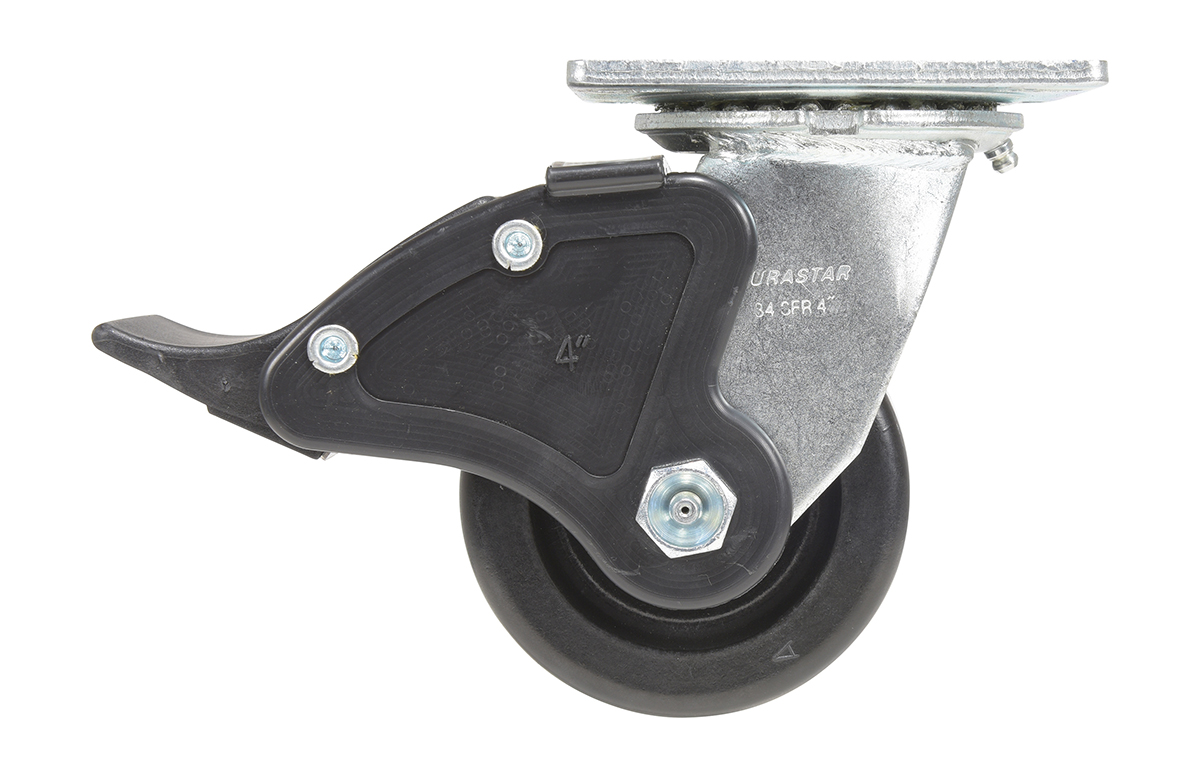

CST-VE-4X2PH-SWTB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/TOTAL BRAKE	800	5-1/2	4 x 4-1/2	6
CST-VE-5X2PH-SWTB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/TOTAL BRAKE	1000	6-1/2	4 x 4-1/2	7

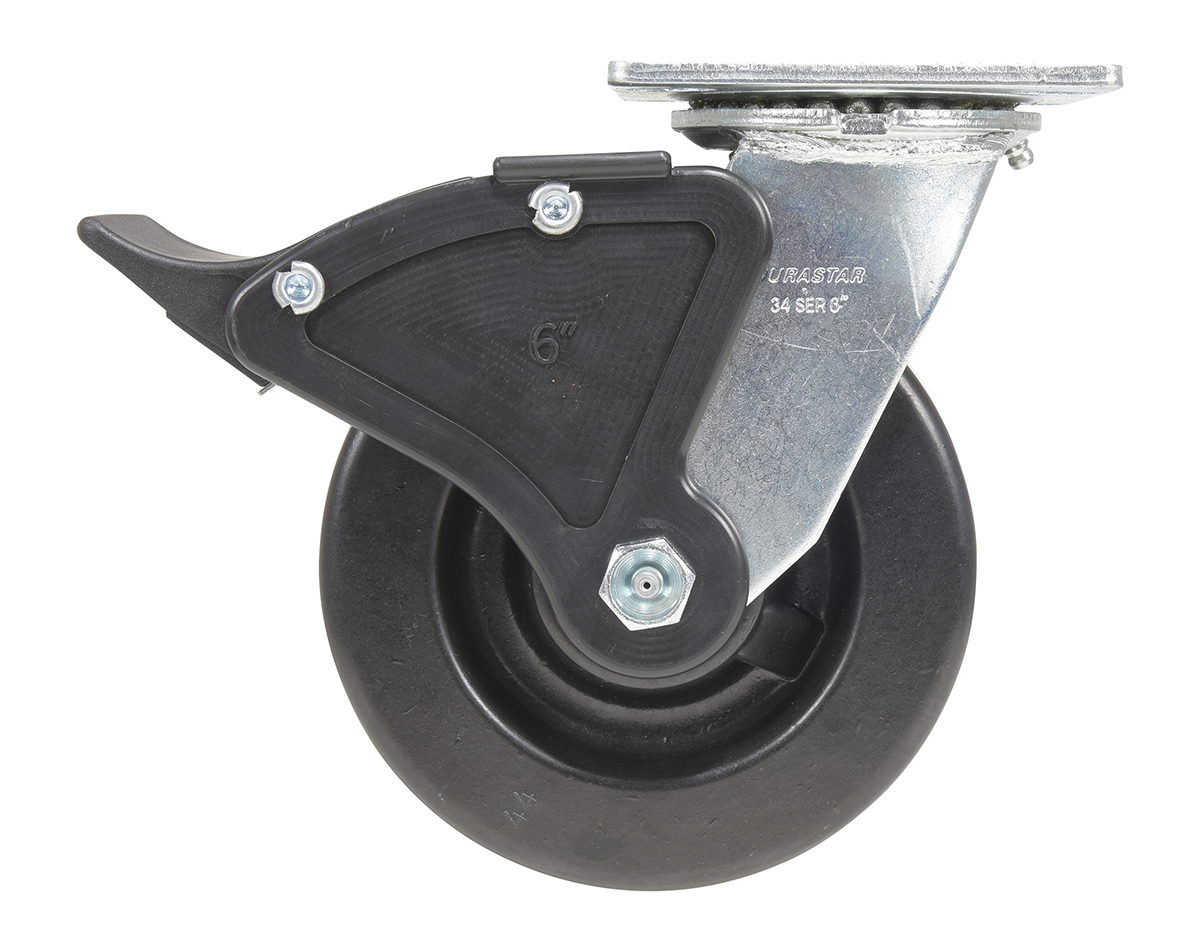

CST-VE-6X2PH-SWTB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/TOTAL BRAKE	1200	7-1/2	4 x 4-1/2	7

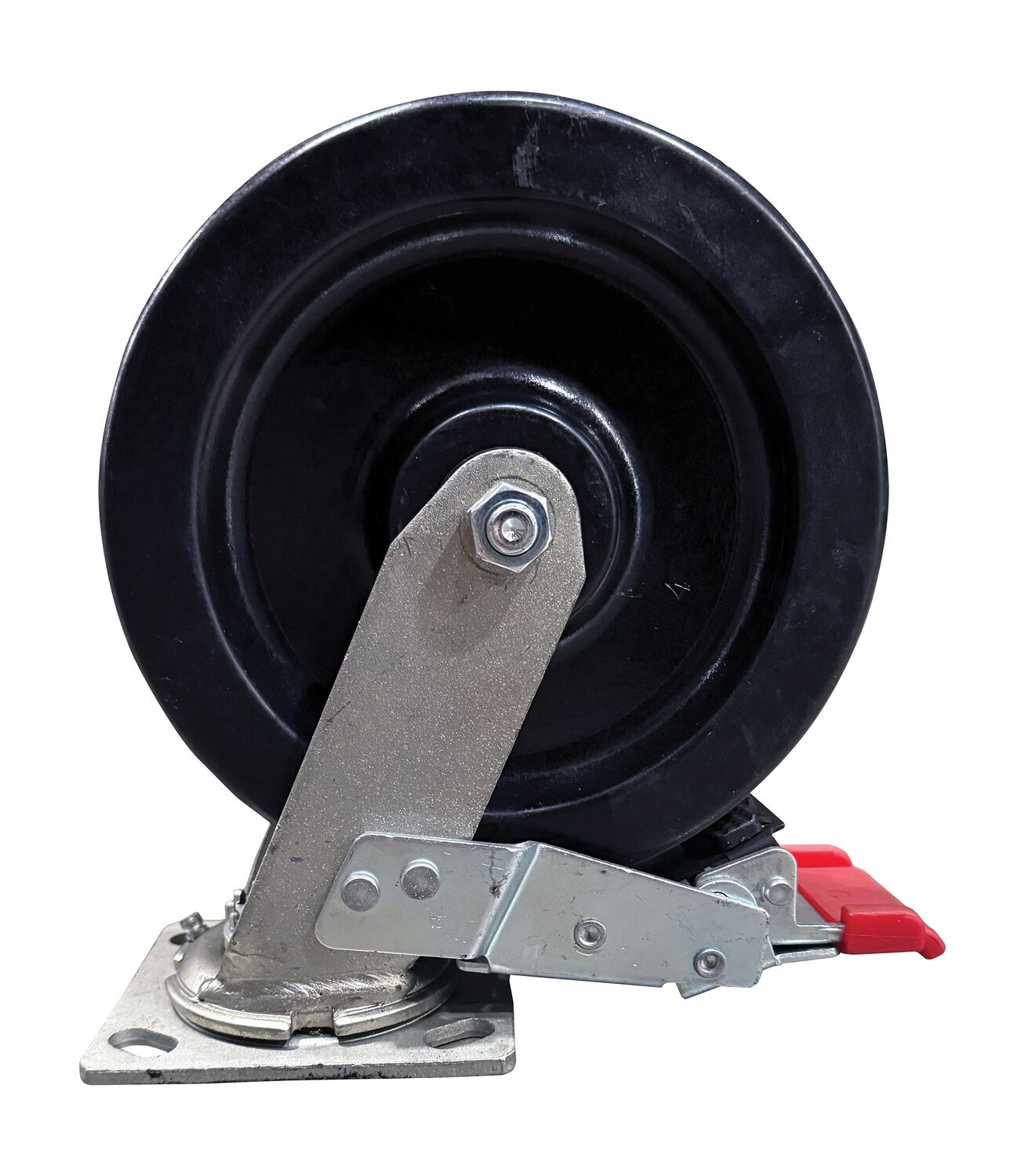

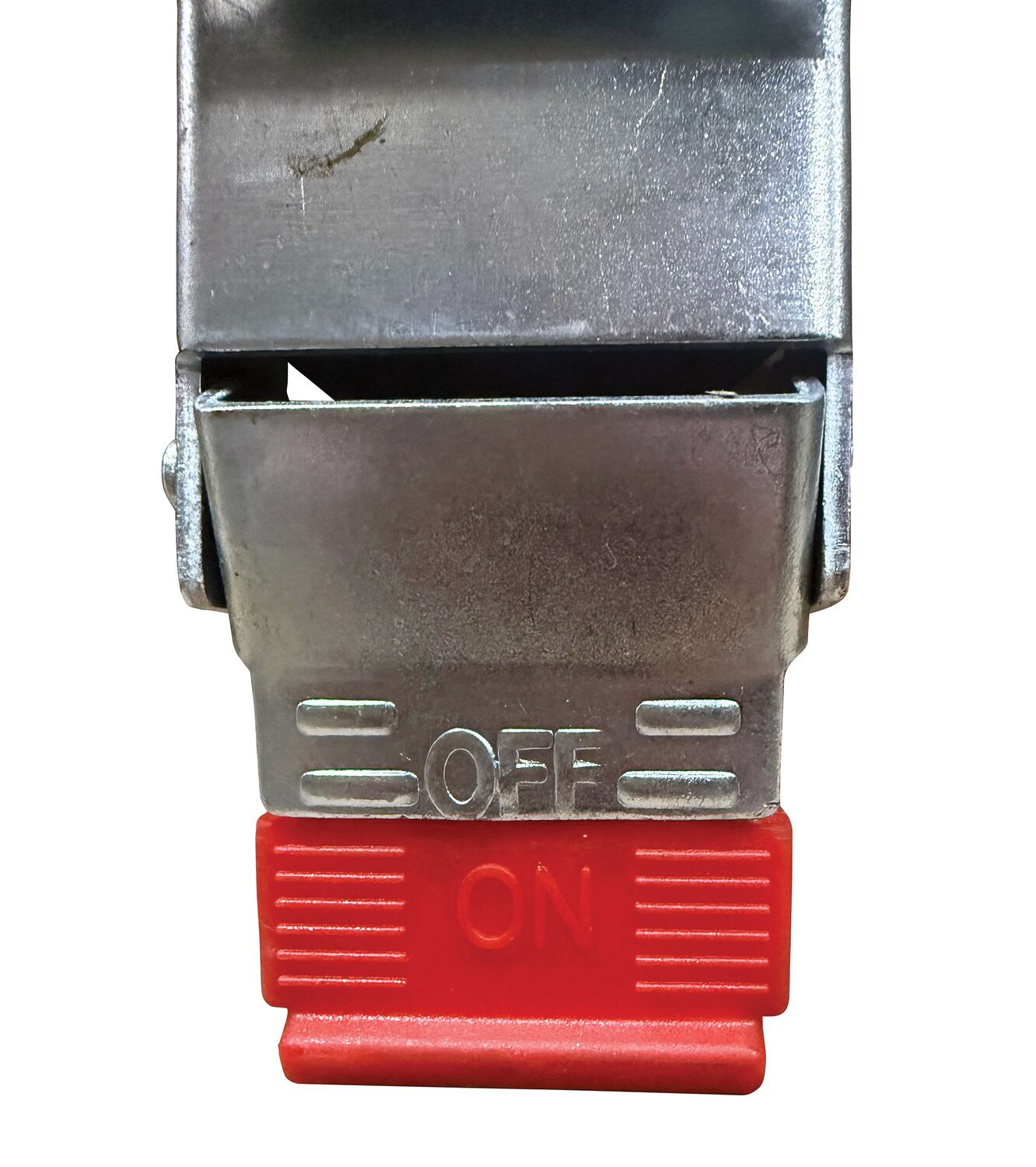

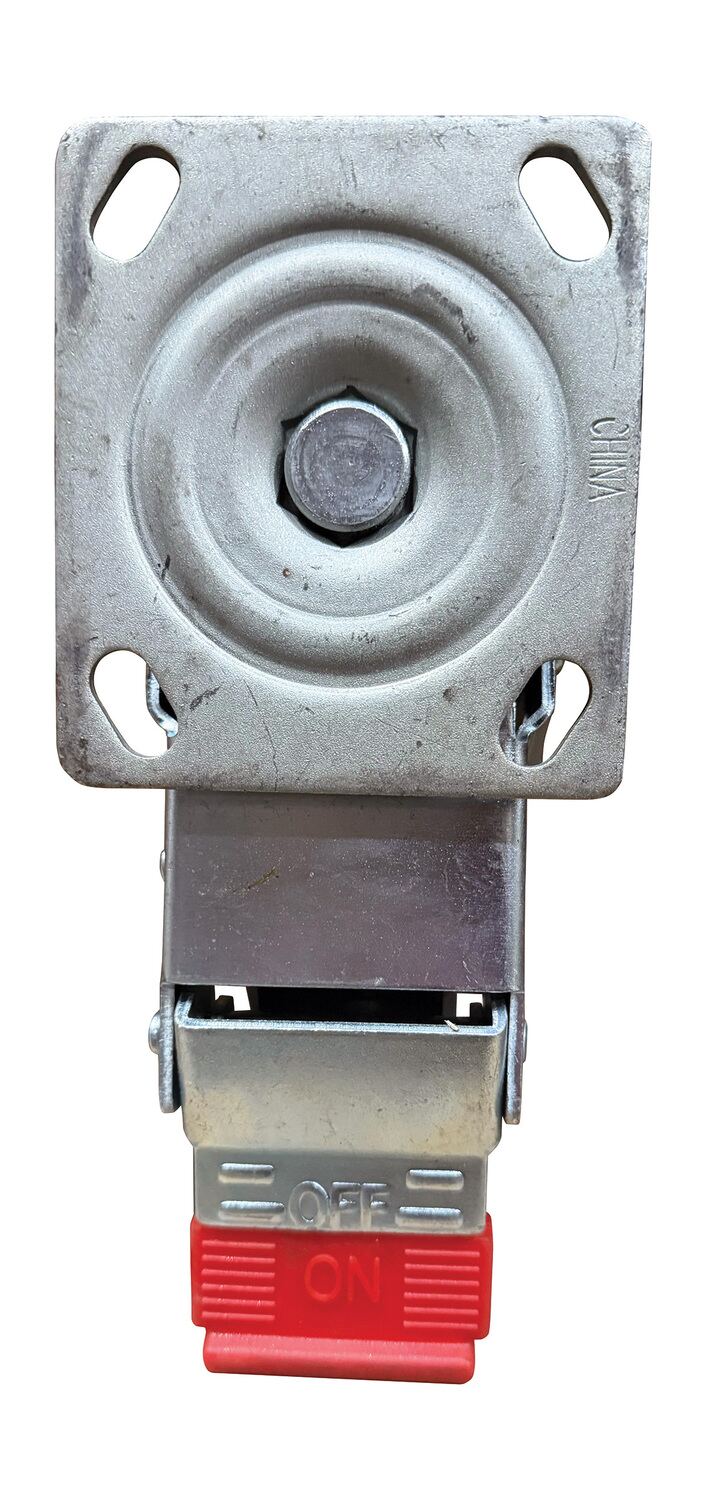

CST-VE-8X2PH-SWTB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/TOTAL BRAKE	1250		4 x 4-1/2	8
