Hydraulic Drum Crusher/Compactors

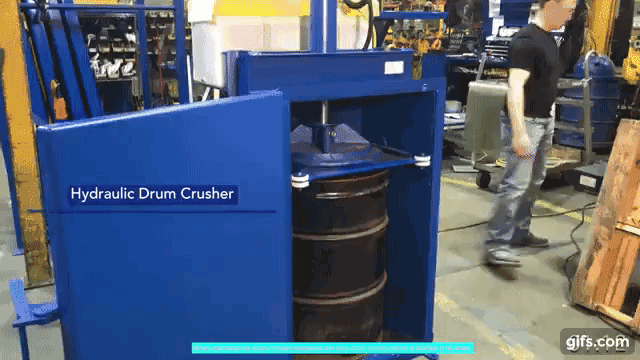

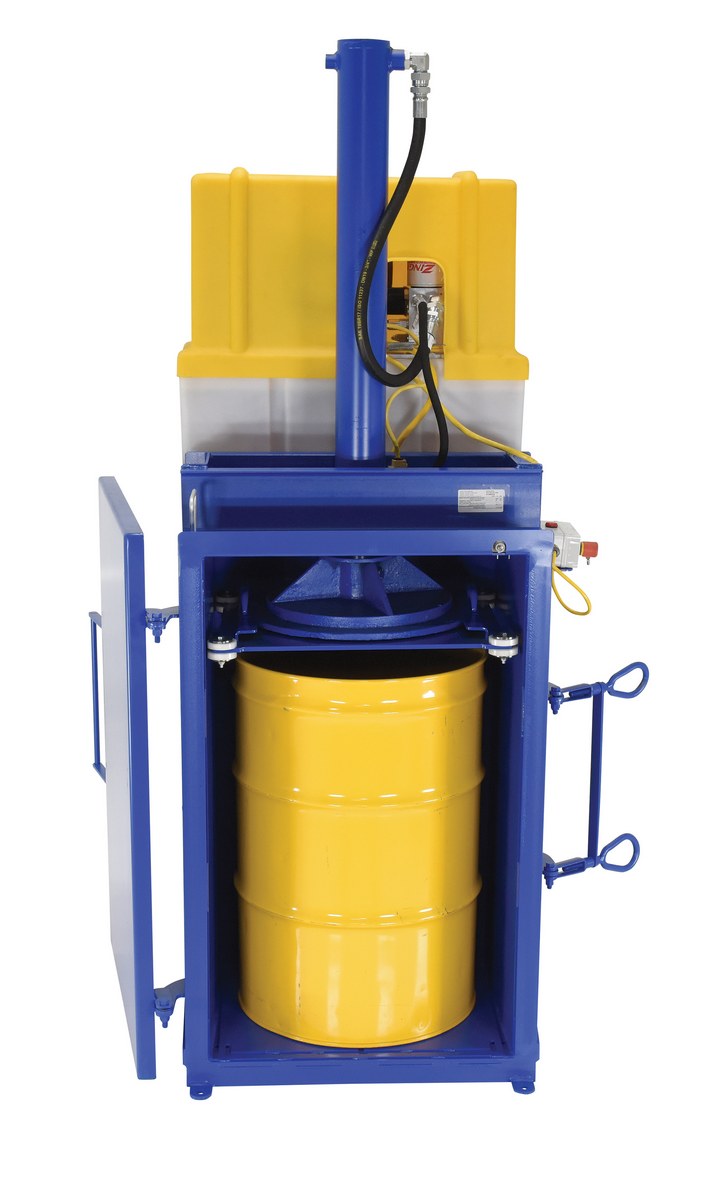

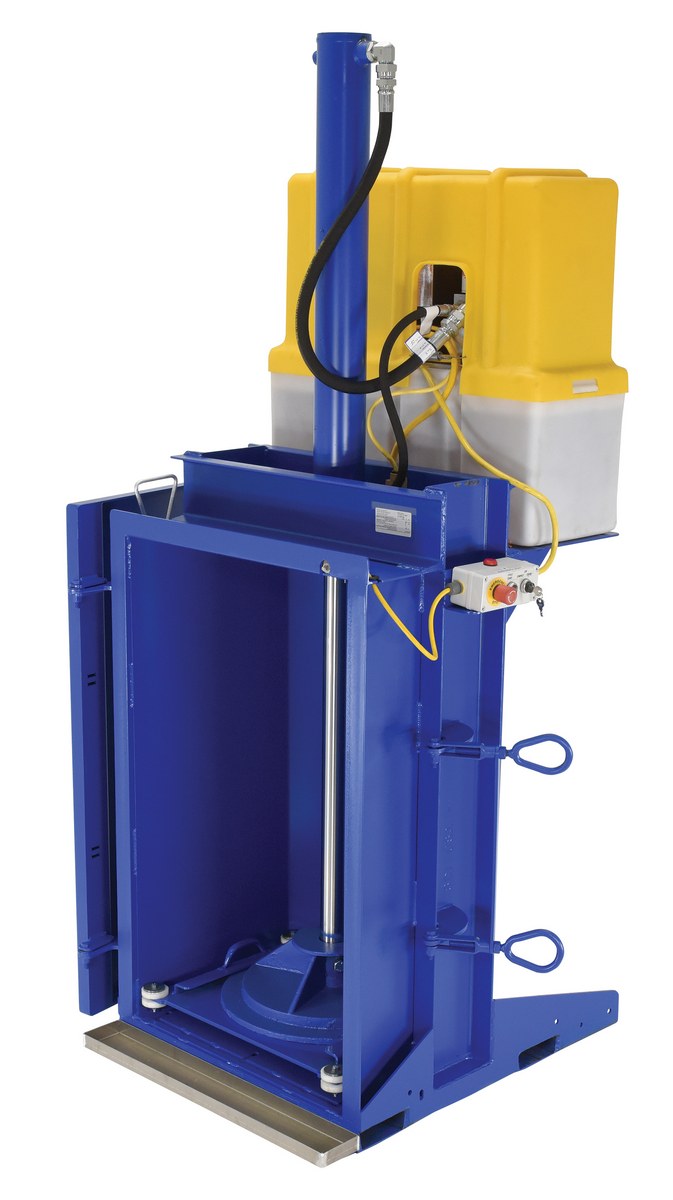

The model HDC-905-IDC crushes 55-gallon steel drums to approximately 6" high and resets automatically to crush another drum. Full cycle time is 25 seconds (crush and retract). This unit is designed for an intermittent duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply. For crushing or compacting a large volume of drums continuously, the HDC-905-HC is recommended. Both units are capable of 38,000 pounds of crushing force. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to 55-gallons. Compacting feature will only work with 55-gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing. Plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60 hz, choose from 208V, 230V or 460V Meets OSHA 1910.212 and ANSI Z245.5 standards. Built-in fork pockets aid in transporting. Aluminum drip pan, for catching any excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"L x 1-5/8"H. Replacement and additional drip pans are available, model HDC-905-DPN. Crating is recommended for international shipments, contact factory.
- 38,000 lbs. of crushing force flattens 55-gallon drums to 6" in 25 seconds
- Powered illuminated on/off switch increases user awareness and safety
- Mushroom-head emergency stop button will instantly shut-down unit
- Manufactured to comply with OSHA and JIC standards & specifications
Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.
Pneumatic Trash (55 Gallon Drum) Compactor
Aerosol Can Crusher
Mobile Gasoline Powered Drum Crusher
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

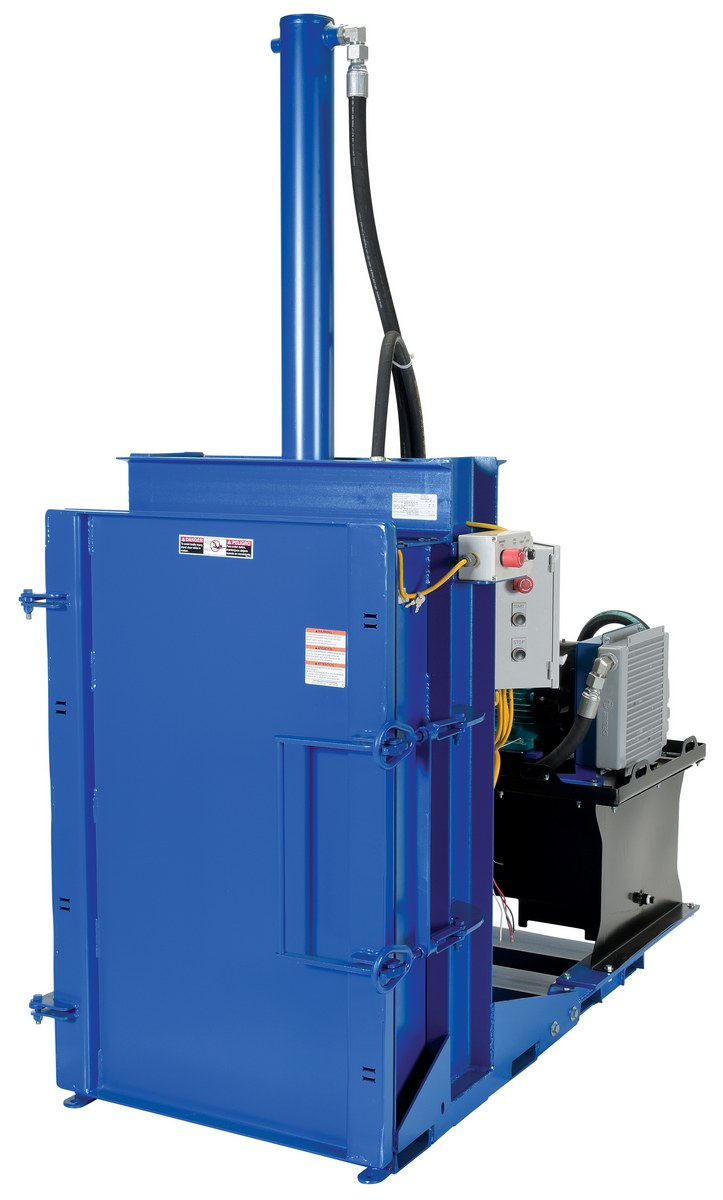

| HDC-905-HC/208V |  | 1 Year Limited Warranty | Steel High Cycle Hydraulic Drum Crusher and Compactor 208 Volt Three Phase 38,000 Lbs. Crushing Force Blue | Approximate Crushed Height (in.): 6 Full Cycle Time (Crush and Retract) (seconds): 25 | 2148 | ||
| HDC-905-HC/230V |  | 1 Year Limited Warranty | Steel High Cycle Hydraulic Drum Crusher and Compactor 230 Volt Three Phase 38,000 Lbs. Crushing Force Blue | Approximate Crushed Height (in.): 6 Full Cycle Time (Crush and Retract) (seconds): 25 | 2148 | ||

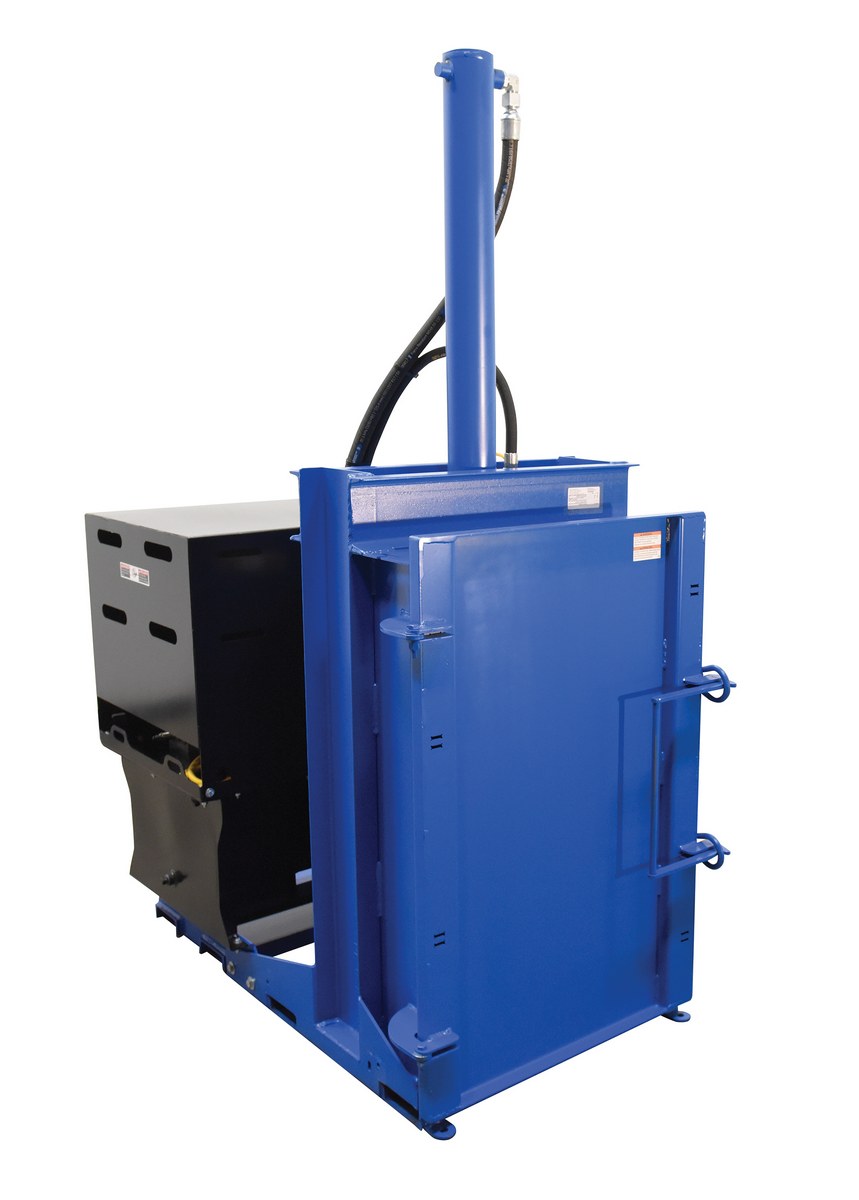

| HDC-905-HC/460V |  | 1 Year Limited Warranty | Steel High Cycle Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 Lbs. Crushing Force Blue | Approximate Crushed Height (in.): 6 Full Cycle Time (Crush and Retract) (seconds): 25 | 1992 | ||

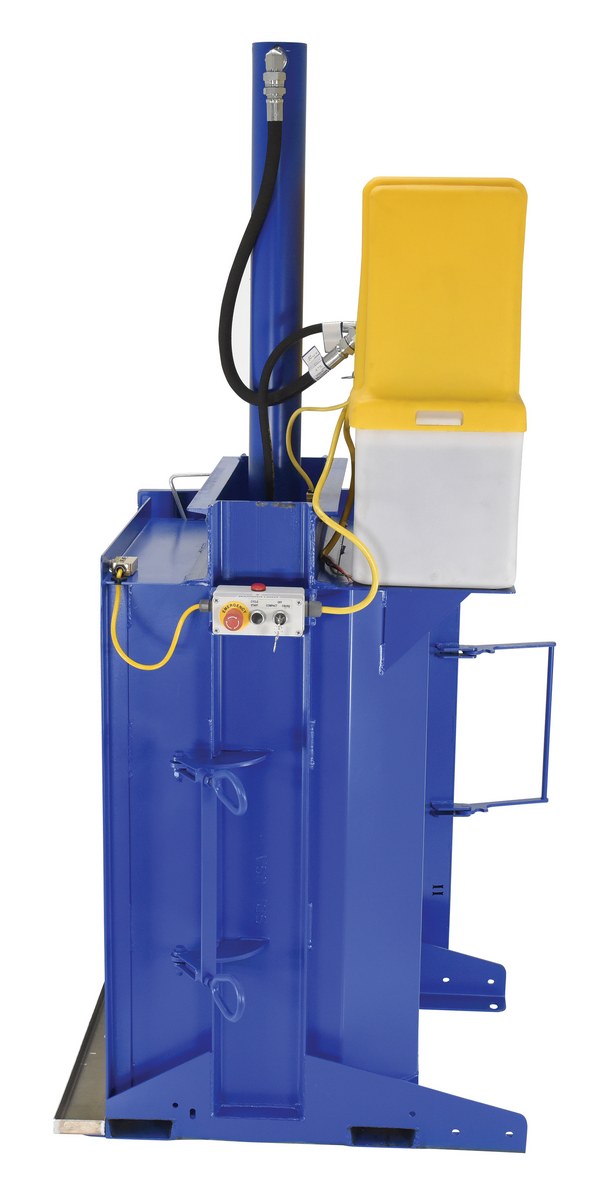

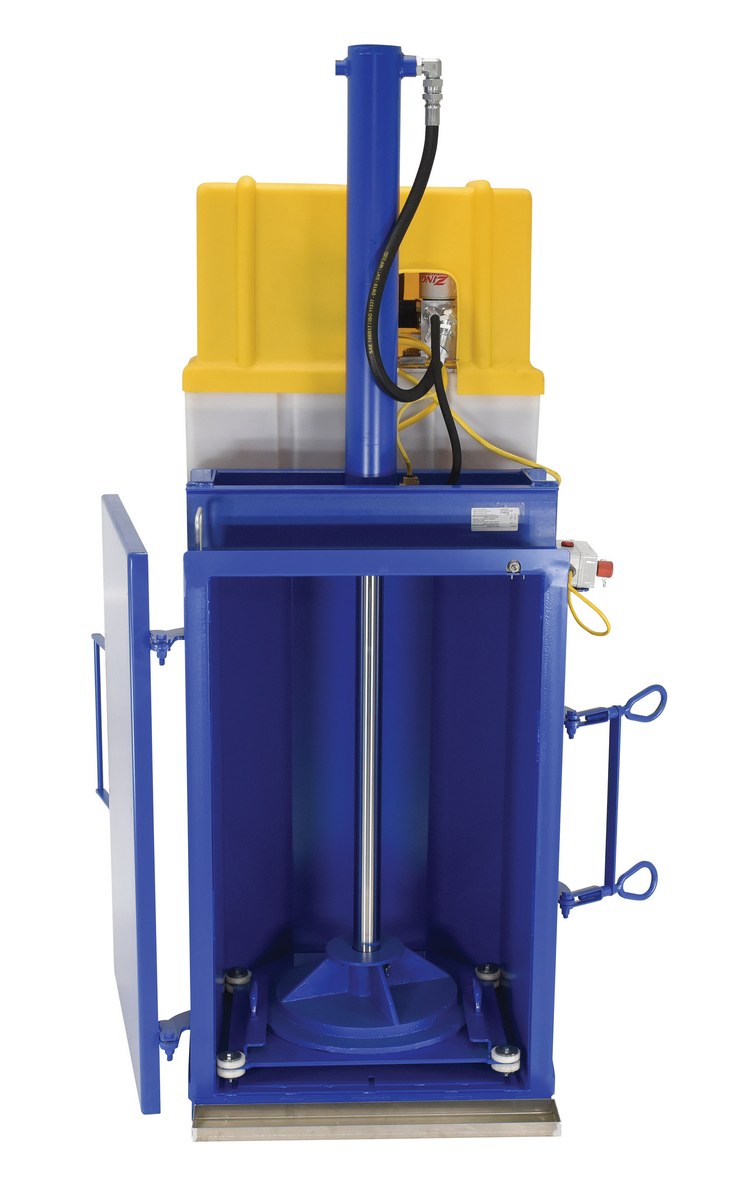

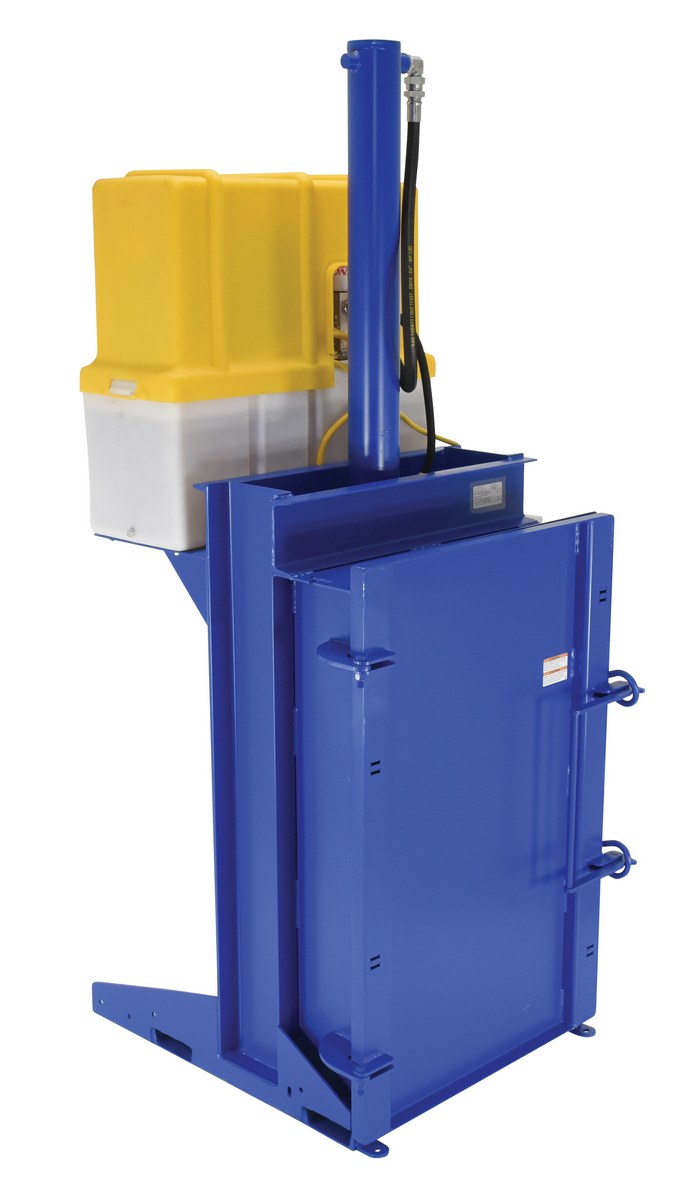

| HDC-905-IDC/208V |  | 1 Year Limited Warranty | Steel Hydraulic Drum Crusher and Compactor 208 Volt Three Phase 38,000 Lbs. Crushing Force Blue | Approximate Crushed Height (in.): 6 Full Cycle Time (Crush and Retract) (seconds): 25 | 1396 | ||

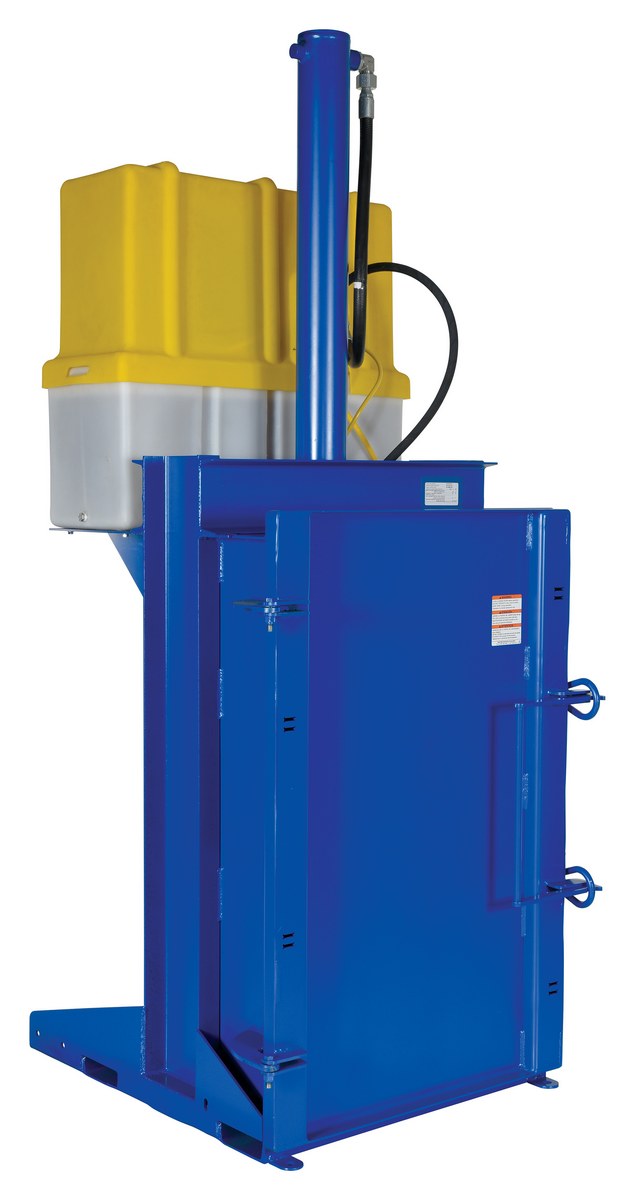

| HDC-905-IDC/230V |  | 1 Year Limited Warranty | Steel Hydraulic Drum Crusher and Compactor 230 Volt Three Phase 38,000 Lbs. Crushing Force Blue | Approximate Crushed Height (in.): 6 Full Cycle Time (Crush and Retract) (seconds): 25 | 1406 | ||
| HDC-905-IDC/460V | POPULAR |  | 1 Year Limited Warranty | Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 Lbs. Crushing Force Blue | Approximate Crushed Height (in.): 6 Full Cycle Time (Crush and Retract) (seconds): 25 | 1570 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
For More Details of the Option Click the Red Model Button

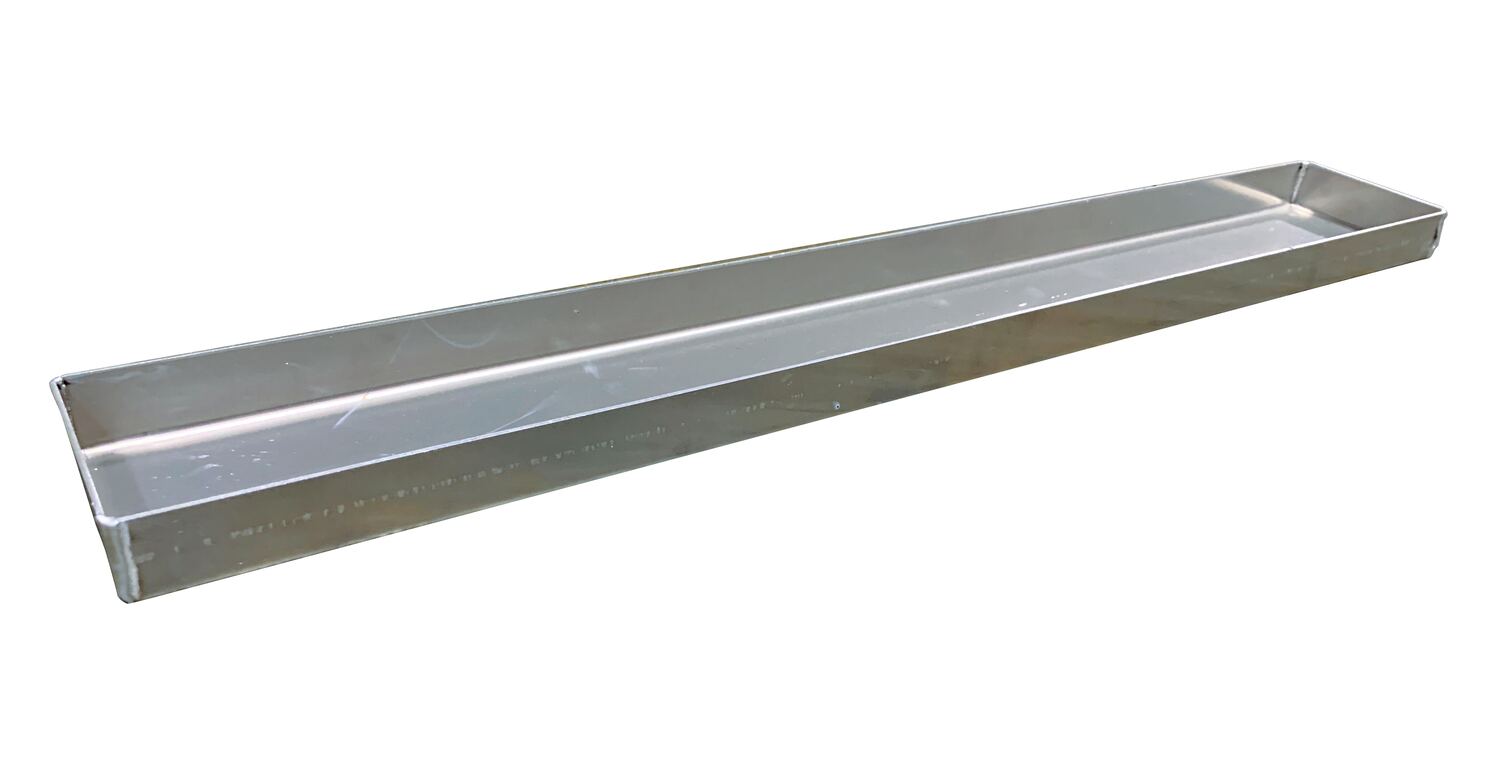

| HDC-905-DPN |  | 90 Days Limited Warranty | Aluminum Drip Pan For Use with HDC-905 Models Silver | Pan Capacity (gal.): 1 | 5 | |
| HDC-905-HC-WD |  | 90 Days Limited Warranty | Factory Installed High Cycle Wash-Down Motor and NEMA Four Enclosure For Hydraulic Drum Crusher | Brand / Model Compatibility: HDC-905-HC/208V, HDC-905-HC/230V, HDC-905-HC/460V | 1500 | |

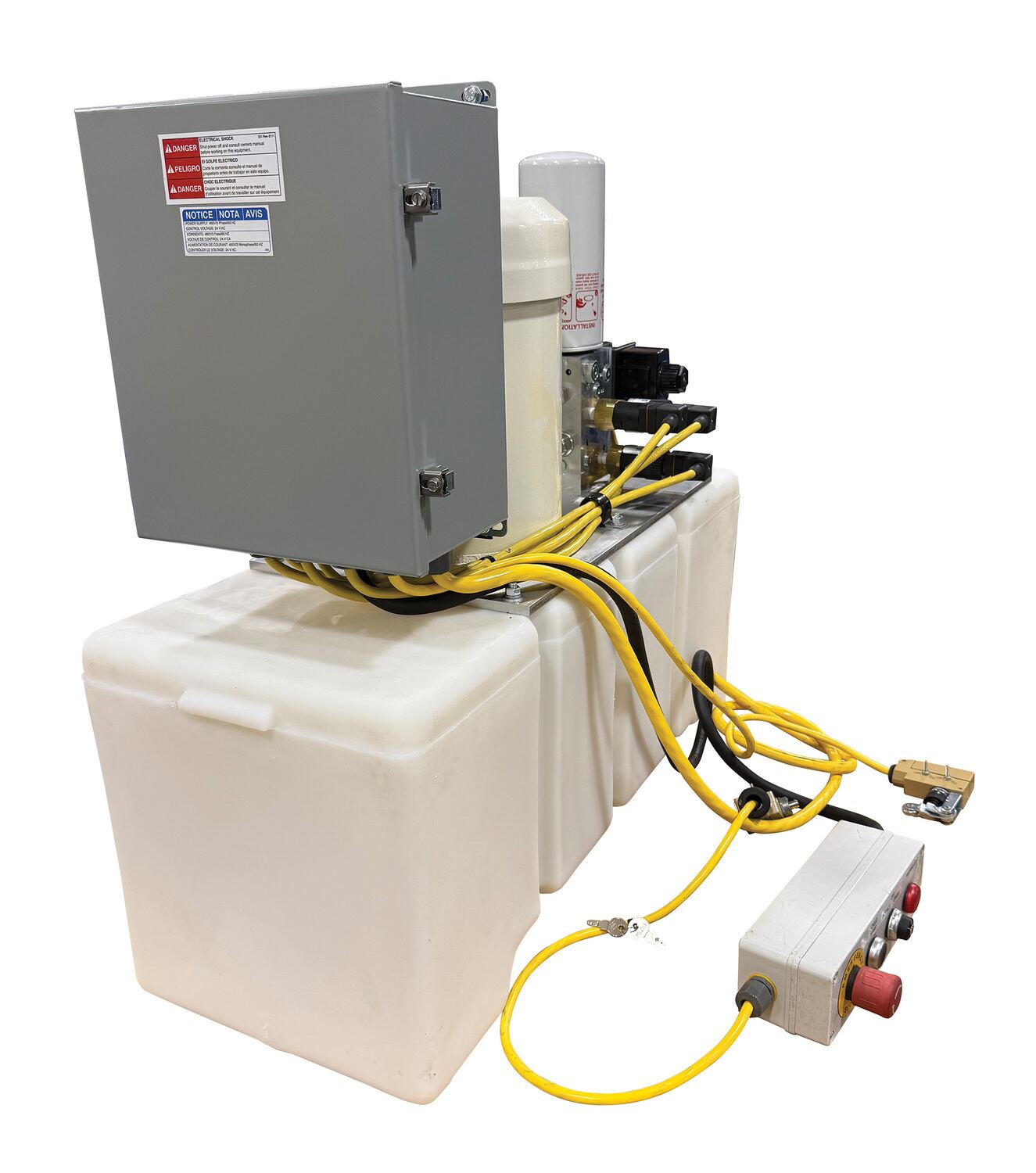

| HDC-905-WD |  | 90 Days Limited Warranty | Factory Installed Wash-Down Motor and NEMA Four Enclosure For Hydraulic Drum Crusher | Brand / Model Compatibility: HDC-905-IDC/208V, HDC-905-IDC/230V, HDC-905-IDC/460V | 1500 | |
| HDC9-1 | | 90 Days Limited Warranty | Factory Installed 3 Horsepower Single Phase Power Unit For HDC-905-IDC | Approximate Crushed Height (in.): 6 Full Cycle Time (Crush and Retract) (seconds): 70 |
| Model | Image | Description |
| IOH-230V |  |
Factory Installed Immersion Oil Heater 230 Volt 250 Watts For Cold Weather Application |
| IOH-460V |  |
Factory Installed Immersion Oil Heater 460 Volt 500 Watts For Cold Weather Application |
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: HDC-905-HC/460V
Hydraulic Oil SDS Sheet for: HDC-905-IDC/208V
Hydraulic Oil SDS Sheet for: HDC-905-IDC/230V
Hydraulic Oil SDS Sheet for: HDC-905-IDC/460V
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Can you increase the crushing force of the drum crushers to more than 38,000 lbs.?
A: The HDC-905 units have a maximum crushing force of 38,000 lbs.
Q: Do you have to hold the button the entire cycle or can you press it and walk away?
A: This is hydraulic unit has a latching circuit that has an automatic operation after a single depression of the hand-held pendant. At the end of the cycle, the unit resets to the start position. To interrupt operation, depress the E-Stop button.
Q: Is the drum crusher spark resistant?
A: No, the HDC units are not spark resistant.
Q: Is the drum crusher explosive proof?
A: No, the HDC units are not explosive proof.
Q: Is this designed to operate without being bolted down?
A: Yes the drum crusher can be used without being bolted down. There are fork pockets so the drum crusher can be moved. Please see the owners manual for additional information.
Q: What is the difference between the standard (IDC) and the high cycle (HC)?
A: HDC-905-HC is high cycle version. It has a heavy duty continuous run (with timer) power unit and will basically do unlimited number of cycles. Standard unit is designed for a duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply.
Q: We are expecting to crush about 1500 drums per month. Will this unit work for us?
A: Approximately 2000 drums per month is possible with HDC-905-HC high cycle crusher. Cycle time is approx 25 seconds.
Q: What is the compacting plate diameter?
A: The diameter is 21"
Q: I have fiber drums. Will this work?
A: Yes fiber drums can be used with the drum crusher
Q: What is the AMP range for the HDC-905-IDC/460V?
A: The 460V 3 phase full - load current is 9.5 AMPS.
Q: What is the amp draw of the HDC-905-IDC/230V?
A: If set up for operation on 230V, single-phase, the motor nameplate full-load current is 12.8 amps. If set up for operation on 230V, three-phase, the motor nameplate full-load current is 16.8 amps.
 |
|||||||||||||||||||||||||||||||||||||
