Mezzanine Safety Gates

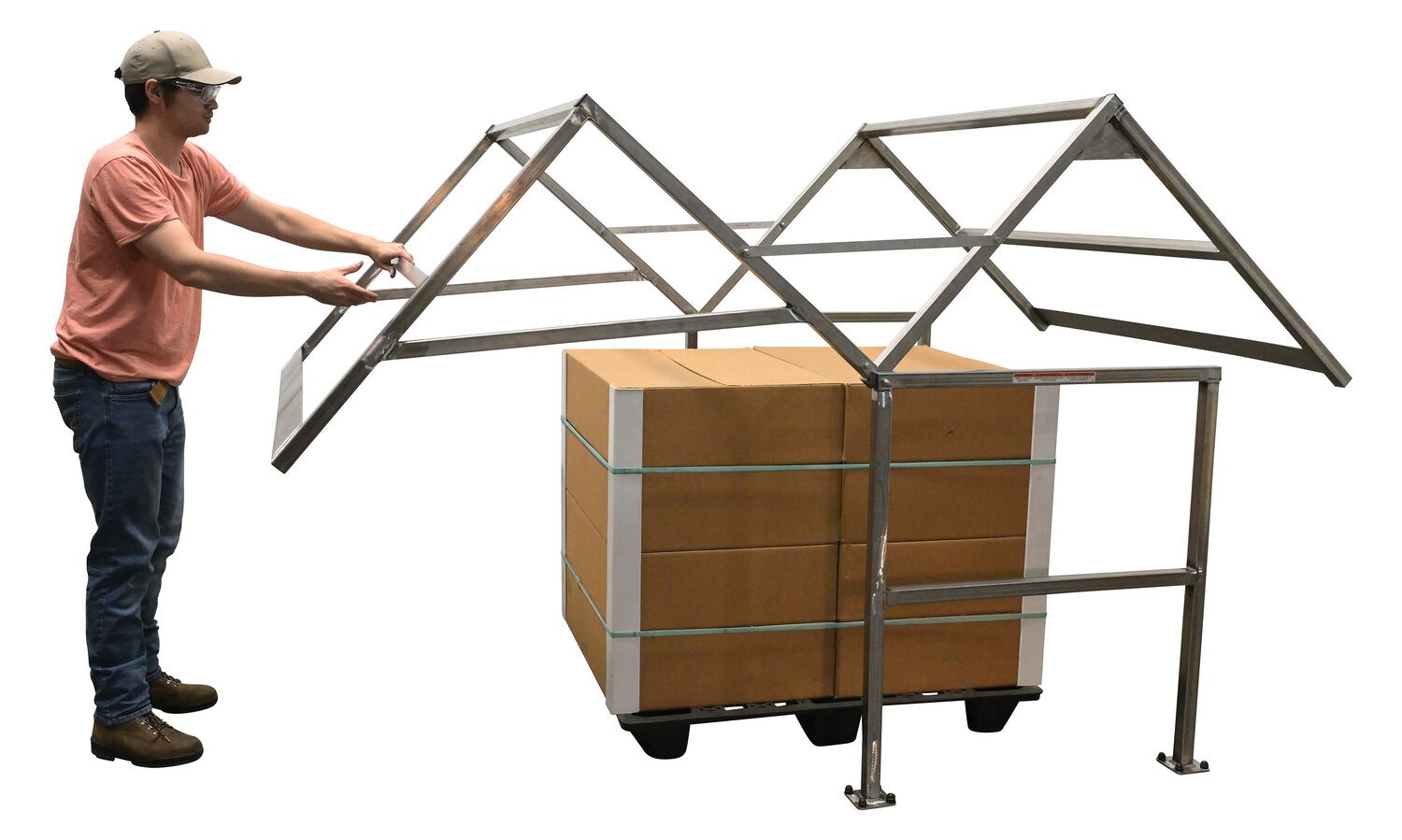

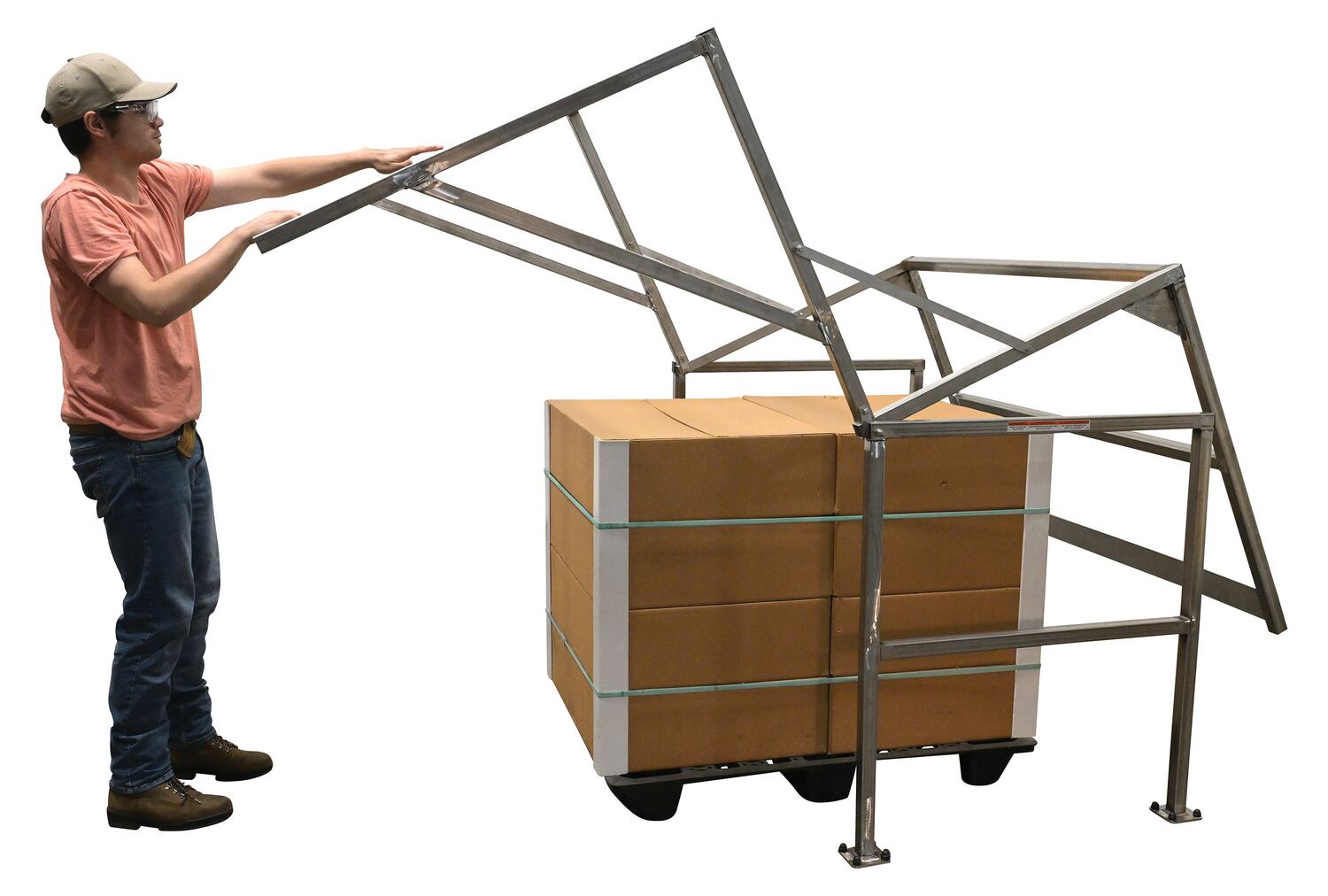

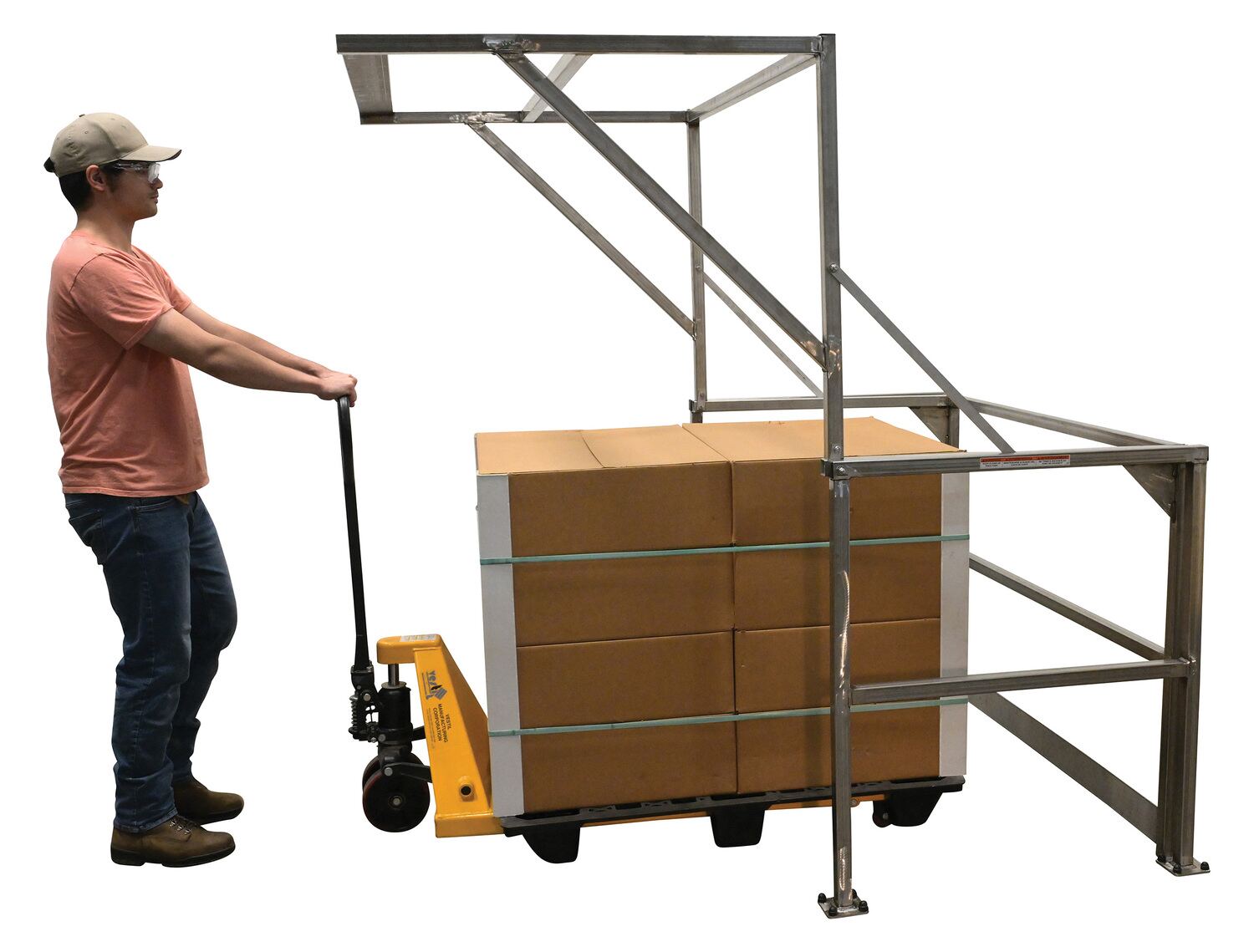

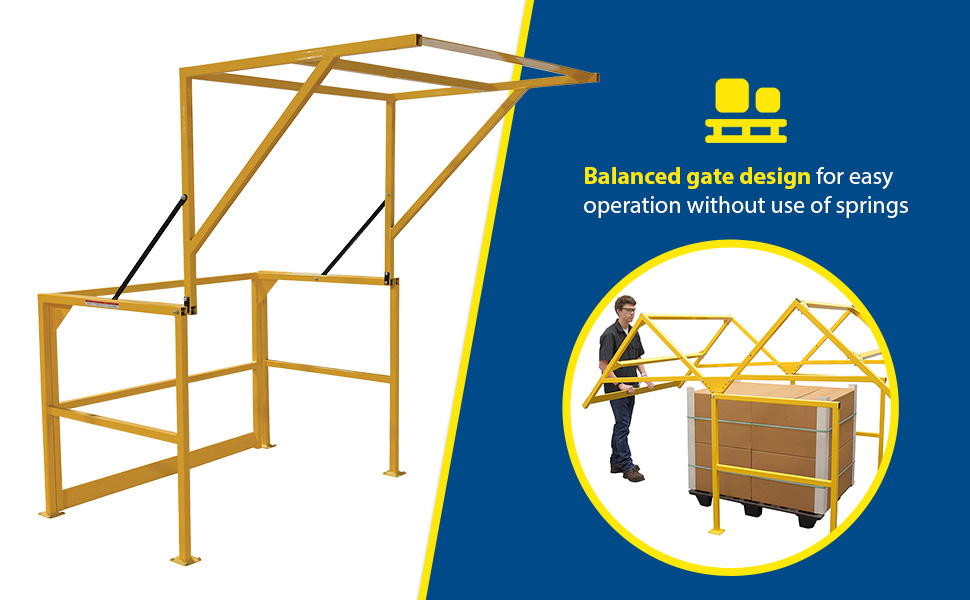

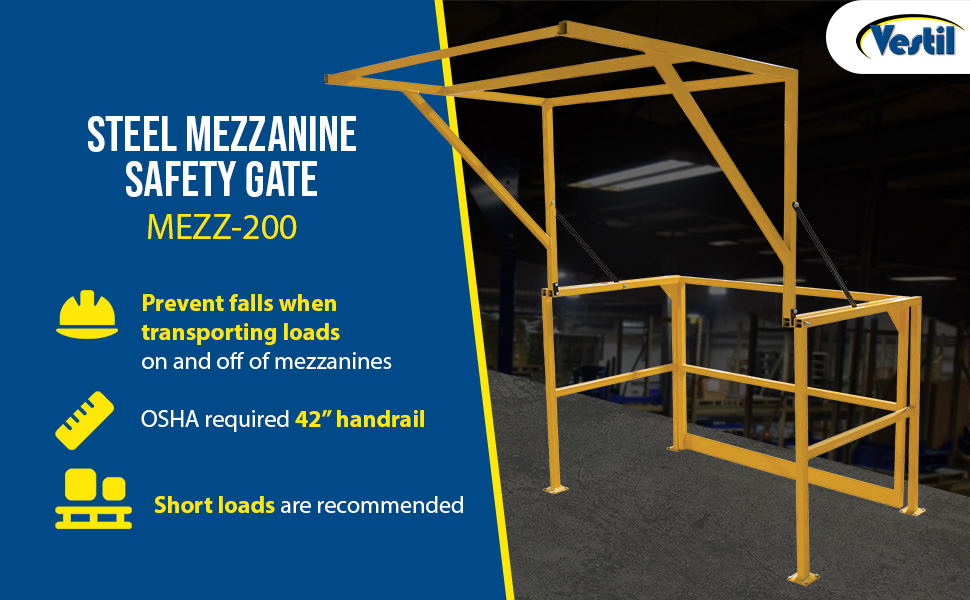

The Mezzanine Safety Gate provides an OSHA required 42-3/8" high handrail, 21" high mid-rail, and 4" high toe board for mezzanines without sacrificing load accessibility. To accommodate the maximum load height of 68", when utilizing a standard 48"W x 48"D pallet (two standard, side by side pallets for models MEZZ-200-DW & MEZZ-200-DW-SS) load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. Gate design is balanced to allow for easy operation without use of springs. Baked-in powder-coated toughness. Welded steel construction.

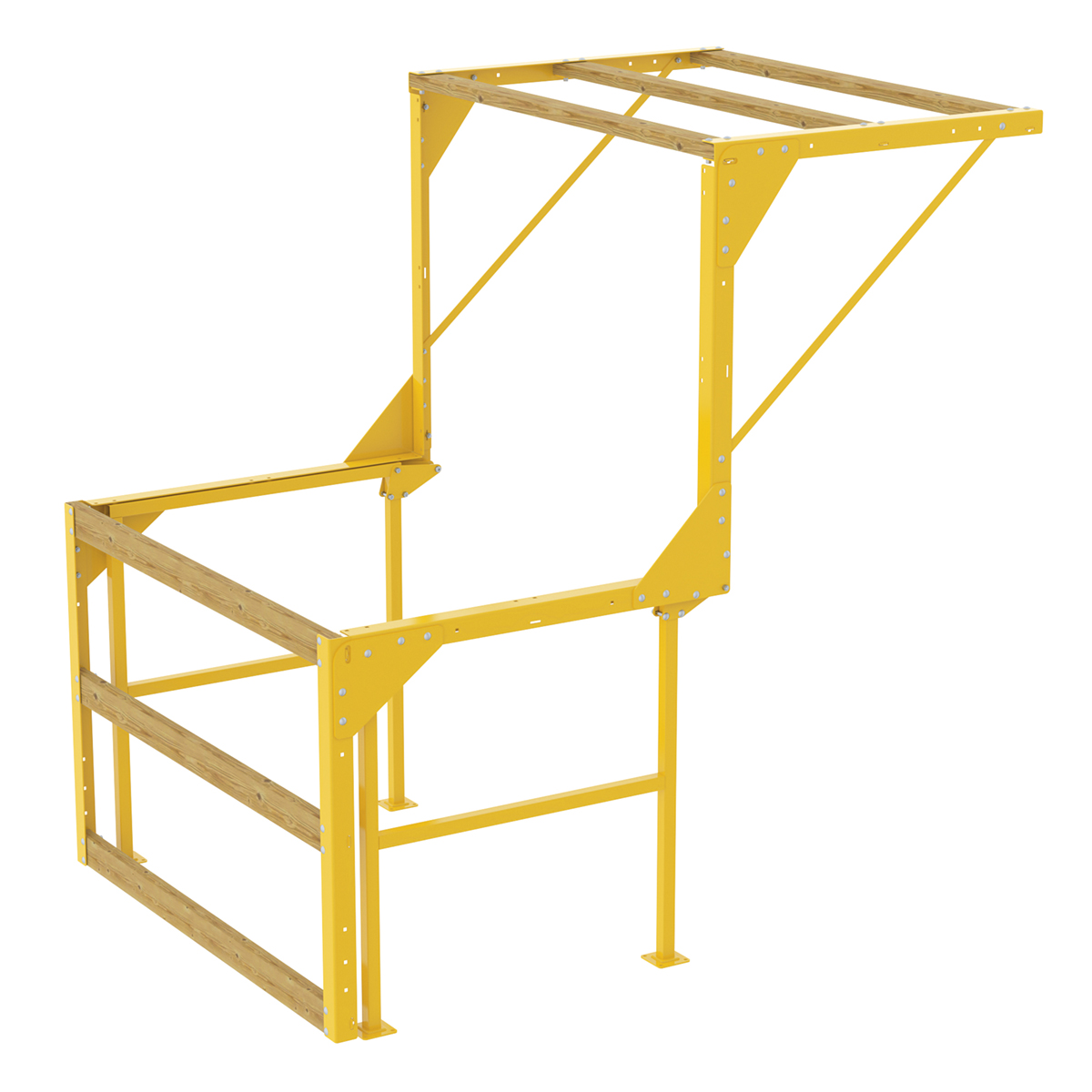

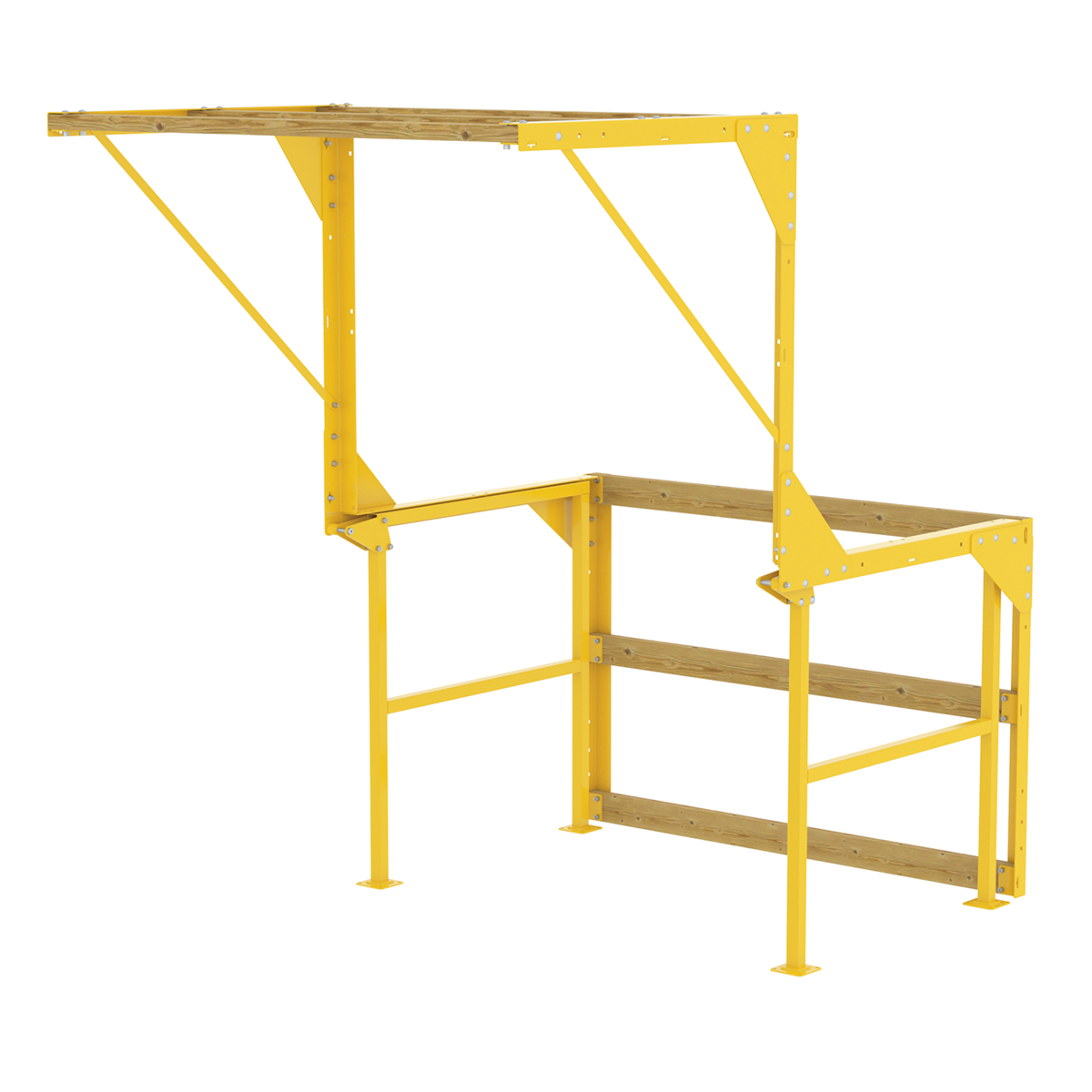

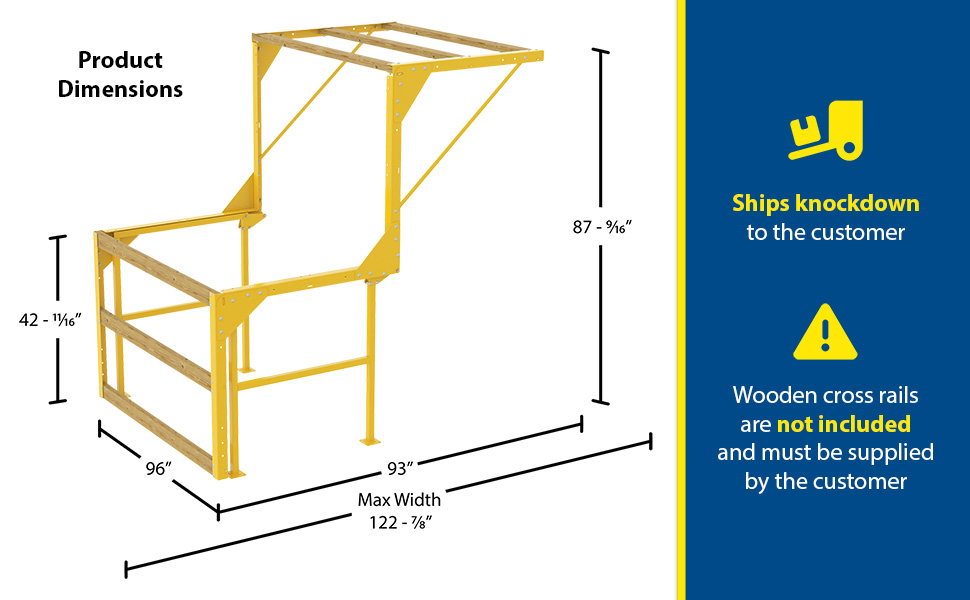

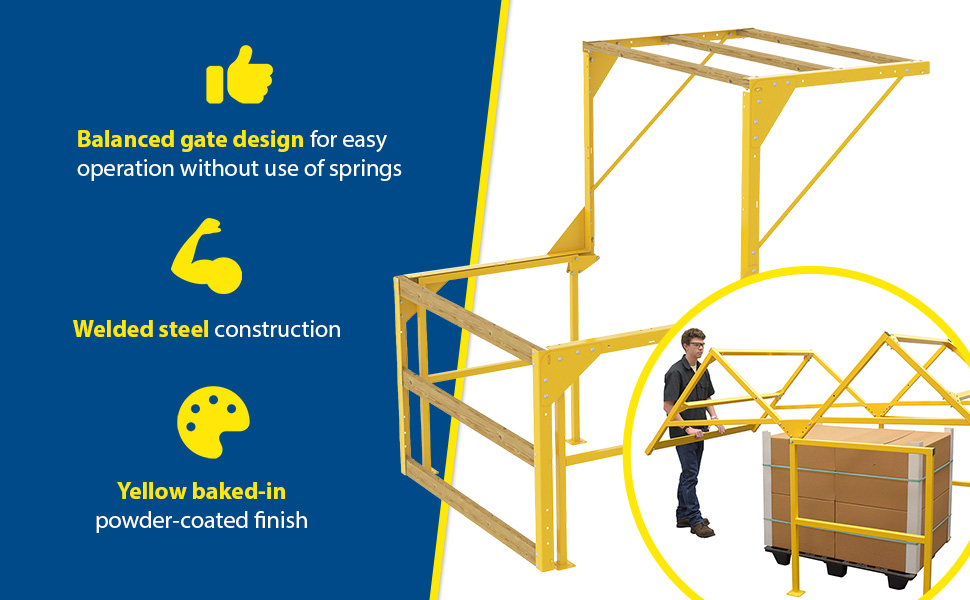

The MEZZ-KD-88T-93D ships knockdown to the customer. The 6 wooden cross rails are not included and must be supplied by the customer. Cross rails can have a maximum overall length up to 96"

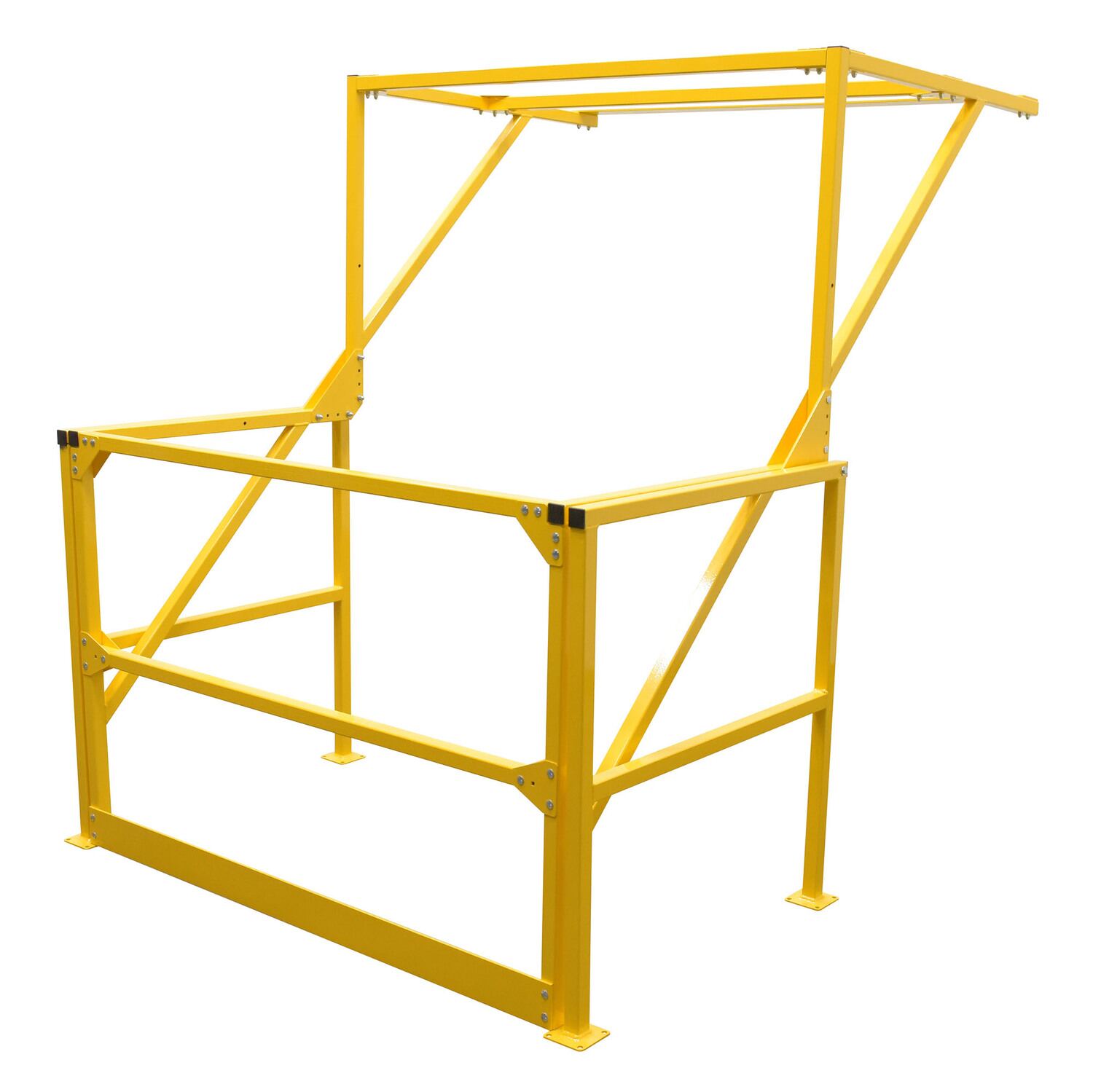

The MEZZ-200-BT has a bolt-together design, so the gate can be constructed, disassembled, or easily transferred to a new location.
Other Mezzanine Safety Gates:
Sliding Mezzanine Safety Gates | Rotating Mezzanine Gate System
Rotating Mezzanine Safety Gate System
Self-Closing Steel Gates (Adjustable Width)
Swivel Dock Gates
Crowd Control Interlocking BarriersAdditional Models In This Family
MEZZ-200-DW-A
MEZZ-200-BT
MEZZ-200-SS
MEZZ-200-DW-SS
MEZZ-200-SS
MEZZ-200-BT
MEZZ-200-BT
MEZZ-200-SS
MEZZ-200-DW-SS
MEZZ-KD-88T-93D-A
M-BUMP
MEZZ-200
MEZZ-200-SS
MEZZ-200-DW
MEZZ-200-DW
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| MEZZ-KD-88T-93D |  | 90 Days Limited Warranty | Steel Mezzanine Safety Gate Knockdown 87-3/16 In x 96 In x 87-9/16 In Yellow | Base Plate Thickness (in.): 3/16 Base Plate Width/Length (in.): 4/4 | 186 | ||

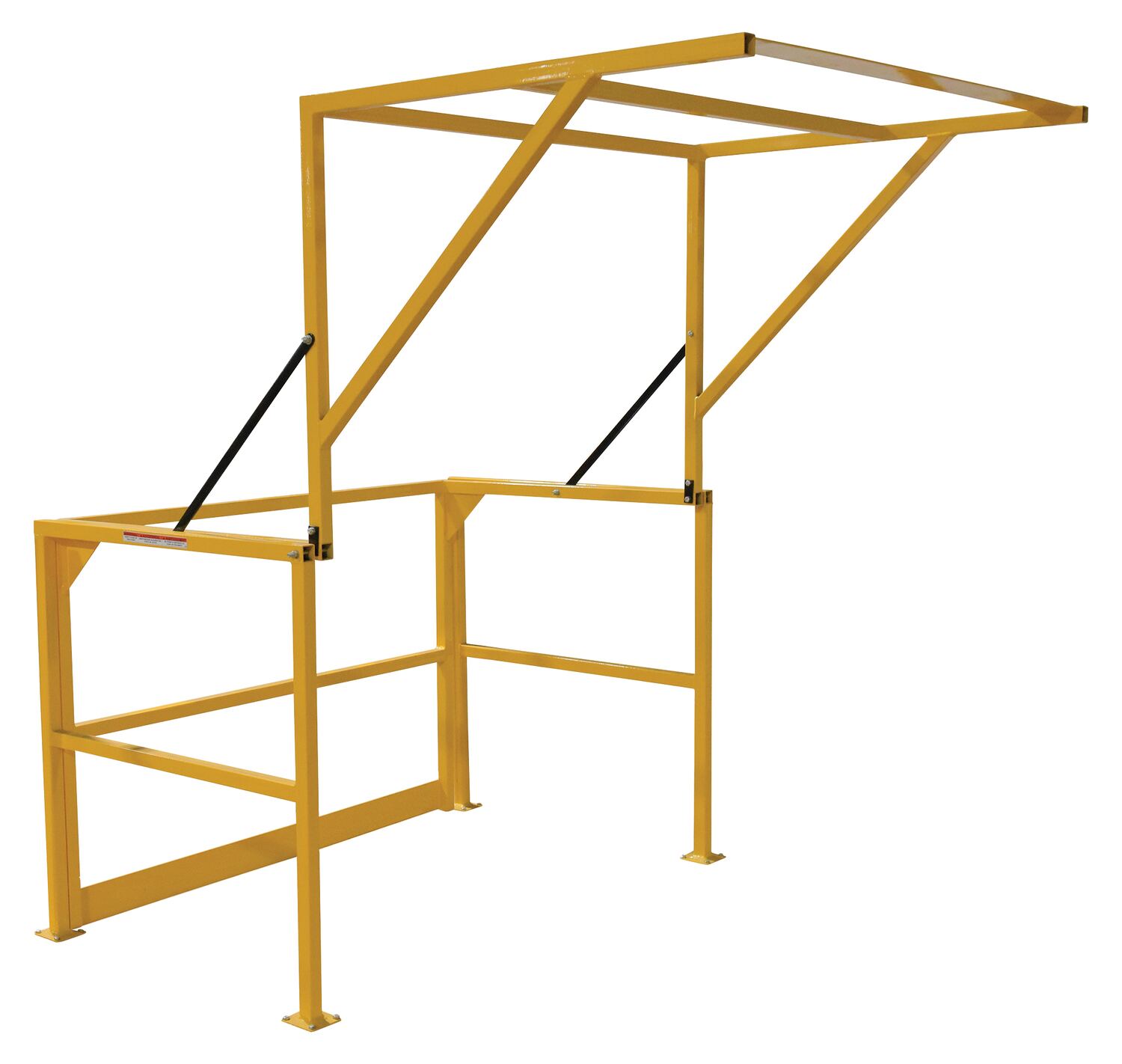

| MEZZ-200 | POPULAR |  | 90 Days Limited Warranty | Steel Mezzanine Safety Gate 79-5/16 In. x 68-1/2 In. x 80-1/16 In. Yellow | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 215 | |

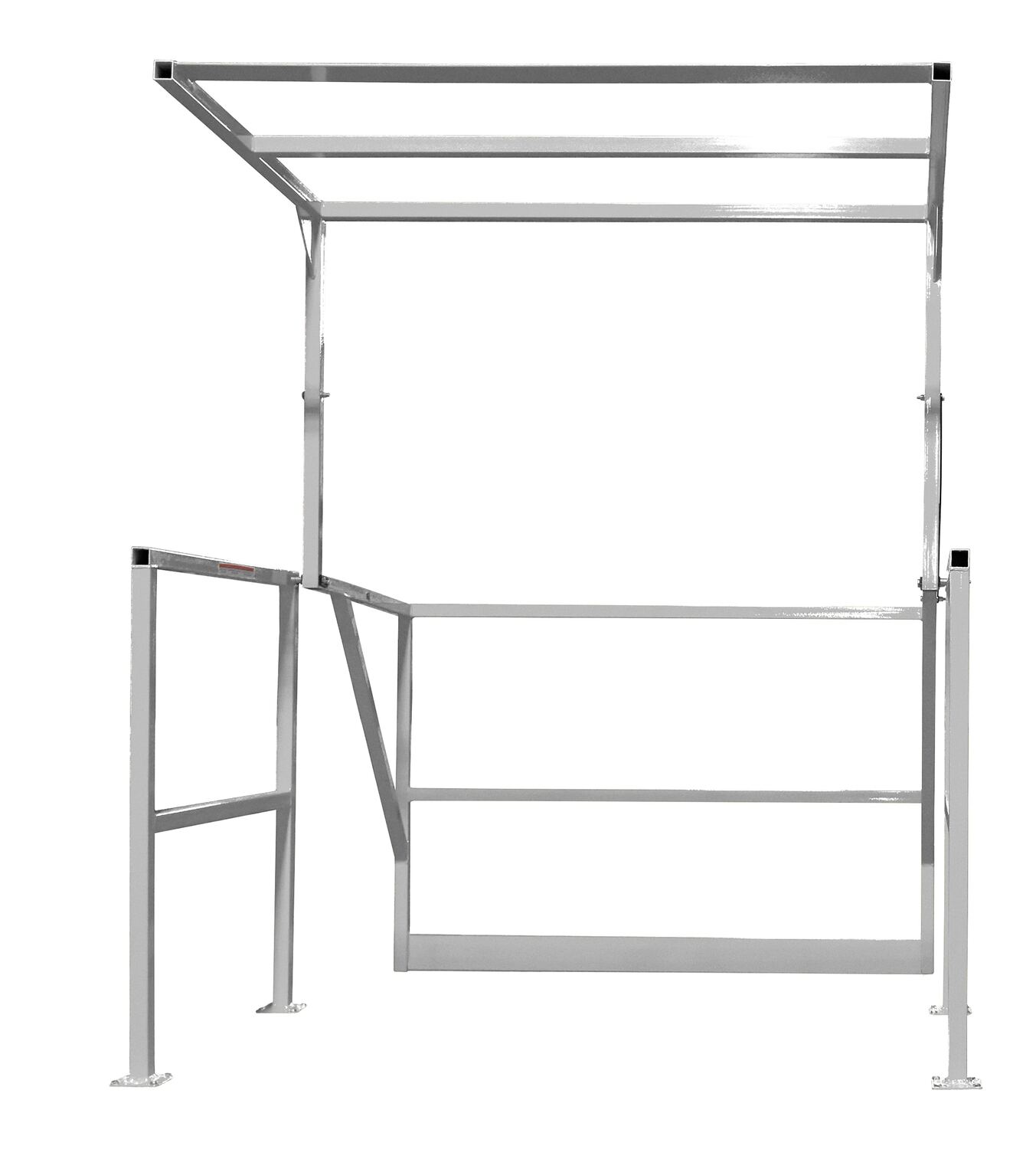

| MEZZ-200-A |  | 90 Days Limited Warranty | Aluminum Mezzanine Safety Gate 56 In. Width Silver | Usable Width (IN):: 56 Handrail Height (IN): 42-7/16" | 149 | ||

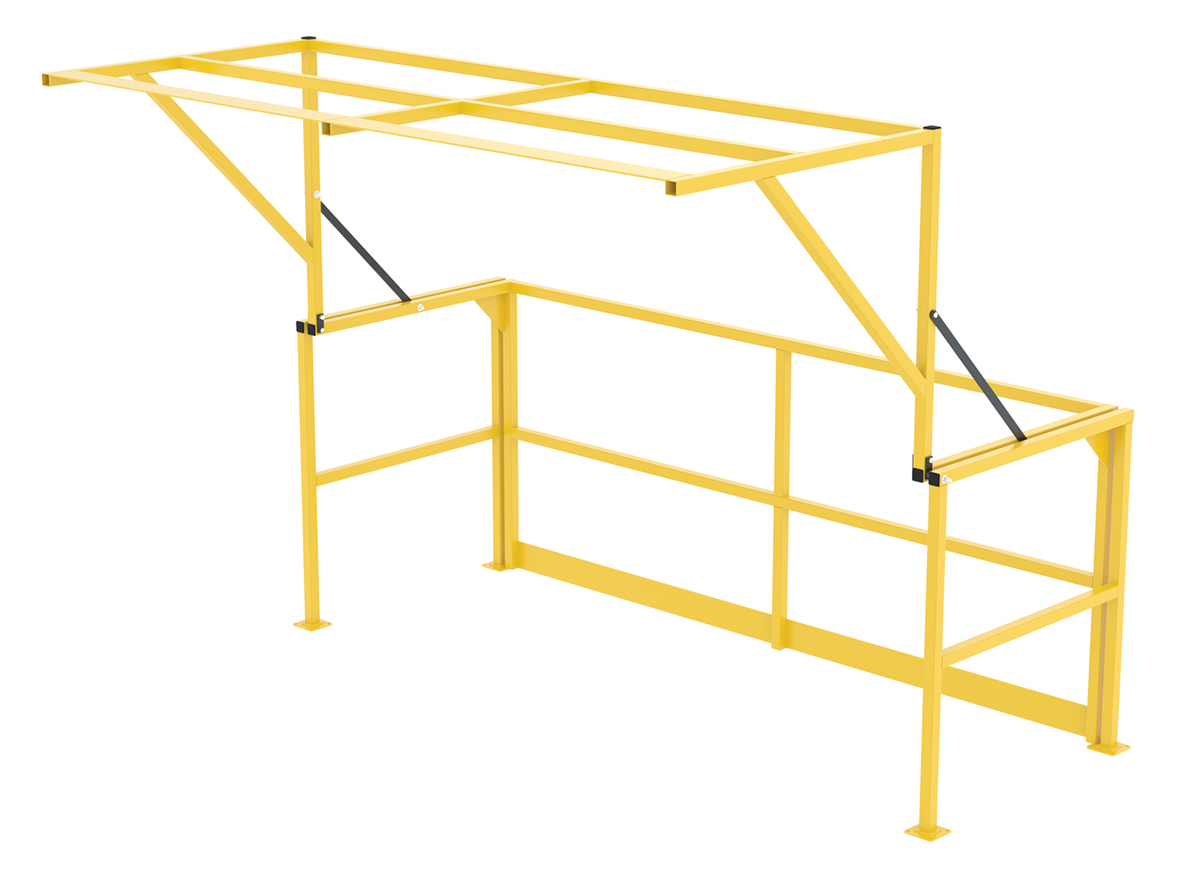

| MEZZ-200-DW | | 90 Days Limited Warranty | Steel Mezzanine Safety Double Wide Gate 79-5/16 In. x 108-1/2 In. x 80-1/16 In. Yellow | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 344 | ||

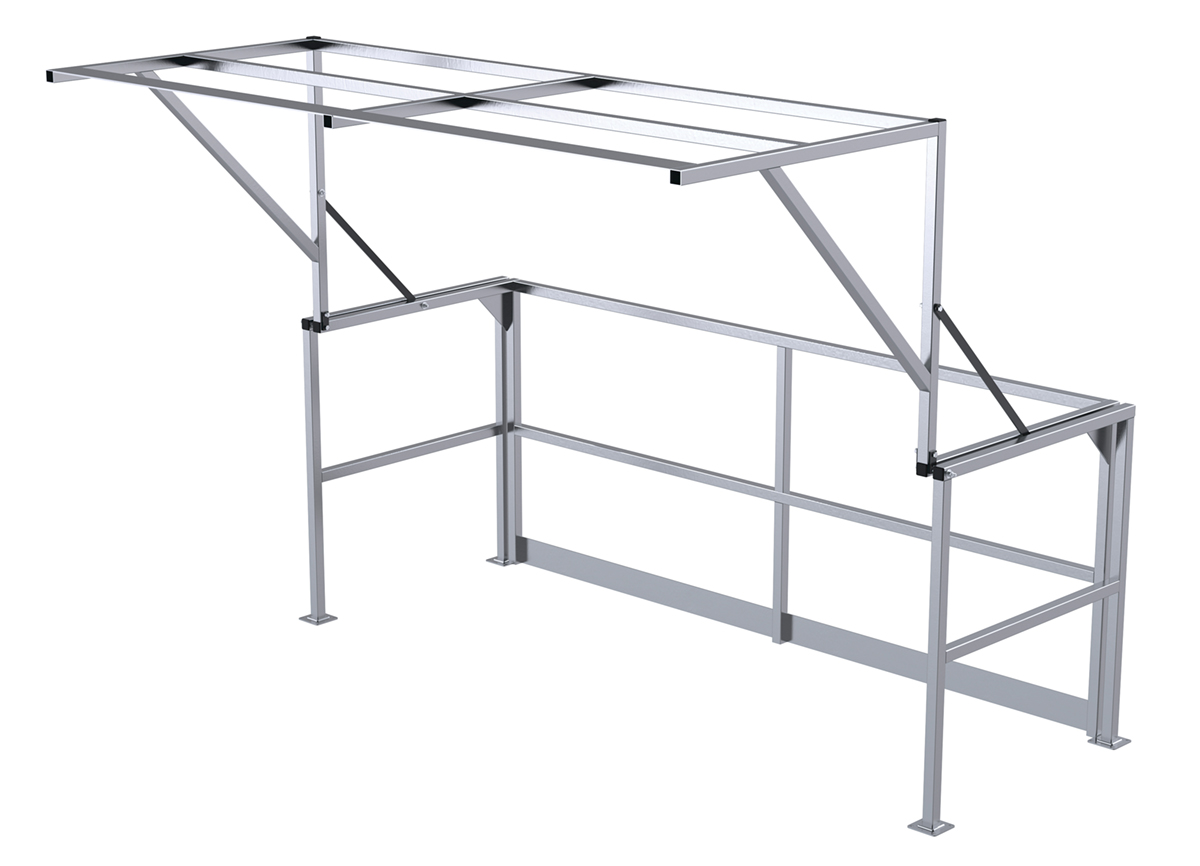

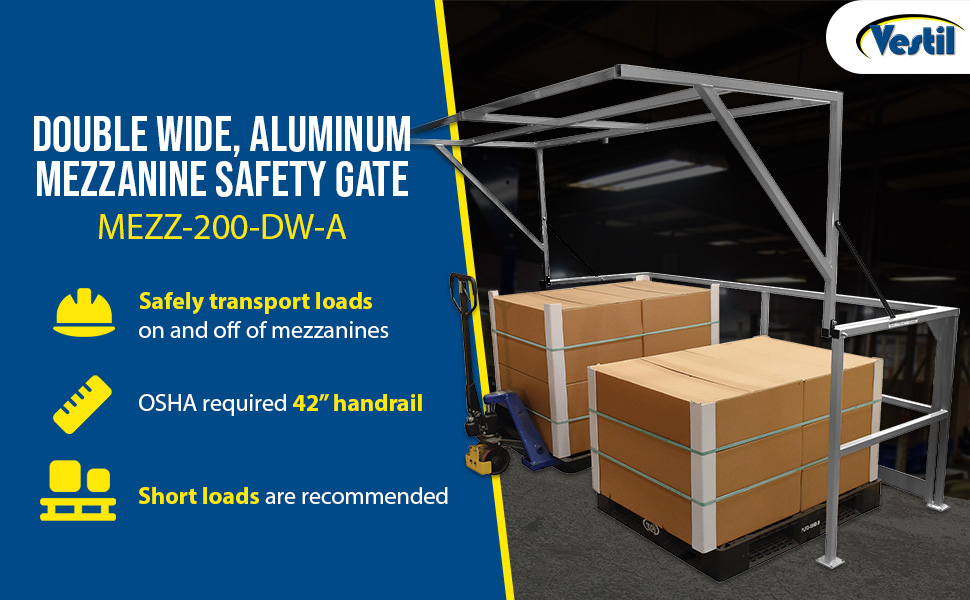

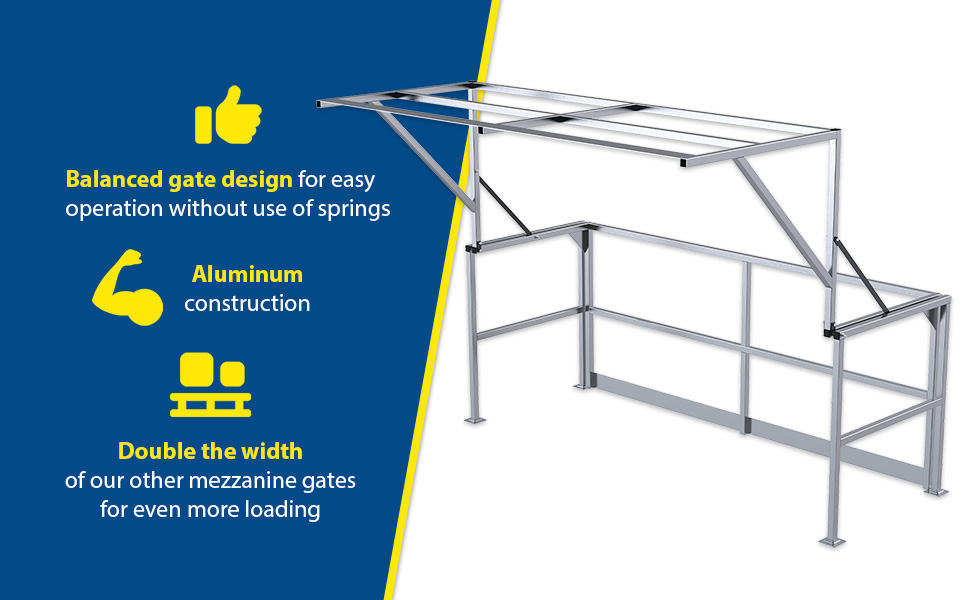

| MEZZ-200-DW-A | | 90 Days Limited Warranty | Aluminum Double Wide Mezzanine Safety Gate 42-3/8 In. Handrail Height Silver | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 218 | ||

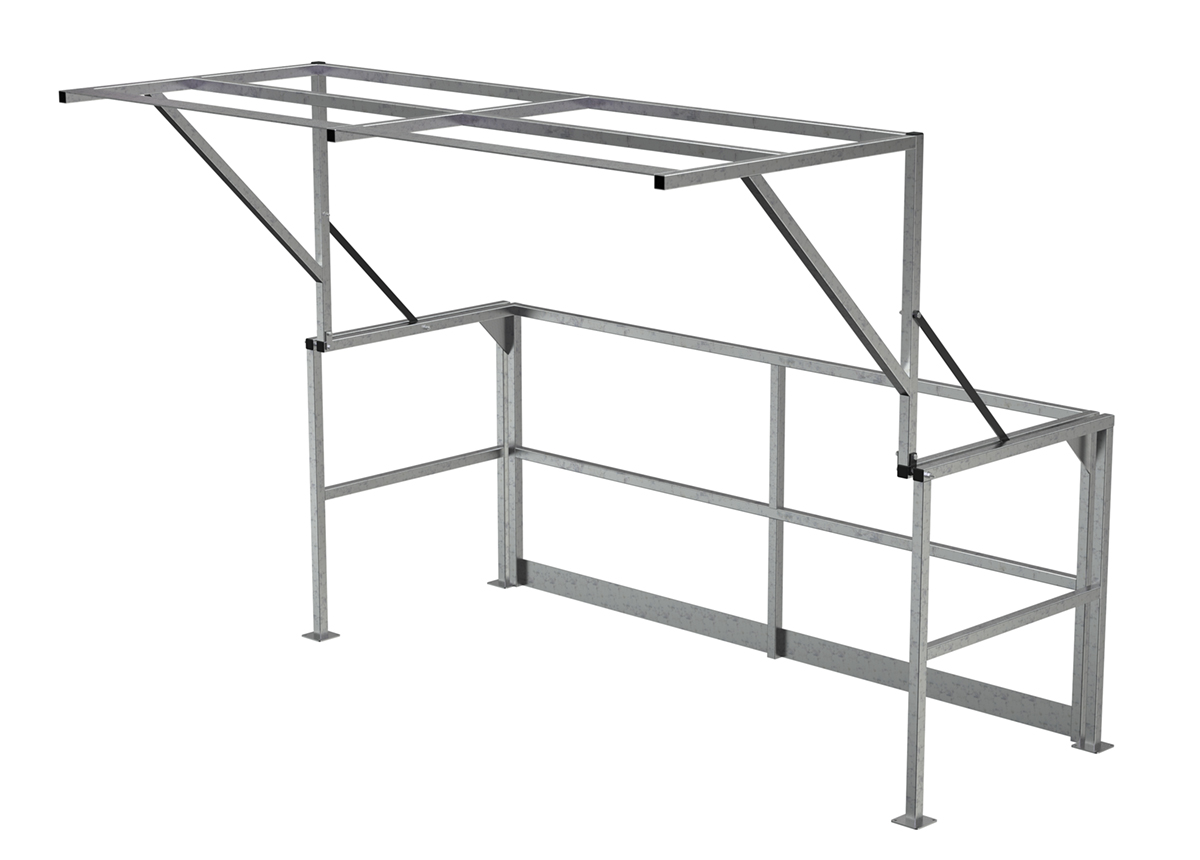

| MEZZ-200-DW-SS | |  | 90 Days Limited Warranty | Stainless Steel Mezzanine Safety Double Wide Gate 79-5/16 In. x 108-1/2 In. x 80-1/16 In. Silver | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 284 | |

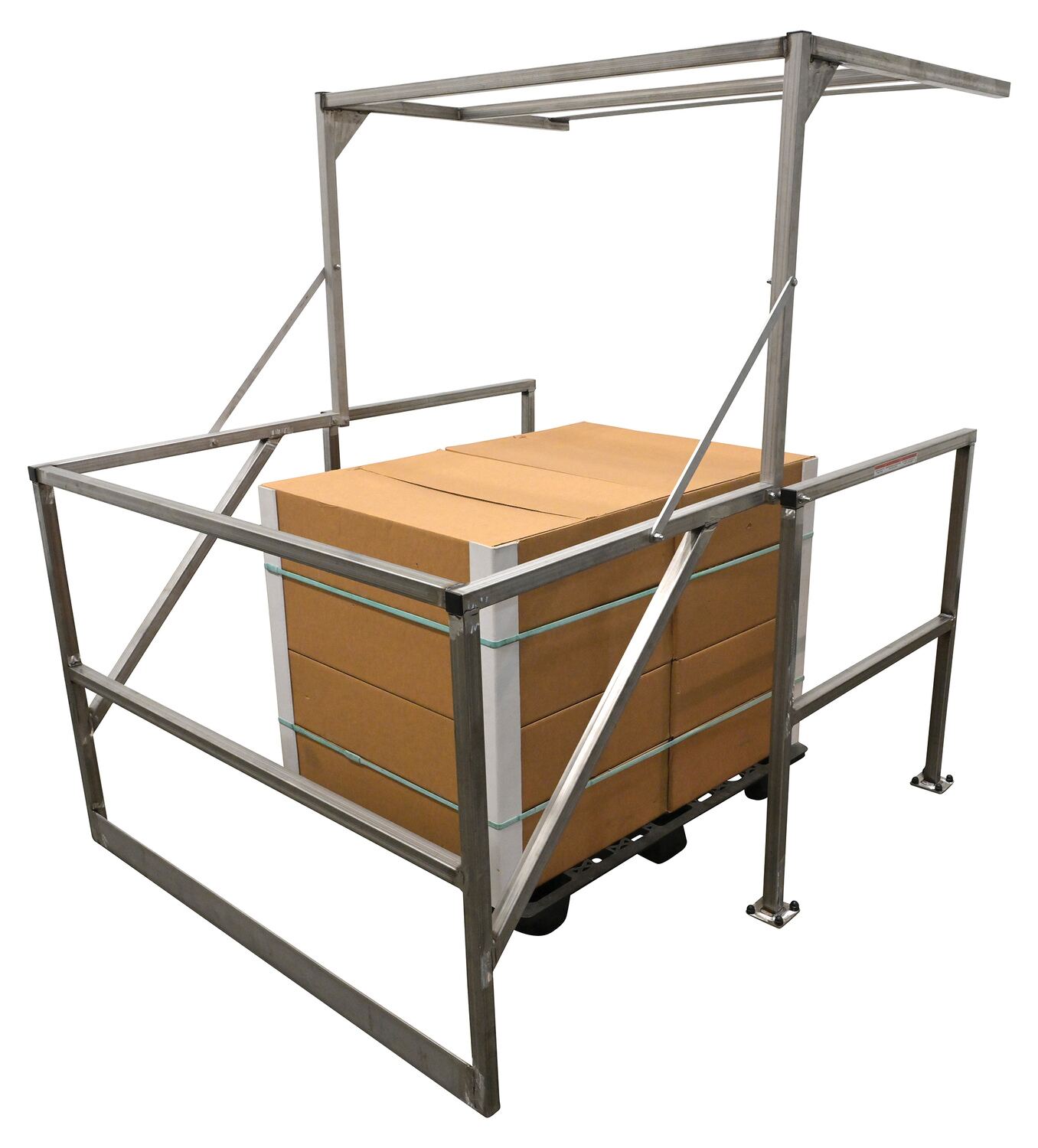

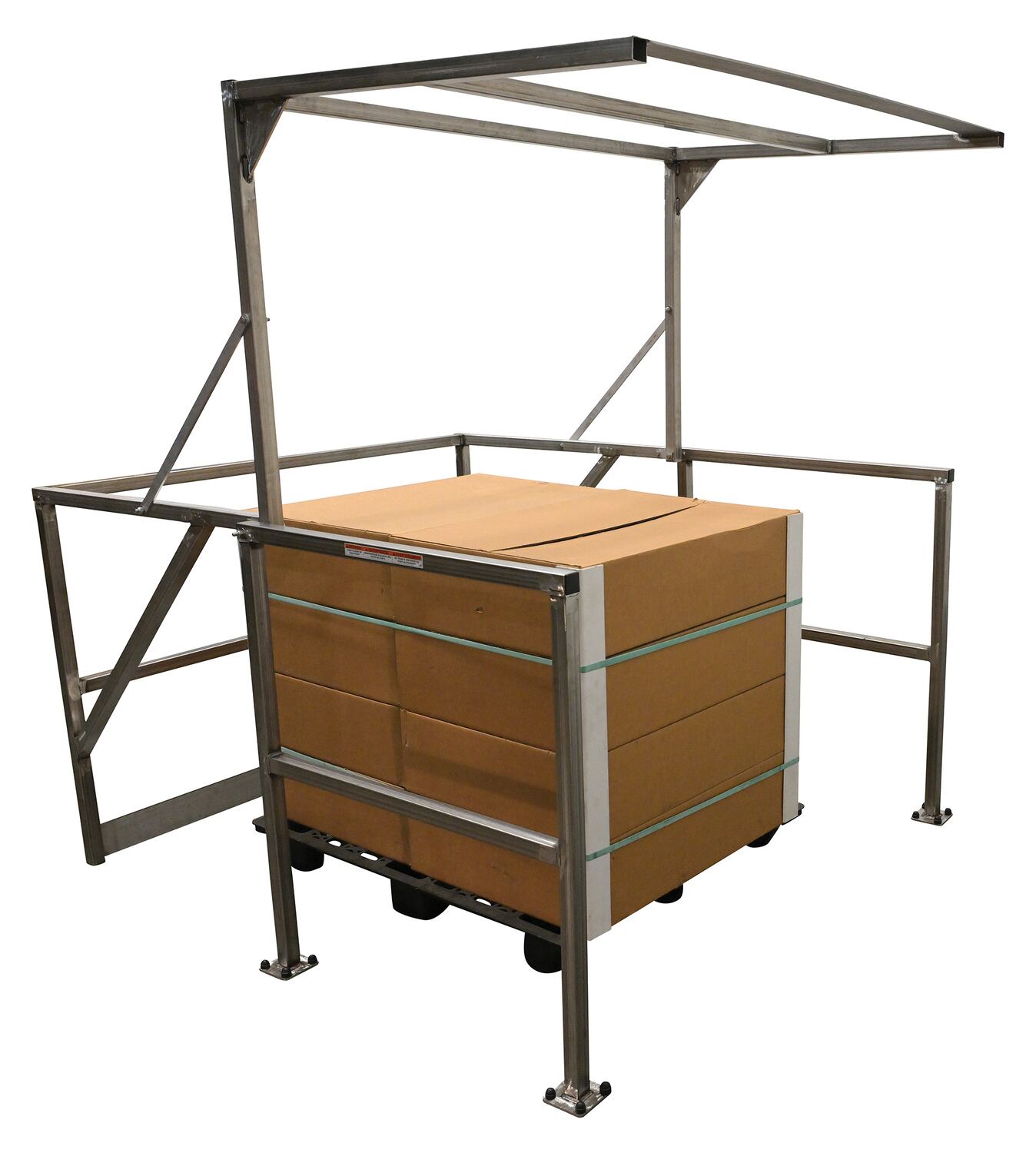

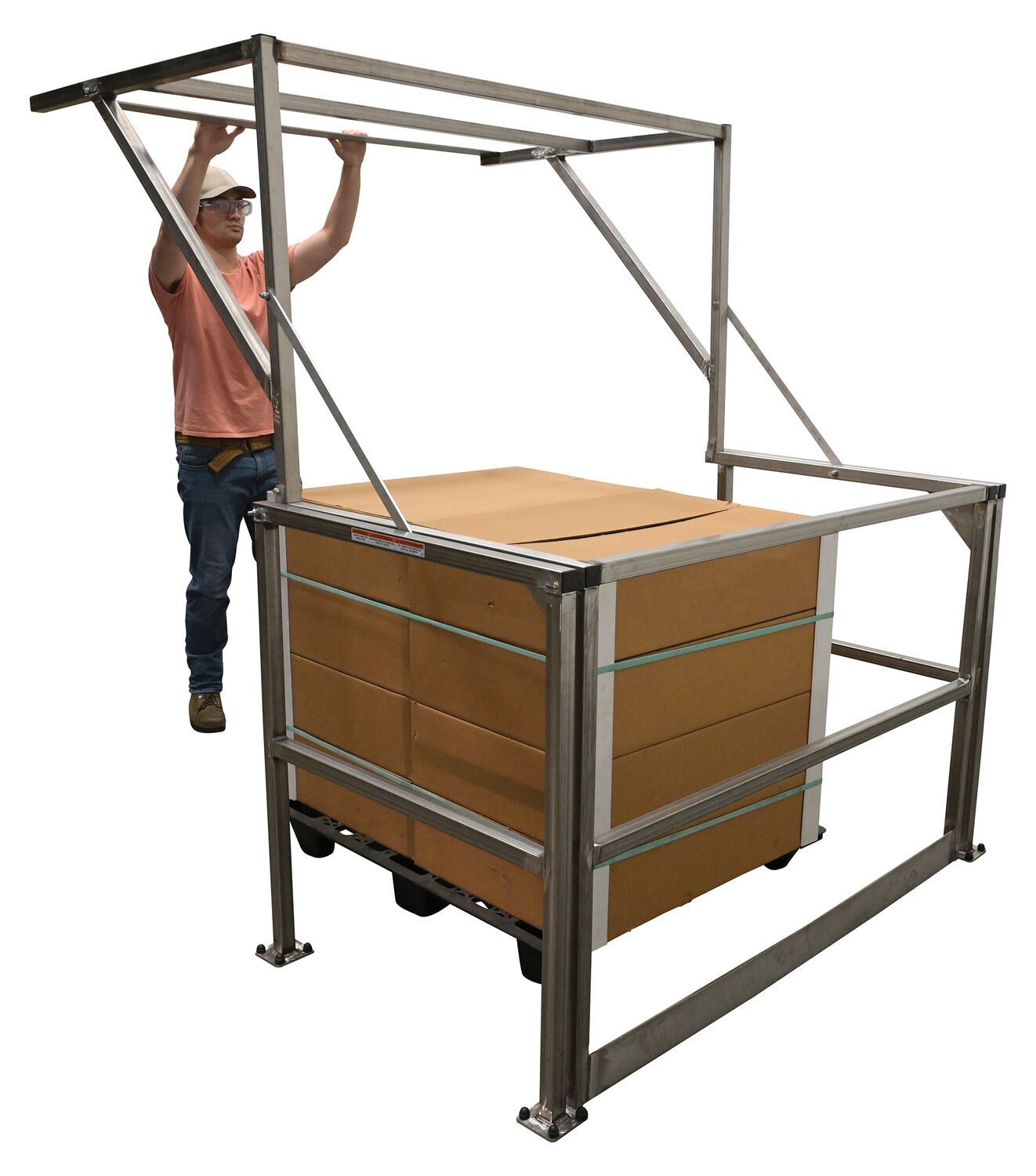

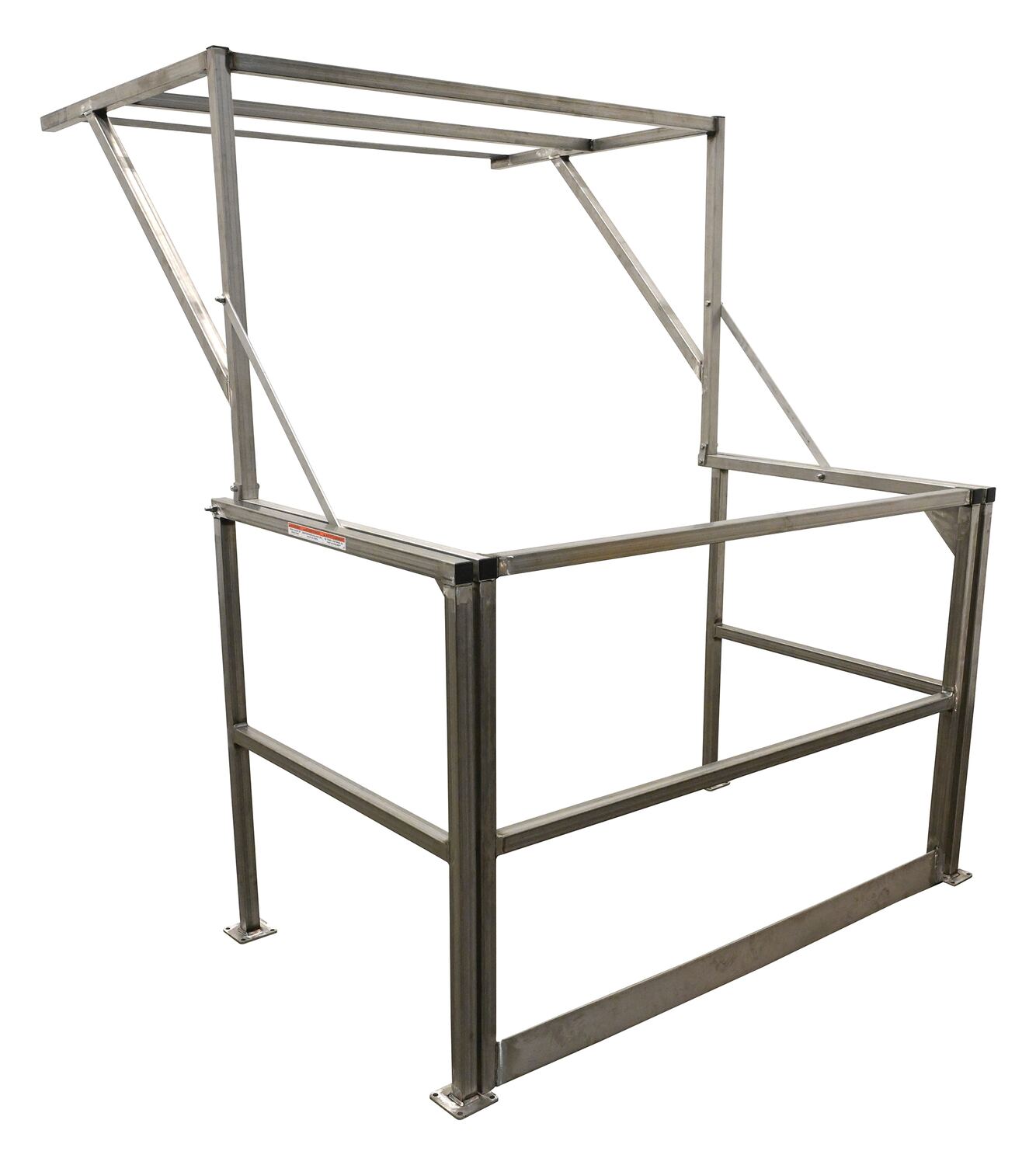

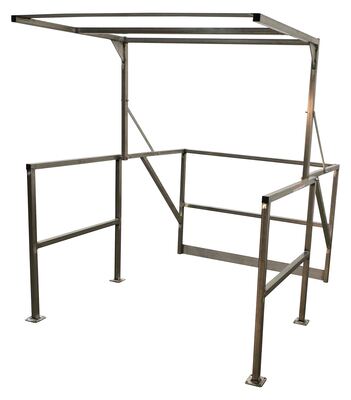

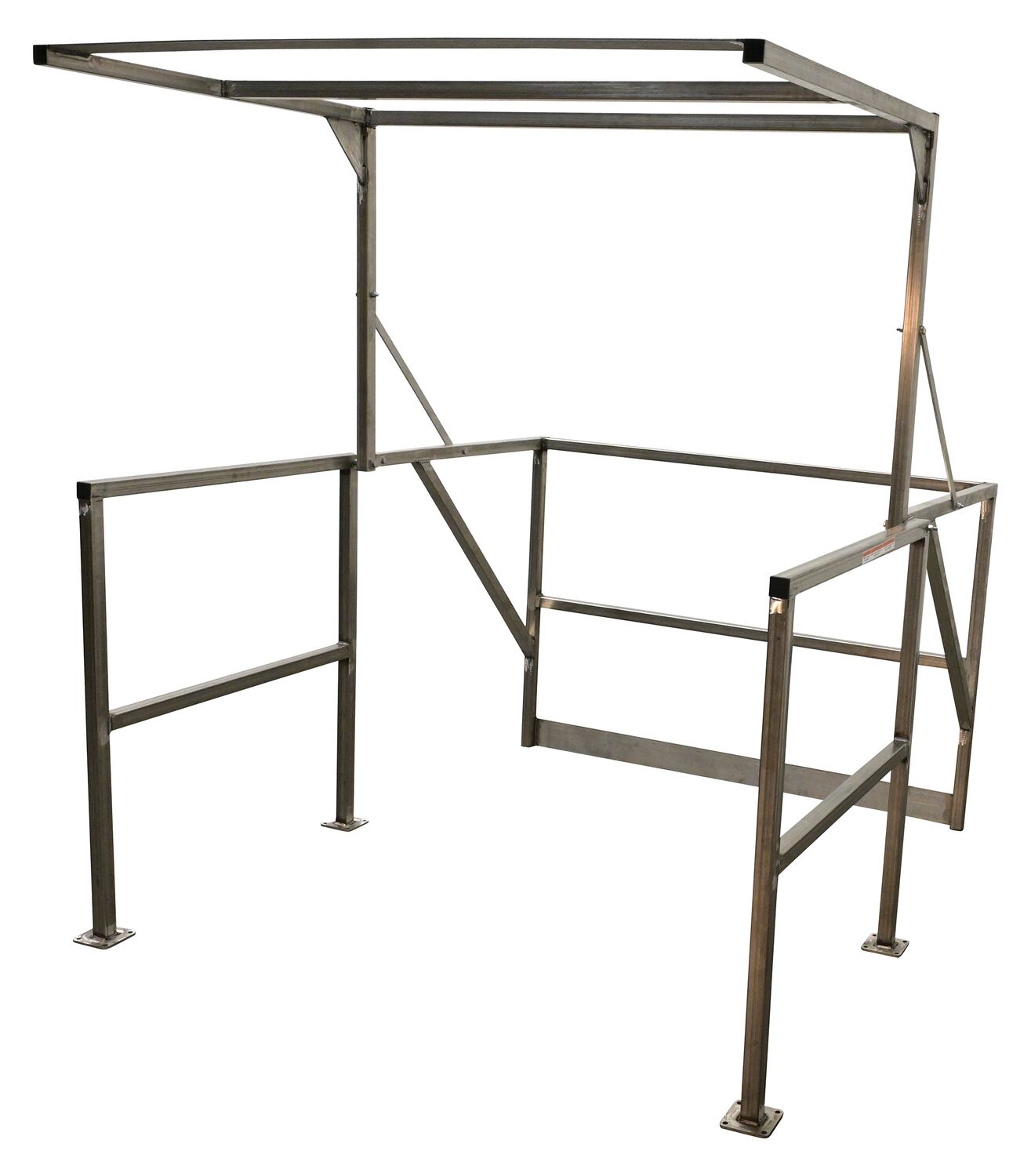

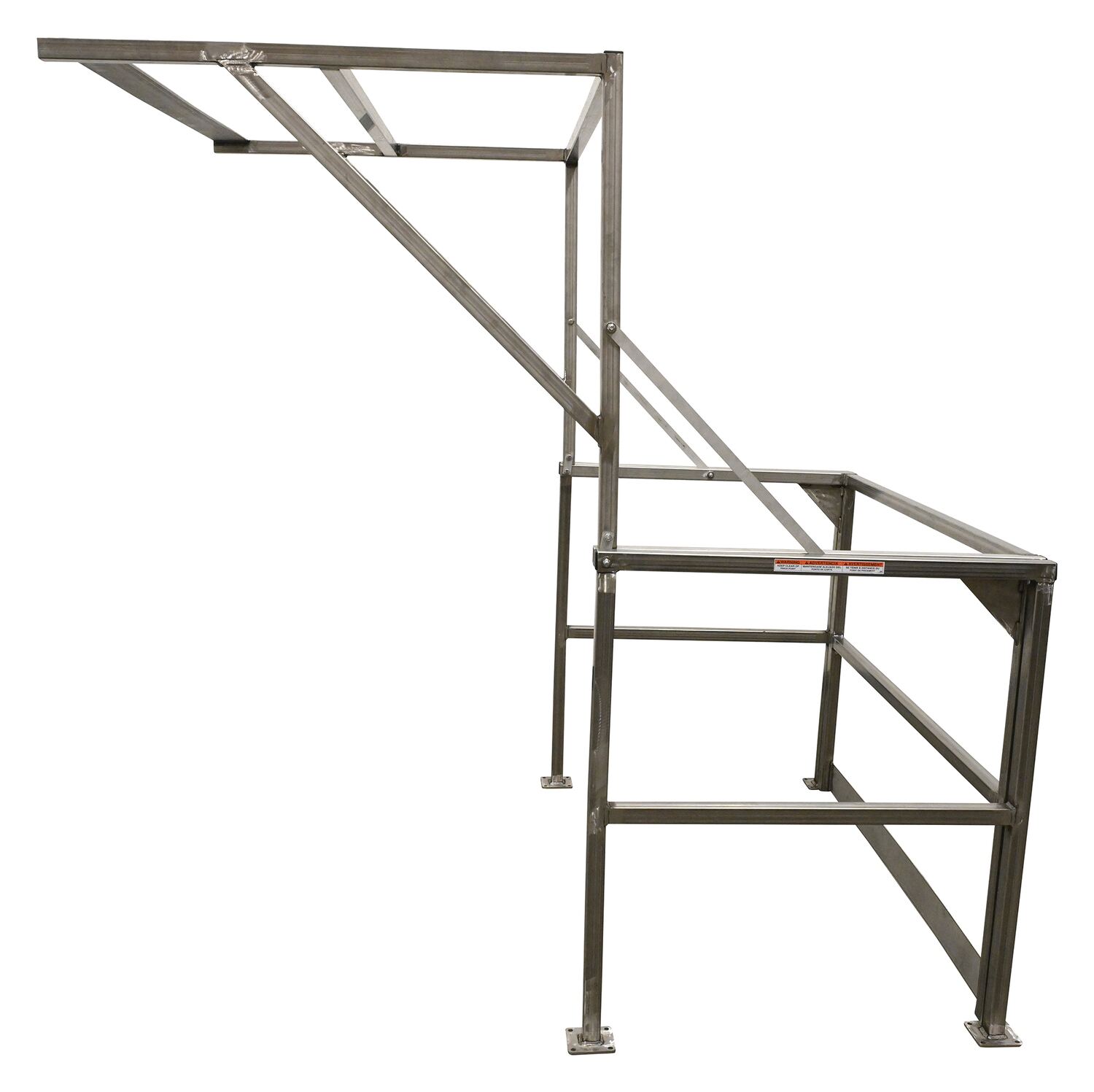

| MEZZ-200-SS | | | 90 Days Limited Warranty | Stainless Steel Mezzanine Safety Gate 79-5/16 In. x 68-1/2 In. x 80-1/16 In. Silver | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 215 | |

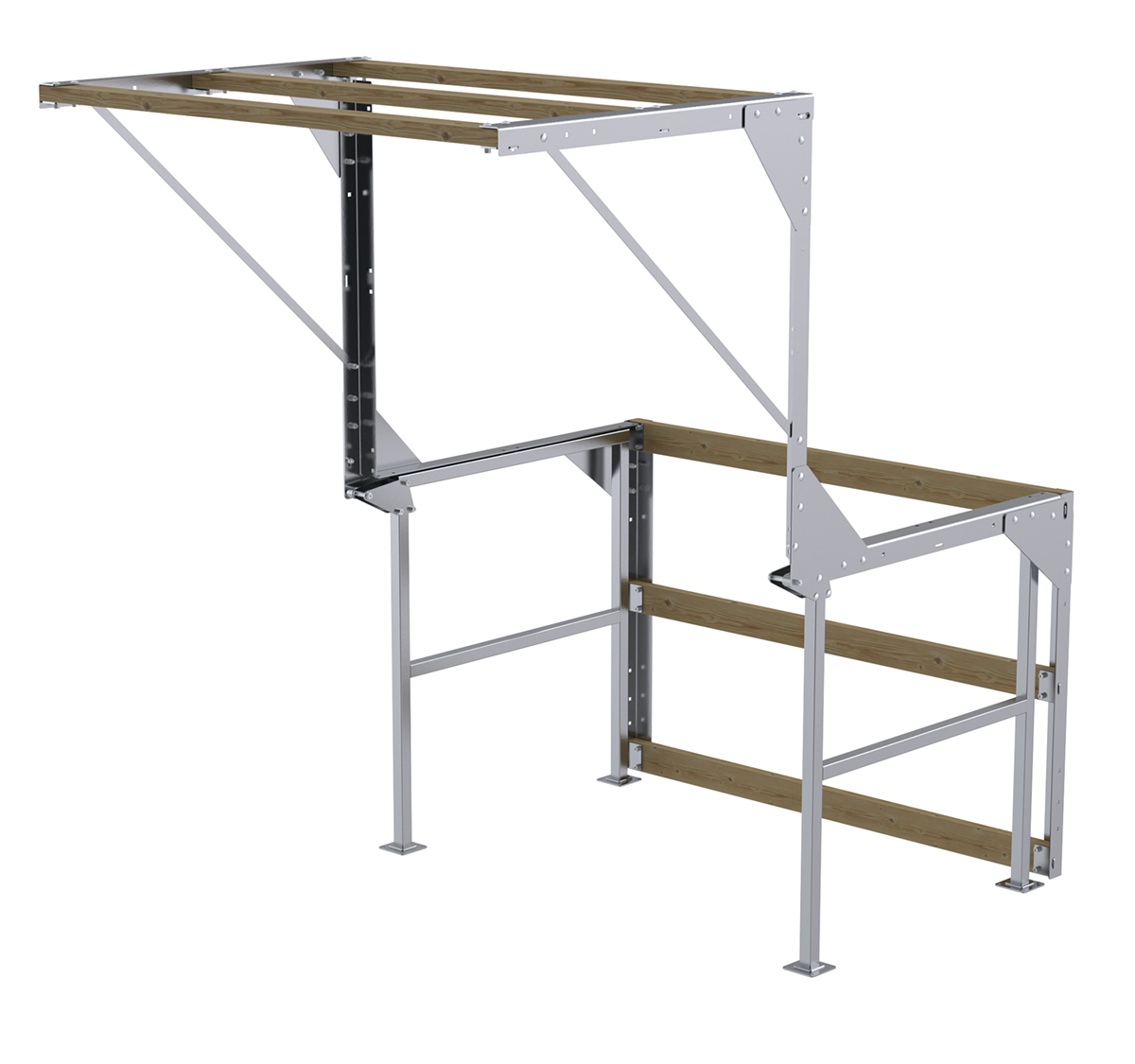

| MEZZ-KD-88T-93D-A | | 90 Days Limited Warranty | Aluminum Knockdown Mezzanine Safety Gate 42-7/8 In Handrail Height Silver | Handrail Height: 42-7/8" | 71 | ||
| MEZZ-200-BT | NEW |  | 90 Days Limited Warranty | Steel Bolt Together Mezzanine Safety Gate 111 in. x 68.5 in. x 80 in. Yellow | Base Plate Width (in.): 4 Base Plate Length (in.): 4 | 258 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Plate Thickness (in.): 3/16
Base Plate Width/Length (in.): 4/4
Base Plate Thickness (in.): 3/16
Base Plate Width/Length (in.): 4/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (IN):: 56
Handrail Height (IN): 42-7/16"
Usable Width (IN):: 56
Handrail Height (IN): 42-7/16"
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Plate Width (in.): 4
Base Plate Length (in.): 4
Base Plate Width (in.): 4
Base Plate Length (in.): 4
For More Details of the Option Click the Red Model Button
| M-BUMP |  | 30 Days Limited Warranty | Polyethylene Wall Guard/Surface Bumper 2 In. x 72 In. x 10 In. Yellow | Attachment Method: Bolt On Hardware Included: Yes | 26 |
.
