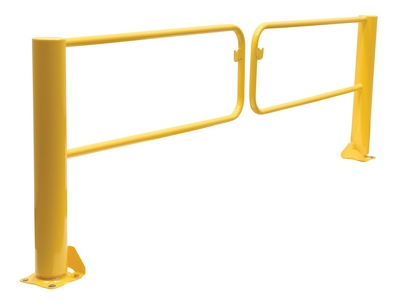

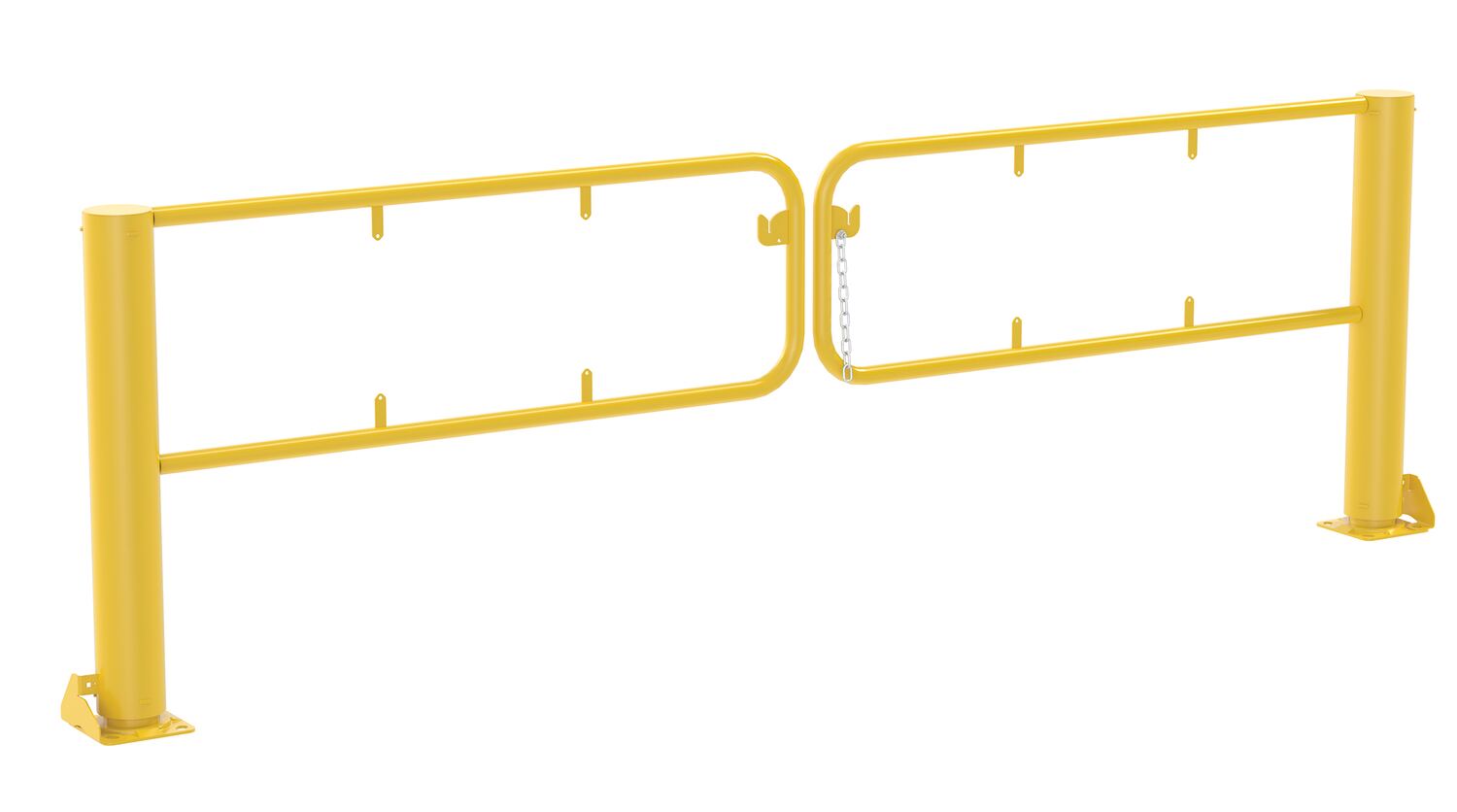

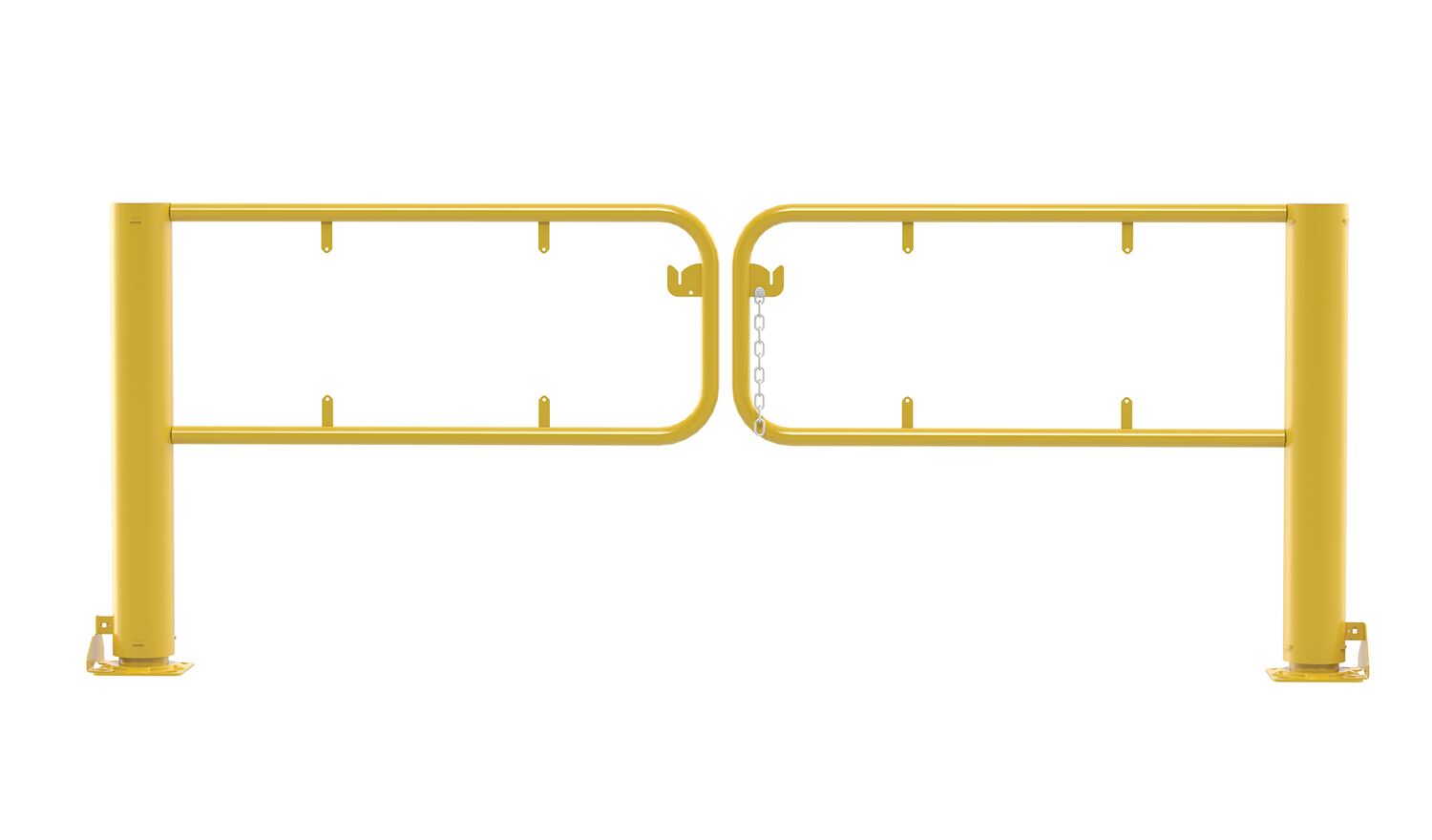

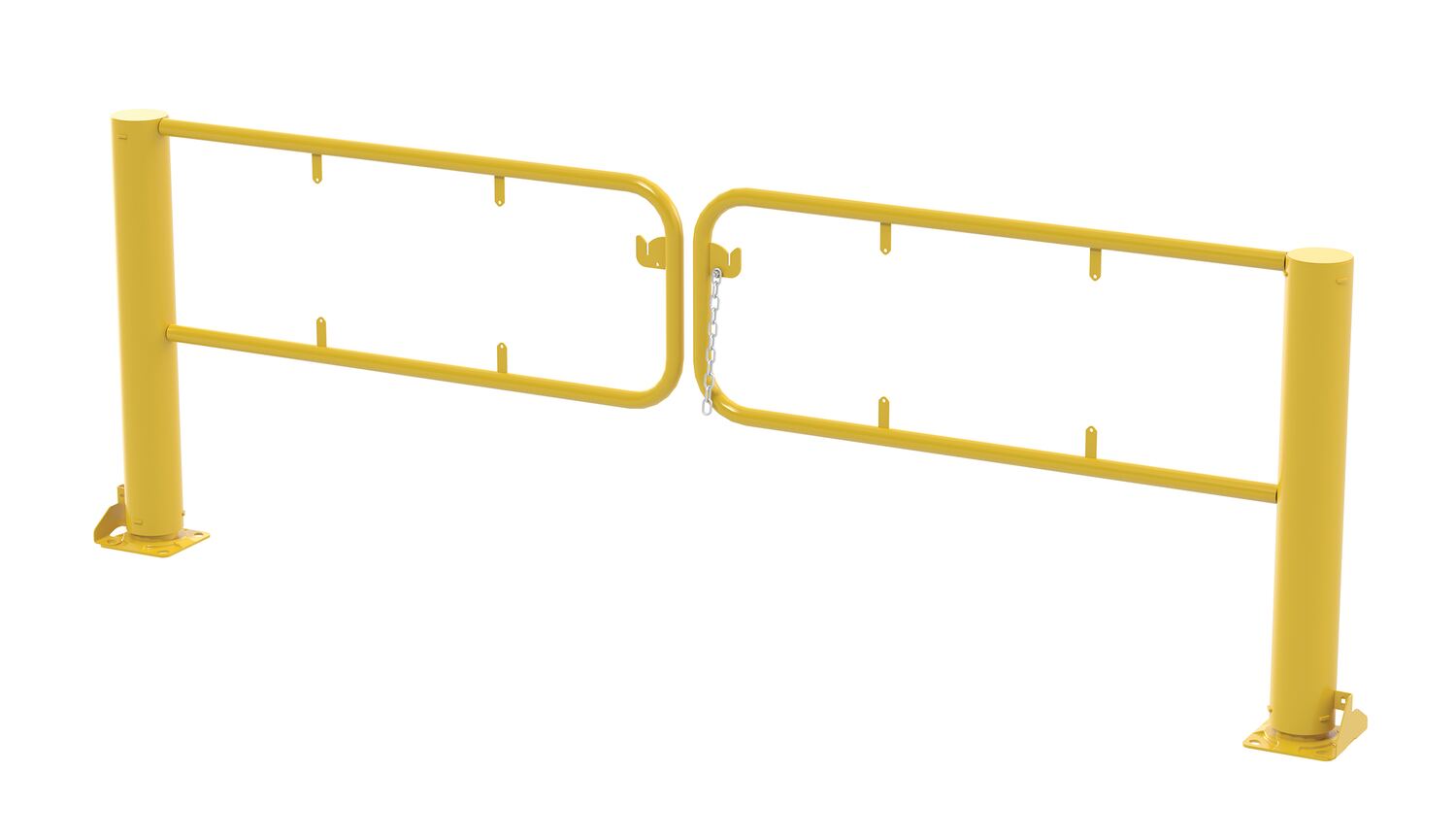

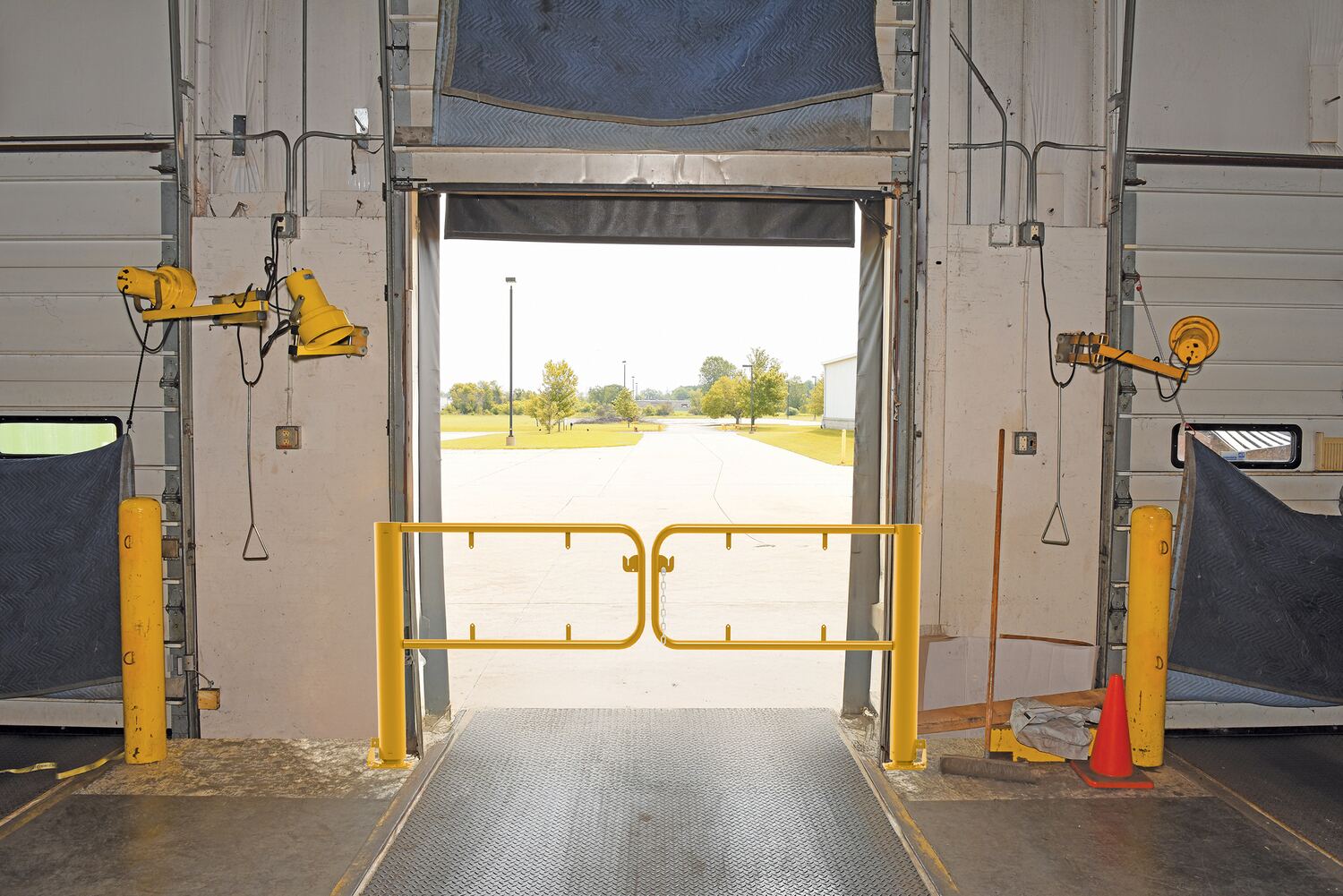

Swivel Dock GatesThe Swivel Dock Gate, Series SDG, is ideal for securing platforms or pathways. The gate features a steel construction for durability and a yellow powder coat finish for clear visibility. The unit is furnished with predrilled mounting holes for easy installation. A swing stop bracket is mounted at the base of each bollard to provide a positive stop position for the gates. Gates may be positioned to allow swing in either direction. A chain and chain slots are provided on the end of the gate arms for securing the gate in the closed position, for added safety. All models come in pairs.
Four built-in tabs are included on each gate (eight tabs per pair). These tabs allow a sign to be attached and secured in place between the upper and lower bars of the gate. The open design makes it easy for single or double sided signs to be utilized. Standard and custom sign designs are available separately.
Add a Sign To Your Swivel Dock Gate! - Contact Sales For More Information
Dock Chain Bollard Barrier Systems
Dock Barricades
Economical Safety Swing Gates
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| SDG-8 | POPULAR |  | 90 Days Limited Warranty | Steel Swivel Dock Gate Pair for 8 Ft. Door Yellow | Gate Quantity/Width (in.): (2) 49-3/16 Bollard Post Diameter (in.): 5-1/2 | 176 | |
| SDG-9 |  | 90 Days Limited Warranty | Steel Swivel Dock Gate Pair for 9 Ft. Door Yellow | Gate Quantity/Width (in.): (2) 55-3/16 Bollard Post Diameter (in.): 5-1/2 | 200 | ||
| SDG-10 |  | 90 Days Limited Warranty | Steel Swivel Dock Gate Pair for 10 Ft. Door Yellow | Gate Quantity/Width (in.): (2) 61-3/16 Bollard Post Diameter (in.): 5-1/2 | 190 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Gate Quantity/Width (in.): (2) 49-3/16
Bollard Post Diameter (in.): 5-1/2
Gate Quantity/Width (in.): (2) 49-3/16
Bollard Post Diameter (in.): 5-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Gate Quantity/Width (in.): (2) 55-3/16
Bollard Post Diameter (in.): 5-1/2
Gate Quantity/Width (in.): (2) 55-3/16
Bollard Post Diameter (in.): 5-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Gate Quantity/Width (in.): (2) 61-3/16
Bollard Post Diameter (in.): 5-1/2
Gate Quantity/Width (in.): (2) 61-3/16
Bollard Post Diameter (in.): 5-1/2
For More Details of the Option Click the Red Model Button
| Model | Image | Description | Wt (lbs.) | ||
| AS-344-4PK |  |
Anchor Bolts for concrete (4) 3/4" x 4" | 4 | ||
| Signs |  |
Industrial & Commercial Signage | 2 | ||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Does the gate swing shut?
A: The SDG-8, SDG-9, and SDG-10 are closed manually.
Q: What size sign can I use with the swivel dock gates?
A: The sign mounting tabs have predrilled holes that are 19-1/2" x 13-7/16" apart, center to center.
 |
||||||||||||||||||||||
Swivel Dock Gates |
||||||||||||||||||||||
 |
||||||||||||||||||||||
The Swivel Dock Gate, Series SDG, is ideal for securing platforms or pathways. The gate features a steel construction for durability and a yellow powder coat finish for clear visibility. The unit is furnished with predrilled mounting holes for easy installation. A swing stop bracket is mounted at the base of each bollard to provide a positive stop position for the gates. Gates may be positioned to allow swing in either direction. A chain and chain slots are provided on the end of the gate arms for securing the gate in the closed position, for added safety. All models come in pairs. Four built-in tabs are included on each gate (eight tabs per pair). These tabs allow a sign to be attached and secured in place between the upper and lower bars of the gate. The open design makes it easy for single or double sided signs to be utilized. Standard and custom sign designs are available separately.
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
