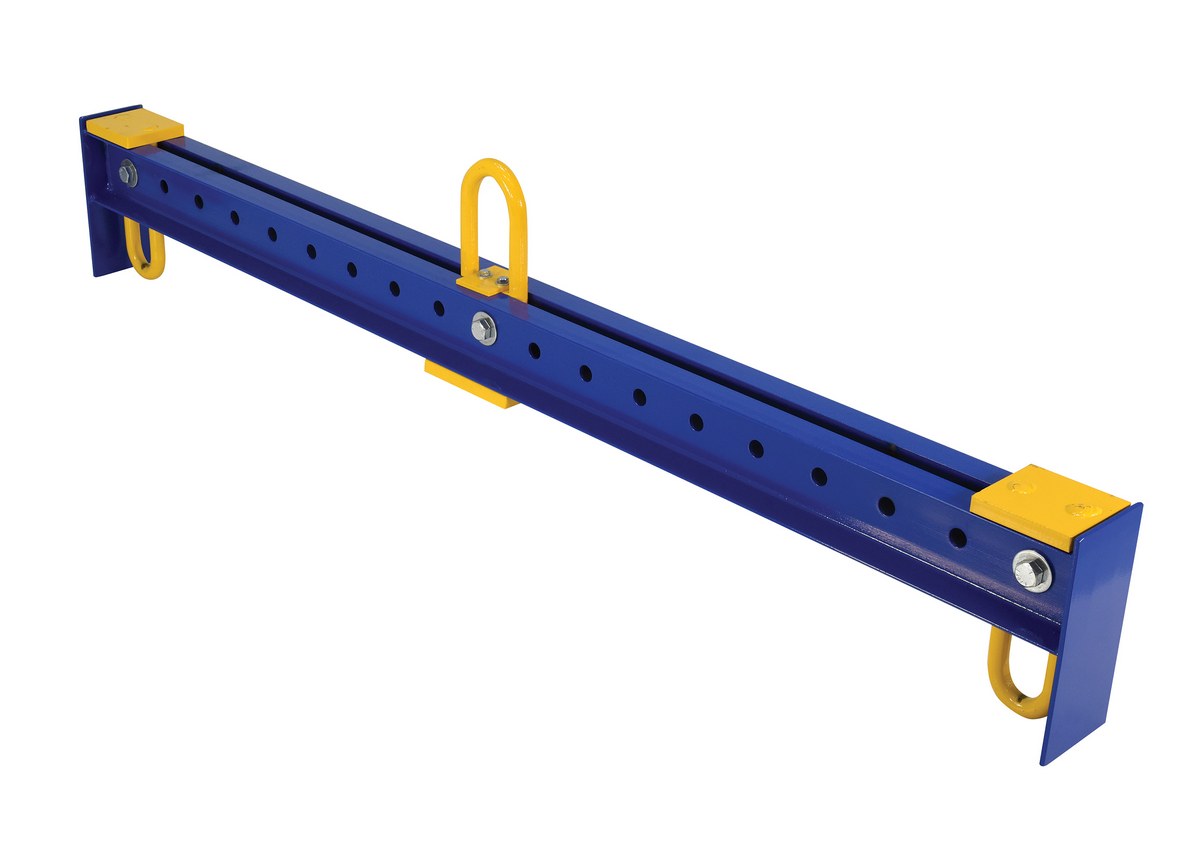

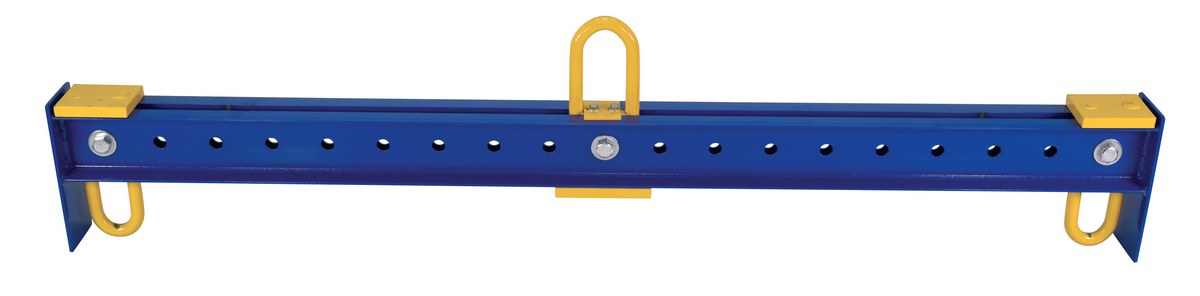

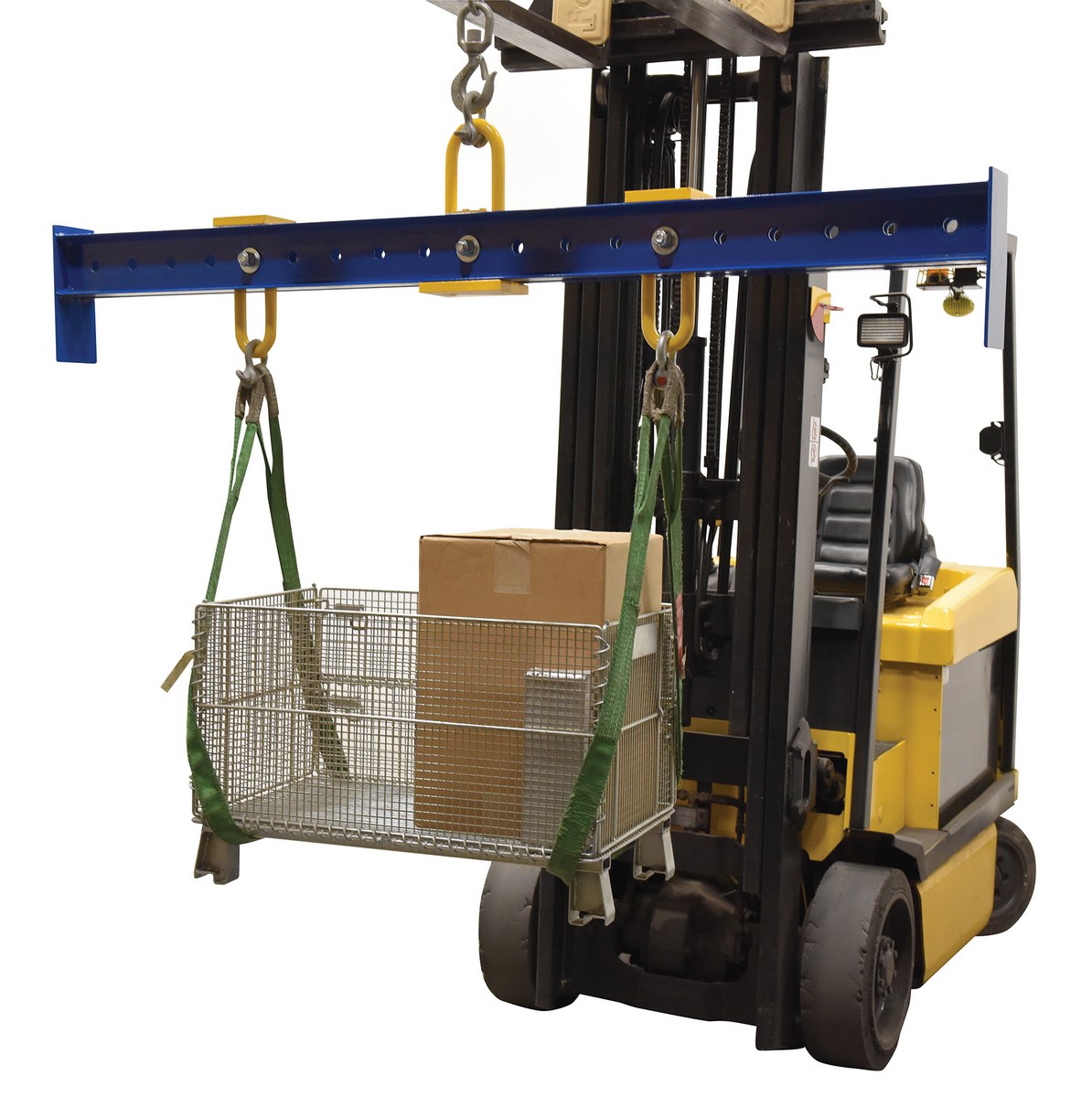

Adjustable Spreader BeamsLift uneven loads and keep them level with increased safety. Includes two lower bails and one upper bail. Adjust bails in 4" increments. The bails slide between two 5" high C-Channels (8" high model SBM-80). Meets ASME B30.20-1993 standard. Baked-in powder-coated finish for added toughness.

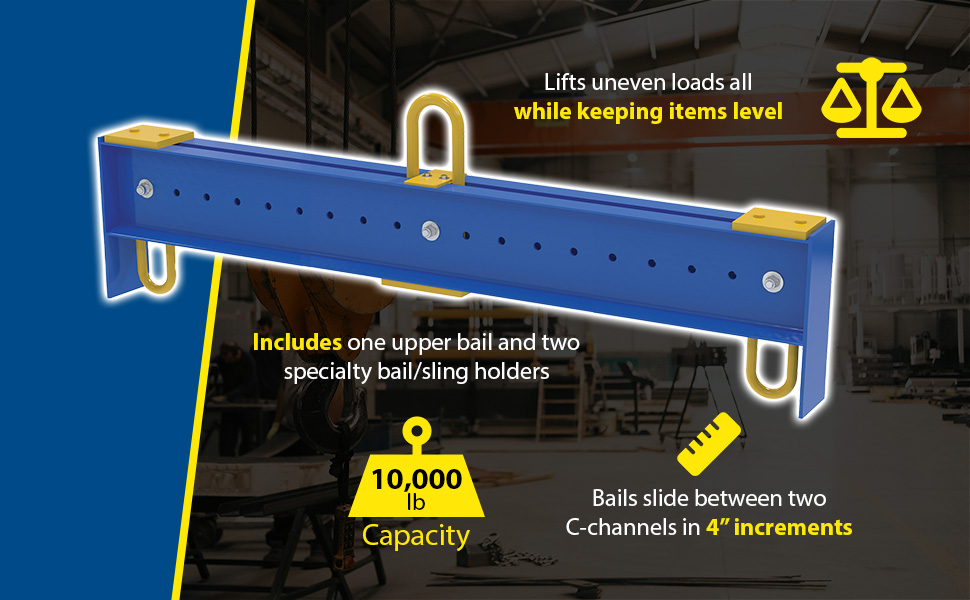

The SBM-BFB-100-10 models lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two (2) 5" high C-Channels. Meets ASME B30.20-1993 standard. Baked-in powdercoated toughness. Polyester lifting slings sold separately. Additional bails are available for purchase. Additonal bail hardware sold separately.
Short Span Steel Lifting Plate
Magnetic Spreader Beams
Spreader Beam With Adjustable Hand Chain Crank Bail
Telescoping Adjustable Spreader BeamsAdditional Models In This Family
SM-UB-80
SM-UB-25
SM-LB-80
SM-UB-BFB-100
SM-LB-25
SM-LB-40
SM-LB-BFB-100
SM-UB-40
SBM-25
SM-UB-40
SM-UB-80
SBM-80
SM-LB-BFB-100
SM-LB-25
SM-LB-BFB-100
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

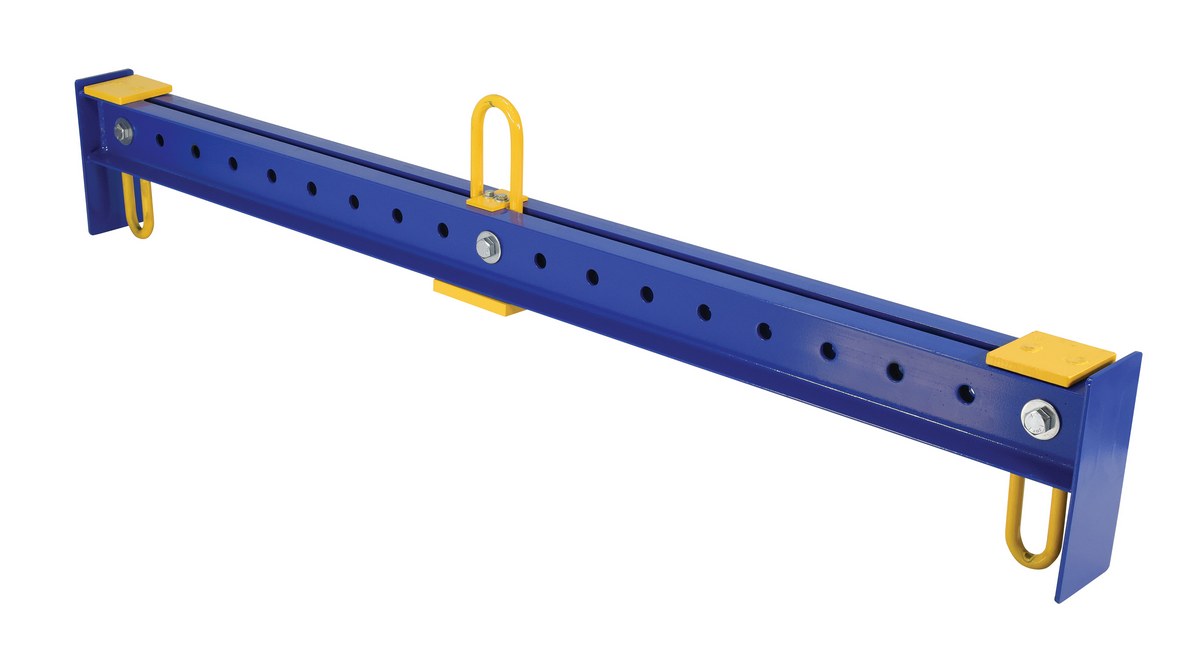

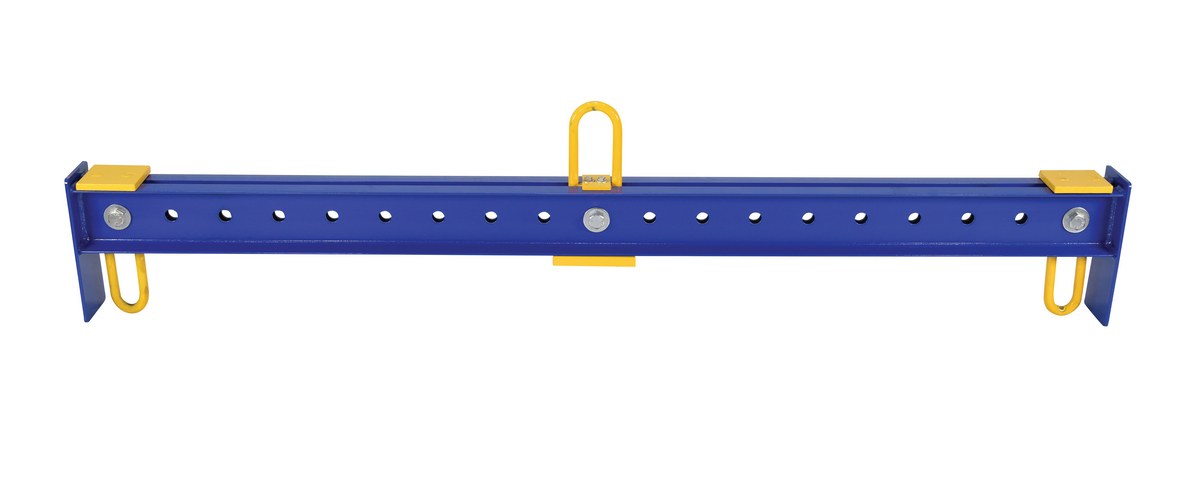

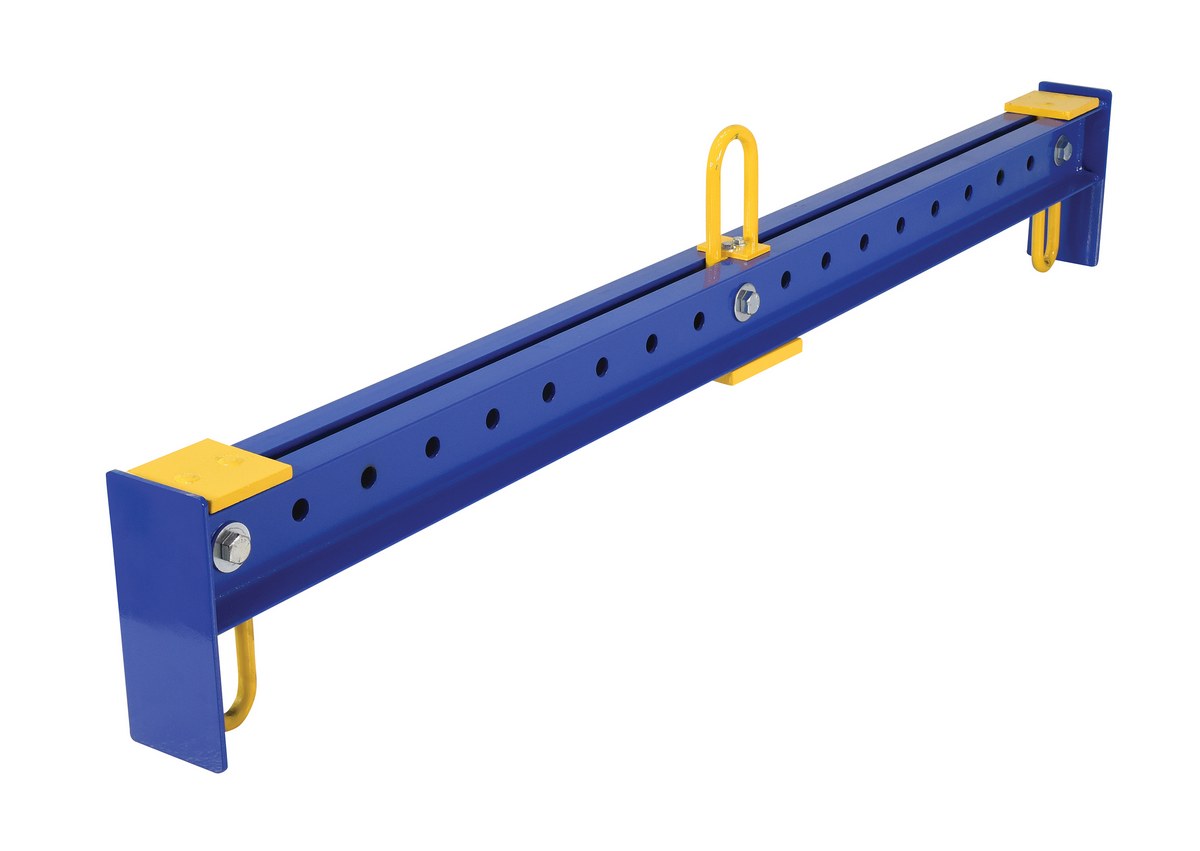

| SBM-25 |  | 90 Days Limited Warranty | Steel Adjustable Spreader Beam 78 In. Length 2,500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Headroom (in.): 14-3/4 | 178 | ||

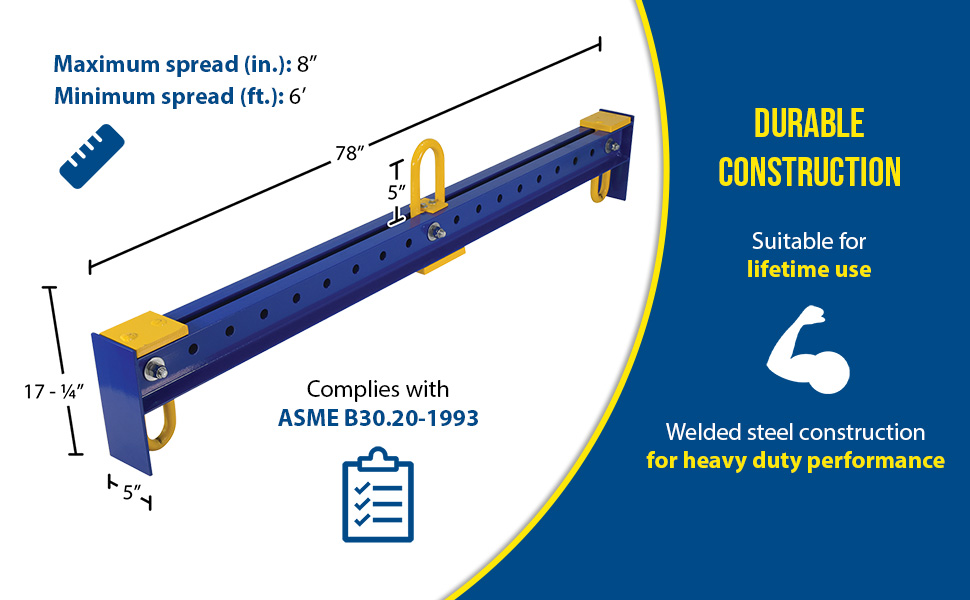

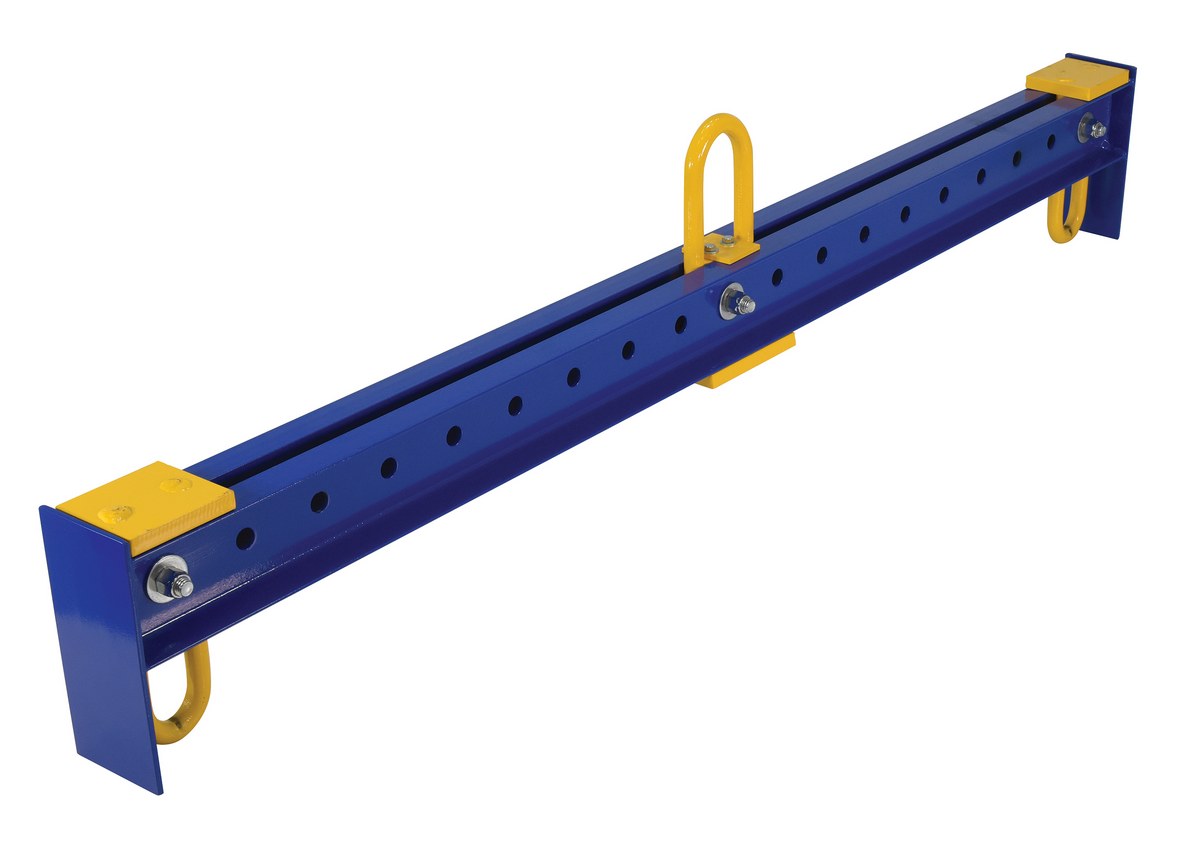

| SBM-40 | POPULAR |  | 90 Days Limited Warranty | Steel Adjustable Spreader Beam 78 In Length 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Headroom (in.): 14-3/4 | 196 | |

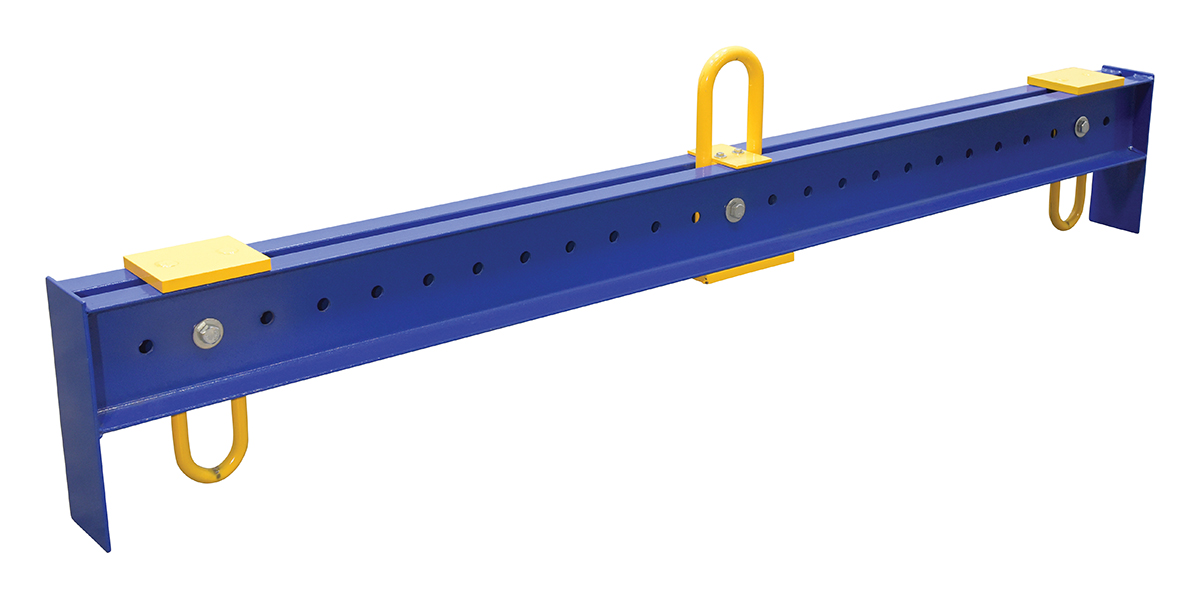

| SBM-80 | | 90 Days Limited Warranty | Steel Adjustable Spreader Beam 104-1/2 In Length 8,000 Lb. Capacity Blue | Uniform Capacity (lb.): 8,000 Headroom (in.): 20-3/4 | 336 | ||

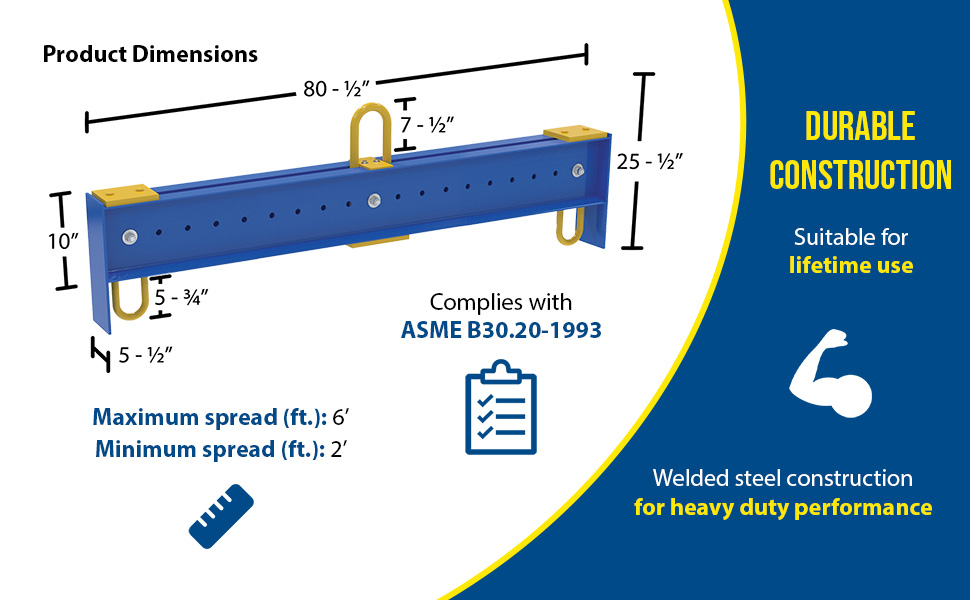

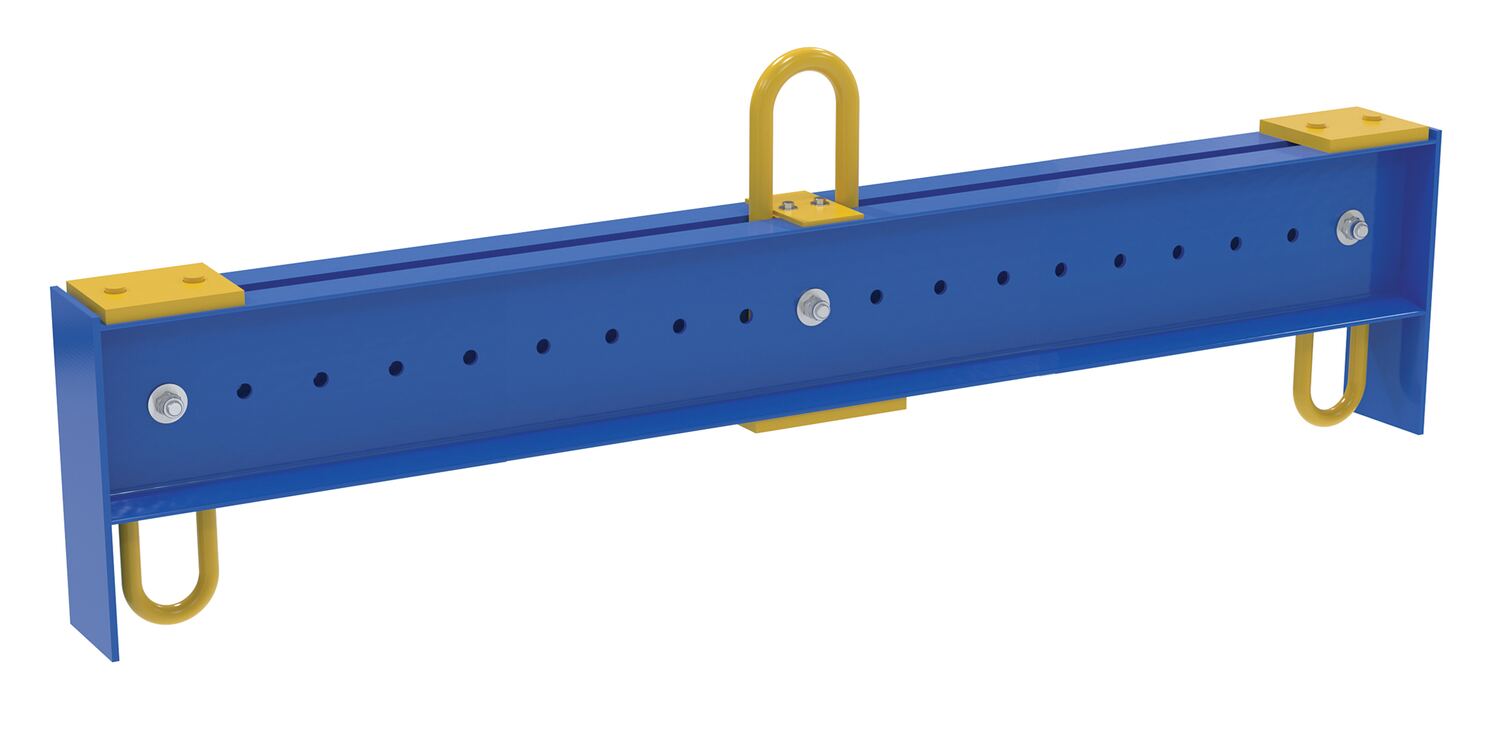

| SBM-BFB-100-6 |  | 90 Days Limited Warranty | Steel Adjustable Spreader Beam 6 Ft Maximum Spread 10,000 Lb. Capacity Blue | Uniform Capacity: 10000 Lower Bail Width (in): 3 | 388 | ||

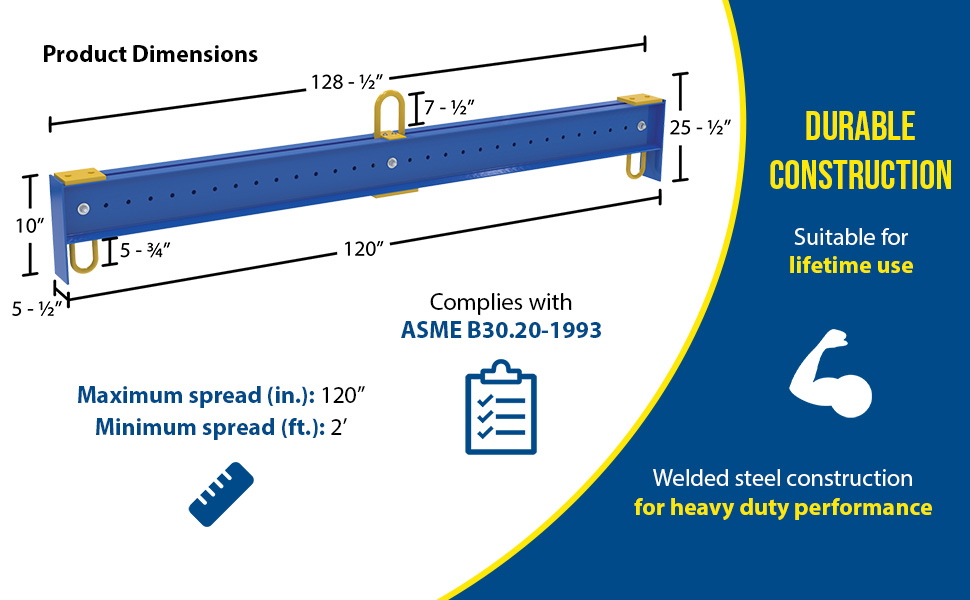

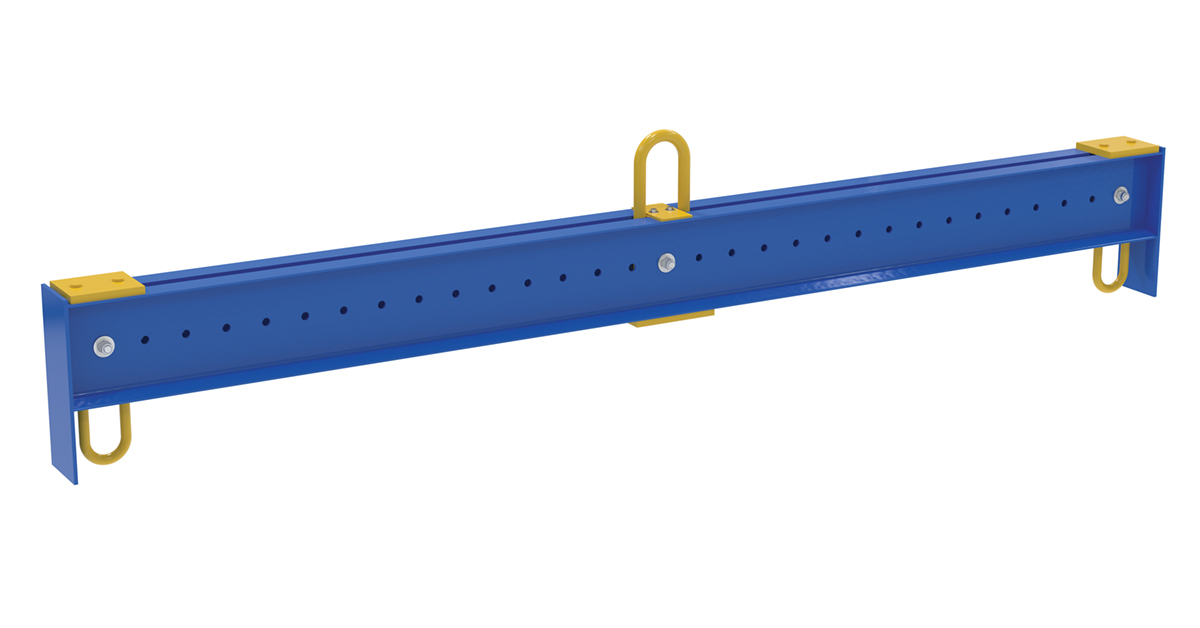

| SBM-BFB-100-10 |  | 90 Days Limited Warranty | Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity Blue | Uniform Capacity (lb.): 10000 Lower Bail Width (in): 3 | 508 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Headroom (in.): 14-3/4
Uniform Capacity (lb.): 2,500
Headroom (in.): 14-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/4
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Headroom (in.): 20-3/4
Uniform Capacity (lb.): 8,000
Headroom (in.): 20-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 10000
Lower Bail Width (in): 3
Uniform Capacity: 10000
Lower Bail Width (in): 3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Lower Bail Width (in): 3
Uniform Capacity (lb.): 10000
Lower Bail Width (in): 3
For More Details of the Option Click the Red Model Button

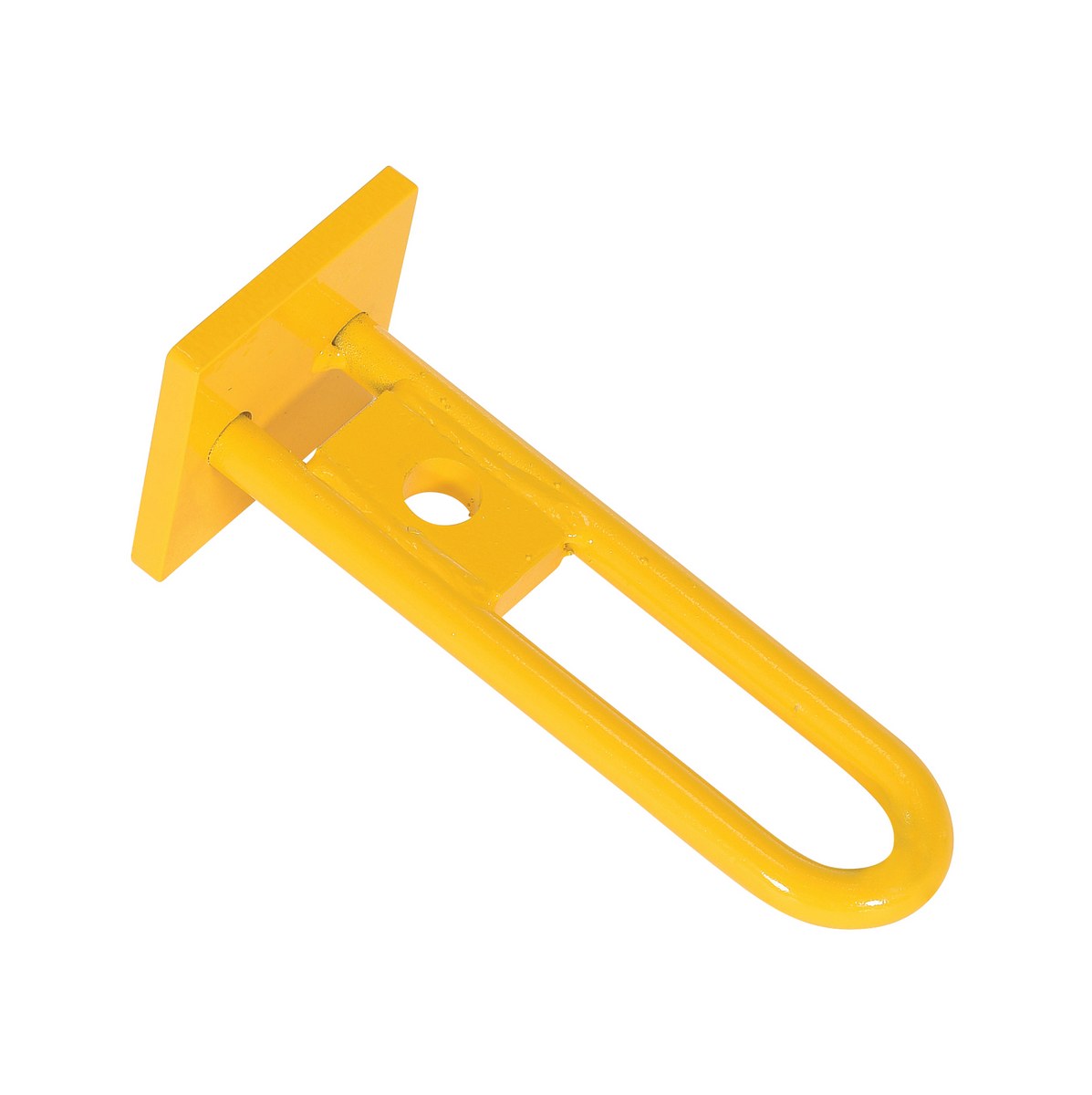

| SM-LB-25 | | 90 Days Limited Warranty | Steel Lower Bail 4-1/4 In. x 4-1/2 In. x 11 In. For Adjustable Spreader Beams 1,250 Lb. Capacity Yellow | Chain Size Maximum Capacity: 2 In. Maximum Capacity (lb.): 1200 | 10 | |

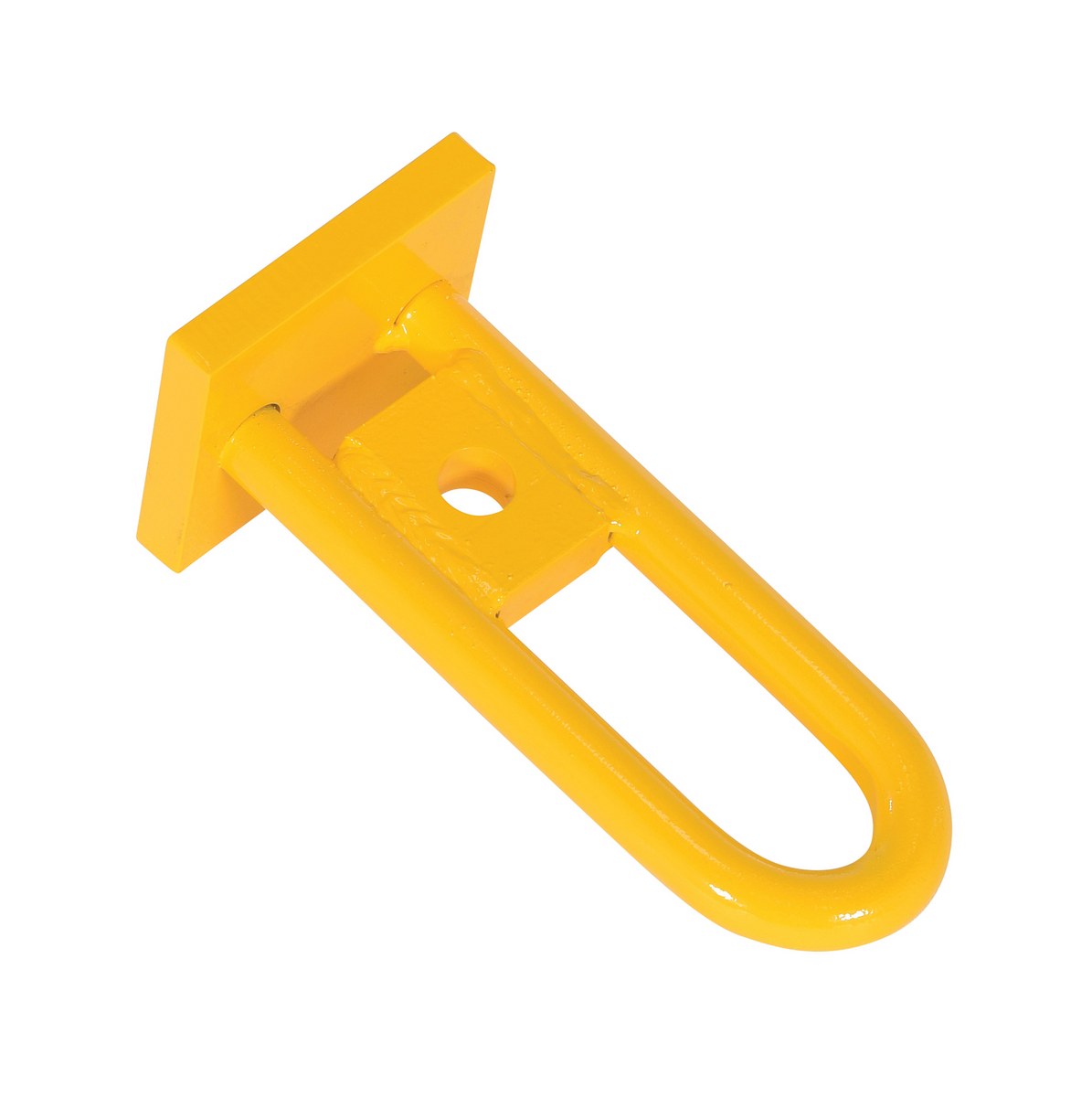

| SM-LB-40 |  | 90 Days Limited Warranty | Steel Lower Bail 4-1/2 In. x 5 In. x 11 In. For Adjustable Spreader Beams 2,000 Lb. Capacity Yellow | Chain Size Maximum Capacity: 2 In. Maximum Capacity (lb.): 2000 | 16 | |

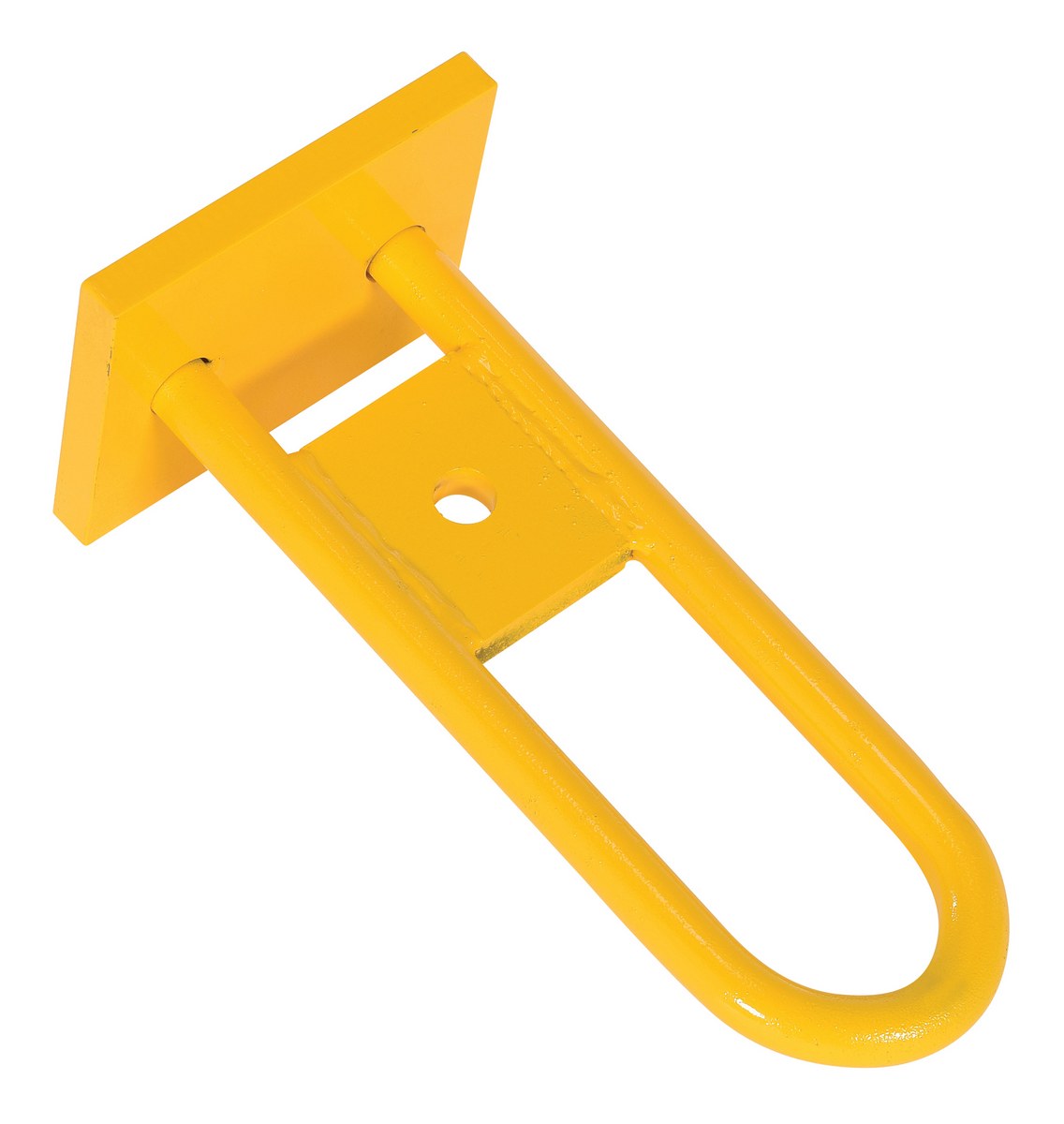

| SM-LB-80 |  | 90 Days Limited Warranty | Steel Lower Bail 6 In. x 7 In. x 15-1/4 In. For Adjustable Spreader Beams 4,000 Lb. Capacity Yellow | Chain Size Maximum Capacity: 4 In. Maximum Capacity (lb.): 4000 | 32 | |

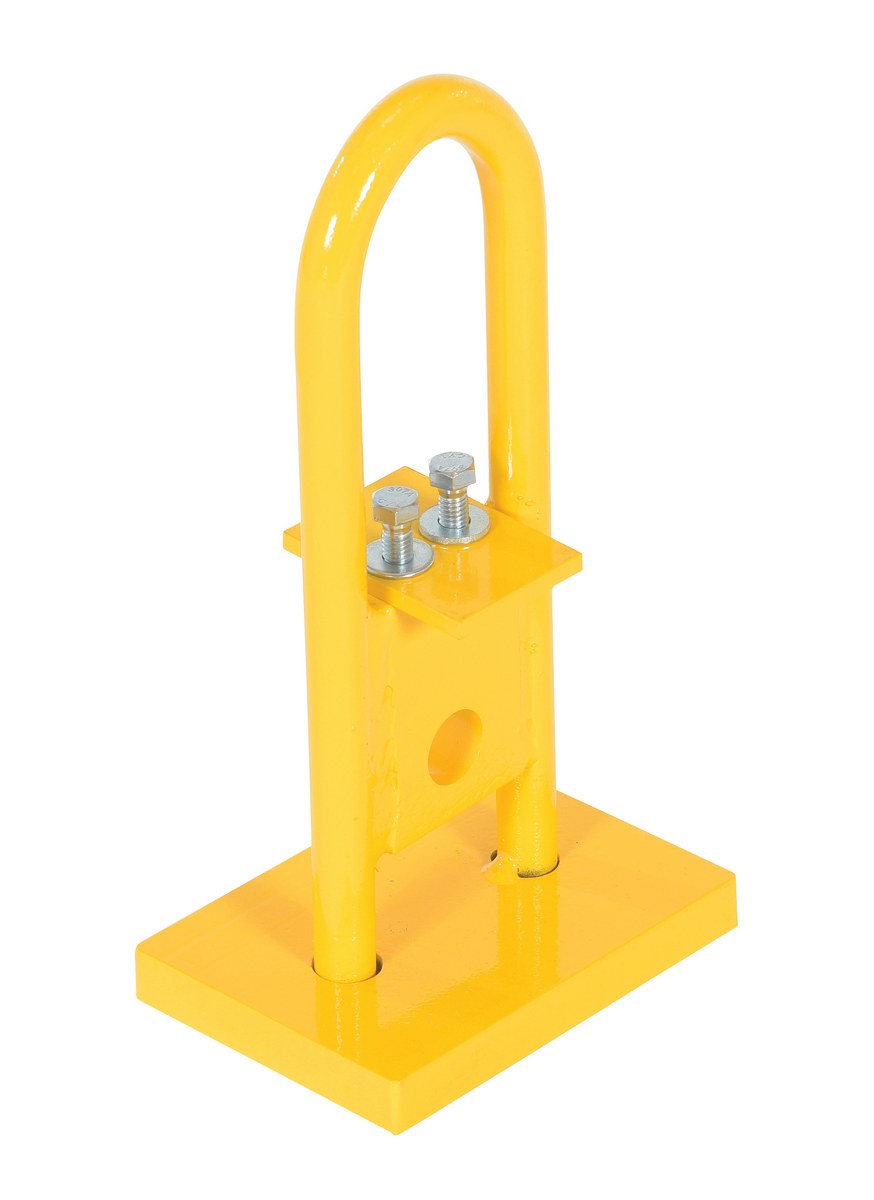

| SM-UB-25 | | 90 Days Limited Warranty | Steel Upper Bail 4-1/2 In. x 6-1/4 In. x 12 In. For Adjustable Spreader Beams 2,500 Lb. Capacity Yellow | Chain Size Maximum Capacity: 2 in. Maximum Capacity (lb.): 2500 | 11 | |

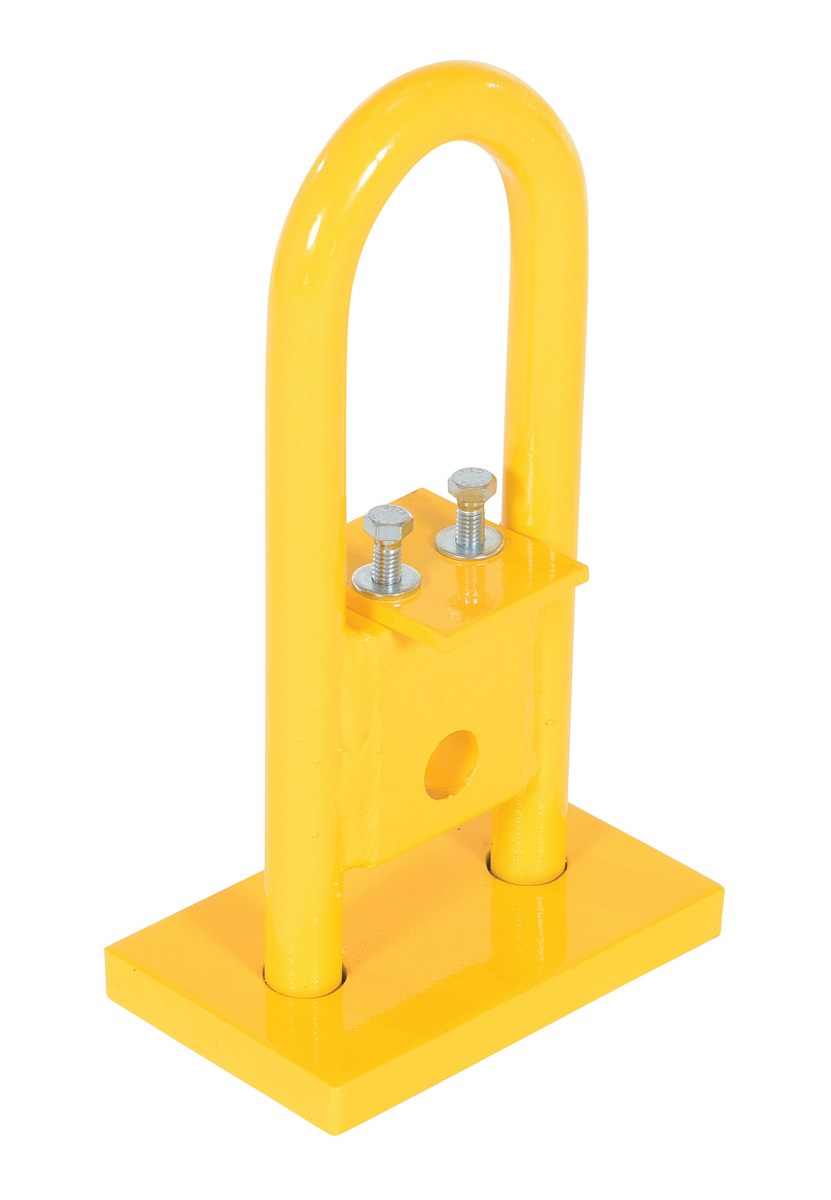

| SM-UB-40 | | 90 Days Limited Warranty | Steel Upper Bail 4-1/2 In. x 7 In. x 12-3/4 In. For Adjustable Spreader Beams 4,000 Lb. Capacity Yellow | Chain Size Maximum Capacity: 2 In. Maximum Capacity (lb.): 4000 | 17 | |

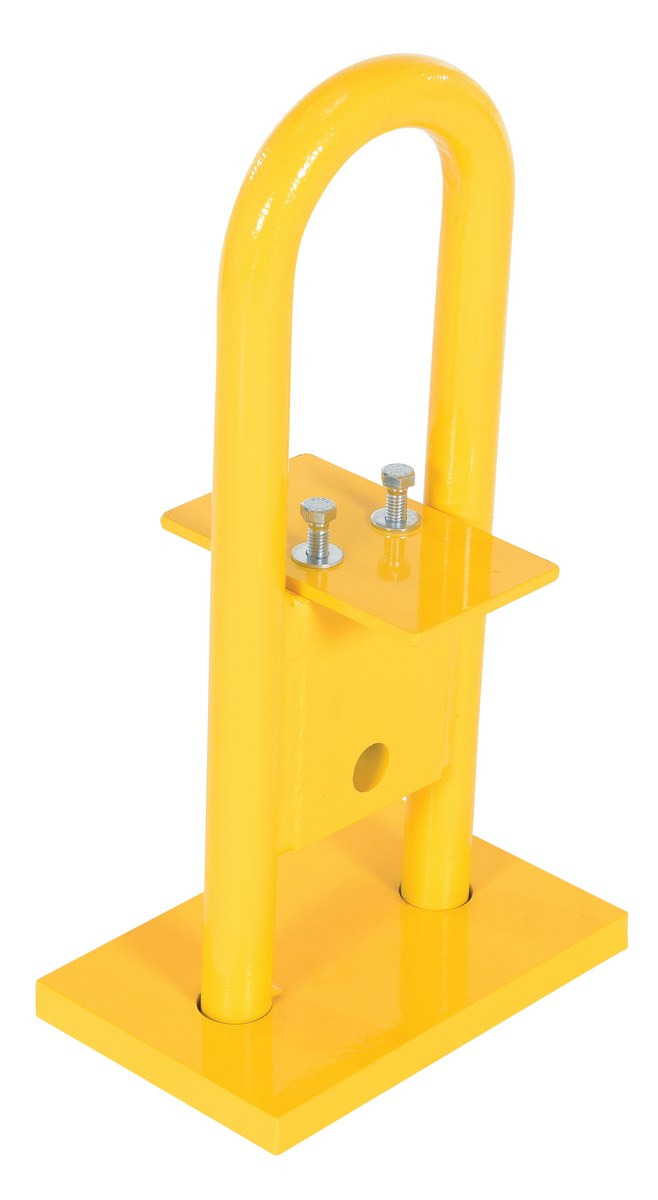

| SM-UB-80 |  | 90 Days Limited Warranty | Steel Upper Bail 6 In. x 9-1/4 In. x 17-3/4 In. For Adjustable Spreader Beams 8,000 Lb. Capacity Yellow | Chain Size Maximum Capacity: 4 in. Maximum Capacity (lb.): 8000 | 33 | |

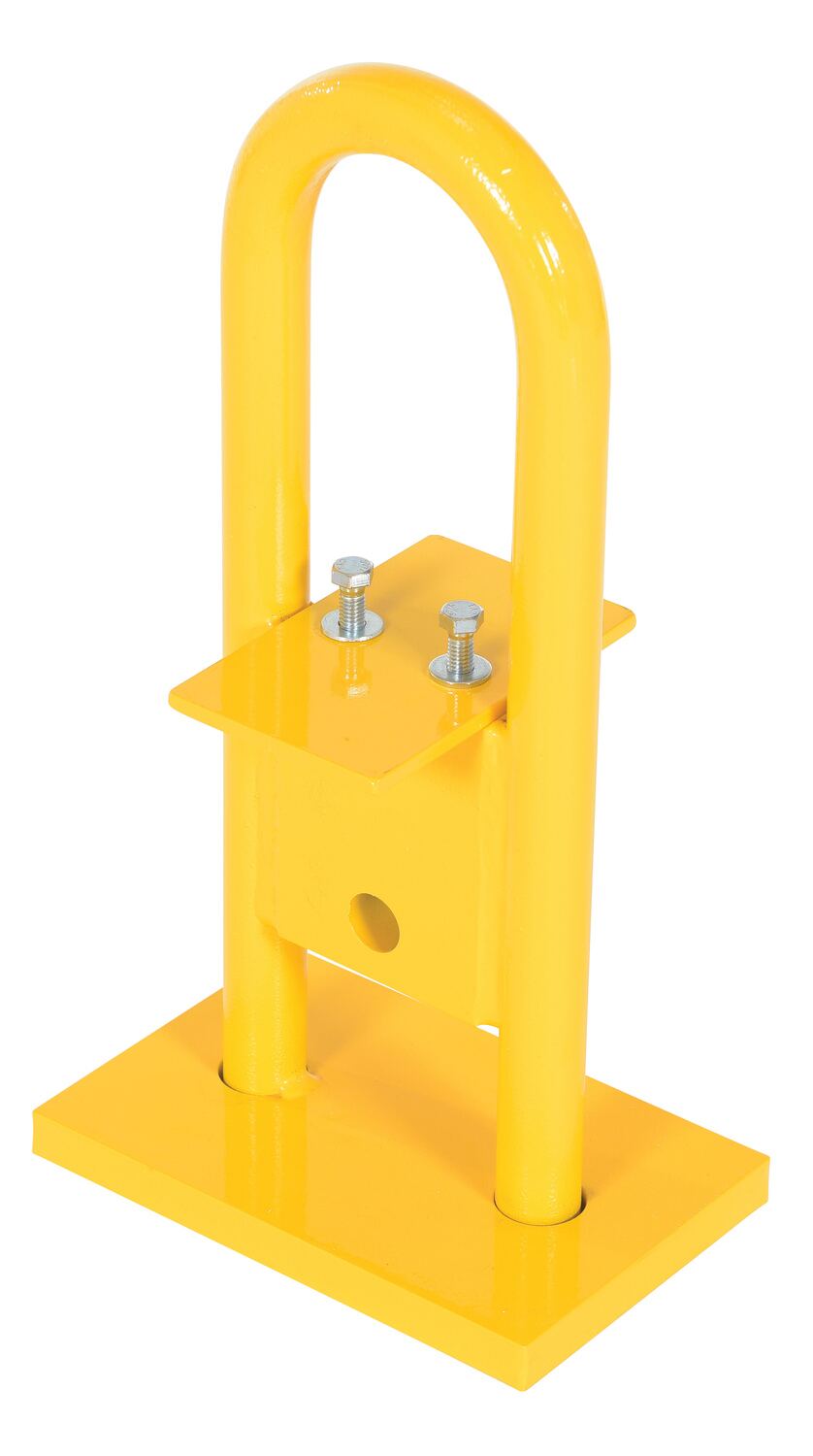

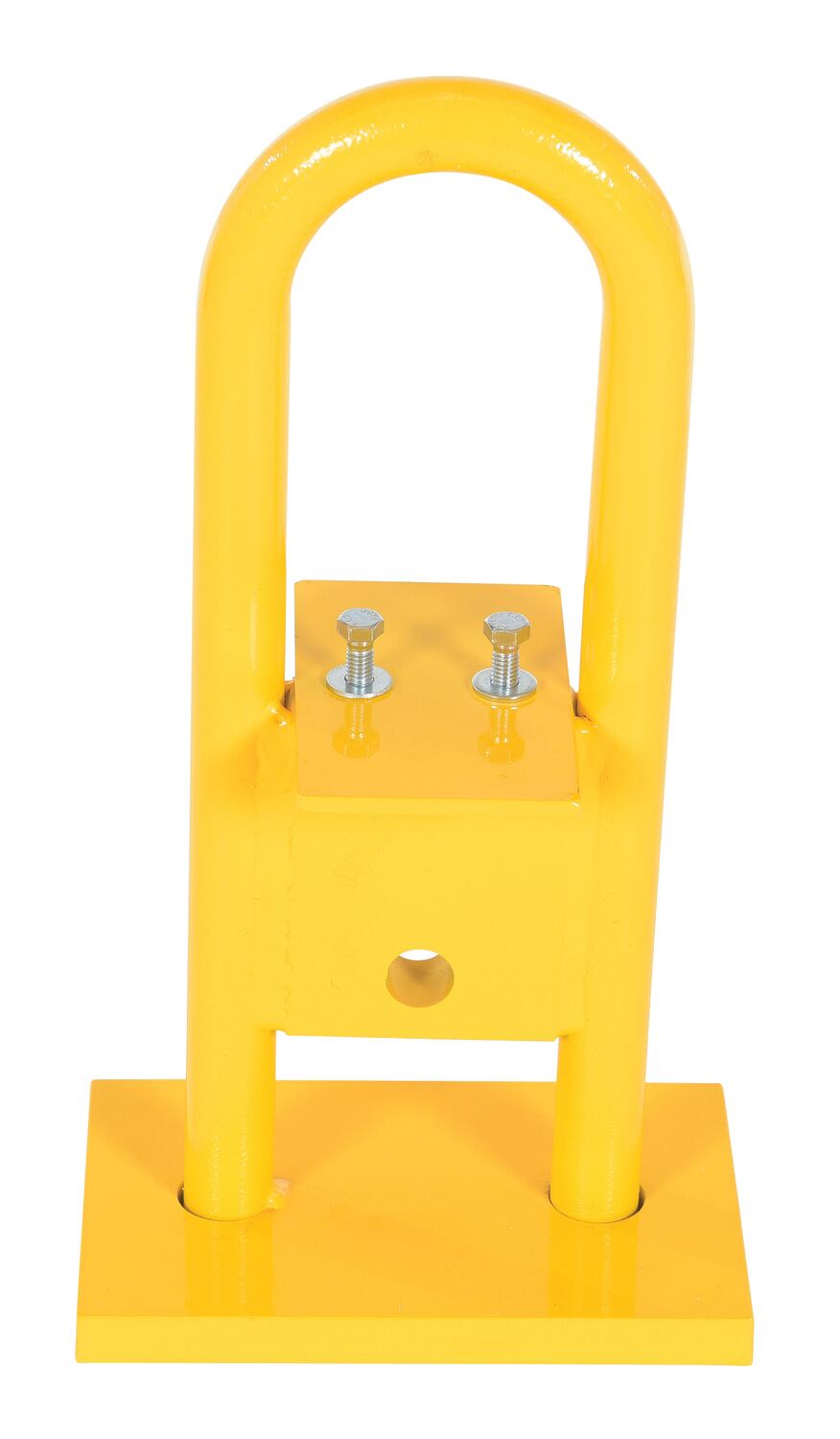

| SM-UB-BFB-100 | NEW |  | 90 Days Limited Warranty | Steel Upper Bail Kit For Adjustable Spreader Beams SBM-BFB-100 Series 6 X 9.25 X 19.75 10,000 Lb. Capacity Yellow | Chain Size Maximum Capacity: 4 In. Maximum Capacity (lb.): 10000 | 38 |

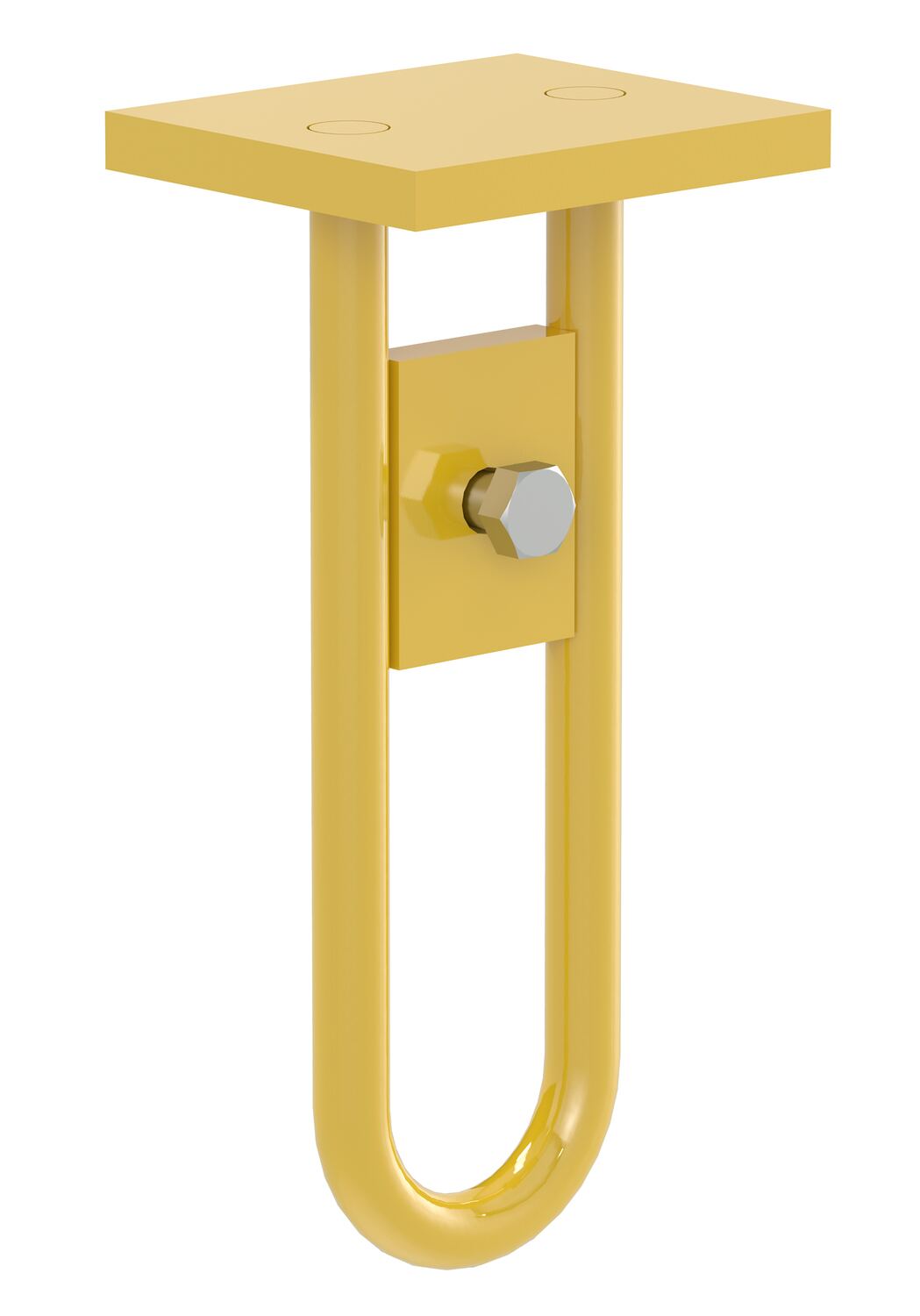

| SM-LB-BFB-100 | NEW | | 90 Days Limited Warranty | Steel Lower Bail Kit For Adjustable Spreader Beams SBM-BFB-100 Series 6 X 7 X 17.75 10,000 Lb. Capacity Yellow | Chain Size Maximum Capacity: 4 In. Maximum Capacity (lb.): 10000 | 22 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the diameter of the bails?
A: The lower bails have a 1" diameter. The upper bail has a 1 14"diameter.
Q: What kind of steel are SBM models made from?
A: A-36
 |
||||||||||||||||||||||||||||||||
