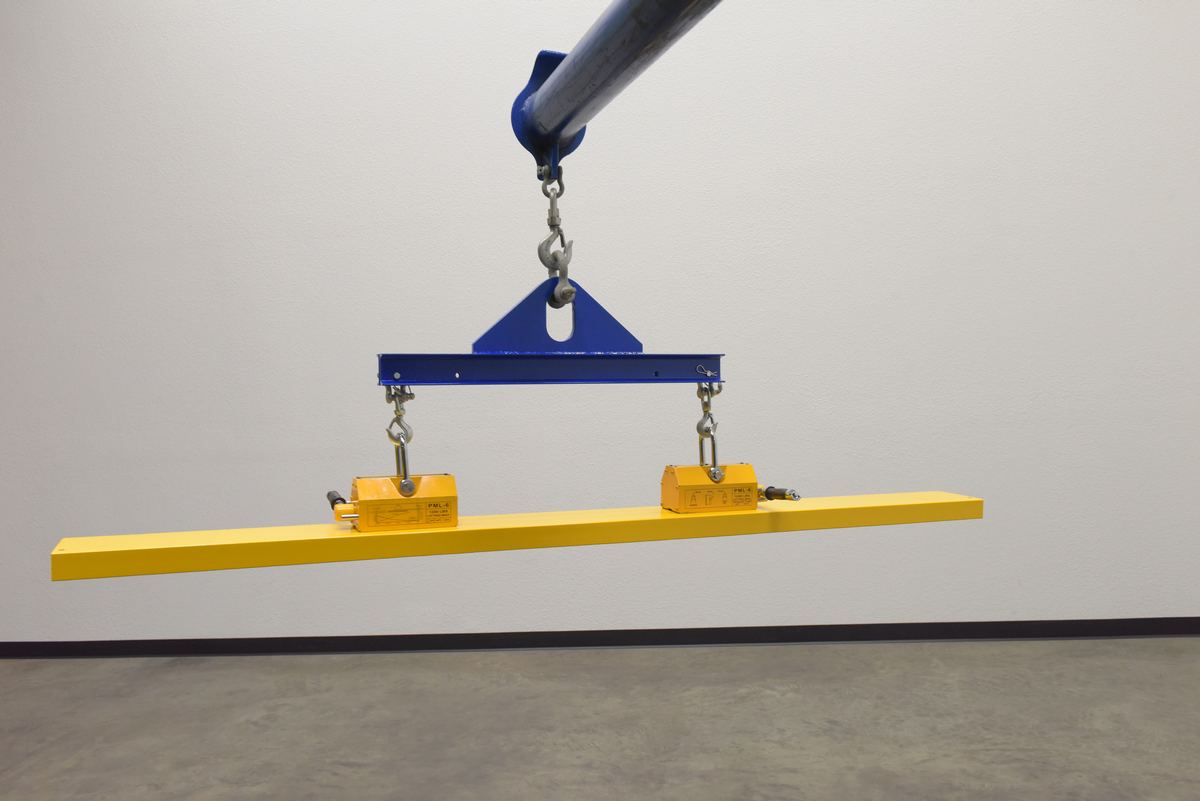

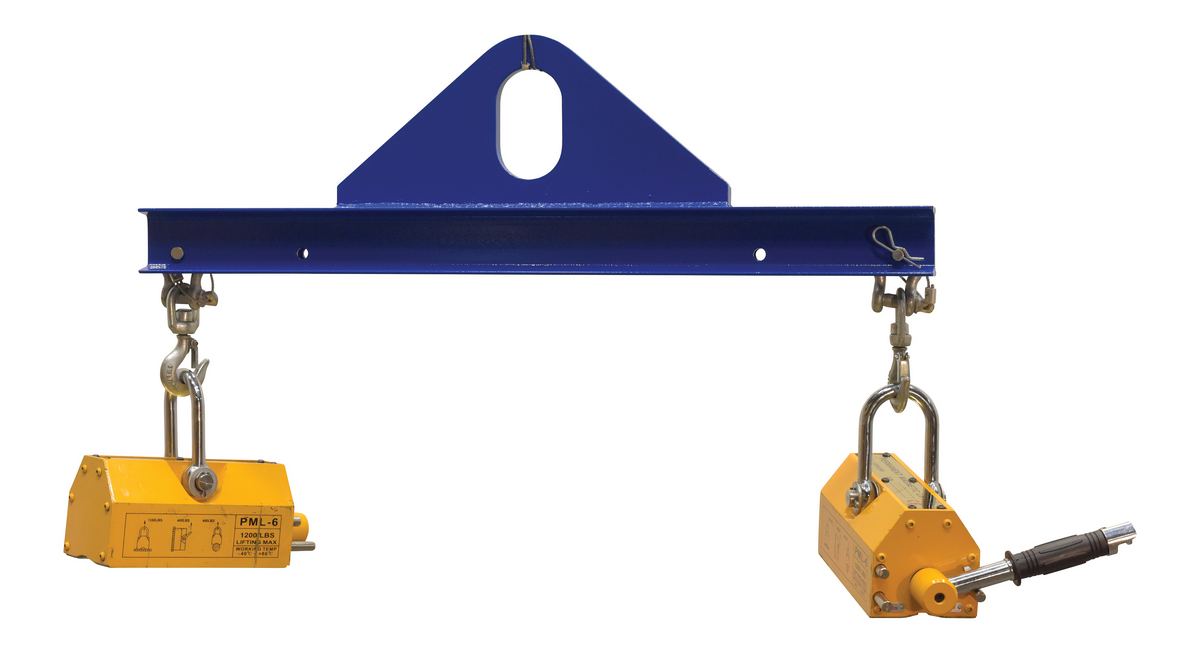

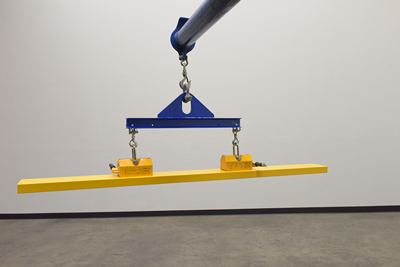

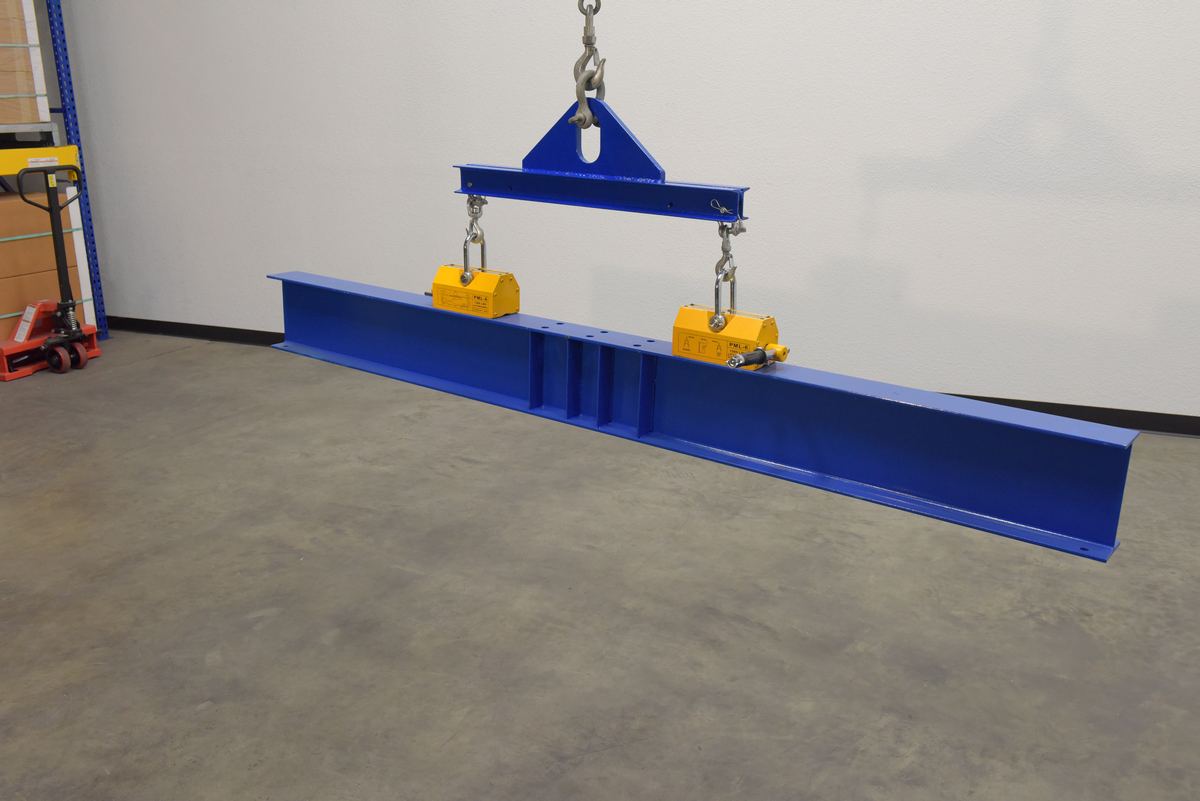

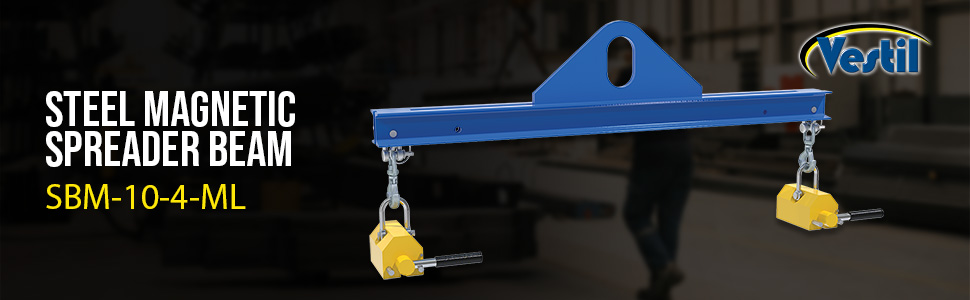

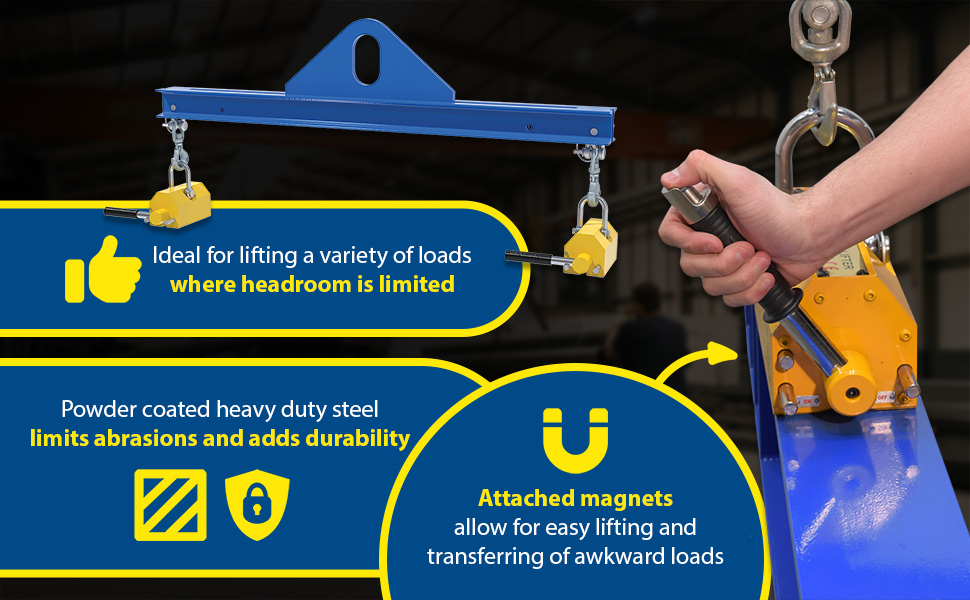

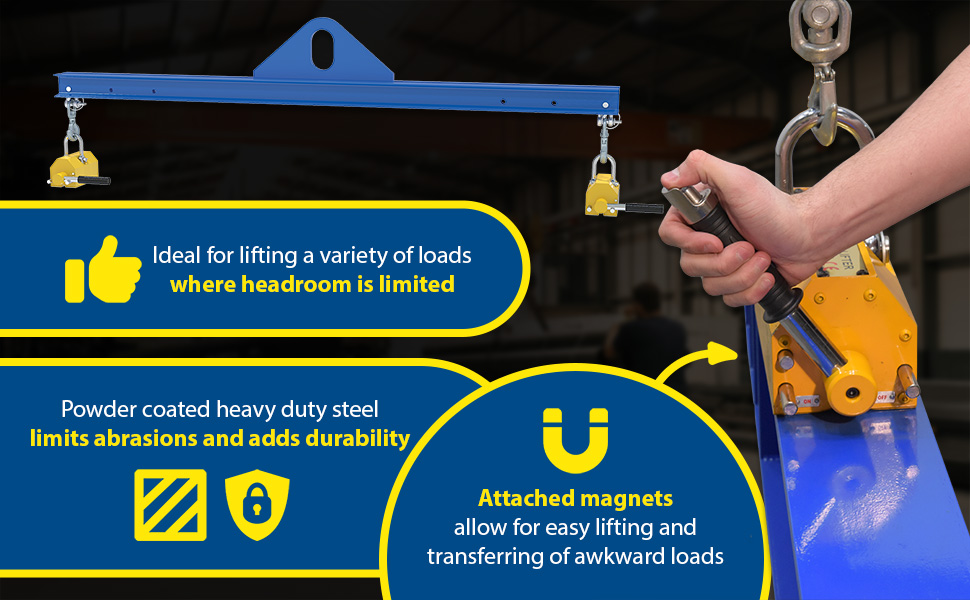

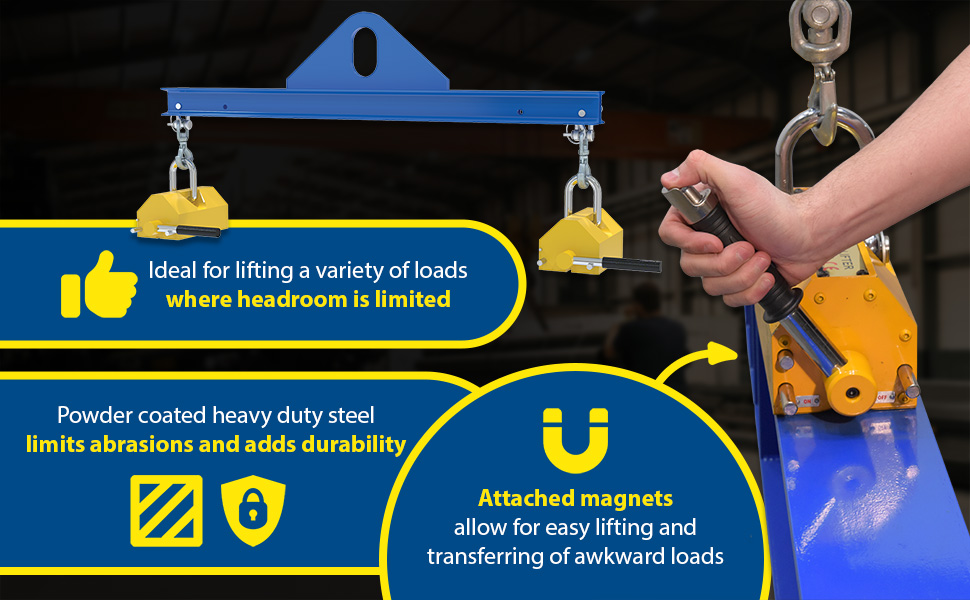

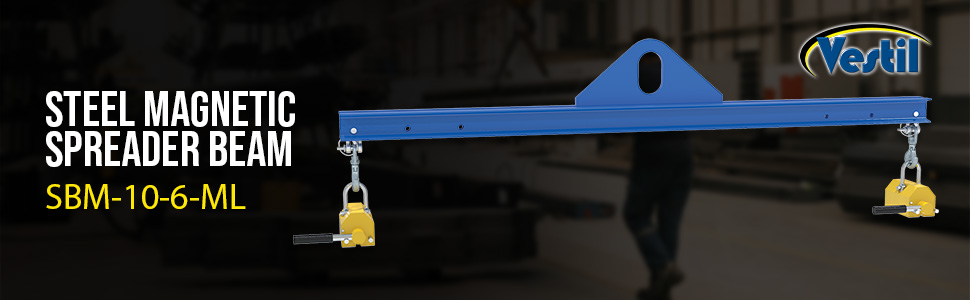

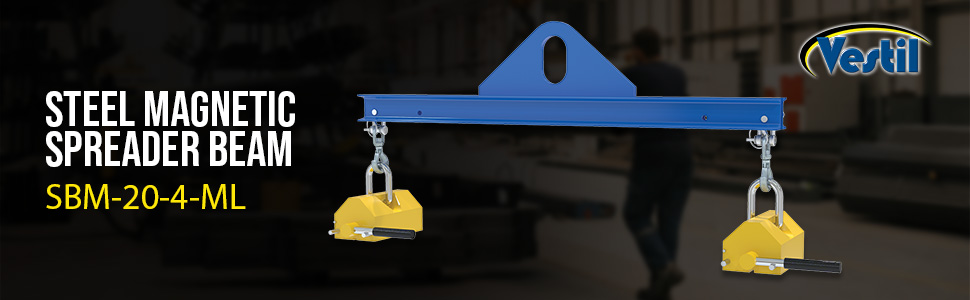

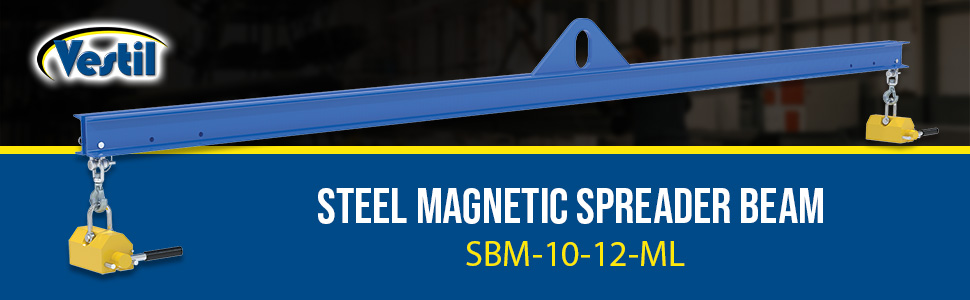

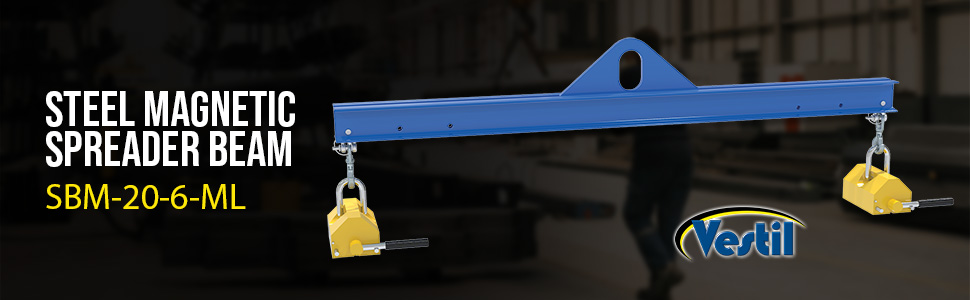

Magnetic Spreader BeamsThis versatile magnetic Spreader Beam is ideal for lifting a variety of loads where headroom is limited. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and ads durability to the units' longevity.
- Designed to lift and move awkward loads
- Large capacity for moving objects both big and small

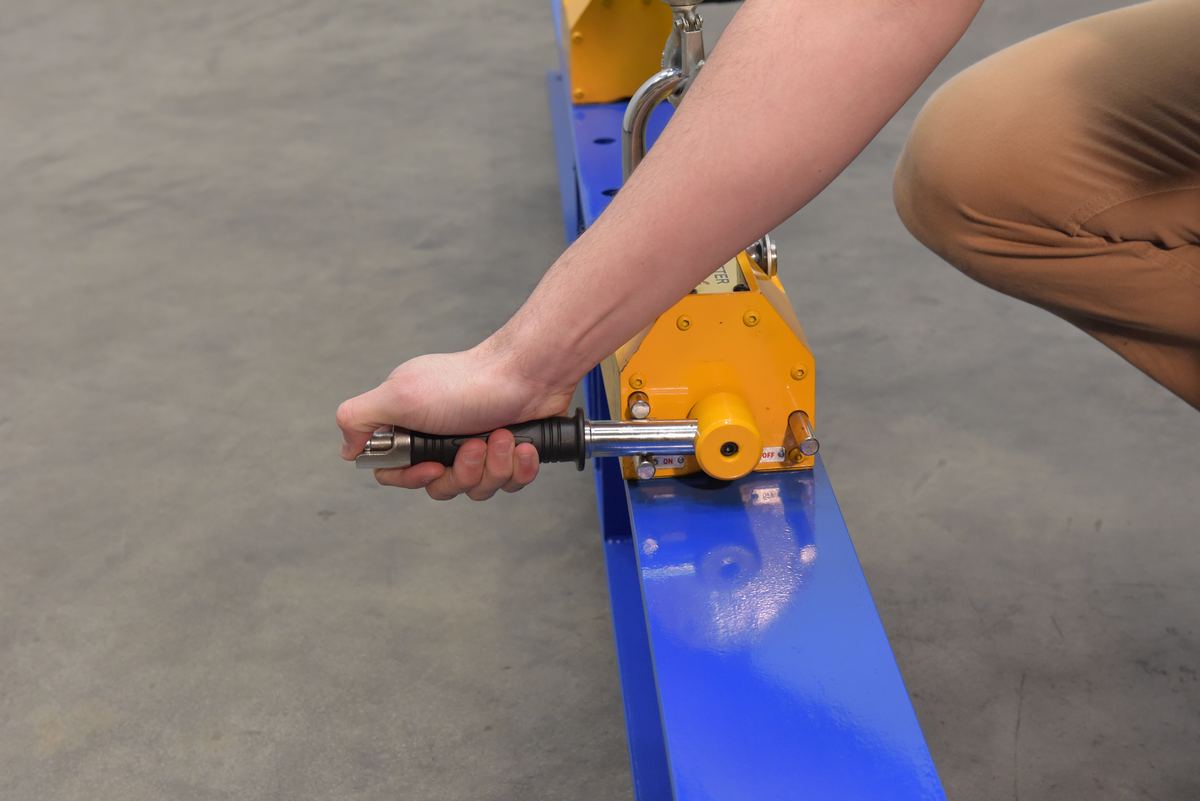

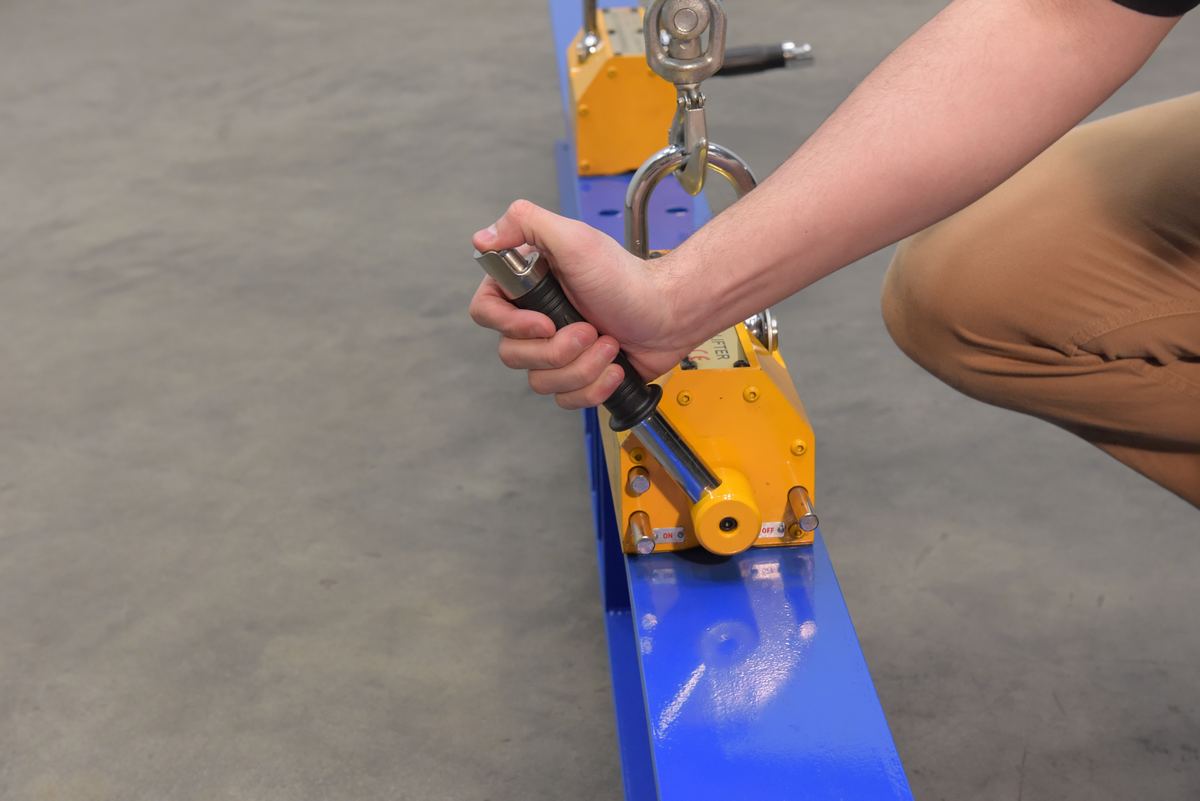

- Includes magnets for lifting versatility
- Steel construction for heavy duty performance

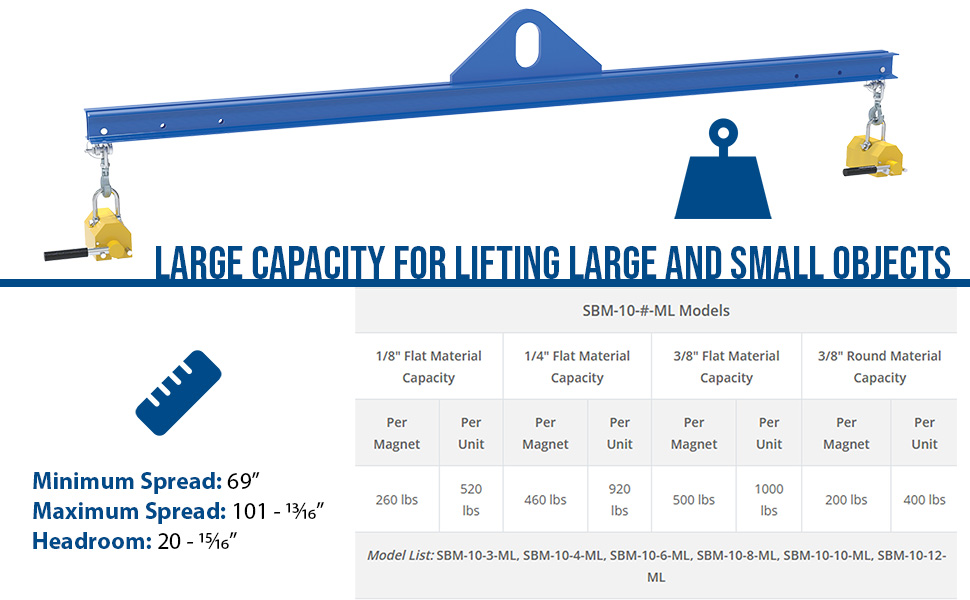

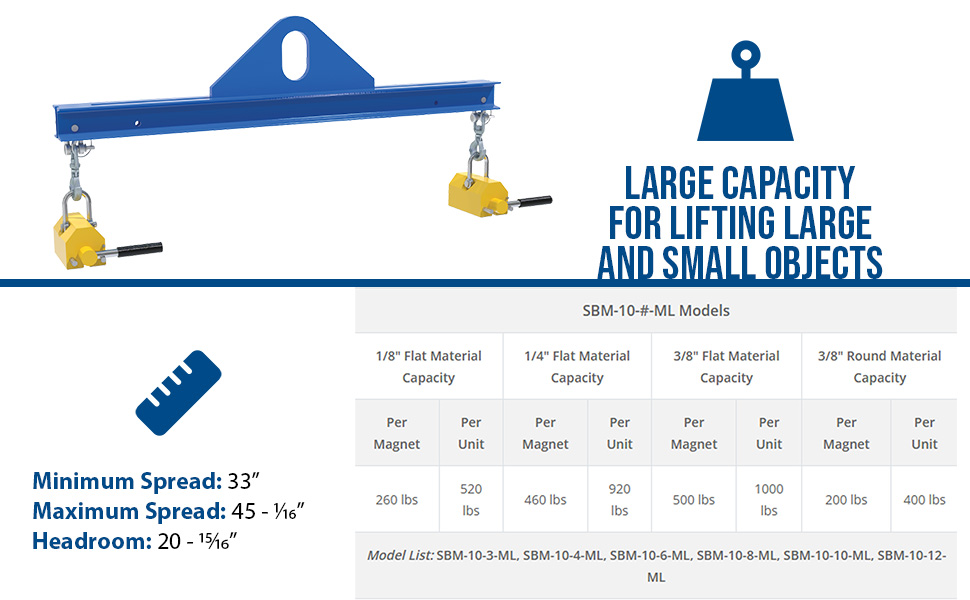

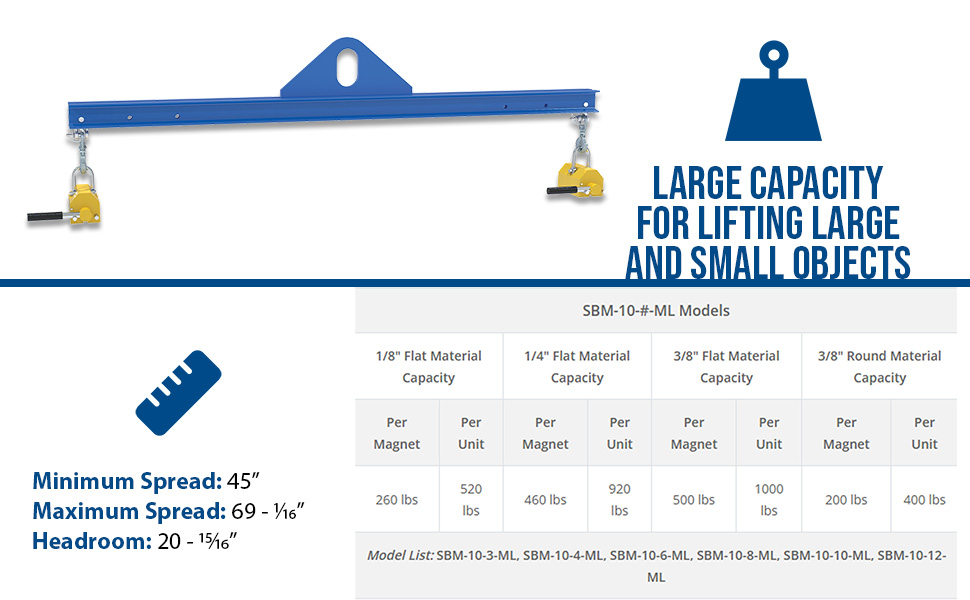

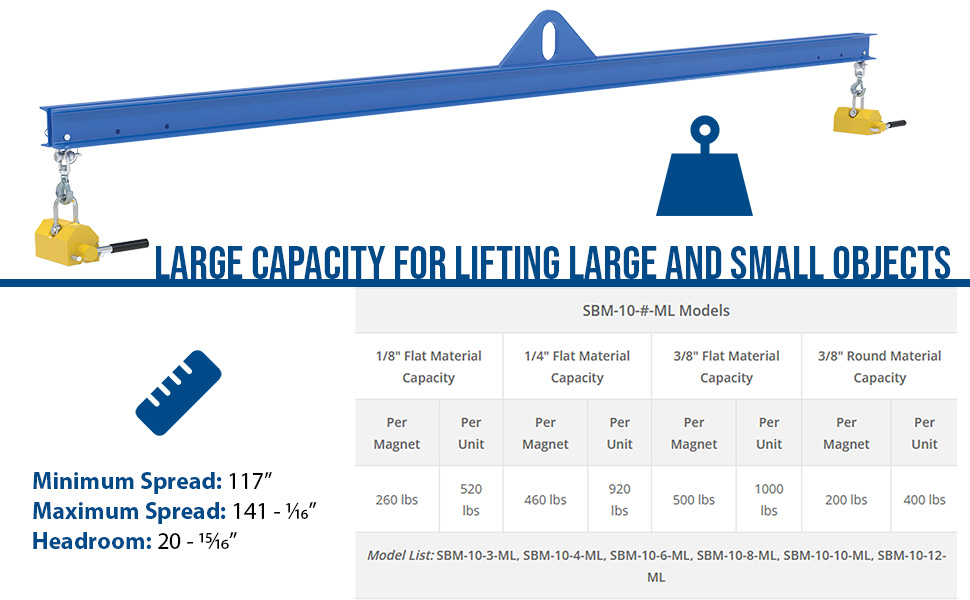

| SBM-10-#-ML Models | |||||||
| 1/8" Flat Material Capacity | 1/4" Flat Material Capacity | 3/8" Flat Material Capacity | 3/8" Round Material Capacity | ||||
| Per Magnet | Per Unit | Per Magnet | Per Unit | Per Magnet | Per Unit | Per Magnet | Per Unit |
| 260 lbs | 520 lbs | 460 lbs | 920 lbs | 500 lbs | 1000 lbs | 200 lbs | 400 lbs |
| Model List: SBM-10-3-ML, SBM-10-4-ML, SBM-10-6-ML, SBM-10-8-ML, SBM-10-10-ML, SBM-10-12-ML | |||||||

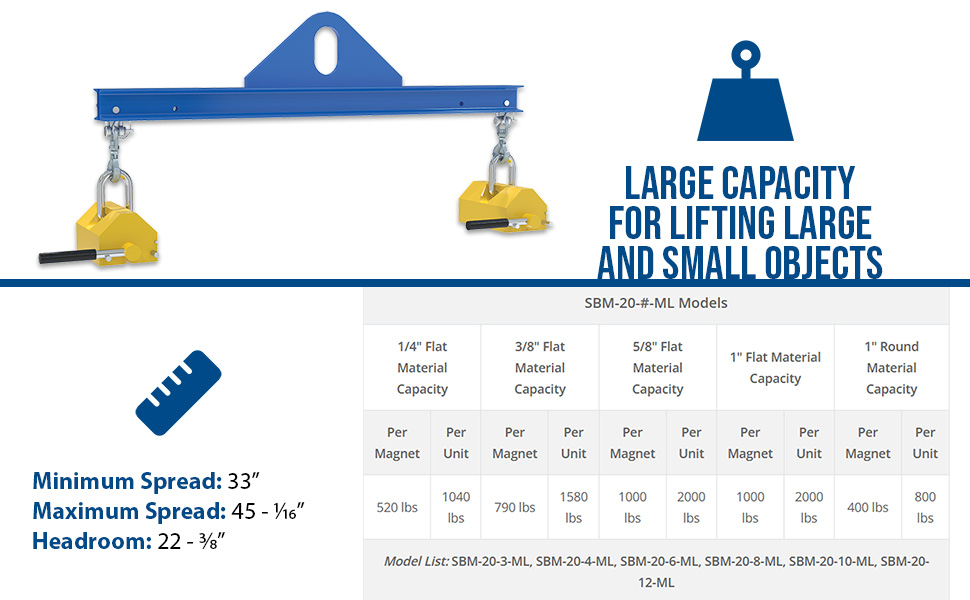

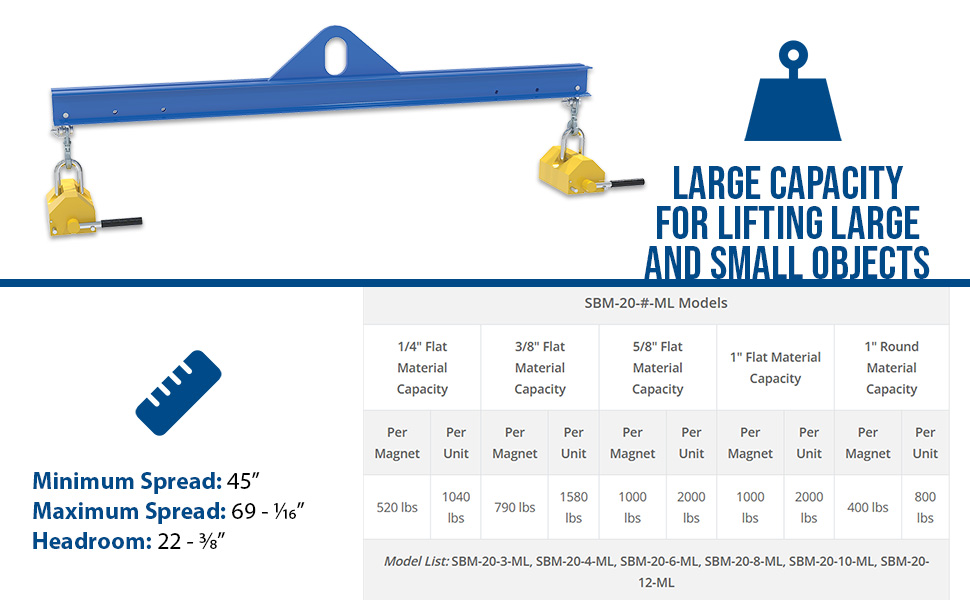

| SBM-20-#-ML Models | |||||||||
| 1/4" Flat Material Capacity | 3/8" Flat Material Capacity | 5/8" Flat Material Capacity | 1" Flat Material Capacity | 1" Round Material Capacity | |||||
| Per Magnet | Per Unit | Per Magnet | Per Unit | Per Magnet | Per Unit | Per Magnet | Per Unit | Per Magnet | Per Unit |
| 520 lbs | 1040 lbs | 790 lbs | 1580 lbs | 1000 lbs | 2000 lbs | 1000 lbs | 2000 lbs | 400 lbs | 800 lbs |
| Model List: SBM-20-3-ML, SBM-20-4-ML, SBM-20-6-ML, SBM-20-8-ML, SBM-20-10-ML, SBM-20-12-ML | |||||||||
Telescoping Adjustable Spreader Beams
Adjustable Spreader BeamsAdditional Models In This Family
SBM-20-6-ML
SBM-20-12-ML
SBM-20-3-ML
SBM-10-12-ML
SBM-10-4-ML
SBM-20-10-ML
SBM-20-3-ML
SBM-20-3-ML
SBM-20-4-ML
SBM-10-6-ML
SBM-10-3-ML
SBM-20-8-ML
SBM-20-3-ML
SBM-10-8-ML
SBM-10-10-ML
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

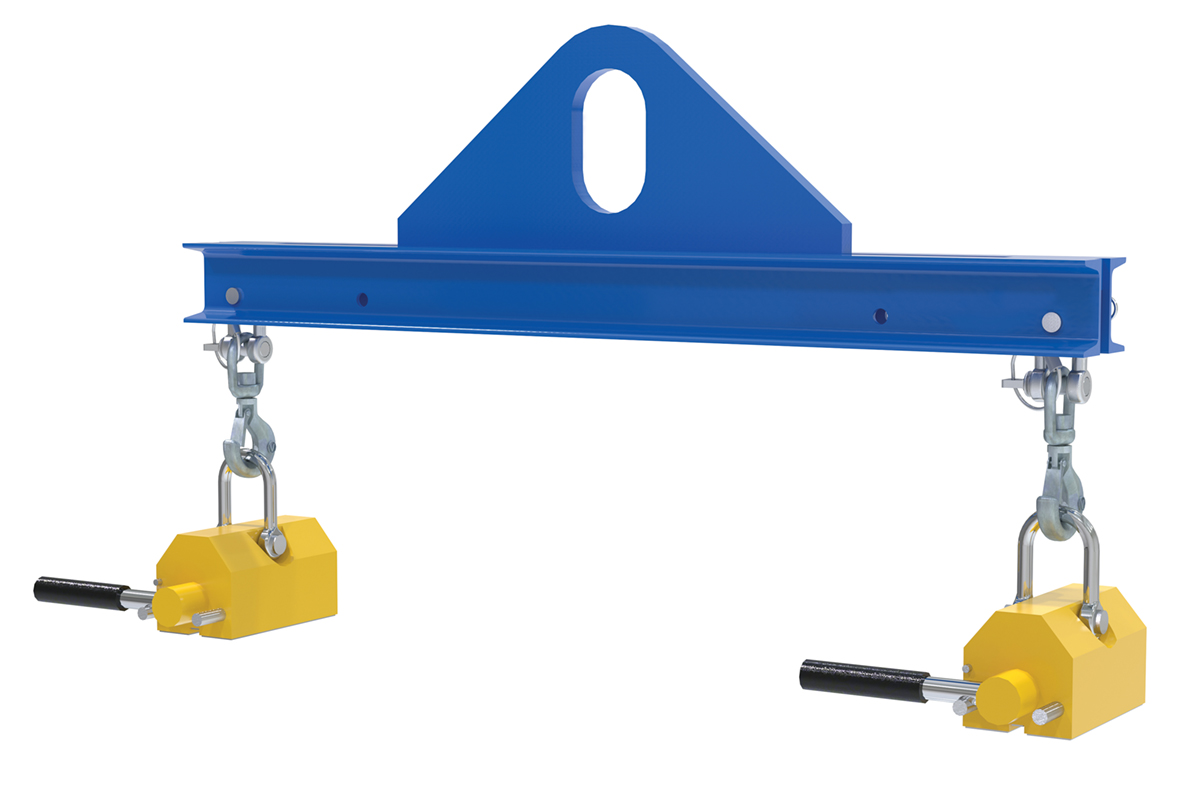

| SBM-10-3-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 36 In. Length 1,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 1000 Headroom (in.): 20-15/16" | 2163 | ||

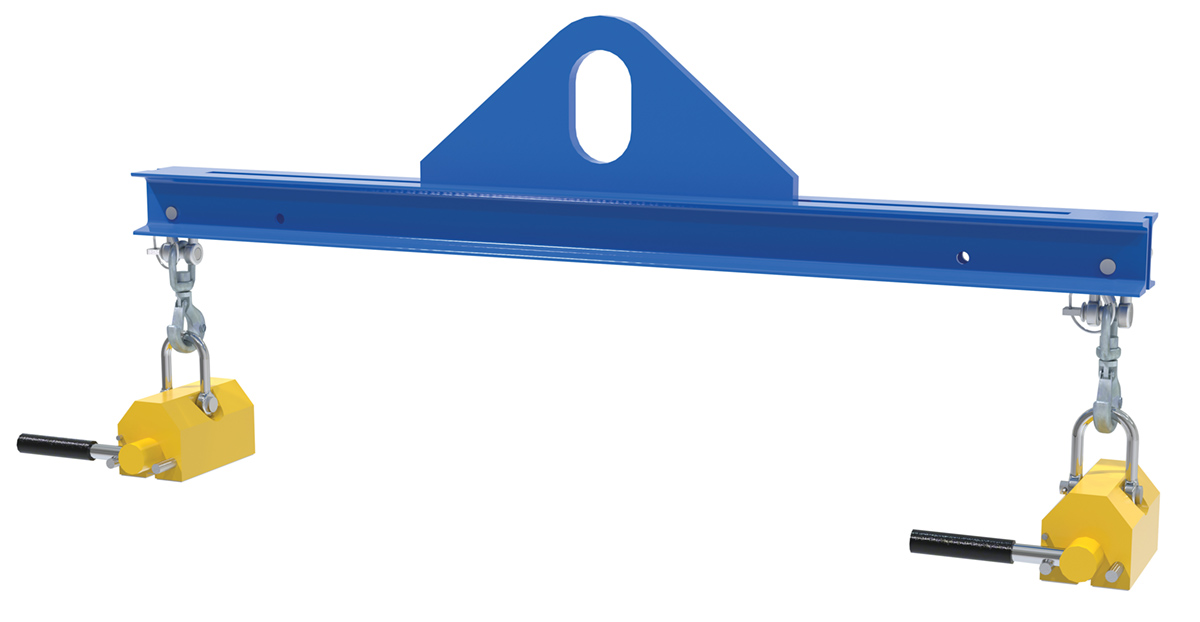

| SBM-10-4-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 48 In Length 1,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 1000 Headroom (in.): 20-15/16" | 2183 | ||

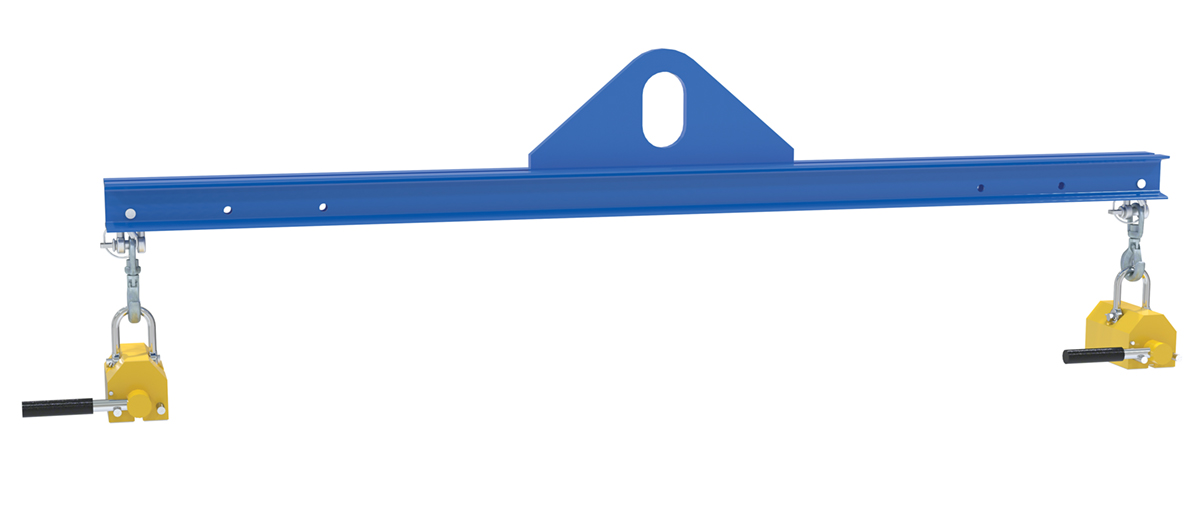

| SBM-10-6-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 72 In Length 1,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 1000 Headroom (in.): 20-15/16" | 189 | ||

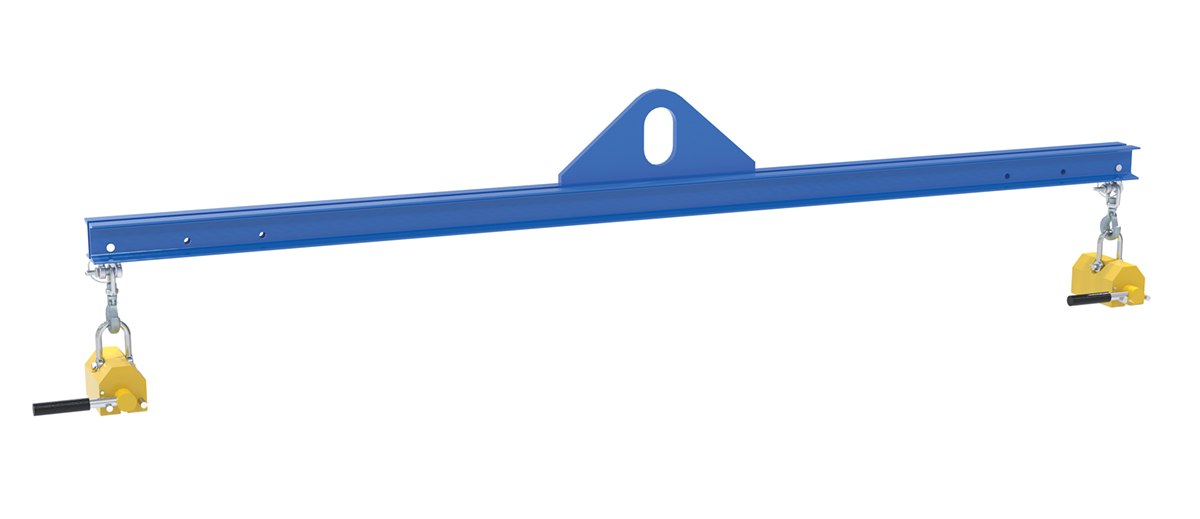

| SBM-10-8-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 96 In Length 1,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 1000 Headroom (in.): 20-15/16" | 201 | ||

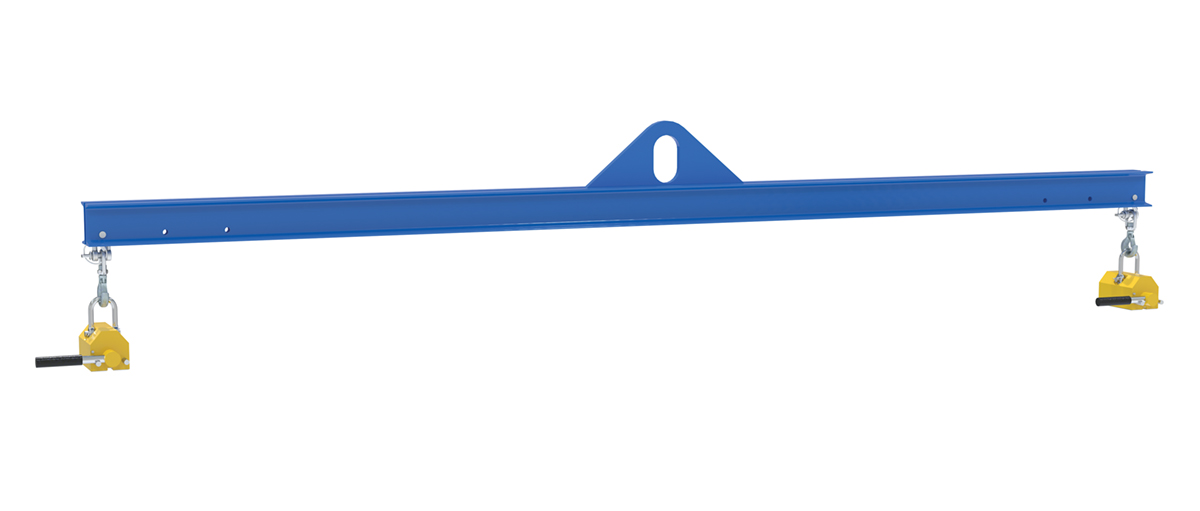

| SBM-10-10-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 120 In Length 1,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 1000 Headroom (in.): 20-15/16" | 245 | ||

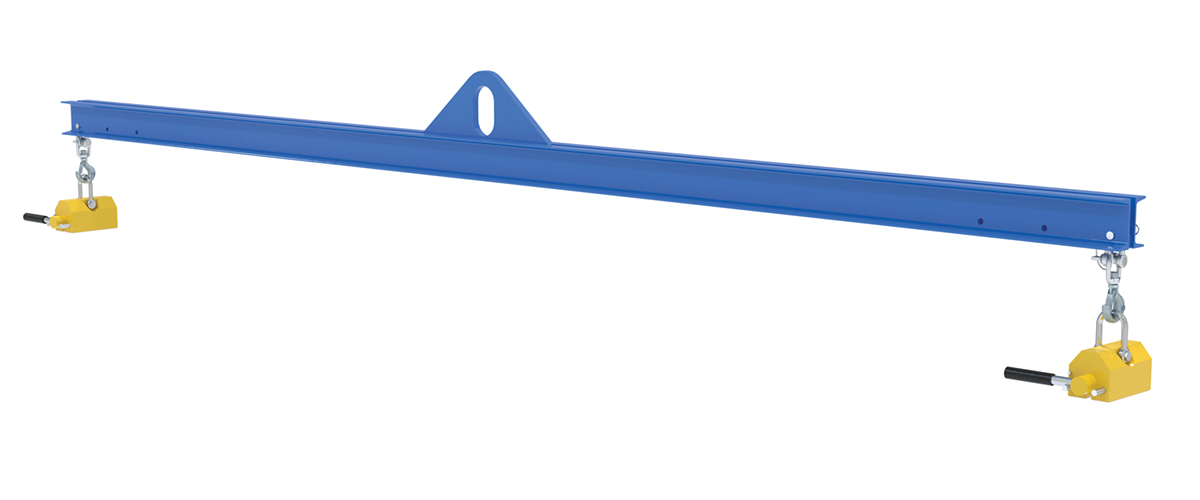

| SBM-10-12-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 144 In Length 1,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 1000 Headroom (in.): 20-15/16" | 266 | ||

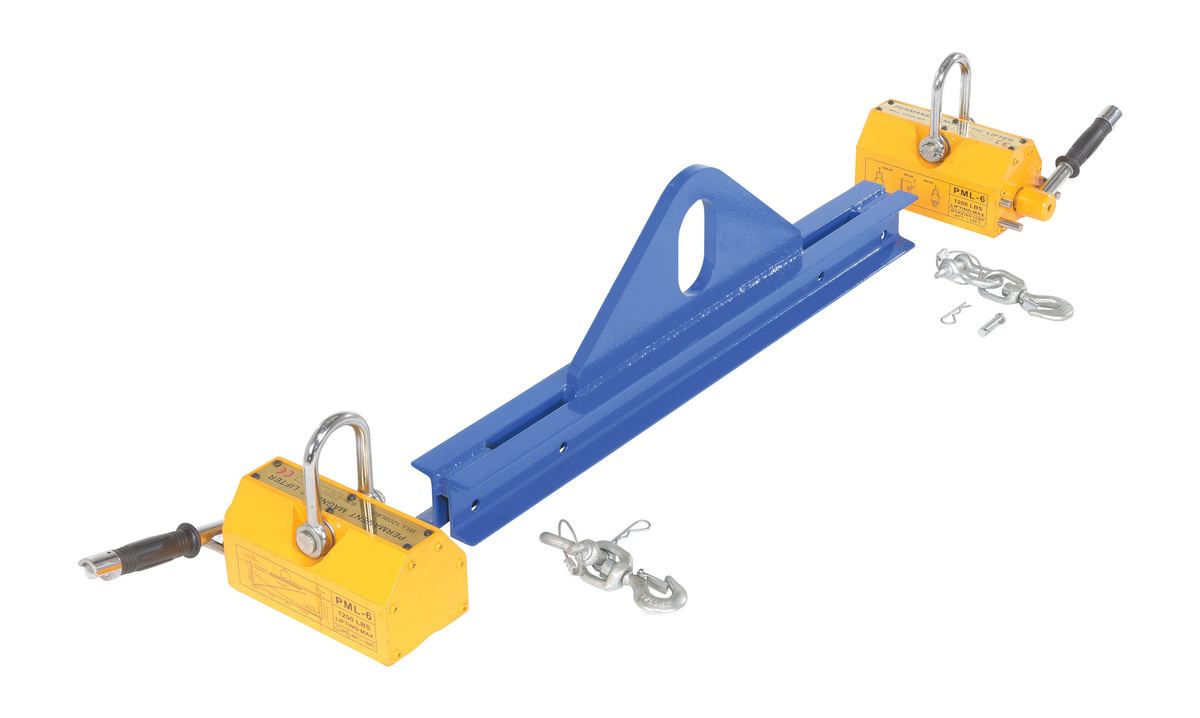

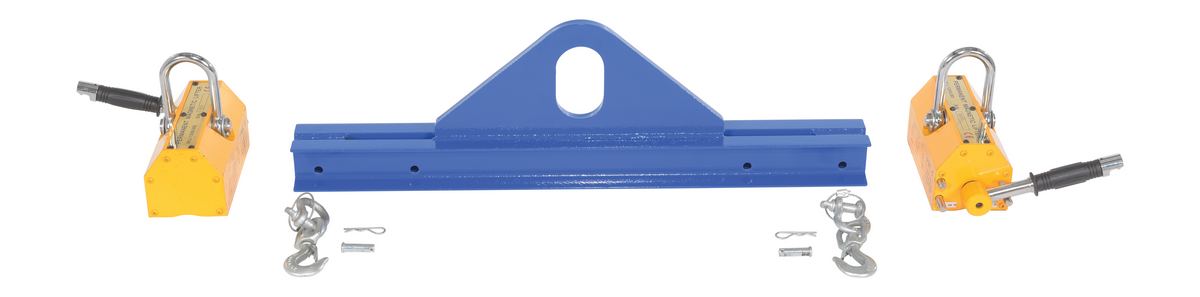

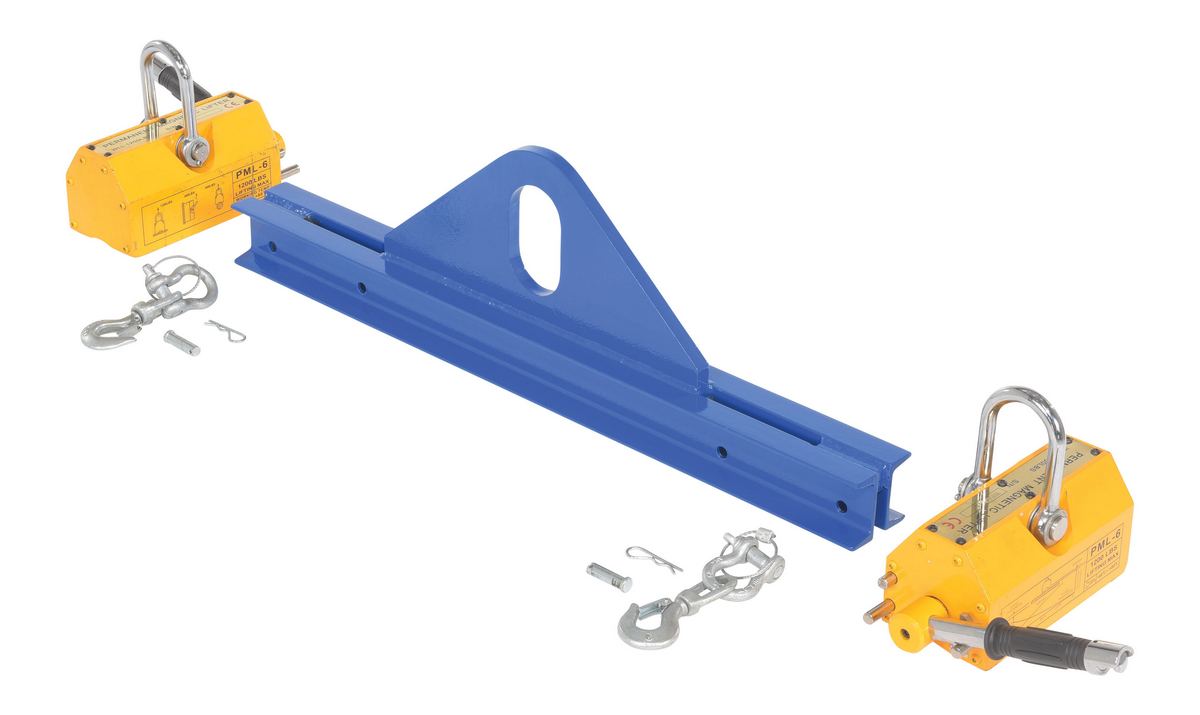

| SBM-20-3-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 36 In Length 2,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 2000 Headroom (in.): 22-11/32" | 188 | ||

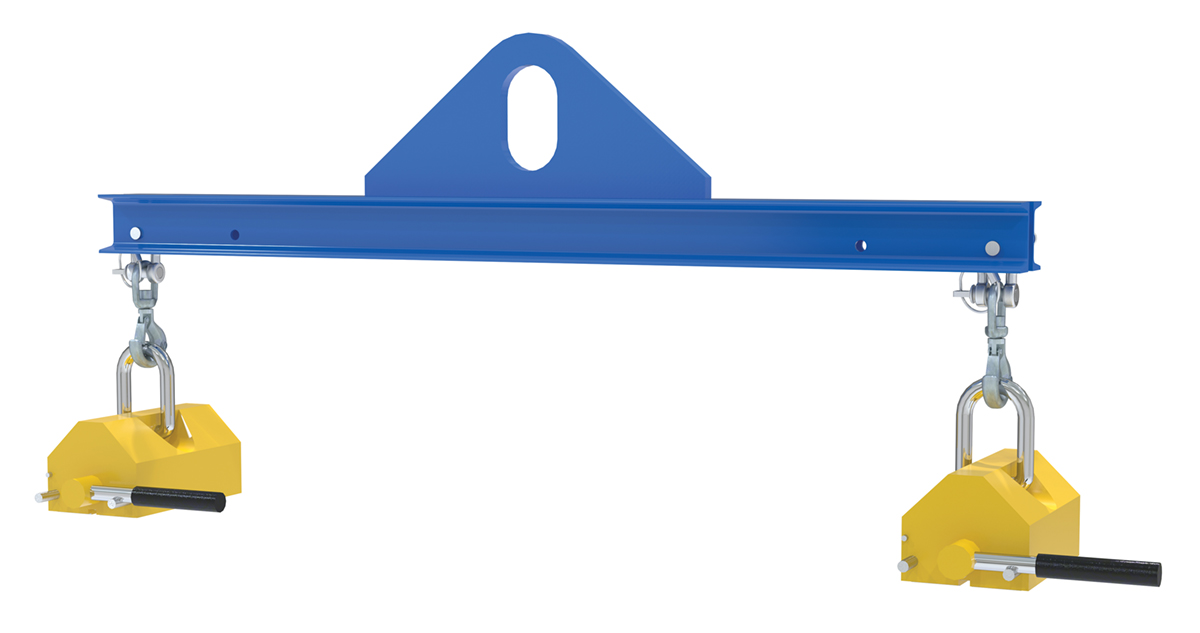

| SBM-20-4-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 48 In Length 2,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 2000 Headroom (in.): 22-3/8" | 208 | ||

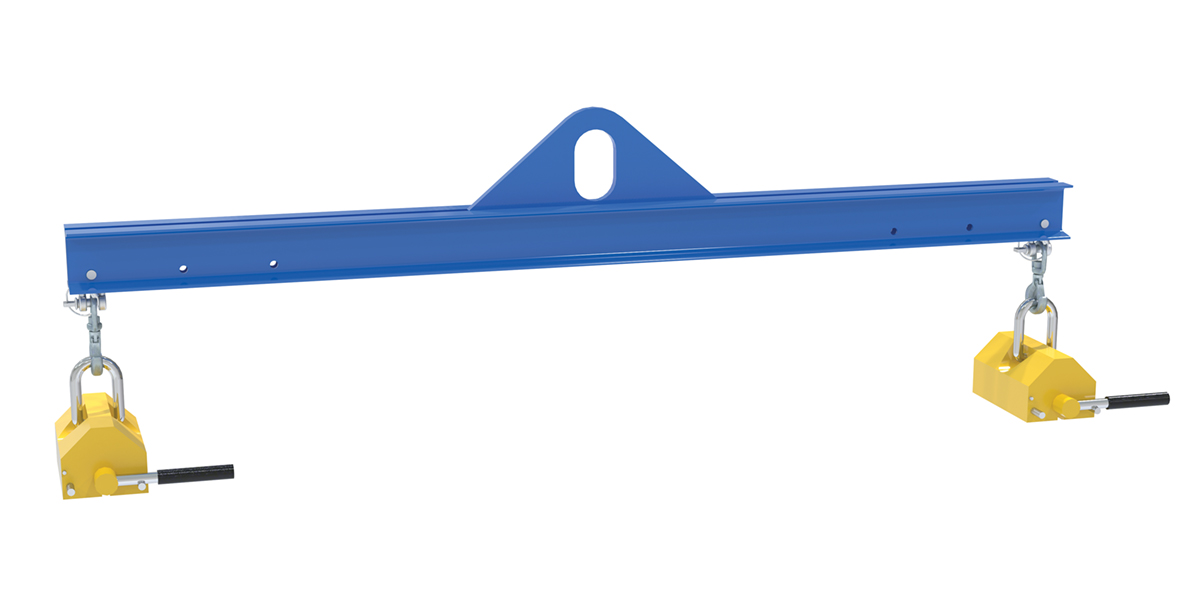

| SBM-20-6-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 72 In Length 2,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 2000 Headroom (in.): 22-3/8" | 269 | ||

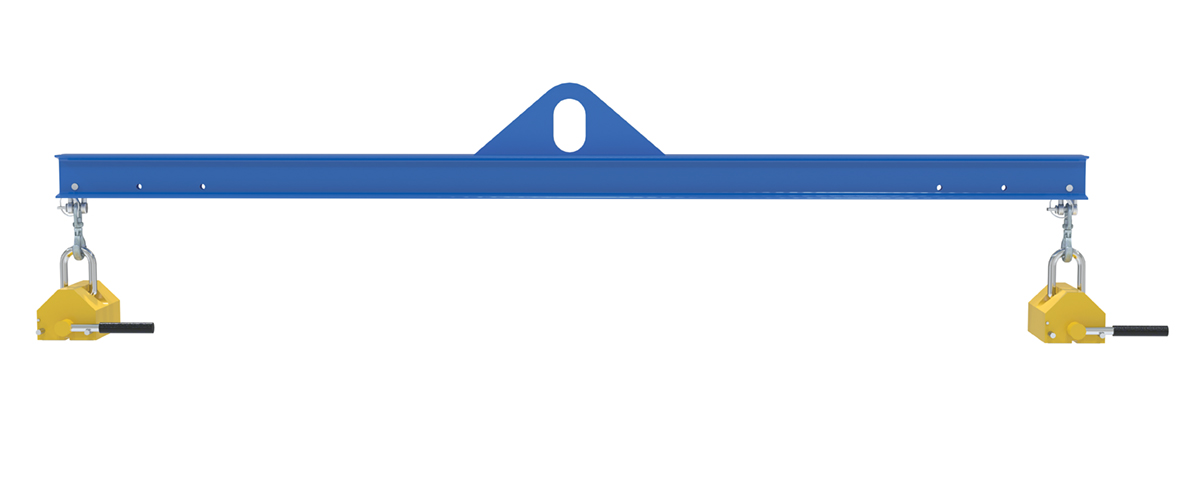

| SBM-20-8-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 96 In Length 2,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 2000 Headroom (in.): 22-3/8" | 320 | ||

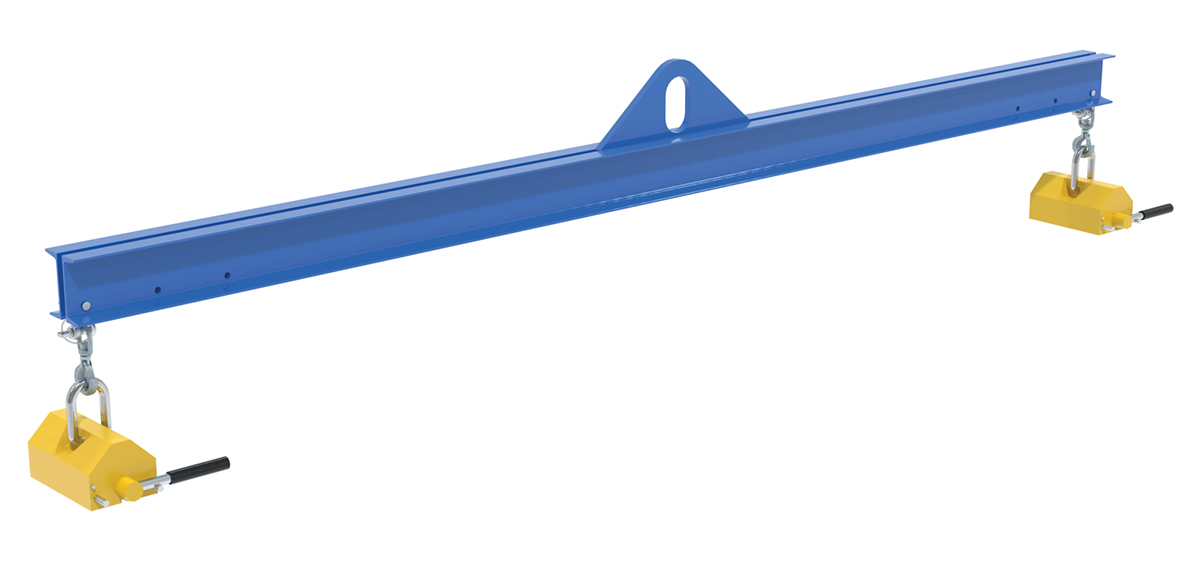

| SBM-20-10-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 120 In Length 2,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 2000 Headroom (in.): 23-3/8" | 342 | ||

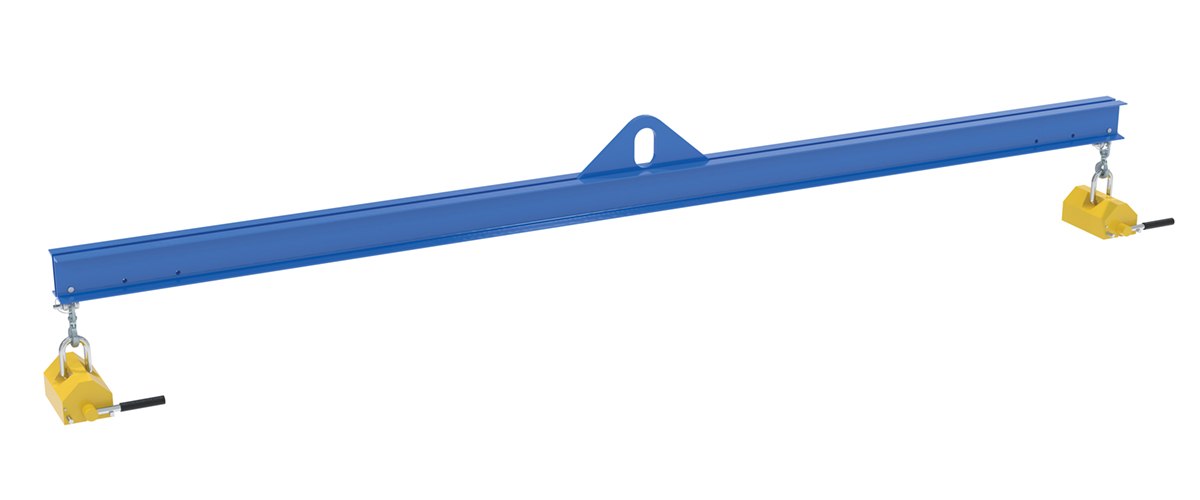

| SBM-20-12-ML | | 90 Days Limited Warranty | Steel Magnetic Spreader Beam 144 In Length 2,000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 2000 Headroom (in.): 23-3/8" | 369 |
