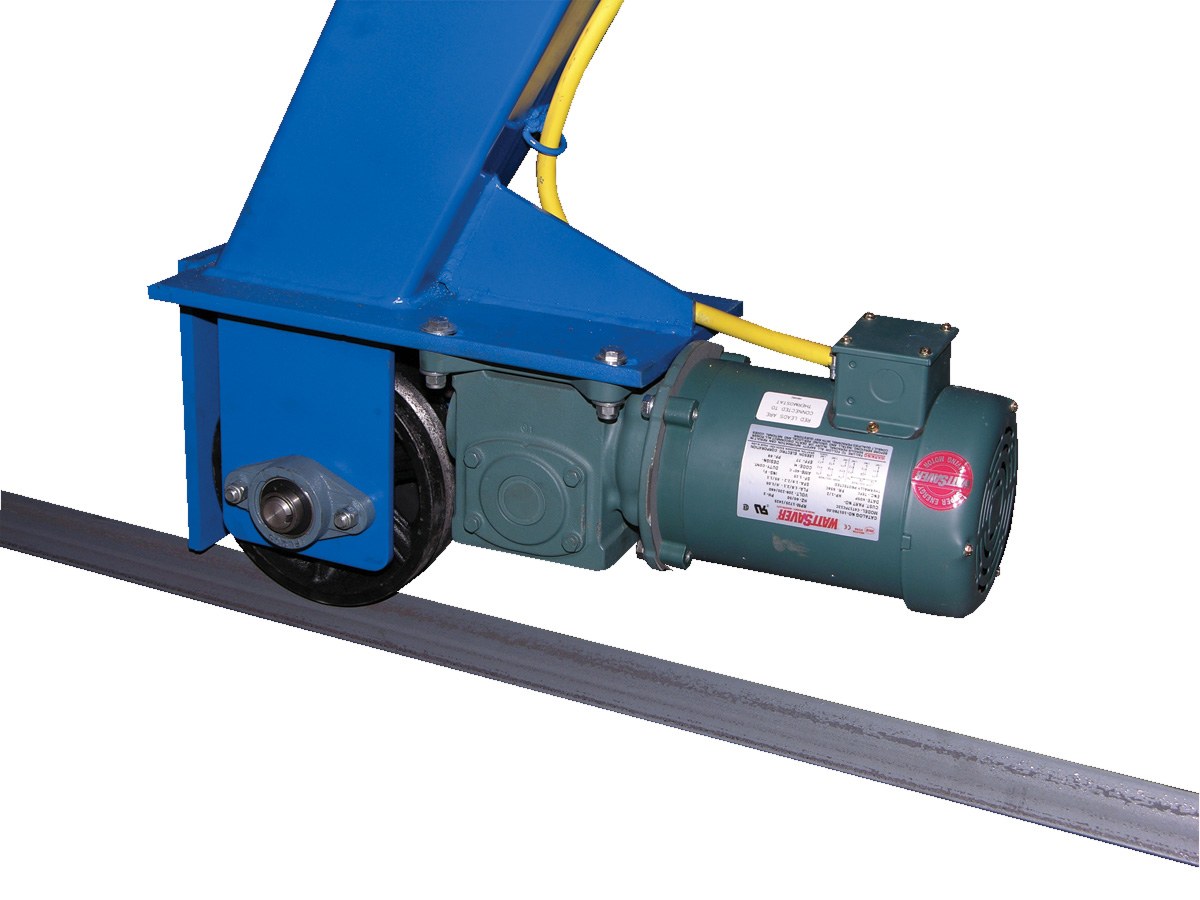

Steel Gantry Crane Power Traction Drive OptionsPower Traction Drive Options for a gantry cranes are ideal for industrial manufacturing environments. The power traction drive allows the gantry crane to be moved to a desired position without need of extra personnel. The unit is maneuvered by a three (3) button push button control for precise movements, while being driven by 460V, 3 phase power.
V-TRACK

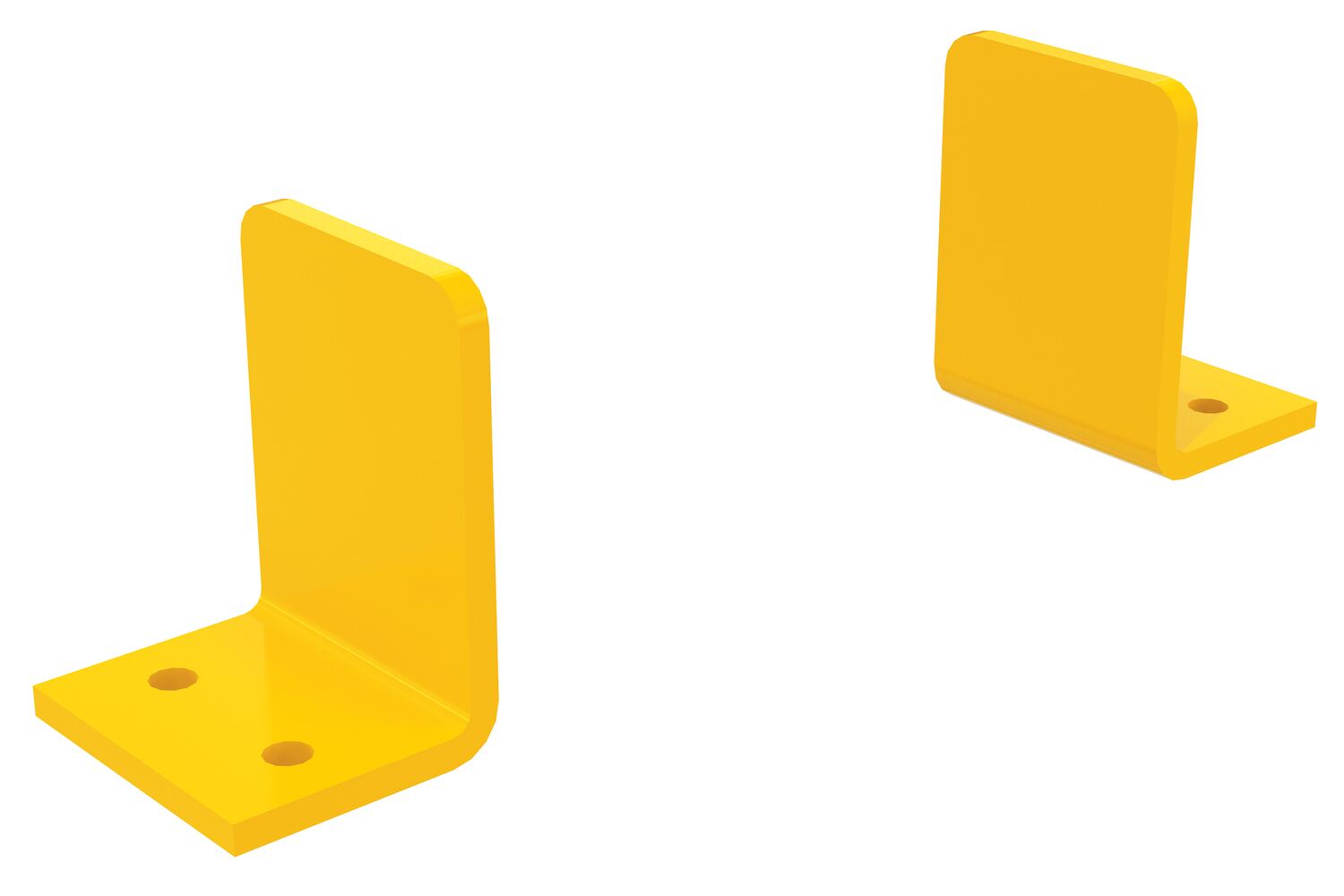

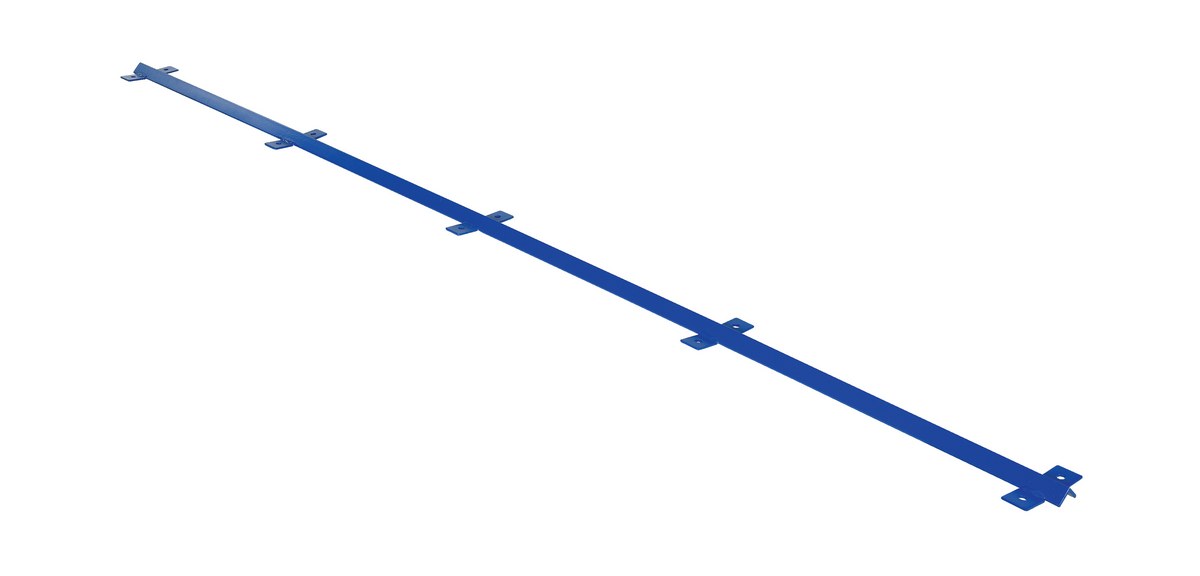

Optional V-groove track section for the steel gantry cranes (one side only) are sold in 120" sections. End stops for the gantry crane V-track are much needed accessories. The end stops, model V-TRACK-ES, work as a barrier, preventing the gantry crane from traveling too far and leaving the V-track.
Self-Supporting Bridge Cranes
Fixed Height Steel Gantry Cranes with Total Locking Casters - Knockdown
Adjustable Steel Gantry Cranes with Total Locking Casters
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| GPTD-2 | |  | 90 Days Limited Warranty | Factory Installed Power Traction Drive System 2000 Lb. To 4000 Lb. Capacity For Steel Gantry Cranes Blue | Uniform Capacity (lb.): 2,000 to 4,000 Hand Control: 3 Button | 0 | |
| GPTD-4 | |  | 90 Days Limited Warranty | Factory Installed Power Traction Drive System 6000 Lb. To 8000 Lb. Capacity For Steel Gantry Cranes | Uniform Capacity (lb.): 6,000 to 8,000 Hand Control: 3 Button | 0 | |
| V-TRACK |  | 90 Days Limited Warranty | Steel Gantry Crane V-Groove Track 120 In. Length Blue | Section Length (ft.): 10 # Mounting Holes: 10 | 52 | ||
| V-TRACK-ES | NEW |  | 90 Days Limited Warranty | Steel Gantry Crane V-Groove Track End Stops 5 in. High Yellow | Mounting Hole Qty.: 2 Mounting Hole Dia. (In.): 0.6875 | 7 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000 to 4,000
Hand Control: 3 Button
Uniform Capacity (lb.): 2,000 to 4,000
Hand Control: 3 Button
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000 to 8,000
Hand Control: 3 Button
Uniform Capacity (lb.): 6,000 to 8,000
Hand Control: 3 Button
Unit:
Size: W x L x H
Weight:
Limited Warranty
Section Length (ft.): 10
# Mounting Holes: 10
Section Length (ft.): 10
# Mounting Holes: 10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Hole Qty.: 2
Mounting Hole Dia. (In.): 0.6875
Mounting Hole Qty.: 2
Mounting Hole Dia. (In.): 0.6875
