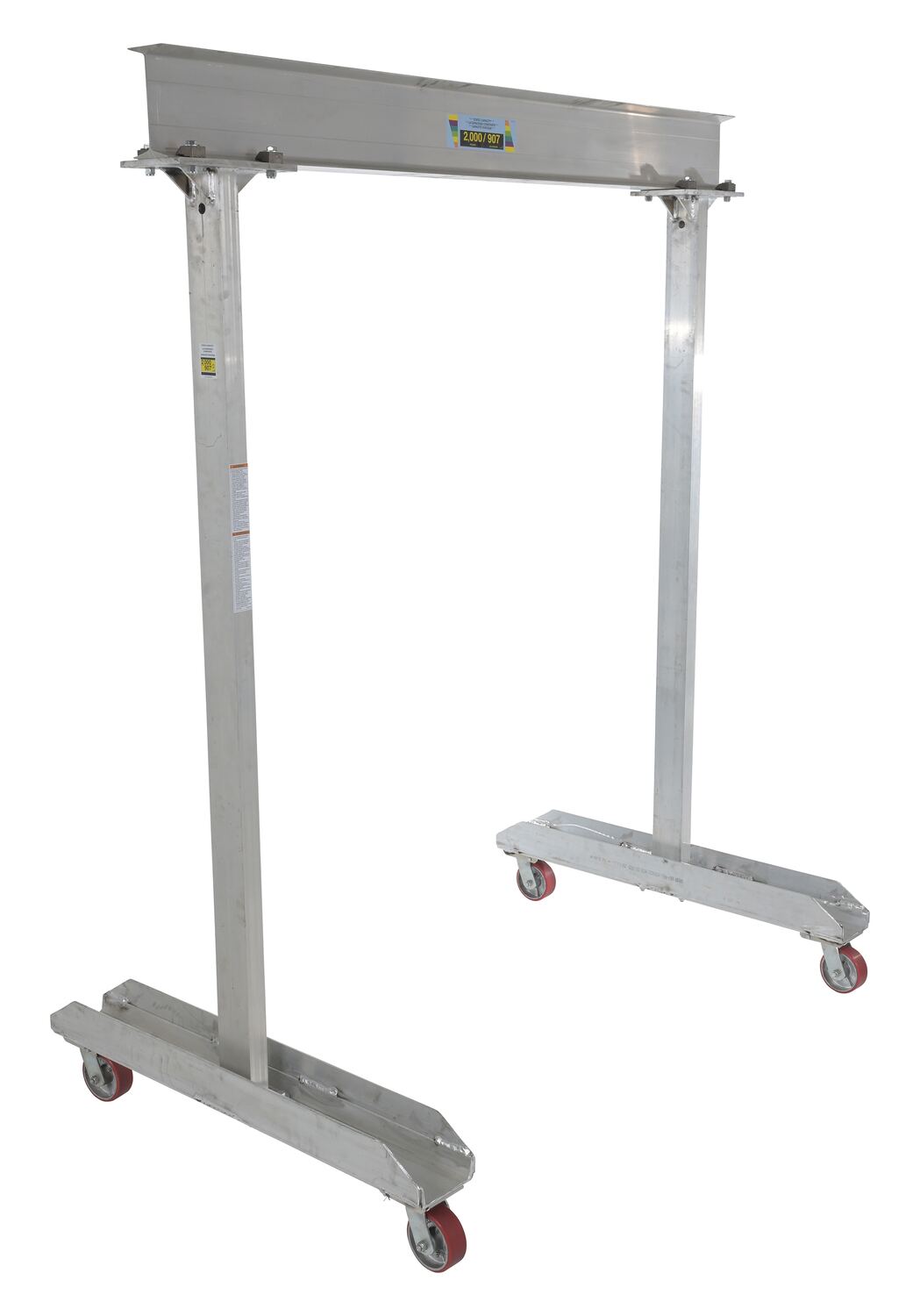

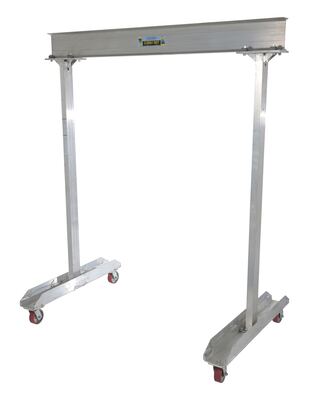

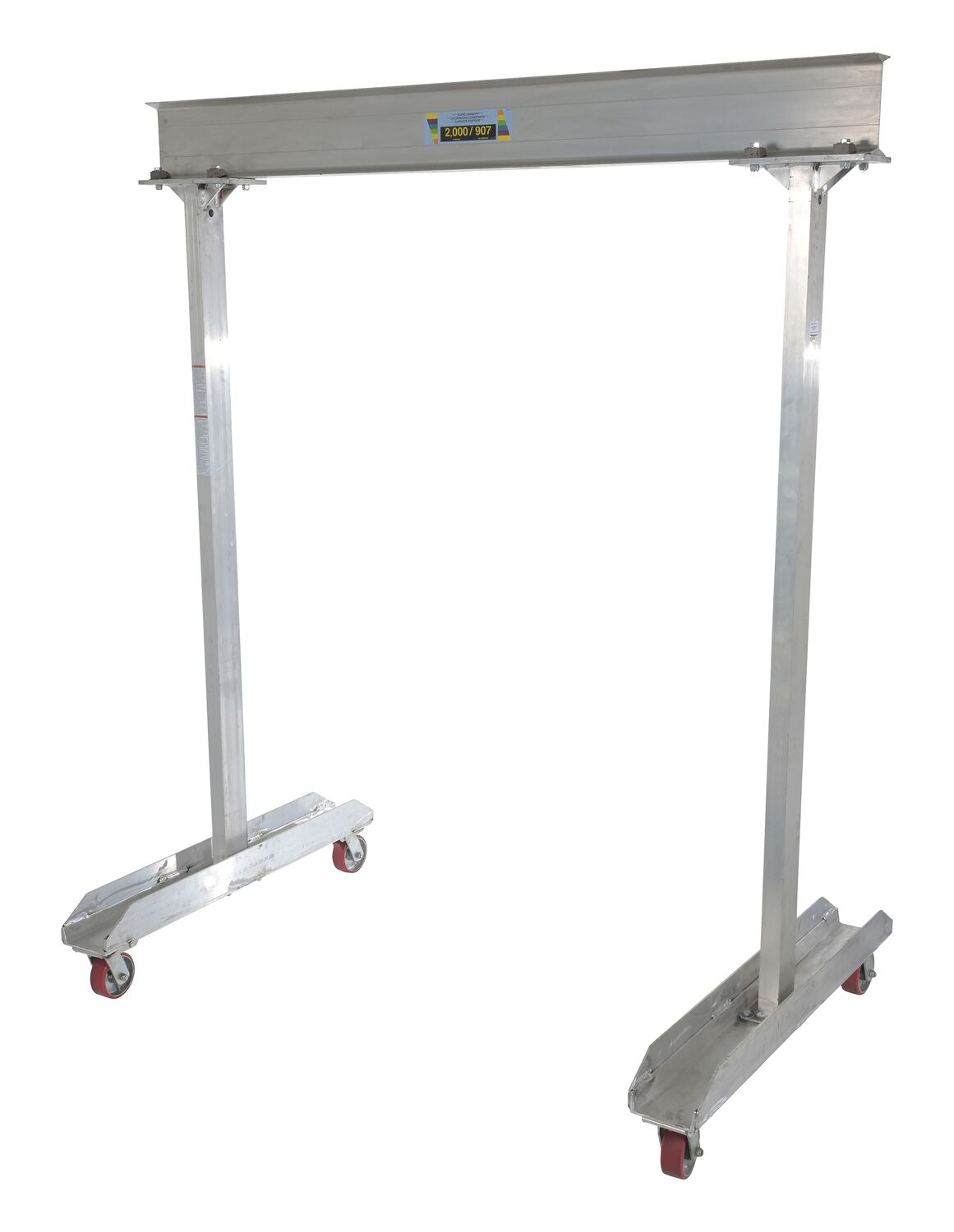

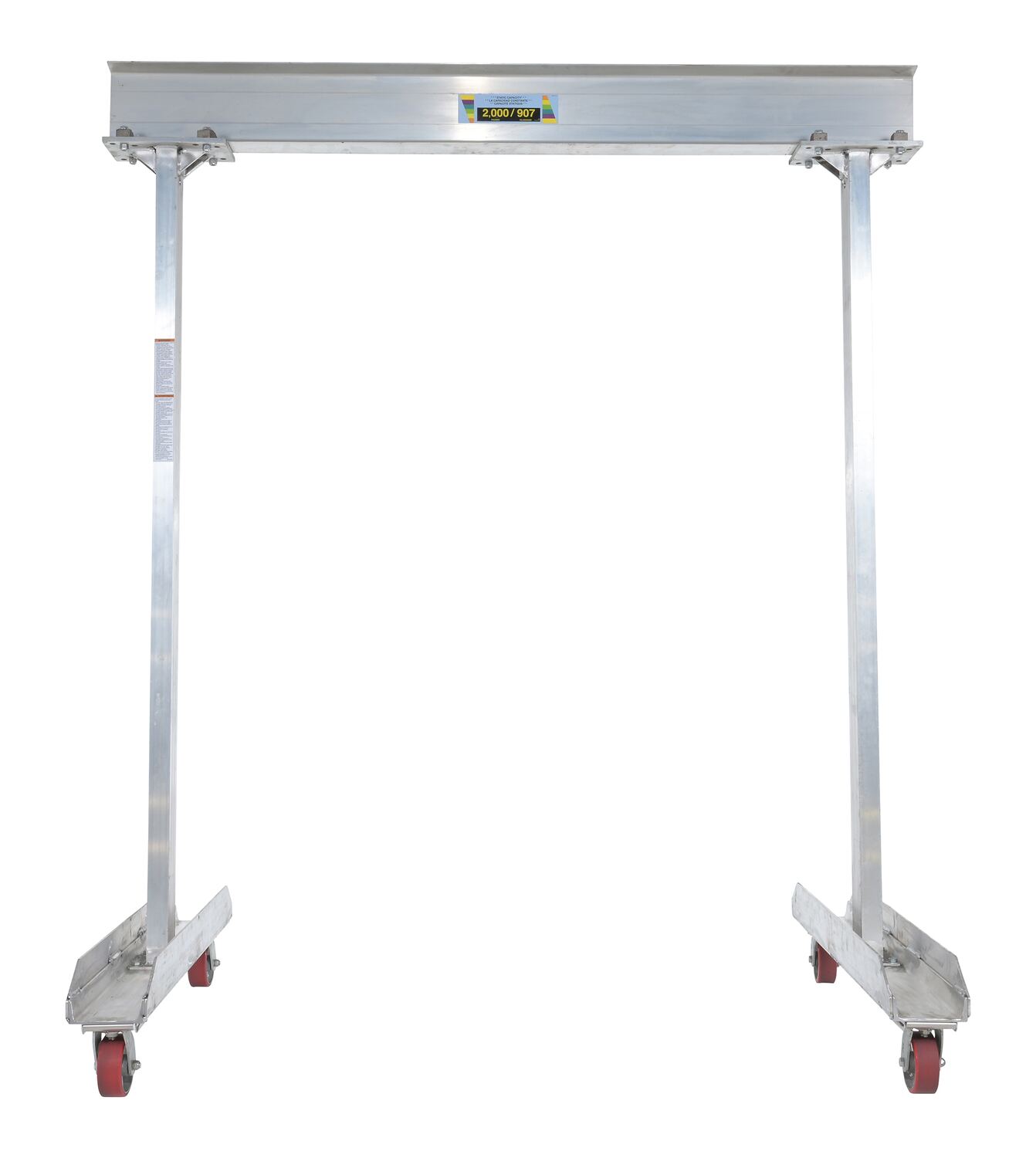

Aluminum Work Area Portable Gantry CranesBuilt to dependably make the workplace a safer environment, this gantry crane minimizes the manual handling needed for large, oversized material. The unchangeable height and width dimensions of the unit, provides a level of consistency needed when contending with heavy objects. With a portable design, the crane can simply be wheeled to a new location without the need for the unit to be deconstructed. This crane is not to be moved when loaded. Hoists & Trollies sold seperately.
- Non-adjustable, fixed height design
- Rust resistant aluminum construction

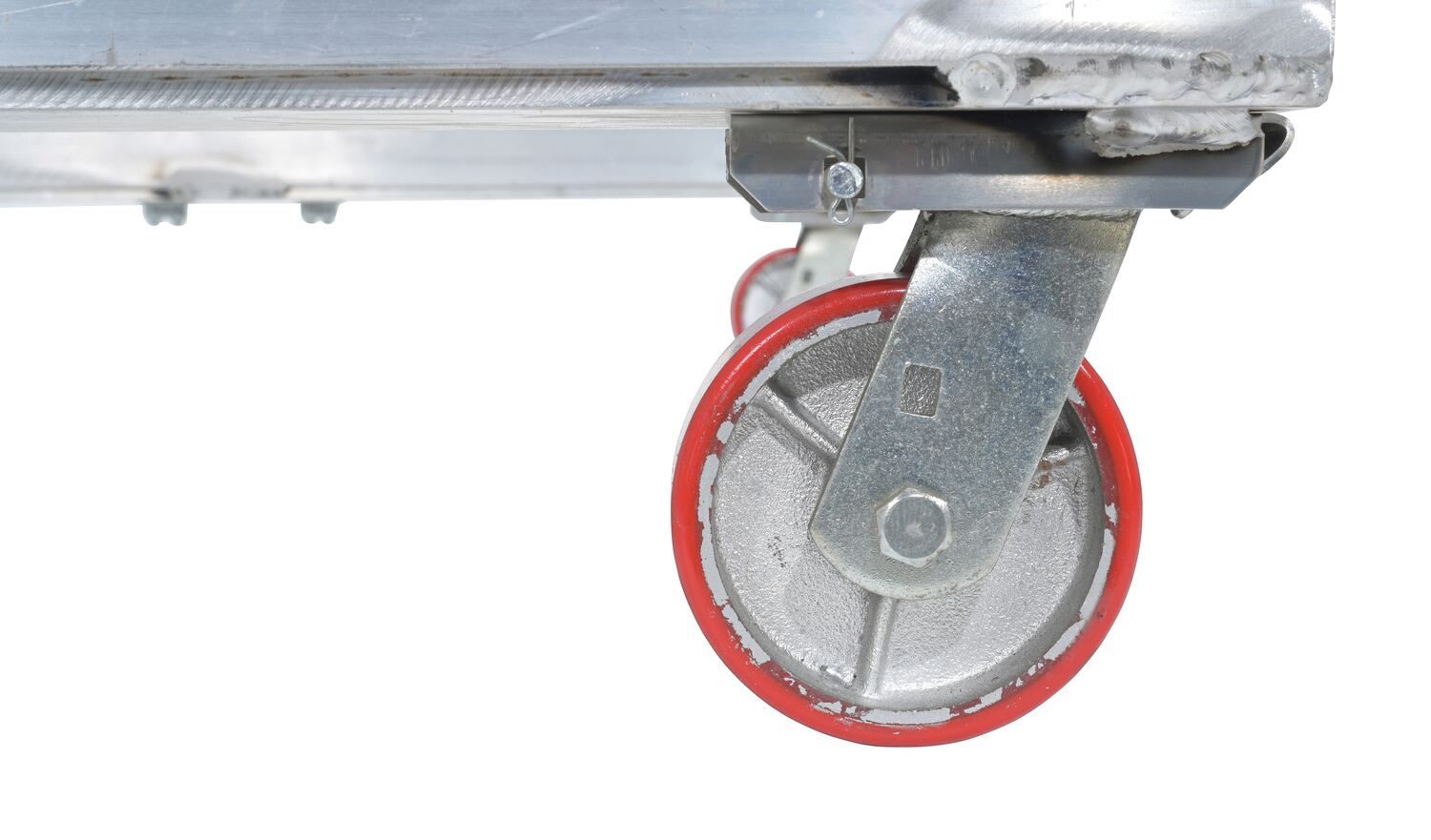

- 5" poly on steel casters
- To be used on flat surfaces only
Check out our Steel version Work Area Portable Gantry Cranes!
Adjustable Steel Gantry Cranes
Fixed Steel Gantry Cranes with Total Locking Casters
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| FPG-A-20-10 | NEW |  | 1 Year Limited Warranty | Aluminum Portable Work Area Gantry Crane 47-3/4"L x 120"W x 91-13/16"H Beam 2,000 Lb. Capacity Silver | Uniform Capacity (lb.): 2,000 Under I-Beam to Ground Length (in.): 85-13/16 | 212 | |
| FPG-A-20-12 | NEW |  | 1 Year Limited Warranty | Aluminum Portable Work Area Gantry Crane 47-3/4"L x 144"W x 93-13/16"H 2,000 Lb. Capacity Silver | Uniform Capacity (lb.): 2,000 Under I-Beam to Ground Length (in.): 85-13/16 | 234 | |
| FPG-A-20-8 | NEW |  | 1 Year Limited Warranty | Aluminum Portable Work Area Gantry Crane 47-3/4"L x 96"W x 91-13/16"H 2,000 Lb. Capacity Silver | Uniform Capacity (lb.): 2,000 Under I-Beam to Ground Length (in.): 85-13/16 | 205 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 85-13/16
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 85-13/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 85-13/16
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 85-13/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 85-13/16
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 85-13/16
