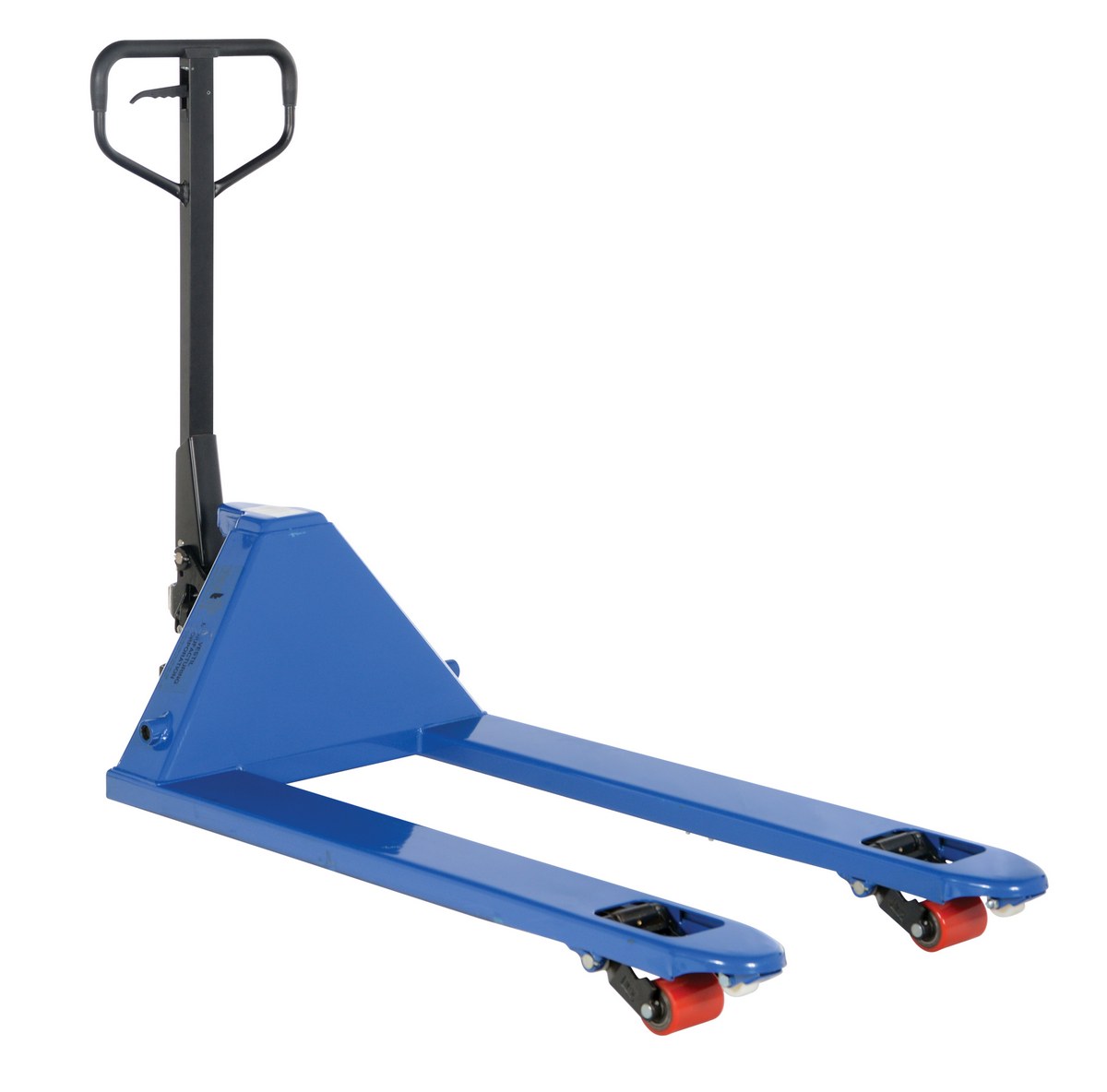

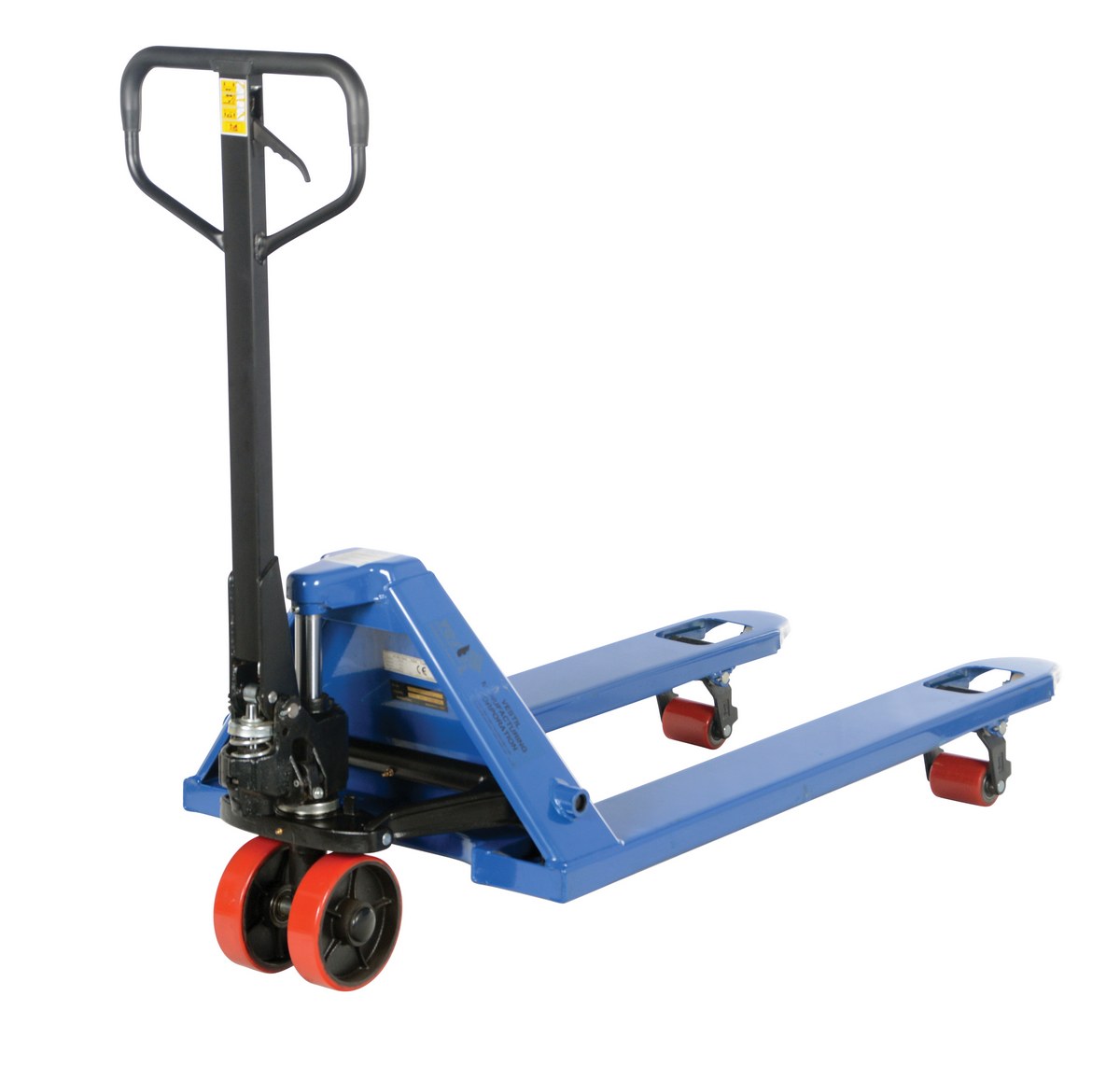

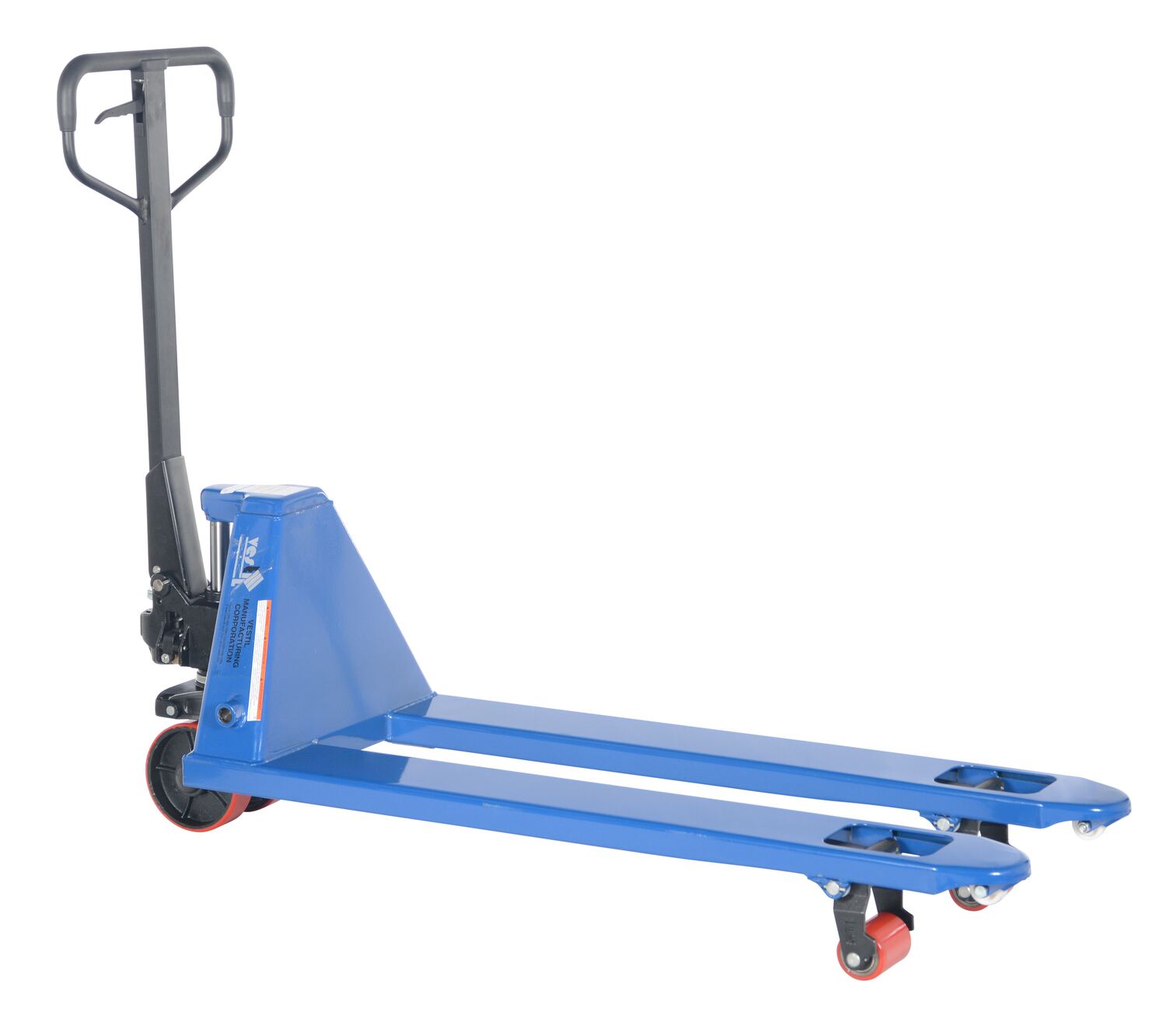

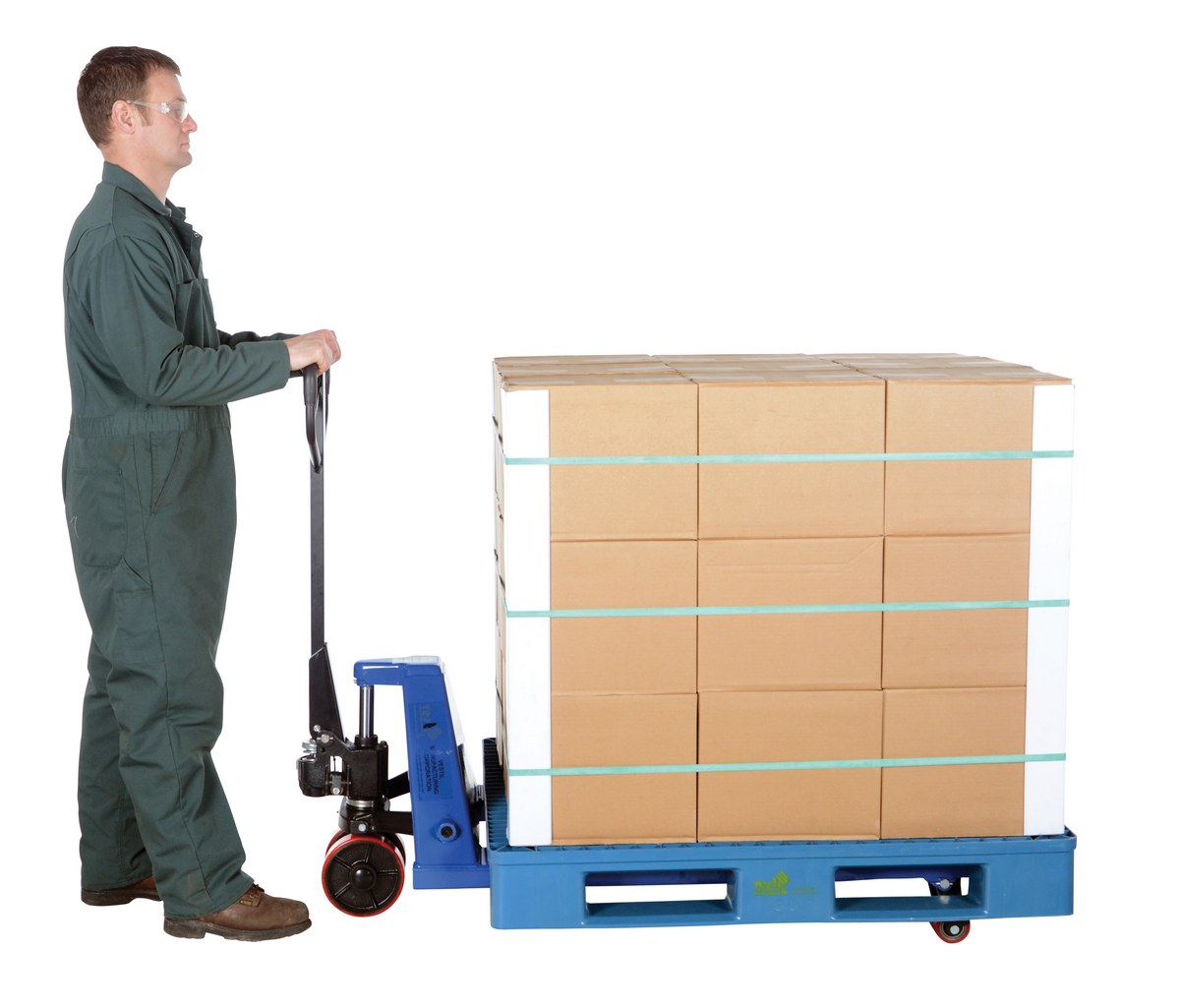

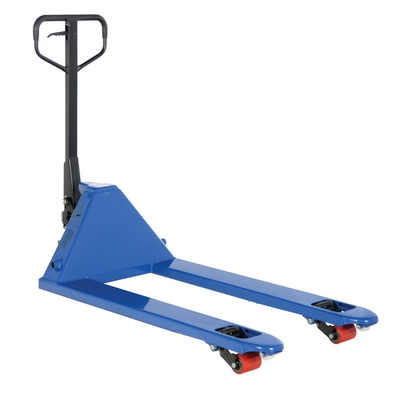

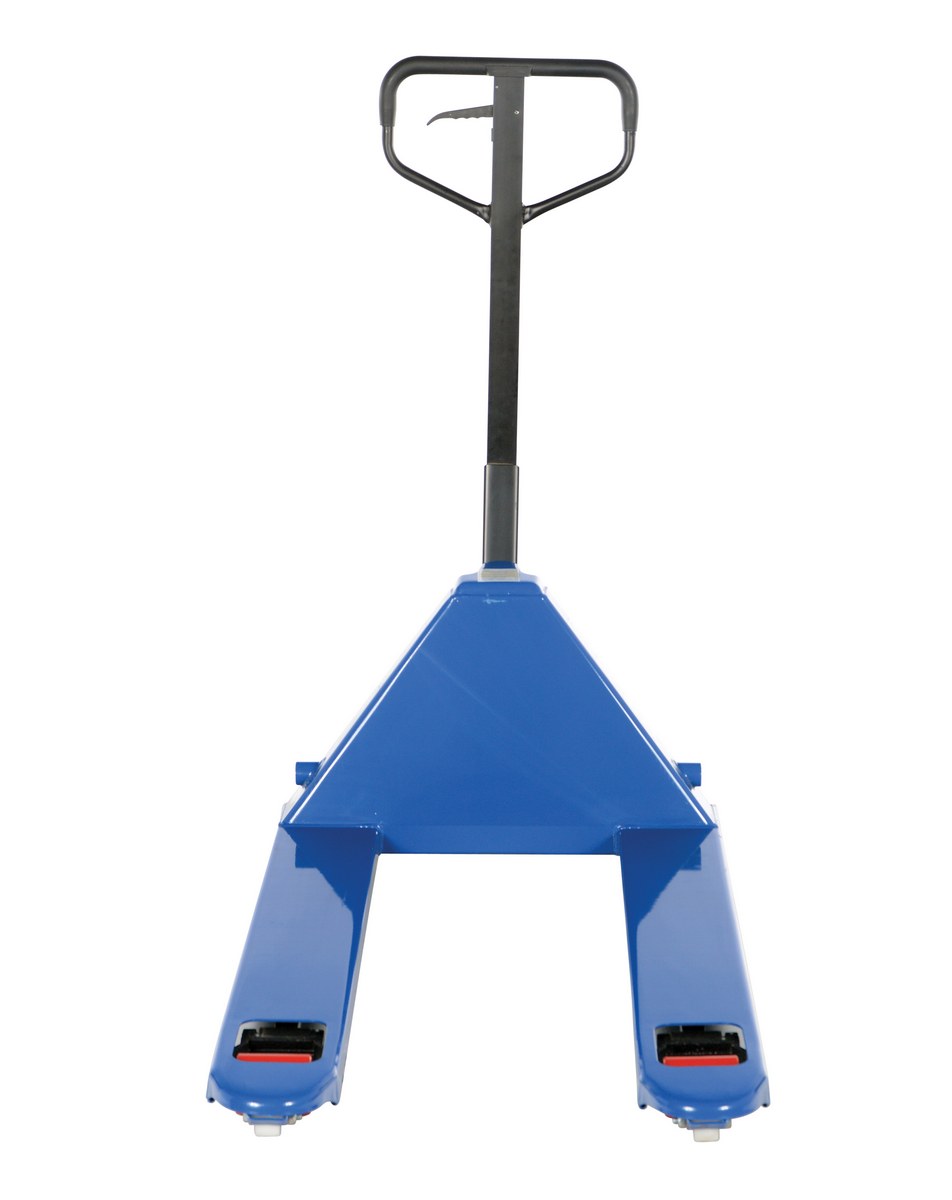

Quick Lift Pallet TrucksLifts to maximum height with just 6 pumps when empty and 13 pumps when loaded. Reduce operating costs. An economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two articulating steering wheels and two front load rollers. Ergonomic design requires only 75 pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. Forks are 7" wide each. Equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life.
- Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
- Steering wheels include bearing dust covers for added life
- Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
- Reach max height with empty unit in 6 pumps, 13 pumps when unit is loaded
Pallet Trucks with Digital Scale
Mini Hand Pallet Trucks
Specialized Pallet Trucks
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| PM5-2048-QL |  | 1 Year Limited Warranty | Steel Quick Lift Pallet Truck 59 In. x 20 In. x 48 In. 5500 Lb. Capacity Blue | Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 20 | 184 | ||
| PM5-2748-QL |  | 1 Year Limited Warranty | Steel Quick Lift Pallet Truck 61-11/16 In. x 27 In. x 48-5/8 In. 5500 Lb. Capacity Blue | Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 27 | 205 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5500
Overall Fork Width (in.): 20
Uniform Capacity (lb.): 5500
Overall Fork Width (in.): 20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5500
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 5500
Overall Fork Width (in.): 27
For More Details of the Option Click the Red Model Button
| Model | Image | Description | WT. | ||||
| PM-FE-7-48 |  |
Steel Pallet Master Fork Extensions 7"W x 48"L x 2"H | 19 | ||||
