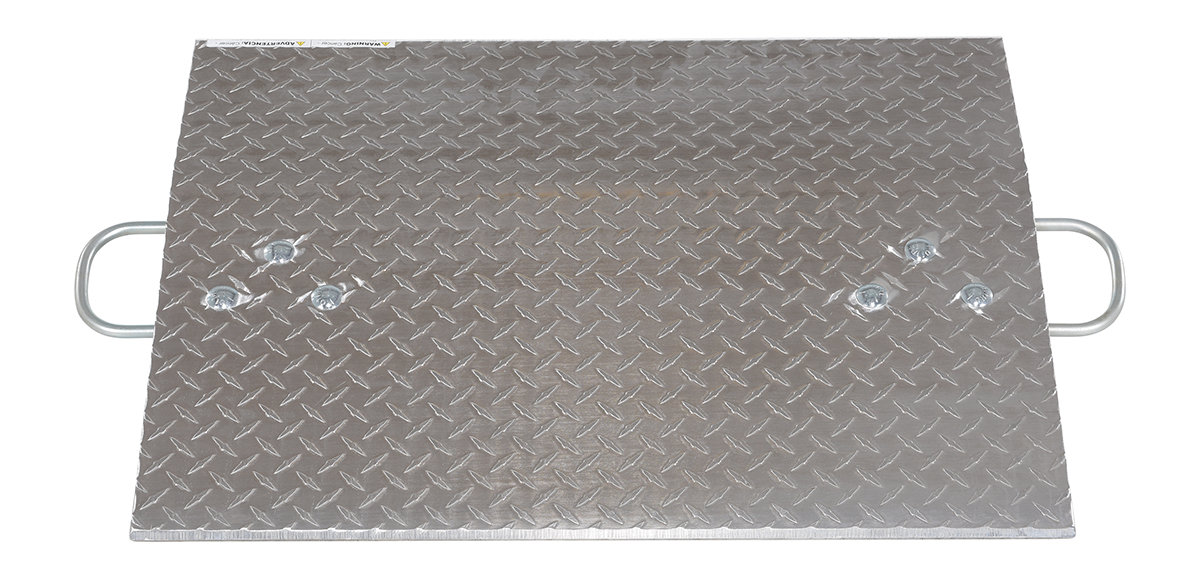

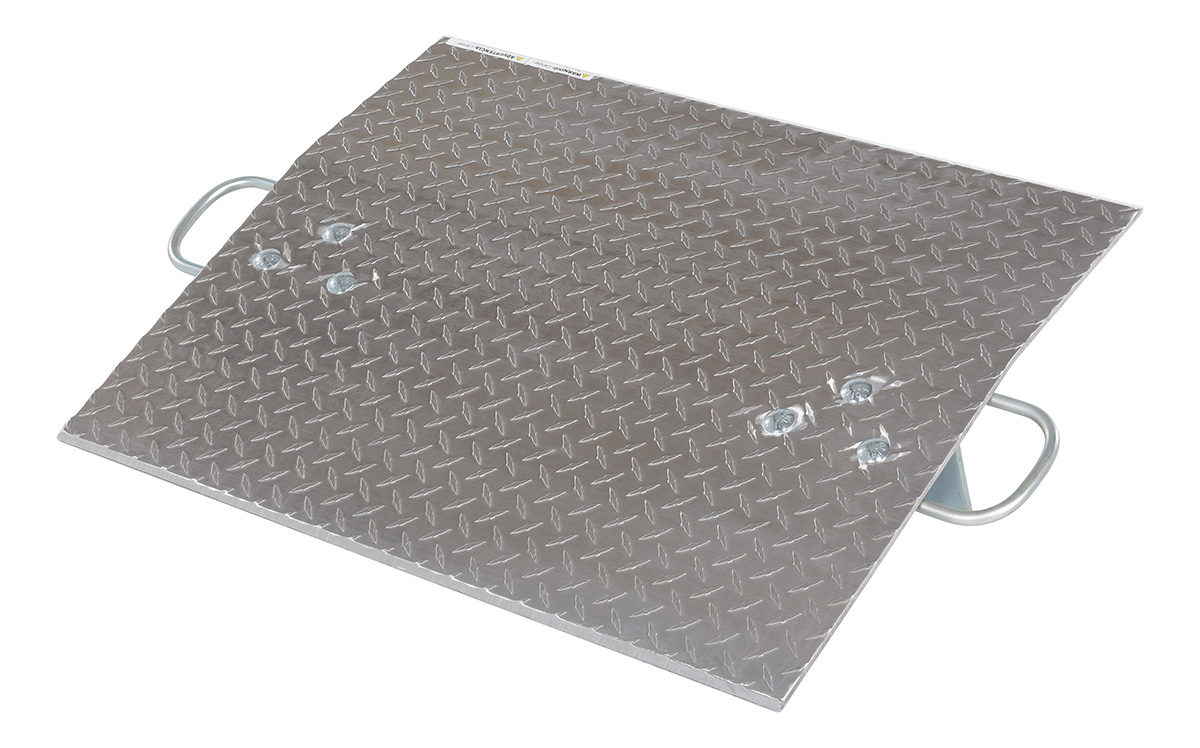

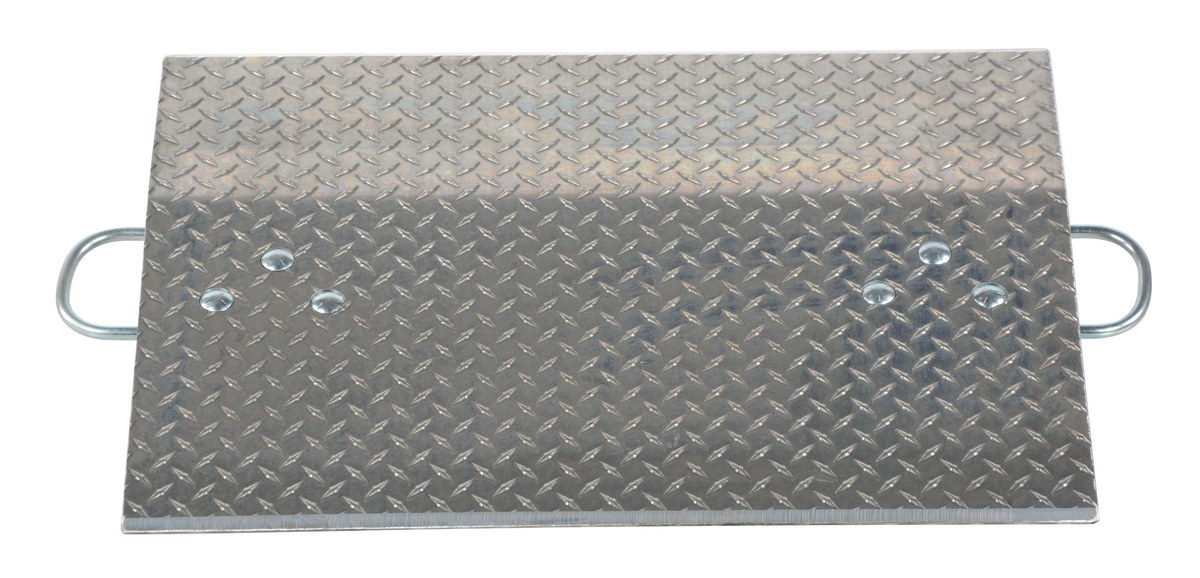

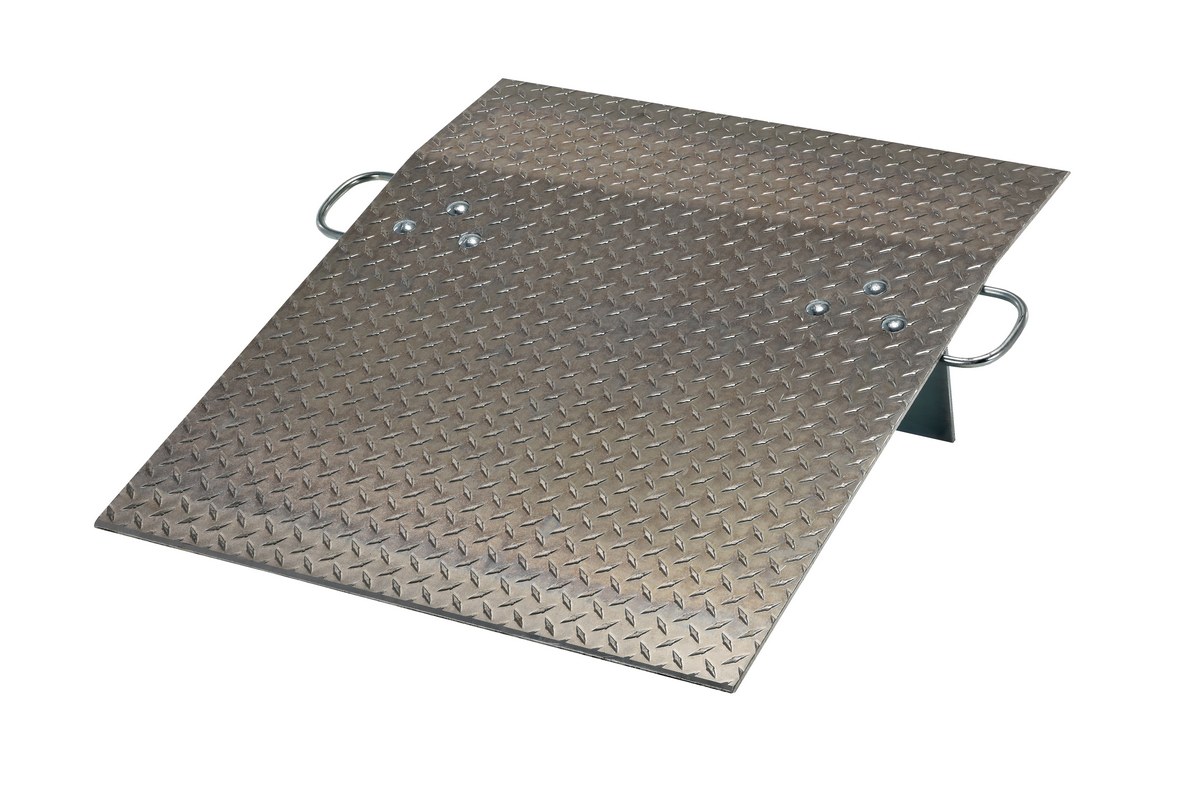

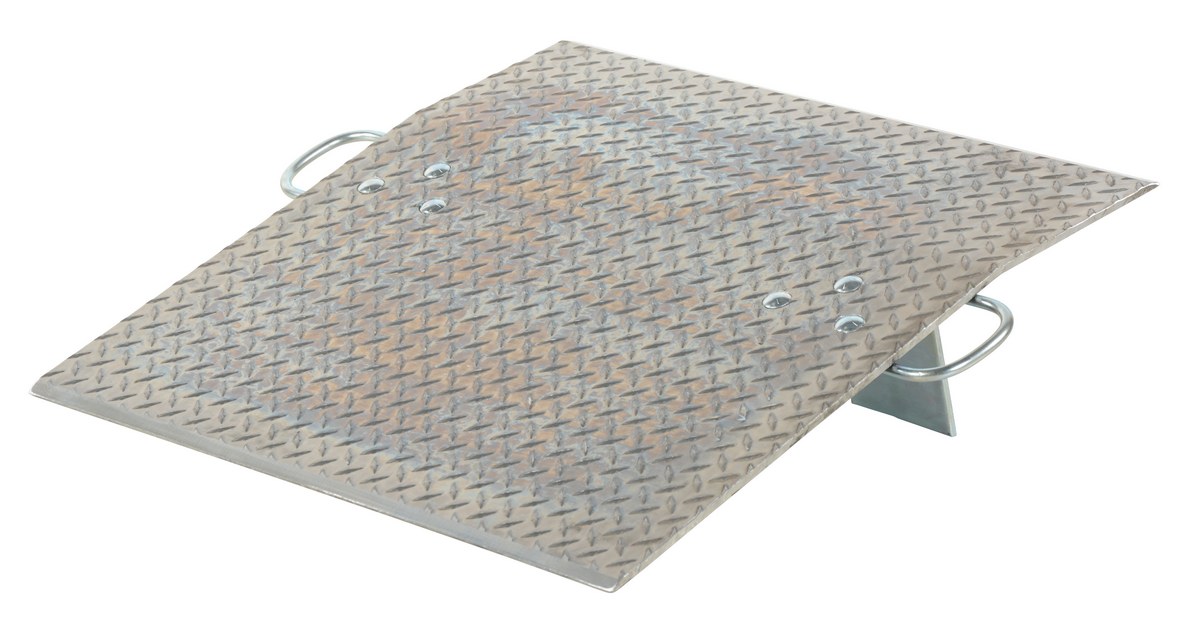

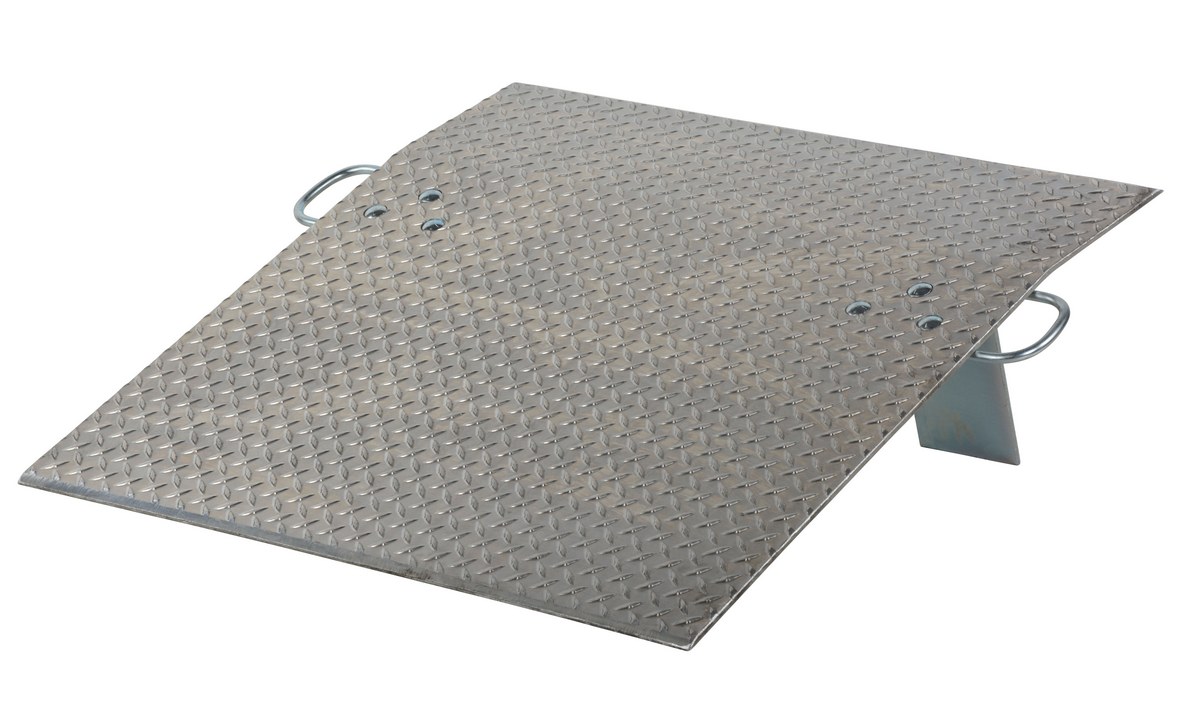

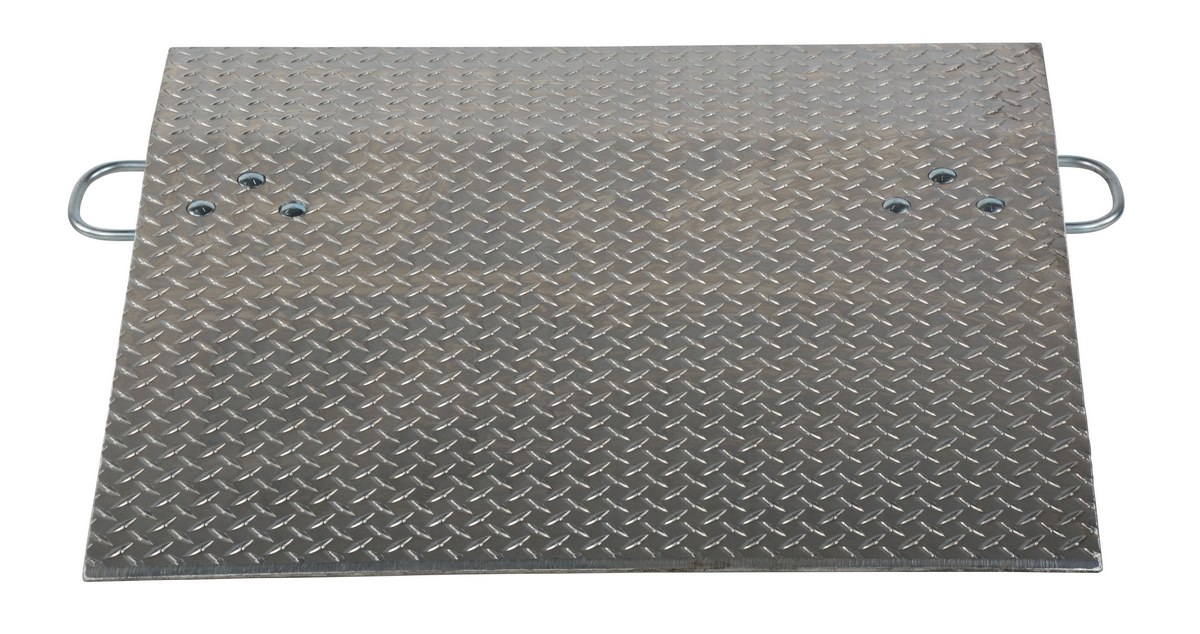

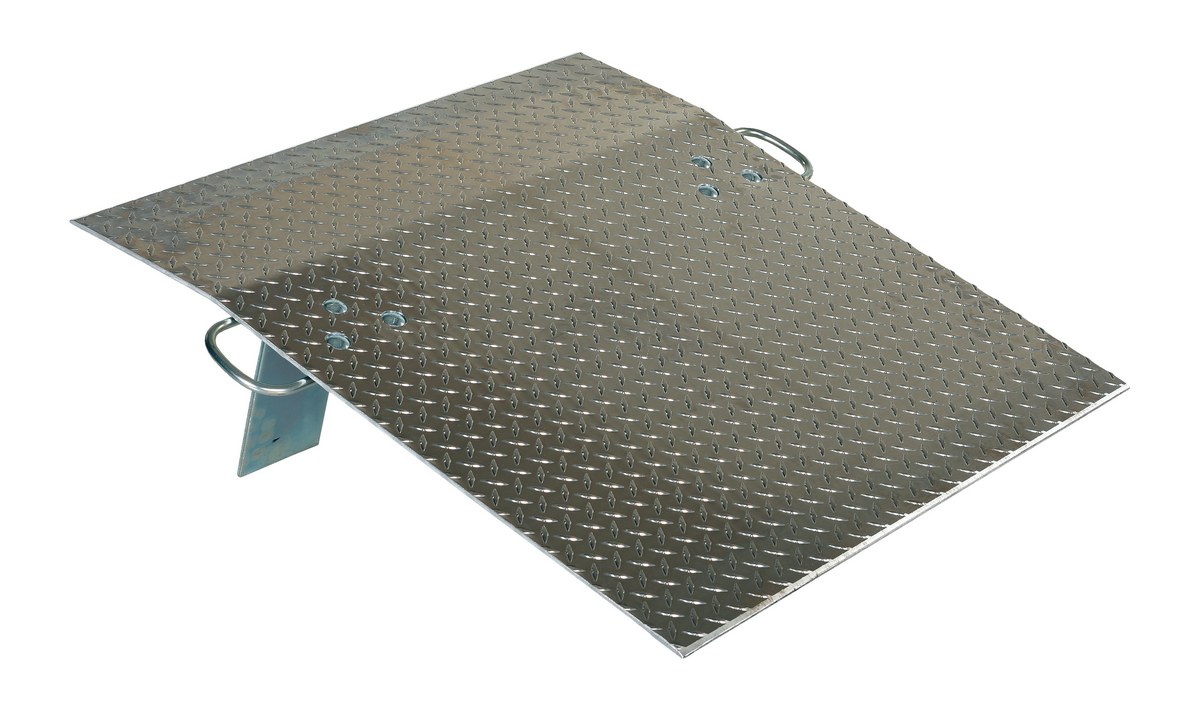

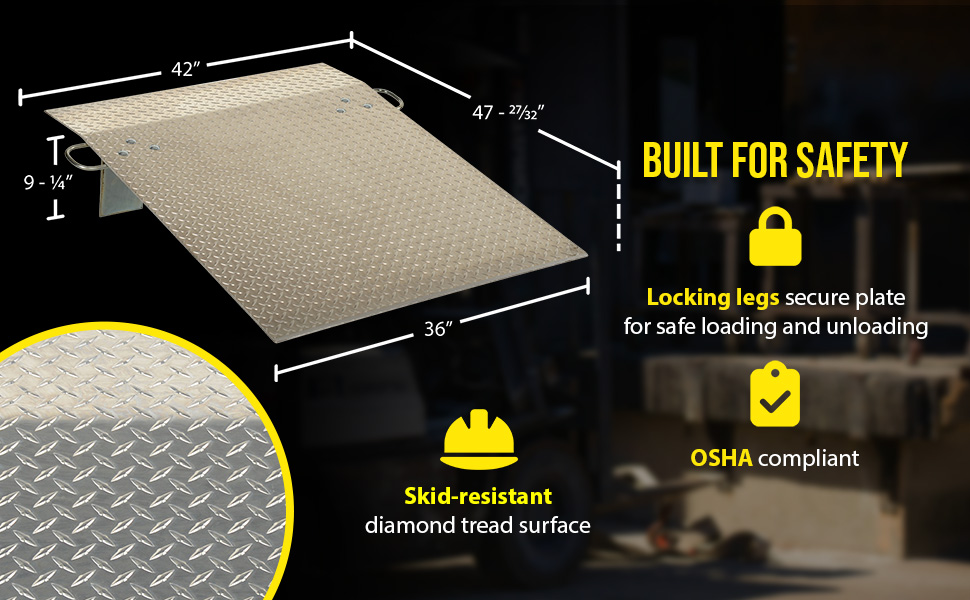

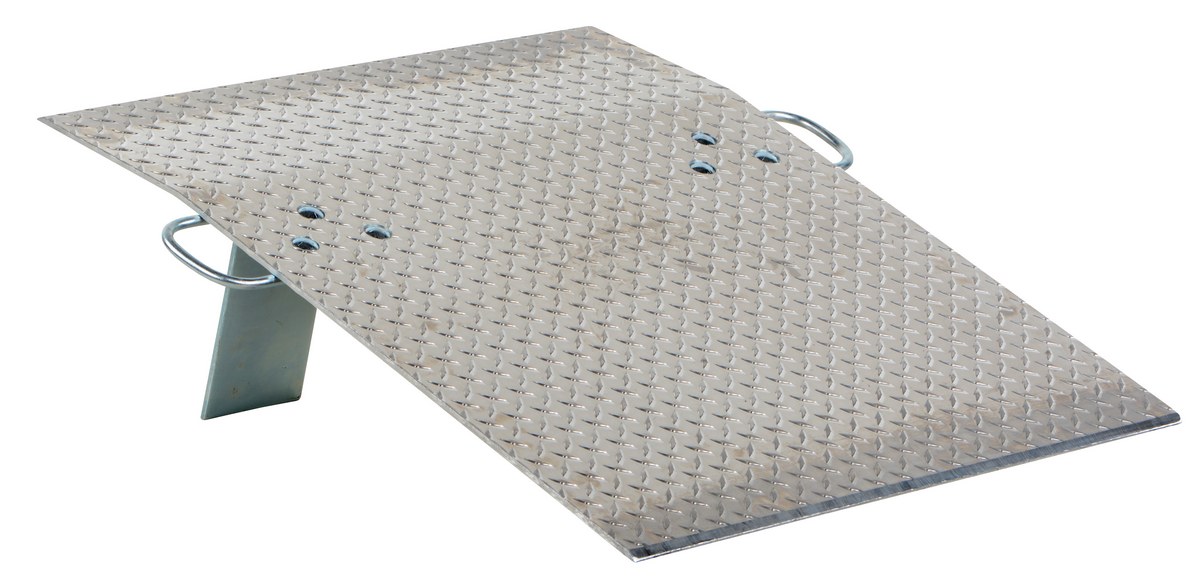

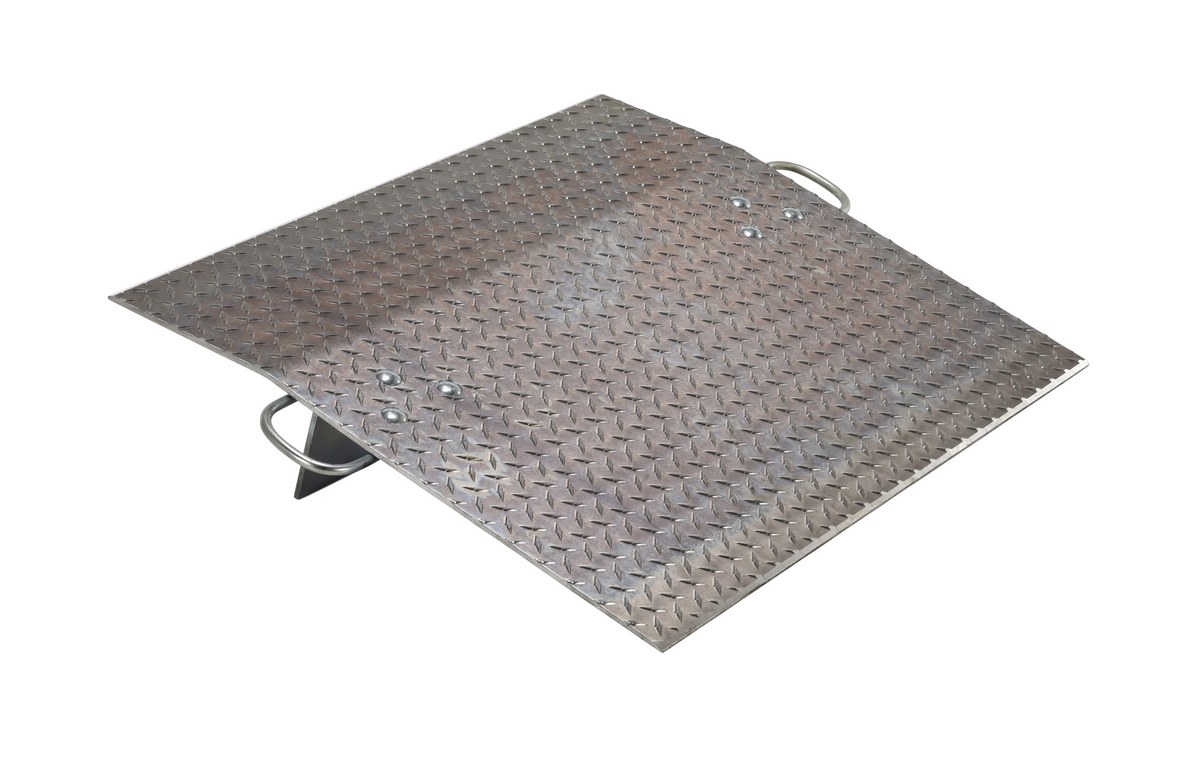

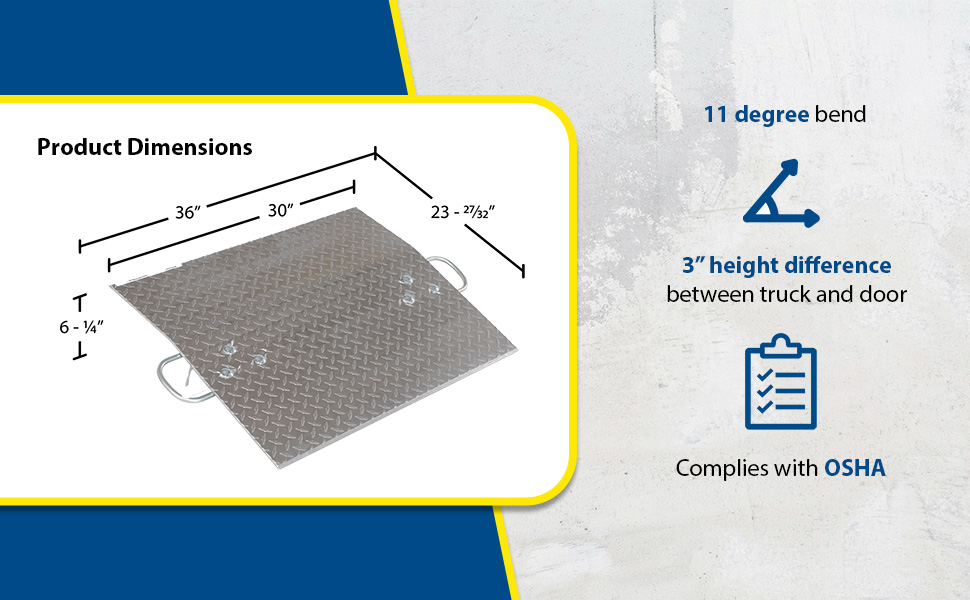

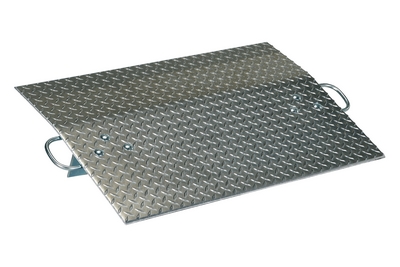

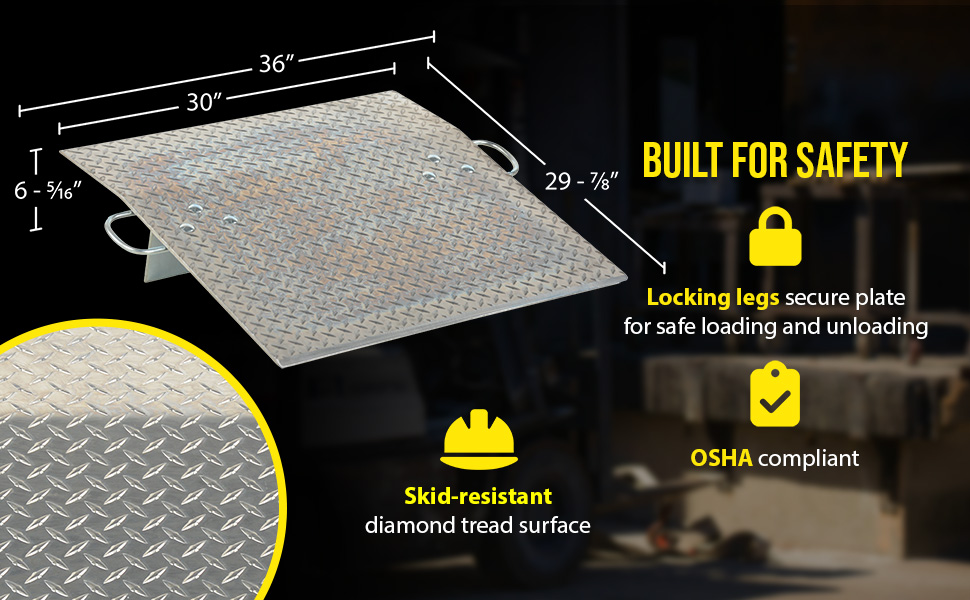

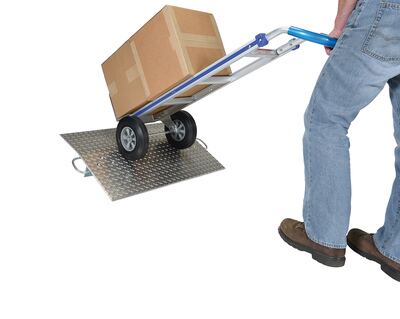

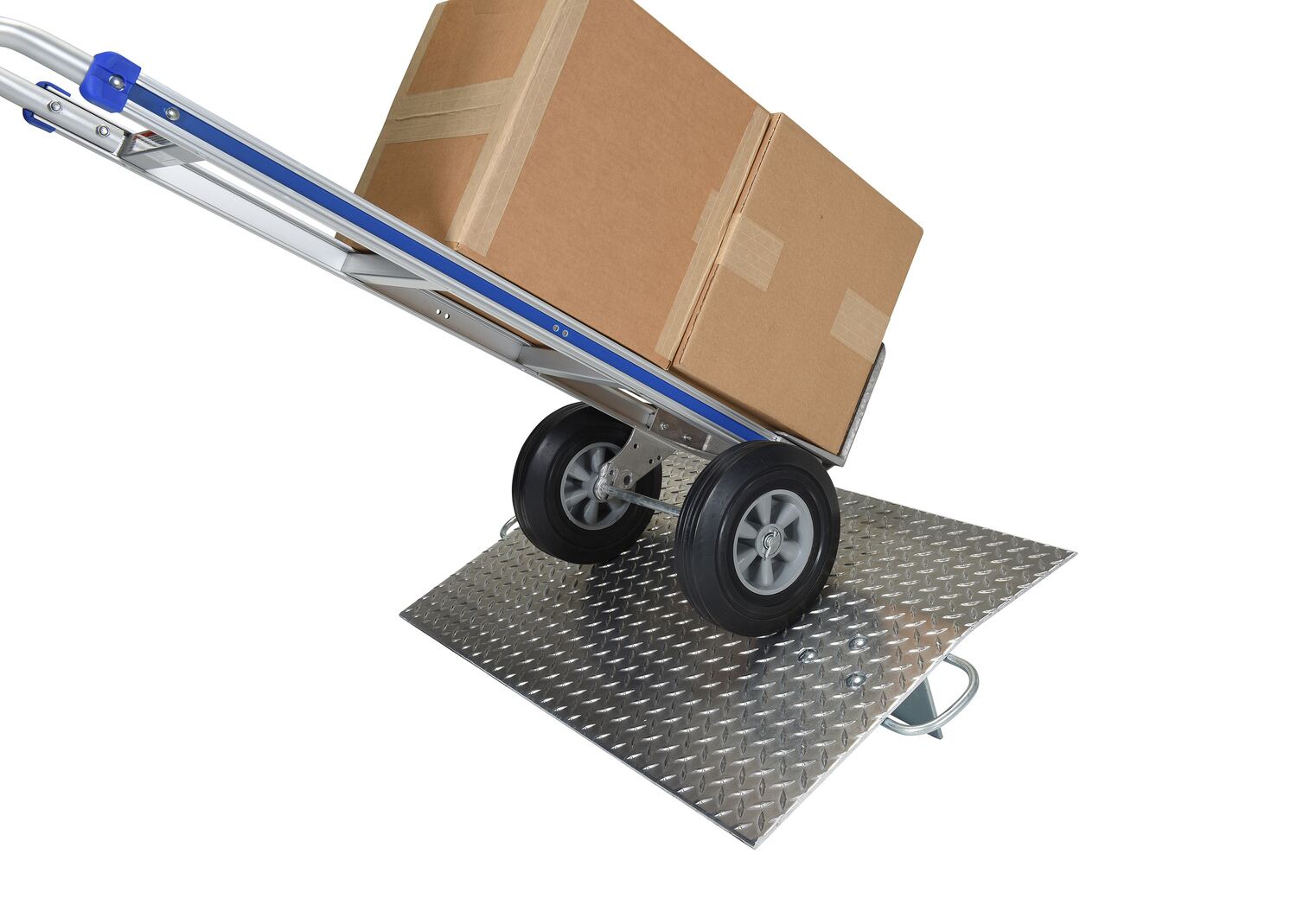

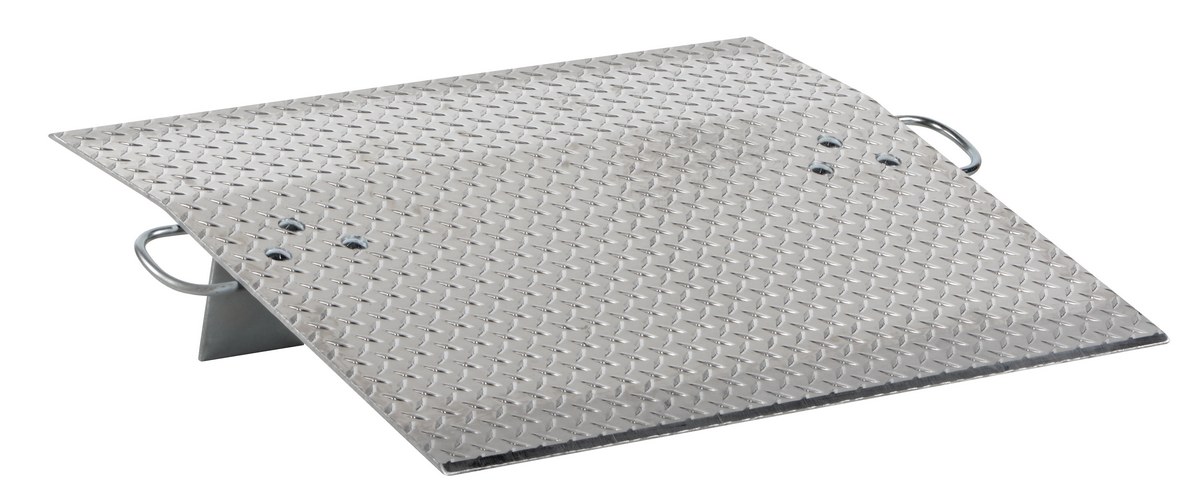

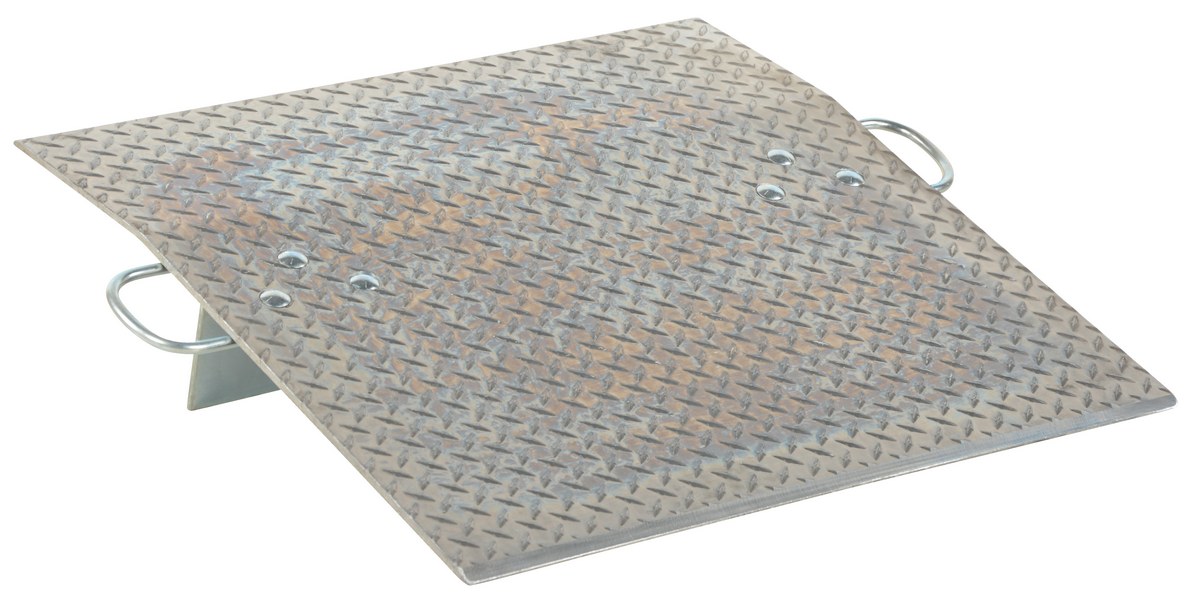

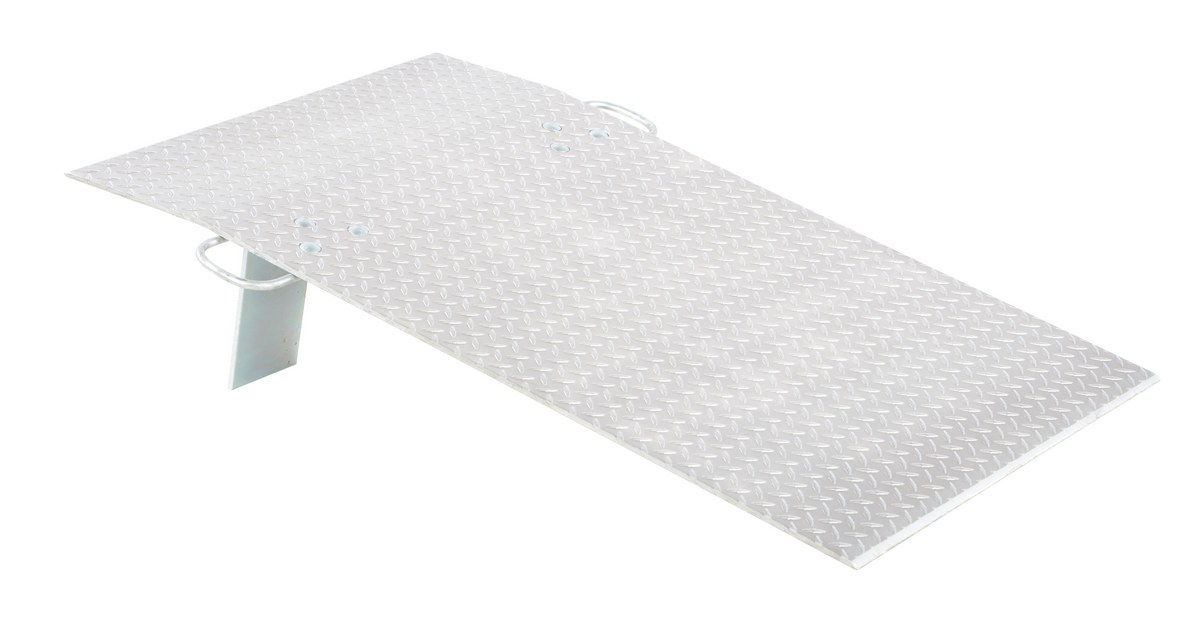

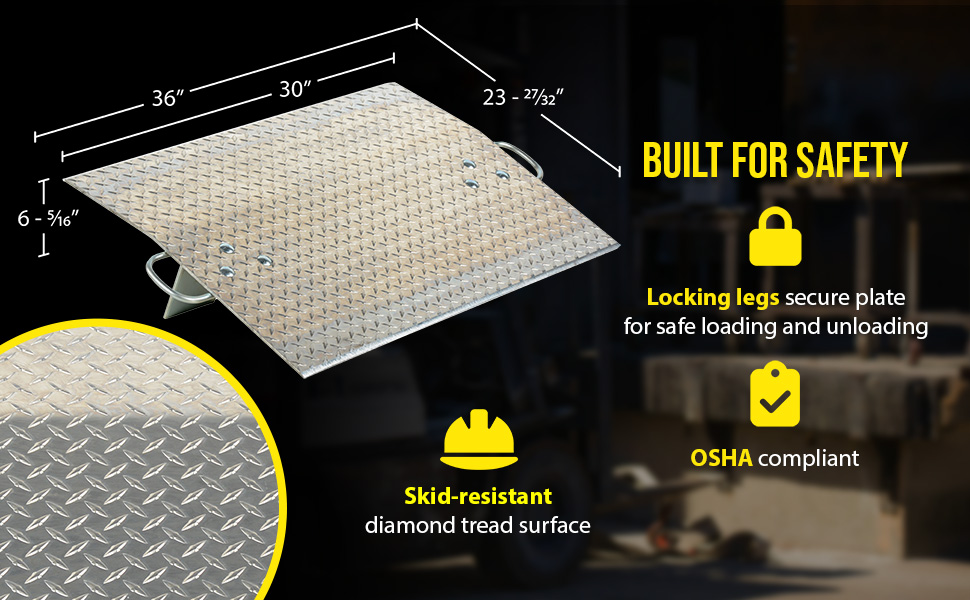

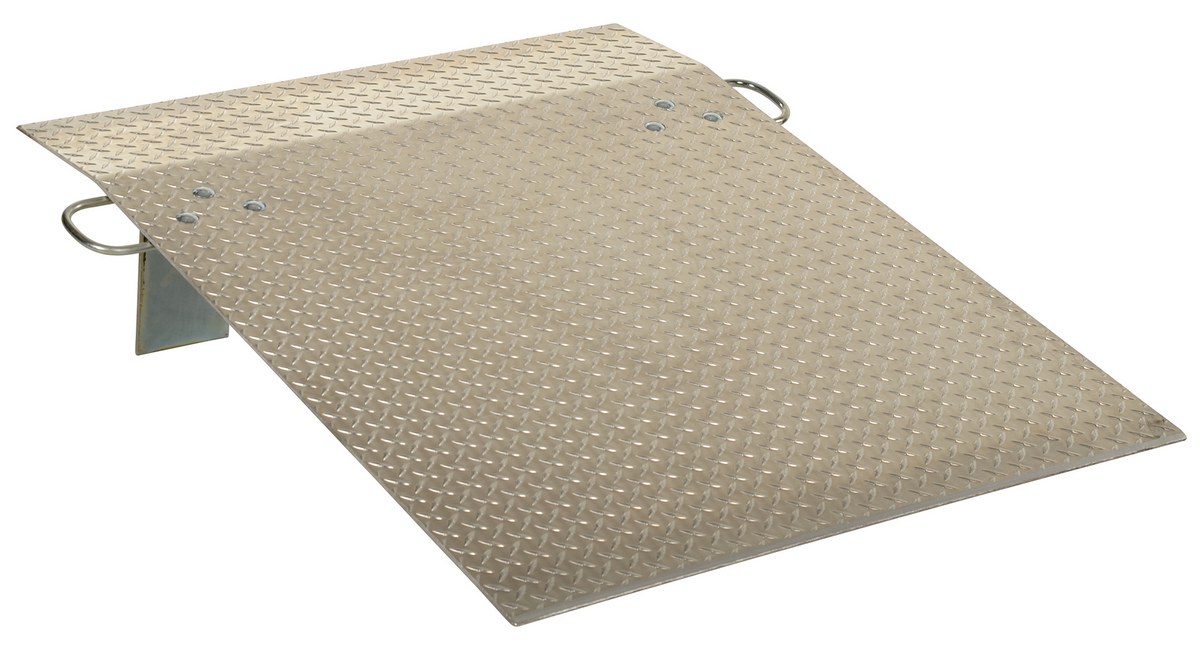

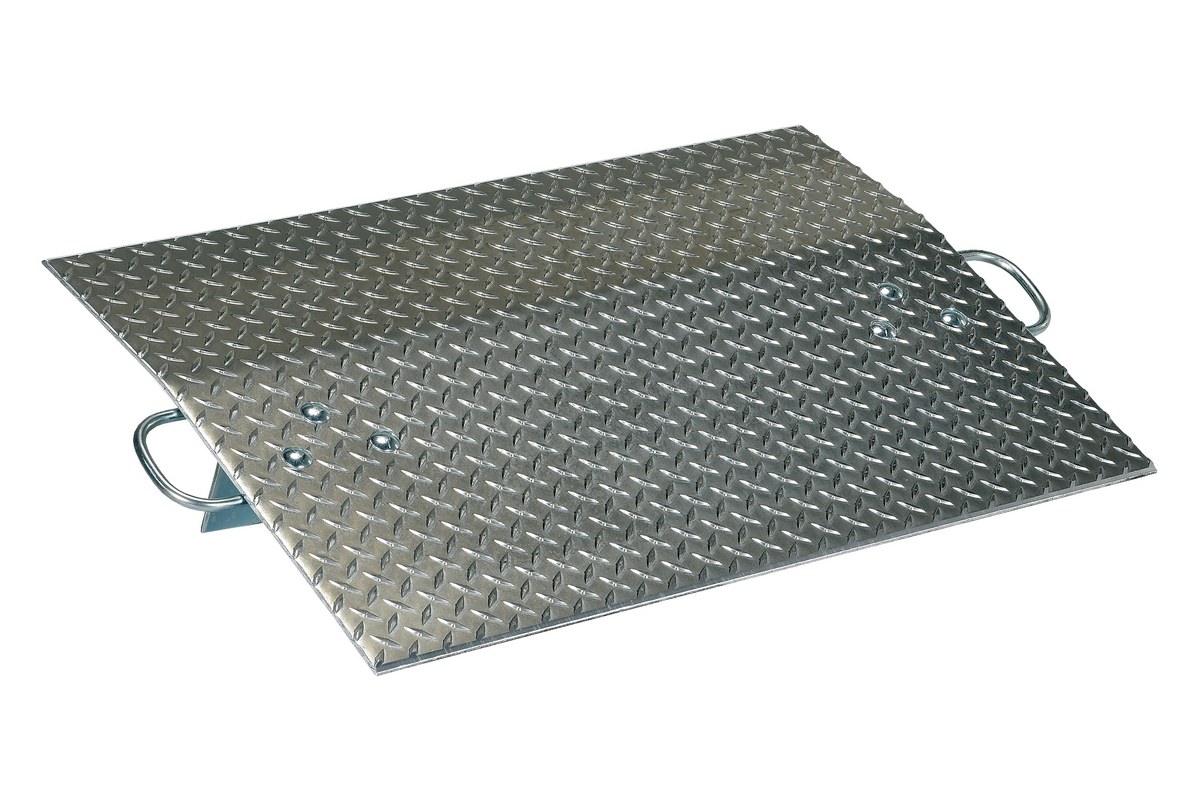

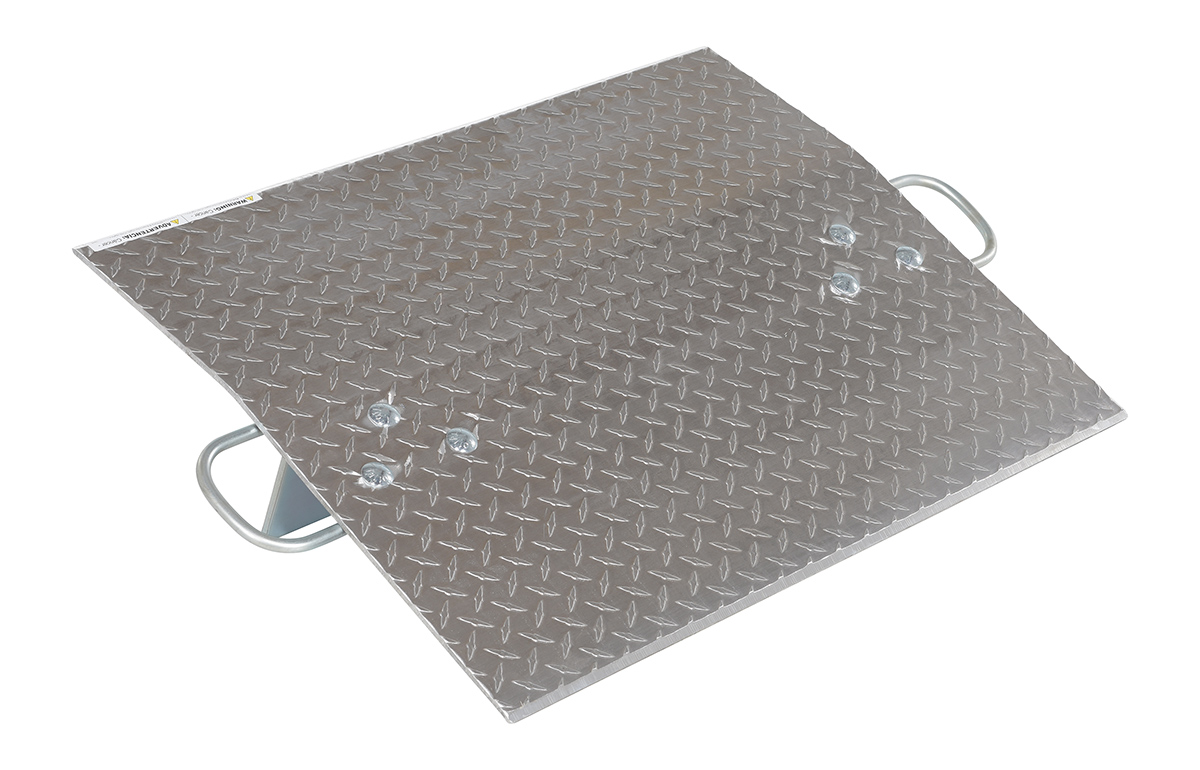

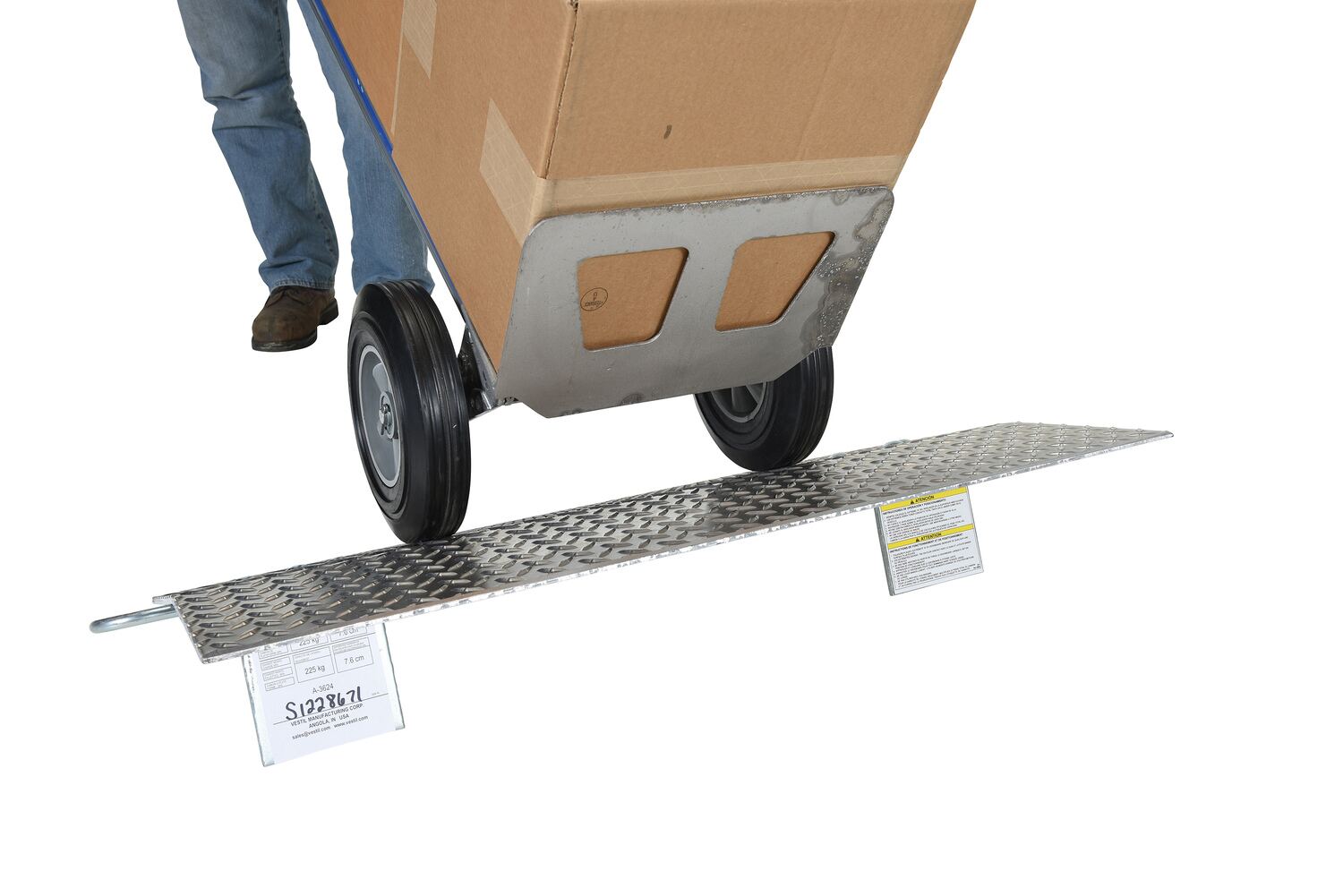

Aluminum Hand Truck DockplatesDesigned for use with two wheel hand trucks. A convenient, safe and easy way to access loading docks from trucks. Lightweight and easily portable by just one person. Treadplate surface ensures skid-resistant safe traction. Locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs. The bend or crown is 11 degrees and located 9" from edge of dockplate.

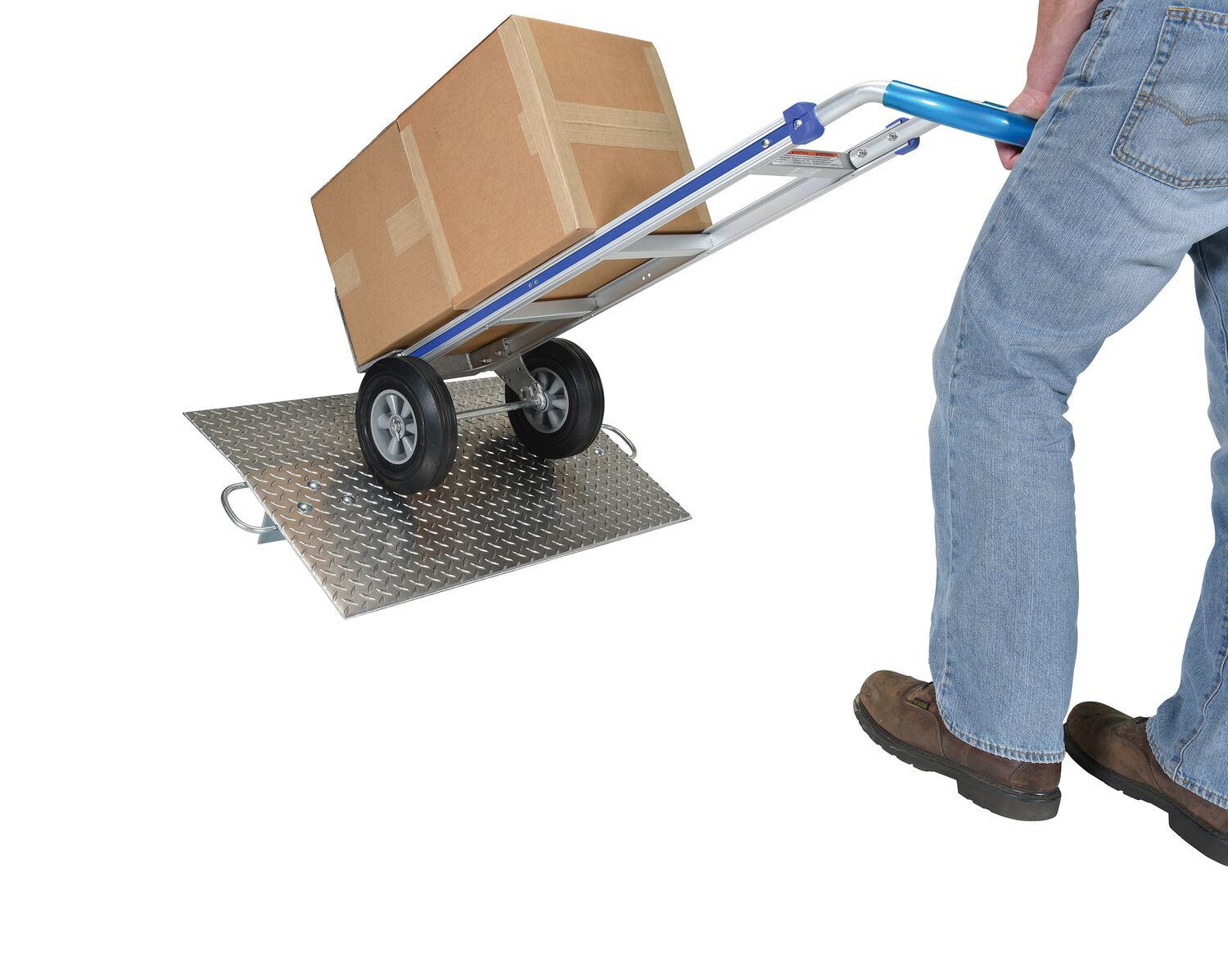

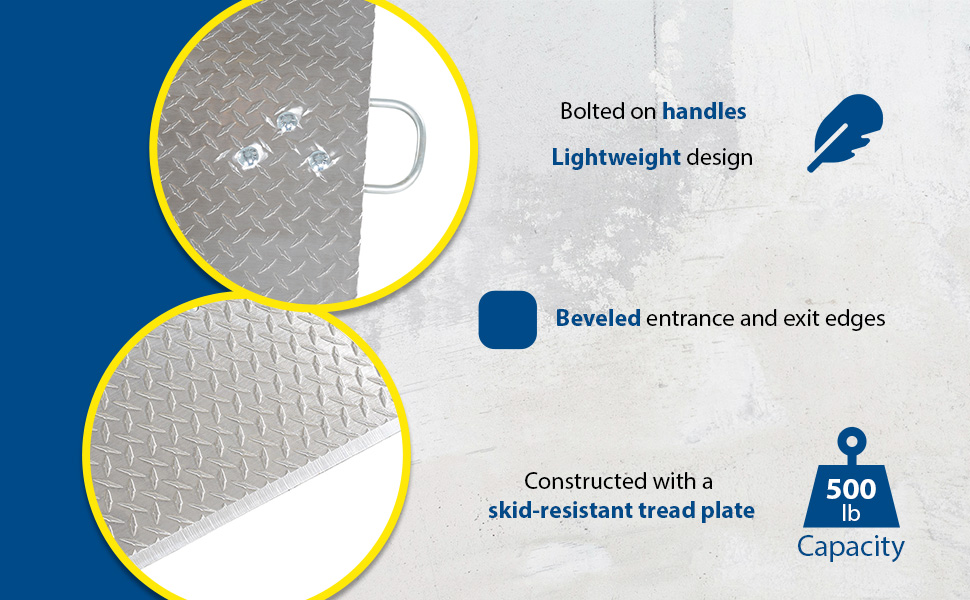

- Lightweight design is ideal for foot or hand truck traffic
- Beveled entrance and exit edges provide smooth transition
- Tread plate surface ensures skid-resistant safe traction

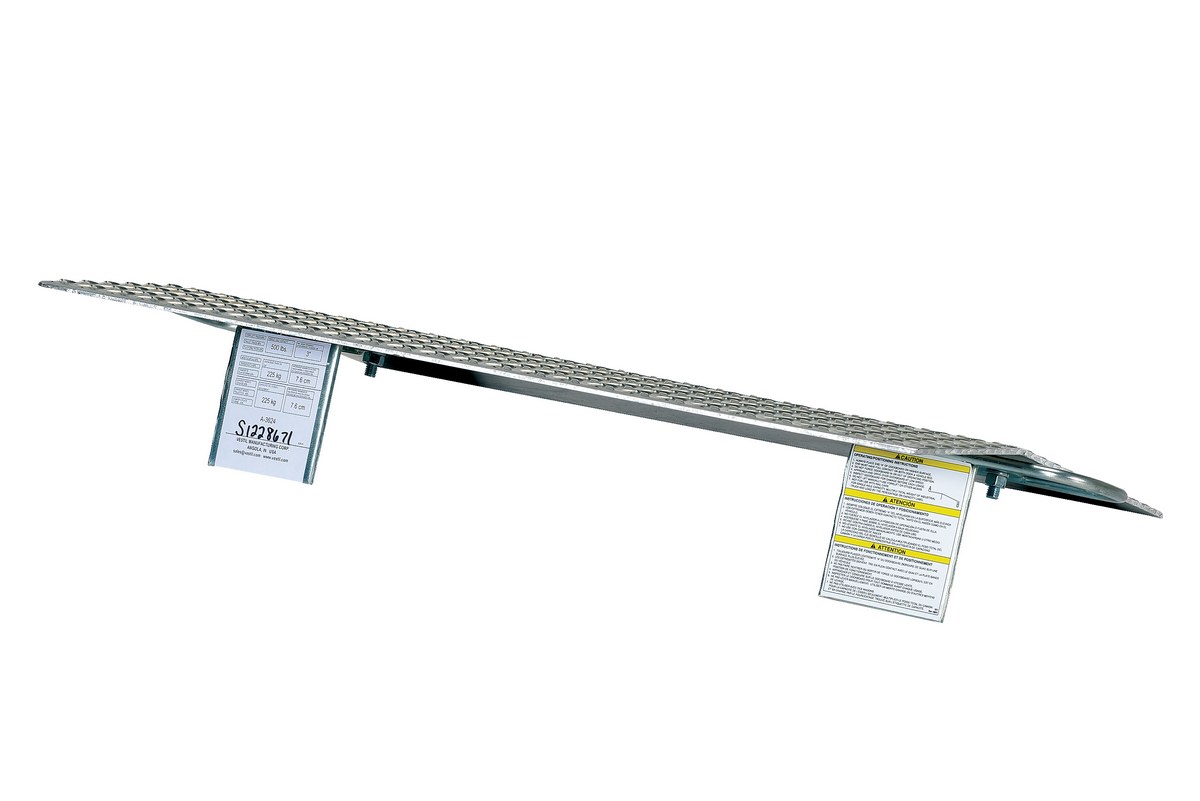

- Zinc-plated locking legs and lifting handles for OSHA compliance
Aluminum Truck Dockboards with Steel Safety Curbs
Steel Truck DockplatesAdditional Models In This Family
A-3048
A-3624
A-3024
A-3624
A-3030
A-3636
A-3648
AH-3630
AH-3048
AH-3624
A-3648
AH-3648
A-3030
A-3648
A-3036
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| A-3024 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 30 In. x 24 In. 500 Lb. Capacity Silver | Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 | 239 | ||

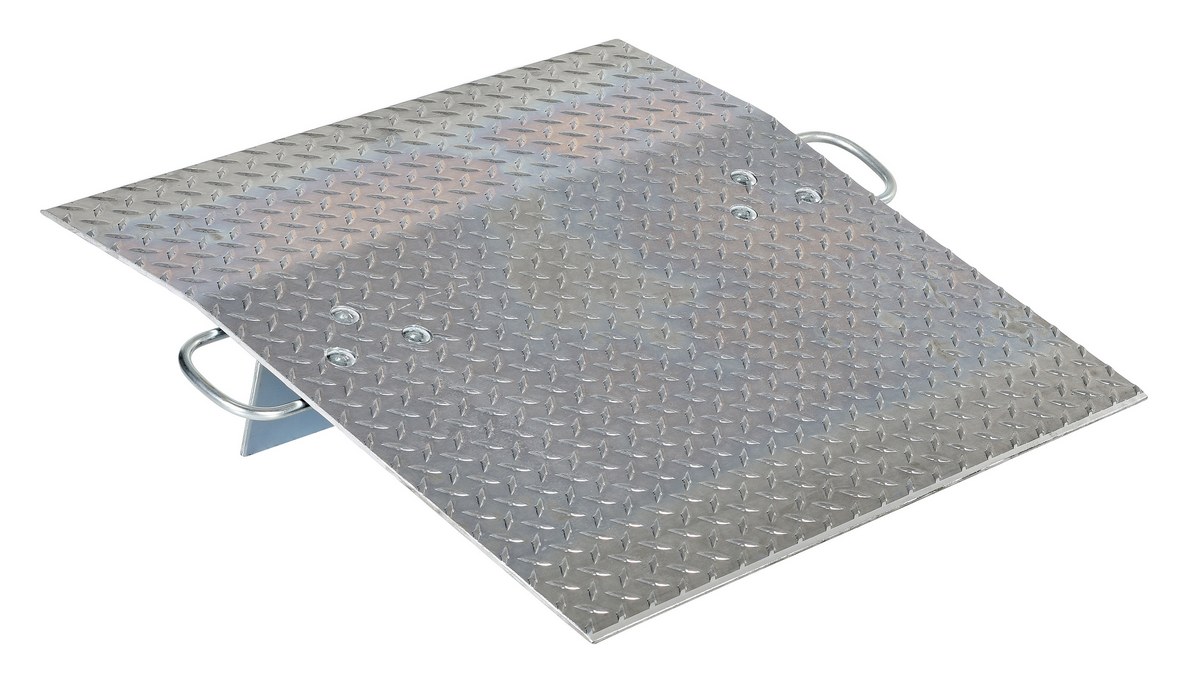

| A-3030 | | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 30 In. x 30 In. 500 Lb. Capacity Silver | Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 | 244 | ||

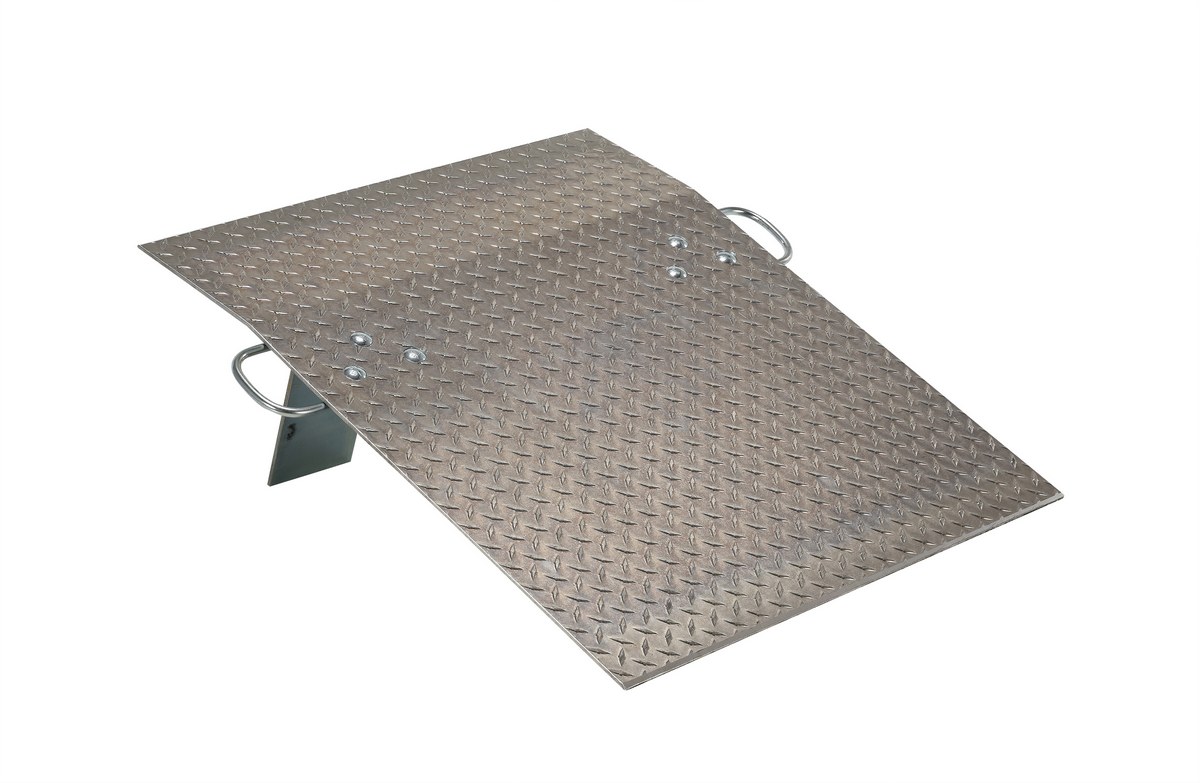

| A-3036 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 30 In. x 36 In. 500 Lb. Capacity Silver | Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 | 248 | ||

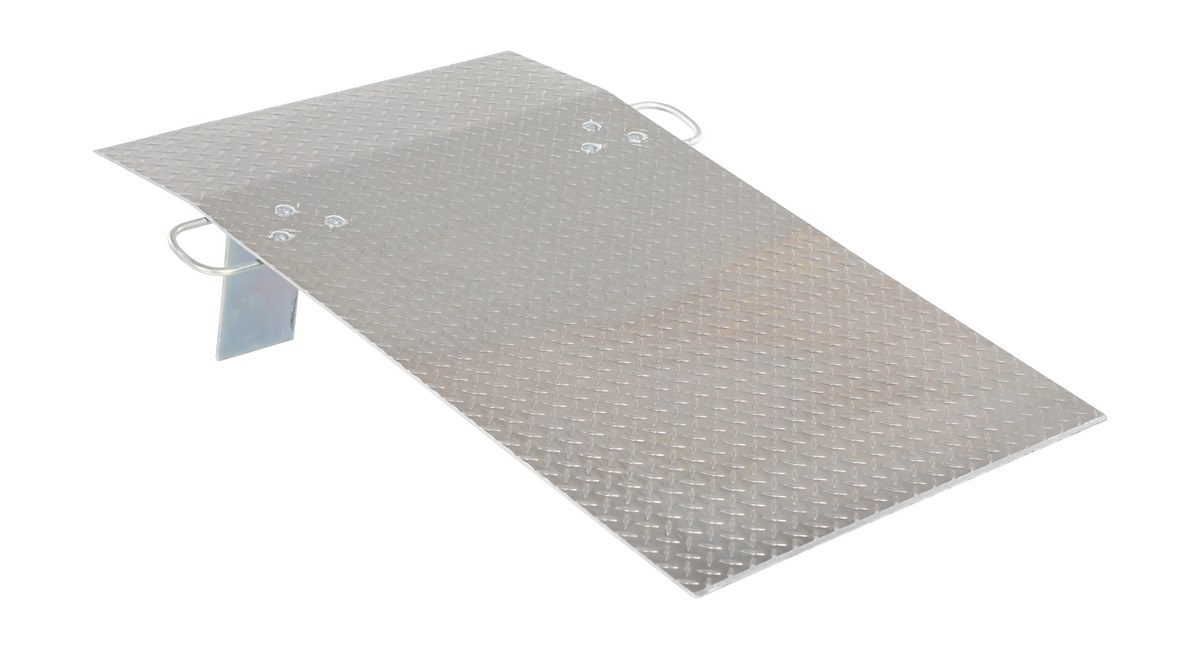

| A-3048 | | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 30 In. x 48 In. 500 Lb. Capacity Silver | Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 | 250 | ||

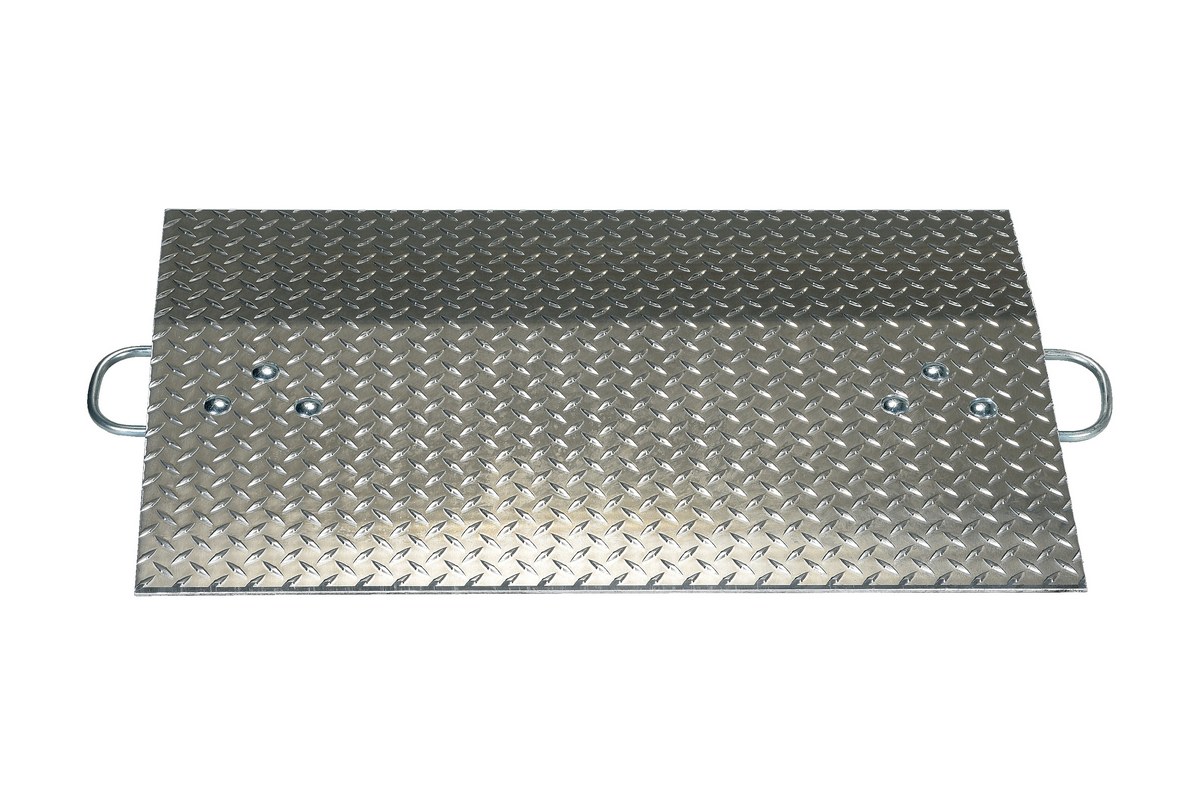

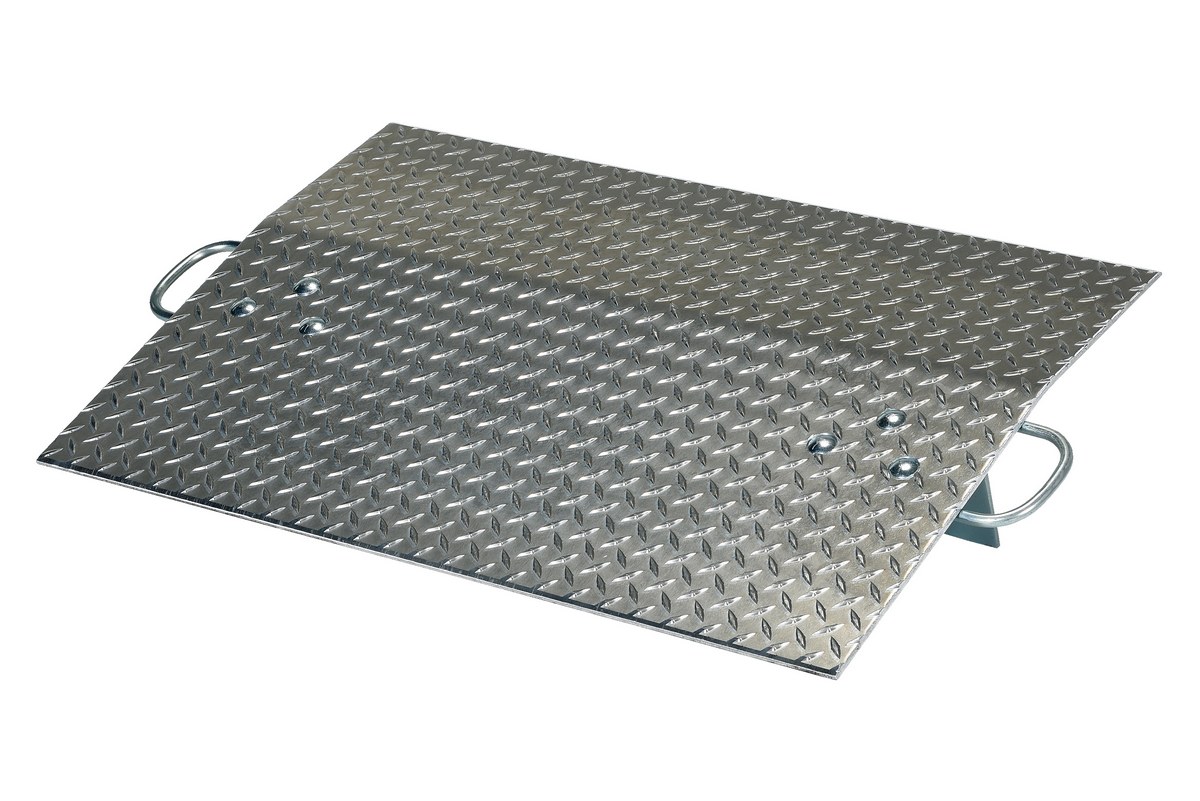

| A-3624 | | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 36 In. x 24 In. 500 Lb. Capacity Silver | Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 | 244 | ||
| A-3630 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 36 In. x 30 In. 500 Lb. Capacity Silver | Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 | 245 | ||
| A-3636 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 36 In. x 36 In. 500 Lb. Capacity Silver | Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 | 263 | ||
| A-3648 | | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 36 In. x 48 In. 500 Lb. Capacity Silver | Uniform Capacity (lb.): 500 Bend or Crown (degrees): 11 | 257 | ||

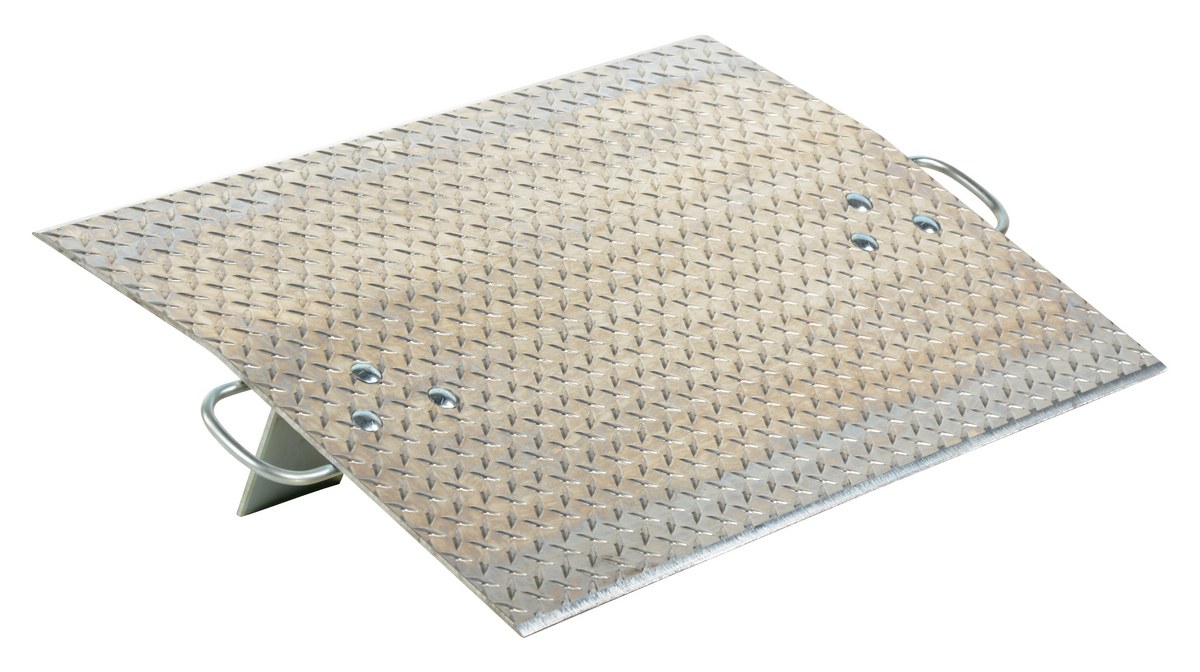

| AH-3024 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 30 In. x 24 In. 700 Lb. Capacity Silver | Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 | 236 | ||
| AH-3030 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 30 In. x 30 In. 700 Lb. Capacity Silver | Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 | 239 | ||
| AH-3036 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 30 In. x 36 In. 700 Lb. Capacity Silver | Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 | 263 | ||
| AH-3048 | | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 30 In. x 48 In. 700 Lb. Capacity Silver | Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 | 274 | ||

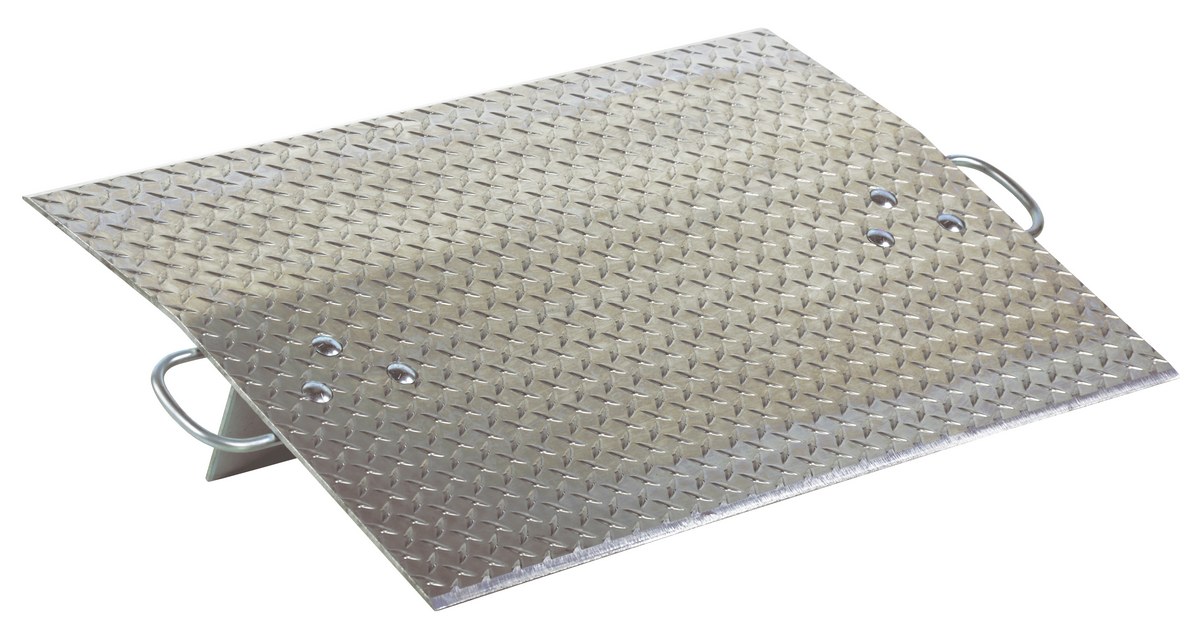

| AH-3624 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 36 In. x 24 In. 700 Lb. Capacity Silver | Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 | 237 | ||
| AH-3630 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 36 In. x 30 In. 700 Lb. Capacity Silver | Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 | 249 | ||

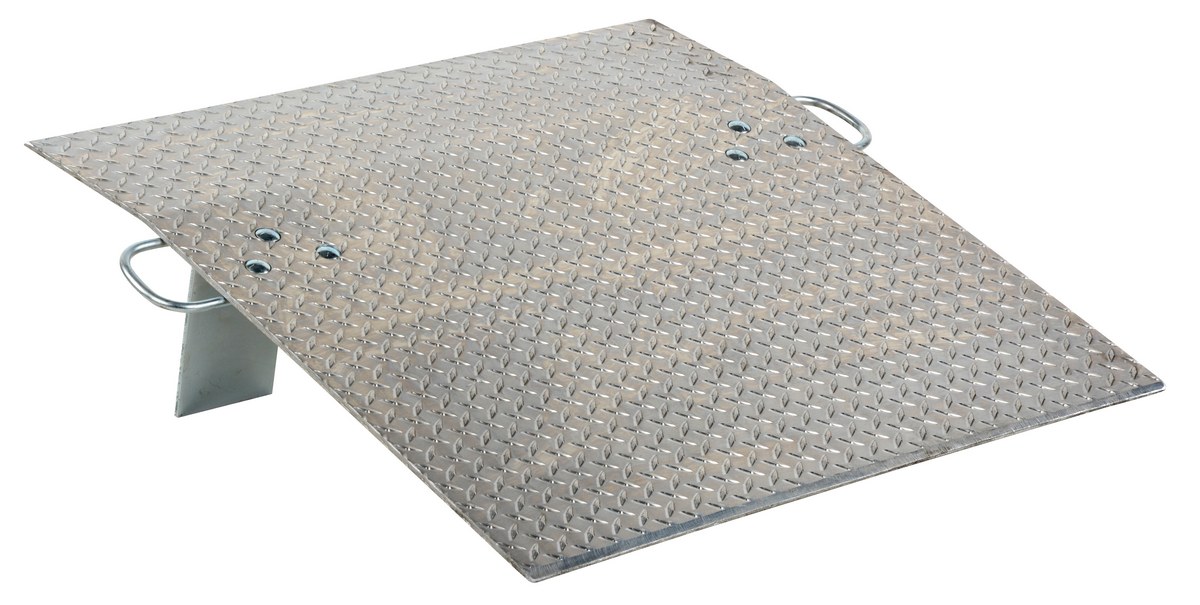

| AH-3636 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 36 In. x 36 In. 700 Lb. Capacity Silver | Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 | 264 | ||

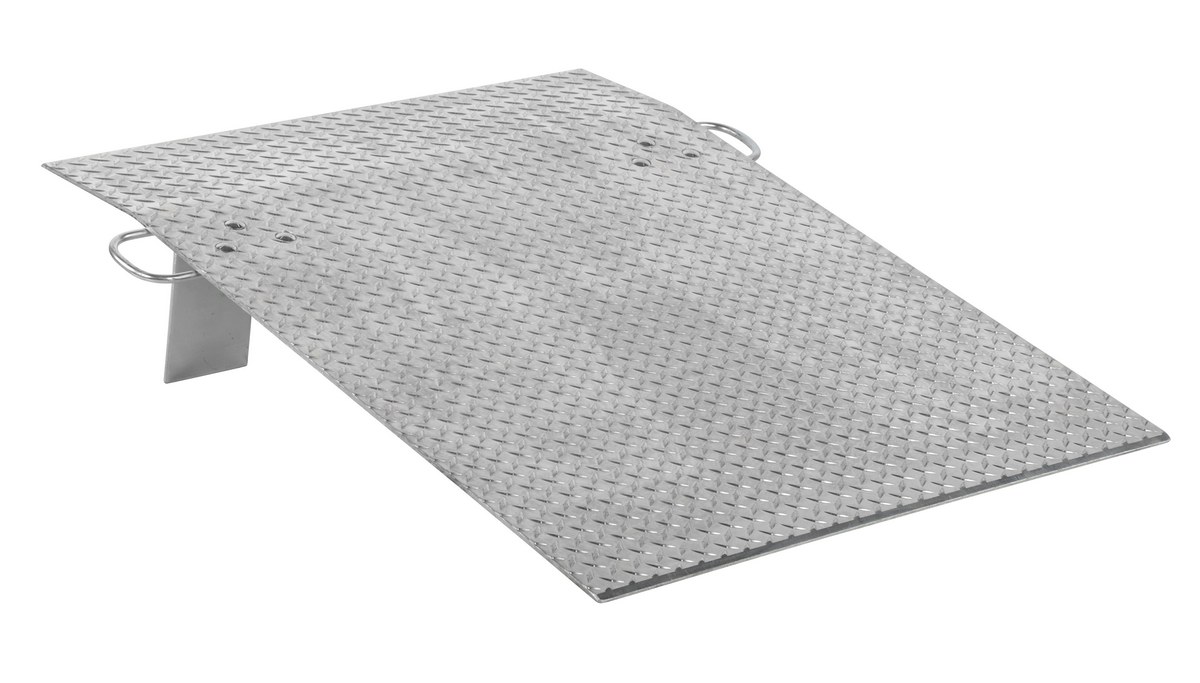

| AH-3648 |  | 90 Days Limited Warranty | Aluminum Hand Truck Dock Plate 36 In. x 48 In. 700 Lb. Capacity Silver | Uniform Capacity (lb.): 700 Bend or Crown (degrees): 11 | 264 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
For More Details of the Option Click the Red Model Button
| Aluminum Dockplate Options - Series A, AH | |||||||||
| Model | Description | ||||||||
| DPR-2616 | - | Steel Dock Plate Storage Rack 26 In. x 6 In. Yellow | |||||||
| OHDL |  |
No Handles | |||||||
| 1HDL | |
One Handle | |||||||
| SDP | |
Smooth Deck Plate (Diamond side down with grip tape) | |||||||
| SBL | |
Special Bend Location | |||||||
| S2B | |
Special 2nd Bend Location | |||||||
| SLL | |
Special Location of Legs | |||||||
| ATC-12 | |
Anti-Theft Chain (144 in.) | |||||||
| LHDL | |
Extra Pair of Legs with Handles & Hardware | |||||||
| TRADE | |
Trade in Allowance (F.O.B. IN) | |||||||
