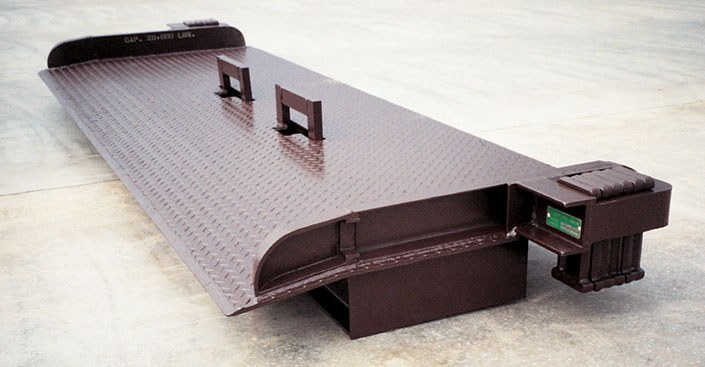

Steel Railroad Dockboards
The Steel Railroad Dockboard has a rectangular-style with a deck that is made of high-strength raised diamond steel treadplate with structural steel support beams. Treadplate provides increased traction; overlap-style lip on both dock and rail car ends gives maximum versatility. Fork truck pop-up loops are built into deck - automatically pop-up when board is set on floor. Automatic drop-locks on both sides of board are designed to keep the board in place between dock and rail car. Auto drop locks add thirteen (13) inches to overall width. All purchase orders must include completed survey sheet. Non-returnable.
Standard Design Features:
- Auto Drop Locks (adds 13" to overall width)**
- Pop-up Fork Lift Loops
- Steel Rectangular Board
- Overlap Style Plate (both ends)
- Safety Curbs are 4" High
- Tread Plate for Better Traction
- Structural Steel Support Beams
Aluminum Truck Dockboards (Welded Aluminum Curbs)
Steel Truck Dockplates
Fiberglass Dockplate
Railroad dock boards are custom built to your specification!
Sizes are available from 72" wide up to 108" wide (66" -102" usable) and in 15,000 to 40,000 lbs. capacity.
Contact factory with your completed survey sheet for a quote
