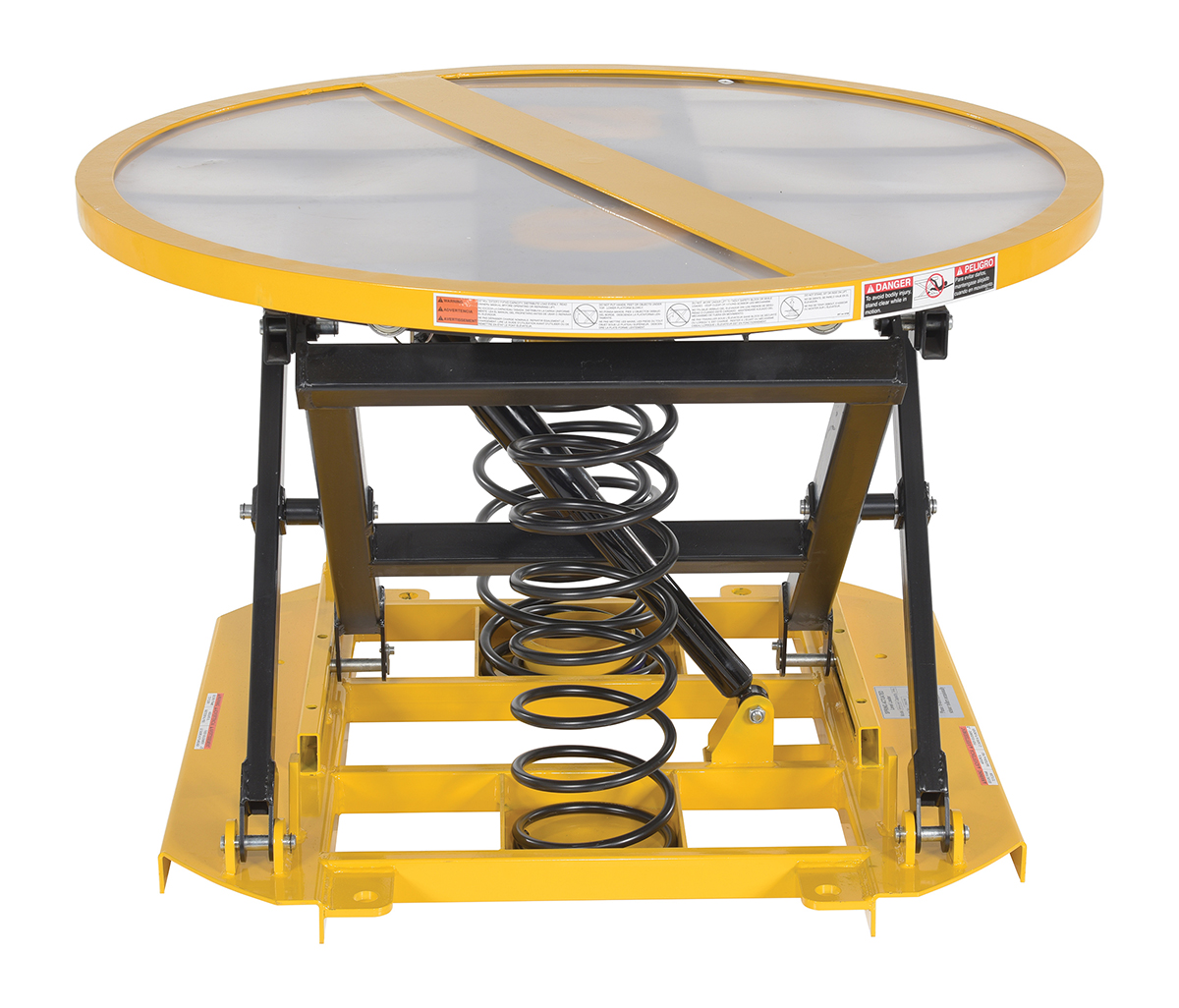

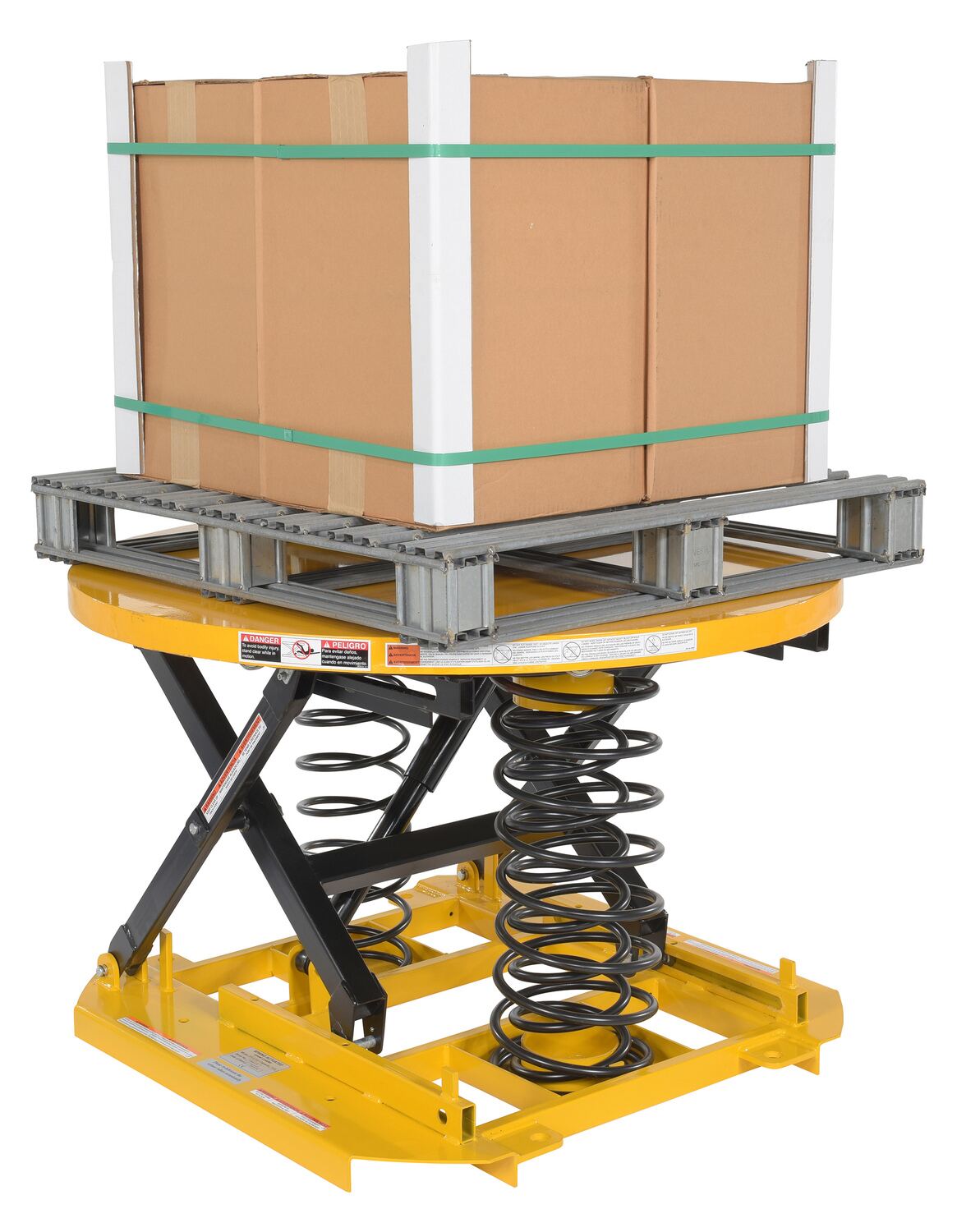

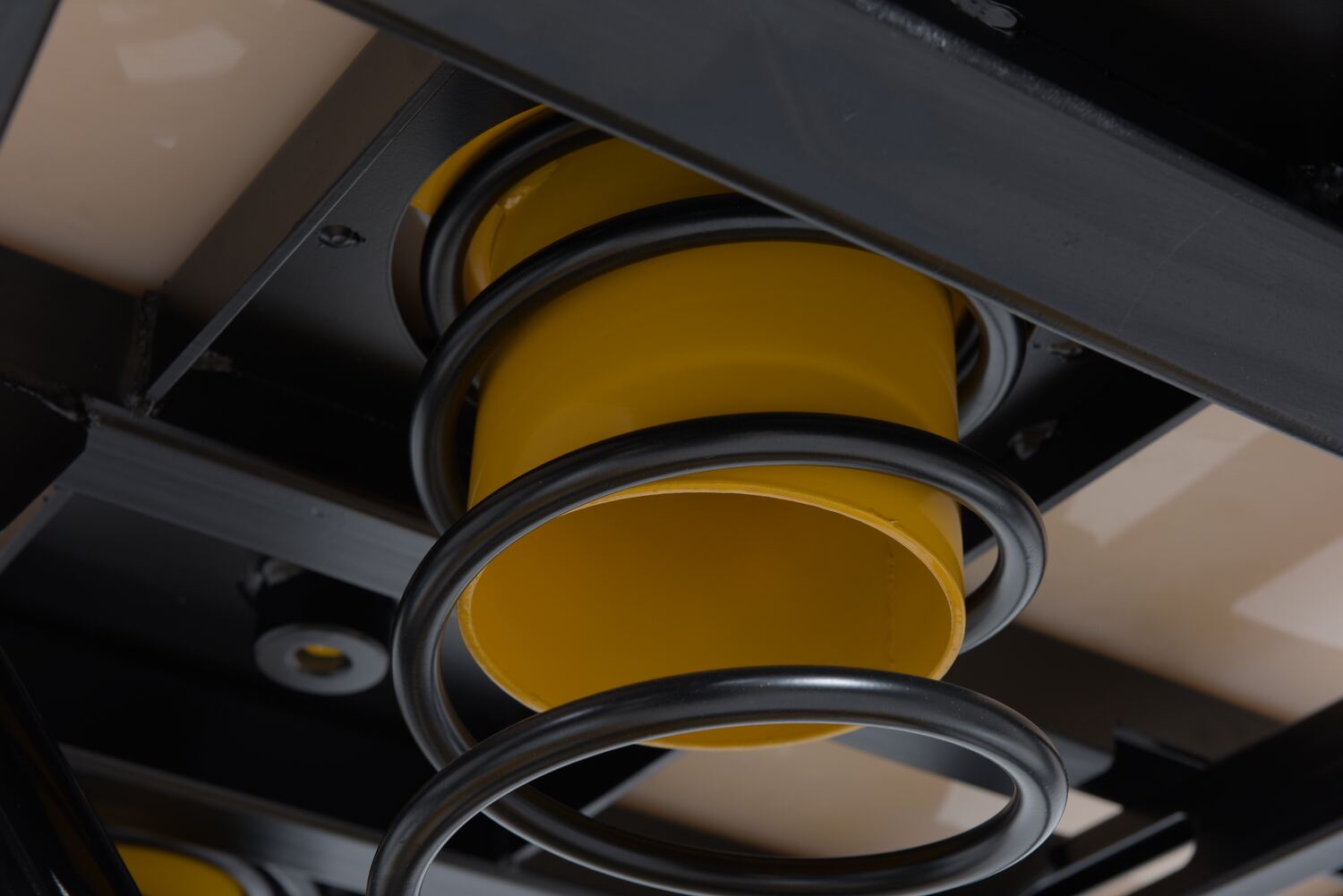

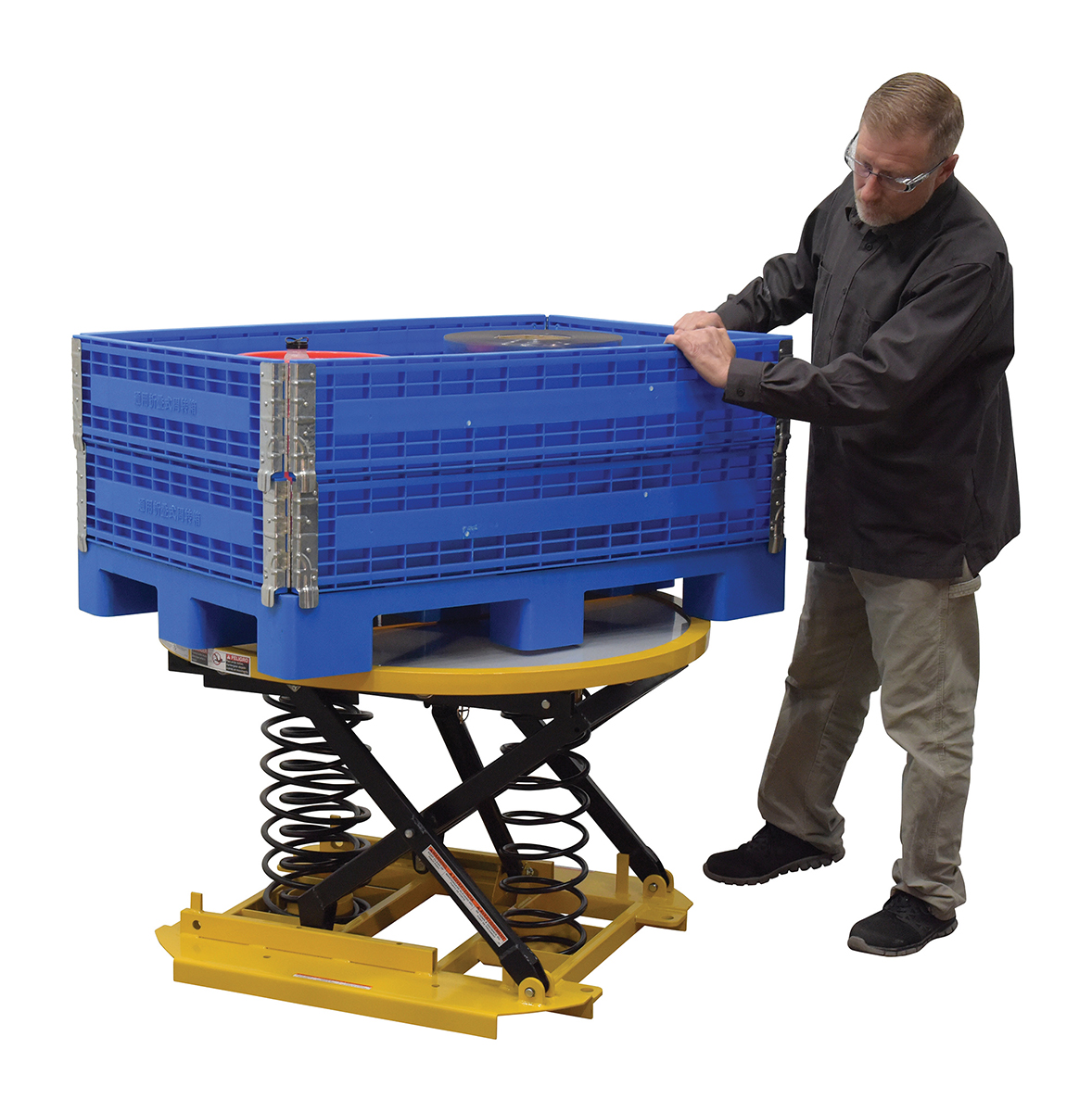

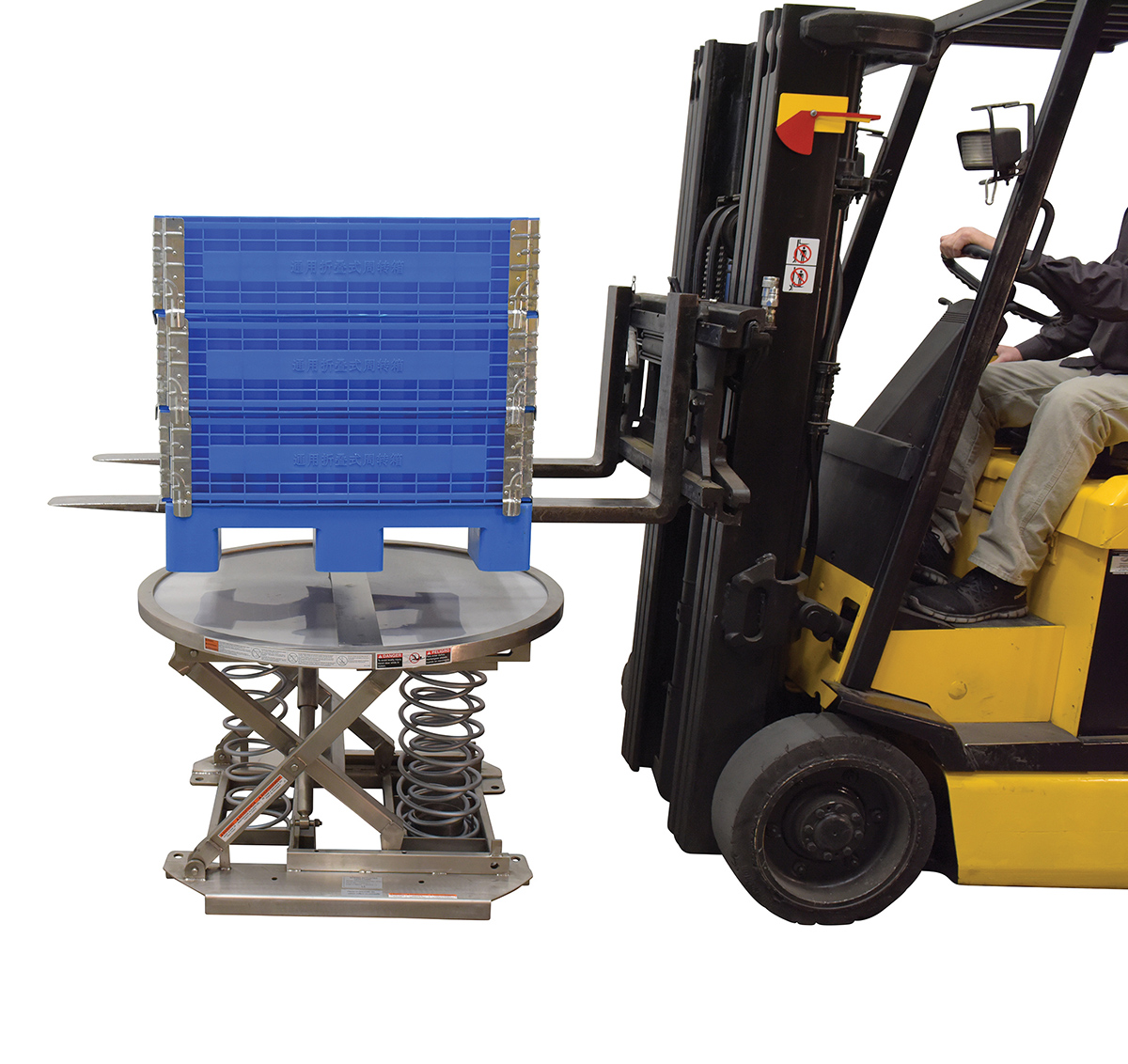

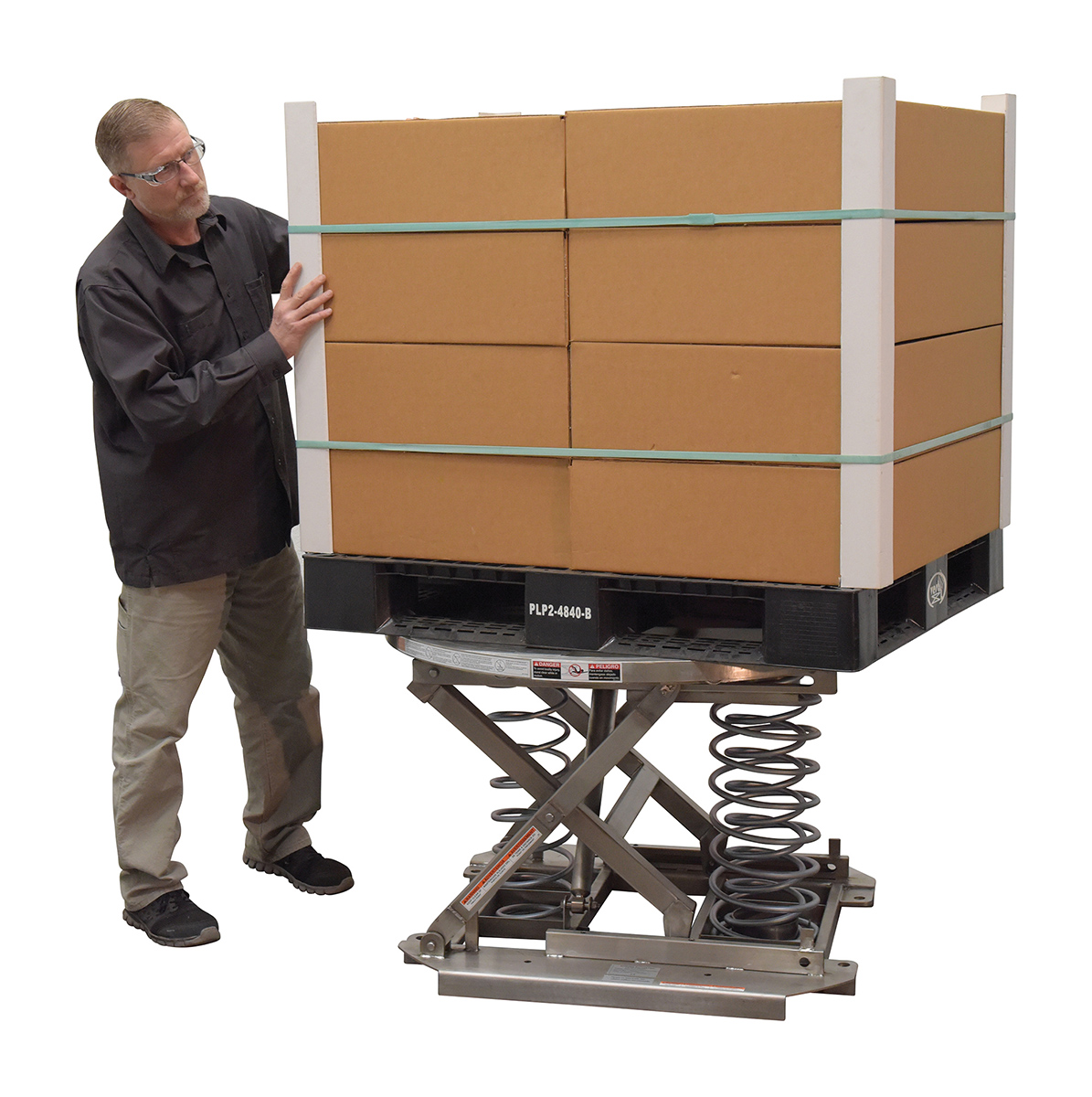

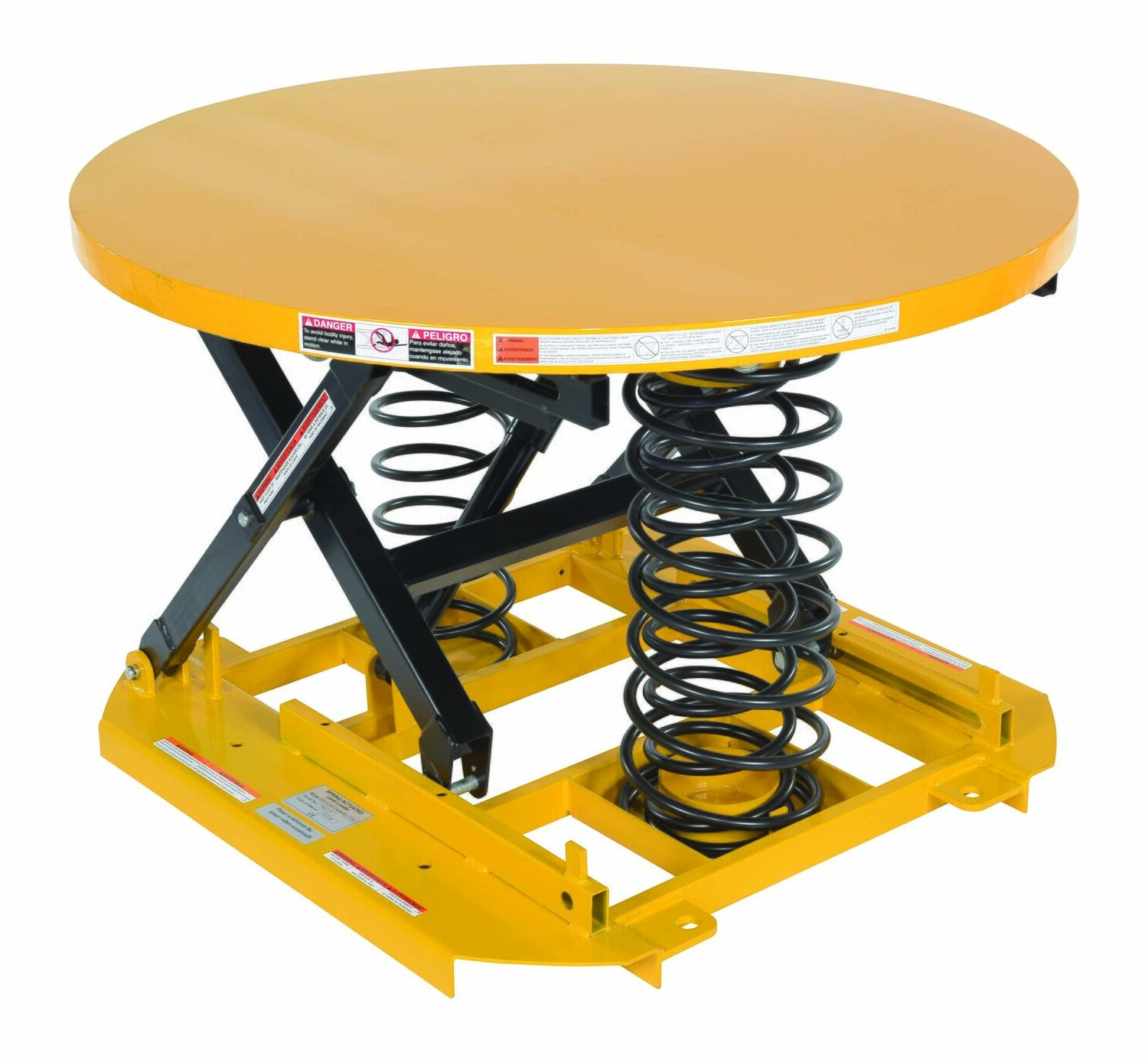

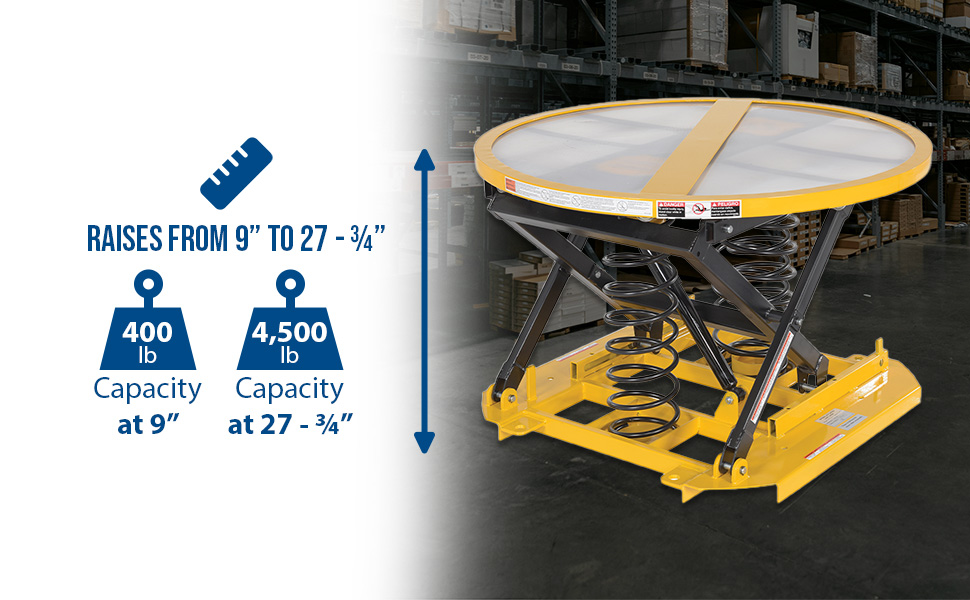

Spring Scissor TablesThe Spring Scissor Table is ideal for distributing and shipping facilities. The unit allows the user to transfer products from work space to work space, while holding an ergonomically friendly position. The frame is designed of a steel construction, which allows for strength and durability. Uniform capacity is 400 to 4,500 pounds. The scissor mechanism raises the unit to the desired height, while the internal spring provides support when unit is being loaded and unloaded. Service range is 9" to 27-3/4". The 43-5/8" diameter top can be manually rotated 360 degrees for improved packaging and handling capabilities. Base size measures 36"W x 36-3/4"L with 6-3/4"W x 1-1/2"H fork pockets. Caster kit option available.

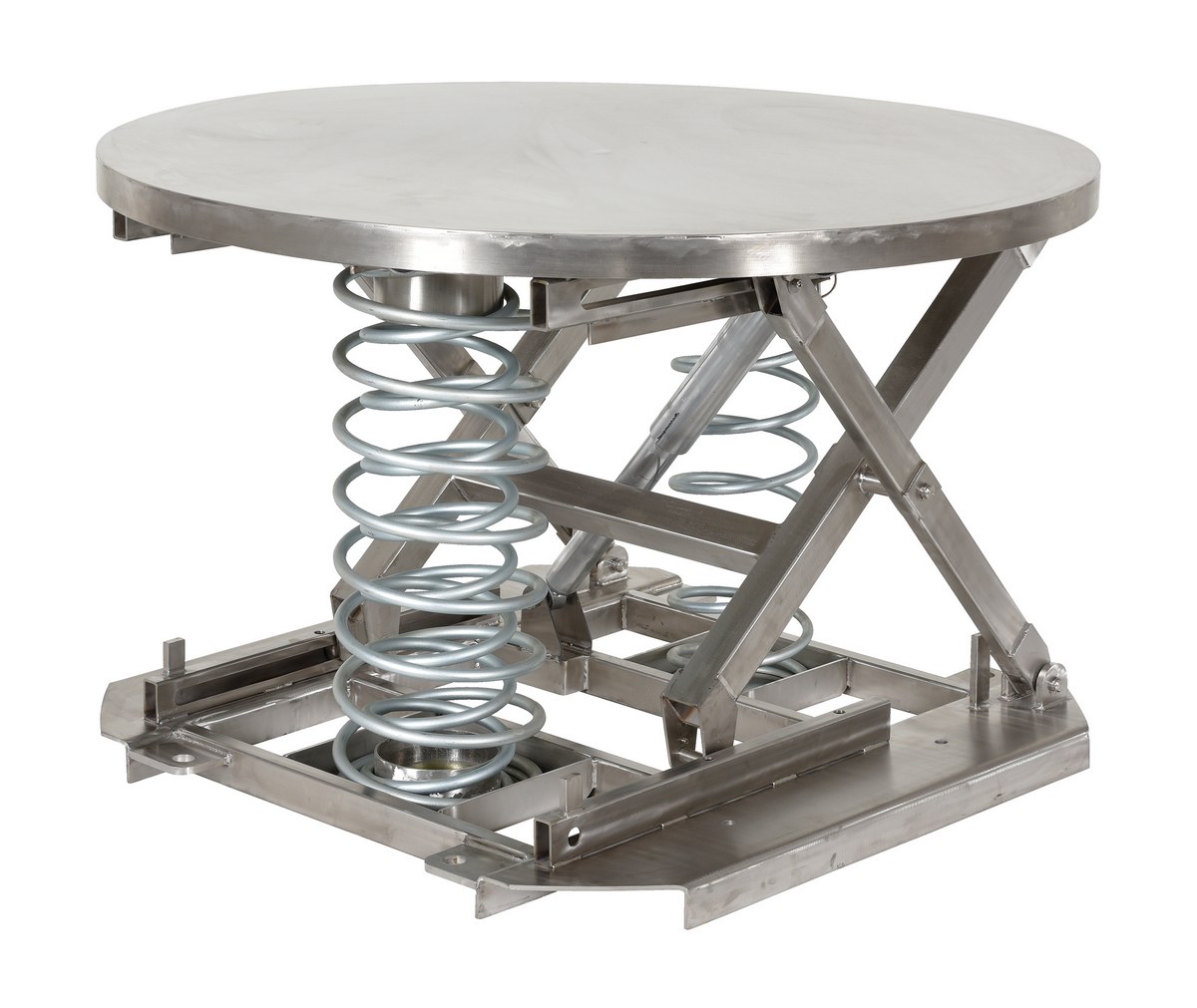

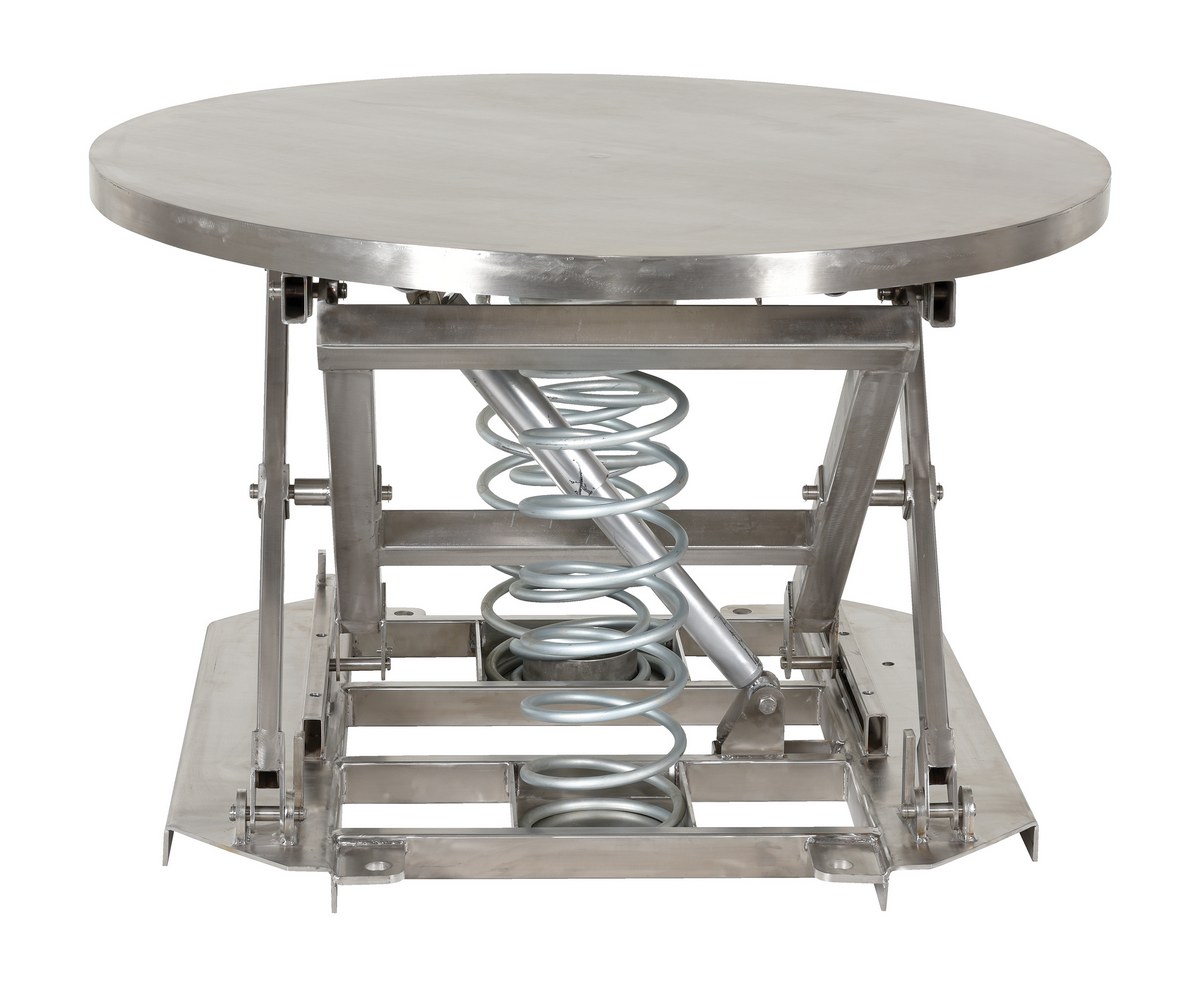

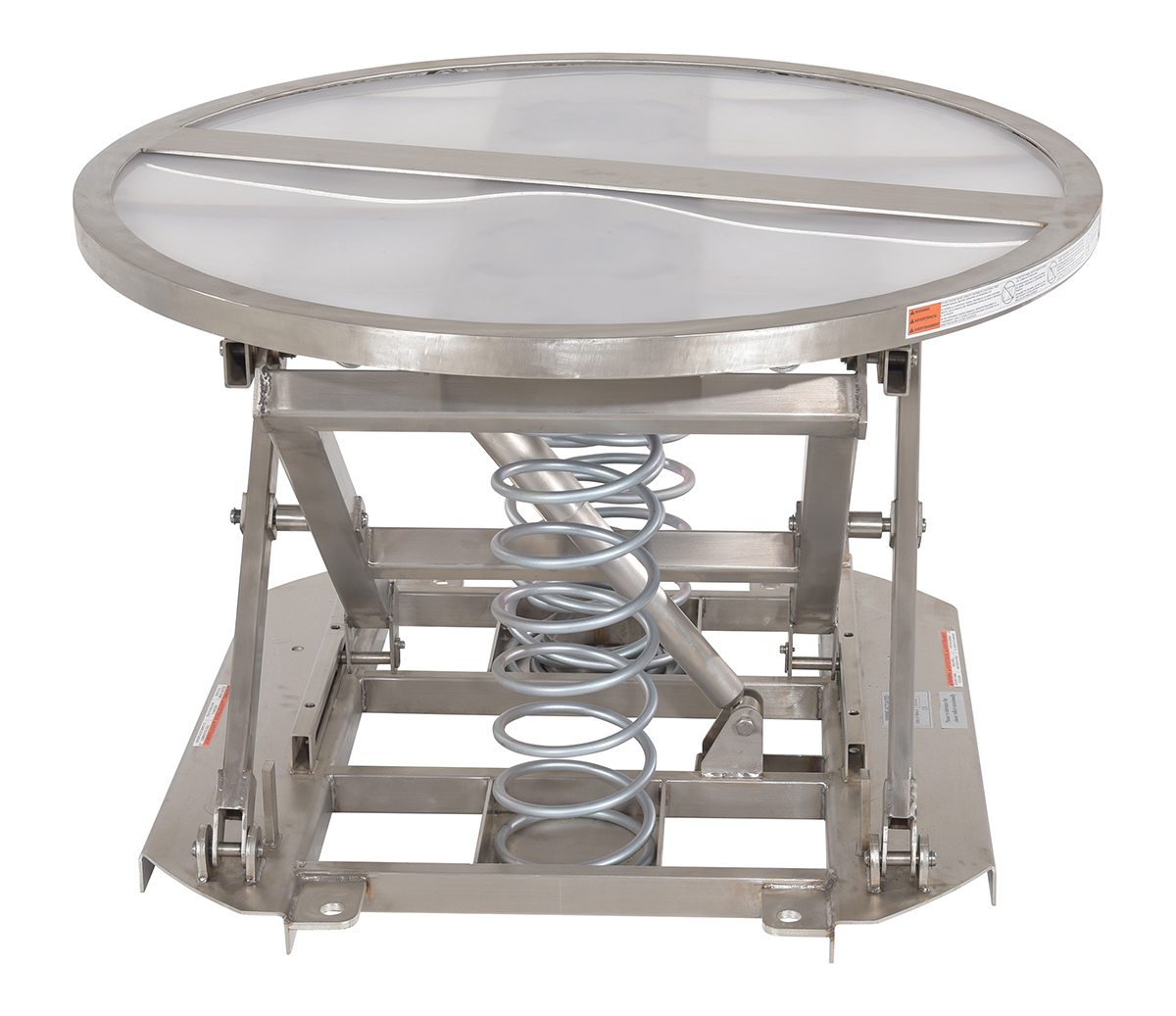

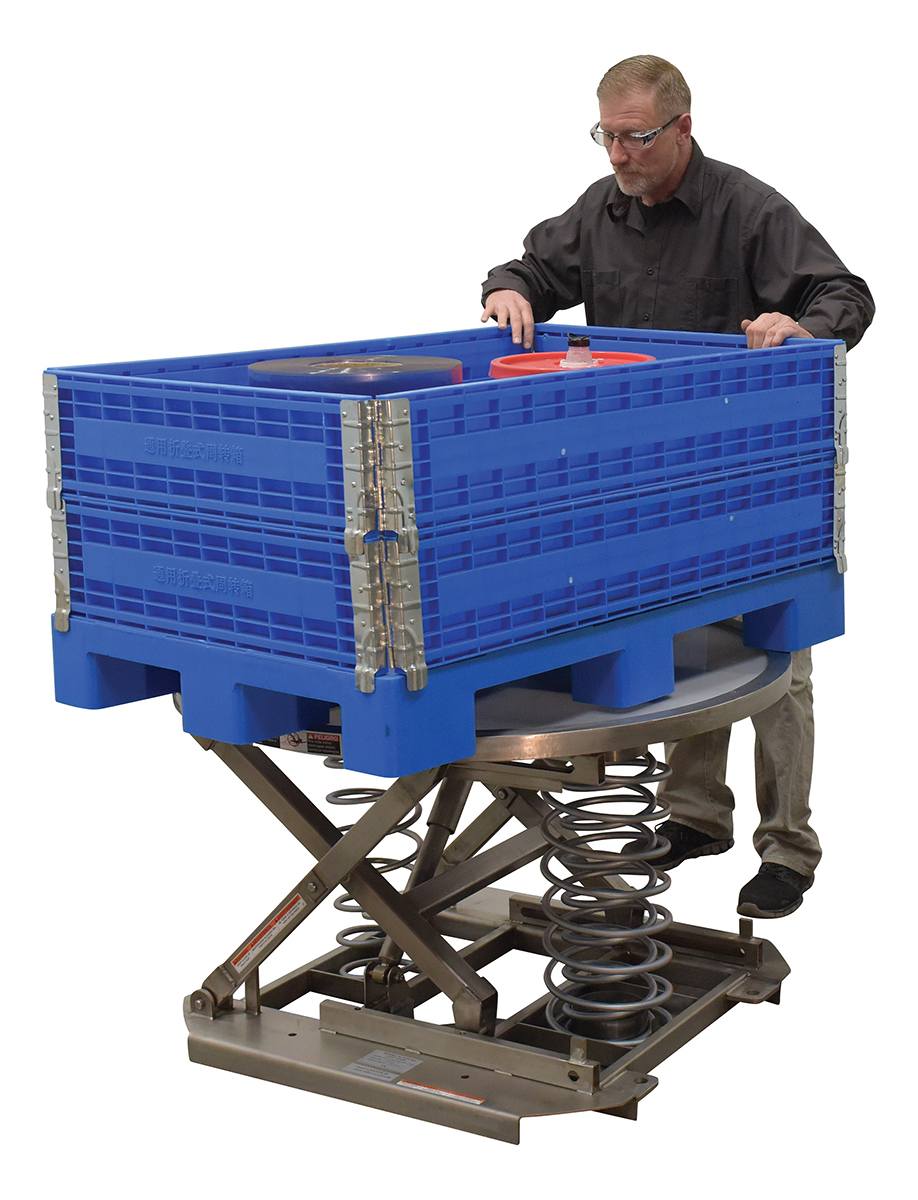

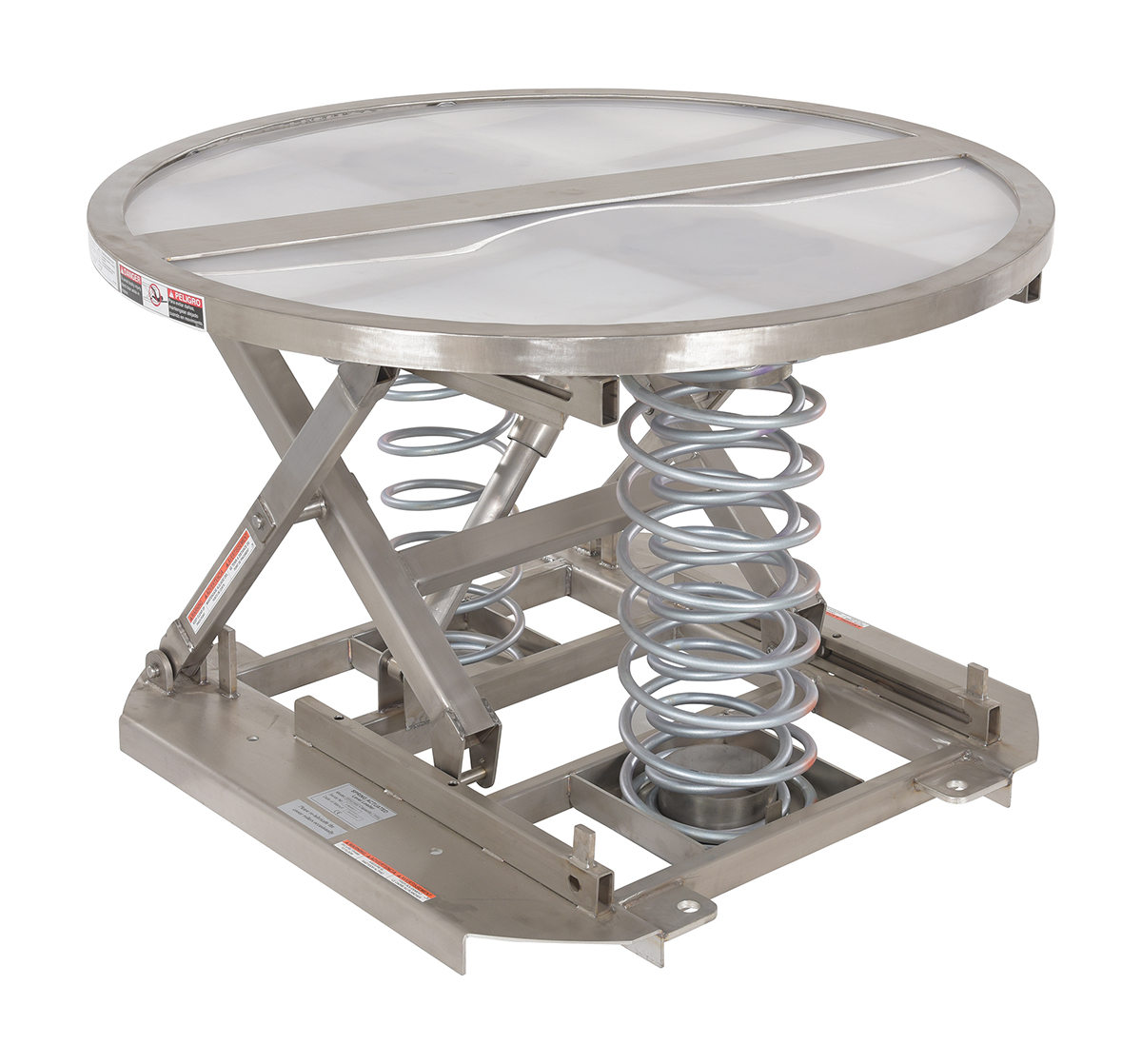

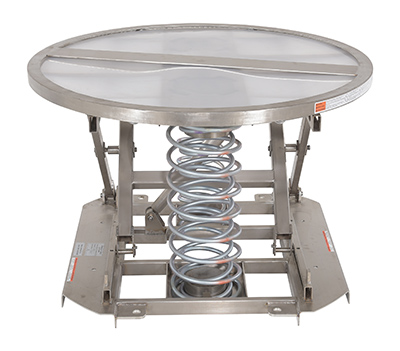

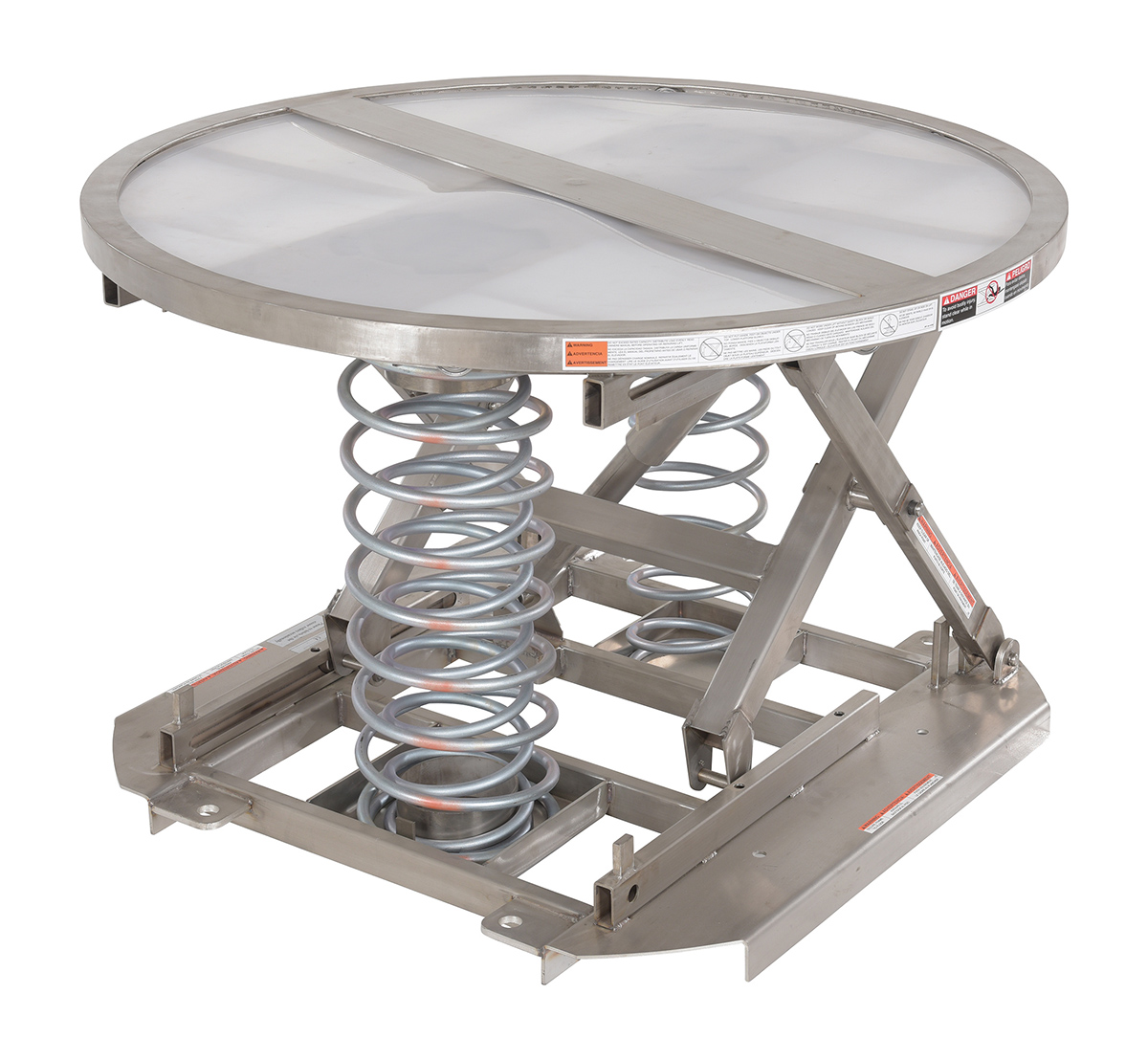

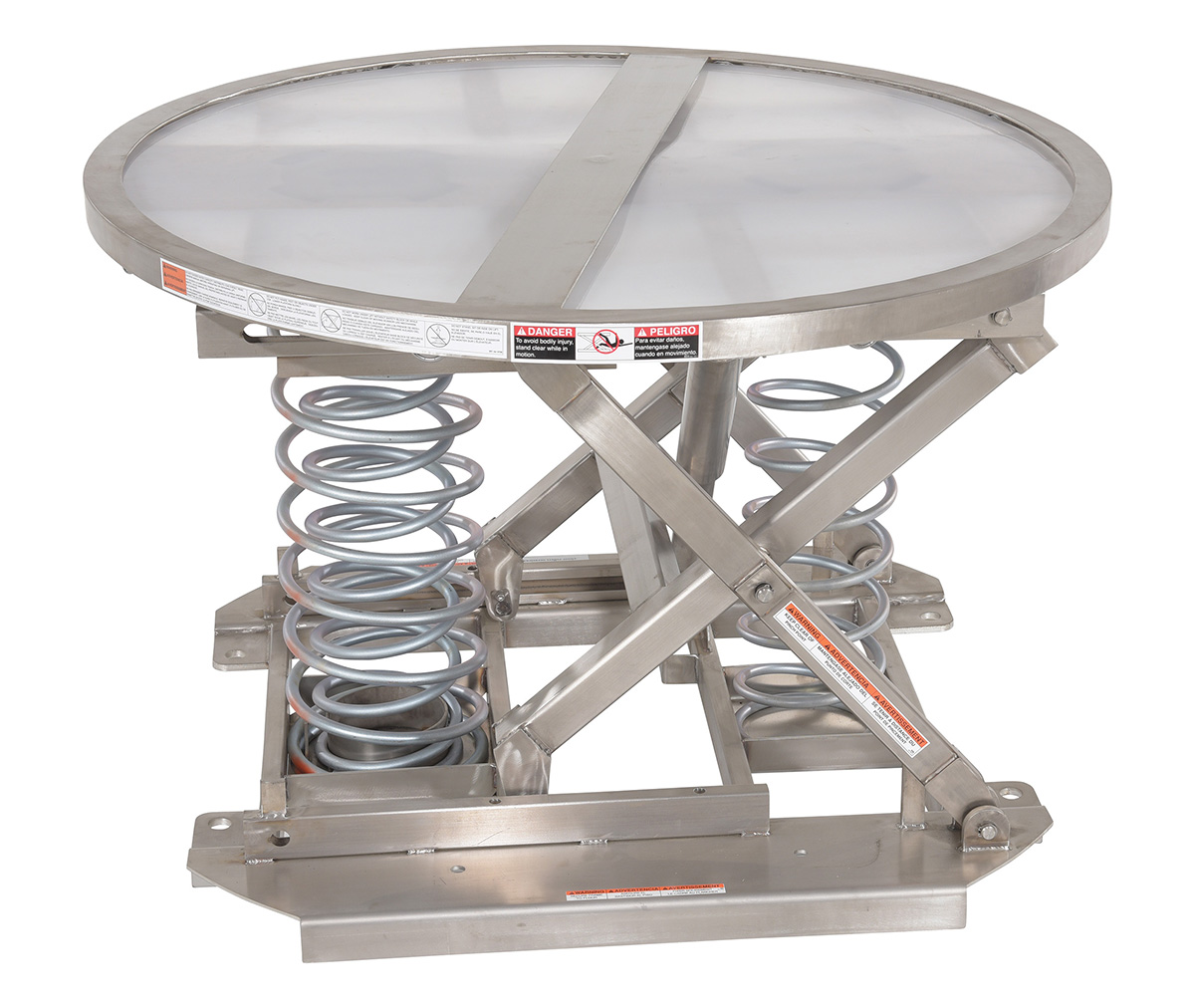

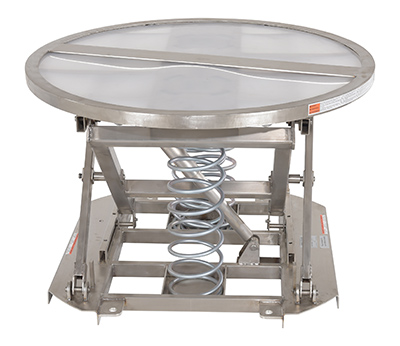

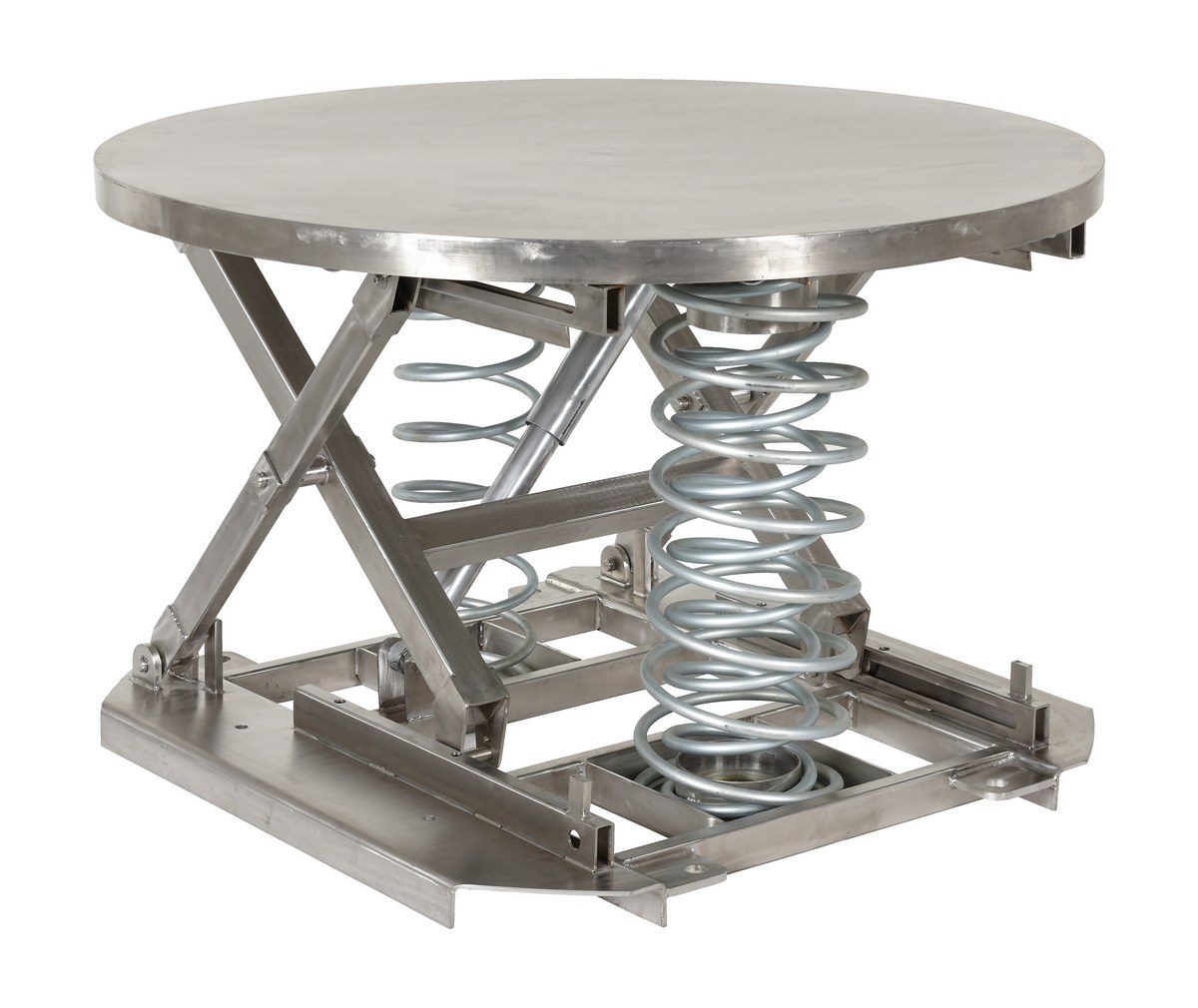

Model SST-45-PSS is constructed of a partially stainless steel base frame, top turn table & legs. Model SST-45-PSS-ST is constructed of a partially stainless steel as the model above however a solid top.
Self-Elevating Spring Tables
Auto-Hite Carts
Self-Elevating Lift CartsAdditional Models In This Family
SST-45-ST
SST-45-PSS-ST
SST-45-CK-GFN
SST-45-PSS
SST-45-ST
SST-45-CK-GFN
SST-45-CK-GFN
SST-45-PSS
SST-45-CK-GFN
SST-45-CK-GFN
SST-45
SST-45-PSS-ST
SST-45-CK-GFN
SST-45-ACC-4-FI
SST-45-CK-GFN
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| SST-45-ST-ACC-4-CI | NEW |  | 1 Year Limited Warranty | Steel Solid Manual Carousel Top Spring Scissor Table With Vinyl Field Installed Accordion Skirt 4,500 Lb. Capacity Yellow | Attachment Method: Velcro Strips and straps Uniform Capacity (lbs.): 4000 | 474 | |

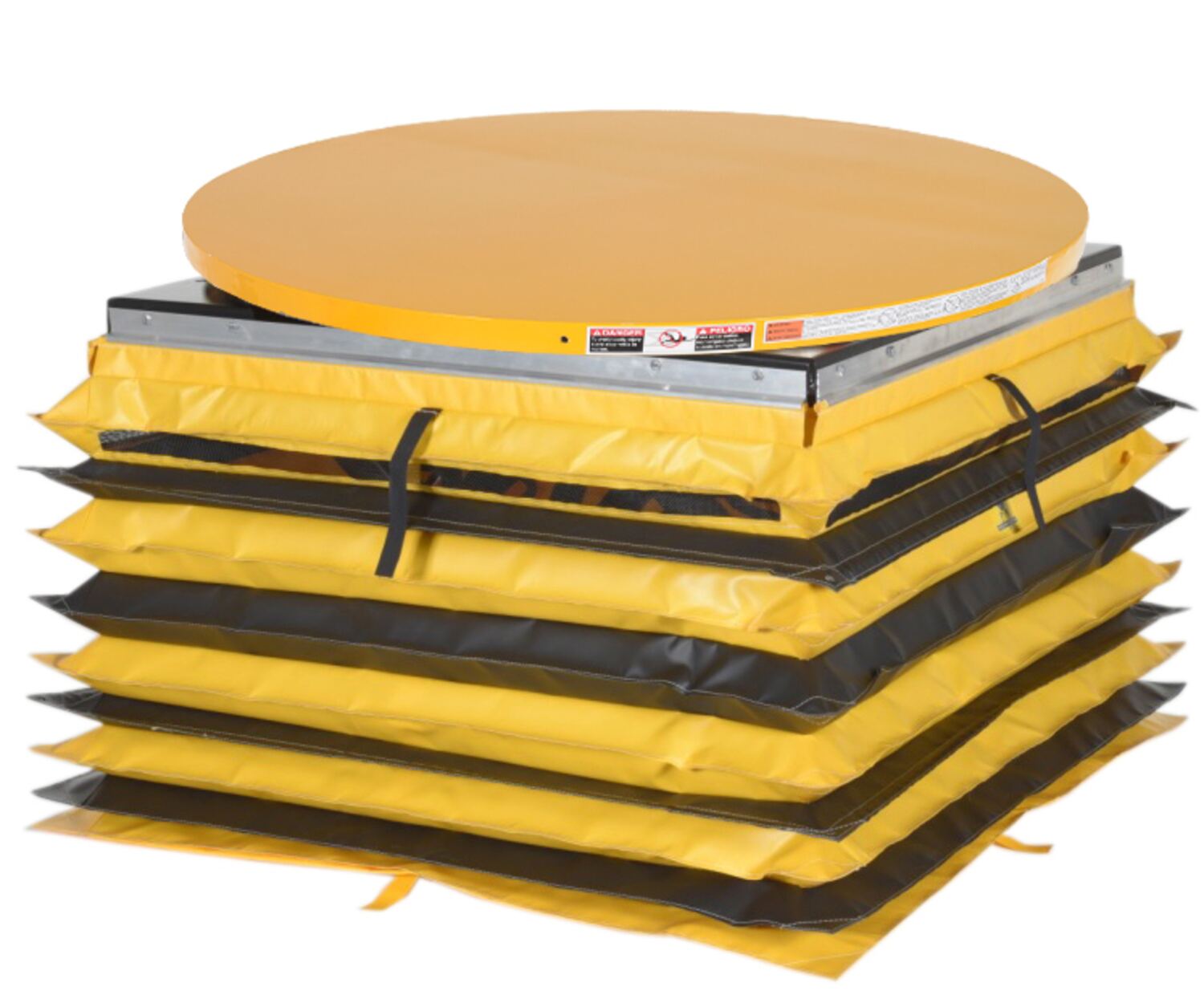

| SST-45-ST-ACC-4-FI | NEW |  | 1 Year Limited Warranty | Steel Solid Manual Carousel Top Spring Scissor Table With Vinyl Factory Installed Accordion Skirt 4,500 Lb. Capacity Yellow | Attachment Method: Factory Installed Uniform Capacity (lbs.): 4000 | 474 | |

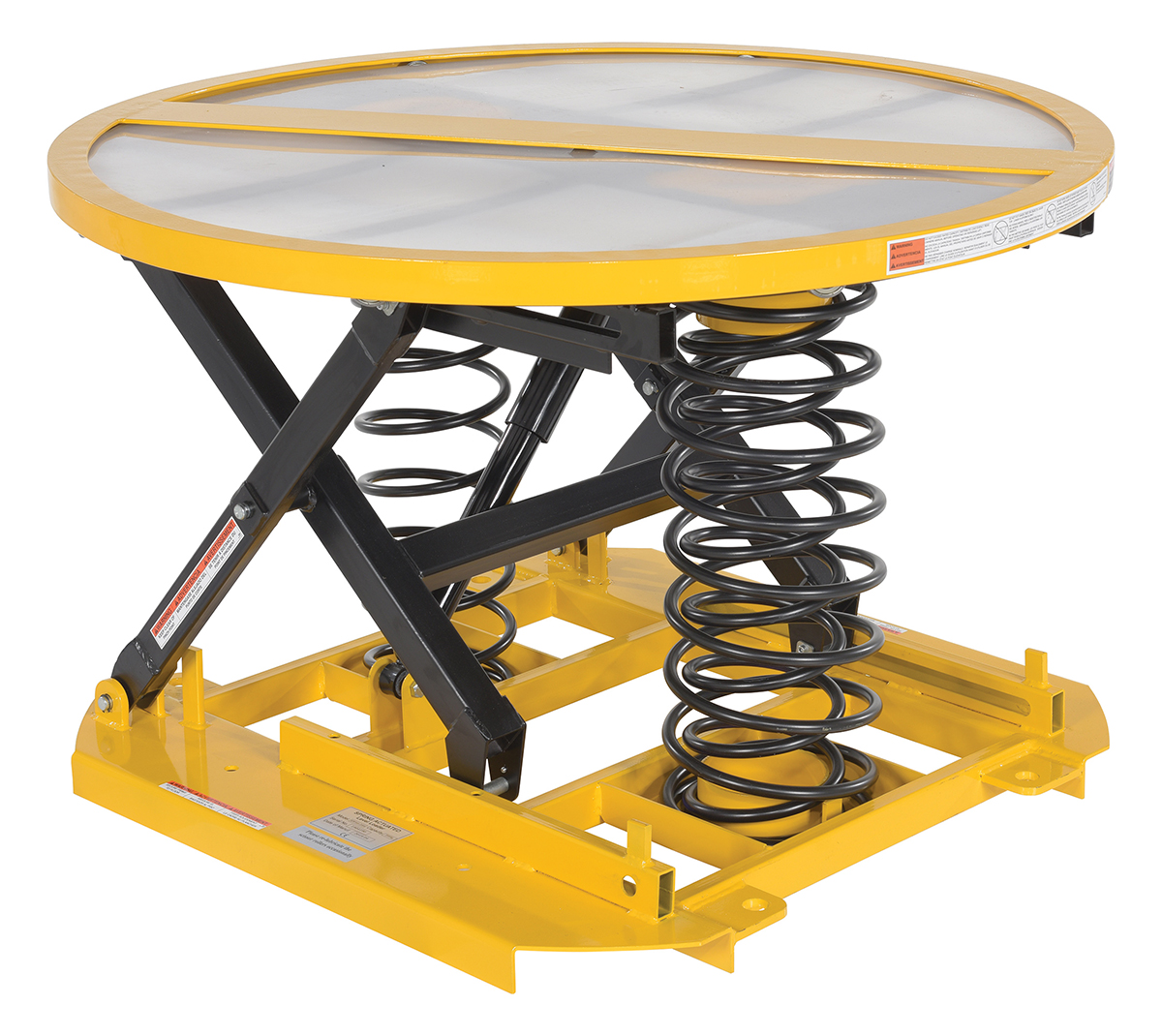

| SST-45 | POPULAR | | 1 Year Limited Warranty | Steel Open Manual Carousel Top Spring Scissor Table 4,500 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 400 to 4500 Platform Diameter (in.): 43-5/8 | 390 | |

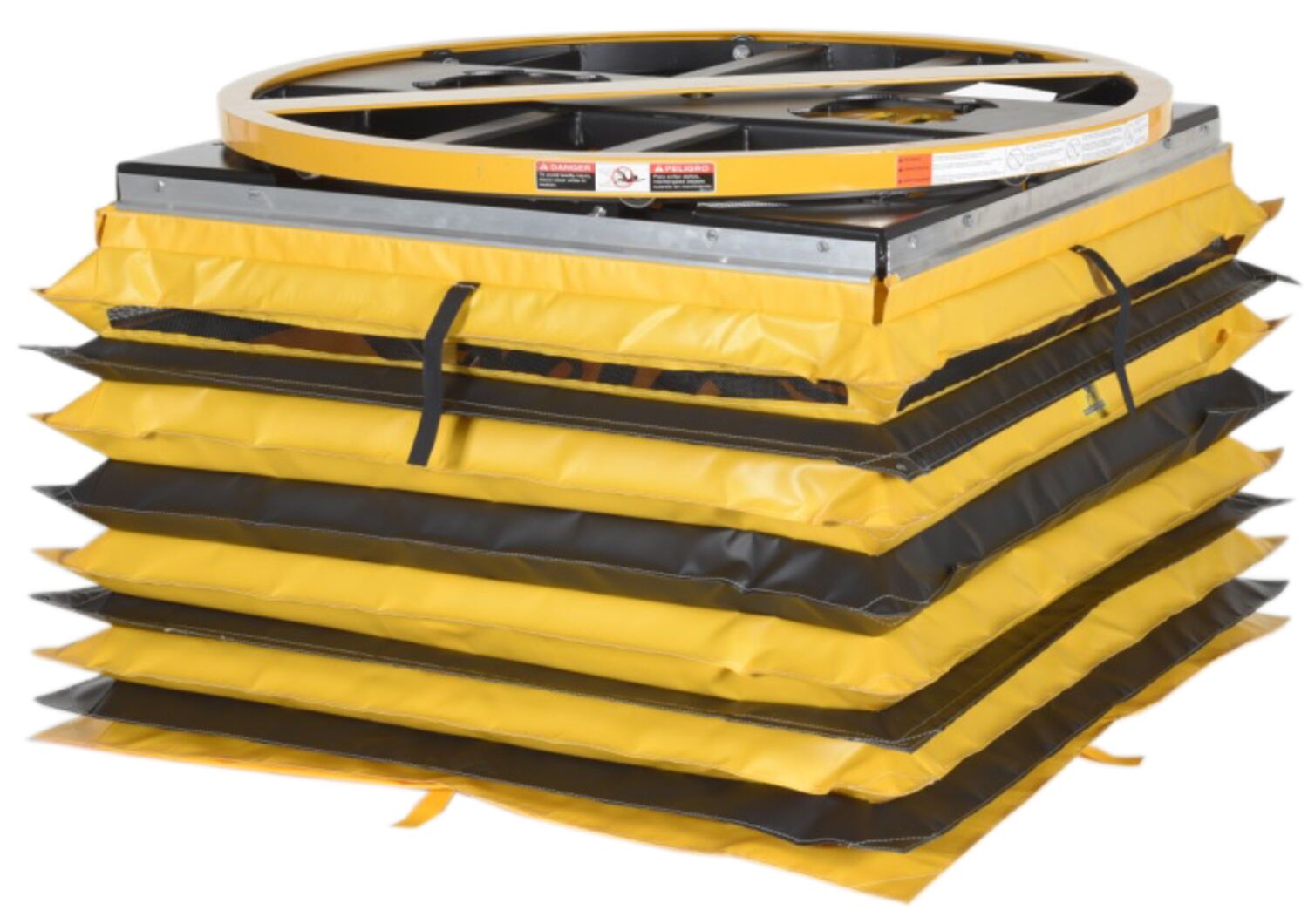

| SST-45-ACC-4-CI | |  | 90 Days Limited Warranty | Steel Open Manual Carousel Top Spring Scissor Table With Vinyl Field Installed Accordion Skirt 4,500 Lb. Capacity Yellow | Attachment Method: Velcro Strips and straps | 404 | |
| SST-45-ACC-4-FI | | | 90 Days Limited Warranty | Steel Open Manual Carousel Top Spring Scissor Table With Vinyl Factory Installed Accordion Skirt 4,500 Lb. Capacity Yellow | Attachment Method: Factory Installed | 404 | |
| SST-45-PSS |  | 1 Year Limited Warranty | Partially Stainless Steel Open Manual Carousel Top Spring Scissor Table 4,500 Lb. Capacity Silver | Uniform Capacity (lb.): 400 to 4500 Platform Diameter (in.): 43-5/8 | 432 | ||
| SST-45-PSS-ST | | 1 Year Limited Warranty | Partially Stainless Steel Solid Manual Carousel Top Spring Scissor Table 4,500 Lb. Capacity Silver | Uniform Capacity (lb.): 400 to 4500 Platform Diameter (in.): 43-5/8 | 432 | ||

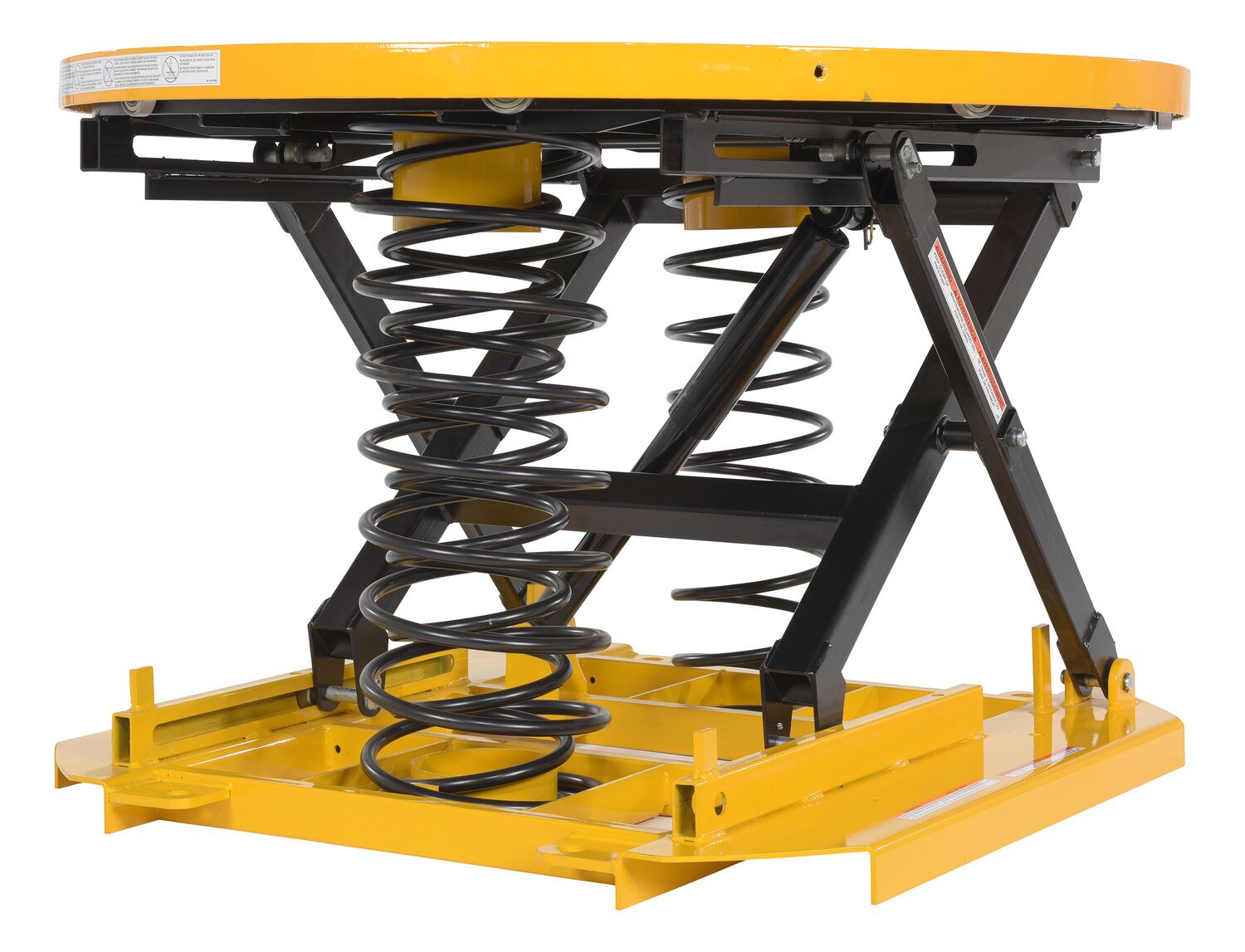

| SST-45-ST |  | 1 Year Limited Warranty | Steel Solid Manual Carousel Top Spring Scissor Table 4,500 Lb. Capacity Black / Yellow | Uniform Capacity (lb.): 400 to 4500 Platform Diameter (in.): 43-5/8 | 440 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Attachment Method: Velcro Strips and straps
Uniform Capacity (lbs.): 4000
Attachment Method: Velcro Strips and straps
Uniform Capacity (lbs.): 4000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Attachment Method: Factory Installed
Uniform Capacity (lbs.): 4000
Attachment Method: Factory Installed
Uniform Capacity (lbs.): 4000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Attachment Method: Velcro Strips and straps
Attachment Method: Velcro Strips and straps
Unit:
Size: W x L x H
Weight:
Limited Warranty
Attachment Method: Factory Installed
Attachment Method: Factory Installed
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
Uniform Capacity (lb.): 400 to 4500
Platform Diameter (in.): 43-5/8
For More Details of the Option Click the Red Model Button

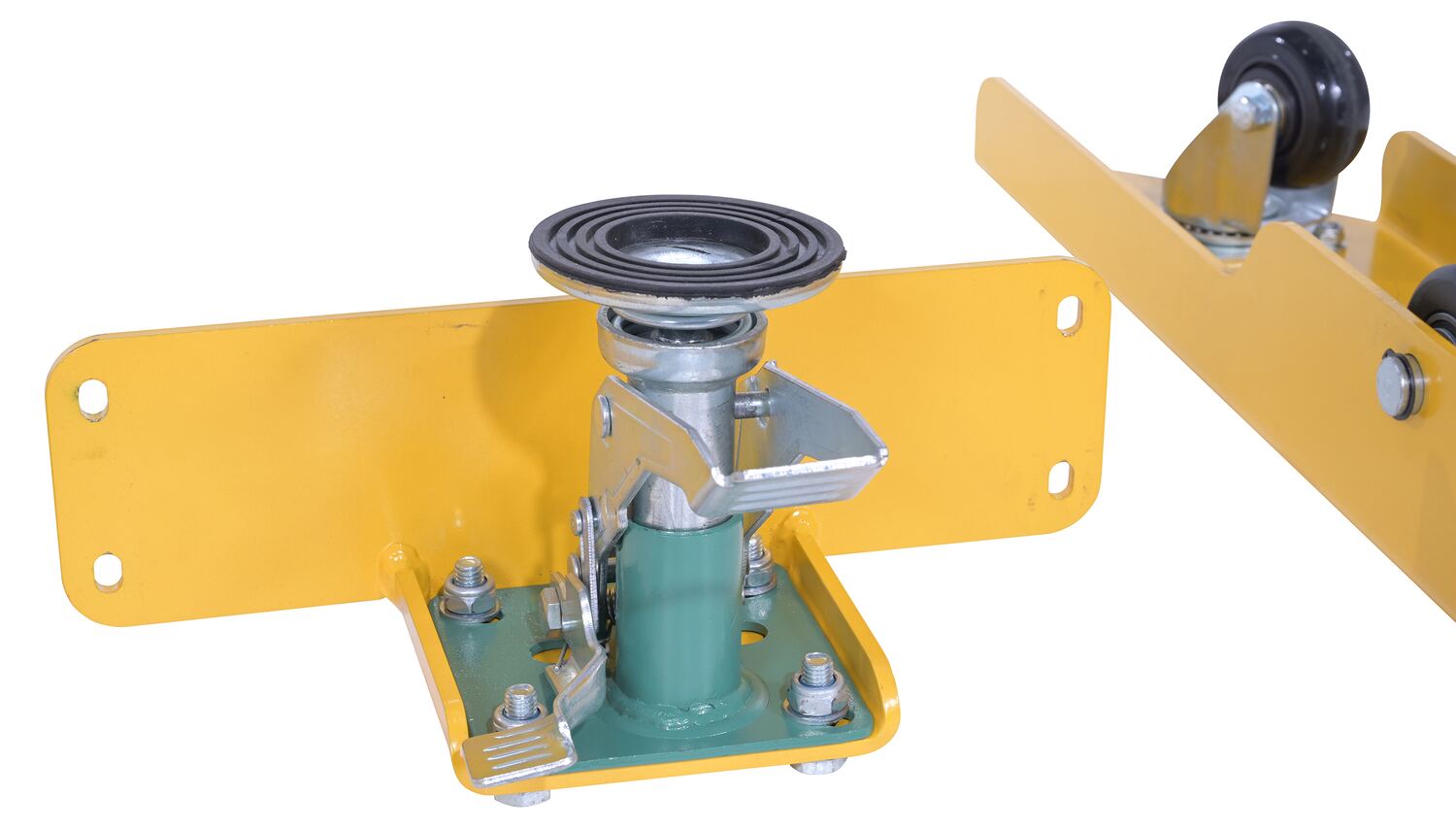

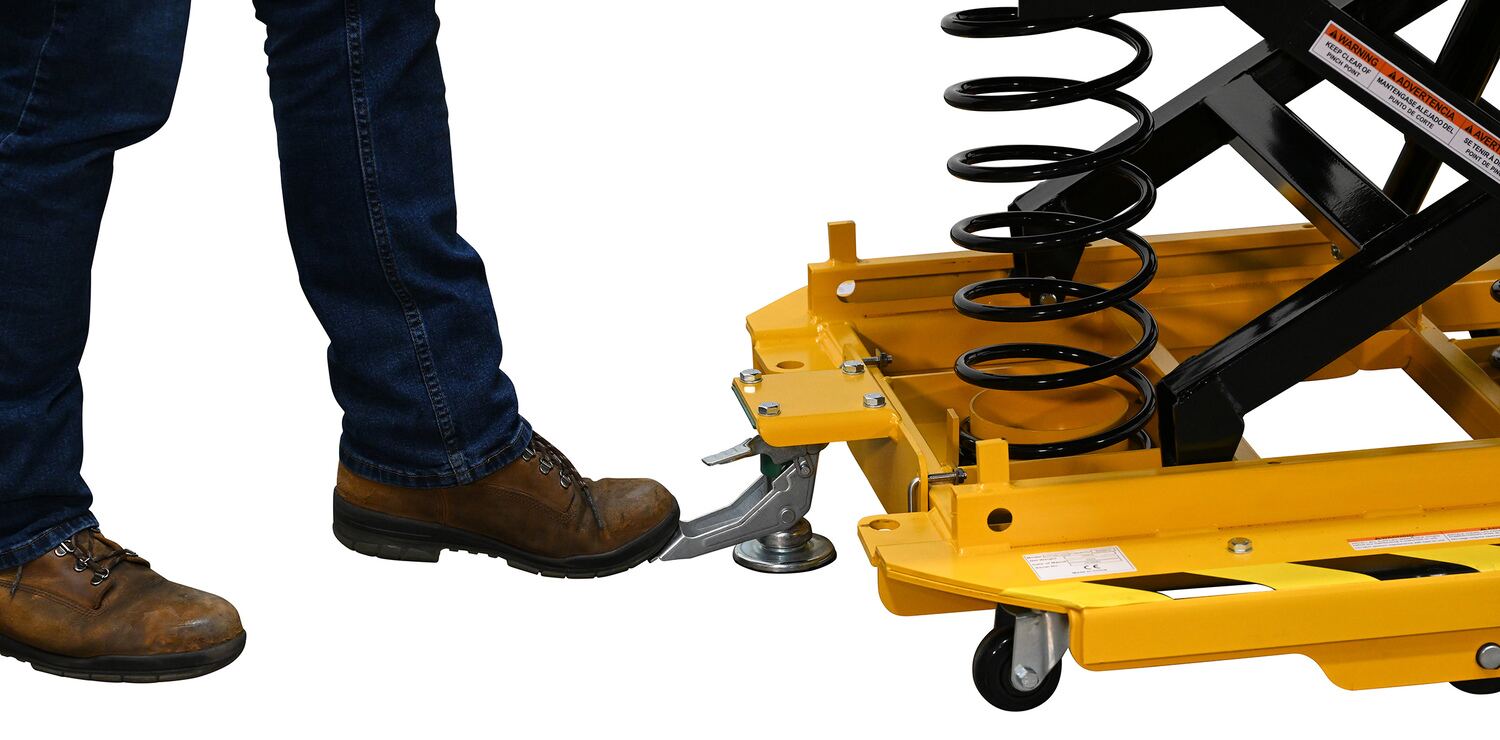

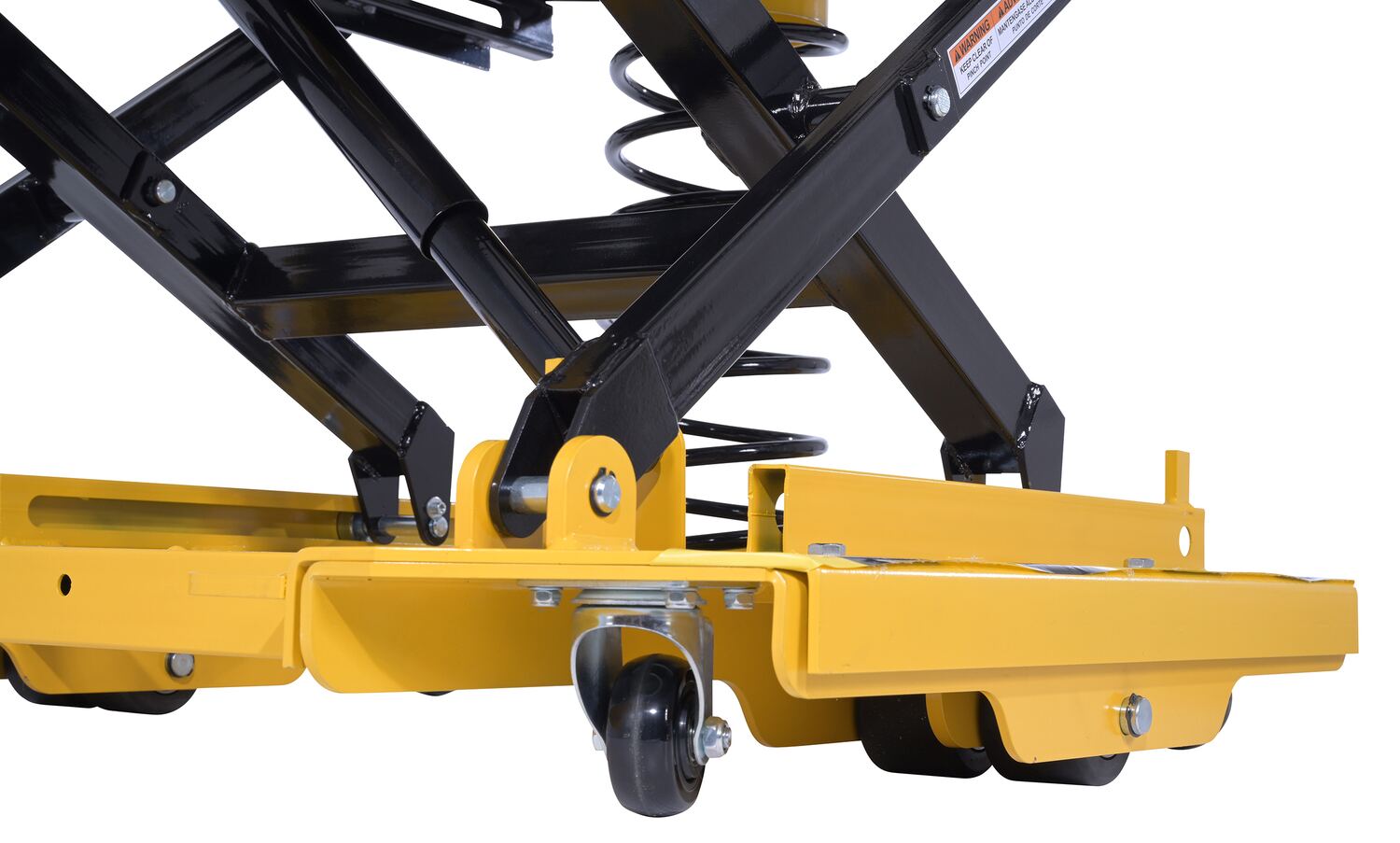

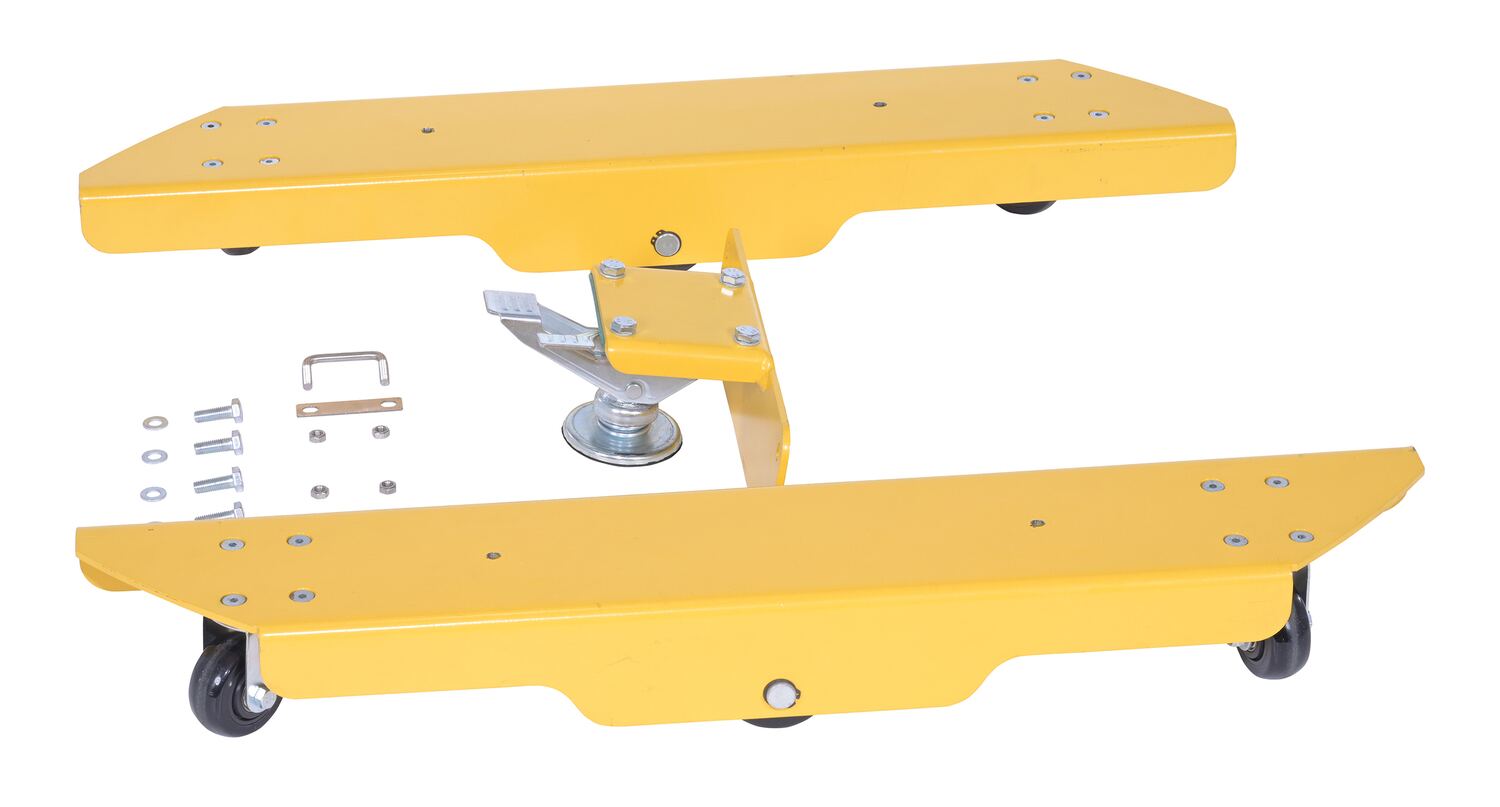

| SST-45-CK-GFN | NEW |  | 1 Year Limited Warranty | Spring Scissor Table Glass Filled Nylon Caster Kit Option 4,500 Lb. Capacity Yellow | Uniform Capacity (Lbs.): 4500 Caster Type: Glass filled nylon | 45 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Does the SST-45 have a lock to stop the top from rotating ?
A: We do not have a lock option for the SST products.
 |
|||||||||||||||||||||||||||||||||||||||||||||||
