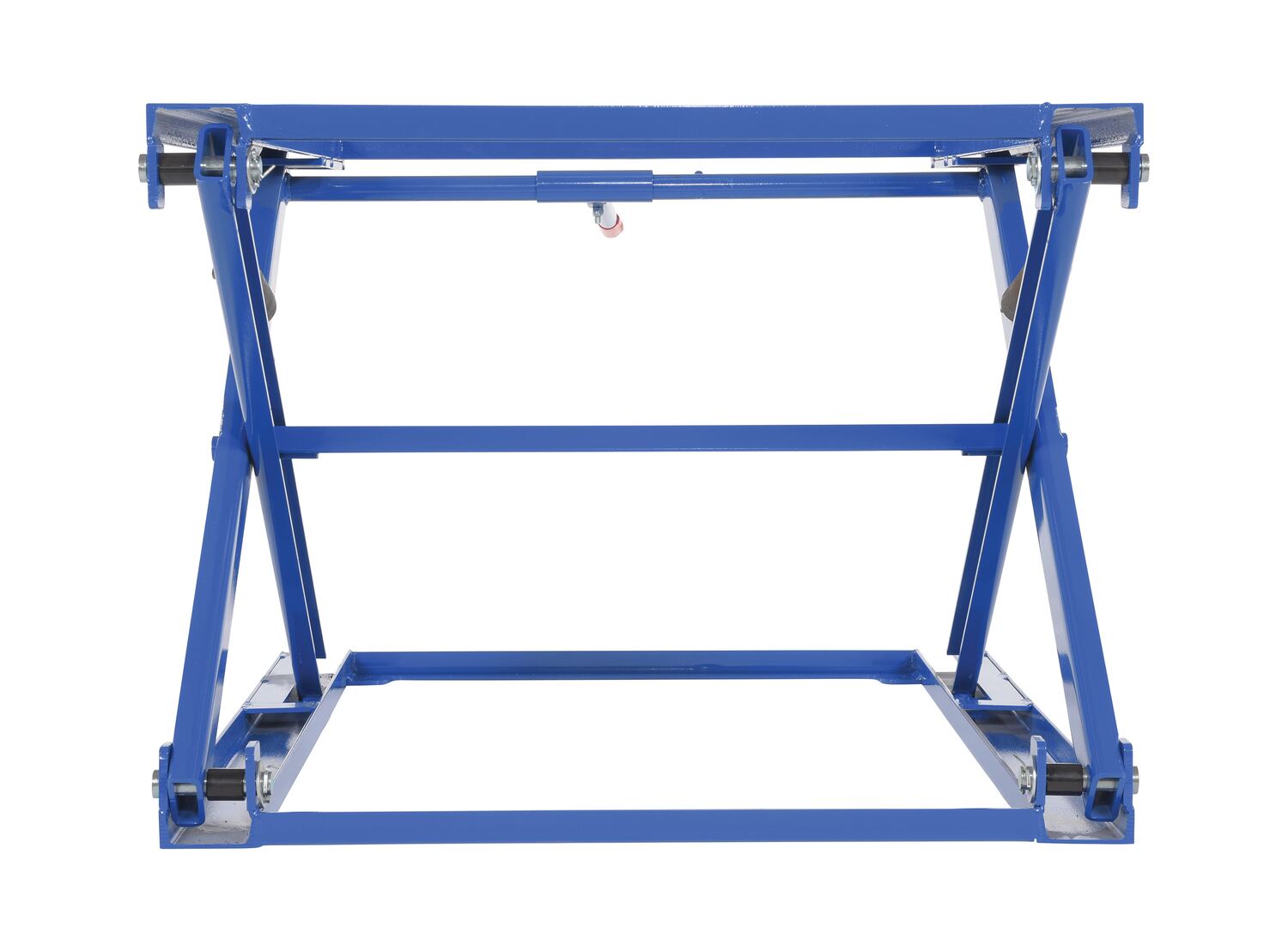

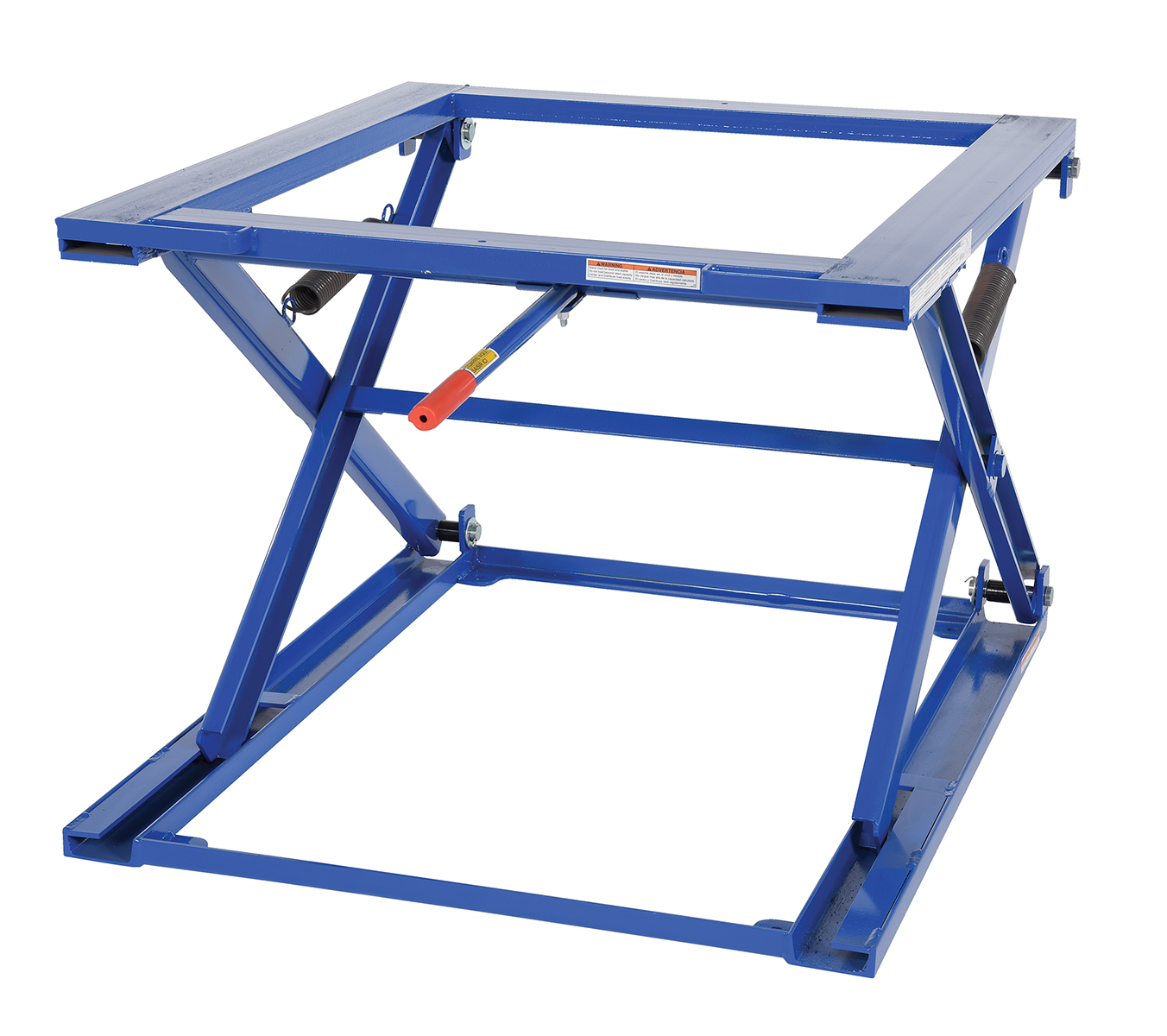

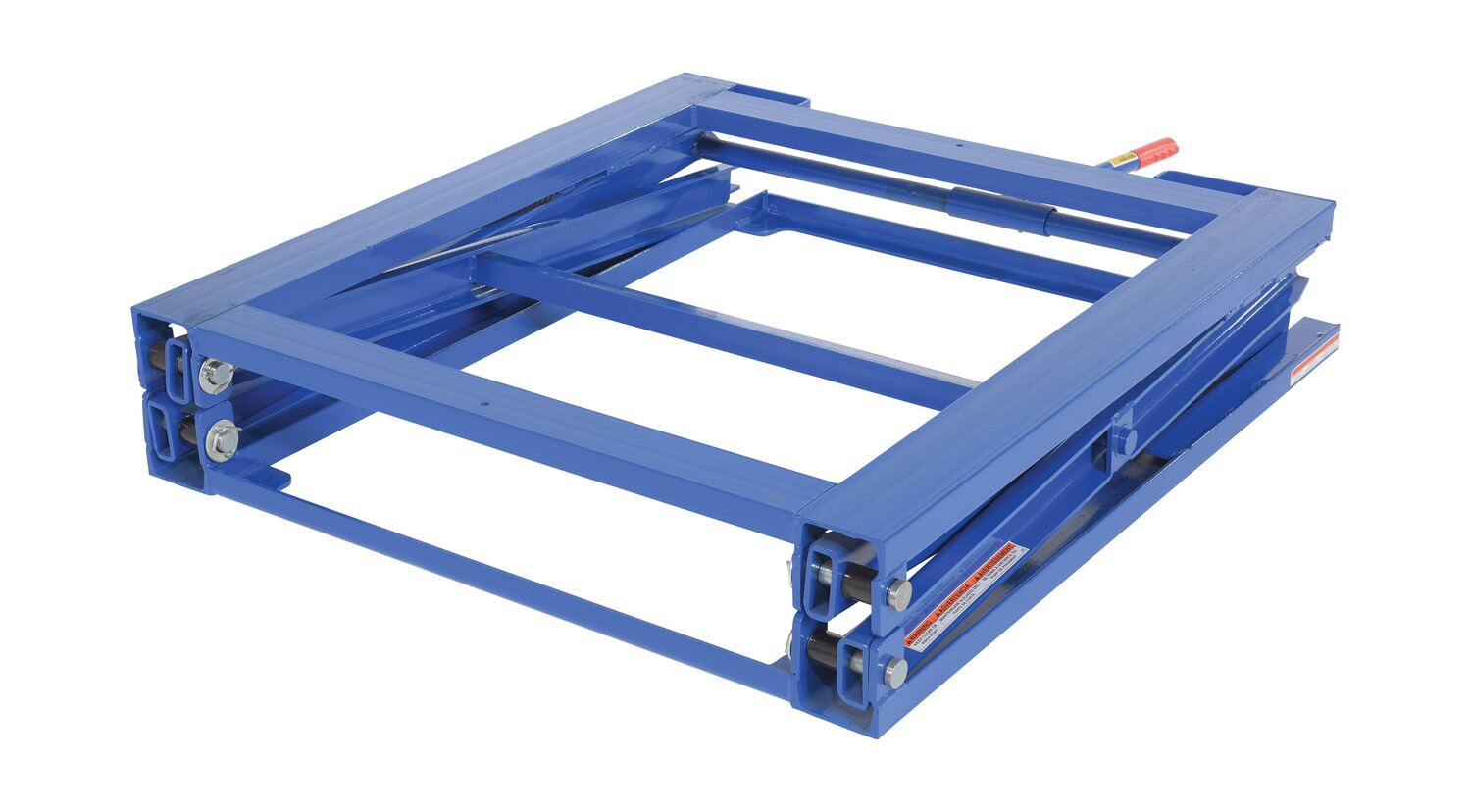

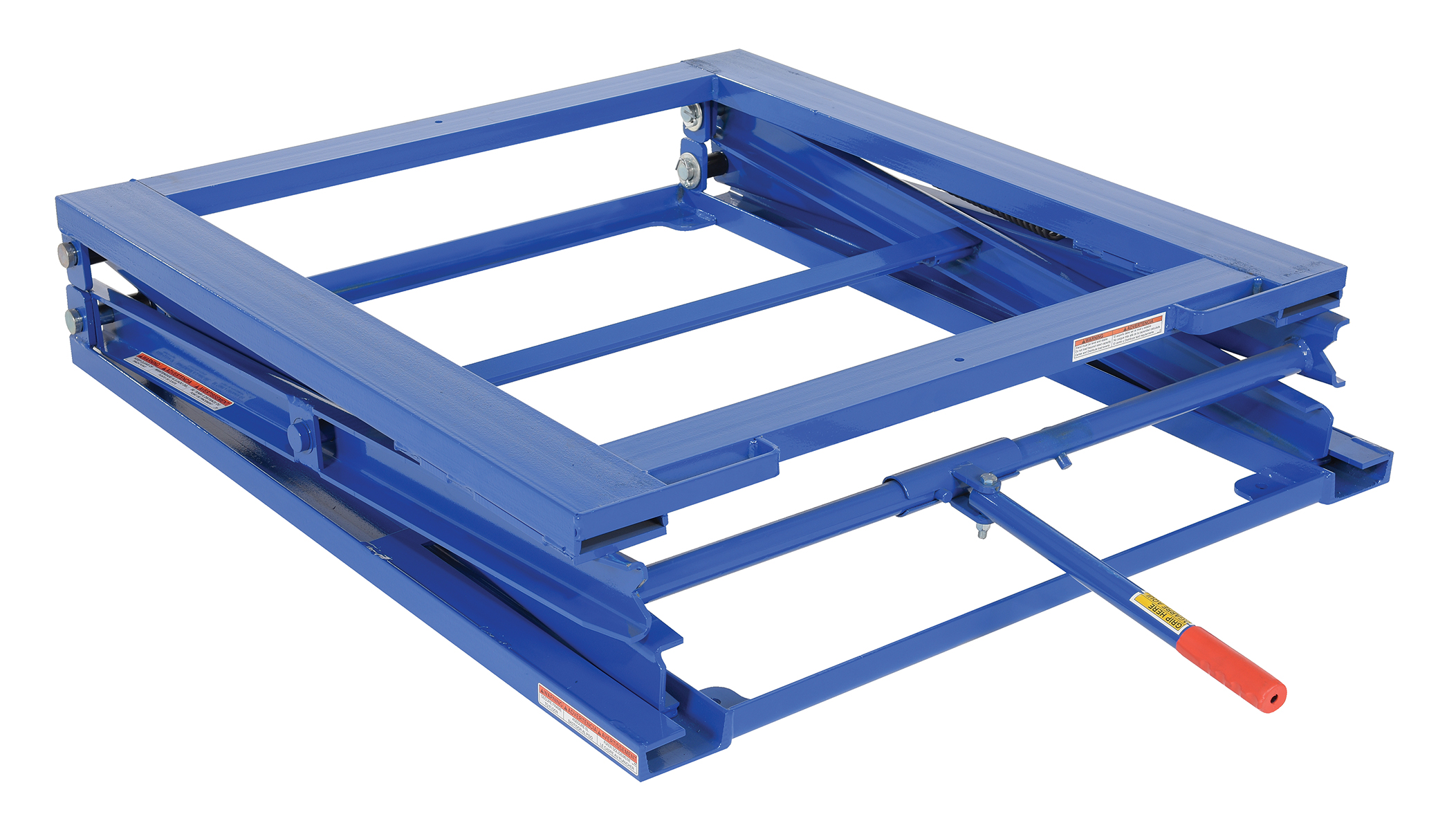

Adjustable Pallet StandsThe Adjustable Height Pallet Stand is designed to manually adjust to three different ergonomic working heights. Unit includes a three position manual adjusting bar with spring assist to help raise and lower the deck. The Pallet Stand must be empty when adjusting the height. Unit is welded steel construction and includes a blue baked-in powder coated finish for added toughness. The optional bolt on manual carousel, suffix CA, is 40" in diameter by 2" tall and rotates 360 degrees. The caster feature, suffix CK, consists of 6" x 2" glass filled-nylon (2) rigid and (2) swivel casters with brake.
- Unique design works as a variable-height ergonomic work station

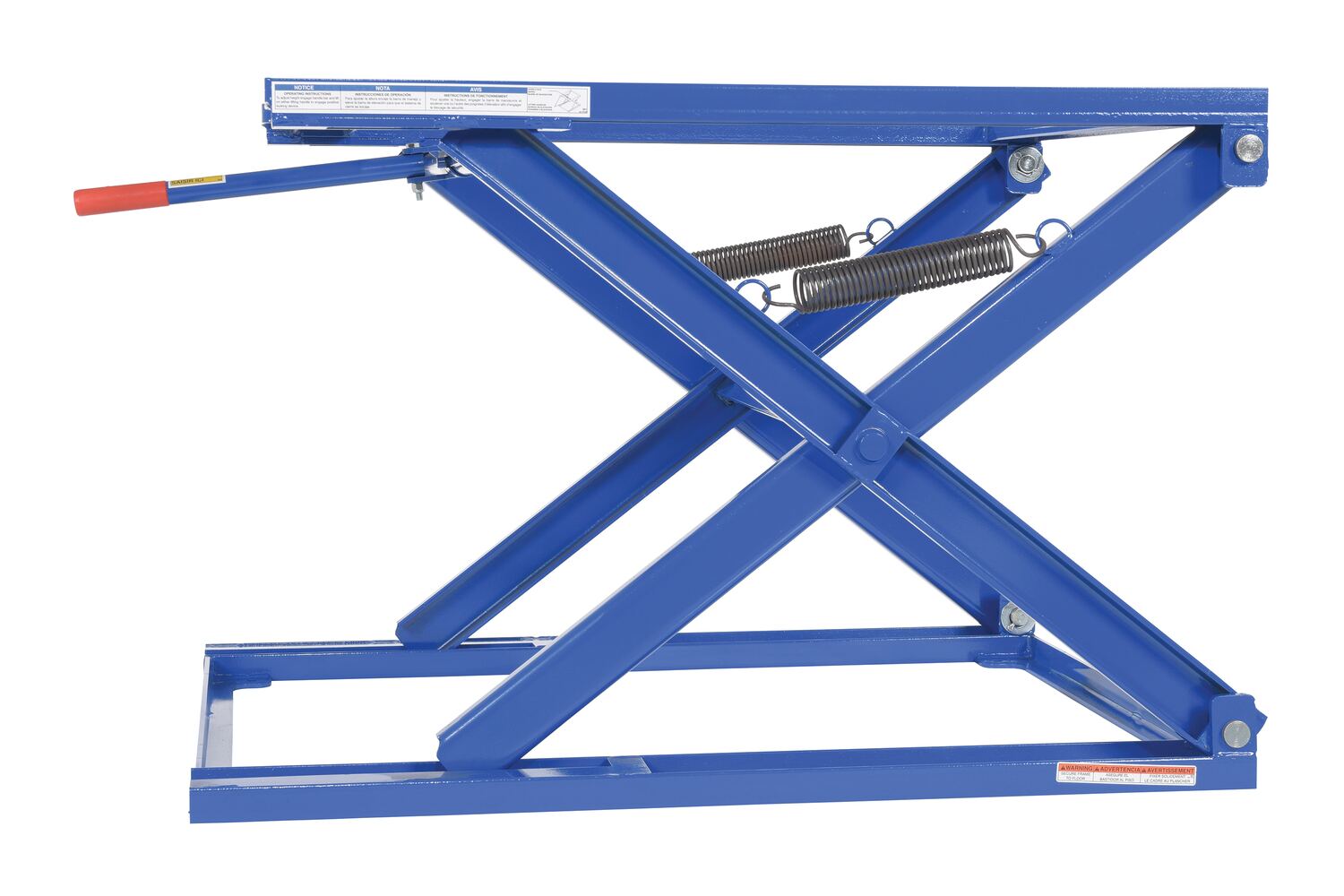

- Built-in springs assist with height adjustment
- Welded steel construction provides long lasting use
- Powder coat blue finish gives unit an attractive appearance and long lasting coat
How To Operate The Unit:
The Handle Bar has three settings. The Middle, or neutral position, for storage. The Left setting for moving the stand from storage position into the first position, and the Right setting is for moving the stand from first position to the second or third position.
- Slide Handle Bar from the Middle position either Left or Right, depending on the position needed, and lift up on lift handles.
- Once unit is at desired height put the Handle Bar back into the Middle or neutral position.

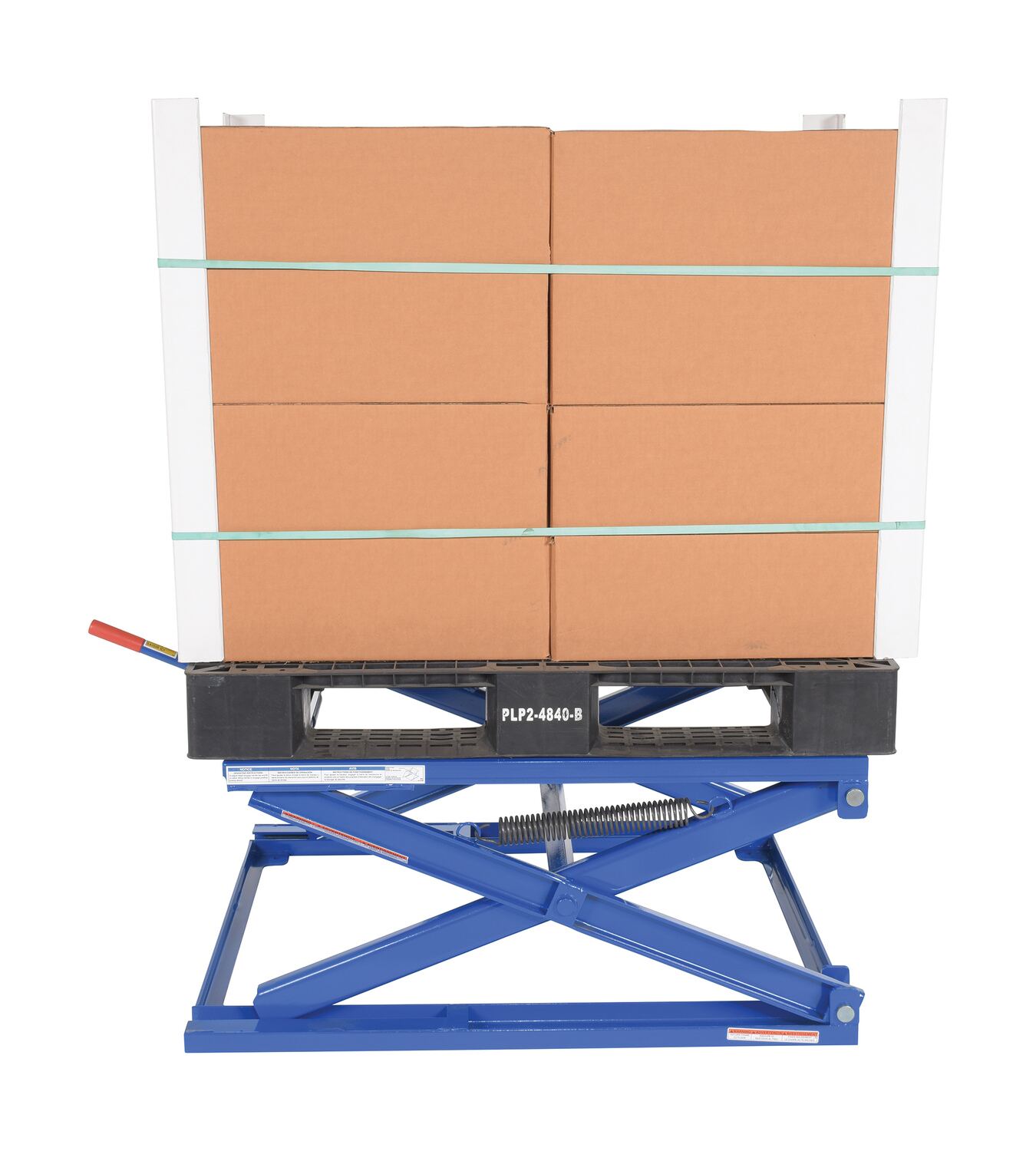

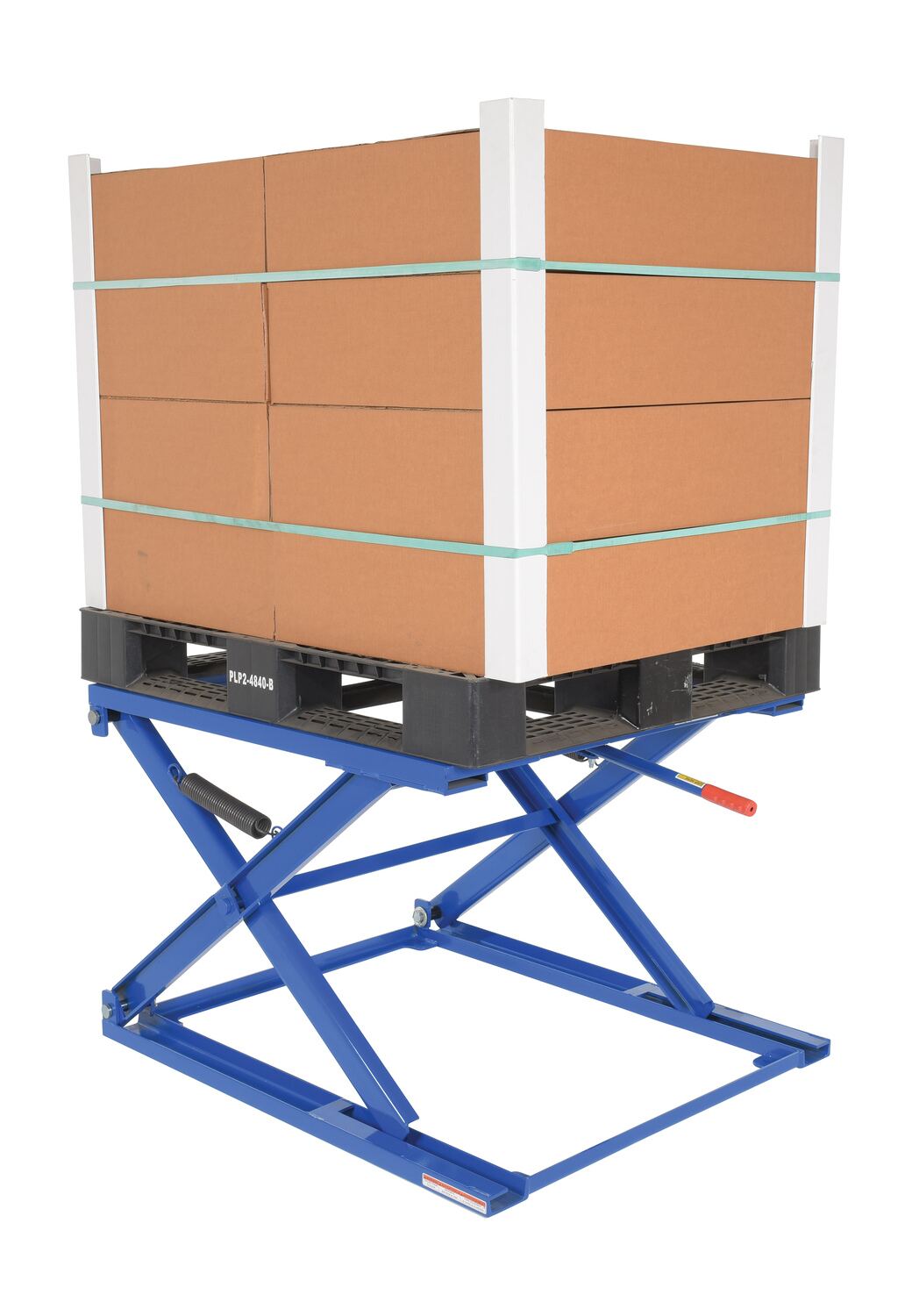

- Align/set pallet evenly onto stand.
- The pallet MUST BE REMOVED before adjusting stand to another work height.
Stainless Steel Scissor Carts
Low Profile Scissor Cart w/ Auto-Shift
Low Profile Scissor Lift Cart
Linear Actuated Elevating Carts
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

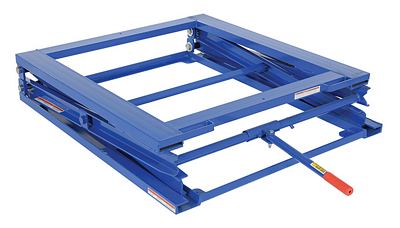

| PS-4045 | POPULAR |  | 90 Days Limited Warranty | Steel Adjustable Pallet Stand 45-3/4 In. x 40-1/2 In. x 9 In. 5000 Lb. Capacity Blue | Uniform Capacity (lb.): 5,000 Lowered Height (in.): 9 | 253 | |

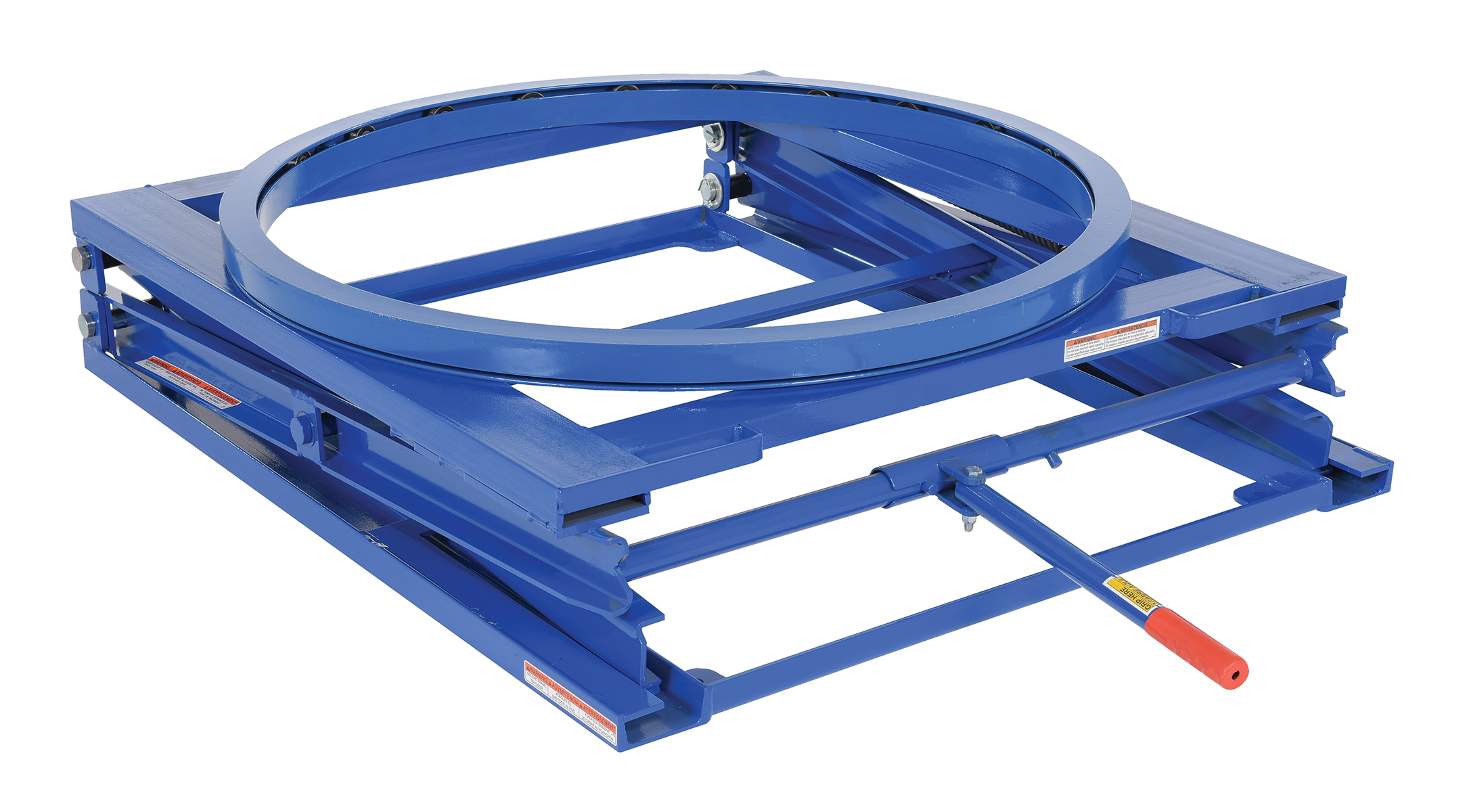

| PS-4045/CA |  | 90 Days Limited Warranty | Steel Adjustable Pallet Carousel Stand 45-3/4 In. x 40-1/2 In. x 11 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Lowered Height (in.): 11 | 312 | ||

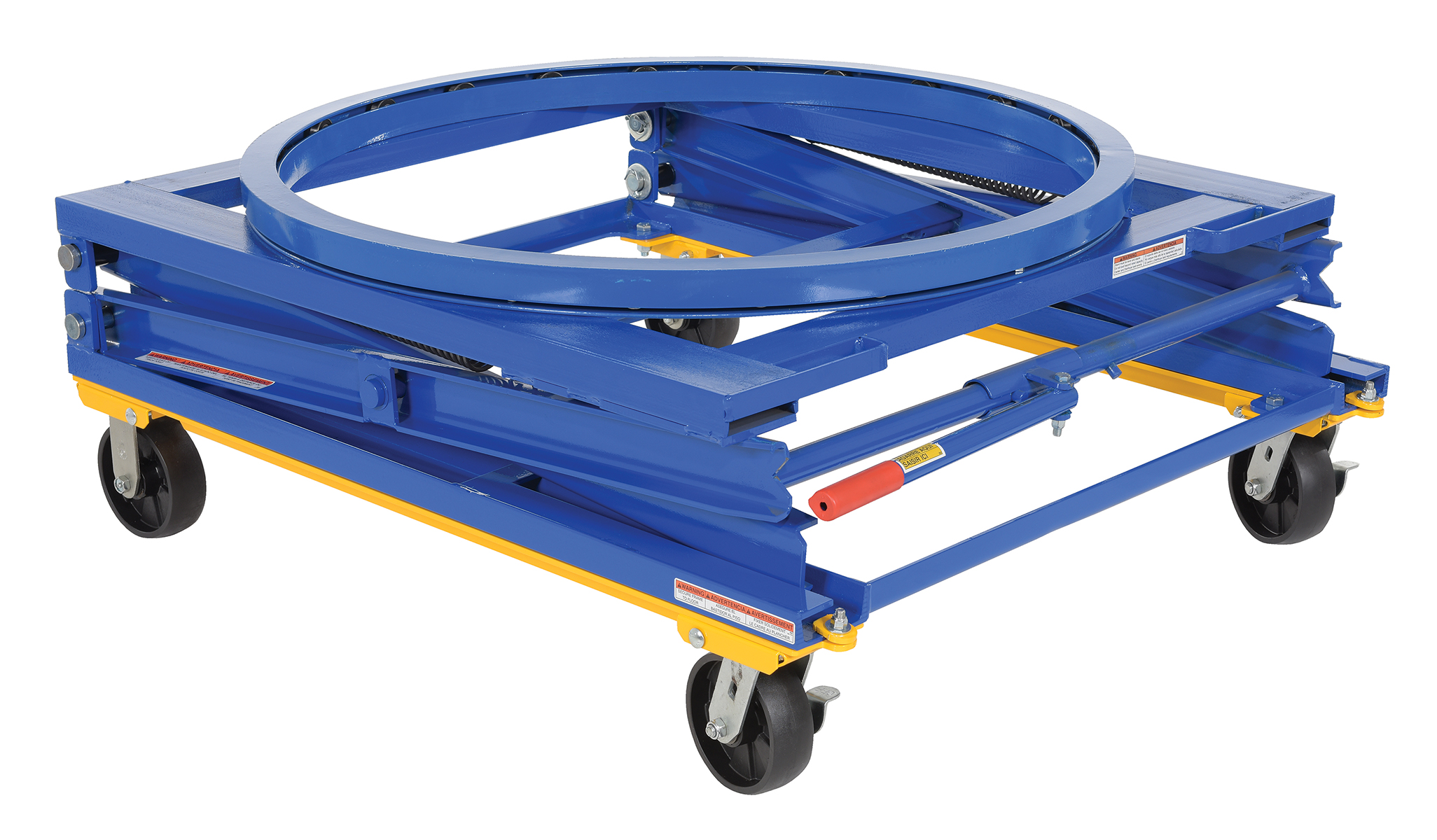

| PS-4045/CA-CK |  | 90 Days Limited Warranty | Steel Adjustable Pallet Carousel Stand with Casters 48-13/16 In. x 40-1/2 In. x 18-13/16 In. 1500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Lowered Height (in.): 18-13/16 | 333 | ||
| PS-4045-CK |  | 90 Days Limited Warranty | Steel Adjustable Pallet Stand with Casters 48-13/16 In. x 40-1/2 In. x 16-13/16 In. 1500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Lowered Height (in.): 16-13/16 | 320 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Lowered Height (in.): 9
Uniform Capacity (lb.): 5,000
Lowered Height (in.): 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Lowered Height (in.): 11
Uniform Capacity (lb.): 4,000
Lowered Height (in.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 18-13/16
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 18-13/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 16-13/16
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 16-13/16
For More Details of the Option Click the Red Model Button

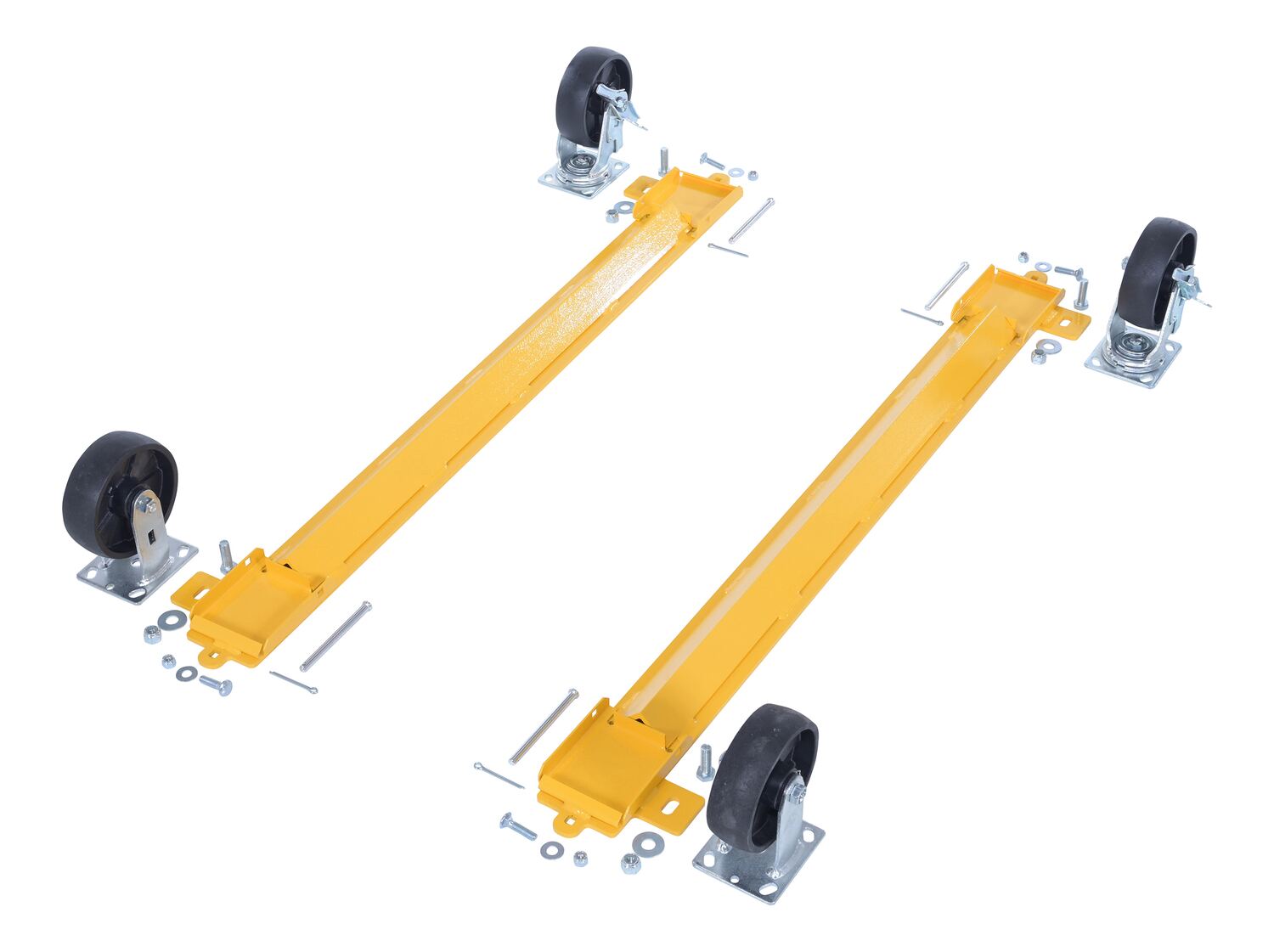

| PS-RF-CK |  | 90 Days Limited Warranty | Glass Filled Nylon Caster Kit 6 In x 2 In For Adjustable Pallet Stand Models Black / Yellow | Caster Quantity/Diameter/Width (in.): (4) 6 x 2 Caster Quantity/Type: (2) Rigid (2) Swivel with Brake | 60 |
.
