Universal Trash Can DumpersThis innovative product allows one person to easily load, maneuver, and dump heavy trash cans of various sizes. The large squared chute and hold-down fingers allow this product to dump and retain most trash cans. Works with trash cans measuring 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 27" to 50" high. Multiple operations available; 115V AC, and 12V DC power with one (1) battery and an on-board charger, battery charge indicator gauge are standard. Units roll smoothly on (2) two swivel 8" x 2" phenolic casters and (2) two rigid 8" x 2" glass filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled.
- Simple design easily dumps contents out of trash can
- Caster design makes portability convenient
- Dump heights allow user to dump trash into tall dumpsters
- Heavy duty steel construction is built to last
Manual Trash Bin Compactor
Electric/Hydraulic Box Dumpers
Trash Can CartsAdditional Models In This Family
TCD-U-48-DC
TCD-U-48-DC
TCD-U-60-DC
TCD-U-48-AC
TCD-U-60-AC
TCD-U-72-AC
TCD-U-60-AC
TCD-U-60-DC
TCD-U-48-DC
TCD-U-72-DC
TCD-U-60-DC
TCD-U-60-AC
TCD-U-60-DC
TCD-U-48-DC
TCD-U-60-AC
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

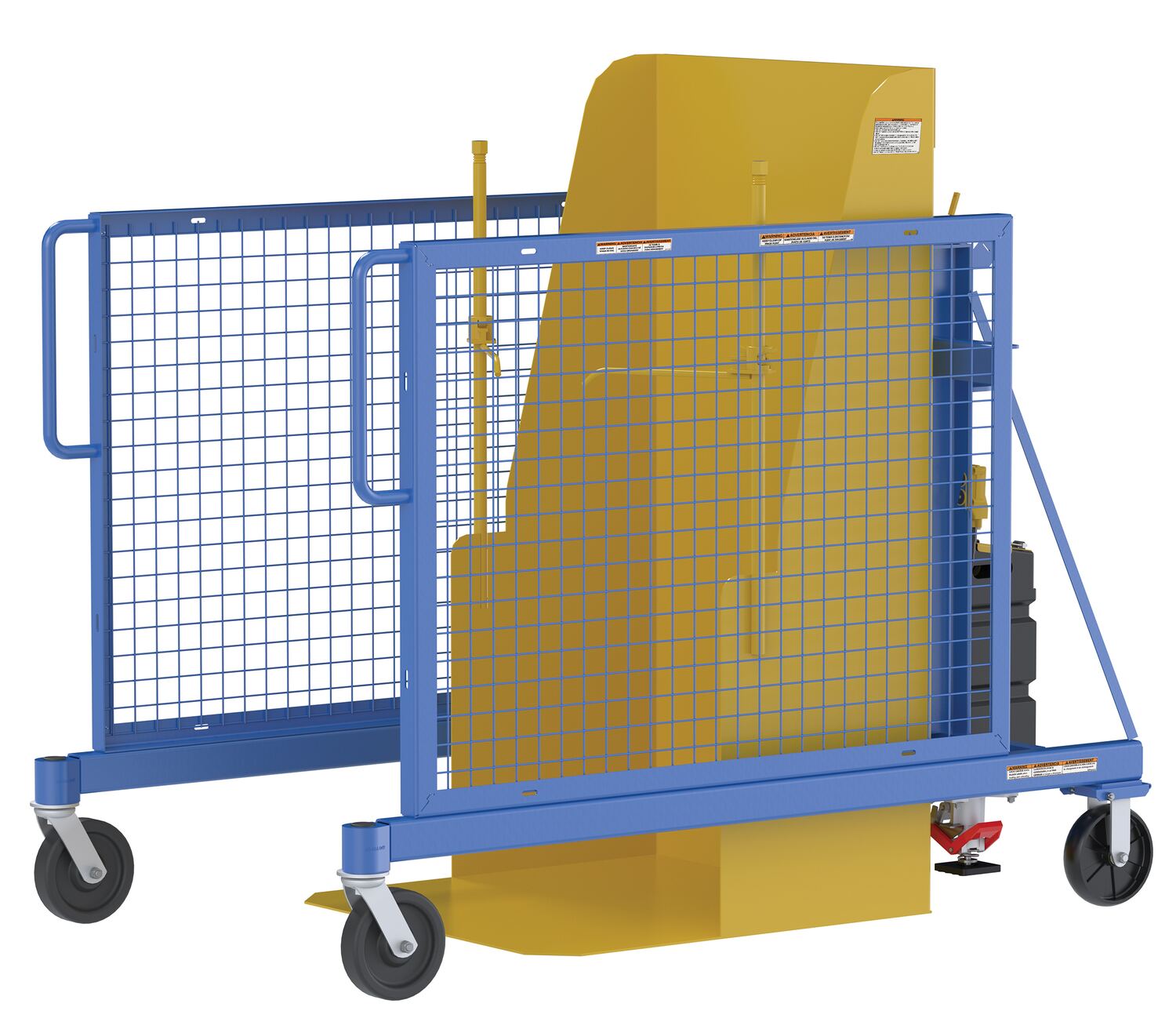

| TCD-U-48-AC | POPULAR | | 1 Year Limited Warranty | Steel Universal AC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / Yellow | Uniform Capacity (lb.): 400 Maximum Dump Height (in.): 48 | 888 | |

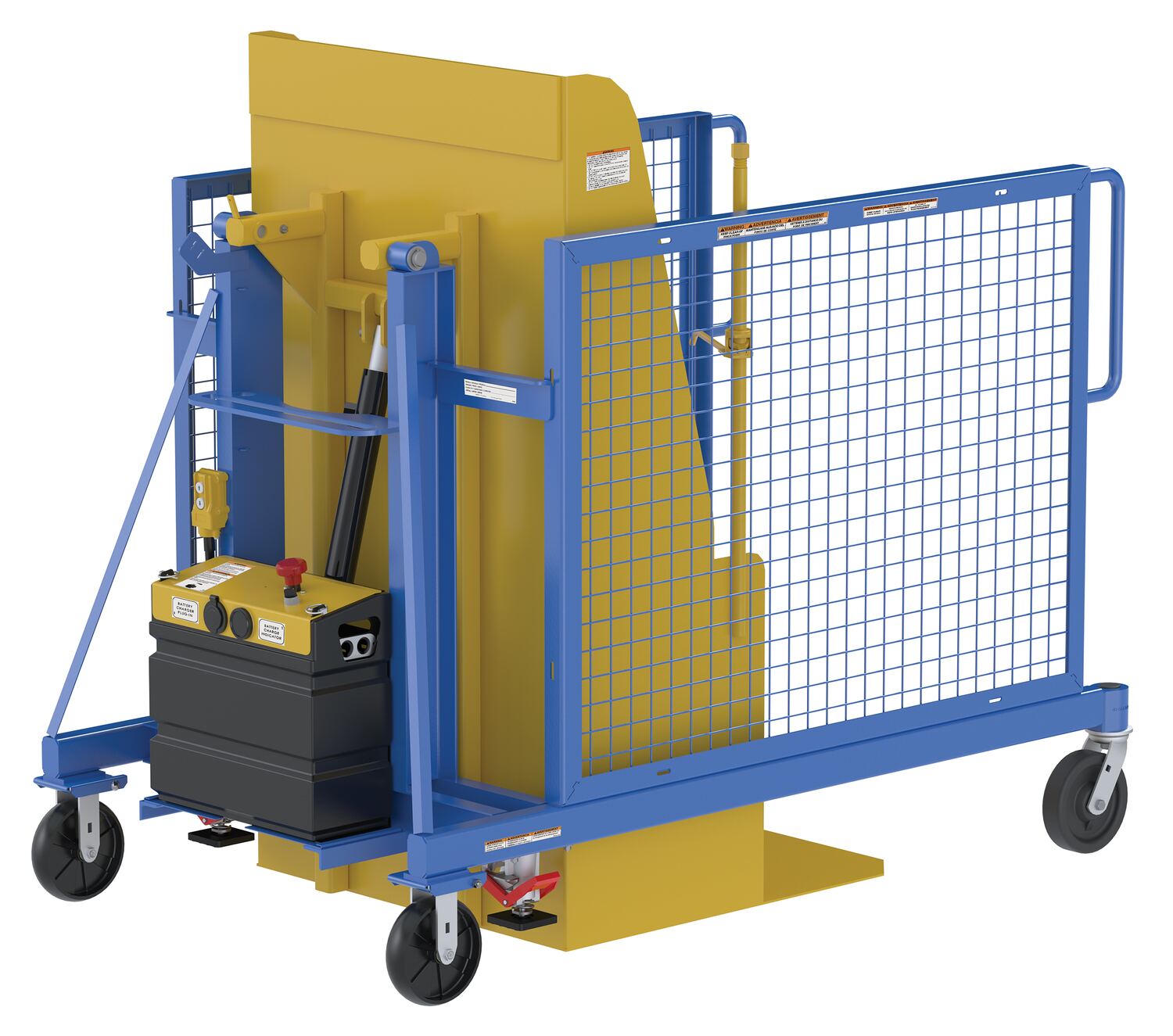

| TCD-U-48-DC | | 1 Year Limited Warranty | Steel Universal DC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / Yellow | Uniform Capacity (lb.): 400 Maximum Dump Height (in.): 48-1/4 | 908 | ||

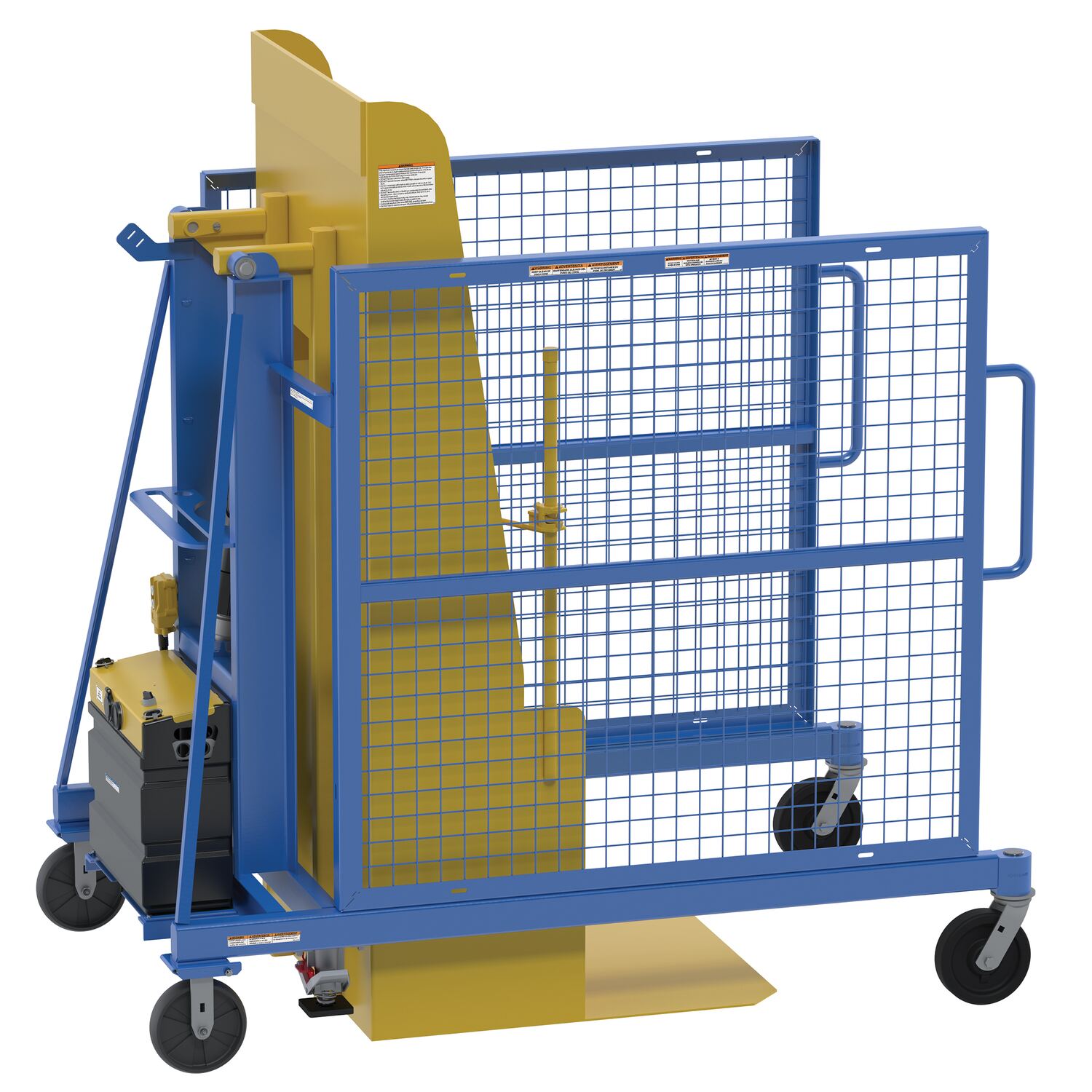

| TCD-U-60-AC | | | 1 Year Limited Warranty | Steel Universal AC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / Yellow | Uniform Capacity (lb.): 400 Maximum Dump Height (in.): 59-15/16 | 864 | |

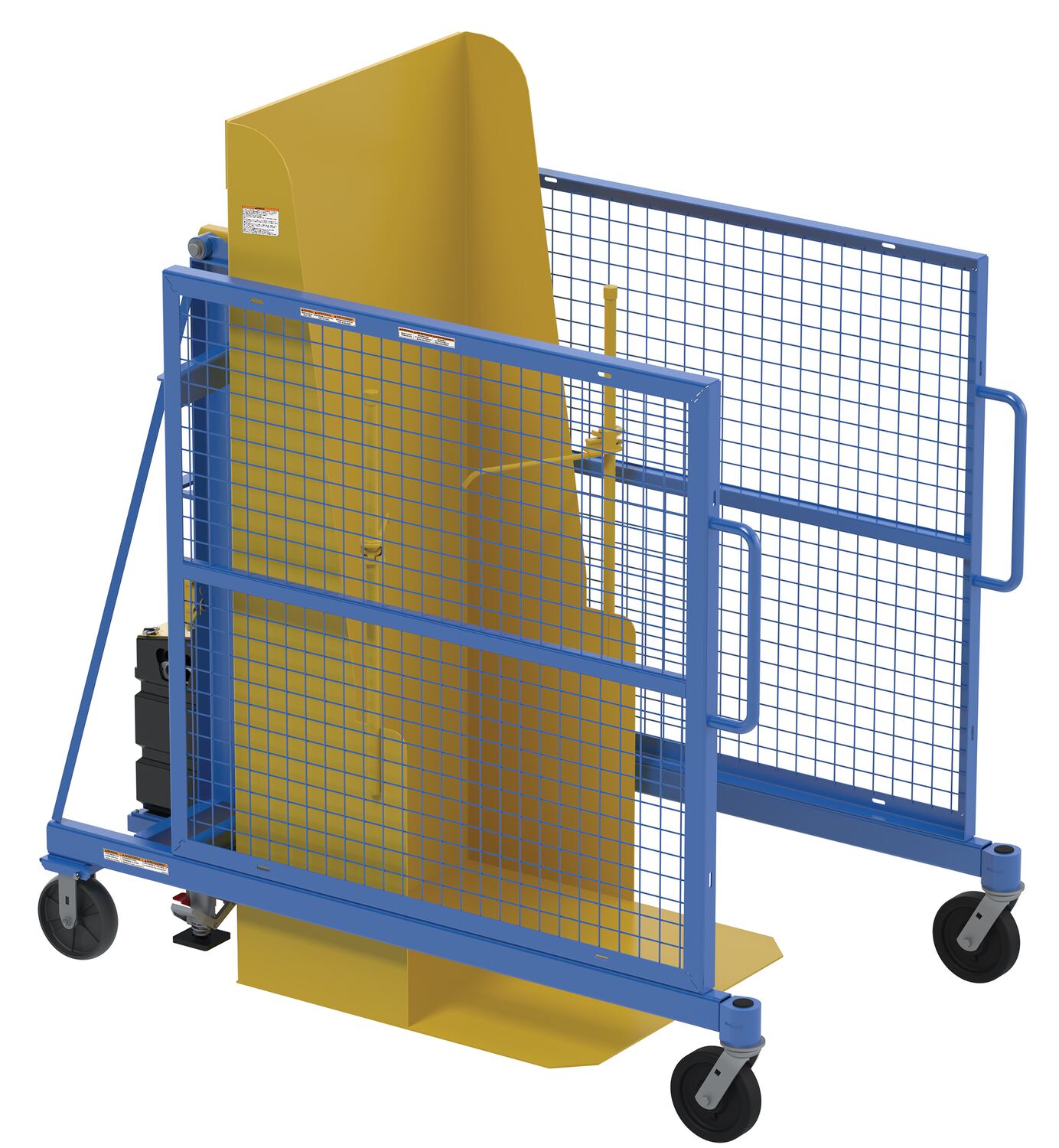

| TCD-U-60-DC | | 1 Year Limited Warranty | Steel Universal DC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / Yellow | Uniform Capacity (lb.): 400 Maximum Dump Height (in.): 59-13/16 | 942 | ||

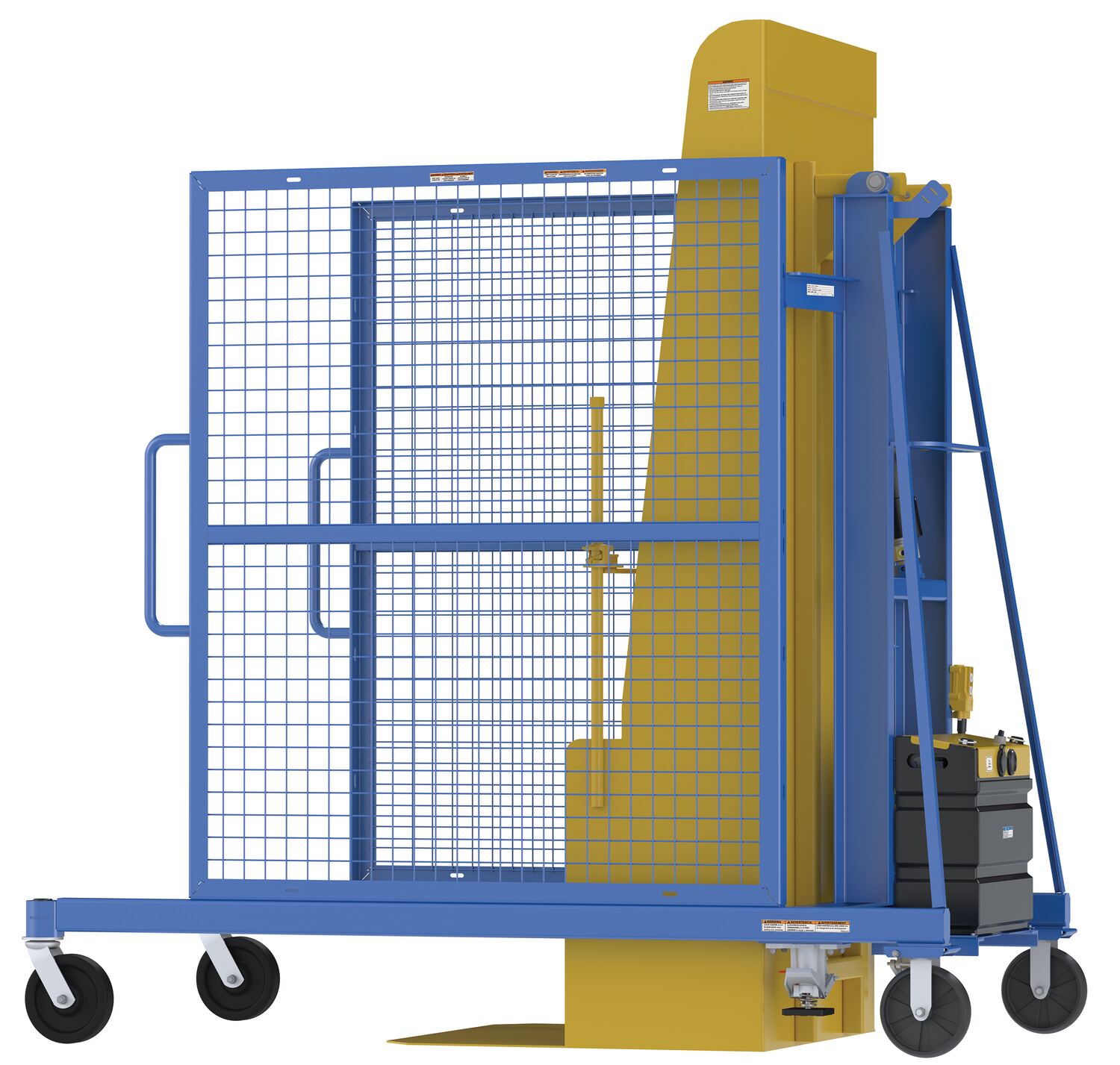

| TCD-U-72-AC | | | 1 Year Limited Warranty | Steel Universal AC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / Yellow | Uniform Capacity (lb.): 400 Maximum Dump Height (in.): 71-15/16 | 991 | |

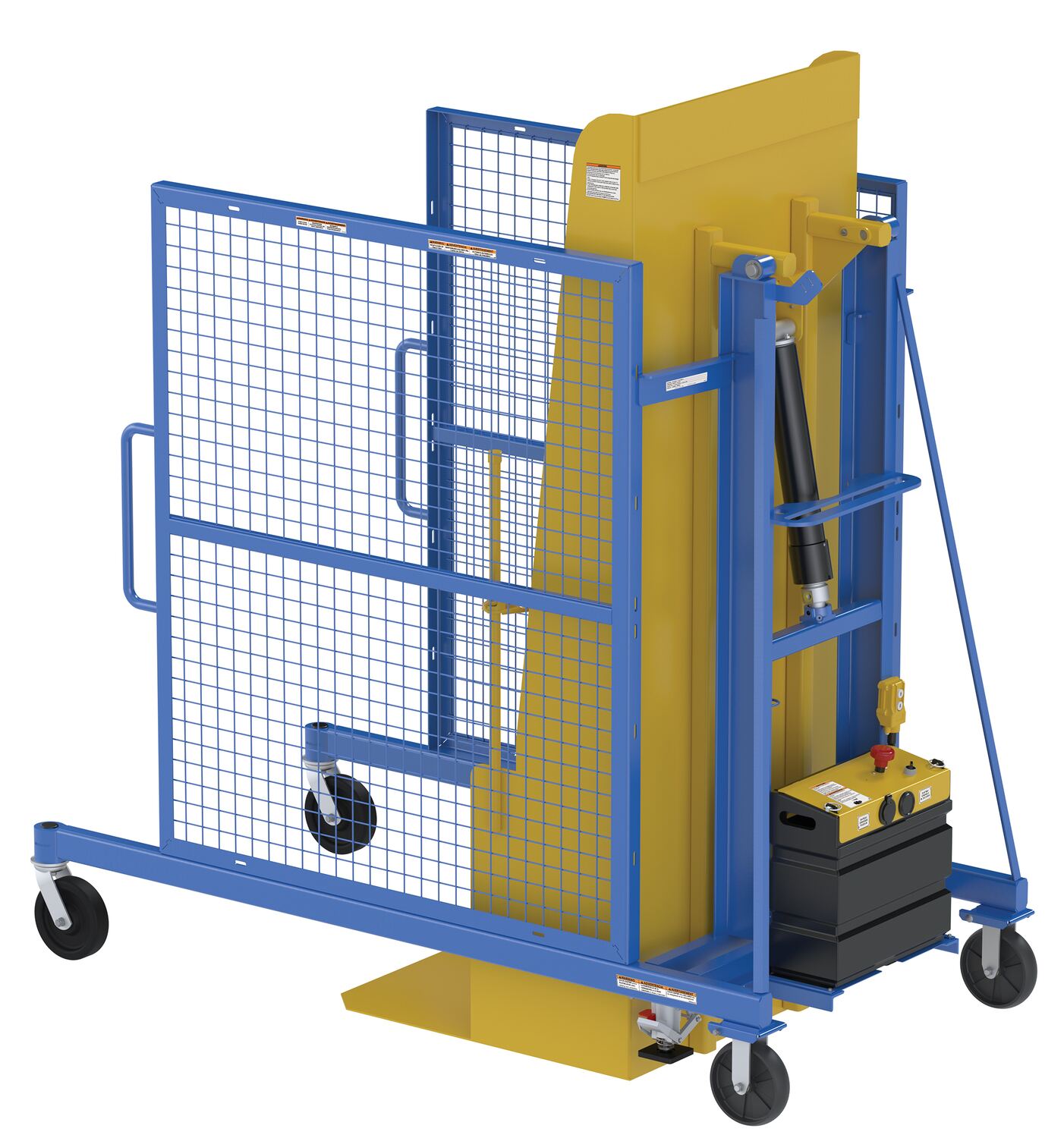

| TCD-U-72-DC | | 1 Year Limited Warranty | Steel Universal DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / Yellow | Uniform Capacity (lb.): 400 Maximum Dump Height (in.): 71-15/16 | 1071 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-1/4
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-15/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-15/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
For More Details of the Option Click the Red Model Button
| HCP-2642 |  |
Optional Hand Control Pedestal |
| MBC-1513-14 |  |
Manual Trash Bin Compactor |
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: TCD-U-48-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-U-48-DC
Hydraulic Oil SDS Sheet for: TCD-U-48-DC
Hydraulic Oil SDS Sheet for: TCD-U-60-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-U-60-DC
Hydraulic Oil SDS Sheet for: TCD-U-60-DC
Hydraulic Oil SDS Sheet for: TCD-U-72-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-U-72-DC
Hydraulic Oil SDS Sheet for: TCD-U-72-DC
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the cycle time for the TCD-U-48-DC or the TCD-U-60-DC?
A: Speed is approximately 35 seconds to raise and 35 seconds to lower.
Q: How long does it take to charge the battery for the TCD-U-48-DC or the TCD-U-60-DC?
A: It takes approximately 6-8 hours to charge the battery.
Q: How long does the battery last on the TCD-U-48-DC or the TCD-U-60-DC?
A: Under normal conditions, the battery will last approximately 3.5 hours when raised every 5 minutes. The battery will last approximately 7.5 hours when raised every 10 minutes.
 |
|||||||||||||||||||||||||||||||||||||
Universal Trash Can Dumpers |
|||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||
This innovative product allows one person to easily load, maneuver, and dump heavy trash cans of various sizes. The large squared chute and hold-down fingers allow this product to dump and retain most trash cans. Works with trash cans measuring 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 27" to 50" high. Multiple operations available; 115V AC, and 12V DC power with one (1) battery and an on-board charger, battery charge indicator gauge are standard. Units roll smoothly on (2) two swivel 8" x 2" phenolic casters and (2) two rigid 8" x 2" glass filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled.
|
|||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
