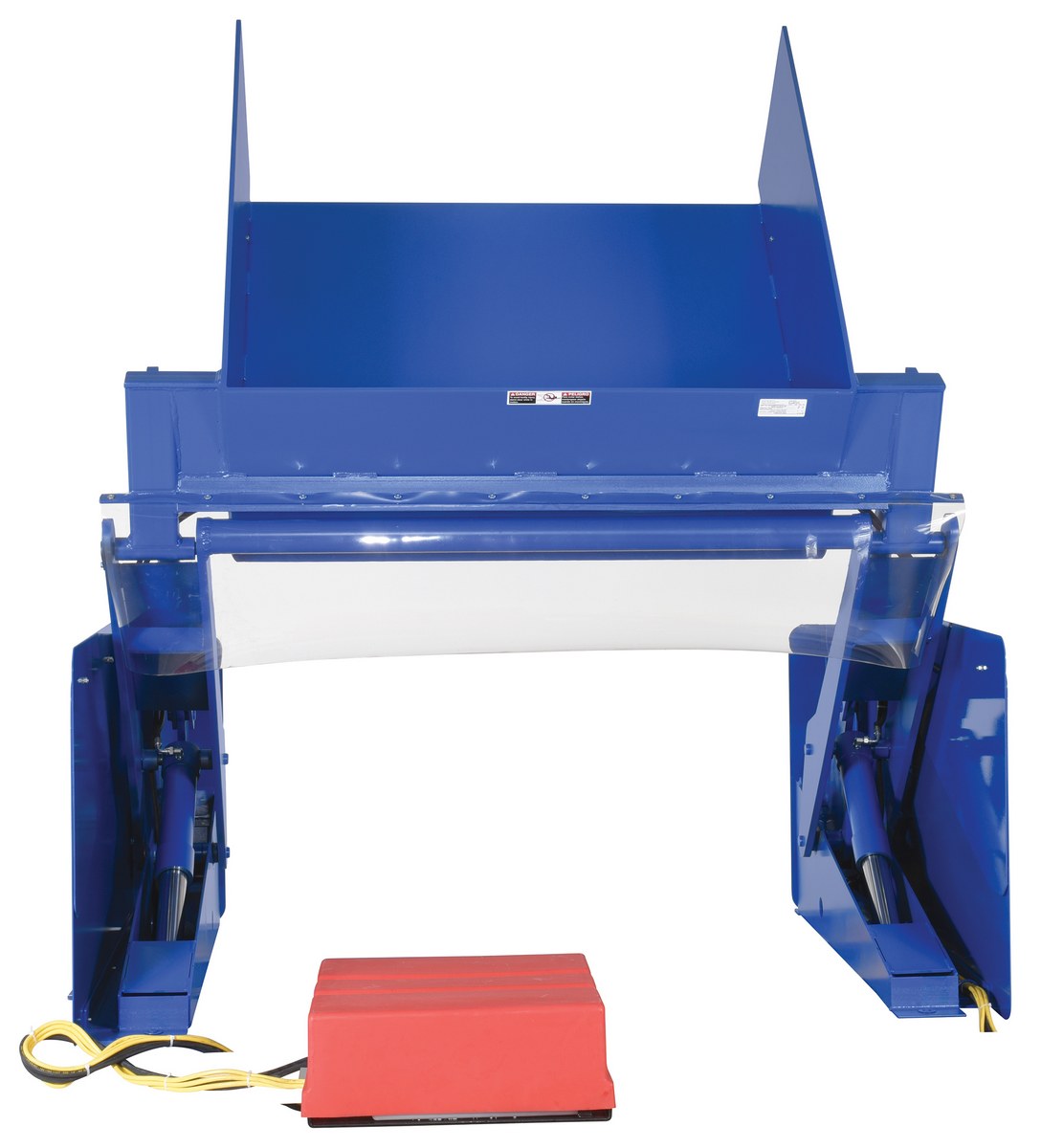

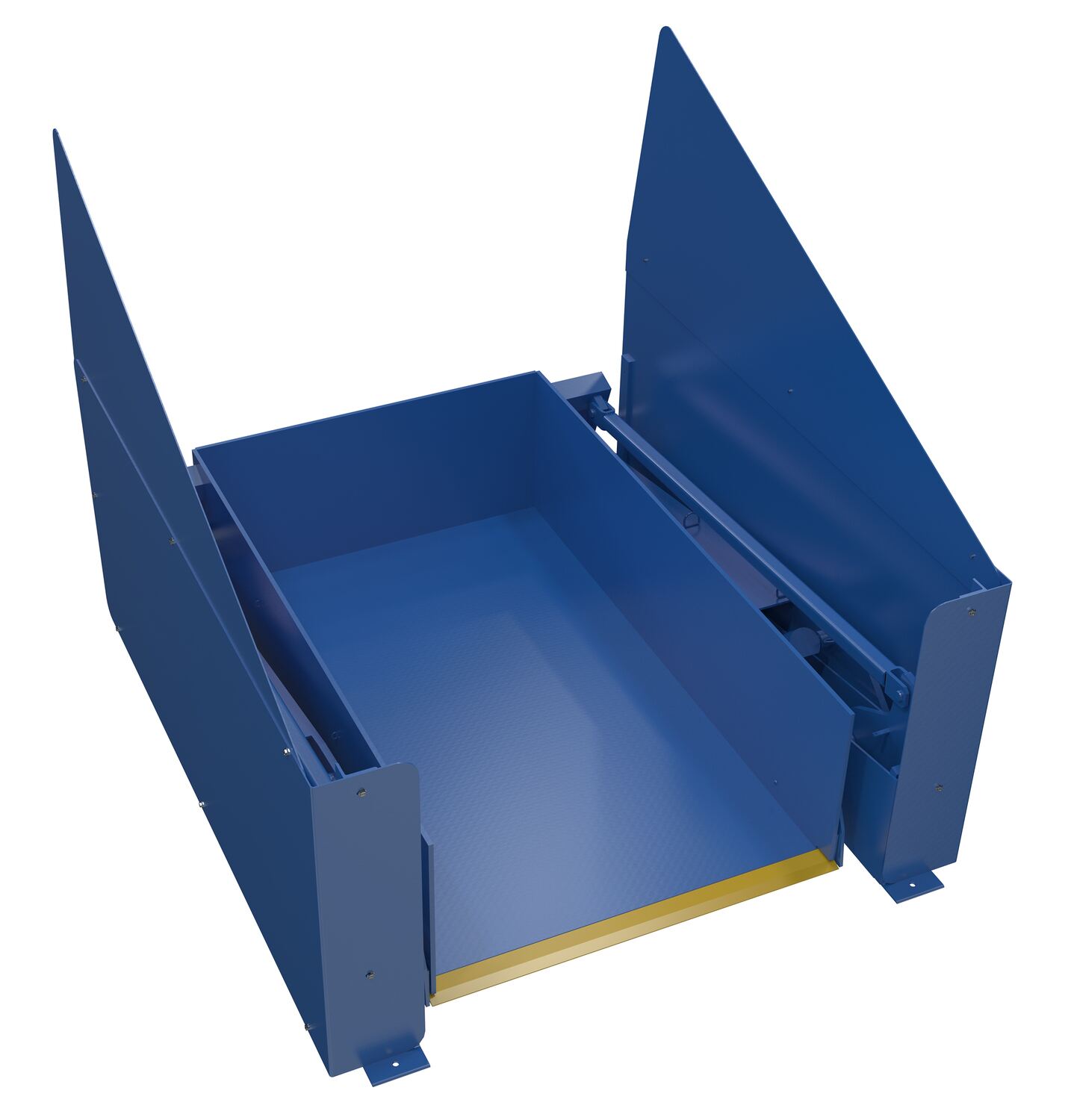

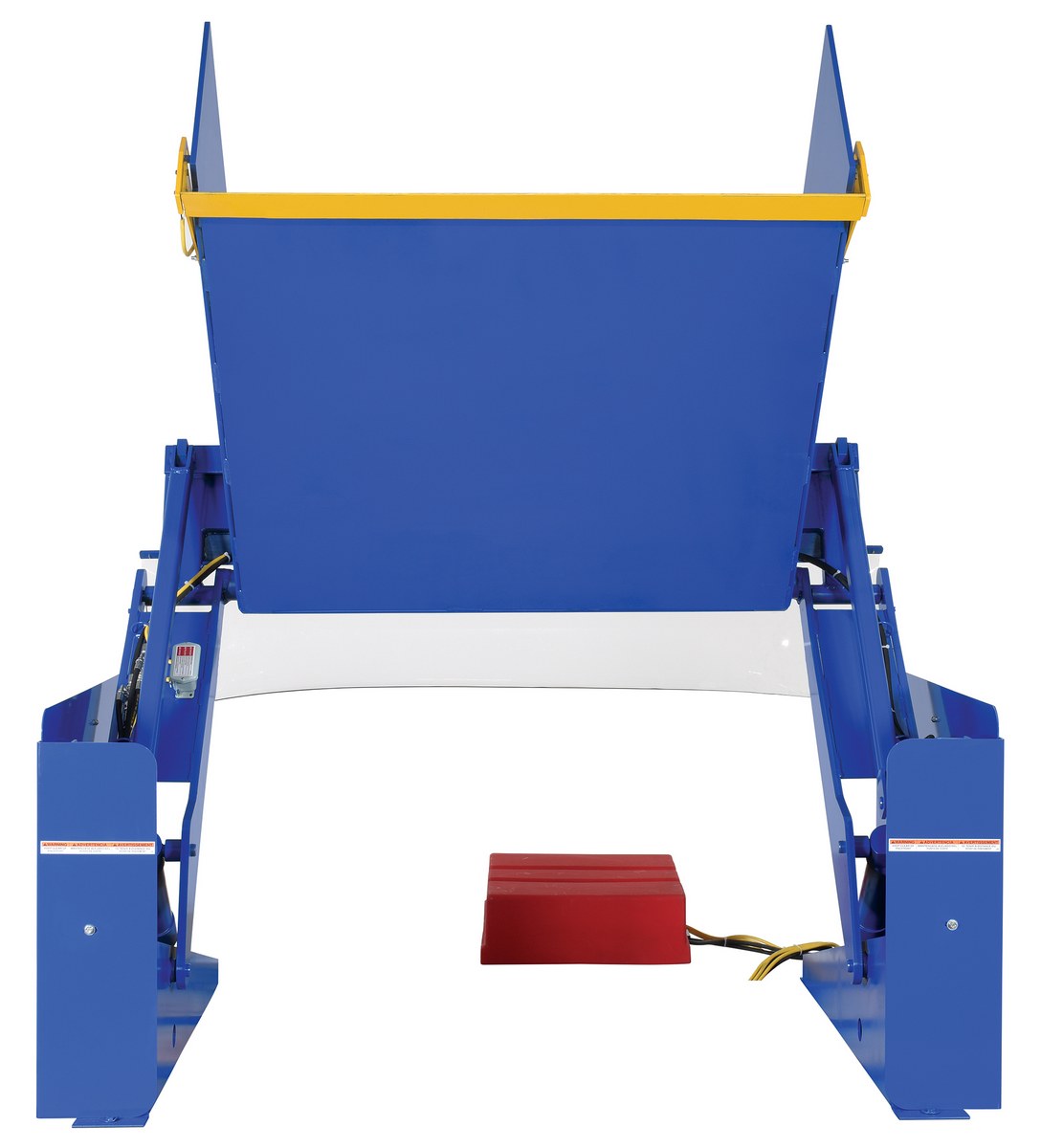

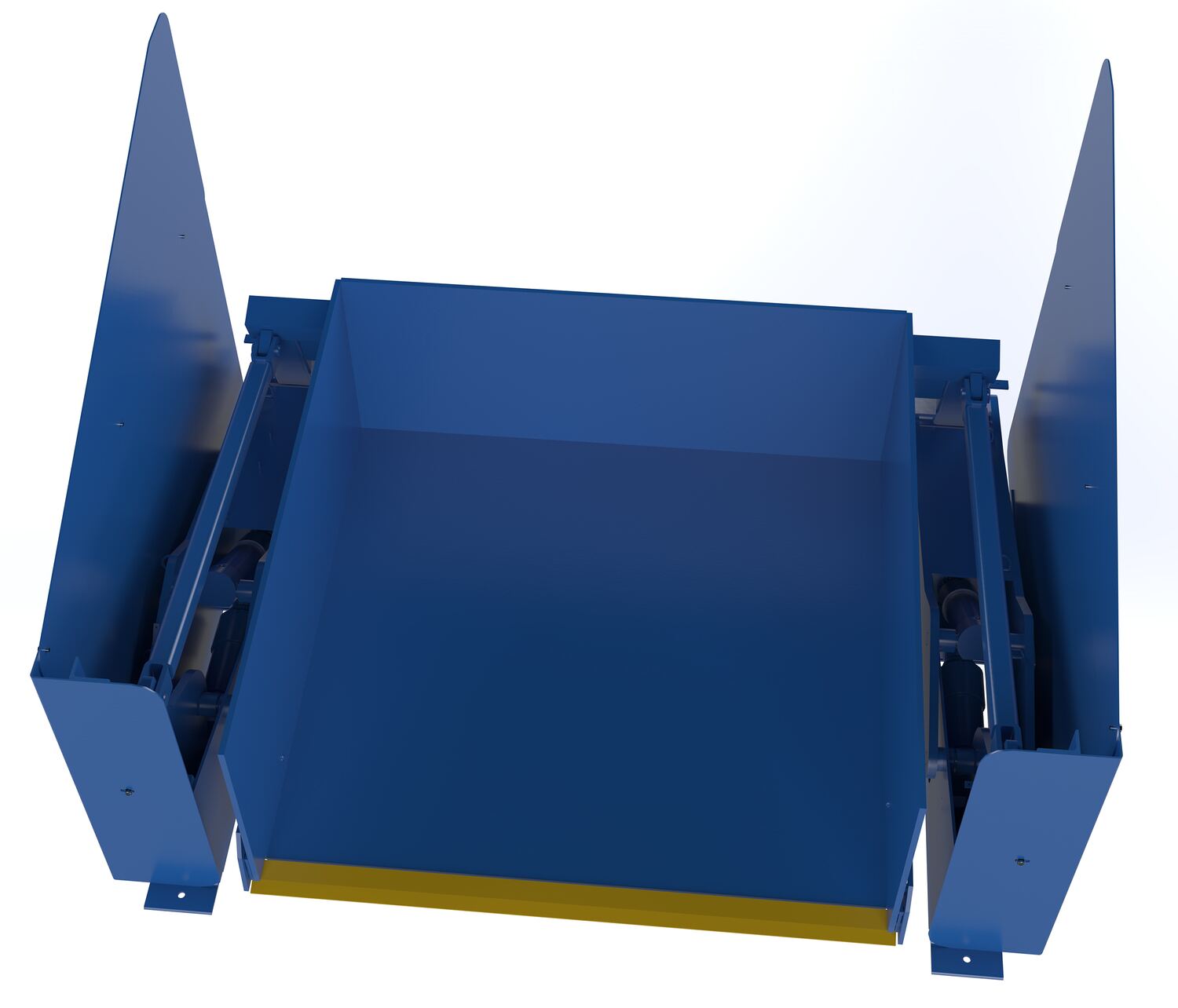

Zero Lift & Tilt Tables

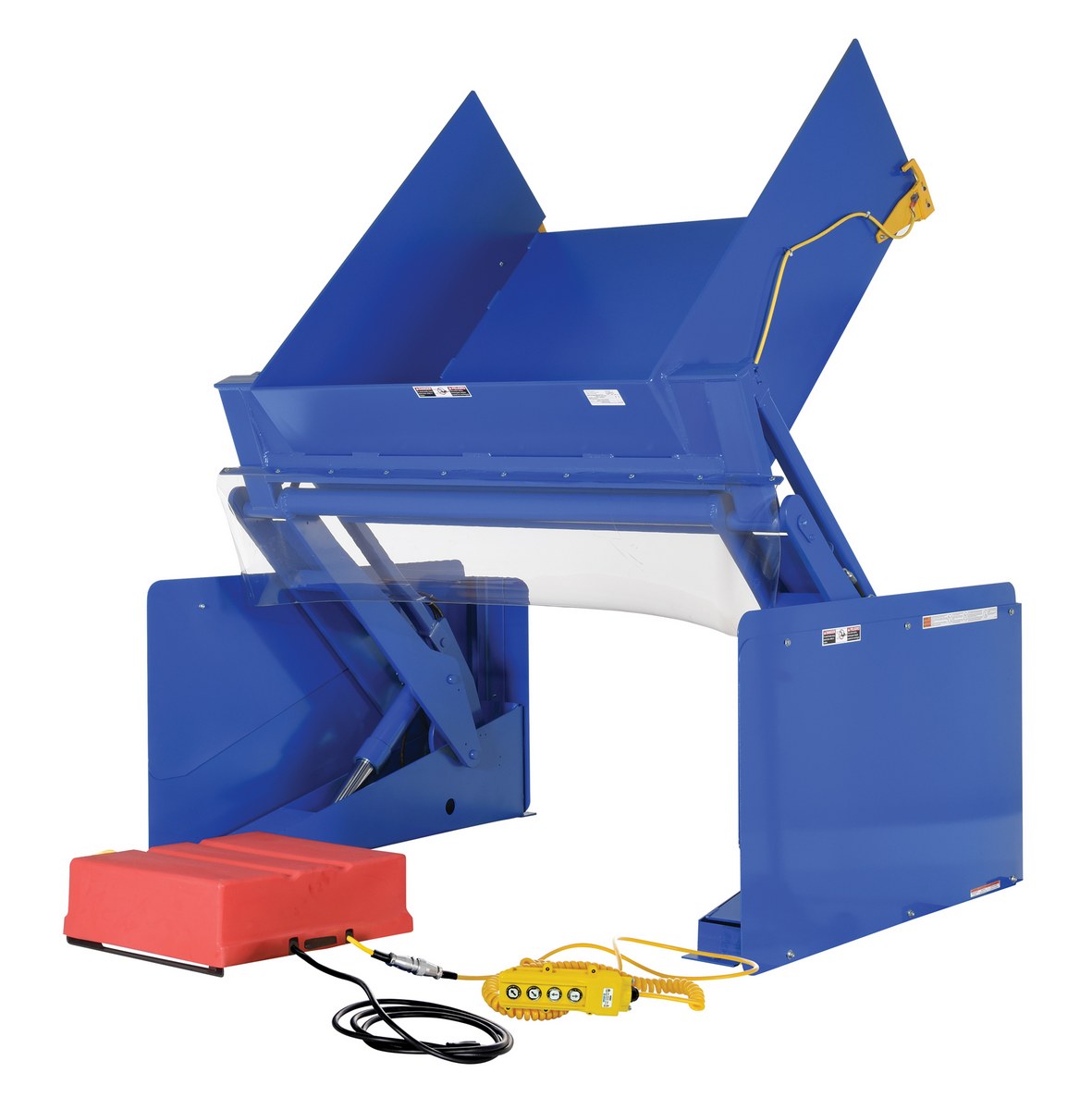

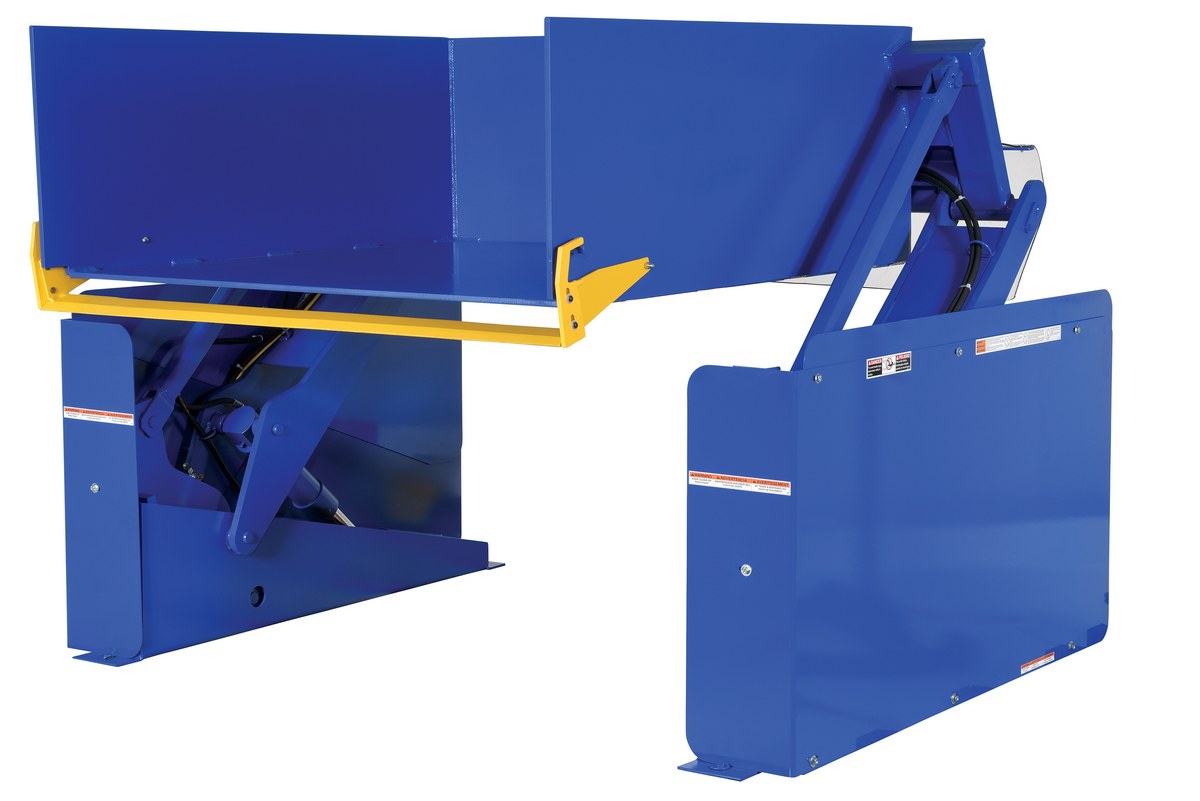

The zero lift & tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Maximum tilt angle is 45 degrees. Lift and tilt is controlled separately. Remote power unit with hand-held control is standard.
- 45 Degrees maximum tilt angle positions loads to optimum ergonomic positions
- Lift and tilt options are controlled separately allowing a precise working angle for the employee
- No pit mounting required makes installation quick and easy
- Products may be loaded and unloaded by a standard hand pallet truck when fork trucks aren't available
Rotary Air/Hydraulic Scissor Lift Tables
Portable Electric Hydraulic Lift Table
Ground Lift Scissor Tables
Programmable Height For Lift Tables
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

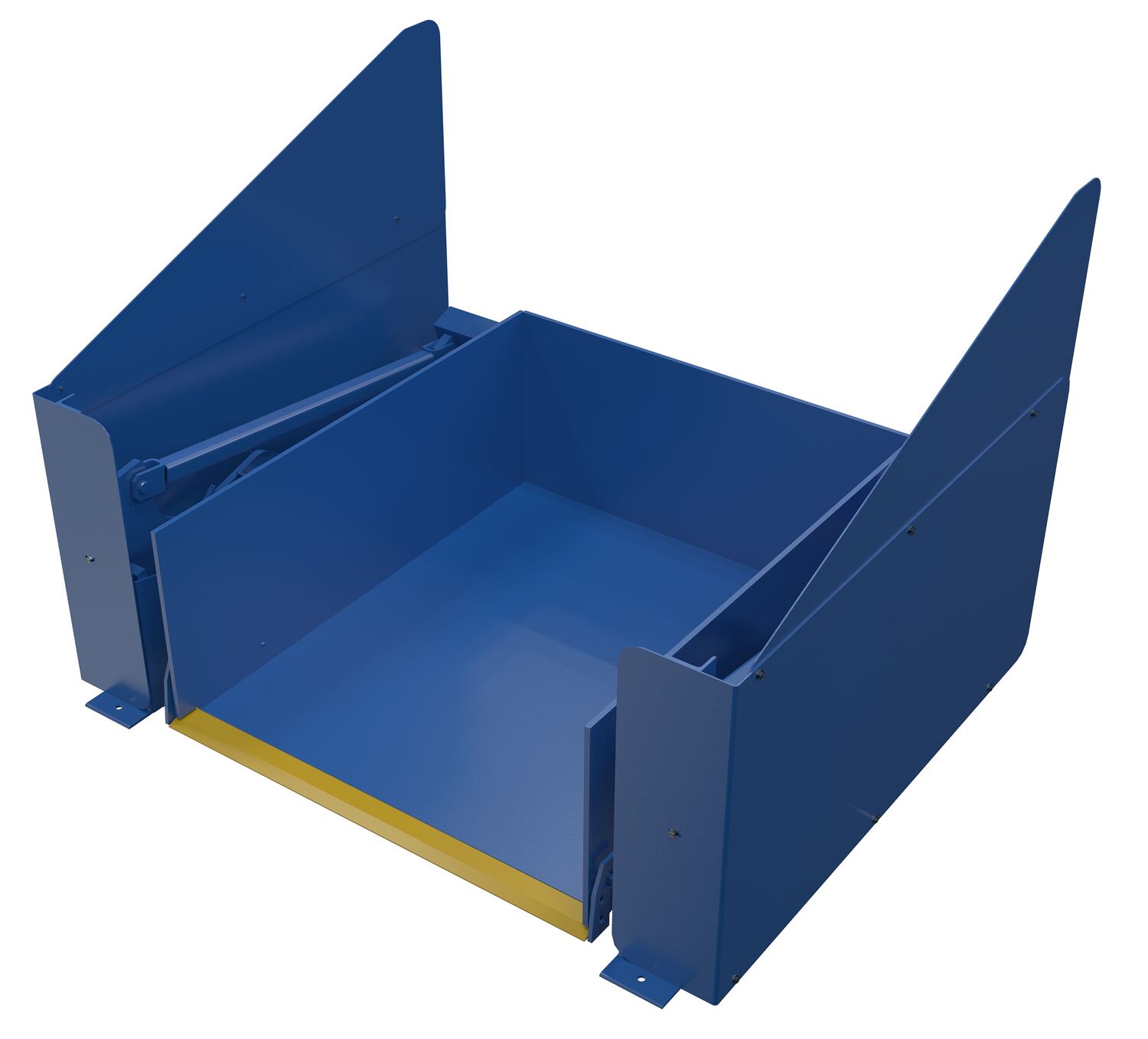

| ZLTT-4452-2-36 | |  | 1 Year Limited Warranty | Steel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Raised Height (in.): 36 | 2121 | |

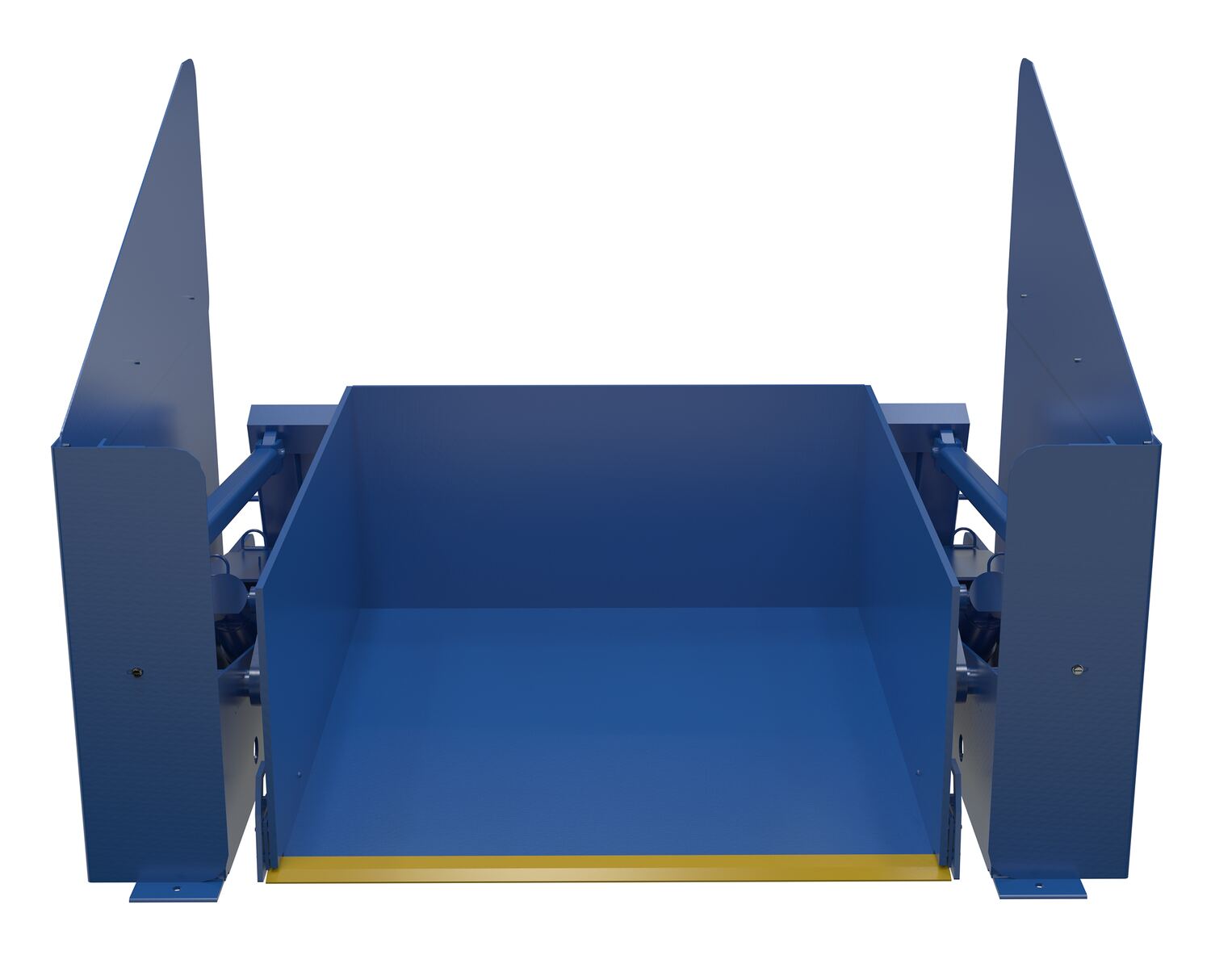

| ZLTT-4452-4-36 | |  | 1 Year Limited Warranty | Steel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Raised Height (in.): 36 | 2230 | |
| ZLTT-4472-2-48 | |  | 1 Year Limited Warranty | Steel Zero Lift & Tilt Table 44 In. x 72 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Raised Height (in.): 48 | 2950 | |

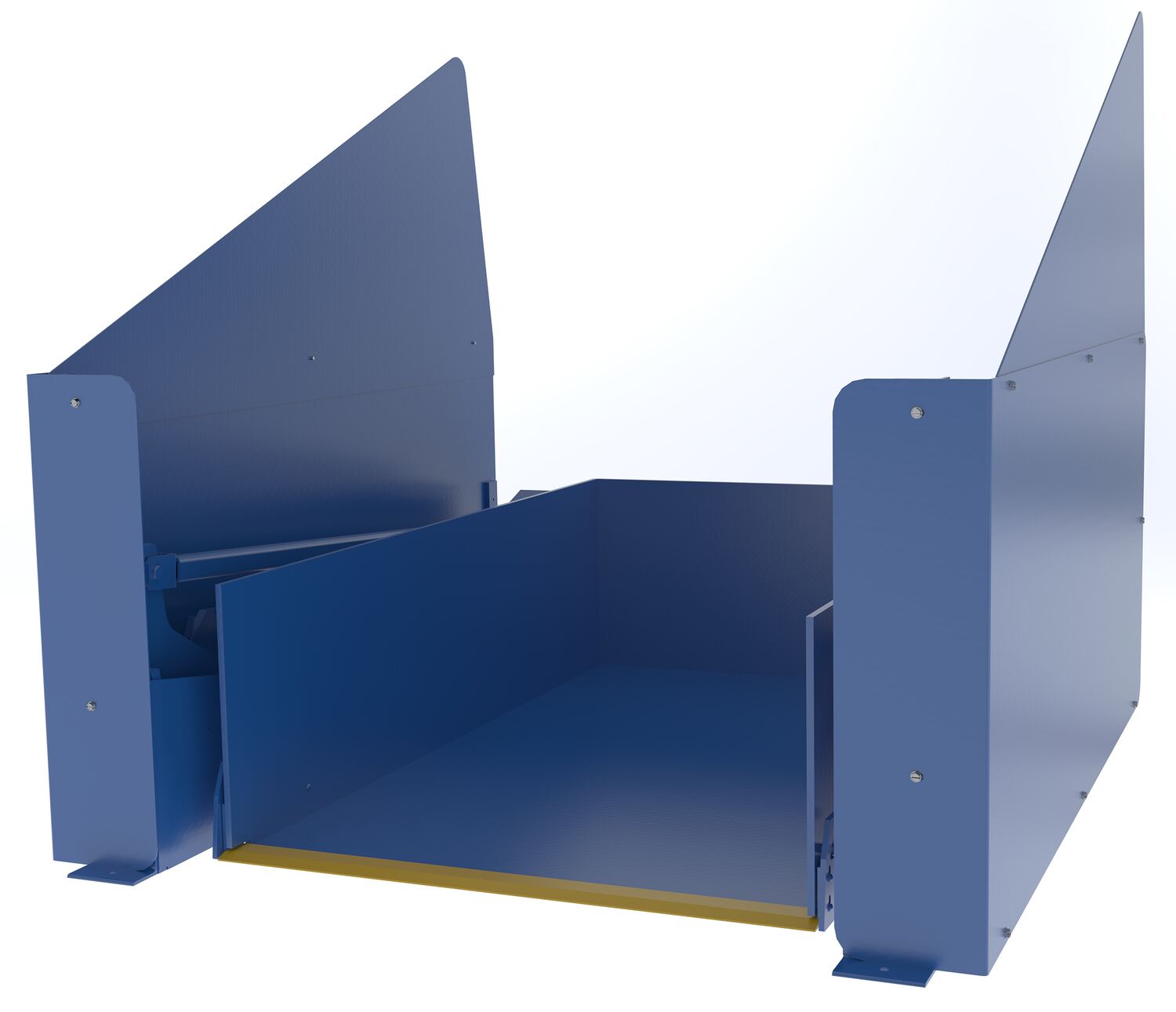

| ZLTT-4472-4-48 | |  | 1 Year Limited Warranty | Steel Zero Lift & Tilt Table 44 In. x 72 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Raised Height (in.): 48 | 3013 | |

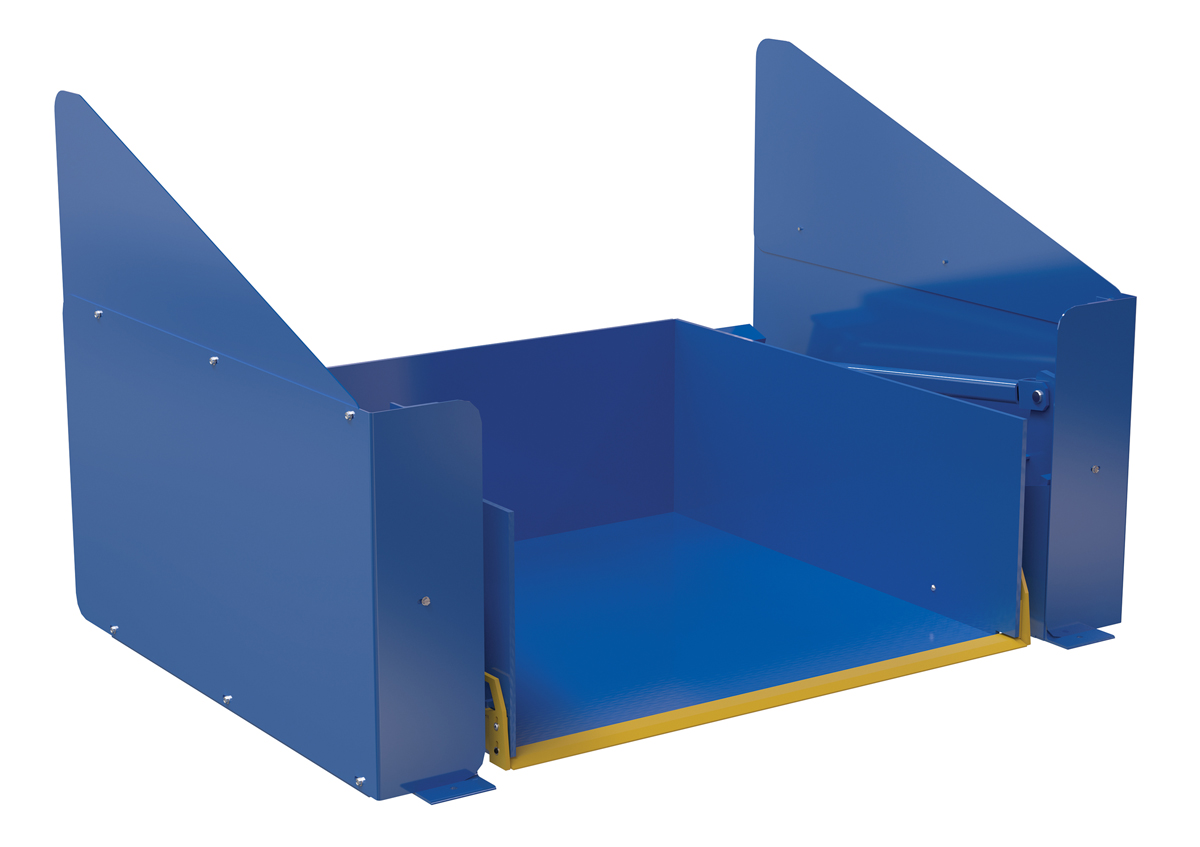

| ZLTT-5252-2-36 | |  | 1 Year Limited Warranty | Steel Zero Lift & Tilt Table 52 In. x 52 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Raised Height (in.): 36 | 2337 | |

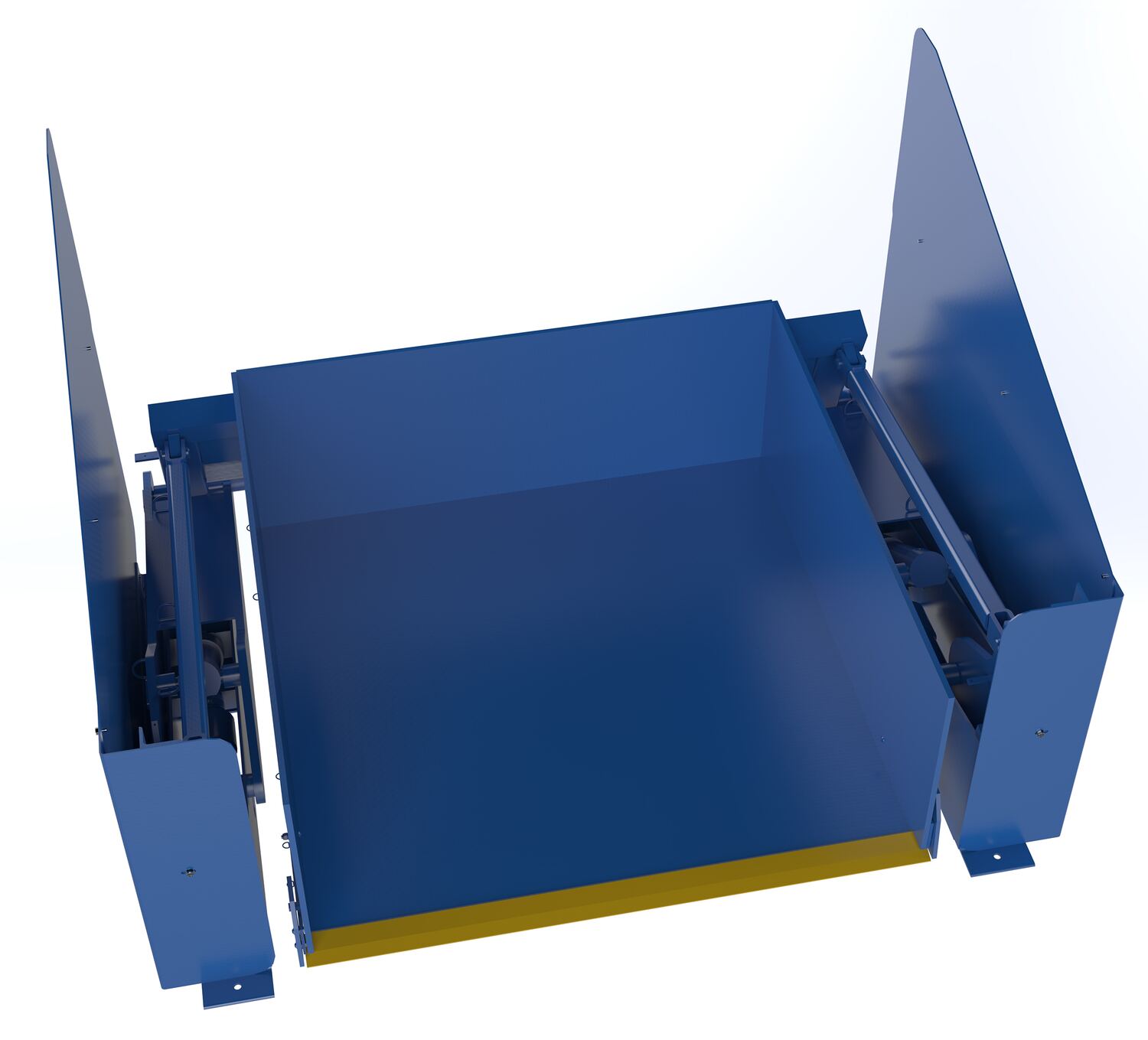

| ZLTT-5252-4-36 | POPULAR |  | 1 Year Limited Warranty | Steel Zero Lift & Tilt Table 52 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Raised Height (in.): 36 | 2322 | |

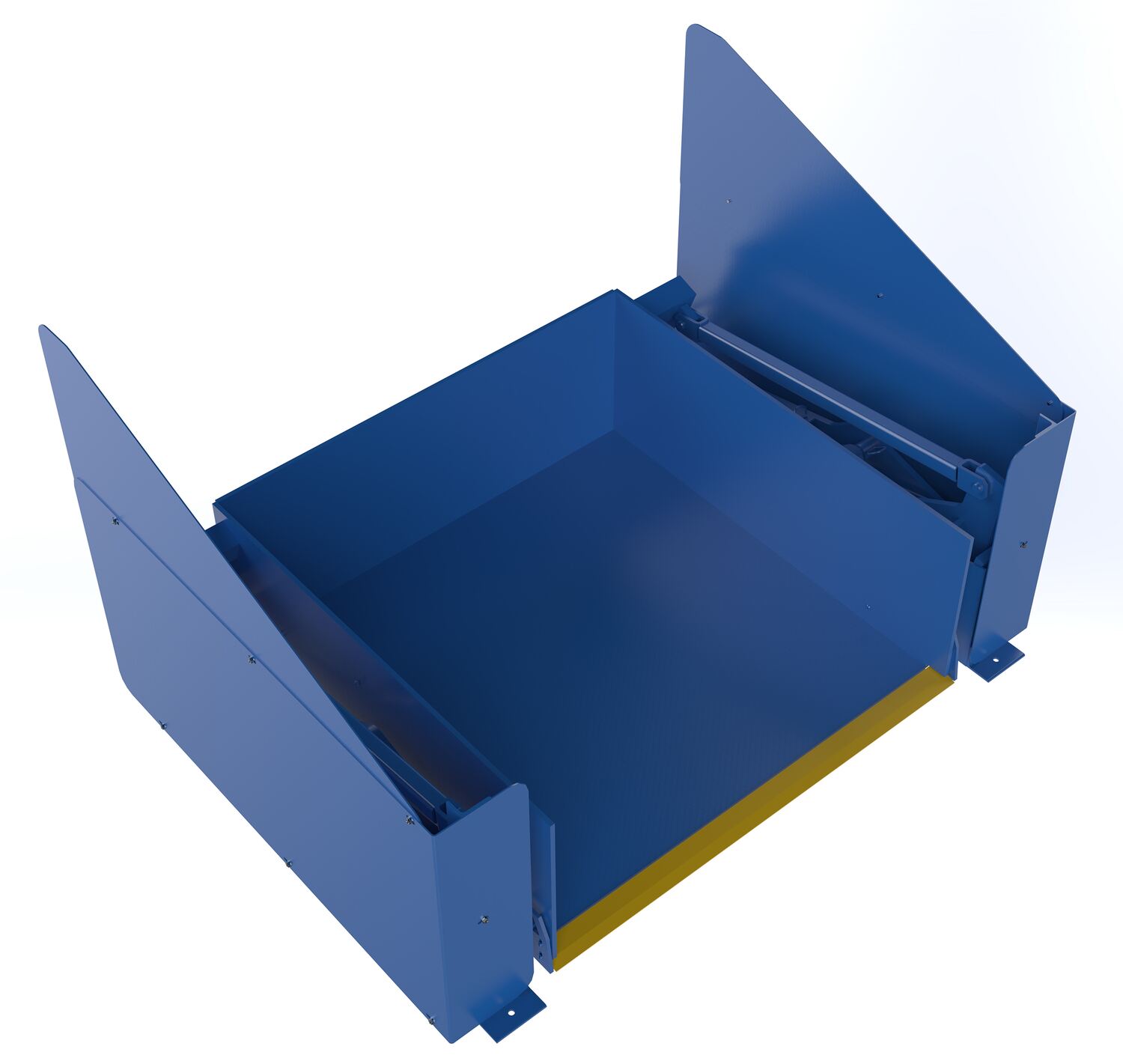

| ZLTT-5272-2-48 | |  | 1 Year Limited Warranty | Steel Zero Lift & Tilt Table 52 In. x 72 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Raised Height (in.): 48 | 3095 | |
| ZLTT-5272-4-48 | |  | 1 Year Limited Warranty | Steel Zero Lift & Tilt Table 52 In. x 72 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Raised Height (in.): 48 | 3074 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 36
Uniform Capacity (lb.): 2000
Raised Height (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 36
Uniform Capacity (lb.): 4000
Raised Height (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 48
Uniform Capacity (lb.): 2000
Raised Height (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 36
Uniform Capacity (lb.): 2000
Raised Height (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 36
Uniform Capacity (lb.): 4000
Raised Height (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 48
Uniform Capacity (lb.): 2000
Raised Height (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
For More Details of the Option Click the Red Model Button
| Model | Description | Wt. (lbs) |
| HCP-2642 |  |
Optional Hand Control Pedestal |
| RRC-4PB | Radio Remote Control 4-Button System (Lift and Tilt Circuit) | 1 |
| ADDL-HH-25-10 | Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black | |
| ADDL-HH-25-20 | Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black |
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Zero Lift & Tilt Tables PDF's will open in a new window when clicked.
Manuals
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: ZLTT-4452-2-36
Hydraulic Oil SDS Sheet for: ZLTT-4452-4-36
Hydraulic Oil SDS Sheet for: ZLTT-4472-2-48
Hydraulic Oil SDS Sheet for: ZLTT-4472-4-48
Hydraulic Oil SDS Sheet for: ZLTT-5252-2-36
Hydraulic Oil SDS Sheet for: ZLTT-5252-4-36
Hydraulic Oil SDS Sheet for: ZLTT-5272-2-48
Hydraulic Oil SDS Sheet for: ZLTT-5272-4-48
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
 |
|||||||||||||||||||||||||||||||||||||||||||||||
