Air Bag Scissor Lift Tables
SERIES: ABLT

Improve ergonomics and productivity with our Air Bag Scissor lift tables. The Air Bag Technology helps raise pallets, bins and other materials to your desired working height. These units have Pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi at15 CFM's. Hand pendent control included.

  • Air bag technology improves ergonomics and productivity
  • Raise pallets, bins, and other to a desired working height
  • Pressure relief valve prevents over-inflation of air bag
  • Scissor track provides stability and safety while raising and lowering

Improve ergonomics and productivity with our Air Bag Scissor lift tables. The Air Bag Technology helps raise pallets, bins and other materials to your desired working height. These units have Pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi at15 CFM's. Hand pendent control included.

  • Air bag technology improves ergonomics and productivity
  • Raise pallets, bins, and other to a desired working height
  • Pressure relief valve prevents over-inflation of air bag
  • Scissor track provides stability and safety while raising and lowering

Other Lift & Tilt Tables

 Portable Scissor Lift Tables Ground Lift Scissor Tables with Handrails Zero Lift & Tilt Tables Programmable Height For Lift Tables

Additional Models In This Family
view entire Image Gallery

ABLT-H-RP-ND

model ABLT-H-RP-ND

ABLT-H-FC

model ABLT-H-FC

ABLT-H-FP

model ABLT-H-FP

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ABLT-H-1-32
ABLT-H-1-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Raised Height (in.): 32		385

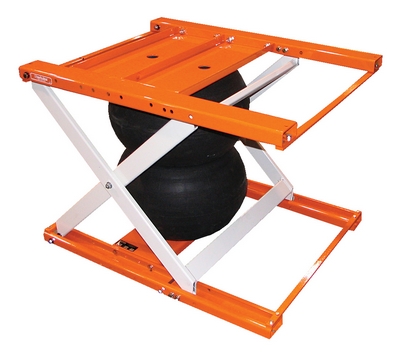

ABLT-H-2-32
ABLT-H-2-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Raised Height (in.): 32		385
ABLT-H-3-32
ABLT-H-3-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Raised Height (in.): 32		385

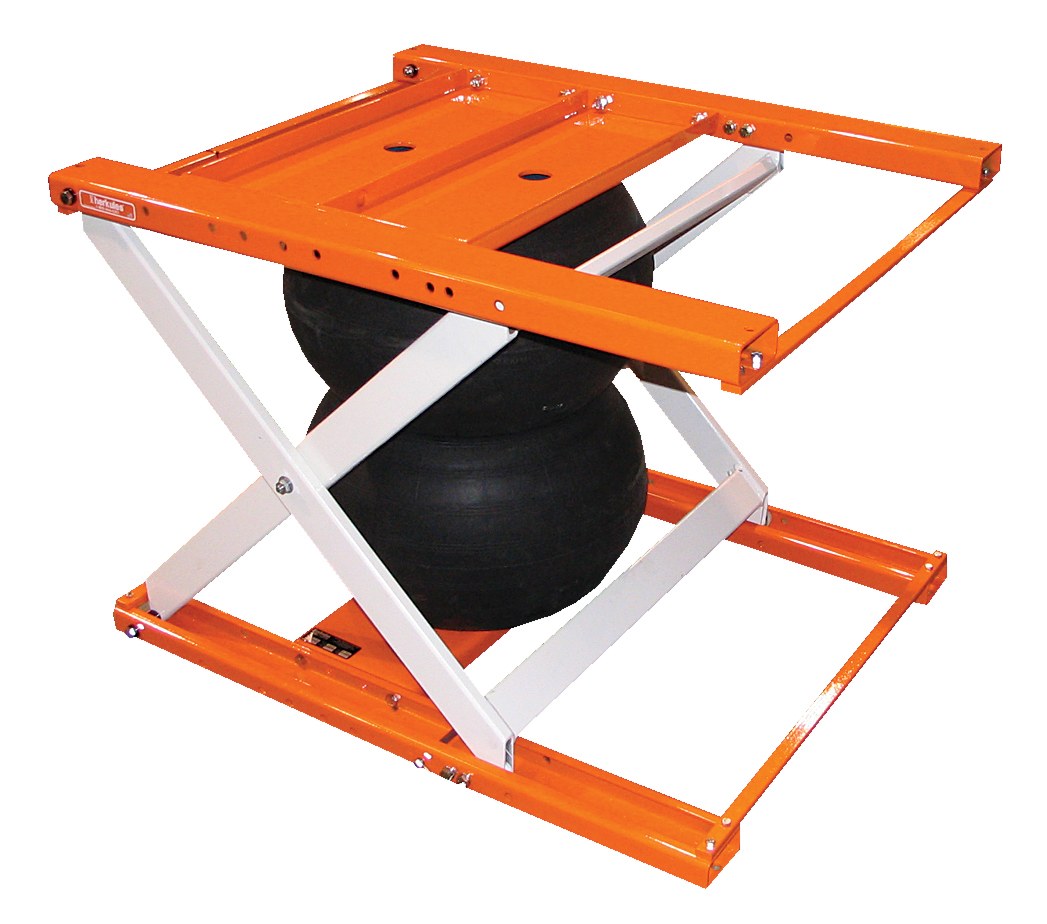

ABLT-H-4-32
ABLT-H-4-321 Year Limited WarrantySteel Air Bag Scissor Lift Table 43-3/4 In. x 35-1/50 In. 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Raised Height (in.): 32		385

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ABLT-H-1-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Raised Height (in.): 32
Uniform Capacity (lb.): 1,000
Raised Height (in.): 32

ABLT-H-2-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Raised Height (in.): 32
Uniform Capacity (lb.): 2,000
Raised Height (in.): 32

ABLT-H-3-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Raised Height (in.): 32
Uniform Capacity (lb.): 3,000
Raised Height (in.): 32

ABLT-H-4-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Raised Height (in.): 32
Uniform Capacity (lb.): 4,000
Raised Height (in.): 32
For More Details of the Option Click the Red Model Button

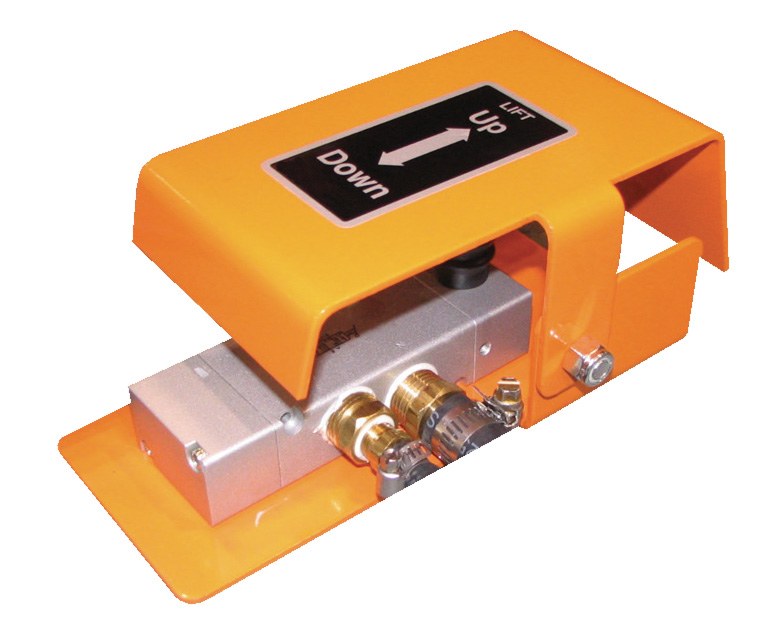

ABLT-H-FC ABLT-H-FC90 Days Limited WarrantyFactory Installed Steel Foot Pedal Control For Air Bag Scissor Lift Tables YellowNumber of Floor Mounts: 4
Mounting Hole Diameter (in.): 3/8		25

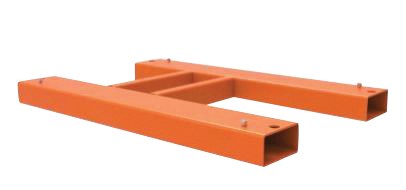

ABLT-H-FP ABLT-H-FP90 Days Limited WarrantyFactory Installed Steel Fork Pockets For Air Bag Scissor Lift Tables Bolt On Orange-
80
ABLT-H-P-3648 ABLT-H-P-36481 Year Limited WarrantyFactory Installed Steel 48 In. x 36 In. Solid Platform For Air Bag Scissor Lift Tables Orange-
135
ABLT-H-P-4848 ABLT-H-P-48481 Year Limited WarrantyFactory Installed Steel 48 In. x 48 In. Solid Platform For Air Bag Scissor Lift Tables Orange-
175

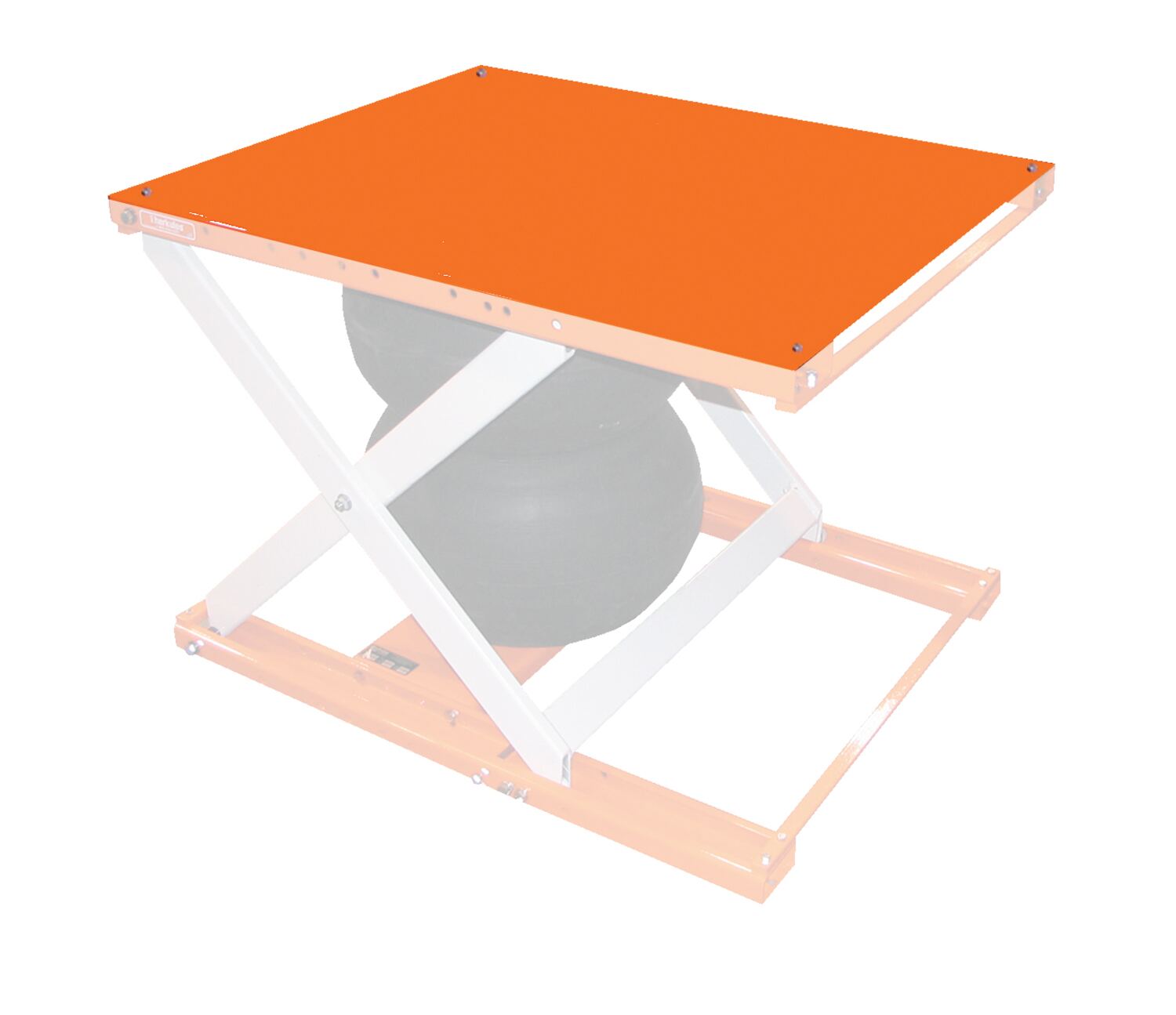

ABLT-H-P-4848-4K ABLT-H-P-4848-4K1 Year Limited WarrantyFactory Installed Steel 48 In. x 48 In. Solid Platform For Air Bag Scissor Lift Tables 4,000 Lb. Capacity Orange-
335

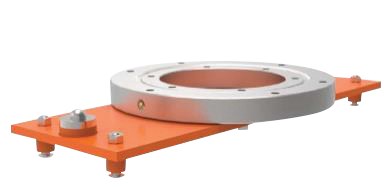

ABLT-H-RP-ND ABLT-H-RP-ND90 Days Limited WarrantySteel Manual Rotation Carousel Addition No Detent For Air Bag Scissor Lift Tables-
50
ABLT-H-RP-SD ABLT-H-RP-SD90 Days Limited WarrantySteel Manual Rotation Carousel Addition With Detent For Air Bag Scissor Lift Tables-
50


Safety Accordion Skirt
