Fifth Wheel Steer TrailersFifth Wheel Steer Trailers feature steering that resembles children's little red wagons. These industrial workhorses move heavy loads around plants and distribution centers. 14" square steel plates sandwich a UHMW disk, secured by a 1-1/4" kingpin, comprising the massive fifth-wheel assembly. Equipped with proper couplers, fifth wheel steer trailers can be connected into "trains" to move even larger loads of merchandise. Front and rear axles are precisely located for optimal steering and load accommodation. Custom deck sizes and hardwood decks available, contact factory.
- Fifth wheel steer trailer is engineered for power towing
- Trailer comes standard with drop forged loop handle and square fifth wheel
- Features a low friction wear pad and precision thrust bearing
- Use in industrial applications for optimal results
Economical Pallet & Container Transporters
Caster Steer Towable Trailers
All Wheel Steer Truck
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

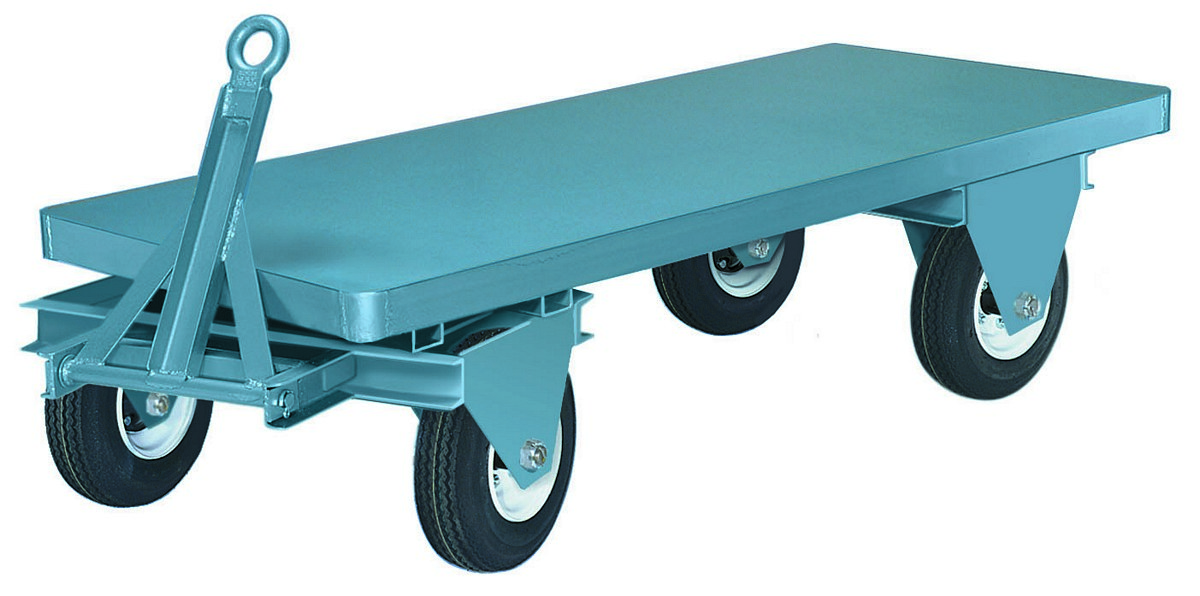

| FWST-36-4PNU |  | 1 Year Limited Warranty | Steel Fifth Wheel Steer Trailer with Pneumatic Wheels 36 In. x 72 In. 4500 Lb. Capacity Gray | Uniform Capacity (lb.): 4,500 Deck Gauge: 12 | 615 | ||

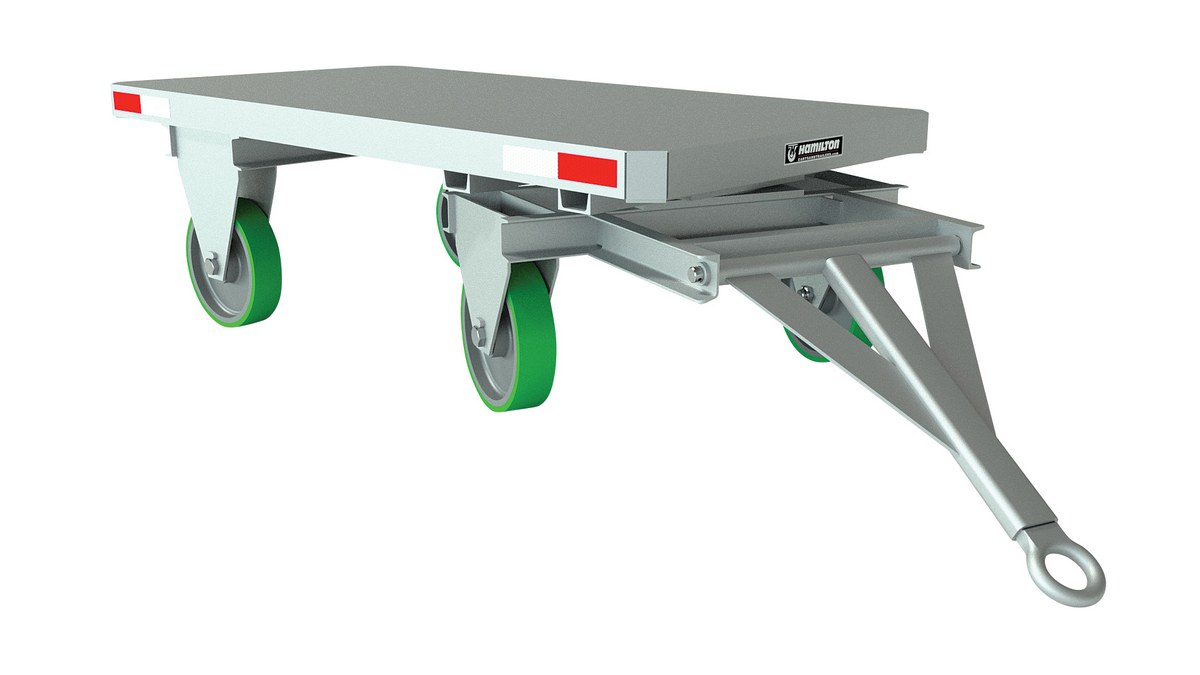

| FWST-36-4P |  | 1 Year Limited Warranty | Steel Fifth Wheel Steer Trailer with Polyurethane Wheels 36 In. x 72 In. 5000 Lb. Capacity Gray | Uniform Capacity (lb.): 5000 Deck Gauge: 12 | 615 | ||

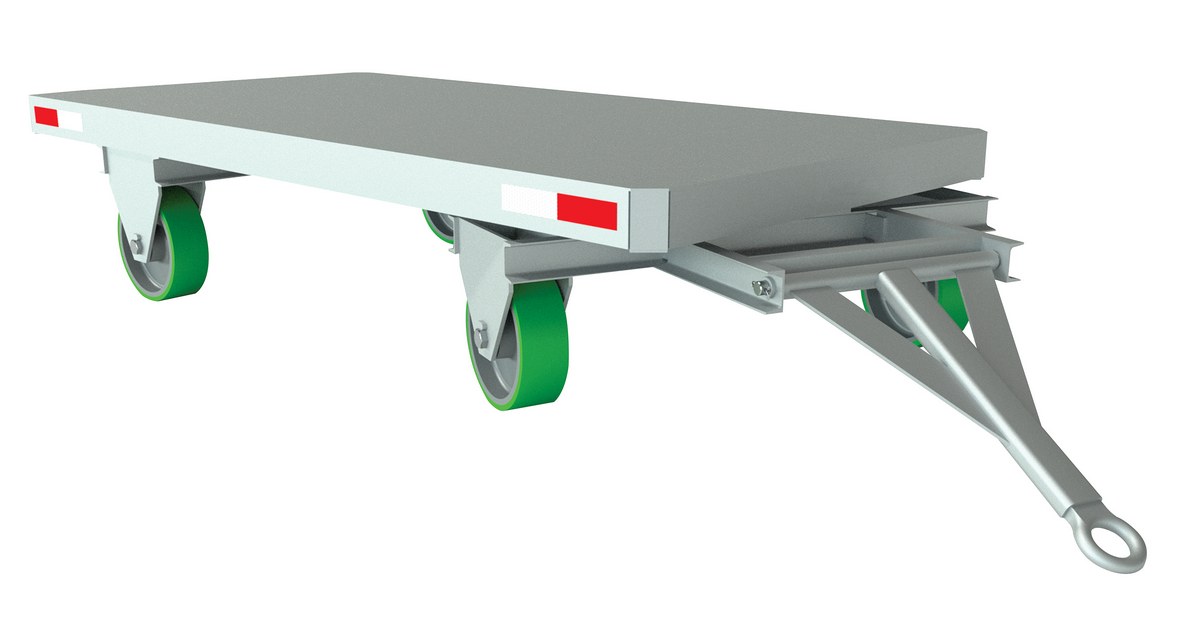

| FWST-48-10P |  | 1 Year Limited Warranty | Steel Fifth Wheel Steer Trailer with Polyurethane Wheels 48 In. x 96 In. 10000 Lb. Capacity Gray | Uniform Capacity (lb.): 10,000 Deck Gauge: 7 | 720 | ||
| FWST-48-10PNU |  | 1 Year Limited Warranty | Steel Fifth Wheel Steer Trailer with Pneumatic Wheels 48 In. x 96 In. 10000 Lb. Capacity Gray | Uniform Capacity (lb.): 10,000 Deck Gauge: 7 | 720 | ||

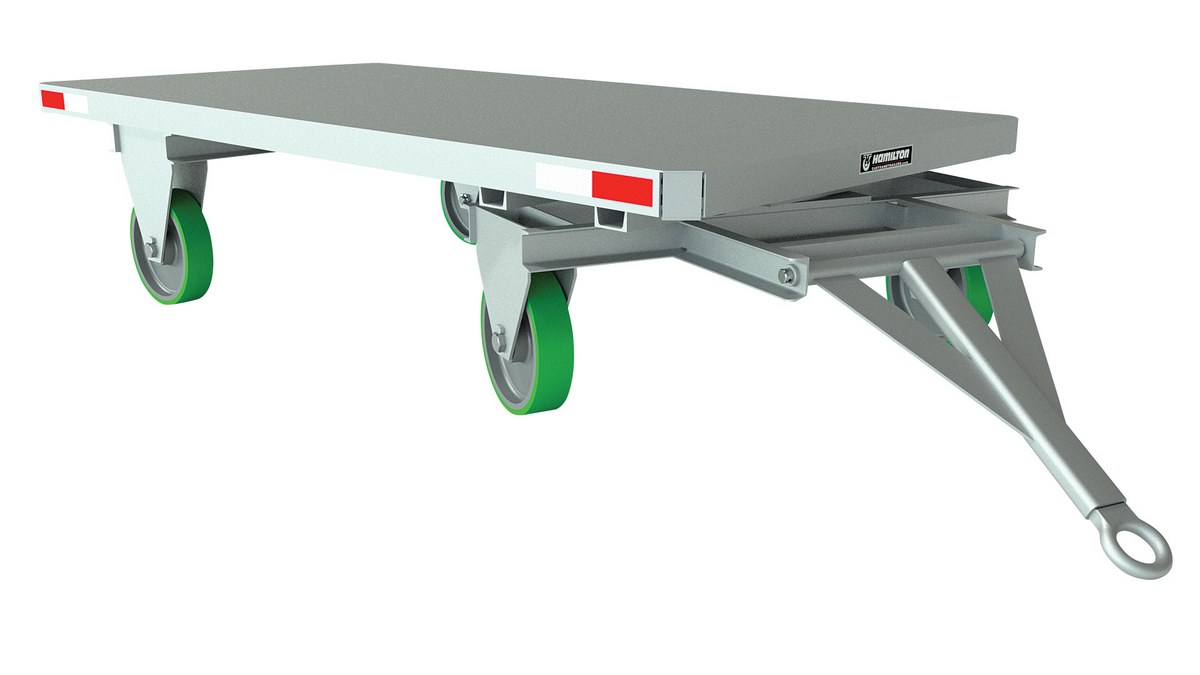

| FWST-48-4P |  | 1 Year Limited Warranty | Steel Fifth Wheel Steer Trailer with Polyurethane Wheels 48 In. x 96 In. 5000 Lb. Capacity Gray | Uniform Capacity (lb.): 5,000 Deck Gauge: 12 | 455 | ||
| FWST-48-4PNU |  | 1 Year Limited Warranty | Steel Fifth Wheel Steer Trailer with Pneumatic Wheels 48 In. x 96 In. 4500 Lb. Capacity Gray | Uniform Capacity (lb.): 4,500 Deck Gauge: 12 | 455 | ||

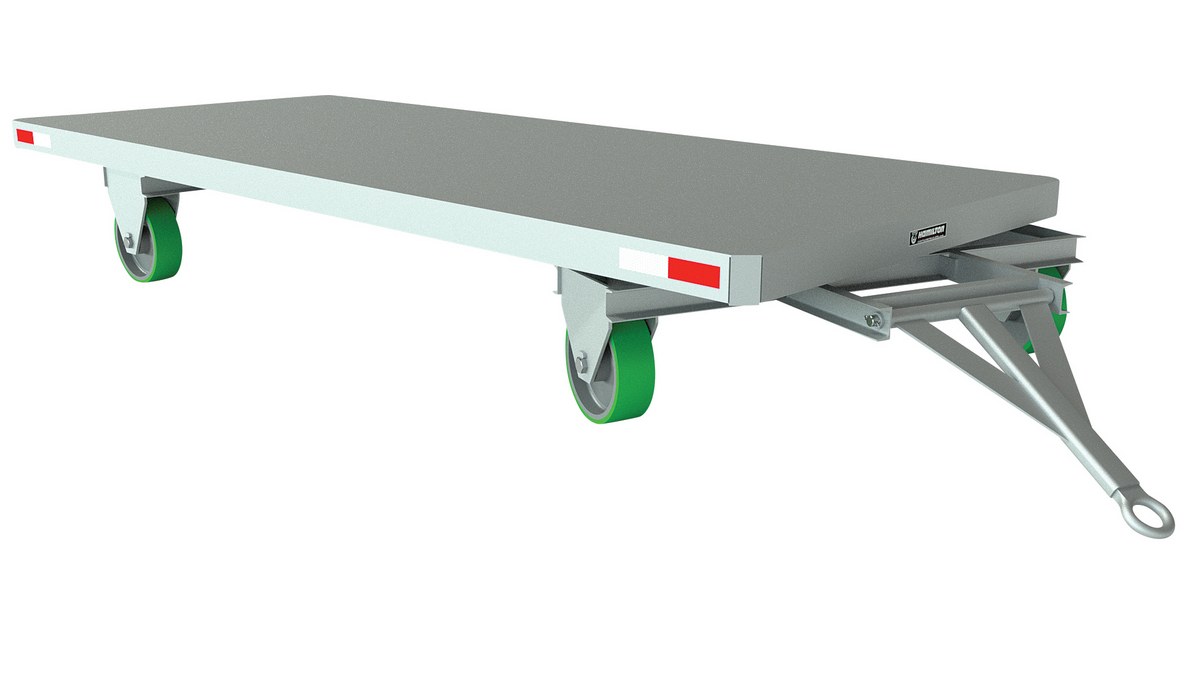

| FWST-512-10P |  | 1 Year Limited Warranty | Steel Fifth Wheel Steer Trailer with Polyurethane Wheels 60 In. x 144 In. 10000 Lb. Capacity Gray | Uniform Capacity (lb.): 10,000 Deck Gauge: 7 | 1440 | ||

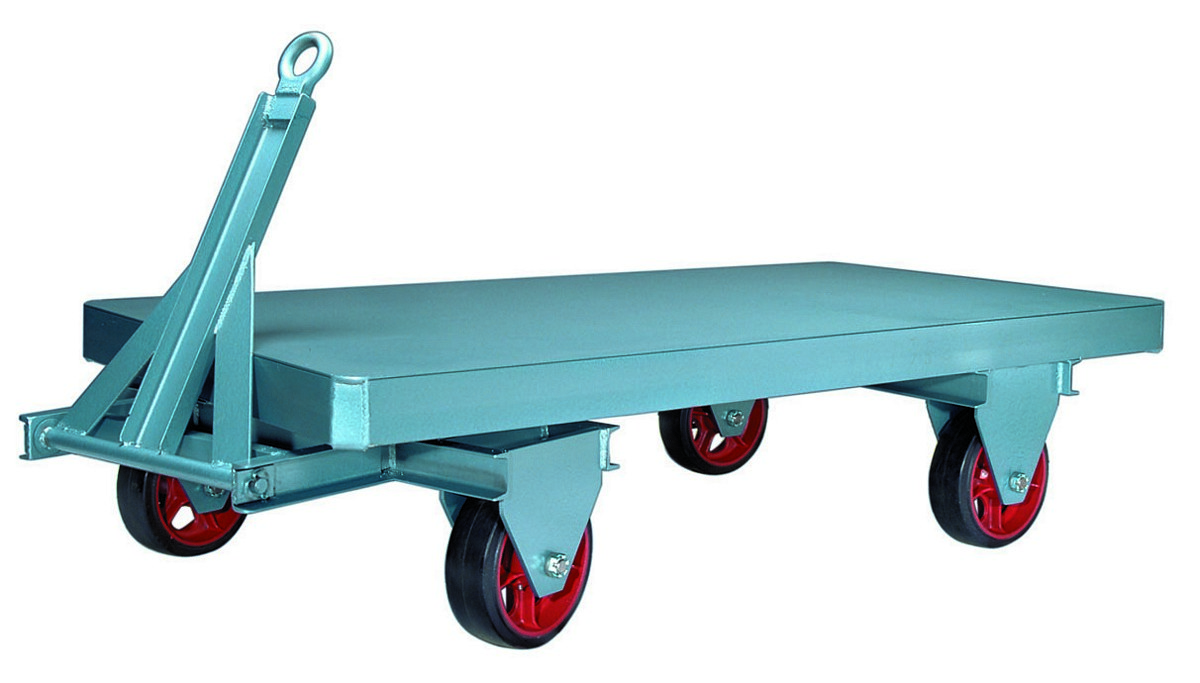

| FWST-512-10PNU |  | 1 Year Limited Warranty | Steel Fifth Wheel Steer Trailer with Pneumatic Wheels 60 In. x 144 In. 10000 Lb. Capacity Gray | Uniform Capacity (lb.): 10,000 Deck Gauge: 7 | 1440 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,500
Deck Gauge: 12
Uniform Capacity (lb.): 4,500
Deck Gauge: 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Deck Gauge: 12
Uniform Capacity (lb.): 5000
Deck Gauge: 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Deck Gauge: 12
Uniform Capacity (lb.): 5,000
Deck Gauge: 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,500
Deck Gauge: 12
Uniform Capacity (lb.): 4,500
Deck Gauge: 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
