Adjustable Tote DolliesThe Adjustable Tote Dolly with a unique design is adjustable in both width and length for use with different size totes. Easy to adjust by loosening the screws and sliding each side in or out. Each unit includes four (4) swivel casters (one with brake) that are attached with caster pads. Overall size in three (3) inches greater than the usable size. Welded steel construction for maximum strength with powder coat blue finish. Totes sold separately.
- Welded steel construction provides maximum strength
- Loosening screws easily adjust allowing each side to slide in and out
- Powder coat blue offers a long lasting finish
- Swivel caster design allows unit to conveniently roll when loaded with product
Aluminum and Steel Plate Dollies
Heavy-Duty Dollies
Corner Mover Dollies
Plastic Rubber End Dolly
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

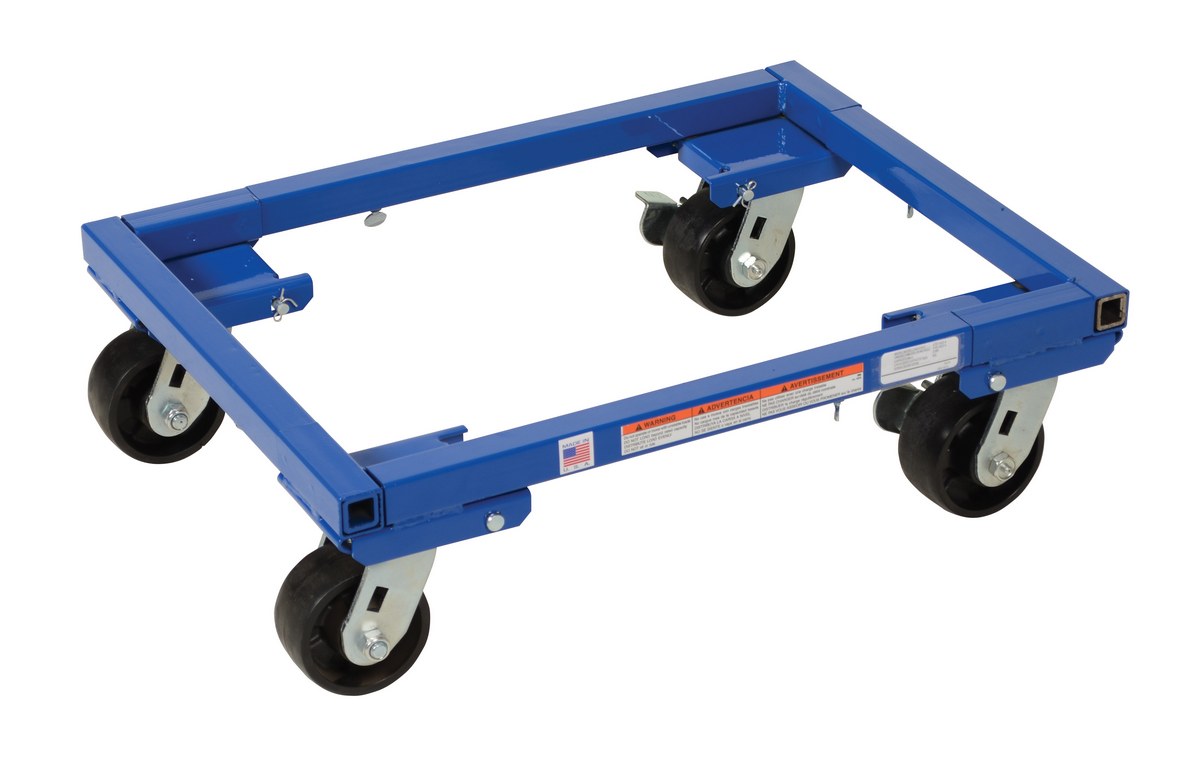

| ATD-1622-4 |  | 90 Days Limited Warranty | Steel Adjustable Tote Dolly with 4 In. Casters 36-1/2 In. x 26-1/2 In. x 7 In. 2000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 2,000 Minimum/Maximum Usable Width (in.): 16 to 24 | 40 | ||

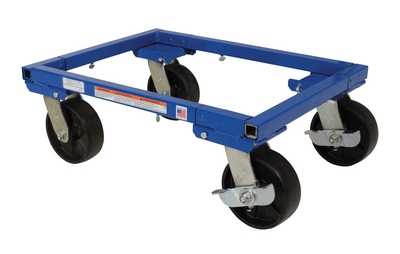

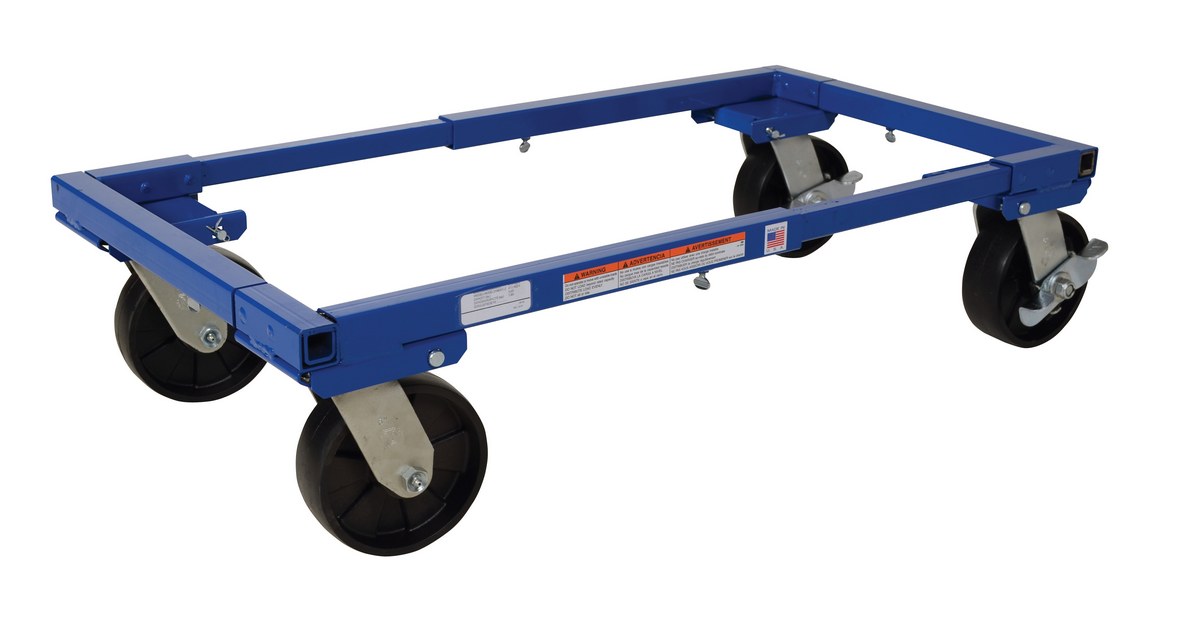

| ATD-1622-6 |  | 90 Days Limited Warranty | Steel Adjustable Tote Dolly with 6 In. Casters 36-1/2 In. x 26-1/2 In. x 8-7/8 In. 3000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 3,000 Minimum/Maximum Usable Width (in.): 16 to 24 | 43 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2,000
Minimum/Maximum Usable Width (in.): 16 to 24
Uniform Static Capacity (lb.): 2,000
Minimum/Maximum Usable Width (in.): 16 to 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 3,000
Minimum/Maximum Usable Width (in.): 16 to 24
Uniform Static Capacity (lb.): 3,000
Minimum/Maximum Usable Width (in.): 16 to 24
