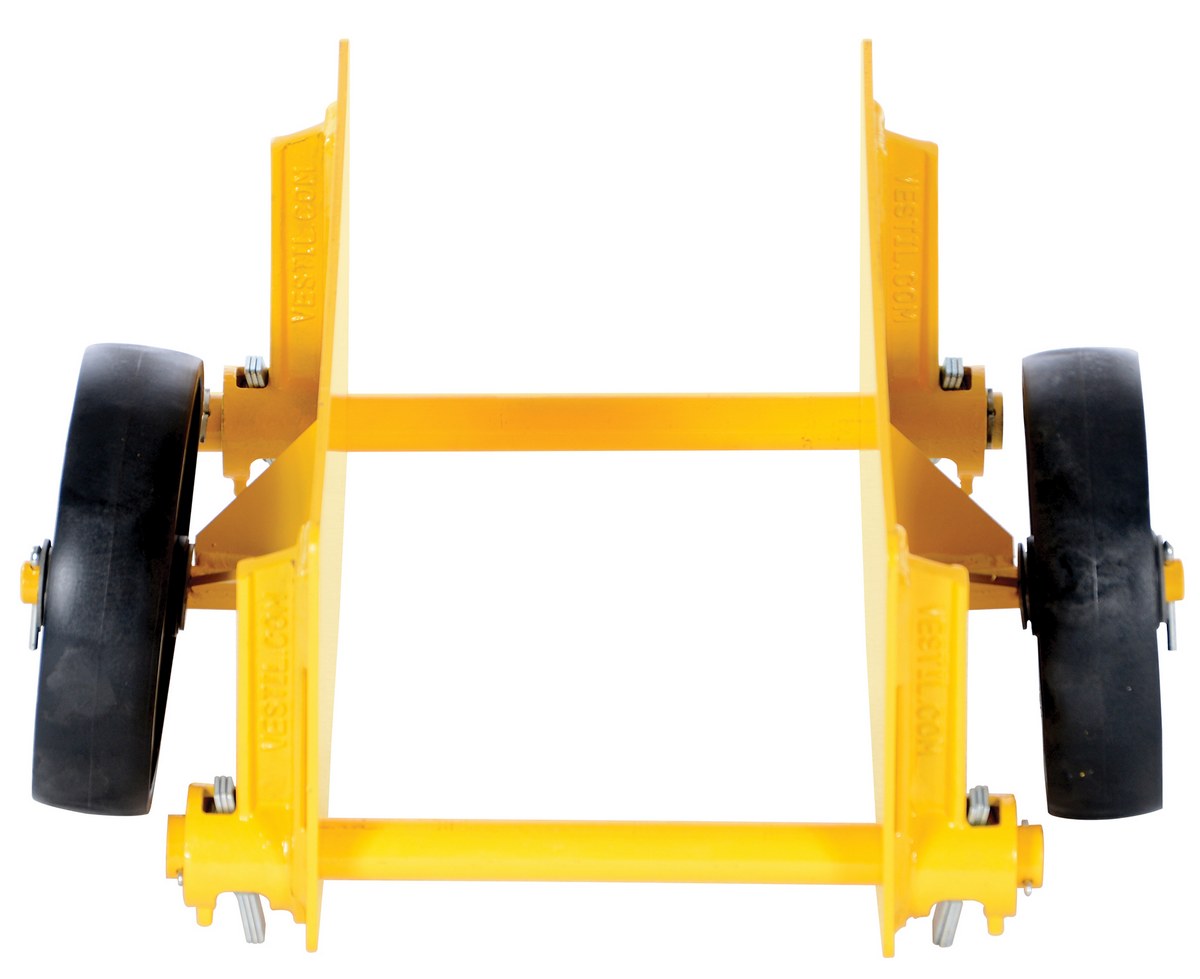

Adjustable Panel DolliesThe Adjustable Panel Dollies are adjustable from 0 to 9" with positive locking clutch plates that allow for easier release and adjustment. Steel construction with yellow, baked-in powder-coated finish for added toughness.
- Adjustable with positive locking clutch plates
- Clutch plates allow for easier release and adjustment
- Includes 8" mold-on-rubber wheels
- Steel construction with powder coat yellow finish
Heavy-Duty Plate/Slab Dollies
Lightweight Door & Panel Dolly
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

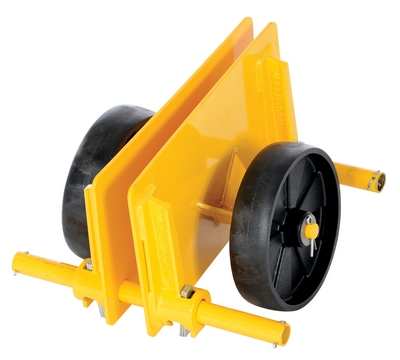

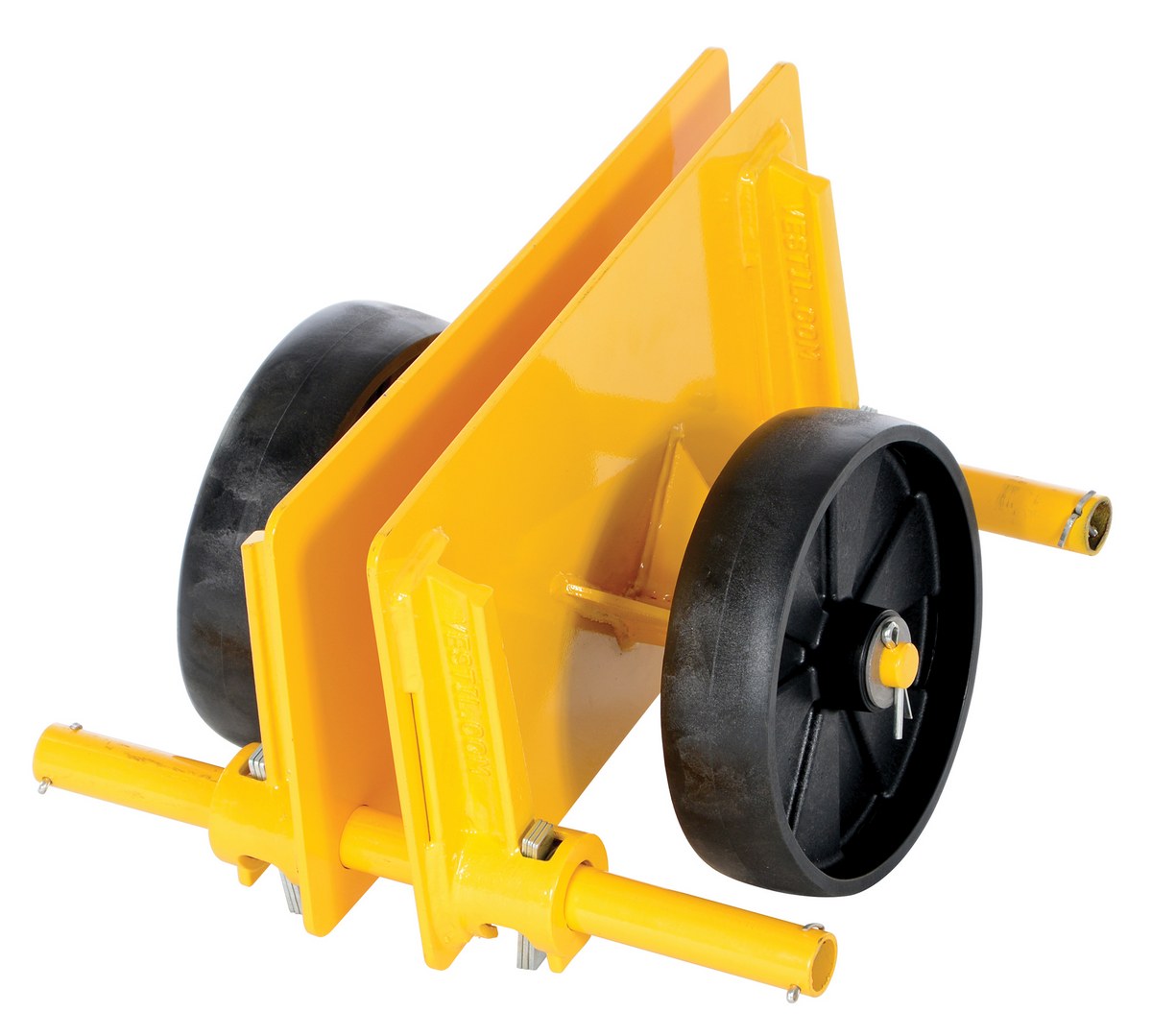

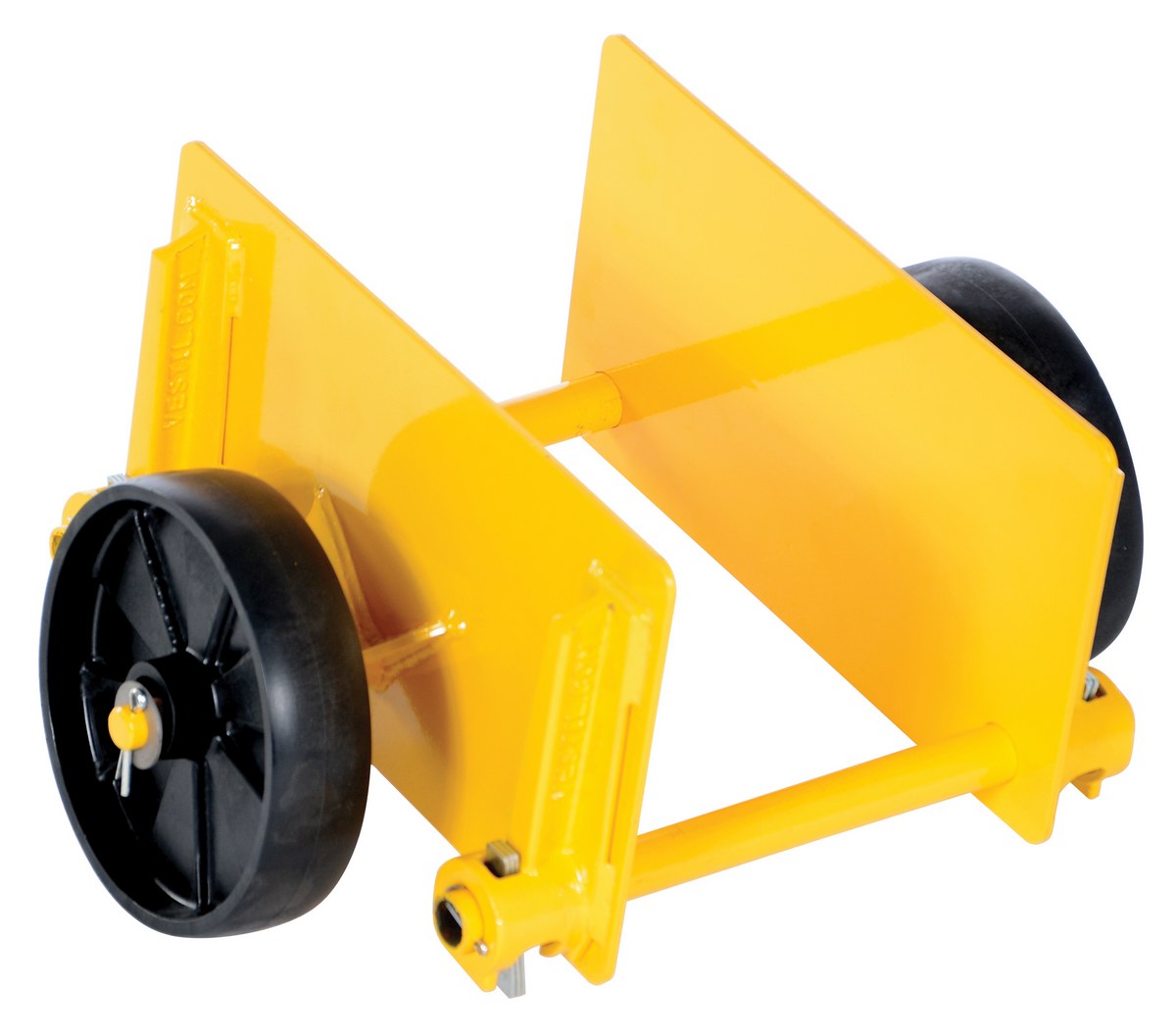

| PLDL-ADJ-8GFN |  | 30 Days Limited Warranty | Steel Adjustable Panel Dolly With Glass Filled Nylon Casters 19-1/4 In. x 15 In. x 10-1/2 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1000 Caster Quantity/Diameter/Width (in.): (2) 8 x 2 | 31 | ||

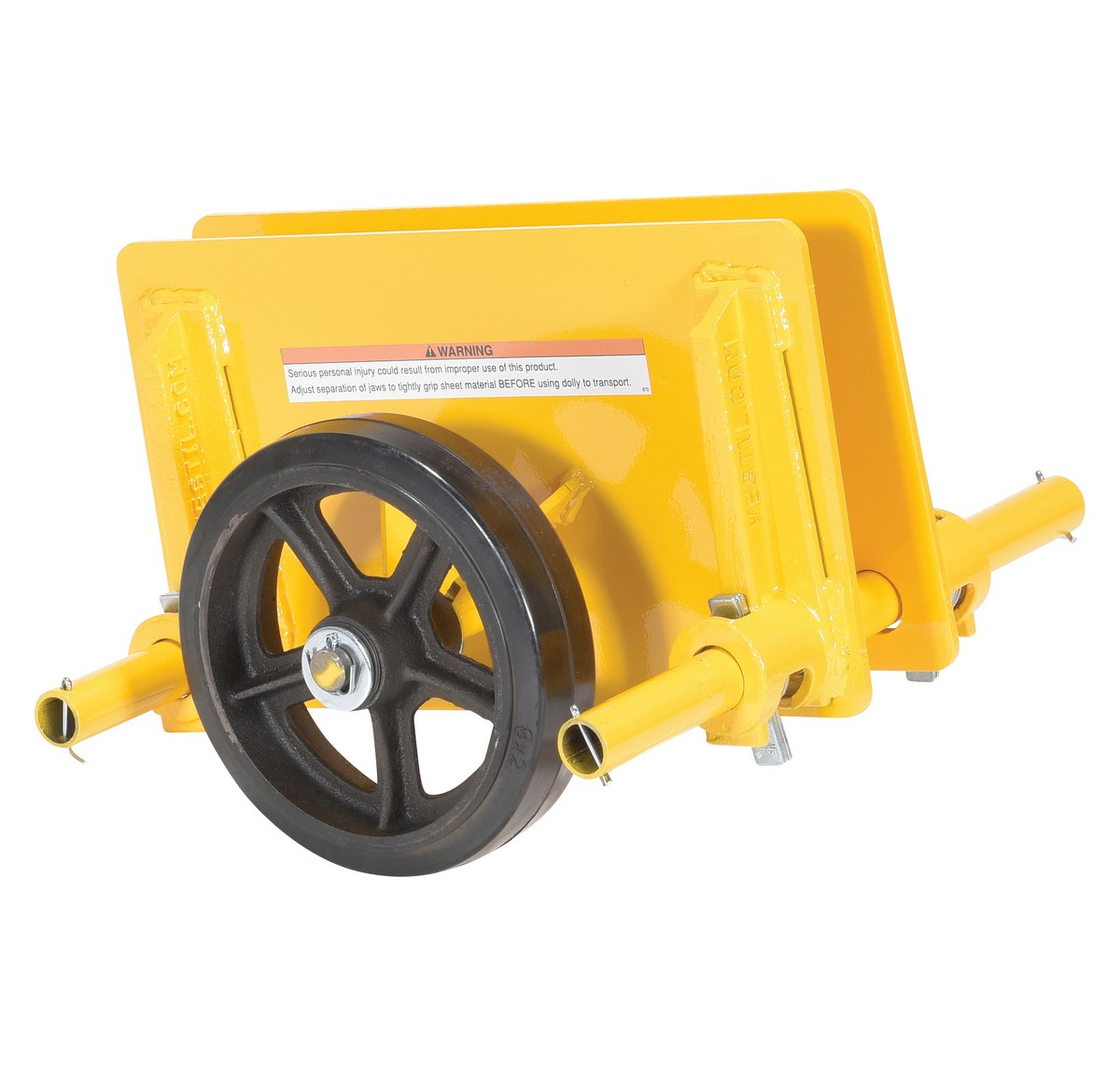

| PLDL-ADJ-8MR |  | 30 Days Limited Warranty | Steel Adjustable Panel Dolly With Mold On Rubber Casters 19-1/4 In. x 15 In. x 10-1/2 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1000 Caster Quantity/Diameter/Width (in.): (2) 8 x 2 | 39 | ||

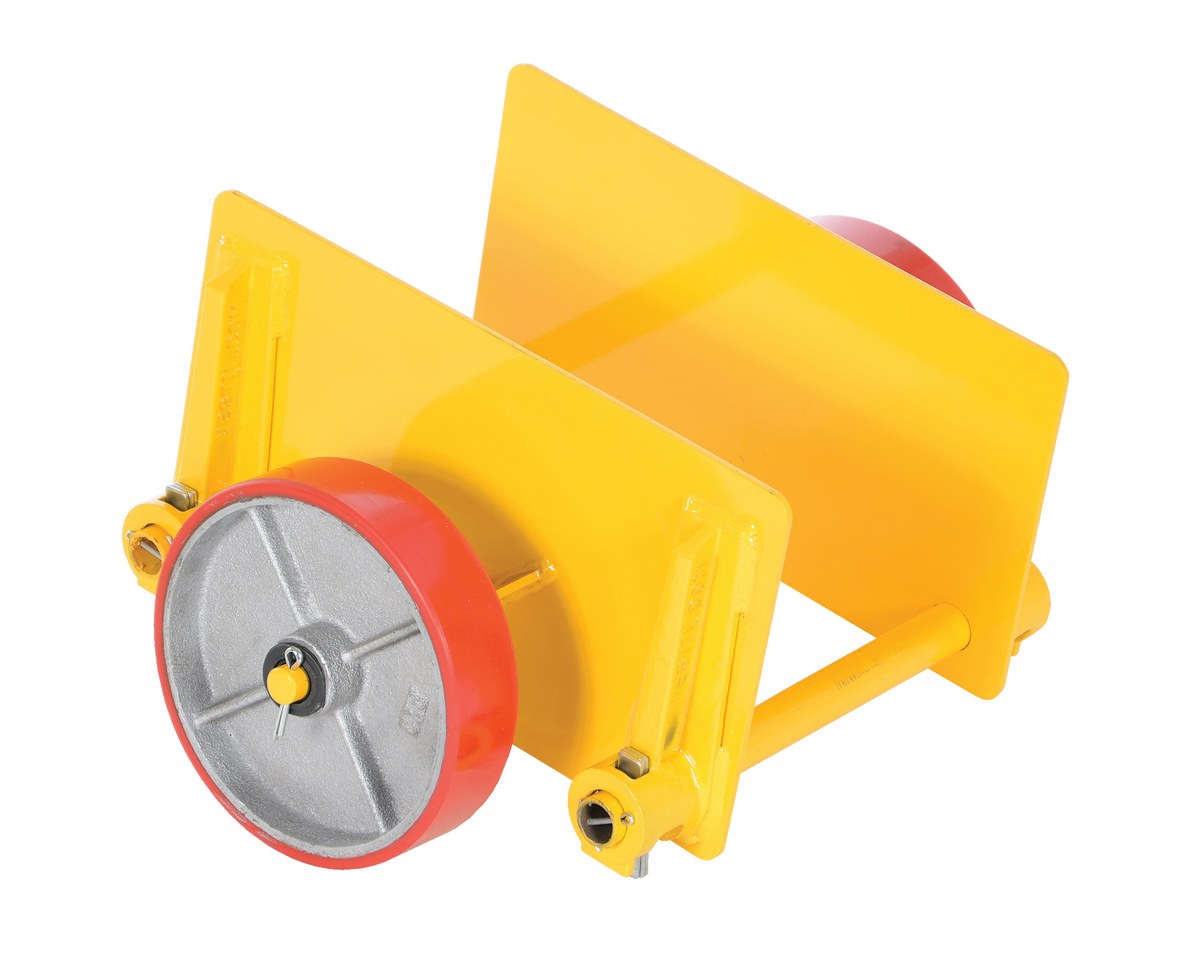

| PLDL-ADJ-8PS |  | 30 Days Limited Warranty | Steel Adjustable Panel Dolly With Poly-On-Steel Casters 19-1/4 In. x 15 In. x 10-1/2 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1000 Caster Quantity/Diameter/Width (in.): (2) 8 x 2 | 40 | ||

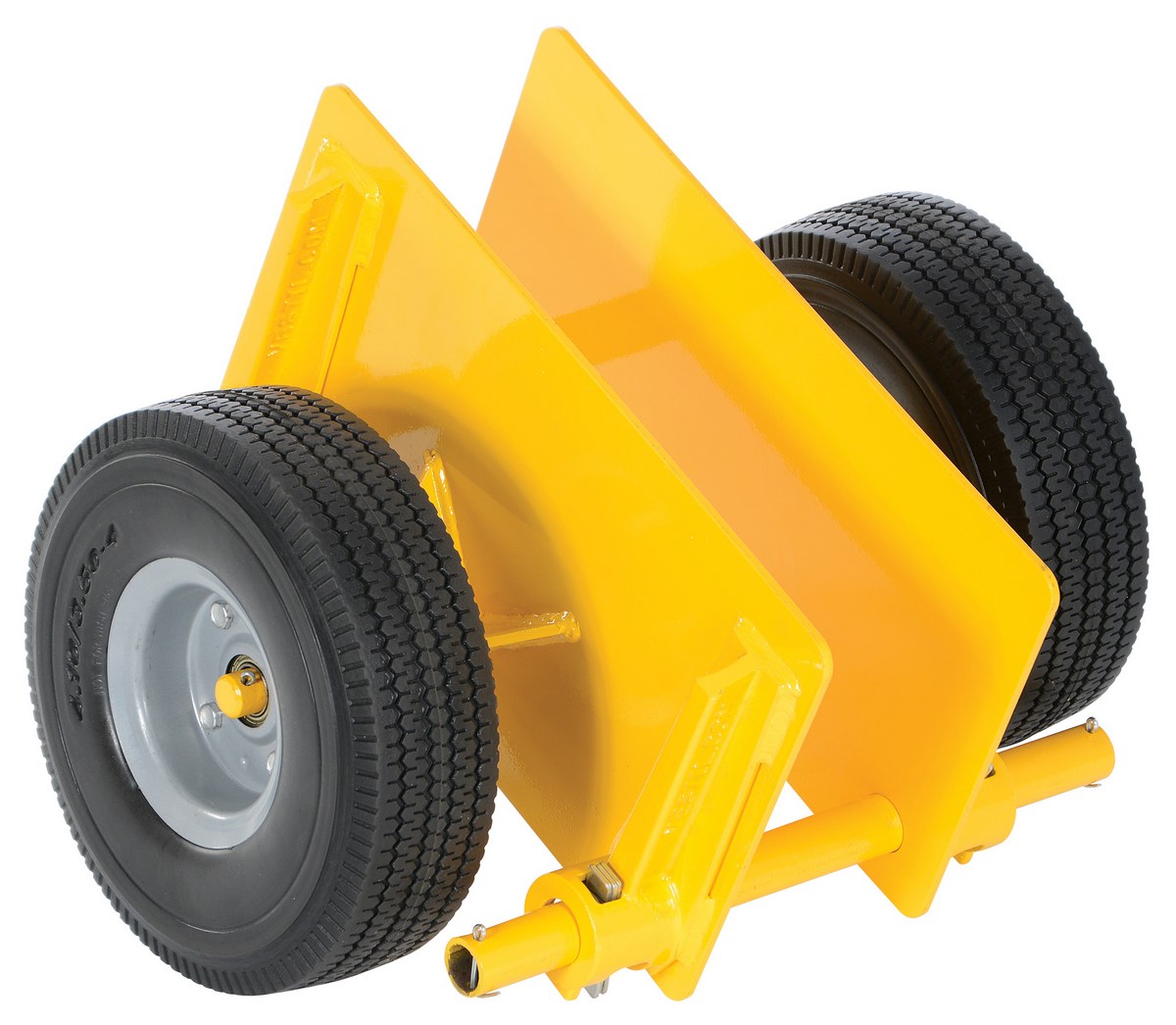

| PLDL-ADJ-10FF |  | 30 Days Limited Warranty | Steel Adjustable Panel Dolly With Foam Filled Wheels 20-7/8 In. x 15 In. x 11-1/2 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/8 | 37 | ||

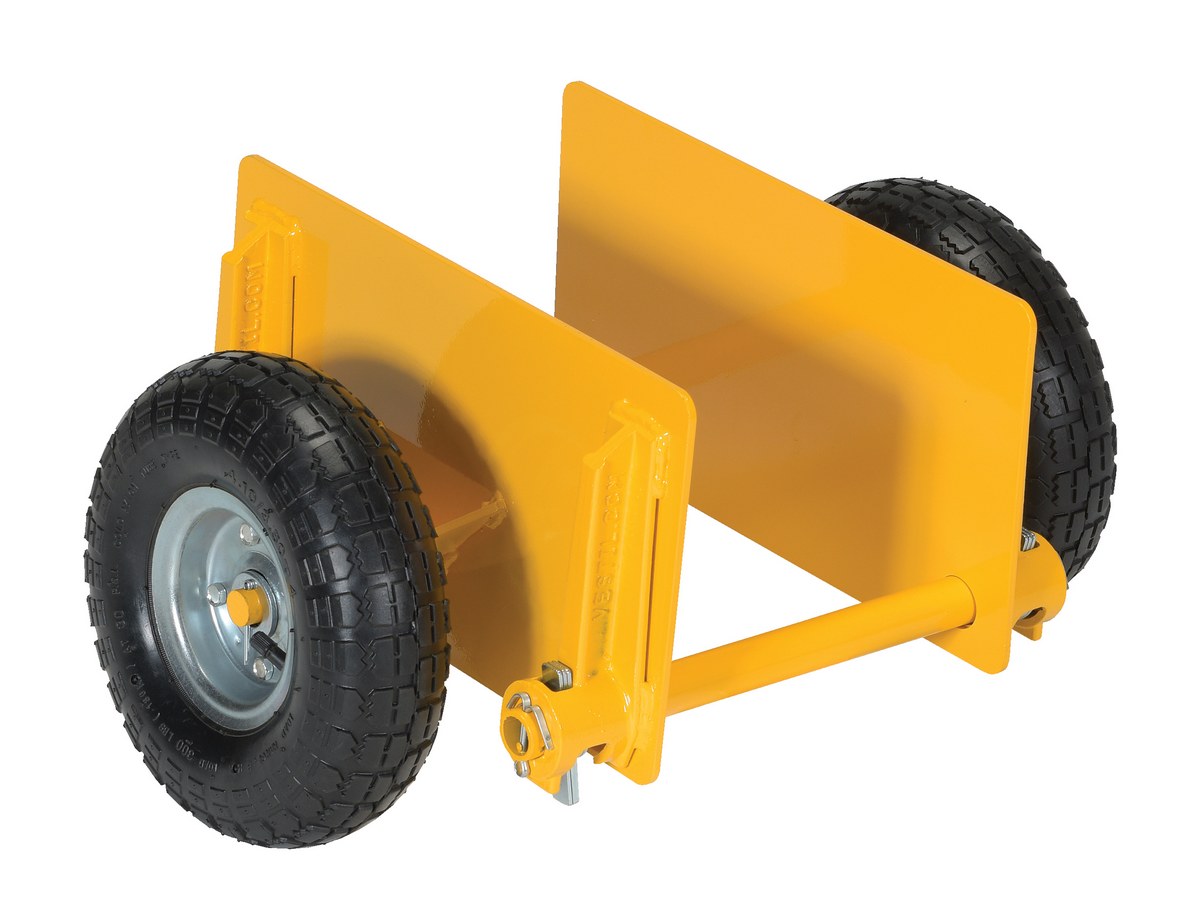

| PLDL-ADJ-10PN |  | 30 Days Limited Warranty | Steel Adjustable Panel Dolly With Pneumatic Wheels 20-7/8 In. x 15 In. x 11-1/2 In. 600 Lb. Capacity Yellow | Uniform Capacity (lb.): 600 Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/4 | 37 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Uniform Capacity (lb.): 1000
Caster Quantity/Diameter/Width (in.): (2) 8 x 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/8
Uniform Capacity (lb.): 500
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/4
Uniform Capacity (lb.): 600
Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/4
