Ultra-Spill Pallets & DecksLow Profile Spill Decks are designed to catch spills. Model VLPUT-2448, has a volume capacity of 11 gallons, while model VLPUT-4848 has an 22 gallon volume capacity. Grating is manufactured from chemical resistant polyethylene. Outer yellow sump is constructed of heavy-duty, 18.5 oz. PVC material-folds/rolls down easily for convenient storage. Removable decking standard. Quick and easy to assemble.
Drum Spill Pallets, series DR, industrial strength molded polyethylene pallets with unique patented grid pattern drainage deck captures container spills and leaks of expensive materials for reuse. Unique design minimizes sloshing when transporting. Excellent for collecting most hazardous products. Dozens of applications when coordinated with many other containment products.
Steel Retention Basin Carts
Overpack Containers
Vertical Steel Retention Basins with Separation Walls
Stackable Transport Pallets with Side RailsAdditional Models In This Family
VLPUT-BF
VLPUT-2448
DR-2-UT
DR-3-UT
VLPUT-4848
DR-4-UT
DR-1-UT
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

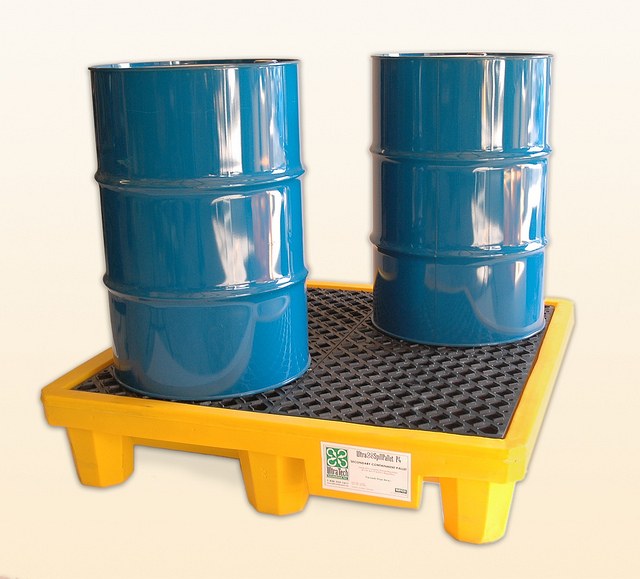

| DR-4-UT | | 1 Year Limited Warranty | Polyethylene Ultra Spill Pallet 4 Drum Capacity 6000 Lbs. Yellow | Uniform Capacity (lb.): 6,000 Sump Capacity (gal.): 66 | 90 | ||

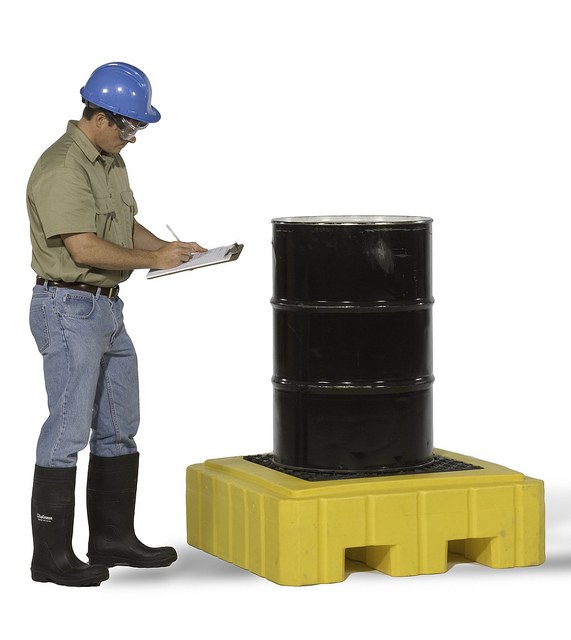

| DR-1-UT | | 1 Year Limited Warranty | Polyethylene Ultra Spill Pallet 1 Drum Capacity 800 Lbs. Yellow | Uniform Capacity (lb.): 800 Sump Capacity (gal.): 62 | 51 | ||

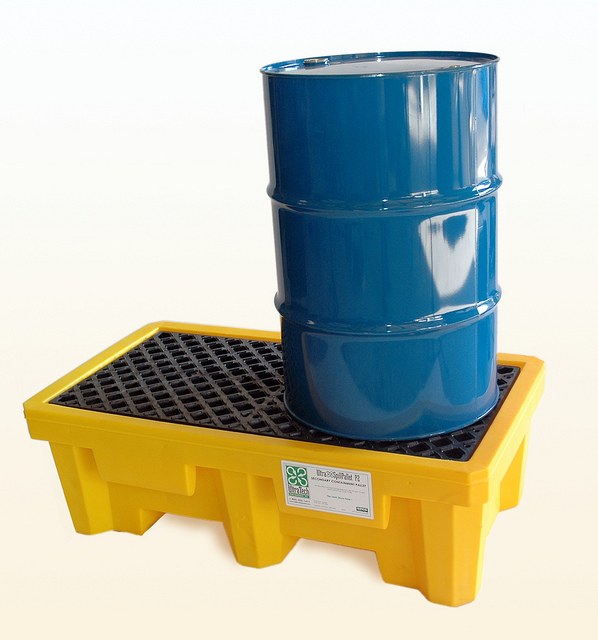

| DR-2-UT | | 1 Year Limited Warranty | Polyethylene Ultra Spill Pallet 2 Drum Capacity 3000 Lbs. Yellow | Uniform Capacity (lb.): 3,000 Sump Capacity (gal.): 66 | 63 | ||

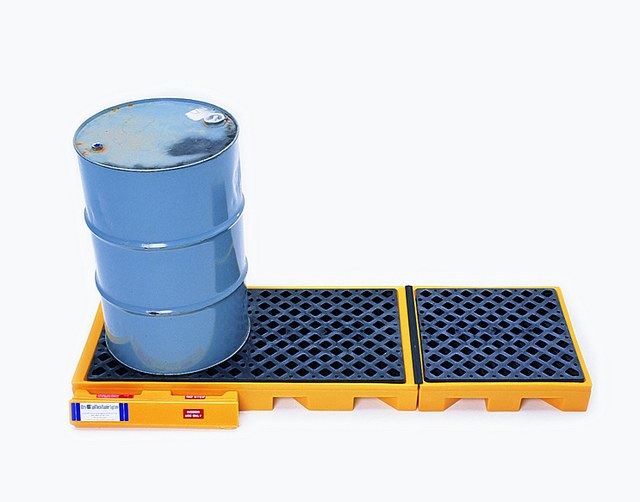

| DR-3-UT | | 1 Year Limited Warranty | Polyethylene Ultra Spill Pallet 3 Drum Capacity 4500 Lbs. Yellow | Uniform Capacity (lb.): 4,500 Sump Capacity (gal.): 99 | 117 | ||

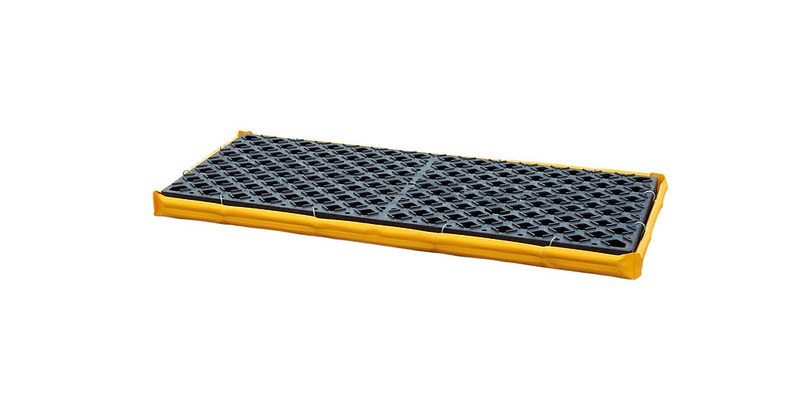

| VLPUT-2448 | | 1 Year Limited Warranty | Polyethylene Ultra Spill Containment Deck 24 In. x 48 In. 3,000 Lb./2 Drum Capacity Black | Uniform Capacity (lb.): 3,000 Sump Capacity (gal.): 11 | 22 | ||

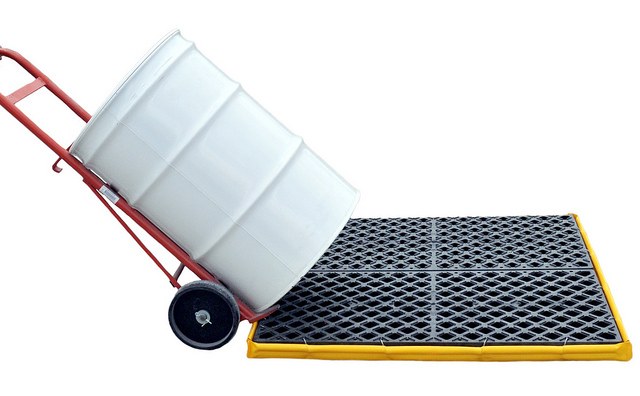

| VLPUT-4848 | | 1 Year Limited Warranty | Polyethylene Ultra Spill Containment Deck 48 In. x 48 In. 6,000 Lb./4 Drum Capacity Black | Uniform Capacity (lb.): 6,000 Sump Capacity (gal.): 22 | 44 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 66
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 66
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Sump Capacity (gal.): 62
Uniform Capacity (lb.): 800
Sump Capacity (gal.): 62
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 66
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 66
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,500
Sump Capacity (gal.): 99
Uniform Capacity (lb.): 4,500
Sump Capacity (gal.): 99
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 11
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 22
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 22
For More Details of the Option Click the Red Model Button

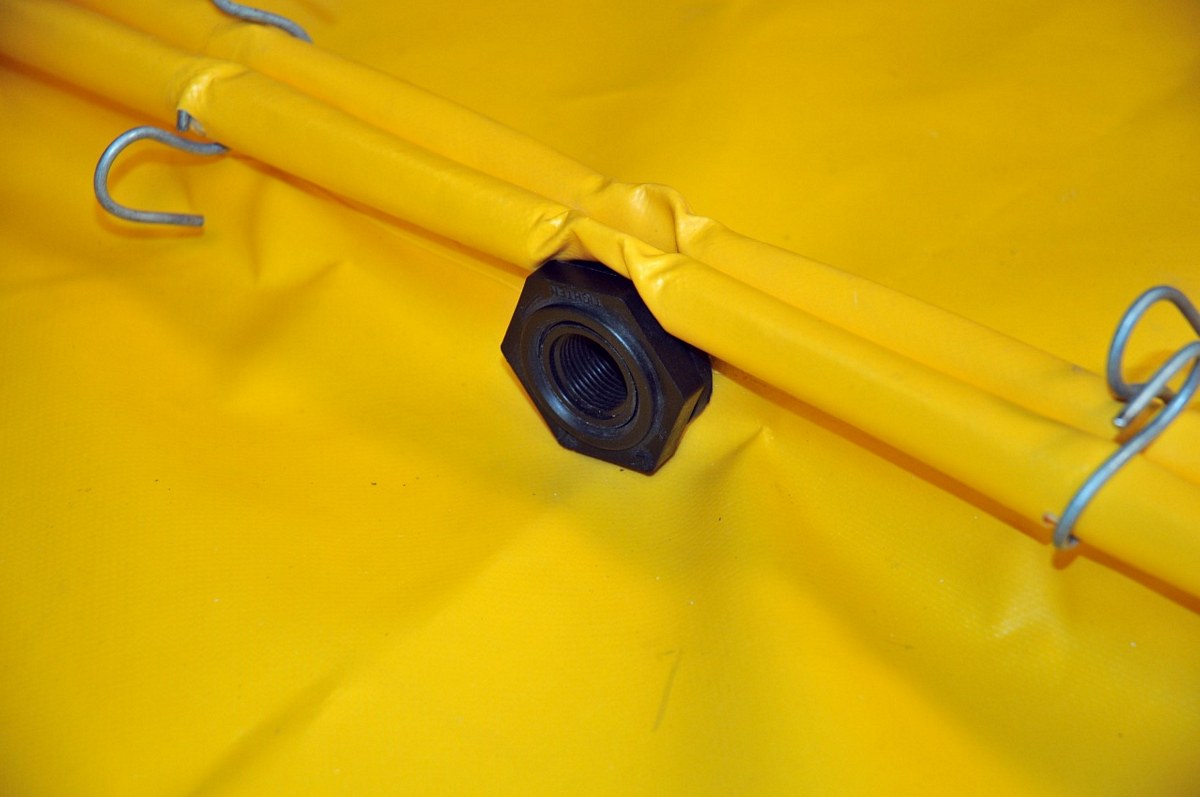

| VLPUT-BF | | 90 Days Limited Warranty | Polyethylene Bulkhead Fitting Flexible Spill Deck Black | CSA B125 Compliant: Exempt From Standard FM Approved: Exempt | 1 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Do these pallets have a drain plug?
A: Yes, the ultra spill pallets have a drain plug.
Q: What is the life expectancy of this spill pallet?
A: ) Expected lifespan is at least ten (10) years. You can expect longer, but the actual life is dependent on several factors. These pallets use the highest rated UV package in the resin formulation it uses to create the longest outdoor life available for a PE product. These pallets are designed for secondary spill containment for four 55-gal drums or smaller containers. They hold a total of 66-gal should one of the containers on the pallet were to fail and have either a leak or spill. Deterioration will depend on the application and what chemicals may come into contact with the LLDPE that is used to mold this pallet.
 |
|||||||||||||||||||||||||||||||||||||
